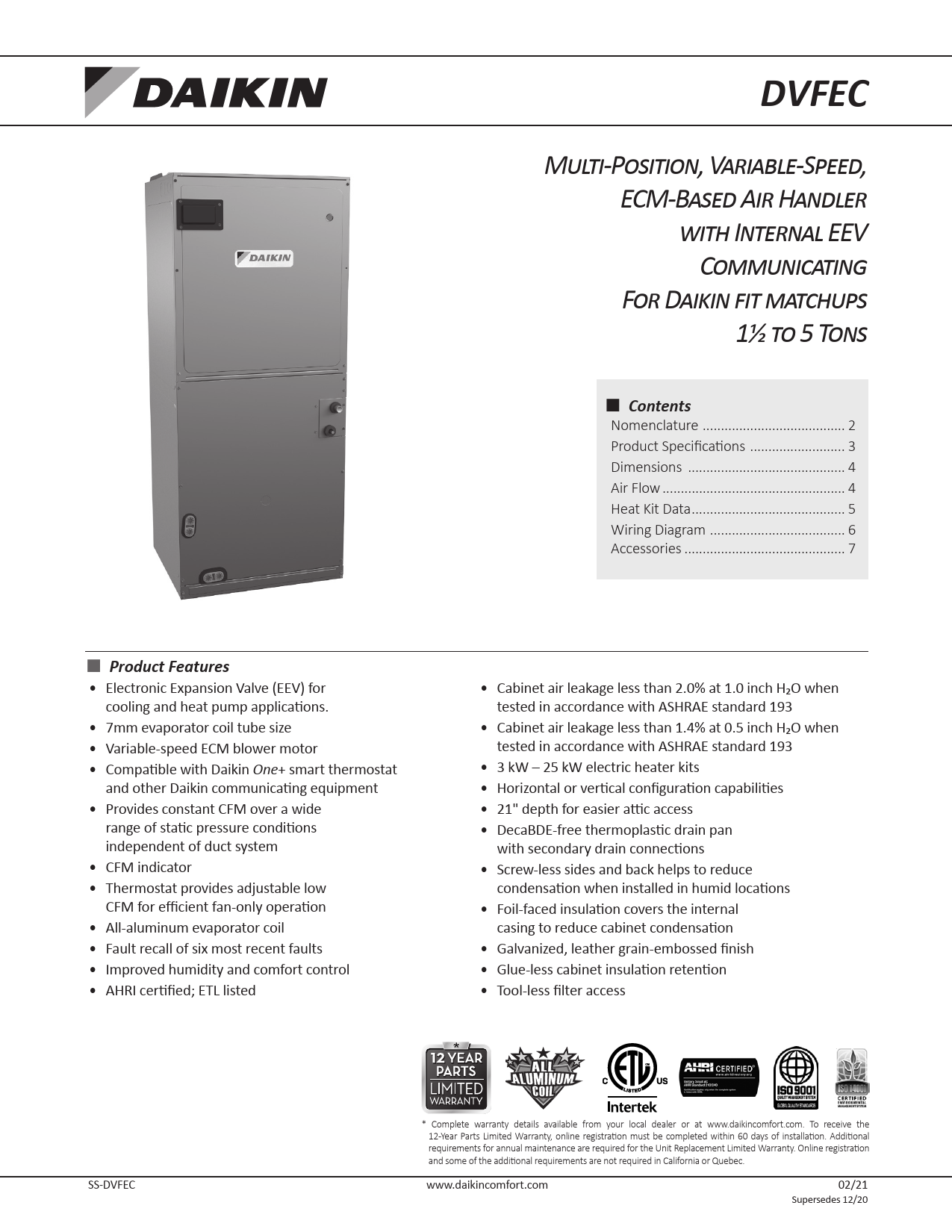

Daikin DVFEC Multi-Position, Variable-Speed, ECM-Based Air Handler

Product Features

• Electronic Expansion Valve (EEV) for cooling and heat pump applications.
• 7mm evaporator coil tube size
• Variable-speed ECM blower motor
• Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Thermostat provides adjustable low CFM for efficient fan-only operation
• All-aluminum evaporator coil
• Fault recall of six most recent faults
• Improved humidity and comfort control
• AHRI certified; ETL listed
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
• 3 kW - 25 kW electric heater kits
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access

Certifications and Warranty

This product is backed by a 12-Year Parts Limited Warranty, AHRI certified, and ETL listed.

Complete warranty details are available from your local dealer or at www.daikincomfort.com. Online registration within 60 days of installation is required for the 12-Year Parts Limited Warranty. Additional requirements for annual maintenance apply for the Unit Replacement Limited Warranty. Online registration and some additional requirements are not applicable in California or Quebec.

Certifications: 12 Year Parts Limited Warranty, Aluminum Coil, ETL Listed, AHRI Certified (AH210/240), ISO 9001 Quality Management System, ISO 14001 Certified Management System.

Nomenclature

The model number provides detailed information about the air handler's configuration. It is broken down as follows:

Model Code Breakdown:

Heat Kit Nomenclature:

Product Specifications

Dimensions and Airflow

The following diagrams illustrate the physical dimensions of the DVFEC air handler. Key dimensions are labeled A through H.

Diagram Description: The diagrams show the front and right side views of the air handler unit, detailing its overall height, width, and depth. Specific labels indicate the positions for suction and liquid line inlets, as well as horizontal and vertical drain port details.

Rated Indoor Airflow Rate [SCFM]

Note: The chart is for information only. For satisfactory operation, external static pressure must not exceed 0.5 wc. Unit may provide different SCFM during electrical heater operation. See IO manual for the airflow rate.

Heat Kit Data

The following table details the electrical specifications for various heat kits compatible with the DVFEC air handler. MCA (Minimum Circuit Ampacity) and MOP (Maximum Overcurrent Protection) values are provided for different circuits and voltages.

¹ Minimum Circuit Ampacity (Heater Amps + Motor Amps) X 1.25

² Maximum Overcurrent Protection = 2.25 X Motor Amps + Heater Amps

³ Notation is correct as XB because technically the 240V heater kit application can be used here without any issues.

* HKSC - Circuit breaker, HKSX - No Circuit breaker

* Revision level that may or may not be designated

^ Three-phase Heater Kits (Circuit 1: Single-phase for Air Handlers Circuit 2: Three-phase for Heater Kits)

--- indicates Not Required

Note: numbers above designated with two sets of numbers represents incoming voltage of 208 / 240. Example 18/21 is amperage rating at either 208 / 240 V.

Wiring Diagram

Diagram Description: The wiring diagram illustrates the electrical connections for the DVFEC air handler. It shows connections for the thermostat, disconnect, transformer, heater kits, and integrated control module. It includes notes explaining specific wiring procedures, safety warnings, and component/color codes.

Notes:

• 1. Place red wires on the 208 V terminal of transformer (TR1/TR2) for 208 VAC operation.
• 2. Manufacturer's specified replacement parts must be used when servicing.
• 3. If any original wires must be replaced, use wiring material with a temperature rating of at least 105°C. Use copper conductors only.
• 4. Unit must be permanently grounded and conform to N.E.C and local codes.
• 5. To recall the last 6 faults (most recent to least recent), depress the FAULT RECALL button for more than 2 seconds while in standby (no thermostat inputs).
• 6. Red status LED provides network status. Green RX LED indicates network traffic. Use LEARN button to reset network.
• 7. Discard connector PL1 when installing optional heat kit.
• 8. The position of selector switches (DS1-DS6) indicates factory setting.
• 9. Remove short red circuiting wire and install AUX ALARM switch when installing auxiliary alarm switch.
• Use N.E.C Class 2 wire.

Integrated Control:

• Low Voltage
• Low Voltage Field
• High Voltage
• High Voltage Field
• Junction Terminal -0-
• Internal TO
• Resistor-W
• Overcurrent Prot. Device
• Plug Connection
• Equipment GND
• Field Ground

Color Codes:

• BL - BLUE
• RD - RED
• YL - YELLOW
• OR - ORANGE
• BK - BLACK
• GY - GREY
• BR - BROWN
• GR - GREEN

Component Codes:

• PL1, PL2: Power/Heater Connector
• DS1 - DS6: Selector Switch
• TL: Thermal Limit
• TR: Transformer
• F1U, F2U: Fuse Link

Warning: High Voltage: Disconnect all power before servicing or installing this unit. Multiple power sources may be present. Failure to do so may cause property damage, personal injury, or death. ⚠️

Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.

Accessories

Downflow Kit

• DFKE-02
• DV24FECB14**
• DV36FECC14**
• DV42FECC14**
• DV48FECD14**
• DV60FECD14**

Condensate Management Kits*

• CMK0015
• DV24FECB14**
• DV36FECC14**
• DV42FECC14**
• DV48FECD14**
• CMK0016
• DV36FECC14**
• DV42FECC14**
• DV48FECD14**
• CMK0017
• DV60FECD14**

*For Horizontal application only.

High Humidity Kits

• HHK0001
• DV24FECB14**
• HHK0002
• DV36FECC14**
• DV42FECC14**
• HHK0003
• DV60FECD14**
• DV48FECD14**

MERV 15 Air Cleaners

Permanent 1" Filters

Single Point Kit **

** Must be installed along with any of the above compatible heat kits. This kit will fit any DVPTC air handler as long as a compatible heat kit is installed in the unit.

15" Single Lamp UV Coil Purifier

Drain Port Plug

Notes

Our continuing commitment to quality products may mean a change in specifications without notice.
