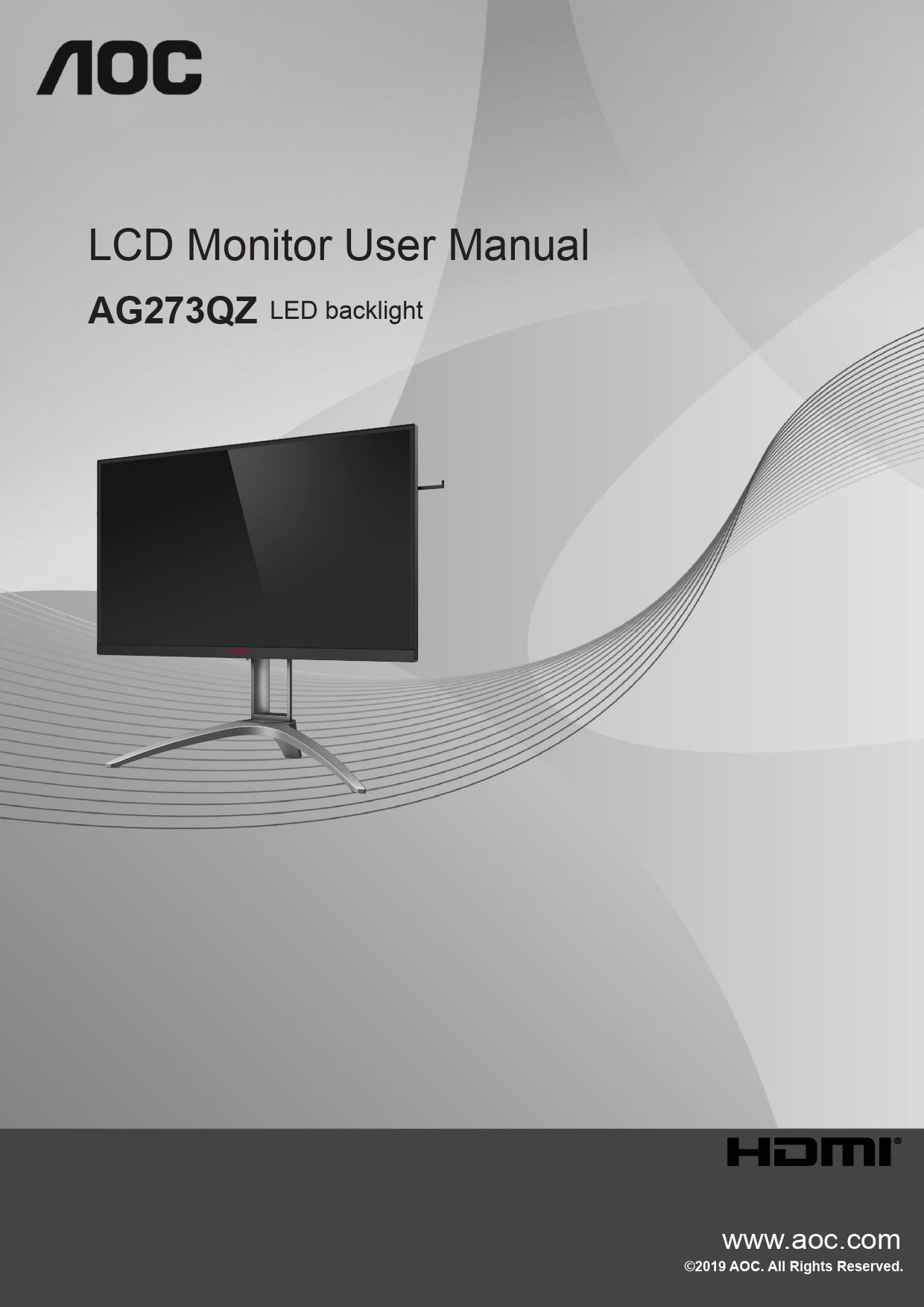

LCD Monitor User Manual
AG273QZ LED backlight
www.aoc.com
1 �2019 AOC. All Rights Reserved.

Safety.................................................................................................................................................................................... 1 National Conventions................................................................................................................................................. 1 Power......................................................................................................................................................................... 2 Installation.................................................................................................................................................................. 3 Cleaning..................................................................................................................................................................... 4 Other.......................................................................................................................................................................... 5
Setup..................................................................................................................................................................................... 6 Contents in Box.......................................................................................................................................................... 6 Setup Stand & Base................................................................................................................................................... 7 Adjusting the monitor................................................................................................................................................. 8 Connecting the Monitor.............................................................................................................................................. 9 Adaptive-Sync function............................................................................................................................................ 10 HDR..........................................................................................................................................................................11
Adjusting.............................................................................................................................................................................. 12 Hotkeys.................................................................................................................................................................... 12 Quick Switch............................................................................................................................................................ 13 OSD Key Guide (Menu)........................................................................................................................................... 14 OSD Setting............................................................................................................................................................. 16 Game Setting................................................................................................................................................ 17 Luminance.................................................................................................................................................... 18 Image Setup ................................................................................................................................................ 19 Color Setup................................................................................................................................................... 20 Audio............................................................................................................................................................. 21 Light FX........................................................................................................................................................ 22 Extra............................................................................................................................................................. 23 OSD Setup.................................................................................................................................................... 24 LED Indicator........................................................................................................................................................... 25
Troubleshoot........................................................................................................................................................................ 26 Specification........................................................................................................................................................................ 27
General Specification............................................................................................................................................... 27 Preset Display Modes.............................................................................................................................................. 28 Pin Assignments....................................................................................................................................................... 29 Plug and Play........................................................................................................................................................... 30
i

Safety
National Conventions
The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem.Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority.
1

Power
The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.
Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.
Do not overload power strips and extension cords. Overloading can result in fire or electric shock. To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100-240V AC, Min. 5A. The wall socket shall be installed near the equipment and shall be easily accessible.
2

Installation
Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.
Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electric shock. Never spill liquids on the monitor.
Do not place the front of the product on the floor.
If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.
Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence overheating may cause a fire or damage to the monitor.
See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on the stand:
Installed with stand
Installed with stand
12 inches 30cm

4 inches 10cm

4 inches 10cm
Leave at lease this space around the set

4 inches 10cm

Cleaning
Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet.
When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.
Please disconnect the power cord before cleaning the product.
4

Other
If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation.
5

Setup
Contents in Box

CD Manual

Warranty card

Stand

Screws

Base

Hand Screw

Wire clip

*** *

Quick Switch Keypad Power Cable

DP Cable

HDMI Cable

USB Cable

Micphone Cable

Not all signal cables (DP, HDMI, USB and Micphone cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.

Setup Stand & Base
Please setup or remove the base following the steps as below. Setup:
Remove:
7

Adjusting the monitor
For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. You are able to adjust the monitor as below:
-5� 23�

30�

110mm
90�

NOTE: Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

Connecting the Monitor
Cable Connections In Back of Monitor and Computer:

1. Microphone in 2. Earphone (Combined with Microphone) 3. USB3.2 Gen1 downstream + fast charging(BC1.2) 4. USB3.2 Gen1 downstream 5. USB3.2 Gen1 upstream 6. AC in 7. HDMI 8. DP 9. Microphone out (Connect to PC) 10. Quick Switch port
Connect to PC
1. Connect the power cord to the back of the display firmly. 2. Turn off your computer and unplug its power cable. 3. Connect the display signal cable to the video connector on the back of your computer. 4. Plug the power cord of your computer and your display into a nearby outlet. 5. Turn on your computer and display. If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.
To protect equipment, always turn off the PC and LCD monitor before connecting.

Adaptive-Sync function
1. Adaptive-Sync function is working with DP/HDMI 2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www.AMD.com � RadeonTM RX Vega series � RadeonTM RX 500 series � RadeonTM RX 400 series � RadeonTM R9/R7 300 series (excluding R9 370/X) � RadeonTM Pro Duo (2016 edition) � RadeonTM R9 Nano � RadeonTM R9 Fury series � RadeonTM R9/R7 200 series (excluding R9 270/X, R9 280/X)
10

HDR
It is compatible with input signals in HDR10 format. The display may automatically activate the HDR function if the player and content are compatible. Please contact the device manufacturer and the content provider for information on the compatibility of your device and content. Please select "OFF" for the HDR function when you have no need for automatical activation function. Note: 1. No special setting is needed for the DisplayPort/HDMI interface in WIN10 versions lower (older) than V1703. 2. Only the HDMI interface is available and the DisplayPort interface cannot function in WIN10 version V1703. 3. 3840x2160 @50Hz /60Hz not suggestion used in PC device only for UHD player or Xbox-ones / PS4-Pro. a. The display resolution is set to 3840*2160, and HDR is preset to ON. Under these conditions, the screen may slightly
dim, indicating HDR has been activated. b. After entering an application, the best HDR effect can be achieved when the resolution is changed to 3840*2160 (if
available).
11

Adjusting
Hotkeys

3 2

1
4 5

1 Source/Up 2 Dial Point/Down 3 Game Mode/Left 4 Light FX /Right 5 Power/ Menu/Enter
Power/Menu/Enter Press the Power button to turn on the monitor. When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 seconds to turn off the monitor.
Dial Point/Down When there is no OSD, press Dial Point button to show / hide Dial Point.
Game Mode/Left When there is no OSD, press "Left" key to open game mode function, then press "Left" or "Right" key to select game mode (FPS, RTS, Racing, Gamer 1, Gamer 2 or Gamer 3) basing on the different game types.
Light FX/Right When there is no OSD, press "Right" key to active Light FX function.
Source/Up When the OSD is closed, press Source/Up button will be Source hot key function.

Quick Switch
: When there is no OSD, press the button to open game mode function, then press or key to select game mode (FPS, RTS, Racing, Gamer 1, Gamer 2 or Gamer 3) basing on the different game types. : When there is no OSD, press "Right" key to active Light FX function. Menu/OK: When there is no OSD, Press to display the OSD or confirm the selection. : When the OSD is closed, press button will be Source hot key function. : When there is no OSD, press Dial Point button to show / hide Dial Point. 1: Press the 1 button to select Gamer 1 mode 2: Press the 2 button to select Gamer 2 mode 3: Press the 3 button to select Gamer 3 mode Press to go back to the previous selection.
13

OSD Key Guide (Menu)

Enter

Move

Enter : Use Enter key to enter the next OSD level Move : Use Left / Up / Down key to move OSD selection Exit : Use Right key to exit OSD

Exit

Enter

Move

Enter : Use Enter key to enter the next OSD level Move : Use Right / Up / Down key to move OSD selection Exit : Use Left key to exit OSD

Exit

Enter

Move

Enter : Use Enter key to enter the next OSD level Move : Use Up / Down key to move OSD selection Exit : Use Left key to exit OSD

Exit

Enter

Move

Move : Use Left / Right / Up / Down Key to move OSD selection

Exit

Enter

Exit : Use Left key to exit OSD to previous OSD level Enter : Use Right key to enter next OSD level Select : Use Up / Down key to move OSD selection

Select

Enter

Select

Enter : Use Enter key to apply the OSD setting and back to previous OSD level Select : Use Down key to adjust OSD setting

Enter
Select : Use Up / Down key to adjust OSD setting
Enter
Enter : Use Enter key to exit OSD to previous OSD level Select : Use Left / Right key to adjust OSD setting

Select Select

OSD Setting
Basic and simple instruction on the control keys.

Image Setup

Color Setup

Audio

Light FX

Audio

Light FX

Extras

OSD Setup

Enter

Move

Exit

Enter

Move

Exit

1). Press the MENU-button to activate the OSD window. 2). Follow Key Guide to move or select (adjust) OSD settings 3). OSD Lock/Unlock Function: To lock or unlock the OSD, press and hold the Down�button for 10s while OSD function
is not active.
Notes:
1). If the product has only one signal input, the item of "Input Select" is disable to adjust. 2). ECO modes (except Standard mode), DCR and DCB mode , for these three states that only one state can exist.

Game Setting

Game Mode

Off

Shadow Control

Game Color

MBR

Adaptive-Sync

Overdrive

Off

Low Input Lag

QuickSwitch LED

Frame Counter

Off

Exit

Enter

Select

Game Mode
Shadow Control
Game Color MBR Adaptive-Sync Overdrive Low Input lag QuickSwitch LED Frame Counter

FPS RTS Racing Gamer 1 Gamer 2 Gamer 3 off
0-100
0-20 0-20 On / Off Weak/Medium/ Strong/Boost/Off On / Off On / Off Off / Right-Up / Right-Down / LeftDown / Left-Up

For playing FPS (first Person Shooters) games. Improves dark theme black level details. For playing RTS (Real Time Strategy). Improves the image quality. For playing Racing games, Provides fastest response time and high color saturation. User's preference settings saved as Gamer 1.
User's preference settings saved as Gamer 2.
User's preference settings saved as Gamer 3.
No optimization by Smart image game. Shadow Control Default is 50, then end-user can adjust from 50 to 100 or 0 to increase contrast for clear picture. If picture is too dark to be saw the detail clearly, adjusting from 50 to 100 for clear picture. If picture is too white to be saw the detail clearly, adjusting from 50 to 0 for clear picture. Game Color will provide 0-20 level for adjusting saturation to get better picture.
Adjust the Motion Blur Reduction.
Disable or Enable Adaptive-Sync.
Adjust the response time.
Turn off frame buffer to decrease input lag.
Disable or Enable QuickSwitch LED.
Display V frequency on the corner selected. (Frame counter feature only works with AMD graphic card.)

Note:
1) The function MBR and Overdrive Boost are avdilable only when Adaptive-Sync is off and the vertical frequency is up to 75Hz. 2) The screen brightness will be reduced when adjusting MBR or Over driver setting to Boost. 3) When HDR is set to "non-off" under "Image Settings" and the input source has HDR content, "Game Mode", "Shadow Control", "Game Color", "MBR" items cannot be adjusted under "Game Settings". "Boost" under "Overdrive" is not available.
Luminance

Luminance

Contrast

Brightness

ECO Mode Gamma

Standard Gamma1

DCR

Off

Exit

Enter

Select

Contrast Brightness
Eco mode
Gamma DCR

0-100 0-100 Standard Text Internet Game Movie Sports Reading Gamma1 Gamma2 Gamma3 Off/On

Contrast from Digital-register. Backlight Adjustment Standard Mode Text Mode Internet Mode Game Mode Movie Mode Sports Mode Reading Mode Adjust to Gamma 1 Adjust to Gamma 2 Adjust to Gamma 3 Disable/ Enable dynamic contrast ratio

Note: When the HDR setting under "Image Settings" is set to "non-off" and the input source has HDR content, "Luminance "is not adjustable.

Image Setup

HDR HDR HDR HDR Mode

Auto Off

Exit

Enter

Select

HDR

Off / DisplayHDR / HDR Picture / HDR Movie / HDR Game

Disable or Enable HDR

HDR Mode

Off / HDR Picture

/ HDR Movie /

Disable or Enable HDR Mode

HDR Game

Note: When HDR is detected, the HDR option is displayed for adjustment; when HDR is not detected, the HDR Mode option is displayed for adjustment.

Color Setup

LowBlue Mode Color Temp. DCB Mode DCB Demo Red

Off Warm
Off Off 50

Green

Blue

Exit

Enter

Select

LowBlue Mode Color Temp.
DCB Mode DCB Demo

Off / Multimedia / Internet / Office / Reading
Warm

Normal

Cool
sRGB
User
Full Enhance Nature Skin Green Field Sky-blue AutoDetect

Red Green Blue on or off
on or off
on or off on or off
on or off
on or off

Decrease blue light wave by controlling color temperature.
Recall Warm Color Temperature from EEPROM.
Recall Normal Color Temperature from EEPROM.
Recall Cool Color Temperature from EEPROM.
Recall SRGB Color Temperature from EEPROM.
Red Gain from Digital-register Green Gain Digital-register. Blue Gain from Digital-register Disable or Enable Full Enhance Mode Disable or Enable Nature Skin Mode Disable or Enable Green Field Mode Disable or Enable Sky-blue Mode Disable or Enable AutoDetect Mode Disable or Enable Demo

Note: When the HDR setting under "Image Settings" is set to "non-off" and the input source has HDR content, all items under "Color Setup" cannot be adjusted.

Audio

Volume

DTS Sound

Off

TruVolume HD

Off

200Hz

500Hz

2.5KHz

7KHz

10KHz

Exit

Enter

Select

Volume DTS Sound TruVolume HD

0-100
Game / Rock / Classical / Live / Theater / Off
On / Off

200Hz

0-100

500Hz

0-100

2.5KHz

0-100

7KHz

0-100

10KHz

0-100

Adjust volume setting
Select DTS Sound mode. Note: It may take up to 2 seconds to switch modes.
Disable or Enable TruVolume HD.
Low frequency base audio, also the root audio frequency of the chord in the tone. Mainly used to express vocals (eg. singing, reading), Strengthen the thickness and strength of vocals. This frequency has a strong penetrating power and can be improved to improve the brightness and clarity of the sound.
Enhance the clarity of vocals.
The high-pitched area of music is most sensitive to the highfrequency performance of the sound.

Light FX

Light FX Light FX Mode Pattern R Foreground R G Foreground G B Foreground B R Background R G Background G B Background B

Off Breathing Rainbow
50 50 50 50 50 50

Exit

Enter

Select

Light FX
Light FX Mode
Pattern Foreground R Foreground G Foreground B Background R Background G Background B

Off / Low / Medium / Strong
Audio/Static/Simple Shift/ Gradient Shift/Simple Filling/1 Way Filling/2 Way Filling/Breathing/Motion Point/Zoom/Discolor/ Water Wave/Flashing/ Demo
Red / Green / Blue / User Define

Select the intensity of Light FX. Select Light FX Mode Select Light FX Pattern

0-100

User can adjust Light FX foreground color, when Pattern setting to user define

0-100

User can adjust Light FX background color, when Pattern setting to user define

Extra

Input Select

Auto

Off Timer

Image Ratio

Wide

DDC/CI

Yes

Reset

Resolution:1920(H)x1080(V) SDR H.Frequency:34 KHz V.Frequency:60 Hz

Exit

Enter

Select

Input Select Off timer
Image Ratio
DDC/CI Reset

AUTO/HDMI1/HDMI2/DP1/ DP2

Select Input Signal Source

0-24hrs

Select DC off time

Wide / 4:3 / 1:1 / 17"(4:3) / 19"(4:3) / 19"(5:4) / 19"W(16:10) / 21.5"W(16:9) / 22"W(16:10) / 23"W(16:9) / 23.6"W(16:9) / 24"W(16:9)

Select image ratio for display.

Yes or No

Turn ON/OFF DDC/CI Support

Yes or No

Reset the menu to default

OSD Setup

Language Timeout DP Capability H.Position V.Position Transparence

English 110
1.2/1.4 100 100 100

Break Reminder

Off

Exit

Enter

Select

Language Timeout
DP Capability
H. Position V. Position Transparence Break Reminder

5-120 1.1/1.2/1.4 0-100 0-100 0-100 on /off

Select the OSD language Adjust the OSD Timeout please be noted that only DP1.2/DP1.4 support Adaptive-sync function Adjust the horizontal position of OSD Adjust the vertical position of OSD Adjust the transparence of OSD Break reminder if the user continuously work for more than 1hrs

Note: If the DP video content supports DP1.2/DP1.4, please select DP1.2/DP1.4 for DP Capability; otherwise, please select DP1.1

LED Indicator

Status Full Power Mode Active-off Mode

LED Color Red Orange

Troubleshoot

Problem & Question Power LED Is Not ON
No images on the screen

Possible Solutions
Make sure the power button is ON and the Power Cord is properly connected to a grounded power outlet and to the monitor.
Is the power cord connected properly? Check the power cord connection and power supply. Is the cable connected correctly? (Connected using the D-SUB cable) Check the D-SUB cable connection. (Connected using the HDMI cable) Check the HDMI cable connection. (Connected using the DP cable) Check the DP cable connection. *D-SUB/HDMI/DP input is not available on every model. If the power is on, reboot the computer to see the initial screen (the login screen), which can be seen. If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows 7/8/10) and then change the frequency of the video card. (Refer to the Setting the Optimal Resolution) If the initial screen (the login screen) does not appear, contact the Service Center or your dealer. Can you see "Input Not Supported" on the screen? You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly. Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed.

Picture Is Fuzzy & Has Ghosting Shadowing Problem

Adjust the Contrast and Brightness Controls. Press to auto adjust. Make sure you are not using an extension cable or switch box. We recommend plugging the monitor directly to the video card output connector on the back.

Picture Bounces, Flickers Or Wave Pattern Appears In The Picture
Monitor Is Stuck In Active OffMode"
Missing one of the primary colors (RED, GREEN, or BLUE)

Move electrical devices that may cause electrical interference as far away from the monitor as possible. Use the maximum refresh rate your monitor is capable of at the resolution you are using. The Computer Power Switch should be in the ON position. The Computer Video Card should be snugly fitted in its slot. Make sure the monitor's video cable is properly connected to the computer. Inspect the monitor's video cable and make sure no pin is bent. Make sure your computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.
Inspect the monitor's video cable and make sure that no pin is damaged. Make sure the monitor's video cable is properly connected to the computer.

Screen image is not centered or sized properly

Adjust H-Position and V-Position or press hot-key (AUTO).

Picture has color defects (white does not look white)

Adjust RGB color or select desired color temperature.

Horizontal or vertical disturbances on the screen

Use Windows 7/8/10 shut-down mode to adjust CLOCK and FOCUS. Press to auto-adjust.

Specification

General Specification

Panel Others

Model name Driving system Viewable Image Size Pixel pitch Separate Sync. Display Color
Horizontal scan range
Horizontal scan Size(Maximum)
Vertical scan range
Vertical Scan Size(Maximum) Optimal preset resolution
Max resolution
Plug & Play Power Source

Power Consumption

Physical

Connector Type

Characteristics Signal Cable Type

Temperature

Environmental Humidity

Altitude

AG273QZ TFT Color LCD 68.5 cm diagonal 0.2331mm(H) x 0.2331mm(V) H/V TTL 16.7M Colors 30~230kHz (HDMI) 30~360kHz (DP) 596.736 mm 48~144Hz (HDMI) 48~240Hz (DP) 335.664 mm

2560 x 1440@60Hz

2560 x 1440@144Hz (HDMI)

2560 x 1440@240Hz (DP)

VESA DDC2B/CI

100-240V~, 1.5A, 50/60Hz

Typical (default brightness and contrast) 52W

Max. (Brightness = 100, contrast =100) 110W

Power saving

0.5W

HDMI/ DP/ Earphone out/ Microphone In

Detachable

Operating

0�~ 40�

Non-Operating

-25�~ 55�

Operating

10% ~ 85% (non-condensing)

Non-Operating

5% ~ 93% (non-condensing)

Operating

0~ 5000 m (0~ 16404ft )

Non-Operating

0~ 12192m (0~ 40000ft )

Preset Display Modes

STANDARD
VGA VGA VGA VGA VGA VGA DOS MODE DOS MODE SD SVGA SVGA SVGA SVGA SVGA SVGA SVGA XGA XGA XGA XGA XGA SXGA SXGA Full HD QHD QHD QHD QHD (for DP) QHD (for DP) QHD (for DP)

RESOLUTION
640x480@60Hz 640x480@67Hz 640x480@72Hz 640x480@75Hz 640x480@100Hz 640x480@120Hz 720x400@70Hz 720x480@60Hz 720x576@50Hz 800x600@56Hz 800x600@60Hz 800x600@72Hz 800x600@75Hz 800x600@100Hz 800x600@120Hz 832x624@75Hz 1024x768@60Hz 1024x768@70Hz 1024x768@75Hz 1024x768@100Hz 1024x768@120Hz 1280x1024@60Hz 1280x1024@75Hz 1920x1080@60Hz 2560x1440@60Hz 2560x1440@120Hz 2560x1440@144Hz 2560x1440@165Hz 2560x1440@200Hz 2560x1440@240Hz

HORIZONTAL FREQUENCY(kHz)
31.469 35
37.861 37.5 51.08 61.91
31.469 29.855 31.25 35.156 37.879 48.077 46.875 63.684 76.302 49.725 48.363 56.476 60.023 81.577 97.551 63.981 79.975
67.5 88.787 182.997 222.056 242.550 294.000 352.803

VERTICAL FREQUENCY(Hz)
59.94 66.667 72.809
75 99.769 119.518 70.087 59.710
50 56.25 60.317 72.188
75 99.662 119.97 74.551 60.004 70.069 75.029 99.972 119.989 60.02 75.025
60 59.951 119.998 143.912 165.000 200.000 240.002

Pin Assignments

19-Pin Color Display Signal Cable

Pin No. Signal Name

TMDS Data 2+

TMDS Data 2 Shield

TMDS Data 2-

TMDS Data 1+

TMDS Data 1Shield

TMDS Data 1-

TMDS Data 0+

TMDS Data 0 Shield

Pin No. Signal Name

TMDS Data 0-

17. DDC/CEC Ground

10.

TMDS Clock +

18. +5V Power

11.

TMDS Clock Shield

19. Hot Plug Detect

12.

TMDS Clock-

13.

CEC

14.

Reserved (N.C. on device)

15.

SCL

16.

SDA

20-Pin Color Display Signal Cable

Pin No. 1 2 3 4 5 6 7 8 9 10

Signal Name ML_Lane 3 (n) GND ML_Lane 3 (p) ML_Lane 2 (n) GND ML_Lane 2 (p) ML_Lane 1 (n) GND ML_Lane 1 (p) ML_Lane 0 (n)

Pin No. 11 12 13 14 15 16 17 18 19 20

Signal Name GND ML_Lane 0 (p) CONFIG1 CONFIG2 AUX_CH(p) GND AUX_CH(n) Hot Plug Detect Return DP_PWR DP_PWR

Plug and Play
Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the DDC2B channel.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Sound is a trademark of DTS, Inc. � DTS, Inc. All Rights Reserved.
30
