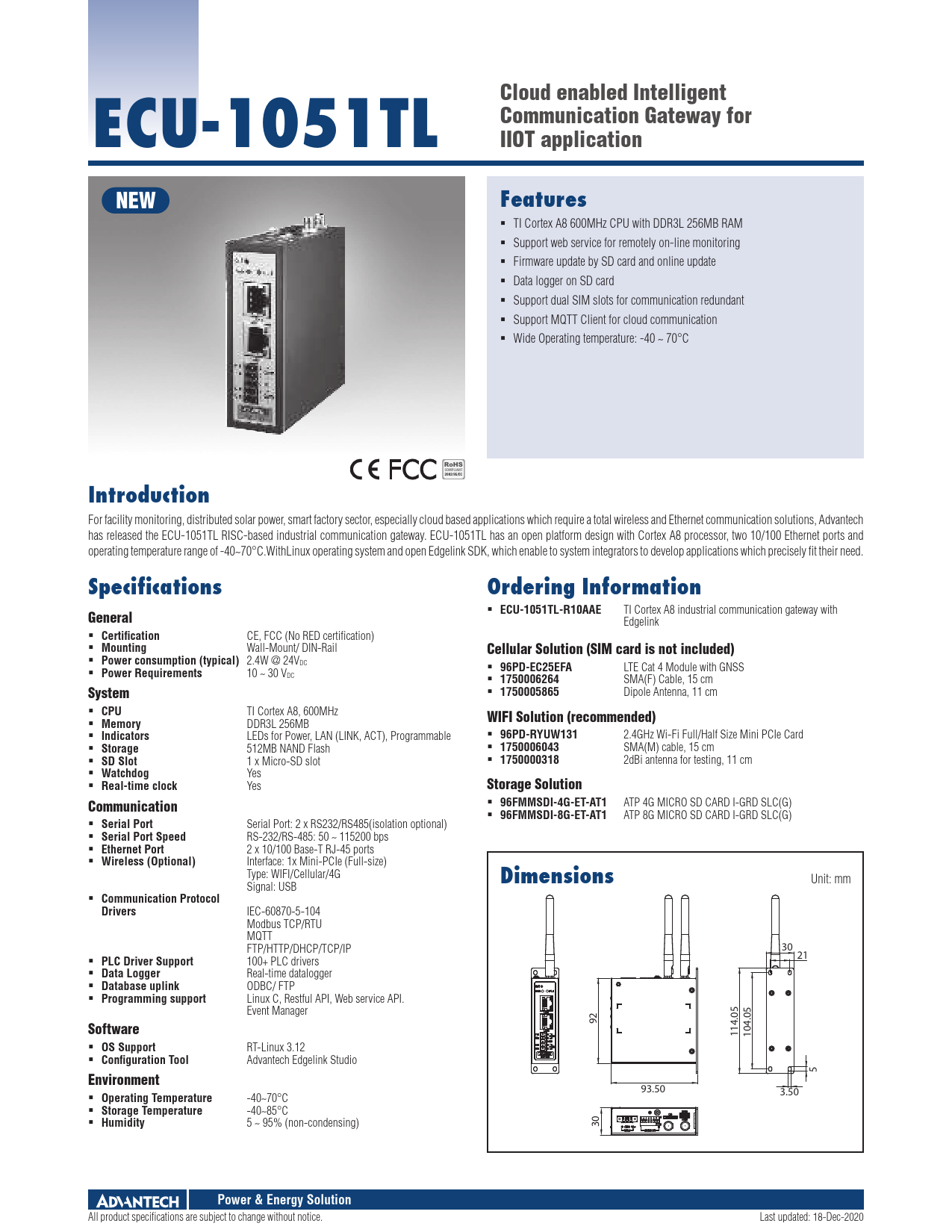

ECU-1051TL
Cloud enabled Intelligent Communication Gateway for IIOT application
Product Overview
The Advantech ECU-1051TL is a RISC-based industrial communication gateway designed for facility monitoring, distributed solar power, and smart factory sectors. It is ideal for cloud-based applications requiring robust wireless and Ethernet communication. The gateway features an open platform with a Cortex A8 processor, dual 10/100 Ethernet ports, and a wide operating temperature range of -40°C to 70°C. It runs on a Linux operating system and includes the open EdgeLink SDK, enabling system integrators to develop tailored applications.
Key Features
- TI Cortex A8 600MHz CPU with DDR3L 256MB RAM
- Support for web service for remotely on-line monitoring
- Firmware update via SD card and online update
- Data logger functionality on SD card
- Support for dual SIM slots for communication redundancy
- MQTT Client support for cloud communication
- Wide operating temperature range: -40°C to 70°C
Specifications
| Category | Specification | Details |
|---|---|---|
| General | Certification | CE, FCC (No RED certification) |
| Mounting | Wall-Mount / DIN-Rail | |
| Power Consumption (typical) | 2.4W @ 24VDC | |
| Power Requirements | 10 ~ 30 VDC | |
| System | CPU | TI Cortex A8, 600MHz |
| Memory | DDR3L 256MB | |
| Indicators | LEDs for Power, LAN (LINK, ACT), Programmable | |
| Storage | 512MB NAND Flash | |
| SD Slot | 1 x Micro-SD slot | |
| Watchdog | Yes | |
| Real-time clock | Yes | |
| Communication | Serial Port | 2 x RS232/RS485 (isolation optional) |
| Serial Port Speed | RS-232/RS485: 50 ~ 115200 bps | |
| Ethernet Port | 2 x 10/100 Base-T RJ-45 ports | |
| Wireless (Optional) | Interface: 1x Mini-PCIe (Full-size) Type: WIFI/Cellular/4G Signal: USB |
|
| Communication Protocol Drivers | IEC-60870-5-104, Modbus TCP/RTU, MQTT, FTP/HTTP/DHCP/TCP/IP | |
| Additional Features | PLC Driver Support | 100+ PLC drivers |
| Data Logger | Real-time datalogger | |
| Database Uplink | ODBC/FTP | |
| Programming Support | Linux C, Restful API, Web service API, Event Manager | |
| Software | OS Support | RT-Linux 3.12 |
| Configuration Tool | Advantech EdgeLink Studio | |
| Environment | Operating Temperature | -40 ~ 70°C |
| Storage Temperature | -40 ~ 85°C | |
| Humidity | 5 ~ 95% (non-condensing) |
Ordering Information
Base Model
- ECU-1051TL-R10AAE: TI Cortex A8 industrial communication gateway with EdgeLink
Cellular Solution (SIM card is not included)
- 96PD-EC25EFA: LTE Cat 4 Module with GNSS
- 1750006264: SMA(F) Cable, 15 cm
- 1750005865: Dipole Antenna, 11 cm
WIFI Solution (recommended)
- 96PD-RYUW131: 2.4GHz Wi-Fi Full/Half Size Mini PCIe Card
- 1750006043: SMA(M) cable, 15 cm
- 1750000318: 2dBi antenna for testing, 11 cm
Storage Solution
- 96FMMSDI-4G-ET-AT1: ATP 4G MICRO SD CARD I-GRD SLC(G)
- 96FMMSDI-8G-ET-AT1: ATP 8G MICRO SD CARD I-GRD SLC(G)
Dimensions
The device has the following approximate dimensions:
- Height: 114.05 mm
- Width: 93.50 mm
- Depth: 92 mm
- Mounting bracket width: 30 mm
- The diagram shows a front view, side view, and top view with specific measurements indicated, detailing connector placements and mounting points.
