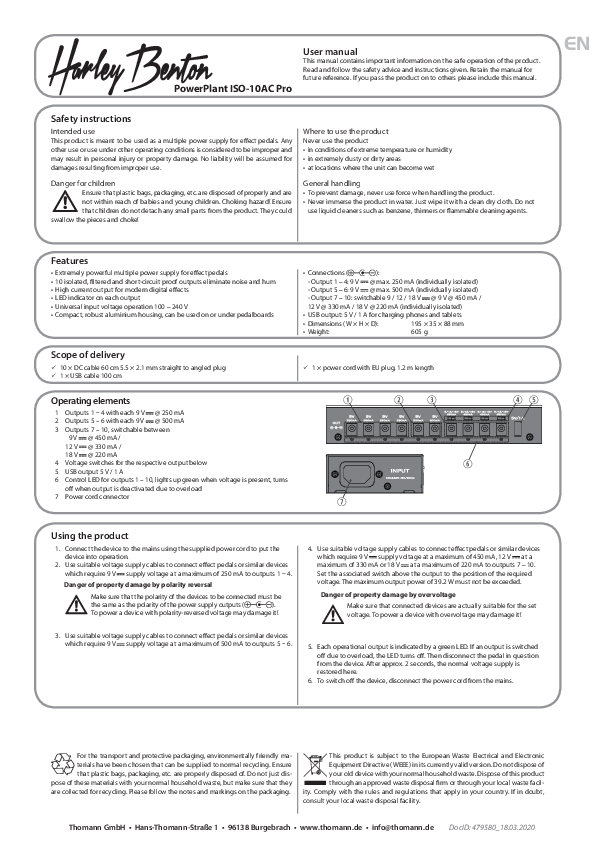

PowerPlant ISO-10AC Pro

Intended Use

This product is designed as a multiple power supply for effect pedals. Any other use or use under different operating conditions is considered improper and may lead to personal injury or property damage. No liability will be assumed for damages resulting from improper use.

Safety Instructions

Danger for Children

Ensure that plastic bags, packaging, etc., are disposed of properly and kept out of reach of babies and young children. There is a choking hazard! Ensure that children do not detach any small parts from the product, as they could swallow the pieces and choke.

Where to Use the Product

Never use the product:

• In conditions of extreme temperature or humidity
• In extremely dusty or dirty areas
• At locations where the unit can become wet

General Handling

• To prevent damage, never use force when handling the product.
• Never immerse the product in water. Wipe it with a clean, dry cloth. Do not use liquid cleaners such as benzene, thinners, or flammable cleaning agents.

Features

• Extremely powerful multiple power supply for effect pedals.
• 10 isolated, filtered, and short-circuit proof outputs eliminate noise and hum.
• High current output for modern digital effects.
• LED indicator on each output.
• Universal input voltage operation: 100-240 V.
• Compact, robust aluminum housing, suitable for use on or under pedalboards.
• Connections: Polarity is center-negative ( $\square$ - $\Theta$ ).

Output Specifications:

• Outputs 1-4: 9 V DC @ max. 250 mA (individually isolated)
• Outputs 5-6: 9 V DC @ max. 500 mA (individually isolated)
• Outputs 7-10: Switchable 9 V / 12 V / 18 V DC @ 9 V @ 450 mA / 12 V @ 330 mA / 18 V @ 220 mA (individually isolated)
• USB Output: 5 V DC / 1 A for charging phones and tablets.

• Dimensions (W x H x D): 195 x 35 x 88 mm
• Weight: 605 g

Scope of Delivery

• 10 x DC cable (60 cm, 5.5 x 2.1 mm, straight to angled plug)
• 1 x USB cable (100 cm)
• 1 x Power cord with EU plug (1.2 m length)

Operating Elements

1. Outputs 1-4: Each 9 V DC @ 250 mA
2. Outputs 5-6: Each 9 V DC @ 500 mA
3. Outputs 7-10: Switchable between 9 V DC @ 450 mA / 12 V DC @ 330 mA / 18 V DC @ 220 mA
4. Voltage switches for the respective outputs (located below the outputs).
5. USB Output: 5 V DC / 1 A
6. Control LED for outputs 1-10: Lights up green when voltage is present; turns off when an output is deactivated due to overload.
7. Power cord connector.

Refer to the diagram for visual identification of operating elements.

Using the Product

1. Connect the device to the mains using the supplied power cord to put it into operation.
2. Use suitable voltage supply cables to connect effect pedals or similar devices requiring a 9 V DC supply voltage at a maximum of 250 mA to outputs 1-4.
3. Use suitable voltage supply cables to connect effect pedals or similar devices requiring a 9 V DC supply voltage at a maximum of 500 mA to outputs 5-6.
4. Use suitable voltage supply cables to connect effect pedals or similar devices requiring a 9 V DC supply voltage at a maximum of 450 mA, 12 V DC at a maximum of 330 mA, or 18 V DC at a maximum of 220 mA to outputs 7-10. Set the associated switch above the output to the desired voltage. The maximum output power of 39.2 W must not be exceeded.
5. Each operational output is indicated by a green LED. If an output is switched off due to overload, the LED turns off. Disconnect the affected pedal from the device. After approximately 2 seconds, the normal voltage supply is restored.
6. To switch off the device, disconnect the power cord from the mains.

Danger of Property Damage by Polarity Reversal

Make sure that the polarity of the devices to be connected matches the polarity of the power supply outputs (center-negative: $\square$ - $\Theta$ ). Powering a device with reversed polarity may damage it!

Danger of Property Damage by Overvoltage

Ensure that connected devices are suitable for the set voltage. Powering a device with overvoltage may damage it!

Environmental Disposal Information

Environmentally friendly materials were chosen for transport and protective packaging, which can be supplied to normal recycling. Ensure that plastic bags, packaging, etc., are properly disposed of. Do not dispose of these materials with normal household waste; ensure they are collected for recycling. Please follow the notes and markings on the packaging.

This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose of your old device with normal household waste. Dispose of this product through an approved waste disposal firm or your local waste facility. Comply with the rules and regulations applicable in your country. If in doubt, consult your local waste disposal facility.
