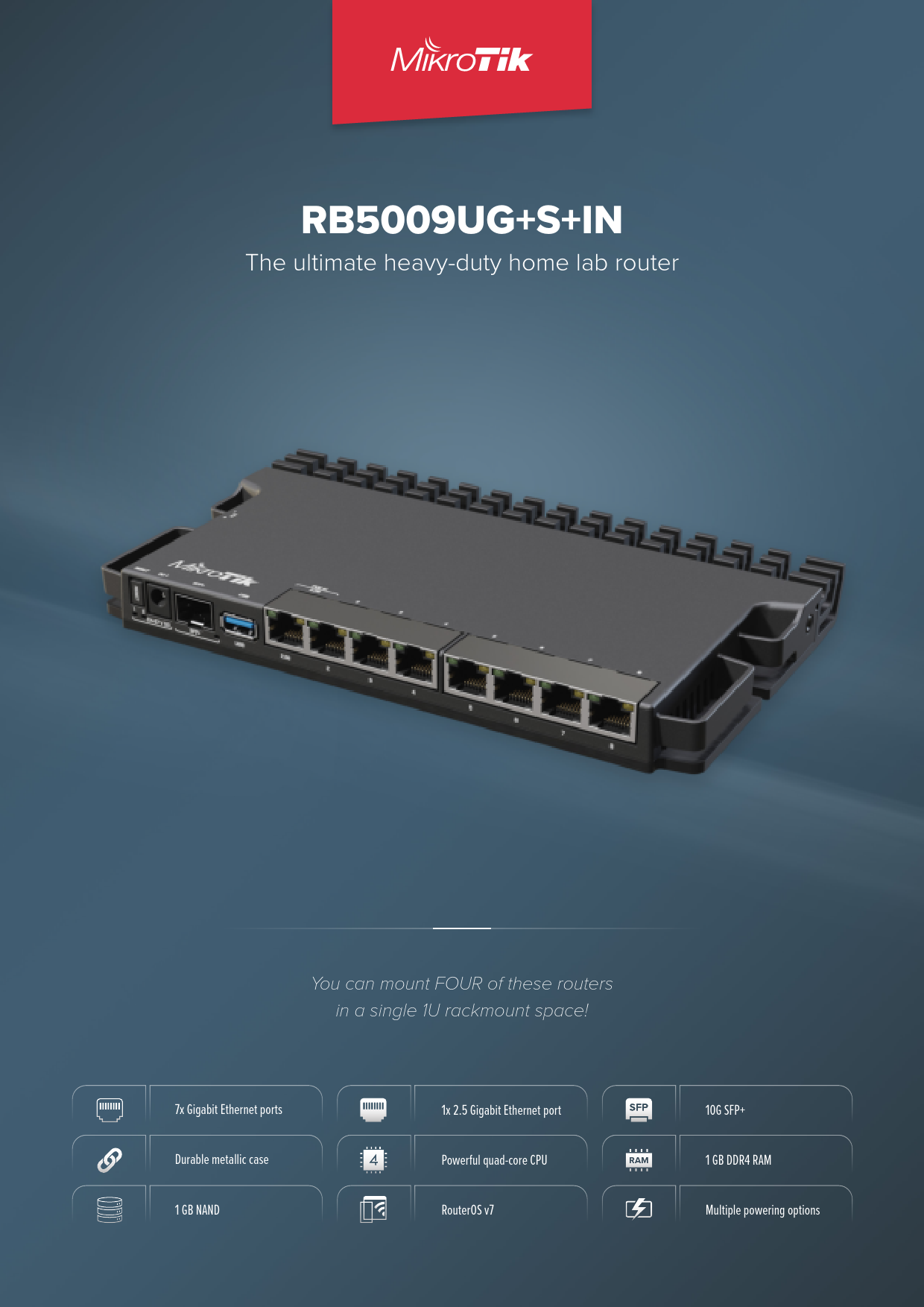

MikroTik RB5009UG+S+IN The ultimate heavy-duty home lab router Datasheet
File info: application/pdf · 4 pages · 1.17MB
RB5009UG S IN
RB5009UG S IN 3 Specifications Product code RB5009UG S IN CPU 88F7040 1.4 GHz CPU architecture ARM 64bit CPU core count 4 Size of RAM 1 GB RAM type DDR4
Extracted Text
RB5009UG+S+IN The ultimate heavy-duty home lab router You can mount FOUR of these routers in a single 1U rackmount space! 7x Gigabit Ethernet ports Durable metallic case 1 GB NAND 1x 2.5 Gigabit Ethernet port Powerful quad-core CPU RouterOS v7 10G SFP+ 1 GB DDR4 RAM Multiple powering options Double the usual performance We took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling. RB5009 has it all, and even more! The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board � so the case acts as a massive heat-sink! RB5009UG+S+IN can be powered in 3 different ways: a) PoE-in from Ethernet port #1 b) DC Jack c) 2-pin terminal on the side Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads. Unprecedented processing power in such a small form factor. RB5009UG+S+IN 2 With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity. Specifications Product code CPU CPU architecture CPU core count Size of RAM RAM type Storage Number of 1G Ethernet ports Number of 2.5G Ethernet ports Number of 10G SFP+ ports USB port Operating system Switch chip model Dimensions Operating temperature RB5009UG+S+IN 88F7040 1.4 GHz ARM 64bit 4 1 GB DDR4 1 GB, NAND 7 1 1 1 (3.0 type A) RouterOS (License level 5) 88E6393 220 x 125 x 22 mm -40�C to +60�C RB5009UG+S+IN 3 Powering PoE-in Number of DC inputs Supported input voltage Power adapter nominal voltage Power adapter nominal current Max power consumption (without attachments) Max power consumption 802.3af/at 3 24-57 V (PoE in) 24-57 V (DC jack) 24-57 (2-pin terminal) 24 V 1.5 A 14 W 20 W Certification & Approvals Certification Included parts CE, FCC, IC Optional accessory 24 V 1.5 A power adapter Fastening set Rackmount kit K-79 RB5009UG+S+IN 4
