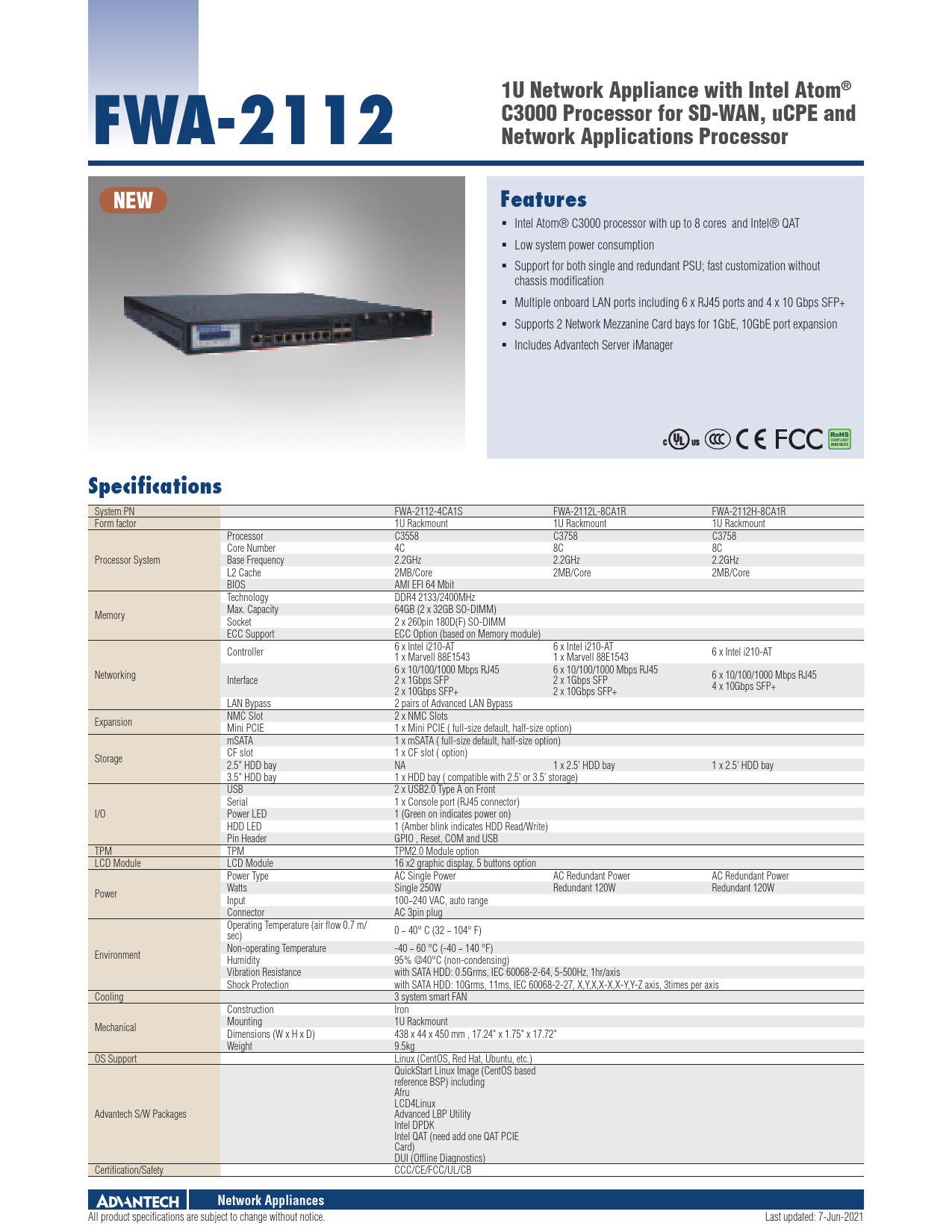

FWA-2112 NEW 1U Network Appliance with Intel Atom® C3000 Processor for SD-WAN, uCPE and Network Applications Processor Features Intel Atom® C3000 processor with up to 8 cores and Intel® QAT Low system power consumption Support for both single and redundant PSU; fast customization without chassis modification Multiple onboard LAN ports including 6 x RJ45 ports and 4 x 10 Gbps SFP+ Supports 2 Network Mezzanine Card bays for 1GbE, 10GbE port expansion Includes Advantech Server iManager RoHS COMPLIANT 2002/95/EC Specifications System PN Form factor Processor System Memory Processor Core Number Base Frequency L2 Cache BIOS Technology Max. Capacity Socket ECC Support Controller Networking Interface Expansion Storage I/O TPM LCD Module Power Environment Cooling Mechanical OS Support LAN Bypass NMC Slot Mini PCIE mSATA CF slot 2.5" HDD bay 3.5" HDD bay USB Serial Power LED HDD LED Pin Header TPM LCD Module Power Type Watts Input Connector Operating Temperature (air flow 0.7 m/ sec) Non-operating Temperature Humidity Vibration Resistance Shock Protection Construction Mounting Dimensions (W x H x D) Weight Advantech S/W Packages Certification/Safety Network Appliances All product specifications are subject to change without notice. FWA-2112-4CA1S FWA-2112L-8CA1R 1U Rackmount 1U Rackmount C3558 C3758 4C 8C 2.2GHz 2.2GHz 2MB/Core 2MB/Core AMI EFI 64 Mbit DDR4 2133/2400MHz 64GB (2 x 32GB SO-DIMM) 2 x 260pin 180D(F) SO-DIMM ECC Option (based on Memory module) 6 x Intel i210-AT 6 x Intel i210-AT 1 x Marvell 88E1543 1 x Marvell 88E1543 6 x 10/100/1000 Mbps RJ45 6 x 10/100/1000 Mbps RJ45 2 x 1Gbps SFP 2 x 1Gbps SFP 2 x 10Gbps SFP+ 2 x 10Gbps SFP+ 2 pairs of Advanced LAN Bypass 2 x NMC Slots 1 x Mini PCIE ( full-size default, half-size option) 1 x mSATA ( full-size default, half-size option) 1 x CF slot ( option) NA 1 x 2.5' HDD bay 1 x HDD bay ( compatible with 2.5' or 3.5' storage) 2 x USB2.0 Type A on Front 1 x Console port (RJ45 connector) 1 (Green on indicates power on) 1 (Amber blink indicates HDD Read/Write) GPIO , Reset, COM and USB TPM2.0 Module option 16 x2 graphic display, 5 buttons option AC Single Power AC Redundant Power Single 250W Redundant 120W 100~240 VAC, auto range AC 3pin plug FWA-2112H-8CA1R 1U Rackmount C3758 8C 2.2GHz 2MB/Core 6 x Intel i210-AT 6 x 10/100/1000 Mbps RJ45 4 x 10Gbps SFP+ 1 x 2.5' HDD bay AC Redundant Power Redundant 120W 0 ~ 40° C (32 ~ 104° F) -40 ~ 60 °C (-40 ~ 140 °F) 95% @40°C (non-condensing) with SATA HDD: 0.5Grms, IEC 60068-2-64, 5-500Hz, 1hr/axis with SATA HDD: 10Grms, 11ms, IEC 60068-2-27, X,Y,X,X-X,X-Y,Y-Z axis, 3times per axis 3 system smart FAN Iron 1U Rackmount 438 x 44 x 450 mm , 17.24" x 1.75" x 17.72" 9.5kg Linux (CentOS, Red Hat, Ubuntu, etc.) QuickStart Linux Image (CentOS based reference BSP) including Afru LCD4Linux Advanced LBP Utility Intel DPDK Intel QAT (need add one QAT PCIE Card) DUI (Offline Diagnostics) CCC/CE/FCC/UL/CB Last updated: 7-Jun-2021 Dimensions FWA-2112 44.20 Unit: mm 451.30 44.20 37.98 22.10 6.22 438.00 465.00 482.60 FWA-2112-4CA1S External I/O Mechanical Layout/Drawing 6 x RJ45 Power LED With 2 pairs LAN bypass HDD LED 2 x 1G SFP FWA-2112L-8CA1R External I/O Mechanical Layout/Drawing 6 x RJ45 Power LED With 2 pairs LAN bypass HDD LED 2 x 1G SFP 1 x Console 2 x 10G SFP+ NMC2 2 x USB2.0 NMC1 1 x Console 2 x 10G SFP+ NMC2 2 x USB2.0 NMC1 VGA port option Power Button 3 system FANs Single 250W ATX power supply (Redundant 120W option) VGA port option Power Button 3 system FANs Redundant 120W ATX power supply (250W Single PSU option) Online Download www.advantech.com/products FWA-2112H-8CA1R External I/O Mechanical Layout/Drawing 6 x RJ45 Power LED With 2 pairs LAN bypass HDD LED 4 x 10G SFP+ Graphical LCD 2 x USB2.0 module option 1 x Console NMC2 NMC1 FWA-2112 VGA port option Power Button 3 system FANs Redundant 120W ATX power supply (250W Single PSU option) Ordering Information Part Number FWA-2112-4CA1S FWA-2112L-8CA1R FWA-2112H-8CA1R Processor SO-DIMM slot Console USB2.0 LAN Port Copper SFP SFP+ NMC Mini PCIE mSATA 2.5" HDD 3.5" HDD Intel® Atom® C3558 2 1 2 6 22 2 1 1 0 1 Intel® Atom® C3758 2 1 2 6 22 2 1 1 1 1 Intel® Atom® C3758 2 1 2 6 NA 4 2 1 1 1 1 PSU LCM Single AC 250W 0 Redundant AC 120W 0 Redundant AC 120W 0 Packing List Part Number 1700020691-01 Description Console cable D-SUB 9P(F)/RJ45 220cm Accessories Part Number 1702002600 1702002605 1702031801 1700000237 1700009652 98923260J0E 9680016959 Description Power cord 3P 180cm, USA Power cord 3P 180cm, Europe Power cord 3P 180cm, UK Power cord 3P 180cm, JP Power cord 3P 180cm, China TPM2.0 module Slide rail Network Appliances
