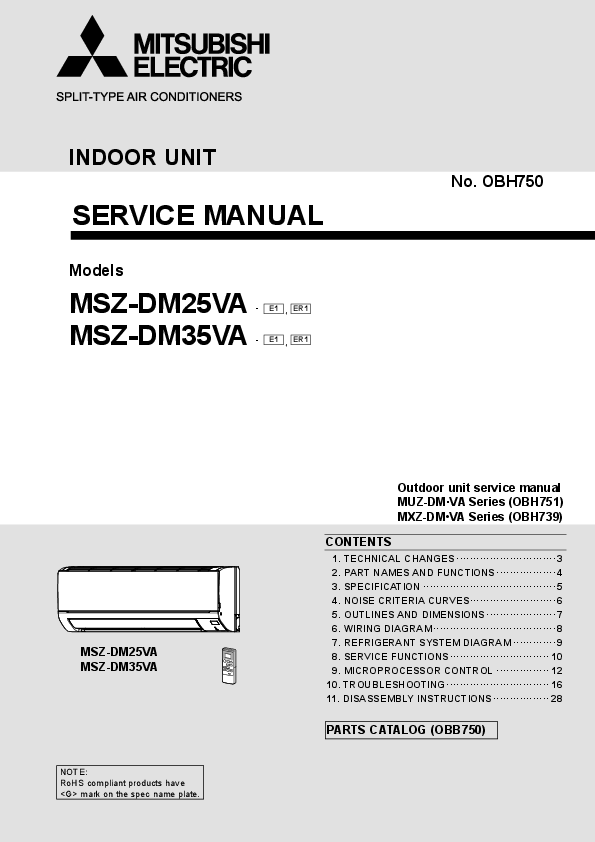

INDOOR UNIT
SERVICE MANUAL
Models
MSZ-DM25VA - E1 , ER1 MSZ-DM35VA - E1 , ER1

No. OBH750

MSZ-DM25VA MSZ-DM35VA
NOTE: RoHS compliant products have <G> mark on the spec name plate.

Outdoor unit service manual MUZ-DM·VA Series (OBH751) MXZ-DM·VA Series (OBH739)
CONTENTS
1. TECHNICAL CHANGES ······························3 2. PART NAMES AND FUNCTIONS ··················4 3. SPECIFICATION ········································5 4. NOISE CRITERIA CURVES··························6 5. OUTLINES AND DIMENSIONS ·····················7 6. WIRING DIAGRAM ·····································8 7. REFRIGERANT SYSTEM DIAGRAM ·············9 8. SERVICE FUNCTIONS······························ 10 9. MICROPROCESSOR CONTROL ················ 12 10. TROUBLESHOOTING ······························· 16 11. DISASSEMBLY INSTRUCTIONS················· 28
PARTS CATALOG (OBB750)

Use the specif ed refrigerant only
Never use any refrigerant other than that specified.
Doing so may cause a burst, an explosion, or fire when the unit is being used, serviced, or disposed of. Correct refrigerant is specified in the manuals and on the spec labels provided with our products. We will not be held responsible for mechanical failure, system malfunction, unit breakdown or accidents caused by failure to follow the instructions.
<Preparation before the repair service> Prepare the proper tools. Prepare the proper protectors. Provide adequate ventilation. After stopping the operation of the air conditioner, turn off the power-supply breaker and remove the power plug. Discharge the capacitor before the work involving the electric parts.
<Precautions during the repair service> Do not perform the work involving the electric parts with wet hands. Do not pour water into the electric parts. Do not touch the refrigerant. Do not touch the hot or cold areas in the refrigeration cycle. When the repair or the inspection of the circuit needs to be done without turning off the power, exercise great caution not to touch the live parts.

OBH750

2

1 TECHNICAL CHANGES
MSZ-DM25VA - E1 , ER1 MSZ-DM35VA - E1 , ER1
1. New model

OBH750

3

2 PART NAMES AND FUNCTIONS
MSZ-DM25VA MSZ-DM35VA

Front panel

Air filter

Air inlet

Air cleaning filter (Silver-ionized air purifier filter)
Horizontal vane Air outlet

Heat exchanger

Remote controller

Display section
Remote control receiving section Operation indicator lamp
Emergency operation switch

ACCESSORIES

Installation plate

1

Installation plate f xing screw 4 × 25 mm

5

Wireless remote controller

1

Felt tape (For left or left-rear piping)

1

Battery (AAA) for remote controller

2

Air cleaning f lter (Silver-ionized air purifer f lter)

1

OBH750

4

3 SPECIFICATION

Indoor model

Power supply

Breaker Capacity

Power input 1 (Total)

Cooling Heating

Fan motor Electrical data

Running current 1

Cooling

(Total)

Heating

Power factor 1 (Total)

Cooling Heating

Starting current 1 (Total)

Model

Current 1

Cooling Heating

Dimensions W × H × D

Weight

Air direction

Super High

Heating Cooling Heating Cooling Heating Cooling

High

Med.

Airf ow

Low

Super High

High

Med.

Low

Super High

Special remarks Sound level

High

Med.

Low

Super High

High

Med.

Low

Super High

High

Fan speed

Med.

Low

Super High

High

Med.

Low

Fan speed regulator

Remote controller model

A W A % A A mm kg
m3/h
m3/h
dB(A)
dB(A)
rpm
rpm

NOTE: Test conditions are based on ISO 5151. Cooling : Indoor Dry-bulb temperature 27°C Outdoor Dry-bulb temperature 35°C Heating : Indoor Dry-bulb temperature 20°C Outdoor Dry-bulb temperature 7°C 1 Measured under rated operating frequency.

MSZ-DM25VA

MSZ-DM35VA

Single phase 230 V, 50 Hz

10

710

1,020

850

975

3.6

4.8

4.1

4.7

85

92

90

4.1

4.8

RC0J40-EF

0.19

0.24

0.20

0.22

799 × 290 × 232

9

5

570

654

438

468

330

342

228

600

618

450

330

210

43

45

37

38

30

31

22

43

44

37

30

23

1,080

1,200

880

930

710

730

550

1,120

1,150

900

710

520

4

RH16A

Wet-bulb temperature 19°C

Wet-bulb temperature 6°C

Specifications and rated conditions of main electric parts

Fuse

(F11)

Horizontal vane motor

(MV)

Varistor

(NR11)

Terminal block

(TB)

T3.15AL250V 12 VDC
S10K300E2K1 (ERZV10D471) 5P

OBH750

5

4 NOISE CRITERIA CURVES

MSZ-DM25VA

FAN SPEED FUNCTION SPL(dB(A))

COOLING

43

Super High

HEATING

43

LINE

90

MSZ-DM35VA

FAN SPEED FUNCTION SPL(dB(A))

COOLING

45

Super High

HEATING

44

LINE

90

OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR

80

80

70
NC-70

60
NC-60

50
NC-50

40
NC-40

30
NC-30

20

NC-10

NC-20

10 63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

70
NC-70

60
NC-60

50
NC-50

40
NC-40

30
NC-30

20

NC-10

NC-20

10 63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

Test conditions Cooling : Dry-bulb temperature 27°C Wet-bulb temperature 19°C Heating : Dry-bulb temperature 20°C

INDOOR UNIT 1m
0.8m MICROPHONE

WALL

OBH750

6

5 OUTLINES AND DIMENSIONS

MSZ-DM25VA MSZ-DM35VA
799 785

11×26 Oblong hole

Installation plate Indoor unit

80.5

7

225 225

21.5

Unit: mm
11×20 Oblong hole
80.5

248

3 206.5

46 249
41 207.5

42

5 232

61.5

167 157

338

340

59.5

Air in

Wall hole Ø65

Installation plate Piping

57

290 100 14
7

69

41

49

630

120

56

18

43

132

69

57

80

42 Piping

Air out

(57°)

42 103 130 172

Drain hose

Insulation Liquid line Gas line Drain hose

Ø35 O.D Ø7.0 - 0.39m (Flared connection Ø6.35) Ø9.52 - 0.34m (Flared connection Ø9.52) Insulation Ø28 Connected part Ø16 O.D

OBH750

7

6 WIRING DIAGRAM
MSZ-DM25VA - E1 , ER1 MSZ-DM35VA - E1 , ER1

OBH750

8

7 REFRIGERANT SYSTEM DIAGRAM

MSZ-DM25VA MSZ-DM35VA

Indoor heat exchanger

Refrigerant pipe ø9.52 (with heat insulator)

Indoor coil thermistor RT12

Flared connection

Indoor coil thermistor RT13

Room temperature thermistor RT11

Flared connection

Refrigerant pipe ø6.35 (with heat insulator)
Refrigerant flow in cooling Refrigerant flow in heating

Unit: mm

OBH750

9

8 SERVICE FUNCTIONS

MSZ-DM25VA MSZ-DM35VA

8-1. TIMER SHORT MODE For service, the following set time can be shortened by bridging the timer short mode point on the electronic control P.C. board. (Refer to 10-7.) Set time : 3-minute  3-second (It takes 3 minutes for the compressor to start operation. However, the starting time is shortened by bridging the timer short mode point.)
NOTE: While the relay 52C is ON, the compressor starting time cannot be shortened.

8-2. P.C. BOARD MODIFICATION FOR INDIVIDUAL OPERATION A maximum of 4 indoor units with wireless remote controllers can be used in a room. In this case, to operate each indoor unit individually by each remote controller, P.C. boards of remote controller must be modified according to the number of the indoor unit.

How to modify the remote controller P.C. board Remove batteries before modification. The board has a print as shown below :

J2

J1

NOTE : For modification, take out the batteries and press the STOP/OPERATE/ (OFF/ ON) button 2 or 3 times at first. After finish modification, put back the batteries then press the RESET button.

The P.C. board has the print "J1" and "J2". Cut "J1" and "J2" according to the number of indoor unit as shown in Table 1. After modification, press the RESET button.
Table 1

1 unit operation

2 units operation

3 units operation

4 units operation

No. 1 unit

No modif cation

Same as at left

Same as at left

Same as at left

No. 2 unit

­

Cut J1

Same as at left

Same as at left

No. 3 unit

­

­

Solder J2

Same as at left

No. 4 unit

­

­

­

Cut J1 and solder J2

How to set the remote controller exclusively for particular indoor unit After you turn the breaker ON, the first remote controller that sends the signal to the indoor unit will be regarded as the remote controller for the indoor unit. The indoor unit will only accept the signal from the remote controller that has been assigned to the indoor unit once they are set. The setting will be cancelled if the breaker is turned OFF, or the power supply is shut down. Please conduct the above setting once again after the power has been restored.

OBH750

10

8-3. AUTO RESTART FUNCTION When the indoor unit is controlled with the remote controller, the operation mode, the set temperature, and the fan speed are memorized by the indoor electronic control P.C. board. "AUTO RESTART FUNCTION" automatically starts operation in the same mode just before the shutoff of the main power. Operation If the main power has been cut, the operation settings remain. After the power is restored, the unit restarts automatically according to the memory. (However, it takes at least 3 minutes for the compressor to start running.) How to disable "AUTO RESTART FUNCTION" Turn off the main power for the unit. Cut the Jumper wire to JR77 on the indoor electronic control P.C. board. (Refer to 10-7.)
Indoor electronic control P.C. board

CN111

CN151

CN112 CN110

JR77

CN10A

NOTE: · The operation settings are memorized when 10 seconds have passed after the indoor unit was operated with the remote controller. · If main power is turned OFF or a power failure occurs while AUTO START/STOP timer is active, the timer setting is cancelled. · If the unit has been turned OFF with the remote controller before power failure, the auto restart function does not work as the power button of the remote controller is off. · To prevent the breaker from tripping OFF due to the rush of starting current, systematize other home appliance not to turn ON at the same time. · When some air conditioners are connected to the same supply system, if they are operated before power failure, the starting current of all the compressors may flow simultaneously at restart. Therefore, the special countermeasures are required to prevent the main voltage-drop or the rush of the starting current by adding to the system that allows the units to start one by one.

OBH750

11

9 MICROPROCESSOR CONTROL
MSZ-DM25VA MSZ-DM35VA WIRELESS REMOTE CONTROLLER
Signal transmitting section

Operation display section STOP/OPERATE (OFF/ON) button
Fan speed control button
Operation select button Timer mode select button

Temperature buttons ECONO COOL button Vane control button
Time set buttons RESET button

NOTE : Last setting will be stored after the unit is turned OFF with the remote controller. Indoor unit receives the signal of the remote controller with beeps.

INDOOR UNIT DISPLAY SECTION
Operation Indicator lamp The operation indicator at the right side of the indoor unit indicates the operation state.
·The following indication applies regardless of shape of the indication.

Indication

Operation state

Room temperature

The unit is operating to

About 2°C or more away

reach the set temperature from set temperature

The room temperature is approaching the set temperature

About 1 to 2°C from set temperature

Lighted Blinking Not lighted

Standby mode

(Only during multi system

-

operation)

9-1. COOL ( ) OPERATION (1) Press STOP/OPERATE/ (OFF/ON) button. OPERATION INDICATOR lamp of the indoor unit turns on with a beep tone. (2) Select COOL mode with OPERATION SELECT button. (3) Press TEMPERATURE buttons (TOO WARM or TOO COOL button) to select the desired temperature. The setting range is 16 ~ 31°C.
1. Coil frost prevention The compressor operational frequency is controlled by the temperature of the indoor heat exchanger to prevent the coil from frosting. When the temperature of indoor heat exchanger becomes too low, the coil frost prevention mode works. The indoor fan operates at the set speed and the compressor stops. This mode continues until the temperature of indoor heat exchanger rises.

OBH750

12

9-2. DRY ( ) OPERATION (1) Press STOP/OPERATE/ (OFF/ON) button. OPERATION INDICATOR lamp of the indoor unit turns on with a beep tone. (2) Select DRY mode with OPERATION SELECT button. (3) The set temperature is determined from the initial room temperature.
1. Coil frost prevention Coil frost prevention works the same way as that in COOL mode. (9-1.1.)
9-3. HEAT ( ) OPERATION (1) Press STOP/OPERATE/ (OFF/ON) button. OPERATION INDICATOR lamp of the indoor unit turns on with a beep tone. (2) Select HEAT mode with OPERATION SELECT button. (3) Press TEMPERATURE buttons (TOO WARM or TOO COOL button) to select the desired temperature. The setting range is 16 ~ 31°C.
1. Cold air prevention control When the compressor is not operating or is starting, and the temperature of indoor heat exchanger and/or the room temperature is low or when defrosting is being done, the indoor fan will stop or rotate in Very Low speed.
2. High pressure protection The compressor operational frequency is controlled by the temperature of the indoor heat exchanger to prevent the condensing pressure from increasing excessively. When the temperature of indoor heat exchanger becomes too high, the high pressure protection works. The indoor fan operates following the cold air prevention control. This mode continues until the temperature of indoor heat exchanger falls.
3. Defrosting Defrosting starts when the temperature of outdoor heat exchanger becomes too low. The compressor stops once, the indoor/outdoor fans stop, the 4-way valve reverses, and the compressor re-starts. This mode continues until the temperature of outdoor heat exchanger rises or the fixed time passes.
9-4. AUTO VANE OPERATION 1. Horizontal vane
(1) Vane motor drive These models are equipped with a stepping motor for the horizontal vane. The rotating direction, speed, and angle of the motor are controlled by pulse signals (approximately 12 V) transmitted from indoor microprocessor.
(2) The horizontal vane angle and mode change as follows by pressing VANE CONTROL button.

AUTO

1

2

3

4

5

SWING

(3) Positioning To confirm the standard position, the vane moves until it touches the vane stopper. Then the vane is set to the selected angle. Confirmation of standard position is performed in the following cases: (a) When the operation starts or finishes (including timer operation). (b) When the test run starts. (c) When standby mode (only during multi system operation) starts or finishes.

(4) VANE AUTO ( ) mode In VANE AUTO mode, the microprocessor automatically determines the vane angle to make the optimum room temperature distribution.

In COOL and DRY operation Vane angle is fixed to Horizontal position.

In HEAT operation Vane angle is fixed to Angle 4.

Hpoorisziotinotnal

OBH750

13

(5) STOP (operation OFF) and ON TIMER standby In the following cases, the horizontal vane returns to the closed position. (a) When STOP/OPERATE/ (OFF/ON) button is pressed (POWER OFF). (b) When the operation is stopped by the emergency operation. (c) When ON TIMER is ON standby.
(6) Dew prevention During COOL or DRY operation with the vane angle at Angle 3 ~ 5 when the compressor cumulative operation time exceeds 1 hour, the vane angle automatically changes to Angle 2 for dew prevention.
(7) SWING ( ) mode By selecting SWING mode with VANE CONTROL button, the horizontal vane swings vertically.
(8) Cold air prevention in HEAT operation. The horizontal vane position is set to Upward. NOTE: When 2 or more indoor units are operated with multi outdoor unit, even if any indoor unit turns thermostat off, this control does not work in the indoor unit.
(9) ECONO COOL ( ) operation (ECONOmical operation) When ECONO COOL button is pressed in COOL mode, set temperature is automatically set 2°C higher. Also the horizontal vane swings in various cycle. SWING operation makes you feel cooler than set temperature. So, even though the set temperature is higher, the air conditioner can keep comfort. As a result, energy can be saved. ECONO COOL operation is cancelled when ECONO COOL button is pressed once again or VANE CONTROL button is pressed or change to other operation mode.

9-5. TIMER OPERATION (ON/OFF TIMER) 1. How to set the timer
(1) Press STOP/OPERATE/ (OFF/ON) button to start the air conditioner.

(2) Select the timer mode by pressing the

button during operation.

Each time this button is pressed, the timer mode is changed in sequence:

(OFF TIMER)

(ON TIMER)  TIMER RELEASE

(3) Set the time of the timer using the

button.

Each time this button is pressed, the set time increase or decrease by 1 hour to 12 hours.

2. To release the timer

Press the

button until

(OFF TIMER) and

(ON TIMER) are not displayed.

NOTE : · The OFF TIMER and the ON TIMER cannot be set at the same time. · The displayed time is the time remaining and will decrease in 1-hour increments as time passes.

OBH750

14

9-6. EMERGENCY/TEST OPERATION In the case of test run operation or emergency operation, use EMERGENCY OPERATION switch on the right side of the indoor unit. Emergency operation is available when the remote controller is missing or has failed, or when the batteries in the remote controller are running down. The unit will start and OPERATION INDICATOR lamp will light up. The first 30 minutes of operation is the test run operation. This operation is for servicing. The indoor fan runs at High speed and the temperature control does not work. After 30 minutes of test run operation, the system shifts to EMERGENCY COOL/HEAT MODE with a set temperature of 24°C. The fan speed shifts to Med. The coil frost prevention works even in the test run or the emergency operation. In the test run or emergency operation, the horizontal vane operates in VANE AUTO ( ) mode. Emergency operation continues until EMERGENCY OPERATION switch is pressed once or twice or the unit receives any signal from the remote controller. In the latter case, normal operation will start.
NOTE: Do not press EMERGENCY OPERATION switch during normal operation.

EMERGENCY OPERATION switch

Operation mode COOL HEAT

Set temperature 24°C

24°C

Fan speed

Med.

Med.

Horizontal vane Auto

Auto

The operation mode is indicated by the Operation Indicator lamp as follows:

Operation Indicator lamp

EMERGENCY COOL

EMERGENCY HEAT

STOP

Lighted Not lighted

9-7. 3-MINUTE TIME DELAY OPERATION When the system turns OFF, compressor will not restart for 3 minutes as 3-minute time delay function operates to protect compressor from overload.

OBH750

15

10 TROUBLESHOOTING

MSZ-DM25VA MSZ-DM35VA
10-1. CAUTIONS ON TROUBLESHOOTING 1. Before troubleshooting, check the following: 1) Check the power supply voltage. 2) Check the indoor/outdoor connecting wire for miswiring. 2. Take care of the following during servicing 1) Before servicing the air conditioner, be sure to turn OFF the main unit first with the remote controller, and then after confirming the horizontal vane is closed, turn OFF the breaker and/or disconnect the power plug. 2) Be sure to turn OFF the power supply before removing the front panel, the cabinet, the top panel, and the P.C. board. 3) When removing the P.C. board, hold the edge of the board with care NOT to apply stress on the components. 4) When connecting or disconnecting the connectors, hold the connector housing. DO NOT pull the lead wires.

<Incorrect>

<Correct>

Lead wiring

Connector housing

3. Troubleshooting procedure 1) Check if the OPERATION INDICATOR lamp on the indoor unit is flashing ON and OFF to indicate an abnormality. To make sure, check how many times the OPERATION INDICATOR lamp is flashing ON and OFF before starting service work. 2) Before servicing, check that the connector and terminal are connected properly. 3) When the P.C. board seems to be defective, check the copper foil pattern for disconnection and the components for bursting and discoloration. 4) When troubleshooting, Refer to 10-2, 10-3 and 10-4.
4. How to replace batteries Weak batteries may cause the remote controller malfunction. In this case, replace the batteries to operate the remote controller normally.

Remove the back lid and insert batteries. Then reattach the back lid.

Press RESET button with a thin instrument, and then use the remote controller.

Insert the negative pole of the batteries first. Check if the polarity of the batteries is correct.
NOTE: 1. If RESET button is not pressed, the remote controller may not operate correctly. 2. This remote controller has a circuit to automatically reset the microcomputer when batteries are replaced. This function is equipped to prevent the microcomputer from malfunctioning due to the voltage drop caused by the battery replacement. 3. Do not use the leaking batteries.

OBH750

16

10-2. FAILURE MODE RECALL FUNCTION Outline of the function This air conditioner can memorize the abnormal condition which has occurred once. Even though LED indication listed on the troubleshooting check table (10-4.) disappears, the memorized failure details can be recalled. This mode is very useful when the unit needs to be repaired for the abnormality which does not recur.
1. Flow chart of failure mode recall function for the indoor/outdoor unit

Operational procedure
The cause of abnormality cannot be found because the abnormality does not recur.
Setting up the failure mode recall function Turn ON the power supply. <Preparation of the remote controller> While pressing both OPERATION SELECT button and TOO COOL button on the remote controller at the same time, press RESET button. First, release RESET button. Hold down the other 2 buttons for another 3 seconds. Make sure that the indicators on the LCD screen shown in the right f gure are all displayed. Then release the buttons.

Press STOP/OPERATE/ (OFF/ON) button of the remote controller (the set temperature is displayed) with the remote controller headed towards the indoor unit. 1

1. Regardless of normal or abnormal condition, a short beep is emitted once the signal is received.

Does upper lamp of OPERATION INDICATOR lamp on the indoor unit blink at the interval of 0.5 seconds? Blinks: Either indoor or outdoor unit is abnormal.
Beep is emitted at the same timing as the blinking of upper lamp of OPERATION INDICATOR lamp. 2

Judgment of indoor/outdoor abnormality

Yes (Blinks)

Before blinking, does upper lamp of OPERATION INDICATOR lamp stay ON for 3 seconds? When it stays ON for 3 seconds (without beep): Yes
The outdoor unit is abnormal.
No

No (OFF)

The indoor unit is abnormal. Check the blinking pattern, and identify the abnormal point by referring to the indoor unit failure mode table. (Refer to 10-2.2) Make sure to check at least 2 consecutive blinking cycles. 2

Releasing the failure mode recall function
Release the failure mode recall function by the following procedures. Turn OFF the power supply and turn it ON again. Press RESET button of the remote controller.

Indoor unit is normal. But the outdoor unit might be abnormal because there are some abnormalities that cannot be recalled with this way. Check if outdoor unit is abnormal according to the detailed outdoor unit failure mode recall function.
The outdoor unit is abnormal. Check the blinking pattern, and identify the abnormal point by referring to the outdoor unit failure mode table. (Refer to outdoor unit service manual.) Make sure to check at least 2 consecutive blinking cycles. 3

Repair the failure parts.

Deleting the memorized abnormal condition
After repairing the unit, recall the failure mode again according to "Setting up the failure mode recall function" mentioned above.
Press STOP/OPERATE/ (OFF/ON) button of the remote controller (the set temperature is displayed) with the remote controller headed towards the indoor unit. Press EMERGENCY OPERATION switch so that the memorized abnormal condition is deleted. Release the failure mode recall function according to "Releasing the failure mode recall function" mentioned above.

NOTE: 1. Make sure to release the failure mode recall function after it is set up, otherwise the unit cannot operate properly. 2. If the abnormal condition is not deleted from the memory, the last abnormal condition is kept memorized.

2. Blinking pattern when the indoor unit is abnormal:

ON OFF

Blinking at 0.52.5-second OFF second interval

Blinking at 0.52.5-second OFF second interval

Beeps Repeated cycle

Beeps Repeated cycle

Beeps Repeated cycle

3.Blinking pattern when the outdoor unit is abnormal:

Blinking at 0.5-

2.5-second OFF 3-second ON

second interval

ON OFF

No beep Repeated cycle

Beeps

2.5-second OFF 3-second ON

Blinking at 0.5second interval

No beep Repeated cycle

Beeps

Repeated cycle

OBH750

17

2. Indoor unit failure mode table

Upper lamp of OPERATION INDICA-
TOR lamp

Abnormal point (Failure mode)

Condition

Remedy

Not lighted

Normal

--

--

1-time f ash every 0.5-second
2-time f ash 2.5-second OFF 3-time f ash 2.5-second OFF
11-time f ash 2.5-second OFF
12-time f ash 2.5-second OFF

Room temperature thermistor

The room temperature thermistor short or open circuit is detected every 8 seconds during operation.

Refer to the characteristics of the room temperature thermistor (10-7.).

Indoor coil thermistor

The indoor coil thermistor short or open circuit Refer to the characteristics of the main indoor coil theris detected every 8 seconds during operation. mistor, the sub indoor coil thermistor (10-7.).

Serial signal

The serial signal from outdoor unit is not received for a maximum of 6 minutes.

Refer to 10-6. "How to check miswiring and serial signal error".

Indoor fan motor

The rotational frequency feedback signal is not emitted for the 12 seconds after the indoor fan Refer to 10-6. "Check of indoor fan motor". motor is orperated.

Indoor control system

It cannot properly read data in the nonvolatile memory of the indoor electronic control P.C. Replace the indoor electronic control P.C. board. board.

NOTE : Blinking patterns of this mode differ from the ones of TROUBLESHOOTING CHECK TABLE (10-4.).

OBH750

18

10-3. INSTRUCTION OF TROUBLESHOOTING Start

Indoor unit operates. Outdoor unit does not operate.

Indoor unit operates. Outdoor unit does not operate normally.

Indoor unit does not receive the signal from remote controller.

OPERATION INDICATOR lamp on the indoor unit is f ashing on and off.

Outdoor unit operates only in Test Run operation.

Outdoor unit does not operate even in Test Run operation.

Unit does not operate normal operation in COOL or HEAT mode.

Indoor unit operates, when EMERGENCY OPERATION switch is pressed.

Indoor unit does not operate, when EMERGENCY OPERATION switch is pressed.

If blinking of OPERATION INDICATOR lamp cannot be checked, it can be checked with failure mode recall function.

Check room temperature thermistor. Refer to 10-7. "Test point diagram and voltage".

Refer to "How to check inverter/compressor".

Refer to "Check of R.V. coil".

Refer to 10-6. "Check of remote controller and indoor electronic control P.C. board".

1. Check indoor/outdoor connecting wire. (Check if the power is supplied to the indoor unit.)
2. Refer to 10-6. "Check of indoor P.C. board and indoor fan motor".

"Test Run operation" means the operation within 30 minutes after EMERGENCY OPERATION switch is pressed. Refer to outdoor unit service manual.

Upper lamp Upper lamp Upper lamp

Flash on and 2-time f ash 3-time f ash

off at 0.5-sec- Cause:

Cause:

ond intervals Indoor unit Indoor unit

Cause:

· Trouble

· Trouble of

Indoor/Outdoor of room

indoor fan

unit

temperature motor

· Miswiring or / indoor coil

trouble of

thermistor

serial signal

Upper lamp 4-time f ash Cause: Indoor unit · Trouble of indoor unit control system

Upper lamp Upper lamp Upper lamp Upper lamp

5-time f ash 6-time f ash 7-time f ash 14-time f ash

Cause:

Cause:

Cause:

or more

Outdoor unit Outdoor unit Outdoor unit Cause:

· Outdoor · Trouble of · Trouble of Outdoor unit

power

thermistor in outdoor con- · Other ab-

system

outdoor unit trol system normality

abnormality

Refer to

Check room Refer to

10-6. "How temperature 10-6.

to check mis- thermistor "Check of

wiring and and indoor indoor fan

serial signal coil thermis- motor".

error".

tor. Refer to

10-7."Test

point diagram

and voltage".

Replace the indoor electronic control P.C. board.

Refer to

Refer to

"How to

"Check of

check

outdoor ther-

inverter/com- mistors".

pressor".

Replace the inverter P.C. board or the outdoor electronic control P.C. board.

Check "Flow chart of the detailed outdoor unit failure mode recall function."

OBH750

19

10-4. TROUBLESHOOTING CHECK TABLE Before taking measures, make sure that the symptom reappears for accurate troubleshooting. When the indoor unit has started operation and detected an abnormality of the following condition (the first detection after the power ON), the indoor fan motor turns OFF and OPERATION INDICATOR lamp flashes.

OPERATION INDICATOR

Lighted Blinking Not lighted

No.

Abnormal point

Operation indicator lamp

Miswiring 1 or serial
signal

Upper lamp f ashes. 0.5-second ON 0.5-second OFF

Indoor coil thermistor

Upper lamp f ashes. 2-time f ash

2 Room temperature thermistor

2.5-second OFF

Upper lamp f ashes. 3-time f ash

3

Indoor fan motor

2.5-second OFF

Upper lamp f ashes. 4-time f ash

4

Indoor control system

2.5-second OFF

Upper lamp f ashes. 5-time f ash Outdoor 5 power system
2.5-second OFF

Upper lamp f ashes. 6-time f ash

6

Outdoor thermistors

2.5-second OFF

Upper lamp f ashes. 7-time f ash Outdoor 7 control system

2.5-second OFF

8

Other abnormality

Upper lamp f ashes. 14-time f ash or more

2.5-second OFF Outdoor 9 control sys- Upper lamp lights up tem

Symptom

Condition

Remedy

The serial signal from the outdoor unit is not received for 6 minutes.

· Refer to 10-6. "How to check miswiring and serial signal error".

The indoor coil or the room temperature thermistor is short or open circuit.

· Refer to the characteristics of indoor coil thermistor, and the room temperature thermistor (10-7.).

The rotational frequency feedback signal is not emitted during the indoor fan operation.

· Refer to 10-6. "Check of indoor fan motor".

It cannot properly read data in the nonvolatile memory of the indoor electronic control P.C. board.

· Replace the indoor electronic control P.C. board.

Indoor unit and outdoor unit do not operate.

It consecutively occurs 3 times that the compressor stops for overcurrent protection or start-up failure protection within 1 minute after start-up.

· Refer to "How to check of inverter/compressor". Refer to outdoor unit service manual
· Check the stop valve.

The outdoor thermistors short or open circuit during the compressor operation.

· Refer to "Check of outdoor thermistor". Refer to outdoor unit service manual.

It cannot properly read data in the nonvolatile memory of the inverter P.C. board or the outdoor electronic control P.C. board.

· Replace the inverter P.C. board or the outdoor electronic control P.C. board. Refer to outdoor unit service manual.

An abnormality other than above mentioned is detected.

· Check the stop valve. · Check the 4-way valve. · Conf rm the abnormality in
detail using the failure mode recall function for outdoor unit.

Outdoor unit does not operate

It cannot properly read data in the nonvolatile memory of the inverter P.C. board or the outdoor electronic control P.C. board.

· Check the blinking pattern of the LED on the inverter P.C. board or the outdoor electronic control P.C. board.

OBH750

20

OPERATION INDICATOR

No.

Abnormal point

Operation indicator lamp

Upper lamp lights and lower lamp f ashes.

MXZ type

1

Operation mode

setting

2.5-second OFF

Symptom

Condition

Remedy

Outdoor unit operates but indoor unit does not operate.

The operation mode of the each indoor unit is differently set to COOL (includes DRY) and HEAT at the same time, the operation mode of the indoor unit that has operated at f rst has the priority.

· Unify the operation mode. Refer to outdoor unit service
manual.

10-5. TROUBLE CRITERION OF MAIN PARTS
MSZ-DM25VA MSZ-DM35VA

Part name Room temperature thermistor (RT11) Indoor coil thermistor (RT12, RT13)

Check method and criterion Measure the resistance with a tester.
Refer to 10-7. "Test point diagram and voltage", "2. Indoor electronic control P.C. board", for the chart of thermistor.

Indoor fan motor (MF)

Check 10-6. .

Vane motor (MV)

Measure the resistance between the terminals with a tester. (Part temperature 10 ~ 30°C)

Color of the lead wire

Normal

RED - BLK

235 ~ 255

Figure

BLK
BLK RED

ROTOR BLK BLK

OBH750

21

10-6. TROUBLESHOOTING FLOW A Check of indoor fan motor

The indoor fan motor error has occurred, and the indoor fan does not operate.

Turn OFF the power supply.

Is there any foreign matter that interferes

the rotation of the line f ow fan?

No

Yes

Remove the foreign matter and adjust the line f ow fan.

Pay enough attention to the high voltage on the fan motor connector CN211.
Turn ON the power supply, wait 5 seconds or more, and then press EMERGENCY OPERATION switch. Measure the supply voltage as follows within 12 seconds after EMERGENCY OPERATION switch is pressed. If more than 12 seconds passes, turn OFF the power supply and turn it ON again, then measure the voltage. <Indoor power P.C. board> 1. Measure the voltage between CN211 (+) and (­). 2. Measure the voltage between CN211 (+) and (­). <Indoor electronic control P.C. board> 3. Measure the voltage between CN10A (+) and GND (­).
If more than 12 seconds passes after EMERGENCY OPERATION switch is pressed, the voltage measured at 2. above goes 0 VDC although the indoor P.C. board is normal.

Is there 325 VDC

between CN211 (+) and (­) ?

Yes

No

Does the voltage between CN211

(+) and (­) on the power P.C. board

rise to the range of 3 to 6 VDC within 12 seconds after EMERGENCY

Yes

OPERATION switch is pressed?

No

Replace the indoor fan motor.

Replace the indoor power P.C. board.

Does the voltage between CN10A

(+) and GND (­) on the indoor

electronic control P.C. board fall to

Yes

2 V or less within 12 seconds after

No

EMERGENCY OPERATION switch is

pressed?

Replace the indoor electronic control P.C. board.

The indoor fan motor error has occurred, and the indoor fan repeats "12-second ON and 30-second OFF" 3 times, and then stops.

Measure the voltage between CN211 (+) and (­) while the fan motor is
rotating.

Is it unchanged holding 0 or 15 VDC?
Yes (Unchanged)

Measure the voltage CN10A

(+) and GND (­) on the indoor

No

electronic control P.C board when

(Changed) the fan motor is rotaring.

Replace the indoor fan motor.

Replace the indoor power P.C. board.

Is it unchanged holding

Yes

0 or 5 VDC?

(Unchanged)

No (Changed)

Replace the indoor electronic control P.C. board.

OBH750

22

B Check of remote controller and indoor electronic control P.C. board
Check if the remote controller is exclusive for this air conditioner.
Press STOP/OPERATE/ (OFF/ON) button on the remote controller.

Is LCD display on the remote controller visible?
Yes

No

Replace the batteries. (Refer to 10-1.4.)

(Not clear)

Remove the batteries, then set them back and press RESET button. (Refer to 10-1.4.) Check if the unit operates with the remote controller.

Does the unit operate with the remote

controller?

No

Yes

Turn ON a radio to AM and press STOP/ OPERATE/ (OFF/ON) button on the remote controller. 1

1 Look at the image of the signal transmitting section of the remote controller through the monitor of a digital camera or a camera phone. It is normal if the LED of the signal transmitting section lights up when the STOP/ OPERATE/ (OFF/ON) button on the remote controller is pressed. However, it may be diff cult to see the illuminated LED of the signal transmitting section with a smartphone camera.
2 If the inverter f uorescent light is turned on when the room is cool, the unit may have diff culty receiving the signal from the remote controller or may not be able to operate with it; if the inverter f uorescent light is turned on when the room is warm, the unit may be able to operate with the remote controller.

OK

Is noise heard from radio?

No

Replace the remote controller.

Yes

Are there any f uorescent lights of

inverter or rapid-start type within the range of 1 m? 2

Yes

No

·Reinstall the unit away from lights. ·Attach a f lter on receiving part.

Replace the indoor electronic control P.C. board. (Including the receiver)

OBH750

23

C Check of indoor P.C. board and indoor fan motor

Turn OFF the power supply. Remove indoor fan motor connector CN211 from indoor power P.C. board and vane motor connector CN151 from the indoor electronic control P.C. board and turn ON the power supply.

Measure the resistance of indoor fan motor. Refer to 10-5.

Short circuit: Replace the indoor fan motor.

Does the unit operate with the remote

controller?

Does OPERATION INDICATOR lamp light up by pressing EMERGENCY OPERATION

Yes

switch?

No

Measure the resistance of the vane motor coil. Refer to 10-5.

Short circuit: Replace the vane motor and the indoor electronic control P.C. board.

Turn OFF the power supply. Check both "parts side" and "pattern side" of the indoor power P.C. board visually.
1. The fan motor connector's lead wire is red, whereas is black.
2. Connect "+" of the tester to fan motor connector's lead wire, and "-" to lead wire, otherwise the resistance cannot be measured properly.
3. Please replace the fuse after removing the indoor power P.C. board from the electrical box.

Replace the varistor (NR11) and fuse (F11). 3

Yes

Is the varistor (NR11)

burnt and the fuse (F11) blown?

No

Be sure to check both the fuse and the varistor in any case.

Is the fuse (F11) blown

only?

No

Yes

Measure the resistance between CN211 (+) and (-) of indoor fan motor connector. 1, 2

Is the resistance 1M or more? No Yes

With a tester, check the continuity between the connector CN201 on the indoor control P.C. board and S2 on the terminal block.

Is electricity conducted? (The

Yes

resistance is 0  .)

No

The thermal fuse connected to the terminal block has failed. Replace the terminal block assembly.

Replace the fuse (F11) and the indoor fan motor. 3

Replace the fuse (F11). 3

Measure the resistance of resistor (R111) on the indoor power P.C. board.

Is the resistance of resistor (R111)

approximately 4  ?

No

Replace the indoor power P.C. board, the indoor terminal P.C. board and the indoor fan motor.

Indoor electronic control P.C. board
12 VDC 5 VDC Indoor power P.C. board

GND CN10A

Yes

Is there approximately 5 VDC between 5 V (+) and GND (-) of the indoor electronic control P.C. board? Is there approximately 9 V to 13 VDC between Yes 12 V (+) and GND (-) of the indoor electronic control P.C. board?
No

Replace the indoor fan motor.

Is the connector CN10A on

the indoor electronic control

P.C. board or lead wires

Yes

disconnected?

No

Connect the connector CN10A or repair disconnection.

Replace the indoor electronic control P.C. board.

R111 CN211

OBH750

24

D How to check miswiring and serial signal error
Turn OFF the power supply.

Is there rated voltage in the

power supply?

No

Yes

1. Turn ON the power supply. 2. Press the emergency operation switch.

Check the power supply.

No Has the relay 52C been turned on 3 minuets later ? [The relay will be turned on in 3 to 7 seconds by
bridging the timer short mode point (Refer to 10-7.).]

Initializing the determination of the power receiving system The microprocessor may have mistaken the unit as a model receiving power from the outdoor unit. Follow the procedure below to start the determination of the power receiving system all over again. 1. Hold down the emergency operation
switch for 30 seconds. (Do not release the switch even though a buzzer beeps once in about 5 seconds. Keep holding down the switch until a buzzer beeps again for 1 second after 30 seconds. Figure 1) 2. Turn off the power supply. 3. Wait for about 30 seconds. 4. Turn on the power supply. 5. Press the emergency operation switch. 6. The relay 52C will be turned on in 3 minutes.

Yes

Has the miswiring or the serial error No been indicated?

Yes Indication of miswiring Indication of serial signal error

OPERATION INDICATOR lamp Continuous blinks

Is there any miswiring, poor contact, or wire disconnection of the indoor/outdoor connecting wire?
Yes

Correct them. No

Figure 1
Buzzer ON

0.5-second

OFF
Beeps Beeps
Emergency operation switch ON

OFF

5-second

1-second Beeps

A Turn OFF the power supply. Make sure again that the indoor/outdoor connecting wire is correctly connected. With the indoor/outdoor connecting wire connected, bridge between S2 and S3 on the outdoor terminal block. 1 <Preparation of the remote controller>
While pressing both OPERATION SELECT button and B TOO COOL button on the remote controller at the same
time, press RESET button. First, release RESET button. Hold down the other 2 buttons for another 3 seconds. Make sure that the indicators on the LCD screen shown in the right f gure are all displayed. Then release the buttons. (Setting up the failure mode recall function)

ON

30-second

OFF Aim the remote controller at the indoor unit, and press STOP/OPERATE/ (OFF/ON) button. The relay 52C will be turned on, and the outdoor unit will be energized.

1 Make sure that the wiring is correct. If the procedure is performed without correcting miswiring, it may lead to damage to the P.C. board.

A · Turn OFF inverter-controlled lighting equipment. · Turn OFF the power supply and then turn ON again. · Press the emergency operation switch.

After the relay 52C is turned on 3 minutes later, is miswiring or the serial signal error indicated?
Yes
B

· Reinstall either the unit or the light away from
No each other. · Attach a f lter on remote control receiving section of the indoor unit.

Is the rated supply voltage applied between the S1 and S2 on the outdoor terminal block? (Check of supply voltage)
Yes

No

Is there any problem in the indoor/outdoor connecting wire, such as the damage of the wire, intermediate connection, poor contact with the terminal block?

Yes

Replace the indoor/ outdoor connecting wire.

No

Is there approximately 250 VDC ­ 370 VDC between DB61 (+) and DB61 (­) on the inverter P.C. board in the outdoor unit? (Voltage check of the inverter P.C. board in the outdoor unit)
Yes
Does the LED on the inverter P.C. board in the outdoor unit repeat "3.6-second-OFF and 0.8-secondON quick blinking" for 3 minutes after the outdoor unit is energized? (Check the blinking pattern within 3 minutes after LED is turned on. After 3 minutes, LED will blink 6 times whether the inverter P.C. board in the outdoor unit is normal or not.)
Yes

Replace the inverter P.C. board in the No outdoor unit. 2
2 Be careful of 140 VDC ­ 280 VDC residual charge in the capacitor on the main inverter circuit.

Replace the

inverter P.C.

No

board in the outdoor unit. 2

Replace the indoor electronic control P.C. board. 3
3 Be sure to release the failure-mode recall function after checking.

OBH750

25

E Electromagnetic noise enters into TV sets or radios

Is the unit earthed? Yes

No

Earth the unit.

Is the distance between the antennas and the indoor unit within 3 m, or is the distance between the antennas and the Yes outdoor unit within 3 m?
No

Extend the distance between the antennas and the indoor unit, and/or the antennas and the outdoor unit.

Is the distance between the TV sets or radios and the indoor unit within 1 m, or is the distance between the TV sets or Yes radios and the outdoor unit within 3 m?
No

Extend the distance between the TV sets and/or radios and the indoor unit, or the TV sets or radios and the outdoor unit.

Are the antennas damaged? Is the coaxial cable damaged? Is there any poor contact in the anten- Yes na wiring?
No

Replace or repair the antenna. Replace or repair the coaxial cable.

Is the indoor/outdoor connecting wire

of the air conditioner and the wiring of

the antennas close?

Yes

No

Extend the distance between the indoor/outdoor connecting wire of the air conditioner and the wiring of the antennas.

Even if all of the above conditions are fulf lled, the electromagnetic noise may enter, depending on the electric f eld strength or the installation condition (combination of specif c conditions such as antennas or wiring). Check the following before asking for service. 1. Devices affected by the electromagnetic noise
TV sets, radios (FM/AM broadcast, shortwave) 2. Channel, frequency, broadcast station affected by the electromagnetic noise 3. Channel, frequency, broadcast station unaffected by the electromagnetic noise 4. Layout of ;
indoor/outdoor unit of the air conditioner, indoor/outdoor wiring, earth wire, antennas, wiring from antennas, receiver 5. Electric f eld intensity of the broadcast station affected by the electromagnetic noise 6. Presence or absence of amplif er such as booster 7. Operation condition of air conditioner when the electromagnetic noise enters in
1) Turn OFF the power supply once, and then turn ON the power supply. In this situation, check for the electromagnetic noise.
2) Within 3 minutes after turning ON the power supply, press STOP/OPERATE/ (OFF/ON) button on the remote controller for power ON, and check for the electromagnetic noise.
3) After a short time (3 minutes later after turning ON), the outdoor unit starts running. During operation, check for the electromagnetic noise.
4) Press STOP/OPERATE/ (OFF/ON) button on the remote controller for power OFF, when the outdoor unit stops but the indoor/outdoor communication still runs on. In this situation, check for the electromagnetic noise.

OBH750

26

10-7. TEST POINT DIAGRAM AND VOLTAGE

MSZ-DM25VA MSZ-DM35VA

1. Indoor power P.C. board

Fuse (F11) T3.15AL250V

Connector to Terminal block (CN201)

Varistor (NR11)

Resistor (R111)

Connector to Indoor fan motor (CN211)
(+)0 or 15 VDC
(+)3-6 VDC 15 VDC
(-) GND (High voltage DC)
325 VDC

12V

GND 5V

Indoor terminal block connecting (TAB1)
Indoor terminal block connecting (TAB2)

12 VDC GND 5 VDC
Connector to indoor electronic control P.C. board (CN20A)

2. Indoor electronic control P.C. board

Room temperature thermistor RT11 (CN111)

To disable "Auto restart function", cut the Jumper wire to JR77. (Refer to 8-3.)

Vane motor (CN151)
5V DC

Connector to Indoor coil thermistor RT12, RT13 (CN112) Timer short mode point (Refer to 8-1.)
GND

Emergency operation 12V DC Connector to indoor power

switch (E.O. SW) (SW1)

P.C. board (CN10A)

OBH750

27

Resistance (k)

Room temperature thermistor (RT11) Indoor coil thermistor (RT12, RT13)
Temperature (°C)

11 DISASSEMBLY INSTRUCTIONS

<"Terminal with locking mechanism" Detaching points>
The terminal which has the locking mechanism can be detached as shown below. There are 2 types (refer to (1) and (2)) of the terminal with locking mechanism. The terminal without locking mechanism can be detached by pulling it out. Check the shape of the terminal before detaching.

(1) Slide the sleeve and check if there is a locking lever or not.
Sleeve

(2) The terminal with this connector has the locking mechanism.

Locking lever

Slide the sleeve. Pull the terminal while pushing the locking lever.

11-1. MSZ-DM25VA MSZ-DM35VA

OPERATING PROCEDURE
1. Removing the panel (1) Remove the screw caps on the panel and remove the screws of the panel. (2) Pull the panel slightly toward you, and then remove the panel by pushing it upward.

Hold the sleeve, and pull out the terminal slowly.
Connector

NOTE: Turn OFF the power supply before disassembly.

PHOTOS

Photo 1

Front panel Horizontal vane

Screws of the panel

OBH750

28

OPERATING PROCEDURE
2. Removing the indoor power P.C. board and the electrical box (1) Remove the panel. (Refer to 1.) Remove the right corner box. (2) Disconnect the following connectors: <Indoor electronic control P.C. board> CN151 (Vane motor) CN112 (Indoor coil thermistor) CN10A (To the indoor power P.C. board)
(3) Unhook the catch on the left side of the control P.C. board holder. Pull the control P.C. board holder as if opening the door at 90 degrees. Remove the control P.C. board holder from the axial rod on the electrical box.
(4) Remove the screw of the V.A. clamp. (5) Remove the V.A. clamp and the indoor/outdoor connect-
ing wire. (6) Remove the earth wire connected to the indoor heat
exchanger from the electrical box. (7) Remove the screw of the electrical cover and remove the
electrical cover. (8) Disconnect the following connectors: <Indoor power P.C. board> CN211 (Indoor fan motor) CN201, TAB1, TAB2 (Terminal block) CN20A (To the indoor electronic control P.C. board)

Photo 2

PHOTOS

Earth wire

Indoor electronic control P.C. board

Screw of the electrical cover
Screw of the V.A. clamp
Vane motor connector CN151
Indoor coil thermistor connector CN112
Connector CN10A (To indoor power P.C. board)
Control P.C. board holder

Photo 3
TAB2 (Terminal block) TAB1 (Terminal block)

Electrical box

(9) Remove the upper catch of the electrical box, and pull out the electrical box. To attach the electrical box, pass the wires connecting the indoor power P.C. board and the indoor electronic control P.C. board through A. Pass the lead wires of the fan motor through B as shown in the Photo 3.

Terminal block connector CN201
Indoor fan motor connector CN211
Connector CN20A (To indoor electronic P.C. board)

Power P.C. board

OBH750

29

OPERATING PROCEDURE
3. Removing the indoor electronic control P.C. board (1) Remove the panel. (Refer to 1.) Remove the right corner box. (2) Disconnect the following connectors: <Indoor electronic control P.C. board> CN151 (Vane motor) CN112 (Indoor coil thermistor) CN10A (To the indoor power P.C. board)
(3) Unhook the catch on the left side of the control P.C. board holder. Pull the control P.C. board holder as if opening the door at 90 degrees. Remove the control P.C. board holder from the axial rod on the electrical box.
(4) Remove the room temperature thermistor from the back side of the control P.C. board holder.
(5) Unhook the catches of the control P.C. board holder, and open the control P.C. board holder.
(6) Remove the indoor electronic control P.C. board from the control P.C. board holder.

PHOTOS
Photo 4 Control P.C. board holder (Inside) Catch Indoor electronic control P.C. board
Catch Control P.C. board holder (Back side)

Room temperature thermistor

4. Removing the vane motor (1) Remove the panel. (Refer to 1.) Remove the corner box. (2) Remove the control P.C. board holder and the electrical box. (Refer to 2.) (3) Pull out the drain hose from the nozzle assembly and remove the nozzle assembly. (4) Remove the screws of the vane motor and remove the vane motor. (5) Disconnect the connector from the vane motor.

Photo 5

OBH750

Screws of the vane motor
30

OPERATING PROCEDURE
5. Removing the indoor fan motor, the indoor coil thermistor and the line flow fan (1) Remove the panel. (Refer to 1.) Remove the corner box. (2) Remove the control P.C. board holder, the electrical box and the nozzle assembly. (Refer to 2.) (3) Remove the screws fixing the motor bed. (4) Disengage the hooks of the water cover and remove the water cover. (5) Disconnect the earth wire from the motor band. (6) Remove the indoor coil thermistor from the motor band. (7) Loosen the screw fixing the line flow fan. (8) Remove the motor bed together with the indoor fan motor and the motor band. (9) Disconnect the lead wire of the fan motor from the motor band. (10) Disengage the hooks of the motor band and remove the motor band. Pull out the indoor fan motor. (11) Remove the indoor coil thermistor from the heat exchanger. Install the indoor coil thermistor in its former position when assembling it. (12) Remove the screws fixing the left side of the heat exchanger. (13) Lift the heat exchanger, and pull out the line flow fan to the lower-left. When attaching the line flow fan, screw the line flow fan so 4 mm gap is provided between the right end of the line flow fan and the right wall of the air passage of the box (Figure 1).
Figure 1

Photo 6

PHOTOS

Screw of the line flow fan

Photo 7

Earth wire Motor band

Indoor coil thermistor

4 mm

Water cover Photo 8

Screws of the motor bed

OBH750

Screws of the left side of the heat exchanger
31

Fixing the indoor coil thermistor
There are 2 forms of parts for fixing the indoor coil thermistor.

Clip shape

Holder shape

When fixing the indoor coil thermistor to the clip-shape/holder-shape part, the lead wire should point down.

About the same length

Position and procedure for mounting the clip-shape part

1. Set the indoor coil thermistor in the center of the clip-shape part.

2. Check the (marked) mounting position.

3. Mount the clip-shape part.

NOTE: Take care to avoid loss and accidental falling of the clip-shape part inside the unit. Mount the clip-shape part on the marked position. Do not pull the lead wire when removing the indoor coil thermistor.

HEAD OFFICE: TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN

© Copyright 2015 MITSUBISHI ELECTRIC CORPORATION Distributed in Dec. 2015. No. OBH750 Made in Japan
OBH750

New publication, effective Dec. 2015 Specifications are subject to change without notice.


Acrobat Distiller 11.0 (Windows)
