ELATION PLATINUM 1200 WASH - USER MANUAL 021117

PLATINUM 1200 WASH User Manual

Platinum 1200 Wash

Full PDF Document

Loading PDF...
Download PDF

If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.

Extracted Text

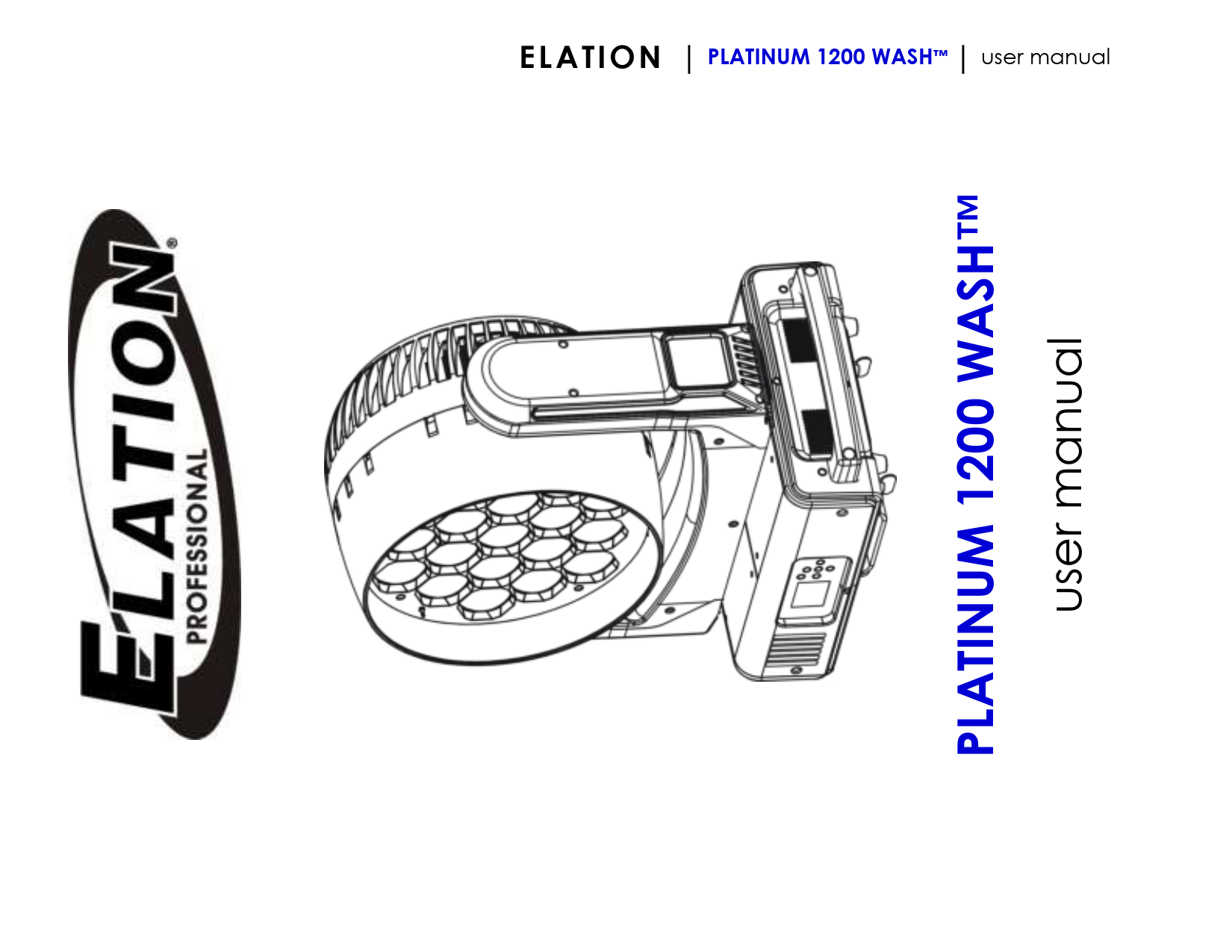

E L A T I O N | PLATINUM 1200 WASHTM | user manual

PLATINUM 1200 WASHTM
user manual

�2017 ELATION PROFESSIONAL all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ELATION PROFESSIONAL logo and identifying product names and numbers herein are trademarks of ELATION PROFESSIONAL. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All non-ELATION brands and product names are trademarks or registered trademarks of their respective companies.
ELATION PROFESSIONAL and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of this product.
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated
version of this document may be available online.
Please check www.elationlighting.com for the latest revision/update of
this manual, before beginning installation and/or programming.

Date

Document Version

02/11/17

1

Software Version
2.1.0

DMX Channel Modes
17 / 35 / 93

Initial release.

Notes

www.elationlighting.com

2

CONTENTS

General Information

4

Warranty

6

Safety Instructions and Guidelines

7

Overview

9

Installation

10

System Menu

14

DMX Channel Functions And Values

22

LED Pixel Control

30

Error Codes

31

Cleaning and Maintenance

33

Technical Specifications

34

Optional Accessories

37

3

www.elationlighting.com

GENERAL INFORMATION
INTRODUCTION Congratulations, you have just purchased one of the most innovative and reliable lighting fixtures on the market today! This fixture has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. These instructions contain important information regarding safety during use and maintenance.

UNPACKING Every fixture has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for damage and be sure all accessories necessary to operate the unit have arrived intact. In the event damage has been found or parts are missing, please contact our customer support team for further instructions. Please do not return this unit to your dealer without first contacting customer support at the number listed below. Please do not discard the shipping carton in the trash. Please recycle whenever possible.

BOX CONTENTS 2 Omega Brackets 5pin DMX Cable power 32A Cable

(does NOT use standard powerCON connector)

www.elationlighting.com

4

CUSTOMER SUPPORT Elation Professional� provides a customer support line, to provide set up help and to answer any question should you encounter problems during your set up or initial operation. You may also visit us on the web at www.elationlighting.com for any comments or suggestions. For service related issue please contact Elation Professional�.

ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST

Voice: 323-582-3322

Fax: 323-832-9142

E-mail: support@elationlighting.com

ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET

Voice: +31 45 546 85 30

Fax: +31 45 546 85 96

E-mail: support@elationlighting.eu

WARRANTY REGISTRATION Please complete and mail in the enclosed warranty card or register online: http://www.elationlighting.com/Login.aspx to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief description of the problem as well as the R.A. number must also be written down on a piece of paper and included in the shipping container. If the unit is under warranty, you must provide a copy of your proof of purchase invoice. Items returned without a R.A. number clearly marked on the outside of the package will be refused and returned at customer's expense. You may obtain a R.A. number by contacting customer support.
IMPORTANT NOTICE!
There are no user serviceable parts inside this unit. Do not attempt any repairs
yourself; doing so will void your manufactures warranty. Damages resulting from
modifications to this fixture and/or the disregard of safety and general user
instructions found in this user manual void the manufactures warranty and are
not subject to any warranty claims and/or repairs.

5

www.elationlighting.com

LIMITED WARRANTY
A. Elation Professional� hereby warrants, to the original purchaser, Elation Professional� products to be free of manufacturing defects in material and workmanship for a period of two years (730 days), and Elation Professional� product rechargeable batteries to be free of manufacturing defects in material and workmanship for a period of six months (180 days), from the original date of purchase. This warranty excludes discharge lamps and all product accessories. This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. It is the owner's responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For warranty service, send the product only to the Elation Professional� factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional� will pay return shipping charges only to a designated point within the United States. If any product is sent, it must be shipped in its original package and packaging material. No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional� shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is modified in any manner which Elation Professional� concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the Elation Professional� factory unless prior written authorization was issued to purchaser by Elation Professional�; if the product is damaged because not properly maintained as set forth in the product instructions, guidelines and/or user manual. D. This is not a service contract, and this warranty does not include any maintenance, cleaning or periodic check-up. During the periods as specified above, Elation Professional� will replace defective parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of Elation Professional� under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of Elation Professional�. All products covered by this warranty were manufactured after January 1, 1990, and bare identifying marks to that effect. E. Elation Professional� reserves the right to make changes in design and/or performance improvements upon its products without any obligation to include these changes in any products theretofore manufactured. F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with the products described above. Except to the extent prohibited by applicable law, all implied warranties made by Elation Professional� in connection with this product, including warranties of merchantability or fitness, are limited in duration to the warranty periods set forth above. And no warranties, whether expressed or implied, including warranties of merchantability or fitness, shall apply to this product after said periods have expired. The consumer's and/or dealer's sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall Elation Professional� be liable for any loss and/or damage, direct and/or consequential, arising out of the use of, and/or the inability to use, this product. G. This warranty is the only written warranty applicable to Elation Professional� products and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.

www.elationlighting.com

6

SAFETY INSTRUCTIONS AND GUIDELINES
This fixture is an extremely sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. The manufacturer of this device is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of this fixture and only the original rigging parts (omega brackets) included with this fixture should be used for installation. Any modifications to the fixture and/or the mounting hardware included will void the original manufactures warranty and increase the risk of damage and/or personal injury.
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED
DO NOT PLUG FIXTURE INTO A DIMMER PACK! NEVER OPEN THIS FIXTURE WHILE IN USE! UNPLUG POWER BEFORE SERVICING FIXTURE! NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT! KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!
INDOOR / DRY LOCATIONS USE ONLY! DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE!
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE! RETINA INJURY RISK - MAY INDUCE BLINDNESS! SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!

7

www.elationlighting.com

SAFETY INSTRUCTIONS AND GUIDELINES

 DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before serving.
 DO NOT shake fixture, avoid brute force when installing and/or operating fixture.  DO NOT operate fixture if the power cord has become frayed, crimped and/or
damaged. If the power cord is damaged, replace it immediately with a new one of similar power rating.  DO NOT block any air ventilation slots. All fan and air inlets must remain clean and never blocked. Allow approx. 6" (15cm) between fixture and other devices or a wall for proper cooling.  When installing fixture in a suspended environment, always use mounting hardware that is no less than M10 x 25 mm, and always install fixture with an appropriately rated safety cable.
 Always disconnect fixture from main power source before performing any type of service and/or cleaning procedure. Only handle the power cord by the plug end, never pull out the plug by tugging the wire portion of the cord.
 During the initial operation of this fixture, a light smoke or smell may emit from the interior of the fixture. This is a normal process and is caused by excess paint in the interior of the casing burning off from the heat associated with the lamp and will decrease gradually over time.
 Consistent operational breaks will ensure the fixture will function properly for many years to come.
 Use the original packaging and materials to transport the fixture in for service.  The average LED Life (hours) may vary depending on several factors including
but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

www.elationlighting.com

8

OVERVIEW

1. LED Lens Array 2. LCD Menu Function Display 3. MODE/ESC Button 4. LEFT Button 5. DOWN Button 6. ENTER Button 7. RIGHT Button 8. UP Button 9. RJ45 Ethernet IN 10. 5pin DMX IN 11. RJ45 Ethernet OUT 12. 5pin DMX OUT 13. power 32A IN 14. Fuse

9

www.elationlighting.com

INSTALLATION
FLAMMABLE MATERIAL WARNING
Keep fixture at least 5.0 feet (1.5m) away from any flammable materials, decorations, pyrotechnics, etc.
ELECTRICAL CONNECTIONS
A qualified electrician should be used for all electrical connections and/or installations.

CAUTIONS
 For added protection, mount the fixture in areas outside walking paths, seating areas, or in areas were unauthorized personnel might reach the fixture.
 Ambient operating temperature range for this fixture is 14� to 113�F. (-10� to 45�C) Do not use the fixture under or above this temperature.
 Before mounting the fixture to any surface, make sure the installation area can hold a minimum point load of 10 times the weight of the fixture.
 Fixture installation must always be secured with a secondary safety attachment, such as an appropriate safety cable.
 Never stand directly below the device when mounting, removing or servicing.

www.elationlighting.com

10

OMEGA BRACKETS INSTALLATION Insert the Omega Brackets into the matching holes on the bottom of the fixture. Secure the Omega Brackets to the fixture by turning each quick-lock fastener � turn clockwise; making sure the fastener is completely locked.

SAFETY CABLE RIGGING POINT

CLAMP INSTALLATION When mounting fixture to truss, be sure to secure an appropriately rated professional grade rigging clamp to the included Omega Brackets using an M10 screw fitted through the center hole of the Omega Brackets. The fixture provides a built-in rigging point for a Safety Cable. Be sure to only use the designated rigging point for the safety cable and never secure a safety cable to a carrying handle.

11

www.elationlighting.com

RIGGING Overhead rigging requires extensive experience, including amongst others calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury. Fixture is fully operational in the specific mounting positions illustrated below.
2 PERSONS REQUIRED FOR INSTALLATION!

SAFETY CABLE
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT DROP
IF THE CLAMP FAILS.

www.elationlighting.com

12

ART-NET CONNECTION
When connecting fixture to a network switch to control multiple devices, a Gigabit Ethernet Switch that supports IGMP (Internet Group Management Protocol) is required. Using a Gigabit Ethernet Switch that does not support IGMP can cause erratic behavior of all connected devices to the switch. Click link below for more information about IGMP. https://en.wikipedia.org/wiki/Internet_Group_Management_Protocol

13

www.elationlighting.com

SYSTEM MENU
The fixture includes an easy to navigate system menu. The control panel (see image below) located on the front of the fixture, provides access to the main system menu and is where all necessary system adjustments are made to the fixture. During normal operation, pressing MODE/ESC button once will access the fixture's main menu. Once in the main menu you can navigate through the different functions and access the sub-menus with the UP, DOWN, RIGHT, and LEFT buttons. Once you reach a field that requires adjusting, press the ENTER button to activate that field and use the UP and DOWN buttons to adjust the field. Pressing the ENTER button once more will confirm your setting. You may exit the main menu at any time without making any adjustments by pressing the MODE/ESC button.
u NOTE: To access the LCD Menu Control Display via the internal battery, press and hold the MODE/ESC button for 3 seconds. The LCD Menu Control Display will shut OFF automatically about 1 minute from the last button press.

www.elationlighting.com

14

MAIN MENU FUNCTION INFORMATION
PERSONALITY

ELATION� PLATINUM 1200 WASHTM S Y S T E M M E N U

Features are subject to change without any prior written notice. Supports Software Versions:  2.1.0

SUB MENU

OPTIONS / VALUES (Default Settings in BOLD)

Set DMX Address

001~xxx

DMX Address Setting

DMX Value

ALL......

DMX Value Display

Slave Mode

Slave1, Slave2, Slave3

Slave Setting

Auto Program

Master / Alone

Auto Program

Current Time

XXXX (Hours)

Fixture Run Time From Power ON

Total Run Time

XXXX (Hours)

Fixture Total Run Time

Time Information

Last Run Time

XXXX (Hours)

Clear Fixture Last Run Time

LastRun Password

Password=XXX

Password 038

Clear Last Run

ON / OFF

Reset Fixture Last Run Time

Temperature Info

Head Temperature XXX C� / F �

Temperature in Fixture Head

Ethernet IP

XXX . XXX . XXX . XXX XXX . XXX . XXX . XXX IP Address

Fan Speed

FAN1:xxx RPM, FAN2:xxx RPM, FAN3:xxx RPM Displays RPM Speeds of Fans

Software Version

1U01: - 3U01: Vx.x.x

Software Versions

Error Info

Error Record 1 ~ Error Record 10

Displays Last 10 Error Codes

Address via DMX

ON/OFF

Address Via DMX

No DMX Status

Hold/Close Shutter/ Auto Program

Auto Run If No DMX

Status Settings
Service Setting Fans Control Display Setting Temperature C/F Initial Status Dimmer Modes Select Signal Set Universe

Pan Reverse

ON/OFF

Tilt Reverse

ON/OFF

Pan Degree

630/540

Feedback

ON/OFF

Movement Speed Speed 1, 2, 3, 4

Zoom Range Mode Mode 1, Mode 2

Hibernation

OFF, 01M~99M, 15M

Password

Password=050

RDM PID

XXXXX

Ethernet IP

XXX . XXX . XXX . XXX

Ethernet Mask IP

XXX . XXX . XXX . XXX

Clear Err. Info

ON/OFF

Auto, Low, High

Shutoff Time

02~60m 05m

Flip Display

ON/OFF

Key Lock

ON/OFF

Disp Flash

ON/OFF

Celsius/Fahrenheit

PAN =XXX

Standard, Stage, TV, Architectural, Theatre

DMX Only Art-Net on IP2

Art-Net on IP10

sACN

000 - 255

Pan Reverse Movement Tilt Reverse Movement Pan Degree Select Movement Feedback Select Movement Speed Select Zoom Range Mode
Stand By Mode
Service Password RDM PID Code Ethernet IP Ethernet Mask IP Clear Error Code History Set Fan Speed Display Shut Off Time Flip/Invert Display 180� Key Lock Display Flashes When No DMX Signal %08;0<,>?<0$A4>.30>A009JJ Initial Effect Position
DMX Only Elect Art-Net IP02 Elect Art-Net IP010 sACN Protocol Set Art-Net Universe

Refresh

1200, 900-1500, 2500, 4000, 5000, 10000, 15000, 20000, 25000 (Hz)

Set Refresh Rate

Gamma Reset Default

2.0, 2.2, 2.4, 2.6, 2.8

ON/OFF

Password 011

Set Gamma Value Restore Factory Settings NOTE: Saved White Balance Erased!

15

www.elationlighting.com

MAIN MENU Reset Function
Effect Adjust User Mode Set
Edit Program

ELATION� PLATINUM 1200 WASHTM S Y S T E M M E N U

Features are subject to change without any prior written notice. Supports Software Versions:  2.1.0

SUB MENU OPTIONS / VALUES (Default Settings in BOLD)

DESCRIPTION

Reset All

Reset All Motors

Reset Pan&Tilt

Reset Pan/Tilt

Reset Zoom

Reset Zoom

Test Channel

PAN ......

Test function

Manual Control PAN =XXX, ......

Fine Adjustments

Calibration

Calibration Password

Password 050

Standard Mode

Basic Mode

DMX Channel Modes

User Mode

Extended Mode User Mode A

User Mode B

User Defined Channel Assignment

User Mode C

Edit User Mode

Edit User Mode A Edit User Mode B Edit User Mode C

Max Channel = XX PAN = CH01

Edits User Defined Channel Assignments

Auto Pro Part1 = Program 1~10 (Program 1)

Select Program Auto Pro Part2 = Program 1~10 (Program 2) Select Programs To Be Run

Auto Pro Part3 = Program 1~10 (Program 3)

Program 1

Program Test

Testing Program

Edit Program

:

Step 01=SCxxx

Program In Loop

Program 10

Step 64=SCxxx

Save and Exit

Edit Scenes

Scene 001 ~ Scene 250

Pan,Tilt,...... --Fade Time---Scene Time-Input By Outside

Save and Automatically Return Manual Scenes Edit Stores Scenes via Ext DMX Console

Rec. Controller XX~XX

Automatic Scenes Recorder

PERSONALITY - Status Settings - Address Via DMX

When ON, define the desired fixture DMX address via an external controller.
NOTE: This process assumes the fixture DMX address is set to 001. If fixture DMX address is not at 001, you must adjust the channel numbers accordingly in order for this feature to work. For example: if your fixture address is 010, then Channel 1 becomes Channel 10, Channel 2 becomes Channel 11, and Channel 3 becomes Channel 12.
1. Connect the fixture to the external controller and power ON.
2. Set the DMX value of Channel 1 on the controller to (7).
3. Set the DMX value of Channel 2 on the controller to (7) or (8).
When set to (7), the DMX address can be set between (1) and (255).
When set to (8), the DMX address can be set between (256) and (511).
4. Using Channel 3 on the controller set the desired DMX address of the fixture.
Example 1: If the desired DMX address is 57, set Channel 1 to a value of (7), set Channel 2 to a value of (7), and then set Channel 3 to a value of (57).
Example 2: If the desired DMX address is 420, set Channel 1 to a value of (7), set Channel 2 to a value of (8), and then set Channel 3 to a value of (164). (256+164=420)
5. After setting Channel 3 to the desired DMX address value, wait for approximately 20 seconds (some fixtures may require a longer time) for the new address to be assigned to the fixture.

www.elationlighting.com

16

PERSONALITY � Service Setting - Password (050) u NOTE: The Service Password MUST be entered in order to access the following menus:
RDM PID, Ethernet IP, Ethernet IP Mask, and Clear Err. Info.
PERSONALITY � Service Setting - RDM PID
Select various submenus via RDM. RDM stands for "Remote Device Management", which provides the ability to control the device remotely while connected to a DMX-bus. ANSI E1.20-2006 by ESTA specifies the RDM standard as an extension of the DMX512 protocol. Manual settings like adjusting the DMX starting address are no longer needed. This is especially useful when the device is installed in a remote area.
RDM ready and conventional DMX devices can be operated in one DMX line. The RDM protocol sends its own packages in the DMX512 data feed and does not influence conventional devices. If DMX splitters are used and RDM control is to be used, these splitters must support RDM. The number and type of RDM parameters depend on the RDM controller being used. PERSONALITY - Display Setting � Key Lock
When ON, Control Panel buttons lock automatically after exiting main menu for 15
seconds. To unlock, keep MODE/ESC button pressed for 3 seconds.
PERSONALITY - Dimming Modes
Select desired DIMMER MODE (Standard, Stage, TV, Architectural, Theatre).

17

www.elationlighting.com

PERSONALITY - Reset Default (011) ONLY QUALIFIED TECHNICIANS SHOULD PERFORM THIS FUNCTION. NOTE: SAVED WHITE BALANCE IS ERASED AFTER A RESET IS PERFORMED.
This function restores all fixture settings to the factory default settings. The password is 011 and must be entered each time a reset is performed.
EFFECT ADJUST � Test Channel
Auto test each individual channel function independently from the DMX control board.
EFFECT ADJUST � Manual Control
Select and manually test and fine adjust each individual channel function Independently from DMX control board. This function will center PAN and TILT motors and set dimmer to 100%. PAN and TILT functions will still operate if the fixture needs to be positioned to a flat clear surface. With the individual functions, you can focus the light on a flat surface (wall) and perform fine adjustments. EFFECT ADJUST � Calibration ONLY QUALIFIED TECHNICIANS SHOULD PERFORM THIS FUNCTION.
This function allows small adjustments to be made to the Pan, Tilt, and Zoom movements to compensate for ware or in the event a sensor has been knocked slightly out of place. Because improper use of this function can result in undesired operation this function has been password protected. The password is 050 and must be entered each time the calibration menu function is entered. Because calibration is an extremely delicate procedure, instructions on performing this action are left out of this manual. For a first time calibrator, please contact our customer support team for step-by-step instructions. USER MODE SET � Edit User Mode
Create user defined channel orders allowing the fixture to match the channel order of other fixtures on the market for easier operation. A total of three user modes may be configured: User Mode A, User Mode B, and User Mode C. EDIT PROGRAM � Rec. Controller
The fixture features an integrated DMX-recorder by which you can transmit the programmed scenes from your DMX-controller to the moving head. Adjust the desired scene numbers via the encoder (from � to). When you call up the scenes at your controller, they will automatically be transmitted to the moving head.

www.elationlighting.com

18

EDIT PROGRAM � Record Controller � Working With Built In Programs A Master unit can send up to 3 different data groups to the Slave units, i.e. a Master unit can start 3 different Slave units, which run 3 different programs. The Master unit sends the 3 program parts in a continuous loop.

The Slave unit receives data from the Master unit according to the group which the Slave unit was assigned to. If e.g. a Slave unit is set to "Slave 1" in the menu "Set to Slave", the Master unit sends "Auto Program Part 1" to the Slave unit. If set to "Slave 2", the Slave unit receives "Auto Program Part 2".
To start an Auto Program proceed as follows:
1. Slave Setting U.=D=;L"Function Mode". U+J=KKENTER to confirm. U.=D=;L"Set to Slave". U+J=KK ENTER to confirm. U.elect "Slave 1", "Slave 2" or "Slave 3". U+J=KKENTER to confirm. U+J=KKMODE/ESC in order to return to the main menu.
2. Automatic Program Run U.=D=;L"Function Mode". U+J=KKENTER to confirm. U.=D=;L"Auto Program". U+J=KKENTER to confirm. U.elect "Master" or "Alone". U+J=KKENTER to confirm. U+J=KKMODE/ESC in order to return to the main menu.

19

www.elationlighting.com

EDIT PROGRAM � Record Controller � Working With Built-In Program [continued]
3. Program Selection for Auto Pro Part U.=D=;L"Edit Program". U+J=KKENTER to confirm. U.=D=;L"Select Programs". U+J=KKENTER to confirm. U.elect "Auto Pro Part 1", "Auto Pro Part 2" or "Auto Pro Part 3", and select which
Slave program is to be sent. Selection "Part 1" means, that the Slave unit runs the same program as the master units. U+J=KK ENTER to confirm. U+J=KKMODE/ESC in order to return to the main menu.
4. Program Selection for Edit Program U.=D=;LZEdit Program". U+J=KKENTER to confirm. U.=D=;L"Edit Program". U+J=KKENTER to confirm. U.elect the desired program to edit specific scenes into a specific program. U+J=KKENTER to confirm. U+J=KKMODE/ESC in order to return to the main menu.
5. Automatic Scene Recording U.=D=;L"Edit Program". U+J=KKENTER to confirm. U.=D=;L"Edit Scenes". U.=D=;Ldesired scene numbers. A maximum of 250 scenes can be programmed. U+J=KKENTER to confirm. U+J=KKMODE/ESC in order to return to the main menu.

www.elationlighting.com

20

EDIT PROGRAM � Record Controller � Working With Built-In Program [continued]
Example: Program 2 includes scenes: 10, 11, 12, & 13 Program 4 includes scenes: 8, 9, & 10 Program 6 includes scenes: 12, 13, 14, & 15 Auto Pro Part 1 is Program 2 Auto Pro Part 2 is Program 3 Auto Pro Part 3 is Program 6 The 3 Slave groups run the Auto Program in certain time segments. (See diagram below)

WHITE BALANCE SETTING This feature provides the ability to individually adjust the maximum dimmer intensity for each LED color (Red, Green, Blue, and White) and store these values as a White Balance preset. This can be a useful tool when the output intensity of a group of same model fixtures with varying usage times, needs to be calibrated to match as much as possible. Once a new White Balance preset is saved to the fixture, the maximum dimmer intensity values cannot be changed until the White Balance preset is updated, erased or restored to the factory default setting. 1. Set ALL DMX channels to zero (0) then set the SPECIAL FUNCTIONS channel (CH17
in Basic Mode, CH35 in Stand Mode, CH93 in Extend Mode) to DMX value of (91-93) EDIT and SAVE WHITE BALANCE ENABLED. 2. Set the COLOR MODE - WHITE BALANCE channel (CH15 in Basic Mode, CH33 in Stand Mode, CH91 in Extend Mode) to DMX value of (190-254) EDIT and SAVE WHITE BALANCE Setting. 3. Adjust each LED color channel to the desired intensity level (0-255). 4. Set the COLOR MODE - WHITE BALANCE channel (CH15 in Basic Mode, CH33 in Stand Mode, CH91 in Extend Mode) to DMX value of (255) SAVE New WHITE BALANCE Setting to Fixture(s). 5. To save a new White Balance preset, repeat steps 1-4 above.

21

www.elationlighting.com

DMX CHANNEL FUNCTIONS AND VALUES

ELATION� PLATINUM 1200 WASHTM
DMX Channel Values / Functions (93 Total DMX Channels) Supports Software Versions:  2.1.0

Features are subject to change without any prior written notice.
*Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt settings.

MODE / CHANNEL BASIC STAND EXTEND

VALUE

FUNCTION

1

1

PAN MOVEMENT [8 BIT] 1
0-255 PAN Movement

PAN FINE MOVEMENT [16 BIT]

2

2

0-255 Fine Control of PAN Movement

2

3

TILT MOVEMENT [8 BIT] 3
0-255 TILT Movement

TILT MOVEMENT [16 BIT]

4

4

0-255 Fine Control of TILT Movement

3

5

0-255

RED [ALL PIXELS] Red (0-Black - 255-100%)

RED FINE [ALL PIXELS] 6
0-255 Red FINE Adjustment

4

7

0-255

GREEN [ALL PIXELS] Green (0-Black - 255-100%)

GREEN FINE [ALL PIXELS] 8
0-255 Green FINE Adjustment

5

9

0-255

BLUE [ALL PIXELS] Blue (0-Black - 255-100%)

BLUE FINE [ALL PIXELS] 10
0-255 Blue FINE Adjustment

6

11

0-255

WHITE [ALL PIXELS] White (0-Black - 255-100%)

WHITE FINE [ALL PIXELS] 12
0-255 White FINE Adjustment

RED [CENTER PIXEL 1] 13
0-255 Red (0-Black - 255-100%)

GREEN [CENTER PIXEL 1] 14
0-255 Green (0-Black - 255-100%)

BLUE [CENTER PIXEL 1] 15
0-255 Blue (0-Black - 255-100%)

WHITE [CENTER PIXEL 1] 16
0-255 White (0-Black - 255-100%)

RED [PIXEL RING 2] 17
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL RING 2] 18
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL RING 2] 19
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL RING 2] 20
0-255 White (0-Black - 255-100%)

www.elationlighting.com

22

Supports Software Versions:  2.1.0

Features are subject to change without any prior written notice.

*Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt settings.

MODE / CHANNEL BASIC STAND EXTEND

VALUE

FUNCTION

RED [PIXEL RING 3] 21
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL RING 3] 22
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL RING3] 23
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL RING 3] 24
0-255 White (0-Black - 255-100%)

RED [PIXEL 1] 5
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 1] 6
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 1] 7
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 1] 8
0-255 White (0-Black - 255-100%)

RED [PIXEL 2] 9
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 2] 10
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 2] 11
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 2] 12
0-255 White (0-Black - 255-100%)

RED [PIXEL 3] 13
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 3] 14
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 3] 15
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 3] 16
0-255 White (0-Black - 255-100%)

RED [PIXEL 4] 17
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 4] 18
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 4] 19
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 4] 20
0-255 White (0-Black - 255-100%)

RED [PIXEL 5] 21
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 5] 22
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 5] 23
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 5] 24
0-255 White (0-Black - 255-100%)

23

www.elationlighting.com

Supports Software Versions:  2.1.0

Features are subject to change without any prior written notice.
*Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt settings.

MODE / CHANNEL

VALUE

BASIC STAND EXTEND

FUNCTION

RED [PIXEL 6] 25
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 6] 26
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 6] 27
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 6] 28
0-255 White (0-Black - 255-100%)

RED [PIXEL 7] 29
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 7] 30
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 7] 31
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 7] 32
0-255 White (0-Black - 255-100%)

RED [PIXEL 8] 33
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 8] 34
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 8] 35
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 8] 36
0-255 White (0-Black - 255-100%)

RED [PIXEL 9] 37
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 9] 38
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 9] 39
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 9] 40
0-255 White (0-Black - 255-100%)

RED [PIXEL 10] 41
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 10] 42
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 10] 43
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 10] 44
0-255 White (0-Black - 255-100%)

www.elationlighting.com

24

Supports Software Versions:  2.1.0

Features are subject to change without any prior written notice.
*Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt settings.

MODE / CHANNEL

VALUE

BASIC STAND EXTEND

FUNCTION

RED [PIXEL 11] 45
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 11] 46
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 11] 47
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 11] 48
0-255 White (0-Black - 255-100%)

RED [PIXEL 12] 49
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 12] 50
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 12] 51
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 12] 52
0-255 White (0-Black - 255-100%)

RED [PIXEL 13] 53
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 13] 54
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 13] 55
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 13] 56
0-255 White (0-Black - 255-100%)

RED [PIXEL 14] 57
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 14] 58
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 14] 59
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 14] 60
0-255 White (0-Black - 255-100%)

RED [PIXEL 15] 61
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 15] 62
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 15] 63
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 15] 64
0-255 White (0-Black - 255-100%)

RED [PIXEL 16] 65
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 16] 66
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 16] 67
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 16] 68
0-255 White (0-Black - 255-100%)

25

www.elationlighting.com

Supports Software Versions:  2.1.0

Features are subject to change without any prior written notice.
*Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt settings.

MODE / CHANNEL

VALUE

BASIC STAND EXTEND

FUNCTION

RED [PIXEL 17] 69
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 17] 70
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 17] 71
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 17] 72
0-255 White (0-Black - 255-100%)

RED [PIXEL 18] 73
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 18] 74
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 18] 75
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 18] 76
0-255 White (0-Black - 255-100%)

RED [PIXEL 19] 77
0-255 Red (0-Black - 255-100%)

GREEN [PIXEL 19] 78
0-255 Green (0-Black - 255-100%)

BLUE [PIXEL 19] 79
0-255 Blue (0-Black - 255-100%)

WHITE [PIXEL 19] 80
0-255 White (0-Black - 255-100%)

www.elationlighting.com

26

Supports Software Versions:  2.1.0

Features are subject to change without any prior written notice.
*Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt settings.

MODE / CHANNEL

BASIC

STAND

EXTEND

VALUE

FUNCTION

COLOR PRESETS

0-4

NO FUNCTION

5-9

WHITE 2700K

10-14

WHITE 3200K

15-19

WHITE 4300K

20-24

WHITE 5600K

25-29

WHITE 6500K

30-34

WHITE 8000K

35-39

RED [all LEDs]

40-44

GREEN [all LEDs]

45-49

BLUE [all LEDs]

50-54

NATURAL WHITE [all LEDs]

55-59

FULL WHITE [all LEDs]

60-64

YELLOW [all LEDs]

65-69

MAGENTA [all LEDs]

70-74

CYAN [all LEDs]

7

25

81

75-79

SALMON [all LEDs]

80-84

TURQUOISE [all LEDs]

85-89

LIGHT GREEN [all LEDs]

90-94

STEEL BLUE [all LEDs]

95-99

ORANGE [all LEDs]

100-104 STRAW [all LEDs]

105-109 PALE LAVENDER [all LEDs]

110-114 PINK [all LEDs]

115-119 RED/WHITE [outside ring / inside ring & center pixel]

120-124 125-129 130-134 135-139 140-144

GREEN/RED [outside ring / inside ring & center pixel] BLUE/RED [outside ring / inside ring & center pixel] WHITE/RED [outside ring / inside ring & center pixel] WHITE/PINK[outside ring / inside ring & center pixel] WHITE/TURQUOISE [outside ring / inside ring & center pixel]

145-149 150-255

SMALL RED/WHITE [center pixel / outside & inside rings] RESERVED SHUTTER, STROBE

0-31

LEDs OFF

32-63

LEDs ON

64-95

Strobe Effect SLOW to FAST

8

26

82

96-127

LEDs ON

128-159 Pulse Effect In Sequences

160-191 192-223 224-255

LEDs ON Random Strobe Effect SLOW to FAST LEDs ON

27

www.elationlighting.com

Supports Software Versions:  2.1.0

Features are subject to change without any prior written notice.
*Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt settings.

MODE / CHANNEL

VALUE

BASIC STAND EXTEND

FUNCTION

DIMMER INTENSITY

9

27

83

0-255 Dimmer 0 to 100%

DIMMER INTENSITY FINE 84
0-255 Dimmer FINE Adjustment

DIMMER MODES

0-20 Standard

21-40 Stage

10

28

85

41-60 TV

61-80 Architectural

11

29

81-100 Theatre 101-255 Default to Setting on Fixture
MOTORIZED ZOOM 86
0-255 ZOOM Adjustment from SMALL to BIG

MOTORIZED ZOOM FINE 87
0-255 ZOOM FINE Adjustment

PATTERNS AND CHASE MACROS

12

30

0-14 NO FUNCTION (LEDs OFF)

15-30 Center Pixel

31-46 Inside Pixel Ring

47-62 Outside Pixel Ring

63-78 Center Pixel & Inside Pixel Ring

79-94 Inside & Outside Pixel Rings

95-110 All Pixels

88

111-126 Chase 1

127-142 Chase 2

143-158 Chase 3

159-174 Chase 4

NOTE Colors must be selected for PATTERNS AND CHASE MACROS to function and colors are determined by the RGBW and/or COLOR PRESETS values selected.

175-190 Chase 5

191-206 Chase 6

207-222 Chase 7

223-238 Chase 8

239-255 Chase 9 CHASE SPEED

13

31

0-125 *Counterclockwise Chase Speed FAST to SLOW 89
126-130 STOP (Speed = 0)

131-255 *Clockwise Chase Speed SLOW to FAST

14

32

CHASE FADE 90
0-255 Chase Fade COLOR MODE - WHITE BALANCE

0-189 NO FUNCTION

15

33

190-254 EDIT a New WHITE BALANCE Setting 91
255 SAVE New WHITE BALANCE Setting to Fixture(s)

*NOTE: DMX VALUE of 91-93 MUST FIRST BE SELECTED ON CH17 (Basic), CH35 (Stand), or CH93 (Extend) TO ENABLE FEATURE.

PAN / TILT MOVEMENT SPEED

16

34

0-225 MAX to MIN Speed 92
226-235 Blackout by Movement

236-255 NO FUNCTION

www.elationlighting.com

28

Supports Software Versions:  2.1.0

Features are subject to change without any prior written notice.
*Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt settings.

MODE / CHANNEL BASIC STAND EXTEND

VALUE

FUNCTION

SPECIAL FUNCTIONS / INTERNAL PROGRAMS

0-79 Color Change Normal

80-84 ALL MOTOR RESET

85-87 SCAN MOTOR RESET

88-90 NO FUNCTION

91-93 EDIT and SAVE WHITE BALANCE ENABLED

94-96 NO FUNCTION

17

35

97-99 OTHER MOTORS RESET 93
100-119 Internal Program 1 (Scene1-8)

120-139 Internal Program 2 (Scene 9-16)

140-159 Internal Program 3 (Scene 17-24)

160-179 Internal Program 4 (Scene 25-32)

180-199 Internal Program 5 (Scene 33-40)

200-219 Internal Program 6 (Scene 41-48)

220-239 Internal Program 7 (Scene 49-56)

240-255 NO FUNCTION

29

www.elationlighting.com

LED PIXEL CONTROL- ALL PIXEL NUMBERS

LCD CONTROL DISPLAY

LCD CONTROL DISPLAY

Pixel control depends on PAN/TILT position of head!

LED PIXEL CONTROL- PIXEL RINGS 2 & 3

LCD CONTROL DISPLAY

www.elationlighting.com

30

ERROR CODES
When power is applied, the unit will automatically enter a "Reset/Test" mode. This mode brings all the internal motors to a home position. If there is an internal problem with one or more of the motors an error code will flash in the display in the form of "XXer" were as XX will represent a function number. For example, when the display shows "0Er" it means there is some type of error with the Pan motor. If there are multiple errors during the start-up process they will all flash in the display. For example: if the fixtures has errors on Channel 1, 2, and 5 all at the same time, you will see the error message "01Er", "02Er", and "05Er" flash repeated 5 times.
If an error does occur during the initial start-up procedure the fixture will self-generate a second reset signal and try to realign all the motors and correct the errors. If the error persists after a second attempt a third attempt will be made. If after a third attempt all the errors have not been corrected the fixture will make the following determinations:
 3 or More Errors - The fixture cannot function properly with three or more errors therefore the fixture will place itself in a stand-by mode until subsequent repairs can be made.
 Less Than 3 Errors - The fixture has less than 3 errors; therefore most other functions will work properly. The fixture will attempt to operate normally until the errors can be correct by a technician. The errors in question will remain flashing in the display as a reminder of internal errors.

31

www.elationlighting.com

ERROR CODE PAN

ELATION� PLATINUM 1200 WASHTM
ERROR CODES
Error Codes are subject to change without any prior written notice. DESCRIPTION
The PAN movement is not located in the default position after the reset. This message will appear after a fixture reset if the magnetic-indexing circuit malfunctions (sensor failed or magnet is missing) or there is a motor failure (defective motor or a defective motor IC drive on the main PCB). This error may also be displayed if the head/yoke was blocked during a reset function.

The TILT movement is not located in the default position after the reset.

This message will appear after a fixture reset if the magnetic-indexing circuit malfunctions

TILT

(sensor failed or magnet is missing) or there is a motor failure (defective motor or defective

motor IC drive on main PCB). This error may also be displayed if the head was blocked

during a reset function.

ZOOM

The Zoom movement is not located in the default position after the reset. This message will appear after the reset of the fixture reset if the magnetic-indexing circuit malfunctions (sensor failed or magnet is missing) or there is a stepper motor failure (defective motor or defective motor IC drive on main PCB).

www.elationlighting.com

32

CLEANING AND MAINTENANCE

C

A

U

T

I

O

N

Disconnect power before cleaning or maintenance.

CLEANING Frequent cleaning is recommended to insure proper function, optimized light output, and an extended life. The frequency of cleaning depends on the environment in which the fixture operates: damp, smoky or particularly dirty environments can cause greater accumulation of dirt on the fixture's optics.  Clean the external lens surface at least every 20 days with a soft cloth to avoid
dirt/debris accumulation.  Never use alcohol, solvents, or ammonia based cleaners.
MAINTENANCE Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.
Please refer to the following points during routine inspections:  A detailed electric check by an approved electrical engineer every three months,
to make sure the circuit contacts are in good condition and prevent overheating.  Be sure all screws and fasteners are securely tightened at all times. Lose screws may
fall out during normal operation resulting in damage or injury as larger parts could fall.  Check for any deformations on the housing, color lenses, rigging hardware and
rigging points (ceiling, suspension, trussing). Deformations in the housing could allow for dust to enter into the fixture. Damaged rigging points or unsecured rigging could cause the fixture to fall and seriously injure a person(s).  Electric power supply cables must not show any damage, material fatigue or sediments. Never remove the ground prong from the power cable.

33

www.elationlighting.com

TECHNICAL SPECIFICATIONS
SOURCE (19) 60W High Power RGBW LEDs 50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
EFFECTS 8� - 70� Beam Angle Zoom Full Pixel Control Color Preset Macros Linear Color Temperature Presets (2,700 - 8,000K) Electronic Strobe (1-25 fps) Linear Dimming 0-100% + Selectable Dimming Curves
COLOR RGBW Even and Smooth Color Mixing
CONTROL / CONNECTIONS (3) DMX Channel Modes (20 / 26 / 32) Adjustable Refresh Rate (900-1500, 2500, 4000, 5000, 10000,15000, 20000, 25000 (Hz) Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8) RDM (Remote Device Management) 6 Button Touch Control Panel Full Color 180� Reversible LCD Menu Display 8 / 16 Bit Resolution Adjustable Pan/Tilt Movement 5pin DMX In/Out RJ45 Ethernet In/Out (Art-NET, sACN) power 32A Power In
SIZE / WEIGHT Length: 21.0" (533mm) Width: 16.1" (410mm) Vertical Height: 25.9" (658mm) Weight: 86.0 lbs. (39 kg)
ELECTRICAL / THERMAL AC 100-240V - 50/60Hz 2000W Max Power Consumption 14�F to 113�F (-10�C to 45�C)
APPROVALS / RATINGS CE | RoHs | IP20
Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.

www.elationlighting.com

34

PHOTOMETRIC DATA

RED GREEN
BLUE WHITE FULL ON

5 m 0.7
lux 7,079 16,640 1,970 23,700 41,730

16.4 ft 2.3
fc 658 1,546 183 2,202 3,877

MIN ZOOM - 8� Beam Diameter

7.5 m 24.6 ft 10 m 32.8 ft

1.05

3.4

1.4

4.6

lux 3,604 7,703 1,525 10,070 20,700

fc 335 716 142 936 1,923

lux 1,860 4,252 879 6,126 11,210

fc 173 395 82 569 1,041

15 m 2.1
lux 825 1,890 437 2,795 5,285

49.2 ft 6.9
fc 77 176 41 260 491

RED GREEN
BLUE WHITE FULL ON

5 m 3.5
lux 535 1,297 158 1,897 3,637

16.4 ft 11.5
fc 50 120 15 176 338

MAX ZOOM - 77� Beam Diameter

7.5 m 24.6 ft 10 m 32.8 ft

7

23.0

14

0.0

lux

fc

lux

fc

173

16

54

5

389

36

120

11

82

8

28

3

568

53

178

17

1,085 101

343

32

15 m 21
lux 26 58 11 86 168

49.2 ft 68.9
fc 2 5 1 8 16

35

www.elationlighting.com

DIMENSIONAL DRAWINGS

Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.

www.elationlighting.com

36

OPTIONAL ACCESSORIES

ORDER CODE TRIGGER CLAMP * * * TBA * * * AC5PDMX5PRO CAT6PRO5

ITEM Heavy Duty Wrap Around Hook Style Clamp Road Case For PLATINUM 1200 WASHTM 5 ft. (1.5m) 5pin PRO DMX Cable 5 ft. (1.5m) CAT6 Ethernet Cable Additional Cable Lengths Available

37

www.elationlighting.com
