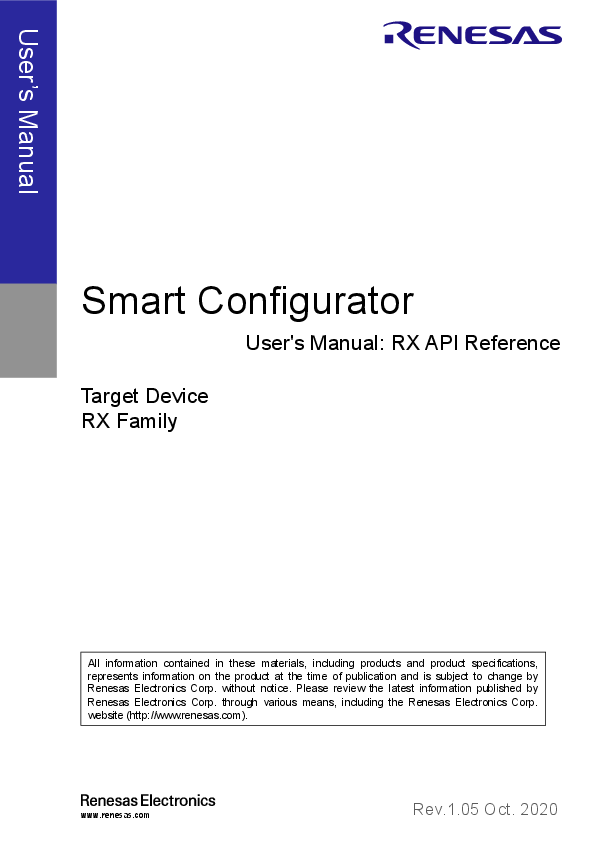

User's Manual
Smart Configurator
User's Manual: RX API Reference
Target Device RX Family
All information contained in these materials, including products and product specifications, represents information on the product at the time of publication and is subject to change by Renesas Electronics Corp. without notice. Please review the latest information published by Renesas Electronics Corp. through various means, including the Renesas Electronics Corp. website (http://www.renesas.com).
www.renesas.com
Rev.1.05 Oct. 2020
How to Use This Manual
Readers
The target readers of this manual are the application system engineers who use the Code Generator and need to understand its function.
Purpose
The purpose of this manual is to explain the user for understanding and using the Code Generator functions. We aim to help their system development including their hardware and software.
Organization
This manual can be broadly divided into the following units. 1.GENERAL 2.OUTPUT FILES 3.API FUNCITONS
How to Read This Manual It is assumed that the readers of this manual have general knowledge of electricity, logic circuits, and microcontrollers.
Conventions
Deata significance: Active low representation: Note: Caution: Remark: Numeric representation:
Higher digits on the left and lower digits on the right XXX (overscore over pin or signal name) Footnote for item marked with Note in the text Information requiring particular attention Supplementary information Decimal ... XXXX Hexadecimal ... 0xXXXX
All trademarks and registered trademarks are the property of their respective owners.
TABLE OF CONTENTS
1. GENERAL......................................................................................................................................................6 1.1 Overview ............................................................................................................................................................ 6 1.2 Features............................................................................................................................................................... 6
2. OUTPUT FILES .............................................................................................................................................7 2.1 Description.......................................................................................................................................................... 7
3. INITIALIZATION ..........................................................................................................................................20
4. API FUNCTIONS.........................................................................................................................................21
4.1 Overview .......................................................................................................................................................... 21
4.2 Function Reference ........................................................................................................................................... 22
4.2.1
Common .................................................................................................................................................. 24
4.2.2
8-Bit timer................................................................................................................................................ 34
4.2.3
Buses........................................................................................................................................................ 42
4.2.4
Clock Frequency Accuracy Measurement Circuit ................................................................................... 50
4.2.5
Comparator .............................................................................................................................................. 59
4.2.6
Compare Match Timer............................................................................................................................. 66
4.2.7
Complementary PWM Mode Timer ........................................................................................................ 76
4.2.8
Continuous Scan Mode S12AD ............................................................................................................... 86
4.2.9
CRC Calculator...................................................................................................................................... 101
4.2.10 D/A Converter ....................................................................................................................................... 111
4.2.11 Data Operation Circuit........................................................................................................................... 120
4.2.12 Data Transfer Controller ........................................................................................................................ 129
4.2.13 Dead Time Compensaion Counter ......................................................................................................... 135
4.2.14 DMA Controller..................................................................................................................................... 142
4.2.15 Event Link Controller ............................................................................................................................ 156
4.2.16 General PWM Timer (GPT) .................................................................................................................. 166
4.2.17 Group Scan Mode S12AD ..................................................................................................................... 183
4.2.18 I2C Master Mode ................................................................................................................................... 200
4.2.19 I2C Slave Mode ..................................................................................................................................... 233
4.2.20 Interrupt Controller ................................................................................................................................ 249
4.2.21 Low Power Consumption ...................................................................................................................... 265
4.2.22 Low Power Timer .................................................................................................................................. 277
4.2.23 Normal Mode Timer .............................................................................................................................. 283
4.2.24 Phase Counting Mode Timer ................................................................................................................. 291
4.2.25 4.2.26 4.2.27 4.2.28 4.2.29 4.2.30 4.2.31 4.2.32 4.2.33 4.2.34 4.2.35 4.2.36 4.2.37 4.2.38 4.2.39 4.2.40 4.2.41 4.2.42 4.2.43
Port Output Enable................................................................................................................................. 300 I/O Port .................................................................................................................................................. 311 Programmable Pulse Generator ............................................................................................................. 315 PWM Mode Timer................................................................................................................................. 319 Realtime Clock ...................................................................................................................................... 327 Remote Control Signal Receiver ........................................................................................................... 352 SCI/SCIF Asynchronous Mode ............................................................................................................. 368 SCI/SCIF Clock Synchronous Mode ..................................................................................................... 392 Single Scan Mode S12AD ..................................................................................................................... 415 Smart Card Interface Mode.................................................................................................................... 430 SPI Clock Synchronous Mode ............................................................................................................... 445 SPI Operation Mode .............................................................................................................................. 466 Voltage Detection Circuit ...................................................................................................................... 481 Watchdog Timer .................................................................................................................................... 488 Continuous Scan Mode DSAD .............................................................................................................. 496 Single Scan Mode DSAD ...................................................................................................................... 507 Delta-Sigma Modulator Interface .......................................................................................................... 518 Analog Front End .................................................................................................................................. 527 Motor ..................................................................................................................................................... 530
Revision Record ...............................................................................................................................................543
Smart Configurator.
2.GENERAL
1. GENERAL
This chapter gives an overview of the driver code generator (hereafter abbreviated as Code Generator) of the Smart Configurator.
1.1 Overview
his tool can output source code (device driver programs as C source and header files) for controlling peripheral modules (clock generation circuit, voltage detection circuit, etc.) of the device by using a GUI to set various types of information on the requirements of the project.
1.2 Features
The features of the Code Generator are as follows.
- Generating code The Code Generator outputs not only device driver files in accord with the information set in the GUI but also a complete set of programs for the build environment, such as a sample program containing the call of the main function.
- Reporting Information that was set by using the Code Generator can be output to files in various formats and used as design documentation.
- Renaming Default names are given to folders and files output by the Code Generator and to the API functions in the source code, but these can be changed to user-specified names.
- Protecting user code ,The user can add user's original source code to each API function. When user generated the device driver programs again by the Code Generator, user's source code within this comment is protected.
[Comment for user source code descriptions] /* Start user code. Do not edit comment generated here */ /* End user code. Do not edit comment generated here */
Code written by the user between these comments will be preserved even when the code is generated again.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 6 of 533
Smart Configurator.
2. OUTPUT FILES
This chapter explains the file output by the Code Generator.
2.1 Description
The Code Generator outputs the following files.
Table 2.1 Output File List (1/13)
Peripheral Function Common
File Name <workspaceName>.c dbsct.c resetprg.c sbrk.c vecttbl.c vecttbl.h hwsetup.c hwsetup.h r_cg_hardware_setup.c
r_cg_macrodriver.h r_cg_userdefine.h r_smc_entry.h r_smc_cgc.c r_smc_cgc_user.c r_smc_cgc.h r_smc_interrup.c r_smc_interrupt.h Pin.c Pin.h
API Function Name
main PowerON_Reset hardware_setup r_undefined_exception R_Systeminit R_CGC_Create R_CGC_Create_UserInit R_Interrupt_Create R_Pins_Create
2. OUTPUT FILES
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 7 of 533
Smart Configurator.
Table 2.2 Output File List (2/13)
Peripheral Function 8-Bit timer
File Name <Config_TMR0>.c
<Config_TMR0>_user.c
Buses
<Config_TMR0>.h <Config_BSC>.c
<Config_BSC>_user.c
Clock Frequency Accuracy Measurement Circuit
<Config_BSC>.h <Config_CAC>.c
<Config_CAC>_user.c
Comparator
<Config_CAC>.h <Config_CMPB0>.c
<Config_CMPB0>user.c
Compare Match Timer
<Config_CMPB0>.h <Config_CMT0>.c
<Config_CMT0>_user.c
<Config_CMT0>.h
2. OUTPUT FILES
API Function Name R_<Config_TMR0>_Create R_<Config_TMR0>_Start R_<Config_TMR0>_Stop R_<Config_TMR0>_Create_UserInit r_<Config_TMR0>_cmimn_interrupt r_<Config_TMR0>_ovin_interrupt R_<Config_BSC>_Create R_<Config_BSC>_Error_Monitoring_Start R_<Config_BSC>_Error_Monitoring_Stop R_<Config_BSC>_InitializeSDRAM R_<Config_BSC>_Create_UserInit r_<Config_BSC>_buserr_interrupt R_<Config_CAC>_Create R_<Config_CAC>_Start R_<Config_CAC>_Stop R_<Config_CAC>_Create_UserInit r_<Config_CAC>_mendf_interrupt r_<Config_CAC>_mendi_interrupt r_<Config_CAC>_ferrf_interrupt r_<Config_CAC>_ferri_interrupt r_<Config_CAC>_ovff_interrupt r_<Config_CAC>_ovfi_interrupt R_<Config_CMPB0>_Create R_<Config_CMPB0>_Start R_<Config_CMPB0>_Stop R_<Config_CMPB0>_Create_UserInit r_<Config_CMPB0>_cmpbn_interrupt R_<Config_CMT0>_Create R_<Config_CMT0>_Start R_<Config_CMT0>_Stop R_<Config_CMT0>_Create_UserInit r_<Config_CMT0>_cmin_interrupt r_<Config_CMT0>_cmwin_interrupt r_<Config_CMT0>_icmin_interrupt r_<Config_CMT0>_ocmin_interrupt
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 8 of 533
Smart Configurator.
2. OUTPUT FILES
Table 2.3 Output File List (3/13)
Peripheral Function Complementary PWM Mode Timer
Continuous Scan Mode S12AD
CRC Calculator
D/A Converter
File Name <Config_MTU3_MTU4>.c <Config_MTU3_MTU4>_user.c <Config_MTU3_MTU4>.h <Config_S12AD0>.c
<Config_S12AD0>_user.c
<Config_S12AD0>.h <Config_CRC>.c
<Config_CRC.h <Config_DA>.c
<Config_DA>_user.c <Config_DA>.h
API Function Name
R_<Config_MTU3_MTU4>_Create R_<Config_MTU3_MTU4>_Start R_<Config_MTU3_MTU4>_Stop R_<Config_MTU3_MTU4>_Create_UserInit r_<Config_MTU3_MTU4>_tgimn_interrupt r_<Config_MTU3_MTU4>_cj_tgimj_interrupt r_<Config_MTU3_MTU4>_cj_tcivj_interrupt
R_<Config_S12AD0>_Create R_<Config_S12AD0>_Start R_<Config_S12AD0>_Stop R_<Config_S12AD0>_Get_ValueResult R_<Config_S12AD0>_Set_CompareValue R_<Config_S12AD0>_Set_CompareAValue R_<Config_S12AD0>_Set_CompareBValue R_<Config_S12AD0>_Create_UserInit r_<Config_S12AD0>_interrupt r_<Config_S12AD0>_compare_interrupt r_<Config_S12AD0>_compare_interruptA r_<Config_S12AD0>_compare_interruptB
R_<Config_CRC>_SetCRC8 R_<Config_CRC>_SetCRC16 R_<Config_CRC>_SetCCITT R_<Config_CRC>_SetCRC32 R_<Config_CRC>_SetCRC32C R_<Config_CRC>_Input_Data R_<Config_CRC>_Get_Result
R_<Config_DA>_Create R_<Config_DA>n_Start R_<Config_DA>n_Stop R_<Config_DA>n_Set_ConversionValue R_<Config_DA>_Sync_Start R_<Config_DA>_Sync_Stop R_<Config_DA>_Create_UserInit
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 9 of 533
Smart Configurator.
Table 2.4 Output File List (4/13)
Peripheral Function
File Name
Data Operation Circuit <Config_DOC>.c
<Config_DOC>_user.c
<Config_DOC>.h Data Transfer Controller <Config_DTC>.c
Dead Time Compensaion Counter
<Config_DTC>_user.c <Config_DTC>.h <Config_MTU5>.c
<Config_MTU5>_user.c
DMA Controller
<Config_MTU5>.h <Config_DMAC0>.c
<Config_DMAC0>_user.c
<Config_DMAC0>.h r_cg_dmac_user.c
Event Link Controller
r_cg_dmac.h <Config_ELC>.c
<Config_ELC>_user.c <Config_ELC>.h
2. OUTPUT FILES
API Function Name R_<Config_DOC>_Create R_<Config_DOC>_SetMode R_<Config_DOC>_WriteData R_<Config_DOC>_GetResult R_<Config_DOC>_ClearFlag R_<Config_DOC>_Create_UserInit r_<Config_DOC>_dopcf_interrupt r_<Config_DOC>_dopci_interrupt R_<Config_DTC>_Create R_<Config_DTC>_Start R_<Config_DTC>_Stop R_<Config_DTC>_Create_UserInit R_<Config_MTU5>_Create R_<Config_MTU5>_Start R_<Config_MTU5>_Stop R_<Config_MTU5>_Create_UserInit r_<Config_MTU5>_tgimn_interrupt R_<Config_DMAC0>_Create R_<Config_DMAC0>_Start R_<Config_DMAC0>_Stop R_<Config_DMAC0>_Set_SoftwareTrigger R_<Config_DMAC0>_Clear_SoftwareTrigger R_<Config_DMAC0>_Create_UserInit r_<Config_DMAC0>_dmacni_interrupt r_dmacn_callback_transfer_end r_dmacn_callback_transfer_escape_end r_dmac_dmac74i_interrupt r_dmacn_callback_transfer_end r_dmacn_callback_transfer_escape_end R_<Config_ELC>_Create R_<Config_ELC>_Start R_<Config_ELC>_Stop R_<Config_ELC>_GenerateSoftwareEvent R_<Config_ELC>_Set_PortBuffern R_<Config_ELC>_Get_PortBuffern R_<Config_ELC>_Create_UserInit r_<Config_ELC>_elsrni_interrupt
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 10 of 533
Smart Configurator.
Table 2.5 Output File List (5/13)
Peripheral Function General PWM Timer
File Name <Config_GPT0>.c
<Config_GPT0>_user.c
Group Scan Mode S12AD
<Config_GPT0>.h r_cg_gpt_user.c
r_cg_gpt.h <Config_S12AD0>.c
<Config_S12AD0>_user.c
<Config_S12AD0>.h
2. OUTPUT FILES
API Function Name R_<Config_GPT0>_Create R_<Config_GPT0>_Start R_<Config_GPT0>_Stop R_<Config_GPT0>_HardwareStart R_<Config_GPT0>_HardwareStop R_<Config_GPT0>_ETGI_Start R_<Config_GPT0>_ETGI_Stop R_<Config_GPT0>_Software_Clear R_<Config_GPT0>_Create_UserInit r_<Config_GPT0>_gtcimn_interrupt r_<Config_GPT0>_gtcivn_interrupt r_<Config_GPT0>_gtcinn_interrupt r_<Config_GPT0>_gdten_interrupt r_gpt_etgin_interrupt r_gpt_etgip_interrupt R_<Config_S12AD0>_Create R_<Config_S12AD0>_Start R_<Config_S12AD0>_Stop R_<Config_S12AD0>_Get_ValueResult R_<Config_S12AD0>_Set_CompareValue R_<Config_S12AD0>_Set_CompareAValue R_<Config_S12AD0>_Set_CompareBValue R_<Config_S12AD0>_Create_UserInit r_<Config_S12AD0>_interrupt r_<Config_S12AD0>_compare_interrupt r_<Config_S12AD0>_compare_interruptA r_<Config_S12AD0>_compare_interruptB r_<Config_S12AD0>_groupb_interrupt r_<Config_S12AD0>_groupc_interrupt
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 11 of 533
Smart Configurator.
Table 2.6 Output File List (6/13)
Peripheral Function I2C Master Mode
File Name <Config_RIIC0>.c
<Config_RIIC0>_user.c
<Config_RIIC0>.h <Config_SCI0>.c
<Config_SCI0>_user.c
I2C Slave Mode
<Config_SCI0>.h <Config_RIIC0>.c
<Config_RIIC0>_user.c
<Config_RIIC0>.h
2. OUTPUT FILES
API Function Name
R_<Config_RIIC0>_Create R_<Config_RIIC0>_Start R_<Config_RIIC0>_Stop R_<Config_RIIC0>_Master_Send R_<Config_RIIC0>_Master_Send_Without_Stop R_<Config_RIIC0>_Master_Receive R_<Config_RIIC0>_IIC_StartCondition R_<Config_RIIC0>_IIC_StopCondition R_<Config_RIIC0>_Create_UserInit r_<Config_RIIC0>_error_interrupt r_<Config_RIIC0>_receive_interrupt r_<Config_RIIC0>_transmit_interrupt r_<Config_RIIC0>_transmitend_interrupt r_<Config_RIIC0>_callback_receiveerror r_<Config_RIIC0>_callback_transmitend r_<Config_RIIC0>_callback_receiveend
R_<Config_SCI0>_Create R_<Config_SCI0>_Start R_<Config_SCI0>_Stop R_<Config_SCI0>_IIC_Master_Send R_<Config_SCI0>_IIC_Master_Receive R_<Config_SCI0>_IIC_StartCondition R_<Config_SCI0>_IIC_StopCondition R_<Config_SCI0>_Create_UserInit
r_<Config_SCI0>_receive_interrupt r_<Config_SCI0>_transmit_interrupt r_<Config_SCI0>_transmitend_interrupt r_<Config_SCI0>_callback_transmitend r_<Config_SCI0>_callback_receiveend
R_<Config_RIIC0>_Create R_<Config_RIIC0>_Start R_<Config_RIIC0>_Stop R_<Config_RIIC0>_Slave_Send R_<Config_RIIC0>_Slave_Receive R_<Config_RIIC0>_Create_UserInit r_<Config_RIIC0>_error_interrupt r_<Config_RIIC0>_receive_interrupt r_<Config_RIIC0>_transmit_interrupt r_<Config_RIIC0>_transmitend_interrupt r_<Config_RIIC0>_callback_receiveerror r_<Config_RIIC0>_callback_transmitend r_<Config_RIIC0>_callback_receiveend
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 12 of 533
Smart Configurator.
Table 2.7 Output File List (7/13)
Peripheral Function Interrupt Controller
File Name <Config_ICU>.c
<Config_ICU>_user.c
<Config_ICU>.h Low Power Consumption <Config_LPC>.c
Low Power Timer
<Config_LPC>_user.c <Config_LPC>.h <Config_LPT>.c
Normal Mode Timer
<Config_LPT>_user.c <Config_LPT>.h <Config_MTU0>.c
<Config_MTU0>_user.c
<Config_MTU0>.h
2. OUTPUT FILES
API Function Name R_<Config_ICU>_Create R_<Config_ICU>_IRQn_Start R_<Config_ICU>_IRQn_Stop R_<Config_ICU>_Software_Start R_<Config_ICU>_Software_Stop R_<Config_ICU>_SoftwareInterrupt_Generate R_<Config_ICU>_Software2_Start R_<Config_ICU>_Software2_Stop R_<Config_ICU>_SoftwareInterrupt2_Generate R_<Config_ICU>_Create_UserInit r_<Config_ICU>_irqn_interrupt r_<Config_ICU>_software_interrupt r_<Config_ICU>_software2_interrupt r_<Config_ICU>_nmi_interrupt R_<Config_LPC>_Create R_<Config_LPC>_AllModuleClockStop R_<Config_LPC>_Sleep R_<Config_LPC>_DeepSleep R_<Config_LPC>_SoftwareStandby R_<Config_LPC>_DeepSoftwareStandby R_<Config_LPC>_ChangeOperatingPowerControl R_<Config_LPC>_ChangeSleepModeReturnClock R_<Config_LPC>_SetVOLSR_PGAVLS R_<Config_LPC>_Create_UserInit
R_<Config_LPT>_Create R_<Config_LPT>_Start R_<Config_LPT>_Stop R_<Config_LPT>_Create_UserInit R_<Config_MTU0>_Create R_<Config_MTU0>_Start R_<Config_MTU0>_Stop R_<Config_MTU0>_Create_UserInit r_<Config_MTU0>_tgimn_interrupt r_<Config_MTU0>_tginm_interrupt r_<Config_MTU0>_tcivn_interrupt r_<Config_MTU0>_tcinv_interrupt
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 13 of 533
Smart Configurator.
Table 2.8 Output File List (8/13)
Peripheral Function Phase Counting Mode Timer
File Name <Config_MTU1>.c
<Config_MTU1>_user.c
Port Output Enable
<Config_MTU1>.h <Config_POE>.c
I/O Port
Programmable Pulse Generator PWM Mode Timer
<Config_POE>_user.c
<Config_POE>.h <Config_PORT>.c <Config_PORT>_user.c <Config_PORT>.h <Config_PPG0>.c <Config_PPG0>_user.c <Config_PPG0>.h <Config_MTU0>.c
<Config_MTU0>_user.c
<Config_MTU0>.h
2. OUTPUT FILES
API Function Name R_<Config_MTU1>_Create R_<Config_MTU1>_Start R_<Config_MTU1>_Stop R_<Config_MTU1>_Create_UserInit r_<Config_MTU1>_tgimn_interrupt r_<Config_MTU1>_tginm_interrupt r_<Config_MTU1>_tcivn_interrupt r_<Config_MTU1>_tcinv_interrupt r_<Config_MTU1>_tciun_interrupt r_<Config_MTU1>_tcinu_interrupt R_<Config_POE>_Create R_<Config_POE>_Start R_<Config_POE>_Stop R_<Config_POE>_Set_HiZ_MTUn R_<Config_POE>_Clear_HiZ_MTUn R_<Config_POE>_Set_HiZ_GPTn R_<Config_POE>_Clear_HiZ_GPTn R_<Config_POE>_Create_UserInit r_<Config_POE>_oein_interrupt R_<Config_PORT>_Create R_<Config_PORT>_Create_UserInit R_<Config_PPG0>_Create R_<Config_PPG0>_Create_UserInit R_<Config_MTU0>_Create R_<Config_MTU0>_Start R_<Config_MTU0>_Stop R_<Config_MTU0>_Create_UserInit r_<Config_MTU0>_tgimn_interrupt r_<Config_MTU0>_tginm_interrupt r_<Config_MTU0>_tcivn_interrupt r_<Config_MTU0>_tcinv_interrupt
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 14 of 533
Smart Configurator.
Table 2.9 Output File List (9/13)
Peripheral Function Realtime Clock
File Name <Config_RTC>.c
<Config_RTC>_user.c
Remote Control Signal Receiver
<Config_RTC>.h <Config_REMC0>.c
<Config_REMC0>_user.c
<Config_REMC0>.h
2. OUTPUT FILES
API Function Name
R_<Config_RTC>_Create R_<Config_RTC>_Start R_<Config_RTC>_Stop R_<Config_RTC>_Restart R_<Config_RTC>_Restart_BinaryCounter R_<Config_RTC>_Set_CalendarCounterValue R_<Config_RTC>_Get_CalendarCounterValue R_<Config_RTC>_Get_CalendarTimeCaptureValuen R_<Config_RTC>_Set_BinaryCounterValue R_<Config_RTC>_Get_BinaryCounterValue R_<Config_RTC>_Get_BinaryTimeCaptureValuen R_<Config_RTC>_Set_RTCOUTOn R_<Config_RTC>_Set_RTCOUTOff R_<Config_RTC>_Set_CalendarAlarm R_<Config_RTC>_Set_BinaryAlarm R_<Config_RTC>_Set_ConstPeriodInterruptOn R_<Config_RTC>_Set_ConstPeriodInterruptOff R_<Config_RTC>_Set_CarryInterruptOn R_<Config_RTC>_Set_CarryInterruptOff R_<Config_RTC>_Create_UserInit r_<Config_RTC>_alm_interrupt r_<Config_RTC>_prd_interrupt r_<Config_RTC>_cup_interrupt R_<Config_REMC0>_Create R_<Config_REMC0>_Start R_<Config_REMC0>_Stop R_<Config_REMC0>_Read R_<Config_REMC0>_Create_UserInit r_<Config_REMC0>_remcin_interrupt r_<Config_REMC0>_callback_comparematch r_<Config_REMC0>_callback_receiveerror r_<Config_REMC0>_callback_receiveend r_<Config_REMC0>_callback_bufferfull r_<Config_REMC0>_callback_header r_<Config_REMC0>_callback_data0 r_<Config_REMC0>_callback_data1 r_<Config_REMC0>_callback_specialdata
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 15 of 533
Smart Configurator.
Table 2.10 Output File List (10/13)
Peripheral Function
File Name
SCI/SCIF Asynchronous <Config_SCI0>.c Mode
<Config_SCI0>_user.c
SCI/SCIF Clock Synchronous Mode
<Config_SCI0>.h <Config_SCI0>.c
<Config_SCI0>_user.c
<Config_SCI0>.h
2. OUTPUT FILES
API Function Name
R_<Config_SCI0>_Create R_<Config_SCI0>_Start R_<Config_SCI0>_Stop R_<Config_SCI0>_Serial_Send R_<Config_SCI0>_Serial_Receive R_<Config_SCI0>_Serial_Multiprocessor_Send R_<Config_SCI0>_Serial_Multiprocessor_Receive R_<Config_SCI0>_Create_UserInit r_<Config_SCI0>_transmitend_interrupt r_<Config_SCI0>_transmit_interrupt r_<Config_SCI0>_receive_interrupt r_<Config_SCI0>_receiveerror_interrupt r_<Config_SCI0>_teif_interrupt r_<Config_SCI0>_txif_interrupt r_<Config_SCI0>_rxif_interrupt r_<Config_SCI0>_drif_interrupt r_<Config_SCI0>_erif_interrupt r_<Config_SCI0>_brif_interrupt r_<Config_SCI0>_callback_transmitend r_<Config_SCI0>_callback_receiveend r_<Config_SCI0>_callback_receiveerror r_<Config_SCI0>_callback_error R_<Config_SCI0>_Create R_<Config_SCI0>_Start R_<Config_SCI0>_Stop R_<Config_SCI0>_Serial_Send R_<Config_SCI0>_Serial_Receive R_<Config_SCI0>_Serial_Send_Receive R_<Config_SCI0>_Create_UserInit r_<Config_SCI0>_transmitend_interrupt r_<Config_SCI0>_transmit_interrupt r_<Config_SCI0>_receive_interrupt r_<Config_SCI0>_receiveerror_interrupt r_<Config_SCI0>_teif_interrupt r_<Config_SCI0>_txif_interrupt r_<Config_SCI0>_rxif_interrupt r_<Config_SCI0>_erif_interrupt r_<Config_SCI0>_brif_interrupt r_<Config_SCI0>_callback_transmitend r_<Config_SCI0>_callback_receiveend r_<Config_SCI0>_callback_receiveerror r_<Config_SCI0>_callback_error
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 16 of 533
Smart Configurator.
Table 2.11 Output File List (11/13)
Peripheral Function Single Scan Mode S12AD
File Name <Config_S12AD0>.c
<Config_S12AD0>_user.c
Smart Card Interface Mode
<Config_S12AD0>.h <Config_SCI0>.c
<Config_SCI0>_user.c
SPI Clock Synchronous Mode
<Config_SCI0>.h <Config_RSPI0>.c
<Config_RSPI0>_user.c
<Config_RSPI0>.h
2. OUTPUT FILES
API Function Name
R_<Config_S12AD0>_Create R_<Config_S12AD0>_Start R_<Config_S12AD0>_Stop R_<Config_S12AD0>_Get_ValueResult R_<Config_S12AD0>_Set_CompareValue R_<Config_S12AD0>_Set_CompareAValue R_<Config_S12AD0>_Set_CompareBValue R_<Config_S12AD0>_Create_UserInit r_<Config_S12AD0>_interrupt r_<Config_S12AD0>_compare_interrupt r_<Config_S12AD0>_compare_interruptA r_<Config_S12AD0>_compare_interruptB R_<Config_SCI0>_Create R_<Config_SCI0>_Start R_<Config_SCI0>_Stop R_<Config_SCI0>_SmartCard_Send R_<Config_SCI0>_SmartCard_Receive R_<Config_SCI0>_Create_UserInit r_<Config_SCI0>_transmit_interrupt r_<Config_SCI0>_receive_interrupt r_<Config_SCI0>_receiveerror_interrupt r_<Config_SCI0>_callback_transmitend r_<Config_SCI0>_callback_receiveend r_<Config_SCI0>_callback_receiveerror R_<Config_RSPI0>_Create R_<Config_RSPI0>_Start R_<Config_RSPI0>_Stop R_<Config_RSPI0>_Send R_<Config_RSPI0>_Send_Receive R_<Config_RSPI0>_SPI_Master_Send R_<Config_RSPI0>_SPI_Master_Send_Receive R_<Config_RSPI0>_SPI_Slave_Send R_<Config_RSPI0>_SPI_Slave_Send_Receive R_<Config_RSPI0>_Create_UserInit r_<Config_RSPI0>_receive_interrupt r_<Config_RSPI0>_transmit_interrupt r_<Config_RSPI0>_error_interrupt r_<Config_RSPI0>_idle_interrupt r_<Config_RSPI0>_transmitend_interrupt r_<Config_RSPI0>_receiveerror_interrupt r_<Config_RSPI0>_callback_receiveend r_<Config_RSPI0>_callback_transmitend r_<Config_RSPI0>_callback_error
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 17 of 533
Smart Configurator.
Table 2.12 Output File List (12/13)
Peripheral Function SPI Operation Mode
File Name <Config_RSPI0>.c
<Config_RSPI0>_user.c
Voltage Detection Circuit
Watchdog Timer
<Config_RSPI0>.h <Config_LVD1>.c
<Config_LVD1>_user.c <Config_LVD1>.h <Config_WDT>.c <Config_WDT>_user.c
Continuous Scan Mode DSAD
<Config_WDT>.h <Config_DSAD0>.c
<Config_DSAD0>_user.c
Single Scan Mode DSAD
<Config_DSAD0>.h <Config_DSAD0>.c
<Config_DSAD0>_user.c <Config_DSAD0>.h
2. OUTPUT FILES
API Function Name R_<Config_RSPI0>_Create R_<Config_RSPI0>_Start R_<Config_RSPI0>_Stop R_<Config_RSPI0>_Send R_<Config_RSPI0>_Send_Receive R_<Config_RSPI0>_Create_UserInit r_<Config_RSPI0>_receive_interrupt r_<Config_RSPI0>_transmit_interrupt r_<Config_RSPI0>_error_interrupt r_<Config_RSPI0>_idle_interrupt r_<Config_RSPI0>_callback_receiveend r_<Config_RSPI0>_callback_transmitend r_<Config_RSPI0>_callback_error R_<Config_LVD1>_Create R_<Config_LVD1>_Start R_<Config_LVD1>_Stop R_<Config_LVD1>_Create_UserInit r_<Config_LVD1>_lvdn_interrupt R_<Config_WDT>_Create R_<Config_WDT>_Restart R_<Config_WDT>_Create_UserInit r_<Config_WDT>_wuni_interrupt r_<Config_WDT>_iwuni_interrupt r_<Config_WDT>_nmi_interrupt R_<Ccnfig_DSAD0>_Create R_<Config_DSAD0>_Start R_<Config_DSAD0>_Stop R_<Config_DSAD0>_Set_SoftwareTrigger R_<Config_DSAD0>_Get_ValueResult R_<Config_DSAD0>_Create_UserInit r_<Config_DSAD0>_adin_interrupt r_<Config_DSAD0>_scanendn_interrupt R_<Ccnfig_DSAD0>_Create R_<Config_DSAD0>_Start R_<Config_DSAD0>_Stop R_<Config_DSAD0>_Set_SoftwareTrigger R_<Config_DSAD0>_Get_ValueResult R_<Config_DSAD0>_Create_UserInit r_<Config_DSAD0>_adin_interrupt r_<Config_DSAD0>_scanendn_interrupt -
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 18 of 533
Smart Configurator.
2. OUTPUT FILES
Table 2.13 Output File List (13/13)
Peripheral Function Delta-Sigma Modulator Interface
File Name <Config_DSMIF0>.c
<Config_DSMIF0>_user.c
Analog Front End
Motor (Complementary
PWM Mode Timer, Single Scan Mode S12AD)
<Config_DSMIF0>.h <Config_AFE>.c <Config>AFE>_user.c <Config_AFE>.h <Config_MTU3_MTU4>.c
<Config_MTU3_MTU4>_user.c <Config_MTU3_MTU4>.h
API Function Name
R_<Config_DSMIF0>_Create R_<Config_DSMIF0>_Start R_<Config_DSMIF0>_Stop R_<Config_DSMIF0>_Create_UserInit r_<Config_DSMIF0>_ocdin_interrupt r_<Config_DSMIF0>_scdin_interrupt r_<Config_DSMIF0>_sumein_interrupt
R_<Config_AFE>_Create R_<Config_AFE>_Create_UserInit
R_<Config_MTU3_MTU4>_Create R_<Config_MTU3_MTU4>_StartTimerCount R_<Config_MTU3_MTU4>_StopTimerCount R_<Config_MTU3_MTU4>_StartTimerCtrl R_<Config_MTU3_MTU4>_StopTimerCtrl R_<Config_MTU3_MTU4>_UpdDuty R_<Config_MTU3_MTU4>_StartAD R_<Config_MTU3_MTU4>_StopAD R_<Config_MTU3_MTU4>_AdcGetConvVal R_<Config_MTU3_MTU4>_Create_UserInit r_<Config_MTU3_MTU4>_CrestInterrupt r_<Config_MTU3_MTU4>_ad_interrupt
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 19 of 533
Smart Configurator.
3. INITIALIZATION
3. INITIALIZATION
This chapter describes the flow of initialization by the API functions of the Code Generator.
PowerOn_Reset_PC Sets interrupt table resister Sets exception table resister Sets single-precision floating-point status word
mcu_clock_setup Initializes system clock Initializes CLKOUT pin output
Process of blue box is FIT board support package module. Please refer to the application note (R01AN1685) for details.
User's pre process when worm start Initializes C runtime environment
bsp_ram_initialize Initializes RAM
init_iolib Initializes C library
bsp_interrupt_open Initializes callback function array
bsp_maapped_interrupt_open Initializes mapped interrupt
bsp_register_protect_open Initializes variables needed for register
protection unctionality
hardware_setup Configures the ROM cache function Configures the port and pin direction
Configures interrupts used
R_Systeminit Initializes peripheral functions
bsp_non_existent_port_init Initializes non existent pins
bsp_adc_initial_configure Configures the ADC initial settings
bsp_bsc_initial_configure Configures the BUS initial settings
Sets processor status word Enable the bus error interruopt
Main function
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 20 of 533
Smart Configurator.
4. API FUNCTIONS
4. API FUNCTIONS
This chapter describes the API functions output that are output by the Code Generator.
4.1 Overview
The following are the naming conventions for the API functions output by the Code Generator.
- Macro names These are in all-capital letters. Note that if a name includes a number as a prefix, the relevant number is equal to the hexadecimal value of the macro.
- Local variable names These are in low-case letters only.
- Global variable names These are prefixed with "g", and only the first letters of words that are elements of the names are capitals.
- Names of pointers to global variables These are prefixed with "gp", and only the first letters of words that are elements of the names are capitals.
- Names of elements in enumeration specifiers "enum" These are in all-capital letters.
Remarks
In the generated code by the smart configurator, the for statement, the while statement, the do-while statement (loop processing) are used in register setting reflected waiting process etc. If fail-safe processing for infinite loop is required, check the generated code and add processing.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 21 of 533
Smart Configurator.
4. API FUNCTIONS
4.2 Function Reference
This section describes the API functions output by the Code Generator, using the following notation format.
Figure 4.1 Notation Format of API Functions
(1) Name Indicates the name of the API function.
(2) Outline Outlines the functions of the API function
(3) [Syntax] Indicates the format to be used when describing an API function to be called in C language.
(4) [Argument(s)] API function arguments are explained in the following format.
I/O
Argument
Descripton
(a)
(b)
(c)
(a) I/O Argument classification I ... Input argument O ... Output argument
(b) Argument Argument data type
(c) Description Description of argument
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 22 of 533
Smart Configurator.
(5) [Return value] API function return value is explained in the following format.
Macro
Description
(a)
(b)
(a) Macro
Macro of return value
(b) Description
Description of return value
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 23 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.1
Common
The Code Generator outputs the following API functions that are for common use by all peripheral modules.
Table 4.1 Common API Functions API Function Name
r_undefined_exception PowerON_Reset hardware_setup R_Systeminit R_CGC_Create R_CGC_Create_UserInit R_Interrupt_Create R_Pins_Create main
Description
Executes processing in response to undefined instruction exceptions. Executes processing in response to a reset having been applied. Executes initialization processing that is required before controlling various hardware facilities. Executes initialization processing that is required before controlling various peripheral modules. Executes initialization processing that is required before controlling the clock generation circuit. Executes user-specific initialization processing for the clock generation circuit. Applies the settings for group interrupts and fast interrupts that were specified on the [Interrupts] tabbed page. Applies the settings for the multi-function pin controller that were specified on the [Pins] tabbed page. main function.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 24 of 533
Smart Configurator.
4. API FUNCTIONS
r_undefined_exception
This API function executes processing in response to undefined instruction exceptions.
Remark:
This API function is called as the interrupt handler for undefined instruction exceptions, which occur when the attempted execution of an undefined instruction (an instruction that is not implemented) is detected.
[Syntax]
void r_undefined_exception ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 25 of 533
Smart Configurator.
4. API FUNCTIONS
PowerON_Reset
This API function executes processing in response to a reset having been applied.
Remark:
This API function is called as the interrupt handler for internal resets generated by the power-on reset circuit.
[Syntax]
void PowerON_Reset ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 26 of 533
Smart Configurator.
4. API FUNCTIONS
hardware_setup
This API function executes initialization processing that is required before controlling various hardware facilities.
Remark: This API function is called from PowerON_Reset as a callback routine.
[Syntax]
void hardware_setup ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 27 of 533
Smart Configurator.
4. API FUNCTIONS
R_Systeminit
This API function executes initialization processing that is required before controlling various peripheral modules.
Remark: This API function is called from hardware_setup as a callback routine.
[Syntax]
void R_Systeminit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 28 of 533
Smart Configurator.
4. API FUNCTIONS
R_CGC_Create
This API function executes initialization processing that is required before controlling the clock generation circuit.
Remark: This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void R_CGC_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 29 of 533
Smart Configurator.
4. API FUNCTIONS
R_CGC_Create_UserInit
This API function executes user-specific initialization processing for the clock generation circuit. Remark: This API function is called from R_CGC_Create as a callback routine.
[Syntax]
void R_CGC_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 30 of 533
Smart Configurator.
4. API FUNCTIONS
R_Interrupt_Create
This API function makes settings for group interrupts and fast interrupts. Remark: This API function is called fromR_Systeminit before the main() function is executed.
[Syntax]
void R_Interrupt_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 31 of 533
Smart Configurator.
R_Pins_Create
This API function makes settings for the multi-function pin controller.
[Syntax]
void R_Pin_Create ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 32 of 533
Smart Configurator.
4. API FUNCTIONS
main
This is the main function. Remark This API function is called from PowerON_Reset as a callback routine.
[Syntax]
void main ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 33 of 533
Smart Configurator.
4.2.2
8-Bit timer
The Code Generator outputs the following API functions for the 8-bit timer.
4. API FUNCTIONS
Table 4.2 API Functions: [8-bit timer] API Function Name
R_<Config_TMR0>_Create
R_<Config_TMR0>_Start R_<Config_TMR0>_Stop R_<Config_TMR0>_Create_UserInit r_<Config_TMR0>_cmimn_interrupt r_<Config_TMR0>_ovin_interrupt
Function Executes initialization processing that is required before controlling the 8-bit timer. Starts counting by the counter. Stops counting by the counter. Executes user-specific initialization processing for the 8-bit timer. Executes processing in response to compare match interrupts. Executes processing in response to overflow interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 34 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_TMR0>_Create
This API function executes initialization processing that is required before controlling the 8-bit timer. Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void R_<Config_TMR0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 35 of 533
Smart Configurator.
R_<Config_TMR0>_Start
This API function Starts counting by the counter.
[Syntax]
void R_<Config_TMR0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 36 of 533
Smart Configurator.
R_<Config_TMR0>_Stop
This API function stops counting by the counter.
[Syntax]
void R_<Config_TMR0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 37 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_TMR0>_Create_UserInit
This API function executes user-specific initialization processing for the 8-bit timer. Remark This API function is called from R_<Config_TMR0>_Create as a callback routine.
[Syntax]
void R_<Config_TMR0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 38 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_TMR0>_cmimn_interrupt
The API function executes processing in response to compare match interrupts.
[Syntax]
static void r_<Config_TMR0>_cmimn_interrupt ( void ); Remark n is the channel number and m is the number of a timer constant register.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 39 of 533
Smart Configurator.
r_<Config_TMR0>_ovin_interrupt
This API function executes processing in response to overflow interrupts.
[Syntax]
static void r_<Config_TMR0>_ovin_interrupt ( void ); Remark n is the channel number.
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 40 of 533
Smart Configurator.
Usage example
Use timer as One-shot timer.
[API setting example]
r_cg_main.c void main(void) {
R_MAIN_UserInit(); /* Start user code. Do not edit comment generated here */ /* Start TMR channel 0 counter */ R_TMR0_Start();
while (1U) {
; } /* End user code. Do not edit comment generated here */ }
r_cg_tmr_user.c static void r_tmr_cmia0_interrupt(void) {
/* Start user code. Do not edit comment generated here */ /* Stop TMR channel 0 counter */ R_TMR0_Stop(); /* End user code. Do not edit comment generated here */ }
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 41 of 533
Smart Configurator.
4.2.3
Buses
The Code Generator outputs the following API functions for the bus.
4. API FUNCTIONS
Table4.3 API Functions: [Buses] API Function Name
R_<Config_BSC>_Create
R_<Config_BSC>_Error_Monitoring_Start
R_<Config_BSC>_Error_Monitoring_Stop
R_<Config_BSC>_InitializeSDRAM R_<Config_BSC>_Create_UserInit r_<Config_BSC>_buserr_interrupt
Function
Executes initialization processing that is required before controlling the bus. Enables the detection of bus errors due to access to illegal addresses. Disables the detection of bus errors due to access to illegal addresses. Initializes the SDRAM controller. Executes user-specific initialization processing for the bus.
Executes processing in response to bus errors due to access to illegal addresses.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 42 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_BSC>_Create
This API function executes initialization processing that is required before controlling the bus. Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_BSC>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 43 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_BSC>_Error_Monitoring_Start
This API function enables the detection of bus errors due to access to illegal addresses.
[Syntax]
void
R_<Config_BSC>_Error_Monitoring_Start ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 44 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_BSC>_Error_Monitoring_Stop
This API function disables the detection of bus errors due to access to illegal addresses.
[Syntax]
void
R_<Config_BSC>_Error_Monitoring_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 45 of 533
Smart Configurator.
R_<Config_BSC>_InitializeSDRAM
his API function initializes the SDRAM controller.
[Syntax]
void
R_<Config_BSC>_InitializeSDRAM ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 46 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_BSC>_Create_UserInit
This API function executes user-specific initialization processing for the bus. Remark This API function is called from R_<Config_BSC>_Create as a callback routine.
[Syntax]
void
R_<Config_BSC>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 47 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_BSC>_buserr_interrupt
This API function executes processing in response to bus errors due to access to illegal addresses. Remark1 This API function is called as the interrupt handler for bus errors due to access by a program
to locations in illegal address areas. Remark2 This API function can be used to determine the bus master that caused the current bus
error; to do so, write the processing for reading the MST bits in bus error status register 1 (BERSR1) within this function. Remark3 This API function can be used to determine the illegal address (the high-order 13 bits of the address) to which access caused the current bus error; to do so, write the processing for reading the ADDR bits in bus error status register 2 (BERSR2) within this function.
[Syntax]
void
r_<Config_BSC>_buserr_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 48 of 533
Smart Configurator.
Usage example
Acquiring the address to which access caused a bus error:
4. API FUNCTIONS
main.c #include "r_smc_entry.h" void main(void) {
/* Enable BUSERR interrupt in ICU */ R_Config_BSC_Error_Monitoring_Start();
while (1U) {
nop(); } }
Config_BSC_user.c /* Start user code for global. Do not edit comment generated here */ volatile uint16_t g_bsc_buserr_addr; /* End user code. Do not edit comment generated here */
void r_Config_BSC_buserr_interrupt(void) {
/* Start user code for r_Config_BSC_buserr_interrupt. Do not edit comment generated here */ /* Restore an address that was accessed when a bus error occurred */ if (1U == BSC.BERSR1.BIT.IA) {
g_bsc_buserr_addr = ((uint16_t)(BSC.BERSR2.WORD)>>3U); }
/* Clear the bus error status registers */ BSC.BERCLR.BIT.STSCLR = 1U; /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 49 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.4
Clock Frequency Accuracy Measurement Circuit
The Code Generator outputs the following API functions for the clock frequency accuracy measurement circuit (CAC).
Table4.4 API Functions: [Clock Frequency Accuracy Measurement Circuit]
API Function Name R_<Config_CAC>_Create
R_<Config_CAC>_Start R_<Config_CAC>_Stop R_<Config_CAC>_Create_UserInit
r_<Config_CAC>_mendf_interrupt r_<Config_CAC>_mendi_interrupt r_<Config_CAC>_ferrf_interrupt r_<Config_CAC>_ferri_interrupt r_<Config_CAC>_ovff_interrupt r_<Config_CAC>_ovfi_interrupt
Function Executes initialization processing that is required before controlling the clock frequency accuracy measurement circuit. Starts measurement of the clock frequency accuracy. Stops measurement of the clock frequency accuracy. Executes user-specific initialization processing for the clock frequency accuracy measurement circuit. Executes processing in response to measurement end interrupts. (The name of this API function varies with the device group.) Executes processing in response to frequency error interrupts. (The name of this API function varies with the device group.) Executes processing in response to overflow interrupts. (The name of this API function varies with the device group.)
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 50 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_CAC>_Create
This API function executes initialization processing that is required before controlling the clock frequency accuracy measurement circuit.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_CAC>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 51 of 533
Smart Configurator.
R_<Config_CAC>_Start
This API function starts measurement of the clock frequency accuracy.
[Syntax]
void
R_<Config_CAC>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 52 of 533
Smart Configurator.
R_<Config_CAC>_Stop
This API function stops measurement of the clock frequency accuracy.
[Syntax]
void
R_<Config_CAC>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 53 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_CAC>_Create_UserInit
This API function executes user-specific initialization processing for the clock frequency accuracy measurement circuit (CAC).
Remark This API function is called from R_<Config_CAC>_Create as a callback routine.
[Syntax]
void
R_<Config_CAC>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 54 of 533
Smart Configurator.
r_<Config_CAC>_mendf_interrupt
4. API FUNCTIONS
r_<Config_CAC>_mendi_interrupt
This API function executes processing in response to measurement end interrupts.
Remark
This API function is called as the interrupt handler for measurement end interrupts, which occur when the clock frequency accuracy measurement circuit detects valid edges on the reference signal line.
[Syntax]
void
r_<Config_CAC>_mendf_interrupt ( void );
void
r_<Config_CAC>_mendi_interrupt ( void );
Remark The name of this API function varies with the device group.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 55 of 533
Smart Configurator.
r_<Config_CAC>_ferrf_interrupt
4. API FUNCTIONS
r_<Config_CAC>_ferri_interrupt
This API function executes processing in response to measurement end interrupts.
Remark
This API function is called as the interrupt handler for measurement end interrupts, which occur when the clock frequency accuracy measurement circuit detects valid edges on the reference signal line.
[Syntax]
void
r_<Config_CAC>_ferrf_interrupt ( void );
void
r_<Config_CAC>_ferri_interrupt ( void );
Remark The name of this API function varies with the device group.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 56 of 533
Smart Configurator.
r_<Config_CAC>_ovff_interrupt
4. API FUNCTIONS
r_<Config_CAC>_ovfi_interrupt
This API function executes processing in response to overflow interrupts.
Remark
This API function is called as the interrupt handler for overflow interrupts, which occur when the counter value overflows.
[Syntax]
void
r_<Config_CAC>_ovff_interrupt ( void );
void
r_<Config_CAC>_ovfi_interrupt ( void );
Remark The name of this API function varies with the device group.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 57 of 533
Smart Configurator.
Usage example
Counting the number of frequency errors:
4. API FUNCTIONS
main.c #include "r_smc_entry.h" void main(void) {
/* Enable clock frequency measurement */ R_Config_CAC_Start();
while (1U) {
nop(); } }
Config_CAC_user.c /* Start user code for global. Do not edit comment generated here */ volatile uint8_t g_cac_ferri_cnt; /* End user code. Do not edit comment generated here */
void R_Config_CAC_Create_UserInit(void) {
/* Start user code for user init. Do not edit comment generated here */ /* Reset the error countor */ g_cac_ferri_cnt = 0U; /* End user code. Do not edit comment generated here */ }
void r_Config_CAC_ferri_interrupt(void) {
/* Start user code for r_Config_CAC_ferri_interrupt. Do not edit comment generated here */ /* Add the error countor */ g_cac_ferri_cnt++; /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 58 of 533
Smart Configurator.
4.2.5
Comparator
The Code Generator outputs the following API functions for the comparator.
4. API FUNCTIONS
Table4.5 API Functions: [Comparator] API Function Name
R_<Config_CMPB0>_Create R_<Config_CMPB0>_Start R_<Config_CMPB0>_Stop R_<Config_CMPB0>_Create_UserInit r_<Config_CMPB0>_cmpbn_interrupt
Function
The Code Generator outputs the following API functions for the comparator. The Code Generator outputs the following API functions for the comparator. The Code Generator outputs the following API functions for the comparator. The Code Generator outputs the following API functions for the comparator. The Code Generator outputs the following API functions for the comparator.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 59 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_CMPB0>_Create
This API function executes initialization processing that is required before controlling the comparator. Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_CMPB0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 60 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_CMPB0>_Start
This API function starts comparison of the analog input voltage with the reference voltage.
[Syntax]
void
R_<Config_CMPB0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 61 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_CMPB0>_Stop
This API function stops comparison of the analog input voltage with the reference voltage.
[Syntax]
void
R_<Config_CMPB0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 62 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_CMPB0>_Create_UserInit
This API function executes user-specific initialization processing for the comparator. Remark This API function is called from R_<Config_CMPB0>_Create as a callback routine.
[Syntax]
void
R_<Config_CMPB0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 63 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_CMPB0>_cmpbn_interrupt
This API function executes processing in response to comparator Bn interrupts.
Remark
This API function is called as the interrupt handler for comparator Bn interrupts, which occur when the result of comparison of the analog input voltage with the reference input voltage changes.
[Syntax]
void Remark
r_<Config_CMPB0>_cmpbn_interrupt ( void ); n is a channel number.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 64 of 533
Smart Configurator.
Usage example
Setting a flag when the result of comparison changes:
4. API FUNCTIONS
main.c #include "r_smc_entry.h" void main(void) {
/* Start comparator B0 */ R_Config_CMPB0_Start();
while (1U) {
nop(); } }
Config_CMPB0_user.c /* Start user code for global. Do not edit comment generated here */ volatile uint8_t g_cmpb0_f; /* End user code. Do not edit comment generated here */
void R_Config_CMPB0_Create_UserInit(void) {
/* Start user code for user init. Do not edit comment generated here */ /* Clear the flag */ g_cmpb0_f = 0U; /* End user code. Do not edit comment generated here */ }
static void r_Config_CMPB0_cmpb0_interrupt(void) {
/* Start user code for r_Config_CMPB0_cmpb0_interrupt. Do not edit comment generated here */
/* Set the flag */ g_cmpb0_f = 1U; /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 65 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.6
Compare Match Timer
The Code Generator outputs the following API functions for compare match timers (CMT or CMTW).
Table4.6 API Functions: [Compare Match Timer]
API Function Name R_<Config_CMT0>_Create
R_<Config_CMT0>_Start R_<Config_CMT0>_Stop R_<Config_CMT0>_Create_UserInit
r_<Config_CMT0>_cmin_interrupt
r_<Config_CMT0>_cmwin_interrupt
r_<Config_CMT0>_icmin_interrupt r_<Config_CMT0>_ocmin_interrupt
Function Executes initialization processing that is required before controlling a compare match timer (CMT or CMTW). Starts counting by the counter. Stops counting by the counter. Executes user-specific initialization processing for a compare match timer (CMT or CMTW). Executes processing in response to compare match interrupts (CMIn). Executes processing in response to compare match interrupts (CMWIn). Executes processing in response to input capture interrupts. Executes processing in response to output compare interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 66 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_CMT0>_Create
This API function executes initialization processing that is required before controlling a compare match timer (CMT or CMTW).
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_CMT0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 67 of 533
Smart Configurator.
R_<Config_CMT0>_Start
This API function starts counting by the counter.
[Syntax]
void
R_<Config_CMT0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 68 of 533
Smart Configurator.
R_<Config_CMT0>_Stop
This API function stops counting by the counter.
[Syntax]
void
R_<Config_CMT0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 69 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_CMT0>_Create_UserInit
This API function executes user-specific initialization processing for a compare match timer (CMT or CMTW).
Remark This API function is called from R_<Config_CMT0>_Create as a callback routine.
[Syntax]
void
R_<Config_CMT0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 70 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_CMT0>_cmin_interrupt
This API function executes processing in response to compare match interrupts (CMIn).
Remark
This API function is called as the interrupt handler for compare match interrupts (CMIn), which occur when the current counter value (the value of the compare match timer counter (CMCNT)) matches a specified value (the value of the compare match timer constant register (CMCOR)).
[Syntax]
void Remark
r_<Config_CMT0>_cmin_interrupt ( void ); n is a channel number.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 71 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_CMT0>_cmwin_interrupt
This API function executes processing in response to compare match interrupts (CMWIn).
Remark
This API function is called as the interrupt handler for compare match interrupts (CMWIn), which occur when the current counter value (the value of the compare match timer counter (CMWCNT)) matches a specified value (the value of the compare match timer constant register (CMWCOR)).
[Syntax]
void Remark
r_<Config_CMT0>_cmwin_interrupt ( void ); n is a channel number.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 72 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_CMT0>_icmin_interrupt
This API function executes processing in response to input capture interrupts.
[Syntax]
void Remark
r_<Config_CMT0>_icmin_interrupt ( void ); n is a channel number.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 73 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_CMT0>_ocmin_interrupt
This API function executes processing in response to output compare interrupts.
[Syntax]
void Remark
r_<Config_CMT0>_ocmin_interrupt ( void ); n is a channel number.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 74 of 533
Smart Configurator.
Usage example
With the timer operating in a one-shot manner:
4. API FUNCTIONS
main.c #include "r_smc_entry.h" void main(void) {
/* Start CMT channel 0 counter */ R_Config_CMT0_Start();
while (1U) {
nop(); } }
Config_CMT0_user.c
static void r_Config_CMT0_cmi0_interrupt(void) {
/* Start user code for r_Config_CMT0_cmi0_interrupt. Do not edit comment generated here */ /* Stop CMT channel 0 counter */ R_Config_CMT0_Stop(); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 75 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.7
Complementary PWM Mode Timer
The Code Generator outputs the following API functions for timers in complementary PWM mode.
Table4.7 API Functions: [Complementary PWM Mode Timer]
API Function Name R_<Config_MTU3_MTU4>_Create
R_<Config_MTU3_MTU4>_Start R_<Config_MTU3_MTU4>_Stop R_<Config_MTU3_MTU4>_Create_UserInit
r_<Config_MTU3_MTU4>_tgimn_interrupt r_<Config_MTU3_MTU4>_cj_tgimj_interrupt r_<Config_MTU3_MTU4>_cj_tcivj_interrupt
Function Executes initialization processing that is required before controlling a timer in complementary PWM mode. Starts counting by the counter. Stops counting by the counter. Executes user-specific initialization processing for a timer in complementary PWM mode. Executes processing in response to compare match interrupts. Executes processing in response to compare match interrupts. Executes processing in response to underflow interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 76 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_MTU3_MTU4>_Create
This API function executes initialization processing that is required before controlling a timer in complementary PWM mode.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_MTU3_MTU4>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 77 of 533
Smart Configurator.
R_<Config_MTU3_MTU4>_Start
This API function starts counting by the counter.
[Syntax]
void
R_<Config_MTU3_MTU4>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 78 of 533
Smart Configurator.
R_<Config_MTU3_MTU4>_Stop
This API function stops counting by the counter.
[Syntax]
void
R_<Config_MTU3_MTU4>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 79 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_MTU3_MTU4>_Create_UserInit
This API function executes user-specific initialization processing for a timer in complementary PWM mode. Remark This API function is called from R_<Config_MTU3_MTU4>_Create as a callback routine.
[Syntax]
void
R_<Config_MTU3_MTU4>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 80 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_MTU3_MTU4>_tgimn_interrupt
This API function executes processing in response to compare match interrupts.
Remark
This API function is called as the interrupt handler for compare match interrupts, which occur when the current counter value (the value of the timer counter (TCNT)) matches a specified value (the value of the timer general register (TGR)).
[Syntax]
void Remark
r_<Config_MTU3_MTU4>_tgimn_interrupt ( void ); n is channel numbers, and m is the number of a timer general register.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 81 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_MTU3_MTU4>_cj_tgimj_interrupt
This API function executes processing in response to compare match interrupts.
Remark
This API function is called as the interrupt handler for compare match interrupts, which occur when the current counter value (the value of the timer counter (TCNT)) matches a specified value (the value of the timer general register (TGR)).
[Syntax]
void Remark
r_<Config_MTU3_MTU4>_cj_tgimj_interrupt ( void ); n is channel numbers, and m is the number of a timer general register.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 82 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_MTU3_MTU4>_cj_tcivj_interrupt
This API function executes processing in response to compare match interrupts.
Remark
This API function is called as the interrupt handler for compare match interrupts, which occur when the current counter value (the value of the timer counter (TCNT)) matches a specified value (the value of the timer general register (TGR)).
[Syntax]
void Remark
r_<Config_MTU3_MTU4>_cj_tcivj_interrupt ( void ); j is channel number.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 83 of 533
Smart Configurator.
4. API FUNCTIONS
Usage example
Repeating processing to gradually increase the width of the U-phase pulses to the upper limit and then gradually reduce it to the lower limit:
main.c #include "r_smc_entry.h" void main(void) {
/* Start the MTU6 channel counter */ R_Config_MTU6_MTU7_Start();
while (1U) {
nop(); } }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 84 of 533
Smart Configurator.
4. API FUNCTIONS
Config_MTU6_MTU7_user.c
/* Start user code for global. Do not edit comment generated here */ volatile uint16_t gu_pulse_u; volatile int8_t g_pulse_dir_u; /* End user code. Do not edit comment generated here */
void R_Config_MTU6_MTU7_Create_UserInit(void) {
/* Start user code for user init. Do not edit comment generated here */ gu_pulse_u = _xxxx_6TGRB_VALUE; g_pulse_dir_u = 1U; /* End user code. Do not edit comment generated here */ }
static void r_Config_MTU6_MTU7_tgib6_interrupt(void) {
/* Start user code for r_Config_MTU6_MTU7_tgib6_interrupt. Do not edit comment generated here */
gu_pulse_u += g_pulse_dir_u; if(gu_pulse_u == _xxxx_TCDRB_VALUE) {
g_pulse_dir_u = -1; } else if(gu_pulse_u == _xxxx_TDDRB_VALUE) {
g_pulse_dir_u = 1; } MTU6.TGRB = gu_pulse_u; MTU6.TGRD = gu_pulse_u; /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 85 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.8
Continuous Scan Mode S12AD
The Code Generator outputs the following API functions for the continuous scan mode S12AD.
Table4.8 API Functions: [Countinuous Scan Mode S12AD]
API Function Name R_<Config_S12AD0>_Create
R_<Config_S12AD0>_Start R_<Config_S12AD0>_Stop R_<Config_S12AD0>_Get_ValueResult R_<Config_S12AD0>_Set_CompareValue R_<Config_S12AD0>_Set_CompareAValue R_<Config_S12AD0>_Set_CompareBValue R_<Config_S12AD0>_Create_UserInit
r_<Config_S12AD0>_interrupt r_<Config_S12AD0>_compare_interrupt r_<Config_S12AD0>_compare_interruptA
r_<Config_S12AD0>_compare_interruptB
Function Executes initialization processing that is required before controlling the S12AD in continuous scan mode. Starts A/D conversion. Stops A/D conversion. Gets the result of conversion. Sets the compare level. Sets the compare level for window A. Sets the compare level for window B. Executes user-specific initialization processing for the S12AD in continuous scan mode. Executes processing in response to scan end interrupts. Executes processing in response to compare interrupts. Executes processing in response to compare interrupts for window A. Executes processing in response to compare interrupts for window B.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 86 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Create
This API function executes initialization processing that is required before controlling the continuous scan mode S12AD.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_S12AD0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 87 of 533
Smart Configurator.
R_<Config_S12AD0>_Start
This API function starts A/D conversion.
[Syntax]
void
R_<Config_S12AD0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 88 of 533
Smart Configurator.
R_<Config_S12AD0>_Stop
This API function stops A/D conversion.
[Syntax]
void
R_<Config_S12AD0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 89 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Get_ValueResult
This API function gets the result of conversion.
[Syntax]
void R_<Config_S12AD0>_Get_ValueResult ( ad_channel_t channel, uint16_t * const buffer );
[Argument(s)]
For RX130 or RX230/RX231
I/O
Argument
I ad_channel_t channel;
O uint16_t * const buffer;
Description
Channel number ADCHANNEL0: Input channel AN000 ADCHANNEL1: Input channel AN001 ADCHANNEL2: Input channel AN002 ADCHANNEL3: Input channel AN003 ADCHANNEL4: Input channel AN004 ADCHANNEL5: Input channel AN005 ADCHANNEL6: Input channel AN006 ADCHANNEL7: Input channel AN007 ADCHANNEL16: Input channel AN016 ADCHANNEL17: Input channel AN017 ADCHANNEL18: Input channel AN018 ADCHANNEL19: Input channel AN019 ADCHANNEL20: Input channel AN020 ADCHANNEL21: Input channel AN021 ADCHANNEL22: Input channel AN022 ADCHANNEL23: Input channel AN023 ADCHANNEL24: Input channel AN024 ADCHANNEL25: Input channel AN025 ADCHANNEL26: Input channel AN026 ADCHANNEL27: Input channel AN027 ADCHANNEL28: Input channel AN028 ADCHANNEL29: Input channel AN029 ADCHANNEL30: Input channel AN030 ADCHANNEL31: Input channel AN031 ADTEMPSENSOR: Extended analog input (temperature sensor output) ADINTERREFVOLT: Extended analog input (internal reference voltage) ADSELFDIAGNOSIS: Result of self-diagnosis ADDATADUPLICATION: Double-trigger mode result
Pointer to the location where the acquired results of conversion are to be stored
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 90 of 533
Smart Configurator.
For other devices
I/O
Argument
I ad_channel_t channel;
O uint16_t * const buffer;
[Return value]
None.
4. API FUNCTIONS
Description Channel number
ADCHANNEL0: Input channel AN000 ADCHANNEL1: Input channel AN001 ADCHANNEL2: Input channel AN002 ADCHANNEL3: Input channel AN003 ADCHANNEL4: Input channel AN004 ADCHANNEL5: Input channel AN005 ADCHANNEL6: Input channel AN006 ADCHANNEL7: Input channel AN007 ADCHANNEL8: Input channel AN008 ADCHANNEL9: Input channel AN009 ADCHANNEL10: Input channel AN010 ADCHANNEL11: Input channel AN011 ADCHANNEL12: Input channel AN012 ADCHANNEL13: Input channel AN013 ADCHANNEL14: Input channel AN014 ADCHANNEL15: Input channel AN015 ADCHANNEL16: Input channel AN016 ADCHANNEL17: Input channel AN017 ADCHANNEL18: Input channel AN018 ADCHANNEL19: Input channel AN019 ADCHANNEL20: Input channel AN020 ADTEMPSENSOR: Extended analog input (temperature sensor output) ADINTERREFVOLT: Extended analog input (internal reference voltage) ADSELFDIAGNOSIS: Result of self-diagnosis ADDATADUPLICATION: Double-trigger mode result ADDATADUPLICATIONA: Double-trigger mode A result ADDATADUPLICATIONB: Double-trigger mode B result Pointer to the location where the acquired results of conversion are to be stored
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 91 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Set_CompareValue
This API function sets the compare level.
[Syntax]
void R_<Config_S12AD0>_Set_CompareValue ( uint16_t reg_value0, uint16_t reg_value1);
[Argument(s)]
I/O
Argument
I uint16_t reg_value0; I uint16_t reg_value1;
Description Value to be set in compare register 0 Value to be set in compare register 1
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 92 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Set_CompareAValue
This API function sets the compare level for window A.
[Syntax]
void R_<Config_S12AD0>_Set_CompareAValue ( uint16_t reg_value0, uint16_t reg_value1);
[Argument(s)]
I/O
Argument
I uint16_t reg_value0; I uint16_t reg_value1;
Description Value to be set in compare register 0 Value to be set in compare register 1
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 93 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Set_CompareBValue
This API function sets the compare level for window B.
[Syntax]
void R_<Config_S12AD0>_Set_CompareBValue ( uint16_t reg_value0, uint16_t reg_value1);
[Argument(s)]
I/O
Argument
I uint16_t reg_value0; I uint16_t reg_value1;
Description Value to be set in compare register 0 Value to be set in compare register 1
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 94 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Create_UserInit
This API function executes user-specific initialization processing for the continuous scan mode S12AD. Remark This API function is called from R_<Config_S12AD0>_Create as a callback routine.
[Syntax]
void
R_<Config_S12AD0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 95 of 533
Smart Configurator.
r_<Config_S12AD0>_interrupt
This API function executes processing in response to scan end interrupts.
[Syntax]
void
r_<Config_S12AD0>_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 96 of 533
Smart Configurator.
r_<Config_S12AD0>_compare_interrupt
This API function executes processing in response to compare interrupts.
[Syntax]
void
r_<Config_S12AD0>_compare_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 97 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_S12AD0>_compare_interruptA
This API function executes processing in response to compare interrupts for window A.
[Syntax]
void
r_<Config_S12AD0>_compare_interruptA ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 98 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_S12AD0>_compare_interruptB
This API function executes processing in response to compare interrupts for window B.
[Syntax]
void
r_<Config_S12AD0>_compare_interruptB ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 99 of 533
Smart Configurator.
4. API FUNCTIONS
Usage example
Getting the result of A/D conversion that matches the default setting of the condition for comparison and then changing the compare match values:
main.c #include "r_smc_entry.h" void main(void) {
/* Start the AD0 converter */ R_Config_S12AD0_Start();
while (1U) {
nop(); } }
Config_S12AD0_user.c /* Start user code for global. Do not edit comment generated here */ volatile uint16_t g_s12ad0_ch000_value; /* End user code. Do not edit comment generated here */
void r_Config_S12AD0_compare_interrupt(void) {
/* Start user code for r_Config_S12AD0_compare_interrupt. Do not edit comment generated here */
/* Stop the AD0 converter */ R_Config_S12AD0_Stop();
/* Get result from the AD0 channel 0 (AN000) converter */ R_Config_S12AD0_Get_ValueResult(ADCHANNEL0, (uint16_t *)&g_s12ad0_ch000_value);
/* Set reference data for AD0 comparison */ R_Config_S12AD0_Set_CompareValue(1000U, 3000U);
/* Clear the compare flag */ S12AD.ADCMPSR0.WORD = 0x00U;
/* Start the AD0 converter */ R_Config_S12AD0_Start(); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 100 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.9
CRC Calculator
The Code Generator outputs the following API functions for the CRC calculator.
Table4.9 API Functions: [CRC Calculato] API Function Name
R_<Config_CRC>_SetCRC8 R_<Config_CRC>_SetCRC16 R_<Config_CRC>_SetCCITT R_<Config_CRC>_SetCRC32
R_<Config_CRC>_SetCRC32C
R_<Config_CRC>_Input_Data R_<Config_CRC>_Get_Result
Function
Initializes the CRC calculator in preparation for 8-bit CRC calculation (polynomial: X8 + X2 + X + 1). Initializes the CRC calculator in preparation for 16-bit CRC calculation (polynomial: X16 + X15 + X2 + 1). Initializes the CRC calculator in preparation for 16-bit CRC calculation (polynomial: X16 + X12 + X5 + 1). Initializes the CRC calculator in preparation for 32-bit CRC calculation (polynomial: X32 + X26 + X23 + X22 + X16 + X12 + X11 + X10 + X8 + X7 + X5 + X4 + X2 + X + 1). Initializes the CRC calculator in preparation for 32-bit CRC calculation (polynomial: X32 + X28 + X27 + X26 + X25 + X23 + X22 + X20 + X19 + X18 + X14 + X13 + X11 + X10 + X9 + X8 + X6 + 1). Sets the initial value of the data from which the CRC is to be calculated.
Gets the result of the operation.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 101 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_CRC>_SetCRC8
This API function initializes the CRC calculator in preparation for 8-bit CRC calculation (polynomial: X8 + X2 + X + 1).
[Syntax]
void
R_<Config_CRC>_SetCRC8 ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 102 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_CRC>_SetCRC16
This API function initializes the CRC calculator in preparation for 16-bit CRC calculation (polynomial: X16 + X15 + X2 + 1).
[Syntax]
void
R_<Config_CRC>_SetCRC16 ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 103 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_CRC>_SetCCITT
This API function initializes the CRC calculator in preparation for 16-bit CRC calculation (polynomial: X16 + X12 + X5 + 1).
[Syntax]
void
R_<Config_CRC>_SetCCITT ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 104 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_CRC>_SetCRC32
This API function initializes the CRC calculator in preparation for 32-bit CRC calculation (polynomial: X32 + X26 + X23 + X22 + X16 + X12 + X11 + X10 + X8 + X7 + X5 + X4 + X2 + X + 1).
[Syntax]
void
R_<Config_CRC>_SetCRC32 ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 105 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_CRC>_SetCRC32C
This API function initializes the CRC calculator in preparation for 32-bit CRC calculation (polynomial: X32 + X28 + X27 + X26 + X25 + X23 + X22 + X20 + X19 + X18 + X14 + X13 + X11 + X10 + X9 + X8 + X6 + 1).
[Syntax]
void
R_<Config_CRC>_SetCRC32C ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 106 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_CRC>_Input_Data
This API function sets the initial value of the data from which the CRC is to be calculated.
[Syntax]
void
R_<Config_CRC>_Input_Data ( uint8_t data );
void
R_<Config_CRC>_Input_Data ( uint32_t data );
[Argument(s)]
I/O
Argument
I uint8_t data;
Description Initial value of the data from which the CRC is to be calculated
I/O
Argument
Description
I uint32_t data;
Initial value of the data from which the CRC is to be calculated
Remark The sizes of the arguments vary with the device group
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 107 of 533
Smart Configurator.
R_<Config_CRC>_Get_Result
This API function gets the result of the operation.
[Syntax]
void
R_<Config_CRC>_Get_Result ( uint16_t * const result );
4. API FUNCTIONS
void
R_<Config_CRC>_Get_Result ( uint32_t * const result );
[Argument(s)]
I/O
Argument
O uint16_t * const result;
Description Pointer to the location where the result of the operation is to be stored
I/O
Argument
Description
O uint32_t * const result;
Pointer to the location where the result of the operation is to be
stored
Remark The sizes of the arguments vary with the device group.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 108 of 533
Smart Configurator.
Usage example1
Generating the CRC code and appending it to data for transmission:
tx_func.c #include "r_smc_entry.h" volatile uint8_t tx_buf[2]; volatile uint16_t result; void tx_func(void) {
/* Set CRC module using CRC8 algorithm */ R_Config_CRC_SetCRC8();
/* Restore transmit data */ tx_buf[0] = 0xF0;
/* Write data to CRC input register */ R_Config_CRC_Input_Data(tx_buf[0]);
/* Get result from CRC output register */ R_Config_CRC_Get_Result((uint16_t *)&result);
/* Restore CRC code */ tx_buf[1] = (uint8_t)(result);
/*** Transmit "tx_buf" ***/ }
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 109 of 533
Smart Configurator.
4. API FUNCTIONS
Usage example2
Generating the CRC code from the received data and checking the received data for correctness:
rx_func.c #include "r_smc_entry.h" volatile uint8_t rx_buf[2]; volatile uint16_t result; volatile uint8_t err_f; void rx_func(void) {
/* Clare error flag */ err_f = 0U;
/*** Receive (Restore the receive data in "rx_buf") ***/
/* Set CRC module using CRC8 algorithm */ R_Config_CRC_SetCRC8();
/* Write data to CRC input register */ R_Config_CRC_Input_Data(rx_buf[0]);
/* Get result from CRC output register */ R_Config_CRC_Get_Result((uint16_t *)&result);
/* Check the receive data */ if (rx_buf[1] != (uint8_t)(result)) {
/* Set error flag */ err_f = 1U; } }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 110 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.10 D/A Converter
The Code Generator outputs the following API functions for the D/A converter.
Table4.10 API Functions: [D/A Convertor] API Function Name
R_<Config_DA>_Create
R_<Config_DA>n_Start R_<Config_DA>n_Stop R_<Config_DA>n_Set_ConversionValue R_<Config_DA>_Sync_Start R_<Config_DA>_Sync_Stop R_<Config_DA>_Create_UserInit
Function Executes initialization processing that is required before controlling the D/A converter. Starts D/A conversion. Stops D/A conversion. Sets a value for D/A conversion. Starts synchronous D/A conversion. Stops synchronous D/A conversion. Executes user-specific initialization processing for the D/A converter.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 111 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DA>_Create
This API function executes initialization processing that is required before controlling the D/A converter. Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_DA>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 112 of 533
Smart Configurator.
R_<Config_DA>n_Start
This API function starts D/A conversion.
[Syntax]
void Remark
R_<Config_DA>n_Start ( void ); n is a channel number.
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 113 of 533
Smart Configurator.
R_<Config_DA>n_Stop
This API function stops D/A conversion.
[Syntax]
void Remark
R_<Config_DA>n_Stop ( void ); n is a channel number.
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 114 of 533
Smart Configurator.
R_<Config_DA>n_Set_ConversionValue
This API function sets a value for D/A conversion.
[Syntax]
void Remark
R_<Config_DA>n_Set_ConversionValue ( uint16_t reg_value ); n is a channel number.
[Argument(s)]
I/O
Argument
I uint16_t reg_value;
Description Value to be D/A converted
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 115 of 533
Smart Configurator.
R_<Config_DA>_Sync_Start
This API function starts synchronous D/A conversion.
[Syntax]
void
R_<Config_DA>_Sync_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 116 of 533
Smart Configurator.
R_<Config_DA>_Sync_Stop
This API function stops synchronous D/A conversion.
[Syntax]
void
R_<Config_DA>_Sync_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 117 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DA>_Create_UserInit
This API function executes user-specific initialization processing for the D/A converter. Remark This API function is called from R_<Config_DA>_Create as a callback routine.
[Syntax]
void
R_<Config_DA>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 118 of 533
Smart Configurator.
Usage example
Enabling synchronous D/A conversion in channels 0 and 1:
main.c #include "r_smc_entry.h" void main(void) {
/* Set the DA0 converter value */ R_<Config_DA>0_Set_ConversionValue(1000U);
/* Set the DA1 converter value */ R_<Config_DA>1_Set_ConversionValue(2000U);
/* Enable the DA0, DA1 synchronize converter */ R_<Config_DA>_Sync_Start();
while (1U) {
nop(); } }
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 119 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.11 Data Operation Circuit
The Code Generator outputs the following API functions for the data operation circuit.
Table4.11 API Functions: [Data Operation Circuit]
API Function Name R_<Config_DOC>_Create
R_<Config_DOC>_SetMode
R_<Config_DOC>_WriteData
R_<Config_DOC>_GetResult R_<Config_DOC>_ClearFlag R_<Config_DOC>_Create_UserInit
r_<Config_DOC>_dopcf_interrupt r_<Config_DOC>_dopci_interrupt
Function
Executes initialization processing that is required before controlling the data operation circuit. Sets the operating mode and the initial reference value for use by the data operation circuit. Sets the input value (value for comparison with, addition to, or subtraction from the reference value) for use in the operation. Gets the result of the operation. Clears the data operation circuit flag. Executes user-specific initialization processing for the data operation circuit. Executes processing in response to data operation circuit interrupts. (The name of this API function varies with the device group.)
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 120 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DOC>_Create
This API function executes initialization processing that is required before controlling the data operation circuit.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_DOC>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 121 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DOC>_SetMode
This API function sets the operating mode and the initial reference value for use by the data operation
circuit.
Remark1.
When COMPARE_MISMATCH (data comparison mode) or COMPARE_MATCH (data comparison mode) is specified as the operating mode mode, the 16-bit data value is stored in the DOC data setting register (DODSR).
Remark2. When ADDITION (data addition mode) or SUBTRACTION (data subtraction mode) is specified as the operating mode mode, the 16-bit data value is stored in the DOC data
setting register (DODSR) as the initial value.
[Syntax]
void
R_<Config_DOC>_SetMode ( doc_mode_t mode, uint16_t value );
[Argument(s)]
I/O
Argument
I doc_mode_t mode;
I uint16_t value;
Description
Operating mode type (including the condition for detection) COMPARE_MISMATCH: Data comparison mode (mismatch) COMPARE_MATCH: Data comparison mode (match) ADDITION: Data addition mode SUBTRACTION: Data subtraction mode
Initial reference value for which the operation is to be performed
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 122 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DOC>_WriteData
This API function sets the input value (value for comparison with, addition to, or subtraction from the reference value) for use in the operation.
[Syntax]
void
R_<Config_DOC>_WriteData (uint16_t data);
[Argument(s)]
I/O
Argument
I uint16_t data;
Description Input value for use in the operation
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 123 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DOC>_GetResult
This API function gets the result of the operation.
[Syntax]
void
R_<Config_DOC>_GetResult ( uint16_t * const data );
[Argument(s)]
I/O
Argument
O uint16_t * const data;
Description Pointer to the location where the result of the operation is to be stored
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 124 of 533
Smart Configurator.
R_<Config_DOC>_ClearFlag
This API function clears the data operation circuit flag.
[Syntax]
void
R_<Config_DOC>_ClearFlag ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 125 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DOC>_Create_UserInit
This API function executes user-specific initialization processing for the data operation circuit. Remark This API function is called from R_Config_DOC_Create as a callback routine.
[Syntax]
void
R_<Config_DOC>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 126 of 533
Smart Configurator.
r_<Config_DOC>_dopcf_interrupt
4. API FUNCTIONS
r_<Config_DOC>_dopci_interrupt
This API function executes processing in response to data operation circuit interrupts.
Remark
This API function is called to run interrupt processing in response to the data operation circuit interrupt, which is generated when the result of data comparison satisfies the condition for detection, the result of data addition is greater than 0xFFFF, or the result of data subtraction is less than 0x0.
[Syntax]
void
r_<Config_DOC>_dopcf_interrupt ( void );
void
r_<Config_DOC>_dopci_interrupt ( void );
Remark The name of this API function varies with the device group.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 127 of 533
Smart Configurator.
4. API FUNCTIONS
Usage example
Adding an array of values in data addition mode and getting the result of addition in response to the interrupt when it has exceeded "FFFFh";
changing the operating mode to data comparison mismatch mode and generating an interrupt when a value other than "000h" is detected in the array:
main.c
#include "r_smc_entry.h" extern volatile uint16_t data[16]; void main(void) {
uint8_t cnt; while (1U) {
for (cnt = 0; cnt < 16U; cnt++) {
/* Write new data to compare */ R_<Config_DOC>_WriteData(data[cnt]); } } }
Config_DOC_user.c /* Start user code for global. Do not edit comment generated here */ volatile uint16_t data[16]; volatile uint16_t result; /* End user code. Do not edit comment generated here */
void r_<Config_DOC>_dopci_interrupt(void) {
/* Start user code for r_<Config_DOC_dopci_interrupt. Do not edit comment generated here */ /* Get result */ R_<Config_DOC>_GetResult((uint16_t *)&result);
/* Configure the operation mode of DOC */ R_<Config_DOC>_SetMode(COMPARE_MISMATCH, 0x0000);
/* Clear DOPCI flag */ R_<Config_DOC>_ClearFlag(); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 128 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.12 Data Transfer Controller
The Code Generator outputs the following API functions for the data transfer controller.
Table4.12 API Functions: [Data Transfer Controller]
API Function Name R_<Config_DTC>_Create
R_<Config_DTC>_Start R_<Config_DTC>_Stop R_<Config_DTC>_Create_UserInit
Function Executes initialization processing that is required before controlling the data transfer controller. Enables activation of the data transfer controller. Disables activation of the data transfer controller. Executes user-specific initialization processing for the data transfer controller.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 129 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DTC>_Create
This API function executes initialization processing that is required before controlling the data operation circuit.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_DTC>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 130 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DTC>_Start
This API function sets the operating mode and the initial reference value for use by the data operation
circuit.
Remark
This API function manipulates the DTCE bit corresponding to the selected activation source to enable activation of the data transfer controller.
[Syntax]
void
R_<Config_DTC>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 131 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DTC>_Stop
This API function disables activation of the data transfer controller.
Remark
This API function manipulates the DTCE bit corresponding to the selected activation source to disable activation of the data transfer controller.
[Syntax]
void
R_<Config_DTC>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 132 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.12.1 R_<Config_DTC>_Create_UserInit
This API function executes user-specific initialization processing for the data transfer controller. Remark This API function is called from R_<Config_DTC>_Create as a callback routine.
[Syntax]
void
R_<Config_DTC>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 133 of 533
Smart Configurator.
4.2.12.2 Usage example
Starting DTC data transfer in response to a compare match interrupt:
main.c #include "r_smc_entry.h" void main(void) {
/* Start CMT channel 0 counter */ R_Config_CMT0_Start();
/* Enable operation of transfer data DTC */ R_Config_DTC_Start();
while (1U) {
nop(); } }
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 134 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.13 Dead Time Compensaion Counter
The Code Generator outputs the following API functions for the dead time compensation counter.
Table4.13 API Functions: [Dead Time Compensation Counter]
API Function Name R_<Config_MTU5>_Create
R_<Config_MTU5>_Start R_<Config_MTU5>_Stop R_<Config_MTU5>_Create_UserInit
r_<Config_MTU5>_tgimn_interrupt
Function Executes initialization processing that is required before controlling the dead time compensation counter. Starts counting by the counter. Stops counting by the counter. Executes user-specific initialization processing for the dead time compensation counter. Executes processing in response to input capture interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 135 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_MTU5>_Create
This API function executes initialization processing that is required before controlling the dead time compensation counter.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_MTU5>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 136 of 533
Smart Configurator.
R_<Config_MTU5>_Start
This API function starts counting by the counter.
[Syntax]
void
R_<Config_MTU5>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 137 of 533
Smart Configurator.
R_<Config_MTU5>_Stop
This API function stops counting by the counter.
[Syntax]
void
R_<Config_MTU5>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 138 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_MTU5>_Create_UserInit
This API function executes user-specific initialization processing for the dead time compensation counter. Remark This API function is called from R_<Config_MTU5>_Create as a callback routine.
[Syntax]
void
R_<Config_MTU5>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 139 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_MTU5>_tgimn_interrupt
This API function executes processing in response to input capture interrupts.
Remark
This API function is called as the interrupt handler for input capture interrupts, which occur when the selected edge is detected on the input signal line.
[Syntax]
void Remark
r_<Config_MTU5>_tgimn_interrupt ( void ); n is a channel number and m is the number of a timer general register.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 140 of 533
Smart Configurator.
4. API FUNCTIONS
Usage example
Compensating for the dead time in PWM waveform output when MTU6 and MTU7 are being used in complementary PWM mode:
main.c #include "r_smc_entry.h" void main(void) {
/* Start the MTU5 channel counter */ R_Config_MTU5_Start();
/* Start the MTU6 channel counter */ R_Config_MTU6_MTU7_Start();
while (1U) {
nop(); } }
Config_MTU5_user.c
static void r_<Config_MTU5_tgiu5_interrupt(void) {
/* Start user code for r_<Config_MTU5_tgiu5_interrupt. Do not edit comment generated here */ /* Write the corrected value */ if ( MTU6.TGRB > MTU5.TGRU ) {
MTU6.TGRD = (MTU6.TGRB - MTU5.TGRU); } /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 141 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.14 DMA Controller
The Code Generator outputs the following API functions for the DMA controller.
Table4.14 API Functions: [DMA Controller] API Function Name
R_<Config_DMAC0>_Create
R_<Config_DMAC0>_Start R_<Config_DMAC0>_Stop R_<Config_DMAC0>_Set_SoftwareTrigger R_<Config_DMAC0>_Clear_SoftwareTrigger R_<Config_DMAC0>_Create_UserInit
r_<Config_DMAC0>_dmacni_interrupt
r_dmacn_callback_transfer_end
r_dmacn_callback_transfer_escape_end
r_dmac_dmac74i_interrupt
r_dmacn_callback_transfer_end
r_dmacn_callback_transfer_escape_end
Function Executes initialization processing that is required before controlling the DMA controller. Starts the DMAC waiting for DMA activation triggers. Stops the DMAC waiting for DMA activation triggers. Sets a software transfer request. Clears a software transfer request. Executes user-specific initialization processing for the DMA controller. Executes processing in response to transfer end interrupts from channel n. (n = 0 to 3) Executes processing in response to transfer end interrupts from channel n. (n = 0 to 3) Executes processing in response to transfer escape end interrupts from channel n. (n = 0 to 3) Executes processing in response to transfer end interrupts from channels 4 to 7. Executes processing in response to transfer end interrupts from channel n. (n = 4 to 7) Executes processing in response to transfer escape end interrupts from channel n. (n = 4 to 7)
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 142 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DMAC0>_Create
This API function executes initialization processing that is required before controlling the DMA controller. Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_DMAC0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 143 of 533
Smart Configurator.
R_<Config_DMAC0>_Start
This API function starts the DMAC waiting for DMA activation triggers.
[Syntax]
void
R_<Config_DMAC0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 144 of 533
Smart Configurator.
R_<Config_DMAC0>_Stop
This API function stops the DMAC waiting for DMA activation triggers.
[Syntax]
void
R_<Config_DMAC0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 145 of 533
Smart Configurator.
R_<Config_DMAC0>_Set_SoftwareTrigger
This API function sets a software transfer request.
[Syntax]
void
R_<Config_DMAC0>_Set_SoftwareTrigger ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 146 of 533
Smart Configurator.
R_<Config_DMAC0>_Clear_SoftwareTrigger
This API function clears a software transfer request.
[Syntax]
void
R_<Config_DMAC0>_Clear_SoftwareTrigger ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 147 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DMAC0>_Create_UserInit
This API function executes user-specific initialization processing for the DMA controller. Remark This API function is called from R_<Config_DMAC0>_Create as a callback routine.
[Syntax]
void
R_<Config_DMAC0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 148 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_DMAC0>_dmacni_interrupt
This API function executes processing in response to transfer end interrupts from channel n.
[Syntax]
void Remark
r_<Config_DMAC0>_dmacni_interrupt ( void ); n is a channel number. (n = 0 to 3)
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 149 of 533
Smart Configurator.
4. API FUNCTIONS
r_dmacn_callback_transfer_end
This API function executes processing in response to transfer end interrupts from channel n.
Remark
This API function is called as a callback routine from r_<Config_DMAC0>_dmacni_interrupt, which is the interrupt handler for transfer end interrupts from channel n.
[Syntax]
void Remark
r_dmacn_callback_transfer_end ( void ); n is a channel number. (n = 0 to 3)
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 150 of 533
Smart Configurator.
4. API FUNCTIONS
r_dmacn_callback_transfer_escape_end
This API function executes processing in response to transfer escape end interrupts from channel n.
Remark
This API function is called as a callback routine from r_<Config_DMAC0>_dmacni_interrupt, which is the interrupt handler for transfer escape end interrupts from channel n.
[Syntax]
void Remark
r_dmacn_callback_transfer_escape_end ( void ); n is a channel number. (n = 0 to 3)
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 151 of 533
Smart Configurator.
4. API FUNCTIONS
r_dmac_dmac74i_interrupt
This API function executes processing in response to transfer end interrupts from channels 4 to 7.
[Syntax]
void r_dmac_dmac74i_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 152 of 533
Smart Configurator.
4. API FUNCTIONS
r_dmacn_callback_transfer_end
This API function executes processing in response to transfer end interrupts from channel n.
Remark
This API function is called as a callback routine from r_dmac_dmac74i_interrupt, which is the interrupt handler for transfer end interrupts from channel n.
[Syntax]
void Remark
r_dmacn_callback_transfer_end ( void ); n is a channel number. (n = 4 to 7)
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 153 of 533
Smart Configurator.
4. API FUNCTIONS
r_dmacn_callback_transfer_escape_end
This API function executes processing in response to transfer escape end interrupts from channel n.
Remark
This API function is called as a callback routine from r_dmac_dmac74i_interrupt, which is the interrupt handler for transfer escape end interrupts from channel n.
[Syntax]
void Remark
r_dmacn_callback_transfer_escape_end ( void ); n is a channel number. (n = 4 to 7)
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 154 of 533
Smart Configurator.
4. API FUNCTIONS
Usage example
Starting a transfer in response to a compare match interrupt, and setting a flag when the transfer is completed:
main.c #include "r_smc_entry.h" void main(void) {
/* Start CMT channel 0 counter */ R_Config_CMT0_Start();
/* Enable the DMAC0 activation */ R_Config_DMAC0_Start();
while (1U) {
nop(); } }
Config_DMAC0_user.c /* Start user code for global. Do not edit comment generated here */ volatile uint8_t g_dmac0_f; /* End user code. Do not edit comment generated here */
void R_Config_DMAC0_Create_UserInit(void) {
/* Start user code for user init. Do not edit comment generated here */ /* Clear the flag */ g_dmac0_f = 0U; /* End user code. Do not edit comment generated here */ }
static void r_dmac0_callback_transfer_end(void) {
/* Start user code for r_dmac0_callback_transfer_end. Do not edit comment generated here */ /* Set the flag */ g_dmac0_f = 1U; /* End user code. Do not edit comment generated here */ }
Config_DMAC0.h #define _DMAC0_ACTIVATION_SOURCE (28U) /* Please assign dynamic vector in interrupt tab */
Note: This line will be lost when the code is re-generated, so be sure to write it again after re-generating the code.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 155 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.15 Event Link Controller
The Code Generator outputs the following API functions for the event link controller.
Table4.15 API Functions: [Event Link Controller]
API Function Name R_<Config_ELC>_Create
R_<Config_ELC>_Start R_<Config_ELC>_Stop R_<Config_ELC>_GenerateSoftwareEvent R_<Config_ELC>_Set_PortBuffern R_<Config_ELC>_Get_PortBuffern R_<Config_ELC>_Create_UserInit
r_<Config_ELC>_elsrni_interrupt
Function Executes initialization processing that is required before controlling the event link controller. Starts interlinked operation of peripheral functions. Stops interlinked operation of peripheral functions. Generates a software event. Sets the value of a port buffer. Gets the value of a port buffer. Executes user-specific initialization processing for the event link controller. Executes processing in response to event link interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 156 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_ELC>_Create
This API function executes initialization processing that is required before controlling the event link controller.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_ELC>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 157 of 533
Smart Configurator.
R_<Config_ELC>_Start
This API function starts interlinked operation of peripheral functions.
[Syntax]
void
R_<Config_ELC>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 158 of 533
Smart Configurator.
R_<Config_ELC>_Stop
This API function stops interlinked operation of peripheral functions.
[Syntax]
void
R_<Config_ELC>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 159 of 533
Smart Configurator.
R_<Config_ELC>_GenerateSoftwareEvent
This API function generates a software event.
[Syntax]
void
R_<Config_ELC>_GenerateSoftwareEvent ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 160 of 533
Smart Configurator.
R_<Config_ELC>_Set_PortBuffern
This API function sets the value of a port buffer.
[Syntax]
void Remark
R_<Config_ELC>_Set_PortBuffern ( uint8_t value ); n is a port number.
[Argument(s)]
I/O
Argument
I uint8_t value;
Description Value to be written to the port buffer
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 161 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_ELC>_Get_PortBuffern
This API function gets the value of a port buffer.
[Syntax]
void Remark
R_<Config_ELC>_Get_PortBuffern ( uint8_t * const value ); n is a port number.
[Argument(s)]
I/O
Argument
O uint8_t * const value;
Description Pointer to the location where the read value is to be stored
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 162 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_ELC>_Create_UserInit
This API function executes user-specific initialization processing for the event link controller. Remark This API function is called from R_<Config_ELC>_Create as a callback routine.
[Syntax]
void
R_<Config_ELC>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 163 of 533
Smart Configurator.
r_<Config_ELC>_elsrni_interrupt
This API function executes processing in response to event link interrupts.
[Syntax]
void Remark
r_<Config_ELC>_elsrni_interrupt ( void ); n is the number of an event link setting register.
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 164 of 533
Smart Configurator.
4. API FUNCTIONS
Usage example
Generating a software event and generating linked events; linking events one after another and terminating execution in response to an event link interrupt:
main.c #include "r_smc_entry.h" void main(void) {
/* Enable all ELC event links */ R_Config_ELC_Start();
/* Trigger a software event */ R_Config_ELC_GenerateSoftwareEvent();
while (1U) {
nop(); } }
Config_ELC_user.c
static void r_Config_ELC_elsr18i_interrupt(void) {
/* Start user code for r_Config_ELC_elsr18i_interrupt. Do not edit comment generated here */ /* Disable all ELC event links */ R_Config_ELC_Stop(); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 165 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.16 General PWM Timer (GPT)
The Code Generator outputs the following API functions for the general PWM timer (GPT).
Table4.16 API Functions: [General PWM Timer (GPT)]
API Function Name R_<Config_GPT0>_Create
R_<Config_GPT0>_Start R_<Config_GPT0>_Stop R_<Config_GPT0>_HardwareStart R_<Config_GPT0>_HardwareStop R_<Config_GPT0>_ETGI_Start
R_<Config_GPT0>_ETGI_Stop
R_<Config_GPT0>_Software_Clear R_<Config_GPT0>_Create_UserInit
r_<Config_GPT0>_gtcimn_interrupt
r_<Config_GPT0>_gtcivn_interrupt r_<Config_GPT0>_gtciun_interrupt r_<Config_GPT0>_gdten_interrupt r_gpt_etgin_interrupt
r_gpt_etgip_interrupt
Function Executes initialization processing that is required before controlling the general PWM timer (GPT). Starts counting by the counter. Stops counting by the counter. Enables interrupts. Disables interrupts. Enables interrupts due to the input of a falling-edge or rising-edge external trigger. Disables interrupts due to the input of a falling-edge or risingedge external trigger. Clears the counter for the general PWM timer (GPT). Executes user-specific initialization processing for the general PWM timer (GPT). Executes processing in response to input capture interrupts or compare match interrupts. Executes processing in response to overflow interrupts. Executes processing in response to underflow interrupts. Executes processing in response to dead time error interrupts. Executes processing in response to interrupts due to the input of a falling-edge external trigger. Executes processing in response to interrupts due to the input of a rising-edge external trigger.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 166 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_GPT0>_Create
This API function executes initialization processing that is required before controlling the general PWM timer (GPT).
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_GPT0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 167 of 533
Smart Configurator.
R_<Config_GPT0>_Start
This API function starts counting by the counter.
[Syntax]
void
R_<Config_GPT0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 168 of 533
Smart Configurator.
R_<Config_GPT0>_Stop
This API function stops counting by the counter.
[Syntax]
void
R_<Config_GPT0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 169 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_GPT0>_HardwareStart
This API function enables interrupts.
Remark
This API function is used to enable the detection of interrupts during counting that is started by an external or internal trigger (hardware source).
[Syntax]
void
R_<Config_GPT0>_HardwareStart ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 170 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_GPT0>_HardwareStop
This API function disables interrupts.
Remark
This API function is used to disable the detection of interrupts during counting that is started by an external or internal trigger (hardware source).
[Syntax]
void
R_<Config_GPT0>_HardwareStop ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 171 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_GPT0>_ETGI_Start
This API function enables interrupts due to the input of a falling-edge or rising-edge external trigger.
[Syntax]
void
R_<Config_GPT0>_ETGI_Start ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 172 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_GPT0>_ETGI_Stop
This API function disables interrupts due to the input of a falling-edge or rising-edge external trigger.
[Syntax]
void
R_<Config_GPT0>_ETGI_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 173 of 533
Smart Configurator.
R_<Config_GPT0>_Software_Clear
This API function clears the counter for the general PWM timer (GPT).
[Syntax]
void
R_<Config_GPT0>_Software_Clear ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 174 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_GPT0>_Create_UserInit
This API function executes user-specific initialization processing for the general PWM timer (GPT). Remark This API function is called from R_<Config_GPT0>_Create as a callback routine.
[Syntax]
void
R_<Config_GPT0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 175 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_GPT0>_gtcimn_interrupt
This API function executes processing in response to input capture interrupts or compare match interrupts.
[Syntax]
void Remark
r_<Config_GPT0>_gtcimn_interrupt ( void ); n is a channel number and m is the number of a timer general register.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 176 of 533
Smart Configurator.
r_<Config_GPT0>_gtcivn_interrupt
This API function executes processing in response to overflow interrupts.
[Syntax]
void Remark
r_<Config_GPT0>_gtcivn_interrupt ( void ); n is a channel number.
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 177 of 533
Smart Configurator.
r_<Config_GPT0>_gtciun_interrupt
This API function executes processing in response to underflow interrupts.
[Syntax]
void Remark
r_<Config_GPT0>_gtciun_interrupt ( void ); n is a channel number.
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 178 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_GPT0>_gdten_interrupt
This API function executes processing in response to dead time error interrupts.
[Syntax]
void Remark
r_<Config_GPT0>_gdten_interrupt ( void ); n is a channel number.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 179 of 533
Smart Configurator.
4. API FUNCTIONS
r_gpt_etgin_interrupt
This API function executes processing in response to interrupts due to the input of a falling-edge external trigger.
[Syntax]
void r_gpt_etgin_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 180 of 533
Smart Configurator.
4. API FUNCTIONS
r_gpt_etgip_interrupt
This API function executes processing in response to interrupts due to the input of a rising-edge external trigger.
[Syntax]
void r_gpt_etgip_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 181 of 533
Smart Configurator.
Usage example
Acquiring a captured value:
4. API FUNCTIONS
main.c #include "r_smc_entry.h" void main(void) {
/* Start GPT channel 0 counter */ R_Config_GPT0_Start();
while (1U) {
nop(); } }
Config_GPT0_user.c /* Start user code for global. Do not edit comment generated here */ volatile uint16_t g_gpt0_capture_value; /* End user code. Do not edit comment generated here */
static void r_Config_GPT0_gtcia0_interrupt(void) {
/* Start user code for r_Config_GPT0_gtcia0_interrupt. Do not edit comment generated here */ g_gpt0_capture_value = GPT0.GTCCRA; /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 182 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.17 Group Scan Mode S12AD
The Code Generator outputs the following API functions for the group scan mode S12AD.
Table4.17 API Functions: [Group Scan Mode S12AD]
API Function Name R_<Config_S12AD0>_Create
R_<Config_S12AD0>_Start R_<Config_S12AD0>_Stop R_<Config_S12AD0>_Get_ValueResult R_<Config_S12AD0>_Set_CompareValue R_<Config_S12AD0>_Set_CompareAValue R_<Config_S12AD0>_Set_CompareBValue R_<Config_S12AD0>_Create_UserInit
r_<Config_S12AD0>_interrupt r_<Config_S12AD0>_compare_interrupt r_<Config_S12AD0>_compare_interruptA
r_<Config_S12AD0>_compare_interruptB
r_<Config_S12AD0>_groupb_interrupt r_<Config_S12AD0>_groupc_interrupt
Function Executes initialization processing that is required before controlling the S12AD in group scan mode. Starts A/D conversion. Stops A/D conversion. Gets the result of conversion. Sets the compare level. Sets the compare level for window A. Sets the compare level for window B. Executes user-specific initialization processing for the S12AD in group scan mode. Executes processing in response to scan end interrupts. Executes processing in response to compare interrupts. Executes processing in response to compare interrupts for window A. Executes processing in response to compare interrupts for window B. Executes processing in response to scan end interrupts for group B. Executes processing in response to scan end interrupts for group C.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 183 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Create
This API function executes initialization processing that is required before controlling the group scan mode S12AD.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_S12AD0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 184 of 533
Smart Configurator.
R_<Config_S12AD0>_Start
This API function starts A/D conversion.
[Syntax]
void
R_<Config_S12AD0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 185 of 533
Smart Configurator.
R_<Config_S12AD0>_Stop
This API function stops A/D conversion.
[Syntax]
void
R_<Config_S12AD0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 186 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Get_ValueResult
This API function gets the result of conversion.
[Syntax]
void R_<Config_S12AD0>_Get_ValueResult ( ad_channel_t channel, uint16_t * const buffer );
[Argument(s)]
For RX130 or RX230/RX231
I/O
Argument
I ad_channel_t channel;
O uint16_t * const buffer;
Description
Channel number ADCHANNEL0: Input channel AN000 ADCHANNEL1: Input channel AN001 ADCHANNEL2: Input channel AN002 ADCHANNEL3: Input channel AN003 ADCHANNEL4: Input channel AN004 ADCHANNEL5: Input channel AN005 ADCHANNEL6: Input channel AN006 ADCHANNEL7: Input channel AN007 ADCHANNEL16: Input channel AN016 ADCHANNEL17: Input channel AN017 ADCHANNEL18: Input channel AN018 ADCHANNEL19: Input channel AN019 ADCHANNEL20: Input channel AN020 ADCHANNEL21: Input channel AN021 ADCHANNEL22: Input channel AN022 ADCHANNEL23: Input channel AN023 ADCHANNEL24: Input channel AN024 ADCHANNEL25: Input channel AN025 ADCHANNEL26: Input channel AN026 ADCHANNEL27: Input channel AN027 ADCHANNEL28: Input channel AN028 ADCHANNEL29: Input channel AN029 ADCHANNEL30: Input channel AN030 ADCHANNEL31: Input channel AN031 ADTEMPSENSOR: Extended analog input (temperature sensor output) ADINTERREFVOLT: Extended analog input (internal reference voltage) ADSELFDIAGNOSIS: Result of self-diagnosis ADDATADUPLICATION: Double-trigger mode result
Pointer to the location where the acquired results of conversion are to be stored
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 187 of 533
Smart Configurator.
For other devices
I/O
Argument
I ad_channel_t channel;
O uint16_t * const buffer;
[Return value]
None.
4. API FUNCTIONS
Description Channel number
ADCHANNEL0: Input channel AN000 ADCHANNEL1: Input channel AN001 ADCHANNEL2: Input channel AN002 ADCHANNEL3: Input channel AN003 ADCHANNEL4: Input channel AN004 ADCHANNEL5: Input channel AN005 ADCHANNEL6: Input channel AN006 ADCHANNEL7: Input channel AN007 ADCHANNEL8: Input channel AN008 ADCHANNEL9: Input channel AN009 ADCHANNEL10: Input channel AN010 ADCHANNEL11: Input channel AN011 ADCHANNEL12: Input channel AN012 ADCHANNEL13: Input channel AN013 ADCHANNEL14: Input channel AN014 ADCHANNEL15: Input channel AN015 ADCHANNEL16: Input channel AN016 ADCHANNEL17: Input channel AN017 ADCHANNEL18: Input channel AN018 ADCHANNEL19: Input channel AN019 ADCHANNEL20: Input channel AN020 ADTEMPSENSOR: Extended analog input (temperature sensor output) ADINTERREFVOLT: Extended analog input (internal reference voltage) ADSELFDIAGNOSIS: Result of self-diagnosis ADDATADUPLICATION: Double-trigger mode result ADDATADUPLICATIONA: Double-trigger mode A result ADDATADUPLICATIONB: Double-trigger mode B result Pointer to the location where the acquired results of conversion are to be stored
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 188 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Set_CompareValue
This API function sets the compare level.
[Syntax]
void R_<Config_S12AD0>_Set_CompareValue ( uint16_t reg_value0, uint16_t reg_value1);
[Argument(s)]
I/O
Argument
I uint16_t reg_value0; I uint16_t reg_value1;
Description Value to be set in compare register 0 Value to be set in compare register 1
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 189 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Set_CompareAValue
This API function sets the compare level for window A.
[Syntax]
void R_<Config_S12AD0>_Set_CompareAValue ( uint16_t reg_value0, uint16_t reg_value1);
[Argument(s)]
I/O
Argument
I uint16_t reg_value0;
I uint16_t reg_value1;
Description Value to be set in compare register 0 Value to be set in compare register 1
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 190 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Set_CompareBValue
This API function sets the compare level for window B.
[Syntax]
void R_<Config_S12AD0>_Set_CompareBValue ( uint16_t reg_value0, uint16_t reg_value1);
[Argument(s)]
I/O
Argument
I uint16_t reg_value0;
I uint16_t reg_value1;
Description Value to be set in compare register 0 Value to be set in compare register 1
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 191 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Create_UserInit
This API function executes user-specific initialization processing for the group scan mode S12AD. Remark This API function is called from R_<Config_S12AD0>_Create as a callback routine.
[Syntax]
void
R_<Config_S12AD0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 192 of 533
Smart Configurator.
r_<Config_S12AD0>_interrupt
This API function executes processing in response to scan end interrupts.
[Syntax]
void
r_<Config_S12AD0>_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 193 of 533
Smart Configurator.
r_<Config_S12AD0>_compare_interrupt
This API function executes processing in response to compare interrupts.
[Syntax]
void
r_<Config_S12AD0>_compare_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 194 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_S12AD0>_compare_interruptA
This API function executes processing in response to compare interrupts for window A.
[Syntax]
void
r_<Config_S12AD0>_compare_interruptA ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 195 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_S12AD0>_compare_interruptB
This API function executes processing in response to compare interrupts for window B.
[Syntax]
void
r_<Config_S12AD0>_compare_interruptB ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 196 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_S12AD0>_groupb_interrupt
This API function executes processing in response to scan end interrupts for group B.
[Syntax]
void
r_<Config_S12AD0>_groupb_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 197 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_S12AD0>_groupc_interrupt
This API function executes processing in response to scan end interrupts for group C.
[Syntax]
void
r_<Config_S12AD0>_groupc_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 198 of 533
Smart Configurator.
Usage example
Getting the result of A/D conversions from groups A and B:
4. API FUNCTIONS
main.c #include "r_smc_entry.h" void main(void) {
/* Start the AD0 converter */ R_Config_S12AD0_Start();
while (1U) {
nop(); } }
Config_S12AD0_user.c /* Start user code for global. Do not edit comment generated here */ volatile uint16_t g_s12ad0_ch000_value; volatile uint16_t g_s12ad0_ch001_value; /* End user code. Do not edit comment generated here */
static void r_Config_S12AD0_interrupt(void) {
/* Start user code for r_Config_S12AD0_interrupt. Do not edit comment generated here */ /* Get result from the AD0 channel 0 (AN000) converter */ R_Config_S12AD0_Get_ValueResult(ADCHANNEL0, (uint16_t *)&g_s12ad0_ch000_value); /* End user code. Do not edit comment generated here */ }
static void r_Config_S12AD0_groupb_interrupt(void) {
/* Start user code for r_Config_S12AD0_groupb_interrupt. Do not edit comment generated here */
/* Get result from the AD0 channel 1 (AN001) converter */ R_Config_S12AD0_Get_ValueResult(ADCHANNEL1, (uint16_t *)&g_s12ad0_ch001_value); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 199 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.18 I2C Master Mode
The Code Generator outputs the following API functions for I2C communications in master mode (RIIC or SCI).
Table4.18 API Functions: [I2C Master Mode (RIIC)]
API Function Name R_<Config_RIIC0>_Create R_<Config_RIIC0>_Start R_<Config_RIIC0>_Stop R_<Config_RIIC0>_Master_Send R_<Config_RIIC0>_Master_Send_Without_Stop R_<Config_RIIC0>_Master_Receive R_<Config_RIIC0>_IIC_StartCondition R_<Config_RIIC0>_IIC_StopCondition r_<Config_RIIC0>_error_interrupt r_<Config_RIIC0>_receive_interrupt r_<Config_RIIC0>_transmit_interrupt r_<Config_RIIC0>_transmitend_interrupt r_<Config_RIIC0>_callback_receiveerror
r_<Config_RIIC0>_callback_transmitend
r_<Config_RIIC0>_callback_receiveend
Function
Executes initialization processing that is required before controlling I2C communications in master mode. Starts serial communications.
Stops serial communications.
Starts master transmission.
Starts master transmission (with no stop condition being issued at the end of transmission). Starts master reception.
Issues a start condition.
Issues a stop condition.
Executes processing in response to communication error interrupts or communication event generation interrupts. Executes processing in response to receive data full interrupts.
Executes processing in response to transmit data empty interrupts.
Executes processing in response to transmit end interrupts.
Executes processing specific to the detection of a loss in arbitration, NACK, or timeout among the sources of communication error interrupts or communication event generation interrupts. Executes processing specific to the detection of a stop condition in master transmission among the sources of communication error interrupts or communication event generation interrupts. In master transmission without issuing a stop condition, this API function executes processing in response to transmit end interrupts. Executes processing specific to the detection of a stop condition in master reception among the sources of communication error interrupts or communication event generation interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 200 of 533
Smart Configurator.
4. API FUNCTIONS
Table4.19 API Functions: [I2C Master Mode (SCI simple I2C mode)]
API Function Name R_<Config_SCI0>_Create R_<Config_SCI0>_Start R_<Config_SCI0>_Stop R_<Config_SCI0>_IIC_Master_Send R_<Config_SCI0>_IIC_Master_Receive R_<Config_SCI0>_IIC_StartCondition R_<Config_SCI0>_IIC_StopCondition R_<Config_SCI0>_Create_UserInit r_<Config_SCI0>_receive_interrupt r_<Config_SCI0>_transmit_interrupt r_<Config_SCI0>_transmitend_interrupt r_<Config_SCI0>_callback_transmitend
r_<Config_SCI0>_callback_receiveend
Function
Executes initialization processing that is required before controlling I2C communications in master mode. Starts serial communications.
Stops serial communications.
Starts master transmission.
Starts master reception.
Issues a start condition.
Issues a stop condition.
Executes user-specific initialization processing for I2C communications in master mode. Executes processing in response to receive data full interrupts.
Executes processing in response to transmit data empty interrupts.
Executes processing in response to interrupts on completion of generation of a start condition/restart condition/stop condition. Executes processing specific to the detection of a stop condition in master transmission among the sources of interrupts on completion of generation of a start condition/restart condition/stop condition. When the transmit data empty interrupt is selected as a DTC or DMAC activation source, this API function executes processing in response to the interrupt. Executes processing specific to the detection of a stop condition in master reception among the sources of interrupts on completion of generation of a start condition/restart condition/stop condition. When the receive data full interrupt is selected as a DTC or DMAC activation source, this API function executes processing in response to the interrupt.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 201 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RIIC0>_Create
This API function executes initialization processing that is required before controlling I2C communications in master mode. Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_RIIC0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 202 of 533
Smart Configurator.
R_<Config_RIIC0>_Start
This API function starts serial communications.
[Syntax]
void
R_<Config_RIIC0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 203 of 533
Smart Configurator.
R_<Config_RIIC0>_Stop
This API function stops serial communications.
[Syntax]
void
R_<Config_RIIC0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 204 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RIIC0>_Master_Send
This API function starts master transmission. Remark1. This API function executes the master transmission of the slave address specified by the
argument adr and the R/W# bit to slave devices, and then repeats the master transmission of single bytes of data from the buffer specified by the argument tx_buf the number of times specified by the argument tx_num. Remark2. This API function internally calls R_<Config_RIIC0>_IIC_StartCondition to start master transmission. Remark3. A stop condition is issued in r_<Config_RIIC0>_transmitend_interrupt to stop master transmission. Remark4. Calling R_<Config_RIIC0>_Start is required before this API function is called to execute master transmission.
[Syntax]
MD_STATUS R_<Config_RIIC0>_Master_Send ( uint16_t adr, uint8_t * const tx_buf, uint16_t tx_num );
[Argument(s)]
I/O I uint16_t adr;
Argument
I uint8_t * const tx_buf; I uint16_t tx_num;
Description Slave address 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Slave address (0 to 1023)
Pointer to the buffer where the data to be transmitted are stored Number of bytes to be transmitted
[Return value]
Macro
MD_OK MD_ERROR1 MD_ERROR2
Description Normal end The bus is busy. The specification of argument adr is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 205 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RIIC0>_Master_Send_Without_Stop
his API function starts master transmission (with no stop condition being issued at the end of
transmission).
Remark1.
This API function executes the master transmission of the slave address specified by the argument adr and the R/W# bit to slave devices, and then repeats the master transmission of single bytes of data from the buffer specified by the argument tx_buf the number of times
specified by the argument tx_num.
Remark2. This API function internally calls R_<Config_RIIC0>_IIC_StartCondition to start
master transmission.
Remark3. r_<Config_RIIC0>_transmitend_interrupt does not issue a stop condition to stop
master transmission.
Remark4. Calling R_<Config_RIIC0>_Start is required before this API function is called to execute
master transmission.
[Syntax]
MD_STATUS R_<Config_RIIC0>_Master_Send_Without_Stop ( uint16_t adr, uint8_t * const tx_buf, uint16_t tx_num );
[Argument(s)]
I/O
Argument
I uint16_t adr;
I uint8_t * const tx_buf; I uint16_t tx_num;
Description Slave address 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Slave address (0 to 1023)
Pointer to the buffer where the data to be transmitted are stored Number of bytes to be transmitted
[Return value]
Macro
MD_OK MD_ERROR1 MD_ERROR2
Description Normal end The bus is busy. The specification of argument adr is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 206 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RIIC0>_Master_Receive
This API function starts master reception. Remark1. This API function executes the master transmission of the slave address specified by the
argument adr and the R/W# bit to slave devices, and then repeats the master reception of single bytes of data the number of times specified by the argument rx_num, storing the data in the buffer specified by the argument rx_buf. Remark2. This API function internally calls R_<Config_RIIC0>_StartCondition to start master reception. Remark3. A stop condition is issued in r_<Config_RIIC0>_receive_interrupt to stop master reception. Remark4. Calling R_<Config_RIIC0>_Start is required before this API function is called to execute master reception.
[Syntax]
MD_STATUS rx_num );
R_<Config_RIIC0>_Master_Receive ( uint16_t adr, uint8_t * const rx_buf, uint16_t
[Argument(s)]
I/O
Argument
I uint16_t adr;
O uint8_t * const rx_buf; I uint16_t rx_num;
Description Slave address 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Slave address (0 to 127) Pointer to the buffer where the received data are to be stored Number of bytes to be received
[Return value]
Macro
MD_OK MD_ERROR2 MD_ERROR3
MD_ERROR4 MD_ERROR5
Description Normal end The specification of argument adr is invalid. The specification of argument adr is invalid (10-bit addresses are not supported in master reception). The bus is busy (timeout or loss in arbitration has been detected). The bus is busy (no stop condition has been detected).
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 207 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RIIC0>_IIC_StartCondition
This API function issues a start condition.
Remark
A call of this API function generates a communication error/communication event generation interrupt, after which r_<Config_RIIC0>_error_interrupt is called.
[Syntax]
void
R_<Config_RIIC0>_IIC_StartCondition ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 208 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RIIC0>_IIC_StopCondition
This API function issues a stop condition.
Remark
A call of this API function generates a communication error/communication event generation interrupt, after which r_<Config_RIIC0>_error_interrupt is called.
[Syntax]
void
R_<Config_RIIC0>_IIC_StopCondition ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 209 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RIIC0>_Create_UserInit
This API function executes user-specific initialization processing for I2C communications in master mode. Remark This API function is called from R_<Config_RIIC0>_Create as a callback routine.
[Syntax]
void
R_<Config_RIIC0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 210 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RIIC0>_error_interrupt
This API function executes processing in response to communication error interrupts or communication
event generation interrupts.
Remark
This API function is called as the interrupt handler for communication error interrupts or communication event generation interrupts (due to detection of a loss in arbitration, NACK, timeout, start condition, or stop condition).
[Syntax]
void
r_<Config_RIIC0>_error_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 211 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RIIC0>_receive_interrupt
This API function executes processing in response to receive data full interrupts.
[Syntax]
void
r_<Config_RIIC0>_receive_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 212 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RIIC0>_transmit_interrupt
This API function executes processing in response to transmit data empty interrupts.
[Syntax]
void
r_<Config_RIIC0>_transmit_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 213 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RIIC0>_transmitend_interrupt
This API function executes processing in response to transmit end interrupts.
[Syntax]
void
r_<Config_RIIC0>_transmitend_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 214 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RIIC0>_callback_receiveerror
This API function executes processing specific to the detection of a loss in arbitration, NACK, or timeout among the sources of communication error interrupts or communication event generation interrupts. Remark This API function is called from r_<Config_RIIC0>_error_interrupt as a callback routine.
[Syntax]
void
r_<Config_RIIC0>_callback_receiveerror ( MD_STATUS status );
[Argument(s)]
I/O
Argument
I MD_STATUS status;
Interrupt sources MD_ERROR1: MD_ERROR2: MD_ERROR3:
Description
Detection of loss in arbitration Detection of timeout Detection of NACK
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 215 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RIIC0>_callback_transmitend
This API function executes processing specific to the detection of a stop condition in master transmission among the sources of communication error interrupts or communication event generation interrupts. Remark1. This API function is called from r_<Config_RIIC0>_error_interrupt as a callback routine. Remark2. To execute master transmission, call R_<Config_RIIC0>_Master_Send.
In master transmission without issuing a stop condition, this API function executes processing in response to transmit end interrupts. Remark3. This API function is called from r_<Config_RIIC0>_transmitend_interrupt as a callback
routine. Remark4. To execute master transmission, call R_<Config_RIIC0>_Master_Send_Without_Stop.
[Syntax]
void
r_<Config_RIIC0>_callback_transmitend ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 216 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RIIC0>_callback_receiveend
This API function executes processing specific to the detection of a stop condition in master reception among the sources of communication error interrupts or communication event generation interrupts. Remark1. This API function is called from r_<Config_RIIC0>_error_interrupt as a callback routine. Remark2. To execute master reception, call R_<Config_RIIC0>_IIC_Master_Receive.
[Syntax]
void
r_<Config_RIIC0>_callback_receiveend ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 217 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_Create
This API function executes initialization processing that is required before controlling I2C communications in master mode. Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_SCI0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 218 of 533
Smart Configurator.
R_<Config_SCI0>_Start
This API function starts serial communications.
[Syntax]
void
R_<Config_SCI0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 219 of 533
Smart Configurator.
R_<Config_SCI0>_Stop
This API function stops serial communications.
[Syntax]
void
R_<Config_SCI0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 220 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_IIC_Master_Send
This API function starts master transmission. Remark1. This API function executes the master transmission of the slave address specified by the
argument adr and the R/W# bit to slave devices, and then repeats the master transmission of single bytes of data from the buffer specified by the argument tx_buf the number of times specified by the argument tx_num. Remark2. This API function internally calls R_<Config_SCI0>_IIC_StartCondition to start master transmission. Remark3. A stop condition is issued in r_<Config_SCI0>_transmit_interrupt to stop master transmission. Remark4. Calling R_<Config_SCI0>_Start is required before this API function is called to execute master transmission.
[Syntax]
void R_<Config_RIIC0>_IIC_Master_Send ( uint8_t adr, uint8_t * const tx_buf, uint16_t tx_num );
[Argument(s)]
I/O
I uint8_t adr;
Argument
I uint8_t * const tx_buf; I uint16_t tx_num;
Description Slave address
7 6 5 4 3 2 1 Slave Address (0 to 127)
0 W(0)
Pointer to the buffer where the data to be transmitted are stored Number of bytes to be transmitted
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 221 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_IIC_Master_Receive
This API function starts master reception. Remark1. This API function executes the master transmission of the slave address specified by the
argument adr to slave devices, and then repeats the master reception of single bytes of data the number of times specified by the argument rx_num, storing the data in the buffer specified by the argument rx_buf. Remark2. This API function internally calls R_<Config_SCI0>_IIC_StartCondition to start master reception. Remark3. A stop condition is issued in r_<Config_SCI0>_receive_interrupt to stop master reception. Remark4. Calling R_<Config_SCI0>_Start is required before this API function is called to execute master reception.
[Syntax]
void R_<Config_SCI0>_IIC_Master_Receive ( uint8_t adr, uint8_t * const rx_buf, uint16_t rx_num );
[Argument(s)]
I/O
I uint8_t adr;
Argument
O uint8_t * const rx_buf; I uint16_t rx_num;
Description
Slave address
7 6 5 4 3 2 1 0
Slave Address (0 to 127)
R(1)
Pointer to the buffer where the received data are to be stored Number of bytes to be received
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 222 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_IIC_StartCondition
This API function issues a start condition.
Remark
A call of this API function generates an interrupt on completion of generation of a start
condition/restart condition/stop condition, after which r_<Config_SCI0>_transmitend_interrupt is called.
[Syntax]
void
R_<Config_SCI0>_IIC_StartCondition ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 223 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_IIC_StopCondition
This API function issues a stop condition.
Remark
A call of this API function generates an interrupt on completion of generation of a start condition/restart condition/stop condition, after which r_<Config_SCIC0>_transmitend_interrupt is called.
[Syntax]
void
R_<Config_SCI0>_IIC_StopCondition ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 224 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_Create_UserInit
This API function executes user-specific initialization processing for I2C communications in master mode. Remark This API function is called from R_<Config_SCI0>_Create as a callback routine.
[Syntax]
void
R_<Config_SCI0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 225 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_receive_interrupt
This API function executes processing in response to receive data full interrupts.
[Syntax]
void
r_<Config_SCI0>_receive_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 226 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_transmit_interrupt
This API function executes processing in response to transmit data empty interrupts.
[Syntax]
void
r_<Config_SCI0>_transmit_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 227 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_transmitend_interrupt
This API function executes processing in response to interrupts on completion of generation of a start condition/restart condition/stop condition.
[Syntax]
void
r_<Config_SCI0>_transmitend_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 228 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_callback_transmitend
This API function executes processing specific to the detection of a stop condition in master transmission among the sources of interrupts on completion of generation of a start condition/restart condition/stop condition. Remark1. This API function is called from r_<Config_SCI0>_transmitend_interrupt as a callback
routine. Remark2. To execute master transmission, call R_<Config_SCI0>_IIC_Master_Send.
When the transmit data empty interrupt is selected as a DTC or DMAC activation source, this API function executes processing in response to the interrupt. Remark3. his API function is called from r_<Config_SCI0>_transmit_interrupt as a callback routine.
[Syntax]
void
r_<Config_SCI0>_callback_transmitend ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 229 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_callback_receiveend
This API function executes processing specific to the detection of a stop condition in master reception among the sources of interrupts on completion of generation of a start condition/restart condition/stop condition. Remark1. This API function is called from r_Config_RIICn_transmitend_interrupt as a callback routine. Remark2. To execute master reception, call R_<Config_SCI0>_IIC_Master_Receive.
When the receive data full interrupt is selected as a DTC or DMAC activation source, this API function executes processing in response to the interrupt. Remark3. This API function is called from r_<Config_SCI0>_receive_interrupt as a callback routine.
[Syntax]
void
r_<Config_SCI0>_callback_receiveend ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 230 of 533
Smart Configurator.
Usage example 1
For RIIC, repeating master transmission four times:
4. API FUNCTIONS
main.c #include "r_smc_entry.h" extern volatile uint8_t g_riic0_tx_buf[2]; void main(void) {
/* Start the RIIC0 I2C Bus Interface */ R_Config_RIIC0_Start();
/* Send RIIC0 data to slave device [Slave address : 160 (10-bit address mode)] */ R_Config_RIIC0_Master_Send(0x00A0, (uint8_t *)g_riic0_tx_buf, 2U);
while (1U) {
nop(); } }
Config_RIIC0_user.c
/* Start user code for global. Do not edit comment generated here */ volatile uint8_t g_riic0_tx_buf[2]; volatile uint8_t g_riic0_tx_cnt; /* End user code. Do not edit comment generated here */
void R_Config_RIIC0_Create_UserInit(void) {
/* Start user code for user init. Do not edit comment generated here */ g_riic0_tx_cnt = 0U; g_riic0_tx_buf[0] = g_riic0_tx_cnt; g_riic0_tx_buf[1] = 0x01; /* End user code. Do not edit comment generated here */ }
static void r_Config_RIIC0_callback_transmitend(void) {
/* Start user code for r_Config_RIIC0_callback_transmitend. Do not edit comment generated here */
if ((++g_riic0_tx_cnt) < 4U) {
g_riic0_tx_buf[0] = g_riic0_tx_cnt; g_riic0_tx_buf[1] += 0x01;
/* Send RIIC0 data to slave device [Slave assress : 160 (10-bit address mode)] */ R_Config_RIIC0_Master_Send(0x00A0, (uint8_t *)g_riic0_tx_buf, 2U); } else { /* Stop the RIIC0 I2C Bus Interface */ R_Config_RIIC0_Stop(); } /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 231 of 533
Smart Configurator.
4. API FUNCTIONS
Usage example 2
For SCI simple I2C mode, repeating master transmission four times:
main.c #include "r_smc_entry.h" extern volatile uint8_t g_sci0_tx_buf[2]; void main(void) {
/* Start the SCI0 I2C Bus Interface */ R_Config_SCI0_Start();
/* Send SCI0 data to slave device [Slave address : 80] */ R_Config_SCI0_Master_Send(0xA0, (uint8_t *)g_sci0_tx_buf, 2U);
while (1U) {
nop(); } }
Config_SCI0_user.c
/* Start user code for global. Do not edit comment generated here */ volatile uint8_t g_sci0_tx_buf[2]; volatile uint8_t g_sci0_tx_cnt; /* End user code. Do not edit comment generated here */
void R_Config_SCI0_Create_UserInit(void) {
/* Start user code for user init. Do not edit comment generated here */ g_sci0_tx_cnt = 0U; g_sci0_tx_buf[0] = g_riic0_tx_cnt; g_sco0_tx_buf[1] = 0x01; /* End user code. Do not edit comment generated here */ }
static void r_Config_SCI0_callback_transmitend(void) {
/* Start user code for r_Config_SCI0_callback_transmitend. Do not edit comment generated here */
if ((++g_sci0_tx_cnt) < 4U) {
g_sci0_tx_buf[0] = g_sci0_tx_cnt; g_sci0_tx_buf[1] += 0x01;
/* Send SCI0 data to slave device [Slave assress : 80] */ R_Config_SCI0_Master_Send(0xA0, (uint8_t *)g_sci0_tx_buf, 2U); } else { /* Stop the SCI0 I2C Bus Interface */ R_Config_SCI0_Stop(); } /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 232 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.19 I2C Slave Mode
The Code Generator outputs the following API functions for I2C communications in slave mode.
Table4.20 API Functions: [I2C Slave Mode] API Function Name
R_<Config_RIIC0>_Create R_<Config_RIIC0>_Start R_<Config_RIIC0>_Stop R_<Config_RIIC0>_Slave_Send R_<Config_RIIC0>_Slave_Receive R_<Config_RIIC0>_Create_UserInit
r_<Config_RIIC0>_error_interrupt r_<Config_RIIC0>_receive_interrupt r_<Config_RIIC0>_transmit_interrupt
r_<Config_RIIC0>_transmitend_interrupt r_<Config_RIIC0>_callback_receiveerror
r_<Config_RIIC0>_callback_transmitend
r_<Config_RIIC0>_callback_receiveend
Function
Executes initialization processing that is required before controlling I2C communications in slave mode. Starts serial communications. Stops serial communications. Starts slave transmission. Starts slave reception. Executes user-specific initialization processing for I2C communications in slave mode. Executes processing in response to communication error interrupts or communication event generation interrupts. Executes processing in response to receive data full interrupts. Executes processing in response to transmit data empty interrupts. Executes processing in response to transmit end interrupts. Executes processing specific to the detection of a loss in arbitration, NACK, or timeout among the sources of communication error interrupts or communication event generation interrupts. Executes processing specific to the detection of a stop condition in slave transmission among the sources of communication error interrupts or communication event generation interrupts. Executes processing specific to the detection of a stop condition in slave reception among the sources of communication error interrupts or communication event generation interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 233 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RIIC0>_Create
This API function executes initialization processing that is required before controlling I2C communications in slave mode.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_RIIC0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 234 of 533
Smart Configurator.
R_<Config_RIIC0>_Start
This API function starts serial communications.
[Syntax]
void
R_<Config_RIIC0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 235 of 533
Smart Configurator.
R_<Config_RIIC0>_Stop
This API function stops serial communications.
[Syntax]
void
R_<Config_RIIC0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 236 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RIIC0>_Slave_Send
This API function starts slave transmission. Remark1. This API function repeats the slave transmission of single bytes of data from the buffer
specified by the argument tx_buf the number of times specified by the argument tx_num. Remark2. Calling R_<Config_RIIC0>_Start is required before this API function is called to execute
transmission.
[Syntax]
MD_STATUS
R_<Config_RIIC0>_Slave_Send ( uint8_t * const tx_buf, uint16_t tx_num );
[Argument(s)]
I/O
Argument
I uint8_t * const tx_buf;
I uint16_t tx_num;
Description Pointer to the buffer where the data to be transmitted are stored Number of bytes to be transmitted
[Return value]
Macro
MD_OK
Normal end
Description
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 237 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RIIC0>_Slave_Receive
This API function starts slave reception.
Remark1.
This API function repeats the slave reception of single bytes of data the number of times specified by the argument rx_num, storing the data in the buffer specified by the argument rx_buf.
Remark2. Calling R_<Config_RIIC0>_Start is required before this API function is called to execute slave reception.
[Syntax]
MD_STATUS
R_<Config_RIIC0>_Slave_Receive ( uint8_t * const rx_buf, uint16_t rx_num );
[Argument(s)]
I/O
Argument
O uint8_t * const rx_buf; I uint16_t rx_num;
Description Pointer to the buffer where the received data are to be stored Number of bytes to be received
[Return value]
Macro
MD_OK
Normal end
Description
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 238 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RIIC0>_Create_UserInit
This API function executes user-specific initialization processing for I2C communications in slave mode. Remark This API function is called from R_<Config_RIIC0>_Create as a callback routine.
[Syntax]
void
R_<Config_RIIC0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 239 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RIIC0>_error_interrupt
This API function executes processing in response to communication error interrupts or communication
event generation interrupts.
Remark
This API function is called as the interrupt handler for communication error interrupts or communication event generation interrupts (due to detection of a loss in arbitration, NACK, timeout, start condition, or stop condition).
[Syntax]
void
r_<Config_RIIC0>_error_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 240 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RIIC0>_receive_interrupt
This API function executes processing in response to receive data full interrupts.
[Syntax]
void
r_<Config_RIIC0>_receive_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 241 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RIIC0>_transmit_interrupt
This API function executes processing in response to transmit data empty interrupts.
[Syntax]
void
r_<Config_RIIC0>_transmit_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 242 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RIIC0>_transmitend_interrupt
This API function executes processing in response to transmit end interrupts.
[Syntax]
void
r_<Config_RIIC0>_transmitend_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 243 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RIIC0>_callback_receiveerror
This API function executes processing specific to the detection of a loss in arbitration, NACK, or timeout among the sources of communication error interrupts or communication event generation interrupts.
Remark This API function is called from r_<Config_RIIC0>_error_interrupt as a callback routine.
[Syntax]
void
r_<Config_RIIC0>_callback_receiveerror ( MD_STATUS status );
[Argument(s)]
I/O
Argument
I MD_STATUS status;
Interrupt sources MD_ERROR1: MD_ERROR2: MD_ERROR3:
Description
Detection of loss in arbitration Detection of timeout Detection of NACK
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 244 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RIIC0>_callback_transmitend
This API function executes processing specific to the detection of a stop condition in slave transmission among the sources of communication error interrupts or communication event generation interrupts.
Remark1. This API function is called from r_<Config_RIIC0>_error_interrupt as a callback routine. Remark2. To execute slave transmission, call R_<Config_RIIC0>_Slave_Send.
[Syntax]
void
r_<Config_RIIC0>_callback_transmitend ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 245 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RIIC0>_callback_receiveend
This API function executes processing specific to the detection of a stop condition in slave reception among the sources of communication error interrupts or communication event generation interrupts.
Remark1. This API function is called from r_<Config_RIIC0>_error_interrupt as a callback routine. Remark2. To execute slave reception, call R_<Config_RIIC0>_Slave_Receive.
[Syntax]
void
r_<Config_RIIC0>_callback_receiveend ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 246 of 533
Smart Configurator.
4.2.19.1 Usage example
Repeating slave reception four times:
main.c #include "r_smc_entry.h" extern volatile uint8_t g_riic2_rx_buf[2]; void main(void) {
/* Start the RIIC2 Bus Interface */ R_Config_RIIC2_Start();
/* Read data from a master device */ R_Config_RIIC2_Slave_Receive((uint8_t *)g_riic2_rx_buf, 2U);
while (1U) {
nop(); } }
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 247 of 533
Smart Configurator.
4. API FUNCTIONS
Config_RIIC2_user.c
/* Start user code for global. Do not edit comment generated here */ volatile uint8_t g_riic2_rx_buf[2]; volatile uint8_t g_riic2_rx_cnt; /* End user code. Do not edit comment generated here */
void R_Config_RIIC2_Create_UserInit(void) {
/* Start user code for user init. Do not edit comment generated here */ g_riic2_rx_cnt = 0U; /* End user code. Do not edit comment generated here */ }
static void r_Config_RIIC2_callback_receiveend(void) {
/* Start user code for r_Config_RIIC2_callback_receiveend. Do not edit comment generated here */
if ((++g_riic2_rx_cnt) < 4U) {
/* Read data from a master device */ R_Config_RIIC2_Slave_Receive((uint8_t *)g_riic2_rx_buf, 2U); } else { /* Stop the RIIC2 Bus Interface */ R_Config_RIIC2_Stop(); } /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 248 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.20 Interrupt Controller
The Code Generator outputs the following API functions for the interrupt controller.
Table4.21 API Functions: [Interrupt Controller]
API Function Name R_<Config_ICU>_Create
R_<Config_ICU>_IRQn_Start R_<Config_ICU>_IRQn_Stop R_<Config_ICU>_Software_Start R_<Config_ICU>_Software_Stop R_<Config_ICU>_SoftwareInterrupt_Generate R_<Config_ICU>_Software2_Start R_<Config_ICU>_Software2_Stop R_<Config_ICU>_SoftwareInterrupt2_Generate R_<Config_ICU>_Create_UserInit
r_<Config_ICU>_irqn_interrupt r_<Config_ICU>_software_interrupt r_<Config_ICU>_software2_interrupt r_<Config_ICU>_nmi_interrupt
Function Executes initialization processing that is required before controlling the interrupt controller. Enables the detection of an external pin interrupt. Disables the detection of an external pin interrupt. Enables the detection of a software interrupt. Disables the detection of a software interrupt. Generates a software interrupt. Enables the detection of software interrupt 2. Disables the detection of software interrupt 2. Generates software interrupt 2. Executes user-specific initialization processing for the interrupt controller. Executes processing in response to external pin interrupts. Executes processing in response to software interrupts. Executes processing in response to software interrupts 2. Executes processing in response to NMI pin interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 249 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_ICU>_Create
This API function executes initialization processing that is required before controlling the interrupt controller.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_ICU>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 250 of 533
Smart Configurator.
R_<Config_ICU>_IRQn_Start
This API function enables the detection of an external pin interrupt.
[Syntax]
void Remark
R_<Config_ICU>_IRQn_Start ( void ); n is the number of an IRQ pin.
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 251 of 533
Smart Configurator.
R_<Config_ICU>_IRQn_Stop
This API function disables the detection of an external pin interrupt.
[Syntax]
void Remark
R_<Config_ICU>_IRQn_Stop ( void ); n is the number of an IRQ pin.
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 252 of 533
Smart Configurator.
R_<Config_ICU>_Software_Start
This API function enables the detection of a software interrupt.
[Syntax]
void
R_<Config_ICU>_Software_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 253 of 533
Smart Configurator.
R_<Config_ICU>_Software_Stop
This API function disables the detection of a software interrupt.
[Syntax]
void
R_<Config_ICU>_Software_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 254 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_ICU>_SoftwareInterrupt_Generate
This API function generates a software interrupt. Remark r_<Config_ICU>_software_interrupt is called in response to this API function.
[Syntax]
void
R_<Config_ICU>_SoftwareInterrupt_Generate ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 255 of 533
Smart Configurator.
R_<Config_ICU>_Software2_Start
This API function enables the detection of software interrupt 2.
[Syntax]
void
R_<Config_ICU>_Software2_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 256 of 533
Smart Configurator.
R_<Config_ICU>_Software2_Stop
This API function disables the detection of software interrupt 2.
[Syntax]
void
R_<Config_ICU>_Software2_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 257 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_ICU>_SoftwareInterrupt2_Generate
This API function generates software interrupt 2. Remark r_<Config_ICU>_software2_interrupt is called in response to this API function.
[Syntax]
void
R_<Config_ICU>_SoftwareInterrupt2_Generate ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 258 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_ICU>_Create_UserInit
This API function executes user-specific initialization processing for the interrupt controller. Remark This API function is called from R_<Config_ICU>_Create as a callback routine.
[Syntax]
void
R_<Config_ICU>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 259 of 533
Smart Configurator.
r_<Config_ICU>_irqn_interrupt
This API function executes processing in response to external pin interrupts.
[Syntax]
void Remark
r_<Config_ICU>_irqn_interrupt ( void ); n is the number of an IRQ pin.
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 260 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_ICU>_software_interrupt
This API function executes processing in response to software interrupts.
Remark
This API function is called as the interrupt handler for software interrupts, which are issued by calling R_<Config_ICU>_SoftwareInterrupt_Generate.
[Syntax]
void
r_<Config_ICU>_software_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 261 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_ICU>_software2_interrupt
This API function executes processing in response to software interrupts 2.
Remark
This API function is called as the interrupt handler for software interrupts 2, which are issued by calling R_<Config_ICU>_SoftwareInterrupt2_Generate.
[Syntax]
void
r_<Config_ICU>_software2_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 262 of 533
Smart Configurator.
r_<Config_ICU>_nmi_interrupt
This API function executes processing in response to NMI pin interrupts.
[Syntax]
void
r_<Config_ICU>_nmi_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 263 of 533
Smart Configurator.
4. API FUNCTIONS
Usage example
Releasing the MCU from the sleep mode in response to the detection of an external interrupt:
main.c #include "r_smc_entry.h" void main(void) {
/* Enable IRQ0 interrupt */ R_Config_ICU_IRQ0_Start();
/* Enable sleep mode */ R_Config_LPC_Sleep();
while (1U) {
nop(); } }
Config_ICU_user.c /* Start user code for include. Do not edit comment generated here */ #include "r_smc_entry.h" /* End user code. Do not edit comment generated here */
static void r_Config_ICU_irq0_interrupt(void) {
/* Start user code for r_Config_ICU_irq0_interrupt. Do not edit comment generated here */ /* Allow sleep mode return clock to be changed */ R_Config_LPC_ChangeSleepModeReturnClock(RETURN_MAIN_CLOCK); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 264 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.21 Low Power Consumption
The Code Generator outputs the following API functions for the low power consumption.
Table4.22 API Functions: [Low Power Consumption]
API Function Name R_<Config_LPC>_Create
R_<Config_LPC>_AllModuleClockStop R_<Config_LPC>_Sleep R_<Config_LPC>_DeepSleep R_<Config_LPC>_SoftwareStandby R_<Config_LPC>_DeepSoftwareStandby
R_<Config_LPC>_ChangeOperatingPowerControl R_<Config_LPC>_ChangeSleepModeReturnClock
R_<Config_LPC>_Create_UserInit
R_<Config_LPC>_SetVOLSR_PGAVLS
Function Executes initialization processing that is required before controlling the low power consumption. Stops supply of the clock signal to all modules. Places the MCU in sleep mode as a low-power state. Places the MCU in deep sleep mode as a low-power state. Places the MCU in software standby mode as a low-power state. Places the MCU in deep software standby mode as a low-power state. Changes the operating power control mode of the MCU. Sets the clock source to be selected upon release from sleep mode. Executes user-specific initialization processing for the low power consumption. Sets the programmable gain amplifier
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 265 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_LPC>_Create
This API function executes initialization processing that is required before controlling the low power consumption.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_LPC>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 266 of 533
Smart Configurator.
R_<Config_LPC>_AllModuleClockStop
This API function stops supply of the clock signal to all modules.
[Syntax]
MD_STATUS
R_<Config_LPC>_AllModuleClockStop ( void );
[Argument(s)]
None.
[Return value]
Macro MD_OK
Normal end
Description
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 267 of 533
Smart Configurator.
R_<Config_LPC>_Sleep
This API function places the MCU in sleep mode as a low-power state.
[Syntax]
MD_STATUS
R_<Config_LPC>_Sleep ( void );
[Argument(s)]
None.
[Return value]
Macro
MD_OK MD_ERROR1
Normal end Abnormal end
Description
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 268 of 533
Smart Configurator.
R_<Config_LPC>_DeepSleep
This API function places the MCU in deep sleep mode as a low-power state.
[Syntax]
MD_STATUS
R_<Config_LPC>_DeepSleep ( void );
[Argument(s)]
None.
[Return value]
Macro
MD_OK
Normal end
Description
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 269 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_LPC>_SoftwareStandby
This API function places the MCU in software standby mode as a low-power state.
[Syntax]
MD_STATUS
R_<Config_LPC>_SoftwareStandby ( void );
[Argument(s)]
None.
[Return value]
Macro
MD_OK MD_ERROR1
Normal end Abnormal end
Description
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 270 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_LPC>_DeepSoftwareStandby
This API function places the MCU in deep software standby mode as a low-power state.
[Syntax]
MD_STATUS
R_<Config_LPC>_DeepSoftwareStandby ( void );
[Argument(s)]
None.
[Return value]
Macro
MD_OK
Normal end
Description
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 271 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_LPC>_ChangeOperatingPowerControl
This API function changes the operating power control mode of the MCU.
[Syntax]
MD_STATUS
R_<Config_LPC>_ChangeOperatingPowerControl ( operating_mode_t mode );
[Argument(s)]
For RX130 or RX230/RX231
I/O
Argument
I operating_mode_t mode;
Description
Operating power control mode type
HIGH_SPEED:
High-speed operating mode
MIDDLE_SPEED:
Medium-speed operating mode
LOW_SPEED:
Low-speed operating mode
For other devices
I/O
Argument
I operating_mode_t mode;
Description
Operating power control mode type
HIGH_SPEED:
High-speed operating mode
LOW_SPEED1:
Low-speed operating mode 1
LOW_SPEED2:
Low-speed operating mode 2
[Return value]
For RX130 or RX230/RX231
Macro
Description
MD_OK MD_ERROR1 MD_ARGERROR
Normal end The transition to the low-speed operating mode did not end normally. The specification of argument mode is invalid.
For other devices
Macro
MD_OK MD_ERROR1 MD_ERROR2 MD_ARGERROR
Description Normal end The transition to the low-speed operating mode 1 did not end normally. The transition to the low-speed operating mode 2 did not end normally. The specification of argument mode is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 272 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_LPC>_ChangeSleepModeReturnClock
This API function sets the clock source to be selected upon release from sleep mode.
[Syntax]
MD_STATUS
R_<Config_LPC>_ChangeSleepModeReturnClock ( return_clock_t clock );
[Argument(s)]
For RX130 or RX230/RX231
I/O
Argument
I return_clock_t clock;
Description
Clock source type
RETURN_LOCO:
Low-speed on-chip oscillator
RETURN_HOCO:
High-speed on-chip oscillator
RETURN_MAIN_CLOCK: Main clock oscillator
RETURN_DISABLE:
The clock source is not switched.
For other devices
I/O
Argument
I return_clock_t clock;
Description
Clock source type
RETURN_HOCO:
High-speed on-chip oscillator
RETURN_MAIN_CLOCK: Main clock oscillator
RETURN_DISABLE:
The clock source is not switched.
[Return value]
Macro
MD_OK MD_ERROR1 MD_ARGERROR
Description Normal end The specification of the clock source that is currently set is invalid. The specification of argument clock is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 273 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_LPC>_Create_UserInit
This API function executes user-specific initialization processing for the low power consumption. Remark This API function is called from R_<Config_LPC>_Create as a callback routine.
[Syntax]
void
R_<Config_LPC>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 274 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_LPC>_SetVOLSR_PGAVLS
This API function sets the PGA operating condition setting (VOLSR.PGAVLS bit).
[Syntax]
MD_STATUS
R_<Config_LPC>_SetVOLSR_PGAVLS ( uint8_t pgavls_bit );
[Argument(s)]
I/O
Argument
I uint8_t pgavls_bit;
None.
Description
PGAVLS bit value 0u :The AVCC voltage is at least 4.0 V, and the pseudo-differential input of the PGAs are enabled and negative voltages is to be input to the pins. 1u :The AVCC voltage is lower than 4.0 V, or negative voltages are not to be input to the pins.
[Return value]
Macro
MD_OK MD_ERROR1
Normal end Abnormal end
Description
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 275 of 533
Smart Configurator.
Usage example
Refer to "Example" in Interrupt Controller.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 276 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.22 Low Power Timer
The Code Generator outputs the following API functions for the low-power timer.
Table4.23 API Functions: [Low Power Timer] API Function Name
R_<Config_LPT>_Create
R_<Config_LPT>_Start R_<Config_LPT>_Stop R_<Config_LPT>_Create_UserInit
Function Executes initialization processing that is required before controlling the low-power timer. Starts counting by the counter. Stops counting by the counter. Executes user-specific initialization processing for the low-power timer.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 277 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_LPT>_Create
This API function executes initialization processing that is required before controlling the low-power timer. Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_LPT>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 278 of 533
Smart Configurator.
R_<Config_LPT>_Start
This API function starts counting by the counter.
[Syntax]
void
R_<Config_LPT>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 279 of 533
Smart Configurator.
R_<Config_LPT>_Stop
This API function stops counting by the counter.
[Syntax]
void
R_<Config_LPT>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 280 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_LPT>_Create_UserInit
This API function executes user-specific initialization processing for the low-power timer. Remark This API function is called from R_<Config_LPT>_Create as a callback routine.
[Syntax]
void
R_<Config_LPT>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 281 of 533
Smart Configurator.
Usage example
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 282 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.23 Normal Mode Timer
The Code Generator outputs the following API functions for normal mode timer (MTU or TPU).
Table4.24 API Functions: [Normal Mode Timer]
API Function Name R_<Config_MTU0>_Create
R_<Config_MTU0>_Start R_<Config_MTU0>_Stop R_<Config_MTU0>_Create_UserInit
r_<Config_MTU0>_tgimn_interrupt r_<Config_MTU0>_tginm_interrupt
r_<Config_MTU0>_tcivn_interrupt r_<Config_MTU0>_tcinv_interrupt
Function
Executes initialization processing that is required before controlling the normal mode timer (MTU or TPU). Starts counting by the counter. Stops counting by the counter. Executes user-specific initialization processing for the normal mode timer (MTU or TPU). Executes processing in response to input capture or compare match interrupts. (The name of this API function varies with the resource.) Executes processing in response to overflow interrupts. (The name of this API function varies with the resource.)
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 283 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_MTU0>_Create
This API function executes initialization processing that is required before controlling a timer (MTU or TPU) in normal mode.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_MTU0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 284 of 533
Smart Configurator.
R_<Config_MTU0>_Start
This API function starts counting by the counter.
[Syntax]
void
R_<Config_MTU0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 285 of 533
Smart Configurator.
R_<Config_MTU0>_Stop
This API function stops counting by the counter.
[Syntax]
void
R_<Config_MTU0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 286 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_MTU0>_Create_UserInit
This API function executes user-specific initialization processing for a timer (MTU or TPU) in normal mode.
Remark This API function is called from R_<Config_MTU0>_Create as a callback routine.
[Syntax]
void
R_<Config_MTU0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 287 of 533
Smart Configurator.
r_<Config_MTU0>_tgimn_interrupt
4. API FUNCTIONS
r_<Config_MTU0>_tginm_interrupt
This API function executes processing in response to input capture or compare match interrupts.
[Syntax]
void
r_<Config_MTU0>_tgimn_interrupt ( void );
void
r_<Config_MTU0>_tginm_interrupt ( void );
Remark1. n is a channel number and m is the number of a timer general register.
Remark2. The name of this API function varies with the resource.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 288 of 533
Smart Configurator.
r_<Config_MTU0>_tcivn_interrupt
4. API FUNCTIONS
r_<Config_MTU0>_tcinv_interrupt
This API function executes processing in response to overflow interrupts.
[Syntax]
void
r_<Config_MTU0>_tcivn_interrupt ( void );
void
r_<Config_MTU0>_tcinv_interrupt ( void );
Remark1. n is a channel number.
Remark2. The name of this API function varies with the resource.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 289 of 533
Smart Configurator.
Usage example
With the timer operating in a one-shot manner:
4. API FUNCTIONS
main.c #include "r_smc_entry.h" void main(void) {
/* Start MTU channel 0 counter */ R_Config_MTU0_Start();
while (1U) {
nop(); } }
<Config_MTU0_user.c static void r_<Config_MTU0_tgia0_interrupt(void) { /* Start user code for r_<Config_MTU0_tgia0_interrupt. Do not edit comment generated here */ /* Stop MTU channel 0 counter */ R_Config_MTU0_Stop(); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 290 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.24 Phase Counting Mode Timer
The Code Generator outputs the following API functions for phase counting mode timers (MTU or TPU).
Table4.25 API Functions: [Phase Counting Mode Timer]
API Function Name R_<Config_MTU1>_Create
R_<Config_MTU1>_Start R_<Config_MTU1>_Stop R_<Config_MTU1>_Create_UserInit
r_<Config_MTU1>_tgimn_interrupt r_<Config_MTU1>_tginm_interrupt
r_<Config_MTU1>_tcivn_interrupt r_<Config_MTU1>_tcinv_interrupt r_<Config_MTU1>_tciun_interrupt r_<Config_MTU1>_tcinu_interrupt
Function
Executes initialization processing that is required before controlling the phase counting mode timer (MTU or TPU). Starts counting by the counter. Stops counting by the counter. Executes user-specific initialization processing for the phase counting mode timer (MTU or TPU). Executes processing in response to input capture or compare match interrupts. (The name of this API function varies with the resource.) Executes processing in response to overflow interrupts. (The name of this API function varies with the resource.)
Executes processing in response to underflow interrupts. (The name of this API function varies with the resource.)
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 291 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_MTU1>_Create
This API function executes initialization processing that is required before controlling a timer (MTU or TPU) in phase counting mode.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_MTU1>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 292 of 533
Smart Configurator.
R_<Config_MTU1>_Start
This API function starts counting by the counter.
[Syntax]
void
R_<Config_MTU1>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 293 of 533
Smart Configurator.
R_<Config_MTU1>_Stop
This API function stops counting by the counter.
[Syntax]
void
R_<Config_MTU1>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 294 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_MTU1>_Create_UserInit
This API function executes user-specific initialization processing for a timer (MTU or TPU) in phase counting mode.
Remark This API function is called from R_<Config_MTU1>_Create as a callback routine.
[Syntax]
void
R_<Config_MTU1>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 295 of 533
Smart Configurator.
r_<Config_MTU1>_tgimn_interrupt
4. API FUNCTIONS
r_<Config_MTU1>_tginm_interrupt
This API function executes processing in response to input capture or compare match interrupts.
[Syntax]
void
r_<Config_MTU1>_tgimn_interrupt ( void );
void
r_<Config_MTU1>_tginm_interrupt ( void );
Remark1. n is a channel number and m is the number of a timer general register.
Remark2. The name of this API function varies with the resource.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 296 of 533
Smart Configurator.
r_<Config_MTU1>_tcivn_interrupt
4. API FUNCTIONS
r_<Config_MTU1>_tcinv_interrupt
This API function executes processing in response to overflow interrupts.
[Syntax]
void
r_<Config_MTU1>_tcivn_interrupt ( void );
void
r_<Config_MTU1>_tcinv_interrupt ( void );
Remark1. n is a channel number.
Remark2. The name of this API function varies with the resource.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 297 of 533
Smart Configurator.
r_<Config_MTU1>_tciun_interrupt
4. API FUNCTIONS
r_<Config_MTU1>_tcinu_interrupt
This API function executes processing in response to underflow interrupts.
[Syntax]
void
r_<Config_MTU1>_tciun_interrupt ( void );
void
r_<Config_MTU1>_tcinu_interrupt ( void );
Remark1. n is a channel number.
Remark2. The name of this API function varies with the resource.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 298 of 533
Smart Configurator.
4. API FUNCTIONS
Usage example
Determining the direction of rotation from the 2-phase pulses input from a rotary encoder:
main.c #include "r_smc_entry.h" void main(void) {
/* Start the MTU1 channel counter */ R_Config_MTU1_Start();
while (1U) {
nop(); } }
Config_MTU1_user.c /* Start user code for global. Do not edit comment generated here */ volatile uint8_t g_mtu1_dir; /* End user code. Do not edit comment generated here */
void R_Config_MTU1_Create_UserInit(void) {
/* Start user code for user init. Do not edit comment generated here */ /* Clear state */ g_mtu1_dir = 0U; /* End user code. Do not edit comment generated here */ }
static void r_Config_MTU1_tgia1_interrupt(void) {
/* Start user code for r_Config_MTU1_tgia1_interrupt. Do not edit comment generated here */ /* Set CW state */ g_mtu1_dir = 1U; /* End user code. Do not edit comment generated here */ }
static void r_Config_MTU1_tgib1_interrupt(void) {
/* Start user code for r_Config_MTU1_tgib1_interrupt. Do not edit comment generated here */ /* Set CCW state */ g_mtu1_dir = 2U; /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 299 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.25 Port Output Enable
The Code Generator outputs the following API functions for the port output enable module.
Table4.26 API Functions: [Port Output Enable] API Function Name
R_<Config_POE>_Create
R_<Config_POE>_Start R_<Config_POE>_Stop R_<Config_POE>_Set_HiZ_MTUn R_<Config_POE>_Clear_HiZ_MTUn R_<Config_POE>_Set_HiZ_GPTn R_<Config_POE>_Clear_HiZ_GPTn R_<Config_POE>_Create_UserInit
r_<Config_POE>_oein_interrupt
Function Executes initialization processing that is required before controlling the port output enable module. Enables output enable interrupts. Disables output enable interrupts. Places the pins of the MTUn in the high-impedance state. Releases the pins of the MTUn from the high-impedance state. Places the pins of the GPTn in the high-impedance state. Releases the pins of the GPTn from the high-impedance state. Executes user-specific initialization processing for the port output enable module. Executes processing in response to output enable interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 300 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_POE>_Create
This API function executes initialization processing that is required before controlling the port output enable module.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_POE>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 301 of 533
Smart Configurator.
R_<Config_POE>_Start
This API function enables output enable interrupts.
[Syntax]
void
R_<Config_POE>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 302 of 533
Smart Configurator.
R_<Config_POE>_Stop
This API function disables output enable interrupts.
[Syntax]
void
R_<Config_POE>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 303 of 533
Smart Configurator.
R_<Config_POE>_Set_HiZ_MTUn
This API function places the pins of the MTUn in the high-impedance state.
[Syntax]
void Remark
R_<Config_POE>_Set_HiZ_MTUn ( void ); n is a channel number.
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 304 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_POE>_Clear_HiZ_MTUn
This API function releases the pins of the MTUn from the high-impedance state.
[Syntax]
void Remark
R_<Config_POE>_Clear_HiZ_MTUn ( void ); n is a channel number.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 305 of 533
Smart Configurator.
R_<Config_POE>_Set_HiZ_GPTn
This API function places the pins of the GPTn in the high-impedance state.
[Syntax]
void Remark
R_<Config_POE>_Set_HiZ_GPTn ( void ); n is a channel number.
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 306 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_POE>_Clear_HiZ_GPTn
This API function releases the pins of the GPTn from the high-impedance state.
[Syntax]
void Remark
R_<Config_POE>_Clear_HiZ_GPTn ( void ); n is a channel number.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 307 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_POE>_Create_UserInit
This API function executes user-specific initialization processing for the port output enable module. Remark This API function is called from R_<Config_POE>_Create as a callback routine.
[Syntax]
void
R_<Config_POE>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 308 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_POE>_oein_interrupt
This API function executes processing in response to output enable interrupts.
[Syntax]
void Remark
r_<Config_POE>_oein_interrupt ( void ); n is the number of an output enable interrupt source.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 309 of 533
Smart Configurator.
4. API FUNCTIONS
Usage example
Placing the pins of the MTU0 in the high-impedance state in response to an output enable interrupt:
main.c #include "r_smc_entry.h" void main(void) {
/* Start the POE module */ R_Config_POE_Start();
while (1U) {
nop(); } }
Config_POE_user.c void r_Config_POE_oei1_interrupt(void) {
/* Start user code for r_Config_POE_oei1_interrupt. Do not edit comment generated here */ /* Stop the POE module */ R_Config_POE_Stop();
/* Place MTU0 pins in high-impedance */ R_Config_POE_Set_HiZ_MTU0(); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 310 of 533
Smart Configurator.
4.2.26 I/O Port
The Code Generator outputs the following API functions for the I/O ports.
4. API FUNCTIONS
Table4.27 API Functions: [I/O Port] API Function Name
R_<Config_PORT>_Create
R_<Config_PORT>_Create_UserInit
Function Executes initialization processing that is required before controlling the I/O ports. Executes user-specific initialization processing for the I/O ports.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 311 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_PORT>_Create
This API function executes initialization processing that is required before controlling the I/O ports. Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_PORT>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 312 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_PORT>_Create_UserInit
This API function executes user-specific initialization processing for the I/O ports. Remark This API function is called from R_<Config_PORT>_Create as a callback routine.
[Syntax]
void
R_<Config_PORT>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 313 of 533
Smart Configurator.
Usage example
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 314 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.27 Programmable Pulse Generator
The Code Generator outputs the following API functions for the programmable pulse generator.
Table4.28 API Functions: [Programmable Pulse Generator]
API Function Name R_<Config_PPG0>_Create
R_<Config_PPG0>_Create_UserInit
Function Executes initialization processing that is required before controlling the programmable pulse generator. Executes user-specific initialization processing for the programmable pulse generator.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 315 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_PPG0>_Create
This API function executes initialization processing that is required before controlling the programmable pulse generator.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_PPG0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 316 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_PPG0>_Create_UserInit
This API function executes user-specific initialization processing for the programmable pulse generator. Remark This API function is called from R_<Config_PPG0>_Create as a callback routine.
[Syntax]
void
R_<Config_PPG0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 317 of 533
Smart Configurator.
Usage example
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 318 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.28 PWM Mode Timer
The Code Generator outputs the following API functions for timers (MTU or TPU) in PWM mode.
Table4.29 API Functions: [PWM Mode Timer] API Function Name
R_<Config_MTU0>_Create
R_<Config_MTU0>_Start R_<Config_MTU0>_Stop R_<Config_MTU0>_Create_UserInit
r_<Config_MTU0>_tgimn_interrupt r_<Config_MTU0>_tginm_interrupt r_<Config_MTU0>_tcivn_interrupt r_<Config_MTU0>_tcinv_interrupt
Function
Executes initialization processing that is required before controlling the PWM mode timer (MTU or TPU). Starts counting by the counter. Stops counting by the counter. Executes user-specific initialization processing for the PWM mode timer (MTU or TPU). Executes processing in response to compare match interrupts. (The name of this API function varies with the resource.)
Executes processing in response to overflow interrupts. (The name of this API function varies with the resource.)
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 319 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_MTU0>_Create
This API function executes initialization processing that is required before controlling a timer (MTU or TPU) in PWM mode.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_MTU0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 320 of 533
Smart Configurator.
R_<Config_MTU0>_Start
This API function starts counting by the counter.
[Syntax]
void
R_<Config_MTU0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 321 of 533
Smart Configurator.
R_<Config_MTU0>_Stop
This API function stops counting by the counter.
[Syntax]
void
R_<Config_MTU0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 322 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_MTU0>_Create_UserInit
This API function executes user-specific initialization processing for a timer (MTU or TPU) in PWM mode. Remark This API function is called from R_<Config_MTU0>_Create as a callback routine.
[Syntax]
void
R_<Config_MTU0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 323 of 533
Smart Configurator.
r_<Config_MTU0>_tgimn_interrupt
4. API FUNCTIONS
r_<Config_MTU0>_tginm_interrupt
This API function executes processing in response to compare match interrupts.
[Syntax]
void
r_<Config_MTU0>_tgimn_interrupt ( void );
void
r_<Config_MTU0>_tginm_interrupt ( void );
Remark1. n is a channel number and m is the number of a timer general register.
Remark2. The name of this API function varies with the resource.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 324 of 533
Smart Configurator.
r_<Config_MTU0>_tcivn_interrupt
4. API FUNCTIONS
r_<Config_MTU0>_tcinv_interrupt
This API function executes processing in response to overflow interrupts.
[Syntax]
void
r_<Config_MTU0>_tcivn_interrupt ( void );
void
r_<Config_MTU0>_tcinv_interrupt ( void );
Remark1. n is a channel number.
Remark2. The name of this API function varies with the resource.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 325 of 533
Smart Configurator.
Usage example
Output of ten PWM pulses:
4. API FUNCTIONS
main.c #include "r_smc_entry.h" void main(void) {
/* Start MTU channel 0 counter */ R_Config_MTU0_Start();
while (1U) {
nop(); } }
Config_MTU0_user.c
/* Start user code for global. Do not edit comment generated here */ volatile uint8_t g_mtu0_cnt; /* End user code. Do not edit comment generated here */ void R_Config_MTU0_Create_UserInit(void) {
/* Start user code for user init. Do not edit comment generated here */ /* Reset the countor */ g_mtu0_cnt = 0U; /* End user code. Do not edit comment generated here */ }
static void r_Config_MTU0_tgia0_interrupt(void) {
/* Start user code for r_Config_MTU0_tgia0_interrupt. Do not edit comment generated here */ if ((++g_mtu0_cnt) > 9U) {
/* Stop MTU channel 0 counter */ R_Config_MTU0_Stop(); } /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 326 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.29 Realtime Clock
The Code Generator outputs the following API functions for the realtime clock.
Table4.30 API Functions: [Realtime Clock] API Function Name
R_<Config_RTC>_Create
R_<Config_RTC>_Start R_<Config_RTC>_Stop R_<Config_RTC>_Restart
R_<Config_RTC>_Restart_BinaryCounter
R_<Config_RTC>_Set_CalendarCounterValue R_<Config_RTC>_Get_CalendarCounterValue R_<Config_RTC>_Get_CalendarTimeCaptureValuen R_<Config_RTC>_Set_BinaryCounterValue R_<Config_RTC>_Get_BinaryCounterValue R_<Config_RTC>_Get_BinaryTimeCaptureValuen R_<Config_RTC>_Set_RTCOUTOn
R_<Config_RTC>_Set_RTCOUTOff R_<Config_RTC>_Set_CalendarAlarm
R_<Config_RTC>_Set_BinaryAlarm
R_<Config_RTC>_Set_ConstPeriodInterruptOn
R_<Config_RTC>_Set_ConstPeriodInterruptOff R_<Config_RTC>_Set_CarryInterruptOn R_<Config_RTC>_Set_CarryInterruptOff R_<Config_RTC>_Create_UserInit
r_<Config_RTC>_alm_interrupt r_<Config_RTC>_prd_interrupt r_<Config_RTC>_cup_interrupt
Function
Executes initialization processing that is required before controlling the realtime clock. Starts counting by the counters. Stops counting by the counters. Stops the counters, initializes the counter values, and then restarts the counters in calendar count mode. Stops the counters, clears the counter values to 0, and then restarts the counters in binary count mode. Specifies calendar values. Gets the calendar values from the counter registers. Gets the calendar values from the capture registers. Specifies a value for binary counting. Gets the binary counter value from the counter registers. Gets the binary counter value from the capture registers. Specifies the frequency of output through the RTCOUT pin and starts the output. Stops output through the RTCOUT pin. Specifies the conditions for generating alarm interrupts and enables the detection of the interrupts. (Calendar count mode) Specifies the conditions for generating alarm interrupts and enables the detection of the interrupts. (Binary count mode) Specifies the interval of periodic interrupts and enables the detection of the interrupts. Disables the detection of periodic interrupts. Enables the detection of carry interrupts. Disables the detection of carry interrupts. Executes user-specific initialization processing for the realtime clock. Executes processing in response to alarm interrupts. Executes processing in response to periodic interrupts.
Executes processing in response to carry interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 327 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RTC>_Create
This API function executes initialization processing that is required before controlling the realtime clock. Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_RTC>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 328 of 533
Smart Configurator.
R_<Config_RTC>_Start
This API function starts counting by the counters.
[Syntax]
void
R_<Config_RTC>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 329 of 533
Smart Configurator.
R_<Config_RTC>_Stop
This API function stops counting by the counters.
[Syntax]
void
R_<Config_RTC>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 330 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RTC>_Restart
This API function stops the counters, initializes the counter values, and then restarts the counters in calendar count mode.
[Syntax]
void
R_<Config_RTC>_Restart ( rtc_calendarcounter_value_t counter_write_val );
[Argument(s)]
I/O
Argument
Description
I rtc_calendarcounter_value_t counter_write_val;
Initial values (year, month, date, day-of-week, hour, minute, and second)
Remark
The following shows the structure that holds the initial value arguments, rtc_calendarcounter_value_t.
typedef struct {
uint8_t rseccnt;
/* Second */
uint8_t rmincnt;
/* Minute */
uint8_t rhrcnt;
/* Hour */
uint8_t rdaycnt;
/* Date */
uint8_t rwkcnt;
/* Day-of-week (0: Sunday; 6: Saturday) */
uint8_t rmoncnt;
/* Month */
uint16_t ryrcnt;
/* Year */
} rtc_calendarcounter_value_t;
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 331 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RTC>_Restart_BinaryCounter
This API function stops the counters, clears the counter values to 0, and then restarts the counters in binary count mode.
[Syntax]
void
R_<Config_RTC>_Restart_BinaryCounter ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 332 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RTC>_Set_CalendarCounterValue
This API function specifies calendar values.
[Syntax]
void R_<Config_RTC>_Set_CalendarCounterValue ( rtc_calendarcounter_value_t counter_write_val );
[Argument(s)]
I/O
Argument
Description
I rtc_calendarcounter_value_t counter_write_val;
Calendar values (year, month, date, day-of-week, hour, minute, and second)
Remark
The following shows the structure that holds the calendar value arguments, rtc_calendarcounter_value_t.
typedef struct {
uint8_t rseccnt;
/* Second */
uint8_t rmincnt;
/* Minute */
uint8_t rhrcnt;
/* Hour */
uint8_t rdaycnt;
/* Date */
uint8_t rwkcnt;
/* Day-of-week (0: Sunday; 6: Saturday) */
uint8_t rmoncnt; /* Month */
uint16_t ryrcnt;
/* Year */
} rtc_calendarcounter_value_t;
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 333 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RTC>_Get_CalendarCounterValue
This API function gets the calendar values from the counter registers.
[Syntax]
void
R_<Config_RTC>_Get_CalendarCounterValue ( rtc_calendarcounter_value_t * const
counter_read_val );
[Argument(s)]
I/O
Argument
Description
O rtc_calendarcounter_value_t * const Pointer to the location where the acquired calendar values
counter_read_val;
(year, month, date, day-of-week, hour, minute, and second) are
to be stored
Remark
The following shows the structure that holds the calendar value arguments, rtc_calendarcounter_value_t.
typedef struct {
uint8_t rseccnt;
/* Second */
uint8_t rmincnt;
/* Minute */
uint8_t rhrcnt;
/* Hour */
uint8_t rdaycnt;
/* Date */
uint8_t rwkcnt;
/* Day-of-week (0: Sunday; 6: Saturday) */
uint8_t rmoncnt; /* Month */
uint16_t ryrcnt;
/* Year */
} rtc_calendarcounter_value_t;
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 334 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RTC>_Get_CalendarTimeCaptureValuen
This API function gets the calendar values from the capture registers.
[Syntax]
void R_<Config_RTC>_Get_CalendarTimeCaptureValuen ( rtc_calendarcounter_value_t * const counter_read_val ); Remark n is a channel number.
[Argument(s)]
I/O
Argument
Description
O rtc_calendarcounter_value_t * const Pointer to the location where the acquired calendar values
counter_read_val;
(year, month, date, day-of-week, hour, minute, and second) are
to be stored
Remark
The following shows the structure that holds the calendar value arguments, rtc_calendarcounter_value_t.
typedef struct {
uint8_t rseccnt;
/* Second */
uint8_t rmincnt;
/* Minute */
uint8_t rhrcnt;
/* Hour */
uint8_t rdaycnt;
/* Date */
uint8_t rwkcnt;
/* Day-of-week (0: Sunday; 6: Saturday) */
uint8_t rmoncnt; /* Month */
uint16_t ryrcnt;
/* Year */
} rtc_calendarcounter_value_t;
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 335 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RTC>_Set_BinaryCounterValue
This API function specifies a value for binary counting.
[Syntax]
void
R_<Config_RTC>_Set_BinaryCounterValue ( uint32_t counter_write_val );
[Argument(s)]
I/O
Argument
I uint32_t counter_write_val;
Binary counter value
Description
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 336 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RTC>_Get_BinaryCounterValue
This API function gets the binary counter value from the counter registers.
[Syntax]
void
R_<Config_RTC>_Get_BinaryCounterValue ( uint32_t * const counter_read_val );
[Argument(s)]
I/O
Argument
O uint32_t * const counter_read_val;
Description Pointer to the location where the acquired binary counter value is to be stored
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 337 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RTC>_Get_BinaryTimeCaptureValuen
This API function gets the binary counter value from the capture registers.
[Syntax]
void R_<Config_RTC>_Get_BinaryTimeCaptureValuen ( uint32_t * const counter_read_val ); Remark n is a channel number.
[Argument(s)]
I/O
Argument
O uint32_t * const counter_read_val;
Description Pointer to the location where the acquired binary counter value is to be stored
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 338 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RTC>_Set_RTCOUTOn
This API function specifies the frequency of output through the RTCOUT pin and starts the output.
[Syntax]
void
R_<Config_RTC>_Set_RTCOUTOn ( rtc_rtcout_period_t rtcout_freq );
[Argument(s)]
I/O
Argument
I rtc_rtcout_period_t rtcout_freq;
Description
Frequency of output through RTCOUT
RTCOUT_1HZ:
1 Hz
RTCOUT_64HZ:
64 Hz
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 339 of 533
Smart Configurator.
R_<Config_RTC>_Set_RTCOUTOff
This API function stops output through the RTCOUT pin.
[Syntax]
void
R_<Config_RTC>_Set_RTCOUTOff ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 340 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RTC>_Set_CalendarAlarm
This API function specifies the conditions for generating alarm interrupts and enables the detection of the interrupts. (Calendar count mode)
[Syntax]
void R_<Config_RTC>_Set_CalendarAlarm ( rtc_calendar_alarm_enable_t alarm_enable rtc_calendar_alarm_value_t alarm_val );
[Argument(s)]
I/O
Argument
Description
I rtc_calendar_alarm_enable_t alarm_enable;
I rtc_calendar_alarm_value_t alarm_val;
Comparison flags (year, month, date, day-of-week, hour, minute, and second) Calendar values (year, month, date, day-of-week, hour, minute, and second)
Remark1. The following shows the structure that holds the comparison flag arguments, rtc_calendar_alarm_enable_t.
typedef struct {
uint8_t sec_enb; /* Second (0x0: Not compared; 0x80: Compared) */
uint8_t min_enb; /* Minute (0x0: Not compared; 0x80: Compared) */
uint8_t hr_enb;
/* Hour (0x0: Not compared; 0x80: Compared) */
uint8_t day_enb; /* Date (0x0: Not compared; 0x80: Compared) */
uint8_t wk_enb;
/* Day-of-week (0x0: Not compared; 0x80: Compared) */
uint8_t mon_enb; /* Month (0x0: Not compared; 0x80: Compared) */
uint8_t yr_enb;
/* Year (0x0: Not compared; 0x80: Compared) */
} rtc_calendar_alarm_enable_t;
Remark2. The following shows the structure that holds the calendar value arguments, rtc_calendar_alarm_value_t.
typedef struct {
uint8_t rsecar;
/* Second */
uint8_t rminar;
/* Minute */
uint8_t rhrar;
/* Hour */
uint8_t rdayar;
/* Date */
uint8_t rwkar;
/* Day-of-week (0: Sunday; 6: Saturday) */
uint8_t rmonar;
/* Month */
uint16_t ryrar;
/* Year */
} rtc_calendar_alarm_value_t;
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 341 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RTC>_Set_BinaryAlarm
This API function specifies the conditions for generating alarm interrupts and enables the detection of the interrupts. (Binary count mode)
[Syntax]
void
R_<Config_RTC>_Set_BinaryAlarm ( uint32_t alarm_enable uint32_t alarm_val );
[Argument(s)]
I/O
Argument
I uint32_t alarm_enable;
I uint32_t alarm_val;
Comparison flag 0x0: 0x1:
Binary counter value
Description
Not compared Compared
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 342 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RTC>_Set_ConstPeriodInterruptOn
This API function specifies the interval of periodic interrupts and enables the detection of the interrupts.
[Syntax]
void
R_<Config_RTC>_Set_ConstPeriodInterruptOn ( rtc_int_period_t period );
[Argument(s)]
I/O
Argument
I rtc_int_period_t period;
Description
Interval of periodic interrupts
PES_2_SEC:
2 seconds
PES_1_SEC:
1 second
PES_1_2_SEC:
1/2 second
PES_1_4_SEC:
1/4 second
PES_1_8_SEC:
1/8 second
PES_1_16_SEC:
1/16 second
PES_1_32_SEC:
1/32 second
PES_1_64_SEC:
1/64 second
PES_1_128_SEC:
1/128 second
PES_1_256_SEC:
1/256 second
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 343 of 533
Smart Configurator.
R_<Config_RTC>_Set_ConstPeriodInterruptOff
This API function disables the detection of periodic interrupts.
[Syntax]
void
R_<Config_RTC>_Set_ConstPeriodInterruptOff ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 344 of 533
Smart Configurator.
R_<Config_RTC>_Set_CarryInterruptOn
This API function enables the detection of carry interrupts.
[Syntax]
void
R_<Config_RTC>_Set_CarryInterruptOn ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 345 of 533
Smart Configurator.
R_<Config_RTC>_Set_CarryInterruptOff
This API function disables the detection of carry interrupts.
[Syntax]
void
R_<Config_RTC>_Set_CarryInterruptOff ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 346 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RTC>_Create_UserInit
This API function executes user-specific initialization processing for the realtime clock. Remark This API function is called from R_<Config_RTC>_Create as a callback routine.
[Syntax]
void
R_<Config_RTC>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 347 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RTC>_alm_interrupt
This API function executes processing in response to alarm interrupts.
Remark
This API function is called as the interrupt handler for alarm interrupts, which occur when the conditions specified in R_<Config_RTC>_Set_CalendarAlarm are satisfied.
[Syntax]
void
r_<Config_RTC>_alm_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 348 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RTC>_prd_interrupt
This API function executes processing in response to periodic interrupts.
Remark
This API function is called as the interrupt handler for periodic interrupts, which occur when the period specified by the parameter period in R_<Config_RTC>_Set_ConstPeriodInterruptOn has elapsed.
[Syntax]
void
r_<Config_RTC>_prd_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 349 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RTC>_cup_interrupt
This API function executes processing in response to carry interrupts.
Remark
This API function is called as the interrupt handler for carry interrupts, which occur in response to carrying to the second counter (RSECCNT) or binary counter 0 (BCNT0), or to carrying to the 64-Hz counter (R64CNT) while the counter (R64CNT) is being read.
[Syntax]
void
r_<Config_RTC>_cup_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 350 of 533
Smart Configurator.
4. API FUNCTIONS
Usage example
Using alarm interrupts to implement virtual processing for leap second correction (turning back the clock from 23:59:59 to 23:59:58 on a scheduled day):
main.c #include "r_smc_entry.h" void main(void) {
/* Start RTC counter */ R_Config_RTC_Start();
while (1U) {
nop(); } }
Config_RTC_user.c /* Start user code for include. Do not edit comment generated here */ volatile rtc_calendarcounter_value_t counter_val; /* End user code. Do not edit comment generated here */ static void r_Config_RTC_alm_interrupt(void) {
/* Start user code for r_Config_RTC_alm_interrupt. Do not edit comment generated here */ /* Disable ALM interrupt */ IEN(RTCALM) = 0U;
/* Get RTC calendar counter value */ R_Config_RTC_Get_CalendarCounterValue((rtc_calendarcounter_value_t *)&counter_val);
/* Change the seconds */ counter_val.rseccnt = 0x58U;
/* Set RTC calendar counter value */ R_Config_RTC_Set_CalendarCounterValue(counter_val); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 351 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.30 Remote Control Signal Receiver
The Code Generator outputs the following API functions for the remote control signal receiver.
Table4.31 API Functions: [Remote Control Signal Receiver]
API Function Name R_<Config_REMC0>_Create
R_<Config_REMC0>_Start R_<Config_REMC0>_Stop R_<Config_REMC0>_Read
R_<Config_REMC0>_Create_UserInit
r_<Config_REMC0>_remcin_interrupt r_<Config_REMC0>_callback_comparematch r_<Config_REMC0>_callback_receiveerror r_<Config_REMC0>_callback_receiveend
r_<Config_REMC0>_callback_bufferfull r_<Config_REMC0>_callback_header
r_<Config_REMC0>_callback_data0
r_<Config_REMC0>_callback_data1
r_<Config_REMC0>_callback_specialdata
Function
Executes initialization processing that is required before controlling the remote control signal receiver. Starts operation of the remote control signal receiver. Stops operation of the remote control signal receiver. Specifies the location where the received data are to be stored and the number of bytes to be received. Executes user-specific initialization processing for the remote control signal receiver. Executes processing in response to REMC interrupts. Executes processing in response to compare match interrupts. Executes processing in response to receive error interrupts. Executes processing in response to data reception complete interrupts. Executes processing in response to receive buffer full interrupts. Executes processing in response to header pattern match interrupts. Executes processing in response to data "0" pattern match interrupts. Executes processing in response to data "1" pattern match interrupts. Executes processing in response to special data pattern match interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 352 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_REMC0>_Create
This API function executes initialization processing that is required before controlling the remote control signal receiver.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_REMC0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 353 of 533
Smart Configurator.
R_<Config_REMC0>_Start
This API function starts operation of the remote control signal receiver.
[Syntax]
void
R_<Config_REMC0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 354 of 533
Smart Configurator.
R_<Config_REMC0>_Stop
This API function stops operation of the remote control signal receiver.
[Syntax]
void
R_<Config_REMC0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 355 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_REMC0>_Read
This API function specifies the location where the received data are to be stored and the number of bytes
to be received.
Remark
This API function specifies the location where the received data read by the REMC interrupt routine at the end of data reception are to be stored.
[Syntax]
MD_STATUS
R_<Config_REMC0>_Read ( uint8_t * const rx_buf, uint8_t rx_num );
[Argument(s)]
I/O
Argument
O uint8_t * const rx_buf
I uint8_t rx_num
Description Pointer to the buffer where the received data are to be stored Number of bytes to be received
[Return value]
Macro
MD_OK MD_ERROR1
Description Normal end The specification of argument rx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 356 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_REMC0>_Create_UserInit
This API function executes user-specific initialization processing for the remote control signal receiver. Remark This API function is called from R_<Config_REMC0>_Create as a callback routine.
[Syntax]
void
R_<Config_REMC0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 357 of 533
Smart Configurator.
r_<Config_REMC0>_remcin_interrupt
This API function executes processing in response to REMC interrupts.
[Syntax]
void Remark
r_<Config_REMC0>_remcin_interrupt ( void ); n is a channel number.
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 358 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_REMC0>_callback_comparematch
This API function executes processing in response to compare match interrupts.
Remark
This API function is called as a callback routine from r_<Config_REMC0>_remcin_interrupt, which is the interrupt handler for REMC interrupts.
[Syntax]
void
r_<Config_REMC0>_callback_comparematch ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 359 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_REMC0>_callback_receiveerror
This API function executes processing in response to receive error interrupts.
Remark
This API function is called as a callback routine from r_<Config_REMC0>_remcin_interrupt, which is the interrupt handler for REMC interrupts.
[Syntax]
void
r_<Config_REMC0>_callback_receiveerror ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 360 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_REMC0>_callback_receiveend
This API function executes processing in response to data reception complete interrupts.
Remark
This API function is called as a callback routine from r_<Config_REMC0>_remcin_interrupt, which is the interrupt handler for REMC interrupts.
[Syntax]
void
r_<Config_REMC0>_callback_receiveend ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 361 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_REMC0>_callback_bufferfull
This API function executes processing in response to receive buffer full interrupts.
Remark
This API function is called as a callback routine from r_<Config_REMC0>_remcin_interrupt, which is the interrupt handler for REMC interrupts.
[Syntax]
void
r_<Config_REMC0>_callback_bufferfull ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 362 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_REMC0>_callback_header
This API function executes processing in response to header pattern match interrupts.
Remark
This API function is called as a callback routine from r_<Config_REMC0>_remcin_interrupt, which is the interrupt handler for REMC interrupts.
[Syntax]
void
r_<Config_REMC0>_callback_header ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 363 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_REMC0>_callback_data0
This API function executes processing in response to data "0" pattern match interrupts.
Remark
This API function is called as a callback routine from r_<Config_REMC0>_remcin_interrupt, which is the interrupt handler for REMC interrupts.
[Syntax]
void
r_<Config_REMC0>_callback_data0 ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 364 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_REMC0>_callback_data1
This API function executes processing in response to data "1" pattern match interrupts.
Remark
This API function is called as a callback routine from r_<Config_REMC0>_remcin_interrupt, which is the interrupt handler for REMC interrupts.
[Syntax]
void
r_<Config_REMC0>_callback_data1 ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 365 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_REMC0>_callback_specialdata
This API function executes processing in response to special data pattern match interrupts.
Remark
This API function is called as a callback routine from r_<Config_REMC0>_remcin_interrupt, which is the interrupt handler for REMC interrupts.
[Syntax]
void
r_<Config_REMC0>_callback_specialdata ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 366 of 533
Smart Configurator.
4. API FUNCTIONS
Usage example
Stopping operation of the remote control signal receiver at the end of data reception:
main.c #include "r_smc_entry.h" extern volatile uint8_t g_remc0_rx_buf[8]; void main(void) {
/* Start the REMC0 operation */ R_Config_REMC0_Start();
/* Read data from receive data buffer */ R_Config_REMC0_Read((uint8_t *)g_remc0_rx_buf, 8U);
while (1U) {
nop(); } }
Config_REMC0_user.c
/* Start user code for global. Do not edit comment generated here */ volatile uint8_t g_remc0_rx_buf[8]; /* End user code. Do not edit comment generated here */ static void r_Config_REMC0_callback_receiveend(void) {
/* Start user code for r_Config_REMC0_callback_receiveend. Do not edit comment generated here */
/* Stop the REMC0 operation */ R_Config_REMC0_Stop(); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 367 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.31 SCI/SCIF Asynchronous Mode
The Code Generator outputs the following API functions for the SCI/SCIF asynchronous mode.
Table4.32 API Functions: [SCI or SCIF in Asynchronous Mode]
API Function Name R_<Config_SCI0>_Create R_<Config_SCI0>_Start R_<Config_SCI0>_Stop R_<Config_SCI0>_Serial_Send R_<Config_SCI0>_Serial_Receive R_<Config_SCI0>_Serial_Multiprocessor_Send R_<Config_SCI0>_Serial_Multiprocessor_Receive R_<Config_SCI0>_Create_UserInit r_<Config_SCI0>_transmitend_interrupt r_<Config_SCI0>_transmit_interrupt
r_<Config_SCI0>_receive_interrupt r_<Config_SCI0>_receiveerror_interrupt r_<Config_SCI0>_teif_interrupt r_<Config_SCI0>_txif_interrupt
r_<Config_SCI0>_rxif_interrupt r_<Config_SCI0>_drif_interrupt
r_<Config_SCI0>_erif_interrupt r_<Config_SCI0>_brif_interrupt r_<Config_SCI0>_callback_transmitend
r_<Config_SCI0>_callback_receiveend
r_<Config_SCI0>_callback_receiveerror r_<Config_SCI0>_callback_error
Function Executes initialization processing that is required before controlling the SCI/SCIF asynchronous mode. Starts serial communications. Stops serial communications. Starts transmission. (Asynchronous mode) Starts reception. (Asynchronous mode) [SCI] Starts transmission. (Multi-processor communications function) [SCI] Starts reception. (Multi-processor communications function) Executes user-specific initialization processing for the SCI/SCIF asynchronous mode. [SCI] Executes processing in response to transmit end interrupts. [SCI] Executes processing in response to transmit data empty interrupts. [SCI] Executes processing in response to receive data full interrupts. [SCI] Executes processing in response to receive error interrupts. [SCIF] Executes processing in response to transmit end interrupts. [SCIF] Executes processing in response to transmit FIFO data empty interrupts. [SCIF] Executes processing in response to receive FIFO data full interrupts. [SCIF] Executes processing in response to receive data ready interrupts. [SCIF] Executes processing in response to receive error interrupts. [SCIF] Executes processing in response to break interrupts. [SCI] Executes processing in response to transmit end interrupts or transmit data empty interrupts. [SCIF] Executes processing in response to transmit end interrupts or transmit FIFO data empty interrupts. [SCI] Executes processing in response to receive data full interrupts. [SCIF] Executes processing in response to receive FIFO data full interrupts. [SCI] Executes processing in response to receive error interrupts. [SCIF] Executes processing in response to receive error interrupts or break interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 368 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_Create
This API function executes initialization processing that is required before controlling the SCI/SCIF asynchronous mode.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_SCI0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 369 of 533
Smart Configurator.
R_<Config_SCI0>_Start
This API function starts serial communications.
[Syntax]
void
R_<Config_SCI0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 370 of 533
Smart Configurator.
R_<Config_SCI0>_Stop
This API function stops serial communications.
[Syntax]
void
R_<Config_SCI0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 371 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_Serial_Send
This API function starts transmission. (Asynchronous mode) Remark1. This API function repeats the transmission of single bytes of data from the buffer specified
by the argument tx_buf the number of times specified by the argument tx_num. Remark2. Calling R_<Config_SCI0>_Start is required before this API function is called to execute
transmission.
[Syntax]
MD_STATUS
R_<Config_SCI0>_Serial_Send ( uint8_t * const tx_buf, uint16_t tx_num );
[Argument(s)]
I/O
Argument
I uint8_t * const tx_buf;
I uint16_t tx_num;
Description Pointer to the buffer where the data to be transmitted are stored Number of bytes to be transmitted
[Return value]
Macro
MD_OK MD_ARGERROR
Description Normal end The specification of argument tx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 372 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_Serial_Receive
This API function starts reception. (Asynchronous mode) Remark1. This API function repeats the reception of single bytes of data the number of times specified
by the argument rx_num, storing the data in the buffer specified by the argument rx_buf. Remark2. Calling R_<Config_SCI0>_Start is required before this API function is called to execute
reception.
[Syntax]
MD_STATUS R_<Config_SCI0>_Serial_Receive ( uint8_t * const rx_buf, uint16_t rx_num );
[Argument(s)]
I/O
Argument
O uint8_t * const rx_buf; I uint16_t rx_num;
Description Pointer to the buffer where the received data are to be stored Number of bytes to be received
[Return value]
Macro
MD_OK MD_ARGERROR
Description Normal end The specification of argument rx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 373 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_Serial_Multiprocessor_Send
[SCI] This API function starts transmission. (Multi-processor communications function) Remark1. In multi-processor communications, a transmission cycle consists of an ID transmission
cycle to specify a receiving station, and a data transmission cycle to transmit data to the specified receiving station. Remark2. In the ID transmission cycle, this API function repeats the transmission of single bytes of data from the buffer specified by the argument id_buf the number of times specified by the argument id_num. Remark3. In the data transmission cycle, this API function repeats the transmission of single bytes of data from the buffer specified by the argument tx_buf the number of times specified by the argument tx_num. Remark4. Calling R_<Config_SCI0>_Start is required before this API function is called to execute transmission.
[Syntax]
MD_STATUS
R_<Config_SCI0>_Serial_Multiprocessor_Send (uint8_t * const id_buf,
uint16_t id_num, uint8_t * const tx_buf, uint16_t tx_num );
[Argument(s)]
I/O
Argument
I uint8_t * const id_buf; I uint16_t id_num; I uint8_t * const tx_buf;
I uint16_t tx_num;
Description Pointer to the buffer where the IDs to be transmitted are stored Number of IDs to be transmitted Pointer to the buffer where the data to be transmitted are stored Number of bytes to be transmitted
[Return value]
Macro
MD_OK MD_ARGERROR
Description Normal end The specification of argument tx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 374 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_Serial_Multiprocessor_Receive
[SCI] This API function starts reception. (Multi-processor communications function) Remark1. In multi-processor communications, a receiving station with an ID matching a received ID
receives the data that follows the ID. Remark2. This API function repeats the reception of single bytes of data the number of times specified
by the argument rx_num, storing the data in the buffer specified by the argument rx_buf. Remark3. Calling R_<Config_SCI0>_Start is required before this API function is called to execute
reception.
[Syntax]
MD_STATUS uint16_t rx_num );
R_<Config_SCI0>_Serial_Multiprocessor_Receive ( uint8_t * const rx_buf,
[Argument(s)]
I/O
Argument
O uint8_t * const rx_buf; I uint16_t rx_num;
Description Pointer to the buffer where the received data are to be stored Number of bytes to be received
[Return value]
Macro
MD_OK MD_ARGERROR
Description Normal end The specification of argument rx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 375 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_Create_UserInit
This API function executes user-specific initialization processing for the SCI/SCIF asynchronous mode. Remark This API function is called from R_<Config_SCI0>_Start as a callback routine.
[Syntax]
void
R_<Config_SCI0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 376 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_transmitend_interrupt
[SCI] This API function executes processing in response to transmit end interrupts.
[Syntax]
void
r_<Config_SCI0>_transmitend_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 377 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_transmit_interrupt
[SCI] This API function executes processing in response to transmit data empty interrupts.
[Syntax]
void
r_<Config_SCI0>_transmit_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 378 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_receive_interrupt
[SCI] This API function executes processing in response to receive data full interrupts.
[Syntax]
void
r_<Config_SCI0>_receive_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 379 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_receiveerror_interrupt
[SCI] This API function executes processing in response to receive error interrupts.
[Syntax]
void
r_<Config_SCI0>_receiveerror_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 380 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_teif_interrupt
[SCIF] This API function executes processing in response to transmit end interrupts.
[Syntax]
void
r_<Config_SCI0>_teif_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 381 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_txif_interrupt
[SCIF] This API function executes processing in response to transmit FIFO data empty interrupts.
[Syntax]
void
r_<Config_SCI0>_txif_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 382 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_rxif_interrupt
[SCIF] This API function executes processing in response to receive FIFO data full interrupts.
[Syntax]
void
r_<Config_SCI0>_rxif_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 383 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_drif_interrupt
[SCIF] This API function executes processing in response to receive data ready interrupts.
[Syntax]
void
r_<Config_SCI0>_drif_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 384 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_erif_interrupt
[SCIF] This API function executes processing in response to receive error interrupts.
Remark
This API function is called as the interrupt handler for interrupts due to framing errors or parity errors.
[Syntax]
void
r_<Config_SCI0>_erif_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 385 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_brif_interrupt
[SCIF] This API function executes processing in response to break interrupts.
Remark
This API function is called as the interrupt handler for interrupts due to break signal detection or overrun errors.
[Syntax]
void
r_<Config_SCI0>_brif_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 386 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_callback_transmitend
[SCI] This API function executes processing in response to transmit end interrupts or transmit data empty interrupts.
Remark1. This API function is called from r_<Config_SCI0>_transmitend_interrupt or r_<Config_SCI0>_transmit_interrupt as a callback routine.
[SCIF] This API function executes processing in response to transmit end interrupts or transmit FIFO data empty interrupts.
Remark2. This API function is called from r_<Config_SCI0>_teif_interrupt or r_<Config_SCI0>_txif_interrupt as a callback routine.
[Syntax]
void
r_<Config_SCI0>_callback_transmitend ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 387 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_callback_receiveend
[SCI] This API function executes processing in response to receive data full interrupts. Remark1. This API function is called from r_<Config_SCI0>_receive_interrupt as a callback routine.
[SCIF] This API function executes processing in response to receive FIFO data full interrupts. Remark2. This API function is called from r_<Config_SCI0>_rxif_interrupt as a callback routine.
[Syntax]
void
r_<Config_SCI0>_callback_receiveend ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 388 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_callback_receiveerror
[SCI] This API function executes processing in response to receive error interrupts.
Remark
This API function is called from r_<Config_SCI0>_receiveerror_interrupt as a callback routine.
[Syntax]
void
r_<Config_SCI0>_callback_receiveerror ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 389 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_callback_error
[SCIF] This API function executes processing in response to receive error interrupts or break interrupts.
Remark
This API function is called from r_<Config_SCI0>_erif_interrupt or r_<Config_SCI0>_brif_interrupt as a callback routine.
[Syntax]
void
r_<Config_SCI0>_callback_error ( scif_error_type_t error_type );
[Argument(s)]
I/O
Argument
I scif_error_type_t error_type;
Description
Interrupt sources RECEIVE_ERROR: OVERRUN_ERROR: BREAK_DETECT:
Framing error or parity error Overrun error Break signal detection
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 390 of 533
Smart Configurator.
Usage example
Transmitting the upper-case character "A":
4. API FUNCTIONS
main.c #include "r_smc_entry.h" extern volatile uint8_t g_sci0_tx_buf; void main(void) {
/* Start the SCI0 channel */ R_Config_SCI0_Start();
/* Transmit SCI0 data */ R_Config_SCI0_Serial_Send((uint8_t *)&g_sci0_tx_buf, 1U);
while (1U) {
nop(); } }
Config_SCI0_user.c
/* Start user code for global. Do not edit comment generated here */ volatile uint8_t g_sci0_tx_buf; /* End user code. Do not edit comment generated here */
void R_Config_SCI0_Create_UserInit(void) {
/* Start user code for user init. Do not edit comment generated here */ g_sci0_tx_buf = 'A'; /* End user code. Do not edit comment generated here */ } static void r_Config_SCI0_callback_transmitend(void) { /* Start user code for r_Config_SCI0_callback_transmitend. Do not edit comment generated here */ /* Stop the SCI0 channel */ R_Config_SCI0_Stop(); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 391 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.32 SCI/SCIF Clock Synchronous Mode
The Code Generator outputs the following API functions for the SCI/SCIF clock synchronous mode.
Table4.33 API Functions: [SCI/SCIF Clock Synchronous Mode]
API Function Name R_<Config_SCI0>_Create R_<Config_SCI0>_Start R_<Config_SCI0>_Stop R_<Config_SCI0>_Serial_Send R_<Config_SCI0>_Serial_Receive R_<Config_SCI0>_Serial_Send_Receive R_<Config_SCI0>_Create_UserInit r_<Config_SCI0>_transmitend_interrupt r_<Config_SCI0>_transmit_interrupt
r_<Config_SCI0>_receive_interrupt
r_<Config_SCI0>_receiveerror_interrupt r_<Config_SCI0>_teif_interrupt
r_<Config_SCI0>_txif_interrupt
r_<Config_SCI0>_rxif_interrupt
r_<Config_SCI0>_erif_interrupt
r_<Config_SCI0>_brif_interrupt r_<Config_SCI0>_callback_transmitend
r_<Config_SCI0>_callback_receiveend
r_<Config_SCI0>_callback_receiveerror r_<Config_SCI0>_callback_error
Function Executes initialization processing that is required before controlling the SCI/SCIF clock synchronous mode. Starts serial communications. Stops serial communications. Starts transmission. (Clock synchronous mode) Starts reception. (Clock synchronous mode) Starts transmission and reception. (Clock synchronous mode) Executes user-specific initialization processing for the SCI/SCIF clock synchronous mode. [SCI] Executes processing in response to transmit end interrupts. [SCI] Executes processing in response to transmit data empty interrupts. [SCI] Executes processing in response to receive data full interrupts. [SCI] Executes processing in response to receive error interrupts. [SCIF] Executes processing in response to transmit end interrupts. [SCIF] Executes processing in response to transmit FIFO data empty interrupts. [SCIF] Executes processing in response to receive FIFO data full interrupts. [SCIF] Executes processing in response to receive error interrupts. [SCIF] Executes processing in response to break interrupts. [SCI] Executes processing in response to transmit end interrupts or transmit data empty interrupts. [SCIF] Executes processing in response to transmit end interrupts or transmit FIFO data empty interrupts. [SCI] Executes processing in response to receive data full interrupts. [SCIF] Executes processing in response to receive FIFO data full interrupts. [SCI] Executes processing in response to receive error interrupts. [SCIF] Executes processing in response to receive error interrupts or break interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 392 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_Create
This API function executes initialization processing that is required before controlling the SCI/SCIF clock synchronous mode.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_SCI0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 393 of 533
Smart Configurator.
R_<Config_SCI0>_Start
This API function starts serial communications.
[Syntax]
void
R_<Config_SCI0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 394 of 533
Smart Configurator.
R_<Config_SCI0>_Stop
This API function stops serial communications.
[Syntax]
void
R_<Config_SCI0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 395 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_Serial_Send
This API function starts transmission. (Clock synchronous mode) Remark1. This API function repeats the transmission of single bytes of data from the buffer specified
by the argument tx_buf the number of times specified by the argument tx_num. Remark2. Calling R_<Config_SCI0>_Start is required before this API function is called to execute
transmission.
[Syntax]
MD_STATUS
R_<Config_SCI0>_Serial_Send ( uint8_t * const tx_buf, uint16_t tx_num );
[Argument(s)]
I/O
Argument
I uint8_t * const tx_buf;
I uint16_t tx_num;
Description Pointer to the buffer where the data to be transmitted are stored Number of bytes to be transmitted
[Return value]
Macro
MD_OK MD_ARGERROR
Description Normal end The specification of argument tx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 396 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_Serial_Receive
This API function starts reception. (Clock synchronous mode) Remark1. This API function repeats the reception of single bytes of data the number of times specified
by the artgument rx_num, storing the data in the buffer specified by the argument rx_buf. Remark2. Calling R_<Config_SCI0>_Start is required before this API function is called to execute
reception.
[Syntax]
MD_STATUS
R_<Config_SCI0>_Serial_Receive ( uint8_t * const rx_buf, uint16_t rx_num );
[Argument(s)]
I/O
Argument
O uint8_t * const rx_buf; I uint16_t rx_num;
Description Pointer to the buffer where the received data are to be stored Number of bytes to be received
[Return value]
Macro
MD_OK MD_ARGERROR
Description Normal end The specification of argument rx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 397 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_Serial_Send_Receive
This API function starts transmission and reception. (Clock synchronous mode) Remark1. To transmit data, this API function repeats the transmission of single bytes of data from the
buffer specified by the argument tx_buf the number of times specified by the argument tx_num. Remark2. To receive data, this API function repeats the reception of single bytes of data the number of times specified by the argument rx_num, storing the data in the buffer specified by the argument rx_buf. Remark3. Calling R_<Config_SCI0>_Start is required before this API function is called to execute reception.
[Syntax]
MD_STATUS
R_<Config_SCI0>_Serial_Send_Receive ( uint8_t * const tx_buf, uint16_t
tx_num, uint8_t * const rx_buf, uint16_t rx_num );
[Argument(s)]
I/O
Argument
I uint8_t * const tx_buf;
I uint16_t tx_num; O uint8_t * const rx_buf; I uint16_t rx_num;
Description Pointer to the buffer where the data to be transmitted are stored Number of bytes to be transmitted Pointer to the buffer where the received data are to be stored Number of bytes to be received
[Return value]
Macro
MD_OK MD_ARGERROR
Description Normal end The specification of argument tx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 398 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_Create_UserInit
This API function executes user-specific initialization processing for the SCI/SCIF clock synchronous mode. Remark This API function is called from R_<Config_SCI0>_Create as a callback routine.
[Syntax]
void
R_<Config_SCI0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 399 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_transmitend_interrupt
[SCI] This API function executes processing in response to transmit end interrupts.
[Syntax]
void
r_<Config_SCI0>_transmitend_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 400 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_transmit_interrupt
[SCI] This API function executes processing in response to transmit data empty interrupts.
[Syntax]
void
r_<Config_SCI0>_transmit_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 401 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_receive_interrupt
[SCI] This API function executes processing in response to receive data full interrupts.
[Syntax]
void
r_<Config_SCI0>_receive_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 402 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_receiveerror_interrupt
[SCI] This API function executes processing in response to receive error interrupts.
[Syntax]
void
r_<Config_SCI0>_receiveerror_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 403 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_teif_interrupt
[SCIF] This API function executes processing in response to transmit end interrupts.
[Syntax]
void
r_<Config_SCI0>_teif_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 404 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_txif_interrupt
[SCIF] This API function executes processing in response to transmit FIFO data empty interrupts.
[Syntax]
void
r_<Config_SCI0>_txif_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 405 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_rxif_interrupt
[SCIF] This API function executes processing in response to receive FIFO data full interrupts.
[Syntax]
void
r_<Config_SCI0>_rxif_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 406 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_erif_interrupt
[SCIF] This API function executes processing in response to receive error interrupts.
Remark
This API function is called as the interrupt handler for interrupts due to framing errors or parity errors.
[Syntax]
void
r_<Config_SCI0>_erif_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 407 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_brif_interrupt
[SCIF] This API function executes processing in response to break interrupts.
Remark
This API function is called as the interrupt handler for interrupts due to break signal detection or overrun errors.
[Syntax]
void
r_<Config_SCI0>_brif_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 408 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_callback_transmitend
[SCI] This API function executes processing in response to transmit end interrupts or transmit data empty interrupts.
Remark1. This API function is called from r_<Config_SCI0>_transmitend_interrupt or r_<Config_SCI0>_transmit_interrupt as a callback routine.
[SCIF] This API function executes processing in response to transmit end interrupts or transmit FIFO data empty interrupts.
Remark2. This API function is called from r_<Config_SCI0>_teif_interrupt or r_<Config_SCI0>_txif_interrupt as a callback routine.
[Syntax]
void
r_<Config_SCI0>_callback_transmitend ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 409 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_callback_receiveend
[SCI] This API function executes processing in response to receive data full interrupts. Remark1. This API function is called from r_<Config_SCI0>_receive_interrupt as a callback routine.
[SCIF] This API function executes processing in response to receive FIFO data full interrupts. Remark2. This API function is called from r_<Config_SCI0>_rxif_interrupt as a callback routine.
[Syntax]
void
r_<Config_SCI0>_callback_receiveend ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 410 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_callback_receiveerror
[SCI] This API function executes processing in response to receive error interrupts.
Remark
This API function is called from r_<Config_SCI0>_receiveerror_interrupt as a callback routine.
[Syntax]
void
r_<Config_SCI0>_callback_receiveerror ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 411 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_callback_error
[SCIF] This API function executes processing in response to receive error interrupts or break interrupts.
Remark
This API function is called from r_<Config_SCI0>_erif_interrupt or r_<Config_SCI0>_brif_interrupt as a callback routine.
[Syntax]
void
r_<Config_SCI0>_callback_error ( scif_error_type_t error_type );
[Argument(s)]
I/O
Argument
I scif_error_type_t error_type;
Description
Interrupt sources RECEIVE_ERROR: OVERRUN_ERROR: BREAK_DETECT:
Framing error or parity error Overrun error Break signal detection
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 412 of 533
Smart Configurator.
Usage example
Transmitting received data:
4. API FUNCTIONS
main.c #include "r_smc_entry.h" extern volatile uint8_t g_sci0_tx_buf; extern volatile uint8_t g_sci0_rx_buf; void main(void) {
/* Start the SCI0 channel */ R_Config_SCI0_Start();
/* Transmit and receive SCI0 data */ R_Config_SCI0_Serial_Send_Receive((uint8_t *)&g_sci0_tx_buf, 1U, (uint8_t *)&g_sci0_rx_buf, 1U);
while (1U) {
nop(); } }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 413 of 533
Smart Configurator.
4. API FUNCTIONS
Config_SCI0_user.c /* Start user code for global. Do not edit comment generated here */ volatile uint8_t g_sci0_tx_buf; volatile uint8_t g_sci0_rx_buf; /* End user code. Do not edit comment generated here */
void R_Config_SCI0_Create_UserInit(void) {
/* Start user code for user init. Do not edit comment generated here */ g_sci0_tx_buf = 0U; g_sci0_rx_buf = 0U; /* End user code. Do not edit comment generated here */ }
static void r_Config_SCI0_callback_transmitend(void) {
/* Start user code for r_Config_SCI0_callback_transmitend. Do not edit comment generated here */
/* Transmit and receive SCI0 data */ R_Config_SCI0_Serial_Send_Receive((uint8_t *)&g_sci0_tx_buf, 1U, (uint8_t *)&g_sci0_rx_buf, 1U); /* End user code. Do not edit comment generated here */ }
static void r_Config_SCI0_callback_receiveend(void) {
/* Start user code for r_Config_SCI0_callback_receiveend. Do not edit comment generated here */
g_sci0_tx_buf = g_sci0_rx_buf; g_sci0_rx_buf = 0U; /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 414 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.33 Single Scan Mode S12AD
The Code Generator outputs the following API functions for the single scan mode S12AD.
Table4.34 API Functions: [Single Scan Mode S12AD]
API Function Name R_<Config_S12AD0>_Create
R_<Config_S12AD0>_Start R_<Config_S12AD0>_Stop R_<Config_S12AD0>_Get_ValueResult R_<Config_S12AD0>_Set_CompareValue R_<Config_S12AD0>_Set_CompareAValue R_<Config_S12AD0>_Set_CompareBValue R_<Config_S12AD0>_Create_UserInit
r_<Config_S12AD0>_interrupt r_<Config_S12AD0>_compare_interrupt r_<Config_S12AD0>_compare_interruptA
r_<Config_S12AD0>_compare_interruptB
Function Executes initialization processing that is required before controlling the single scan mode S12AD. Starts A/D conversion. Stops A/D conversion. Gets the result of conversion. Sets the compare level. Sets the compare level for window A. Sets the compare level for window B. Executes user-specific initialization processing for the single scan mode S12AD. Executes processing in response to scan end interrupts. Executes processing in response to compare interrupts. Executes processing in response to compare interrupts for window A. Executes processing in response to compare interrupts for window B.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 415 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Create
This API function executes initialization processing that is required before controlling the single scan mode S12AD.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_S12AD0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 416 of 533
Smart Configurator.
R_<Config_S12AD0>_Start
This API function starts A/D conversion.
[Syntax]
void
R_<Config_S12AD0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 417 of 533
Smart Configurator.
R_<Config_S12AD0>_Stop
This API function stops A/D conversion.
[Syntax]
void
R_<Config_S12AD0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 418 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Get_ValueResult
This API function gets the result of conversion.
[Syntax]
void R_<Config_S12AD0>_Get_ValueResult ( ad_channel_t channel, uint16_t * const buffer );
[Argument(s)]
For RX130 or RX230/RX231
I/O
Argument
I ad_channel_t channel;
O uint16_t * const buffer;
Description
Channel number ADCHANNEL0: Input channel AN000 ADCHANNEL1: Input channel AN001 ADCHANNEL2: Input channel AN002 ADCHANNEL3: Input channel AN003 ADCHANNEL4: Input channel AN004 ADCHANNEL5: Input channel AN005 ADCHANNEL6: Input channel AN006 ADCHANNEL7: Input channel AN007 ADCHANNEL16: Input channel AN016 ADCHANNEL17: Input channel AN017 ADCHANNEL18: Input channel AN018 ADCHANNEL19: Input channel AN019 ADCHANNEL20: Input channel AN020 ADCHANNEL21: Input channel AN021 ADCHANNEL22: Input channel AN022 ADCHANNEL23: Input channel AN023 ADCHANNEL24: Input channel AN024 ADCHANNEL25: Input channel AN025 ADCHANNEL26: Input channel AN026 ADCHANNEL27: Input channel AN027 ADCHANNEL28: Input channel AN028 ADCHANNEL29: Input channel AN029 ADCHANNEL30: Input channel AN030 ADCHANNEL31: Input channel AN031 ADTEMPSENSOR: Extended analog input (temperature sensor output) ADINTERREFVOLT: Extended analog input (internal reference voltage) ADSELFDIAGNOSIS: Result of self-diagnosis ADDATADUPLICATION: Double-trigger mode result
Pointer to the location where the acquired results of conversion are to be stored
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 419 of 533
Smart Configurator.
For other devices
I/O
Argument
I ad_channel_t channel;
O uint16_t * const buffer;
[Return value]
None.
4. API FUNCTIONS
Description Channel number
ADCHANNEL0: Input channel AN000 ADCHANNEL1: Input channel AN001 ADCHANNEL2: Input channel AN002 ADCHANNEL3: Input channel AN003 ADCHANNEL4: Input channel AN004 ADCHANNEL5: Input channel AN005 ADCHANNEL6: Input channel AN006 ADCHANNEL7: Input channel AN007 ADCHANNEL8: Input channel AN008 ADCHANNEL9: Input channel AN009 ADCHANNEL10: Input channel AN010 ADCHANNEL11: Input channel AN011 ADCHANNEL12: Input channel AN012 ADCHANNEL13: Input channel AN013 ADCHANNEL14: Input channel AN014 ADCHANNEL15: Input channel AN015 ADCHANNEL16: Input channel AN016 ADCHANNEL17: Input channel AN017 ADCHANNEL18: Input channel AN018 ADCHANNEL19: Input channel AN019 ADCHANNEL20: Input channel AN020 ADTEMPSENSOR: Extended analog input (temperature sensor output) ADINTERREFVOLT: Extended analog input (internal reference voltage) ADSELFDIAGNOSIS: Result of self-diagnosis ADDATADUPLICATION: Double-trigger mode result ADDATADUPLICATIONA: Double-trigger mode A result ADDATADUPLICATIONB: Double-trigger mode B result Pointer to the location where the acquired results of conversion are to be stored
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 420 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Set_CompareValue
This API function sets the compare level.
[Syntax]
void R_<Config_S12AD0>_Set_CompareValue ( uint16_t reg_value0, uint16_t reg_value1);
[Argument(s)]
I/O
Argument
I uint16_t reg_value0; I uint16_t reg_value1;
Description Value to be set in compare register 0 Value to be set in compare register 1
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 421 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Set_CompareAValue
This API function sets the compare level for window A.
[Syntax]
void R_<Config_S12AD0>_Set_CompareAValue ( uint16_t reg_value0, uint16_t reg_value1);
[Argument(s)]
I/O
Argument
I uint16_t reg_value0; I uint16_t reg_value1;
Description Value to be set in compare register 0 Value to be set in compare register 1
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 422 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Set_CompareBValue
This API function sets the compare level for window B.
[Syntax]
void R_<Config_S12AD0>_Set_CompareBValue ( uint16_t reg_value0, uint16_t reg_value1);
[Argument(s)]
I/O
Argument
I uint16_t reg_value0; I uint16_t reg_value1;
Description Value to be set in compare register 0 Value to be set in compare register 1
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 423 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_S12AD0>_Create_UserInit
This API function executes user-specific initialization processing for the S12AD in single scan mode. Remark This API function is called from R_<Config_S12AD0>_Create as a callback routine.
[Syntax]
void
R_<Config_S12AD0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 424 of 533
Smart Configurator.
r_<Config_S12AD0>_interrupt
This API function executes processing in response to scan end interrupts.
[Syntax]
void
r_<Config_S12AD0>_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 425 of 533
Smart Configurator.
r_<Config_S12AD0>_compare_interrupt
This API function executes processing in response to compare interrupts.
[Syntax]
void
r_<Config_S12AD0>_compare_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 426 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_S12AD0>_compare_interruptA
This API function executes processing in response to compare interrupts for window A.
[Syntax]
void
r_<Config_S12AD0>_compare_interruptA ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 427 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_S12AD0>_compare_interruptB
This API function executes processing in response to compare interrupts for window B.
[Syntax]
void
r_<Config_S12AD0>_compare_interruptB ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 428 of 533
Smart Configurator.
Usage example
Getting the result of A/D conversion:
4. API FUNCTIONS
main.c #include "r_smc_entry.h" void main(void) {
/* Start the AD0 converter */ R_Config_S12AD0_Start();
while (1U) {
nop(); } }
Config_S12AD0_user.c /* Start user code for global. Do not edit comment generated here */ volatile uint16_t g_s12ad0_ch000_value; /* End user code. Do not edit comment generated here */
static void r_Config_S12AD0_interrupt(void) {
/* Start user code for r_Config_S12AD0_interrupt. Do not edit comment generated here */ R_Config_S12AD0_Get_ValueResult(ADCHANNEL0, (uint16_t *)&g_s12ad0_ch000_value); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 429 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.34 Smart Card Interface Mode
The Code Generator outputs the following API functions for the smart card interface mode.
Table4.35 API Functions: [Smart Card Interface Mode]
API Function Name R_<Config_SCI0>_Create
R_<Config_SCI0>_Start R_<Config_SCI0>_Stop R_<Config_SCI0>_SmartCard_Send R_<Config_SCI0>_SmartCard_Receive R_<Config_SCI0>_Create_UserInit
r_<Config_SCI0>_transmit_interrupt
r_<Config_SCI0>_receive_interrupt r_<Config_SCI0>_receiveerror_interrupt r_<Config_SCI0>_callback_transmitend
r_<Config_SCI0>_callback_receiveend r_<Config_SCI0>_callback_receiveerror
Function Executes initialization processing that is required before controlling the smart card interface mode. Starts serial communications. Stops serial communications. Starts transmission. (Smart card interface mode) Starts reception. (Smart card interface mode) Executes user-specific initialization processing for the smart card interface mode. Executes processing in response to transmit data empty interrupts. Executes processing in response to receive data full interrupts. Executes processing in response to receive error interrupts. Executes processing in response to transmit data empty interrupts. Executes processing in response to receive data full interrupts. Executes processing in response to receive error interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 430 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_Create
This API function executes initialization processing that is required before controlling the smart card interface. Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_SCI0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 431 of 533
Smart Configurator.
R_<Config_SCI0>_Start
This API function starts serial communications.
[Syntax]
void
R_<Config_SCI0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 432 of 533
Smart Configurator.
R_<Config_SCI0>_Stop
This API function stops serial communications.
[Syntax]
void
R_<Config_SCI0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 433 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_SmartCard_Send
This API function starts transmission. (Smart card interface mode) Remark1. This API function repeats the transmission of single bytes of data from the buffer specified
by the argument tx_buf the number of times specified by the argument tx_num. Remark2. Calling R_<Config_SCI0>_Start is required before this API function is called to execute
transmission.
[Syntax]
MD_STATUS
R_<Config_SCI0>_SmartCard_Send ( uint8_t * const tx_buf, uint16_t tx_num );
[Argument(s)]
I/O
Argument
I uint8_t * const tx_buf;
I uint16_t tx_num;
Description Pointer to the buffer where the data to be transmitted are stored Number of bytes to be transmitted
[Return value]
Macro
MD_OK MD_ARGERROR
Description Normal end The specification of argument tx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 434 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_SmartCard_Receive
This API function starts reception. (Smart card interface mode) Remark1. This API function repeats the reception of single bytes of data the number of times specified
by the argument rx_num, storing the data in the buffer specified by the argument rx_buf. Remark2. Calling R_<Config_SCI0>_Start is required before this API function is called to execute
reception.
[Syntax]
MD_STATUS R_<Config_SCI0>_SmartCard_Receive ( uint8_t * const rx_buf, uint16_t rx_num );
[Argument(s)]
I/O
Argument
O uint8_t * const rx_buf; I uint16_t rx_num;
Description Pointer to the buffer where the received data are to be stored Number of bytes to be received
[Return value]
Macro
MD_OK MD_ARGERROR
Description Normal end The specification of argument rx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 435 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_SCI0>_Create_UserInit
This API function executes user-specific initialization processing for the smart card interface. Remark This API function is called from R_<Config_SCI0>_Create as a callback routine.
[Syntax]
void
R_<Config_SCI0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 436 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_transmit_interrupt
This API function executes processing in response to transmit data empty interrupts.
[Syntax]
void
r_<Config_SCI0>_transmit_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 437 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_receive_interrupt
This API function executes processing in response to receive data full interrupts.
[Syntax]
void
r_<Config_SCI0>_receive_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 438 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_receiveerror_interrupt
This API function executes processing in response to receive error interrupts.
[Syntax]
void
r_<Config_SCI0>_receiveerror_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 439 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_callback_transmitend
This API function executes processing in response to transmit data empty interrupts. Remark his API function is called from r_<Config_SCI0>_transmit_interrupt as a callback routine.
[Syntax]
void
r_<Config_SCI0>_callback_transmitend ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 440 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_callback_receiveend
This API function executes processing in response to receive data full interrupts. Remark This API function is called from r_<Config_SCI0>_receive_interrupt as a callback routine.
[Syntax]
void
r_<Config_SCI0>_callback_receiveend ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 441 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_SCI0>_callback_receiveerror
This API function executes processing in response to receive error interrupts. Remark this API function is called from r_<Config_SCI0>_receiveerror_interrupt as a callback routine.
[Syntax]
void
r_<Config_SCI0>_callback_receiveerror ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 442 of 533
Smart Configurator.
Usage example
Transmitting one byte, and then switching to the reception of one byte:
main.c #include "r_smc_entry.h" extern volatile uint8_t g_sci0_tx_buf; void main(void) {
/* Start the SCI0 channel */ R_Config_SCI0_Start();
/* Transmit SCI0 data */ R_Config_SCI0_SmartCard_Send((uint8_t *)&g_sci0_tx_buf, 1U);
while (1U) {
nop(); } }
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 443 of 533
Smart Configurator.
4. API FUNCTIONS
Config_SCI0_user.c /* Start user code for global. Do not edit comment generated here */ volatile uint8_t g_sci0_tx_buf; volatile uint8_t g_sci0_rx_buf; /* End user code. Do not edit comment generated here */
void R_Config_SCI0_Create_UserInit(void) {
/* Start user code for user init. Do not edit comment generated here */ g_sci0_tx_buf = 'A'; /* End user code. Do not edit comment generated here */ }
static void r_Config_SCI0_callback_transmitend(void) {
/* Start user code for r_<onfig_SCI0_callback_transmitend. Do not edit comment generated here */
/* Stop the SCI0 channel */ R_Config_SCI0_Stop();
/* Initializes SCI0 */ R_Config_SCI0_Create();
/* Start the SCI0 channel */ R_Config_SCI0_Start();
/* Receive SCI0 data */ R_Config_SCI0_SmartCard_Receive((uint8_t *)&g_sci0_rx_buf, 1U); /* End user code. Do not edit comment generated here */ } static void r_Config_SCI0_callback_receiveend(void) { /* Start user code for r_Config_SCI0_callback_receiveend. Do not edit comment generated here */ /* Stop the SCI0 channel */ R_Config_SCI0_Stop(); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 444 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.35 SPI Clock Synchronous Mode
The Code Generator outputs the following API functions for the SPI clock synchronous mode (RSPI or SCI).
Table4.36 API Functions: [SPI Clock Synchronous Mode]
API Function Name R_<Config_RSPI0>_Create
R_<Config_RSPI0>_Start R_<Config_RSPI0>_Stop R_<Config_RSPI0>_Send R_<Config_RSPI0>_Send_Receive R_<Config_RSPI0>_SPI_Master_Send R_<Config_RSPI0>_SPI_Master_Send_Receive
R_<Config_RSPI0>_SPI_Slave_Send R_<Config_RSPI0>_SPI_Slave_Send_Receive R_<Config_RSPI0>_Create_UserInit
r_<Config_RSPI0>_receive_interrupt r_<Config_RSPI0>_transmit_interrupt
r_<Config_RSPI0>_error_interrupt r_<Config_RSPI0>_idle_interrupt r_<Config_RSPI0>_transmitend_interrupt r_<Config_RSPI0>_receiveerror_interrupt r_<Config_RSPI0>_callback_receiveend r_<Config_RSPI0>_callback_transmitend
r_<Config_RSPI0>_callback_error
Function Executes initialization processing that is required before controlling the SPI clock synchronous mode (RSPI or SCI). Starts serial communications. Stops serial communications. [RSPI] Starts transmission. [RSPI] Starts transmission and reception. [SCI] Starts master transmission. (Simple SPI mode) [SCI] Starts master transmission and reception. (Simple SPI mode) [SCI] Starts slave transmission. (Simple SPI mode) [SCI] Starts slave transmission and reception. (Simple SPI mode) Executes user-specific initialization processing for the SPI clock synchronous mode (RSPI or SCI). Executes processing in response to receive buffer full interrupts. Executes processing in response to transmit buffer empty interrupts. [RSPI] Executes processing in response to error interrupts. [RSPI] Executes processing in response to RSPI idle interrupts. [SCI] Executes processing in response to transmit end interrupts. [SCI] Executes processing in response to receive error interrupts. Executes processing in response to receive buffer full interrupts. Executes processing in response to transmit buffer empty interrupts. [RSPI] Executes processing in response to RSPI idle interrupts. [SCI] Executes processing in response to transmit end interrupts. [RSPI] Executes processing in response to error interrupts. [SCI] Executes processing in response to receive error interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 445 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RSPI0>_Create
This API function executes initialization processing that is required before controlling the clock synchronous SPI mode (RSPI or SCI).
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_RSPI0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 446 of 533
Smart Configurator.
R_<Config_RSPI0>_Start
This API function starts serial communications.
[Syntax]
void
R_<Config_RSPI0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 447 of 533
Smart Configurator.
R_<Config_RSPI0>_Stop
This API function stops serial communications.
[Syntax]
void
R_<Config_RSPI0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 448 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RSPI0>_Send
[RSPI] This API function starts transmission. Remark1. This API function repeats the transmission of single bytes of data from the buffer specified
by the argument tx_buf the number of times specified by the argument tx_num. Remark2. Calling R_<Config_RSPI0>_Start is required before this API function is called to execute
transmission.
[Syntax]
MD_STATUS
R_<Config_RSPI0>_Send ( uint32_t * const tx_buf, uint16_t tx_num );
[Argument(s)]
I/O
Argument
I uint32_t * const tx_buf;
I uint16_t tx_num;
Description Pointer to the buffer where the data to be transmitted are stored Number of bytes to be transmitted
[Return value]
Macro
MD_OK MD_ARGERROR
Description Normal end The specification of argument tx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 449 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RSPI0>_Send_Receive
[RSPI] This API function starts transmission and reception. Remark1. To transmit data, this API function repeats the transmission of single bytes of data from the
buffer specified by the argument tx_buf the number of times specified by the argument tx_num. Remark2. To receive data, this API function repeats the reception of single bytes of data the number of times specified by the argument tx_num, storing the data in the buffer specified by the argument rx_buf. Remark3. Calling R_<Config_RSPI0>_Start is required before this API function is called to execute transmission and reception.
[Syntax]
MD_STATUS R_<Config_RSPI0>_Send_Receive ( uint32_t * const tx_buf, uint16_t tx_num, uint32_t * const rx_buf );
[Argument(s)]
I/O
Argument
I uint32_t * const tx_buf;
I uint16_t tx_num; O uint32_t * const rx_buf;
Description Pointer to the buffer where the data to be transmitted are stored Number of bytes to be transmitted and received Pointer to the buffer where the received data are to be stored
[Return value]
Macro
MD_OK MD_ARGERROR
Description Normal end The specification of argument tx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 450 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RSPI0>_SPI_Master_Send
[SCI] This API function starts master transmission. (Simple SPI mode) Remark1. his API function repeats the master transmission of single bytes of data from the buffer
specified by the argument tx_buf the number of times specified by the argument tx_num. Remark2. Calling R_<Config_RSPI0>_Start is required before this API function is called to execute
master transmission.
[Syntax]
MD_STATUS
R_<Config_RSPI0>_SPI_Master_Send (uint8_t * const tx_buf, uint16_t tx_num );
[Argument(s)]
I/O
Argument
I uint8_t * const tx_buf;
I uint16_t tx_num;
Description Pointer to the buffer where the data to be transmitted are stored Number of bytes to be transmitted
[Return value]
Macro
MD_OK MD_ARGERROR
Description Normal end The specification of argument tx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 451 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RSPI0>_SPI_Master_Send_Receive
[SCI] This API function starts master transmission and reception. (Simple SPI mode) Remark1. To transmit data as a master, this API function repeats the master transmission of single
bytes of data from the buffer specified by the argument tx_buf the number of times specified by the argument tx_num. Remark2. To receive data as a master, this API function repeats the master reception of single bytes of data the number of times specified by the argument rx_num, storing the data in the buffer specified by the argument rx_buf. Remark3. Calling R_<Config_RSPI0>_Start is required before this API function is called to execute transmission and reception.
[Syntax]
MD_STATUS R_<Config_RSPI0>_SPI_Master_Send_Receive ( uint8_t * const tx_buf, uint16_t tx_num, uint8_t * const rx_buf, uint16_t rx_num );
[Argument(s)]
I/O
Argument
I uint8_t * const tx_buf;
I uint16_t tx_num; O uint8_t * const rx_buf; I uint16_t rx_num;
Description Pointer to the buffer where the data to be transmitted are stored Number of bytes to be transmitted Pointer to the buffer where the received data are to be stored Number of bytes to be received
[Return value]
Macro
MD_OK MD_ARGERROR
Description Normal end The specification of argument tx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 452 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RSPI0>_SPI_Slave_Send
[SCI] This API function starts slave transmission. (Simple SPI mode) Remark1. This API function repeats the slave transmission of single bytes of data from the buffer
specified by the argument tx_buf the number of times specified by the argument tx_num. Remark2. Calling R_<Config_RSPI0>_Start is required before this API function is called to execute
slave transmission.
[Syntax]
MD_STATUS
R_<Config_RSPI0>_SPI_Slave_Send (uint8_t * const tx_buf, uint16_t tx_num );
[Argument(s)]
I/O
Argument
I uint8_t * const tx_buf;
I uint16_t tx_num;
Description Pointer to the buffer where the data to be transmitted are stored Number of bytes to be transmitted
[Return value]
Macro
MD_OK MD_ARGERROR
Description Normal end The specification of argument tx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 453 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RSPI0>_SPI_Slave_Send_Receive
[SCI] This API function starts slave transmission and reception. (Simple SPI mode) Remark1. To transmit data as a slave, this API function repeats the slave transmission of single bytes
of data from the buffer specified by the argument tx_buf the number of times specified by the argument tx_num. Remark2. To receive data as a slave, this API function repeats the slave reception of single bytes of data the number of times specified by the argument rx_num, storing the data in the buffer specified by the argument rx_buf. Remark3. Calling R_<Config_RSPI0>_Start is required before this API function is called to execute transmission and reception.
[Syntax]
MD_STATUS R_<Config_RSPI0>_SPI_Slave_Send_Receive ( uint8_t * const tx_buf, uint16_t tx_num, uint8_t * const rx_buf, uint16_t rx_num );
[Argument(s)]
I/O
Argument
I uint8_t * const tx_buf;
I uint16_t tx_num; O uint8_t * const rx_buf; I uint16_t rx_num;
Description Pointer to the buffer where the data to be transmitted are stored Number of bytes to be transmitted Pointer to the buffer where the received data are to be stored Number of bytes to be received
[Return value]
Macro
MD_OK MD_ARGERROR
Description Normal end The specification of argument tx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 454 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RSPI0>_Create_UserInit
This API function executes user-specific initialization processing for the clock synchronous SPI mode (RSPI or SCI).
Remark This API function is called from R_<Config_RSPI0>_Create as a callback routine.
[Syntax]
void
R_<Config_RSPI0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 455 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RSPI0>_receive_interrupt
This API function executes processing in response to receive buffer full interrupts.
[Syntax]
void
r_<Config_RSPI0>_receive_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 456 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RSPI0>_transmit_interrupt
This API function executes processing in response to transmit buffer empty interrupts.
[Syntax]
void
r_<Config_RSPI0>_transmit_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 457 of 533
Smart Configurator.
r_<Config_RSPI0>_error_interrupt
[RSPI] This API function executes processing in response to error interrupts.
[Syntax]
void
r_<Config_RSPI0>_error_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 458 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RSPI0>_idle_interrupt
[RSPI] This API function executes processing in response to RSPI idle interrupts.
[Syntax]
void
r_<Config_RSPI0>_idle_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 459 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RSPI0>_transmitend_interrupt
[SCI] This API function executes processing in response to transmit end interrupts.
[Syntax]
void
r_<Config_RSPI0>_transmitend_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 460 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RSPI0>_receiveerror_interrupt
[SCI] This API function executes processing in response to receive error interrupts.
[Syntax]
void
r_<Config_RSPI0>_receiveerror_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 461 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RSPI0>_callback_receiveend
This API function executes processing in response to receive buffer full interrupts. Remark This API function is called from r_<Config_RSPI0>_receive_interrupt as a callback routine.
[Syntax]
void
r_<Config_RSPI0>_callback_receiveend ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 462 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RSPI0>_callback_transmitend
This API function executes processing in response to transmit buffer empty interrupts. Remark1. This API function is called from r_<Config_RSPI0>_transmit_interrupt as a callback routine.
[RSPI] This API function executes processing in response to RSPI idle interrupts. Remark2. This API function is called from r_<Config_RSPI0>_idle_interrupt as a callback routine.
[SCI] This API function executes processing in response to transmit end interrupts.
Remark3. his API function is called from r_<Config_RSPI0>_transmitend_interrupt as a callback routine.
[Syntax]
void
r_<Config_RSPI0>_callback_transmitend ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 463 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RSPI0>_callback_error
[RSPI] This API function executes processing in response to error interrupts. Remark1. This API function is called from r_<Config_RSPI0>_error_interrupt as a callback routine.
[SCI] This API function executes processing in response to receive error interrupts.
Remark2. This API function is called from r_<Config_RSPI0>_receiveerror_interrupt as a callback routine.
[Syntax]
void
r_<Config_RSPI0>_callback_error ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 464 of 533
Smart Configurator.
4. API FUNCTIONS
Usage example
Stopping communications after completing transmission and reception of the same number of bytes:
main.c #include "r_smc_entry.h" extern volatile uint32_t g_rspi0_tx_buf[4]; extern volatile uint32_t g_rspi0_rx_buf[4]; void main(void) {
/* Start the RSPI0 module operation */ R_Config_RSPI0_Start();
/* Send and receive RSPI0 data */ R_Config_RSPI0_Send_Receive((uint32_t *)g_rspi0_tx_buf, 4U, (uint32_t *)g_rspi0_rx_buf);
while (1U) {
nop(); } }
Config_RSPI0_user.c
/* Start user code for global. Do not edit comment generated here */ volatile uint32_t g_rspi0_tx_buf[4]; volatile uint32_t g_rspi0_rx_buf[4]; /* End user code. Do not edit comment generated here */
void R_Config_RSPI0_Create_UserInit(void) {
/* Start user code for user init. Do not edit comment generated here */ g_rspi0_tx_buf[0] = 0x000000FF; g_rspi0_tx_buf[1] = 0x0000FF00; g_rspi0_tx_buf[2] = 0x00FF0000; g_rspi0_tx_buf[3] = 0xFF000000; /* End user code. Do not edit comment generated here */ }
static void r_Config_RSPI0_callback_receiveend(void) {
/* Start user code for r_Config_RSPI0_callback_receiveend. Do not edit comment generated here */
/* Stop the RSPI0 module operation */ R_Config_RSPI0_Stop(); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 465 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.36 SPI Operation Mode
The Code Generator outputs the following API functions for the SPI operation mode.
Table4.37 API Functions: [SPI Operation Mode]
API Function Name R_<Config_RSPI0>_Create
R_<Config_RSPI0>_Start R_<Config_RSPI0>_Stop R_<Config_RSPI0>_Send R_<Config_RSPI0>_Send_Receive R_<Config_RSPI0>_Create_UserInit
r_<Config_RSPI0>_receive_interrupt r_<Config_RSPI0>_transmit_interrupt
r_<Config_RSPI0>_error_interrupt r_<Config_RSPI0>_idle_interrupt r_<Config_RSPI0>_callback_receiveend r_<Config_RSPI0>_callback_transmitend
r_<Config_RSPI0>_callback_error
Function Executes initialization processing that is required before controlling the SPI operation mode. Starts serial communications. Stops serial communications. Starts transmission. Starts transmission and reception. Executes user-specific initialization processing for the SPI operation mode. Executes processing in response to receive buffer full interrupts. Executes processing in response to transmit buffer empty interrupts. Executes processing in response to error interrupts. Executes processing in response to RSPI idle interrupts. Executes processing in response to receive buffer full interrupts. Executes processing in response to transmit buffer empty interrupts or RSPI idle interrupts. Executes processing in response to error interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 466 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RSPI0>_Create
This API function executes initialization processing that is required before controlling the SPI operation mode.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_RSPI0>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 467 of 533
Smart Configurator.
R_<Config_RSPI0>_Start
This API function starts serial communications.
[Syntax]
void
R_<Config_RSPI0>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 468 of 533
Smart Configurator.
R_<Config_RSPI0>_Stop
This API function stops serial communications.
[Syntax]
void
R_<Config_RSPI0>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 469 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RSPI0>_Send
This API function starts transmission. Remark1. This API function repeats the transmission of single bytes of data from the buffer specified
by the argument tx_buf the number of times specified by the argument tx_num. Remark2. Calling R_<Config_RSPI0>_Start is required before this API function is called to execute
transmission.
[Syntax]
MD_STATUS
R_<Config_RSPI0>_Send ( uint32_t * const tx_buf, uint16_t tx_num );
[Argument(s)]
I/O
Argument
I uint32_t * const tx_buf;
I uint16_t tx_num;
Description Pointer to the buffer where the data to be transmitted are stored Number of bytes to be transmitted
[Return value]
Macro
MD_OK MD_ARGERROR
Description Normal end The specification of argument tx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 470 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RSPI0>_Send_Receive
This API function starts transmission and reception. Remark1. To transmit data, this API function repeats the transmission of single bytes of data from the
buffer specified by the argument tx_buf the number of times specified by the argument tx_num. Remark2. To receive data, this API function repeats the reception of single bytes of data the number of times specified by the argument tx_num, storing the data in the buffer specified by the argument rx_buf. Remark3. Calling R_<Config_RSPI0>_Start is required before this API function is called to execute transmission and reception.
[Syntax]
MD_STATUS R_<Config_RSPI0>_Send_Receive ( uint32_t * const tx_buf, uint16_t tx_num, uint32_t * const rx_buf );
[Argument(s)]
I/O
Argument
I uint32_t * const tx_buf;
I uint16_t tx_num; O uint32_t * const rx_buf;
Description Pointer to the buffer where the data to be transmitted are stored Number of bytes to be transmitted and received Pointer to the buffer where the received data are to be stored
[Return value]
Macro
MD_OK MD_ARGERROR
Description Normal end The specification of argument tx_num is invalid.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 471 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_RSPI0>_Create_UserInit
This API function executes user-specific initialization processing for the SPI operation mode. Remark This API function is called from R_<Config_RSPI0>_Create as a callback routine.
[Syntax]
void
R_<Config_RSPI0>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 472 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RSPI0>_receive_interrupt
This API function executes processing in response to receive buffer full interrupts.
[Syntax]
void
r_<Config_RSPI0>_receive_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 473 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RSPI0>_transmit_interrupt
This API function executes processing in response to transmit buffer empty interrupts.
[Syntax]
void
r_<Config_RSPI0>_transmit_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 474 of 533
Smart Configurator.
r_<Config_RSPI0>_error_interrupt
This API function executes processing in response to error interrupts.
[Syntax]
void
r_<Config_RSPI0>_error_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 475 of 533
Smart Configurator.
r_<Config_RSPI0>_idle_interrupt
This API function executes processing in response to RSPI idle interrupts.
[Syntax]
void
r_<Config_RSPI0>_idle_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 476 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RSPI0>_callback_receiveend
This API function executes processing in response to receive buffer full interrupts. Remark This API function is called from r_<Config_RSPI0>_receive_interrupt as a callback routine.
[Syntax]
void
r_<Config_RSPI0>_callback_receiveend ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 477 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RSPI0>_callback_transmitend
This API function executes processing in response to transmit buffer empty interrupts or RSPI idle
interrupts.
Remark
This API function is called from r_<Config_RSPI0>_transmit_interrupt or r_<Config_RSPI0>_idle_interrupt as a callback routine.
[Syntax]
void
r_<Config_RSPI0>_callback_transmitend ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 478 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_RSPI0>_callback_error
This API function executes processing in response to error interrupts. Remark This API function is called from r_<Config_RSPI0>_error_interrupt as a callback routine.
[Syntax]
void
r_<Config_RSPI0>_callback_error ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 479 of 533
Smart Configurator.
4. API FUNCTIONS
Usage example
Stopping communications after completing transmission and reception of the same number of bytes:
main.c #include "r_smc_entry.h" extern volatile uint32_t g_rspi0_tx_buf[4]; extern volatile uint32_t g_rspi0_rx_buf[4]; void main(void) {
/* Start the RSPI0 module operation */ R_Config_RSPI0_Start();
/* Send and receive RSPI0 data */ R_Config_RSPI0_Send_Receive((uint32_t *)g_rspi0_tx_buf, 4U, (uint32_t *)g_rspi0_rx_buf);
while (1U) {
nop(); } }
Config_RSPI0_user.c
/* Start user code for global. Do not edit comment generated here */ volatile uint32_t g_rspi0_tx_buf[4]; volatile uint32_t g_rspi0_rx_buf[4]; /* End user code. Do not edit comment generated here */
void R_Config_RSPI0_Create_UserInit(void) {
/* Start user code for user init. Do not edit comment generated here */ g_rspi0_tx_buf[0] = 0x000000FF; g_rspi0_tx_buf[1] = 0x0000FF00; g_rspi0_tx_buf[2] = 0x00FF0000; g_rspi0_tx_buf[3] = 0xFF000000; /* End user code. Do not edit comment generated here */ }
static void r_Config_RSPI0_callback_receiveend(void) {
/* Start user code for r_Config_RSPI0_callback_receiveend. Do not edit comment generated here */
/* Stop the RSPI0 module operation */ R_Config_RSPI0_Stop(); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 480 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.37 Voltage Detection Circuit
The Code Generator outputs the following API functions for the voltage detection circuit.
Table4.38 API Functions: [Voltage Detection Circuit]
API Function Name R_<Config_LVD1>_Create
R_<Config_LVD1>_Start R_<Config_LVD1>_Stop R_<Config_LVD1>_Create_UserInit
r_<Config_LVD1>_lvdn_interrupt
Function Executes initialization processing that is required before controlling the voltage detection circuit. Starts monitoring of the voltage. Stops monitoring of the voltage. Executes user-specific initialization processing for the voltage detection circuit. Executes processing in response to voltage monitoring interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 481 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_LVD1>_Create
This API function executes initialization processing that is required before controlling the voltage detection circuit.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_LVD1>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 482 of 533
Smart Configurator.
R_<Config_LVD1>_Start
This API function starts monitoring of the voltage.
[Syntax]
void
R_<Config_LVD1>_Start ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 483 of 533
Smart Configurator.
R_<Config_LVD1>_Stop
This API function stops monitoring of the voltage.
[Syntax]
void
R_<Config_LVD1>_Stop ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 484 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_LVD1>_Create_UserInit
This API function executes user-specific initialization processing for the voltage detection circuit. Remark This API function is called from R_<Config_LVD1>_Create as a callback routine.
[Syntax]
void
R_<Config_LVD1>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 485 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_LVD1>_lvdn_interrupt
This API function executes processing in response to voltage monitoring interrupts.
[Syntax]
void Remark
r_<Config_LVD1>_lvdn_interrupt ( void ); n is a circuit number.
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 486 of 533
Smart Configurator.
Usage example
Generating a software reset in response to a voltage monitoring interrupt:
4. API FUNCTIONS
main.c #include "r_smc_entry.h" void main(void) {
/* Start the LVD1 operation */ R_Config_LVD1_Start();
while (1U) {
nop(); } }
Config_LVD1_user.c
void r_Config_LVD1_lvd1_interrupt(void) {
/* Start user code for r_Config_LVD1_lvd1_interrupt. Do not edit comment generated here */ /* Software reset */ SYSTEM.PRCR.WORD = 0xA502; SYSTEM.SWRR = 0xA501; /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 487 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.38 Watchdog Timer
The Code Generator outputs the following API functions for the watchdog timer (WDT or IWDT).
Table4.39 API Functions: [Watchdog Timer] API Function Name
R_<Config_WDT>_Create R_<Config_WDT>_Restart R_<Config_WDT>_Create_UserInit r_<Config_WDT>_wuni_interrupt r_<Config_WDT>_iwuni_interrupt r_<Config_WDT>_nmi_interrupt
Function
Executes initialization processing that is required before controlling the watchdog timer (WDT or IWDT). Clears the counter in the watchdog timer, and then restarts counting by the counter. Executes user-specific initialization processing for the watchdog timer (WDT or IWDT). Executes processing in response to maskable interrupts or nonmaskable interrupts (WUNI). Executes processing in response to maskable interrupts or nonmaskable interrupts (IWUNI). Executes processing in response to non-maskable interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 488 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_WDT>_Create
This API function executes initialization processing that is required before controlling the watchdog timer (WDT or IWDT).
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_WDT>_Create ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 489 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_WDT>_Restart
This API function clears the counter in the watchdog timer, and then restarts counting by the counter.
[Syntax]
void
R_<Config_WDT>_Restart ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 490 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_WDT>_Create_UserInit
This API function executes user-specific initialization processing for the watchdog timer (WDT or IWDT). Remark This API function is called from R_<Config_WDT>_Create as a callback routine.
[Syntax]
void
R_<Config_WDT>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 491 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_WDT>_wuni_interrupt
This API function executes processing in response to maskable interrupts or non-maskable interrupts
(WUNI).
Remark
This API function is called as the interrupt handler for maskable interrupts or non-maskable interrupts due to underflows or refresh errors of the down-counter.
[Syntax]
void
r_<Config_WDT>_wuni_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 492 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_WDT>_iwuni_interrupt
This API function executes processing in response to maskable interrupts or non-maskable interrupts
(IWUNI).
Remark
This API function is called as the interrupt handler for maskable interrupts or non-maskable interrupts due to underflows or refresh errors of the down-counter.
[Syntax]
void
r_<Config_WDT>_iwuni_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 493 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_WDT>_nmi_interrupt
This API function executes processing in response to non-maskable interrupts.
Remark
This API function is called as the interrupt handler for non-maskable interrupts due to underflows or refresh errors of the down-counter.
[Syntax]
void
r_<Config_WDT>_nmi_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 494 of 533
Smart Configurator.
4. API FUNCTIONS
Usage example
Refreshing the counter value on every loop of the main function and issuing a software reset in response to an underflow of the counter:
main.c
#include "r_smc_entry.h" void main(void) {
while (1U) {
/* Restarts WDT module */ R_Config_WDT_Restart(); } }
Config_WDT_user.c
void r_Config_WDT_wuni_interrupt(void) {
/* Start user code for r_Config_WDT_wuni_interrupt. Do not edit comment generated here */ /* Software reset */ SYSTEM.PRCR.WORD = 0xA502; SYSTEM.SWRR = 0xA501; /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 495 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.39 Continuous Scan Mode DSAD
The Code Generator outputs the following API functions for the continuous scan mode DSAD.
Table4.40 API Functions: [Continuous Scan Mode DSAD]
API Function Name R_<Config_DSAD0>_Create
R_<Config_DSAD0>_Start R_<Config_DSAD0>_Stop R_<Config_DSAD0>_Set_SoftwareTrigger R_<Config_DSAD0>_Get_ValueResult R_<Config_DSAD0>_Chm_Set_DisconnectDetection R_<Config_DSAD0>_Create_UserInit
r_<Config_DSAD0>_adin_interrupt r_<Config_DSAD0>_scanendn_interrupt
Function Executes initialization processing that is required before controlling the continuous scan mode DSAD. Starts waiting trigger of A/D conversion. Sops A/D conversion. Starts A/D conversion by software trigger. Gets the result of conversion. Sets disconnect detection assist. Executes user-specific initialization processing for the continuous scan mode DSAD. Executes processing in response to conversion end interrupts. Executes processing in response to scan end interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 496 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DSAD0>_Create
This API function executes initialization processing that is required before controlling the continuous scan mode DSAD.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_DSAD0>_Create ( void );
[Argument(s)]
None
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 497 of 533
Smart Configurator.
R_<Config_DSAD0>_Start
This API function starts waiting trigger of A/D conversion.
[Syntax]
void
R_<Config_DSAD0>_Start ( void );
[Argument(s)]
None
[Return value]
None
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 498 of 533
Smart Configurator.
R_<Config_DSAD0>_Stop
This API function stops A/D conversion.
[Syntax]
void
R_<Config_DSAD0>_Stop ( void );
[Argument(s)]
None
[Return value]
None
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 499 of 533
Smart Configurator.
R_<Config_DSAD0>_Set_SoftwareTrigger
This API function starts A/D conversion by software trigger.
[Syntax]
void R_<Config_DSAD0>_Set_SoftwareTrigger ( void );
[Argument(s)]
None
[Return value]
None
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 500 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DSAD0>_Get_ValueResult
This API function gets the result of conversion.
[Syntax]
void R_<Config_DSAD0>_Get_ValueResult ( uint32_t * const buffer );
[Argument(s)]
I/O
Argument
O uint32_t * const buffer;
Description Pointer to the location where the acquired results of conversion are to be stored
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 501 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DSAD0>_Chm_Set_DisconnectDetection
This API function sets the disconnect detection assist.
[Syntax]
void R_<Config_DSAD0>_Chm_Set_DisconnectDetection ( bool pos, bool neg ); Remark1. m is channel numbers. Remark2. Do not call this API during A/D conversion.
[Argument(s)]
I/O
I bool pos;
Argument
I bool neg;
Description
Enable to disconnect detection assist for positive input signal. True : Enable False : Disable Enable to disconnect detection assist for negative input signal. True : Enable False : Disable
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 502 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DSAD0>_Create_UserInit
This API function executes user-specific initialization processing for the continuous scan mode DSAD. Remark This API function is called from R_<Config_DSAD0>_Create as a callback routine.
[Syntax]
void
R_<Config_DSAD0>_Create_UserInit ( void );
[Argument(s)]
None
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 503 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_DSAD0>_adin_interrupt
This API function executes processing in response to conversion end interrupts.
[Syntax]
void Remark
r_<Config_DSAD0>_adin_interrupt ( void ); n is unit numbers.
[Argument(s)]
None
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 504 of 533
Smart Configurator.
r_<Config_DSAD0>_scanendn_interrupt
This API function executes processing in response to scan end interrupts.
[Syntax]
void Remark
r_<Config_DSAD0>_scanendn_interrupt ( void ); n is unit numbers.
[Argument(s)]
None
[Return value]
None
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 505 of 533
Smart Configurator.
Usage example
Getting the result value when scan end interrupt occurs.
4. API FUNCTIONS
main.c #include "r_smc_entry.h" void main(void) {
/* Start the DSAD0 converter */ R_Config_DSAD0_Start();
while (1U) {
nop(); } }
Config_DSAD0_user.c
/* Start user code for global. Do not edit comment generated here */ volatile uint32_t g_dsad0_value; /* End user code. Do not edit comment generated here */
void r_Config_DSAD0_scanend0_interrupt(void) {
/* Start user code for r_Config_DSAD0_scanend0_interrupt. Do not edit comment generated here */
/* Get result from the DSAD0 converter */ R_Config_DSAD0_Get_ValueResult((uint32_t *)&g_dsad0_value); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 506 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.40 Single Scan Mode DSAD
The Code Generator outputs the following API functions for the single scan mode DSAD.
Table4.41 API Functions [Single Scan Mode DSAD]
API Function Name R_<Config_DSAD0>_Create
R_<Config_DSAD0>_Start R_<Config_DSAD0>_Stop R_<Config_DSAD0>_Set_SoftwareTrigger R_<Config_DSAD0>_Get_ValueResult R_<Config_DSAD0>_Chm_Set_DisconnectDetection R_<Config_DSAD0>_Create_UserInit
r_<Config_DSAD0>_adin_interrupt r_<Config_DSAD0>_scanendn_interrupt
Function Executes initialization processing that is required before controlling the single scan mode DSAD. Starts waiting trigger of A/D conversion. Stops A/D conversion. Starts A/D conversion by software trigger. Gets the result of conversion. Sets disconnect detection assist. Executes user-specific initialization processing for the single scan mode DSAD. Executes processing in response to conversion end interrupts. Executes processing in response to scan end interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 507 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DSAD0>_Create
This API function executes initialization processing that is required before controlling the single scan mode DSAD.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_DSAD0>_Create ( void );
[Argument(s)]
None
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 508 of 533
Smart Configurator.
R_<Config_DSAD0>_Start
This API function starts waiting trigger of A/D conversion.
[Syntax]
void
R_<Config_DSAD0>_Start ( void );
[Argument(s)]
None
[Return value]
None
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 509 of 533
Smart Configurator.
R_<Config_DSAD0>_Stop
This API function stops A/D conversion.
[Syntax]
void
R_<Config_DSAD0>_Stop ( void );
[Argument(s)]
None
[Return value]
None
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 510 of 533
Smart Configurator.
R_<Config_DSAD0>_Set_SoftwareTrigger
This API function starts A/D conversion by software trigger.
[Syntax]
void R_<Config_DSAD0>_Set_SoftwareTrigger ( void );
[Argument(s)]
None
[Return value]
None
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 511 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DSAD0>_Get_ValueResult
This API function gets the result of conversion.
[Syntax]
void R_<Config_S12AD0>_Get_ValueResult ( uint32_t * const buffer );
[Argument(s)]
I/O
Argument
O uint32_t * const buffer;
Description Pointer to the location where the acquired results of conversion are to be stored
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 512 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DSAD0>_Chm_Set_DisconnectDetection
This API function sets the disconnect detection assist.
[Syntax]
void R_<Config_DSAD0>_Chm_Set_DisconnectDetection ( bool pos, bool neg ); Remark1. m is channel numbers. Remark2. Do not call this API during A/D conversion.
[Argument(s)]
I/O
I bool pos;
Argument
I bool neg;
Description
Enable to disconnect detection assist for positive input signal. True : Enable False : Disable Enable to disconnect detection assist for negative input signal. True : Enable False : Disable
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 513 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DSAD0>_Create_UserInit
This API function executes user-specific initialization processing for the single scan mode DSAD. Remark This API function is called from R_<Config_DSAD0>_Create as a callback routine.
[Syntax]
void
R_<Config_DSAD0>_Create_UserInit ( void );
[Argument(s)]
None
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 514 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_DSAD0>_adin_interrupt
This API function executes processing in response to conversion end interrupts.
[Syntax]
void Remark
r_<Config_DSAD0>_adin_interrupt ( void ); n is unit numbers.
[Argument(s)]
None
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 515 of 533
Smart Configurator.
r_<Config_DSAD0>_scanendn_interrupt
This API function executes processing in response to scan end interrupts.
[Syntax]
void Remark
r_<Config_DSAD0>_scanendn_interruptB ( void ); n is unit numbers.
[Argument(s)]
None
[Return value]
None
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 516 of 533
Smart Configurator.
Usage example
Getting the result value when scan end interrupt occurs.
4. API FUNCTIONS
main.c #include "r_smc_entry.h" void main(void) {
/* Start the DSAD0 converter */ R_Config_DSAD0_Start();
while (1U) {
nop(); } }
Config_DSAD0_user.c
/* Start user code for global. Do not edit comment generated here */ volatile uint32_t g_dsad0_value; /* End user code. Do not edit comment generated here */
void r_Config_DSAD0_scanend0_interrupt(void) {
/* Start user code for r_Config_DSAD0_scanend0_interrupt. Do not edit comment generated here */
/* Get result from the DSAD0 converter */ R_Config_DSAD0_Get_ValueResult((uint32_t *)&g_dsad0_value); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 517 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.41 Delta-Sigma Modulator Interface
The Code Generator outputs the following API functions for the delta-sigma modulator interface.
Table4.42 API Functions [Delta-Sigma Modulator Interface]
API Function Name R_<Config_DSMIF0>_Create
R_<Config_DSMIF0>_Start R_<Config_DSMIF0>_Stop R_<Config_DSMIF0>_Create_UserInit
r_<Config_DSMIF0>_ocdin_interrupt
r_<Config_DSMIF0>_scdin_interrupt
r_<Config_DSMIF0>_sumein_interrupt
FUnction
Executes initialization processing that is required before controlling the delta-sigma modulator interface. Starts conversion Stops conversion Executes user-specific initialization processing for the delta-sigma modulator interface. Executes processing in response to overcurrent detection interrupts. Executes processing in response to short-circuit detection interrupts. Executes processing in response to current sum error detection interrupts.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 518 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DSMIF0>_Create
This API function executes initialization processing that is required before controlling the delta-sigma modulator interface.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_DSMIF0>_Create ( void );
[Argument(s)]
None
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 519 of 533
Smart Configurator.
R_<Config_DSMIF0>_Start
This API function starts conversion.
[Syntax]
void
R_<Config_DSMIF0>_Start ( void );
[Argument(s)]
None
[Return value]
None
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 520 of 533
Smart Configurator.
R_<Config_DSMIF0>_Stop
This API function stops conversion.
[Syntax]
void
R_<Config_DSMIF0>_Stop ( void );
[Argument(s)]
None
[Return value]
None
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 521 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_DSMIF0>_Create_UserInit
This API function executes user-specific initialization processing for the delta-sigma modulator interface. Remark This API function is called from R_<Config_DSMIF0>_Create as a callback routine.
[Syntax]
void
R_<Config_DSMIF0>_Create_UserInit ( void );
[Argument(s)]
None
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 522 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_DSMIF0>_ocdin_interrupt
This API function executes processing in response to overcurrent detection interrupts.
[Syntax]
void Remark
r_<Config_DSMIF0>_ocdin_interrupt ( void ); n is unit numbers.
[Argument(s)]
None
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 523 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_DSMIF0>_scdin_interrupt
This API function executes processing in response to short-circuit detection interrupts.
[Syntax]
void Remark
r_<Config_DSMIF0>_scdin_interrupt ( void ); n is unit numbers.
[Argument(s)]
None
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 524 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_DSMIF0>_sumein_interrupt
This API function executes processing in response to current sum error detection interrupts.
[Syntax]
void Remark
r_<Config_DSMIF0>_sumein_interrupt ( void ); n is unit numbers.
[Argument(s)]
None
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 525 of 533
Smart Configurator.
Usage example
Stops conversion when over current detection.
4. API FUNCTIONS
main.c #include "r_smc_entry.h" void main(void) {
/* Start the DSMIF0 filltering */ R_Config_DSMIF0_Start();
while (1U) {
nop(); } }
Config_DSMIF_user.c
/* Start user code for global. Do not edit comment generated here */ volatile uint16_t g_s12ad0_ch000_value; /* End user code. Do not edit comment generated here */
void r_Config_DSMIF0_ocdi0_interrupt(void) {
/* Start user code for r_Config_DSMIF0_ocdi0_interrupt. Do not edit comment generated here */
/* Stop the DSMIF0 convert */ R_Config_DSMIF0_Stop(); /* End user code. Do not edit comment generated here */ }
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 526 of 533
Smart Configurator.
4. API FUNCTIONS
4.2.42 Analog Front End
The Code Generator outputs the following API functions for the analog front end.
Table4.43 API Functions [Delta-Sigma Modulator Interface]
API Function Name R_<Config_AFE>_Create
R_<Config_AFE>_Create_UserInit
FUnction
Executes initialization processing that is required before controlling the analog front end. Executes user-specific initialization processing for the analog front end.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 527 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_AFE>_Create
This API function executes initialization processing that is required before controlling the analog front end.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_AFE>_Create ( void );
[Argument(s)]
None
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 528 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_AFE>_Create_UserInit
This API function executes user-specific initialization processing for the analog front end. Remark This API function is called from R_<Config_AFE>_Create as a callback routine.
[Syntax]
void
R_<Config_AFE>_Create_UserInit ( void );
[Argument(s)]
None
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 529 of 533
Smart Configurator.
4.2.43 Motor
The Code Generator outputs the following API functions for the motor.
4. API FUNCTIONS
Table4.44 API Functions [Motor] API Function Name
R_<Config_MTU3_MTU4>_Create
R_<Config_MTU3_MTU4>_StartTimerCount R_<Config_MTU3_MTU4>_StopTimerCount R_<Config_MTU3_MTU4>_StartTimerCtrl R_<Config_MTU3_MTU4>_StopTimerCtrl R_<Config_MTU3_MTU4>_UpdDuty R_<Config_MTU3_MTU4>_StartAD R_<Config_MTU3_MTU4>_StopAD R_<Config_MTU3_MTU4>_AdcGetConvVal R_<Config_MTU3_MTU4>_Create_UserInit
R_<Config_MTU3_MTU4>_CrestInterrupt r_<Config_MTU3_MTU4>_ad_interrupt
FUnction Executes initialization processing for MTU (complementary PWM mode) and S12AD (single scan mode) used for motor. Starts timer count Stops timer count Starts timer pulse output Stops timer pulse output Updates the buffer of duty register Starts A/D converter Stops A/D converter Gets the A/D conversion result Executes user-specific initialization processing for motor configuration. Executes processing in response to crest interrupt Executes processing in response to A/D conversion end interrupt
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 530 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_MTU3_MTU4>_Create
This API function executes initialization for MTU (complementary PWM mode) and S12AD (single scan mode) used for motor.
Remark This API function is called from R_Systeminit before the main() function is executed.
[Syntax]
void
R_<Config_MTU3_MTU4>_Create ( void );
[Argument(s)]
None
[Return value]
None
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 531 of 533
Smart Configurator.
R_<Config_MTU3_MTU4>_StartTimerCount
This API function starts timer count.
[Syntax]
void
R_<Config_MTU3_MTU4>_StartTimerCount ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 532 of 533
Smart Configurator.
R_<Config_MTU3_MTU4>_StopTimerCount
This API function stops timer count.
[Syntax]
void
R_<Config_MTU3_MTU4>_StopTimerCount ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 533 of 533
Smart Configurator.
R_<Config_MTU3_MTU4>_StartTimerCtrl
This API function starts timer pulse output.
[Syntax]
void
R_<Config_MTU3_MTU4>_StartTimerCtrl ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 534 of 533
Smart Configurator.
R_<Config_MTU3_MTU4>_StopTimerCtrl
This API function stops timer pulse output.
[Syntax]
void
R_<Config_MTU3_MTU4>_StopTimerCtrl ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 535 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_MTU3_MTU4>_UpdDuty
This API function updates the buffer of duty register.
[Syntax]
3-Phase Brushless DC Motor
void
R_<Config_MTU3_MTU4>_UpdDuty (uint16_t duty_u, uint16_t duty_v, uint16_t duty_w);
2-Phase Stepping Motor
void
R_<Config_MTU3_MTU4>_UpdDuty (uint16_t duty_a, uint16_t duty_b);
[Argument(s)]
3-Phase Brushless DC Motor
I/O
Argument
O uint16_t duty_u
O uint16_t duty_v
O uint16_t duty_w
Description U phase duty register value V phase duty register value W phase duty register value
2-Phase Stepping Motor
I/O
Argument
O uint16_t duty_a
O uint16_t duty_b
Description A phase duty register value B phase duty register value
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 536 of 533
Smart Configurator.
R_<Config_MTU3_MTU4>_StartAD
This API function starts A/D converter.
[Syntax]
void
R_<Config_MTU3_MTU4>_StartAD ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 537 of 533
Smart Configurator.
R_<Config_MTU3_MTU4>_StopAD
This API function stops A/D converter.
[Syntax]
void
R_<Config_MTU3_MTU4>_StopAD ( void );
[Argument(s)]
None.
[Return value]
None.
4. API FUNCTIONS
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 538 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_MTU3_MTU4>_AdcGetConvVal
This API function gets the A/D conversion result.
[Syntax]
3-Phase Brushless DC Motor
void
R_<Config_MTU3_MTU4>_AdcGetConvVal ( r_mtr_adc_tb *mtr_ad_data );
2-Phase Stepping Motor
void
R_<Config_MTU3_MTU4>_AdcGetConvVal ( r_mtr_adc_ts *mtr_ad_data );
[Argument(s)]
3-Phase Brushless DC Motor
I/O
Argument
O r_mtr_adc_tb *mtr_ad_data
Structure Definition: typedef struct { uint16_t u2_iu_ad; uint16_t u2_iv_ad; uint16_t u2_iw_ad; uint16_t u2_vdc_ad; uint16_t u2_vphase_u_ad; uint16_t u2_vphase_v_ad; uint16_t u2_vphase_w_ad; } r_mtr_adc_tb;
Description Pointer to the location where the read value is to be stored
2-Phase Stepping Motor
I/O
Argument
O r_mtr_adc_ts *mtr_ad_data
Structure Definition: typedef struct { uint16_t u2_ia_ad; uint16_t u2_ib_ad; uint16_t u2_vdc_ad; uint16_t u2_vphase_a_ad; uint16_t u2_vphase_b_ad; } r_mtr_adc_ts;
Description Pointer to the location where the read value is to be stored
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 539 of 533
Smart Configurator.
4. API FUNCTIONS
R_<Config_MTU3_MTU4>_Create_UserInit
This API function executes user-specific initialization processing for motor configuration. Remark This API function is called from R_<Config_MTU3_MTU4>_Create as a callback routine.
[Syntax]
void
R_<Config_MTU3_MTU4>_Create_UserInit ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 540 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_MTU3_MTU4>_CrestInterrupt
This API function executes processing in response to crest interrupt (TGIA3 or TGIA6).
Remark
This API function is called as the interrupt handler for TGRA3/TGRA6 compare match interrupts, which occur when the current counter value (the value of the timer counter (TCNT)) matches a specified value (the value of the timer general register (TGRA3 or TGRA6)).
[Syntax]
void
r_<Config_MTU3_MTU4>_CrestInterrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 541 of 533
Smart Configurator.
4. API FUNCTIONS
r_<Config_MTU3_MTU4>_ad_interrupt
This API function executes processing in response to A/D conversion end interrupt.
Remark
Interrupt of one A/D converter unit that has smallest unit number in S12AD units selected on GUI is enabled.
[Syntax]
void
r_<Config_MTU3_MTU4>_ad_interrupt ( void );
[Argument(s)]
None.
[Return value]
None.
R20UT4360EJ0105 Rev.1.05 Oct. 20, 2020
Page 542 of 533
Revision Record
Rev. 1.00 1.01 1.02
1.03
1.04 1.05 1.05
Date July 01, 2018 July 10, 2018 Nov. 05, 2019
Jan. 20, 2020
Jul. 20, 2020 Oct. 20, 2020 Oct. 20, 2020
Page 19 20 19
480 � 508
11, 12, 18-19
166, 174 253, 263 200 � 232 207 502 513 527 � 529 530 542
Description Summary
First Edition issued Modified remarks Modified section name Added initialization page Added new components - Continuous Scan Mode DSAD - Single Scan Mode DSAD - Delta-Sigma Modulator Interface Added file lists into output files table for components - General PWM Timer (GPT) - Low Power Consumption - Continuous Scan Mode DSAD - Single Scan Mode DSAD - Delta-Sigma Modulator Interface Added API - Software counter clear Added API - Set PGA operating condition setting Modified section structure - Sparated API for RIIC and SCI simple I2C mode Modified remarks Added new API - Set disconnect detection assist setting Added new components - Analog front end Added new components - Motor
Smart Configurator User's Manual: RX API Reference Publication Date: Rev.1.05 Oct. 20, 2020
Published by:
Renesas Electronics Corporation
Smart Configurator
R20UT4360EJ0105
