Intel Quartus Prime Standard Edition: Version 20.1 Software and Device Support Release Notes
File info: application/pdf · 10 pages · 156.38KB

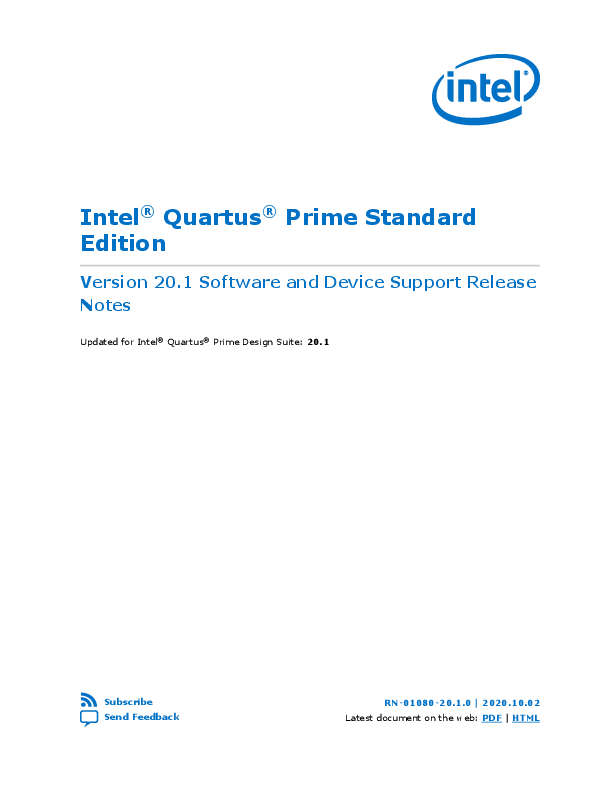

Intel Quartus Prime Standard Edition: Version 20.1 Software and Device Support Release Notes
Updated for Intel Quartus Prime Design Suite: 20.1. Provides late-breaking information about Intel Quartus Prime Standard Edition Version 20.1.
Quartus Prime Standard Edition, Release Notes, 20.1, RN-1080, known issues, new features, software changes
Go Software
Intel.co.jp
Versionshinweise für Intel Quartus Prime Standard Software und Geräteunterstützung (PDF)
Informationen zur Software-Betriebssystem-Supportliste | Intel
Extracted Text
Intel� Quartus� Prime Standard Edition Version 20.1 Software and Device Support Release Notes Updated for Intel� Quartus� Prime Design Suite: 20.1 Subscribe Send Feedback RN-01080-20.1.0 | 2020.10.02 Latest document on the web: PDF | HTML Contents Contents 1. Intel� Quartus� Prime Standard Edition Version 20.1 Software and Device Support Release Notes.............................................................................................. 3 1.1. New Features and Enhancements.............................................................................3 1.2. Changes to Software Behavior.................................................................................3 1.3. Operating System Support...................................................................................... 4 1.4. Memory Recommendations..................................................................................... 4 1.5. Device Support and Pin-Out Status.......................................................................... 6 1.5.1. Changes in Device Support......................................................................... 6 1.6. Timing Model, Power Model, and Device Status.......................................................... 6 1.7. IBIS Models.......................................................................................................... 7 1.8. EDA Interface Information...................................................................................... 7 1.9. Antivirus Verification.............................................................................................. 8 1.10. Software Issues Resolved......................................................................................8 1.11. Software Patches Included in this Release............................................................... 9 1.12. Latest Known Intel Quartus Prime Software Issues................................................. 10 1.13. Document Revision History.................................................................................. 10 Intel Quartus Prime Standard Edition: Version 20.1 Software and Device Support Release Notes 2 Send Feedback RN-01080-20.1.0 | 2020.10.02 Send Feedback 1. Intel� Quartus� Prime Standard Edition Version 20.1 Software and Device Support Release Notes This document provides late-breaking information about Intel� Quartus� Prime Standard Edition Version 20.1. For additional information about this software release, refer to the Intel Quartus Prime Standard Edition README file in the following location:<installation directory>/quartus/readme.txt For information about operating system support, refer to the following web page: Intel FPGA Operating System Support. Related Information Intel Quartus Prime Pro Edition Software and Device Support Release Notes 1.1. New Features and Enhancements Intel Quartus Prime Standard Edition Software Version 20.1 includes functional and security updates. Keep your software up-to-date and follow the technical recommendations that help improve the security of your Intel Quartus Prime installation. 1.2. Changes to Software Behavior This section documents instances in which the behavior and default settings of the Intel Quartus Prime Standard Edition software have been changed from earlier releases of the Intel Quartus Prime Standard Edition software. � Support for the following software has been removed from Intel Quartus Prime Standard Edition: -- DSP Builder for Intel FPGAs -- Intel FPGA SDK for OpenCLTM (*) -- Intel FPGA RTE for OpenCL -- Intel High-Level Synthesis (HLS) Compiler � Mentor Graphics* ModelSim*-Intel FPGA Edition included with Intel Quartus Prime Standard Edition requires licensing daemon version 11.16.4.0 (or later). You can obtain the licensing daemon from the Intel FPGA License Daemon Downloads web page. (*) OpenCL and the OpenCL logo are trademarks of Apple Inc. used by permission of the Khronos GroupTM Intel Corporation. All rights reserved. Agilex, Altera, Arria, Cyclone, Enpirion, Intel, the Intel logo, MAX, Nios, Quartus and Stratix words and logos are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered 1. Intel� Quartus� Prime Standard Edition Version 20.1 Software and Device Support Release Notes RN-01080-20.1.0 | 2020.10.02 Refer to the Intel Quartus Prime Default Settings File (.qdf), <Quartus Prime installation directory>/quartus/bin/assignment_defaults.qdf, for a list of all the default assignment settings for the latest version of the Intel Quartus Prime software. 1.3. Operating System Support Information about operating system support for the Intel Quartus Prime Design Suite is available on the Operating System Support page of the Intel FPGA website. Related Information � Operating System Support � Download Center for FPGAs 1.4. Memory Recommendations A full installation of the Intel Quartus Prime Standard Edition software requires up to 40 GB of available disk space. Intel recommends that your system be configured to provide virtual memory equal to the recommended physical RAM that is required to process your design. Note: Peak virtual memory might exceed these recommendations. These recommendations are based on the amount of physical memory required to achieve runtime within 10% of that achieved on hardware with an infinite amount of RAM. Table 1. Memory Requirements for Processing Designs These requirements are the same for both Windows and Linux installations. Family Intel Arria� 10 10AT115, 10AX115 Device Recommended Physical RAM 48 GB 10AT090, 10AX090 44 GB 10AS066, 10AX066 32 GB 10AS057, 10AX057 30 GB 10AS048, 10AX048 28 GB 10AX032, 10AS032 24 GB 10AX027, 10AS027 22 GB 10AX022, 10AS022 20 GB 10AX016, 10AS016 18 GB Arria V 5AGXB5, 5AGTD7, 5AGXB7, 5ASXB5, 5ASTD5 16 GB 5AGXB1, 5AGXB3, 5AGTD3, 5ASTD3, 5ASXB3 12 GB 5AGXA7, 5AGTC7 10 GB 5AGTC3, 5AGXA3, 5AGXA5 8 GB 5AGXA1 6 GB Arria V GZ 5AGZE7 16 GB continued... Intel Quartus Prime Standard Edition: Version 20.1 Software and Device Support Release Notes 4 Send Feedback 1. Intel� Quartus� Prime Standard Edition Version 20.1 Software and Device Support Release Notes RN-01080-20.1.0 | 2020.10.02 Family Arria II GX Arria II GZ Intel Cyclone� 10 LP Cyclone V Cyclone IV GX Cyclone IV E Intel MAX� 10 MAX V MAX II Stratix� V Device 5AGZE3, 5AGZE5 5AGZE1 EP2AGX260 EP2AGX95, EP2AGX125, EP2AGX190 EP2AGX65 EP2AGX45 EP2AGZ350 EP2AGZ300 EP2AGZ225 10CL120 10CL080, 10CL055 10CL006, 10CL010, 10CL016, 10CL025, 10CL040 5CEA9, 5CGTD9, 5CGXC9 5CEA2, 5CGXC3, 5CEA4, 5CGXC4, 5CEA5, 5CGTD5, 5CGXC5, 5CSEA5, 5CSTD5, 5CSXC5, 5CSEA6, 5CSXC6, 5CEA7, 5CGTD7, 5CGXC7, 5CSEA2, 5CSEA4, 5CSXC2, 5CSXC4, 5CSTD6 EP4CGX110, EP4CGX150 EP4CGX50, EP4CGX75 EP4CGX15, EP4CGX22, EP4CGX30 EP4CE115 EP4CE55, EP4CE75 EP4CE6, EP4CE10, EP4CE15, EP4CE22, EP4CE30, EP4CE40 10M50 10M16 10M25 10M40 10M04, 10M08 10M02 All All 5SEEB, 5SGXAB, 5SGXB9, 5SGXBB 5SGXA9, 5SEE9 5SGTC7, 5SGXA7, 5SGSD8 5SGSD5, 5SGXA5, 5SGXB5, 5SGSD6, 5SGXB6 5SGXA3, 5SGSD4, 5SGXA4, 5SGTC5 5SGSD3 Recommended Physical RAM 12 GB 8 GB 6 GB 4 GB 2 GB 1.5 GB 8 GB 6 GB 4 GB 1.5 GB 1 GB 512 MB 8 GB 6 GB 2 GB 1.5 GB 512 MB 1.5 GB 1 GB 512 MB 2 GB 2 GB 2 GB 2 GB 1 GB 512 MB 512 MB 512 MB 28 GB 24 GB 20 GB 16 GB 12 GB 8 GB continued... Send Feedback Intel Quartus Prime Standard Edition: Version 20.1 Software and Device Support Release Notes 5 1. Intel� Quartus� Prime Standard Edition Version 20.1 Software and Device Support Release Notes RN-01080-20.1.0 | 2020.10.02 Family Stratix IV Device EP4SGX530, EP4SE530, EP4SE820, EP4S40G5, EP4S100G5 EP4SE360 EP4SGX360, EP4S100G3, EP4S100G4 EP4SGX290 EP4SE230 EP4SGX110, EP4SGX230, EP4S40G2, EP4S100G2 EP4SGX70 Recommended Physical RAM 12 GB 8 GB 6 GB 4 GB 2 GB 1.5. Device Support and Pin-Out Status All production devices currently have full compilation, simulation, timing analysis, and programming support. 1.5.1. Changes in Device Support For Cyclone V devices, an updated IBIS model package is available online at the following web page: IBIS Models for Intel Devices. This updated IBIS model adds an S-parameter file. You must have the S-parameter file to perform IBIS simulation for Active Serial interfaces when you use a Cyclone V QS device. For information about known device issues and workarounds, refer to the following web page: Intel FPGA Knowledge Base. 1.6. Timing Model, Power Model, and Device Status Table 2. Timing Model, Power Model, and Device Status Device Family Device Intel Arria 10 Intel Cyclone 10 LP Intel MAX 10 10AX016, 10AS016, 10AX022, 10AS022, 10AX027, 10AS027, 10AX032, 10AS032 10AX048, 10AS048 10AX057, 10AS057, 10AX066, 10AS066, 10AT090, 10AX090 10AX115, 10AT115 10CL006, 10CL010, 10CL016, 10CL025, 10CL040, 10CL055, 10CL080, 10CL120 10M02, 10M04, 10M08 10M16, 10M25, 10M40, 10M50 Timing Model Status Final � 16.1 (1) (2) Power Model Status Final � 17.0 Final � 16.0.2 (2) Final � 16.0.1 (2) Final � 16.0.1 Final � 16.0 (2) Final � 17.0 Final � 16.0 Final � 17.1 Final � 15.1(3) Final � 15.1.2 Final � 15.1 Final � 15.1 Device Status Final � 17.0 Final � 16.0.1 Final � 16.0 Final � 17.1 Final � 15.1 Final � 15.1 (1) Devices with a -1 speed grade were finalized in Intel Quartus Prime software version 17.0 (2) All military grade devices were finalized in Intel Quartus Prime software version 18.0.1. (3) Timing model statuses for MAX 10 A6 speed grade parts remain as Preliminary. Intel Quartus Prime Standard Edition: Version 20.1 Software and Device Support Release Notes 6 Send Feedback 1. Intel� Quartus� Prime Standard Edition Version 20.1 Software and Device Support Release Notes RN-01080-20.1.0 | 2020.10.02 The current version of the Intel Quartus Prime software also includes final timing and power models for the Arria II GX, Arria II GZ, Arria V, Arria V GZ, Arria V SoC, Cyclone IV E, Cyclone IV GX, Cyclone V, Cyclone V SoC, MAX II, MAX II Z, MAX V, Stratix IV, and Stratix V device families. Timing models for these device families became final in the Intel Quartus Prime software versions 11.1 or earlier. 1.7. IBIS Models Table 3. IBIS Model Status for the Intel Quartus Prime Standard Edition Software Release Version 20.1 Beginning in the Intel Quartus Prime Standard Edition software version 16.0, device families have IBIS model statuses that are either Advance, Preliminary, or Final. Device Family IBIS Model Status Intel Arria 10 Final � 16.1.2 Arria V Correlated with PHY device operation � 14.0 Arria II GX Correlated with PHY device operation � 11.1 Arria II GZ Correlated with PHY device operation � 11.1 Intel Cyclone 10 LP Final � 17.0 Cyclone V Correlated with PHY device operation � 14.0 Cyclone IV E Correlated with PHY device operation � 11.1 Cyclone IV GX Correlated with PHY device operation � 11.1 Intel MAX 10 Final � 16.0 MAX V Correlated with PHY device operation � 11.1 Stratix V Correlated with PHY device operation � 13.0 SP1 Stratix IV Correlated with PHY device operation � 11.1 Updated IBIS models are available online at the following web page: IBIS Models for Intel Devices. This page is updated as IBIS models for devices become available or are updated. 1.8. EDA Interface Information Table 4. Synthesis Tools Supporting the Intel Quartus Prime Standard Edition Software Release Version 20.1 Synthesis Tools Mentor Graphics* Precision* Synopsys* Synplify*, Synplify Pro*, and Synplify Premier Version Mentor Graphics* Precision versions that support the Intel Quartus Prime software are typically released after the release of the Intel Quartus Prime software. Contact Mentor Graphics for versions of Mentor Graphics Precision that support Intel Quartus Prime Standard Edition Software Release Version 20.1. Synopsys Synplify, Synplify Pro, and Synplify Premier versions that support the Intel Quartus Prime software are typically released after the release of the Intel Quartus Prime software. Contact Synopsys for versions of Synopsys Synplify, Synplify Pro, and Synplify Premier that support Intel Quartus Prime Standard Edition Software Release Version 20.1. Send Feedback Intel Quartus Prime Standard Edition: Version 20.1 Software and Device Support Release Notes 7 1. Intel� Quartus� Prime Standard Edition Version 20.1 Software and Device Support Release Notes RN-01080-20.1.0 | 2020.10.02 Table 5. Simulation Tools Supporting the Intel Quartus Prime Standard Edition Software Release Version 20.1 The following simulation tools provide RTL and functional gate-level simulation. Simulation Tools Version NativeLink Support Aldec* Riviera-PRO* 10.3 (32-bit Windows only) Yes Cadence* Incisive* Enterprise Simulator (IES) 2015.10 (64-bit only) Yes Cadence Xcelium* Parallel Logic Simulation 14.20 (64-bit Linux only) Yes Mentor Graphics ModelSim PE 10.4d (32-bit Windows only) Yes Mentor Graphics ModelSim SE 10.4d (64-bit only) Yes Mentor Graphics ModelSim-Intel FPGA Edition* 2020.1 (32-bit only) Yes Mentor Graphics Questa* Advanced Simulator 10.4d (64-bit only) Yes Synopsys VCS* and VCS MX 2014.12-SP1 (64-bit Linux only) Yes *Mentor Graphics* ModelSim-Intel FPGA Edition requires licensing daemon version 11.16.4.0 (or later). You can obtain the licensing daemon from the Intel FPGA License Daemon Downloads web page. Operating System Support for Mentor Graphics ModelSim-Intel FPGA Edition version 2020.1 (requires 32-bit libraries) � Windows* 10 (64-bit) � Red Hat* Enterprise Linux*6 (64-bit) � Red Hat Enterprise Linux 7 (64-bit) � Red Hat Enterprise Linux 11 (64-bit) � Red Hat Enterprise Linux 12 (64-bit) 1.9. Antivirus Verification The Intel Quartus Prime software release version 20.1 has been verified virus free with the following software: Antivirus Verification Software McAfee VirusScan Command Line for Linux64 Version: 6.1.3.242 AV Engine version: 6010.8670 for Linux64. Dat set version: 9562 created Mar 16 2020 1.10. Software Issues Resolved The following customer service requests were fixed or otherwise resolved in Intel Quartus Prime Standard Edition Version 20.1: Table 6. Issues Resolved in the Intel Quartus Prime Standard Edition Version 20.1 00436358 00469666 Customer Service Request Numbers 00476701 00477646 00485378 04069306 04447787 11319086 Intel Quartus Prime Standard Edition: Version 20.1 Software and Device Support Release Notes 8 Send Feedback 1. Intel� Quartus� Prime Standard Edition Version 20.1 Software and Device Support Release Notes RN-01080-20.1.0 | 2020.10.02 1.11. Software Patches Included in this Release Intel Quartus Prime Standard Edition Version 20.1 contains the following patches for previous versions of Intel Quartus Prime Standard Edition software: Table 7. Software Patches included in Intel Quartus Prime Standard Edition Version 20.1 Software Version Intel Quartus Prime Version 19.1 Intel Quartus Prime Version 19.1 Intel Quartus Prime Version 19.1 Intel Quartus Prime Version 19.1 Intel Quartus Prime Version 19.1 Intel Quartus Prime Version 19.1 Intel Quartus Prime Version 18.1.1 Intel Quartus Prime Version 18.1.1 Intel Quartus Prime Version 18.1 Intel Quartus Prime Version 18.1 Intel Quartus Prime Version 18.1 Intel Quartus Prime Version 18.1 Intel Quartus Prime Version 18.1 Intel Quartus Prime Version 18.0.1 Intel Quartus Prime Version 18.0 Intel Quartus Prime Version 18.0 Intel Quartus Prime Version 18.0 Intel Quartus Prime Version 18.0 Intel Quartus Prime Version 18.0 Intel Quartus Prime Version 17.1.2 Intel Quartus Prime Version 17.1.1 Intel Quartus Prime Version 17.1.1 Intel Quartus Prime Version 17.1 Intel Quartus Prime Version 17.1 Intel Quartus Prime Version 17.0.2 Intel Quartus Prime Version 17.0.2 Intel Quartus Prime Version 17.0.2 Intel Quartus Prime Version 17.0.2 Intel Quartus Prime Version 17.0 Patch 0.06std 0.05std 0.03std 0.02std 0.01std 0.37 1.23 1.04std 0.13std 0.07std 0.06std 0.41 0.27 1.59 0.15std 0.13std 0.12std 0.34 0.33 2.22 1.42 1.20std 0.19std 0.15std 2.15std 2.14std 2.13std 2.08 0.19 Customer Service Request Number 00498574 00493198 � � 00467083 00436358 00433102 00459576 00433102 1506800484 00398067 � 1506800484 00433102 � 00433102 1506800484 00433102 1506800484 00433102 00433102 00433102 00433102 00386048 � 00433102 � 00433102 � Send Feedback Intel Quartus Prime Standard Edition: Version 20.1 Software and Device Support Release Notes 9 1. Intel� Quartus� Prime Standard Edition Version 20.1 Software and Device Support Release Notes RN-01080-20.1.0 | 2020.10.02 1.12. Latest Known Intel Quartus Prime Software Issues Information about known issues that affect Intel Quartus Prime Standard Edition Version 20.1 is available in the Intel Programmable Solutions Knowledge Base. You can find known issue information for previous versions of the Quartus Prime software on the Intel FPGA Knowledge Base web page. Information about known software issues that affect previous versions of the Quartus II software is available on the Intel Quartus Prime and Quartus II Software Support web page. Information about issues affecting the Intel FPGA IP Library is available in the release notes for each IP. You can find the IP release notes on the Intel FPGAs and Programmable Devices Release Notes web page. Related Information � Intel FPGA Knowledge Base � Intel Quartus Prime and Quartus II Software Support � Intel FPGAs and Programmable Devices Release Notes 1.13. Document Revision History Table 8. The Intel Quartus Prime Standard Edition Software Release Version 20.1 Document Revision History Document Version 2020.10.02 2020.07.14 2020.06.15 Intel Quartus Prime Version 20.1 20.1 20.1 Changes � Revise Operating System Support on page 4 to remove references to Intel Quartus Prime Pro Edition. � Changed a link in Latest Known Intel Quartus Prime Software Issues on page 10 to IP release notes. The previous link pointed to an obsolete document that then pointed you to the correct location. The changed link takes you directly to the correct location. � Initial release. Intel Quartus Prime Standard Edition: Version 20.1 Software and Device Support Release Notes 10 Send Feedback
