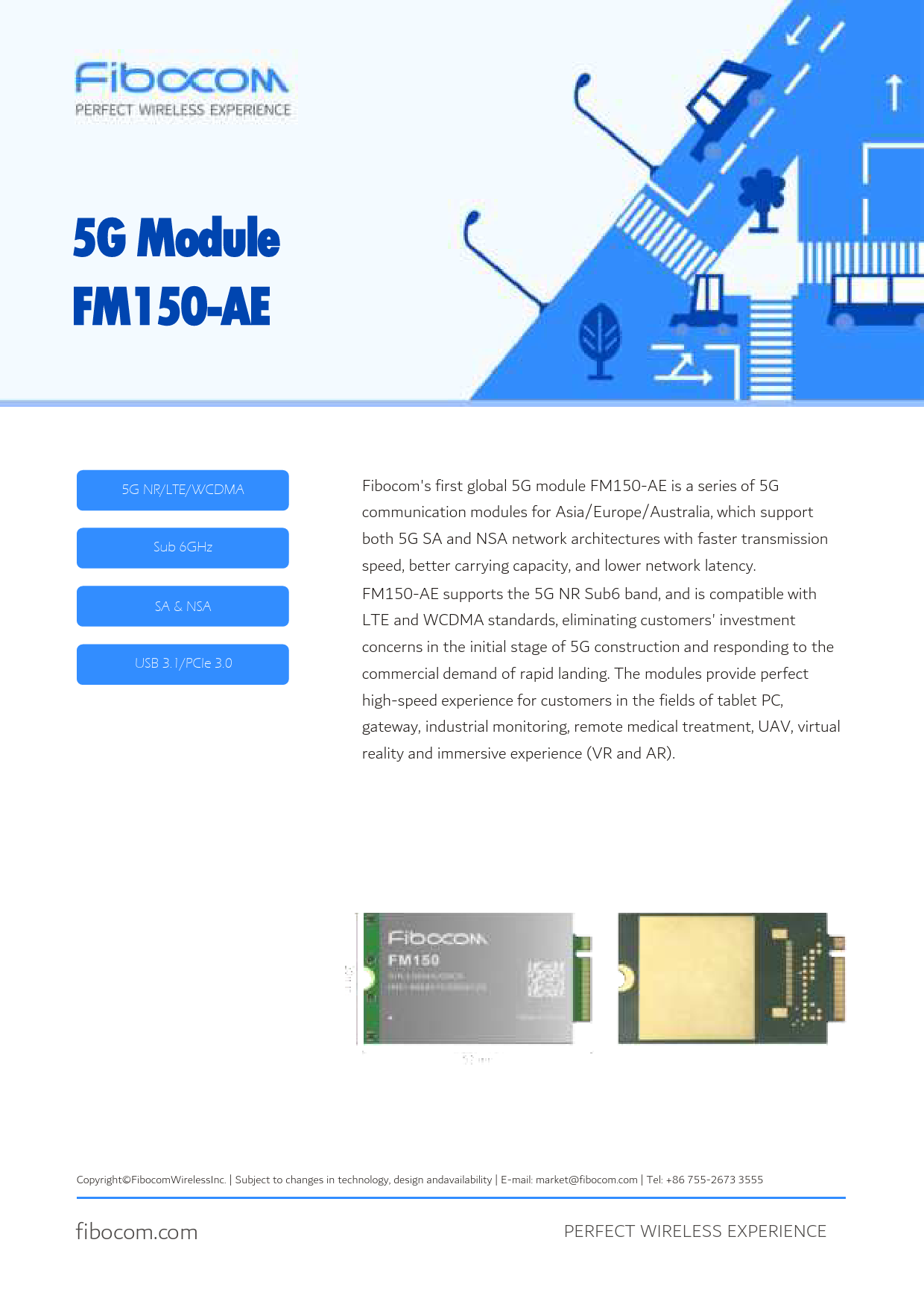

Overview
The Fibocom FM150-AE is a global 5G communication module series designed for Asia, Europe, and Australia. It supports both 5G Standalone (SA) and Non-Standalone (NSA) network architectures, offering faster transmission speeds, enhanced carrying capacity, and reduced network latency.
The FM150-AE supports the 5G NR Sub-6GHz band and is backward compatible with LTE and WCDMA standards. This compatibility addresses customer investment concerns during the initial stages of 5G deployment and meets the commercial demand for rapid integration.
These modules provide a high-speed experience for applications including tablet PCs, gateways, industrial monitoring systems, remote medical treatment devices, Unmanned Aerial Vehicles (UAVs), and immersive experiences like Virtual Reality (VR) and Augmented Reality (AR).
Module Description:
- Fibocom FM150 module with dimensions indicated: 52mm length and 30mm width.
- Fibocom FM150 module, a compact electronic component.
Product Features
- Chipset: SDX55
- Support for SA/NSA network architectures
- Support for LTE/WCDMA
Interface
- GPIO
- I2S ×1
- UIM ×2
- USB 3.1/3.0 ×1
- USB 2.0 ×1
- PCIe 3.0 ×1
Basic Parameters
- Form Factor: M.2; 30 x 52 x 2.3mm
- Weight: ~8.2g
- Operating Voltage: 3.135V~4.4V, Typical 3.8V
- Operating Temperature: -30°C to +75°C
- Extended Temperature: -40°C to +85°C
- AT Command Set: 3GPP TS 27.007 and 27.005, proprietary FIBOCOM AT commands
- Antenna: 4 Antennas
- GNSS: GPS/GLONASS/BeiDou/Galileo/QZSS
- Support: FOAT/DFOTA/VoLTE/Audio/eSIM (optional)
Technical Specifications
| Model | Region | 5G Sub-6 | LTE FDD | LTE TDD | WCDMA | MIMO: 5G NR DL | MIMO: 5G NR UL | MIMO: LTE DL | MIMO: LTE UL | NR SA | NR ENDC | LTE | WCDMA | OS Drivers | Regulation | Operator | Industry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FM150-AE-0X | China | n1/28/41/77/78/79 | B1/2/3/5/7/8 | B34/39/40/41 | B1/2/5/8 | 4*4MIMO: n1/41/77/78/79 | 2*2MIMO: n41/77/78/79 | 4*4MIMO: B1/41 | 1*1MIMO | 2.1Gbps(DL) / 900Mbps(UL) | 2.5Gbps(DL) / 525Mbps | 600Mbps(DL) / 90.4Mbps(UL) | 42Mbps(DL) / 5.76Mbps(UL) | Linux / Android / Windows | CCC/SRRC/NAL/RoHs | CMCC/CTCC/CUCC | GCF*/HF* |
| FM150-AE-1X | Asia/Europe/Australia (not include China) | n1/3/5/8/20/28/38/41/77/78/79 | B1/3/5/7/8/19/20/28 | B38/40/41/42/43 | B1/3/5/8/19 | 4*4MIMO: n1/41/77/78/79 | 2*2MIMO: n41/77/78/79 | 4*4MIMO: B1/41/42/43 | 1*1MIMO | 2.1Gbps(DL) / 900Mbps(UL) | 2.5Gbps(DL) / 600Mbps(UL) | 1Gbps(DL) / 150Mbps(UL) | 42Mbps(DL) / 5.76Mbps(UL) | Linux / Android / Windows | CE*/RCM*/NCC*/KC* | Optus*/Telstra*/Carriers(TBD) | GCF*/HF* |
[Note]: * = In progress / Planning
