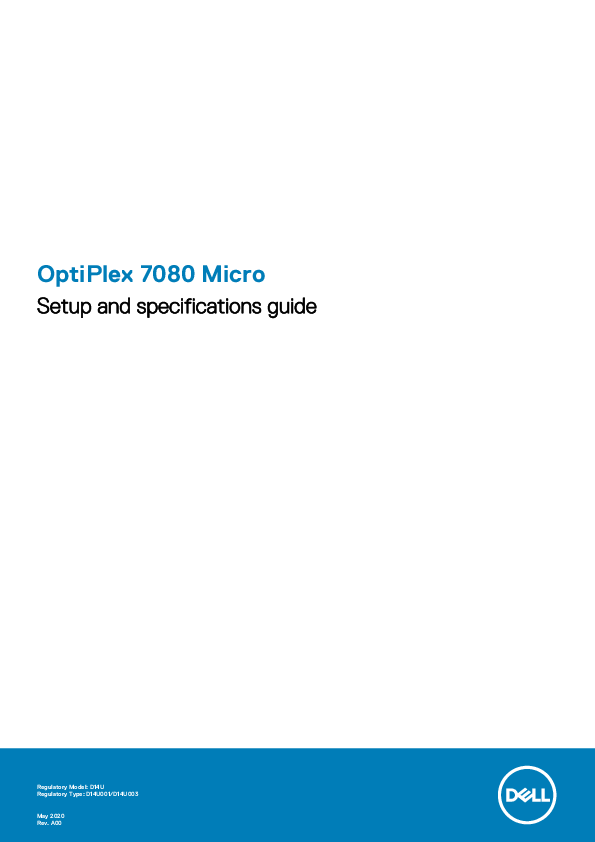

OptiPlex 7080 Micro
Setup and specifications guide
Regulatory Model: D14U Regulatory Type: D14U001/D14U003 May 2020 Rev. A00
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
� 2020 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
Contents
1 Set up your computer................................................................................................................... 5
2 Chassis overview........................................................................................................................ 10 Front view............................................................................................................................................................................. 10 Back view............................................................................................................................................................................... 11 System board Layout...........................................................................................................................................................13
3 Technical specifications.............................................................................................................. 14 Dimensions and weight........................................................................................................................................................14 Chipset...................................................................................................................................................................................14 Processors............................................................................................................................................................................ 15 Operating system................................................................................................................................................................. 16 Memory..................................................................................................................................................................................17 Intel Optane memory (optional)......................................................................................................................................... 17 Ports and connectors.......................................................................................................................................................... 18 Communications................................................................................................................................................................... 19 Graphics and Video controller............................................................................................................................................20 Audio and Speaker...............................................................................................................................................................20 Storage................................................................................................................................................................................. 20 Power adapter...................................................................................................................................................................... 21 Add-in cards..........................................................................................................................................................................21 Data security........................................................................................................................................................................ 22 Environmental...................................................................................................................................................................... 22 Energy Star and Trusted Platform Module (TPM)......................................................................................................... 22 Computer environment.......................................................................................................................................................23 Service and support............................................................................................................................................................ 23
4 Software................................................................................................................................... 25 Downloading Windows drivers...........................................................................................................................................25
5 System setup.............................................................................................................................26 Boot menu............................................................................................................................................................................ 26 Navigation keys....................................................................................................................................................................26 Boot Sequence.....................................................................................................................................................................27 System setup options..........................................................................................................................................................27 General options.............................................................................................................................................................. 27 System information....................................................................................................................................................... 28 Video screen options.....................................................................................................................................................29 Security........................................................................................................................................................................... 29 Secure boot options...................................................................................................................................................... 30 Intel Software Guard Extensions options....................................................................................................................31 Performance................................................................................................................................................................... 31 Power management...................................................................................................................................................... 32 Post behavior................................................................................................................................................................. 33
Contents
3
Manageability................................................................................................................................................................. 33 Virtualization support.................................................................................................................................................... 34 Wireless options............................................................................................................................................................. 34 Maintenance...................................................................................................................................................................34 System logs.................................................................................................................................................................... 35 Advanced configuration................................................................................................................................................35 SupportAssist System Resolution............................................................................................................................... 35 Updating the BIOS in Windows ........................................................................................................................................ 35 Updating BIOS on systems with BitLocker enabled..................................................................................................36 Updating your system BIOS using a USB flash drive................................................................................................36 System and setup password.............................................................................................................................................. 37 Assigning a system setup password............................................................................................................................37 Deleting or changing an existing system setup password........................................................................................38
6 Getting help...............................................................................................................................39 Contacting Dell.................................................................................................................................................................... 39
4
Contents
Steps 1. Connect the keyboard and mouse.
1
Set up your computer
2. Connect to your network using a cable, or connect to a wireless network.
Set up your computer
5
3. Connect the display.
4. Connect the power cable.
6
Set up your computer
5. Press the power button.
Set up your computer
7
6. Finish Windows system setup.
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
� Connect to a network for Windows updates. NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
� If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an offline account. � On the Support and Protection screen, enter your contact details.
7. Locate and use Dell apps from the Windows Start menu--Recommended.
Table 1. Locate Dell apps
Dell apps
Details
Dell Product Registration Register your computer with Dell.
Dell Help & Support Access help and support for your computer.
8
Set up your computer
SupportAssist
Proactively checks the health of your computer's hardware and software.
Table 1. Locate Dell apps(continued) Dell apps
Details NOTE: Renew or upgrade your warranty by clicking the warranty expiry date in SupportAssist.
Dell Update Updates your computer with critical fixes and important device drivers as they become available.
Dell Digital Delivery Download software applications including software that is purchased but not preinstalled on your computer.
Set up your computer
9
Topics:
� Front view � Back view � System board Layout
Front view
2
Chassis overview
1. Power button with diagnostic LED 2. Hard-disk drive activity light 3. Universal audio jack port 4. Line-out port (retaskable Line-in) 5. USB 3.2 Gen 2 Type-C port 6. USB 3.2 Gen 2 Type-A port with PowerShare
10
Chassis overview
Back view
1. External antenna connector 2. Serial/Video Port (Serial/PS2/DP 1.4/HDMI 2.0/VGA/USB 3.2 Gen 2 Type-C with DP Alt Mode) (optional) 3. USB 3.2 Gen 1 Type-A port with Smart Power on 4. USB 3.2 Gen 1 Type-A port 5. Cable holder 6. Padlock ring 7. Power connector port 8. DisplayPort 1.4 (2) 9. Kensington security-cable slot 10. USB 3.2 Gen 2 Type-A ports (2) 11. RJ-45 port 10/100/1000 Mbps 12. External antenna connector port
Chassis overview
11
1. External antenna connectors 2. Mini DisplayPort (2) (With Radeon RX 640) 3. DisplayPort 1.4 (With Radeon RX 640) 4. Cable holder 5. Thumbscrew 6. Padlock ring 7. Power connector port 8. DisplayPort 1.4 (2) 9. Kensington security-cable slot 10. USB 3.2 Gen 2 Type-A ports (2) 11. USB 3.2 Gen 1 Type-A port with Smart Power on 12. RJ-45 port 10/100/1000 Mbps
12
Chassis overview
System board Layout
1. M.2 WLAN connector 2. SATA FFC connector 3. M.2 SSD PCIe connector 4. Coin-cell battery 5. Optional video connector (VGA Port/DisplayPort 1.4 Port/HDMI 2.0b Port/USB 3.2Gen 2 Type-C Port with Alt-mode) 6. Optional connector (USB 3.2Gen 2 Type-C Port) 7. Keyboard and mouse serial port connector 8. Processor socket 9. CPU Fan connector 10. Internal speaker connector 11. Memory slots 12. Intrusion switch 13. M.2 SSD connector
Chassis overview
13
3
Technical specifications
Dimensions and weight
Table 2. Dimensions and weight Description Height:
Front Rear Width Depth Weight (maximum)
Values
182.00 mm (7.16 in.) 182.00 mm (7.16 in.) 36.00 mm (1.42 in.) 178.56 mm (7.03 in.) 1.38 kg (3.04 lb)
NOTE: The weight of your computer depends on the configuration ordered and the manufacturing variability.
Chipset
Table 3. Chipset Description Chipset Processor DRAM bus width Flash EPROM PCIe bus Non-volatile memory BIOS Configuration Serial Peripheral Interface (SPI) Trusted Platform Module (Discrete TPM Enabled) Firmware TPM (Discrete TPM Disabled)
NIC EEPROM
Values Intel Q470 10th Generation Intel Core i3/i5/i7/i9
64-bit (for single channel)
32 MB
Up to Gen 3.0 Yes 256 Mbit (32 MB) located at SPI_FLASH on chipset 24 KB located at TPM 2.0 on chipset By default the Platform Trust Technology feature is visible to the OS LOM configuration contained within SPI flash ROM instead of LOM e-fuse
14
Technical specifications
Processors
NOTE: Global Standard Products (GSP) are a subset of Dell's relationship products that are managed for availability and synchronized transitions on a worldwide basis. They ensure the same platform is available for purchase globally. This allows customers to reduce the number of configurations managed on a worldwide basis, thereby reducing their costs. They also enable companies to implement global IT standards by locking in specific product configurations worldwide.
Device Guard (DG) and Credential Guard (CG) are the new security features that are only available on Windows 10 Enterprise today.
Device Guard is a combination of enterprise-related hardware and software security features that, when configured together, will lock a device down so that it can only run trusted applications. If it is not a trusted application, it cannot run.
Credential Guard uses virtualization-based security to isolate secrets (credentials) so that only privileged system software can access them. Unauthorized access to these secrets can lead to credential theft attacks. Credential Guard prevents these attacks by protecting NTLM password hashes and Kerberos Ticket Granting Tickets.
NOTE: Processor numbers are not a measure of performance. Processor availability is subject to change and may vary by region/country.
Table 4. Processors
Processors Wattage Core count
10th
35 W
4
Generation
Intel Core
i3-10100T
Thre Speed ad coun t
Cache
8
3.0 GHz to 3.8 6 MB
GHz
Integrated graphics GSP Intel UHD Graphics 630 No
DG/CG Ready
Yes
10th
35 W
4
8
3.0 GHz to 3.9 8 MB
Intel UHD Graphics 630 No
Yes
Generation
GHz
Intel Core
i3-10300T
10th
35 W
6
12 2.0 GHz to 3.6 12 MB
Intel UHD Graphics 630 No
Yes
Generation
GHz
Intel Core
i5-10400T
10th
35 W
6
12 2.3 GHz to 3.8 12 MB
Intel UHD Graphics 630 Yes
Yes
Generation
GHz
Intel Core
i5-10500T
10th
35 W
6
12 2.4 GHz to 4.0 12 MB
Intel UHD Graphics 630 Yes
Yes
Generation
GHz
Intel Core
i5-10600T
10th
35 W
8
16 2.0 GHz to 4.5 16 MB
Intel UHD Graphics 630 Yes
Yes
Generation
GHz
Intel Core
i7-10700T
10th
35 W
10
20 1.9 GHz to 4.6 20 MB
Intel UHD Graphics 630 Yes
Yes
Generation
GHz
Intel Core
i9-10900T
10th
65 W
4
8
3.6 GHz to 4.3 6 MB
Intel UHD Graphics 630 No
Yes
Generation
GHz
Technical specifications
15
Table 4. Processors(continued)
Processors
Wattage Core count
Thre Speed ad coun t
Intel Core i3-10100
Cache
10th
65 W
4
Generation
Intel Core
i3-10300
8
3.7 GHz to 4.4 8 MB
GHz
10th
65 W
6
Generation
Intel Core
i5-10400
12 2.9 GHz to 4.3 12 MB GHz
10th
65 W
6
Generation
Intel Core
i5-10500
12 3.1 GHz to 4.5 12 MB GHz
10th
65 W
6
Generation
Intel Core
i5-10600
12 3.3 GHz to 4.8 12 MB GHz
10th
65 W
8
Generation
Intel Core
i7-10700
16 2.9 GHz to 4.7 16 MB GHz
10th
65 W
10
Generation
Intel Core
i9-10900
20 2.8 GHz to 5.2 20 MB GHz
Integrated graphics GSP
Intel UHD Graphics 630 No Intel UHD Graphics 630 No Intel UHD Graphics 630 Yes Intel UHD Graphics 630 Yes Intel UHD Graphics 630 Yes Intel UHD Graphics 630 Yes
DG/CG Ready
Yes Yes Yes Yes Yes Yes
Operating system
� Windows 10 Home (64-bit) � Windows 10 Professional (64-bit) � Windows 10 Pro Education (64-bit) � Windows 10 IoT Enterprise 2019 LTSC (OEM only) � NeoKylin 7.0 (China only) � Ubuntu 18.04 (64-bit)
Commercial Platform Windows 10 N-2 and 5-year operating system supportability
All newly introduced commercial platforms (Latitude, OptiPlex, and Precision) will qualify and ship with the most current factory installed Semi-Annual Channel Windows 10 version (N) and qualify (but not ship) the previous two versions (N-1, N-2). This device platform will RTS with Windows 10 version v19H2 at the time of launch, and this version will determine the N-2 versions that are initially qualified for this platform.
For future versions of Windows 10, Dell continues to test the commercial platform with coming Windows 10 releases during device production and for five years post-production, including both fall and spring releases from Microsoft.
Please reference the Dell Windows as a Service (WaaS) website for additional information about N-2 and 5-year Windows operating system supportability. Website can be found at this link:
Platforms Qualified on specific versions of Windows 10
This website also includes a matrix of other platforms that are qualified on specific versions of Windows 10.
16
Technical specifications
Memory
NOTE: A multiple-DIMM memory option is recommended to prevent any performance reduction. If the system configuration includes integrated graphics, consider selecting 2 or more DIMMs.
NOTE: Memory modules should be installed in pairs of matched memory size, speed, and technology. If the memory modules are not installed in matched pairs, the computer continues to operate, but with a slight reduction in performance. The entire memory range is available to 64-bit operating systems.
Table 5. Memory specifications Description Slots Type Speed
Values Two SODIMM slots
DDR4
� 2666 MHz for Intel Core Pentium/i3/i5 processors � 2933 MHz for Intel Core i7/i9 processor
NOTE: The Memory speed supported in Brazil for Intel Core i7/i9 processors is 2666 MHz
Maximum memory Minimum memory Memory size per slot Configurations supported
64 GB
4 GB
4 GB, 8 GB, 16 GB, 32 GB
� 4 GB, 1 x 4 GB, DDR4, 2666 MHz for Intel Core i3/i5 processors, 2933 MHz for Intel Core i7/i9 processor
� 8 GB, 2 x 4 GB, DDR4, 2666 MHz for Intel Core i3/i5 processors, 2933 MHz for Intel Core i7/i9 processor
� 8 GB, 1 x 8 GB, DDR4, 2666 MHz for Intel Core i3/i5 processors, 2933 MHz for Intel Core i7/i9 processor
� 16 GB, 2 x 8 GB, DDR4, 2666 MHz for Intel Core i3/i5 processors, 2933 MHz for Intel Core i7/i9 processor
� 16 GB, 1 x 16 GB, DDR4, 2666 MHz for Intel Core i3/i5 processors, 2933 MHz for Intel Core i7/i9 processor
� 32 GB, 2 x 16 GB, DDR4, 2666 MHz for Intel Core i3/i5 processors, 2933 MHz for Intel Core i7/i9 processor
� 32 GB, 1 x 32 GB, DDR4, 2666 MHz for Intel Core i3/i5 processors, 2933 MHz for Intel Core i7/i9 processor
� 64 GB, 2 x 32 GB, DDR4, 2666 MHz for Intel Core i3/i5 processors, 2933 MHz for Intel Core i7/i9 processor
Intel Optane memory (optional)
Intel Optane memory functions only as a storage accelerator. It neither replaces nor adds to the memory (RAM) installed on your computer.
NOTE: Intel Optane memory is supported on computers that meet the following requirements:
� 7th Generation or higher Intel Core i3/i5/i7 processor � Windows 10 64-bit version or higher (Anniversary Update) � Latest version of Intel Rapid Storage Technology driver � UEFI boot mode configuration
Technical specifications
17
Table 6. Intel Optane memory Description Type Interface Connector Configurations supported Capacity
Ports and connectors
Table 7. Ports and connectors Description External: Network USB
Audio Video
Memory card reader Power port
Security Internal:
18
Technical specifications
Values Memory/Storage/Storage accelerator
Gen 3 PCIe x4 NVMe
M.2 2280
16 GB and 32 GB
Up to 32 GB
Values
One RJ-45 port 10/100/1000 Mbps (rear)
� Without discrete graphics: For One USB 3.2 Gen 2 Type-A port with PowerShare (front) One USB 3.2 Gen 2 Type-C port (front) One USB 3.2 Gen 1 Type-A port (rear) Two USB 3.2 Gen 2 Type-A ports (rear) One USB 3.2 Gen 1 Type-A port with Smart Power on (rear)
� With discrete graphics: One USB 3.2 Gen 2 Type-A port with PowerShare (front) One USB 3.2 Gen 2 Type-C port (front) Two USB 3.2 Gen 2 Type-A ports (rear) One USB 3.2 Gen 1 Type-A port with Smart Power on (rear)
� One Universal Audio Jack (front) � One Line-out port (retaskable Line-in) (front)
� Two DisplayPort 1.4 port (rear) � One VGA Port/DisplayPort 1.4 Port/HDMI 2.0b Port/ USB 3.2
Gen 2 Type-C Port with Alt-mode (optional) (Not supported with Discrete graphics) � One Serial RS232 (optional) (Not supported with Discrete graphics) � One Serial/PS2 port (optional) (Not supported with Discrete graphics)
Not supported
� 4.5 mm DC barrel-type � 7.4 mm DC barrel-type for 65 W CPU and discrete graphics
One kensington security-cable slot
Table 7. Ports and connectors(continued) Description M.2
Communications
Values
� One M.2 2230 slot for WiFi/Bluetooth card � One M.2 2230/2280 slot for PCIe solid-state drive/Intel
Optane � One M.2 2280 slot for PCIe solid-state drive/Intel Optane � One SATA slots for 2.5-inch hard-disk drive (for 35 W and 65
W only) � One half-height Gen3 PCIe x8 slot (discrete graphics)
NOTE: To learn more about the features of different types of M.2 cards, see the knowledge base article SLN301626.
Ethernet
Table 8. Ethernet specifications Description Model number
Transfer rate
Values Intel i219-LM 10/100/1000 Mbps
Wireless module
Table 9. Wireless module specifications
Description
Model number
Qualcomm QCA9377
Transfer rate
Up to 867 Mbps
Frequency bands supported
2.4 GHz/5 GHz
Wireless standards
� Wi-Fi 802.11 a/b/g � Wi-Fi 4 (WiFi 802.11n) � Wi-Fi 5 (WiFi 802.11ac)
Encryption
� 64-bit and 128-bit WEP � 128-bit AES-CCMP � TKIP
Bluetooth
5.0
Values Qualcomm QCA61x4A Up to 867 Mbps 2.4 GHz/5 GHz 802.11ac
� 64-bit and 128-bit WEP � 128-bit AES-CCMP � TKIP 5.0
Intel Wi-Fi 6 AX201 Up to 2.4 Gbps 2.4 GHz/5 GHz � 802.11ax (Wi-Fi 6)
� 64-bit and 128-bit WEP � 128-bit AES-CCMP � TKIP 5.1
Technical specifications
19
Graphics and Video controller
Table 10. Integrated graphics specifications
Integrated graphics Controller
External display support
Intel UHD Graphics 630
� Two DisplayPort 1.4 HBR2 � One VGA/DP 1.4 HBR2/HDMI2.0/USB
Type-C Alt-mode (optional)
Memory size Shared system memory
Table 11. Discrete graphics specifications
Discrete graphics Controller
External display support
AMD Radeon RX 640
� Two mini DisplayPort � One DisplayPort 1.4
Memory size 4 GB
Processor 10th Generation Intel Core i3/i5/i7/i9
Memory type GDDR5
Audio and Speaker
Table 12. Audio specifications Description Type Controller Stereo conversion Internal interface External interface
Speakers Internal speaker amplifier External volume controls Speaker output average Speaker output peak Subwoofer output Microphone
Values 4 Channel High Definition Audio Realtek ALC3246 24-bit DAC (Digital-to-Analog) and ADC (Analog-to-Digital) High definition audio interface � Universal Audio Jack � Line-out One Integrated in ALC3246(Class-D 2 W) Keyboard shortcut controls 2 W 2.5 W Not supported Not supported
Storage
Your computer supports one of the following configurations:
� One 2.5-inch hard-disk drive � One M.2 2230 or 2280 solid-state drive (class 35 or class 40) � One 2.5-inch hard-disk drive and one M.2 16 or 32 GB Intel Optane memory
20
Technical specifications
The primary drive of your computer varies with the storage configuration. For computers:
� with a M.2 solid-state drive, the M.2 solid-state drive is the primary drive � without a M.2 drive, the 2.5-inch hard-disk drive is the primary drive
Table 13. Storage specifications Storage type
Interface type
2.5-inch, 5400 RPM, hard-disk drive
SATA 3.0
2.5-inch, 7200 RPM, hard-disk drive
SATA 3.0
2.5-inch, 7200 RPM, FIPS Self Encrypting Opal 2.0, hard- SATA 3.0 disk drive
2.5-inch. solid-state drive
SATA Class 20
M.2 2230 solid-state drive
Gen 3 PCIe x4 NVMe, Class 35
M.2 2280 solid-state drive
Gen 3 PCIe x4 NVMe, Class 40
M.2 2280 Opal Self-Encrypting solid-state drive
Gen 3 PCIe x4 NVMe, Class 40
Capacity Up to 2 TB Up to 1 TB 500 GB
512 GB Up to 512 GB Up to 2 TB Up to 1 TB
Power adapter
Table 14. Power adapter specifications
Description
Type
90 W (for 35 W CPU)
Values 130 W (for 35 W CPU)
180 W (for 65 W CPU and discrete graphics)
Diameter (connector)
4.5 mm x 2.9 mm
4.5 mm x 2.9 mm
7.4 mm x 5.1 mm
Input voltage
100 VAC x 240 VAC
100 VAC x 240 VAC
100 VAC x 240 VAC
Input frequency
50 Hz x 60 Hz
50 Hz x 60 Hz
50 Hz x 60 Hz
Input current (maximum)
1.5 A
2.5 A
2.34 A
Output current (continuous)
4.62 A
6.7 A
9.23 A
Rated output voltage
19.50 VDC
19.50 VDC
19.50 VDC
Temperature range: Operating
0�C to 40�C (32�F to 104�F) 0�C to 40�C (32�F to 104�F) 0�C to 40�C (32�F to 104�F)
Storage
-40�C to 70�C (-40�F to 158�F)
-40�C to 70�C (-40�F to 158�F)
-40�C to 70�C (-40�F to 158�F)
Add-in cards
Table 15. Add-in cards Add-in cards USB Type-C 3.1 PCIe Card 2nd-gigabit NIC add-in card
Technical specifications
21
Table 15. Add-in cards(continued) Add-in cards PCIe x1 5/2.5 GbE NIC PCIe Serial Card (LP only) PCIe Parallel Card (LP only)
Data security
Table 16. Data security
Data security options
Values
McAfee Small Business Security 30 Day Free Trial
Supported
McAfee Small Business Security 12-month subscription
Supported
McAfee Small Business Security 36-month subscription
Supported
SafeGuard and Response, powered by VMware Carbon Black and Supported Secureworks
Next Generation anti-virus (NGAV)
Supported
Endpoint Detection and Response (EDR)
Supported
Threat Detection and Response (TDR)
Supported
Managed Endpoint Detection and Response
Supported
Incident Management Retainer
Supported
Emergency Incident Response
Supported
SafeData
Supported
Environmental
Table 17. Environmental specifications Feature Recyclable packaging BFR/PVC--free chassis MultiPack packaging Energy-Efficient Power Supply ENV0424 compliant
OptiPlex 7080 Micro Yes No Yes (US only) (optional) Standard Yes
NOTE: Wood-based fiber packaging contains a minimum of 35% recycled content by total weight of wood-based fiber. Packaging that contains without wood-based fiber can be claimed as Not Applicable.
Energy Star and Trusted Platform Module (TPM)
Table 18. Energy Star and TPM Features Energy Star 8.0
Specifications Compliant configurations available
22
Technical specifications
Table 18. Energy Star and TPM(continued) Features Trusted Platform Module (TPM) 2.01,2
Firmware-TPM (Discrete TPM disabled)
Specifications Integrated on system board Optional
NOTE: 1TPM 2.0 is FIPS 140-2 certified. 2TPM is not available in all countries.
Computer environment
Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 19. Computer environment Description Temperature range
Operating 10�C�35�C (50�F�95�F)
Relative humidity (maximum) Vibration (maximum)*
20% to 80% (non-condensing) 0.26 GRMS random at 5 Hz to 350 Hz
Shock (maximum)
Bottom half-sine pulse with a change in velocity of 50.8 cm/sec (20 in./sec)
Altitude (maximum)
3048 m (10,000 ft)
* Measured using a random vibration spectrum that simulates user environment. Measured using a 2 ms half-sine pulse when the hard drive is in use.
Storage -40�C-65�C (-40�F-149�F) 5% to 95% (non-condensing) 1.37 GRMS random at 5 Hz to 350 Hz 105G half-sine pulse with a change in velocity of 133 cm/sec (52.5 in./sec) 10,668 m (35,000 ft)
Service and support
NOTE: For more details on Dell Service Plans, see https://www.dell.com/learn/us/en/19/services/warranty-supportservices.
Table 20. Warranty Warranty 3 Years Basic Warranty with Hardware Service on site service after remote diagnosis 4 Years Basic Warranty Extension 5 Years Basic Warranty Extension 3 Years ProSupport and Next Business Day on-site service 4 Years ProSupport and Next Business Day on-site service 5 Years ProSupport and Next Business Day on-site service 3 Years ProSupport Plus for Client with Next Business Day on-site service 4 Years ProSupport Plus for Client with Next Business Day on-site service 5 Years ProSupport Plus for Client with Next Business Day on-site service
Technical specifications
23
Table 21. Accidental damage services Accidental Damage Services 3 Years Accidental Damage Service 4 Years Accidental Damage Service 5 Years Accidental Damage Service
24
Technical specifications
4
Software
This chapter details the supported operating systems along with instructions on how to install the drivers.
Topics:
� Downloading Windows drivers
Downloading Windows drivers
Steps 1. Turn on the . 2. Go to Dell.com/support. 3. Click Product Support, enter the Service Tag of your , and then click Submit.
NOTE: If you do not have the Service Tag, use the auto detect feature or manually browse for your model.
4. Click Drivers and Downloads. 5. Select the operating system installed on your . 6. Scroll down the page and select the driver to install. 7. Click Download File to download the driver for your . 8. After the download is complete, navigate to the folder where you saved the driver file. 9. Double-click the driver file icon and follow the instructions on the screen.
Software
25
5
System setup
CAUTION: Unless you are an expert computer user, do not change the settings in the BIOS Setup program. Certain changes can make your computer work incorrectly.
NOTE: Before you change BIOS Setup program, it is recommended that you write down the BIOS Setup program screen information for future reference.
Use the BIOS Setup program for the following purposes:
� Get information about the hardware installed in your computer, such as the amount of RAM and the size of the hard drive. � Change the system configuration information. � Set or change a user-selectable option, such as the user password, type of hard drive installed, and enabling or disabling base devices.
Topics:
� Boot menu � Navigation keys � Boot Sequence � System setup options � Updating the BIOS in Windows � System and setup password
Boot menu
Press <F12> when the Dell logo appears to initiate a one-time boot menu with a list of the valid boot devices for the system. Diagnostics and BIOS Setup options are also included in this menu. The devices listed on the boot menu depend on the bootable devices in the system. This menu is useful when you are attempting to boot to a particular device or to bring up the diagnostics for the system. Using the boot menu does not make any changes to the boot order stored in the BIOS.
The options are:
� UEFI Boot:
Windows Boot Manager
� Other Options:
BIOS Setup BIOS Flash Update Diagnostics Change Boot Mode Settings
Navigation keys
NOTE: For most of the System Setup options, changes that you make are recorded but do not take effect until you restart the system.
Keys
Up arrow Down arrow Enter Spacebar Tab
Navigation
Moves to the previous field. Moves to the next field. Selects a value in the selected field (if applicable) or follow the link in the field. Expands or collapses a drop-down list, if applicable. Moves to the next focus area.
26
System setup
Keys
Esc
Navigation
Moves to the previous page until you view the main screen. Pressing Esc in the main screen displays a message that prompts you to save any unsaved changes and restarts the system.
Boot Sequence
Boot sequence enables you to bypass the System Setup�defined boot device order and boot directly to a specific device (for example: optical drive or hard drive). During the Power-on Self-Test (POST), when the Dell logo appears, you can: � Access System Setup by pressing F2 key � Bring up the one-time boot menu by pressing F12 key. The one-time boot menu displays the devices that you can boot from including the diagnostic option. The boot menu options are: � Removable Drive (if available) � STXXXX Drive
NOTE: XXXX denotes the SATA drive number. � Optical Drive (if available) � SATA Hard Drive (if available) � Diagnostics
NOTE: Choosing Diagnostics, displays the ePSA diagnostics screen.
The boot sequence screen also displays the option to access the System Setup screen.
System setup options
NOTE: Depending on the computer and its installed devices, the items listed in this section may or may not appear.
General options
Table 22. General Option System Information
Boot Sequence UEFI Boot Path Security Date/Time
Description
Displays the following information:
� System Information: Displays BIOS Version, Service Tag, Asset Tag, Ownership Tag, Manufacture Date, Ownership Date, and the Express Service Code.
� Memory Information: Displays Memory Installed, Memory Available, Memory Speed, Memory Channel Mode, Memory Technology, DIMM 1 Size, and DIMM 2 Size.
� PCI Information: Displays Slot1_M.2, Slot2_M.2, Slot3_M.2 � Processor Information: Displays Processor Type, Core Count, Processor ID, Current Clock
Speed, Minimum Clock Speed, Maximum Clock Speed, Processor L2 Cache, Processor L3 Cache, HT Capable, and 64-Bit Technology. � Device Information: Displays SATA-0, M.2 PCIe SSD-2, LOM MAC Address, Video Controller, Audio Controller, Wi-Fi Device, and Bluetooth Device.
Allows you to specify the order in which the computer attempts to find an operating system from the devices specified in this list.
This option controls whether or not the system prompts the user to enter the Admin password when booting a UEFI boot path from the F12 Boot Menu.
Allows you to set the date and time settings. Changes to the system date and time take effect immediately.
.
System setup
27
System information
Table 23. System Configuration
Option
Description
Integrated NIC
Allows you to control the onboard LAN controller. The option `Enable UEFI Network Stack' is not selected by default. The options are:
� Disabled � Enabled � Enabled w/PXE (default)
NOTE: Depending on the computer and its installed devices, the items that are listed in this section may or may not appear.
SATA Operation
Allows you to configure the operating mode of the integrated hard drive controller.
� Disabled = The SATA controllers are hidden � AHCI = SATA is configured for AHCI mode � RAID ON = SATA is configured to support RAID mode (selected by default)
Drives
Allows you to enable or disable the various drives onboard:
� SATA-0 (enabled by default) � M.2 PCIe SSD-0 (enabled by default)
Smart Reporting USB Configuration
This field controls whether hard-drive errors for integrated drives are reported during system startup. The Enable Smart Reporting option is disabled by default.
Allows you to enable or disable the integrated USB controller for:
� Enable USB Boot Support � Enable Front USB Ports � Enable Rear USB Ports
All the options are enabled by default.
Front USB Configuration Rear USB Configuration USB PowerShare
Audio
Allows you to enable or disable the front USB ports. All the ports are enabled by default.
Allows you to enable or disable the back USB ports. All the ports are enabled by default.
This option allows you to charge the external devices, such as mobile phones, music player. This option is disabled by default.
Allows you to enable or disable the integrated audio controller. The option Enable Audio is selected by default. � Enable Microphone � Enable Internal Speaker Both the options are selected by default.
Dust Filter Maintenance
Allows you to enable or disable BIOS messages for maintaining the optional dust filter that is installed in your computer. BIOS will generate a pre-boot reminder to clean or replace the dust filter based on the interval set. The option Disabled is selected by default.
� Disabled � 15 days � 30 days � 60 days � 90 days � 120 days � 150 days � 180 days
28
System setup
Video screen options
Table 24. Video Option Primary Display
Description
Allows you to select the primary display when multiple controllers are available in the system. � Auto (default) � Intel HD Graphics
NOTE: If you do not select Auto, the on-board graphics device will be present and enabled.
Security
Table 25. Security Option Admin Password System Password Internal HDD-0 Password Password Configuration
Password Bypass
Description
Allows you to set, change, and delete the admin password.
Allows you to set, change, and delete the system password.
Allows you to set, change, and delete the computer's internal hard drive password.
Allows you to control the minimum and maximum number of characters that are allowed for an administrative password and the system password. The range of characters is between 4 and 32.
This option lets you bypass the System (Boot) Password and the internal hard drive password prompts during a system restart. � Disabled -- Always prompt for the system and internal HDD password when they are set. This
option is disabled by default. � Reboot Bypass -- Bypass the password prompts on Restarts (warm boots).
NOTE: The system will always prompt for the system and internal HDD passwords when powered on from the off state (a cold boot). Also, the system will always prompt for passwords on any module bay HDDs that may be present.
Password Change
This option lets you determine whether changes to the System and Hard Disk passwords are permitted when an administrator password is set.
Allow Non-Admin Password Changes - This option is enabled by default.
UEFI Capsule Firmware Updates TPM 2.0 Security
This option controls whether this system allows BIOS updates via UEFI capsule update packages. This option is selected by default. Disabling this option will block BIOS updates from services such as Microsoft Windows Update and Linux Vendor Firmware Service (LVFS).
Allows you to control whether the Trusted Platform Module (TPM) is visible to the operating system.
� TPM On (default) � Clear � PPI Bypass for Enable Commands � PPI Bypass for Disable Commands � PPI Bypass for Clear Commands � Attestation Enable (default) � Key Storage Enable (default) � SHA-256 (default)
Choose any one option:
� Disabled � Enabled (default)
System setup
29
Table 25. Security(continued)
Option
Description
Absolute
This field lets you Enable, Disable or permanently Disable the BIOS module interface of the optional Absolute Persistence Module service from Absolute Software.
� Enabled - This option is selected by default. � Disable � Permanently Disabled
Chassis Intrusion
This field controls the chassis intrusion feature.
Choose any one of the options:
� Disabled (default) � Enabled � On-Silent
OROM Keyboard Access
This option determines whether users can enter Option ROM Configuration screens using hotkeys during boot.
� Enabled - This option is selected by default. � Disable � One Time Enable
Admin Setup Lockout Master Password Lockout HDD Protection Support SMM Security Mitigation
Allows you to prevent users from entering Setup when Admin password is set. This option is not set by default.
Allows you to disable master password support. Hard Disk passwords need to be cleared before the settings can be changed. This option is not set by default.
This field allows users to enable and disable the HDD Protection feature. This option is not set by default.
Allows you to enable or disable additional UEFI SMM Security Mitigation protections. This option is not set by default.
Secure boot options
Table 26. Secure Boot Option Secure Boot Enable
Secure Boot Mode
Expert key Management
Description
Allows you to enable or disable Secure Boot feature � Secure Boot Enable. This option is not selected by default.
Allows you to modify the behavior of Secure Boot to allow evaluation or enforcement of UEFI driver signatures. � Deployed Mode (default). � Audit Mode.
Allows you to manipulate the security key databases only if the system is in Custom Mode. The Enable Custom Mode option is disabled by default. The options are: � PK (default). � KEK. � db. � dbx. If you enable the Custom Mode, the relevant options for PK, KEK, db, and dbx appear. The options are: � Save to File- Saves the key to a user-selected file.
30
System setup
Table 26. Secure Boot(continued)
Option
Description
� Replace from File- Replaces the current key with a key from a user-selected file. � Append from File- Adds a key to the current database from a user-selected file. � Delete- Deletes the selected key. � Reset All Keys- Resets to default setting. � Delete All Keys- Deletes all the keys.
NOTE: If you disable the Custom Mode, all the changes made will be erased and the keys will restore to default settings.
Intel Software Guard Extensions options
Table 27. Intel Software Guard Extensions Option Intel SGX Enable
Enclave Memory Size
Description
This field specifies you to provide a secured environment for running code/storing sensitive information in the context of the main OS. Click one of the following options: � Disabled � Enabled � Software controlled--Default
This option sets SGX Enclave Reserve Memory Size Click one of the following options: � 32 MB � 64 MB � 128 MB--Default
Performance
Table 28. Performance Option Multi Core Support
Intel SpeedStep
C-States Control
Description
This field specifies whether the processor has one or all cores enabled. The performance of some applications improves with the additional cores. � All--Default �1 �2 �3
Allows you to enable or disable the Intel SpeedStep mode of processor. � Enable Intel SpeedStep This option is set by default.
Allows you to enable or disable the additional processor sleep states. � C states
System setup
31
Table 28. Performance(continued) Option Intel TurboBoost
Hyper-Thread Control
Description
This option is set by default.
Allows you to enable or disable the Intel TurboBoost mode of the processor. � Enable Intel TurboBoost This option is set by default.
Allows you to enable or disable the HyperThreading in the processor. � Disabled � Enabled--Default
Power management
Table 29. Power Management
Option
Description
AC Recovery
Determines how the system responds when AC power is re-applied after a power loss. You can set the AC Recovery to:
� Power Off � Power On � Last Power State
This option is Power Off by default.
Enable Intel Speed Shift Technology
Allows you to enable or disable Intel Speed Shift Technology support. The option Enable Intel Speed Shift Technology is set by default.
Auto On Time
Sets time to automatically turn on the computer. Time is kept in standard 12-hour format (hour:minutes:seconds). Change the startup time by typing the values in the time and AM/PM fields.
NOTE: This feature does not work if you turn off your computer using the switch on a
power strip or surge protector or if Auto Power is set to disabled.
Deep Sleep Control
Allows you to define the controls when Deep Sleep is enabled.
� Disabled � Enabled in S5 only � Enabled in S4 and S5
This option is Enabled in S4 and S5 by default
USB Wake Support Wake on LAN/WWAN
Allows you to enable the USB devices to wake the computer from standby mode. The option Enable USB Wake Support is selected by default.
This option allows the computer to power up from the off state when triggered by a special LAN signal. This feature only works when the computer is connected to AC power supply.
� Disabled - Does not allows the system to power on by special LAN signals when it receives a wake-up signal from the LAN or wireless LAN.
� LAN or WLAN - Allows the system to be powered on by special LAN or wireless LAN signals. � LAN Only - Allows the system to be powered on by special LAN signals. � LAN with PXE Boot - A wakeup packet sent to the system in either the S4 or S5 state, that
will cause the system to wake-up and immediately boot to PXE. � WLAN Only - Allows the system to be powered on by special WLAN signals.
This option is Disabled by default.
32
System setup
Table 29. Power Management (continued)
Option
Description
Block Sleep
Allows you to block entering to sleep (S3 state) in OS environment. This option is disabled by default.
Post behavior
Table 30. POST Behavior Option Adapter Warnings Numlock LED Keyboard Errors Fast Boot
Extend BIOS POST Time
Full Screen Logo Warnings and Errors
Description
This option lets you choose whether the system displays warning messages when you use certain power adapters. This option is enabled by default.
Allows you to enable or disable the Numlock feature when your computer starts. This option is enabled by default.
Allows you to enable or disable the keyboard error reporting when the computer starts. The option Enable Keyboard Error Detection is enabled by default.
This option can speed up the boot process by bypassing some compatibility steps:
� Minimal -- The system boots quickly, unless the BIOS has been updated, memory changed, or the previous POST did not complete.
� Thorough -- The system does not skip any steps in the boot process. � Auto -- This allows the operating system to control this setting (this works only when the
operating system supports Simple Boot Flag).
This option is set to Thorough by default.
This option creates an additional pre-boot delay.
� 0 seconds (default) � 5 seconds � 10 seconds
This option will display full screen logo if your image match screen resolution. The option Enable Full Screen Logo is not set by default.
This option causes the boot process to only pause when warning or errors are detected. Choose any one of the option:
� Prompt on Warnings and Errors - default � Continue on Warnings � Continue on Warnings and Errors
Manageability
Option
Intel AMT Capability
USB Provision
MEBx Hotkey
Description
Allows you to provision AMT and MEB Hotkey function is enabled, during the system boot. � Disabled � Enabled � Restrict MEBx Access - by default
When enabled Intel AMT can be provisioned using the local provisioning file using a USB storage device. � Enable USB Provision - disabled by default
Allows you to specify whether the MEBx Hotkey function should enable, during the system boot. � Enable MEBx hotkey--disabled by default
System setup
33
Virtualization support
Table 31. Virtualization Support
Option
Description
Virtualization
This option specifies whether a Virtual Machine Monitor (VMM) can utilize the additional hardware capabilities provided by the Intel Virtualization technology.
� Enable Intel Virtualization Technology
This option is set by default.
VT for Direct I/O
Enables or disables the Virtual Machine Monitor (VMM) from utilizing the additional hardware capabilities provided by the Intel Virtualization technology for direct I/O.
� Enable VT for Direct I/O
This option is set by default.
Wireless options
Table 32. Wireless Option Wireless Device Enable
Description
Allows you to enable or disable the internal wireless devices. The options are: � WLAN/WiGig � Bluetooth All the options are enabled by default.
Maintenance
Table 33. Maintenance Option Service Tag Asset Tag SERR Messages BIOS Downgrade
Data Wipe
BIOS Recovery
Description Displays the service tag of your computer.
Allows you to create a system asset tag if an asset tag is not already set. This option is not set by default.
Controls the SERR message mechanism. This option is set by default. Some graphics cards require that the SERR message mechanism be disabled.
Allows you to flash previous revisions of the system firmware. � Allow BIOS Downgrade This option is set by default.
Allows you to securely erase data from all internal storage devices. � Wipe on Next Boot This option is not set by default.
BIOS Recovery from Hard Drive--This option is set by default. Allows you to recover the corrupted BIOS from a recovery file on the HDD or an external USB key.
NOTE: BIOS Recovery from Hard Drive field must be enabled.
34
System setup
Table 33. Maintenance (continued)
Option
Description
Always Perform Integrity Check--Performs integrity check on every boot.
First Power On Date
Allows you the set Ownership date. The option Set Ownership Date is not set by default.
System logs
Table 34. System Logs Option BIOS events
Description Allows you to view and clear the System Setup (BIOS) POST events.
Advanced configuration
Table 35. Advanced configuration
Option
Description
ASPM
Allows you to set the ASPM level.
� Auto (default) - There is handshaking between the device and PCI Express hub to determine the best ASPM mode supported by the device.
� Disabled - ASPM power management is turned off at all time. � L1 Only - ASPM power management is set to use L1.
SupportAssist System Resolution
Option
Description
Auto OS Recovery Threshold
Allows you to control the automatic boot flow for SupportAssist System. Options are:
� Off �1 � 2 (Enabled by default) �3
SupportAssist OS Allows you to recover the SupportAssist OS Recovery (Enabled by default). Recovery
BIOSConnect
BIOSConnect enable or disable cloud Service OS upon absence of Local OS Recovery (Enabled by default).
Updating the BIOS in Windows
Prerequisites It is recommended to update your BIOS (System Setup) when you replace the system board or if an update is available.
About this task NOTE: If BitLocker is enabled, it must be suspended prior to updating the system BIOS, and then re enabled after the BIOS update is completed.
Steps 1. Restart the computer. 2. Go to Dell.com/support.
System setup
35
� Enter the Service Tag or Express Service Code and click Submit. � Click Detect Product and follow the instructions on screen. 3. If you are unable to detect or find the Service Tag, click Choose from all products. 4. Choose the Products category from the list.
NOTE: Choose the appropriate category to reach the product page.
5. Select your computer model and the Product Support page of your computer appears. 6. Click Get drivers and click Drivers and Downloads.
The Drivers and Downloads section opens. 7. Click Find it myself. 8. Click BIOS to view the BIOS versions. 9. Identify the latest BIOS file and click Download. 10. Select your preferred download method in the Please select your download method below window, click Download File.
The File Download window appears. 11. Click Save to save the file on your computer. 12. Click Run to install the updated BIOS settings on your computer.
Follow the instructions on the screen.
Updating BIOS on systems with BitLocker enabled
CAUTION: If BitLocker is not suspended before updating the BIOS, the next time you reboot the system it will not recognize the BitLocker key. You will then be prompted to enter the recovery key to progress and the system will ask for this on each reboot. If the recovery key is not known this can result in data loss or an unnecessary operating system reinstall. For more information on this subject, see Knowledge Article: https://www.dell.com/support/article/sln153694
Updating your system BIOS using a USB flash drive
About this task If the system cannot load into Windows but there is still a need to update the BIOS, download the BIOS file using another system and save it to a bootable USB Flash Drive.
NOTE: You will need to use a bootable USB Flash drive. Please refer to the following article for further details: https:// www.dell.com/support/article/sln143196/
Steps 1. Download the BIOS update .EXE file to another system. 2. Copy the file e.g. O9010A12.EXE onto the bootable USB Flash drive. 3. Insert the USB Flash drive into the system that requires the BIOS update. 4. Restart the system and press F12 when the Dell Splash logo appears to display the One Time Boot Menu. 5. Using arrow keys, select USB Storage Device and click Return. 6. The system will boot to a Diag C:\> prompt. 7. Run the file by typing the full filename e.g. O9010A12.exe and press Return. 8. The BIOS Update Utility will load, follow the instructions on screen.
36
System setup
Figure 1. DOS BIOS Update Screen
System and setup password
Table 36. System and setup password Password type System password Setup password
Description Password that you must enter to log on to your system.
Password that you must enter to access and make changes to the BIOS settings of your computer.
You can create a system password and a setup password to secure your computer. CAUTION: The password features provide a basic level of security for the data on your computer. CAUTION: Anyone can access the data stored on your computer if it is not locked and left unattended. NOTE: System and setup password feature is disabled.
Assigning a system setup password
Prerequisites You can assign a new System or Admin Password only when the status is in Not Set.
About this task To enter the system setup, press F2 immediately after a power-on or reboot.
Steps 1. In the System BIOS or System Setup screen, select Security and press Enter.
The Security screen is displayed. 2. Select System/Admin Password and create a password in the Enter the new password field.
Use the following guidelines to assign the system password: � A password can have up to 32 characters.
System setup
37
� The password can contain the numbers 0 through 9. � Only lower case letters are valid, upper case letters are not allowed. � Only the following special characters are allowed: space, ("), (+), (,), (-), (.), (/), (;), ([), (\), (]), (`).
3. Type the system password that you entered earlier in the Confirm new password field and click OK. 4. Press Esc and a message prompts you to save the changes. 5. Press Y to save the changes.
The computer reboots.
Deleting or changing an existing system setup password
Prerequisites Ensure that the Password Status is Unlocked (in the System Setup) before attempting to delete or change the existing System and Setup password. You cannot delete or change an existing System or Setup password, if the Password Status is Locked.
About this task To enter the System Setup, press F2 immediately after a power-on or reboot.
Steps 1. In the System BIOS or System Setup screen, select System Security and press Enter.
The System Security screen is displayed. 2. In the System Security screen, verify that Password Status is Unlocked. 3. Select System Password, alter or delete the existing system password and press Enter or Tab. 4. Select Setup Password, alter or delete the existing setup password and press Enter or Tab.
NOTE: If you change the System and/or Setup password, re enter the new password when prompted. If you delete the System and Setup password, confirm the deletion when prompted.
5. Press Esc and a message prompts you to save the changes. 6. Press Y to save the changes and exit from System Setup.
The computer restarts.
38
System setup
6
Getting help
Topics:
� Contacting Dell
Contacting Dell
Prerequisites NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
About this task Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues:
Steps 1. Go to Dell.com/support. 2. Select your support category. 3. Verify your country or region in the Choose a Country/Region drop-down list at the bottom of the page. 4. Select the appropriate service or support link based on your need.
Getting help
39
Support Home | Dell US
How to Create a Bootable USB Flash Drive using Dell Diagnostic Deployment Package (DDDP) | Dell US
