MATERIAL SAFETY DATA SHEET
MATERIAL SAFETY DATA SHEET - Lenovo
CELXPERT Safety Data Sheet Lithium Ion Rechargeable Battery Pack ... Certifies the battery has passed and satisfied the UN Manual of Tests ...
Battery pack. 1. The Watt-hour rating of the battery is under than 100Wh. 2. Package of the battery satisfy the following conditions.
Extracted Text
CELXPERT Safety Data Sheet Lithium Ion Rechargeable Battery Pack 2020/09/01 No. 202009--021

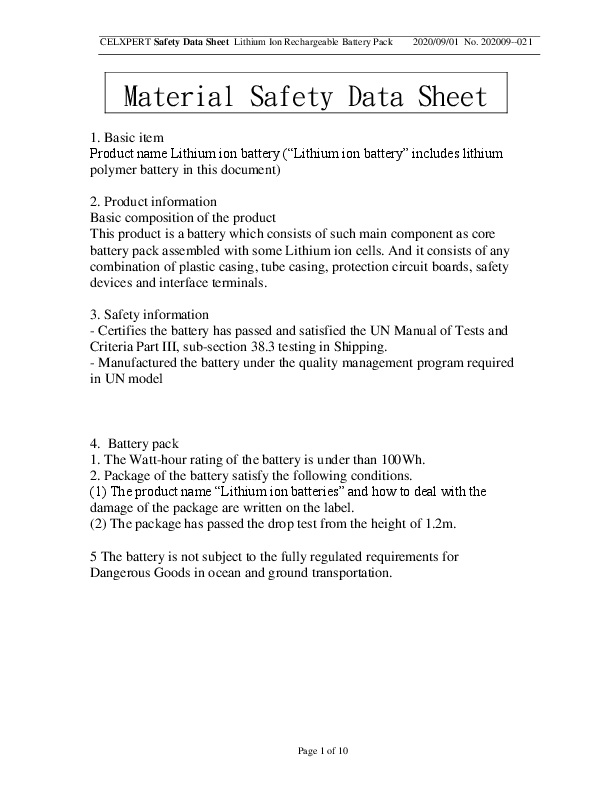

Material Safety Data Sheet
1. Basic item Product name Lithium ion battery ("Lithium ion battery" includes lithium polymer battery in this document) 2. Product information Basic composition of the product This product is a battery which consists of such main component as core battery pack assembled with some Lithium ion cells. And it consists of any combination of plastic casing, tube casing, protection circuit boards, safety devices and interface terminals. 3. Safety information - Certifies the battery has passed and satisfied the UN Manual of Tests and Criteria Part III, sub-section 38.3 testing in Shipping. - Manufactured the battery under the quality management program required in UN model
4. Battery pack 1. The Watt-hour rating of the battery is under than 100Wh. 2. Package of the battery satisfy the following conditions. (1) The product name "Lithium ion batteries" and how to deal with the damage of the package are written on the label. (2) The package has passed the drop test from the height of 1.2m. 5 The battery is not subject to the fully regulated requirements for Dangerous Goods in ocean and ground transportation.
Page 1 of 10
Lenovo MSDS Finder
For more information, including how to locate your Lenovo FRU Part Number and what to do if your battery part number is not listed below, please visit:
Last updated Sept 01, 2020
Battery Part Numbers
Lenovo ASM Lenovo PN Part Number
Lenovo FRU Part Number
Lenovo model name
5B10H45092 5B10K90787 5B10K84638 5B10K84639 5B10L04162 5B10K90785 5B10J40259 5B10K90784 5B10K90786 5B10L13961 5B10L13960 5B10M52739 5B10M49821 5B10M50525 5B10M88059 5B10M88058 5B10N00766 5B10N17665 5B10P35084 5B10P53997 5B10P54003 5B10P54005 5B10P53999 5B10P98182 5B10N87359 SB10K97581 SB10K97624 SB10K97627 SB10K97609 SB10K97573 5B10Q56955 5B10Q22882 5B10Q16067 SB10K97613 SB10K97619 SB10K97629 5B10Q39205 5B10Q39200 5B10Q71252 5B10Q88561 5B10Q93738 5B10Q88557 5B10Q88558 5B10Q82425 5B10Q88559 5B10R32748 5B10Q38237 5B10R48675 SB10Q76929 SB10K97637 5B10R38649 5B10R37085
5B10R48676
5B10R48675
5B10S73501 5B10T07385 5B10T09081 5B10T09077 5B10T11586 5B10T30218 5B10T31045 5B10T30217 5B10U65274 5B10T07385 SB10W8619 SB10W8619 SB10W8696 SB10W8695 SB10W8984 SB10X02595 SB10X18189 SB10X87837 SB10W6732 SB10W6732 SB10W6721 SB10W6717 SB10W6722 SB10W6724 SB10W6716 SB10W6734 SB10W6719 SB10W6725 SB10W6730 SB10W6731 SB10W6719 SB10W6738 SB10W6720 SB10W6741 SB10W6739
01AV424 01AV475 01AV483 01AV448 01AV416
01AV466 01AV472
L14C3P60 L15C2PB5 L15C3PB1 L15C2PB1 L15C2P01 L15C2PB4 L15C4P71 L15C2PB2 L15C2PB3 L15C2PB6 L15C2PB7 L16C4PB1 L15C3PB1 L15C2PB1 L16C2PB1 L16C2PB2 L16C4PB3 L16C4P61 L17C4PB1 L17C2PB1 L17C2PB2
L17C2PB3 L17C2PB4 L17C2PB5 L17C3P61 01AV424 L17C4P71 L17C3P53 L17C3P51 01AV416 L16C2PB2 L17C4PB2 L17C4PB0 L17C3P52 L17C6P71 L17C6P72 L15C3PB1 L17C3P61 L17C3PB0 L17C3PG1 L17C2PF1 L17C3PG2 L17C4PG2 L17C4PH1 L17C3PG2 L17C4PE1 L16C4PB1 L16C2PB2 L17C4P72 L17C6P51
L17C4PF0 L17C4PH3 L16C2PB1 L16C2PB2 L18C4PF0 L18C4PC0 L18C4PF3 L18C4PF4 L18C4PH0 L17C3PG1 L17C3PG2 L17C3PG2 L19C4PD1 L18C4PC0 L19C4PC1 L19C4PC2 L19C4PF1 L19C3PF3 L19C3PF6 L19C3PF8 L19C4PF2 L19C4PD8 L16C2PB2 L16C2PB1 L17C2PB1 L17C2PB2 L17C2PB3 L17C2PB4 L17C2PB5 L17C2PF1 L17C3PG2 L17C4PG2 L17C4PE1 L17C4PF0 L18C4PF3 L18C4PF4 L18C4PF0 L18C4PH0 L19C4PD1
MSDS Type #
SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight SDS_Coslight
UN DOT 38.3 Test
Certificate
5B10H45092_UN38.3 5B10K90787_UN38.3 5B10K84638 _UN38.3 5B10K84639_UN38.3 5B10L04162_UN38.3 5B10K90785_UN38.3 5B10J40259_UN38.3 5B10K90784_UN38.3 5B10K90786_UN38.3 5B10L13961_UN38.3 5B10L13960_UN38.3 5B10M52739_UN38.3 5B10M49821_UN38.3 5B10M50525_UN38.3 5B10M88059_UN38.3 5B10M88058_UN38.3 5B10N00766_UN38.3 5B10N17665_UN38.3 5B10P35084_UN38.3 5B10P53997_UN38.3 5B10P54003_UN38.3 5B10P54005_UN38.3 5B10P53999_UN38.3 5B10P98182_UN38.3 5B10N87359_UN38.3 SB10K97581_UN38.3 SB10K97624_UN38.3 SB10K97627_UN38.3 SB10K97609_UN38.3 SB10K97573_UN38.3 5B10Q56955_UN38.3 5B10Q22882_UN38.3 5B10Q16067_UN38.3 SB10K97613_UN38.3 SB10K97619_UN38.3 SB10K97629_UN38.3 5B10Q39205_UN38.3 5B10Q39200_UN38.3 5B10Q71252_UN38.3 5B10Q88561_UN38.3 5B10Q93738_UN38.3 5B10Q88557_UN38.3 5B10Q88558_UN38.3 5B10Q82425_UN38.3 5B10Q88559_UN38.3 5B10R32748_UN38.3 5B10Q38237_UN38.3 5B10R48675_UN38.3 SB10Q76929_UN38.3 SB10K97637_UN38.3 5B10R38649_UN38.3 5B10R37085_UN38.3 5B10R48676_UN38.3
5B10R48675_UN38.3
5B10S73501_UN38.3 5B10T07385_UN38.3 5B10T09081_UN38.3 5B10T09077_UN38.3 5B10T11586_UN38.3 5B10T30218_UN38.3 5B10T31045_UN38.3 5B10T30217_UN38.3 5B10U65274_UN38.3 5B10T07385_UN38.3 SB10W86193_UN38.3 SB10W86197_UN38.3 SB10W86960_UN38.3 SB10W86954_UN38.3 SB10W89845_UN38.3 SB10X02595_UN38.3 SB10X18189_UN38.3 SB10X87837_UN38.3 SB10W67324_UN38.3 SB10W67328_UN38.3 SB10W67211_UN38.3 SB10W67175_UN38.3 SB10W67228_UN38.3 SB10W67241_UN38.3 SB10W67162_UN38.3 SB10W67345_UN38.3 SB10W67190_UN38.3 SB10W67256_UN38.3 SB10W67305_UN38.3 SB10W67316_UN38.3 SB10W67192_UN38.3 SB10W67388_UN38.3 SB10W67202_UN38.3 SB10W67416_UN38.3 SB10W67395_UN38.3
Battery Information
Cell Voltage (V)
3.7 3.8 3.8 3.8 3.8 3.8 3.8 3.7 3.7 3.85 3.8 3.84 3.8 3.8 3.8 3.8 3.84 3.84 3.84 3.8 3.85 3.8 3.85 3.85 3.84 3.8 3.84 3.7 3.7 3.8 3.8 3.84 3.84 3.7 3.8 3.8 3.8 3.84 3.8 3.8 3.85 3.85 3.85 3.84 3.85 3.84 3.84 3.8 3.84 3.8 3.84 3.84 3.8 3.8 3.84 3.86 3.84 3.86 3.84 3.8 3.85 3.85 3.84 3.86 3.85 3.85 3.8 3.85 3.75 3.86 3.84 3.84 3.8 3.8 3.8 3.85 3.8 3.85 3.85 3.85 3.85 3.85 3.84 3.84 3.84 3.86 3.84 3.84 3.84
Battery Voltage (V)
11.1 7.6 11.4 7.6 7.6 7.6 7.6 7.4 7.4 7.7 7.6 7.68 11.4 7.6 7.6 7.6 7.68 7.68 15.36 7.6 7.7 7.6 7.7 7.7 11.52 11.4 15.36 11.1 11.1 15.2 7.6 11.52 7.68 11.1 11.4 11.4 11.4 11.52 11.4 11.4 7.7 11.55 15.4 7.68 11.55 15.36 7.68 7.6 15.36 11.4 15.36 7.68 7.6 7.6 15.36 7.72 15.36 15.44 7.68 11.4 11.55 11.55 7.68 7.72 15.4 15.4 15.2 11.55 11.25 11.58 15.36 7.68 7.6 7.6 7.6 7.7 7.6 7.7 7.7 7.7 11.55 15.4 15.36 15.36 15.36 15.44 15.36 7.68 7.68
Watt hour Rating (Wh)
36 30 52.95 35.3 35 30 41 30 30 39 30 48 52.95 35.3 35 30 48 70 79 30 39 30 39 39 36 24 54 45 45 32 30 34 45 45 48 48 52.95 36 45 52.5 39 57 76.46 60 57 42 48 30 80.4 99 45 61 35
30
45
52
45
50
60
52.5
57
57
60
52
80
80
70
56.5
42
37.5
70
41
30
35
30
39
30
39
39
39
57
76.46
42
45
45
50
45
60
60
Weight (grams)
184.8 140.7 241.5 178.5 192.2 141.8 177.5 148.1 146.5 152.3 155.4 200 226.8 168 152.3 152.3 200 283.5 341.3 164 164 167 167 187.5 153.3 137.6 234 237.3 225 168 152.3 159.6 195.3 236 243.6 243.6 221 146 210 216 161 220 310 238 220 183 200 145 323 475 186 260 145 145 180 216 181 190 257 240 243 243 254.82 233 343 343 314 241.31 205.3 151 296 175.8 152.3 152.3 164 164 167 167 187.5 161 243 310 183 186 181 190 180 257 254.82
Equivalent Lithium Content (grams)
2.97 2.42 4.14 2.76 2.79 2.42 3.20 2.47 2.47 3.04 3.04 3.80 4.18 2.79 2.79 2.42 3.80 5.47 6.22 2.42 3.04 2.42 3.04 3.04 2.85 1.90 4.22 3.71 3.71 4.93 2.42 2.67 3.56 3.71 3.80 3.80 4.18 2.85 3.57 4.18 3.04 4.47 5.96 4.69 4.47 3.28 3.76 2.42 6.28 7.82 3.56 4.68 2.79
2.42
3.556
4.053
3.557
3.906
4.692
4.1805
4.4685
4.4685
4.692
4.053
6.402
6.402
5.574
4.4685
3.3615
2.9295
5.472
6.492
2.418
2.787
2.418
3.042
2.418
3.042
3.042
3.042
4.4685
5.958
3.282
3.56
3.557
3.906
3.556
4.692
4.692
* Due to the unique cell configuration of this battery pack (hybrid battery pack with 4 cylindrical cells and 4 prismatic cells in the pack) please use both MSDS sheets referenced
CELXPERT Safety Data Sheet Lithium Ion Rechargeable Battery Pack 2020/09/01 No. 202009--021
Safety Data Sheet [29 CFR 1910.1200]
Safety Data Sheet
May be used to comply with OSHA's Hazard communication Standard, 29 CFR 1910.1200. Standard must be consulted for specific requirements.
US Department of Labor
Occupational Safety and Health Administration (Non-Mandatory Form) Form Approved OMB No.1218-0072
SECTION 1: PRODUCT AND COMPANY IDENTIFICATION
Product Name : Lithium Ion Rechargeable Battery Pack Product Detail information: Refer Table "SDS_Coslight"
MANUFACTURER Celxpert(KunShan)Energy Co., Ltd ADDRESSNO.1111, Hanpu Road, Yushan Town, Kunshan City, Jiangsu Province, P.R.
China TELEPHONE+86-512-57775999#2532 FAX +86-512-5777-3839
SECTION 2: HAZARDS IDENTIFICATION
PROTENTIAL HEALTH EFFECTS
PRIMARY ROUTES OF ENTRY Skin contact, Skin absorption, Eye contact, Inhalation, and Ingestion : NO
SYMPTOMS OF EXPOSURE Skin contact No effect under routine handling and use. Skin absorption No effect under routine handling and use.
Eye contact No effect under routine handling and use.
Page 3 of 10
CELXPERT Safety Data Sheet Lithium Ion Rechargeable Battery Pack 2020/09/01 No. 202009--021
Inhalation No effect under routine handling and use.
SECTION 3: INGREDIENT
Battery Cell
HAZARDOUS INGREDIENTS Cobalt compound Styrene-Butadiene-Rubber Aluminum Foil Polyvinylidene Fluoride (PVDF) Copper Foil Carbon Electrolyte (Ethylene carbonate) Lithium hexafluorophosphate Stainless steel, Nickel and inert materials
Circuit Module
HAZARDOUS INGREDIENTS
Lead Mercury Chromium Cadmium
Plastic case and Si2O
Plastic Parts and Paints
HAZARDOUS INGREDIENTS
Lead Nickle CFCs
Polyclorinated Biphenyls
SECTION 4: FIRST AID MEASURES
% CAS NUMBER 4-50 1307-96-6 <1 27288-99-9 2-10 7429-90-5 <5 24937-79-9 2-10 7440-50-8 10-30 7440-44-0 10-20 96-49-1 <5 21324-40-3
Remainder N/A
% 0.001
0 0 0 0
CAS NUMBER 7439-92-1 7439-97-6 7440-47-3 7440-43-9
N/A
%
<0.1 <0.01
0 0
CAS NUMBER 7439-92-1 7440-02-0 75-69-4 1336-36-3
INHALATION, EYE CONTACT, and SKIN CONTACT : Not a health hazard.
INGESTION If swallowed, obtain medical attention immediately.
If exposure to internal materials within cell(pack) due to damaged outer casing, the Following actions are recommended.
INHALATION Leave area immediately and seek medical attention.
Page 4 of 10
CELXPERT Safety Data Sheet Lithium Ion Rechargeable Battery Pack 2020/09/01 No. 202009--021
EYE CONTACT Rinse eyes with water for 15 minutes and seek medical attention.
SKIN CONTACT Wash area thoroughly with soap and water and seek medical attention.
INGESTION Drink milk/water and induce vomiting; seek medical attention.
SECTION 5: FIRE FIGHTING MEASURES
5.1 GENERAL HAZARD
Cell is not flammable but internal organic material will burn if the cell is incinerated. Combustion products include, but are not limited to hydrogen fluoride, carbon monoxide and carbon dioxide.
5.2 EXTINGUSHING MEDIA
Use extinguishing media suitable for the materials that are burning.
5.3 SPECIAL FIREFIGHTING INSTRUCTIONS
If possible, remove cell(s) from fire fighting area. If heated above 125�C, cell(s) can explode/vent.
5.4 FIREFIGHTING EQUIPMENT
Use NIOSH/MSHA approved full-face self-contained breathing apparatus (SCBA) with full protective gear.
SECTION 6: ACCIDENTAL RELEASE MEASURES
6.1 ON LAND
Place material into suitable containers and call local fire/police department.
6.2 IN WATER
If possible, remove from water and call local fire/police department.
SECTION 7: HANDLING AND STORAGE
Page 5 of 10
CELXPERT Safety Data Sheet Lithium Ion Rechargeable Battery Pack 2020/09/01 No. 202009--021
7.1 HANDLING
No special protective clothing required for handling individual cells.
7.2 STORAGE
Store in a cool, dry place.
SECTION 8: EXPOSURE CONTROLS//PERSONAL PROTENTION
8.1 ENGINEERING CONTROLS
Keep away from heat and open flame. Store in a cool dry place.
8.2 PERSONAL PROTECTION
Respirator: Not required during normal operations. SCBA required in the event of a fire.
Eye/face protection: Not required beyond safety practices of employer.
Gloves: Not required for handling of cells.
Foot protection: Steel toed shoes recommended for large container handling.
SECTION 9: PHYSICAL AND CHEMICAL PROPERTIES
Physical State Solid OdorN/A PHN/A Vapor pressureN/A Vapor densityN/A
Boiling pointN/A Solubility in waterInsoluble Specific gravityN/A DensityN/A Flash PointN/A
SECTION 10: STABILITY AND REACTIVITY
10.1 REACTIVITY
None
10.2 INCOMPATIBILITIES
None during normal operation. Avoid exposure to heat, open flame, and corrosives.
10.3 HAZARDOUS DECOMPOSITION PRODUCTS
Page 6 of 10
CELXPERT Safety Data Sheet Lithium Ion Rechargeable Battery Pack 2020/09/01 No. 202009--021
None during normal operating conditions. If cells are opened, hydrogen fluoride and carbon monoxide may be released.
10.4 CONDITIONS TO AVOID
Avoid exposure to heat and open flame. Do not puncture, crush or incinerate.
SECTION 11: TOXICOLOGICAL INFORMATION
This product does not elicit toxicological properties during routine handling and use.
Sensitization: NO Teratogenicity: NO Reproductive toxicity:NO Acute toxicity: NO
This product does not contain any kinds of the following substances and halogen-type flame retardants including Chlorine and Bromide type harmful flame retardants which are listed in Appendix of TCO documents and relevant international ECO requirements:
Polybromated Biphenyls (PBB) Polybromated Diphenylethers (PBDE) Polychlorinated Biphenyls (PCBs) Polychlorinated Terphenyls(PCTs) Polychlorinated Paphthalene(PCN) Chlorinated Paraffins(C10-C13) Chlorofluorocarbons(CFCs) Polyvinyl Chloride(PVC) Carbon Tetrachloride
None of the following substances will be exposed, leaked, or emitted during transportation, storage or any operation and any temperature condition:
Chlorinated Fluorohydrocarbon (FCKW) Acrylonitride Styrol Phenol Benzol Mercury of greater than 0.0001 wt% for alkaline battery Mercury of greater than 0.0005 wt% for other battery Lithium content of greater than 0.5g/battery cell
Page 7 of 10
CELXPERT Safety Data Sheet Lithium Ion Rechargeable Battery Pack 2020/09/01 No. 202009--021
Cadmium, lead, and other harmful heavy metal And will comply with the regulation of 49 CFR (DOT regulation), International Air Transport Association (IATA), and Deuche Forschungsgemeinschaft (DFG) regarding concentrations of emitted substances.
This product does not contain mercury and cadmium.
Mercury content: N/A
Cadmium content: N/A If the cells are opened through misuse or damage, discard immediately. Internal components of cell are irritants and sensitizers.
SECTION 12: ECOLOGICAL INFORMATION
Some materials within the cell are bio-accumulative. Under normal conditions, these materials are contained and pose no risk to persons or the surrounding environment.
SECTION 13: DISPOSAL CONSIDERATIONS
Disposal should be in accordance with local, state or national legislation.
SECTION 14: TRANSPORT INFORMATION
- The International Air Transport Association (IATA) Dangerous Goods Regulations (61th Edition, 2020). Packing instruction 965 IA/IB/ Section II for Lithium Ion battery. - The International Maritime Dangerous Goods (IMDG) Code 2018 EditionIncorporating Amendment 39-18with special provision 188 & 230. - US Hazardous Materials Regulations 49 CFR(Code of Federal Regulations)Sections 173185 Lithium batteries and cells. - The UN Recommendations on the Transport of Dangerous Goods, Manual of Tests and Criteria 38.3 Lithium batteries, ST-SG-AC10-11-Rev6-Amend1 (UN3480) .
SECTION 15: REGULATORY INFORMATION
OSHA hazard communication standard (29 CFR 1910.1200)
Page 8 of 10
CELXPERT Safety Data Sheet Lithium Ion Rechargeable Battery Pack 2020/09/01 No. 202009--021
_____Hazardous
__V__ Non-hazardous
SECTION 16: OTHER INFORMATION
Package if damaged: do not load or transport. Celxpert contact window: David Lee For more information,call: +86-0512-57775999
SECTION 17: UN MANUAL OF TEST CRITERIA
All battery pack model pass UN383 test and drop test.
Item
Test Item
Test specification
1-1.4 batteries are standard charged. 4 batteries are 1C cycled 25
times, ending in fully charged state. All batteries weight is
Altitude
measured. The charged batteries voltage are measured and recorded.
T1
Simulation 1-2.Batteries shall be stored at a pressure of 11.6Kpa or less for at
(UN38.3-1)
least six hours at ambient temperature 20+/-5 .
1-3.Vacuum is released. All cells weight is measured. The charged
cell voltage are measured and recorded.
2-1.Packs are stored for 6 hours at 72�2, followed by storage for
6 hours at -40�2. The maximum time interval between test
T2
Thermal test
temperature extremes is 30 minutes.
(UN38.3-2) 2-2.Repeat 2-1 for 10 times. Then store the packs at ambient for 24
hours. All packs weight are measured. The charged battery
voltage are measured and recorded.
Page 9 of 10
CELXPERT Safety Data Sheet Lithium Ion Rechargeable Battery Pack 2020/09/01 No. 202009--021
Item
Test Item
Test specification
3-1.Packs are firmly secured to the platform of the vibration machine
without distorting the packs in such a manner as to faithfully
transmit the vibration. The vibration shall be a sinusoidal
waveform with a logarithmic sweep between 7 and 200 Hz and
back to 7 Hz traversed in 15 minutes. This cycle shall be repeated
T3
Vibration test (UN38.3-3)
12 times for a total of 3 hours for each of 3 mutually perpendicular to the terminal face. 3-2.The logarithmic frequency sweep is as follows:
7-18 Hz 1gn
18-50 Hz 0.8mm amplitude
50-200 Hz 8gn
3-3.All packs weight are measured. The charged packs voltage are
measured and recorded.
4-1.Packs shall be secured to the testing machine by means of a rigid
mount, which will support all mounting surfaces.
4-2.Packs shall be subjected to a half-sine shock of peak acceleration
T4
Shock test (UN38.3-4)
150gn and pulse duration of 6 milliseconds. Each pack shall be subjected to 3 shocks in the positive direction followed by three shocks in the negative direction of three mutually perpendicularly
mounting positions of the pack for a total of 18 shocks.
4-3.All batteries weight are measured. The charged cell voltage are
measured and recorded.
5-1.Packs are placed in to a 57�4 oven, and exterior packs
temperature are monitored
T5
Short Circuit Test
(UN38.3-5,
5-2.When packs exterior reach 57�4, they are shorted by
connecting terminals with a copper wire of resistance less than 100 mOhm. 5-3.The short was continued for more than 1hour or the cell
temperature return to 57. The packs are observed for a further 6
hours. 6-1.Cell's diameter 18mm, Execution impact test. (A 9.1 Kg mass is
T6
Impact test (UN38.3-6)
to be dropped from a height of 61�2.5cm onto the sample.) 6-2.Cell's diameter 18mm, Execution crush test (The cells are
crushed with a 13 KN with the crush tester. Once the force is
obtained it is to be released.)
7-1.The charge current shall be twice the SPEC's recommended
maximum continuous charge current.
7-2.The minimum voltage of the test shall be as follows:
(a) When the SPEC's recommended charge voltage is not more
T7
Overcharge test (UN38.3-7)
than 18V, the minimum voltage of the test shall be the lesser of two times the maximum charge voltage of the battery or 22V. (b) When the SPEC's recommended charge voltage is more than
18V, the minimum voltage of the test shall be 1.2 times the
maximum charge voltage.
7-3.Tests are to be conducted at ambient temperature. The duration
of the test shall be 24 hours.
T8
Forced discharge test-cell only (UN38.3-8)
8-1.
Cell shall be forced discharged at ambient temperature by connecting it in series with a 12 V D.C. power supply at an current equal to the maximum discharge current Specified manufacturer.
initial by the
Package Drop Test: Test specification: Height :120cm.
Page 10 of 10
