Steam Generator
Steam Generator - Morphy Richards
4 (1) Water tank (2) Anti-scale filter (3) Steam trigger (4) Temperature control dial (5) Iron (6) Soleplate (7) Iron rest plate (8) Base Unit (9) Temperature indicator light (10) Steam supply cord (11) Iron heel rests…
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

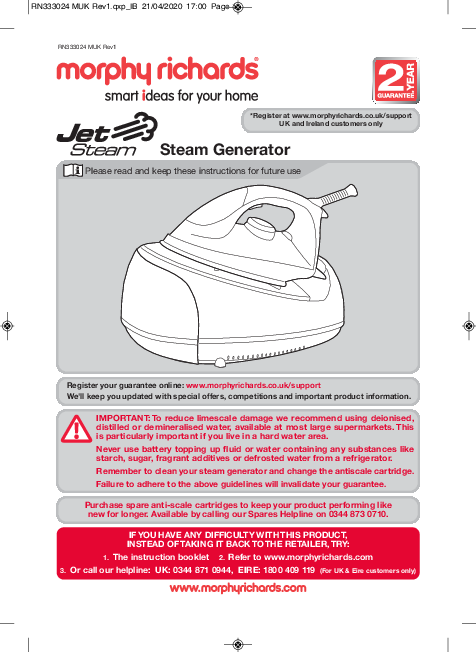

RN333024 MUK Rev1.qxp_IB 21/04/2020 17:00 Page 1 RN333024 MUK Rev1 * Register at www.morphyrichards.co.uk/support UK and Ireland customers only Steam Generator Please read and keep these instructions for future use Register your guarantee online: www.morphyrichards.co.uk/support We'll keep you updated with special offers, competitions and important product information. IMPORTANT: To reduce limescale damage we recommend using deionised, distilled or demineralised water, available at most large supermarkets. This is particularly important if you live in a hard water area. Never use battery topping up fluid or water containing any substances like starch, sugar, fragrant additives or defrosted water from a refrigerator. Remember to clean your steam generator and change the antiscale cartridge. Failure to adhere to the above guidelines will invalidate your guarantee. Purchase spare anti-scale cartridges to keep your product performing like new for longer. Available by calling our Spares Helpline on 0344 873 0710. IF YOU HAVE ANY DIFFICULTY WITH THIS PRODUCT, INSTEAD OF TAKING IT BACK TO THE RETAILER, TRY: 1. The instruction booklet 2. Refer to www.morphyrichards.com 3. Or call our helpline: UK: 0344 871 0944, EIRE: 1800 409 119 (For UK & Eire customers only) RN333024 MUK Rev1.qxp_IB 21/04/2020 17:00 Page 2 Important safety instructions The use of any electrical appliance requires the following common sense safety rules. Please read these instructions carefully before using the product. � WARNING: Disconnect from the mains supply before carrying out any routine maintenance. � WARNING: Misuse of the appliance could cause personal injury. � This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. � Keep the steam generator and its cord out of reach of children less than 8 years of age at all times. � The steam generator must not be left unattended while it is connected to the supply mains. � The steam generator must be used and rested on a stable surface. � When placing the iron on the steam generator base, ensure that the surface on which the base is placed is stable. � The steam generator is not to be used if it has been dropped, if there are visible signs of damage or it is leaking. � The filling aperture may be opened during use, due to the design of the system. � Do not operate with a damaged steam/supply cord or grommet, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard. 2 RN333024 MUK Rev1.qxp_IB 21/04/2020 17:00 Page 3 Personal safety � CAUTION - HOT: Burns can occur from touching hot parts, hot water or steam, or the iron rest plate. � WARNING: Never direct steam at electrical components or fittings. If in doubt about the suitability of steam for cleaning an appliance, contact the appliance manufacturer for advice prior to cleaning. � WARNING: Never touch the plug or cable with wet hands. � WARNING: Nozzles and tools will be hot after use. Allow to cool before attempting to remove. � WARNING: Do not discharge the steam towards people or animals. Danger of scalding. STEAM � To protect against fire, electric shock and personal injury, do not immerse cord, plug or steam generator in water or other liquid. � The plug should be removed from the wall socket after use, before cleaning, filling or changing the accessories, or carrying out user maintenance. Location � Unprofessional repairs can be � Do not use or keep this product dangerous for users. outside. � Use only genuine Morphy Richards � Do not store the appliance near hot spare parts and accessories. surfaces eg. ovens or heating � The appliance must not be left appliances. unattended while connected to the supply mains. Mains cable � This appliance is intended for � WARNING: A damaged or severed domestic use only. Misuse or use mains cable fitted with a plug for commercial or any other should never be connected to the purpose will render the guarantee mains supply. It must be invalid. destroyed, as a damaged cable becomes hazardous if connected Electrical requirements to a power socket. � Check that the voltage on the rating � Do not let the mains lead come into contact with the hot soleplate of the iron. � Do not allow the mains lead to become strained. plate of your appliance corresponds with your house electricity supply which must be A.C. (Alternating Current). � If the socket outlets in your home are not suitable for the plug Product safety supplied with this appliance, the � WARNING: Always test on an inconspicuous area first. Never use on materials that can not plug should be removed by trained authorised personnel and the appropriate one fitted. resist high temperature, such as � WARNING: This appliance must dralon, natural fur etc. be earthed. � Never modify the appliance in any way. Other safety considerations � Do not use any chemical detergents, perfumes, alcohol or descaler etc in water. � Should the fuse in the mains plug require changing, replace it with a fuse of the same rating as originally fitted. � Repairs to electrical appliances are only to be undertaken by trained personnel. Contents Health and safety ............................................................................ 2 Electrical requirements .................................................................. 3 Steam generator overview / Features ........................................... 4 Temperature guide .......................................................................... 4 Location ........................................................................................... 5 Before use ........................................................................................ 5 Using the Steam Generator ........................................................... 5 & 6 Features ........................................................................................... 7 Maintenance .................................................................................... 7 Emptying and storing ..................................................................... 7 Guarantee ........................................................................................ 8 Contact us ....................................................................................... 8 3 RN333024 MUK Rev1.qxp_IB 21/04/2020 17:00 Page 4 Steam generator overview 3 4 5 12 6 7 8 10 9 11 12 13 (1) Water tank (2) Anti-scale filter (3) Steam trigger (4) Temperature control dial (5) Iron (6) Soleplate (7) Iron rest plate (8) Base Unit (9) Temperature indicator light (10) Steam supply cord (11) Iron heel rests (12) Boiler ready indicator light (13) Power switch with indicator light Temperature guide Heat setting markings on the temperature dial of all Morphy Richards irons match those of the International Textile Care Labelling Code Symbol (120�C Max) Cool (160�C Max) Warm (210�C Max) Hot Control dial positions Fabric Ironing Steaming 4 Do not iron � �� Nylon, Acetates, synthetic fabrics Wool, Polyester mixtures Iron on wrong side, if moisture required, use damp cloth (not Acetate) ��� Cotton, Linen Rayon, Rayon mixtures Fabrics requiring this setting usually require steam pressing. RN333024 MUK Rev1.qxp_IB 21/04/2020 17:00 Page 5 Location Locate the steam generator horizontally on the iron rest plate of your ironing board (if large enough) or on a heat resistant stand at the same height as your ironing board or below it. Always ensure the steam generator is on a firm surface when ironing. WARNING: Do not use the product on a surface which could be damaged by heat or steam such as a polished wood surface. Before use Remove any protective sticker from the soleplate and the base unit, if any. Unwind and straighten the power cord and supply cord. Textiles and clothes are supposed to carry ironing instructions. If they don't, you should follow the Temperature guide on page 3, but be sure to test the temperature by ironing the hem of the garment or similar discreet area first. We recommend for first time ironing that you iron over an old towel. Using the Steam Generator 1) Filling the water tank 2) Switching on Remove the detachable water tank (2). Lift the anti-scale cartridge (3) out of the water tank and fill the tank with water through the space where the cartridge was. Fill to the max fill line. Reposition the anti-scale cartridge and the water tank. IN HARD WATER AREAS, WE RECOMMEND USING DEIONISED, DISTILLED OR DEMINERALISED WATER. Never use battery topping up fluid or water containing any substances like starch, sugar, fragrant additives or defrosted water from a refrigerator. NOTE: Please see point 2 of `Exclusions' on page 8. Re-filling during use When the water level becomes low, the pump begins to emit a clicking noise. This is due to air being pumped instead of water and is quite normal. Refilling can be done whilst the appliance is in operation. It is not necessary to wait for the appliance to cool down. Slide out the water tank and fill (see filling instructions). Plug the appliance into a mains outlet and press the power switch with indicator light (13). The switch will illuminate. The boiler ready indicator light (12) situated above the power switch will also illuminate, indicating the boiler is on its heating cycle and will go out when the required temperature is reached. 5 RN333024 MUK Rev1.qxp_IB 21/04/2020 17:00 Page 6 Using the Steam Generator (continued) 3) Temperature Selection 4) Ironing with Steam 3 Turn the temperature dial (4) to suit the garment (see `Temperature guide' on page 4). The appliance is ready to use when the iron temperature indicator light (9) switches off. It is advised to begin with `cool' fabrics (see above) and work up to higher settings. An iron heats up quicker than it cools down so you'll save time and electricity. If you turn the temperature dial (4) down from a hot setting to a cooler setting, wait until the temperature indicator light (9) goes out (indicating the correct temperature has been reached) before you continue ironing. Press and hold the steam trigger (3) to release steam. There will be a slight delay whilst the steam is drawn from the base and along the steam cord to the irons soleplate (6). NOTE: Residual steam - as the steam has a long distance to travel along the steam cord it is likely that there will still be some steam coming from the soleplate for a short while after you have released the trigger. This is normal and will eventually stop after several seconds. WARNING: The steam supply cord will get hot during use. 5) Switching off To switch the iron off, turn the temperature dial (4) on the iron (5) in an anti-clockwise direction to `Min'. Press the power switch (13) to switch to off. The power indicator light will be extinguished. Disconnect the plug from the mains outlet. 6 RN333024 MUK Rev1.qxp_IB 21/04/2020 17:00 Page 7 Features Dry ironing To use your steam generator as a dry iron only, follow steps 2 and 3 of `Using the Steam Generator' on pages 5 and 6. You do not need to put water in the tank or select a steam level. Steam function During steaming, small amounts of water may be ejected from the soleplate (6). This is normal and can be avoided by only using the iron when it is at the correct temperature (the temperature indicator light (9) on the iron (5) goes out when ready). Sudden jolts of the boiler unit can also cause water droplets on the soleplate; therefore, do not move the base unit during ironing. Vertical steam Vertical steam is useful for removing creases from hanging clothes, curtains, upholstery, etc. Hold the iron (5) between 1cm and 2cm away from the item and press and hold the steam trigger (3) for vertical steam. 3 WARNING: Do not use the vertical steam feature on clothes that are being worn. Maintenance To clean a coated soleplate Do not use scouring powder or solution as this could cause damage to the coating. If any man-made fibres fuse to the soleplate (6), set the iron at the MAX position and pass it over a clean piece of cotton to draw the deposit off the surface. To clean the exterior Allow the unit to cool and wipe over with a damp cloth and mild detergent, then wipe dry. Replacing the anti-scale filter The anti-scale filter is designed to reduce the build-up of limescale which occurs during steam ironing. This will prolong the working life of your iron. However, please note that the anti-scale filter will not completely stop the natural process of limescale build-up. How often you need to replace the anti-scale filter depends on how often you use your iron with its steam functions and how `hard' your water supply is. Water hardness varies greatly from one area to another. For advice on the relative hardness of your water, contact your local water supplier. If you iron more or less frequently, then you should alter the interval between refills accordingly. To obtain replacement anti-scale refills, telephone our spares number on: 0344 873 0710. If a new re-fill is not available, you may continue operating the appliance but scale will build up in the system. Replace the anti-scale refill as soon as possible. A BC 1 Disconnect the appliance from the mains outlet. 2 Slide out the tank and remove the anti-scale filter. 3 Pull the plate from the end of the filter A. 4 Remove the foam pad B and slide out the spent anti-scale sleeve C. 5 Place the refill into the filter, reposition the foam pad and clip the plate onto the filter, making sure it locks in position. 6 Connect the appliance to the mains supply and switch on. 7 Replace the water tank (1). The unit is now ready to use or store. Emptying and storing Allow the appliance to cool. Remove the detachable water tank (1) and empty it. Once the water tank is empty, re-attach it to the base unit (8). WARNING: Do not pull too tightly on the steam supply cord or on the cable support when looping the power cord and steam supply cord. Damage to cables caused by wrapping too tightly will not be covered by the guarantee. 7 RN333024 MUK Rev1.qxp_IB 21/04/2020 17:00 Page 8 RN333024 MUK Rev1 04/20 Registering your guarantee Your standard 1 year guarantee is extended for an additional 12 months when you register the product within 28 days of purchase with Morphy Richards. If you do not register the product with Morphy Richards within 28 days, your product is guaranteed for 1 year. To validate your 2 year guarantee register with us online at www.morphyrichards.co.uk/support Or call our customer registration line UK 0344 871 0242 IRE 1800 409 119 N.B. Each qualifying product needs to be registered with Morphy Richards individually. Please note that the 2 year guarantee is only available in the UK and Ireland. Please refer to the 1 year guarantee for more information. Your 1 year guarantee It is important to retain the retailer's receipt as proof of purchase. Staple your receipt to this back cover for future reference. Please quote the following information if the product develops a fault. These numbers can be found on the base of the product. Model no. Serial no. All Morphy Richards products are individually tested before leaving the factory. In the unlikely event of any appliance proving to be faulty within 28 days of purchase, it should be returned to the place of purchase for it to be replaced. If the fault develops after 28 days and within 12 months of original purchase, you should contact the Helpline number quoting Model number and Serial number on the product, or write to Morphy Richards at the address shown. You may be asked to return a copy of proof of purchase. Subject to the exclusions (see Exclusions), the faulty appliance will then be repaired or replaced as appropriate and dispatched usually within 7 working days of receipt. If, for any reason, this item is replaced or repaired during the 1 year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it is vital to retain your original till receipt or invoice to indicate the date of initial purchase. To qualify for the 1 year guarantee, the appliance must have been used according to the instructions supplied. For example, water should be emptied after each use. Exclusions Morphy Richards shall not be liable to replace or repair the goods under the terms of the guarantee where: 1 The fault has been caused or is attributable to accidental use, misuse, negligent use or used contrary to the manufacturer's recommendations or where the fault has been caused by power surges or damage caused in transit. 2 The fault has been caused by using water other than that recommended by Morphy Richards. 3 The fault is caused by limescale build-up. 4 The cables are damaged due to wrapping too tightly or excessive kinking. 5 The appliance has been used on a voltage supply other than that stamped on the products. 6 Repairs have been attempted by persons other than our service staff (or authorised dealer). 7 The appliance has been used for hire purposes or non domestic use. 8 The appliance is second hand. 9 Morphy Richards reserves the right not to carry out any type of servicing under the guarantee at its discretion. � This guarantee does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This guarantee is offered as an additional benefit and does not affect your statutory rights as a consumer. Morphy Richards products are intended for household use only. See usage limitations within the location safety instructions. Disclaimer Morphy Richards has a policy of continuous improvement in product quality and design. The company, therefore reserves the right to change the specification of its models at any time. For electrical products sold within the European Community. At the end of the electrical products useful life, it should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your country. Contact us Helpline If you are having a problem with your appliance, please call our Helpline, as we are more likely to be able to help than the store you purchased the item from. Please have the product name, model number and serial number to hand when you call to help us deal with your enquiry quicker. UK Helpline: 0344 871 0944 IRE Helpline: 1800 409 119 Spares: 0344 873 0710 Talk to us If you have any questions or comments, or want some great tips to help you get the most out of your products, join us online: Blog: www.morphyrichards.co.uk/blog Facebook: www.facebook.com/morphyrichardsuk Twitter: @loveyourmorphy Website: www.morphyrichards.com Address: The After Sales Division Morphy Richards Ltd Mexborough, South Yorkshire, England, S64 8AJ
