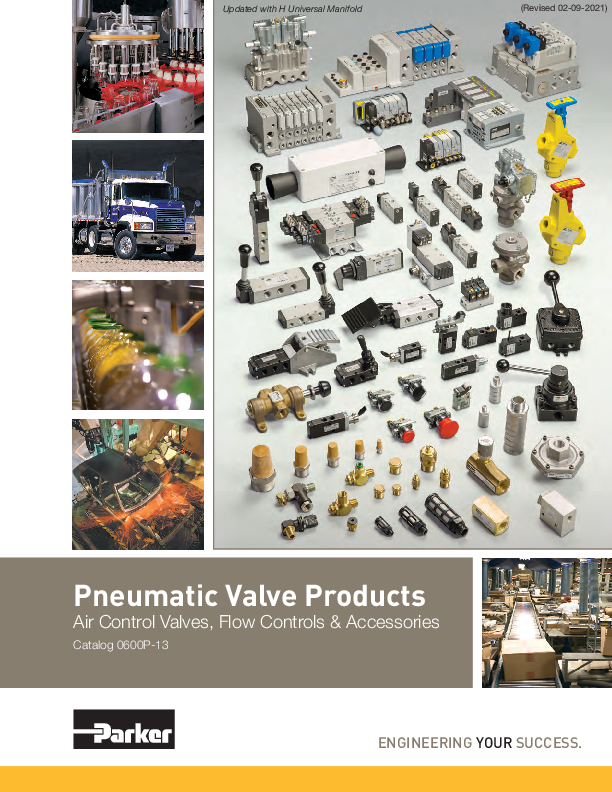

Pneumatic Valve Products
Air Control Valves, Flow Controls & Accessories
Catalog 0600P-13
ENGINEERING YOUR SUCCESS.
Catalog 0600P-13
Pneumatic Valve Products
Distributor Network, Warning, Offer of Sale
DISTRIBUTION NETWORK
At Parker, we have the largest global distribution network in motion and control, with over 7,500
distributors serving more than 422,000 customers.
To find the distributor nearest you, please visit our DISTRIBUTOR LOCATOR at
http://www.parker.com/pneu/distributor
ENGINEERING YOUR SUCCESS.
! WARNING
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS AND/OR SYSTEMS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE.
This document and other information from Parker Hannifin Corporation, its subsidiaries and authorized distributors provide product and/or system options for further investigation by users h aving technical expertise. It is important that you analyze all aspects of your application including consequences of any failure, and review the information concerning the product or system in the current product catalog. Due to the variety of operating conditions and applications for these products or systems, the user, through its own analysis and testing, is solely responsible for making the final selection of the products and systems and assuring that all performance, safety and warning requirements of the application are met.
The products described herein, including without limitation, product features, specifications, designs, availability and pricing, are subject to change by Parker Hannifin Corporation and its subsidiaries at any time without notice.
Offer of Sale
The items described in this document are hereby offered for sale by Parker Hannifin Corporation, its subsidiaries or its
authorized distributors. This offer and its acceptance are governed by the provisions stated on the separate page of this
document entitled "Offer of Sale".
� Copyright 2016-2005 Parker Hannifin Corporation. All Rights Reserved
For inventory, lead times, and kit lookup, visit www.pdnplu.com
Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics
Product Index Engineering Data
Direct Acting Valves
Inline Valves
Catalog 0600P-13
Index
(Revised 11-9-20) Pneumatic Valve Products Product Selection
Product Index, Engineering Data
A
Direct Acting Valves
XM Series, 15mm Solenoid Valve
B
Inline Valves
Subbase & Manifolds Valves
Manual Mechanical Valves
Accessories Part Number Index, Safety Guide, Offer of Sale
Viking Lite Series, Viking Xtreme Series, "B3, B5, B6" Series, "B7 & B8" Series,
C
Air Saver Unit, ADEX Series, "N" Series
H Series Micro, Moduflex Series, H Series ISO, Network Connectivity,
D
"DX" ISOMAX Series, Valvair II Series
Directair 2 & 4 Series, Viking Xtreme
Manual Series, "42" Lever / Pedal Series, "MO" Series, Safety, Brass Poppet /
E
Sliding Seal / "PL" / "VL" / "HV" Series,
Control Panel Products, Sensing Products
Flow Controls, Check Valves, Mufflers,
Quick Exhaust & Shuttle Valves, Tank Valves, Breather Vents, Silencers, Blocking Valves,
F
Blow Guns, Integrated Fittings
G
Subbase & Manifold Valves
Manual / Mechanical Valves
Accessories
Page Number Index, Safety Guide, Offer of Sale
1
For inventory, lead times, and kit lookup, visit www.pdnplu.com
Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics
Engineering Data
Product Index
Product Index Engineering Data
Catalog 0600P-13
Parker Pneumatic
A Direct Acting Valves
XM Series - Direct Acting
� Inline or stacking � 1/8 inch ports � Pressures 0 to 125 PSIG � Temperatures 32�F to 125�F � Flow - .15 Cv
B2
15mm Series - Direct Acting
� Subbase or manifold � 1/8 inch ports � Pressures VAC to 145 PSIG � Temperatures 5�F to 140�F � Flow - .033 to .05 Cv
B9
For inventory, lead times, and kit lookup, visit www.pdnplu.com
Pneumatic Valve Products Pictorial Index - www.parker.com/pneu/valves
Inline Valves
Viking Lite Series Valves
� Inline or bar manifold � 1/8 through 3/8 inch ports � Pressures 22 to 145 PSIG � Temperatures 14�F to 122�F � Flow - .6 to 2.5 Cv
C2
Viking Xtreme Series Valves
� Inline or bar manifold � 1/8 through 1/2 inch ports � Pressures VAC to 232 PSIG � Temperatures -40�F to 140�F � Flow - .7 to 2.7 Cv
C11
B Series Valves
� Inline, subbase or bar manifold � 1/8 through 3/4 inch ports � Pressures VAC to 145 PSIG � Temperatures 5�F to 120�F � Flow - .75 to 7.0 Cv
C41
Air Saver Valve Units
� Large reduction in air consumption � Savings in compressor power consumption � Reduction in plant CO2 emissions � Big contribution to energy-saving activities � Improved efficiency
C74
ADEX Series Valves
� Inline, subbase or bar manifold � M3, M5, 1/8 inch ports � Pressures VAC to 100 PSIG � Temperatures 32�F to 122�F � Flow - .1 to .47 Cv
C83
N Series - Inline Poppet Valves
� Inline mounted � 3/8 through 1-1/2 inch ports � Pressures 30 to 250 PSIG � Temperatures 0�F to 200�F � Flow - 3.6 to 29.9 Cv
C96
2
Parker Hannifin Corporation
Pneumatic Division
Richland, Michigan
www.parker.com/pneumatics
Catalog 0600P-13
Parker Pneumatic
(Revised 02-20-20)
Pneumatic Valve Products Pictorial Index - www.parker.com/pneu/valves
Subbase & Manifold Valves
Manual / Mechanical Valves
H Series Micro Valve
� Subbase or manifold � 4mm through 1/4 tube � Pressures VAC to 145 PSIG � Temperatures 5�F to 120�F � Flow - .35 Cv
D2
Moduflex Series Valves
� Inline or stacking � 4mm tube, 1/4, 3/8 inch ports � Pressures VAC to 120 PSIG � Temperatures 5�F to 140�F � Flow - .18 to .80 Cv
D28
H Series ISO Valve
� Subbase or manifold � 1/8 through 3/4 inch ports � Pressures VAC to 145 PSIG � Temperatures 5�F to 120�F � Flow - .55 to 6.0 Cv
D71
Network Connectivity
� Network connectivity for H Series and Moduflex valves
� Up to 256 inputs � Up to 256 outputs � Digital or analog
D145
DX ISOMAX Series
� Subbase or manifold � 1/8 through 3/4 inch ports � Pressures VAC to 145 PSIG � Temperatures 14�F to 140�F � Flow - .55 to 4.15 Cv
D213
Valvair II Series
� Subbase or manifold � 3/8 through 1-1/2 inch ports � Pressures VAC to 225 PSIG � Temperatures 0�F to 200�F � Flow - 1.9 to 12.0 Cv
D257
For inventory, lead times, and kit lookup, visit www.pdnplu.com
Directair 2 & 4
� Manual / mechanical � 1/8 and 1/4 inch ports � Pressures VAC to 150 PSIG � Temperatures 32�F to 175�F � Flow - .20 to .84 Cv
E2
Viking Xtreme Lever Series
E14
� Manual / mechanical � 1/8, 1/4 and 3/8 inch ports � Pressures:
Type A & B - VAC to 232 PSIG Type C & D - VAC to 174 PSIG � Temperatures -40�F to 140�F � Flow - .5 to 2.7 Cv
42 Lever / Pedal Series
� Manual / mechanical � 1/4 and 3/8 inch ports � Pressures VAC to 150 PSIG � Temperatures 0�F to 140�F � Flow - 1.3 to 2.9 Cv
E21
MO Series
E24
� Air Pilot, Manual / mechanical � 1/4 and 1 inch ports � Pressures VAC to 225 PSIG � Temperatures -15�F to 200�F � Flow - .5 to 1.25 Cv
Safety
E52
� LV/EZ shut off valves � Port sizes 3/8 through 1-1/4 inch � Max. supply pressure 300 PSIG � Max. operating temperature 175�F � Cv from 3.7 to 14 � Two hand tiedown controls
Brass Poppet, Sliding Seal
� 4-way, 3-position rotary disc, direct air operated valves
� Pressures 0 to 150 PSIG � Temperatures 18�F to 200�F � Flow - 2.5 to 6.2 Cv
E62
3
Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics
Engineering Data
Product Index
Product Index Engineering Data
A
Product Index Engineering Data
Product Index
Engineering Data
Catalog 0600P-13
Parker Pneumatic
A Manual / Mechanical Valves
Control Panel Products
� A wide variety of push buttons and selector switches
� Visual indicators � Foot pedal switches � Modular pneumatic / electric push buttons
E67
Sensing / Limit Switches
E77
� Limit switches in a variety of sizes and configurations
� Pressure switches with many adjustable ranges
� Components designed specifically for pneumatic technology using pressure variation, air bleed or blocking for detection
Pneumatic Valve Products Pictorial Index - www.parker.com/pneu/valves
Part Number Index, Safety Guides, Offer of Sale
� Part Number to Page Number Index � Safety Guide � Offer of Sale
G2
Accessories
Flow Control & Check Valves
� Flow controls � 1/8 to 1-1/2 inch ports
� Check valves � 1/8 to 3/4 inch ports
F2
Misc Accessories
� Exhaust mufflers � Quick exhaust & shuttle valves � Threshold valves � Tank valves � Blow guns
F14
Integrated Fittings
� Flow controls � Check valves � Blocking valves
F25
4
For inventory, lead times, and kit lookup, visit www.pdnplu.com
Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics
Product Index Engineering Data
Product Index
Engineering Data
Catalog 0600P-13
PCaartakloegr09P00nPe-Eumatic
Pneumatic Valve Products E-Tools
PNEUMATIC DIVISION E-TOOLS
A
Pneumatic Division Part Lookup Tool
Part Lookup Tool Overview
The purpose of this application is to provide users with more in depth detail, such as replacement kits or current inventory for specific pneumatic part numbers. The tool also provides cross reference information for products that have been previously obsoleted. Searches can be made by searching a portion or all of a part number. Use the drop down options available to narrow your search.
Part Lookup Tool Contents
� Replacement KITs by part number � Obsolete cross reference � Inventory/stock levels � Pricing (with distributor login only)
� Bulk part search � Shipping location � Lead time
How to access the Tool
U.S. Parker Pneumatic Distributors � www.pdnpartlookup.com � Or download the "Distributor Toolbox" app
Guest Users � www.pdnplu.com
Pneumatic Division Size & Selection Calculators
Size, Selection and Cost of Air Calculators Overview The purpose of this application is to provide users and designers of pneumatic systems with a handy collection of compressed air cost calculators, conversion tools and air valve (Cv) and flow (SCFM) calculations for air cylinder actuation. The size and select calculators are available to anyone for use. See details below.
How to access the Tool
� www.parkerpdncalc.com � Or download the "Pneumatics" calculator app
Calculator Contents
� Cost calculator for leaks � Cost calculator for compressors � Cost calculator for reverse flow regulators � Vacuum flow through an orifice
� Air flow through an orifice � Annual cost of air cylinder operation � Valve/FRL sizing for cylinder actuation � And more!
5
