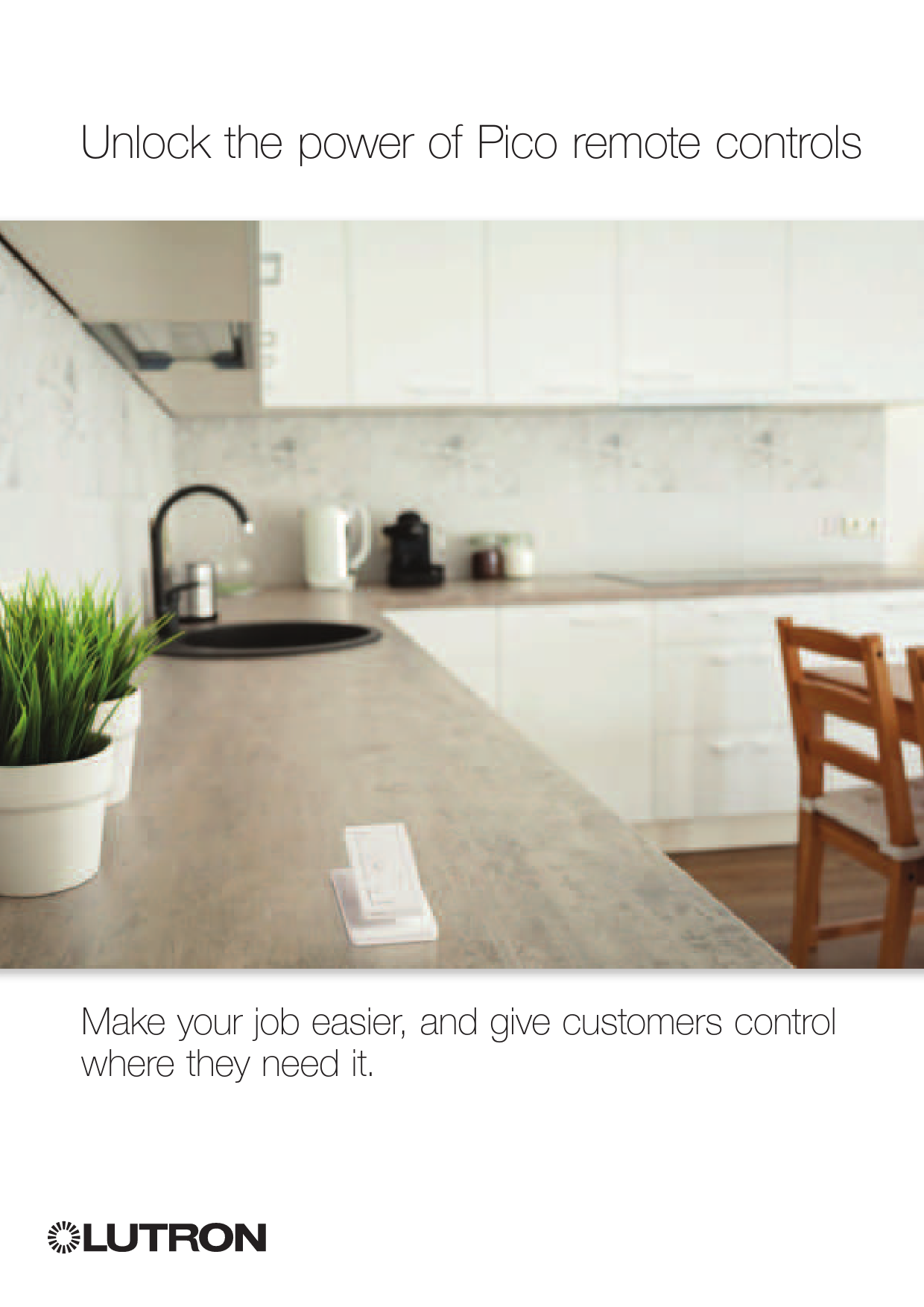

Unlock the power of Pico remote controls
Make your job easier, and give customers control where they need it.

What is a Pico?

A Pico is a battery-powered, RF remote that communicates with other Lutron wireless devices, including dimmers, switches, blinds, and audio integrated into a Lutron system.

Pico remote wallplate kit (sold separately)

Pico wallplate
Pico remote
Wallplate bracket

Multi-location control
in a few minutes

Adding a Pico to a dimmer, switch, blind, or Sonos Home Sound System provides an additional point of control. And it only takes a few minutes to do.
What can a Pico do for you?
· You can add a Pico to any wall surface without cutting holes, running wire, plastering, and repainting.
· You can easily add 2-way dimming or switching control where your customer needs it, in a fraction of the time and labour it takes to install a wired 2-way.
· You'll avoid callbacks. The Pico is battery-powered, with an industryleading 10-year battery life.

ii

Your time is valuable

lutron.com
20 minutes
or less

Adding a new control location with a Pico
You can add a Pico in 3 easy steps: 1. Install In-line dimmer or switch at the
light fitting 2. Associate the Picos to the dimmer
or switch* 3. Replace the old switch with a Pico
and attach the second Pico to a wall or place it on a pedestal
Tools needed: screwdriver and pliers
* You can also easily associate a Pico directly to Lutron blinds.

2-4 hours

Adding a new control location with a 2-way switch
Installing a traditional switch requires more time: 1. Run wire through a loft, under floor boards, or chase through a wall 2. Cut a hole in wall and install the back box 3. Wire the new control into the existing circuit 4. Repair the wall and paint it
Tools needed: screwdriver, wire stripper, bolster chisel, hammer, fishing rods, pliers

1

What can a Pico do for your customers?

Pico is also great problem solver -- for bathroom lights...

With a Pico and just one touch, a customer can: · Turn off all the lights in the home
· Control multiple lights or blinds at one time
· Control audio (instead of opening an app on a phone)

Add control where your customer wants it Mount a Pico on a tabletop pedestal. Tabletop pedestals are available in single, double, and triple configurations.
You can also mount a Pico on a wall with or without a wallplate.

Control the lights in your bathroom without opening the door, or using an inconvenient pullcord.
The Clear Connect wireless signal works around corners/through walls and is ultrareliable, which equals no callbacks for you.

2

3

... and nurseries,

... as well as hallways.

Keep one close at hand to dim lights without getting up, when singing baby to sleep.
3-button Pico with raise / lower buttons
4

Add additional control to high traffic areas that lack a convenient control location, such as a long hallway.
2-button Lights Pico mounted in a wallplate
5

Pico remote control
Control lights, blinds, and audio. Users can create a frequently used setting, save it, and then recall it with the "Favourite" button.

Lighting control

Blinds control

Turn lights on
Raise light level Favourite (preset) button Lower light level
Turn lights off
Pico remote for lights PK2-3BRL-TAW-L01
Audio control

Open blinds
Raise blinds Favourite (preset) button Lower blinds
Close blinds
Pico remote for blinds PK2-3BRL-TAW-S01

Play / pause
Raise volume Cycle favourite stations Lower volume
Next track

Pico remote for audio PK2-3BRL-TAW-A01

4-button Pico remote control
Control zones, scenes, or groups of lights and /or blinds.

Zone control
Control multiple lights or blinds; operates the same as a 3-button remote with raise / lower, but without a "Favourite" button

Scene control
Control lights or blinds to preset levels; differs from a Pico scene keypad in that all devices associated to the top button will also be associated to the other three buttons.

Blinds model PK2-4B-TAW-S01
2-group control
Control two groups of lights, two groups of blinds, or one group of lights/one group of blinds.

Blinds model PK2-4B-TAW-S31
4-group toggle
Toggles four loads on and off; designed for HomeWorks QS systems

Lights model PK2-4B-TAW-L21

Lights model PK2-4B-TAW-L41

6

7

Pico scene keypads
Control lights, blinds, and audio. These keypads are available pre-engraved with common scenes for typical activities in a home. They autoconfigure in the Lutron App for RA2 Select, saving you time, and can be easily configured in the app to personalise for the homeowner.

2-button Scene keypads

Turn lights on to programmed level
Turn lights off

Use the "Away" button to turn off and lower blinds when leaving your house and the "Home" button when you come back to turn entry lights on and raise blinds.

Pico Entry scene keypad PK2-2B-TAW-P01

Home

Ceiling lights
100%

Table lamp
50%

Away

Off

Off

Blinds Open Closed

8

4-button Scene keypads
Turn lights on to programmed level Turn lights on to programmed level
Turn lights on to programmed level
Turn lights off
Pico Kitchen scene keypad PK2-4B-TAW-P02

Control all the kitchen lights with a single button press.

Bright

Ceiling lights
100%

Island lights

Pendant

100%

100%

Blinds Open

Cooking 100%

N/A

50% 75% Open

Dining

20%

65%

50% Half Open

Off

Off

Off

Off

Closed

9

Pico remote controls for lighting
Ordering Information

(Actual size)

2B

2BRL

3B

3BRL

4B

4B

4B

4B

4B

PK2-BR-TAW-L01

Light (L01)

Light (L01)

Light (L01)

Light (L01)

Build a Pico Model Number

PK2- -XXX-XXX

Button

Configuration

Code

Colour

Code

Button

Marking

Code

Button Configuration Codes:

Button Configurations 2-button 2-button with raise / lower 3-button 3-button with raise / lower 4-button

Code 2B 2BRL 3B 3BRL 4B

Button Marking Codes: L01, L31, L21, LS21, L41

Colour Codes:

Textured Colours Code

Arctic White

TAW

Black

TBL

10

Light (L31) (scene)

Light (L21) (2-group)

Light /Blind (LS21) (2-group)

Light (L41*) (4-group toggle)
* HomeWorks only

11

Pico remote controls for blinds
Ordering Information

2BRL

3BRL

(Actual size)

PK2-2BRL-TAW-S01 3BRL

Blind (icons) (S01) 3BRL

3BRL

3BRL

3BRL

3BRL

3BRL

4B

4B

4B

Blind (icons + text) (S01) Blackout (S02)

Sheer (S04)

Blind (S05)

Skylight (S06)

Build a Pico Model Number

PK2- -XXX-XXX

Button

Configuration

Code

Colour

Code

Button

Marking

Code

Button Configuration Codes:

Button Configurations 2-button with raise / lower 3-button with raise / lower 4-button

Code 2BRL 3BRL 4B

Button Marking Codes:
S01, S02, S03, S04, S05, S06, S07, S09, S31, S21

Colour Codes:

Textured Colours Code

Arctic White

TAW

Black

TBL

12

Drapery (S07)

Horizontal Sheer Blind (S09)

Blind (icons) (S01)

Blackout (scene) (S31) Blackout (2-group) (S21)

13

Pico remote control for video screens
Ordering Information

Pico remote control for audio
Ordering Information

PK2-2B-TAW-S08 (actual size)

Build a Pico Model Number
PK2-2B-XXX-S08

Button Configuration Codes:

Button Configurations Code

2-button

2B

Colour Code

Button Marking Code: S08

Colour Codes:

Textured Colours Code

Arctic White

TAW

Black

TBL

14

PK2-3BRL-TAW-A01 (actual size)

Build a Pico Model Number
PK2-3BRL-XXX-A01
Colour Code

Button Configuration Codes:

Button Configurations

Code

3-button with raise / lower 3BRL

Colour Codes:

Textured Colours Code

Arctic White

TAW

Black

TBL

Button Marking Code: A01

15

Pico scene keypads
Ordering Information

Custom 4-button Pico scene keypads
Ordering Information: lutron.com/custompico-europe

Entry

Bedside

Family room

Kitchen

Any Room

Zone Controls

Scene Keypads

PK2-2B-TAW-P01 (actual size)

PK2-2B-TAW-P02 (actual size)

PK2-4B-TAW-P01 (actual size)

PK2-4B-TAW-P02 (actual size)

PK2-4B-TAW-P03 (actual size)

Build a Pico Model Number

PK2- -XXX-XXX

Button

Configuration

Code

Colour

Code

Button

Marking

Code

Button Configuration Codes:

Button Configurations Code

2-button

2B

4-button

4B

Button Marking Codes: P01, P02, P03

Colour Codes:

Textured Colours Code

Arctic White

TAW

Black

TBL

16

PK2-4B-TAW-EL1 (lights example)

PK2-4B-TAW-ES1 (blinds example)

PK2-4B-TAW-EL2 (lights example)

PK2-4B-TAW-ES2 (blinds example)

Build a Pico Model Number
PK2-4B-XXX-XXX

Button Configuration Codes:

Button Configurations Code

4-button

4B

Colour Code
Button Marking Code

Button Marking Codes: EL1, EL2, ES1, ES2

Colour Codes:

Textured Colours Code

Arctic White

TAW

Black

TBL

17

Pico remote controls -- mounting accessories
Ordering Information

L-PED2-WH

L-PED1-WH

L-PED3-WH

Pedestal Model Number
L-PEDX-XX
Capacity Code
Colour Code

Colour Codes:

Gloss Colours Code

Arctic White TAW

Black

TBL

Single, double, and triple pedestals available

** Available in White and Black colors only
18

Pico wallplate (LPFP-S1-TAW)
· Provides a clean, screwless look
· Available in 1-3 openings

Pico glass wallplate (LFGP- -CWH) · Provides a clean, screwless look · Available in 1-2 openings

Pico Wallplate Model Number
LPFP- -XX LFGP- -CWH

Openings Colour Code

Openings Colour Code

Colour Codes:

Textured Colours Code

Arctic White

TAW

Black

TBL

Metal Finishes Satin Nickel Satin Brass Bright Brass

Code SN SB BB

Glass

Code

Clear White CWH

19

Pico remote controls -- flexibility
You can use a Pico with Lutron standalone dimmers and blinds, as well as with the following Lutron systems RA2 Select

Notes

Pico scene keypad, In-line dimmer, and Sivoia QS Triathlon blinds HomeWorks QS

Pico remote, Palladiom keypad, and Palladiom blinds
