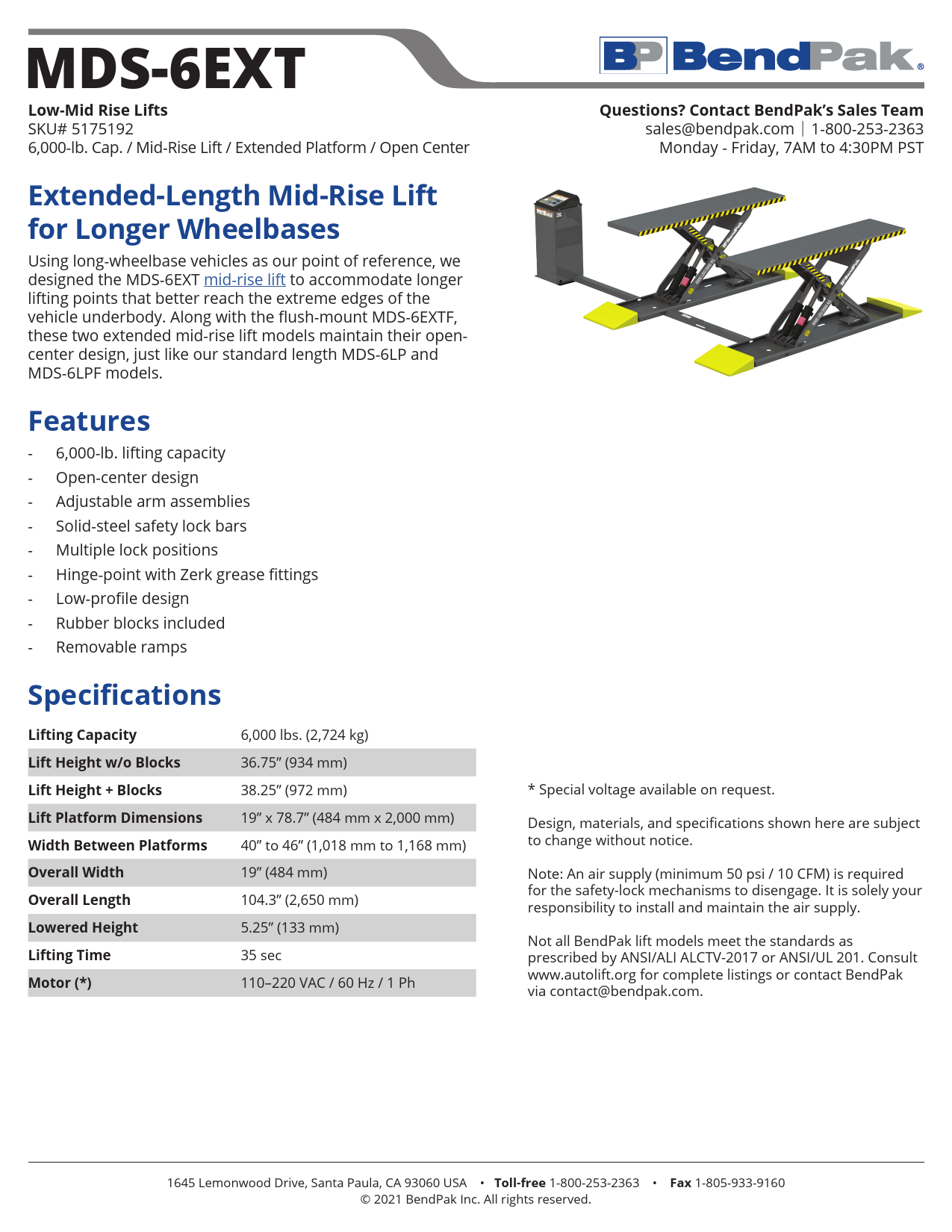

MDS-6EXT
Low-Mid Rise Lifts SKU# 5175192 6,000-lb. Cap. / Mid-Rise Lift / Extended Platform / Open Center

Extended-Length Mid-Rise Lift
for Longer Wheelbases
Using long-wheelbase vehicles as our point of reference, we designed the MDS-6EXT mid-rise lift to accommodate longer lifting points that better reach the extreme edges of the vehicle underbody. Along with the flush-mount MDS-6EXTF, these two extended mid-rise lift models maintain their opencenter design, just like our standard length MDS-6LP and MDS-6LPF models.

Features
- 6,000-lb. lifting capacity - Open-center design - Adjustable arm assemblies - Solid-steel safety lock bars - Multiple lock positions - Hinge-point with Zerk grease fittings - Low-profile design - Rubber blocks included - Removable ramps

Specifications

Lifting Capacity Lift Height w/o Blocks Lift Height + Blocks Lift Platform Dimensions Width Between Platforms Overall Width Overall Length Lowered Height Lifting Time Motor (*)

6,000 lbs. (2,724 kg) 36.75" (934 mm) 38.25" (972 mm) 19" x 78.7" (484 mm x 2,000 mm) 40" to 46" (1,018 mm to 1,168 mm) 19" (484 mm) 104.3" (2,650 mm) 5.25" (133 mm) 35 sec 110�220 VAC / 60 Hz / 1 Ph

Questions? Contact BendPak's Sales Team sales@bendpak.com | 1-800-253-2363 Monday - Friday, 7AM to 4:30PM PST
* Special voltage available on request. Design, materials, and specifications shown here are subject to change without notice. Note: An air supply (minimum 50 psi / 10 CFM) is required for the safety-lock mechanisms to disengage. It is solely your responsibility to install and maintain the air supply. Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for complete listings or contact BendPak via contact@bendpak.com.
