Dimensions listed are for metric cable glands only. Dimensions for alternative threads may vary. www.cmp-products.com TECHNICAL CLASSIFICATION DESIGN SPECIFICATION BS 6121: Part 1:1989, IEC 62444, EN 62444

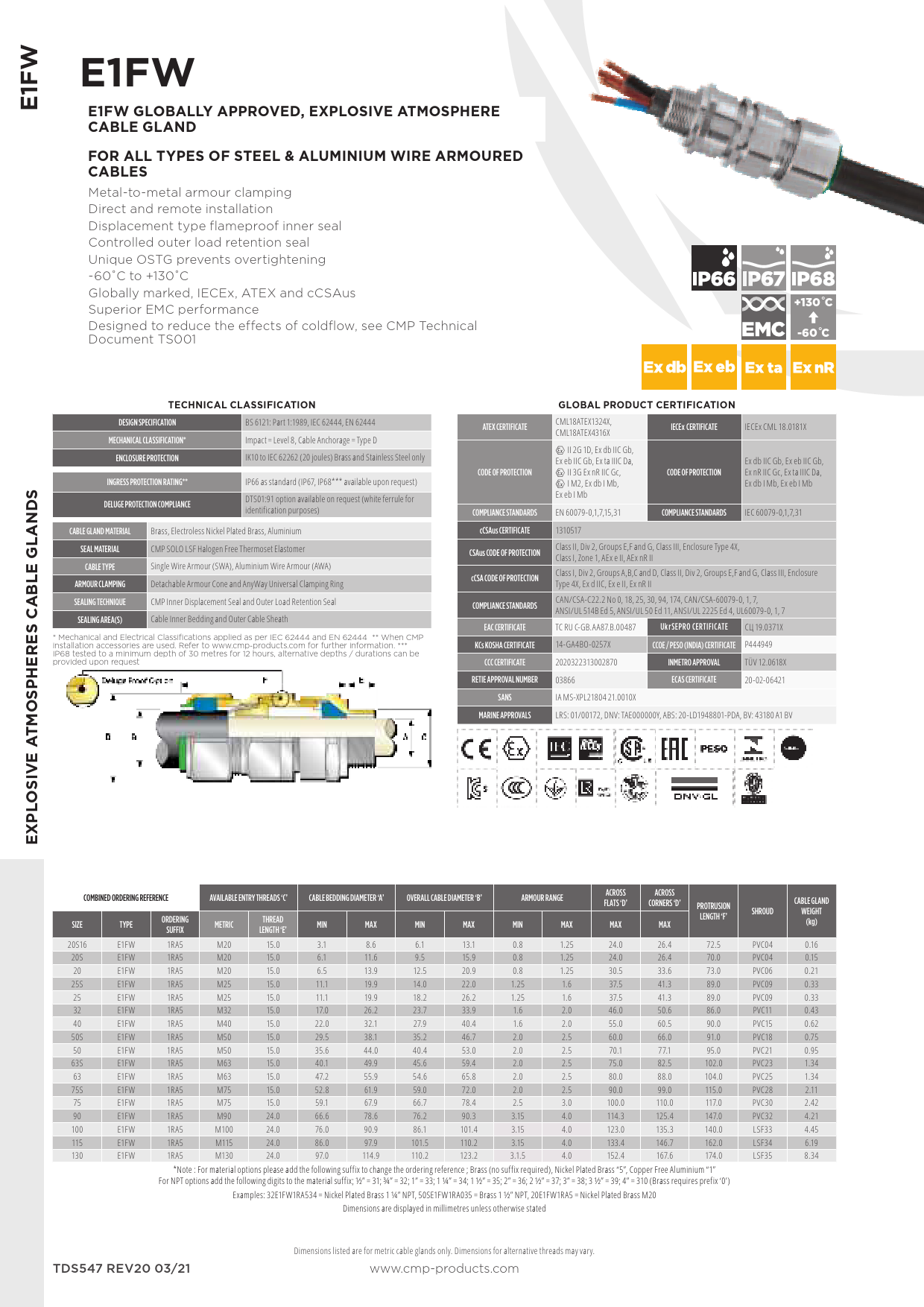

E1FW GLOBALLY APPROVED, EXPLOSIVE ATMOSPHERE CABLE GLAND. FOR ALL TYPES OF STEEL & ALUMINIUM WIRE ARMOURED CABLES. Metal-to-metal armour...
E1FW E1FW E1FW GLOBALLY APPROVED, EXPLOSIVE ATMOSPHERE CABLE GLAND FOR ALL TYPES OF STEEL & ALUMINIUM WIRE ARMOURED CABLES Metal-to-metal armour clamping Direct and remote installation Displacement type flameproof inner seal Controlled outer load retention seal Unique OSTG prevents overtightening -60°C to +130°C Globally marked, IECEx, ATEX and cCSAus Superior EMC performance Designed to reduce the effects of coldflow, see CMP Technical Document TS001 +130°C -60°C TECHNICAL CLASSIFICATION DESIGN SPECIFICATION BS 6121: Part 1:1989, IEC 62444, EN 62444 MECHANICAL CLASSIFICATION* Impact = Level 8, Cable Anchorage = Type D ENCLOSURE PROTECTION IK10 to IEC 62262 (20 joules) Brass and Stainless Steel only INGRESS PROTECTION RATING** DELUGE PROTECTION COMPLIANCE IP66 as standard (IP67, IP68*** available upon request) DTS01:91 option available on request (white ferrule for identification purposes) CABLE GLAND MATERIAL Brass, Electroless Nickel Plated Brass, Aluminium SEAL MATERIAL CMP SOLO LSF Halogen Free Thermoset Elastomer CABLE TYPE Single Wire Armour (SWA), Aluminium Wire Armour (AWA) ARMOUR CLAMPING Detachable Armour Cone and AnyWay Universal Clamping Ring SEALING TECHNIQUE CMP Inner Displacement Seal and Outer Load Retention Seal SEALING AREA(S) Cable Inner Bedding and Outer Cable Sheath * Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. *** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request ATEX CERTIFICATE CODE OF PROTECTION COMPLIANCE STANDARDS cCSAus CERTIFICATE CSAus CODE OF PROTECTION cCSA CODE OF PROTECTION COMPLIANCE STANDARDS EAC CERTIFICATE KCs KOSHA CERTIFICATE CCC CERTIFICATE RETIE APPROVAL NUMBER SANS MARINE APPROVALS GLOBAL PRODUCT CERTIFICATION CML18ATEX1324X, CML18ATEX4316X IECEx CERTIFICATE IECEx CML 18.0181X ^ II 2G 1D, Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da, ^ II 3G Ex nR IIC Gc, ^ I M2, Ex db I Mb, Ex eb I Mb CODE OF PROTECTION Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex db I Mb, Ex eb I Mb EN 60079-0,1,7,15,31 COMPLIANCE STANDARDS IEC 60079-0,1,7,31 1310517 Class II, Div 2, Groups E,F and G, Class III, Enclosure Type 4X, Class I, Zone 1, AEx e II, AEx nR II Class I, Div 2, Groups A,B,C and D, Class II, Div 2, Groups E,F and G, Class III, Enclosure Type 4X, Ex d IIC, Ex e II, Ex nR II CAN/CSA-C22.2 No 0, 18, 25, 30, 94, 174, CAN/CSA-60079-0, 1, 7, ANSI/UL 514B Ed 5, ANSI/UL 50 Ed 11, ANSI/UL 2225 Ed 4, UL60079-0, 1, 7 TC RU C-GB.AA87.B.00487 UkrSEPRO CERTIFICATE C 19.0371X 14-GA4BO-0257X CCOE / PESO (INDIA) CERTIFICATE P444949 2020322313002870 INMETRO APPROVAL TÜV 12.0618X 03866 ECAS CERTIFICATE 20-02-06421 IA MS-XPL21804 21.0010X LRS: 01/00172, DNV: TAE000000Y, ABS: 20-LD1948801-PDA, BV: 43180 A1 BV EXPLOSIVE ATMOSPHERES CABLE GLANDS COMBINED ORDERING REFERENCE SIZE TYPE ORDERING SUFFIX AVAILABLE ENTRY THREADS `C' METRIC THREAD LENGTH `E' CABLE BEDDING DIAMETER `A' MIN MAX OVERALL CABLE DIAMETER `B' MIN MAX ARMOUR RANGE MIN MAX ACROSS FLATS `D' MAX ACROSS CORNERS `D' MAX PROTRUSION LENGTH `F' 20S16 E1FW 1RA5 M20 15.0 3.1 8.6 6.1 13.1 0.8 1.25 24.0 26.4 72.5 20S E1FW 1RA5 M20 15.0 6.1 11.6 9.5 15.9 0.8 1.25 24.0 26.4 70.0 20 E1FW 1RA5 M20 15.0 6.5 13.9 12.5 20.9 0.8 1.25 30.5 33.6 73.0 25S E1FW 1RA5 M25 15.0 11.1 19.9 14.0 22.0 1.25 1.6 37.5 41.3 89.0 25 E1FW 1RA5 M25 15.0 11.1 19.9 18.2 26.2 1.25 1.6 37.5 41.3 89.0 32 E1FW 1RA5 M32 15.0 17.0 26.2 23.7 33.9 1.6 2.0 46.0 50.6 86.0 40 E1FW 1RA5 M40 15.0 22.0 32.1 27.9 40.4 1.6 2.0 55.0 60.5 90.0 50S E1FW 1RA5 M50 15.0 29.5 38.1 35.2 46.7 2.0 2.5 60.0 66.0 91.0 50 E1FW 1RA5 M50 15.0 35.6 44.0 40.4 53.0 2.0 2.5 70.1 77.1 95.0 63S E1FW 1RA5 M63 15.0 40.1 49.9 45.6 59.4 2.0 2.5 75.0 82.5 102.0 63 E1FW 1RA5 M63 15.0 47.2 55.9 54.6 65.8 2.0 2.5 80.0 88.0 104.0 75S E1FW 1RA5 M75 15.0 52.8 61.9 59.0 72.0 2.0 2.5 90.0 99.0 115.0 75 E1FW 1RA5 M75 15.0 59.1 67.9 66.7 78.4 2.5 3.0 100.0 110.0 117.0 90 E1FW 1RA5 M90 24.0 66.6 78.6 76.2 90.3 3.15 4.0 114.3 125.4 147.0 100 E1FW 1RA5 M100 24.0 76.0 90.9 86.1 101.4 3.15 4.0 123.0 135.3 140.0 115 E1FW 1RA5 M115 24.0 86.0 97.9 101.5 110.2 3.15 4.0 133.4 146.7 162.0 130 E1FW 1RA5 M130 24.0 97.0 114.9 110.2 123.2 3.1.5 4.0 152.4 167.6 174.0 *Note : For material options please add the following suffix to change the ordering reference ; Brass (no suffix required), Nickel Plated Brass "5", Copper Free Aluminium "1" For NPT options add the following digits to the material suffix; ½" = 31; ¾" = 32; 1" = 33; 1 ¼" = 34; 1 ½" = 35; 2" = 36; 2 ½" = 37; 3" = 38; 3 ½" = 39; 4" = 310 (Brass requires prefix `0') Examples: 32E1FW1RA534 = Nickel Plated Brass 1 ¼" NPT, 50SE1FW1RA035 = Brass 1 ½" NPT, 20E1FW1RA5 = Nickel Plated Brass M20 Dimensions are displayed in millimetres unless otherwise stated SHROUD PVC04 PVC04 PVC06 PVC09 PVC09 PVC11 PVC15 PVC18 PVC21 PVC23 PVC25 PVC28 PVC30 PVC32 LSF33 LSF34 LSF35 CABLE GLAND WEIGHT (kg) 0.16 0.15 0.21 0.33 0.33 0.43 0.62 0.75 0.95 1.34 1.34 2.11 2.42 4.21 4.45 6.19 8.34 TDS547 REV20 03/21 Dimensions listed are for metric cable glands only. Dimensions for alternative threads may vary. www.cmp-products.com
