The 0-35% manual outside Air Damper is designed to replace the unit return air duct cover. No drilling or damper assembly is required.
29 giu 2020 —

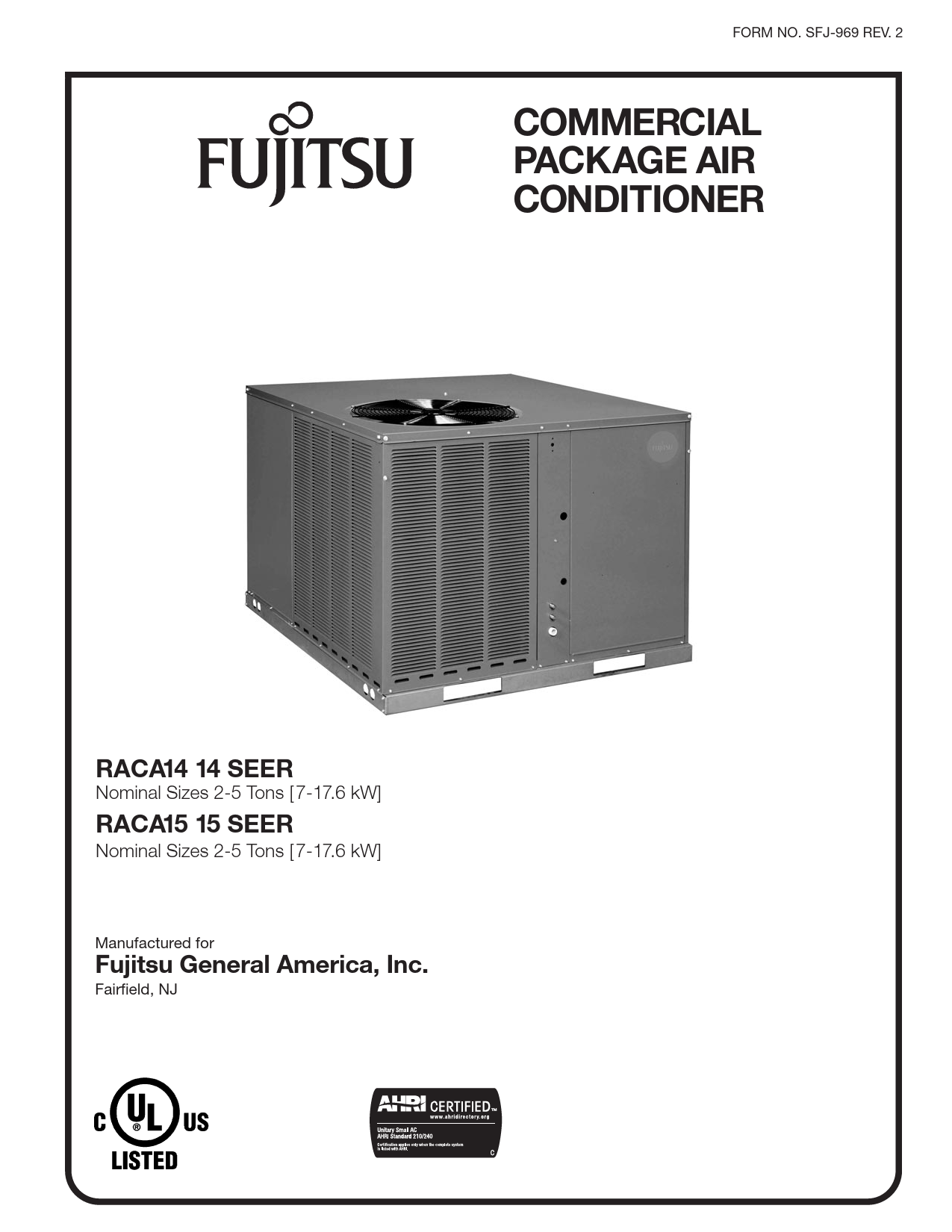

FORM NO. SFJ-969 REV. 2 COMMERCIAL PACKAGE AIR CONDITIONER RACA14 14 SEER Nominal Sizes 2-5 Tons [7-17.6 kW] RACA15 15 SEER Nominal Sizes 2-5 Tons [7-17.6 kW] Manufactured for Fujitsu General America, Inc. Fairfield, NJ Table of Contents RACA14/15 Series TABLE OF CONTENTS Unit Features & Benefits ..................................................................................3-4 Model Number Identification ..............................................................................5 Available SKUs ..................................................................................................5 General Data RACA14- Series ........................................................................................6-10 RACA15- Series ......................................................................................11-13 General Data Notes ..........................................................................................14 Gross Systems Performance Data RACA14- Series ......................................................................................15-20 RACA15- Series ......................................................................................21-26 Indoor Airflow Performance ..........................................................................27-32 Electrical Data RACA14- Series ......................................................................................33-34 RACA15- Series ......................................................................................35-36 Electric Heater Kits ......................................................................................37-39 Dimensional Data ........................................................................................40-41 Typical Installations ..........................................................................................42 Accessories ................................................................................................43-52 Limited Warranty ..............................................................................................53 2 Fujitsu General America, Inc. 5 3 Unit Features & Benefits RACA14/15 Series 9 13 7 18 12 2 15 8 11 4 Fujitsu General America, Inc. 3 Unit Features & Benefits RACA14/15 Series Features Below Correspond to Photos on Page 3 1. All models feature Scroll® compressors for maximum efficiency and quiet operation. The 5-Ton RACA15 model features Scroll UltraTechTM 2-Stage compressors with diagnostics (see below), high/low pressure switches, and hard start kit. 2. Louvered condenser compartment to protect the coil against yard hazards and/or weather extremes. conventional copper tube/aluminum fin coils. In addition the all aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential. It is easier to clean and has a more robust surface. 10. Supplemental electric heat strips up to 15 kW are available (field or factory installed) for periods of extreme cold temperatures. Single point wiring simplifies installation. 3. One-piece top with a drip lip to help keep water off of the unit sides. 11. All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap. 4. Drawn supply and return air openings feature a one-inch tall flange to prevent water migration into the ductwork. 5. Access panels have "weep holes" and channels to further help manage water run-off. 6. Side and down discharge options available on all models. 7. Easily accessible blower section complete with slide-out blower. 8. Externally mounted refrigerant connections are conveniently located for easy service diagnostics. 9. Micro Channel evaporator and condenser delivers superior performance with less refrigerant charge and less weight than 12. Easily accessible control box. 13. Thermal expansion valve standard on all models for superior superheat control, reliability, and energy efficiency at all operating conditions. 14. Solid core liquid line. Filter drier standard on all models (not shown). 15. Rugged baserail included for improved installation and handling. 16. Molded compressor plug. 17. Complete factory charged, wired and run tested. 18. A double sloped evaporator coil drain pan assures all water is removed from the unit to improve indoor air quality. Diagnostics Faster Service And Improved Accuracy (5 Ton RACA15 2-Stage Model Only) The diagnostics module is a breakthrough innovation for troubleshooting air conditioning system failures. The module is installed in the control box near the compressor contactor. By monitoring and analyzing data from the Scroll® compressor and the thermostat demand, the module can accurately detect the cause of electrical and system related failures without any sensors. A flashing LED indicator communicates the ALERT code and guides the service technician more quickly and accurately to the root cause of a problem. NOTE: Single phase module does not provide active compressor protection! The Comfort Alert module is a monitoring device and cannot control or shut down the compressor unless used with a compatible thermostat. NOTE: Three phase module provides compressor protection and will shut down the compressor when compressor damaging conditions are detected. 4 Fujitsu General America, Inc. R AC A 14 036 A J D 10 1 A A X X X [ ] Designates Metric Conversions Model Number Identification/Available SKUs RACA14/15 Series Factory Installed Options (See Next Page) Minor A = 1st Variation Control A = Non Communicating Heat Configuration 1 = Single Stage 0 = No Heat Heating Capacity 00 = No Heat 05 = 05 KW 10 = 10 KW 15 = 15 KW Drive Package D = Direct Drive (PSC) T = Constant Torque (X13) Voltage J = 208-230V--1PH--60 Hz C = 208-230V--3PH--60 Hz Major A = 1st Variation Cooling Capacity (BTUH) [kW] 024 = 24,000 [7.03] 030 = 30,000 [8.79] 036 = 36,000 [10.55] 042 = 42,000 [12.31] 048 = 48,000 [14.07] 060 = 60,000 [17.59] Series 14 = 14 SEER 15 = 15 SEER Cabinet Type A = Residential Package Unit Type AC = Package Air Conditioner Tradebrand R = Fujitsu Available SKUs RACA14024BJT000AA RACA14024BJT051AA RACA14024BJT101AA RACA14030BJT000AA RACA14030BJT051AA RACA14030BJT101AA RACA14036BCT000AA RACA14036BCT101AA RACA14036BCT151AA RACA14036BJT000AA RACA14036BJT051AA RACA14036BJT101AA RACA14036BJT151AA RACA14042ACT000AA RACA14042ACT101AA RACA14042ACT151AA RACA14042AJT000AA Available Models RACA14042AJT051AA RACA15024AJT000AA RACA14042AJT101AA RACA15024AJT051AA RACA14042AJT151AA RACA15024AJT101AA RACA14048BCT000AA RACA15030AJT000AA RACA14048BCT101AA RACA15030AJT051AA RACA14048BCT151AA RACA15030AJT101AA RACA14048BJT000AA RACA15036ACT000AA RACA14048BJT051AA RACA15036ACT101AA RACA14048BJT101AA RACA15036ACT151AA RACA14048BJT151AA RACA15036AJT000AA RACA14060ACT000AA RACA15036AJT051AA RACA14060ACT101AA RACA15036AJT101AA RACA14060ACT151AA RACA15036AJT151AA RACA14060AJT000AA RACA15042ACT000AA RACA14060AJT051AA RACA15042ACT101AA RACA14060AJT101AA RACA15042ACT151AA RACA14060AJT151AA RACA15042AJT000AA RACA15042AJT051AA RACA15042AJT101AA RACA15042AJT151AA RACA15048ACT000AA RACA15048ACT101AA RACA15048ACT151AA RACA15048AJT000AA RACA15048AJT051AA RACA15048AJT101AA RACA15048AJT151AA RACA15060ACT000AA RACA15060ACT101AA RACA15060ACT151AA RACA15060AJT000AA RACA15060AJT051AA RACA15060AJT101AA RACA15060AJT151AA Fujitsu General America, Inc. 5 General Data RACA14 Series NOMINAL SIZES 2-5 TONS [7.0-17.6 kW] Model RACA14 Series Cooling Performance1 Gross Cooling Capacity Btu [kW] EER/SEER2 Nominal CFM/AHRI Rated CFM [L/s] AHRI Net Cooling Capacity Btu [kW] Net Sensible Capacity Btu [kW] Net Latent Capacity Btu [kW] Net System Power kW Compressor No./Type Outdoor Sound Rating (dB)3 Outdoor Coil--Fin Type Tube Type MicroChannel Depth in. [mm] Face Area sq. ft. [sq. m] Rows / FPI [FPcm] Indoor Coil--Fin Type Tube Type MicroChannel Depth in. [mm] Face Area sq. ft. [sq. m] Rows / FPI [FPcm] Refrigerant Control Drain Connection No./Size in. [mm] Outdoor Fan--Type No. Used/Diameter in. [mm] Drive Type/No. Speeds CFM [L/s] No. Motors/HP Motor RPM Indoor Fan--Type No. Used/Diameter in. [mm] Drive Type No. Speeds No. Motors Motor HP Motor RPM Motor Frame Size Filter--Type Furnished (NO.) Size Recommended in. [mm x mm x mm] Weights Net Weight lbs. [kg] Ship Weight lbs. [kg] Motor Frame Size Filter--Type Furnished (NO.) Size Recommended in. [mm x mm x mm] Refrigerant Charge Oz. [g] Weights Net Weight lbs. [kg] Ship Weight lbs. [kg] 024AJD***AA 24,500 [7.18] 11/14 800/900 [378/425] 23,600 [6.92] 17,700 [5.19] 5,900 [1.73] 2.1 1/Scroll 76 Louvered MicroChannel 0.71 [18] 7.1 [0.66] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 17 [7] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 2500 [1180] 1 at 1/3 HP 1075 FC Centrifugal 1/9x7 [229x178] Direct Multiple 1 1/4 1075 48 Field Supplied No (1)1x20x20 [25x508x508] 398 [181] 408 [185] 48 Field Supplied No (1)1x20x20 [25x508x508] 42.6 [1208] 398 [181] 408 [185] See Page 14 for Notes. 024AJT***AA 24,500 [7.18] 11/14 800/900 [378/425] 23,600 [6.92] 17,700 [5.19] 5,900 [1.73] 2.03 1/Scroll 76 Louvered MicroChannel 0.71 [18] 7.1 [0.66] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 17 [7] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 2500 [1180] 1 at 1/3 HP 1075 FC Centrifugal 1/10x9 [254x229] Direct Multiple 1 1/3 1075 48 Field Supplied No (1)1x20x20 [25x508x508] 403 [183] 413 [187] 48 Field Supplied No (1)1x20x20 [25x508x508] 42.6 [1208] 398 [181] 408 [185] 024BJT***AA 24,500 [7.18] 11/14 800/900 [378/425] 23,600 [6.92] 17,700 [5.19] 5,900 [1.73] 2.03 030AJD***AA CCoOnNtiTnIuNeUdE-D> 29,100 [8.53] 11/14 1000/1000 [472/472] 28,000 [8.21] 21,000 [6.15] 7,000 [2.06] 2.37 1/Scroll 76 Louvered MicroChannel 0.71 [18] 7.1 [0.66] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 17 [7] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 2500 [1180] 1 at 1/3 HP 1075 FC Centrifugal 1/10x9 [254x229] Direct Multiple 1 1/3 1075 48 Field Supplied No (1)1x20x20 [25x508x508] 1/Scroll 76 Louvered MicroChannel 0.71 [18] 9.9 [0.92] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 23 [9] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 2500 [1180] 1 at 1/3 HP 1075 FC Centrifugal 1/10x9 [254x229] Direct Multiple 1 1/2 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 403 [183] 413 [187] 48 Field Supplied No (1)1x20x20 [25x508x508] 42.6 [1208] 403 [183] 413 [187] 48 Field Supplied No (1)1x20x20 [25x508x508] 46.8 [1327] 403 [183] 403 [183] 413 [187] 413 [187] [ ] Designates Metric Conversions 6 Fujitsu General America, Inc. General Data RACA14 Series NOMINAL SIZES 2-5 TONS [7.0-17.6 kW] Model RACA14 Series Cooling Performance1 Gross Cooling Capacity Btu [kW] EER/SEER2 Nominal CFM/AHRI Rated CFM [L/s] AHRI Net Cooling Capacity Btu [kW] Net Sensible Capacity Btu [kW] Net Latent Capacity Btu [kW] Net System Power kW Compressor No./Type Outdoor Sound Rating (dB)3 Outdoor Coil--Fin Type Tube Type MicroChannel Depth in. [mm] Face Area sq. ft. [sq. m] Rows / FPI [FPcm] Indoor Coil--Fin Type Tube Type MicroChannel Depth in. [mm] Face Area sq. ft. [sq. m] Rows / FPI [FPcm] Refrigerant Control Drain Connection No./Size in. [mm] Outdoor Fan--Type No. Used/Diameter in. [mm] Drive Type/No. Speeds CFM [L/s] No. Motors/HP Motor RPM Indoor Fan--Type No. Used/Diameter in. [mm] Drive Type No. Speeds No. Motors Motor HP Motor RPM Motor Frame Size Filter--Type Furnished (NO.) Size Recommended in. [mm x mm x mm] Weights Net Weight lbs. [kg] Ship Weight lbs. [kg] Motor Frame Size Filter--Type Furnished (NO.) Size Recommended in. [mm x mm x mm] Refrigerant Charge Oz. [g] Weights Net Weight lbs. [kg] Ship Weight lbs. [kg] 030BJT***AA 29,100 [8.53] 11/14 1000/975 [472/460] 28,000 [8.21] 21,000 [6.15] 7,000 [2.06] 2.21 1/Scroll 76 Louvered MicroChannel 0.71 [18] 9.9 [0.92] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 17 [7] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 2500 [1180] 1 at 1/3 HP 1075 FC Centrifugal 1/10x9 [254x229] Direct Multiple 1 1/2 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 403 [183] 413 [187] 48 Field Supplied No (1)1x20x20 [25x508x508] 46.8 [1327] 398 [181] 408 [185] See Page 14 for Notes. 036ACD***AA 34,900 [10.23] 11/14 1200/1200 [566/566] 33,600 [9.85] 25,200 [7.39] 8,400 [2.46] 2.93 1/Scroll 76 Louvered MicroChannel 0.71 [18] 9.8 [0.91] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 23 [9] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 2700 [1274] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 1/2 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 411 [186] 421 [191] 48 Field Supplied No (1)1x20x20 [25x508x508] 52.7 [1494] 398 [181] 408 [185] 036AJD***AA 34,900 [10.23] 11/14 1200/1200 [566/566] 33,600 [9.85] 25,200 [7.39] 8,400 [2.46] 2.89 036BCT***AA CCoOnNtiTnIuNeUdE-D> 34,900 [10.23] 11/14 1200/1200 [566/566] 33,600 [9.85] 25,200 [7.39] 8,400 [2.46] 2.77 1/Scroll 76 Louvered MicroChannel 0.71 [18] 9.8 [0.91] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 17 [7] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 2700 [1274] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 1/2 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 1/Scroll 76 Louvered MicroChannel 0.71 [18] 9.8 [0.91] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 17 [7] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 2700 [1274] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 1/2 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 411 [186] 421 [191] 48 Field Supplied No (1)1x20x20 [25x508x508] 52.7 [1494] 411 [186] 421 [191] 48 Field Supplied No (1)1x20x20 [25x508x508] 52.7 [1494] 403 [183] 403 [183] 413 [187] 413 [187] [ ] Designates Metric Conversions Fujitsu General America, Inc. 7 General Data RACA14 Series NOMINAL SIZES 2-5 TONS [7.0-17.6 kW] Model RACA14 Series Cooling Performance1 Gross Cooling Capacity Btu [kW] EER/SEER2 Nominal CFM/AHRI Rated CFM [L/s] AHRI Net Cooling Capacity Btu [kW] Net Sensible Capacity Btu [kW] Net Latent Capacity Btu [kW] Net System Power kW Compressor No./Type Outdoor Sound Rating (dB)3 Outdoor Coil--Fin Type Tube Type MicroChannel Depth in. [mm] Face Area sq. ft. [sq. m] Rows / FPI [FPcm] Indoor Coil--Fin Type Tube Type MicroChannel Depth in. [mm] Face Area sq. ft. [sq. m] Rows / FPI [FPcm] Refrigerant Control Drain Connection No./Size in. [mm] Outdoor Fan--Type No. Used/Diameter in. [mm] Drive Type/No. Speeds CFM [L/s] No. Motors/HP Motor RPM Indoor Fan--Type No. Used/Diameter in. [mm] Drive Type No. Speeds No. Motors Motor HP Motor RPM Motor Frame Size Filter--Type Furnished (NO.) Size Recommended in. [mm x mm x mm] Weights Net Weight lbs. [kg] Ship Weight lbs. [kg] Motor Frame Size Filter--Type Furnished (NO.) Size Recommended in. [mm x mm x mm] Refrigerant Charge Oz. [g] Weights Net Weight lbs. [kg] Ship Weight lbs. [kg] 036BJT***AA 34,900 [10.23] 11/14 1200/1200 [566/566] 33,600 [9.85] 25,200 [7.39] 8,400 [2.46] 2.77 1/Scroll 76 Louvered MicroChannel 0.71 [18] 9.8 [0.91] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 17 [7] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 2700 [1274] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 1/2 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 411 [186] 421 [191] 48 Field Supplied No (1)1x20x20 [25x508x508] 52.7 [1494] 398 [181] 408 [185] See Page 14 for Notes. 042ACT***AA 40,100 [11.75] 11/14 1400/1300 [661/613] 39,000 [11.43] 29,250 [8.57] 9,750 [2.86] 3.27 1/Scroll 76 Louvered MicroChannel 0.71 [18] 14.1 [1.31] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 17 [7] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 3500 [1652] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 3/4 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 441 [200] 451 [205] 48 Field Supplied No (1)1x20x20 [25x508x508] 53.6 [1520] 398 [181] 408 [185] 042AJT***AA 40,100 [11.75] 11/14 1400/1300 [661/613] 39,000 [11.43] 29,250 [8.57] 9,750 [2.86] 3.27 048ACT***AA CCoOnNtiTnIuNeUdE-D> 46,000 [13.48] 11/14 1600/1550 [755/731] 44,500 [13.04] 31,150 [9.13] 13,350 [3.91] 4 1/Scroll 76 Louvered MicroChannel 0.71 [18] 14.1 [1.31] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 17 [7] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 3500 [1652] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 3/4 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 1/Scroll 78 Louvered MicroChannel 0.71 [18] 16.3 [1.51] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 4.1 [0.38] 1 / 20 [8] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 3300 [1557] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 3/4 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 441 [200] 451 [205] 48 Field Supplied No (1)1x20x20 [25x508x508] 53.6 [1520] 477 [216] 487 [221] 48 Field Supplied No (1)1x20x20 [25x508x508] 69.3 [1965] 403 [183] 403 [183] 413 [187] 413 [187] [ ] Designates Metric Conversions 8 Fujitsu General America, Inc. General Data RACA14 Series NOMINAL SIZES 2-5 TONS [7.0-17.6 kW] Model RACA14 Series Cooling Performance1 Gross Cooling Capacity Btu [kW] EER/SEER2 Nominal CFM/AHRI Rated CFM [L/s] AHRI Net Cooling Capacity Btu [kW] Net Sensible Capacity Btu [kW] Net Latent Capacity Btu [kW] Net System Power kW Compressor No./Type Outdoor Sound Rating (dB)3 Outdoor Coil--Fin Type Tube Type MicroChannel Depth in. [mm] Face Area sq. ft. [sq. m] Rows / FPI [FPcm] Indoor Coil--Fin Type Tube Type MicroChannel Depth in. [mm] Face Area sq. ft. [sq. m] Rows / FPI [FPcm] Refrigerant Control Drain Connection No./Size in. [mm] Outdoor Fan--Type No. Used/Diameter in. [mm] Drive Type/No. Speeds CFM [L/s] No. Motors/HP Motor RPM Indoor Fan--Type No. Used/Diameter in. [mm] Drive Type No. Speeds No. Motors Motor HP Motor RPM Motor Frame Size Filter--Type Furnished (NO.) Size Recommended in. [mm x mm x mm] Weights Net Weight lbs. [kg] Ship Weight lbs. [kg] Motor Frame Size Filter--Type Furnished (NO.) Size Recommended in. [mm x mm x mm] Refrigerant Charge Oz. [g] Weights Net Weight lbs. [kg] Ship Weight lbs. [kg] 048AJT***AA 46,000 [13.48] 11/14 1600/1550 [755/731] 44,500 [13.04] 31,150 [9.13] 13,350 [3.91] 4 1/Scroll 78 Louvered MicroChannel 0.71 [18] 16.3 [1.51] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 4.1 [0.38] 1 / 20 [8] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 3300 [1557] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 3/4 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 477 [216] 487 [221] 48 Field Supplied No (1)1x20x20 [25x508x508] 69.3 [1965] 398 [181] 408 [185] See Page 14 for Notes. 048BCT***AA 46,000 [13.48] 11/14 1600/1550 [755/731] 44,500 [13.04] 31,150 [9.13] 13,350 [3.91] 3.66 1/Scroll 78 Louvered MicroChannel 0.71 [18] 16.3 [1.51] 1 / 23 [9] Louvered MicroChannel 1.26 [32] 4.1 [0.38] 1 / 20 [8] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 3300 [1557] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 3/4 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 492 [223] 502 [228] 48 Field Supplied No (1)1x20x20 [25x508x508] 85.3 [2418] 398 [181] 408 [185] 048BJT***AA 46,000 [13.48] 11/14 1600/1550 [755/731] 44,500 [13.04] 31,150 [9.13] 13,350 [3.91] 3.66 060ACT***AA CCoOnNtiTnIuNeUdE-D> 56,400 [16.53] 11/14 2000/1700 [944/802] 54,500 [15.97] 38,150 [11.18] 16,350 [4.79] 4.94 1/Scroll 78 Louvered MicroChannel 0.7 [17.8] 16.3 [1.51] 1 / 23 [9] Louvered MicroChannel 1.26 [32] 4.1 [0.38] 1 / 20 [8] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 3300 [1557] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 3/4 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 1/Scroll 79 Louvered MicroChannel 1 [25.4] 15.3 [1.42] 1 / 23 [9] Louvered MicroChannel 1.26 [32] 4 [0.37] 1 / 20 [8] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 3400 [1604] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 1 1075 48 Field Supplied No (1)1x24x30 [25x610x762] 492 [223] 502 [228] 48 Field Supplied No (1)1x20x20 [25x508x508] 85.3 [2418] 512 [232] 522 [237] 48 Field Supplied No (1)1x20x20 [25x508x508] 83.1 [2356] 403 [183] 403 [183] 413 [187] 413 [187] [ ] Designates Metric Conversions Fujitsu General America, Inc. 9 General Data RACA14 Series NOMINAL SIZES 2-5 TONS [7.0-17.6 kW] Model RACA14 Series Cooling Performance1 Gross Cooling Capacity Btu [kW] EER/SEER2 Nominal CFM/AHRI Rated CFM [L/s] AHRI Net Cooling Capacity Btu [kW] Net Sensible Capacity Btu [kW] Net Latent Capacity Btu [kW] Net System Power kW Compressor No./Type Outdoor Sound Rating (dB)3 Outdoor Coil--Fin Type Tube Type MicroChannel Depth in. [mm] Face Area sq. ft. [sq. m] Rows / FPI [FPcm] Indoor Coil--Fin Type Tube Type MicroChannel Depth in. [mm] Face Area sq. ft. [sq. m] Rows / FPI [FPcm] Refrigerant Control Drain Connection No./Size in. [mm] Outdoor Fan--Type No. Used/Diameter in. [mm] Drive Type/No. Speeds CFM [L/s] No. Motors/HP Motor RPM Indoor Fan--Type No. Used/Diameter in. [mm] Drive Type No. Speeds No. Motors Motor HP Motor RPM Motor Frame Size Filter--Type Furnished (NO.) Size Recommended in. [mm x mm x mm] Weights Net Weight lbs. [kg] Ship Weight lbs. [kg] Motor Frame Size Filter--Type Furnished (NO.) Size Recommended in. [mm x mm x mm] Refrigerant Charge Oz. [g] Weights Net Weight lbs. [kg] Ship Weight lbs. [kg] 060AJT***AA 56,400 [16.53] 11/14 2000/1700 [944/802] 54,500 [15.97] 38,150 [11.18] 16,350 [4.79] 4.94 1/Scroll 79 Louvered MicroChannel 1 [25.4] 15.3 [1.42] 1 / 23 [9] Louvered MicroChannel 1.26 [32] 4 [0.37] 1 / 20 [8] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 3400 [1604] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 1 1075 48 Field Supplied No (1)1x24x30 [25x610x762] 512 [232] 522 [237] 48 Field Supplied No (1)1x20x20 [25x508x508] 83.1 [2356] 398 [181] 408 [185] See Page 14 for Notes. 46,000 [13.48] 11/14 1600/1550 [755/731] 44,500 [13.04] 31,150 [9.13] 13,350 [3.91] 3.66 1/Scroll 78 Louvered MicroChannel 0.71 [18] 16.3 [1.51] 1 / 23 [9] Louvered MicroChannel 1.26 [32] 4.1 [0.38] 1 / 20 [8] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 3300 [1557] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 3/4 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 492 [223] 502 [228] 48 Field Supplied No (1)1x20x20 [25x508x508] 85.3 [2418] 398 [181] 408 [185] 46,000 [13.48] 11/14 1600/1550 [755/731] 44,500 [13.04] 31,150 [9.13] 13,350 [3.91] 3.66 56,400 [16.53] 11/14 2000/1700 [944/802] 54,500 [15.97] 38,150 [11.18] 16,350 [4.79] 4.94 1/Scroll 78 Louvered MicroChannel 0.7 [17.8] 16.3 [1.51] 1 / 23 [9] Louvered MicroChannel 1.26 [32] 4.1 [0.38] 1 / 20 [8] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 3300 [1557] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 3/4 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 1/Scroll 79 Louvered MicroChannel 1 [25.4] 15.3 [1.42] 1 / 23 [9] Louvered MicroChannel 1.26 [32] 4 [0.37] 1 / 20 [8] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 3400 [1604] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 1 1075 48 Field Supplied No (1)1x24x30 [25x610x762] 492 [223] 502 [228] 48 Field Supplied No (1)1x20x20 [25x508x508] 85.3 [2418] 512 [232] 522 [237] 48 Field Supplied No (1)1x20x20 [25x508x508] 83.1 [2356] 403 [183] 403 [183] 413 [187] 413 [187] [ ] Designates Metric Conversions 10 Fujitsu General America, Inc. General Data RACA15 Series NOMINAL SIZES 2-5 TONS [7.0-17.6 kW] Model RACA15 Series Cooling Performance1 Gross Cooling Capacity Btu [kW] EER/SEER2 Nominal CFM/AHRI Rated CFM [L/s] AHRI Net Cooling Capacity Btu [kW] Net Sensible Capacity Btu [kW] Net Latent Capacity Btu [kW] Net System Power kW Compressor No./Type Outdoor Sound Rating (dB)3 Outdoor Coil--Fin Type Tube Type MicroChannel Depth in. [mm] Face Area sq. ft. [sq. m] Rows / FPI [FPcm] Indoor Coil--Fin Type Tube Type MicroChannel Depth in. [mm] Face Area sq. ft. [sq. m] Rows / FPI [FPcm] Refrigerant Control Drain Connection No./Size in. [mm] Outdoor Fan--Type No. Used/Diameter in. [mm] Drive Type/No. Speeds CFM [L/s] No. Motors/HP Motor RPM Indoor Fan--Type No. Used/Diameter in. [mm] Drive Type No. Speeds No. Motors Motor HP Motor RPM Motor Frame Size Filter--Type Furnished (NO.) Size Recommended in. [mm x mm x mm] Refrigerant Charge Oz. [g] Weights Net Weight lbs. [kg] Ship Weight lbs. [kg] 024AJT***AA 24,600 [7.21] 12/15 800/900 [378/425] 24,000 [7.03] 18,100 [5.3] 5,900 [1.73] 2.03 1/Scroll 76 Louvered MicroChannel 0.71 [18] 7.1 [0.66] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 17 [7] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 2500 [1180] 1 at 1/3 HP 1075 FC Centrifugal 1/10x9 [254x229] Direct Multiple 1 1/3 1075 48 Field Supplied No (1)1x20x20 [25x508x508] 42.6 [1208] 403 [183] 413 [187] See Page 14 for Notes. 030AJT***AA 29,600 [8.67] 12/15 1000/975 [472/460] 29,000 [8.5] 21,500 [6.3] 7,500 [2.2] 2.21 1/Scroll 76 Louvered MicroChannel 0.71 [18] 7.1 [0.66] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 17 [7] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 2500 [1180] 1 at 1/3 HP 1075 FC Centrifugal 1/10x9 [254x229] Direct Multiple 1 1/2 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 46.8 [1327] 403 [183] 413 [187] 036ACT***AA 36,000 [10.55] 12/15 1200/1200 [566/566] 35,000 [10.25] 25,400 [7.44] 9,600 [2.81] 2.77 036AJT***AA CONTINUED 36,000 [10.55] 12/15 1200/1200 [566/566] 35,000 [10.25] 25,400 [7.44] 9,600 [2.81] 2.77 1/Scroll 76 Louvered MicroChannel 0.71 [18] 7.1 [0.66] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 17 [7] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 2700 [1274] 1 at 1/3 HP 1075 FC Centrifugal 1/10x9 [254x229] Direct Multiple 1 1/2 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 52.7 [1494] 1/Scroll 76 Louvered MicroChannel 0.71 [18] 7.1 [0.66] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 17 [7] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 2700 [1274] 1 at 1/3 HP 1075 FC Centrifugal 1/10x9 [254x229] Direct Multiple 1 1/2 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 52.7 [1494] 411 [186] 421 [191] 411 [186] 421 [191] [ ] Designates Metric Conversions Fujitsu General America, Inc. 11 General Data RACA15 Series NOMINAL SIZES 2-5 TONS [7.0-17.6 kW] Model RACA15 Series Cooling Performance1 Gross Cooling Capacity Btu [kW] EER/SEER2 Nominal CFM/AHRI Rated CFM [L/s] AHRI Net Cooling Capacity Btu [kW] Net Sensible Capacity Btu [kW] Net Latent Capacity Btu [kW] Net System Power kW Compressor No./Type Outdoor Sound Rating (dB)3 Outdoor Coil--Fin Type Tube Type MicroChannel Depth in. [mm] Face Area sq. ft. [sq. m] Rows / FPI [FPcm] Indoor Coil--Fin Type Tube Type MicroChannel Depth in. [mm] Face Area sq. ft. [sq. m] Rows / FPI [FPcm] Refrigerant Control Drain Connection No./Size in. [mm] Outdoor Fan--Type No. Used/Diameter in. [mm] Drive Type/No. Speeds CFM [L/s] No. Motors/HP Motor RPM Indoor Fan--Type No. Used/Diameter in. [mm] Drive Type No. Speeds No. Motors Motor HP Motor RPM Motor Frame Size Filter--Type Furnished (NO.) Size Recommended in. [mm x mm x mm] Refrigerant Charge Oz. [g] Weights Net Weight lbs. [kg] Ship Weight lbs. [kg] 042ACT***AA 41,000 [12.01] 12/15 1400/1300 [661/613] 40,000 [11.72] 28,600 [8.38] 11,400 [3.34] 3.28 1/Scroll 76 Louvered MicroChannel 0.71 [18] 14.1 [1.31] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 17 [7] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 3500 [1652] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 3/4 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 61.3 [1738] 445 [202] 455 [206] See Page 14 for Notes. 042AJT***AA 41,000 [12.01] 12/15 1400/1300 [661/613] 40,000 [11.72] 28,600 [8.38] 11,400 [3.34] 3.28 1/Scroll 76 Louvered MicroChannel 0.71 [18] 14.1 [1.31] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 17 [7] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 3500 [1652] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 3/4 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 61.3 [1738] 445 [202] 455 [206] 048ACT***AA 47,500 [13.92] 12/15 1600/1550 [755/731] 46,000 [13.48] 33,000 [9.67] 13,000 [3.81] 3.66 048AJT***AA CONTINUED 47,500 [13.92] 12/15 1600/1550 [755/731] 46,000 [13.48] 33,000 [9.67] 13,000 [3.81] 3.66 1/Scroll 76 Louvered MicroChannel 0.71 [18] 14.1 [1.31] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 17 [7] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 3300 [1557] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 3/4 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 85.3 [2418] 1/Scroll 76 Louvered MicroChannel 0.71 [18] 14.1 [1.31] 1 / 23 [9] Louvered MicroChannel 1 [25.4] 3.6 [0.33] 1 / 17 [7] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 3300 [1557] 1 at 1/3 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 3/4 1075 48 Field Supplied No (1)1x24x24 [25x610x610] 85.3 [2418] 492 [223] 502 [228] 492 [223] 502 [228] [ ] Designates Metric Conversions 12 Fujitsu General America, Inc. NOMINAL SIZES 2-5 TONS [7.0-17.6 kW] Model RACA15 Series Cooling Performance1 Gross Cooling Capacity (2nd Stage) Btu [kW] SEER2 EER (1st Stage / 2nd Stage) AHRI Rated CFM (1st / 2nd Stage) [L/s] AHRI Net Cooling Capacity (1st / 2nd Stage) Btu [kW] Net Sensible Capacity (1st / 2nd Stage) Btu [kW] Net Latent Capacity (1st / 2nd Stage) Btu [kW] Net System Power (1st / 2nd Stage) kW Compressor No./Type Outdoor Sound Rating (dB)3 Outdoor Coil--Fin Type Tube Type MicroChannel Depth in. [mm] Face Area sq. ft. [sq. m] Rows / FPI [FPcm] Indoor Coil--Fin Type Tube Type MicroChannel Depth in. [mm] Face Area sq. ft. [sq. m] Rows / FPI [FPcm] Refrigerant Control Drain Connection No./Size in. [mm] Outdoor Fan--Type No. Used/Diameter in. [mm] Drive Type/No. Speeds CFM [L/s] No. Motors/HP Motor RPM Indoor Fan--Type No. Used/Diameter in. [mm] Drive Type No. Speeds No. Motors Motor HP Motor RPM Motor Frame Size Filter--Type Furnished (NO.) Size Recommended in. [mm x mm x mm] Refrigerant Charge Oz. [g] Weights Net Weight lbs. [kg] Ship Weight lbs. [kg] 060ACT***AA 59,500 [17.43] 15 20.9/11.4 1250/1850 [590/873] 49,500/57,000 [14.5/16.7] 33,800/40,700 [9.9/11.92] 15,700/16,300 [4.6/4.78] 2.14/5.02 1 / Scroll 78 Louvered MicroChannel 1 [25.4] 15.3 [1.42] 1 / 23 [9] Louvered MicroChannel 1.26 [32] 4 [0.37] 1 / 20 [8] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 3300 [1557] 1 at 13 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 1 1075 48 Field Supplied No (1)1x24x30 [25x610x762] 89.6 [2540] 515 [234] 525 [238] See Page 14 for Notes. 060AJT***AA 59,500 [17.43] 15 20.9/11.4 1250/1850 [590/873] 49,500/57,000 [14.5/16.7] 33,800/40,700 [9.9/11.92] 15,700/16,300 [4.6/4.78] 2.14/5.02 1 / Scroll 78 Louvered MicroChannel 1 [25.4] 15.3 [1.42] 1 / 23 [9] Louvered MicroChannel 1.26 [32] 4 [0.37] 1 / 20 [8] TX Valves 1/0.75 [19.05] Propeller 1/22 [558.8] Direct/1 3300 [1557] 1 at 13 HP 1075 FC Centrifugal 1/12x9 [305x229] Direct Multiple 1 1 1075 48 Field Supplied No (1)1x24x30 [25x610x762] 89.6 [2540] 515 [234] 525 [238] General Data RACA15 Series [ ] Designates Metric Conversions Fujitsu General America, Inc. 13 General Data Notes RACA14/15 Series NOTES: 1. Cooling Performance is rated at 95° F ambient, 80° F entering dry bulb, 67° F entering wet bulb. Gross capacity does not include the effect of fan motor heat. AHRI capacity is net and includes the effect of fan motor heat. Units are suitable for operation in CFM range shown in airflow tables. Units are certified in accordance with the Unitary Air Conditioner Equipment certification program, which is based on AHRI Standard 210/240 or 360. 2. EER and/or SEER are rated at AHRI conditions and in accordance with DOE test procedures. 3. Outdoor Sound Rating shown is tested in accordance with AHRI Standard 270. 14 Fujitsu General America, Inc. Gross Systems Performance Data Air RACA14 Series GROSS SYSTEMS PERFORMANCE DATA--RACA14024A wbE CFM [L/s] DR 75 [23.9] Total BTUH [kW] Sens BTUH [kW] Power O 80 [26.7] Total BTUH [kW] Sens BTUH [kW] Power U T D O 85 [29.4] Total BTUH [kW] Sens BTUH [kW] Power O R D 90 [32.2] Total BTUH [kW] Sens BTUH [kW] Power R Y B 95 [35] Total BTUH [kW] Sens BTUH [kW] Power U L B T 100 [37.8] Total BTUH [kW] Sens BTUH [kW] Power E M P E 105 [40.6] Total BTUH [kW] Sens BTUH [kW] Power R A T U 110 [43.3] Total BTUH [kW] Sens BTUH [kW] Power R E °F 115 [46.1] Total BTUH [kW] Sens BTUH [kW] Power [°C] 120 [48.9] Total BTUH [kW] Sens BTUH [kW] Power 125 [51.7] Total BTUH [kW] Sens BTUH [kW] Power 990 [467] 0.21 30.9 [9.1] 18.7 [5.5] 1.4 30.0 [8.8] 18.2 [5.3] 1.5 29.0 [8.5] 17.6 [5.2] 1.6 28.0 [8.2] 17.0 [5.0] 1.7 27.0 [7.9] 16.5 [4.8] 1.9 25.9 [7.6] 15.9 [4.6] 2.0 24.9 [7.3] 15.3 [4.5] 2.1 23.8 [7.0] 14.7 [4.3] 2.3 22.8 [6.7] 14.1 [4.1] 2.4 21.7 [6.3] 13.4 [3.9] 2.6 20.5 [6.0] 12.8 [3.8] 2.7 ENTERING INDOOR AIR @ 80°F [26.7°C] dbE 71°F [21.7°C] 67°F [19.4°C] 900 [425] 760 [359] 990 [467] 900 [425] 0.19 0.15 0.21 0.19 760 [359] 0.15 30.4 [8.9] 17.9 [5.2] 1.4 29.5 [8.7] 16.6 [4.9] 1.4 29.1 [8.5] 21.9 [6.4] 1.4 28.6 [8.4] 20.9 [6.1] 1.4 27.8 [8.1] 19.4 [5.7] 1.4 29.4 [8.6] 17.4 [5.1] 1.5 28.6 [8.4] 16.1 [4.7] 1.5 28.1 [8.2] 21.4 [6.3] 1.5 27.6 [8.1] 20.4 [6.0] 1.5 26.8 [7.9] 18.9 [5.5] 1.5 28.5 [8.3] 16.8 [4.9] 1.6 27.7 [8.1] 15.6 [4.6] 1.6 27.1 [8.0] 20.8 [6.1] 1.6 26.7 [7.8] 19.9 [5.8] 1.6 25.9 [7.6] 18.4 [5.4] 1.6 27.5 [8.1] 16.3 [4.8] 1.7 26.7 [7.8] 15.1 [4.4] 1.7 26.1 [7.7] 20.2 [5.9] 1.7 25.7 [7.5] 19.3 [5.7] 1.7 25.0 [7.3] 17.9 [5.3] 1.7 26.5 [7.8] 15.7 [4.6] 1.8 25.7 [7.5] 14.6 [4.3] 1.8 25.1 [7.4] 19.7 [5.8] 1.8 24.7 [7.2] 18.8 [5.5] 1.8 24.0 [7.0] 17.4 [5.1] 1.8 25.5 [7.5] 15.2 [4.4] 2.0 24.8 [7.3] 14.1 [4.1] 1.9 24.1 [7.1] 19.1 [5.6] 2.0 23.7 [6.9] 18.2 [5.3] 2.0 23.0 [6.7] 16.9 [5.0] 1.9 24.5 [7.2] 14.6 [4.3] 2.1 23.8 [7.0] 13.5 [4.0] 2.1 23.1 [6.8] 18.5 [5.4] 2.1 22.6 [6.6] 17.7 [5.2] 2.1 22.0 [6.4] 16.4 [4.8] 2.1 23.4 [6.9] 14.0 [4.1] 2.2 22.7 [6.7] 13.0 [3.8] 2.2 22.0 [6.4] 17.9 [5.2] 2.2 21.6 [6.3] 17.1 [5.0] 2.2 21.0 [6.1] 15.8 [4.6] 2.2 22.3 [6.5] 13.4 [3.9] 2.4 21.7 [6.4] 12.5 [3.6] 2.3 20.9 [6.1] 17.3 [5.1] 2.4 20.5 [6.0] 16.5 [4.8] 2.4 19.9 [5.8] 15.3 [4.5] 2.3 21.3 [6.2] 12.8 [3.8] 2.5 20.7 [6.1] 11.9 [3.5] 2.5 19.8 [5.8] 16.6 [4.9] 2.5 19.5 [5.7] 15.9 [4.7] 2.5 18.9 [5.5] 14.7 [4.3] 2.5 20.2 [5.9] 12.2 [3.6] 2.7 19.6 [5.7] 11.3 [3.3] 2.7 18.7 [5.5] 16.0 [4.7] 2.7 18.4 [5.4] 15.3 [4.5] 2.7 17.8 [5.2] 14.2 [4.2] 2.7 990 [467] 0.21 27.5 [8.1] 24.6 [7.2] 1.4 26.5 [7.8] 24.0 [7.0] 1.5 25.5 [7.5] 23.5 [6.9] 1.6 24.5 [7.2] 22.9 [6.7] 1.7 23.5 [6.9] 22.3 [6.5] 1.8 22.5 [6.6] 21.7 [6.4] 2.0 21.4 [6.3] 21.1 [6.2] 2.1 20.4 [6.0] 20.4 [6.0] 2.2 19.3 [5.7] 19.3 [5.7] 2.4 18.2 [5.3] 18.2 [5.3] 2.5 17.1 [5.0] 17.1 [5.0] 2.7 63°F [17.2°C] 900 [425] 0.19 27.0 [7.9] 23.5 [6.9] 1.4 26.0 [7.6] 23.0 [6.7] 1.5 25.1 [7.3] 22.4 [6.6] 1.6 24.1 [7.1] 21.9 [6.4] 1.7 23.1 [6.8] 21.3 [6.2] 1.8 22.1 [6.5] 20.8 [6.1] 1.9 21.1 [6.2] 20.2 [5.9] 2.1 20.0 [5.9] 19.6 [5.7] 2.2 18.9 [5.6] 18.9 [5.6] 2.4 17.9 [5.2] 17.9 [5.2] 2.5 16.8 [4.9] 16.8 [4.9] 2.7 760 [359] 0.15 26.2 [7.7] 21.8 [6.4] 1.4 25.3 [7.4] 21.3 [6.2] 1.5 24.4 [7.1] 20.8 [6.1] 1.6 23.4 [6.9] 20.3 [5.9] 1.7 22.4 [6.6] 19.8 [5.8] 1.8 21.5 [6.3] 19.2 [5.6] 1.9 20.5 [6.0] 18.7 [5.5] 2.0 19.4 [5.7] 18.2 [5.3] 2.2 18.4 [5.4] 17.6 [5.2] 2.3 17.4 [5.1] 17.1 [5.0] 2.5 16.3 [4.8] 16.3 [4.8] 2.6 DR --Depression ratio dbE --Entering air dry bulb wbE --Entering air wet bulb Total --Total capacity x 1000 BTUH Sens --Sensible capacity x 1000 BTUH Power --KW input NOTES: When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity from the table by adding [1.10 x CFM x (1 DR) x (dbE 80)]. [ ] Designates Metric Conversions Fujitsu General America, Inc. 15 Gross Systems Performance Data RACA14 Series GROSS SYSTEMS PERFORMANCE DATA--RACA14030A wbE CFM [L/s] DR 75 [23.9] Total BTUH [kW] Sens BTUH [kW] Power O 80 [26.7] Total BTUH [kW] Sens BTUH [kW] Power U T D O 85 [29.4] Total BTUH [kW] Sens BTUH [kW] Power O R D 90 [32.2] Total BTUH [kW] Sens BTUH [kW] Power R Y B 95 [35] Total BTUH [kW] Sens BTUH [kW] Power U L B T 100 [37.8] Total BTUH [kW] Sens BTUH [kW] Power E M P E 105 [40.6] Total BTUH [kW] Sens BTUH [kW] Power R A T U 110 [43.3] Total BTUH [kW] Sens BTUH [kW] Power R E °F 115 [46.1] Total BTUH [kW] Sens BTUH [kW] Power [°C] 120 [48.9] Total BTUH [kW] Sens BTUH [kW] Power 125 [51.7] Total BTUH [kW] Sens BTUH [kW] Power 1100 [519] 0.16 37.0 [10.9] 21.6 [6.3] 1.7 36.0 [10.5] 21.1 [6.2] 1.7 34.9 [10.2] 20.6 [6.0] 1.8 33.9 [9.9] 20.1 [5.9] 1.9 32.8 [9.6] 19.5 [5.7] 2.1 31.6 [9.3] 18.9 [5.5] 2.2 30.5 [8.9] 18.3 [5.4] 2.3 29.4 [8.6] 17.7 [5.2] 2.4 28.2 [8.3] 17.0 [5.0] 2.6 27.0 [7.9] 16.3 [4.8] 2.7 25.8 [7.6] 15.6 [4.6] 2.9 ENTERING INDOOR AIR @ 80°F [26.7°C] dbE 71°F [21.7°C] 67°F [19.4°C] 1000 [472] 850 [401] 1100 [519] 1000 [472] 0.15 0.11 0.16 0.15 850 [401] 0.11 36.4 [10.7] 20.6 [6.0] 1.6 35.4 [10.4] 19.2 [5.6] 1.6 35.0 [10.3] 25.6 [7.5] 1.7 34.4 [10.1] 24.4 [7.2] 1.6 33.4 [9.8] 22.7 [6.7] 1.6 35.4 [10.4] 20.1 [5.9] 1.7 34.4 [10.1] 18.7 [5.5] 1.7 33.9 [9.9] 25.1 [7.4] 1.7 33.3 [9.8] 24.0 [7.0] 1.7 32.4 [9.5] 22.3 [6.5] 1.7 34.3 [10.1] 19.7 [5.8] 1.8 33.4 [9.8] 18.3 [5.4] 1.8 32.9 [9.6] 24.6 [7.2] 1.8 32.3 [9.5] 23.5 [6.9] 1.8 31.4 [9.2] 21.8 [6.4] 1.8 33.3 [9.7] 19.2 [5.6] 1.9 32.3 [9.5] 17.8 [5.2] 1.9 31.8 [9.3] 24.1 [7.1] 1.9 31.2 [9.2] 23.0 [6.7] 1.9 30.4 [8.9] 21.4 [6.3] 1.9 32.2 [9.4] 18.6 [5.5] 2.0 31.3 [9.2] 17.3 [5.1] 2.0 30.7 [9.0] 23.5 [6.9] 2.0 30.2 [8.8] 22.5 [6.6] 2.0 29.3 [8.6] 20.9 [6.1] 2.0 31.1 [9.1] 18.1 [5.3] 2.2 30.2 [8.9] 16.8 [4.9] 2.1 29.6 [8.7] 22.9 [6.7] 2.2 29.1 [8.5] 21.9 [6.4] 2.1 28.3 [8.3] 20.4 [6.0] 2.1 30.0 [8.8] 17.5 [5.1] 2.3 29.2 [8.5] 16.3 [4.8] 2.3 28.5 [8.3] 22.3 [6.5] 2.3 28.0 [8.2] 21.3 [6.2] 2.3 27.2 [8.0] 19.8 [5.8] 2.2 28.8 [8.5] 16.9 [5.0] 2.4 28.1 [8.2] 15.7 [4.6] 2.4 27.3 [8.0] 21.7 [6.4] 2.4 26.8 [7.9] 20.7 [6.1] 2.4 26.1 [7.6] 19.3 [5.6] 2.4 27.7 [8.1] 16.3 [4.8] 2.6 26.9 [7.9] 15.1 [4.4] 2.5 26.1 [7.7] 21.0 [6.2] 2.6 25.7 [7.5] 20.1 [5.9] 2.6 25.0 [7.3] 18.7 [5.5] 2.5 26.5 [7.8] 15.6 [4.6] 2.7 25.8 [7.6] 14.5 [4.3] 2.7 25.0 [7.3] 20.3 [6.0] 2.7 24.5 [7.2] 19.4 [5.7] 2.7 23.9 [7.0] 18.1 [5.3] 2.7 25.4 [7.4] 14.9 [4.4] 2.9 24.7 [7.2] 13.9 [4.1] 2.8 23.8 [7.0] 19.6 [5.8] 2.9 23.3 [6.8] 18.8 [5.5] 2.9 22.7 [6.7] 17.4 [5.1] 2.8 1100 [519] 0.16 33.2 [9.7] 28.8 [8.4] 1.6 32.2 [9.4] 28.3 [8.3] 1.7 31.1 [9.1] 27.8 [8.1] 1.8 30.0 [8.8] 27.3 [8.0] 1.9 28.9 [8.5] 26.7 [7.8] 2.0 27.8 [8.2] 26.1 [7.7] 2.2 26.7 [7.8] 25.5 [7.5] 2.3 25.5 [7.5] 24.9 [7.3] 2.4 24.4 [7.1] 24.2 [7.1] 2.6 23.2 [6.8] 23.2 [6.8] 2.7 22.0 [6.4] 22.0 [6.4] 2.9 63°F [17.2°C] 1000 [472] 0.15 32.6 [9.6] 27.5 [8.1] 1.6 31.6 [9.3] 27.0 [7.9] 1.7 30.6 [9.0] 26.5 [7.8] 1.8 29.5 [8.6] 26.0 [7.6] 1.9 28.4 [8.3] 25.5 [7.5] 2.0 27.3 [8.0] 25.0 [7.3] 2.1 26.2 [7.7] 24.4 [7.1] 2.3 25.1 [7.4] 23.8 [7.0] 2.4 23.9 [7.0] 23.1 [6.8] 2.5 22.8 [6.7] 22.5 [6.6] 2.7 21.6 [6.3] 21.6 [6.3] 2.9 850 [401] 0.11 31.7 [9.3] 25.6 [7.5] 1.6 30.7 [9.0] 25.1 [7.4] 1.7 29.7 [8.7] 24.7 [7.2] 1.8 28.7 [8.4] 24.2 [7.1] 1.9 27.6 [8.1] 23.7 [7.0] 2.0 26.6 [7.8] 23.2 [6.8] 2.1 25.5 [7.5] 22.7 [6.6] 2.2 24.4 [7.2] 22.1 [6.5] 2.4 23.3 [6.8] 21.5 [6.3] 2.5 22.2 [6.5] 20.9 [6.1] 2.7 21.0 [6.2] 20.3 [5.9] 2.8 DR --Depression ratio dbE --Entering air dry bulb wbE --Entering air wet bulb Total --Total capacity x 1000 BTUH Sens --Sensible capacity x 1000 BTUH Power --KW input NOTES: When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity from the table by adding [1.10 x CFM x (1 DR) x (dbE 80)]. [ ] Designates Metric Conversions 16 Fujitsu General America, Inc. Gross Systems Performance Data RACA14 Series GROSS SYSTEMS PERFORMANCE DATA--RACA14036A wbE CFM [L/s] DR 75 [23.9] Total BTUH [kW] Sens BTUH [kW] Power O 80 [26.7] Total BTUH [kW] Sens BTUH [kW] Power U T D O 85 [29.4] Total BTUH [kW] Sens BTUH [kW] Power O R D 90 [32.2] Total BTUH [kW] Sens BTUH [kW] Power R Y B 95 [35] Total BTUH [kW] Sens BTUH [kW] Power U L B T 100 [37.8] Total BTUH [kW] Sens BTUH [kW] Power E M P E 105 [40.6] Total BTUH [kW] Sens BTUH [kW] Power R A T U 110 [43.3] Total BTUH [kW] Sens BTUH [kW] Power R E °F 115 [46.1] Total BTUH [kW] Sens BTUH [kW] Power [°C] 120 [48.9] Total BTUH [kW] Sens BTUH [kW] Power 125 [51.7] Total BTUH [kW] Sens BTUH [kW] Power 1320 [623] 0.23 44.3 [13.0] 25.4 [7.4] 2.0 43.0 [12.6] 24.7 [7.2] 2.1 41.7 [12.2] 24.0 [7.0] 2.3 40.3 [11.8] 23.2 [6.8] 2.4 38.9 [11.4] 22.5 [6.6] 2.5 37.6 [11.0] 21.7 [6.4] 2.7 36.1 [10.6] 20.9 [6.1] 2.9 34.7 [10.2] 20.1 [5.9] 3.0 33.3 [9.8] 19.2 [5.6] 3.2 31.8 [9.3] 18.3 [5.4] 3.4 30.3 [8.9] 17.4 [5.1] 3.6 ENTERING INDOOR AIR @ 80°F [26.7°C] dbE 71°F [21.7°C] 67°F [19.4°C] 1200 [566] 1020 [481] 1320 [623] 1200 [566] 0.21 0.18 0.23 0.21 1020 [481] 0.18 43.5 [12.8] 24.2 [7.1] 2.0 42.3 [12.4] 22.5 [6.6] 2.0 41.4 [12.1] 29.6 [8.7] 2.0 40.6 [11.9] 28.3 [8.3] 2.0 39.5 [11.6] 26.3 [7.7] 2.0 42.2 [12.4] 23.6 [6.9] 2.1 41.1 [12.0] 21.9 [6.4] 2.1 40.0 [11.7] 28.9 [8.5] 2.1 39.3 [11.5] 27.6 [8.1] 2.1 38.2 [11.2] 25.7 [7.5] 2.1 40.9 [12.0] 22.9 [6.7] 2.2 39.8 [11.7] 21.3 [6.2] 2.2 38.7 [11.3] 28.2 [8.3] 2.2 38.0 [11.1] 27.0 [7.9] 2.2 37.0 [10.8] 25.1 [7.3] 2.2 39.6 [11.6] 22.2 [6.5] 2.4 38.5 [11.3] 20.7 [6.1] 2.3 37.3 [10.9] 27.5 [8.1] 2.4 36.7 [10.7] 26.3 [7.7] 2.4 35.7 [10.5] 24.4 [7.2] 2.3 38.3 [11.2] 21.5 [6.3] 2.5 37.2 [10.9] 20.0 [5.9] 2.5 36.0 [10.5] 26.7 [7.8] 2.5 35.3 [10.4] 25.5 [7.5] 2.5 34.4 [10.1] 23.7 [7.0] 2.5 36.9 [10.8] 20.7 [6.1] 2.7 35.9 [10.5] 19.3 [5.7] 2.6 34.6 [10.1] 25.9 [7.6] 2.7 34.0 [10.0] 24.8 [7.3] 2.7 33.0 [9.7] 23.0 [6.8] 2.6 35.5 [10.4] 20.0 [5.8] 2.8 34.5 [10.1] 18.6 [5.4] 2.8 33.2 [9.7] 25.1 [7.4] 2.8 32.6 [9.5] 24.0 [7.0] 2.8 31.7 [9.3] 22.3 [6.5] 2.8 34.1 [10.0] 19.2 [5.6] 3.0 33.2 [9.7] 17.8 [5.2] 3.0 31.7 [9.3] 24.3 [7.1] 3.0 31.2 [9.1] 23.2 [6.8] 3.0 30.3 [8.9] 21.6 [6.3] 3.0 32.7 [9.6] 18.3 [5.4] 3.2 31.8 [9.3] 17.0 [5.0] 3.2 30.3 [8.9] 23.4 [6.9] 3.2 29.8 [8.7] 22.4 [6.6] 3.2 28.9 [8.5] 20.8 [6.1] 3.2 31.2 [9.2] 17.5 [5.1] 3.4 30.4 [8.9] 16.3 [4.8] 3.4 28.8 [8.5] 22.5 [6.6] 3.4 28.3 [8.3] 21.5 [6.3] 3.4 27.5 [8.1] 20.0 [5.9] 3.4 29.8 [8.7] 16.6 [4.9] 3.6 29.0 [8.5] 15.4 [4.5] 3.6 27.4 [8.0] 21.6 [6.3] 3.6 26.9 [7.9] 20.7 [6.1] 3.6 26.1 [7.7] 19.2 [5.6] 3.6 1320 [623] 0.23 38.3 [11.2] 32.8 [9.6] 2.0 37.0 [10.8] 32.1 [9.4] 2.1 35.6 [10.4] 31.4 [9.2] 2.2 34.3 [10.0] 30.7 [9.0] 2.4 32.9 [9.6] 29.9 [8.8] 2.5 31.5 [9.2] 29.1 [8.5] 2.7 30.1 [8.8] 28.3 [8.3] 2.8 28.7 [8.4] 27.5 [8.1] 3.0 27.2 [8.0] 26.6 [7.8] 3.2 25.8 [7.5] 25.7 [7.5] 3.4 24.3 [7.1] 24.3 [7.1] 3.6 63°F [17.2°C] 1200 [566] 0.21 37.6 [11.0] 31.3 [9.2] 2.0 36.3 [10.6] 30.7 [9.0] 2.1 35.0 [10.3] 30.0 [8.8] 2.2 33.7 [9.9] 29.3 [8.6] 2.4 32.3 [9.5] 28.6 [8.4] 2.5 30.9 [9.1] 27.8 [8.2] 2.6 29.6 [8.7] 27.1 [7.9] 2.8 28.2 [8.3] 26.3 [7.7] 3.0 26.7 [7.8] 25.4 [7.5] 3.2 25.3 [7.4] 24.6 [7.2] 3.4 23.8 [7.0] 23.7 [6.9] 3.6 1020 [481] 0.18 36.6 [10.7] 29.1 [8.5] 2.0 35.3 [10.3] 28.5 [8.4] 2.1 34.0 [10.0] 27.9 [8.2] 2.2 32.7 [9.6] 27.3 [8.0] 2.3 31.4 [9.2] 26.6 [7.8] 2.5 30.1 [8.8] 25.9 [7.6] 2.6 28.7 [8.4] 25.2 [7.4] 2.8 27.4 [8.0] 24.4 [7.2] 3.0 26.0 [7.6] 23.7 [6.9] 3.1 24.6 [7.2] 22.9 [6.7] 3.3 23.2 [6.8] 22.0 [6.5] 3.6 DR --Depression ratio dbE --Entering air dry bulb wbE --Entering air wet bulb Total --Total capacity x 1000 BTUH Sens --Sensible capacity x 1000 BTUH Power --KW input NOTES: When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity from the table by adding [1.10 x CFM x (1 DR) x (dbE 80)]. [ ] Designates Metric Conversions Fujitsu General America, Inc. 17 Gross Systems Performance Data RACA14 Series GROSS SYSTEMS PERFORMANCE DATA--RACA14042A wbE CFM [L/s] DR 75 [23.9] Total BTUH [kW] Sens BTUH [kW] Power O 80 [26.7] Total BTUH [kW] Sens BTUH [kW] Power U T D O 85 [29.4] Total BTUH [kW] Sens BTUH [kW] Power O R D 90 [32.2] Total BTUH [kW] Sens BTUH [kW] Power R Y B 95 [35] Total BTUH [kW] Sens BTUH [kW] Power U L B T 100 [37.8] Total BTUH [kW] Sens BTUH [kW] Power E M P E 105 [40.6] Total BTUH [kW] Sens BTUH [kW] Power R A T U 110 [43.3] Total BTUH [kW] Sens BTUH [kW] Power R E °F 115 [46.1] Total BTUH [kW] Sens BTUH [kW] Power [°C] 120 [48.9] Total BTUH [kW] Sens BTUH [kW] Power 125 [51.7] Total BTUH [kW] Sens BTUH [kW] Power 1430 [675] 0.15 50.0 [14.7] 29.2 [8.5] 2.4 48.7 [14.3] 28.5 [8.4] 2.5 47.4 [13.9] 27.9 [8.2] 2.7 46.0 [13.5] 27.2 [8.0] 2.8 44.6 [13.1] 26.4 [7.7] 3.0 43.1 [12.6] 25.6 [7.5] 3.2 41.6 [12.2] 24.7 [7.2] 3.4 40.0 [11.7] 23.8 [7.0] 3.6 38.3 [11.2] 22.8 [6.7] 3.8 36.7 [10.7] 21.7 [6.4] 4.0 34.9 [10.2] 20.6 [6.1] 4.2 ENTERING INDOOR AIR @ 80°F [26.7°C] dbE 71°F [21.7°C] 67°F [19.4°C] 1300 [614] 1100 [519] 1430 [675] 1300 [614] 0.14 0.1 0.15 0.14 1100 [519] 0.1 49.1 [14.4] 27.9 [8.2] 2.4 47.7 [14.0] 25.9 [7.6] 2.3 47.3 [13.9] 34.3 [10.0] 2.4 46.4 [13.6] 32.7 [9.6] 2.3 45.1 [13.2] 30.4 [8.9] 2.3 47.9 [14.0] 27.3 [8.0] 2.5 46.5 [13.6] 25.3 [7.4] 2.5 46.0 [13.5] 33.7 [9.9] 2.5 45.2 [13.2] 32.2 [9.4] 2.5 43.9 [12.9] 29.8 [8.7] 2.4 46.6 [13.6] 26.6 [7.8] 2.6 45.2 [13.3] 24.7 [7.2] 2.6 44.7 [13.1] 33.0 [9.7] 2.6 43.9 [12.9] 31.5 [9.2] 2.6 42.6 [12.5] 29.3 [8.6] 2.6 45.2 [13.2] 26.0 [7.6] 2.8 43.9 [12.9] 24.1 [7.1] 2.8 43.3 [12.7] 32.3 [9.5] 2.8 42.5 [12.5] 30.8 [9.0] 2.8 41.3 [12.1] 28.6 [8.4] 2.7 43.8 [12.8] 25.2 [7.4] 3.0 42.6 [12.5] 23.4 [6.9] 2.9 41.8 [12.3] 31.5 [9.2] 3.0 41.1 [12.0] 30.1 [8.8] 3.0 39.9 [11.7] 27.9 [8.2] 2.9 42.3 [12.4] 24.4 [7.2] 3.1 41.1 [12.1] 22.7 [6.6] 3.1 40.4 [11.8] 30.7 [9.0] 3.2 39.6 [11.6] 29.3 [8.6] 3.1 38.5 [11.3] 27.2 [8.0] 3.1 40.8 [12.0] 23.6 [6.9] 3.3 39.7 [11.6] 21.9 [6.4] 3.3 38.8 [11.4] 29.8 [8.7] 3.3 38.1 [11.2] 28.5 [8.3] 3.3 37.1 [10.9] 26.4 [7.7] 3.3 39.3 [11.5] 22.7 [6.7] 3.5 38.2 [11.2] 21.1 [6.2] 3.5 37.2 [10.9] 28.9 [8.5] 3.5 36.6 [10.7] 27.6 [8.1] 3.5 35.6 [10.4] 25.6 [7.5] 3.5 37.7 [11.0] 21.8 [6.4] 3.7 36.6 [10.7] 20.2 [5.9] 3.7 35.6 [10.4] 27.9 [8.2] 3.8 35.0 [10.2] 26.6 [7.8] 3.7 34.0 [10.0] 24.7 [7.2] 3.7 36.0 [10.6] 20.8 [6.1] 4.0 35.0 [10.3] 19.3 [5.6] 3.9 33.9 [9.9] 26.8 [7.9] 4.0 33.3 [9.8] 25.6 [7.5] 3.9 32.4 [9.5] 23.8 [7.0] 3.9 34.3 [10.1] 19.7 [5.8] 4.2 33.3 [9.8] 18.3 [5.4] 4.1 32.2 [9.4] 25.8 [7.5] 4.2 31.6 [9.3] 24.6 [7.2] 4.2 30.7 [9.0] 22.8 [6.7] 4.1 1430 [675] 0.15 44.3 [13.0] 38.5 [11.3] 2.3 43.0 [12.6] 37.9 [11.1] 2.5 41.7 [12.2] 37.2 [10.9] 2.6 40.3 [11.8] 36.5 [10.7] 2.8 38.9 [11.4] 35.8 [10.5] 3.0 37.4 [11.0] 34.9 [10.2] 3.1 35.9 [10.5] 34.1 [10.0] 3.3 34.3 [10.0] 33.1 [9.7] 3.5 32.7 [9.6] 32.1 [9.4] 3.7 31.0 [9.1] 31.0 [9.1] 4.0 29.2 [8.6] 29.2 [8.6] 4.2 63°F [17.2°C] 1300 [614] 0.14 43.5 [12.8] 36.8 [10.8] 2.3 42.3 [12.4] 36.2 [10.6] 2.5 41.0 [12.0] 35.6 [10.4] 2.6 39.6 [11.6] 34.9 [10.2] 2.8 38.2 [11.2] 34.2 [10.0] 2.9 36.7 [10.8] 33.4 [9.8] 3.1 35.2 [10.3] 32.5 [9.5] 3.3 33.7 [9.9] 31.6 [9.3] 3.5 32.1 [9.4] 30.7 [9.0] 3.7 30.4 [8.9] 29.7 [8.7] 3.9 28.7 [8.4] 28.7 [8.4] 4.1 1100 [519] 0.1 42.3 [12.4] 34.2 [10.0] 2.3 41.1 [12.0] 33.6 [9.9] 2.4 39.8 [11.7] 33.0 [9.7] 2.6 38.5 [11.3] 32.4 [9.5] 2.7 37.1 [10.9] 31.7 [9.3] 2.9 35.7 [10.5] 31.0 [9.1] 3.1 34.3 [10.0] 30.2 [8.8] 3.3 32.7 [9.6] 29.4 [8.6] 3.5 31.2 [9.1] 28.5 [8.4] 3.7 29.6 [8.7] 27.6 [8.1] 3.9 27.9 [8.2] 26.6 [7.8] 4.1 DR --Depression ratio dbE --Entering air dry bulb wbE --Entering air wet bulb Total --Total capacity x 1000 BTUH Sens --Sensible capacity x 1000 BTUH Power --KW input NOTES: When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity from the table by adding [1.10 x CFM x (1 DR) x (dbE 80)]. [ ] Designates Metric Conversions 18 Fujitsu General America, Inc. Gross Systems Performance Data RACA14 Series GROSS SYSTEMS PERFORMANCE DATA--RACA14048A wbE CFM [L/s] DR 75 [23.9] Total BTUH [kW] Sens BTUH [kW] Power O 80 [26.7] Total BTUH [kW] Sens BTUH [kW] Power U T D O 85 [29.4] Total BTUH [kW] Sens BTUH [kW] Power O R D 90 [32.2] Total BTUH [kW] Sens BTUH [kW] Power R Y B 95 [35] Total BTUH [kW] Sens BTUH [kW] Power U L B T 100 [37.8] Total BTUH [kW] Sens BTUH [kW] Power E M P E 105 [40.6] Total BTUH [kW] Sens BTUH [kW] Power R A T U 110 [43.3] Total BTUH [kW] Sens BTUH [kW] Power R E °F 115 [46.1] Total BTUH [kW] Sens BTUH [kW] Power [°C] 120 [48.9] Total BTUH [kW] Sens BTUH [kW] Power 125 [51.7] Total BTUH [kW] Sens BTUH [kW] Power 1700 [802] 0.21 58.8 [17.2] 33.0 [9.7] 2.8 57.1 [16.7] 32.2 [9.4] 2.9 55.3 [16.2] 31.4 [9.2] 3.1 53.6 [15.7] 30.4 [8.9] 3.3 51.8 [15.2] 29.5 [8.6] 3.5 50.1 [14.7] 28.5 [8.4] 3.7 48.4 [14.2] 27.5 [8.1] 4.0 46.6 [13.7] 26.4 [7.7] 4.2 44.9 [13.2] 25.3 [7.4] 4.5 43.2 [12.7] 24.2 [7.1] 4.8 41.5 [12.2] 23.0 [6.7] 5.1 ENTERING INDOOR AIR @ 80°F [26.7°C] dbE 71°F [21.7°C] 67°F [19.4°C] 1550 [732] 1320 [623] 1700 [802] 1550 [732] 0.19 0.17 0.21 0.19 1320 [623] 0.17 57.8 [16.9] 31.6 [9.3] 2.8 56.3 [16.5] 29.4 [8.6] 2.7 55.4 [16.2] 39.1 [11.5] 2.8 54.4 [15.9] 37.4 [11.0] 2.7 53.0 [15.5] 34.8 [10.2] 2.7 56.1 [16.4] 30.8 [9.0] 2.9 54.6 [16.0] 28.7 [8.4] 2.9 53.6 [15.7] 38.3 [11.2] 2.9 52.7 [15.4] 36.6 [10.7] 2.9 51.3 [15.0] 34.1 [10.0] 2.9 54.4 [15.9] 30.0 [8.8] 3.1 52.9 [15.5] 27.9 [8.2] 3.0 51.9 [15.2] 37.4 [11.0] 3.1 51.0 [14.9] 35.8 [10.5] 3.1 49.6 [14.5] 33.3 [9.8] 3.0 52.6 [15.4] 29.1 [8.5] 3.3 51.2 [15.0] 27.1 [7.9] 3.2 50.1 [14.7] 36.5 [10.7] 3.3 49.2 [14.4] 34.9 [10.2] 3.2 47.9 [14.0] 32.5 [9.5] 3.2 50.9 [14.9] 28.2 [8.3] 3.5 49.5 [14.5] 26.3 [7.7] 3.4 48.4 [14.2] 35.6 [10.4] 3.5 47.5 [13.9] 34.0 [10.0] 3.4 46.3 [13.6] 31.7 [9.3] 3.4 49.2 [14.4] 27.3 [8.0] 3.7 47.9 [14.0] 25.4 [7.4] 3.6 46.6 [13.7] 34.6 [10.1] 3.7 45.8 [13.4] 33.1 [9.7] 3.7 44.6 [13.1] 30.8 [9.0] 3.6 47.5 [13.9] 26.3 [7.7] 3.9 46.2 [13.5] 24.5 [7.2] 3.9 44.9 [13.2] 33.6 [9.8] 3.9 44.1 [12.9] 32.1 [9.4] 3.9 42.9 [12.6] 29.9 [8.8] 3.8 45.8 [13.4] 25.3 [7.4] 4.2 44.6 [13.1] 23.5 [6.9] 4.1 43.2 [12.7] 32.5 [9.5] 4.2 42.4 [12.4] 31.1 [9.1] 4.2 41.3 [12.1] 28.9 [8.5] 4.1 44.1 [12.9] 24.2 [7.1] 4.5 42.9 [12.6] 22.6 [6.6] 4.4 41.5 [12.2] 31.4 [9.2] 4.5 40.8 [11.9] 30.0 [8.8] 4.4 39.7 [11.6] 28.0 [8.2] 4.4 42.5 [12.4] 23.1 [6.8] 4.8 41.3 [12.1] 21.5 [6.3] 4.7 39.8 [11.7] 30.3 [8.9] 4.8 39.1 [11.4] 28.9 [8.5] 4.7 38.0 [11.1] 26.9 [7.9] 4.7 40.8 [12.0] 22.0 [6.4] 5.1 39.7 [11.6] 20.5 [6.0] 5.0 38.1 [11.2] 29.1 [8.5] 5.1 37.4 [11.0] 27.8 [8.2] 5.0 36.4 [10.7] 25.9 [7.6] 5.0 1700 [802] 0.21 52.6 [15.4] 45.0 [13.2] 2.7 50.8 [14.9] 44.2 [12.9] 2.9 49.1 [14.4] 43.3 [12.7] 3.1 47.3 [13.9] 42.4 [12.4] 3.2 45.6 [13.4] 41.5 [12.1] 3.4 43.8 [12.8] 40.5 [11.9] 3.7 42.1 [12.3] 39.4 [11.6] 3.9 40.4 [11.8] 38.4 [11.2] 4.2 38.7 [11.3] 37.3 [10.9] 4.4 37.0 [10.8] 36.1 [10.6] 4.7 35.3 [10.3] 35.0 [10.2] 5.1 63°F [17.2°C] 1550 [732] 0.19 51.7 [15.1] 43.0 [12.6] 2.7 49.9 [14.6] 42.3 [12.4] 2.9 48.2 [14.1] 41.4 [12.1] 3.0 46.5 [13.6] 40.6 [11.9] 3.2 44.8 [13.1] 39.7 [11.6] 3.4 43.1 [12.6] 38.7 [11.3] 3.6 41.4 [12.1] 37.7 [11.1] 3.9 39.7 [11.6] 36.7 [10.8] 4.1 38.0 [11.1] 35.7 [10.5] 4.4 36.3 [10.6] 34.6 [10.1] 4.7 34.6 [10.2] 33.4 [9.8] 5.0 1320 [623] 0.17 50.3 [14.7] 40.1 [11.7] 2.7 48.6 [14.2] 39.3 [11.5] 2.8 46.9 [13.7] 38.6 [11.3] 3.0 45.2 [13.3] 37.8 [11.1] 3.2 43.6 [12.8] 36.9 [10.8] 3.4 41.9 [12.3] 36.0 [10.6] 3.6 40.3 [11.8] 35.1 [10.3] 3.8 38.6 [11.3] 34.2 [10.0] 4.1 37.0 [10.8] 33.2 [9.7] 4.4 35.3 [10.4] 32.2 [9.4] 4.6 33.7 [9.9] 31.1 [9.1] 5.0 DR --Depression ratio dbE --Entering air dry bulb wbE --Entering air wet bulb Total --Total capacity x 1000 BTUH Sens --Sensible capacity x 1000 BTUH Power --KW input NOTES: When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity from the table by adding [1.10 x CFM x (1 DR) x (dbE 80)]. [ ] Designates Metric Conversions Fujitsu General America, Inc. 19 Gross Systems Performance Data RACA14 Series GROSS SYSTEMS PERFORMANCE DATA--RACA14060A wbE CFM [L/s] DR 75 [23.9] Total BTUH [kW] Sens BTUH [kW] Power O 80 [26.7] Total BTUH [kW] Sens BTUH [kW] Power U T D O 85 [29.4] Total BTUH [kW] Sens BTUH [kW] Power O R D 90 [32.2] Total BTUH [kW] Sens BTUH [kW] Power R Y B 95 [35] Total BTUH [kW] Sens BTUH [kW] Power U L B T 100 [37.8] Total BTUH [kW] Sens BTUH [kW] Power E M P E 105 [40.6] Total BTUH [kW] Sens BTUH [kW] Power R A T U 110 [43.3] Total BTUH [kW] Sens BTUH [kW] Power R E °F 115 [46.1] Total BTUH [kW] Sens BTUH [kW] Power [°C] 120 [48.9] Total BTUH [kW] Sens BTUH [kW] Power 125 [51.7] Total BTUH [kW] Sens BTUH [kW] Power 1870 [883] 0.14 72.1 [21.1] 40.6 [11.9] 3.5 70.3 [20.6] 39.6 [11.6] 3.7 68.4 [20.0] 38.5 [11.3] 4.0 66.4 [19.5] 37.3 [10.9] 4.2 64.3 [18.8] 36.2 [10.6] 4.4 62.1 [18.2] 35.0 [10.3] 4.7 59.9 [17.5] 33.8 [9.9] 5.0 57.6 [16.9] 32.5 [9.5] 5.3 55.1 [16.2] 31.2 [9.1] 5.6 52.6 [15.4] 29.8 [8.7] 6.0 50.0 [14.7] 28.5 [8.3] 6.3 ENTERING INDOOR AIR @ 80°F [26.7°C] dbE 71°F [21.7°C] 67°F [19.4°C] 1700 [802] 1440 [680] 1870 [883] 1700 [802] 0.13 0.11 0.14 0.13 1440 [680] 0.11 70.8 [20.7] 38.8 [11.4] 3.5 68.8 [20.2] 36.0 [10.6] 3.5 67.8 [19.9] 47.8 [14.0] 3.5 66.6 [19.5] 45.7 [13.4] 3.5 64.7 [19.0] 42.4 [12.4] 3.4 69.0 [20.2] 37.8 [11.1] 3.7 67.1 [19.7] 35.1 [10.3] 3.7 66.0 [19.3] 46.7 [13.7] 3.7 64.8 [19.0] 44.7 [13.1] 3.7 63.0 [18.5] 41.5 [12.2] 3.6 67.1 [19.7] 36.8 [10.8] 3.9 65.3 [19.1] 34.1 [10.0] 3.9 64.1 [18.8] 45.7 [13.4] 3.9 62.9 [18.4] 43.6 [12.8] 3.9 61.2 [17.9] 40.5 [11.9] 3.8 65.2 [19.1] 35.7 [10.5] 4.1 63.4 [18.6] 33.1 [9.7] 4.1 62.1 [18.2] 44.5 [13.1] 4.2 61.0 [17.9] 42.6 [12.5] 4.1 59.3 [17.4] 39.5 [11.6] 4.1 63.2 [18.5] 34.6 [10.1] 4.4 61.4 [18.0] 32.1 [9.4] 4.3 60.0 [17.6] 43.4 [12.7] 4.4 58.9 [17.3] 41.4 [12.1] 4.4 57.3 [16.8] 38.5 [11.3] 4.3 61.0 [17.9] 33.4 [9.8] 4.7 59.3 [17.4] 31.0 [9.1] 4.6 57.9 [17.0] 42.2 [12.4] 4.7 56.8 [16.7] 40.3 [11.8] 4.6 55.2 [16.2] 37.4 [11.0] 4.6 58.8 [17.2] 32.3 [9.5] 5.0 57.2 [16.8] 30.0 [8.8] 4.9 55.6 [16.3] 41.0 [12.0] 5.0 54.6 [16.0] 39.1 [11.5] 4.9 53.1 [15.6] 36.3 [10.6] 4.9 56.5 [16.6] 31.0 [9.1] 5.3 55.0 [16.1] 28.8 [8.4] 5.2 53.3 [15.6] 39.7 [11.6] 5.3 52.3 [15.3] 37.9 [11.1] 5.2 50.9 [14.9] 35.2 [10.3] 5.2 54.1 [15.9] 29.8 [8.7] 5.6 52.6 [15.4] 27.7 [8.1] 5.5 50.8 [14.9] 38.4 [11.2] 5.6 49.9 [14.6] 36.7 [10.7] 5.5 48.5 [14.2] 34.0 [10.0] 5.5 51.7 [15.1] 28.5 [8.4] 5.9 50.2 [14.7] 26.5 [7.8] 5.8 48.3 [14.2] 37.0 [10.8] 5.9 47.5 [13.9] 35.4 [10.4] 5.9 46.1 [13.5] 32.8 [9.6] 5.8 49.1 [14.4] 27.2 [8.0] 6.3 47.8 [14.0] 25.2 [7.4] 6.2 45.7 [13.4] 35.6 [10.4] 6.3 44.9 [13.2] 34.1 [10.0] 6.2 43.7 [12.8] 31.6 [9.3] 6.2 1870 [883] 0.14 63.6 [18.6] 54.4 [16.0] 3.5 61.8 [18.1] 53.4 [15.6] 3.7 59.9 [17.5] 52.3 [15.3] 3.9 57.9 [17.0] 51.2 [15.0] 4.1 55.8 [16.4] 50.0 [14.7] 4.4 53.6 [15.7] 48.8 [14.3] 4.7 51.4 [15.1] 47.6 [14.0] 4.9 49.0 [14.4] 46.3 [13.6] 5.2 46.6 [13.7] 45.0 [13.2] 5.6 44.1 [12.9] 43.7 [12.8] 5.9 41.5 [12.2] 41.5 [12.2] 6.3 63°F [17.2°C] 1700 [802] 0.13 62.4 [18.3] 52.0 [15.2] 3.5 60.7 [17.8] 51.0 [15.0] 3.6 58.8 [17.2] 50.0 [14.6] 3.9 56.8 [16.7] 48.9 [14.3] 4.1 54.8 [16.1] 47.8 [14.0] 4.3 52.7 [15.4] 46.7 [13.7] 4.6 50.5 [14.8] 45.5 [13.3] 4.9 48.2 [14.1] 44.3 [13.0] 5.2 45.8 [13.4] 43.0 [12.6] 5.5 43.3 [12.7] 41.7 [12.2] 5.9 40.8 [11.9] 40.4 [11.8] 6.2 1440 [680] 0.11 60.7 [17.8] 48.3 [14.2] 3.4 59.0 [17.3] 47.4 [13.9] 3.6 57.2 [16.7] 46.4 [13.6] 3.8 55.3 [16.2] 45.4 [13.3] 4.0 53.3 [15.6] 44.4 [13.0] 4.3 51.2 [15.0] 43.3 [12.7] 4.5 49.1 [14.4] 42.2 [12.4] 4.8 46.8 [13.7] 41.1 [12.0] 5.1 44.5 [13.0] 40.0 [11.7] 5.4 42.1 [12.3] 38.8 [11.4] 5.8 39.6 [11.6] 37.5 [11.0] 6.1 DR --Depression ratio dbE --Entering air dry bulb wbE --Entering air wet bulb Total --Total capacity x 1000 BTUH Sens --Sensible capacity x 1000 BTUH Power --KW input NOTES: When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity from the table by adding [1.10 x CFM x (1 DR) x (dbE 80)]. [ ] Designates Metric Conversions 20 Fujitsu General America, Inc. Gross Systems Performance Data RACA15 Series GROSS SYSTEMS PERFORMANCE DATA--RACA15024A wbE CFM [L/s] DR 75 [23.9] Total BTUH [kW] Sens BTUH [kW] Power O 80 [26.7] Total BTUH [kW] Sens BTUH [kW] Power U T D O 85 [29.4] Total BTUH [kW] Sens BTUH [kW] Power O R D 90 [32.2] Total BTUH [kW] Sens BTUH [kW] Power R Y B 95 [35] Total BTUH [kW] Sens BTUH [kW] Power U L B T 100 [37.8] Total BTUH [kW] Sens BTUH [kW] Power E M P E 105 [40.6] Total BTUH [kW] Sens BTUH [kW] Power R A T U 110 [43.3] Total BTUH [kW] Sens BTUH [kW] Power R E °F 115 [46.1] Total BTUH [kW] Sens BTUH [kW] Power [°C] 120 [48.9] Total BTUH [kW] Sens BTUH [kW] Power 125 [51.7] Total BTUH [kW] Sens BTUH [kW] Power 990 [467] 0.21 30.9 [9.1] 18.7 [5.5] 1.4 30.0 [8.8] 18.2 [5.3] 1.5 29.0 [8.5] 17.6 [5.2] 1.6 28.0 [8.2] 17.0 [5.0] 1.7 27.0 [7.9] 16.5 [4.8] 1.9 25.9 [7.6] 15.9 [4.6] 2.0 24.9 [7.3] 15.3 [4.5] 2.1 23.8 [7.0] 14.7 [4.3] 2.3 22.8 [6.7] 14.1 [4.1] 2.4 21.7 [6.3] 13.4 [3.9] 2.6 20.5 [6.0] 12.8 [3.8] 2.7 ENTERING INDOOR AIR @ 80°F [26.7°C] dbE 71°F [21.7°C] 67°F [19.4°C] 900 [425] 760 [359] 990 [467] 900 [425] 0.19 0.15 0.21 0.19 760 [359] 0.15 30.4 [8.9] 17.9 [5.2] 1.4 29.5 [8.7] 16.6 [4.9] 1.4 29.1 [8.5] 21.9 [6.4] 1.4 28.6 [8.4] 20.9 [6.1] 1.4 27.8 [8.1] 19.4 [5.7] 1.4 29.4 [8.6] 17.4 [5.1] 1.5 28.6 [8.4] 16.1 [4.7] 1.5 28.1 [8.2] 21.4 [6.3] 1.5 27.6 [8.1] 20.4 [6.0] 1.5 26.8 [7.9] 18.9 [5.5] 1.5 28.5 [8.3] 16.8 [4.9] 1.6 27.7 [8.1] 15.6 [4.6] 1.6 27.1 [8.0] 20.8 [6.1] 1.6 26.7 [7.8] 19.9 [5.8] 1.6 25.9 [7.6] 18.4 [5.4] 1.6 27.5 [8.1] 16.3 [4.8] 1.7 26.7 [7.8] 15.1 [4.4] 1.7 26.1 [7.7] 20.2 [5.9] 1.7 25.7 [7.5] 19.3 [5.7] 1.7 25.0 [7.3] 17.9 [5.3] 1.7 26.5 [7.8] 15.7 [4.6] 1.8 25.7 [7.5] 14.6 [4.3] 1.8 25.1 [7.4] 19.7 [5.8] 1.8 24.7 [7.2] 18.8 [5.5] 1.8 24.0 [7.0] 17.4 [5.1] 1.8 25.5 [7.5] 15.2 [4.4] 2.0 24.8 [7.3] 14.1 [4.1] 1.9 24.1 [7.1] 19.1 [5.6] 2.0 23.7 [6.9] 18.2 [5.3] 2.0 23.0 [6.7] 16.9 [5.0] 1.9 24.5 [7.2] 14.6 [4.3] 2.1 23.8 [7.0] 13.5 [4.0] 2.1 23.1 [6.8] 18.5 [5.4] 2.1 22.6 [6.6] 17.7 [5.2] 2.1 22.0 [6.4] 16.4 [4.8] 2.1 23.4 [6.9] 14.0 [4.1] 2.2 22.7 [6.7] 13.0 [3.8] 2.2 22.0 [6.4] 17.9 [5.2] 2.2 21.6 [6.3] 17.1 [5.0] 2.2 21.0 [6.1] 15.8 [4.6] 2.2 22.3 [6.5] 13.4 [3.9] 2.4 21.7 [6.4] 12.5 [3.6] 2.3 20.9 [6.1] 17.3 [5.1] 2.4 20.5 [6.0] 16.5 [4.8] 2.4 19.9 [5.8] 15.3 [4.5] 2.3 21.3 [6.2] 12.8 [3.8] 2.5 20.7 [6.1] 11.9 [3.5] 2.5 19.8 [5.8] 16.6 [4.9] 2.5 19.5 [5.7] 15.9 [4.7] 2.5 18.9 [5.5] 14.7 [4.3] 2.5 20.2 [5.9] 12.2 [3.6] 2.7 19.6 [5.7] 11.3 [3.3] 2.7 18.7 [5.5] 16.0 [4.7] 2.7 18.4 [5.4] 15.3 [4.5] 2.7 17.8 [5.2] 14.2 [4.2] 2.7 990 [467] 0.21 27.5 [8.1] 24.6 [7.2] 1.4 26.5 [7.8] 24.0 [7.0] 1.5 25.5 [7.5] 23.5 [6.9] 1.6 24.5 [7.2] 22.9 [6.7] 1.7 23.5 [6.9] 22.3 [6.5] 1.8 22.5 [6.6] 21.7 [6.4] 2.0 21.4 [6.3] 21.1 [6.2] 2.1 20.4 [6.0] 20.4 [6.0] 2.2 19.3 [5.7] 19.3 [5.7] 2.4 18.2 [5.3] 18.2 [5.3] 2.5 17.1 [5.0] 17.1 [5.0] 2.7 63°F [17.2°C] 900 [425] 0.19 27.0 [7.9] 23.5 [6.9] 1.4 26.0 [7.6] 23.0 [6.7] 1.5 25.1 [7.3] 22.4 [6.6] 1.6 24.1 [7.1] 21.9 [6.4] 1.7 23.1 [6.8] 21.3 [6.2] 1.8 22.1 [6.5] 20.8 [6.1] 1.9 21.1 [6.2] 20.2 [5.9] 2.1 20.0 [5.9] 19.6 [5.7] 2.2 18.9 [5.6] 18.9 [5.6] 2.4 17.9 [5.2] 17.9 [5.2] 2.5 16.8 [4.9] 16.8 [4.9] 2.7 760 [359] 0.15 26.2 [7.7] 21.8 [6.4] 1.4 25.3 [7.4] 21.3 [6.2] 1.5 24.4 [7.1] 20.8 [6.1] 1.6 23.4 [6.9] 20.3 [5.9] 1.7 22.4 [6.6] 19.8 [5.8] 1.8 21.5 [6.3] 19.2 [5.6] 1.9 20.5 [6.0] 18.7 [5.5] 2.0 19.4 [5.7] 18.2 [5.3] 2.2 18.4 [5.4] 17.6 [5.2] 2.3 17.4 [5.1] 17.1 [5.0] 2.5 16.3 [4.8] 16.3 [4.8] 2.6 DR --Depression ratio dbE --Entering air dry bulb wbE --Entering air wet bulb Total --Total capacity x 1000 BTUH Sens --Sensible capacity x 1000 BTUH Power --KW input NOTES: When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity from the table by adding [1.10 x CFM x (1 DR) x (dbE 80)]. [ ] Designates Metric Conversions Fujitsu General America, Inc. 21 Gross Systems Performance Data RACA15 Series GROSS SYSTEMS PERFORMANCE DATA--RACA15030A wbE CFM [L/s] DR 75 [23.9] Total BTUH [kW] Sens BTUH [kW] Power O 80 [26.7] Total BTUH [kW] Sens BTUH [kW] Power U T D O 85 [29.4] Total BTUH [kW] Sens BTUH [kW] Power O R D 90 [32.2] Total BTUH [kW] Sens BTUH [kW] Power R Y B 95 [35] Total BTUH [kW] Sens BTUH [kW] Power U L B T 100 [37.8] Total BTUH [kW] Sens BTUH [kW] Power E M P E 105 [40.6] Total BTUH [kW] Sens BTUH [kW] Power R A T U 110 [43.3] Total BTUH [kW] Sens BTUH [kW] Power R E °F 115 [46.1] Total BTUH [kW] Sens BTUH [kW] Power [°C] 120 [48.9] Total BTUH [kW] Sens BTUH [kW] Power 125 [51.7] Total BTUH [kW] Sens BTUH [kW] Power 1070 [505] 0.16 36.8 [10.8] 21.5 [ 6.3] 1.7 35.7 [10.5] 21.0 [ 6.1] 1.8 34.7 [10.2] 20.5 [ 6.0] 1.9 33.7 [ 9.9] 20.0 [ 5.9] 2.0 32.6 [ 9.5] 19.4 [ 5.7] 2.1 31.5 [ 9.2] 18.8 [ 5.5] 2.2 30.4 [ 8.9] 18.2 [ 5.3] 2.3 29.3 [ 8.6] 17.6 [ 5.2] 2.5 28.2 [ 8.3] 16.9 [ 5.0] 2.6 27.1 [ 7.9] 16.2 [ 4.8] 2.8 25.9 [ 7.6] 15.5 [ 4.5] 2.9 ENTERING INDOOR AIR @ 80°F [26.7°C] dbE 71°F [21.7°C] 67°F [19.4°C] 975 [460] 830 [392] 1070 [505] 975 [460] 0.14 0.1 0.16 0.14 830 [392] 0.1 36.1 [10.6] 20.5 [ 6.0] 1.7 35.2 [10.3] 19.1 [ 5.6] 1.6 34.3 [10.1] 25.1 [ 7.4] 1.7 33.7 [9.9] 24.0 [7.0] 1.6 32.8 [9.6] 22.4 [6.6] 1.6 35.1 [10.3] 20.1 [ 5.9] 1.7 34.2 [10.0] 18.7 [ 5.5] 1.7 33.3 [ 9.7] 24.7 [ 7.2] 1.7 32.7 [9.6] 23.6 [6.9] 1.7 31.8 [9.3] 21.9 [6.4] 1.7 34.1 [10.0] 19.6 [ 5.7] 1.8 33.2 [ 9.7] 18.2 [ 5.3] 1.8 32.2 [ 9.4] 24.2 [ 7.1] 1.8 31.7 [9.3] 23.1 [6.8] 1.8 30.8 [9.0] 21.5 [6.3] 1.8 33.1 [ 9.7] 19.1 [ 5.6] 1.9 32.2 [ 9.4] 17.8 [5.2] 1.9 31.2 [ 9.1] 23.6 [ 6.9] 1.9 30.6 [9.0] 22.6 [6.6] 1.9 29.8 [8.7] 21.0 [6.2] 1.9 32.0 [ 9.4] 18.6 [ 5.4] 2.1 31.2 [ 9.1] 17.3 [ 5.1] 2.0 30.1 [ 8.8] 23.1 [ 6.8] 2.1 29.6 [8.7] 22.1 [6.5] 2.0 28.8 [8.4] 20.5 [6.0] 2.0 31.0 [ 9.1] 18.0 [ 5.3] 2.2 30.1 [ 8.8] 16.8 [ 4.9] 2.1 29.0 [ 8.5] 22.5 [ 6.6] 2.2 28.5 [8.4] 21.5 [6.3] 2.2 27.7 [8.1] 20.0 [5.9] 2.1 29.9 [ 8.8] 17.4 [ 5.1] 2.3 29.1 [ 8.5] 16.2 [ 4.8] 2.3 27.9 [ 8.2] 21.9 [ 6.4] 2.3 27.4 [8.0] 20.9 [6.1] 2.3 26.7 [7.8] 19.5 [5.7] 2.3 28.8 [ 8.4] 16.8 [ 4.9] 2.4 28.0 [ 8.2] 15.7 [ 4.6] 2.4 26.8 [ 7.9] 21.3 [ 6.2] 2.4 26.4 [7.7] 20.3 [6.0] 2.4 25.6 [7.5] 18.9 [5.5] 2.4 27.7 [ 8.1] 16.2 [ 4.7] 2.6 27.0 [ 7.9] 15.1 [ 4.4] 2.5 25.7 [ 7.5] 20.6 [ 6.0] 2.6 25.3 [7.4] 19.7 [5.8] 2.6 24.6 [7.2] 18.3 [5.4] 2.5 26.6 [ 7.8] 15.5 [ 4.5] 2.7 25.9 [ 7.6] 14.4 [ 4.2] 2.7 24.6 [ 7.2] 19.9 [ 5.8] 2.7 24.2 [7.1] 19.0 [5.6] 2.7 23.5 [6.9] 17.7 [5.2] 2.7 25.5 [ 7.5] 14.8 [ 4.3] 2.9 24.8 [ 7.3] 13.8 [ 4.0] 2.8 23.4 [ 6.9] 19.2 [ 5.6] 2.9 23.0 [6.7] 18.3 [5.4] 2.9 22.4 [6.6] 17.1 [5.0] 2.8 1070 [505] 0.16 32.4 [9.5] 28.3 [8.3] 1.6 31.3 [9.2] 27.8 [8.2] 1.7 30.3 [8.9] 27.4 [8.0] 1.8 29.2 [8.6] 26.8 [7.9] 1.9 28.2 [8.3] 26.3 [7.7] 2.0 27.1 [7.9] 25.7 [7.5] 2.2 26.0 [7.6] 25.1 [7.4] 2.3 24.9 [7.3] 24.4 [7.2] 2.4 23.8 [7.0] 23.8 [7.0] 2.6 22.7 [6.6] 22.7 [6.6] 2.7 21.5 [6.3] 21.5 [6.3] 2.9 63°F [17.2°C] 975 [460] 0.14 31.8 [9.3] 27.1 [7.9] 1.6 30.8 [9.0] 26.6 [7.8] 1.7 29.8 [8.7] 26.2 [7.7] 1.8 28.7 [8.4] 25.7 [7.5] 1.9 27.7 [8.1] 25.1 [7.4] 2.0 26.6 [7.8] 24.6 [7.2] 2.1 25.6 [7.5] 24.0 [7.0] 2.3 24.5 [7.2] 23.4 [6.9] 2.4 23.4 [6.8] 22.7 [6.7] 2.6 22.3 [6.5] 22.1 [6.5] 2.7 21.1 [6.2] 21.1 [6.2] 2.9 830 [392] 0.1 31.0 [9.1] 25.2 [7.4] 1.6 30.0 [8.8] 24.8 [7.3] 1.7 29.0 [8.5] 24.3 [7.1] 1.8 28.0 [8.2] 23.9 [7.0] 1.9 26.9 [7.9] 23.4 [6.9] 2.0 25.9 [7.6] 22.9 [6.7] 2.1 24.9 [7.3] 22.3 [6.5] 2.2 23.8 [7.0] 21.8 [6.4] 2.4 22.7 [6.7] 21.2 [6.2] 2.5 21.7 [6.3] 20.5 [6.0] 2.7 20.6 [6.0] 19.9 [5.8] 2.8 DR --Depression ratio dbE --Entering air dry bulb wbE --Entering air wet bulb Total --Total capacity x 1000 BTUH Sens --Sensible capacity x 1000 BTUH Power --KW input NOTES: When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity from the table by adding [1.10 x CFM x (1 DR) x (dbE 80)]. [ ] Designates Metric Conversions 22 Fujitsu General America, Inc. Gross Systems Performance Data RACA15 Series GROSS SYSTEMS PERFORMANCE DATA--RACA15036A wbE CFM [L/s] DR 75 [23.9] Total BTUH [kW] Sens BTUH [kW] Power O 80 [26.7] Total BTUH [kW] Sens BTUH [kW] Power U T D O 85 [29.4] Total BTUH [kW] Sens BTUH [kW] Power O R D 90 [32.2] Total BTUH [kW] Sens BTUH [kW] Power R Y B 95 [35] Total BTUH [kW] Sens BTUH [kW] Power U L B T 100 [37.8] Total BTUH [kW] Sens BTUH [kW] Power E M P E 105 [40.6] Total BTUH [kW] Sens BTUH [kW] Power R A T U 110 [43.3] Total BTUH [kW] Sens BTUH [kW] Power R E °F 115 [46.1] Total BTUH [kW] Sens BTUH [kW] Power [°C] 120 [48.9] Total BTUH [kW] Sens BTUH [kW] Power 125 [51.7] Total BTUH [kW] Sens BTUH [kW] Power 1320 [623] 0.19 44.8 [13.1] 26.2 [7.7] 2.0 43.5 [12.8] 25.4 [7.5] 2.1 42.2 [12.4] 24.7 [7.2] 2.3 40.9 [12.0] 23.9 [7.0] 2.4 39.5 [11.6] 23.1 [6.8] 2.5 38.1 [11.2] 22.3 [6.5] 2.7 36.8 [10.8] 21.5 [6.3] 2.9 35.4 [10.4] 20.7 [6.1] 3.0 34.0 [10.0] 19.8 [5.8] 3.2 32.5 [9.5] 18.9 [5.6] 3.4 31.1 [9.1] 18.0 [5.3] 3.6 ENTERING INDOOR AIR @ 80°F [26.7°C] dbE 71°F [21.7°C] 67°F [19.4°C] 1200 [566] 1020 [481] 1320 [623] 1200 [566] 0.18 0.15 0.19 0.18 1020 [481] 0.15 44.0 [12.9] 25.0 [7.3] 2.0 42.8 [12.5] 23.3 [6.8] 2.0 41.9 [12.3] 30.6 [9.0] 2.0 41.1 [12.1] 29.2 [8.6] 2.0 40.0 [11.7] 27.2 [8.0] 2.0 42.7 [12.5] 24.3 [7.1] 2.1 41.6 [12.2] 22.6 [6.6] 2.1 40.6 [11.9] 29.9 [8.7] 2.1 39.9 [11.7] 28.5 [8.4] 2.1 38.8 [11.4] 26.5 [7.8] 2.1 41.4 [12.1] 23.6 [6.9] 2.2 40.3 [11.8] 21.9 [6.4] 2.2 39.3 [11.5] 29.1 [8.5] 2.2 38.6 [11.3] 27.8 [8.1] 2.2 37.5 [11.0] 25.9 [7.6] 2.2 40.1 [11.8] 22.9 [6.7] 2.4 39.0 [11.4] 21.3 [6.2] 2.3 37.9 [11.1] 28.3 [8.3] 2.4 37.2 [10.9] 27.1 [7.9] 2.4 36.2 [10.6] 25.2 [7.4] 2.3 38.8 [11.4] 22.1 [6.5] 2.5 37.7 [11.1] 20.6 [6.0] 2.5 36.6 [10.7] 27.5 [8.1] 2.5 35.9 [10.5] 26.3 [7.7] 2.5 34.9 [10.2] 24.5 [7.2] 2.5 37.5 [11.0] 21.3 [6.3] 2.7 36.4 [10.7] 19.9 [5.8] 2.6 35.2 [10.3] 26.7 [7.8] 2.7 34.6 [10.1] 25.6 [7.5] 2.7 33.6 [9.9] 23.8 [7.0] 2.6 36.1 [10.6] 20.6 [6.0] 2.8 35.1 [10.3] 19.1 [5.6] 2.8 33.8 [9.9] 25.9 [7.6] 2.8 33.2 [9.7] 24.8 [7.3] 2.8 32.3 [9.5] 23.0 [6.7] 2.8 34.7 [10.2] 19.8 [5.8] 3.0 33.8 [9.9] 18.4 [5.4] 3.0 32.4 [9.5] 25.1 [7.4] 3.0 31.9 [9.3] 24.0 [7.0] 3.0 31.0 [9.1] 22.3 [6.5] 3.0 33.4 [9.8] 18.9 [5.5] 3.2 32.4 [9.5] 17.6 [5.2] 3.2 31.0 [9.1] 24.2 [7.1] 3.2 30.5 [8.9] 23.1 [6.8] 3.2 29.6 [8.7] 21.5 [6.3] 3.1 32.0 [9.4] 18.1 [5.3] 3.4 31.1 [9.1] 16.8 [4.9] 3.4 29.6 [8.7] 23.3 [6.8] 3.4 29.1 [8.5] 22.3 [6.5] 3.4 28.3 [8.3] 20.7 [6.1] 3.3 30.5 [9.0] 17.2 [5.1] 3.6 29.7 [8.7] 16.0 [4.7] 3.6 28.2 [8.3] 22.4 [6.6] 3.6 27.7 [8.1] 21.4 [6.3] 3.6 26.9 [7.9] 19.9 [5.8] 3.6 1320 [623] 0.19 38.9 [11.4] 33.9 [9.9] 2.0 37.6 [11.0] 33.2 [9.7] 2.1 36.3 [10.6] 32.4 [9.5] 2.2 34.9 [10.2] 31.6 [9.3] 2.4 33.6 [9.8] 30.9 [9.0] 2.5 32.2 [9.4] 30.1 [8.8] 2.7 30.8 [9.0] 29.2 [8.6] 2.8 29.4 [8.6] 28.4 [8.3] 3.0 28.0 [8.2] 27.5 [8.1] 3.2 26.6 [7.8] 26.6 [7.8] 3.4 25.2 [7.4] 25.2 [7.4] 3.6 63°F [17.2°C] 1200 [566] 0.18 38.2 [11.2] 32.4 [9.5] 2.0 36.9 [10.8] 31.7 [9.3] 2.1 35.6 [10.4] 31.0 [9.1] 2.2 34.3 [10.1] 30.2 [8.9] 2.3 33.0 [9.7] 29.5 [8.6] 2.5 31.6 [9.3] 28.7 [8.4] 2.6 30.3 [8.9] 27.9 [8.2] 2.8 28.9 [8.5] 27.1 [8.0] 3.0 27.5 [8.1] 26.3 [7.7] 3.2 26.1 [7.7] 25.5 [7.5] 3.4 24.7 [7.2] 24.6 [7.2] 3.6 1020 [481] 0.15 37.2 [10.9] 30.1 [8.8] 2.0 35.9 [10.5] 29.5 [8.6] 2.1 34.6 [10.2] 28.8 [8.4] 2.2 33.4 [9.8] 28.1 [8.2] 2.3 32.1 [9.4] 27.4 [8.0] 2.5 30.8 [9.0] 26.7 [7.8] 2.6 29.5 [8.6] 26.0 [7.6] 2.8 28.1 [8.2] 25.2 [7.4] 2.9 26.8 [7.8] 24.5 [7.2] 3.1 25.4 [7.4] 23.7 [6.9] 3.3 24.1 [7.0] 22.9 [6.7] 3.5 DR --Depression ratio dbE --Entering air dry bulb wbE --Entering air wet bulb Total --Total capacity x 1000 BTUH Sens --Sensible capacity x 1000 BTUH Power --KW input NOTES: When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity from the table by adding [1.10 x CFM x (1 DR) x (dbE 80)]. [ ] Designates Metric Conversions Fujitsu General America, Inc. 23 Gross Systems Performance Data RACA15 Series GROSS SYSTEMS PERFORMANCE DATA--RACA15042A wbE CFM [L/s] DR 75 [23.9] Total BTUH [kW] Sens BTUH [kW] Power O 80 [26.7] Total BTUH [kW] Sens BTUH [kW] Power U T D O 85 [29.4] Total BTUH [kW] Sens BTUH [kW] Power O R D 90 [32.2] Total BTUH [kW] Sens BTUH [kW] Power R Y B 95 [35] Total BTUH [kW] Sens BTUH [kW] Power U L B T 100 [37.8] Total BTUH [kW] Sens BTUH [kW] Power E M P E 105 [40.6] Total BTUH [kW] Sens BTUH [kW] Power R A T U 110 [43.3] Total BTUH [kW] Sens BTUH [kW] Power R E °F 115 [46.1] Total BTUH [kW] Sens BTUH [kW] Power [°C] 120 [48.9] Total BTUH [kW] Sens BTUH [kW] Power 125 [51.7] Total BTUH [kW] Sens BTUH [kW] Power 1430 [675] 0.17 50.1 [14.7] 28.6 [8.4] 2.4 48.8 [14.3] 27.9 [8.2] 2.5 47.4 [13.9] 27.2 [8.0] 2.7 46.1 [13.5] 26.5 [7.8] 2.8 44.7 [13.1] 25.8 [7.6] 3.0 43.3 [12.7] 25.0 [7.3] 3.2 41.8 [12.2] 24.1 [7.1] 3.4 40.3 [11.8] 23.3 [6.8] 3.6 38.7 [11.4] 22.3 [6.5] 3.8 37.2 [10.9] 21.4 [6.3] 4.0 35.6 [10.4] 20.4 [6.0] 4.3 ENTERING INDOOR AIR @ 80°F [26.7°C] dbE 71°F [21.7°C] 67°F [19.4°C] 1300 [614] 1100 [519] 1430 [675] 1300 [614] 0.16 0.13 0.17 0.16 1100 [519] 0.13 49.2 [14.4] 27.3 [8.0] 2.3 47.8 [14.0] 25.3 [7.4] 2.3 47.2 [13.8] 33.9 [9.9] 2.4 46.4 [13.6] 32.4 [9.5] 2.3 45.1 [13.2] 30.0 [8.8] 2.3 47.9 [14.0] 26.7 [7.8] 2.5 46.6 [13.6] 24.8 [7.3] 2.5 45.9 [13.5] 33.2 [9.7] 2.5 45.1 [13.2] 31.8 [9.3] 2.5 43.8 [12.8] 29.5 [8.6] 2.4 46.6 [13.7] 26.0 [7.6] 2.6 45.3 [13.3] 24.2 [7.1] 2.6 44.6 [13.1] 32.6 [9.5] 2.6 43.8 [12.8] 31.1 [9.1] 2.6 42.6 [12.5] 28.9 [8.5] 2.6 45.3 [13.3] 25.3 [7.4] 2.8 44.0 [12.9] 23.5 [6.9] 2.8 43.2 [12.7] 31.8 [9.3] 2.8 42.5 [12.4] 30.4 [8.9] 2.8 41.3 [12.1] 28.2 [8.3] 2.7 43.9 [12.9] 24.6 [7.2] 3.0 42.7 [12.5] 22.9 [6.7] 2.9 41.8 [12.3] 31.1 [9.1] 3.0 41.1 [12.0] 29.7 [8.7] 3.0 39.9 [11.7] 27.6 [8.1] 2.9 42.5 [12.4] 23.9 [7.0] 3.2 41.3 [12.1] 22.1 [6.5] 3.1 40.4 [11.8] 30.3 [8.9] 3.2 39.7 [11.6] 28.9 [8.5] 3.1 38.6 [11.3] 26.9 [7.9] 3.1 41.0 [12.0] 23.1 [6.8] 3.4 39.9 [11.7] 21.4 [6.3] 3.3 38.9 [11.4] 29.4 [8.6] 3.4 38.2 [11.2] 28.1 [8.2] 3.3 37.2 [10.9] 26.1 [7.7] 3.3 39.6 [11.6] 22.2 [6.5] 3.6 38.5 [11.3] 20.6 [6.0] 3.5 37.4 [11.0] 28.6 [8.4] 3.6 36.8 [10.8] 27.3 [8.0] 3.5 35.7 [10.5] 25.3 [7.4] 3.5 38.0 [11.1] 21.4 [6.3] 3.8 37.0 [10.8] 19.8 [5.8] 3.7 35.9 [10.5] 27.7 [8.1] 3.8 35.3 [10.3] 26.4 [7.7] 3.8 34.3 [10.0] 24.5 [7.2] 3.7 36.5 [10.7] 20.4 [6.0] 4.0 35.5 [10.4] 19.0 [5.6] 3.9 34.3 [10.1] 26.7 [7.8] 4.0 33.7 [9.9] 25.5 [7.5] 4.0 32.8 [9.6] 23.7 [6.9] 3.9 34.9 [10.2] 19.5 [5.7] 4.2 33.9 [9.9] 18.1 [5.3] 4.2 32.7 [9.6] 25.7 [7.5] 4.3 32.1 [9.4] 24.6 [7.2] 4.2 31.2 [9.2] 22.8 [6.7] 4.2 1430 [675] 0.17 44.7 [13.1] 38.8 [11.4] 2.3 43.4 [12.7] 38.1 [11.2] 2.5 42.1 [12.3] 37.5 [11.0] 2.6 40.7 [11.9] 36.8 [10.8] 2.8 39.3 [11.5] 36.0 [10.5] 3.0 37.9 [11.1] 35.2 [10.3] 3.2 36.4 [10.7] 34.4 [10.1] 3.4 34.9 [10.2] 33.5 [9.8] 3.6 33.4 [9.8] 32.6 [9.5] 3.8 31.8 [9.3] 31.6 [9.3] 4.0 30.2 [8.8] 30.2 [8.8] 4.2 63°F [17.2°C] 1300 [614] 0.16 43.9 [12.9] 37.1 [10.9] 2.3 42.6 [12.5] 36.4 [10.7] 2.5 41.3 [12.1] 35.8 [10.5] 2.6 40.0 [11.7] 35.1 [10.3] 2.8 38.6 [11.3] 34.4 [10.1] 2.9 37.2 [10.9] 33.6 [9.9] 3.1 35.8 [10.5] 32.8 [9.6] 3.3 34.3 [10.1] 32.0 [9.4] 3.5 32.8 [9.6] 31.1 [9.1] 3.7 31.2 [9.2] 30.2 [8.9] 4.0 29.7 [8.7] 29.3 [8.6] 4.2 1100 [519] 0.13 42.7 [12.5] 34.4 [10.1] 2.3 41.5 [12.1] 33.8 [9.9] 2.4 40.2 [11.8] 33.2 [9.7] 2.6 38.9 [11.4] 32.6 [9.6] 2.7 37.5 [11.0] 31.9 [9.4] 2.9 36.2 [10.6] 31.2 [9.1] 3.1 34.8 [10.2] 30.5 [8.9] 3.3 33.3 [9.8] 29.7 [8.7] 3.5 31.9 [9.3] 28.9 [8.5] 3.7 30.4 [8.9] 28.0 [8.2] 3.9 28.8 [8.4] 27.2 [8.0] 4.1 DR --Depression ratio dbE --Entering air dry bulb wbE --Entering air wet bulb Total --Total capacity x 1000 BTUH Sens --Sensible capacity x 1000 BTUH Power --KW input NOTES: When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity from the table by adding [1.10 x CFM x (1 DR) x (dbE 80)]. [ ] Designates Metric Conversions 24 Fujitsu General America, Inc. Gross Systems Performance Data RACA15 Series GROSS SYSTEMS PERFORMANCE DATA--RACA15048A wbE CFM [L/s] DR 75 [23.9] Total BTUH [kW] Sens BTUH [kW] Power O 80 [26.7] Total BTUH [kW] Sens BTUH [kW] Power U T D O 85 [29.4] Total BTUH [kW] Sens BTUH [kW] Power O R D 90 [32.2] Total BTUH [kW] Sens BTUH [kW] Power R Y B 95 [35] Total BTUH [kW] Sens BTUH [kW] Power U L B T 100 [37.8] Total BTUH [kW] Sens BTUH [kW] Power E M P E 105 [40.6] Total BTUH [kW] Sens BTUH [kW] Power R A T U 110 [43.3] Total BTUH [kW] Sens BTUH [kW] Power R E °F 115 [46.1] Total BTUH [kW] Sens BTUH [kW] Power [°C] 120 [48.9] Total BTUH [kW] Sens BTUH [kW] Power 125 [51.7] Total BTUH [kW] Sens BTUH [kW] Power 1700 [802] 0.19 58.3 [17.1] 33.2 [9.7] 2.7 56.8 [16.7] 32.5 [9.5] 2.8 55.3 [16.2] 31.7 [9.3] 3.0 53.6 [15.7] 30.8 [9.0] 3.1 51.9 [15.2] 29.9 [8.8] 3.3 50.1 [14.7] 28.9 [8.5] 3.5 48.2 [14.1] 27.8 [8.2] 3.7 46.3 [13.6] 26.7 [7.8] 3.9 44.3 [13.0] 25.5 [7.5] 4.2 42.2 [12.4] 24.3 [7.1] 4.4 40.1 [11.8] 23.0 [6.7] 4.7 ENTERING INDOOR AIR @ 80°F [26.7°C] dbE 71°F [21.7°C] 67°F [19.4°C] 1550 [732] 1320 [623] 1700 [802] 1550 [732] 0.18 0.15 0.19 0.18 1320 [623] 0.15 57.3 [16.8] 31.8 [9.3] 2.6 55.8 [16.3] 29.6 [8.7] 2.6 54.6 [16.0] 39.2 [11.5] 2.7 53.7 [15.7] 37.5 [11.0] 2.6 52.2 [15.3] 34.9 [10.2] 2.6 55.8 [16.4] 31.1 [9.1] 2.8 54.3 [15.9] 28.9 [8.5] 2.8 53.1 [15.6] 38.5 [11.3] 2.8 52.2 [15.3] 36.8 [10.8] 2.8 50.8 [14.9] 34.3 [10.0] 2.7 54.3 [15.9] 30.3 [8.9] 2.9 52.8 [15.5] 28.2 [8.3] 2.9 51.5 [15.1] 37.7 [11.0] 2.9 50.6 [14.8] 36.0 [10.6] 2.9 49.3 [14.4] 33.6 [9.8] 2.9 52.7 [15.4] 29.5 [8.6] 3.1 51.3 [15.0] 27.4 [8.0] 3.1 49.9 [14.6] 36.8 [10.8] 3.1 49.0 [14.4] 35.2 [10.3] 3.1 47.7 [14.0] 32.8 [9.6] 3.0 51.0 [14.9] 28.6 [8.4] 3.3 49.6 [14.5] 26.6 [7.8] 3.2 48.2 [14.1] 35.9 [10.5] 3.3 47.3 [13.9] 34.3 [10.1] 3.3 46.1 [13.5] 32.0 [9.4] 3.2 49.2 [14.4] 27.6 [8.1] 3.5 47.9 [14.0] 25.7 [7.5] 3.4 46.4 [13.6] 34.9 [10.2] 3.5 45.6 [13.4] 33.4 [9.8] 3.5 44.3 [13.0] 31.1 [9.1] 3.4 47.4 [13.9] 26.6 [7.8] 3.7 46.1 [13.5] 24.8 [7.3] 3.6 44.5 [13.0] 33.8 [9.9] 3.7 43.7 [12.8] 32.4 [9.5] 3.7 42.6 [12.5] 30.1 [8.8] 3.6 45.5 [13.3] 25.6 [7.5] 3.9 44.3 [13.0] 23.8 [7.0] 3.9 42.6 [12.5] 32.7 [9.6] 3.9 41.9 [12.3] 31.3 [9.2] 3.9 40.7 [11.9] 29.1 [8.5] 3.8 43.5 [12.8] 24.4 [7.2] 4.2 42.4 [12.4] 22.7 [6.7] 4.1 40.6 [11.9] 31.6 [9.2] 4.2 39.9 [11.7] 30.2 [8.8] 4.1 38.8 [11.4] 28.1 [8.2] 4.1 41.5 [12.2] 23.3 [6.8] 4.4 40.4 [11.8] 21.7 [6.3] 4.3 38.5 [11.3] 30.3 [8.9] 4.4 37.9 [11.1] 29.0 [8.5] 4.4 36.8 [10.8] 27.0 [7.9] 4.3 39.4 [11.5] 22.0 [6.5] 4.7 38.3 [11.2] 20.5 [6.0] 4.6 36.4 [10.7] 29.0 [8.5] 4.7 35.7 [10.5] 27.8 [8.1] 4.6 34.8 [10.2] 25.9 [7.6] 4.6 1700 [802] 0.19 51.6 [15.1] 44.7 [13.1] 2.6 50.1 [14.7] 44.0 [12.9] 2.8 48.5 [14.2] 43.2 [12.7] 2.9 46.9 [13.7] 42.3 [12.4] 3.1 45.2 [13.2] 41.4 [12.1] 3.3 43.4 [12.7] 40.4 [11.8] 3.5 41.5 [12.2] 39.3 [11.5] 3.7 39.6 [11.6] 38.2 [11.2] 3.9 37.6 [11.0] 37.1 [10.9] 4.2 35.5 [10.4] 35.5 [10.4] 4.4 33.4 [9.8] 33.4 [9.8] 4.7 63°F [17.2°C] 1550 [732] 0.18 50.7 [14.9] 42.8 [12.5] 2.6 49.2 [14.4] 42.1 [12.3] 2.8 47.7 [14.0] 41.3 [12.1] 2.9 46.1 [13.5] 40.5 [11.9] 3.1 44.4 [13.0] 39.6 [11.6] 3.3 42.6 [12.5] 38.6 [11.3] 3.4 40.8 [12.0] 37.6 [11.0] 3.7 38.9 [11.4] 36.6 [10.7] 3.9 36.9 [10.8] 35.5 [10.4] 4.1 34.9 [10.2] 34.3 [10.0] 4.4 32.8 [9.6] 32.8 [9.6] 4.6 1320 [623] 0.15 49.3 [14.5] 39.8 [11.7] 2.6 47.9 [14.0] 39.2 [11.5] 2.7 46.4 [13.6] 38.4 [11.3] 2.9 44.8 [13.1] 37.7 [11.0] 3.0 43.2 [12.7] 36.8 [10.8] 3.2 41.5 [12.2] 36.0 [10.5] 3.4 39.7 [11.6] 35.0 [10.3] 3.6 37.9 [11.1] 34.0 [10.0] 3.8 35.9 [10.5] 33.0 [9.7] 4.1 34.0 [10.0] 31.9 [9.3] 4.3 31.9 [9.4] 30.8 [9.0] 4.6 DR --Depression ratio dbE --Entering air dry bulb wbE --Entering air wet bulb Total --Total capacity x 1000 BTUH Sens --Sensible capacity x 1000 BTUH Power --KW input NOTES: When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity from the table by adding [1.10 x CFM x (1 DR) x (dbE 80)]. [ ] Designates Metric Conversions Fujitsu General America, Inc. 25 Gross Systems Performance Data RACA15 Series GROSS SYSTEMS PERFORMANCE DATA--RACA15060A wbE CFM [L/s] DR 75 [23.9] Total BTUH [kW] Sens BTUH [kW] Power O 80 [26.7] Total BTUH [kW] Sens BTUH [kW] Power U T D O 85 [29.4] Total BTUH [kW] Sens BTUH [kW] Power O R D 90 [32.2] Total BTUH [kW] Sens BTUH [kW] Power R Y B 95 [35] Total BTUH [kW] Sens BTUH [kW] Power U L B T 100 [37.8] Total BTUH [kW] Sens BTUH [kW] Power E M P E 105 [40.6] Total BTUH [kW] Sens BTUH [kW] Power R A T U 110 [43.3] Total BTUH [kW] Sens BTUH [kW] Power R E °F 115 [46.1] Total BTUH [kW] Sens BTUH [kW] Power [°C] 120 [48.9] Total BTUH [kW] Sens BTUH [kW] Power 125 [51.7] Total BTUH [kW] Sens BTUH [kW] Power 2040 [963] 0.15 73.0 [21.4] 42.4 [12.4] 3.6 70.9 [20.8] 41.3 [12.1] 3.8 68.8 [20.2] 40.1 [11.8] 4.0 66.7 [19.5] 38.9 [11.4] 4.2 64.5 [18.9] 37.7 [11.0] 4.4 62.2 [18.2] 36.4 [10.7] 4.6 60.0 [17.6] 35.1 [10.3] 4.9 57.7 [16.9] 33.7 [9.9] 5.2 55.4 [16.2] 32.3 [9.5] 5.4 53.0 [15.5] 30.8 [9.0] 5.8 50.7 [14.8] 29.3 [8.6] 6.1 ENTERING INDOOR AIR @ 80°F [26.7°C] dbE 71°F [21.7°C] 67°F [19.4°C] 1850 [873] 1570 [741] 2040 [963] 1850 [873] 0.14 0.11 0.15 0.14 1570 [741] 0.11 71.7 [21.0] 40.5 [11.9] 3.6 69.7 [20.4] 37.6 [11.0] 3.5 69.2 [20.3] 50.0 [14.6] 3.6 67.9 [19.9] 47.7 [14.0] 3.5 66.0 [19.3] 44.3 [13.0] 3.5 69.6 [20.4] 39.4 [11.6] 3.7 67.7 [19.8] 36.6 [10.7] 3.7 67.1 [19.6] 48.8 [14.3] 3.7 65.8 [19.3] 46.6 [13.7] 3.7 64.0 [18.8] 43.3 [12.7] 3.6 67.6 [19.8] 38.3 [11.2] 3.9 65.7 [19.3] 35.6 [10.4] 3.9 64.9 [19.0] 47.7 [14.0] 3.9 63.7 [18.7] 45.5 [13.3] 3.9 62.0 [18.2] 42.3 [12.4] 3.8 65.4 [19.2] 37.2 [10.9] 4.1 63.6 [18.6] 34.5 [10.1] 4.1 62.8 [18.4] 46.5 [13.6] 4.1 61.6 [18.1] 44.3 [13.0] 4.1 59.9 [17.6] 41.2 [12.1] 4.0 63.3 [18.5] 36.0 [10.5] 4.3 61.5 [18.0] 33.4 [9.8] 4.3 60.6 [17.7] 45.2 [13.3] 4.3 59.5 [17.4] 43.2 [12.6] 4.3 57.8 [16.9] 40.1 [11.8] 4.2 61.1 [17.9] 34.7 [10.2] 4.6 59.4 [17.4] 32.3 [9.5] 4.5 58.3 [17.1] 43.9 [12.9] 4.6 57.3 [16.8] 41.9 [12.3] 4.5 55.7 [16.3] 39.0 [11.4] 4.5 58.9 [17.3] 33.5 [9.8] 4.8 57.3 [16.8] 31.1 [9.1] 4.8 56.1 [16.4] 42.6 [12.5] 4.8 55.1 [16.1] 40.7 [11.9] 4.8 53.5 [15.7] 37.8 [11.1] 4.7 56.6 [16.6] 32.2 [9.4] 5.1 55.1 [16.1] 29.9 [8.8] 5.0 53.8 [15.8] 41.2 [12.1] 5.1 52.8 [15.5] 39.3 [11.5] 5.1 51.4 [15.1] 36.6 [10.7] 5.0 54.4 [15.9] 30.8 [9.0] 5.4 52.9 [15.5] 28.6 [8.4] 5.3 51.5 [15.1] 39.8 [11.7] 5.4 50.5 [14.8] 38.0 [11.1] 5.4 49.2 [14.4] 35.3 [10.3] 5.3 52.1 [15.3] 29.4 [8.6] 5.7 50.6 [14.8] 27.3 [8.0] 5.6 49.1 [14.4] 38.4 [11.2] 5.7 48.2 [14.1] 36.6 [10.7] 5.7 46.9 [13.7] 34.0 [10.0] 5.6 49.7 [14.6] 28.0 [8.2] 6.0 48.4 [14.2] 26.0 [7.6] 6.0 46.8 [13.7] 36.9 [10.8] 6.0 45.9 [13.5] 35.2 [10.3] 6.0 44.6 [13.1] 32.7 [9.6] 5.9 2040 [963] 0.15 65.8 [19.3] 56.9 [16.7] 3.5 63.7 [18.7] 55.8 [16.4] 3.7 61.5 [18.0] 54.6 [16.0] 3.9 59.4 [17.4] 53.4 [15.7] 4.1 57.2 [16.8] 52.2 [15.3] 4.3 55.0 [16.1] 50.9 [14.9] 4.5 52.7 [15.4] 49.6 [14.5] 4.8 50.4 [14.8] 48.2 [14.1] 5.1 48.1 [14.1] 46.8 [13.7] 5.4 45.8 [13.4] 45.3 [13.3] 5.7 43.4 [12.7] 43.4 [12.7] 6.0 63°F [17.2°C] 1850 [873] 0.14 64.6 [18.9] 54.3 [15.9] 3.5 62.5 [18.3] 53.2 [15.6] 3.7 60.4 [17.7] 52.1 [15.3] 3.8 58.3 [17.1] 51.0 [14.9] 4.0 56.1 [16.5] 49.8 [14.6] 4.3 54.0 [15.8] 48.6 [14.2] 4.5 51.8 [15.2] 47.3 [13.9] 4.8 49.5 [14.5] 46.0 [13.5] 5.0 47.2 [13.8] 44.6 [13.1] 5.3 44.9 [13.2] 43.2 [12.7] 5.6 42.6 [12.5] 41.8 [12.3] 6.0 1570 [741] 0.11 62.8 [18.4] 50.5 [14.8] 3.4 60.8 [17.8] 49.5 [14.5] 3.6 58.8 [17.2] 48.5 [14.2] 3.8 56.7 [16.6] 47.4 [13.9] 4.0 54.6 [16.0] 46.3 [13.6] 4.2 52.5 [15.4] 45.1 [13.2] 4.4 50.3 [14.7] 44.0 [12.9] 4.7 48.1 [14.1] 42.7 [12.5] 5.0 45.9 [13.5] 41.5 [12.2] 5.2 43.7 [12.8] 40.2 [11.8] 5.5 41.4 [12.1] 38.9 [11.4] 5.9 DR --Depression ratio dbE --Entering air dry bulb wbE --Entering air wet bulb Total --Total capacity x 1000 BTUH Sens --Sensible capacity x 1000 BTUH Power --KW input NOTES: When the entering air dry bulb is other than 80°F [27°C], adjust the sensible capacity from the table by adding [1.10 x CFM x (1 DR) x (dbE 80)]. [ ] Designates Metric Conversions 26 Fujitsu General America, Inc. INDOOR AIRFLOW PERFORMANCE RACA14 - 230 VOLTS Nominal Cooling Capacity Tons [kW] Motor Speed from Factory Cool Heat Manufacturer Recommended Cooling Airflow (Min/Max) Blower Size/ Motor HP [W] & # of Speeds Motor Speed / Tap 0.1 [.02] 0.2 [.05] 0.3 [.07] External Static Pressure - Inches W.C. [kPa] (Side Discharge-Dry Coil) 0.4 [.10] 0.5 [.12] 0.6 [.15] 0.7 [.17] 0.8 [.20] 0.9 [.22] 1.0 [.25] 2 [7.03] High High 13 SEER 700 CFM / 950 CFM 9x7 Blower 1/4 HP [186] 2 Speed (PSC Motor) CFM 822 [388] 789 [372] 750 [354] 969 [328] 524 [294] 496 [294] 402 [234] Low RPM 917 954 994 1031 1051 1075 1105 Watts 226 216 203 188 175 150 136 CFM 99 [468] 928 [438] 873 [412] 810 [382] 741 [350] 659 [311] 490 [231] High RPM 1055 1068 1080 1096 1106 1119 1136 Watts 271 256 245 227 214 199 175 CFM 1093 [516] 1062 [501] 1001 [472] 930 [439] 815 [385] 728 [344] 663 [313] 571 [269] Low RPM 900 935 969 999 1030 1053 1064 1082 2.5 [8.79] Low Low 850 CFM / 1150 CFM 10x7 Blower 1/2 HP [372] 3 Speed (PSC Motor) Watts 375 358 335 313 283 264 249 229 CFM 1239 [585] 1184 [559] 1114 [526] 1043 [492] 959 [453] 827 [390] 744 [351] 657 [310] Med RPM 961 983 1006 1030 1052 1074 1084 1097 Watts 429 409 384 360 334 303 287 266 CFM 1362 [643] 1292 [610] 1213 [572] 1133 [535] 1027 [485] 872 [412] 800 [378] 700 [330] High RPM 1049 1061 1073 1085 1087 1109 1116 1124 Watts 500 472 545 427 405 371 360 339 CFM 1310 [618] 1246 [588] 1186 [560] 1128 [532] 1038 [490] 955 [451] 847 [400] 738 [348] Low RPM 834 867 895 918 949 971 989 1019 12x9T Blower 3.0 [10.55] Low Low 1000 CFM / 1400 CFM 1/2 HP [372] 2 Speed Watts 460 447 435 424 407 396 380 362 CFM 1644 [776] 1568 [740] 1488 [702] 1421 [671] 1330 [628] 1248 [589] 1133 [535] 1003 [473] (PSC Motor) High RPM 981 996 1009 1421 1330 1248 1058 1072 Watts 664 641 620 1421 1330 1248 545 526 3.5 [12.31] Tap 3 Tap 3 1200 CFM / 1600 CFM 12x9T Blower 3/4 HP [550] 3 Speed (PSC Motor) Tap 1 Low Tap 2 Medium Tap 3 High CFM RPM Watts CFM RPM Watts CFM RPM Watts 1336 [631] 1312 [619] 1295 [611] 1241 [586] 1200 [566] 1161 [548] 1119 [528] 1072 [506] 1001 [472] 939 [443] 827 856 874 913 949 983 1013 1048 1092 1127 298 308 313 325 341 352 361 374 387 402 1336 [631] 1312 [619] 1295 [611] 1241 [586] 1200 [566] 1161 [548] 1119 [528] 1072 [506] 1001 [472] 939 [443] 827 856 874 916 949 983 1013 1048 1092 1127 298 308 313 325 341 352 361 374 387 402 1591 [751] 1563 [738] 1558 [735] 1519 [717] 1490 [703] 1458 [688] 1410 [665] 1363 [643] 1277 [603] 1122 [530] 949 981 999 1027 1051 1086 1109 1129 1140 1158 476 490 501 515 527 542 546 543 522 478 Notes: (1) Set 2 through 4 ton Cool to Tap 2 for AHRI rated performance. (2) Set 5 ton 1st Stage Cool to Tap 1 for AHRI rated performance. Fujitsu General America, Inc. [ ] Designates Metric Conversions Indoor Airflow Performance RACA14 Series 27 Indoor Airflow Performance RACA14 Series 28 Fujitsu General America, Inc. INDOOR AIRFLOW PERFORMANCE RACA14 - 230 VOLTS (continued) Nominal Cooling Capacity Tons [kW] Motor Speed from Factory Cool Heat Manufacturer Recommended Cooling Airflow (Min/Max) Blower Size/ Motor HP [W] & # of Speeds Motor Speed / Tap 0.1 [.02] 0.2 [.05] 0.3 [.07] External Static Pressure - Inches W.C. [kPa] (Side Discharge-Dry Coil) 0.4 [.10] 0.5 [.12] 0.6 [.15] 0.7 [.17] 0.8 [.20] 0.9 [.22] 1.0 [.25] 4.0 [14.07] Tap 3 Tap 3 1350 CFM / 1850 CFM 12x9T Blower 3/4 HP [559] 3 Speed (PSC Motor) Tap 1 Low Tap 2 Medium Tap 3 High CFM RPM Watts CFM RPM Watts CFM RPM Watts 1467 [692] 1448 [683] 1404 [663] 1373 [648] 1339 [632] 1306 [616] 1250 [590] 1210 [571] 1164 [549] 1087 [513] 826 855 774 910 939 969 1003 1030 1067 1108 328 344 348 363 379 387 398 408 418 434 1634 [771] 1595 [753] 1547 [730] 1530 [722] 1487 [702] 1462 [690] 1438 [679] 1378 [650] 1352 [638] 1298 [613] 894 923 950 981 1000 1030 1051 1079 1106 1126 432 446 451 468 479 490 508 510 520 520 1941 [916] 1915 [904] 1878 [886] 1814 [856] 1773 [837] 1709 [807] 1655 [781] 1570 [741] 1488 [702] 1374 [648] 1028 1047 1068 1091 1104 1113 1124 1136 1142 1147 708 725 729 727 717 969 673 647 618 571 5.0 [17.59] Tap 3 Tap 3 1600 CFM / 2100 CFM 12x9R Blower 1 HP [746] 3 Speed (PSC Motor) Tap 1 Low Tap 2 Medium Tap 3 High CFM RPM Watts CFM RPM Watts CFM RPM Watts 1768 [834] 1730 [816] 1693 [799] 1626 [767] 1599 [755] 1558 [735] 1522 [718] 1503 [709] 1444 [681] 1399 [660] 938 959 983 1011 1025 1052 1089 1090 1117 1134 520 533 541 560 563 578 599 599 605 615 1926 [909] 1890 [892] 1864 [880] 1822 [860] 1794 [847] 1758 [830] 1710 [807] 1670 [788] 1579 [745] 1493 [705] 999 1014 1040 1061 179 1096 1119 1128 1138 1144 654 660 674 688 699 708 714 705 683 661 2096 [989] 2057 [971] 2003 [945] 1951 [921] 1890 [892] 1819 [858] 1756 [829] 1686 [796] 1610 [760] 1498 [707] 1069 1092 1106 1116 1121 1129 1138 1140 1148 1154 829 846 840 822 807 782 768 730 708 679 Notes: (1) Set 2 through 4 ton Cool to Tap 2 for AHRI rated performance. (2) Set 5 ton 1st Stage Cool to Tap 1 for AHRI rated performance. DOWN DISCHARGE PRESSURE DROP (ADD TO EXTERNAL STATIC PRESSURE) CFM [L/s] 800 [378] 1000 [472] 1200 [566] Pressure Drop--Includes W.C. [kPa] .02 [.005] .05 [.012] .07 [.017] 1400 [661] .1 [.025] 1600 [755] .12 [.030] 1800 [849] .15 [.037] 2000 [944] .17 [.042] [ ] Designates Metric Conversions INDOOR AIRFLOW PERFORMANCE RACA14 - 208 VOLTS Nominal Cooling Capacity Tons [kW] Motor Speed from Factory Cool Heat Manufacturer Recommended Cooling Airflow (Min/Max) Blower Size/ Motor HP [W] & # of Speeds Motor Speed / Tap 0.1 [.02] 0.2 [.05] 0.3 [.07] External Static Pressure - Inches W.C. [kPa] (Side Discharge-Dry Coil) 0.4 [.10] 0.5 [.12] 0.6 [.15] 0.7 [.17] 0.8 [.20] 0.9 [.22] 1.0 [.25] 2.0 [7.03] High High 13 SEER 700 CFM / 950 CFM 9X7 Blower 1/4 HP [186] 2 Speed (PSC Motor) CFM 706 [333] 685 [323] 661 [312] 614 [290] 523 [247] 437 [206] 334 [158] Low RPM 844 886 943 989 1036 1067 1095 Watts 202 193 182 169 151 135 120 CFM 925 [437] 874 [412] 813 [384] 763 [360] 681 [321] 534 [252] 441 [208] High RPM 1004 1027 1058 1070 1091 1116 1128 Watts 253 238 220 210 192 167 155 2.5 [8.79] Low Low 850 CFM / 1150 CFM 10X7 Blower 1/2 HP [372] 3 Speed (PSC Motor) CFM 967 [456] 947 [447] 892 [421] 813 [384] 740 [349] 681 [321] 613 [289] 504 [238] Low RPM 819 876 916 966 995 1018 1040 1066 Watts 339 322 302 279 261 246 230 205 CFM 1119 [528] 1081 [510] 1029 [486] 968 [457] 851 [402] 774 [365] 699 [330] 613 [289] Med RPM 891 930 965 995 1026 1047 1059 1078 Watts 391 375 354 330 297 278 263 241 CFM 1311 [619] 1249 [589] 1168 [551] 1089 [514] 985 [465] 861 [406] 779 [368] 699 [330] High RPM 1010 1031 1046 1066 1080 1095 1106 1113 Watts 458 437 409 387 360 332 314 300 CFM 1163 [549] 1115 [526] 1075 [507] 1012 [478] 926 [437] 841 [397] 753 [355] 647 [305] 12x9T Blower Low RPM 771 804 855 870 910 932 968 992 3.0 [10.55] Low Low 1000 CFM / 1400 CFM 1/2 HP [372] 2 Speed Watts 392 387 380 367 356 345 330 316 CFM 1543 [728] 1484 [700] 1422 [671] 1345 [635] 1251 [590] 1177 [555] 1071 [505] 939 [443] (PSC Motor) High RPM 939 957 975 1345 1251 1177 1037 1051 Watts 586 572 555 1345 1251 1177 481 459 3.5 [12.31] Tap 3 Tap 3 1200 CFM / 1600 CFM 12x9T Blower 3/4 HP [559] 3 Speed (Constant Torque) Tap 1 Low Tap 2 Medium Tap 3 High CFM RPM Watts CFM RPM Watts CFM RPM Watts 1346 [635] 1304 [615] 1264 [597] 1232 [581] 1185 [559] 1139 [538] 1092 [515] 1048 [495] 993 [469] 908 [429] 819 580 883 906 944 972 1014 1047 1083 1122 291 302 310 319 333 338 353 362 374 389 1349 [635] 1304 [615] 1264 [597] 1232 [581] 1185 [559] 1139 [538] 1092 [515] 1048 [495] 993 [469] 908 [429] 819 850 883 906 944 972 1014 1047 1083 1122 291 302 310 319 333 338 353 362 374 389 1596 [753] 1547 [730] 1520 [717] 1499 [707] 1471 [694] 1421 [671] 1383 [653] 1332 [629] 1262 [596] 1085 [512] 940 973 988 1020 1038 1068 1102 1122 1136 1154 461 475 484 497 503 516 527 531 505 458 Notes: (1) Set 2 through 4 ton Cool to Tap 2 for AHRI rated performance. (2) Set 5 ton 1st Stage Cool to Tap 1 for AHRI rated performance. Fujitsu General America, Inc. [ ] Designates Metric Conversions Indoor Airflow Performance RACA14 Series 29 Indoor Airflow Performance RACA14 Series 30 Fujitsu General America, Inc. INDOOR AIRFLOW PERFORMANCE RACA14 - 208 VOLTS (continued) Nominal Cooling Capacity Tons [kW] Motor Speed from Factory Cool Heat Manufacturer Recommended Cooling Airflow (Min/Max) Blower Size/ Motor HP [W] & # of Speeds Motor Speed / Tap 0.1 [.02] 0.2 [.05] 0.3 [.07] External Static Pressure - Inches W.C. [kPa] (Side Discharge-Dry Coil) 0.4 [.10] 0.5 [.12] 0.6 [.15] 0.7 [.17] 0.8 [.20] 0.9 [.22] 1.0 [.25] 4.0 [14.07] Tap 3 Tap 3 5.0 [17.59] Tap 3 Tap 3 1350 CFM / 1850 CFM 1600 CFM / 2100 CFM 12x9T Blower 3/4 HP [559] 3 Speed (Constant Torque) 12x9R Blower 1 HP [746] 3 Speed (Constant Torque) Tap 1 Low Tap 2 Medium Tap 3 High Tap 1 Low Tap 2 Medium Tap 3 High CFM RPM Watts CFM RPM Watts CFM RPM Watts CFM RPM Watts CFM RPM Watts CFM RPM Watts 1474 [696] 1431 [675] 1394 [658] 1355 [639] 1327 [626] 1284 [606] 1243 [587] 1198 [565] 1134 [535] 1057 [499] 819 852 878 907 936 961 993 1024 1064 1101 324 334 340 355 366 374 382 396 410 422 1617 [763] 1585 [748] 1547 [730] 1512 [714] 1486 [701] 1449 [684] 1430 [675] 1355 [639] 1337 [631] 1280 [604] 891 917 910 965 992 1015 1046 1080 1098 1123 422 433 440 451 463 475 482 496 506 507 1906 [900] 1876 [885] 1839 [868] 1807 [853] 1756 [829] 1697 [801] 1642 [775] 1555 [734] 1482 [699] 1372 [648] 1021 1043 1061 1079 1097 1110 1123 1128 1140 1145 679 699 694 707 698 686 671 635 610 566 1738 [820] 1680 [793] 1663 [785] 1626 [767] 1603 [757] 1554 [733] 1503 [709] 1445 [682] 1432 [676] 1386 [654] 933 969 979 1001 1021 1045 1066 1100 1104 1125 505 526 529 541 545 562 567 585 586 593 1884 [889] 1882 [888] 1841 [869] 1801 [850] 1760 [831] 1680 [793] 1651 [779] 1584 [748] 1508 [712] 1428 [674] 999 1014 1048 1064 1072 1105 1121 1131 1142 1147 636 646 661 672 675 688 686 678 662 635 2081 [982] 1969 [929] 2001 [994] 1960 [925] 1896 [895] 1818 [858] 1764 [833] 1664 [785] 1593 [752] 1499 [707] 1050 1102 1095 1104 1115 1126 1130 1140 1143 1147 790 815 819 813 793 772 749 725 699 663 Notes: (1) Set 2 through 4 ton Cool to Tap 2 for AHRI rated performance. (2) Set 5 ton 1st Stage Cool to Tap 1 for AHRI rated performance. DOWN DISCHARGE PRESSURE DROP (ADD TO EXTERNAL STATIC PRESSURE) CFM [L/s] 800 [378] 1000 [472] 1200 [566] Pressure Drop--Includes W.C. [kPa] .02 [.005] .05 [.012] .07 [.017] 1400 [661] .1 [.025] 1600 [755] .12 [.030] 1800 [849] .15 [.037] 2000 [944] .17 [.042] [ ] Designates Metric Conversions INDOOR AIRFLOW PERFORMANCE RACA15 - 208/230 VOLTS Nominal Cooling Capacity Tons [kW] Motor Speed from Factory Cool Heat Manufacturer Recommended Cooling Airflow (Min/Max) Blower Size/ Motor HP [W] & # of Speeds Motor Speed / Tap 0.1 [.02] 0.2 [.05] 0.3 [.07] External Static Pressure - Inches W.C. [kPa] (Side Discharge-Dry Coil) 0.4 [.10] 0.5 [.12] 0.6 [.15] 0.7 [.17] 0.8 [.20] 0.9 [.22] 1.0 [.25] 2.0 [7.03] Tap 3 High 13 SEER 700 CFM / 950 CFM 10X9 Blower 1/3 HP [249] 3 Speed (Constant Torque) Tap 1 Low Tap 2 Medium Tap 3 High CFM RPM Watts CFM RPM Watts CFM RPM Watts 917 [433] 772 142 931 [439] 789 155 1005 [474] 822 178 865 [408] 810 149 880 [415] 1425 159 956 [451] 872 192 826 [390] 860 159 854 [403] 874 170 916 [432] 407 198 771 [364] 905 164 795 [375] 921 176 878 [414] 954 208 730 [345] 945 175 743 [351] 965 185 808 [381] 998 212 677 [320] 985 177 694 [328] 1002 188 778 [367] 1036 224 628 [296] 1013 180 655 [309] 1041 196 734 [346] 1070 224 596 [281] 1052 189 608 [287] 1070 200 698 [329] 1103 234 2.5 [8.79] Tap 3 Low 850 CFM / 1150 CFM 10X9 Blower 1/3 HP [249] 3 Speed (Constant Torque) Tap 1 Low Tap 2 Medium Tap 3 High CFM RPM Watts CFM RPM Watts CFM RPM Watts 917 [433] 865 [408] 826 [390] 771 [364] 730 [345] 677 [320] 628 [296] 772 810 860 905 945 985 1013 142 149 159 164 175 177 180 1013 [478] 980 [463] 939 [443] 893 [421] 864 [408] 792 [374] 752 [355] 820 854 901 934 976 1022 1064 171 177 187 190 202 207 217 1227 [579] 1180 [557] 1160 [547] 1123 [530] 1090 [514] 1054 [497] 1008 [476] 930 976 1006 1029 1065 1089 1124 264 276 288 291 300 305 311 596 [281] 1052 189 687 [324] 1097 222 882 [416] 1154 292 3.0 [10.55] Tap 3 Low 1000 CFM / 1400 CFM 12x9T Blower 1/2 HP [372] 3 Speed (Constant Torque) Tap 1 Low Tap 2 Medium Tap 3 High CFM RPM Watts CFM RPM Watts CFM RPM Watts 1108 [523] 1081 [510] 1040 [491] 951 [449] 916 [432] 857 [404] 776 [366] 722 [341] 713 752 796 845 873 920 966 1001 188 199 213 222 229 241 252 261 1169 [552] 1115 [526] 1086 [513] 1047 [949] 983 [464] 931 [439] 855 [404] 784 [370] 749 803 819 856 901 938 985 1029 217 231 233 246 259 266 277 289 1434 [677] 1419 [670] 1387 [655] 1340 [632] 1310 [618] 1258 [594] 1198 [565] 1160 [547] 1058 [512] 866 882 920 944 981 1008 1051 1078 1106 372 377 390 366 413 421 426 443 445 930 [439] 1131 412 3.5 [12.31] Tap 3 Tap 3 1200 CFM / 1600 CFM 12x9T Blower 3/4 HP [559] 3 Speed (PSC Motor) Tap 1 Low Tap 2 Medium Tap 3 High CFM RPM Watts CFM RPM Watts CFM RPM Watts 1336 [631] 1312 [619] 1295 [611] 1241 [586] 1200 [566] 1161 [548] 1119 [528] 1072 [506] 1001 [472] 939 [443] 827 856 874 913 949 983 1013 1048 1092 1127 298 308 313 325 341 352 361 374 387 402 1336 [631] 1312 [619] 1295 [611] 1241 [586] 1200 [566] 1161 [548] 1119 [528] 1072 [506] 1001 [472] 939 [443] 827 856 874 913 949 983 1013 1048 1092 1127 298 308 313 325 341 352 361 374 387 402 1591 [751] 1563 [738] 1558 [735] 1519 [717] 1490 [703] 1458 [688] 1410 [665] 1363 [643] 1277 [603] 1122 [530] 949 981 999 1027 1051 1086 1109 1129 1140 1158 476 490 501 515 527 542 546 543 522 478 Notes: (1) Set 2 through 4 ton Cool to Tap 2 for AHRI rated performance. (2) Set 5 ton 1st Stage Cool to Tap 1 for AHRI rated performance. Fujitsu General America, Inc. Indoor Airflow Performance RACA15 Series [ ] Designates Metric Conversions 31 Indoor Airflow Performance RACA15 Series 32 Fujitsu General America, Inc. INDOOR AIRFLOW PERFORMANCE RACA15 - 208/230 VOLTS (continued) Nominal Cooling Capacity Tons [kW] Motor Speed from Factory Cool Heat Manufacturer Recommended Cooling Airflow (Min/Max) Blower Size/ Motor HP [W] & # of Speeds Motor Speed / Tap 0.1 [.02] 0.2 [.05] 0.3 [.07] External Static Pressure - Inches W.C. [kPa] (Side Discharge-Dry Coil) 0.4 [.10] 0.5 [.12] 0.6 [.15] 0.7 [.17] 0.8 [.20] 0.9 [.22] 1.0 [.25] 4.0 [14.07] Tap 3 Tap 3 1350 CFM / 1850 CFM 12x9T Blower 3/4 HP [559] 3 Speed (Constant Torque) Tap 1 Low Tap 2 Medium Tap 3 High CFM RPM Watts CFM RPM Watts CFM RPM Watts 1467 [692] 1448 [683] 1404 [663] 1373 [648] 1339 [632] 1306 [616] 1250 [590] 1210 [571] 1164 [549] 1087 [513] 826 855 884 910 939 969 1003 1030 1067 1108 328 344 348 363 379 387 398 408 418 434 1634 [771] 1595 [753] 1547 [730] 1530 [722] 1487 [702] 1462 [690] 1438 [679] 1378 [650] 1352 [638] 1298 [613] 894 923 950 981 1000 1030 1051 1079 1106 1126 432 446 451 468 479 490 508 510 520 520 1941 [916] 1915 [904] 1878 [886] 1814 [856] 1773 [837] 1709 [807] 1655 [781] 1570 [741] 1488 [702] 1374 [648] 1028 1047 1068 1091 1104 1113 1124 1136 1142 1147 708 725 729 727 717 696 673 647 618 571 1st Stage Tap 2 5.0 [17.59] Tap 1 2nd Stage Tap 4 1600 CFM / 2100 CFM 12x9R Blower 1 HP [746] 5 Speed (Constant Torque) Tap 1 Heat / 1st Stg Cool Tap 2 Heat / 1st Stg Cool Tap 3 Unused Tap 4 2nd Stage Low Static Cool Tap 5 2nd Stage High Static Cool CFM RPM Watts CFM RPM Watts CFM RPM Watts CFM RPM Watts CFM RPM Watts 1233 [582] 1158 [547] 1136 [536] 1090 [514] 1039 [490] 969 [457] 902 [426] 847 [400] 791 [373] 752 [355] 734 774 793 822 860 892 934 957 983 1011 223 231 238 248 259 269 288 284 295 306 1433 [676] 1407 [664] 1354 [639] 1329 [627] 1270 [599] 1235 [583] 1195 [564] 1137 [537] 1083 [511] 1030 [486] 821 843 868 888 929 944 975 1004 1040 1065 319 331 342 346 365 368 381 391 406 412 1768 [834] 1730 [816] 1693 [799] 1626 [767] 1599 [755] 1558 [735] 1522 [718] 1503 [709] 1444 [681] 1399 [660] 938 959 938 1011 1025 1052 1089 1090 1117 1134 520 533 541 560 563 578 599 599 605 615 1926 [909] 1890 [892] 1864 [880] 1822 [860] 1794 [847] 1758 [830] 1710 [807] 1670 [788] 1579 [745] 1493 [705] 999 1014 1040 1061 1079 1096 1119 1128 1138 1144 654 660 674 688 699 708 714 705 683 661 2096 [989] 2057 [971] 2003 [945] 1951 [921] 1890 [892] 1819 [858] 1756 [829] 1686 [796] 1610 [760] 1498 [707] 1069 1092 1106 1116 1121 1129 1138 1140 1148 1154 829 846 840 822 807 782 768 730 708 679 Notes: (1) Set 2 through 4 ton Cool to Tap 2 for AHRI rated performance. (2) Set 5 ton 1st Stage Cool to Tap 1 for AHRI rated performance. DOWN DISCHARGE PRESSURE DROP (ADD TO EXTERNAL STATIC PRESSURE) CFM [L/s] 800 [378] 1000 [472] 1200 [566] Pressure Drop--Includes W.C. [kPa] .02 [.005] .05 [.012] .07 [.017] 1400 [661] .1 [.025] 1600 [755] .12 [.030] 1800 [849] .15 [.037] 2000 [944] .17 [.042] [ ] Designates Metric Conversions Electrical Data RACA14 Series ELECTRICAL DATA RACA14 SERIES 024AJD***AA 024AJT***AA 024BJT***AA 030AJD***AA 030BJT***AA 036ACD***AA 036AJD***AA 036BCT***AA 036BJT***AA Unit Operating Voltage Range 187-253 187-253 187-253 187-253 187-253 187-253 187-253 187-253 187-253 Volts 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 Phase 1 1 1 1 1 3 1 3 1 Unit Information Hz 60 60 60 60 60 60 60 60 60 Minimum Circuit Ampacity 17 19 19 20 21 16 22 17 24 Minimum Overcurrent Protection 20 20 20 20 25 20 25 20 25 Device Size Maximum Overcurrent Protection 25 25 25 30 30 20 35 25 35 Device Size No. 1 1 1 1 1 1 1 1 1 Volts 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 Phase 1 1 1 1 1 3 1 3 1 RPM 3450 3450 3450 3450 3450 3450 3450 3450 3450 Compressor Motor HP, Compressor 1 2 1/6 2 1/6 2 1/6 2 2/3 2 2/3 3 1/3 3 1/3 3 1/3 3 1/3 Amps (RLA), Comp. 1 11.2 11.2 11.2 12.8 12.8 9 14.1 9 14.1 Amps (LRA), Comp. 1 60.8 60.8 60.8 64 64 71 77 71 77 HP, Compressor 2 Amps (RLA), Comp. 2 Amps (LRA), Comp. 2 No. 1 1 1 1 1 1 1 1 1 Evaporator Fan Condenser Motor Volts 208/230 208/231 208/232 208/233 208/234 208/235 208/236 208/237 208/238 Phase 1 1 1 1 1 1 1 1 1 HP 1/3 1/3 1/3 1/3 1/3 1/3 1/3 1/3 1/3 Amps (FLA, each) 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 Amps (LRA, each) 3 3 3 3 3 3 3 3 3 No. 1 1 1 1 1 1 1 1 1 Volts 208/230 208/231 208/232 208/233 208/234 208/235 208/236 208/237 208/238 Phase 1 1 1 1 1 1 1 1 1 HP 1/4 1/3 1/3 1/2 1/2 1/2 1/2 1/2 1/2 Amps (FLA, each) 1.3 2.8 2.8 2.4 2.8 2.5 2.5 4.1 4.1 Amps (LRA, each) 2.3 5.1 4.6 4.6 1. Horsepower Per Compressor. 2. Amp Draw Per Motor. Multiply Value By Number of Motors to Determine Total Amps. Fujitsu General America, Inc. 33 Electrical Data RACA14 Series ELECTRICAL DATA RACA14 SERIES 042ACT***AA 042AJT***AA 048ACT***AA 048AJT***AA 048BCT***AA 048BJT***AA 060ACT***AA 060AJT***AA Unit Operating Voltage Range 187-253 187-253 187-253 187-253 187-253 187-253 197-253 197-253 Volts 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 Unit Information Phase 3 1 3 1 3 1 3 1 Hz 60 60 60 60 60 60 60 60 Minimum Circuit Ampacity 24 30 25 33 25 33 32 41 Minimum Overcurrent Protection Device Size 25 30 25 35 25 35 35 45 Maximum Overcurrent Protection Device Size 35 45 35 50 35 50 45 60 No. 1 1 1 1 1 1 1 1 Volts Phase 208/230 3 208/230 1 208/230 3 208/230 1 208/230 3 208/230 1 208/230 3 208/230 1 Compressor Motor RPM 3450 3451 3452 3453 3454 3455 3456 3457 HP, Compressor 1 3 1/2 3 1/2 4 4 4 4 5 5 Amps (RLA), Comp. 1 13.2 17.9 13.1 19.9 13.1 19.9 17.8 24.4 Amps (LRA), Comp. 1 88 112 83.1 109 83.1 1109 110 144.2 HP, Compressor 2 Amps (RLA), Comp. 2 Amps (LRA), Comp. 2 Evaporator Fan Condenser Motor No. Volts 1 208/230 1 208/230 1 208/230 1 208/230 1 208/230 1 208/230 1 208/230 1 208/230 Phase 1 1 1 1 1 1 1 1 HP 1/3 1/3 1/3 1/3 1/3 1/3 1/3 1/3 Amps (FLA, each) 1.5 1.5 2 2 2 2 2 2 Amps (LRA, each) 3 3 3.9 3.9 3.9 3.9 3.9 3.9 No. 1 1 1 1 1 1 1 1 Volts 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 Phase 1 1 1 1 1 1 1 1 HP 3/4 3/4 3/4 3/4 3/4 3/4 1 1 Amps (FLA, each) 6 6 6 6 6 6 7.6 7.6 Amps (LRA, each) 1. Horsepower Per Compressor. 2. Amp Draw Per Motor. Multiply Value By Number of Motors to Determine Total Amps. 34 Fujitsu General America, Inc. Electrical Data RACA15 Series ELECTRICAL DATA RACA15 SERIES 024AJT***AA 030AJT***AA 036ACT***AA 036AJT***AA 042ACT***AA 042AJT***AA 048ACT***AA 048AJT***AA 060ACT***AA Unit Operating Voltage Range 187-253 187-253 187-253 187-253 187-253 187-253 187-253 187-253 197-253 Volts 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 Phase 1 1 3 1 3 1 3 1 3 Unit Information Hz 60 60 60 60 60 60 60 60 60 Minimum Circuit Ampacity 19 21 17 24 24 30 25 33 30 Minimum Overcurrent Protection 20 25 20 25 25 30 25 35 50 Device Size Maximum Overcurrent Protection 25 30 25 35 35 45 35 50 45 Device Size No. 1 1 1 1 1 1 1 1 1 Volts 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 Phase 1 1 3 1 3 1 3 1 3 RPM 3450 3450 3450 3450 3450 3450 3450 3450 3450 Compressor Motor HP, Compressor 1 2 1/6 2 2/3 3 1/3 3 1/3 3 1/2 3 1/2 4 4 5 Amps (RLA), Comp. 1 11.2 12.8 9 14.1 13.2 17.9 13.1 19.9 16.2 Amps (LRA), Comp. 1 60.8 64 71 77 99 112 93.1 109 110 HP, Compressor 2 Amps (RLA), Comp. 2 Amps (LRA), Comp. 2 No. 1 1 1 1 1 1 1 1 1 Evaporator Fan Condenser Motor Volts 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 Phase HP 1 1 1 1 1 1 1 1 1 1/3 1/3 1/3 1/3 1/3 1/3 1/3 1/3 1/3 Amps (FLA, each) 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2 2 Amps (LRA, each) 3 3 3 3 3 3 3.9 3.9 3.9 No. 1 1 1 1 1 1 1 1 1 Volts 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 Phase 1 1 1 1 1 1 1 1 1 HP 1/3 1/2 1/2 1/2 3/4 3/4 3/4 3/4 1 Amps (FLA, each) 2.8 2.8 4.1 4.1 6 6 6 6 7.6 Amps (LRA, each) 1. Horsepower Per Compressor. 2. Amp Draw Per Motor. Multiply Value By Number of Motors to Determine Total Amps. Fujitsu General America, Inc. 35 Electrical Data RACA15 Series ELECTRICAL DATA RACA15 SERIES 060AJT***AA 042AJT***AA 048ACT***AA 048AJT***AA Unit Operating Voltage Range 197-253 187-253 187-253 187-253 Volts 208/230 208/230 208/230 208/230 Unit Information Phase 1 1 3 1 Hz 60 60 60 60 Minimum Circuit Ampacity 46 30 25 33 Minimum Overcurrent Protection Device Size 50 30 25 35 Maximum Overcurrent Protection Device Size 70 45 35 50 No. 1 1 1 1 Volts 208-230 208/230 208/230 208/230 Compressor Motor Phase 1 1 3 1 RPM 3450 3451 3452 3453 HP, Compressor 1 5 3 1/2 4 4 Amps (RLA), Comp. 1 28.8 17.9 13.1 19.9 Amps (LRA), Comp. 1 152.9 112 83.1 109 HP, Compressor 2 Amps (RLA), Comp. 2 Amps (LRA), Comp. 2 No. 1 1 1 1 Evaporator Fan Condenser Motor Volts 208/230 208/230 208/230 208/230 Phase 1 1 1 1 HP 1/3 1/3 1/3 1/3 Amps (FLA, each) 2 1.5 2 2 Amps (LRA, each) 3.9 3 3.9 3.9 No. 1 1 1 1 Volts 208/230 208/230 208/230 208/230 Phase 1 1 1 1 1. Horsepower PerHCPompressor. 1 3/4 3/4 3/4 2. Amp DraAwmPpesr M(FoLtAo,r.eMacuhlt)iply Value By 7N.6umber of Motors6to Determine Tot6al Amps. 6 Amps (LRA, each) 048BCT***AA 187-253 208/230 3 60 25 25 35 1 208/230 3 3454 4 13.1 83.1 1 208/230 1 1/3 2 3.9 1 208/230 1 3/4 6 048BJT***AA 187-253 208/230 1 60 33 35 50 1 208/230 1 3455 4 19.9 1109 1 208/230 1 1/3 2 3.9 1 208/230 1 3/4 6 060ACT***AA 197-253 208/230 3 60 32 35 45 1 208/230 3 3456 5 17.8 110 1 208/230 1 1/3 2 3.9 1 208/230 1 1 7.6 060AJT***AA 197-253 208/230 1 60 41 45 60 1 208/230 1 3457 5 24.4 144.2 1 208/230 1 1/3 2 3.9 1 208/230 1 1 7.6 Copper Wire Size--AWG (1% Voltage Drop) SUPPLY WIRE LENGTH-FEET 300 4 3 2 2 1 1/0 1/0 2/0 2/0 3/0 3/0 3/0 4/0 4/0 4/0 4/0 250 250 250 250 300 300 300 250 4 4 3 3 2 1 1 1/0 1/0 2/0 2/0 2/0 3/0 3/0 3/0 4/0 4/0 4/0 4/0 4/0 250 250 250 200 6 4 4 4 3 2 2 1 1 1/0 1/0 1/0 2/0 2/0 2/0 3/0 3/0 3/0 3/0 3/0 4/0 4/0 4/0 150 8 6 6 4 4 4 3 3 2 2 1 1 1/0 1/0 1/0 1/0 2/0 2/0 2/0 2/0 2/0 3/0 3/0 100 10 8 8 6 6 6 4 4 4 3 3 2 2 2 1 1 1 1 1 1/0 1/0 1/0 1/0 50 14 12 10 10 8 8 6 6 6 4 4 4 3 3 3 2 2 2 2 2 1 1 1 15 20 25 30 35 40 45 50 55 Notes: 1. Wire size based on 60°C. type copper conductors below 100 ampacity. 60 65 70 75 80 85 90 95 100 105 110 115 120 125 CIRCUIT AMPACITY 2. Wire size based on 75°C. type copper conductors for 100 ampacity and above. 36 Fujitsu General America, Inc. 37 Fujitsu General America, Inc. Model No. RACA14024AJD000AA RACA14024AJD051AA RACA14024AJD101AA RACA14024AJT00AA RACA14024AJT051AA RACA14024AJT101AA RACA14024BJT000AA RACA14024BJT051AA RACA14024BJT101AA RACA14030AJD000AA RACA14030AJD051AA RACA14030AJD101AA RACA14030BJT000AA RACA14030BJT051AA RACA14030BJT101AA RACA14036AJD000AA RACA14036AJD051AA RACA14036AJD101AA RACA14036AJD151AA RACA14036BJT000AA RACA14036BJT051AA RACA14036BJT101AA RACA14036BJT151AA RACA14042AJT000AA RACA14042AJT051AA RACA14042AJT101AA RACA14042AJT151AA RACA14048AJT000AA RACA14048AJT051AA RACA14048AJT101AA RACA14048AJT151AA RACA14048BJT000AA RACA14048BJT051AA RACA14048BJT101AA RACA14048BJT151AA RACA14060AJT000AA RACA14060AJT051AA RACA14060AJT101AA RACA14060AJT151AA RACA14036ACD000AA RACA14036ACD101AA RACA14036ACD151AA RACA14036BCT000AA RACA14036BCT101AA RXQJHeater Kit Nominal kW No Heat A05J A10J No Heat A05J A10J No Heat A05J A10J No Heat A05J A10J No Heat A05J A10J No Heat A05J A10J A15J No Heat A05J A10J A15J No Heat A05J B10J B15J No Heat A05J B10J B15J No Heat A05J B10J B15J No Heat A05J B10J B15J No Heat A10C A15C No Heat A10C 208/240 VOLT, SINGLE PHASE, 60 Hz, AUXILIARY ELECTRIC HEATER KITS CHARACTERISTICS AND APPLICATION Single Power Supply for Both Unit and Heater Kit Separate Power Supply for Both Unit and Heater Kit Heater Kit Air Conditioner Heater Kit Air Conditioner No. of Sequence Steps Rated Heater kW @ 208/240V Heater kBTU/Hr @ 208/240V Heater Amp @ 208/240V Unit Min. Ckt. Ampacity @ 208/240V Over Current Protective Device Size Min./Max Min./Max. @ 208V @ 240V Min. Ckt. Ampacity 208/240V Max. Fuse Size 208/240V Min. Circuit Ampacity 208/240V Over Current Protective Device Size Min./Max. Min./Max. @ 208V @ 240V ----- -- -- -- 17/17 20/25 20/25 -- -- 17/17 20/25 20/25 1 3.6/4.8 12.28/16.38 17.3/20.0 24/27 25/25 30/30 22/25 25/25 17/17 20/25 20/25 1 7.2/9.6 24.57/32.76 34.6/40.0 45/52 45/45 60/60 44/50 45/50 17/17 20/25 20/25 -- -- -- -- 19/19 20/25 20/25 -- -- 19/19 20/25 20/25 1 3.6/4.8 12.28/16.38 17.3/20.0 26/29 30/30 30/30 22/25 25/25 19/19 20/25 20/25 1 7.2/9.6 24.57/32.76 34.6/40.0 47/54 50/50 60/60 44/50 45/50 19/19 20/25 20/25 -- -- -- -- 19/19 20/25 20/25 -- -- 19/19 20/25 20/25 1 3.6/4.8 12.28/16.38 17.3/20.0 26/29 30/30 30/30 22/25 25/25 19/19 20/25 20/25 1 7.2/9.6 24.57/32.76 34.6/40.0 47/54 50/50 60/60 44/50 45/50 19/19 20/25 20/25 -- -- -- -- 20/20 20/30 20/30 -- -- 20/20 20/30 20/30 1 3.6/4.8 12.28/16.38 17.3/20.0 25/28 25/30 30/30 22/25 25/25 20/20 20/30 20/30 1 7.2/9.6 24.57/32.76 34.6/40.0 47/53 50/50 60/60 44/50 45/50 20/20 20/30 20/30 -- -- -- -- 21/21 25/30 25/30 -- -- 21/21 25/30 25/30 1 3.6/4.8 12.28/16.38 17.3/20.0 26/29 30/30 30/30 22/25 25/25 21/21 25/30 25/30 1 7.2/9.6 24.57/32.76 34.6/40.0 47/54 50/50 60/60 44/50 45/50 21/21 25/30 25/30 -- -- -- -- 22/22 25/35 25/35 -- -- 22/22 25/35 25/35 1 3.6/4.8 12.28/16.38 17.3/20.0 25/29 25/35 30/35 22/25 25/25 22/22 25/35 25/35 1 7.2/9.6 24.57/32.76 34.6/40.0 47/54 50/50 60/60 44/50 45/50 22/22 25/35 25/35 1 10.8/14.4 36.85/49.13 51.9/60.0 68/79 70/70 80/80 65/75 70/80 22/22 25/35 25/35 -- -- -- -- 24/24 25/35 25/35 -- -- 24/24 25/35 25/35 1 3.6/4.8 12.28/16.38 17.3/20.0 27/31 30/35 35/35 22/25 25/25 24/24 25/35 25/35 1 7.2/9.6 24.57/32.76 34.6/40.0 49/56 50/50 60/60 44/50 45/50 24/24 25/35 25/35 1 10.8/14.4 36.85/49.13 51.9/60.0 70/81 70/70 90/90 65/75 70/80 24/24 25/35 25/35 -- -- -- -- 30/30 30/45 30/45 -- -- 30/30 30/45 30/45 1 3.6/4.8 12.28/16.38 17.3/20.0 30/33 30/45 35/45 22/25 25/25 30/30 30/45 30/45 1 7.2/9.6 24.57/32.76 34.6/40.0 51/58 60/60 60/60 44/50 45/50 30/30 30/45 30/45 1 10.8/14.4 36.85/49.13 51.9/60.0 73/83 80/80 90/90 65/75 70/80 30/30 30/45 30/45 -- -- -- -- 33/33 35/50 35/50 -- -- 33/33 35/50 35/50 1 3.6/4.8 12.28/16.38 17.3/20.0 33/33 35/50 35/50 22/25 25/25 33/33 35/50 35/50 1 7.2/9.6 24.57/32.76 34.6/40.0 51/58 60/60 60/60 44/50 45/50 33/33 35/50 35/50 1 10.8/14.4 36.85/49.13 51.9/60.0 73/83 80/80 90/90 65/75 70/80 33/33 35/50 35/50 -- -- -- -- 33/33 35/50 35/50 -- -- 33/33 35/50 35/50 1 3.6/4.8 12.28/16.38 17.3/20.0 33/33 35/50 35/50 22/25 25/25 33/33 35/50 35/50 1 7.2/9.6 24.57/32.76 34.6/40.0 51/58 60/60 60/60 44/50 45/50 33/33 35/50 35/50 1 10.8/14.4 36.85/49.13 51.9/60.0 73/83 80/80 90/90 65/75 70/80 33/33 35/50 35/50 -- -- -- -- 41/41 45/60 45/60 -- -- 41/41 45/60 45/60 1 3.6/4.8 12.28/16.38 17.3/20.0 41/41 45/60 45/60 22/25 25/25 41/41 45/60 45/60 1 7.2/9.6 24.57/32.76 34.6/40.0 53/60 60/60 60/60 44/50 45/50 41/41 45/60 45/60 1 10.8/14.4 36.85/49.13 51.9/60.0 75/85 80/80 90/90 65/75 70/80 41/41 45/60 45/60 -- -- -- -- 16/16 20/20 20/20 -- -- 16/16 20/20 20/20 1 7.2/9.6 24.57/32.76 20.0/23.1 29/32 30/30 35/35 25/29 25/30 16/16 20/20 20/20 1 10.8/14.4 36.85/49.13 30.1/34.7 41/47 45/45 50/50 38/44 40/45 16/16 20/20 20/20 -- -- -- -- 17/17 20/25 20/25 -- -- 17/17 20/25 20/25 1 7.2/9.6 24.57/32.76 20.0/23.1 31/34 35/35 35/35 25/29 25/30 17/17 20/25 20/25 Electric Heater Kits RACA14 Series Fujitsu General America, Inc. 38 Model No. RACA14036BCT151AA RACA14042ACT000AA RACA14042ACT101AA RACA14042ACT151AA RACA14048ACT000AA RACA14048ACT101AA RACA14048ACT151AA RACA14048BCT101AA RACA14048BCT101AA RACA14048BCT151AA RACA14060ACT000AA RACA14060ACT101AA RACA14060ACT151AA RXQJHeater Kit Nominal kW A15C No Heat A10C A15C No Heat A10C A15C No Heat A10C A15C No Heat A10C A15C 208/240 VOLT, SINGLE PHASE, 60 Hz, AUXILIARY ELECTRIC HEATER KITS CHARACTERISTICS AND APPLICATION Single Power Supply for Both Unit and Heater Kit Separate Power Supply for Both Unit and Heater Kit Heater Kit Air Conditioner Heater Kit Air Conditioner No. of Sequence Steps Rated Heater kW @ 208/240V Heater kBTU/Hr @ 208/240V Heater Amp @ 208/240V Unit Min. Ckt. Ampacity @ 208/240V Over Current Protective Device Size Min./Max Min./Max. @ 208V @ 240V Min. Ckt. Ampacity 208/240V Max. Fuse Size 208/240V Min. Circuit Ampacity 208/240V Over Current Protective Device Size Min./Max. Min./Max. @ 208V @ 240V 1 10.8/14.4 36.85/49.13 30.1/34.7 43/49 45/45 50/50 -- -- -- -- 24/24 25/35 25/35 1 7.2/9.6 24.57/32.76 20.0/23.1 33/37 35/35 40/40 1 10.8/14.4 36.85/49.13 30.1/34.7 46/51 50/50 60/60 -- -- -- -- 25/25 25/35 25/35 1 7.2/9.6 24.57/32.76 20.0/23.1 33/37 35/35 40/40 1 10.8/14.4 36.85/49.13 30.1/34.7 46/51 50/50 60/60 -- -- -- -- 25/25 25/35 25/35 1 7.2/9.6 24.57/32.76 20.0/23.1 33/37 35/35 40/40 1 10.8/14.4 36.85/49.13 30.1/34.7 46/51 50/50 60/60 -- -- -- -- 32/32 35/45 35/45 1 7.2/9.6 24.57/32.76 20.0/23.1 35/39 35/45 40/45 1 10.8/14.4 36.85/49.13 30.1/34.7 48/53 50/50 60/60 38/44 -- 25/29 38/44 -- 25/29 38/44 -- 25/29 38/44 -- 25/29 38/44 40/45 -- 25/30 40/45 -- 25/30 40/45 -- 25/30 40/45 -- 25/30 40/45 17/17 24/24 24/24 24/24 25/25 25/25 25/25 25/25 25/25 25/25 32/32 32/32 32/32 20/25 25/35 25/35 25/35 25/35 25/35 25/35 25/35 25/35 25/35 35/45 35/45 35/45 20/25 25/35 25/35 25/35 25/35 25/35 25/35 25/35 25/35 25/35 35/45 35/45 35/45 Electric Heater Kits RACA14 Series 39 Fujitsu General America, Inc. Model No. RACA15024AJT000AA RACA15024AJT051AA RACA15024AJT101AA RACA15030AJT000AA RACA15030AJT051AA RACA15030AJT101AA RACA15036AJT000AA RACA15036AJT051AA RACA15036AJT101AA RACA15036AJT151AA RACA15042AJT000AA RACA15042AJT051AA RACA15042AJT101AA RACA15042AJT151AA RACA15048AJT000AA RACA15048AJT051AA RACA15048AJT101AA RACA15048AJT151AA RACA15060AJT000AA RACA15060AJT051AA RACA15060AJT101AA RACA15060AJT151AA RACA15036ACT000AA RACA15036ACT101AA RACA15036ACT151AA RACA15042ACT000AA RACA15042ACT101AA RACA15042ACT151AA RACA15048ACT000AA RACA15048ACT101AA RACA15048ACT151AA RACA15060ACT000AA RACA15060ACT101AA RACA15060ACT151AA RXQJHeater Kit Nominal kW No Heat A05J A10J No Heat A05J A10J No Heat A05J A10J A15J No Heat A05J B10J B15J No Heat A05J B10J B15J No Heat A05J B10J B15J No Heat A10C A15C No Heat A10C A15C No Heat A10C A15C No Heat A10C A15C 208/240 VOLT, SINGLE PHASE, 60 Hz, AUXILIARY ELECTRIC HEATER KITS CHARACTERISTICS AND APPLICATION Single Power Supply for Both Unit and Heater Kit Separate Power Supply for Both Unit and Heater Kit Heater Kit Air Conditioner Heater Kit Air Conditioner No. of Sequence Steps Rated Heater kW @ 208/240V Heater kBTU/Hr @ 208/240V Heater Amp @ 208/240V Unit Min. Ckt. Ampacity @ 208/240V Over Current Protective Device Size Min./Max Min./Max. @ 208V @ 240V Min. Ckt. Ampacity 208/240V Max. Fuse Size 208/240V Min. Circuit Ampacity 208/240V Over Current Protective Device Size Min./Max. Min./Max. @ 208V @ 240V -- -- -- -- 19/19 20/25 20/25 -- 1 3.6/4.8 12.28/16.38 17.3/20.0 26/29 30/30 30/30 22/25 1 7.2/9.6 24.57/32.76 34.6/40.0 47/54 50/50 60/60 44/50 -- -- -- -- 21/21 25/30 25/30 -- 1 3.6/4.8 12.28/16.38 17.3/20.0 26/29 30/30 30/30 22/25 1 7.2/9.6 24.57/32.76 34.6/40.0 47/54 50/50 60/60 44/50 -- -- -- -- 24/24 25/35 25/35 -- 1 3.6/4.8 12.28/16.38 17.3/20.0 27/31 30/35 35/35 22/25 1 7.2/9.6 24.57/32.76 34.6/40.0 49/56 50/50 60/60 44/50 1 10.8/14.4 36.85/49.13 51.9/60.0 70/81 70/70 90/90 65/75 -- -- -- -- 30/30 30/45 30/45 -- 1 3.6/4.8 12.28/16.38 17.3/20.0 30/33 30/45 35/45 22/25 1 7.2/9.6 24.57/32.76 34.6/40.0 51/58 60/60 60/60 44/50 1 10.8/14.4 36.85/49.13 51.9/60.0 73/83 80/80 90/90 65/75 -- -- -- -- 33/33 35/50 35/50 -- 1 3.6/4.8 12.28/16.38 17.3/20.0 33/33 35/50 35/50 22/25 1 7.2/9.6 24.57/32.76 34.6/40.0 51/58 60/60 60/60 44/50 1 10.8/14.4 36.85/49.13 51.9/60.0 73/83 80/80 90/90 65/75 -- -- -- -- 46/46 50/70 50/70 -- 1 3.6/4.8 12.28/16.38 17.3/20.0 46/46 50/70 50/70 22/25 1 7.2/9.6 24.57/32.76 34.6/40.0 53/60 60/70 60/70 44/50 -- 25/25 45/50 -- 25/25 45/50 -- 25/25 45/50 70/80 -- 25/25 45/50 70/80 -- 25/25 45/50 70/80 -- 25/25 45/50 19/19 19/19 19/19 21/21 21/21 21/21 24/24 24/24 24/24 24/24 30/30 30/30 30/30 30/30 33/33 33/33 33/33 33/33 46/46 46/46 46/46 20/25 20/25 20/25 25/30 25/30 25/30 25/35 25/35 25/35 25/35 30/45 30/45 30/45 30/45 35/50 35/50 35/50 35/50 50/70 50/70 50/70 20/25 20/25 20/25 25/30 25/30 25/30 25/35 25/35 25/35 25/35 30/45 30/45 30/45 30/45 35/50 35/50 35/50 35/50 50/70 50/70 50/70 1 10.8/14.4 36.85/49.13 51.9/60.0 75/85 80/80 90/90 -- -- -- -- 17/17 20/25 20/25 1 7.2/9.6 24.57/32.76 20.0/23.1 31/34 35/35 35/35 1 10.8/14.4 36.85/49.13 30.1/34.7 43/49 45/45 50/50 -- -- -- -- 24/24 25/35 25/35 1 7.2/9.6 24.57/32.76 20.0/23.1 33/37 35/35 40/40 1 10.8/14.4 36.85/49.13 30.1/34.7 46/51 50/50 60/60 -- -- -- -- 25/25 25/35 25/35 1 7.2/9.6 24.57/32.76 20.0/23.1 33/37 35/35 40/40 1 10.8/14.4 36.85/49.13 30.1/34.7 46/51 50/50 60/60 -- -- -- -- 30/30 50/45 50/45 1 7.2/9.6 24.57/32.76 20.0/23.1 35/39 50/50 50/50 1 10.8/14.4 36.85/49.13 30.1/34.7 48/53 50/50 60/60 65/75 -- 25/29 38/44 -- 25/29 38/44 -- 25/29 38/44 -- 25/29 38/44 70/80 -- 25/30 40/45 -- 25/30 40/45 -- 25/30 40/45 -- 25/30 40/45 46/46 17/17 17/17 17/17 24/24 24/24 24/24 25/25 25/25 25/25 30/30 30/30 30/30 50/70 20/25 20/25 20/25 25/35 25/35 25/35 25/35 25/35 25/35 50/45 50/45 50/45 50/70 20/25 20/25 20/25 25/35 25/35 25/35 25/35 25/35 25/35 50/45 50/45 50/45 Electric Heater Kits RACA15 Series Dimensional Data RACA14/15 Series UNIT DIMENSIONS PACKAGE AIR CONDITIONERS OUTDOOR FAN GRILLE AND COMPRESSOR ACCESS FILTER ACCESS PANEL (FOR UNIT MOUNTED FILTER ACCESSORY) OUTDOOR COIL PROTECTIVE GRILLE THREADED PVC CONDENSATE DRAIN CONNECTION N.P.T. IMPORTANT: UNIT MUST BE LEVEL TO PREVENT WATER MIGRATION CONTROL ACCESS PANEL LIQUID PRESSURE SERVICE PORT SUCTION PRESSURE SERVICE PORT 30% 2% TOP COVER 21% 2% 29% 2% CORNER WEIGHTS % OF TOTAL UNIT WEIGHT THERMOSTAT WIRING ENTRANCE ELECTRICAL POWER ENTRANCE 20% 2% BLOWER/ EVAPORATOR ACCESS PANEL SIDE RETURN DUCT OPENING SIDE SUPPLY DUCT OPENING TOP VIEW 4719/32" [1209 mm] 5013/16" [1290 mm] OUTDOOR FAN GRILLE & COMPRESSOR ACCESS [ ] Designates Metric Conversions 40 Fujitsu General America, Inc. BOTTOM VIEW BOTTOM RETURN DUCT OPENING 451/16" [1145 mm] INSIDE 13/16" [30 mm] TYP. 141/4" [362 mm] TYP. 199/16" [497 mm] 153/8" [391 mm] 11/2" [38 mm] TYP. 497/16" [1256 mm] INSIDE BOTTOM SUPPLY DUCT OPENING 313/16" [97 mm] 45/16" [95 mm] 33/16" [97 mm] SIDE VIEW THERMOSTAT WIRE ENTRANCE 11/8" [28.6 mm] 255/16" [643 mm] 103/16" [259 mm] 51/16" [129 mm] 43/4" [121 mm] ELECTRICAL POWER ENTRANCE BLOWER/ EVAPORATOR ACCESS PANEL SIDE VIEW Dimensional Data RACA14/15 Series FILTER ACCESS PANEL (FOR UNIT MOUNTED FILTER ACCESSORY OUTDOOR COIL PROTECTIVE GRILLE 527/16" [1332 mm] FRONT VIEW CONTROL ACCESS PANEL SIDE SUPPLY DUCT OPENING REAR VIEW 47/8" [124 mm] LIQUID PRESSURE SERVICE PORT 75/16" [186 mm] 471/2" [1207 mm] 2211/16" [576 mm] THREADED PVC CONDENSATED DRAIN CONNECTION (3/4 N.P.T.) SUCTION PRESSURE SERVICE PORT 133/4" [349 mm] 21/2" [63.5 mm] 47/16" [113 mm] 81/2" [216 mm] TYP. 15" [381 mm] 143/16" [360 mm] TYP. 191/8" [486 mm] SHOWN WITH DUCT COVERS REMOVED. 57/16" [138 mm] SIDE RETURN DUCT OPENING [ ] Designates Metric Conversions Model # 024, 030, 036, 042 048, 060 Height "A" 3515/16 41 IMPORTANT: Unit must be level to prevent water migration. Fujitsu General America, Inc. 41 Typical Installations RACA14/15 Series [ ] Designates Metric Conversions 42 Fujitsu General America, Inc. ACCESSORY EQUIPMENT Accessory Description Roofcurbs Supply & Return Diffusers Economizer (Convertible) Fresh Air Damper Rectangular to Round Transition (Downflow) Filter Kit Sideflow Rectangular to Round Transition Low Ambient Control High Pressure Control Low Pressure Control High pressure switch standard on RACA (13/14/15) 060 Low pressure switch standard on RACA 15 060. Economizer is designed for downflow or horizontal applications. COMMON SUPPLY/RETURN CONCENTRIC AIR DIFFUSER Model Application RACA14/15 RACA14/15 RACA14/15 RACA14/15 RACA14/15 RACA14/15 RACA14/15 RACA14/15 RACA14/15 RACA14/15 Accessories RACA14/15 Series Accessory Model No. RXSG-AAA08 (8" [203 mm] Height) RXSG-AAA14 (14" [356 mm] Height) RXSG-AAA24 (24" [610 mm] Height) RXRN-BD15 AXRD-01RACAM3 AXRF-FAB1 (Motorized-35%) AXRF-FAA1 (Fixed-35%) RXMC-CA02 (16" [406 mm] Ducts) RXMC-CA03 (18" [457 mm] Ducts) RXRY-B01 AXMC-BA01 RXRZ-B01 RXAB-E01 RXAC-C01 [ ] Designates Metric Conversions SUPPLY/RETURN DIFFUSER Designed to convert a side by side or an over and under arrangement into a concentric distribution of air. The diffuser is flush mounted, completely insulated, assembled, and internally baffled to provide four way supply air distribution with a center return. To make the assembly complete and ready to fit into a 2' [0.61 m] x 4' [1.22 m] suspended ceiling grid, the diffuser includes adjustable supply louvers, hanging rings, anti-sweat gasket, and round flanges for use with flexible ducts. Model No. RXRN- BD15 Diameter Inches [mm] 16 [406] Shipping Wt. Lbs. [kg] 90 [40.82] Dimension A Inches [mm] 201/2 [521] NOTE: The location of the combination supply and return diffuser should not exceed 10 feet [3.05 m] above the floor level for units @ 1000 CFM [472 L/s] or less and 12 [3.66 m] to 14 feet [4.27 m] above the floor level for units with CFM greater than 1000 [472 L/s]. If the diffuser is installed with a greater distance than recommended above, the supply air may become stratified above the required comfort area causing uncomfortable conditions. AIRFLOW/PRESSURE DROP INFORMATION (INCHES W.C. [kPa]) Accessory Approximate CFM [L/s]-Supply Air 1300 [614] 1575 [743] 1800 [850] 2200 [1038] Plenum & Supply/Return Duct .07 [.017] .10 [.024] .12 [.030] .17 [.042] Diffuser .09 [.022] .13 [.032] .16 [.040] .24 [.060] Economizer .06 [.015] .09 [.022] .11 [.027] .17 [.042] SUPPLY AIR/PERFORMANCE Diffuser Airflow CFM [L/s] 800 [378]-1200 [566] 1600 [755]-2000 [944] Range of Throw Ft. [m] 14 [4.27]-16 [4.88] 18 [5.49]-28 [8.53] Fujitsu General America, Inc. 43 Accessories RACA14/15 Series FILTER KIT INSTALLATION RXRY-B01 For use in either vertical or horizontal discharge. Airflow Pressure Drop, Inches W.C. [kPa] CFM [L/s] 1" Filter 2" Filter 500 [236] .02 [.0050] .03 [.0075] 600 [283] .02 [.0050] .03 [.0075] 700 [330] .03 [.0075] .04 [.0010] 800 [378] .04 [.0010] .05 [.0124] 900 [425] .05 [.0124] .06 [.0149] 1000 [472] .07 [.0174] .08 [.0199] 1100 [519] .08 [.0199] .09 [.0224] 1200 [566] .10 [.0249] .12 [.0299] 1300 [614] .13 [.0324] .15 [.0373] 1400 [661] .16 [.0398] .19 [.0473] 1500 [708] .19 [.0473] .21 [.0523] 1600 [755] .20 [.0498] .23 [.0572] 1700 [802] .21 [.0523] .24 [.0598] 1800 [850] .22 [.0548] .25 [.0623] 1900 [897] .24 [.0598] .27 [.0672] 2000 [944] .26 [.0647] .29 [.0722] [ ] Designates Metric Conversions 44 Fujitsu General America, Inc. DUCT ADAPTERS RECTANGULAR TO ROUND TRANSITIONS (DOWNFLOW) RXMC-CA02 Accessories RACA14/15 Series [ ] Designates Metric Conversions RXMC-CA03 Fujitsu General America, Inc. 45 Accessories RACA14/15 Series FRESH AIR DAMPER FOR USE ON RACA14 AXRF-FAA1 (Fixed - 0-35%) The 0-35% manual outside Air Damper is designed to replace the unit return air duct cover. No drilling or damper assembly is required. The amount of outside air (0-35%) is controlled by simply adjusting the side damper. AXRF-FAB1 (Motorized - 0-35%) The 0-35% motorized outside Air Damper is designed to replace the unit return air duct cover. No drilling or damper assembly is required. The control motor opens the adjustable slide damper when the unit blower motor is energized. [ ] Designates Metric Conversions 46 Fujitsu General America, Inc. ECONOMIZERS AXRD-01RACAM3 (Fully Modulating) Horizontally and Vertically Applicable · LCD Screen for Continuous diagnostic and system status · Programmable set points for accurate positioning · Simplified wiring and color coded terminals · Onboard fault detection and diagnostics (FDD) · Operational Checkout to verify installation · Enthalpy sensors and actuator that communicate through a Sylk Bus Network with the Jade Controller reducing wiring errors while providing more information · CO2 sensor input for DCV (Demand Control Ventilation) applications · RXRX-AV04 Dual Enthalpy kit available for field installation · AMCA licensed class 1A low leak Dampers ST-A1251-02 BAROMETRIC RELIEF HOOD Accessories RACA14/15 Series PATCH PLATE ECONOMIZER 5059/64 [1293 mm] 1419/64 [363 mm] 631/32 [177 mm] 169/16 [421 mm] [ ] Designates Metric Conversions ST-A1251-11 Fujitsu General America, Inc. 47 Accessories RACA14/15 Series DUCT ADAPTER SIDEFLOW SQUARE TO ROUND TRANSITION AXMC-BA01 Adapts the side rectangular supply and return openings to 14" [356 mm] diameter round openings. Adapters provided with same finish as unit and also provided with thermal insulation. [ ] Designates Metric Conversions 48 Fujitsu General America, Inc. ROOFCURB (Full Perimeter) RXSG-AAA08, RXSG-AAA14 and RXSG-AAA24 for RACA Hinged corners make for fast, easy set-up. RXSG-AAA08 (8" [203 mm] High) NOT for use with RQKA/RQLA/RQMA Package Heat Pumps. Accessories RACA14/15 Series [ ] Designates Metric Conversions RXSG-AAA14 (14" [356 mm] High) Fujitsu General America, Inc. 49 Accessories RACA14/15 Series ROOFCURB (Full Perimeter) (Cont.) RXSG-AAA24 (24" [610 mm] High) [ ] Designates Metric Conversions 50 Fujitsu General America, Inc. PACKAGE AIR CONDITIONERS & GAS/ELECTRIC PACKAGE UNITS ROOFCURB INSTALLATION (Full Perimeter) Accessories RACA14/15 Series [ ] Designates Metric Conversions ROOFCURB ADAPTERS Fabricated from galvanized steel to adapt the New cabinet to the old style curb. All are furnished with a New gasket. OLD MODEL SMALLCABINET (11/2-2 TON) [5.28-7.03 kW] RSNC-, RSND-, RSNERRGE-, RRGF-, RRGG-, RSNY MEDIUMCABINET (21/2-3 TON) [8.79-10.55 kW] RSNC-, RSND-, RSNERRGE-, RRGF-, RRGG-, RSNY LARGECABINET (3-31/2 TON) [10.55-12.31 kW] RRGE-, RRGF-, RRGG-, RSNY EXTRA LARGECABINET (31/2-5 TON) [12.31-17.58 kW] RSNC-, RSND-, RSNERRGE-, RRGF-, RRGG-, RSNY (4-5 TON) [14.07-17.58 kW] (1) SLOPE TYPE (2) FULL PERIMETER TYPE 20 SERIES 21 SERIES 22 SERIES 23 SERIES OLD CURB MODEL RXPA-CA20 (1) RXRA-DB20 (2) NEW MODEL TO OLD MODEL NEW MODEL PACKAGE ROOFCURB ADAPTER RXPA-CA21 (1) RXRA-DB21 (2) RXPA-CA22 (1) RXRA-DB22 (2) RXPA-CA23 (1) RXRA-DB23 (2) RXPX-BACCA20 RXRX-BACDB20 RXPX-BACCA21 RXRX-BACDB21 RXPX-BCCCA22 RXRX-BCCDB22 RXPX-BCCCA23 RXRX-BCCDB23 ONLY 1 CABINET SIZE-- ALL MODELS RACA 14/15 Fujitsu General America, Inc. 51 Accessories RACA14/15 Series ELECTRIC HEATER KITS--RACA14/RACA15 Unit Model Application RACA (14/15) (024/030) AJ RACA (14/15) (036/042/048/060) AJ RACA (14/15) (036/042/048/060) AC Electric Heater Kit Models RXQJ-A05J (208-240 volt, 1-ph, 5kW) RXQJ-A10J (208-240 volt, 1-ph, 10kW) RXQJ-A05J (208-240 volt, 1-ph, 5kW) RXQJ-A10J (208-240 volt, 1-ph, 10kW) RXQJ-A15J (208-240 volt, 1-ph, 15kW) RXQJ-A05J (208-240 volt, 1-ph, 5kW) RXQJ-A10C (208-240 volt, 3-ph, 10kW) RXQJ-A15C (208-240 volt, 3-ph, 15kW) RXQJ-A10C (208-240 volt, 3-ph, 10kW) WARNING ONLY ELECTRIC HEATER KITS SUPPLIED BY THIS MANUFACTURER AS DESCRIBED IN THIS PUBLICATION HAVE BEEN DESIGNED, TESTED, AND EVALUATED BY A NATIONALLY RECOGNIZED SAFETY TESTING AGENCY FOR USE WITH THIS UNIT. USE OF ANY OTHER MANUFACTURED ELECTRIC HEATERS INSTALLED WITHIN THIS UNIT MAY CAUSE HAZARDOUS CONDITIONS RESULTING IN PROPERTY DAMAGE, FIRE, BODILY INJURY OR DEATH. 52 Fujitsu General America, Inc. Limited Warranty RACA14/15 Series BEFORE PURCHASING THIS APPLIANCE, READ IMPORTANT ENERGY COST AND EFFICIENCY INFORMATION AVAILABLE FROM YOUR RETAILER. GENERAL TERMS OF LIMITED WARRANTY* Fujitsu General America, Inc. will furnish a replacement for any part of this product which fails in normal use and service within the applicable periods stated, in accordance with the terms of the limited warranty. *For complete details of the Limited Warranties, including applicable terms and conditions, contact your local contractor or the Manufacturer for a copy of the product warranty certificate. Conditional Parts (Registration Required) 1 Phase, Residential Applications...................Ten (10) Years Compressor 1 Phase, Residential Applications...................Ten (10) Years 1 & 3 Phase, Commercial Applications............Five (5) Years Parts 1 & 3 Phase, Commercial Applications .............One (1) Year Fujitsu General America, Inc. 53 Notes RACA14/15 Series 54 Fujitsu General America, Inc. Notes RACA14/15 Series Fujitsu General America, Inc. 55 Before proceeding with installation, refer to installation instructions packaged with each model, as well as complying with all Federal, State, Provincial, and Local codes, regulations, and practices. "In keeping with its policy of continuous progress and product improvement, the right is reserved to make changes without notice." PRINTED IN U.S.A. 10-19 QG FORM NO. SFJ-969 REV. 2QuarkXPress(R) 14.32
