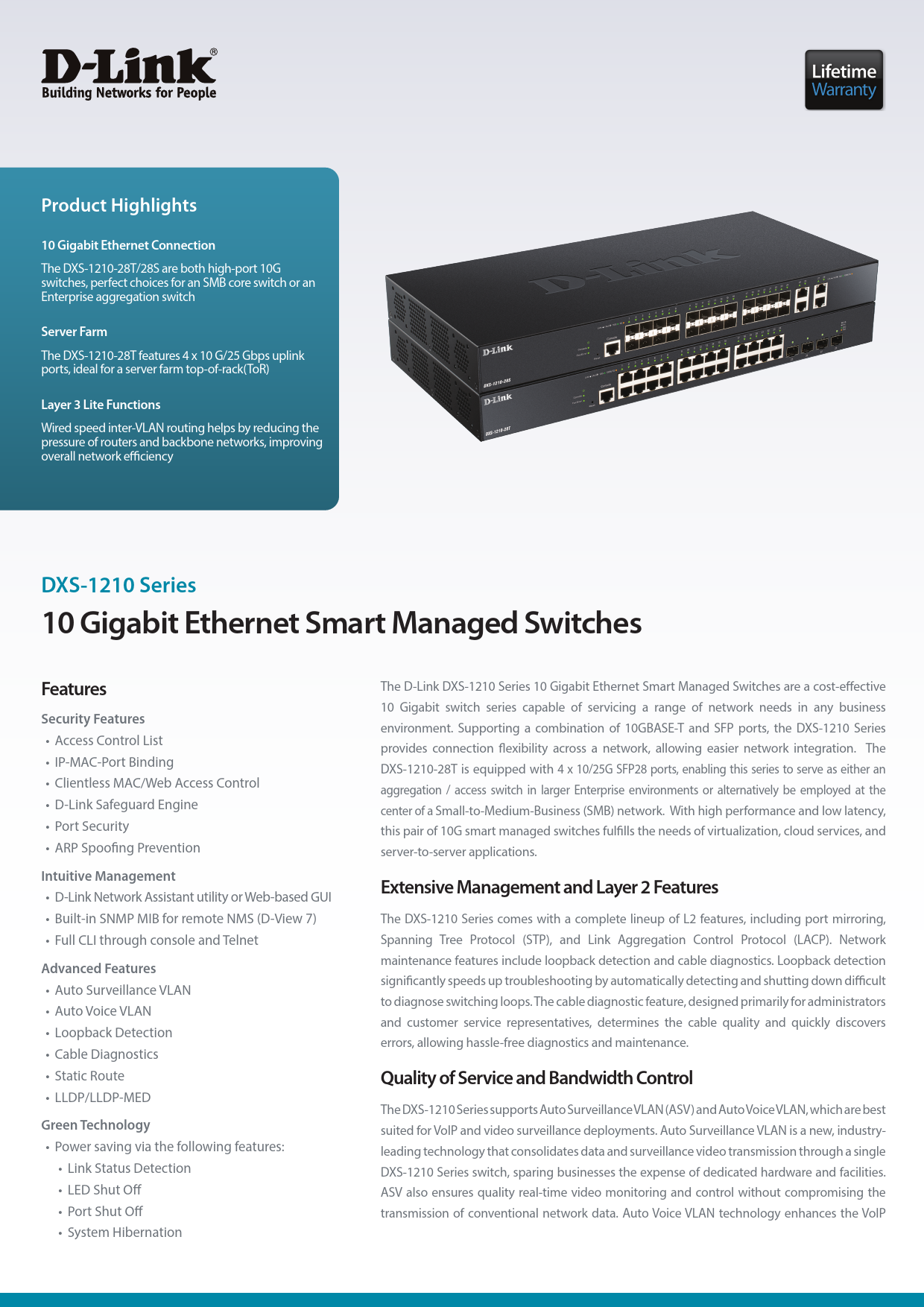

DXS-1210-28TS A1 Datasheet v1.00(CAN)
Product Highlights
10 Gigabit Ethernet Connection The DXS-1210-28T/28S are both high-port 10G switches, perfect choices for an SMB core switch or an Enterprise aggregation switch
Server Farm The DXS-1210-28T features 4 x 10 G/25 Gbps uplink ports, ideal for a server farm top-of-rack(ToR)
Layer 3 Lite Functions Wired speed inter-VLAN routing helps by reducing the pressure of routers and backbone networks, improving overall network efficiency

DXS-1210 Series
10 Gigabit Ethernet Smart Managed Switches

Features
Security Features · Access Control List · IP-MAC-Port Binding · Clientless MAC/Web Access Control · D-Link Safeguard Engine · Port Security · ARP Spoofing Prevention
Intuitive Management · D-Link Network Assistant utility or Web-based GUI · Built-in SNMP MIB for remote NMS (D-View 7) · Full CLI through console and Telnet
Advanced Features · Auto Surveillance VLAN · Auto Voice VLAN · Loopback Detection · Cable Diagnostics · Static Route · LLDP/LLDP-MED
Green Technology · Power saving via the following features:
· Link Status Detection · LED Shut Off · Port Shut Off · System Hibernation

The D-Link DXS-1210 Series 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10 Gigabit switch series capable of servicing a range of network needs in any business environment. Supporting a combination of 10GBASE-T and SFP ports, the DXS-1210 Series provides connection flexibility across a network, allowing easier network integration. The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as either an aggregation / access switch in larger Enterprise environments or alternatively be employed at the center of a Small-to-Medium-Business (SMB) network. With high performance and low latency, this pair of 10G smart managed switches fulfills the needs of virtualization, cloud services, and server-to-server applications.
Extensive Management and Layer 2 Features
The DXS-1210 Series comes with a complete lineup of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features include loopback detection and cable diagnostics. Loopback detection significantly speeds up troubleshooting by automatically detecting and shutting down difficult to diagnose switching loops. The cable diagnostic feature, designed primarily for administrators and customer service representatives, determines the cable quality and quickly discovers errors, allowing hassle-free diagnostics and maintenance.
Quality of Service and Bandwidth Control
The DXS-1210 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a new, industryleading technology that consolidates data and surveillance video transmission through a single DXS-1210 Series switch, sparing businesses the expense of dedicated hardware and facilities. ASV also ensures quality real-time video monitoring and control without compromising the transmission of conventional network data. Auto Voice VLAN technology enhances the VoIP

DXS-1210 Series 10 Gigabit Ethernet Smart Managed Switches

VLAN. With higher priority and an individual VLAN, these features guarantee

Security Features
D-Link's innovative Safeguard EngineTM helps protect the switches against

precedence over other packets. In addition, with bandwidth control, network administrators can reserve bandwidth for important functions that require higher priority or more bandwidth.

802.1X port-based and host-based authentication, allowing the network to be authenticated through external RADIUS servers. The Access Control List (ACL) feature enhances network security and helps to protect the internal IT network. The DXS-1210 Series also features Address Resolution Protocol (ARP)

Versatile Management

The DXS-1210 Series comes with the D-Link Network Assistant (DNA) utility Discovery Protocol. The D-Link Network Assistant utility easily allows customers to discover multiple D-Link Smart Managed Switches within the same L2 network segment and displays them on screen for instant access. With this utility, users do not need to change the IP address of their PC. This

attacks, the switch uses packet control ACLs to block invalid packets that contain fake ARP messages. For added security, the DHCP server screening
being assigned an IP address.
Lifetime Warranty

DXS-1210 Series also supports a comprehensive 10 language multi-lingual web UI, a full command line interface (CLI) through Telnet, a console port, as
-View 7; a network management system (NMS) that allows central management of critical network characteristics such as availability, reliability, resilience, and security.

D-Link offers a Lifetime Warranty on the DXS-1210 Series Smart Managed 10G switches to further its commitment to product quality and long-term customer confidence.

Technical Specifications General
Model Interfaces
Console Port Port Standard & Functions
Network Cables for 10GBASE-T Media Interface Exchange
Performance
Switching Capacity Maximum Packet Forwarding Rate Transmission Method MAC Address Table
Physical/Environmental
Acoustic
Fans AC Input Maximum Power Consumption Standby Power Consumption Operating Temperature Storage Temperature Operating Humidity Storage Humidity Dimensions (L x W x H) Weight

DXS-1210 Series 10 Gigabit Ethernet Smart Managed Switches

· DXS-1210-28T

· DXS-1210-28S

· 24 x 10G BASE-T ports · 4 x 10/25G SFP28 ports

· 24 x 10G SFP+ ports · 4 x 10G BASE-T ports

· RJ-45 console port

· IEEE 802.3u 100BASE-TX Fast Ethernet · IEEE 802.3ab 1000BASE-T Gigabit Ethernet · IEEE 802.3az Energy Efficiency Ethernet (EEE) · IEEE 802.3an 10GBASE-T 10 Gigabit Ethernet
· IEEE 802.3ae 10GbE over fiber · IEEE 802.3z 1000BASE-X
· Auto MDI/MDIX support for 1000/10GBASE-T

· Cat. 6 (30 m max) · Cat. 6A or Cat. 7 (100 m max)

· Auto MDI/MDIX adjustment for all twisted-pair ports

· 680 Gbps · 505.92 Mpps

· Store-and-forward · Up to 32,000 entries per device

· 560 Gbps · 416.64 Mpps

· Fan at high speed: 51.9 dB(A) · Fan at low speed: 40.0 dB(A)

· Fan at high speed: 52.3 dB(A) · Fan at low speed: 40.2 dB(A)

· 2 x Smart Fan

· 100 to 240 VAC

· 100 V / 60 Hz: 90 W · 240 V / 60 Hz: 87.3 W

· 100 V / 60 Hz: 87.7 W · 240 V / 60 Hz: 85.7 W

· 100 V / 60 Hz: 33.3 W · 240 V / 60 Hz: 33 W

· 100 V / 60 Hz: 27.6 W · 240 V / 60 Hz: 27.7 W

· -5 to 50 °C (23 to 122 °F)

· -20 to 70 °C (-4 to 158 °F)

· 0% to 95% non-condensing

· 0% to 95% non-condensing

· 441 x 209.5 x 44 mm (17.36 x 8.28 x 1.73 in)

· 3.07 kg

· 3.27 kg

DXS-1210 Series 10 Gigabit Ethernet Smart Managed Switches

Diagnostic LEDs Certifications Safety
Software
L2 Features
VLAN Quality of Service (QoS)
L3 Features

· Link/Activity/Speed (Per 10GBASE-T port) · Link/Activity/Speed (Per 10G SFP+ port)
· Power · Console · Fan error
· CE Class A · FCC Class A · VCCI Class A
· IC · BSMI
· UL · CB · BSMI

· MAC Address Table · Up to 32K entries
· Static MAC Addresses · 256
· IGMP Snooping · IGMP v1/v2/v3 Snooping · Supports 512 groups (shared between dynamic and static, with a max of 128 static) · Per VLAN IGMP Snooping · Support port-based fast leave · Report Suppression
· MLD Snooping · MLD v1/v2 Snooping · Supports 256 groups (shared between dynamic and static, with a max of 128 static) · Support port-based fast leave
· LLDP
· 802.1Q VLAN · Port-based VLAN · Configurable VID
· 1~4094
· CoS based on · Switch port · 802.1p Priority Queues · Outer 802.1p priority · DSCP · ToS · IPv6 Traffic Class · TCP/UDP port · MAC Address · Ether Type · IP Address · Protocol Type · IPv6 Flow Label/ Traffic Class
· IP Interface · Supports 4 IPv4/v6 interfaces
· ARP · 384 Static ARP
· Default Route

· LLDP-MED · Spanning Tree Protocol
· 802.1D STP · 802.1w RSTP · 802.1s MSTP · Flow Control · 802.3x Flow Control · HOL Blocking Prevention · Port Mirroring · One-to-One · Many-to-One · Supports Mirroring for Tx/Rx/Both · 802.3ad Link Aggregation: · Maximum of 8 groups/8 ports per group · Jumbo Frame · Up to 12,288 Bytes · Loopback Detection
· Voice VLAN · Auto Surveillance VLAN · Asymmetric VLAN · 4K VLAN Groups
· 802.1p Priority Queue · 8 queues per port · Queue Handling
· Strict Priority Que (SPQ) · Weighted Round Robin (WRR) · Bandwidth Control · Port-based (Ingress/Egress, min. granularity 64 Kbps) · Queue-based (Egress, min. granularity 64 Kbps)
· IPv6 Neighbor Discovery (ND) · Static Route
· Max. 128 IPv4 entries · Max. 64 IPv6 entries

DXS-1210 Series 10 Gigabit Ethernet Smart Managed Switches

Access Control List (ACL)
Security Features
Operations, Administration, and Management (OAM) Authentication, Authorization, and Accounting (AAA) Management
Green V3.0 Technology MIB/RFC Standards

· ACL based on · IPv4 address: Source/destination IP Address mask, IP preference/ ToS mask, DSCP mask, Protocol · MAC address: 802.1p priority mask, VID mask, Source/ destination MAC address mask, Ether type mask · IPv6 address: Source/destination IP Address mask, DSCP mask, Protocol type mask, TCP/UDP port number mask, IPv6 traffic class mask, IPv6 flow label mask
· Broadcast/Multicast/Unicast Storm Control · D-Link Safeguard Engine · DHCP Server Screening · IP-MAC-Port Binding
· DHCP Snooping · DHCPv6 Guard · IPv4/v6 Source Guard · Dynamic ARP Inspection · IPv6 ND Inspection · IPv6 Route Advertisement (RA) Guard · Duplicate Address Detection (DAD) · Broadcast/Multicast/Unicast Storm Control · Min. granularity per port: 16 Kbps
· Cable Diagnostics
· 802.1X Authentication · Supports Dynamic VLAN Assignment · Supports local/RADIUS database · Supports Port-based access control · Supports Host-based access control · Supports EAP, TLS, TTLS, PEAP
· Web-based GUI · D-Link Network Assistant Utility · Full CLI · Telnet Server · TFTP Client · Configurable MDI/MDIX · SNMP
· Supports v1/v2c/v3 · SNMP Trap · Smart Wizard · LLDP · LLDP-MED · ICMP v4
· Power Saving by: · LED Shutoff
· RFC 783/1350 TFTP Client · RFC 951/1542/2131 BootP/DHCP Client · RFC 1213 MIB II · RFC 1215 MIB Traps Convention · RFC 3612 Power-Ethernet MIB · RFC 3418 SNMPv2-MIB · RFC 2863 Interface Group MIB · RFC 3635 Ethernet-Like MIB · RFC 4293 IP-MIB · RFC 2819 RMON v1 · RFC 4502 RMON2-MIB · RFC 4188 Bridge MIB · RFC 4363(6) P-Bridge-MIB · RFC 4363(7) Q-Bridge-MIB · RFC 4668 RADIUS Authentication Client MIB

· Max. 1536 ingress ACL entries · Max. 1024 egress ACL entries · Max. 1024 Access List Numbers
· Traffic Segmentation · SSH
· Support v2 · Support IPv4/ IPv6 · SSL · Support TLS 1.0/1.1/1.2 · Support IPv4/IPv6 · ARP Spoofing Prevention1 · Max. 128 entries · DoS Attack Prevention · Port Security · Supports up to 64 MAC addresses per port · Duplicate Address Detection
· Support IPv4/IPv6 RADIUS Server · Guest VLAN · Trusted Host
· Support IPv4/v6 host · Trusted host for Telnet, HTTP, HTTPS, SSH, Ping
· DHCP Relay · DHCP Auto-image · System Log · BootP/DHCP Client · SNTP · ICMP v6 · IPv4/v6 Dual Stack · DHCP Auto Configuration · RMON v1/v2 · Dual Images · Dual Configurations · DNS Client
· System Hibernation · Port Shutoff
· RFC 4292 IP Forward MIB · RFC 4836 MAU MIB · RFC 4133 Entity MIB · RFC 4560(80) PING-MIB · RFC 4560(81) Traceroute-MIB · RFC 3411 SNMP-Framework-MIB · RFC 3414 SNMP-User-Based-MIB · RFC 3412 SNMP-MPD-MIB · RFC 3413(12) SNMP-Target-MIB · RFC 3413(13) SNMP-Notification-MIB · RFC 3415 SNMP-View-Based-ACM-MIB · RFC 3584 SNMP-Community-MIB · D-Link Private MIBs · LLDP MIB · Zone Defense MIB

DXS-1210 Series 10 Gigabit Ethernet Smart Managed Switches

Order Information

Part Number

Description

DXS-1210-28T

24-port 10GBASE-T + 4-port 10/25G SFP28 Smart Managed Switch

DXS-1210-28S

24-port 10G SFP+ + 4-port 10GBASE-T Smart Managed Switch

Optional 10 Gigabit Ethernet SFP+ Direct Attach Cables

DEM-CB100S

10GbE SFP+ to SFP+ 1 m Direct Attach Cable

DEM-CB300S

10GbE SFP+ to SFP+ 3 m Direct Attach Cable

Optional 25 Gigabit Ethernet SFP28 Direct Attach Cables1

DEM-CB100S28

25G SFP28 to SFP28 1m Direct Attach Cable (Available Soon)

Optional Gigabit Ethernet SFP Transceivers

DGS-712

1000BASE-T Copper SFP Transceiver

DEM-310GT

1000BASE-LX Single-Mode, 10 km

DEM-311GT

1000BASE-SX Multi-mode, 550 m

Optional 10 Gigabit Ethernet SFP+ Transceivers

DEM-431XT

10GBASE-SR Multi-Mode, OM1: 33 m/OM2: 82 m/OM3: 300 m (w/o DDM)

DEM-432XT

10GBASE-LR Single-Mode, 10 km (w/o DDM)

Optional 25 Gigabit Ethernet SFP28 Transceivers1

DEM-S2801SR

25G SFP28 Multi-Mode, 100m transceiver (Available Soon)

DEM-S2810LR

25G SFP28 Single-Mode 10km transceiver (Available Soon)

Optional Management Software

DV-700-N25-LIC

D-View 7 - 25 Node License

DV-700-N50-LIC

D-View 7 - 50 Node License

DV-700-N100-LIC

D-View 7 - 100 Node License

DV-700-N250-LIC DV-700-N500-LIC

D-View 7 - 250 Node License D-View 7 - 500 Node License

DV-700-N1000-LIC

D-View 7 - 1000 Node License

DV-700-P5-LIC

D-View 7 - 5 Probe License

DV-700-P25-LIC

D-View 7 - 25 Probe License

1 Only compatible with the DXS-1210-28T
2 Lifetime warranty is available in Canada only. The warranty is void when not purchased from an authorized Canada D-Link reseller. Please contact us for a list of current authorized Canadian resellers. Updated 2021/12/29

2525 Meadowvale Blvd, Mississauga, ON L5N 5S2 Canada 800.326.1688 | dlink.com
Speci cations are subject to change without notice. D-Link is a registered trademark of D-Link Corporation and its overseas subsidiaries. All other trademarks belong to their respective owners. ©2020 D-Link Corporation. All rights reserved. E&OE.
