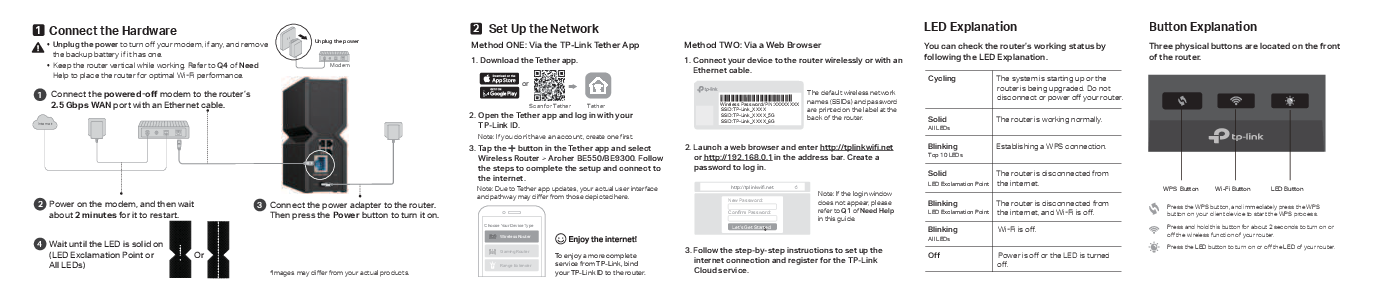

TP-Link Archer BE550 BE9300 Tri-Band Wi-Fi 7 Router: Quick Installation Guide

1. Connect the Hardware

Follow these steps to connect your modem and router:

1. Prepare your modem: Unplug the power from your modem. If it has a backup battery, remove it.
2. Connect modem to router: Connect the powered-off modem to the router's 2.5 Gbps WAN port using an Ethernet cable.
3. Power on modem: Power on the modem and wait approximately 2 minutes for it to restart.
4. Power on router: Connect the power adapter to the router and press the Power button to turn it on.
5. Check LEDs: Wait until the router's LEDs indicate normal operation.
   • All LEDs: Cycling indicates the system is starting up or being upgraded. Solid indicates normal operation. Blinking indicates a WPS connection is being established.
   • LED Exclamation Point: Solid indicates the router is disconnected from the internet. Blinking indicates the router is disconnected from the internet and Wi-Fi is off.
   • Wi-Fi LEDs: Blinking indicates Wi-Fi is off.
   • Power LED: Off indicates the power is off or the LED is turned off.

Router Buttons:

• WPS Button: Press to start the WPS process with a client device.
• Wi-Fi Button: Press and hold for approximately 2 seconds to turn the wireless function on or off.
• LED Button: Press to turn the router's LEDs on or off.

Note: Keep the router vertical for optimal Wi-Fi performance. Refer to the 'Need Help?' section for positioning advice. Images may differ from your actual product.

2. Set Up the Network

You can set up your network using the TP-Link Tether App or a web browser.

Method ONE: Via the TP-Link Tether App

1. Download the Tether app: Available on the App Store and Google Play. You can scan a QR code (represented as "[scan-icon]") to download it.
2. Log in to the Tether app: Open the app and log in with your TP-Link ID. Create an account if you don't have one.
3. Configure the router: Tap the '+' button in the Tether app, select 'Wireless Router' > 'Archer BE550/BE9300', and follow the on-screen instructions to complete setup and connect to the internet.

Note: The user interface may vary due to app updates. Binding your TP-Link ID to the router provides a more complete service. You can choose device types like Wireless Router, Gaming Router, or Range Extender.

Method TWO: Via a Web Browser

1. Connect your device: Connect your computer or mobile device to the router wirelessly or via an Ethernet cable. The default wireless network names (SSIDs) and password are printed on the label at the back of the router (e.g., SSID: TP-Link_XXXX, Password/PIN: XXXXXXXX).
2. Access the web management page: Launch a web browser and enter http://tplinkwifi.net or http://192.168.0.1 in the address bar.
3. Create a password: Create a new password to log in to the router's management interface.
4. Follow setup instructions: Complete the step-by-step guide to set up your internet connection and register for TP-Link Cloud service.

Note: If the login window does not appear, refer to Q1 in the 'Need Help?' section.

TP-Link HomeShield

TP-Link HomeShield offers premium security services to protect your home network with advanced features. Access it via the HomeShield tab in the app.

• Network Protection: Detects cyber threats to safeguard your privacy and connected devices.
• Quality of Service (QoS): Prioritizes bandwidth for a better networking experience.
• Parental Controls: Manage online time and block inappropriate content for healthy online habits.
• Comprehensive Reports: Provides statistics and insights into your home network.

For more details, visit https://www.tp-link.com/homeshield.

EasyMesh-Compatible

Experience strong, stable, and seamless wireless connections throughout your home with EasyMesh.

• Seamless Roaming: Connects devices to the strongest signal from routers or extenders, sharing a single Wi-Fi name for uninterrupted connectivity.
• One-Click Settings: Set up an EasyMesh network by pressing the WPS button on the main router and satellite device within 2 minutes of each other.
• Flexible Scalability: Expand your home network easily with compatible devices from different vendors, topologies, protocols, and product categories. (Note: Interoperability with other vendors may vary due to firmware conflicts; TP-Link devices offer better compatibility.)

For more information, visit https://www.tp-link.com/easymesh/.

USB Applications

Utilize the USB port to easily share files and media across multiple devices.

• Remote Access: Access your USB drive from anywhere.
• Local Storage Sharing: Share files from the USB drive with devices on your home network.
• Media Server: Stream media from the USB drive to your computer.

Learn more about USB applications at https://www.tp-link.com/app/usb.

Need Help? (Troubleshooting)

Q1. What should I do if I can't access the web management page?

• Reboot your router and try again.
• If your computer uses a static IP, configure it to obtain an IP address automatically.
• Verify that http://tplinkwifi.net is entered correctly in your web browser. Alternatively, try http://192.168.0.1 or http://192.168.1.1.
• Try using a different web browser.
• Disable and then re-enable your network adapter.

Q2. What should I do if I can't access the internet?

• Power off your modem for about 5 minutes, then power it on and check the internet connection. If your modem has multiple Ethernet ports, ensure only the one connected to the router is used.
• Connect a computer directly to the modem via an Ethernet cable to verify if the internet service is working. If not, contact your Internet Service Provider (ISP).
• Log in to the router's web management page. Navigate to the Network Map to check if the internet IP address is valid. If valid, go to Advanced > Network > Internet > Advanced Settings, select 'Use the Following DNS Addresses', and set the primary DNS to 8.8.8.8 and the secondary DNS to 8.8.4.4. If the IP address is not valid, check hardware connections or contact your ISP.
• For cable modem users: Log in to the router's web management page, go to Advanced > Network > Internet > MAC Clone. Select 'Clone Current Device MAC' and click SAVE. Then, reboot both the modem and the router.

Q3. What should I do if I forget my wireless password?

• If you haven't changed it, the default wireless password is on the label at the bottom of the router.
• Connect a computer directly to the router using an Ethernet cable. Log in to the router's web management page at http://tplinkwifi.net and navigate to the Wireless page to retrieve or reset your password.

Q4. How should I position my router for optimal Wi-Fi performance?

• Keep the router vertical.
• Avoid placing the router in a corner or inside a closet.
• Keep it away from obstacles and high-powered appliances.
• Position the router in a central location and at a certain height.

Support and Compliance

For technical support, replacement services, user guides, and other information, please visit https://www.tp-link.com/support.

TP-Link declares that this device complies with essential requirements and relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU, and (EU) 2015/863. The original EU declaration of conformity can be found at https://www.tp-link.com/en/support/ce.

TP-Link declares that this device complies with essential requirements and relevant provisions of the Radio Equipment Regulations 2017. The original UK declaration of conformity can be found at https://www.tp-link.com/support/ukca.

Safety Precautions:

• Keep the device away from water, fire, humidity, or hot environments.
• Do not attempt to disassemble, repair, or modify the device. Contact TP-Link for service.
• Use only recommended chargers.
• Do not use a damaged charger or USB cable.
• Do not use the device in locations where wireless devices are prohibited.
• The adapter should be installed near the equipment and be easily accessible.
