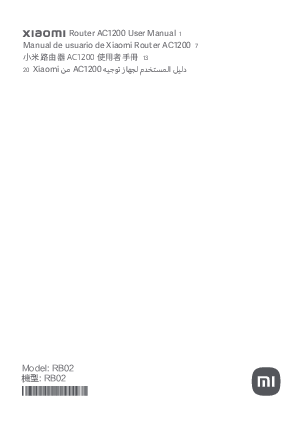

Xiaomi Router AC1200 User Manual

Getting Started

Step 1: Connect the Cables

The diagram illustrates the Xiaomi Router AC1200 and its connections. A power adapter (?) is shown connected to a wall outlet and the router's power port. The router features three antennas. On the rear panel, ports labeled 'Internet' (WAN) and 'LAN' are visible. To the right, a DSL/Cable/Satellite modem is depicted, with its LAN port connected to the router's WAN port.

Power on the router, then connect the Internet (WAN) port to the DSL/Cable/satellite modem.

* If your Internet network is connected by a network cable via the Internet wall socket, connect the cable directly to the router's WAN port.

Step 2: Set Up the Network Connection

1. Connect to Wi-Fi

A mobile device screen displays WLAN settings, showing options like 'Turn on WLAN', 'Xiaomi_XXXX', and 'Xiaomi_XXXX_5G' (?).

Connect to the Wi-Fi using a phone or computer (no password required). Refer to the information on the bottom of the router for the Wi-Fi name.

* Wait until the system indicator light turns blue. Search for the Wi-Fi network and connect.

2. Access Configuration Page

A web browser interface shows 'router.miwifi.com' with a welcome message and a 'Start' button.

Once the Wi-Fi is connected, you will be directed to the configuration page. If the configuration page does not appear, open your browser and navigate to 'router.miwifi.com' or '192.168.31.1' to complete the configuration.

The Mi Router End-User License Agreement (EULA) is available at: http://www1.miwifi.com/router/eula/20191230.html

3. Enter Broadband Account Details

A setup screen prompts for 'Broadband account name' and 'Password', with a 'Next' button.

Enter the account name and password provided by your broadband provider, then click/tap 'Next'. The requirement for account name and password depends on your selected Internet Service Provider.

* If you have forgotten your broadband account name or password, contact your broadband provider.

4. Set Wi-Fi and Administrator Passwords

A 'Setting Wi-Fi' screen shows fields for 'Wi-Fi name' and 'Wi-Fi password', with a 'Next' button.

Set a new Wi-Fi and administrator password. You can choose to use your Wi-Fi password as your administrator password as well.

* Please wait until the indicator light turns blue and stops flashing, then reconnect to the Wi-Fi.

A 'Set admin password' screen allows setting the admin password, with an option to make it the same as the Wi-Fi password, and a 'Done' button.

The network is successfully configured ✔️

Managing Mi Wi-Fi

The web management website is router.miwifi.com and supports basic Internet functions. Scan the QR code to download the Mi Home / Xiaomi Home app and manage your router anytime, anywhere.

• ⚙️ Quality of Service (QoS)
• ?️ Unauthorized access prevention
• ? Wi-Fi optimization
• More features

FAQ (Frequently Asked Questions)

Why can't I connect to the Internet after setup?

Step 1: Use your phone to search for the Wi-Fi network created by the router. If you cannot find it, ensure the router is connected to power and operating normally.

Step 2: Connect your phone to the router's Wi-Fi network, visit 'router.miwifi.com', and attempt to resolve the issue based on the network diagnostics results.

I've forgotten the administrator password for my router. What should I do?

If you have not set a specific password, your administrator password will be the same as your Wi-Fi password. Try logging in with that password. If the problem persists, it is recommended to restore the router to factory settings and then reconfigure the network.

How do I restore the router to factory settings?

First, ensure the router is operating normally. Then, press and hold the 'Reset' button on the base of the router for more than 5 seconds. Release the button when the system status indicator light turns orange. The reset procedure is complete when the router finishes restarting.

What do the different indicator lights on the router mean?

The front panel has two indicator lights: the network status light (blue/orange) and the system status light (blue/orange).

Specifications

Name: Xiaomi Router AC1200

Model: RB02

Operating Temperature: 0°C to 40°C

Input: 12V, 1A

Operating Frequency: 2400MHz–2483.5MHz, 5150MHz–5250MHz, 2400MHz-2473.5MHz (for US), 5150MHz–5250MHz (for US), 5725MHz-5850MHz (for US)

Certifications

[CE Certification] [UKCA Certification] [FCC Compliance]

Xiaomi Communications Co., Ltd declares that the radio equipment type R4A is in compliance with Directive 2014/53/EU and the UK Radio Equipment Regulations SI 2017 NO.1206. The full text of the EU declaration of conformity is available at: http://www.mi.com/global/service/support/declaration.html

WEEE Information

Products bearing this symbol ♻️ are waste electrical and electronic equipment (WEEE as per directive 2012/19/EU) and should not be mixed with unsorted household waste. Protect human health and the environment by handing over waste equipment to a designated collection point for recycling. Contact the installer or local authorities for more information on collection points.

Caution

The product can be used in all European Union countries.

To comply with CE RF exposure requirements, the device must be installed and operated at least 20 cm (8 inches) from any person's body.

The adapter should be installed near the equipment and be easily accessible.

FCC Compliance

This device is restricted to indoor use only when operating in the 5150-5250MHz frequency range.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC radiation exposure: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Manufacturer

Xiaomi Communications Co., Ltd, #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

Hazardous Substances

Product Name: Xiaomi Router AC1200, Model (Type): RB02

Notes:

1. 'Exceeds 0.1 wt %' and 'Exceeds 0.01 wt %' indicate that the percentage content of the restricted substance exceeds the percentage content reference value.

2. 'O' indicates that the percentage content of the restricted substance does not exceed the percentage content reference value.

3. '-' indicates that the restricted substance is excluded.

Port Description
