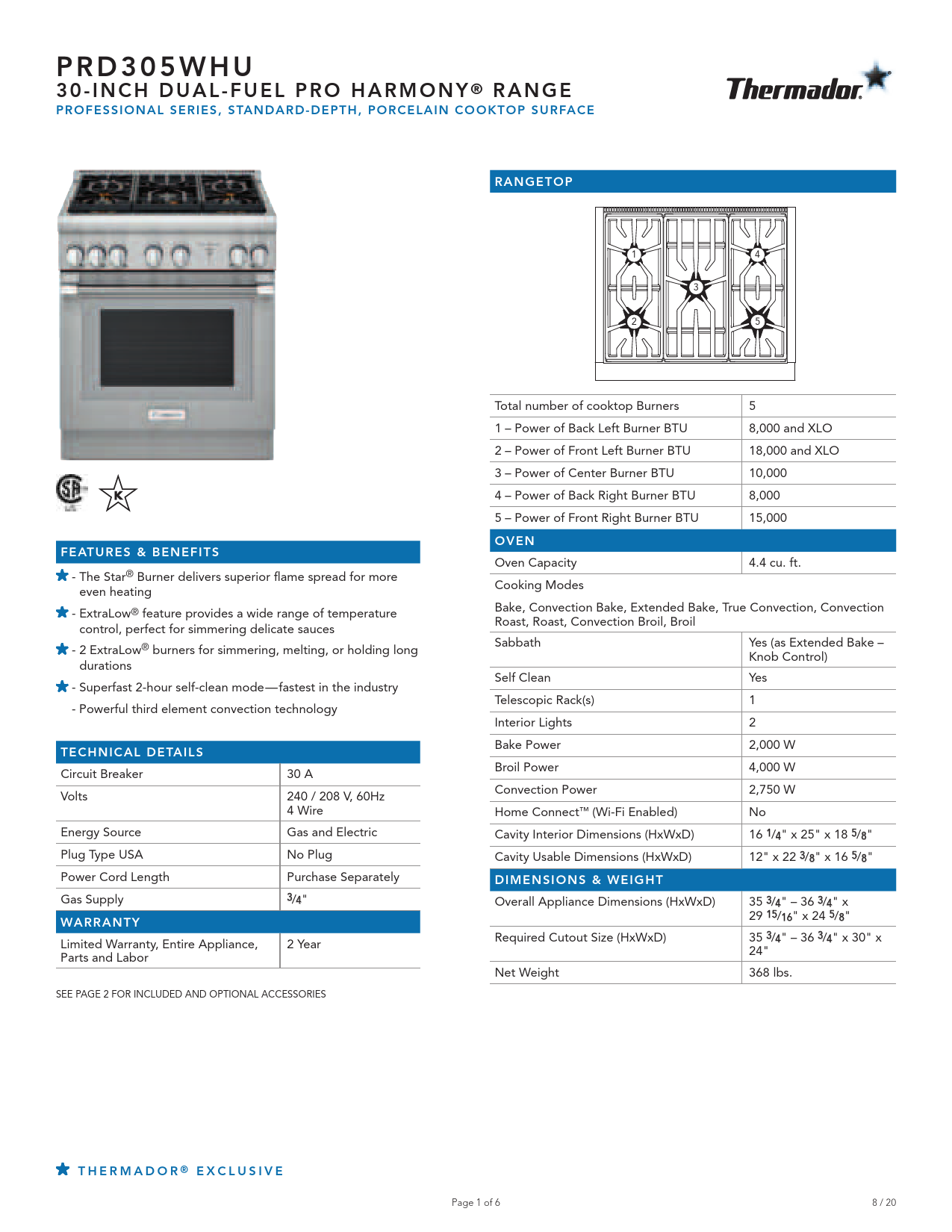

PRD305WHU 30-INCH DUAL-FUEL PRO HARMONY® RANGE PROFESSIONAL SERIES, STANDARD-DEPTH, PORCELAIN COOKTOP SURFACE RANGETOP 1 4 3 2 5 FEATURES & BENEFITS - The Star® Burner delivers superior flame spread for more even heating - ExtraLow® feature provides a wide range of temperature control, perfect for simmering delicate sauces - 2 ExtraLow® burners for simmering, melting, or holding long durations - Superfast 2-hour self-clean mode -- fastest in the industry - Powerful third element convection technology TECHNICAL DETAILS Circuit Breaker Volts Energy Source Plug Type USA Power Cord Length Gas Supply WARRANTY Limited Warranty, Entire Appliance, Parts and Labor 30 A 240 / 208 V, 60Hz 4 Wire Gas and Electric No Plug Purchase Separately 3/4" 2 Year SEE PAGE 2 FOR INCLUDED AND OPTIONAL ACCESSORIES Total number of cooktop Burners 5 1 Power of Back Left Burner BTU 8,000 and XLO 2 Power of Front Left Burner BTU 18,000 and XLO 3 Power of Center Burner BTU 10,000 4 Power of Back Right Burner BTU 8,000 5 Power of Front Right Burner BTU 15,000 OVEN Oven Capacity 4.4 cu. ft. Cooking Modes Bake, Convection Bake, Extended Bake, True Convection, Convection Roast, Roast, Convection Broil, Broil Sabbath Yes (as Extended Bake Knob Control) Self Clean Yes Telescopic Rack(s) 1 Interior Lights 2 Bake Power 2,000 W Broil Power 4,000 W Convection Power 2,750 W Home ConnectTM (Wi-Fi Enabled) No Cavity Interior Dimensions (HxWxD) 16 1/4" x 25" x 18 5/8" Cavity Usable Dimensions (HxWxD) 12" x 22 3/8" x 16 5/8" DIMENSIONS & WEIGHT Overall Appliance Dimensions (HxWxD) Required Cutout Size (HxWxD) 35 3/4" 36 3/4" x 29 15/16" x 24 5/8" 35 3/4" 36 3/4" x 30" x 24" Net Weight 368 lbs. THERMADOR® EXCLUSIVE Page 1 of 6 8 / 20 PRD305WHU 30-INCH DUAL-FUEL PRO HARMONY® RANGE PROFESSIONAL SERIES, STANDARD-DEPTH, PORCELAIN COOKTOP SURFACE ACCESSORIES (INCLUDED) 1 Telescopic Rack, 2 Standard Racks, 1 Lg. Broil Pan, Island Trim ACCESSORIES (OPTIONAL) PWOKRINGHC Wok Ring PAGRIDDLE Professional Griddle, Sits on Top of Grates Over 2 Star Burners, High-Release Coating PARKB30HY Metallic Blue Knob Kit PAALTKITHW High Altitude Kit, Natural Gas Pro Harmony Ranges, 5,400 ft. to 10,200 ft. Contact Customer Support High Altitude Kit, Gas or Dual-Fuel Pro Harmony Ranges Connected to LP Gas, 10,000 ft. to 10,200 ft. PA12CHPBLK Chopping Block / Cutting Board PA30WLBH Pro Harmony 7" Low Backguard* PALPKITHW5 LP Conversion Kit, Pro Harmony Dual-Fuel Model PRD305WH Only (5 Burners) *Models PCG305xx, PRD305xx, PRD606xx, PRG305xx, PRG304xx and PRD304xx are suitable for 0" rear clearance to combustible surfaces. All other models: when using the included Island Trim a minimum 6" (152 mm) rear clearance is required to a combustible surface. When installing against a combustible surface, a Thermador® Low Backguard is required for a 0" rear clearance to the combustible surface. A Thermador Low Backguard must be purchased separately. A rear clearance to a surface covered in a noncombustible material (metal, ceramic tile, brick, marble, or stone) is 0" when using the included Island Trim. Clearances of less than 6" (152 mm) should be approved by the local codes and/or by the local authority having jurisdiction. Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and are not certified by CSA. Page 2 of 6 8 / 20 PRD305WHU 30-INCH DUAL-FUEL PRO HARMONY® RANGE PROFESSIONAL SERIES, STANDARD-DEPTH, PORCELAIN COOKTOP SURFACE 30-INCH RANGE DIMENSIONS 30-INCH RANGE CUTOUT DIMENSIONS Page 3 of 6 8 / 20 PRD305WHU 30-INCH DUAL-FUEL PRO HARMONY® RANGE PROFESSIONAL SERIES, STANDARD-DEPTH, PORCELAIN COOKTOP SURFACE 30-INCH RANGE CABINET CLEARANCES WITH HOOD 3w0id"eh3o6o"d(762 914 mm) The range height is adjustable. The level of the range top must be at the same level or above the counter top level. *35 7/8" (911 mm) Min. range height with leveling legs fully retracted. *36 3/4" (933 mm) Max. range height with leveling legs fully extended. m18in"im(4u5m7 mm) ts5oi"dc(e1ow2ma7bllmsusmtib) lme in. 3fh3hcro0o6oom"o"omdd((b79butc61ooso24ttnctiobmmotamloemminkmo))isnfmmagotiievsnneru..irarihfflaecaed. 1(mcd3a3ea3b"px0itn.hmetm) 30" (762 mm) 0" to bCalecak rwanaclle CAUTION! 36" (914 mm) min. to combustible material from Cooking Surface as defined in the "National Fuel Gas Code" (ANSI Z223.1, Current Edition). Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and are not certified by CSA. FIGURE 4 as defined in the "National Fuel Gas Code" (ANSI Z223.1, Current Edition). Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and are not certified by CSA. 30" Range Width For Gas Supply & Electrical Zones see Figure 4. 10" (254 mm) GAS & ELECTRICAL SUPPLY ZONE 2" (51 mm) max. protrusion from wall for gas or electrical supply. 13/4" (44 mm) 261/2" (673 mm) 13/4" (44 mm) Page 4 of 6 8 / 20 PRD305WHU 30-INCH DUAL-FUEL PRO HARMONY® RANGE PROFESSIONAL SERIES, STANDARD-DEPTH, PORCELAIN COOKTOP SURFACE 30-INCH RANGE CABINET CLEARANCES WITH OVER-THE-RANGE MICROWAVE m18in"im(4u5m7 mm) The range height is adjustable. The level of the range top must be at the same level or above the counter top level. *35 7/8" (911 mm) Min. range height with leveling legs fully retracted. *36 3/4" (933 mm) Max. range height with leveling legs fully extended. 5tsoi"dc(e1ow2ma7bllmsusmtib) lme in. Rmifnoesar ftnceaulrlelfataaotrciaoOtunnTrcemRersa's.nual 30" (762 mm) 0" to bCalecakrwanaclle 1cda3eb"pitmnheatx. CAUTION! 36" (914 mm) min. to combustible material from Cooking Surface as defined in the "National Fuel Gas Code" (ANSI Z223.1, Current Edition). Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and are not certified by CSA. FIGURE 4 as defined in the "National Fuel Gas Code" (ANSI Z223.1, Current Edition). Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and are not certified by CSA. For Gas Supply & Electrical Zones see Figure 4. 30" Range Width 10" (254 mm) GAS & ELECTRICAL SUPPLY ZONE 2" (51 mm) max. protrusion from wall for gas or electrical supply. 13/4" (44 mm) 261/2" (673 mm) 13/4" (44 mm) Page 5 of 6 8 / 20 PRD305WHU 30-INCH DUAL-FUEL PRO HARMONY® RANGE PROFESSIONAL SERIES, STANDARD-DEPTH, PORCELAIN COOKTOP SURFACE 30-INCH RANGE DIMENSIONS AND SIDE CLEARANCE REQUIREMENTS NOTE: A 36-inch minimum clearance is required between the top of the cooking surface and the bottom of an unprotected cabinet. A 30-inch clearance can be used when the bottom of the wood or metal cabinet is protected by not less than 1/4 inch of a flame retardant material covered with not less than No. 28 MSG sheet steel, 0.015 inch (0.4 mm) thick stainless steel, 0.024 inch (0.6 mm) aluminum, or 0.020 inch (0.5 mm) thick copper. 36" (914 mm) min. to combustible materials 28" (711 mm) 27¼" (692 mm) Zero Clearance Wall and Island Trim 24" (625 mm) 35 " (911 mm) Min. 36 ¾" (933 mm) Max. 24" (610 mm) max. recess depth 24¾" (629 mm) Combustible Materials Combustible Back Wall 22" (575 mm) 44" (1140 mm) Total Clearance as defined in the "National Fuel Gas Code" (ANSI Z223.1, Current Edition). Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and are not certified by CSA. These warranties give you specific legal rights and you may have other rights that vary from state to state. Full warranty and limited warranty from date of installation. For complete warranty details, refer to your Use & Care manual, or ask your dealer. Specifications are for planning purposes only. Refer to installation instructions and consult your countertop supplier prior to making counter opening. Consult with a heating and ventilation engineer for your specific ventilation requirements. For the most detailed information, refer to installation instructions accompanying product or write to Thermador indicating the model number. Specifications are correct at time of printing. Thermador reserves the right to change product specifications or design without notice. Some models are certified for use in Canada. Thermador is not responsible for products that are transported from the U.S. for use in Canada. 1 800 735 4328 | USA THERMADOR.COM | CANADA THERMADOR.CA | ©2020 BSH HOME APPLIANCES CORPORATION. ALL RIGHTS RESERVED. Page 6 of 6 8 / 20
