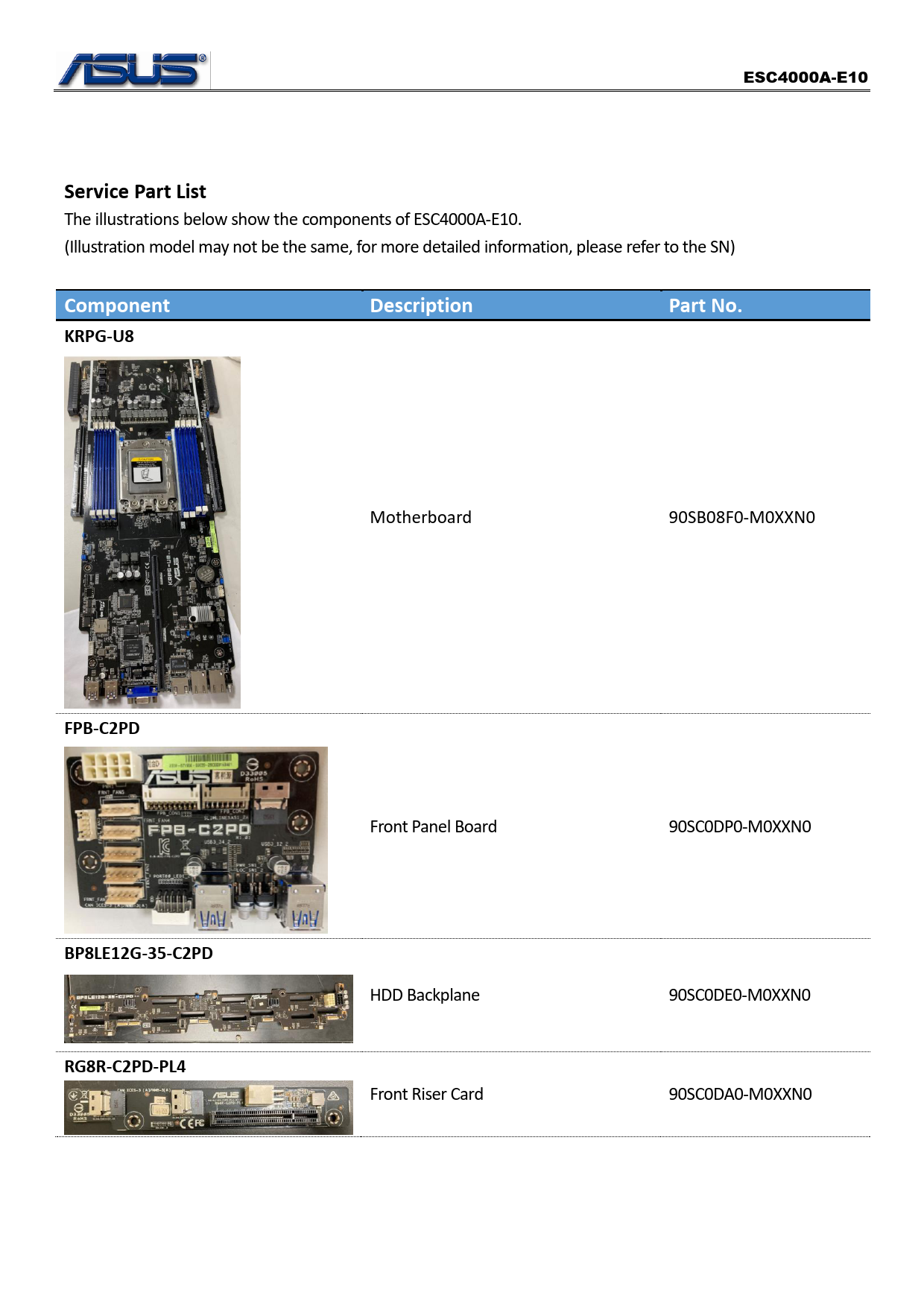

ESC4000A-E10

Service Part List
The illustrations below show the components of ESC4000A-E10. (Illustration model may not be the same, for more detailed information, please refer to the SN)

Component
KRPG-U8

Description

Part No.

Motherboard

90SB08F0-M0XXN0

FPB-C2PD
BP8LE12G-35-C2PD RG8R-C2PD-PL4

Front Panel Board
HDD Backplane Front Riser Card

90SC0DP0-M0XXN0
90SC0DE0-M0XXN0 90SC0DA0-M0XXN0

Component
RG16LE16R-C2PD-PL4 RG16LX4-C2PD-RD-PL1
RG16RX4-C2PD-RD-PL1

Description
Riser Card Riser Card
Riser Card

ESC4000A-E10
Part No.
90SC0DB0-M0XXN0 90SC0EE0-M0XXN0
90SC0ED0-M0XXN0

Component
PDB-C2PD-PL3
PSB-MB-C2PD-PL3-R PSB-MB-C2PD-PL3-L PSB-PSU-C2PD-PL3-R
PSB-PSU-C2PD-PL3-L

Description
Power Distribution Board

ESC4000A-E10
Part No.
90SC0DF0-M0XXN0

Power Supply Board

90SC0DL0-M0XXN0

Power Supply Board

90SC0DQ0-M0XXN0

Power Supply Board

90SC0DM0-M0XXN0

Power Supply Board

90SC0DR0-M0XXN0

Component
SLSAS X8 V TO X4*2 V 85OHM L400

Description
Slim SAS Cable

MINI SAS HD CABLE L:300MM

Mini SAS HD Cable

PDB 2X12 TO FPB 2X8+2X5 CABLE

Power Cable

PDB 2X10 TO FPB 2X10 CABLE

Power Cable

ESC4000A-E10
Part No.
14022-00130200 14022-00110500
14011-04850000
14011-04850100

Component
SMBUS 2*5P TO 10P L:600MM

Description

SMBUS Cable

SLSAS X4 V TO X4 V 85OHM L450 Slim SAS Cable

8038 FAN 6PIN 16300RPM DELTA System Fan

AMD SP3 1U PASSIVE VC CU FIN HS CPU Heatsink

C2P-D AMD MB FANDUCT PLS

Motherboard Fanduct

ESC4000A-E10
Part No.
14011-02380000
14022-00150200 13070-01270200 13SF01A0T01011 13SF01A0P02011

Component
PSU CRPS 2200W PLATINUM

Description
Power Supply

PSU CRPS 1600W PLATINUM//DELTA/DPS-1600CB E REV:S3F

Power Supply

C2P D TOOLLESS 35HDD TRAY ASSY HDD Tray Assy

ESC4000A-E10
Part No.
0A100-00380100
0A100-00250600
13SF01A0AM0101
