LITEISTRY(TM) 6″ Round Downlight – Illuminate Eastern

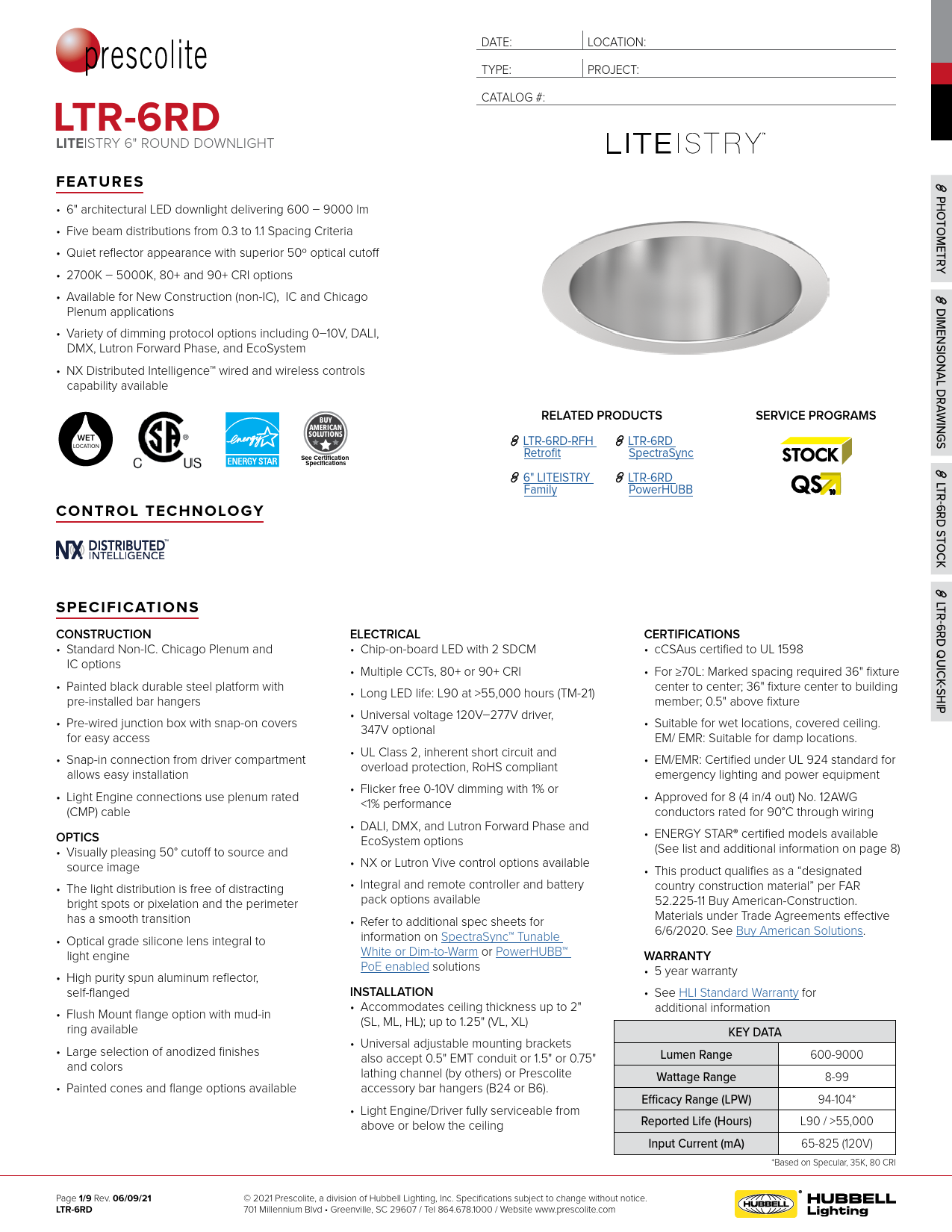

PHOTOMETRY DIMENSIONAL DRAWINGS LTR-6RD STOCK LTR-6RD QUICK-SHIP LTR-6RD LITEISTRY 6" ROUND DOWNLIGHT FEATURES · 6" architectural LED downlight delivering 600 9000 lm · Five beam distributions from 0.3 to 1.1 Spacing Criteria · Quiet reflector appearance with superior 50º optical cutoff · 2700K 5000K, 80+ and 90+ CRI options · Available for New Construction (non-IC), IC and Chicago Plenum applications · Variety of dimming protocol options including 010V, DALI, DMX, Lutron Forward Phase, and EcoSystem · NX Distributed IntelligenceTM wired and wireless controls capability available WET LOCATION BUY AMERICAN SOLUTIONS BUY AMERICAN SOLUTIONS See Certification See Certification Specifications Specifications CONTROL TECHNOLOGY TM DATE: TYPE: CATALOG #: LOCATION: PROJECT: RELATED PRODUCTS LTR-6RD-RFH LTR-6RD Retrofit SpectraSync 6" LITEISTRY LTR-6RD Family PowerHUBB SERVICE PROGRAMS SPECIFICATIONS CONSTRUCTION · Standard Non-IC. Chicago Plenum and IC options · Painted black durable steel platform with pre-installed bar hangers · Pre-wired junction box with snap-on covers for easy access · Snap-in connection from driver compartment allows easy installation · Light Engine connections use plenum rated (CMP) cable OPTICS · Visually pleasing 50° cutoff to source and source image · The light distribution is free of distracting bright spots or pixelation and the perimeter has a smooth transition · Optical grade silicone lens integral to light engine · High purity spun aluminum reflector, self-flanged · Flush Mount flange option with mud-in ring available · Large selection of anodized finishes and colors · Painted cones and flange options available ELECTRICAL · Chip-on-board LED with 2 SDCM · Multiple CCTs, 80+ or 90+ CRI · Long LED life: L90 at >55,000 hours (TM-21) · Universal voltage 120V277V driver, 347V optional · UL Class 2, inherent short circuit and overload protection, RoHS compliant · Flicker free 0-10V dimming with 1% or <1% performance · DALI, DMX, and Lutron Forward Phase and EcoSystem options · NX or Lutron Vive control options available · Integral and remote controller and battery pack options available · Refer to additional spec sheets for information on SpectraSyncTM Tunable White or Dim-to-Warm or PowerHUBBTM PoE enabled solutions INSTALLATION · Accommodates ceiling thickness up to 2" (SL, ML, HL); up to 1.25" (VL, XL) · Universal adjustable mounting brackets also accept 0.5" EMT conduit or 1.5" or 0.75" lathing channel (by others) or Prescolite accessory bar hangers (B24 or B6). · Light Engine/Driver fully serviceable from above or below the ceiling CERTIFICATIONS · cCSAus certified to UL 1598 · For 70L: Marked spacing required 36" fixture center to center; 36" fixture center to building member; 0.5" above fixture · Suitable for wet locations, covered ceiling. EM/ EMR: Suitable for damp locations. · EM/EMR: Certified under UL 924 standard for emergency lighting and power equipment · Approved for 8 (4 in/4 out) No. 12AWG conductors rated for 90°C through wiring · ENERGY STAR® certified models available (See list and additional information on page 8) · This product qualifies as a "designated country construction material" per FAR 52.225-11 Buy American-Construction. Materials under Trade Agreements effective 6/6/2020. See Buy American Solutions. WARRANTY · 5 year warranty · See HLI Standard Warranty for additional information KEY DATA Lumen Range 600-9000 Wattage Range 8-99 Efficacy Range (LPW) 94-104* Reported Life (Hours) L90 / >55,000 Input Current (mA) 65-825 (120V) *Based on Specular, 35K, 80 CRI Page 1/9 Rev. 06/09/21 LTR-6RD © 2021 Prescolite, a division of Hubbell Lighting, Inc. Specifications subject to change without notice. 701 Millennium Blvd · Greenville, SC 29607 / Tel 864.678.1000 / Website www.prescolite.com LTR-6RD LITEISTRY 6" ROUND DOWNLIGHT ORDERING GUIDE CATALOG # DATE: TYPE: CATALOG #: LOCATION: PROJECT: = Service Program Click icons for a list of Stocked or Quick-Ship options Example: LTR6RDHSL10LDM1LTR6RDTSL35K8MDS LTR-6RD STOCK LTR-6RD QUICK-SHIP HOUSING LTR-6RD-H Aperture/Shape/Function Lumen Package Lumen Output Driver Options Control Options Voltage Housing Options LTR-6RD-H 6" Round Downlight New Construction Housing TRIM SL Standard Lumen ML Medium Lumen HL High Lumen VL Very High Lumen XL Extra high Lumen 12 06L 600 10L 1000 15L 1500 20L 2000 25L 2500 30L 3000 35L 3500 40L 4000 45L 4500 50L 5000 55L 5500 60L 6000 70L 7000 80L 8000 90L 9000 DM1 0-10V Dimming to 1% 11 NXE DM01 DMX DALI 0-10V Dimming to < 1% 2 DMX with RDM dimming to < 0.1% 2 DALI Dimming to 1% 2 NXWE NXWD 2DM Lutron Hi-Lume 2-wire Dimming to 1% (120V Forward Phase only) 2 LV EDM Lutron Hi-Lume EcoSystem Dimming to 1% 2 LVE NX Enabled, Dual Standard CP SmartPorts 3 120-277V IC NX Wireless Enabled 3 34 347V 6 EM NX Wireless Enabled, Dual SmartPorts 3 EMR Lutron Vive Enabled, 0-10V (requires 0-10V driver) DTS Lutron Vive Enabled, EcoSystem, (requires EDM) GTD F Chicago Plenum 7, 9 IC rated 8, 9 Emergency Battery Pack with integral test switch and indicator light 9 Emergency Battery Pack with remote test switch and indicator light 9 Device Transfer Switch with Dimming Bypass 9, 13 Generator Transfer Device 9 Fuse 9 LTR-6RD-T Aperture/Shape/Function Lumen Package CCT CRI Distribution LTR-6RD-T 6" Round Downlight Light Engine/Trim Assembly TRIM CONTINUED SL Standard Lumen 27K 2700K 8 80+CRI VNR Very Narrow (0.3 SC/18°) ML Medium Lumen 30K 3000K 9 90+CRI NR HL High Lumen 35K 3500K MD VL Very High Lumen 40K 4000K WD XL Extra High Lumen 12 50K 5000K 1 XW Narrow (0.5 SC/29°) Medium (0.6 SC/37°) Wide (0.9 SC/59°) Extra Wide (1.1 SC/76°) Reflector Finish Reflector Color Flange Color Options Lower Trim Options Reflector Options Finish not applicable with painted reflectors (WC or BC) CG S Specular BL SS Semi-Specular LW MFC American MatteTM PW Standard Clear Champagne Gold Black Light Wheat Pewter Standard matches reflector color WT White Flange 4 BT Black Flange 4 EM Pre-punched reflector for EM integral test switch and indicator FM Flush Mount Mud-in Ring 10 WF Wide Flange AM Antimicrobial Coating 5 VS Softglow® VSS SoftSheenTM WC Painted White Cone and Flange BC Painted Black Cone and Flange Accessories B24 B6 FMR6-R LiteGear LPS Series MOR6-R-WH MOR6-R-BL LTR-SCA6-__ Set of two (2) 24" bar hangers for T-bar ceilings Set of two bar hangers for ceiling joist up to 24" centers Flush Mount Mud-In Ring, 6" Round LiteGear® Inverter, 125VA-250VA LightPower Micro-Inverter, 20VA-55VA Metal Oversized Ring, 6" Round, White (10" outside diameter) Metal Oversized Ring, 6" Round, Black (10" outside diameter) Sloped Ceiling Adapter, 6", White 14 Notes: 1 5000K available in 80+ CRI only. 2 2DM, EDM, DMX available in 10L-35L. DM01, DALI not available on >55L. 3 NX requires DM1 driver option, not available on >60L. 4 WT not needed for WC, BT not needed for BC. 5 AM available with WC or Specular Clear (S or SWT). Consult factory for other colors. 6 347V requires DM1 driver option; available 10L - 60L not available with Controls, F, GTD, DTS, EM, EMR. 7 CP available up to 20L; not available with DMX, Controls, or EMR options. 8 IC available up to 20L; not available with Controls options. 9 Housing options (except Fuse) not available in combination. 10 Flush Mount Flange (FM) requires FMR accessory (sold separately). 11 DM1 on >60L is 0-10V to 5% dimming. 12 XL (70L-90L) require marked spacing. See line art for more details. 13 DTS available with DM1, DM01, DALI, or EDM; not available with LVE. 14 Specify slope angle 5°-35° in 5° increments. Not available with EM, WF, or FM options. Page 2/9 Rev. 06/09/21 LTR-6RD © 2021 Prescolite, a division of Hubbell Lighting, Inc. Specifications subject to change without notice. 701 Millennium Blvd · Greenville, SC 29607 / Tel 864.678.1000 / Website www.prescolite.com NX Design & Application Guide NX Brochure LTR-6RD LITEISTRY 6" ROUND DOWNLIGHT DATE: TYPE: CATALOG #: LOCATION: PROJECT: CONTROLS NX Distributed IntelligenceTM Lighting Controls: Supports applications in a variety of deployment options- wired, wireless, hybrid. Integrates with and enables a wide array TM of luminaires including those with SpectraSyncTM Color Tuning Technology. NX INTEGRATED CONTROLS REFERENCE NX Option Sensor Networkable Scheduling Occupancy Daylight Harvesting 010V On/off Dimming Control NX Networked Wired NXE N/A Yes Yes No No Yes Yes NX Networked Wireless NXWE 2 N/A Yes Yes No No Yes Yes NX Networked Wired/Wireless NXWD N/A Yes Yes No No Yes Yes Bluetooth® App Programming Requires NXBTC/R1 No3 Requires NXBTC/R1,3 1 NXBTC/R needs to be plugged into an available NX SmartPortTM on the fixture network 2 Programming via App requires factory assistance 3 To program NXWE option, need to consult factory. If connected to an area controller, programming can be done from that PERFORMANCE DATA TABLE Performance data provided below is for 3500K, 80 CRI with Specular Clear reflector finish/color Lumen Package 06L Nominal Lumens 600 10L 1000 15L 1500 20L 2000 25L 2500 30L 3000 Distribution Very Narrow Narrow Medium Wide Extra Wide Very Narrow Narrow Medium Wide Extra Wide Very Narrow Narrow Medium Wide Extra Wide Very Narrow Narrow Medium Wide Extra Wide Very Narrow Narrow Medium Wide Extra Wide Very Narrow Narrow Medium Wide Extra Wide Delivered Lumens 806 717 746 691 665 1288 1146 1192 1104 1063 1851 1623 1712 1586 1527 2355 2263 2265 2180 2139 3093 2751 2860 2650 2551 3686 3278 3409 3158 3040 Watts 7.8 7.8 7.8 7.8 7.8 12.0 12.0 12.0 12.0 12.0 18.7 18.7 18.7 18.7 18.7 22.6 22.7 22.6 22.7 22.7 27.7 27.7 27.7 27.7 27.7 34.3 34.3 34.3 34.3 34.3 LPW 103 92 96 89 85 107 96 99 92 89 99 87 92 85 82 104 100 100 96 94 112 99 103 96 92 107 96 99 92 89 Page 3/9 Rev. 06/09/21 LTR-6RD © 2021 Prescolite, a division of Hubbell Lighting, Inc. Specifications subject to change without notice. 701 Millennium Blvd · Greenville, SC 29607 / Tel 864.678.1000 / Website www.prescolite.com LTR-6RD LITEISTRY 6" ROUND DOWNLIGHT DATE: TYPE: CATALOG #: LOCATION: PROJECT: PERFORMANCE DATA TABLE CONTINUED Performance data provided below is for 3500K, 80 CRI with Specular Clear reflector finish/color Lumen Package 35L Nominal Lumens 3500 40L 4000 45L 4500 50L 5000 55L 5500 60L 6000 70L 7000 80L 8000 90L 9000 Distribution Very Narrow Narrow Medium Wide Extra Wide Very Narrow Narrow Medium Wide Extra Wide Very Narrow Narrow Medium Wide Extra Wide Very Narrow Narrow Medium Wide Extra Wide Very Narrow Narrow Medium Wide Extra Wide Very Narrow Narrow Medium Wide Extra Wide Very Narrow Narrow Medium Wide Extra Wide Very Narrow Narrow Medium Wide Extra Wide Very Narrow Narrow Medium Wide Extra Wide Delivered Lumens 4477 3942 4140 3836 3693 5117 4552 4733 4385 4221 5371 4775 4967 4602 4430 5740 5105 5308 4918 4734 6365 5662 5887 5454 5250 7090 6299 6557 6075 5848 8266 7353 7645 7083 6819 9301 8273 8602 7970 7672 10549 9383 9756 9039 8701 Watts 43.0 43.0 43.0 43.0 43.0 51.6 51.6 51.6 51.6 51.6 55.1 55.1 55.1 55.1 55.1 48.7 48.7 48.7 48.7 48.7 53.9 53.9 53.9 53.9 53.9 60.7 60.7 60.7 60.7 60.7 72.1 72.1 72.1 72.1 72.1 84.3 84.3 84.3 84.3 84.3 98.1 98.1 98.1 98.1 98.1 Page 4/9 Rev. 06/09/21 LTR-6RD © 2021 Prescolite, a division of Hubbell Lighting, Inc. Specifications subject to change without notice. 701 Millennium Blvd · Greenville, SC 29607 / Tel 864.678.1000 / Website www.prescolite.com LPW 104 93 96 89 86 99 88 92 85 82 98 87 90 84 80 118 105 109 101 97 119 105 109 101 97 117 104 108 100 96 115 102 106 98 95 111 98 102 95 91 108 96 99 92 89 LTR-6RD LITEISTRY 6" ROUND DOWNLIGHT DIMENSIONS 5.63" 143.1mm 14.09" 357.8mm 11.68" 296.5mm CL DATE: TYPE: CATALOG #: LOCATION: PROJECT: Lumen Package 06L-15L 20L-30L 35L-40L 50L-60L "A" 5.90" (149.9mm) 6.68" (169.7mm) 7.86" (199.6mm) 9.04" (229.6mm) Dimensional Data Aperture 5.75" (146.1mm) Flange: Standard Flush Mount 7.00" (177.8mm) 6.54" (166.0mm) Ceiling Cutout: Standard Flush Mount 6.50" (165.1mm) 6.75" (171.5mm) Ceiling Thickness: Standard or w/SCA 5-20° slope With SCA 25-35° slope 0.50" to 2.00" (12.7mm to 50.8mm) 0.50" to 1.75" (12.7mm to 44.6mm) SCA Sloped Ceiling Adapter accessory available, see LTR-SCA specification sheet and installation instructions for dimensional data and other details. 14.36" 364.6mm A 15.56" (395.3mm) 11.68" (296.5mm) Top View .52" 13.3mm LTR-6RD-H (06L - 60L) New Construction Marked spacing required: 36" fixture center to center; 36" center to building member; 0.50" above fixture 9.72" (247mm) 14.36" (364.6mm) 11.49" (291.9mm) Dimensional Data Aperture 5.75" (146.1mm) Flange: Standard Flush Mount 7.00" (177.8mm) 6.54" (166.0mm) Ceiling Cutout: Standard Flush Mount 6.50" (165.1mm) 6.75" (171.5mm) Ceiling Thickness: Standard or w/SCA 5-20° slope With SCA 25-35° slope 0.50" to 2.00" (12.7mm to 50.8mm) 0.50" to 1.75" (12.7mm to 44.6mm) SCA Sloped Ceiling Adapter accessory available, see LTR-SCA specification sheet and installation instructions for dimensional data and other details. 5.58" (141.6mm) 14.09" (357.8mm) Top View .52" (13.3mm) 6.00" 152.4mm 7.00" 177.8mm LTR-6RD-H (70L - 90L) New Construction Page 5/9 Rev. 06/09/21 LTR-6RD © 2021 Prescolite, a division of Hubbell Lighting, Inc. Specifications subject to change without notice. 701 Millennium Blvd · Greenville, SC 29607 / Tel 864.678.1000 / Website www.prescolite.com LTR-6RD LITEISTRY 6" ROUND D14O.3W4N" LIGHT (364.3mm) DIMENSIONS CONTINUED 14.34" (364.3mm) (29117..772m" mC)L DATE: TYPE: CATALOG #: LOCATION: PROJECT: 5.72" (145.2mm) 14.39" 7.68" (365.5mm) (195mm) 5.72" (145.2mm) IES FILE (29117..772m" mC)L PHOTOMETRY LTR-6RD-IC 14.39" 7.68" (365.5mm) (195mm) Dimensional Data Flange: Ceiling Cutout: Aperture Standard Flush Mount Standard Flush Mount 5.75" (146.1mm) 7.00" (177.8mm) 6.54" (166.0mm) 6.50" (165.1mm) 6.75" (171.5mm) Ceiling Thickness: Standard or w/SCA 5-20° slope With SCA 25-35° slope 0.50" to 2.00" (12.7mm to 50.8mm) 0.50" to 1.75" (12.7mm to 44.6mm) SCA Sloped Ceiling Adapter accessory available, see LTR-SCA specification sheet and installation instructions for dimensional data and other details. LTR-6RD-H-ML20L-DM1 / LTR-6RD-T-ML35K8VNR-S LUMINAIRE DATA POLAR GRAPH Test No. 19.00588 Description 2000 lm, Very Narrow, 3500K, 80 CRI Delivered Lumens 2355 Watts 22.6W Efficacy 104.0 4000 Mounting Recessed Spacing Criterion 0.3 Beam Angle (FWHM) 18 ZONAL LUMEN SUMMARY 8000 Zone 0-40 0-60 0-90 0-180 Lumens 2290 2355 2355 2355 % Luminaire 97.2 100.0 100.0 100.0 12000 0° 15° 90° 75° 60° 45° 30° CANDELA DISTRIBUTION Degree 0 5 15 25 35 45 55 65 75 85 90 Candela 11881 9399 2776 1236 255 74 0 0 0 0 0 LUMINANCE DATA* Vertical Angle Average 45° 6247 55° 0 65° 0 75° 0 85° 0 *Candela/Square Meter LTR-6RD-H-ML20L-DM1 / LTR-6RD-T-ML35K8NR-S LUMINAIRE DATA POLAR GRAPH Test No. Description Delivered Lumens Watts Efficacy Mounting Spacing Criterion Beam Angle (FWHM) 20.01439 2000 lm, Narrow, 3500K, 80 CRI 2263 22.1W 103.0 Recessed 0.5 29 ZONAL LUMEN SUMMARY Zone 0-40 0-60 0-90 0-180 Lumens 2185 2260 2263 2263 % Luminaire 96.6 99.9 100.0 100.0 2100 4200 6300 0° 15° 90° 75° 60° 45° 30° CANDELA DISTRIBUTION Degree 0 5 15 25 35 45 55 65 75 85 90 Candela 6222 5603 3035 1354 348 83 5 2 1 0 0 LUMINANCE DATA* Vertical Angle Average 45° 6712 55° 498 65° 271 75° 221 85° 0 *Candela/Square Meter Page 6/9 Rev. 06/09/21 LTR-6RD © 2021 Prescolite, a division of Hubbell Lighting, Inc. Specifications subject to change without notice. 701 Millennium Blvd · Greenville, SC 29607 / Tel 864.678.1000 / Website www.prescolite.com IES FILE LTR-6RD LITEISTRY 6" ROUND DOWNLIGHT DATE: TYPE: CATALOG #: LOCATION: PROJECT: PHOTOMETRY CONTINUED LTR-6RD-H-ML20L-DM1 / LTR-6RD-T-ML35K8MD-S LUMINAIRE DATA POLAR GRAPH Test No. Description Delivered Lumens Watts Efficacy Mounting Spacing Criterion Beam Angle (FWHM) 19.00587 2000 lm, Medium, 3500K, 80 CRI 2265 22.6W 100.0 Recessed 0.6 37 ZONAL LUMEN SUMMARY Zone 0-40 0-60 0-90 0-180 Lumens 2171 2262 2265 2265 % Luminaire 95.9 99.9 100.0 100.0 1650 3300 4950 0° 15° LTR-6RD-H-ML20L-DM1 / LTR-6RD-T-ML35K8WD-S LUMINAIRE DATA POLAR GRAPH Test No. 19.00585 Description 2000 lm, Wide, 3500K, 80 CRI Delivered Lumens 2180 Watts 22.6W Efficacy 96.1 Mounting Recessed 800 Spacing Criterion 0.9 Beam Angle (FWHM) 59 ZONAL LUMEN SUMMARY Zone 0-40 0-60 0-90 0-180 Lumens 2014 2176 2180 2180 % Luminaire 92.4 99.8 100.0 100.0 1600 2400 0° 15° LTR-6RD-H-ML20L-DM1 / LTR-6RD-T-ML35K8XW-S LUMINAIRE DATA POLAR GRAPH CANDELA DISTRIBUTION Degree Candela 90° 0 4851 5 4619 75° 15 3007 25 1450 35 386 60° 45 99 55 6 65 2 45° 75 1 85 0 90 0 30° LUMINANCE DATA* Vertical Angle Average 45° 8357 55° 624 65° 282 75° 231 85° 0 *Candela/Square Meter 90° 75° 60° 45° 30° CANDELA DISTRIBUTION Degree 0 5 15 25 35 45 55 65 75 85 90 Candela 2368 2371 2189 1591 726 177 10 3 1 0 0 LUMINANCE DATA* Vertical Angle 45° 55° 65° 75° 85° Average 14942 1041 424 231 0 *Candela/Square Meter CANDELA DISTRIBUTION LUMINANCE DATA* Test No. Description Delivered Lumens Watts Efficacy Mounting Spacing Criterion Beam Angle (FWHM) 19.00586 2000 lm, Extra Wide, 3500K, 80 CRI 2139 22.7W 94.4 Recessed 1.1 76 ZONAL LUMEN SUMMARY Zone 0-40 0-60 0-90 0-180 Lumens 1875 2134 2139 2139 % Luminaire 87.7 99.8 100.0 100.0 LUMEN MULTIPLIER 550 1100 1650 0° 15° 90° 75° 60° 45° 30° Degree 0 5 15 25 35 45 55 65 75 85 90 Candela 1547 1552 1576 1461 1007 301 9 3 1 0 0 Vertical Angle Average 45° 25409 55° 937 65° 424 75° 231 85° 0 *Candela/Square Meter Option 27K8 30K8 35K8 40K8 50K8 27K9 30K9 35K9 40K9 Multiplier 0.94 0.98 1.00 1.01 1.02 0.81 0.84 0.85 0.85 Photometrics are published below at a nominal 3500 Kelvin, 80+ CRI. This table may be used to approximate the lumen values at different Kelvin temperatures. Power consumption would stay the same. IES FILE IES FILE Page 7/9 Rev. 06/09/21 LTR-6RD © 2021 Prescolite, a division of Hubbell Lighting, Inc. Specifications subject to change without notice. 701 Millennium Blvd · Greenville, SC 29607 / Tel 864.678.1000 / Website www.prescolite.com LTR-6RD LITEISTRY 6" ROUND DOWNLIGHT DATE: TYPE: CATALOG #: LOCATION: PROJECT: TM-30 DATA COLOR VECTOR GRAPHIC 3500K, C9O0CLOCLRORDRIISDTIOSTROTRIOTNIOINCOICNON COLOR DISTORTION GRAPHIC 3500K,CO9CL0OLRCODRISIDTIOSTROTRIOTNIOGNRGARPAHPICHIC RefReerfeenrceencIlel uImll uinmainntan t Reference Illuminant Test Source COLOR VECTOR GRAPHIC 3500K, 80COCLORRI DISTORTION ICON COLOR DISTORTION GRAPHIC 3500KC,O8L0ORCDRISITORTION GRAPHIC TEST RESULTS - 3500K Value 80+ CRI 90+ CRI Rf 84 88 Rg 95 95 CCT (K) 3411 3419 DUV 0.0015 0.0042 x 0.4120 0.4147 y 0.3974 0.4052 CIE Ra 84 93 CIE R9 11 62 Reference IllumReinfearnetnce IlluminTaenstt Source Page 8/9 Rev. 06/09/21 LTR-6RD © 2021 Prescolite, a division of Hubbell Lighting, Inc. Specifications subject to change without notice. 701 Millennium Blvd · Greenville, SC 29607 / Tel 864.678.1000 / Website www.prescolite.com LTR-6RD LITEISTRY 6" ROUND DOWNLIGHT ELECTRICAL DATA DRIVER DATA Input Voltage Input Frequency Power Factor THD EMI Filtering (FCC 47 CFR Part 15) 120-277 V 50/60 Hz 0.90 <20% Class A * Values for DM1 option shown, values for other dimming options may vary. Lumen Output 06L 10L 15L 20L 25L 30L 35L 40L 45L 50L 55L 60L 70L 80L 90L WATTAGE DATA Nominal Lumens 600 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000 7000 8000 9000 * Wattage may vary based on configuration and options selected ADDITIONAL INFORMATION DATE: TYPE: CATALOG #: LOCATION: PROJECT: 347 V 50/60 Hz 0.90 <20% Class A WATTAGE 8 12 19 23 28 35 43 52 55 49 54 61 72 85 99 ENERGY STAR MODELS Dimming Driver DM1 /DM01 DM1 EDM 2DM DIMMING COMPATIBILITY CHART Manufacturer Lutron DVTV Leviton AWRMG-7xx, AWSMG-7xx, AWSMT-7xx Lutron Lutron Web Link http://bit.ly/11jSvZg http://bit.ly/1BJn2R9 http://bit.ly/1vtjHAl http://bit.ly/1S4WjXK DMX See instruction sheet on www.prescolite.com for connection & installation information. Central Inverters For full fixture output in back-up mode, we recommend you visit www.dual-lite.com for your Central Lighting Inverter options. Please contact your local Hubbell representative for any assistance with proper sizing and loading of your inverter selection. Central lighting inverters must be ordered separately. LiteGear: www.dual-lite.com/products/litegear_lg_series LPS Series: www.dual-lite.com/products/lps ENERGY STAR® For a list of certified models, click on the ENERGY STAR® MODELS link or visit www.energystar.gov. All product and company names, logos and product identifiers are trademarks TM or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any affiliation with or endorsement by such respective owners. Page 9/9 Rev. 06/09/21 LTR-6RD © 2021 Prescolite, a division of Hubbell Lighting, Inc. Specifications subject to change without notice. 701 Millennium Blvd · Greenville, SC 29607 / Tel 864.678.1000 / Website www.prescolite.comAdobe PDF Library 15.0 Adobe InDesign 16.1 (Macintosh)
