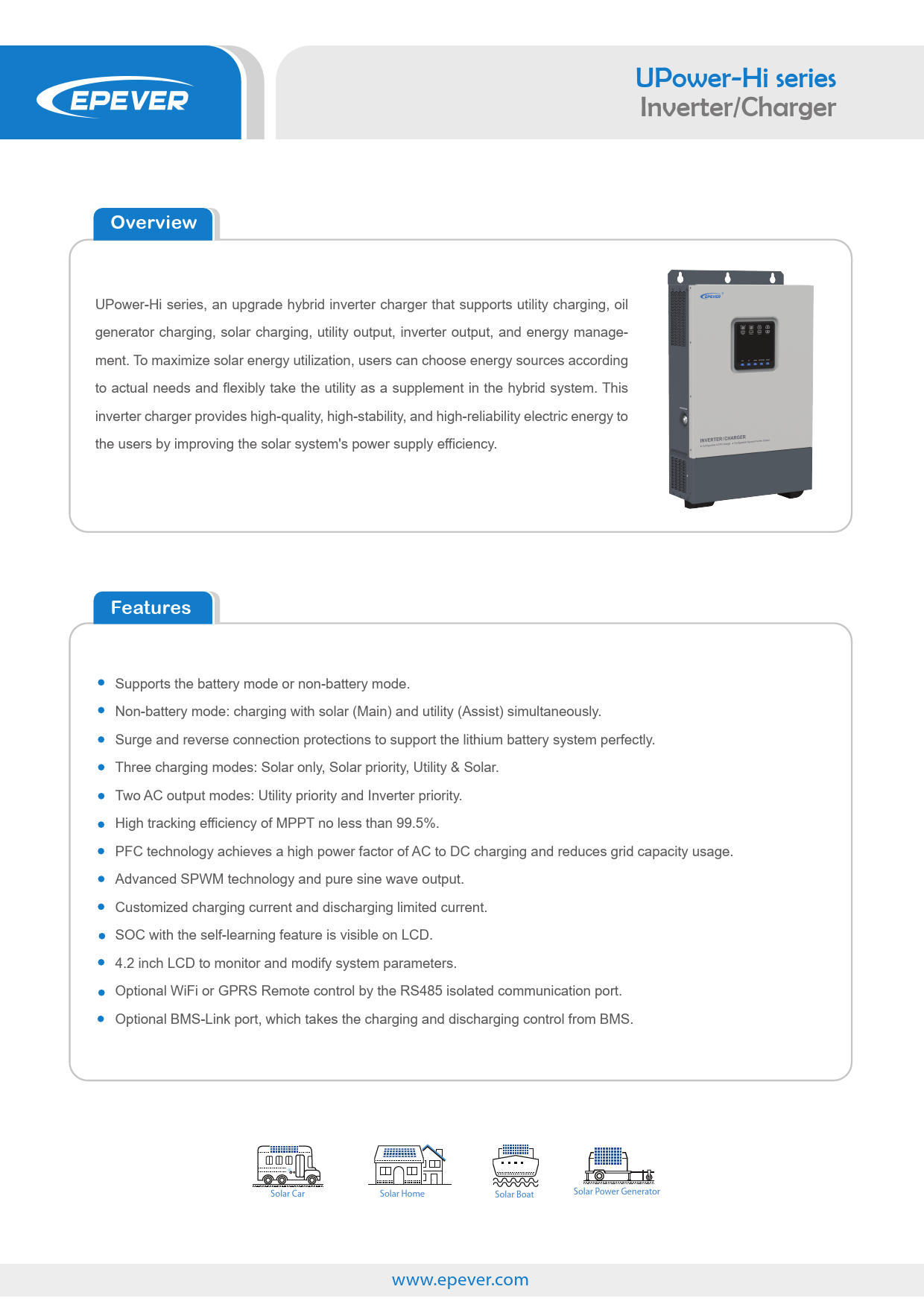

UPower-Hi series Inverter/Charger
Overview
UPower-Hi series, an upgrade hybrid inverter charger that supports utility charging, oil generator charging, solar charging, utility output, inverter output, and energy management. To maximize solar energy utilization, users can choose energy sources according to actual needs and flexibly take the utility as a supplement in the hybrid system. This inverter charger provides high-quality, high-stability, and high-reliability electric energy to the users by improving the solar system's power supply efficiency.
Features
Supports the battery mode or non-battery mode. Non-battery mode: charging with solar (Main) and utility (Assist) simultaneously. Surge and reverse connection protections to support the lithium battery system perfectly. Three charging modes: Solar only, Solar priority, Utility & Solar. Two AC output modes: Utility priority and Inverter priority. High tracking efficiency of MPPT no less than 99.5%. PFC technology achieves a high power factor of AC to DC charging and reduces grid capacity usage. Advanced SPWM technology and pure sine wave output. Customized charging current and discharging limited current. SOC with the self-learning feature is visible on LCD. 4.2 inch LCD to monitor and modify system parameters. Optional WiFi or GPRS Remote control by the RS485 isolated communication port. Optional BMS-Link port, which takes the charging and discharging control from BMS.

Solar Car

Solar Home

Solar Boat

Solar Power Generator

www.epever.com

Technical Specifications

TP20KB-220/220-1

Item Nominal battery voltage Battery input voltage range Max. battery charging current Inverter output Continuous output power Max. surge power Output voltage range Output frequency range Output wave Load power factor Distortion THD 80% rated output efficiency Max. Rated output efficiency Max. output efficiency
Switch time
Utility charging
Utility input voltage range
Utility input frequency range Max. utility charge current Solar charging
Max. PV open circuit voltage
MPPT voltage range

UP3000-HM10022 24VDC
21.632VDC 100A

UP3000-HM5042 50A

UP5000-HM8042 48VDC 43.2~64VDC
80A

3000W@30 6000W
92% 91% 93%

3000W@30 6000W
220VAC(-6%+3%)230VAC(-10%+3%) 50/60Hz�0.2%

5000W@30 8000W

Pure Sine Wave

0.2-1VA  continuous output power

THD3%Resistive load

92%

92%

90%

91%

93%

93%

10ms(Switch from the utility output to the inverter output) 15ms(Switch from the inverter output to the utility output)

176VAC~264VAC (Default)

90VAC~280VAC (Programmable)

40~65Hz

80A

40A

60A

450V(At minimum operating environment temperature) 395V(25)

80~350V

80~350V

500V(At minimum operating environment temperature) 440V(25)
120~400V

Max. PV input power

4000W

Max. PV charging power Max. PV charging current Equalize charging voltage Boost charging voltage Float charging voltage Low voltage disconnect voltage Tracking efficiency Temperature compensate coefficient General Surge current
Zero load consumption
Standby current
Enclos ure Relative humidity
Working environment tem perature
Storage environment Mechanical Parameters Dimension(H x W x D) Net Weight

2875W 100A 29.2V(AGM default) 28.8V(AGM default) 27.6V(AGM default)
21.6V(AGM default)

2875W 50A

4000W 80A
58.4V(AGM default) 57.6V(AGM default) 55.2V(AGM default)
43.2V(AGM default)

99.5%

-3mV//2V (Default)

60A <1.6A(without PV and utility connection, turn on the load output) <1.0A(without PV and utility connection, turn off the load output)

56A

95A

<1.2A(without PV and utility connection, turn on the load output)

<0.7A(without PV and utility connection, turn off the load output)
IP30 < 95%(N.C.)

-20 ~+50  -25~+60

642.5x381.6x149m m 19kg

607.5x381.6x149m m 15kg

642.5x381.6x149m m 19kg

Let the sun provide you with energy
