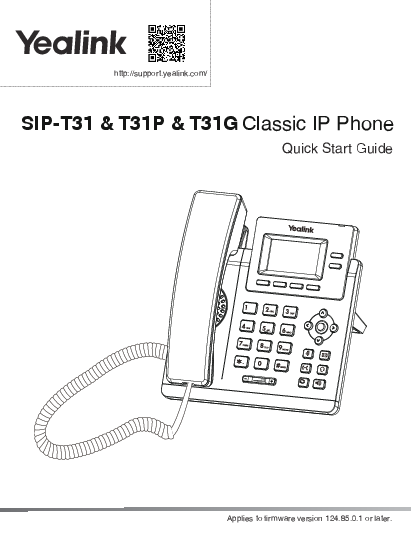

http://support.yealink.com/ SIP-T31 & T31P & T31G Classic IP Phone Quick Start Guide Applies to firmware version 124.85.0.1 or later. Package Contents The following items are included in your package. If you find anything missing, contact your system administrator. Handset Cord Ethernet Cable Stand IP Phone Handset Quick Start Guide Power Adapter (T31P/T31G: Optional) We recommend that you use the accessories provided or approved by Yealink. The unapproved third-party accessories may result in reduced performance. Assembling the Phone 1. Attach the stand: q q You can also mount the phone to a wall. 1 2. Connect the handset and optional headset: 3. Connect the network and power: You have two options for network and power connections. Your system administrator will advise you which one to use. PC Connection PC (Optional) Power Adapter (DC 5V) A AC Power Option B PoE ( Power over Ethernet ) Option PC Connection PC (Optional) IEEE 802.3af compliant PoE Hub/Switch The IP phone should be used with Yealink original power adapter (5V/600mA) only. The use of the third-party power adapter may cause the damage to the phone. If you are connecting a PC to your phone, we recommend that you use the Ethernet cable provided by Yealink. If inline power (PoE) is provided, you don't need to connect the power adapter. Make sure the hub/switch is PoEcompliant. PoE is only applicable to the SIP-T31P/T31G IP phone. Startup After the IP phone is connected to the network and supplied with power, it automatically begins the initialization process. After startup, the phone is ready for use. You can configure the phone via phone user interface or web user interface. Welcome Initializing... Please wait 2 Configuring Your Phone Configuring via web user interface Accessing the web user interface: 1. Press (the OK key) when the phone is idle to obtain the IP address of the phone. 2. Open a web browser on your computer, enter the IP address into the address bar (e.g., "http://192.168.0.10" or "192.168.0.10") and then press the Enter. 3. Enter the user name (default: admin) and password (default: admin) in the login page and click Login. Network Settings: Click on Network->Basic->IPv4 Config You can configure the network settings in the following ways: DHCP: By default, the phone attempts to contact a DHCP server in your network to obtain its valid network settings, e.g., IP address, subnet mask, gateway address and DNS address. Static IP Address: If your phone cannot contact a DHCP server for any reason, you need to configure the IP address, subnet mask, gateway address, primary DNS address and secondary DNS address for the phone manually. The IP phone also supports IPv6, but IPv6 is disabled by default. Wrong network settings may result in the inaccessibility of your phone and may have an impact on the network performance. Contact your system administrator for more information. Account Settings: Click on Account->Register ->Account X (X=1, 2) Parameters of the account: Register Status: Line Active: Label: Display Name: User Name: Register Name: Password: Server Host: It shows the register status of the current account. You can select Enabled/Disabled to enable/disable the account. It is shown on the LCD screen to identify the account. It is shown as caller ID when placing a call. It is provided by ITSP for registration (required). It is an authenticated ID for authentication provided by ITSP (required). It is provided by ITSP for registration (required). It is provided by ITSP for registration (required). Register status icons on the LCD screen: Registered Registering Register Failed Check with your system administrator if any error appears during the registration process or a specific configuration is required for your registration. Configuring via phone user interface Network Settings: Press the Menu soft key when the phone is idle, select Settings->Advanced Settings (default password: admin)->Network->WAN Port->IPv4 to configure the network. Account Settings: Press the Menu soft key when the phone is idle, select Settings->Advanced Settings (default password: admin)->Accounts to configure the account. For more information on account parameters, refer to Configuring via web user interface above. 3 Placing a Call Call Hold Using the handset: 1. Pick up the handset. 2. Enter the number and press the Send soft key. Using the speakerphone: 1. With the handset on-hook, press . 2. Enter the number and press the Send soft key. Using the headset: 1. With the headset connected, press to activate the headset mode. 2. Enter the number and press the Send soft key. To place a call on hold: Press the Hold soft key during an active call. To resume the call, do one of the following: � If there is only one call on hold, press the Resume soft key. � If there is more than one call on hold, select the desired call, and press the Resume soft key. Call Transfer You can transfer a call in the following ways: Answering a Call Using the handset: Pick up the handset. Using the speakerphone: Press . Using the headset: Press . You can reject an incoming call by pressing the Reject soft key. Ending a Call Using the handset: Hang up the handset or press the EndCall soft key. Blind Transfer 1. Press or the Trans soft key during a call. 2. Enter the number you want to transfer to. 3. Press or the B Trans soft key. Semi-Attended Transfer 1. Press or the Trans soft key during a call. 2. Enter the number you want to transfer to, and press the Send soft key. 3. Press or the Trans soft key when you hear the ring-back tone. Attended Transfer 1. Press or the Trans soft key during a call. 2. Enter the number you want to transfer to, and press the Send soft key. 3. Press or the Trans soft key when the second party answers. Using the speakerphone: Press or the EndCall soft key. Call Forward Using the headset: Press the EndCall soft key. Redial � Press to enter the Placed Calls list, select the desired entry, and press or the Send soft key. � Press twice when the phone is idle to dial out the last dialed number. To enable call forward: 1. Press the Menu soft key when the phone is idle, and then select Features->Call Forward. 2. Select the desired forward type. 3. Enter the number you want to forward to. For No Answer Forward, select the desired ring time to wait before forwarding from the After Ring Time field. 4. Press the Save soft key to accept the change. Call Mute � Press � Press to mute the microphone during a call. again to un-mute the call. 4 Call Conference 1. Press the Conf soft key during an active call. The call is placed on hold. 2. Enter the number of the second party, and press the Send soft key. 3. Press the Conf soft key again when the second party answers. All parties are now joined in the conference. 4. Press the EndCall soft key to disconnect all parties. If you press the Option soft key, you can also do the following: � Select Detail to view detailed information about the entry. � Select Add to Contacts to add the entry to the local directory. � Select Add to Blacklist to add the entry to the blacklist. � Select Delete All to delete all entries from the list. You can split the conference call into two individual calls by pressing the Split soft key. Speed Dial To configure a speed dial key: 1. Press the Menu soft key when the phone is idle, and then select Features->Dsskey. 2. Select the desired DSS key, and press the Enter soft key. 3. Select SpeedDial from the Type field, select the desired line from the Account ID field, enter a label in the Label field, enter the number in the Value field. 4. Press the Save soft key to accept the change. To use the speed dial key: Press the speed dial key to dial out the preset number. Voice Message Message waiting indicator on the idle screen indicates that one or more voice messages are waiting at the message center. The power indicator LED slowly flashes red. To listen to voice messages: 1. Press or the Connect soft key. 2. Follow the voice prompts to listen to your voice messages. Contact Directory To add a contact: 1. Press the Dir soft key when the phone is idle, and then select All Contacts. 2. Press the Add soft key to add a contact. 3. Enter a unique contact name in the Name field and contact numbers in the corresponding fields. 4. Press the Save soft key to accept the change. To edit a contact: 1. Press the Dir soft key when the phone is idle, and then select All Contacts. 2. Press or to select the desired contact, press the Option soft key and then select Detail from the prompt list. 3. Edit the contact information. 4. Press the Save soft key to accept the change. To delete a contact: 1. Press the Dir soft key when the phone is idle, and then select All Contacts. 2. Press or to select the desired contact, press the Option soft key and then select Delete from the prompt list. 3. Press the OK soft key when the LCD screen prompts "Delete selected item?". Volume Adjustment Call History 1. Press the History soft key when the phone is idle, press or to scroll through the list. 2. Select an entry from the list, you can do the following: � Press the Send soft key to call the entry. � Press the Delete soft key to delete the entry from the list. Press to adjust the volume. 5 Regulatory Notices Operating Ambient Temperatures � Operating temperature: +14 to 122�F (-10 to 50�C) � Relative humidity: 5% to 90%, noncondensing � Storage temperature: -22 to +160�F (-30 to +70�C) Warranty Our product warranty is limited only to the unit itself, when used normally in accordance with the operating instructions and the system environment. We are not liable for damage or loss resulting from the use of this product, or for any claim from a third party. We are not liable for problems with Yealink device arising from the use of this product; we are not liable for financial damages, lost profits, claims from third parties, etc., arising from the use of this product. Explanation of the symbols � DC symbol is the DC voltage symbol. � WEEE Warning symbol To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Restriction of Hazardous Substances Directive (RoHS) This device complies with the requirements of the EU RoHS Directive. Statements of compliance can be obtained by contacting support@yealink.com. Safety Instructions Save these instructions. Read these safety instructions before use! General Requirements � Before you install and use the device, read the safety instructions carefully and observe the situation during operation. � During the process of storage, transportation, and operation, please always keep the device dry and clean, avoid collision and crash. � Please attempt not to dismantle the device by yourself. In case of any discrepancy, please contact the appointed maintenance center for repair. � Please refer to the relevant laws and statutes while using the device. Legal rights of others should be respected as well. Environmental Requirements � Place the device at a well-ventilated place. Do not expose the device under direct sunlight. � Keep the device dry and free of dusts. � Do not place the device on or near any inflammable or fire-vulnerable object, such as rubber-made materials. � Keep the device away from any heat source or bare fire, such as a candle or an electric heater. Operating Requirements � Do not let a child operate the device without guidance. � Do not let a child play with the device or any accessory in case of accidental swallowing. � Please use the accessories provided or authorized by the manufacturer only. � The power supply of the device shall meet the requirements of the input voltage of the device. Please use the provided surge protection power socket only. � Before plugging or unplugging any cable, make sure that your hands are completely dry. � Do not spill liquid of any kind on the product or use the equipment near water, for example, near a bathtub, washbowl, kitchen sink, wet basement or near a swimming pool. � During a thunderstorm, stop using the device and disconnect it from the power supply. Unplug the power plug and the Asymmetric Digital Subscriber Line (ADSL) twisted pair (the radio frequency cable) to avoid lightning strike. � If the device is left unused for a rather long time, disconnect it from the power supply and unplug the power plug. � When there is smoke emitted from the device, or some abnormal noise or smell, disconnect the device from the power supply, and unplug the power plug immediately. � Contact the specified maintenance center for repair. � Do not insert any object into equipment slots that is not part of the product or auxiliary product. � Before connecting a cable, connect the grounding cable of the device first. Do not disconnect the grounding cable until you disconnect all other cables. Cleaning Requirements � Before cleaning the device, disconnect it from the power supply. � Use a piece of soft, dry and anti-static cloth to clean the device. � Keep the power plug clean and dry. Troubleshooting The unit cannot supply power to Yealink device. There is a bad connection with the plug. 1. Clean the plug with a dry cloth. 2. Connect it to another wall outlet. The usage environment is out of operating temperature range. 1. Use in the operating temperature range. The cable between the unit and the Yealink device is connected incorrectly. 1. Connect the cable correctly. You cannot connect the cable properly. 1. You may have connected a wrong Yealink device. 2. Use the correct power supply. Some dust, etc., may be in the port. 1. Clean the port. Contact your dealer or authorized service facility for any further questions. FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC Statement 1.This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause interference; and (2) this device must accept any interference, including interference that may cause undesired operation of the device. CAN ICES-3(B) Le pr�sent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autoris�e aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage; (2) l'utilisateur de l'appareil doit accepter tout brouillage radio�lectrique subi, m�me si le brouillage est susceptible d'en compromettre le fonctionnement.NMB3(B) 2.This device meets CS03 Part V. `'This device meets the applicable Innovation, Science and Economic Development Canada technical specifications. / Ce produit r�pond � la innovation, des sciences et de .D�veloppement �conomique Canada sp�cifications techniques applicables." Contact Information YEALINK NETWORK TECHNOLOGY CO.,LTD. 309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R.C YEALINK (EUROPE) NETWORK TECHNOLOGY B.V. Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, The Netherlands YEALINK (USA) NETWORK TECHNOLOGY CO., LTD. 999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA Made in China About Yealink Yealink is a global leading provider of enterprise communication and collaboration solutions, offering video conferencing service to worldwide enterprises. Focusing on research and development, Yealink also insists on innovation and creation. With the outstanding technical patents of cloud computing , audio, video and image processing technology, Yealink has built up a panoramic collaboration solution of audio and video conferencing by merging its cloud services with a series of endpoints products. As one of the best providers in more than 140 countries and regions including the US, the UK and Australia, Yealink ranks No.1 in the global market share of SIP phones shipments. Technical Support Visit Yealink WIKI (http://support.yealink.com/) for the latest firmware, guides, FAQ, Product documents, and more. For better service, we sincerely recommend you to use Yealink Ticketing system (https://ticket.yelink.com) to submit all your technical issues. 430104001362 YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. Web: www.yealink.com Copyright�2020 YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD.All rights reserved.
