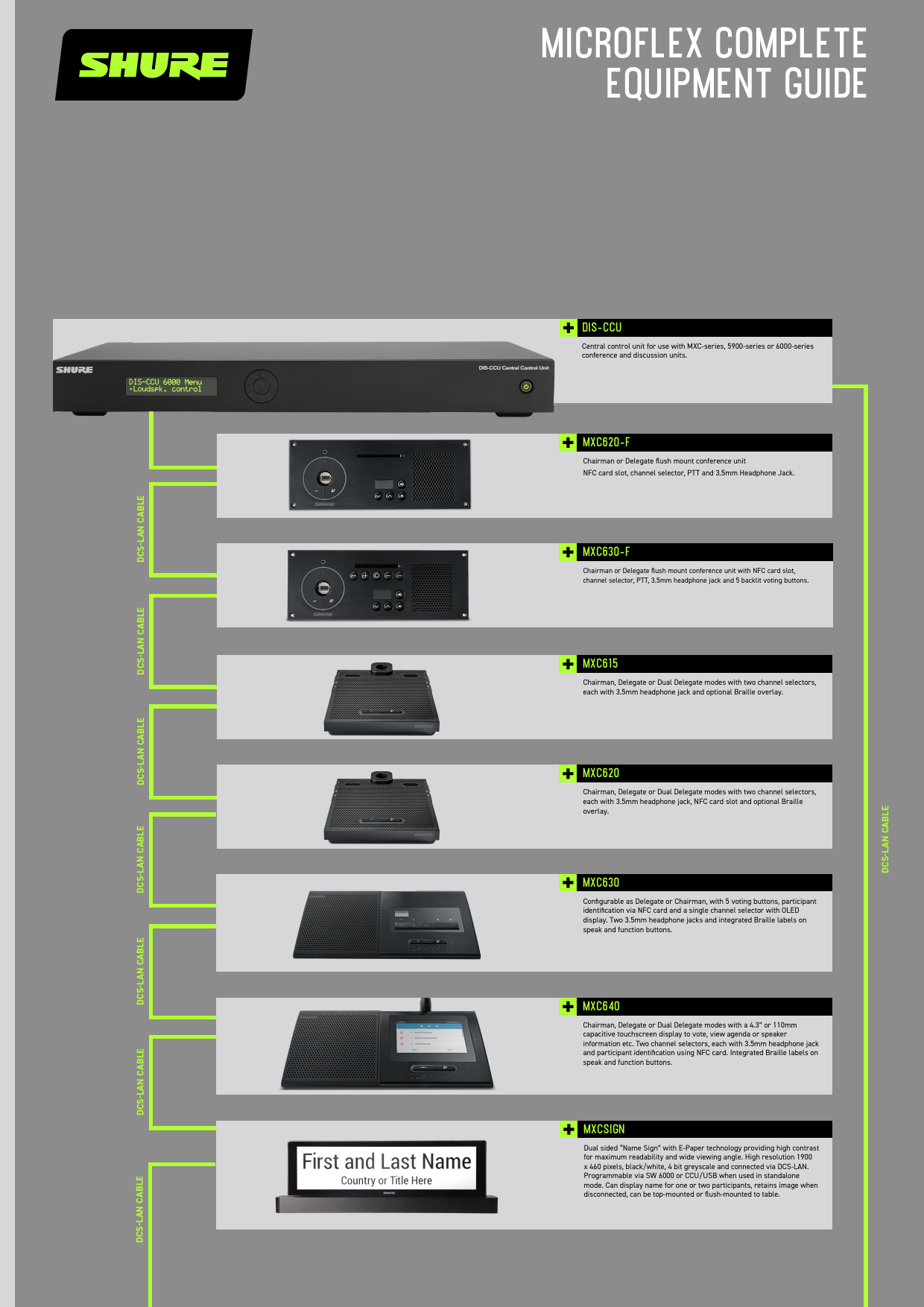

MICROFLEX COMPLETE EQUIPMENT GUIDE
DIS-CCU
Central control unit for use with MXC-series, 5900-series or 6000-series conference and discussion units.
MXC620-F
Chairman or Delegate flush mount conference unit NFC card slot, channel selector, PTT and 3.5mm Headphone Jack.
MXC630-F
Chairman or Delegate flush mount conference unit with NFC card slot, channel selector, PTT, 3.5mm headphone jack and 5 backlit voting buttons.
MXC615
Chairman, Delegate or Dual Delegate modes with two channel selectors, each with 3.5mm headphone jack and optional Braille overlay.
MXC620
Chairman, Delegate or Dual Delegate modes with two channel selectors, each with 3.5mm headphone jack, NFC card slot and optional Braille overlay.
MXC630
Configurable as Delegate or Chairman, with 5 voting buttons, participant identification via NFC card and a single channel selector with OLED display. Two 3.5mm headphone jacks and integrated Braille labels on speak and function buttons.
MXC640
Chairman, Delegate or Dual Delegate modes with a 4.3" or 110mm capacitive touchscreen display to vote, view agenda or speaker information etc. Two channel selectors, each with 3.5mm headphone jack and participant identification using NFC card. Integrated Braille labels on speak and function buttons.
MXCSIGN
Dual sided "Name Sign" with E-Paper technology providing high contrast for maximum readability and wide viewing angle. High resolution 1900 x 460 pixels, black/white, 4 bit greyscale and connected via DCS-LAN. Programmable via SW 6000 or CCU/USB when used in standalone mode. Can display name for one or two participants, retains image when disconnected, can be top-mounted or flush-mounted to table.

DCS-LAN CABLE

3.5 MM TRRS HEADSET JACK

MXCIC
Portable Interpretation Console, which meets ISO 20109. Large color display showing relay and outgoing language channels along with speak/ request list. Eight relay buttons and three outgoing languages with two 3.5mm TRRS headset jacks which are compatible with IH6500 headset. One 3.5mm TRS headphone jack along with a integrated loudspeaker and NFC card reader. Integral Braille labels and audible cues for visually impaired users.

IH6500
Interpreter Headset

HDMI

MXCMIU-FL
Chairman or delegate includes speaker.

MXCMIU
Modular Interface Unit, accommodates 1 or 2 faceplate units.

HDMI

MXCMIU-FS
Chairman or delegate no speaker.

MXC-ACC-RIB
Redundancy Interface Box which allows redundant loop cabling and diagnostics for enhanced system reliability.

DCS-LAN CABLE

MXC416/C
16" Cardioid Microphone (interchangeable head) 40 cm
MXC420/C
20" Cardioid Microphone (interchangeable head) 50 cm
MXC416DF/C
16" Dual Flex Microphone (interchangeable head) 40 cm
MXC420DF/C
20" Dual Flex Microphone (interchangeable head) 50 cm
MXC406/MS
6" Shotgun Microphone for MXC 15 cm

MXCDUALCARD-10PK
Chip + NFC card for DIS, MXC & MXCW use. Configurable with a 3rd-party NFC card writer & Shure NFC Programmer Application.
MXCNFCCARD-10PK
NFC card for MXC & MXCW use. Configurable with a 3rd-party NFC card writer & Shure NFC Programmer Application.

REPLACEMENT BUTTONS
MXC615/620-ACC-CM 3 Chairman buttons, All Delegates Off, Mute All, Next On
MXC630/640-ACC-CM 3 Chairman buttons, All Delegates Off, Mute All, Next On
MXC615/620-ACC-A/B A & B buttons for dual delegate function, 10 each
MXC630/640-ACC-A/B A & B buttons for dual delegate function, 10 each

MXC615/620-ACC-RPY 10 Reply buttons
MXC630/640-ACC-RPY 10 Reply buttons
MXC615/620-ACC-M 10 Mute buttons
MXC630/640-ACC-M 10 Mute buttons
