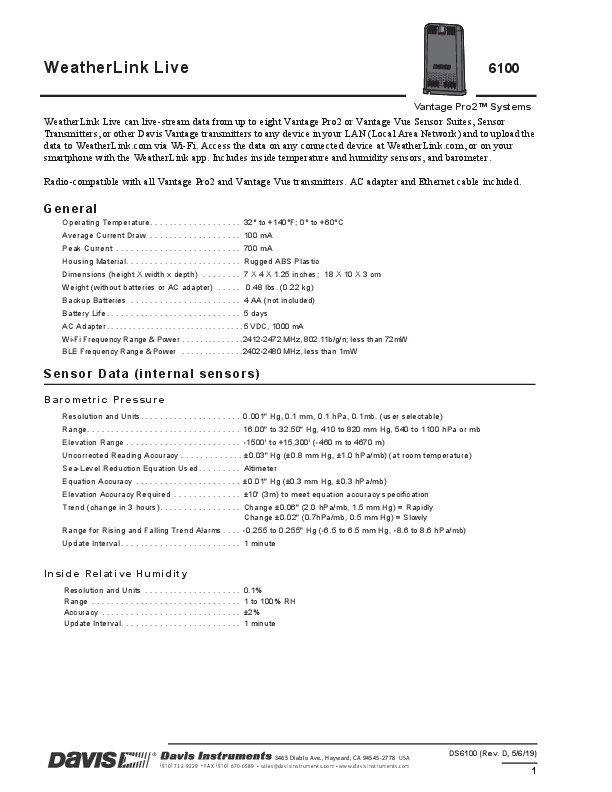

WeatherLink Live

6100

Vantage Pro2TM Systems WeatherLink Live can live-stream data from up to eight Vantage Pro2 or Vantage Vue Sensor Suites, Sensor Transmitters, or other Davis Vantage transmitters to any device in your LAN (Local Area Network) and to upload the data to WeatherLink.com via Wi-Fi. Access the data on any connected device at WeatherLink.com, or on your smartphone with the WeatherLink app. Includes inside temperature and humidity sensors, and barometer.
Radio-compatible with all Vantage Pro2 and Vantage Vue transmitters. AC adapter and Ethernet cable included.
General
Operating Temperature. . . . . . . . . . . . . . . . . . . 32° to +140°F; 0° to +60°C Average Current Draw . . . . . . . . . . . . . . . . . . . 100 mA Peak Current . . . . . . . . . . . . . . . . . . . . . . . . . . 700 mA Housing Material. . . . . . . . . . . . . . . . . . . . . . . . Rugged ABS Plastic Dimensions (height X width x depth) . . . . . . . . 7 X 4 X 1.25 inches; 18 X 10 X 3 cm Weight (without batteries or AC adapter) . . . . . 0.48 lbs. (0.22 kg) Backup Batteries . . . . . . . . . . . . . . . . . . . . . . . 4 AA (not included) Battery Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 days AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 VDC, 1000 mA Wi-Fi Frequency Range & Power . . . . . . . . . . . . . .2412-2472 MHz, 802.11b/g/n; less than 72mW BLE Frequency Range & Power . . . . . . . . . . . . . .2402-2480 MHz, less than 1mW
Sensor Data (internal sensors)
Barometric Pressure
Resolution and Units. . . . . . . . . . . . . . . . . . . . . 0.001" Hg, 0.1 mm, 0.1 hPa, 0.1mb. (user selectable) Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16.00" to 32.50" Hg, 410 to 820 mm Hg, 540 to 1100 hPa or mb Elevation Range . . . . . . . . . . . . . . . . . . . . . . . . -1500' to +15,300' (-460 m to 4670 m) Uncorrected Reading Accuracy . . . . . . . . . . . . . ±0.03" Hg (±0.8 mm Hg, ±1.0 hPa/mb) (at room temperature) Sea-Level Reduction Equation Used. . . . . . . . . Altimeter Equation Accuracy . . . . . . . . . . . . . . . . . . . . . . ±0.01" Hg (±0.3 mm Hg, ±0.3 hPa/mb) Elevation Accuracy Required . . . . . . . . . . . . . . ±10' (3m) to meet equation accuracy specification Trend (change in 3 hours). . . . . . . . . . . . . . . . . Change ±0.06" (2.0 hPa/mb, 1.5 mm Hg) = Rapidly
Change ±0.02" (0.7hPa/mb, 0.5 mm Hg) = Slowly Range for Rising and Falling Trend Alarms . . . . -0.255 to 0.255" Hg (-6.5 to 6.5 mm Hg, -8.6 to 8.6 hPa/mb) Update Interval . . . . . . . . . . . . . . . . . . . . . . . . . 1 minute
Inside Relative Humidity
Resolution and Units . . . . . . . . . . . . . . . . . . . . 0.1% Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 to 100% RH Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±2% Update Interval. . . . . . . . . . . . . . . . . . . . . . . . . 1 minute

®

3465 Diablo Ave., Hayward, CCA 94545-2778 USA

(510) 732-9229 t FAX (510) 670-0589 t sales@davisinstruments.com t www.davisinstruments.com

DS6100 (Rev. D, 5/6/19)
1

Inside Temperature
Resolution and Units. . . . . . . . . . . . . . . . . . . . . Current Data: 0.1° Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +32° to +140°F (0° to +60°C) Sensor Accuracy. . . . . . . . . . . . . . . . . . . . . . . . ±0.5°F (±0.3°C) (typical)
Update Interval . . . . . . . . . . . . . . . . . . . . . . . . . 1 minute
Weather Station Wireless Communications
Receive Frequency US Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 902.0 - 928.0 MHz FHSS EU Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 868.0 - 868.6 MHz FHSS Australia/Brazil Models . . . . . . . . . . . . . . . . . . . . . . 918.0 - 926.0 MHz FHSS New Zealand Models . . . . . . . . . . . . . . . . . . . . . . . . 921.0 - 928.0 MHz FHSS Japan Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 928.15 - 929.65 MHz FHSS India Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 865.0 - 867.0 MHz FHSS
ID Codes Available . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Range
Line-of-Sight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . up to 1000 feet (300 m) Through Walls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 to 400 feet (60 to 120 m)

Package Dimensions

Product # 6100

Package Dimensions (Length x Width x Height)
13.0" x 6.6 " x 3.25" 33 x 16 x 8 cm

Package Weight
1 lb. 8 oz 689 g

2 Vantage Pro2TM Systems
UPC Code 011698013449
