Midea - Make yourself at Home - World's Number 1 Appliance ProducerUser Manual for Midea models including: ComfortSense Room Air, Window Type, MAW, MAW05M1BWT, MAW05R1BWT, MAW06R1BWT, MAW08R1BWT, MAW10R1BWT, MAW12R1BWT, MAW15R1BWT
CHANGES FOR 2019 INSTALL GUIDE: NOTE: Construction methods are al
Window Type version A - 09 - 2018 www.midea.com USER MANUAL en Warning notices: Before using this product, please read this manual carefully and keep it
equipment with reference to the installation manual. WARNING This symbol shows that this appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, WARNING there is a risk of fire. CAUTION CAUTION CAUTION This symbol shows that information is available such as the operating manual or ...

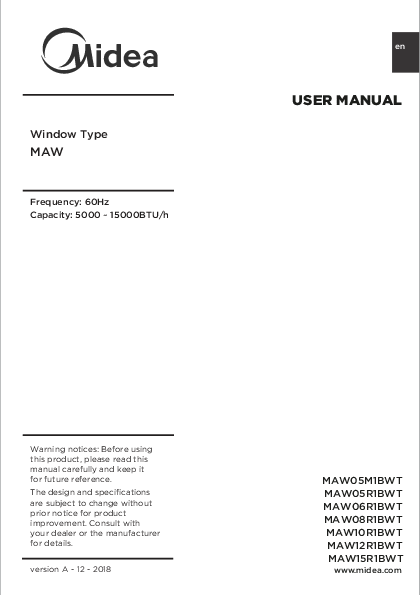

Window Type MAW Frequency: 60Hz Capacity: 5000 ~ 15000BTU/h en USER MANUAL Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or the manufacturer for details. version A - 1029--22001818 MAW05M1BWT MAW05R1BWT MAW06R1BWT MAW08R1BWT MAW10R1BWT MAW12R1BWT MAW15R1BWT www.midea.com Owner's Manual Safety Precautions ........................................................................................ 3 Operating Instructions ................................................................................. 8 Installation Instructions .............................................................................. 19 Care and Cleaning ...................................................................................... 20 Troubleshooting Tips .................................................................................. 24 Remote Control Instructions .................................................................... 27 Warranty and Return Policy ...................................................................... 34 Read This Manual Inside you'll find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the troubleshooting tips - you should be able to fix most of them quickly before calling service. These instructions may not cover every possible condition of use, so common sense and attention to safety is required when installing, operating and maintaining this product. CAUTION · Contact the authorized service technician for repair or maintenance of this unit. · Contact the installer for installation of this unit. · The air conditioner is not intended for use by young children or infirm persons without supervision. · Young children should be supervised to ensure that they do not play with the air conditioner. · If the power cord needs to be replaced, please contact our consumer service and look for an authorized technician. · Electrical installation must be performed in accordance to national regulation standards by qualified personnel only. Page 2 Safety Precautions Safety Precautions To prevent injury to the user or other people and property damage, the instructions shown here must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The level of risk is shown by the following indications. WARNING CAUTION WARNING This symbol indicates the possibility of death or serious injury. This symbol indicates the possibility of injury or damage to property. This symbol shows that this appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire. CAUTION CAUTION CAUTION This symbol shows that the operation manual should be read carefully. This symbol shows that a service personnel should be handling this equipment with reference to the installation manual. This symbol shows that information is available such as the operating manual or installation manual. WARNING · Plug in power cord plug properly. Otherwise, it may cause electric shock or fire due to excess heat generation. · Do not modify power cord length or share the outlet with other appliances as it may cause electric shock or fire due to overheating. · Always ensure effective grounding. Incorrect grounding may cause electric shock. · Unplug the unit if you notice unusual sounds or smells, or smoke comes from it. A damaged product may cause fire and electric shock. · Keep firearms away from the unit. · Ventilate room before operating the air conditioner if there is a gas leakage from another appliance. · Do not operate or stop the unit by inserting or pulling out the power cord plug. · Do not operate with wet hands or in very humid enviroments. It may cause electric shock. · Do not allow water to come into contact with any electric parts. It may cause failure or electric shock. · Do not use the socket if it is loose or damaged. It may cause fire and electric shock. · Do not place the power cord close to heating appliances. It may cause fire and electric shock · Do not disassemble or modify unit. It may cause failure and electric shock. Page 3 Safety Precautions WARNING · Do not damage or use an alternate power cord. It may cause fire and electric shock. If the power cord is damaged, it must be replaced by the manufacturer or an authorized service center or a similarly qualified person in order to avoid a hazard. · Do not direct airflow straight into persons to avoid possible health hazard. · Always install a circuit breaker and a dedicated power circuit. Incorrect installation may cause fire and electric shock. · Do not open the unit during operation. It may cause electric shock. · Do not use the power cord near flammable gas or combustibles, such as gasoline, benzene, thinner, etc. It may cause an explosion or fire. CAUTION · When the air filter is to be removed, do not touch the metal parts of the unit. It may cause injury. · When the unit needs cleaning, switch off, and turn off the circuit breaker. Do not clean unit when power is on as it may cause fire, electric shock or injury. · Stop operation and close the window during a in storm or hurricane. Operation with windows open may cause water leakage into the room. · Do not place obstacles around air inlets or inside of air outlet. It may cause failure or accident. · Do not use detergents that contain wax or thinners as it may damage the product. Clean with a soft cloth only. · Use caution when unpacking and installing. Sharp edges could cause injury. · Do not clean the air conditioner with water. Water may enter the unit and degrade the insulation which could lead to electric shock. · Do not put a pet or house plant where it will be exposed to direct air flow. This could injure the pet or harm the plant. · Hold the plug by the head of the power plug when taking it out. Otherwise, it may cause electric shock and damage. · Ensure that the installation is properly secured to prevent the product from potentially falling. · Do not place heavy objects on the power cord and ensure that the cord is not compressed. Otherwise, there is danger of fire or electric shock. · If water enters the unit, turn off the unit and switch off the circuit breaker. Isolate supply by taking the power-plug out and contact a qualified service technician. · When used near a stove or other gas burning device, be sure the room is properly ventilated. Otherwise an oxygen shortage may occur. Page 4 Safety Precautions CAUTION · Do not use for any purpose other than room comfort. Do not use this air conditioner to preserve precision devices, food, pets, plants, and art objects. It may cause deterioration. · Turn off the main power switch if the unit is not to be used for an extended time. · Always insert the filters securely. Clean filter once every two weeks. Operation without filters may cause failure. · Do not drink water drained from the air conditioner. WARNINGS (for using R32 refrigerant only) · Do not use any means to accelerate the defrosting process or to clean the unit, other than those recommended by the manufacturer. · Do not use or store the appliance in spaces with potential ignition sources (for example: open flames, an operating gas appliance or an operating electric heater). · Do not pierce or burn refrigerant tubing. Be aware that refrigerants may not contain an odor. · Keep ventilation openings clear of obstruction. · Store the appliance in a way that will prevent mechanical damage from occurring. · Store the appliance in a well-ventilated area where the room size corresponds to the room area as specified for operation. · Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification. · Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. · Flammable refrigerant (R32) is used within the air conditioner. When maintaining or disposing of the air conditioner, the refrigerant (R32) shall be recovered properly, do not discharge to air directly. Caution: Risk of fire/ flammable materials (Required for R32/R290 units only) IMPORTANT NOTE:Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. Page 5 Safety Precautions NOTE The power supply cord with this air conditioner contains a current detection device designed to reduce the risk of fire. Please refer to the section Operation of Current Device for details. In the event that the power supply cord is damaged, it can not be repaired. It must be replaced with a cord from the manufacturer. WARNING - For your safety · Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. · Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prongs from the power cord. Grounding type wall receptacle Do not, under any circumstances, cut, remove or bypass the grounding prong. WARNING - Electrical Information The complete electrical rating of your new room air conditioner is stated on the serial plate. Refer to the rating when checking the electrical requirements. · Be sure the air conditioner is properly grounded. To minimize shock and fire hazards, proper grounding is important. The power cord is equipped with a three-prong grounding plug for protection against shock hazards. · Your air conditioner must be connected to a properly grounded wall receptacle. If the wall receptacle you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper receptacle. · Ensure the receptacle is accessible after the unit installation. · Do not run air conditioner without outside protective cover in place. This could result in mechanical damage within the air conditioner. Power supply cord with 3-prong grounding plug and current detection device. Page 6 Safety Precautions WARNING - Prevent Accidents To reduce the risk of fire, electrical shock, or injury to persons when using your air conditioner, follow basic precautions, including the following: · Be sure the electrical service is adequate for the model you have chosen. This information can be found on the serial plate, which is located on the side of the cabinet and behind the grille. · If the air conditioner is to be installed in a window, you will probably want to clean both sides of the glass first. If the window is a triple-track type with a screen panel included, remove the screen completely before installation. · Be sure the air conditioner has been securely and correctly installed according to the installation instructions in this manual. Save this manual for possible future use in removing or installing this unit. · When handling the air conditioner, be careful to avoid cuts from sharp metal fins on front and rear coils. Operation of Current Device Plug in & press RESET RESET TEST The power supply cord contains a current device that senses damage to the power cord. Test your power supply cord as follows: 1. Plug in the air conditioner. 2. The power supply cord will have TWO buttons on the plug head. Press the TEST button. You will notice a click as the RESET button pops out. 3. Press the RESET Button. You will notice a click as the button engages. 4. The power supply cord is now supplying electricity to the unit. (On some products this is also indicated by a light on the plug head.) NOTES · Do not use this device to turn the unit on or off. · Always make sure the RESET button is pushed in for correct operation. · The power supply must be replaced if it fails to reset when either the TEST button is pushed, or it can not be reset. Please contact Customer Service. · If power supply cord is damaged, it can not be repaired. It MUST be replaced with a new cord. Please contact Customer Service. Page 7 Operating Instructions Normal Sounds MAW05M1 Sound of Rushing Air In front of the unit, you may hear the sound of rushing air being moved by the fan. High Pitched Chatter +LJKHI´FLHQF\FRPSUHVVRUV PD\KDYHDKLJKSLWFKHG VRXQGGXULQJFRROLQJF\FOH Trickling Sound 'URSOHWVRIZDWHU KLWWLQJFRQGHQVHU during normal RSHUDWLRQPD\FDXVH DWULFNOLQJVRXQG Operating Instructions Gurgle/Hiss Gurgling or hissing noises may be heard due to refrigerant µRZLQJWKURXJK evaporator during normal operation. MAW05R1 Sound of Rushing Air In front of the unit, you may hear the sound of rushing air being moved by the fan. High Pitched Chatter +LJKHI´FLHQF\FRPSUHVVRUV PD\KDYHDKLJKSLWFKHG VRXQGGXULQJFRROLQJF\FOH Vibration Unit may vibrate and PDNHQRLVHEHFDXVH RISRRUZDOORUZLQGRZ FRQVWUXFWLRQRU LQFRUUHFWLQVWDOODWLRQ Trickling Sound 'URSOHWVRIZDWHU KLWWLQJFRQGHQVHU during normal RSHUDWLRQPD\FDXVH DWULFNOLQJVRXQG Gurgle/Hiss Gurgling or hissing noises may be heard due to refrigerant µRZLQJWKURXJK evaporator during normal operation. Vibration Unit may vibrate and PDNHQRLVHEHFDXVH RISRRUZDOORUZLQGRZ FRQVWUXFWLRQRU LQFRUUHFWLQVWDOODWLRQ NOTE All the pictures in this manual are for illustrative purposes only. The actual appearance of the air conditioner you purchased may vary slightly, but its operation and functions will be similar. Page 8 Operating Instructions Normal Sounds MAW15R1 High Pitched Chatter Sound of Rushing Air In front of the unit, you may hear the sound of rushing air being moved by the fan. Pinging or Switching during normal Operating Instructions Gurgle/Hiss Gurgling or hissing noises may be heard due to refrigerant evaporator during normal operation. MAW06R1 / MAW08R1 / MAW10R1 / MAW12R1 High Pitched Chatter Modern compressors may have a high pitched sound during cooling cycle. Sound of Rushing Air In front of the unit, you may hear the sound of rushing air being moved by the fan. Vibration Unit may vibrate and Vibration Unit may vibrate and make noise because of poor wall or window construction or incorrect installation. Gurgle/Hiss Gurgling or hissing noise may be heard due to UHIULJHUDQWµRZLQJ through evaporator during normal operation. NOTE Pinging or Switching Droplets of water hitting condenser during normal operation may cause pinging or swishing. All the pictures in this manual are for illustrative purposes only. The actual appearance of the air conditioner you purchased may vary slightly, but its operation and functions will be similar. Page 9 Operating Instructions Air Conditioner Operation WARNING To reduce the risk of fire, electrical shock, personal injury or property, read the SAFETY PRECAUTIONS before operating this appliance. NOTE The cooling mode has an automatic 3 minutes time delayed start if the unit is turned off and on quickly. This prevents overheating of the compressor and possible tripping. TO BEGIN OPERATING THE AIR CONDITIONER, FOLLOW THESE STEPS: 1. Set the lowest number (coldest setting). 2. Set the selector control to the highest COOL setting. 3. Adjust the louver for comfortable air flow (see Air Directional Louvers). 4. Once the room feels colder, adjust the setting you find most comfortable. 5. Make sure that the air flow inside and outside are not obstructed by anything. 6. This air conditioner is designed to be operated under the following conditions: Cooling Operation Heating Operation Outdoor temp.: 64-109°F/18-43°C (64-125°F/18-52°C for special tropical models) Indoor temp.: 62-90°F/17-32°C Outdoor temp.: 23-76°F/-5-24°C Indoor temp.: 32-80°F/0-27°C NOTES · The relative humidity of room should be less than 80%. If the unit is used in a condition with a relative humidity over 80%, there will be condensed water on the surface of the unit. · Performance may be reduced outside of these operating temperatures. Before you begin, thoroughly familiarize yourself with the control panel as shown below and all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit control panel alone or with the remote controller. Page 10 Operating Instructions Air Conditioner Features - MAW05M1 NOTE The controls featured in this manual are representative of many available models. Your model's features and appearance may vary slightly. THERMOSTAT The thermostat is used to set the desired room temperature when the unit is being operated in the COOL MODE. To set the desired room temperature, rotate the thermostat switch to the desired setting. After the set temperature is achieved the thermostat will automatically start and stop the compressor in order to maintain the desired set temperature. Rotate the thermostat selector clockwise for higher cool settings. Higher cool settings will provide lower room temperature. Rotate the thermostat selector counter clockwise for lower cool settings. Lower cool settings will provide higher room temperature. COOL MODE The desired cool setting is selected by rotating the knob to the right to the appropriate location. High Cool has maximum cooling effect and airflow. Low Cool has minimum cooling effect and airflow. FAN MODE Rotate the knob to the left to select your choice of fan speeds for air circulation. NOTE When selecting a fan speed, the compressor will not run. UNIT CONTROL Page 11 Operating Instructions Air Conditioner Features - MAW05R1 ELECTRONIC CONTROL OPERATING INSTRUCTIONS Before you begin, thoroughly familiarize yourself with the control panel as shown below and all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit control alone or with the remote controller. ADJUSTS TEMPERATURE DISPLAYS TEMPERATURE TO TURN UNIT ON OR OFF: OR TIME OR ERROR CODES Press ON/OFF button to turn unit on or off. ADJUSTS TEMPERATURE OR TIME NOTE OR TIME ACTIVATES TIMER The unit will automatically initiate the Energy Saver function under Cool, Dry, Auto CHECK FILTER RESET BUTTON SLEEP MODE (only Auto-Cooling and AutoFan) modes. SETS MODE SETS FAN SPEED TO CHANGE TEMPERATURE SETTING: Press UP ( )/DOWN ( ) button to change temperature setting. ENERGY SAVER MODE UNIT CONTROL TURNS UNIT ON OR OFF NOTE Press or hold either UP ( )/ DOWN ( ) button until the desired temperature is seen on the display. This temperature will be automatically maintained anywhere between 62°F (17°C) and 86°F (30°C). If you want to display the actual room temperature, see To Operate on Fan Only section. TO ADJUST FAN SPEEDS: Press to select the Fan Speed in four steps-Auto, Low, Med or High. Each time the button is pressed, the fan speed mode is changed. On Dry mode, the fan operates on Low speed automatically. Page 12 Operating Instructions SLEEP FEATURE: TO SELECT THE OPERATING MODE: Press Sleep button to initiate the sleep mode. In this mode the selected temperature will increase by 2°F/1 (or 2)°C 30 minutes after the mode is selected. The temperature will then increase by another 2°F/1 (or 2)°C after an additional 30 minutes. This new temperature will be maintained for 6 hours before it returns to the originally selected temperature. This ends the Sleep mode and the unit will continue to operate as originally programmed. The Sleep mode program can be cancelled at any time during operation by pressing the Sleep button again. To choose operating mode, press Mode button. Each time you press the button the unit cycles through the modes, Auto, Cool, Dry, and Fan. The adjacent indicator light will remain on once the mode is selected. The unit will automatically initiate the Energy Saver function under Cool, Dry, Auto (only Auto-Cooling and Auto-Fan) modes. To operate on Auto feature: · When you set the air conditioner to AUTO mode, it will automatically select cooling or fan only operation depending on what temperature you have selected and the current room temperature. CHECK FILTER FEATURE: Press Check filter button to initiate this feature. This feature is a reminder to clean the Air Filter for more efficient operation. The light will illuminate after 250 hours of operation. To reset after cleaning the filter, press the Check Filter button and the light will go off. ENERGY SAVER FEATURE: Press Energy Saver button to initiate this function. This function is available on COOL, DRY, AUTO (only AUTO-COOLING and AUTO-FAN) modes. The fan will continue to run for 3 minutes after the compressor shuts off. The fan then cycles on for 2 minutes at 10 minute intervals until the room temperature is above the set temperature, at which time the compressor turns back on and Cooling resumes. · The air conditioner will control room temperature automatically according to the temperature you've set. · In this mode, the fan speed cannot be adjusted, as it's automatically controlled according to the temperature setting and room temperature. To operate on Fan Only: · Use this function only when cooling is not desired, such as for room air circulation or to exhaust stale air (on some models). (Remember to open the vent during this function, but keep it closed during cooling for maximum cooling efficiency.) You can choose any fan speed you prefer. · During this function, the display will show the actual room temperature, not the set temperature as in the cooling mode. · In Fan Only mode, the temperature is not adjusted. To operate on Dry mode: In this mode, the air conditioner will generally function as a dehumidifier. Since the conditioned space is a closed or sealed area, some degree of cooling will occur. Page 13 Operating Instructions TIMER: AUTO START/STOP FEATURE: Displays: · When the unit is on or off, first press the Timer button. The TIMER ON indicator light illuminates indicating the Auto Start program has initiated. Displays · When the time of TIMER ON is displayed, press the Timer button again. The TIMER OFF indicator light illuminates. It indicates the Auto Stop program has initiated. Shows the set temperature in "°C" or "°F" and the Auto-timer settings. While on Fan Only mode, it shows the room temperature. · Press or hold the UP ( ) or DOWN ( ) button to change the Auto time by 0.5 hour increments, up to 10 hours, then at 1 hour increments up to 24 hours. The control will count down the time remaining until start. Error codes: AS - Room temperature sensor error Unplug the unit and plug it back in. If error repeats, call for service. NOTE: In Fan Only mode, it will display "LO" or "HI." · The selected time will register in 5 seconds, and the system will ES - Evaporator temperature sensor error automatically revert back to display the - Unplug the unit and plug it back in. If previous temperature setting or room error repeats, call for service. temperature when the unit is on. (when the unit is off, there is no display.) NOTE · Turning the unit ON or OFF at any time or adjusting the timer setting to 0.0 will cancel the Auto Start/Stop timed program. · If setting ON 0.5 and OFF 1 at the same If the unit shuts off unexpectedly due to the power outage, it will restart with the previous function setting automatically when the power resumes. time, the unit will be activated in 0.5 hour, operates for 0.5 hour and then stops. Page 14 Operating Instructions Air Conditioner Features - MAW06R1 to MWA12R1 NOTES · The relative humidity of room should be less than 80%. If the unit is used in a condition with a relative humidity over 80%, there will be condensed water on the surface of the unit. · Performance may be reduced outside of these operating temperatures. ELECTRONIC CONTROL OPERATING INSTRUCTIONS Before you begin, thoroughly familiarize yourself with the control panel as shown below and all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit control alone or with the remote controller. Key Pad Features Auto Timer Mode Selector LED Display Remote Signal Receptor Fan Speed Check Filter Energy Saver Temp/Timer Power Temp/Timer Control Button Control Sleep Mode (ON/OFF) Button The unit will initiate automatically the Energy saver function under Cool, Dry, Auto (only Auto-Cooling and Auto-Fan) modes. NOTE If the unit turns off unexpectedly due to a power outage, it will restart with its previously set functions when the power resumes. Page 15 Auto Timer Mode Selector LED Display Remote Signal Receptor Fan Speed Check Filter Operating Instructions Energy Saver Temp/Timer Power Temp/Timer Control Button Control Sleep Mode (UP/DOWN) Button Press or hold either left (-) or right (+) button until the desired temperature is seen on the display. This temperature will be automatically maintained at the set temperature, between 62°F (17°C) and 86°F (30°C). If you want the display to read the actual room temperature, see "To Operate on Fan Only" section. (MODE) Button · To choose operating mode, press Mode button. Each time you press the button, a mode is selected in a sequence that goes from Auto, Cool, Dry and Fan. The indicator light beside will be illuminated and remains on once the mode is selected. · The unit will initiate automatically the Energy Saver function under Cool, Dry, Auto (only Auto-Cooling and Auto-Fan) modes. Operating on AUTO mode: · When you set the air conditioner in AUTO mode, it will automatically select cooling, heating (selected models only) or fan only operation depending on what temperature you have selected and the room temperature. · The air conditioner will control room temperature automatically to hit the temperature set point you choose. · In this mode, the fan speed cannot be adjusted, it starts automatically at a speed according to the room temperature. Operating on FAN mode: · Use this function only when cooling is not desired, such as for room air circulation or to exhaust stale air (on some models). (Remember to open the vent during this function, but keep it closed during cooling for maximum cooling efficiency.) You can choose any fan speed you prefer. · During this function, the display will show the actual room temperature, not the set temperature as in the cooling mode. · In Fan only mode, the temperature can not be adjusted. Operating on DRY mode: In this mode, the air conditioner will operate in the form of a dehumidifier. Since the conditioned space is a closed or sealed area, some degree of cooling will continue. (FAN SPEED) Button Used to select the Fan Speed in four steps - Auto, Low, Med or High. Each time the button is pressed, the fan speed mode is shifted. On Dry mode, the fan speed is controlled at low automatically. (ENERGY SAVER) Button This function is available on COOL, DRY, AUTO (only AUTO-COOL and AUTO-FAN) modes. The fan will continue to run for 3 minutes after the compressor shuts off. The fan then cycles on for 2 minutes at 10 minute intervals until the room temperature is above the set temperature, Page 16 Operating Instructions at which time the compressor turns back on and Cooling Starts. (SLEEP) Button In this mode the selected temperature will increase by 2°F/1°C 30 minutes after the mode is selected. The temperature will then increase by another 2°F/1°C after an additional 30 minutes. This new temperature will be maintained for 6 hours before it returns to the originally selected temperature. This ends the Sleep mode and the unit will continue to operate as originally programmed. The Sleep mode program can be cancelled at any time during operation by again pressing the Sleep button. revert back to display the previous temperature setting or room temperature when the unit is on. (when the unit is off, there is no display.) · Turning the unit ON or OFF at any time or adjusting the timer setting to 0.0 will cancel the Auto Start/Stop timed program. (CHECK FILTER) Button This feature is a reminder to clean the Air Filter for more efficient operation. The LED (light) will illuminate after 250 hours of operation. To reset after cleaning the filter, press the Check Filter button and the light will go off. (TIMER) Button · When the unit is on or off, first press Timer button, the TIMER ON indicator light illuminates. It indicates the Auto Start program is initiated. · When the time of TIMER ON is displayed, press the Timer button again, the TIMER OFF indicator light illuminates. It indicates the Auto Stop program is initiated. · Press or hold either left (-) or right (+) button to change the Auto time by 0.5 hour increments, up to 10 hours, then at 1 hour increments up to 24 hours. The control will count down the time remaining until start. · The selected time will register in 5 seconds, and the system will automatically LED Display LED Display: Shows the set temperature in "°C" or "°F" and the Autotimer settings. While on Fan only mode, it shows the room temperature. Error codes: AS - Room temperature sensor error - Unplug the unit and plug it back in. If error repeats, call for service. NOTE: In Fan only mode, it will display "LO" or "HI". - Evaporator temperature sensor error - Unplug the unit and plug it back in. If error repeats, call for service. NOTE: " " is displayed as shown in the left picture. HS - Electric heating sensor error - Unplug the unit and plug it back in. If error repeats, call for service. Page 17 Additional Information Now that you understand the operating procedure, here are more features in your control that you should become familiar with. · The Cool circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly. This prevents overheating of the compressor and possible circuit breaker tripping. The fan will continue to run during this time. · The control can display temperature in Fahrenheit or Celsius. To convert from one to the other, press and hold the UP ( )/DOWN ( ) Temp/Timer buttons at the same time, for 3 seconds. FRESH AIR VENT CONTROL (FOR 5000 BTU/H TO 15000 BTU/H) Operating Instructions Fig. A (VENT CLOSED) Fig. B (VENT OPEN) Fig. C (VENT & EXHAUST OPEN) The Fresh Air Vent allows the air conditioner to: 1. Recirculate inside air Vent Closed (See Fig. A) 2. Draw fresh air into the room - Vent Open (See Fig. B) 3. Exchange air from the room and draw fresh air into the room - Vent and Exhaust Open (See Fig. C). AIR DIRECTIONAL LOUVERS Levers Air Direction The louvers will allow you to direct the air flow up or down Down (on some models) and lefft or right throughout the room as needed. Pivot horizontal louvers until the desired up/down direction is obtained. Move the levers from side to side until the desired left/right direction is obtained. Page 18 Installation Instructions Installation Instructions WARNING - Before You Begin Read these instructions completely and carefully. · IMPORTANT - Save these instructions for local inspector's use. · IMPORTANT - Observe all governing codes and ordinances. · Note to Installer - Be sure to leave these instructions with the consumer. · Note to Consumer - Keep these instructions for future reference. · Skill level - Installation of this appliance requires basic mechanical skills. · Completion time - Approximately 1 hour. We recommend that two people install this product. Proper installation is the responsibility of the installer. Product failure due to improper installation is not covered under the Warranty. You MUST use all supplied parts and use proper installation procedures as described in these instructions when installing this air conditioner. Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Do not change the plug on the power cord of the air conditioner. Aluminum house wiring may present special problems - consult a qualified electrician. When handling unit, be careful to avoid cuts from sharp metal edges and aluminum fins on front and rear coils. Your air conditioner is designed to install in standard double hung windows with opening widths of 23 to 36 inches (584mm to 914mm) (See Fig. D). Fig. D OFFSET EXTERIOR WALL INNER WINDOW SILL INTERIOR WALL H Wooden Windows Table 1 Model 5000 6000~8000 10000~12000 15000 BTU/h BTU/h BTU/h BTU/h 13" 14" 15-1/2" 18-1/2" H (330mm) (356mm) (394mm) (394mm) Tools You Will Need Phillips Screwdriver Level Tools You May Use Flathead Screwdriver Pencil Ruler or tape measure Scissors or knife Page 19 Installation Instructions NOTE Save carton and these Installation Instructions for future reference. The carton is the best way to store unit during winter, or when not in use. 1. PREPARE THE WINDOW Lower sash must open sufficiently to allow a clear vertical opening (see dimension H in Table 1). Side louvers and the rear of the AC must have clear air space to allow enough airflow through the condenser for heat removal. The rear of the unit must be outdoors, not inside a building or garage. Mounting Hardware Lock Frame (For Wooden windows) (2) Lock Frame (For Vinyl-Clad windows) (2) Sash Lock (1) CAUTION When handling unit, be careful to avoid cuts from sharp metal edges and aluminum fins on front and rear coils. 3/4'' (or 1/2") Screws (7) Window sash seal foam (1) Top Rail Hardware 3/8" Screws (4) Top Rail (1) R1 Insulation Hardware (2) 2. PREPARE AIR CONDITIONER Before installing the unit, the top rail must be assembled on the unit for models with a capacity of less than 10,000Btu/h. Fig. E A: Remove the air conditioner from the carton and place on a flat surface. B: Remove top rail from the packaging material as shown in Fig. E. Packaging Page 20 Top Rail Installation Instructions C: Align the hole in the top rail with those in the top of the unit as shown in Fig. F. D: Secure the top rail to the unit with the 3/8" (9.5mm) screws as shown in Fig. G. Fig.B Fig.C NOTE For safety reasons, all four (4) screws MUST be securely fastened. Fig. F Fig. G 3. INSTALL THE ACCORDION PANELS NOTE Top rail and side panels at each side are offset to provide the proper pitch to the rear of 5/16" (8mm). This is necessary for proper condensed water management and drainage. If you are not using the side panels for any reason, this pitch to the rear must be maintained. 1. Place unit on floor, a bench or a table. There is a left and right side accordion panel; be sure to use the proper panel for each side. When installed, the flange for securing the panel in place to the window sill will be facing into the room. A. Hold the side panel in one hand and gently pull back the center to free the open end. See Fig. 1. B. Slide the free and "I" section of the panel directly into the cabinet as shown in Fig. 2. Slide the panel down. Be sure to leave enough space to slip the top and bottom of the frame into the rails on the cabinet. C. Once the panel has been installed on the side of the cabinet, make sure it sits securely inside the frame channel by making slight adjustments. Slide the top and bottom ends of the frame into the top and bottom rails of the cabinet. Fig. 3. Fig. 1 Fig. 2 ""II""sseecctiotinon Fig. 3 Top Rail Top left Top Rail Bottom Rail Top right Bottom Rail D. Slide the panel all the way in and repeat on the other side. Fig. 4 NOTE If storm window blocks AC, see Fig. 11. Page 21 Measure from the cabinet edge H H:About 5/8" to 3/4" for 5K) INSIDE H:About 3/4" to 1" for 6K to 8K) H:About 1" to 13/8" OUTSIDE for 10K to 12K) Wooden Windows Measure from the cabinet edge H INSIDE H:About 3/4" to 1" for 5K to 8K) H:About 1" to 13/8" OUTSIDE for 10K to 12K) Vinyl-Clad Windows Fig. 5 2. While keeping a firm grip on the air conditioner, carefully place the unit into the window opening so the bottom of the air conditioner frame is against the window sill (Fig. 5). Carefully close the window behind the top rail of the unit. NOTE Check that air conditioner is tilted back per dimension H (Fig. 5) (tilted about 3° to 4° downward to the outside). After proper installation, condensate should not drain from the overflow drain hole during normal use. Adjust the slope if otherwise. Fig. 6 3. Extend the side panels out against the window frame (Fig. 6). window frame Installation Instructions 4. INSTALL SUPPORT BRACKET Fig. 7A Fig. 8A Fig. 7B A. Place the frame lock between the frame extensions and the window sill as shown (Fig. 7A for Wooden windows), (Fig. 7B for Vinyl-Clad windows). Drive 3/4" (19 mm) or 1/2" (12.7 mm) locking screws through the frame lock and into the sill. NOTE: To prevent window sill from splitting, drill 1/8" (3 mm) pilot holes before driving screws. B1: For wooden windows: Drive 1/2" (12.7 mm) locking screws through the frame lock and into the sill (Fig. 8A). NOTE: To prevent window sill from splitting, drill 1/8" (3mm) pilot holes before driving screws. Drive 1/2" (12.7mm) locking screws through frame holes into window sash (Fig. 8B/8C). Page 22 Installation Instructions MAW05M Fig. 8B Fi 8 Fig. 9 MAW05R1 to MAW12R1 Fig. 8C B2: For Vinyl-Clad windows: Drive 1/2" (12.7 mm) locking screws through the frame lock and into the window sash (Fig. 8B). NOTE: Before driving the screws, use a drill to drill 5 holes through the holes in the frame lock and frame extensions into the windows sash as shown (Fig. 8B/8C). Fig. 10 FOAM SEAL C. To secure lower sash in place, attach right angle sash lock with 3/4" (19 mm) or 1/2" (12.7 mm) screw as shown (Fig. 9). D. Cut Window sash seal foam and insert it in the space between the upper and lower sashes (Fig. 10). If AC is Blocked by Storm Window Storm window frame or other obstruction. SASH 1-1/2"min (38 mm) Fig. 11 Board thickness as required, for proper pitch to rear, along entire sill. Fasten with nails or screws. Add wood as shown in Fig. 11, or remove storm window before air conditioner is installed. If storm window frame must remain, be sure the drain holes or slots are not caulked or painted shut. Accumulated rain water or condensation must be allowed to drain out. Removing AC From Window · Turn AC off, and disconnect power cord. · Remove sash seal from between windows, and unscrew safety lock. · Remove screws installed through frame and frame lock. · Close (slide) side panels into frame. · Keeping a firm grip on air conditioner, raise sash and carefully remove. · Be careful not to spill any standing water while lifting unit form window. Store parts WITH air conditioner. Page 23 Care and Cleaning CAUTION Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. Air Filter Cleaning The air filter should be checked at least once a month to see if cleaning is necessary. Trapped particles in the filter can build up and cause an accumulation of frost on the cooling coils. · Push the vent handle to the closed position (where applicable). Open the front panel. · Take the filter by the center and pull up and out. · Wash the filter using liquid dishwashing detergent and warm water. Rinse filter thoroughly. · Gently shake excess water from the filter. Be sure the filter is thoroughly dry before replacing. · You may also vacuum the filter clean rather than washing. MAW05M1 MAW05R1 MAW06R1 to MAW12R1 Care and Cleaning NOTE Never use hot water over 104°F (40°C) to clean the air filter. Never attempt to operate the unit without the air filter. Cabinet Cleaning · Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild liquid dishwashing detergent. Rinse thoroughly and wipe dry. · Never use harsh cleansers, wax or polish on the cabinet front. · Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the air conditioner. · Plug in air conditioner. Winter Storage If you plan to store the air conditioner during the winter, remove it carefully from the window according to the installation instructions. Cover it with plastic or return it to the original carton. Page 24 Troubleshooting Tips Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Problem Air conditioner does not start Air from unit does not feel cold enough Air conditioner cooling, but room is too warm- ice forming on cooling coil behind decorative front. Air conditioner cooling, but room is too warm- NO ice forming on cooling coil behind decorative front Air conditioner turns on and off rapidly Solution Wall plug disconnected. Push plug firmly into wall outlet. House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker. Plug current device tripped. Press the RESET button. Power is Off. Turn Power On and set to desired setting. Unit turned off and then on quickly. Turn unit off and wait 3 minutes before restarting. Room temperature below 62°F (17°C). Cooling may not occur until room temperature rises above 62°F (17°C). Temperature sensing element touching cold coil, located behind air filter. Straighten tube away from coil. Reset to a lower temperature. Compressor shut-off by changing modes. Wait approximately 3 minutes and listen for compressor to restart when set in the COOL mode. Outdoor temperature below 64°F (18°C). To defrost the coil, set to FAN ONLY mode. Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to FAN ONLY mode. Thermostat set too cold for night-time cooling. To defrost the coil, set to FAN ONLY mode. Then, set temperature to a higher setting. Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to FAN ONLY mode. Temperature is set too high, set temperature to a lower setting. Air directional louvers positioned improperly. Position louvers for better air distribution. Front of unit is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear obstruction in front of unit. Doors, windows, registers, etc. open - cold air escapes. Close doors, windows, registers. Unit recently turned on in hot room. Allow additional time to remove "stored heat" from walls, ceiling, floor and furniture. Dirty air filter- air restricted. Clean air filter. Outside temperature extremely hot. Set FAN speed to a higher setting to bring air past cooling coils more frequently. Troubleshooting Tips Page 25 Problem Solution Noise when unit is cooling Air movement sound. This is normal. If too loud, set to a slower FAN setting. Window vibration - poor installation. Refer to installation instructions or check with installer. Water dripping Improper installation. Tilt air conditioner slightly to the outside to INSIDE when allow water drainage. unit is cooling Refer to installation instructions - check with installer. Water dripping Unit removing large quantity of moisture from humid room. This is OUTSIDE when normal during excessively humid days. unit is cooling Remote sensing deactivating prematurely (some models) Remote control not located within range. Place remote control within 20 feet & 180°, radius of the front of the unit. Remote control signal obstructed. Remove obstruction. Room too cold Temperature setting too low. Increase temperature setting. If your product displays error code as follows, please call our toll free service number: 1-866-646-4332 for assistance. Troubleshooting Tips Page 26 Remote Control Instructions Handling the Remote Controller LOCATION OF THE REMOTE CONTROLLER Use the remote controller within a distance of 16.4 ft (5 meters) from the air conditioner, pointing it towards the receiver. Reception is confirmed by a beep. 16.4 ft (5 meters) CAUTION · The air conditioner will not operate if curtains, doors or other materials block the signals from the remote controller to the unit. · Prevent any liquid from spilling onto the remote controller. Do not expose the remote controller to direct sunlight or heat. · If the infrared signal receiver on the indoor unit is exposed to direct sunlight, the air conditioner may not function properly. Use curtains to prevent the sunlight from falling on the receiver. · If other electrical appliances react to the remote controller, either move these appliances or consult your local dealer. Operating Instructions (With Remote) Replacing the Battery Turn Remote Control upside down. Squeeze tab and pull to remove battery tray. Place battery in tray with POSITIVE (+) side facing up, according to picture. Re-insert battery tray. WARNING · Battery must be disposed of properly. Do not short circuit or dispose of in a fire. · Keep batteries out of the reach of children. · Do not ingest. · Non-rechargeable batteries are not to be recharged. · Exhausted batteries are to be removed from the product. Page 27 Remote Control Specifications Model Rated Voltage Lowest Voltage of CPU Emitting Signal Signal Receiving Range Environment RG15B1/E 3.0V (Lithium battery CR2025) 2.4 V 16.4 ft (5 m) -5 °C ~ 60 °C (23°F ~ 140°F) NOTES · Button design is based on typical model and may vary slightly from the actual one you purchased. · All the functions described are accomplished by the unit. If the unit is without a feature, the unit will not respond if the corresponding button on the remote is pressed. · When there are significant differences between features or operation implied by the remote control illustration and the actual functions described in the USER'S MANUAL, the descriptions in the USER'S MANUAL shall prevail. Operating Instructions (With Remote) Page 28 Function Buttons ON/OFF Button Operation starts when this button is pressed and stops when the button is pressed again. NOTE: If the unit has ENERGY SAVER function, it will initiate automatically the Energy Saver function under Cool, Dry, and Auto (only AutoCooling and Auto-Fan) modes. TEMP DOWN Button Press this button to decrease the indoor temperature setting. TIMER Button Press this button to activate the "Auto Start" or "Auto Stop" program. ONE TOUCH Button Push this button and the system will automatically shift to COOL operation with auto fan speed and a temperature setting of 26°C/80°F. Any timer setting program will be cancelled. MODE Button Press this button to select the desired operation mode. TEMP UP Button Press this button to increase the indoor temperature setting. SPEED Button Used to select the desired fan speed. ENERGY SAVER Button Press this button to activate the Energy saving mode. Press it again to stop the function (on some models). SLEEP Button Press this button to activate the Sleep mode. This function is available on COOL or AUTO mode only and will maintain the most comfortable temperature for you while saving energy. For more details, see "sleep operation" in "USER'S MANUAL." Page 29 Operating Instructions (With Remote) How to Use the Buttons AUTO OPERATION Ensure the unit is plugged in and power is available. 1 2 1. Press the ON/OFF button to start the air conditioner. 2. Press the MODE button to select Auto. 3 3 3. Press the TEMP UP (+)/DOWN (-) button to set the desired temperature. NOTES 1. In the Auto mode, the air conditioner can logically choose the mode (Cooling or Fan) and by sensing the difference between the actual ambient room temperature and the set temperature on the remote controller. 2. In Auto mode, you cannot adjust the fan speed. As it is controlled automatically. 3. If the Auto mode is not comfortable for you, the desired mode can be selected manually. COOLING / FAN OPERATION Ensure the unit is plugged in and power is available. 1 2 1. Press the ON/OFF button to start the air conditioner. 2. Press the MODE button to select Cool or Fan 3 3 mode. 3. Press the TEMP UP (+)/DOWN (-) button to set the desired temperature. 4 4. Press the SPEED button to select the fan speed. NOTES Temperature cannot be changed in Fan mode. Operating Instructions (With Remote) Page 30 DEHUMIDIFYING OPERATION Ensure the unit is plugged in and power is available. 1 2 1. Press the ON/OFF button to start the air conditioner. 2. Press the MODE button to select Dry. 3 3 3. Press the TEMP UP (+)/DOWN (-) button to set the desired temperature. NOTES In the Dehumidifying mode, you cannot adjust the fan speed, as it is controlled automatically. Operating Instructions (With Remote) TIMER OPERATION Press the TIMER button to initiate the Auto-start and Auto-stop setting program of the unit. To set the Auto-start/stop time. 2 2 1. Press the TIMER button, when the TIMER ON indicator is displayed on the LED window of the air conditioner, it indicates the Auto Start 1 setting program is initiated. When the TIMER OFF indicator is displayed on the LED window of the air conditioner, it indicates the Auto Stop setting program is initiated. 2. Press or hold the TEMP UP (+)/DOWN (-) to change the Auto time. The control will count down the time remaining until start/stop. 3. The selected time will register in 5 seconds and the air conditioner will automatically revert back to display the previous temperature setting. 4. Turning the unit ON or OFF at any time will cancel the Auto Start/stop function. NOTES To cancel the TIMER setting, push the TIMER button and press or hold the TEMP UP (+)/ DOWN (-) until 0 hour is displayed on the LCD window of the air conditioner. Page 31 Operating Instructions (With Remote) 2 1 Page 32 COMBINED TIMER (Setting both ON and OFF timers simultaneously) AUTO STOP >AUTO START (On > Stop > Start operation) 2 This feature is useful when you want to stop the air conditioner after you go to bed, and start it again in the morning when you wake up or when you return home. Example: To stop the air conditioner 2 hours after setting and start it again 10 hours after setting. 1. Press the TIMER button until the TIMER OFF indicator is displayed on the LED display of the air conditioner. 2. Use the TEMP UP (+)/DOWN (-) button to display "2.0" on the LED display of the air conditioner. 3. Press the TIMER button again to display the TIMER OFF on the LED display of the unit. 4. Use the TEMP UP (+)/DOWN (-) button to display "10" on the LED display of the unit. 5. Wait for 5 seconds until the previous display appears in LED window. AUTO START > AUTO STOP (Off > Start > Stop operation) This feature is useful when you want to start the air conditioner before you wake up and stop it after you leave the house. Example: To start the air conditioner 5 hours after setting, and stop it 8 hours after setting. 1. Press the TIMER button until the TIMER ON indicator is displayed on the LED display of the air conditioner. 2. Use the TEMP UP (+)/DOWN (-) button to display "5.0" on the LED display of the air conditioner. 3. Press the TIMER button again to display the TIMER OFF on the LED display of the unit. 4. Use the TEMP UP (+)/DOWN (-) button to display "8.0" on the LED display of the unit. 5. Wait for 5 seconds until the previous display appears in LED window. ENERGY SAVER OPERATION In this mode, the fan will continue to run for 3 minutes after the compressor shuts off. The fan then cycles on for 2 minutes at 10 minute intervals until the room temperature is above the set temperature, at which time the compressor turns back on and cooling resumes. 1 NOTES · Button design is based on a typical model and may slightly vary from the actual one you purchased. · All the functions described can also be accomplished using the unit's control panel. If the unit is without this feature, there will be no corresponding operation when pressing the relevant button on the remote controller. · When there are significant differences between features or operation implied by the remote control illustration and the actual functions described in the USER'S MANUAL, the descriptions in the USER'S MANUAL shall prevail. · The device may comply with local national regulations. In Canada, it should comply with CAN ICES-3(B)/NMB-3(B). In USA, this device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. · This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. - Changes or modifications not approved by the party responsible for compliance could void users authority to operate the equipment. Page 33 Operating Instructions (With Remote) Warranty Air Conditioner Limited Warranty Your product is protected by this Limited Warranty: Warranty service must be obtained from Midea Consumer Services or an authorized Midea servicer. Warranty · One year full warranty from original purchase date. Midea, through its authorized servicers will: · Pay all costs for reparing or replacing parts of this appliance which prove to be defective in materials or workmanship. Consumer will be responsible for: · Diagnostics, removal, transportation and reinstallation cost required because of service. · Costs of service calls that are a result of items listed under NORMAL RESPONSABILITIES OF THE CONSUMER** Midea replacement parts shall be used and will be warranted only for the original warranty. NORMAL RESPONSABILITIES OF THE CONSUMER** This warranty applies only to products in ordinary household use, and the consumer is responsible for the items listed below: 1. Proper use of the appliance in acordance with instructions provided with the product. 2. Routine maintenance and cleaning necessary to keep the good working condition. 3. Proper installation by an authorized service professional in accordance with instructions provided with the appliance and in accordance with all local plumbing, electrical and/or gas codes. 4. Proper connection to a grouded power supply of sufficient voltage, replacement of blown fuses, repair of loosen connections or defects in house wiring. 5. Expenses for making the appliance accessible for servicing. 6. Damages to finish after intallation. EXCLUSIONS This warranty does not cover the following: 1) Failure caused by damage to the unit while in your possesion (other than damage caused by defect or malfunction), by its improper installation, or by unreasonable use of the unit, including without limitation, failure to provide reasonable and necessary maintenance or to follow the written installation and Operating Instructions. 2) Damages caused by services performed by persons other than authorized Midea costumer service; or external causes such as abuse, misuse, inadequate power supply or acts of God. 3) If the unit is put to commercial, business, rental, or other use or application other than for consumer use, we make no warranties, express or implied, including but not limited to, any implied warranty of merchantability or fitness for use or purpose. 4) Products without original serial numbers or products that have serial numbers which have been altered or cannot be readily determined. NOTE: Some states do not allow the exclusions or limitation of incidental or consequential damages. So this limitation or exclusion may not apply to you. IF YOU NEED SERVICE Keep your bill of sale, delivery slip, or some other appropriate payment Record. The date on the bill establishes the warranty period, should service be required. If service is performed, its your best interest to obtain and keep all receipts. This written warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service under this warranty must be obtained by following these steps, in order: 1) Contact Midea Consumer Services or an authorized Midea services at 1 866 646 4332. 2) If there is a question as to where to obtain service, contact our consumer relations Departament. Page 34 Warranty
