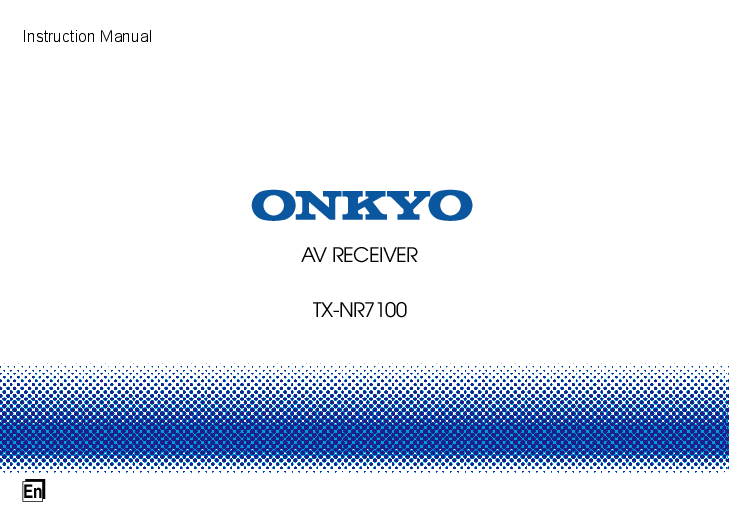

Instruction Manual
AV RECEIVER TX-NR7100
En

Table of contents Speaker Layout

Main Room

Zone 2
Speaker Connections

Firmware Update
Troubleshooting
Supplementary Information
Reducing the Power Consumption in Standby State
When the following functions are enabled, the power consumption in standby state increases. To reduce the power consumption in standby state, check each setting and set the functions to "Off".
� HDMI CEC ( p127) � HDMI Standby Through ( p127) � USB Power Out at Standby ( p134) � Network Standby ( p134) � Bluetooth Wakeup ( p135)
 Detailed contents (Next page)
2

Before starting the procedure Firmware Update
Update Information of the firmware Firmware Update Procedure Part Names Front Panel Display Rear Panel Remote Controller Inputting Characters
Speaker Layout
The listening room and the speaker layout 5.1 Channel System 7.1 Channel System 5.1.2 Channel System 7.1.2 Channel System 5.1.4 Channel System
Speaker Installation
Speaker Connections
Speakers you can use with this unit and cable connections Connecting a Power Amplifier (For European, Australian and Asian models)

7 Connections

8

8 8 11

Notes regarding connections with HDMI cables Connections
Connecting the TV

48 48 49

11

To ARC/eARC TV

49

13

To Non-ARC TV

49

14 Connecting the SUB Monitor

51

16

SUB Monitor

51

18 Connecting Playback Devices

52

Connections to BD/DVD and GAME with HDMI

jacks

52

20

Connecting a BD/DVD without HDMI Jack Mounted 53

21

Connecting an Audio Component

54

22

Connecting a Video Camera, etc.

55

23 Connecting a TV or Integrated Amplifier in a separate

24 room (Multi-zone)

56

25

Connecting a TV (ZONE 2)

56

Connecting an Integrated Amplifier (ZONE 2)

57

Connecting Antennas

58

Network Connection

59

Connecting External Control Devices

60

33

IR IN port

60

12V TRIGGER OUT jack

61

46 Connecting the Power Cord

62

3

Playback

Playing audio from an externally connected device 64

Basic Operations

64

BLUETOOTH� Playback

65

Playing audio from BLUETOOTH wireless technology

enabled devices with this unit

65

Transmitting audio from this unit to BLUETOOTH

wireless technology enabled devices

66

Listening To the Radio

68

Listening To the AM/FM Radio

68

Listening To DAB Digital Radio

(European models only)

71

Presetting a Radio Station

73

Listening Mode

74

Selecting a Listening mode

74

Quick Menu

76

Menu operations

76

Spotify

79

AirPlay�

80

Basic Operations

80

Playing Back on multiple devices (AirPlay2)

81

DTS Play-Fi�

82

Playing Back

82

Amazon Alexa

83

Registering this unit with an Amazon account

83

Operating this unit

84

Amazon Music

85

Registering This Unit with Amazon Music

85

Playing Amazon Music using the Onkyo Controller 86

Playing Amazon Music using the remote controller 86

TIDAL

87

Registering this unit with TIDAL

87

Playing TIDAL

87

Connecting the Sonos System for Playback

88

Necessary Equipment

88

How to Connect This Unit and Sonos Connect

88

Setting Up

88

Playing Sonos on This Unit

89

Internet Radio

90

Playing Back

90

Multi-zone

92

Playing Back (ZONE 2)

93

Playing Back (ZONE 3)

95

Playing different audio and video

96

Displaying Your Favorite Video on TV While Playing

Music

96

Playing music files saved on a USB storage device 98

USB Storage Device Requirements

99

4

Music Server Supported Audio Formats Windows Media� Player 12 settings Playing Back
Play Queue Adding Play Queue Information Sort and Delete Playing Back
Connecting a transmitter for playback Connections Setting Up Playing Back
Setup
Setup Menu Menu list 1. Input/Output Assign 2. Speaker 3. Audio Adjust 4. Source 5. Hardware 6. Multi Zone 7. Miscellaneous
Web Setup Menu operations

100 Initial Setup with Auto Start-up Wizard

141

100

Operations

141

100

1. Speaker Setup

142

101

2. Multi Zone Sound Check

143

103

3. ARC Setup

143

103

4. Room EQ

143

103 Onkyo Controller

147

104

Main features

147

105

Initial Setup

147

105 Dirac Live

148

105

Measuring with Dirac Live

148

105

Using Dirac Live

149

Manual Adjust

149

108 Troubleshooting

108

Before starting the procedure

152

110

When the unit is operating erratically

153

115

Troubleshooting

154

122 Appendix

125

127

Speaker Layouts and Selectable Listening Modes 166

137

LISTENING MODE buttons and Selectable Listening

Modes

169

138

Input Formats and Selectable Listening Modes

171

140

Listening Mode Effects

175

140

5

Speaker Combinations

182

General Specifications

183

6

Before starting the procedure
 What's in the box

 Note
� Connect speakers with an impedance of 4  to 16 . � The power cord must be connected only after all other connections are
completed. � We will not accept any responsibility for damage arising from the connection
with equipment manufactured by other companies. � Network services and content that can be used may no longer be available
if new functions are added by updating firmware or the service providers terminate their services. Also, available services may differ depending on your area. � Details on the firmware update will be posted on our website and through other means at a later date. � The illustrations in this manual use those of North American models unless otherwise mentioned. � Specifications and appearance are subject to change without prior notice.

1. Main unit (1) 2. Remote controller (RC-972R) (1), Batteries (AAA/R03) (2) 3. Speaker setup microphone (1)
� Used during Initial Setup. 4. Indoor FM antenna (North American, Australian and Asian models) (1) 5. AM loop antenna (North American, Australian and Asian models) (1) 6. DAB/FM antenna (European models) (1) 7. Power cord (1) � Initial Setup Guide (1)
* This is an online user manual. This is not supplied with the product.
7

Firmware Update
This unit is equipped with a function to update the firmware via network or USB port when the firmware update is announced after purchase. This enables various functions to be added and operations to be improved. Depending on the manufacturing timing of the product, the firmware may be switched to the updated one. In such a case, new functions may be added from the start. For how to confirm the latest firmware contents and the firmware version of your product, see the following section.
Update Information of the firmware
For the latest firmware contents and the firmware version, visit our company's website. If the firmware version of your product differs from the latest one, it is recommended to update the firmware. To confirm the firmware version of your product, press the button on the remote controller, and refer to "7. Miscellaneous" - "Firmware Update" - "Version" ( p139).
Firmware Update Procedure
The update may take approx. 20 minutes to complete via network or via USB port. Existing settings are guaranteed in either updating method. When this unit is connected to the network, notifications of firmware updates may be displayed. To update the firmware, select "Update Now" with the cursor buttons of the remote controller and press ENTER. The unit automatically enters standby mode after "Completed!" is displayed, and the update is completed.
Disclaimer: The program and accompanying online documentation are furnished to you for use at your own risk. Our company will not be liable and you will have no remedy for damages for any claim of any kind whatsoever concerning your use of the program or the accompanying online documentation, regardless of legal theory, and whether arising in tort or contract. In no event will our company be liable to you or any third party for any special, indirect, incidental, or consequential damages of any kind, including, but not limited to, compensation, reimbursement or damages on account of the loss of present or prospective profits, loss of data, or for any other reason whatsoever.

Updating the Firmware via Network
� While updating the firmware, do not do the following: � Disconnecting and reconnecting cables, USB storage device, speaker setup microphone or headphones, or performing operations on the unit such as turning the power off � Accessing this unit from a PC or smartphone using their applications
� Check that the unit is turned on, and the connection to the Internet is secured. � Turn off control devices (PC etc.) connected to the network. � Stop an Internet radio, USB storage device, or server content being played. � If the multi-zone function is active, turn it off. � If "HDMI CEC" is set to "On", set it to "Off".
� Press . Next, select "5. Hardware" - "HDMI" and press ENTER, then select "HDMI CEC" and select "Off".
* The descriptions may differ from the actual on-screen displays, however, operations and functions are the same.
Update 1. Press .
The Setup menu is displayed on the TV screen. 2. Select "7. Miscellaneous" - "Firmware Update" - "Update via NET" with the
cursors in order, then press ENTER. � If "Firmware Update" is grayed out and cannot be selected, wait for a while
until it starts up. � If there is no updatable firmware, "Update via NET" cannot be selected. 3. Press ENTER with "Update" selected, and start update. � During the update, the TV screen may go black depending on the program
to be updated. In such a case, check the progress on the display of the unit. The TV screen will remain black until the update is completed and the power is turned on again. � When "Completed!" is displayed, the update is complete. 4. Press ON/STANDBY on the main unit to turn the unit into standby mode. The process is completed, and your firmware is updated to the latest version. � Do not use on the remote controller.
If an Error Message is Displayed If an error occurs, "- Error!" is displayed on the display of the unit. (""

8

represents an alphanumeric character.) Refer to the following descriptions and check.
Error Code � -01, -10:
Ethernet cable not found. Connect the Ethernet cable properly. � -02, -03, -04, -05, -06, -11, -13, -14, -16, -17, -18, -20,
-21: Internet connection error. Check the following: � Whether the router is turned on � Whether this unit and the router are connected via the network Unplug and plug the power cords of this unit and the router. This may solve the problem. If you are still unable to connect to the Internet, the DNS server or proxy server may be temporarily down. Check the server operation status with your Internet service provider. � Others: After removing the power plug once, insert it to the outlet, and then start the operation from the beginning.

Updating via USB
� While updating the firmware, do not do the following: � Disconnecting and reconnecting cables, USB storage device, speaker setup microphone or headphones, or performing operations on the unit such as turning the power off � Accessing this unit from a PC or smartphone using their applications
� Prepare a 1 GB or larger USB storage device. The format of USB storage devices supports FAT16 or FAT32 file system format. � Media inserted into a USB card reader may not be used for this function. � USB storage devices equipped with the security function are not supported. � USB hubs and USB devices equipped with the hub function are not supported. Do not connect these devices to the unit.
� Delete any data stored on the USB storage device. � Turn off control devices (PC etc.) connected to the network. � Stop an Internet radio, USB storage device, or server content being played. � If the multi-zone function is active, turn it off. � If "HDMI CEC" is set to "On", set it to "Off".
� Press . Next, select "5. Hardware" - "HDMI" and press ENTER, then select "HDMI CEC" and select "Off".
* Depending on the USB storage device or its content, long time may be required for loading, the content may not be loaded correctly, or power may not be supplied correctly.
* Our company will not be liable whatsoever for any loss or damage of data, or storage failure arising from the use of the USB storage device. Please note this in advance.
* The descriptions may differ from the actual on-screen displays, however, operations and functions are the same.
Update 1. Connect the USB storage device to your PC. 2. Download the firmware file from the our company's website to your PC and
unzip. Firmware files are named as below.
ONKAVR_R.zip Unzip the file on your PC. The number of unzipped files and folders varies depending on the model. 3. Copy all unzipped files and folders to the root folder of the USB storage device. � Make sure to copy the unzipped files.

9

4. Connect the USB storage device to the USB port of this unit. � If an AC adapter is supplied with the USB storage device, connect the AC adapter, and use it with a household outlet. � If the USB storage device has been partitioned, each section will be treated as an independent device.
5. Press . The Setup menu is displayed on the TV screen.
6. Select "7. Miscellaneous" - "Firmware Update" - "Update via USB" with the cursors in order, then press ENTER. � If "Firmware Update" is grayed out and cannot be selected, wait for a while until it starts up. � If there is no updatable firmware, "Update via USB" cannot be selected.
7. Press ENTER with "Update" selected, and start update. � During the update, the TV screen may go black depending on the program to be updated. In such a case, check the progress on the display of the unit. The TV screen will remain black until the update is completed and the power is turned on again. � During the update, do not turn the power off, or disconnect or reconnect the USB storage device. � When "Completed!" is displayed, the update is complete.
8. Disconnect the USB storage device from the unit. 9. Press ON/STANDBY on the main unit to turn the unit into standby mode.
The process is completed, and your firmware is updated to the latest version. � Do not use on the remote controller.
If an Error Message is Displayed If an error occurs, "- Error!" is displayed on the display of the unit. ("" represents an alphanumeric character.) Refer to the following descriptions and check.
Error Code � -01, -10:
The USB storage device cannot be recognized. Check if the USB storage device or USB cable is securely inserted to the USB port of the unit. Connect the USB storage device to an external power source if it has its own power supply. � -05, -13, -20, -21: The firmware file is not present in the root folder of the USB storage device, or the firmware file is for another model. Retry from the download of the firmware file.

� Others: After removing the power plug once, insert it to the outlet, and then start the
operation from the beginning.

10

Part Names Front Panel

TX-NR7100

1. ON/STANDBY button 2. PURE AUDIO button/indicator: Switches to the
Pure Audio mode. The indicator lights when the mode is on. ( p179) 3. HYBRID STANDBY indicator: Lights up when any of the following functions is working or enabled in standby state of this unit. When this indicator is lighting, the power consumption in standby state increases, however, the increase in power consumption is minimized by entering

the HYBRID STANDBY mode where only the
essential circuits operate.
� HDMI CEC ( p127) � HDMI Standby Through ( p127) � USB Power Out at Standby ( p134) � Network Standby ( p134) � Bluetooth Wakeup ( p135) 4. Remote control sensor: Receives signals from
the remote controller.
� The reception range of the remote controller

is within a distance of approx. 16�/5 m, and
an angle of 20� in vertical direction and 30� to
right and left.
5. ZONE 2/ZONE 3 buttons: Controls the multizone function. ( p92)
6. QUICK MENU button: Pressing this button
during playback can make settings such as
"HDMI" and "Audio" quickly on the TV screen while playing. ( p76) 7. Display ( p13) 8. SETUP button: You can display advanced setting items on the TV and the display to have
a more enjoyable experience with this unit. ( p108) 9. Cursor buttons ( / / / ) and ENTER
button: Select an item with the cursors, and press ENTER to confirm your selection. When using TUNER, use them to tune in to stations. ( p68) 10. RETURN button: Returns the display to the
previous state while setting.
11. MASTER VOLUME

11

Front Panel

TX-NR7100

12. LISTENING MODE button/dial: Press the LISTENING MODE button (above) to select a category from "Movie/TV", "Music" and "Game", and then turn the LISTENING MODE dial (below) to change the listening mode ( p74).
13. TONE button/dial: Adjusts the sound quality. Press the TONE button (above) to select an item to adjust from "Bass", "Vocal" and "Treble", and turn the TONE dial (below) to adjust.
14. PHONES jack: Connect headphones with a

standard plug (�1/4/6.3 mm). 15. Input selector buttons: Switches the input to be
played. 16. SETUP MIC jack: Connect the supplied speaker
setup microphone. ( p144, p146) 17. AUX INPUT AUDIO/HDMI jack: Connect a
video camera, etc. using a stereo mini plug cable (�1/8/3.5 mm) or HDMI cable. ( p55)

12

Display
1. Speaker/Channel display: Displays the output channel that corresponds to the selected listening mode.
2. Lights in the following conditions. : Headphones are connected.
Z2/Z3: ZONE 2/ZONE 3 is on. : Connected by BLUETOOTH. : Connected by Wi-Fi.
NET: Lights when connected to the network with the "NET" input selector. It will blink if incorrectly

connected to the network. USB: Lights when the "NET" input selector is selected, a USB device is connected and the USB input is selected. It will blink if the USB device is not properly connected. HDMI: HDMI signals are input and the HDMI input is selected. DIGITAL: Digital signals are input and the digital input is selected. A: Audio is output only to ZONE A.

B: Audio is output only to ZONE B. AB: Audio is output to both ZONE A and ZONE B. 3. Lights according to the type of input digital audio signal and the listening mode. 4. Lights in the following conditions. RDS (European, Australian and Asian models): Receiving RDS broadcasting. TUNED: Receiving DAB (European models)/AM (North American, Australian and Asian models)/ FM radio FM ST: Receiving FM stereo. SLEEP: Sleep timer is set. AUTO STBY: Auto Standby is set. ( p134) 5. Blinks when muting is on. 6. Displays various information of the input signals. � "DialogNorm: X dB" ("X" is a numerical value)
may be displayed when software recorded in Dolby lineage or DTS lineage audio formats is played. For example, if "DialogNorm: +4 dB" is displayed, the source being played is recorded with 4 dB plus the THX standard level. If you play it with the THX standard level, lower the volume by 4 dB. 7. Cursors ( / / / ): These may light when performing operations while "NET" is selected with the input selector. / light when there are multiple folders or files that are available to be selected. / light when text information does not fit with the range provided by "6".

13

Rear Panel

8K

8K

4K

8K HDCP 2.3

3. COMPONENT VIDEO IN jacks: Input AV

component video signals with a component

video cable. (Compatible only with 480i or 576i

resolution.)

VIDEO IN jacks: Input AV component video

signals with an analog video cable.

4. Wireless antenna: Used for WI-Fi connection or

when using a BLUETOOTH enabled device. Adjust the angles according to the

90� 180�

connection status.

1. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio signals with a digital optical cable or digital coaxial cable.
2. TUNER AM/FM terminal (North American, Australian and Asian models): Connect the supplied antennas.

TUNER DAB/FM terminal (European models): Connect the supplied antennas.
TUNER
DAB / FM

5. HDMI OUT jacks: Transmit video signals and audio signals with an HDMI cable connected to a monitor such as a TV or projector.
6. RS-232 port: Connect a home control system equipped with an RS-232C port. For installing a home control system, contact the specialized stores.
7. HDMI IN jacks: Transmit video signals and audio signals with an HDMI cable connected to an AV component.
8. ETHERNET port: Connect to the network with an Ethernet cable.
9. USB port: Connect a USB storage device to play music files ( p98). You can also supply power (5 V/1 A) to USB devices with a USB cable.
10. AC INLET: Connect the supplied power cord.

14

Rear Panel

8K

8K

4K

8K HDCP 2.3

16. SPEAKERS terminals: Connect speakers with speaker cables. (North American models support banana plugs. Use a plug 4 mm in diameter. Y plug connection is not supported)
17. SUBWOOFER PRE OUT jacks: Connect a powered subwoofer with a subwoofer cable. Up to two powered subwoofers can be connected. The same signal is output from each SUBWOOFER PRE OUT jack.
18. ZONE 2 LINE OUT jacks: Output audio signals with an analog audio cable connected to an integrated amplifier in a separate room (ZONE 2). ZONE B LINE OUT jacks: Simultaneously output the same audio source as the speakers (ZONE A) connected to this unit by connecting this unit to wireless headphones, wireless speaker transmitter, etc., using an analog audio cable.

11. GND terminal: Connect the ground wire of the turntable.
12. AUDIO IN jacks: Input AV component audio signals with an analog audio cable.
13. 12V TRIGGER OUT jack: Connect a device equipped with a 12V trigger input jack to enable power link operation between the device and this unit. ( p61)
14. IR IN port: Connect a remote control receiver unit. ( p60)

15. PRE OUT FRONT jacks (European, Australian and Asian models): Connect to a power amplifier. ( p46)
FRONT PRE OUT

15

Remote Controller

1. ON/STANDBY button 2. Input selector buttons: Switches the input to be
played. 3. Play buttons: Used for playback operations
for the Music Server ( p100) or USB device ( p98). Also, switching to "CEC MODE" with "19. MODE button" allows you to operate an HDMI CEC function-enabled AV component. (Some devices may not be operated.) 4. Q (QUICK MENU) button: Pressing this button during playback allows you to make settings such as "HDMI" and "Audio" quickly on the TV screen while playing. ( p76) 5. Cursor buttons and ENTER button: Select an item with the cursors, and press ENTER to confirm your selection. Pressing / button allows you to switch the screen when a music folder list or file list is not displayed on one screen on the TV. 6. button: Displays advanced setting items on the TV or the display to have a more enjoyable experience with this unit. ( p108) 7. SLEEP button: You can allow the unit to enter standby automatically when the specified time has elapsed. Select the time from "30 min", "60 min", "90 min" and "Off". When you do not want to turn the unit to standby automatically, select "Off". You can also set this by pressing
button and selecting "5. Hardware" - "Power Management" - "Sleep Timer" ( p134) on the Setup menu. 8. HDMI MAIN/SUB button: Select the HDMI OUT jack to output video signals from "MAIN", "SUB", and "MAIN+SUB". 9. button: Switches the information on the display and is used to operate RDS ( p69).

Also, when the "BLUETOOTH" input selector is selected, pressing and holding this button for 5 seconds or more will switch to the pairing mode. 10. button: Returns the display to the previous state while setting. 11. MUTE button: Temporarily mutes audio. Press the button again to cancel muting.

16

Remote Controller

12. TONE buttons: Adjusts the sound quality. Press "TREBLE", "BASS", or "VOCAL" to select what you want to adjust, then adjust with + and -. TREBLE/BASS button: You can adjust the sound quality of the speakers. 1.Press TREBLE or BASS to select the content to adjust. TREBLE: Enhances or moderates the hightone range of the speakers. BASS: Enhances or moderates the low-tone range of the speakers. 2. Press + or - to adjust.
VOCAL button: Emphasizes movie dialogues and music vocals to listen to them more easily. It is effective to movie lines in particular. Also, it exerts the effect even if the center speaker is not used. Select a desired level from "1" (low) to "5" (high). 1. Press VOCAL. 2. Press + or - to adjust. � Depending on the input source or listening
mode setting, selection is not possible, or the desired effect may not be achieved. 13. LISTENING MODE buttons: Selects a listening mode ( p74, p169). 14. DIMMER button: Switches the brightness of the display with three levels. It cannot be turned off completely. 15. ZONE 2/ZONE 3 SHIFT button: Used to control the multi-zone function ( p92). 16. VOLUME buttons 17. CLEAR button: Deletes all characters you have entered when entering text on the TV screen. 18. MEMORY button: Used to register DAB (European models)/AM (North American, Australian and Asian models)/FM radio stations. ( p73)

19. MODE button: Switches between automatic tuning and manual tuning for AM (North American, Australian and Asian models)/FM stations ( p68), and allows you to select the order for displaying DAB stations (European models) ( p72). Also, when an HDMI CEC function-enabled AV component is connected to this unit, you can switch "3. Play buttons" between "CEC MODE" and "RCV MODE" (normal mode).

17

Inputting Characters
You can input characters or symbols on the keyboard displayed on the TV screen such as when inputting a password for Wi-Fi Setup ( p129) or naming a preset radio station ( p125). 1. Select a character or symbol with the cursors / / / on the remote
controller and press the ENTER button. 2. When saving characters after input, select "OK" and press the ENTER button.

� Select "A/a" to switch between upper and lower cases. (Can also be switched with the MODE button on the remote controller.)
� To enter a space, select " ". � To delete a character on the left of the cursor, select " ". � To delete all the input characters, press the CLEAR button on the remote
control.
� On the ZONE 2 playback screen, operate the remote controller while pressing and holding the ZONE 2 SHIFT button. To delete all the input characters, only
press the CLEAR button without pressing the ZONE 2 SHIFT button.

,

.

/

;

:

]

/ // ENTER

CLEAR
ZONE 2 SHIFT

MODE

18

Speaker Layout

Speaker Layout
This unit can be used in different ways, depending on the layout of the speakers you are installing. Select the speaker layout that suits the installation environment, then confirm the methods for installation and connection.

 Speaker layout ( p21)  Speaker Installation ( p27)  Speaker Connections ( p32)  Speaker Combinations ( p182)

5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch
19

The listening room and the speaker layout
ZONE A (Main Room)

Speaker Layout
1. ZONE A Speakers The speaker system set up in the main room (where this unit is located). 2. ZONE 2 Speakers The 2 ch speaker system set up in a separate room (ZONE 2). This enables you to play the same source in the main room and the separate at the same time, or to play separate sources. 3. ZONE 3 Speakers The 2 ch speaker system set up in a separate room (ZONE 3). This enables you to play the same source in the main room and the separate at the same time, or to play separate sources.

ZONE 2

ZONE 3

5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch
20

5.1 Channel System This is a basic 5.1 Channel System.

Basic system ( p28)

5.1 ch + ZONE 2 ( p28)

Main Room

Speaker Layout
5.1 ch + ZONE 2/ZONE 3 ( p28) Main Room

5.1 ch (Bi-Amping (Front)) ( p28)

Zone 2

Zone 2

Zone 3

5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch
21

Speaker Layout 7.1 Channel System This is a 7.1 Channel System that consists of the basic 5.1 Channel System and added surround back speakers.

Basic system ( p28)

7.1 ch + ZONE 2 ( p28)

7.1 ch (Bi-Amping (Front)) ( p28)

Main Room

Zone 2

5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch
22

5.1.2 Channel System A Speaker System that is a 5.1 Channel System with one set of height speakers added.

Speaker Layout

5.1.2 ch (Front High or Rear High) ( p29)

5.1.2 ch (Top Front or Top Middle or Top Rear) ( p29)

5.1.2 ch (Dolby Enabled Speakers (Front or Surround)) ( p29)

5.1.2 ch + ZONE 2 ( p29) Main Room

5.1.2 ch (Bi-Amping (Front)) ( p29)

Zone 2

5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch
23

7.1.2 Channel System A Speaker System that is a 7.1 Channel System with one set of height speakers added.

Speaker Layout

7.1.2 ch (Front High or Rear High) ( p30)

7.1.2 ch (Top Front or Top Middle or Top Rear) ( p30)

7.1.2 ch (Dolby Enabled Speakers (Front or Surround or Surround Back)) ( p30)

5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch
24

5.1.4 Channel System A Speaker System that is a 5.1 Channel System with two sets of height speakers added.

Speaker Layout

5.1.4 ch (Front High and Rear High) ( p31)

5.1.4 ch (Front High and Top Middle) ( p31)

5.1.4 ch (Front High and Top Rear) ( p31)

5.1.4 ch (Front High and Dolby Enabled Speakers (Surround)) ( p31)

5.1.4 ch (Top Front and Top Rear) ( p31)

5.1.4 ch (Top Front and Rear High) ( p31)
5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch
25

5.1.4 Channel System
5.1.4 ch (Top Front and Dolby Enabled Speakers (Surround)) ( p31)

5.1.4 ch (Top Middle and Rear High) ( p31)

Speaker Layout
5.1.4 ch (Dolby Enabled Speakers (Front and Surround)) ( p31)

5.1.4 ch (Dolby Enabled Speakers (Front) and Rear High) ( p31)

5.1.4 ch (Dolby Enabled Speakers (Front) and Top Rear) ( p31)

5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch
26

Speaker Installation

Speaker Installation

How the speakers are set up depends on the size and shape of the room, so here we introduce just a basic layout example.
The alphabetic symbols used in this chapter represent the following speakers:

FL FR C SW SL SR SBL SBR FHL FHR RHL RHR TFL TFR TML TMR TRL TRR DFL DFR DSL DSR DSBL DSBR

Front speaker Left Front speaker Right Center speaker powered SubWoofer Surround speaker Left Surround speaker Right Surround Back speaker Left Surround Back speaker Right Front High speaker Left Front High speaker Right Rear High speaker Left Rear High speaker Right Top Front speaker Left Top Front speaker Right Top Middle speaker Left Top Middle speaker Right Top Rear speaker Left Top Rear speaker Right Dolby enabled speaker Front Left Dolby enabled speaker Front Right Dolby enabled speaker Surround Left Dolby enabled speaker Surround Right Dolby enabled speaker Surround Back Left Dolby enabled speaker Surround Back Right

5.1ch 7.1ch 5.1.2ch 7.1.2ch

5.1.4ch

27

 5.1 Channel System

Speaker Installation
 7.1 Channel System

FL SW C
a b
SL

FR SR

FL, FR C
SW
SL, SR

a: 22� to 30�, b: 120�
Place the Left and Right Front Speakers to match ear height. The center speaker should be set up facing the listening position at an angle. Place the powered subwoofer between the center speaker and a front speaker. Place the Left and Right Surround Speakers to be just above ear height.

5.1 ch connection ( p35) 5.1 ch + ZONE 2 connection ( p36) 5.1 ch + ZONE 2/ZONE 3 connection ( p36) 5.1 ch (Bi-Amping (Front)) connection ( p37)

FL SW C
a b
SL
c

FR SR

SBL

SBR

a: 22� to 30�, b: 90� to 110�, c: 135� to 150�

FL, FR Place the Left and Right Front Speakers to match ear height.

C

The center speaker should be set up facing the listening position

at an angle.

SW

Place the powered subwoofer between the center speaker and a

front speaker.

SL, SR Place the Left and Right Surround Speakers to be just above ear

height.

SBL, SBR Place the Left and Right Surround Back Speakers at ear height.

� If surround back speakers are installed, be sure to install surround

speakers as well.

5.1ch

7.1ch

5.1.2ch

7.1 ch connection ( p38) 7.1 ch + ZONE 2 connection ( p39) 7.1 ch (Bi-Amping (Front)) connection ( p40)

7.1.2ch 5.1.4ch

28

 5.1.2 Channel System
High Speakers

FHL

FHR

3� (0.9 m) or more

a b

RHL

RHR

a: 22� to 30� b: 120�
3� (0.9 m) or more

FHL, FHR Place the front high speakers directly above the front speakers, angled to face the listening position.
RHL, RHR Place the rear high speakers so the lateral distance matches the front speakers, angled to face the listening position.

Top Speakers
TFL TFR

Speaker Installation

TML TMR
c b a

TRL

TRR

a: 30� to 55� b: 65� to 100� c: 125� to 150�

TFL, TFR Fit top front speakers on the ceiling in front of the listening position. TML, TMR Fit top middle speakers on the ceiling directly above the listening
position. TRL, TRR Fit top rear speakers on the ceiling behind the listening position. � Match the lateral distance of the top speakers to the front speakers.

Dolby Enabled Speakers
DFL

DFR

a: 22� to 30� b: 120�

5.1.2 ch connection ( p41) 5.1.2 ch + ZONE 2 connection ( p42) 5.1.2 ch (Bi-Amping (Front)) connection ( p43)

DSL

a b

DSR

5.1ch 7.1ch

5.1.2ch

DFL, DFR The Dolby enabled speakers (front) are installed on top of the front speakers.
DSL, DSR The Dolby enabled speakers (surround) are installed on top of the surround speakers.

7.1.2ch 5.1.4ch

29

 7.1.2 Channel System
High Speakers
FHL FHR 3� (0.9 m) or more

a: 22� to 30� b: 90� to 110� c: 135� to 150�

a b
c
RHL

3� (0.9 m) RHR or more

FHL, FHR Place the front high speakers directly above the front speakers, angled to face the listening position.
RHL, RHR Place the rear high speakers so the lateral distance matches the front speakers, angled to face the listening position.

Top Speakers
TFL TFR

Speaker Installation

TML TMR
c b a

TRL

TRR

a: 30� to 55� b: 65� to 100� c: 125� to 150�

TFL, TFR Fit top front speakers on the ceiling in front of the listening position. TML, TMR Fit top middle speakers on the ceiling directly above the listening
position. TRL, TRR Fit top rear speakers on the ceiling behind the listening position. � Match the lateral distance of the top speakers to the front speakers.

Dolby Enabled Speakers
DFL

DFR

a: 22� to 30� b: 90� to 110� c: 135� to 150�

7.1.2 ch connection ( p44)

DSL

a b

DSR

5.1ch

c

7.1ch

DSBL

DSBR

5.1.2ch

DFL, DFR The Dolby enabled speakers (front) are installed on top of the front speakers.
DSL, DSR The Dolby enabled speakers (surround) are installed on top of the surround speakers.
DSBL, DSBR The Dolby enabled speakers (surround back) are installed on top of the surround back speakers.

7.1.2ch 5.1.4ch

30

 5.1.4 Channel System
High Speakers

FHL

FHR

3� (0.9 m) or more

a b

RHL

RHR

a: 22� to 30� b: 120�
3� (0.9 m) or more

FHL, FHR Place the front high speakers directly above the front speakers, angled to face the listening position.
RHL, RHR Place the rear high speakers so the lateral distance matches the front speakers, angled to face the listening position.

Top Speakers
TFL TFR

Speaker Installation

TML TMR
c b a

TRL

TRR

a: 30� to 55� b: 65� to 100� c: 125� to 150�

TFL, TFR Fit top front speakers on the ceiling in front of the listening position. TML, TMR Fit top middle speakers on the ceiling directly above the listening
position. TRL, TRR Fit top rear speakers on the ceiling behind the listening position. � Match the lateral distance of the top speakers to the front speakers.

Dolby Enabled Speakers

DFL

DFR

a: 22� to 30� b: 120�

5.1.4 ch connection ( p45)

DSL

a b

DSR

5.1ch 7.1ch

5.1.2ch

DFL, DFR The Dolby enabled speakers (front) are installed on top of the front speakers.
DSL, DSR The Dolby enabled speakers (surround) are installed on top of the surround speakers.

7.1.2ch 5.1.4ch

31

Speaker Connections

Speaker Connections

(Before starting the procedure)

Speakers you can use with this unit and cable

connections

33

4-16

5.1 Channel System 7.1 Channel System 5.1.2 Channel System 7.1.2 Channel System 5.1.4 Channel System Connecting a Power Amplifier (For European, Australian and Asian models)

35, 36, 37 38, 39, 40 41, 42, 43
44 45
46

5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch

32

Speakers you can use with this unit and cable connections

Speaker Connections

 Speakers you can use with this unit
This unit supports speakers with 4  to 16  impedance. For speaker impedance, check the speaker instruction manual.
 (Note) Speaker Impedance
If any of the speakers to be connected has an impedance of 4  or more and less than 6 , set "Speaker Impedance" to "4ohms" for "Speaker Setup" in the Initial Setup section ( p141). When setting "Speaker Impedance" from the Setup menu, press on the remote controller, and set "2. Speaker" - "Configuration" "Speaker Impedance" ( p116) to "4ohms".
 Connect the Speaker Cables

1/2 (12 mm)
Make correct connection between the unit's jacks and speaker's jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass sound will not be reproduced properly due to reverse phase. Twist the wires exposed from the tip of the speaker cable so that the wires do not stick out of the speaker terminal when connecting. If the exposed wires touch the rear panel, or the + side and � side wires touch each other, a malfunction may occur.

5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch

33

 Connect the Subwoofer
a a Subwoofer cable Connect a powered subwoofer with this unit using a subwoofer cable. Up to two powered subwoofers can be connected. The same signal is output from each SUBWOOFER PRE OUT jack.

Speaker Connections
5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch
34

 5.1 Channel System

FL SW

FR

C

SL

SR

Speaker Connections

SW

FR

FL

C

SR SL

5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch
35

 5.1 Channel System + ZONE SPEAKER
MAIN ROOM

FL SW

FR

C

SL

SR

Speaker Connections

ZONE 2

ZONE 3

FL(Z2) FR(Z2)

FL(Z3) FR(Z3)

SW

FR

FL

C

SR SL FR(Z2) FL(Z2) FR(Z3) FL(Z3)

5.1ch

To output audio from an externally connected AV component to ZONE 3, use an analog audio cable for connection. Note that ZONE 3 output is not possible with the 7.1ch connection using a HDMI cable, digital coaxial cable, or digital optical cable.

5.1.2ch

7.1.2ch

5.1.4ch

36

 5.1 Channel System (Bi-Amping the Speakers)

FL SW

FR

C

SL

SR

Speaker Connections

For highfrequency

For low-

SW

FR frequency FL

C

SR SL

Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of your speakers as well.

5.1ch 7.1ch 5.1.2ch

7.1.2ch

5.1.4ch

37

 7.1 Channel System

FL SW

FR

C

SL

SR

SBL

SBR

Speaker Connections

SW

FR

FL

C

SR SL SBR SBL

5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch
38

 7.1 Channel System + ZONE SPEAKER
MAIN ROOM

FL SW

FR

C

SL

SR

SBL

SBR

ZONE 2

FL(Z2) FR(Z2)

Speaker Connections

SW

FR

FL

C

SR SL FR(Z2) FL(Z2) SBR SBL

5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch
39

 7.1 Channel System (Bi-Amping the Speakers)

FL SW C
SL

FR SR

SBL

SBR

Speaker Connections

For highfrequency

For low-

SW

FR frequency FL

C

SR SL SBR SBL

Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of your speakers as well.

5.1ch 7.1ch 5.1.2ch

7.1.2ch

5.1.4ch

40

 5.1.2 Channel System

HL

HR

FL SW

FR

C

SL

SR

Speaker Connections

SW

FR

FL

C

SR SL OR OR

OR OR

HR HL
*1
*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).

5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch
41

 5.1.2 Channel System + ZONE SPEAKER
MAIN ROOM

HL

HR

FL SW

FR

C

SL

SR

Speaker Connections

ZONE 2
FL(Z2) FR(Z2)

SW

FR

FL

C

SR SL FR(Z2) FL(Z2) OR OR

OR OR

HR HL
*1
*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).

5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch
42

 5.1.2 Channel System (Bi-Amping the Speakers)

HL

HR

FL SW

FR

C

SL

SR

Speaker Connections

For highfrequency

For low-

SW

FR frequency FL

C

SR SL OR OR

OR OR

5.1ch 7.1ch

HR HL
*1
Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of your speakers as well.
*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).

5.1.2ch 7.1.2ch 5.1.4ch

43

 7.1.2 Channel System

HL

HR

FL SW

FR

C

SL

SR

SBL

SBR

Speaker Connections

SW

FR

FL

C

SR SL OR OR SBR SBL

OR OR

HR HL
*1
*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).

5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch
44

 5.1.4 Channel System

HL1

HR1

FL SW

FR

C

SL HL2

SR HR2

Speaker Connections

SW

FR

FL

C

SR SL OR OR OR OR

OR OR OR OR

HR1 HL1 HR2 HL2

*1

*2

*1 Connect the Height Speakers you have actually installed (HL1/HR1: Front Height Speakers, Top (front side) Speakers, Dolby Enabled Speakers (Front)). *2 Connect the Height Speakers you have actually installed (HL2/HR2: Rear Height Speakers, Top (rear side) Speakers, Dolby Enabled Speakers (Surround)).

5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch

45

Speaker Connections Connecting a Power Amplifier (For European, Australian and Asian models)

Power amplifier

You can connect a power amplifier to the unit and use the unit as a pre-amplifier in order to produce a large volume that cannot be output with the unit only.
Connect the front speakers to the power amplifier. For details, refer to the power amplifier's instruction manual. � Use the PRE OUT FRONT jacks for connection as show on the left.

a
Setup � Set "2. Speaker" - "Configuration" - "Speaker Channels" according to the
number of channels of the connected speakers.

a Analog audio cable

5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch
46

Connections

Connections

Notes regarding connections with HDMI cables

48

Connecting the TV

49

Connecting the SUB Monitor

51

Connecting Playback Devices

52

Connecting a TV or Integrated Amplifier in a

separate room (Multi-zone)

56

Connecting Antennas

58

Network Connection

59

Connecting External Control Devices

60

Connecting the Power Cord

62

47

Connections

Notes regarding connections with HDMI cables

HDMI (High-Definition Multimedia Interface) is a digital interface standard for connecting TVs, projectors, Blu-ray Disc players, game consoles, and other video components. With HDMI, a single cable can carry control signals, digital video, and digital audio.
Connections

 (Note) Placement of cables
Putting a load on HDMI cables can lead to poor operational performance. Place the cables so there is no load put on them.

Push HDMI cables straight in and all the way. You can damage the terminals if you try to insert at an angle.

Right

Wrong

Right

Wrong

Right

Wrong

Wrong

� When 4K high-quality video (4K 60Hz, 4K HDR, etc.) is to be played, use Premium High Speed HDMI Cable or Premium High Speed HDMI Cable with Ethernet that have the "PREMIUM Certified Cable" label attached to the packaging.
� When 8K high-quality video (8K 60Hz, etc.) is to be played, use ULTRA High Speed HDMI Cable that has the "ULTRA HIGH SPEED" label attached to the
packaging.

� Hold the terminal housing on the HDMI cable when unplugging. Pulling on the cable may lead to damaged cabling.

48

Connections

Connecting the TV

By connecting a TV to this unit, you can show the video from AV devices connected to this unit on the TV and also play the sound from the TV through this unit.

IN(ARC)

To ARC/eARC TV

ARC TV a

SUB Monitor ( p51) ZONE 2 ( p56)

If the TV supports the ARC (Audio Return Channel) function(*), use only the HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of the TV for connection. You connect the HDMI cable to the HDMI OUT MAIN jack labeled "ARC" on the receiver side. � When a TV compatible with the eARC function is connected, use an HDMI
cable that supports Ethernet.
To Non-ARC TV

b
TV
DIGITAL OPTICAL
OUT

8K

8K

4K

If the TV does not support the ARC (Audio Return Channel) function(*), connect an HDMI cable and digital optical cable. If the TV does not have a DIGITAL OPTICAL OUT jack, you can use an analog audio cable to connect with the AUDIO IN TV jack. � If you use a cable set-top box, etc. connected to the input jack of this unit to
watch TV (without using a TV's built-in tuner), connection with a digital optical cable or analog audio cable is not required.

Non-ARC TV

Be sure to insert the HDMI cable all the way in.

a HDMI cable, b Digital optical cable

Setup � When not using the ARC function, press on the remote controller, then
set "5.Hardware" - "HDMI" - "Audio Return Channel (eARC supported)" ( p128) to "Off". (*)The ARC function and eARC function transmit the audio signals of the TV via an HDMI cable, and plays the audio of the TV on this unit. To check if the TV supports the ARC function and eARC function, refer to the instruction manual of the TV, etc. ARC/eARC compatible audio formats ( p185)
49

� Settings are required when 4K or 8K high-quality video is to be played.
Refer to "HDMI 4K/8K Signal Format" ( p111) for information on the settings. Also, use an HDMI cable that supports 4K or 8K video.

Connections

50

Connecting the SUB Monitor

8K

8K

4K

8K HDCP 2.3

Connections
SUB Monitor
This unit has multiple HDMI OUT jacks, and another TV or projector can be connected to the HDMI OUT SUB jack. � Switch between MAIN and SUB using the HDMI MAIN/SUB button on the
remote controller ( p16) or "Quick Menu" ( p76). Note that this jack is not ARC-compatible. � If devices with different resolutions are connected to HDMI OUT MAIN jack and SUB jack, images are output with the lower resolution.

a SUB Monitor

Be sure to insert the HDMI cable all the way in.

a HDMI cable
51

Connections

Connecting Playback Devices

Connections to BD/DVD and GAME with HDMI jacks

BD/DVD

a

8K

8K

4K

GAME
8K HDCP 2.3

Cable/Satellite set-top box

This is a connection example of an AV component equipped with an HDMI jack. When connecting with an AV component that conforms to the CEC (Consumer Electronics Control) standard, you can use the HDMI CEC function (*) that enables linking with input selectors, etc. and the HDMI Standby Through function that can transmit video and audio signals of the AV component to the TV even if this unit is in standby mode.
� Settings are required when 4K or 8K high-quality video is to be played. Refer to "HDMI 4K/8K Signal Format" ( p111) for information on the settings. Also, use an HDMI cable that supports 4K or 8K video.
� The corresponding resolution is different depending on the HDMI jack connected. See "Corresponding input resolutions" ( p186) for details.
Note
� To enjoy digital surround sound including Dolby Digital, set the audio output of the connected Blu-ray Disc player etc. to the Bitstream output.
(*)The HDMI CEC function: This function enables various linking operations with CEC-compliant devices, such as switching input selectors interlocking with a CEC-compliant player, switching audio output between TV and this unit or adjusting the volume using the remote controller of a CEC-compliant TV, and automatically switching this unit to standby when the TV is turned off.

Be sure to insert the HDMI cable all the way in.
a HDMI cable
52

Connecting a BD/DVD without HDMI Jack Mounted

Connections

8K

8K

4K

8K HDCP 2.3

a

b

OR

c

This is a connection example of an AV component unequipped with an HDMI jack. Select cables that match the jacks of the AV component for connection. For example, when video input is connected to the BD/DVD jack, connect the audio input to BD/DVD jack, too. Thus, video input jacks and audio input jacks should have the same name for connection. Note that video signals input to the VIDEO IN jack or the COMPONENT VIDEO IN jack are converted to HDMI video signals, and then output from the HDMI OUT jack. � To enjoy digital surround playback in formats such as Dolby Digital, you need
to make a connection for audio signals with a digital coaxial cable or a digital optical cable. � According to the illustration, changing the input assignment ( p113) enables connection to jacks other than the BD/DVD jack.
Note
� The COMPONENT VIDEO IN jacks are compatible only with 480i or 576i resolution. When connecting to the COMPONENT VIDEO IN jacks, set the output resolution of the player to 480i or 576i. If there is no option such as 480i, select interlace. If your player does not support 480i or 576i output, use the VIDEO IN jack.
� To enjoy digital surround sound including Dolby Digital, set the audio output of the connected Blu-ray Disc player etc. to the Bitstream output.

BD/DVD

a Digital coaxial cable, b Analog audio cable, c Component video cable
53

Connecting an Audio Component

8K

8K

4K

8K HDCP 2.3

Connections
This is a connection example of an audio component. Connect a CD player using an analog audio cable. You can also connect a turntable that has an MMtype cartridge to the PHONO jack. � If the turntable has a built-in phono equalizer, connect it to any of the AUDIO
IN jacks other than the PHONO jack. Further, if the turntable uses an MC type cartridge, install a phono equalizer compatible with the MC type cartridge between the unit and the turntable, and then connect it to any of the AUDIO IN jacks other than the PHONO jack.

a a a Analog audio cable

If the turntable has a ground wire, connect it to the GND terminal of this unit. CD
Turntable
54

Connecting a Video Camera, etc.

Connections
Connect a video camera, etc. to the AUX INPUT AUDIO/HDMI jack on the front panel using an HDMI cable or stereo mini plug cable (�1/8/3.5 mm).

Be sure to insert the HDMI cable all the way in.
a Video camera
a HDMI cable
55

Connections

Connecting a TV or Integrated Amplifier in a separate room (Multi-zone)

Connecting a TV (ZONE 2)

8K

8K

4K

8K HDCP 2.3

While a disc is played on a Blu-ray Disc player in the main room (where this unit is located), you can play the video and audio of the same Blu-ray Disc player or another AV component on the TV equipped with an HDMI IN jack in a separate room (ZONE 2). Note that only the devices connected to the HDMI IN1 to IN3 jacks can be played on the TV in the separate room. � Audio from an externally connected AV component can be output only
when the audio is 2 ch PCM audio signal. Also, the audio output of the AV component may need to be changed to the PCM output.

Setup

� When video and audio via HDMI input are output to ZONE 2, set "1. Input/

Output Assign" - "TV Out / OSD" - "Zone 2 HDMI" ( p111) to "Use" on the

Be sure to insert the HDMI

Setup menu. Note that when "Zone 2 HDMI" is set to "Use", the resolution

cable all the way in.

of the video that can be output by the HDMI OUT SUB/ZONE 2 jack will be

a

limited to "4K Enhanced" ( p111).

TV

a HDMI cable
56

Connecting an Integrated Amplifier (ZONE 2)

Connections

You can enjoy 2 ch audio in the separate room (ZONE 2) while performing playback in the main room (where this unit is located). Use an analog audio cable to connect the ZONE 2 LINE OUT terminal on this unit to the input jack on an integrated amplifier in the separate room. � To output audio from an externally connected AV component to ZONE 2,
connect it to any of HDMI IN1 to IN3 jacks. If the AV component is not equipped with an HDMI jack, use a digital coaxial cable, digital optical cable or analog audio cable. Also, the audio from externally connected AV components can be output to ZONE 2 only when the audio is analog or 2 ch PCM signal. When the AV component is connected to this unit with a digital coaxial cable or digital optical cable, change the audio output of the AV component to the PCM output.

a
Input Terminal

Setup
� Settings are required to output audio to ZONE 2. Press on the remote controller, and set "2. Speaker" - "Configuration" - "Zone 2 Lineout" ( p116) to "Zone 2".

Integrated amplifier

a Analog audio cable
57

Connecting Antennas

8K

8K

(North American,

8K HDCP 2.3

4K

Australian and Asian

models) AM

a

Connections
North American, Australian and Asian models Connect the antenna to this unit, and set up the antenna at the best position for listening while receiving radio signals. Attach the indoor FM antenna to the wall using push pins or adhesive tape.
a c

European models
Make sure the plug is pushed in all the way, then fix in place by turning the nut to the right. Use a tack or similar to fix the antenna to a wall.

b

(European models)

(North American models)

(Australian and Asian models)

AB

DAB b

c

c FM

a AM loop antenna, b DAB/FM antenna, c Indoor FM antenna
58

Network Connection
8K HDCP 2.3

Connections
This unit can be connected to the network using a wired LAN or Wi-Fi (wireless LAN). You can enjoy network functions such as Internet radio by network connection. If connection is made by the wired LAN, connect the router and the ETHERNET jack with the Ethernet cable as shown in the illustration. To connect by Wi-Fi, select your desired setting method in "Network Connection" ( p142) of Initial Setup, and then follow the on-screen instructions. To configure the setting on the Setup menu after the completion of Initial Setup, press the button on the remote controller, and select "5. Hardware" - "Network" to make the setting ( p129). For the Wi-Fi connection, stand the wireless antenna for use.

a
a Ethernet cable
59

Connections

Connecting External Control Devices

IR IN port

8K

8K

4K

8K HDCP 2.3

When connecting a remote control receiver unit consisting of an IR Receiver, etc. to this unit, operation using the remote controller is possible even if the remote control signal is difficult to reach (due to installation in the cabinet, etc.). You can also operate the unit using the remote controller from a separate room such as ZONE 2. For installing a remote control receiver unit, contact the specialized stores. � For the type of cable required for connection, refer to the operation manual,
etc. of the remote control receiver unit.

IR Receiver
60

12V TRIGGER OUT jack

8K

8K

4K

8K HDCP 2.3

Connections
When connecting a device equipped with a TRIGGER IN jack such as a BD/ DVD player to this unit, the device can be turned on or set to standby by interlocking the operation on this unit. When any input is selected, this unit outputs a maximum of 12 V/100 mA control signal from the 12V TRIGGER OUT jack, and controls the power link operation of the external device. � For connection, use a monaural mini plug cable (�1/8/3.5 mm) without
resistance. Do not use a stereo mini plug cable.
Setup � Settings are required to output control signals from the 12 V TRIGGER OUT
jack. Press the button on the remote controller, select the input desired for "5.Hardware" - "12V Trigger" ( p135), and set the output destination for the control signal.

a BD/DVD
a Monaural mini plug cable (�1/8/3.5 mm)
61

Connecting the Power Cord

Connections
Connect the power cord after all the connections are completed. � This model includes a removable power cord. Be sure to connect the power
cord to the AC INLET of the unit first, and then connect it to the outlet. Always disconnect the outlet side first when disconnecting the power cord.

a
a Power cord
62

Playback

Playback

Basic Operations

Playing audio from an externally connected device 64

BLUETOOTH� Playback

65

Listening To the Radio

68

Listening Mode

74

Quick Menu

76

Network Services

Spotify

79

AirPlay�

80

DTS Play-Fi�

82

Amazon Alexa

83

Amazon Music

85

TIDAL

87

Connecting the Sonos System for Playback

88

Internet Radio

90

Convenience functions

Multi-zone

92

Playing different audio and video

96

Playing music files saved on a USB storage device 98

Music Server

100

Play Queue

103

Connecting a transmitter for playback

105

63

Playback

Playing audio from an externally connected device

You can play the audio from AV components, such as Blu-ray disc players through this unit. � When a TV is connected to the HDMI OUT SUB jack, use the HDMI MAIN/SUB button or "Quick Menu" ( p76) to switch between MAIN and SUB.
Basic Operations

TV's REMOTE

INPUT

TV

Inputs TV HDMI 1 HDMI 2 HDMI 3

Perform the following procedure when this unit is on. 1. Switch the input on the TV to the input connected to the unit. 2. Press the input selector whose name is the same as that of the jack to which
the player is connected. For example, press BD/DVD to play the player connected to the BD/DVD jack. Press TV to listen to the sound of the TV. Also, to play a device connected to the AUX INPUT AUDIO/HDMI jack on the front panel, press AUX. � When the CEC link function works, the input switches automatically
when a CEC compliant TV or player is connected to this unit using HDMI connection. 3. Start play on the AV component.

HDMI MAIN/SUB Input selector

64

Playback
BLUETOOTH� Playback
You can wirelessly play music on a smartphone or other BLUETOOTH wireless technology enabled device through the speakers connected to this unit. It is also possible to transmit the audio from this unit to BLUETOOTH enabled headphones, wireless speakers, etc.
Playing audio from BLUETOOTH wireless technology enabled devices with this unit
Perform the following procedure when this unit is on.
Pairing
1. When you press the BLUETOOTH button, "Now Pairing..." appears on the display, and the pairing mode is enabled.

The illustration shows an image. Onkyo TX-NR7100 XXX

2. Enable (turn on) the BLUETOOTH function of the BLUETOOTH enabled device, and then select this unit from among the devices displayed. If a password is requested, enter "0000". � This unit is displayed as "Onkyo TX-NR7100 XXXXXX". This display can be changed using the Friendly Name function ( p130) or Onkyo Controller ( p147) (available on iOS or AndroidTM). � To connect another BLUETOOTH enabled device, press and hold the button at least 5 seconds, and then perform step 2. This unit can store the pairing information of up to 8 paired devices. � The coverage area is approx. 48�/15 m. Note that connection is not always guaranteed with all BLUETOOTH enabled devices.
Playing Back
1. Perform the connection procedure on the BLUETOOTH enabled device. 2. Playing the music file.
The input on this unit automatically switches to "BLUETOOTH". Turn up the volume of the BLUETOOTH enabled device to an appropriate level. � Due to the characteristics of BLUETOOTH wireless technology, the sound
produced on this unit may slightly be behind the sound played on the BLUETOOTH enabled device.

65

Playback Transmitting audio from this unit to BLUETOOTH wireless technology enabled devices

The illustration shows an image.

Pairing
1. Press the input selector you want to play. � Select a source other than "BLUETOOTH". This function does not work if you select "BLUETOOTH".
2. Press the button on the remote controller, select "5. Hardware" "Bluetooth" - "Bluetooth Transmitter", and press the ENTER button.
3. Select either "On (Tx)" or "On (Main + Tx)" in "Bluetooth Transmitter". � If you select "On (Tx)", playback is from the Bluetooth wireless technology enabled device only, and if you select "On (Main + Tx)", playback is from both the Bluetooth wireless technology enabled device and the main unit.

Bluetooth Transmitter

Bluetooth Transmitter Search Devices Output Level aptX HD Low Latency Mode Pairing Information Device Status

On (Tx) Start
Variable Off Off
Clear
Ready

Set to "Off" if you are not using the Bluetooth Transmitter.

4. In "Search Devices", press ENTER. � The search starts for BLUETOOTH wireless technology enabled devices that are able to receive, then a list of relevant devices is displayed.
5. Select the device you want to output the audio from, and when you press ENTER the message "Now Pairing..." is displayed and the two are paired. � Depending on the BLUETOOTH wireless technology enabled device, you may need to pair manually. If the device name does not appear in the list, check the settings of the BLUETOOTH wireless technology enabled device.

66

Playing Back
1. Do the play operations on the AV component connected to this unit. Do the play operations on this unit when the input is TUNER or NET.
� If "Variable" has been selected for the "Output Level", the volume can be adjusted on this unit. Adjust to a suitable volume on the connected Bluetooth wireless technology enabled device beforehand. If "Fixed" is selected, adjust the volume on the Bluetooth wireless technology enabled device.
� You cannot transmit audio to multiple BLUETOOTH wireless technology enabled devices from this unit.
� The coverage area is approx. 48�/15 m. Note that connection is not always guaranteed with all BLUETOOTH enabled devices.
� When "Bluetooth Transmitter" is "On (Tx)" or "On (Main + Tx)" and in the following cases, when this unit detects a paired Bluetooth wireless technology enabled device, it will automatically reconnect with that device. � When the power is turned on again after the unit is switched to standby � While other than "BLUETOOTH" is selected � When the "NET" input is selected and there is audio output from a network service/content (some services excluded) When not using this function, select "Off" in "Bluetooth Transmitter" to cancel the connection. Also disconnect on the receiving device (if disconnection is possible on the receiving device).
� Audio cannot be output from a BLUETOOTH wireless technology enabled device in the following cases: � When the audio file is DSD format � When playing audio from one of the following network services: Chromecast built-in, Amazon Alexa, AirPlay, DTS Play-Fi
� Sound quality adjustments and listening modes of this unit cannot be applied to the output audio.
� This function can be used in the main room (where this unit is located). This function turns off if you turn on the Multi-zone function which outputs audio from a separate room (ZONE 2/ZONE 3).

Playback
67

Playback Listening To the Radio
You can receive AM (North American, Australian and Asian models)/FM/DAB (European models) radio stations on this unit with the built-in tuner.
Listening To the AM/FM Radio
Tuning into a Radio Station
Perform the following procedure when this unit is on.
 Tuning Automatically
1. Press TUNER repeatedly to select either "AM" or "FM". 2. Press MODE repeatedly to display "TunMode: Auto" on the display.
3. When you press the cursors / , automatic tuning starts, and searching stops when a station is found. When tuned in to a radio station, the "TUNED" indicator on the display lights up. When tuned in to an FM radio station, the "FM ST" indicator lights up.
When FM broadcasts reception is poor: Perform the procedure for "Tuning Manually" ( p69). Note that if you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception.
68

 Tuning Manually
Note that if you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception. 1. Press TUNER repeatedly to select either "AM" or "FM". 2. Press MODE repeatedly to display "TunMode: Manual" on the display.
3. While pressing the cursors / , select the desired radio station. � Each time you press the cursors / , the frequency changes by 1 step. If the button is held down, the frequency changes continuously, and if the button is released, the frequency stops changing.

TUNER

/ // ENTER

MODE

 Frequency step setting (North American, Australian and Asian models)
Press , and using the cursors and ENTER, select "7. Miscellaneous" "Tuner" - "AM/FM Frequency Step" or "AM Frequency Step", and then select the frequency step for your area. Note that when this setting is changed, all radio presets are deleted.

Playback
Using RDS (European, Australian and Asian models)
RDS stands for Radio Data System, and is a method of transmitting data in FM radio signals. In regions where RDS can be used, when you tune in to a radio station broadcasting program information, the radio station name is displayed on the display. When you press the button on the remote controller in this state, you can use the following functions.
 Display Text Information (Radio Text)
1. While the name of the station is being displayed on the display, press the button on the remote controller once. The Radio Text (RT), which is text information delivered by the station, is displayed scrolling across the display. "No Text Data" is displayed when no text information is delivered.
 Search for Stations by Program Type
1. While the name of the station is being displayed on the display, press the button on the remote controller twice. � If none of the Program Types are set for the radio station under reception, "None" is displayed.
2. Press the cursor buttons / on the remote controller to select the Program Type you want to search for, and then press the ENTER button to start the search. � The Program Types displayed are as follows: None / News (News reports) / Affairs (Current affairs) / Info (Information) / Sport / Educate (Education) / Drama / Culture / Science (Science and technology) / Varied / Pop M (Pop music) / Rock M (Rock music) / Easy M (Middle of the road music) / Light M (Light classics) / Classics (Serious classics) / Other M (Other music) / Weather / Finance / Children (Children's programmes) / Social (Social affairs) / Religion / Phone In / Travel / Leisure / Jazz (Jazz music) / Country (Country music) / Nation M (National music) / Oldies (Oldies music) / Folk M (Folk music) / Document (Documentary) � The information displayed may not match the content delivered by the station.
3. When a station is found, the station blinks on the display. Pressing the ENTER button in this state will receive that station. If you don't press the ENTER button, the unit starts to search for another station.

69

� If no stations are found, the message "Not Found" is displayed.
� Unusual characters may be displayed when the unit receives unsupported characters. This is not a malfunction. Also, if the signal from a station is weak, information may not be displayed.

Playback

 Presetting a Radio Station ( p73) 70

Listening To DAB Digital Radio (European models only)

Playback

Tuning into a Radio Station
Perform the following procedure when this unit is on. 1. Press TUNER repeatedly to select "DAB".
� The very first time you select DAB, the Auto Tuning function automatically scans the DAB Band 3 for the multiplexes (i.e., stations) available in your area. Once the scanning process is complete, the first station that was detected is selected.

2. Select the desired radio station with / . � If a new DAB station is introduced, or you move to a new area, press , then use the cursors and ENTER button to run the "DAB Auto Scan" in "7. Miscellaneous" - "Tuner".

TUNER

/ // ENTER

MODE

71

 Changing the order stations are displayed
You can sort the available stations alphabetically or by multiplex. 1. Press MODE repeatedly to set the method for sorting the display order from
the following. Alphabet (default setting): Sort stations alphabetically. Multiplex: Sort stations by multiplex.
 Displaying DAB Radio Information
1. Press repeatedly to display more information about the selected DAB station.
DLS (Dynamic Label Segment): When tuned to a station that's broadcasting DLS text data, the text will scroll across the display. Program Type: Displays the type of program. Bit Rate and Audio Mode: Displays the station's bit rate and audio mode (Stereo, Mono). Quality: Displays the signal quality. 0 - 59: Poor reception 60 - 79: Good reception 80 - 100: Excellent reception Multiplex Name: Displays the name of the current multiplex. Multiplex Number and Frequency: Displays the number and frequency of the current multiplex.

Playback
72

Presetting a Radio Station
 Registration Procedure
You can preset up to 40* of your favorite radio stations. *North American, Australian and Asian models: AM and FM stations European models: FM and DAB stations After tuning in to the radio station you want to register, perform the following procedure. 1. Press MEMORY so that the preset number on the display blinks.
2. While the preset number is blinking (approx. 8 seconds), repeatedly press the cursors / to select a number between 1 and 40.
3. Press MEMORY again to register the station. When the station is registered, the preset number stops flashing. Repeat this procedure for all of your favorite radio stations.

Playback
 Selecting a Preset Radio Station
1. Press TUNER. 2. Press the cursors / to select a preset number.
 Deleting a Preset Radio Station
1. Press TUNER. 2. Press the cursors / to select the preset number to delete. 3. After pressing MEMORY, press CLEAR while the preset number is blinking,
and delete the preset number. When deleted, the number on the display disappears.

TUNER

/ // ENTER

CLEAR MEMORY

73

Playback Listening Mode
This unit is equipped with a variety of listening modes, and you can select the optimum listening mode for movies, TV, music, and games by pressing MOVIE/TV, MUSIC, and GAME. ( p169) � For details of the effects of each listening mode, refer to "Listening Mode Effects" ( p175). � For listening modes selectable for each audio format of input signals, refer to "Input Formats and Selectable Listening Modes" ( p171).
Selecting a Listening mode
1. Press one from among MOVIE/TV, MUSIC, and GAME during playback. 2. Press the selected button repeatedly to switch the modes displayed on the
display of the main unit.
� Each of MOVIE/TV, MUSIC and GAME buttons stores the listening mode that was selected last. If content incompatible of the listening mode selected last is played, the most standard listening mode for the content is automatically selected.
74

Checking the input format and listening mode
Repeatedly pressing the button on the remote controller switches the display of the main unit in the following order. � The content displayed depends on the source, BLUETOOTH, etc., being
played. � Not all the information is necessarily displayed.
Input source and volume
Listening mode
Input format
The display is switched in a few seconds. Sampling frequency
Input signal resolution

Playback
75

Quick Menu Menu operations

Playback

You can quickly adjust the settings you frequently use, such as tone adjustments, etc.
You can make the settings on the TV screen during playback. Press Q on the remote controller to display the Quick Menu.

Quick Menu HDMI Audio Room EQ Level

HDMI Out A/V Sync Audio Return Channel

BD/DVD

Select the item with the cursors / of the remote controller, and press the
ENTER button to confirm your selection. Use the cursors to change the settings.
� To return to the previous screen, press . � To exit the settings, press Q.

76

 HDMI
HDMI Out: Select the HDMI OUT jack to output video signals from "MAIN", "SUB", and "MAIN+SUB".
A/V Sync: If the video is behind the audio, you can delay the audio to offset the gap. The setting can be set for each input. � It cannot be set if the listening mode is Pure Audio or Direct.
Audio Return Channel: You can enjoy the sound of the HDMI-connected ARCcompatible TV through the speakers connected to the unit. Select "On" when listening to the audio of TV using the speakers of this unit. Select "Off" when the ARC function is not used.
 Audio
Music Optimizer: Improve the quality of the compressed audio. Playback sound of lossy compressed files such as MP3 will be improved. The setting can be set for each input. This works in signals whose sampling frequencies are 48 kHz or less. The setting is not effective in the bitstream signals. � It cannot be set if the listening mode is Pure Audio or Direct. � This cannot be selected when either of the slots is selected with "Dirac Live"
( p78).
Late Night: Enable small sounds to be easily heard in detail. It is useful when you need to reduce the volume while watching a movie late night. � This function cannot be used in the following cases.
� When playing Dolby Digital Plus or Dolby TrueHD with "Loudness Management" set to "Off"
� When the input signal is DTS:X, and "Dialog Control" is not 0 dB � When the input signal is Analog/DSD and the listening mode is Pure Audio
or Direct

Playback
Stereo Assign: This function enables you to select a pair of speakers to output stereo sound. Apart from the front speakers (Front), you can select the Surround speakers (Surround), Surround Back speakers (Surround Back), Height 1 speakers (Height 1) and Height 2 speakers (Height 2).
Selectable

"Front"

"Surround"

� The listening mode switches to "Stereo" if the audio output destination is changed.
Zone B: Select a method of outputting audio to ZONE B from among "Off", "On (A+B)" and "On (B)". � In the following cases, "Zone B" cannot be selected.
� When ZONE 2 is On � When "2. Speaker" - "Configuration" - "Zone 2 Lineout" on the Setup menu
is set to "Zone 2". ( p116)
Digital Filter: You can switch the type of digital filter in the AUDIO DAC (digital analog converter). You can choose "Slow" (gives the sound a soft and fluid feel), "Sharp" (gives the sound more structure and firmer feel) or "Auto" (auto). The setting can be separately set to each input selector. This can be set when the sampling frequency is 44.1 kHz or more.

77

 Room EQ
Dirac Live (*1): You can select the equalizers measured with Dirac Live ( p144, p148) from "Slot1" to "Slot3". When disabling the equalizer, select "Off". � The Dirac Live measurement results are saved in "Slot1" to "Slot3", but you
are able to register your own original sound quality with "Manual Adjust" ( p149). � This cannot be selected when measurements are made using "AccuEQ Room Calibration".
AccuEQ (*1)(*2): Enable or disable the equalizer function that corrects for sound distortion caused by the acoustic environment of the room. On (All Ch): EQ that corrects according to the room acoustics acquired with the AccuEQ calibration is applied to all channels. On (ex. L/R): The same EQ as "On (All Ch)" is applied to speakers other than the Front Speakers. EQ correction for the Front Speakers is turned off. � The setting can be separately set to each input selector.
Manual Equalizer (*1)(*2): Select "Preset 1" to "Preset 3" configured in "2. Speaker" - "Equalizer Settings" on the Setup menu. When this is set to "Off", the same sound field setting is applied to all ranges.
Re-EQ, Re-EQ(THX) (*1)(*2): Adjusts the soundtrack with the enhanced high range so that it suits a home theater. The following listening modes can be used for Re-EQ: Dolby Audio - DD, Dolby Audio - DD+, Dolby Audio - Surr, Dolby Audio - TrueHD, Multichannel, DTS, DTS-ES, DTS 96/24, DTS-HD High Resolution Audio, DTS-HD Master Audio, DTS Neural:X, DTS Express and DSD In Re-EQ(THX), the following listening modes can be used: THX Cinema and THX Select Cinema.
EQ for Standing Wave (*1)(*2): Setting this "On" will control the effect of the standing wave generated by the sound wave reflected by wall or similar interfering with the original sound wave.
(*1) It cannot be set if the listening mode is Pure Audio or Direct. (*2) This function cannot be used if Dirac Live ( p78) is being used.
Furthermore, there is no effect even if it can be selected.

Playback
 Level
Front: Adjust the speaker level of the front speakers while listening to the sound.
Center: Adjust the speaker level of the center speaker while listening to the sound.
Subwoofer: Adjust the speaker level of the subwoofer while listening to the sound. � If you set the unit to the standby mode, the adjustments you made will be
restored to the previous statuses.

78

Spotify
Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how.

Playback

79

Playback

AirPlay�

By connecting this unit to the same network as that of iOS devices such as iPhone�, iPod touch� and iPad�, you can enjoy music files on iOS devices wirelessly. � Update the OS version on your iOS device to the latest version. � Depending on the iOS version, operation screens or operation procedures on the iOS device may be different. For details, refer to the operating instructions for the
iOS device.
Basic Operations

Wi-Fi

1. Connect the iOS device to the access point where this unit is connected via network.
2. Tap the AirPlay icon in the play screen of the music app on an iOS device that supports AirPlay and select this unit from the list of devices displayed.
3. Play the music file on the iOS device. � When "5. Hardware" - "Power Management" - "Network Standby" is set to
"Off" in the Setup menu, turn this unit on manually, and press the NET button on the remote controller. In the factory default setting, the Network Standby function ( p134) is set to On. � Due to the characteristics of AirPlay wireless technology, the sound produced on this unit may slightly be behind the sound played on the AirPlay-enabled device.
You can also play the music files on a PC with iTunes (Ver. 10.2 or later) equipped. Confirm that this unit and the PC are connected to the same network beforehand. Then, press NET on the remote controller. Next, click the AirPlay icon in iTunes, select this unit from the displayed devices, and start play of a music file.

iPhone Onkyo TX-NR7100 XXXXXX

e.g., iOS 10

80

Playing Back on multiple devices (AirPlay2)

Playback

Wi-Fi
iPhone Onkyo TX-NR7100 XXXXXX Onkyo XXXXXXXX Onkyo XXXXXXXX

e.g., iOS 11.4

This unit supports AirPlay2. If the version of the iOS device is iOS11.4 or later, you can play the tracks on the iOS device simultaneously on this device and on another device that supports AirPlay2. 1. Connect the iOS device to the access point where this unit is connected via
network. 2. Tap the AirPlay icon on the play screen of the music play application on
the iOS device, and select this unit and AirPlay2-supported devices to play from the displayed devices. � AirPlay2-supported devices are displayed with white circle on the right
side. � Multiple AirPlay2-supported devices can be selected. � The volume can be adjusted on individual devices. 3. Play the music file on the iOS device. � When "5. Hardware" - "Power Management" - "Network Standby" is set to "Off" in the Setup menu, turn this unit on manually, and press the NET button on the remote controller. In the factory default setting, the Network Standby function ( p134) is set to On. � Due to the characteristics of AirPlay wireless technology, the sound produced on this unit may slightly be behind the sound played on the AirPlay-enabled device.
You can also play the music files on a PC with iTunes (Ver. 12.8 or later) equipped. Confirm that this unit and the PC are connected to the same network beforehand. Then, press NET on the remote controller. Next, click the AirPlay icon in iTunes, select this unit and AirPlay2-supported devices to play from the displayed devices, and start play of a music file.

81

DTS Play-Fi�
https://play-fi.com/ When connecting this unit to the same network as mobile devices, such as a smartphone and tablet, you can enjoy music played on the mobile device wirelessly. Music from a streaming distribution service or music in the music library on a mobile device can be played. This function also supports a playlist on iTunes. Also, connecting multiple speakers supporting DTS Play-Fi on the same network will enable "Group playback" that plays the same music in separate rooms at home. To enjoy this function, download Onkyo Music Control App (available on iOS or AndroidTM).
Playing Back
1. Download Onkyo Music Control App using your mobile device. https://www.onkyo.com/playfi/app_o.html

Playback
2. Connect the mobile device to the network where this unit is connected. 3. Starting up Onkyo Music Control App will automatically display compatible
devices. 4. Select this device from the compatible devices. Then, a list of applications
such as a music streaming distribution service is displayed. Select the content to play, and perform operation according to the on-screen instructions.
� When "5. Hardware" - "Power Management" - "Network Standby" is set to "Off" in the Setup menu, turn this unit on manually, and press the NET button on the remote controller. In the factory default setting, the Network Standby function ( p134) is set to On.
� For detailed operation and FAQ, visit the following URL. https://www.onkyo.com/playfi/info_o.html
� To use a music streaming distribution service, user registration may be required.
� This unit does not support the following DTS Play-Fi functions. � Spotify � Wireless Surround Sound � Line In Rebroadcast � Internet Radio
� Some of the settings in the "Setup menu" cannot be changed on this unit. To change those settings, cancel the connection of this unit from the application.
� Listening modes cannot be selected during playback.

82

Amazon Alexa
Alexa is a cloud-based voice service developed by Amazon. When this unit is registered with an Amazon account, you can use a terminal with Amazon Alexa (an Amazon Echo, etc.) or Amazon Alexa App (available on iOS and AndroidTM) to perform operations such as adjusting the volume of this unit or playing music using voice commands. � You need an Amazon account to use Amazon Alexa. For more information,
see the Amazon website.

Playback
Registering this unit with an Amazon account
1. Register with the Amazon account on Onkyo Controller. This cannot be set with operations on this unit. Refer to "Onkyo Controller" ( p147) for information about the app.
2. Start Onkyo Controller and tap the unit when displayed. 3. Tap "NET" or "NETWORK" at the top of the Onkyo Controller screen, and
after switching to the network menu, tap the "amazon alexa" icon. � If the login screen is not displayed but an update or installation screen is
displayed instead, perform the update or installation according to the onscreen instructions.

Available services may differ depending on your area. 4. Tap "Start Setup", and in the Setup screen, select the language and register
the device name. Select the same language as the one you have selected for your other terminals with Amazon Alexa (an Amazon Echo, etc.). For the device name, use one that can easily be called up vocally. For example: Speaker 5. Tap "Next" to display the Amazon Alexa screen. 6. Follow the on screen instructions to enter the Amazon account information, such as your email address and password, to log into Amazon (*1). After logging in, tap "Allow" and register this unit with an Amazon account.
83

(*1) Log in using the same account as other terminals with Amazon Alexa. 7. When registration is finished, the screen returns to the one for Onkyo
Controller. Follow the on screen instructions and talk to the terminal with Amazon Alexa (an Amazon Echo, etc.), and confirm that you can use voice commands. For example: "Alexa, raise the volume of the speaker (*2)"
"Alexa, play music from the speaker (*2)" (*2) Use the device name you registered in Step 4 when talking.

Operating this unit

Playback

You can use voice commands to adjust the volume on this unit, start and stop music, and skip music up or down. 1. With the unit on, speak at the terminal with Amazon Alexa (an Amazon Echo,
etc.). When using the Amazon Alexa app, after starting the app, tap the Alexa logo and speak at the mobile device. For example: "Alexa, raise the volume of the speaker (*3)"
"Alexa, play music from the speaker (*3)" (*3) Use the device name you registered in Step 4 of "Registering this unit with an Amazon account" when talking.

� Refer to the website for details about voice commands. (Click here ) � It is not possible to turn the unit on or off, or to switch the listening mode. � Refer to the Amazon websites for information about operation of the Amazon
Alexa app.

84

Amazon Music
Registering this unit with Amazon Music allows you to enjoy the music distribution service provided by Amazon. � To play Amazon Music, you need to have your Amazon account and sign up
for Amazon Prime or Amazon Music Unlimited. For more information, see the Amazon website. Amazon Music is now available in several countries. If Amazon Music is not available in your country, please visit https://music.amazon.com/ for more info.

Playback
Registering This Unit with Amazon Music
1. Register with the Amazon account on Onkyo Controller. This cannot be set with operations on this unit. Refer to "Onkyo Controller" ( p147) for information about the app.
2. Start Onkyo Controller and tap the unit when displayed. 3. Tap "NET" or "NETWORK" on the upper part of the Onkyo Controller's
screen to switch to the network menu. Then tap the "Amazon Music" icon to display the login screen of Amazon Music. (Depending on the model, the icon names may be different.) � If the login screen is not displayed but an update or installation screen is
displayed instead, perform the update or installation according to the onscreen instructions.

Available services may differ depending on your area. 4. Enter the Amazon account information such as email address and password
to log in to Amazon. When the login is successful and this unit is registered, the Amazon Music menu is displayed. For playback, proceed to step 3 in the next section.
85

Playing Amazon Music using the Onkyo Controller
1. Start up Onkyo Controller. This unit is automatically displayed after startup. Then, tap and select this unit displayed.
2. Tap "NET" or "NETWORK" on the upper part of the screen to switch to the network screen. Then tap the "Amazon Music" icon.
3. Select the content to play from the menu screen of Amazon Music to start playback.
Playing Amazon Music using the remote controller
1. Switch the input on the TV to the input connected to the unit. 2. Pressing NET will display the Network Functions list screen on the TV. 3. Select "Amazon Music" with the cursors and press ENTER to confirm. 4. Select the content to play from the menu screen of Amazon Music to start
playback.

Playback
86

TIDAL

Playback
� If the login screen is not displayed but an update or installation screen is displayed instead, perform the update or installation according to the onscreen instructions.

Registering this unit with TIDAL allows you to enjoy the music distribution service provided by TIDAL. You can register this unit on the screen of Onkyo Controller by downloading Onkyo Controller (available on iOS or AndroidTM) to mobile devices such as a smartphone and tablet. � You need a TIDAL account to play back TIDAL. For more information, see the
TIDAL website.
Registering this unit with TIDAL
� You can register this unit with TIDAL using Onkyo Controller. The registration cannot be performed by operation of this unit.
1. Connect this unit to your home network by the network settings on this unit. 2. Download Onkyo Controller using your mobile device. 3. Connect the mobile device to the network where this unit is connected. 4. Start up Onkyo Controller to automatically display this unit. Tap and select
this unit displayed. 5. Tap "NET" or "NETWORK" on the upper part of the Onkyo Controller's
screen to switch to the network menu. Then tap the "TIDAL" icon to display the login screen of TIDAL. (Depending on the model, the icon names may be different.)

Available services may differ depending on your area.
6. Enter the TIDAL account information such as login ID and password to log in to TIDAL. When the login is successful and this unit is registered, the TIDAL menu is displayed. For playback, proceed to step 3 in the next section.
Playing TIDAL
1. Start up Onkyo Controller. This unit is automatically displayed after startup. Then, tap and select this unit displayed.
2. Tap "NET" or "NETWORK" on the upper part of the screen to switch to the network screen. Then tap the "TIDAL" icon.
3. Select the content to play from the menu screen of TIDAL to start playback. � To play TIDAL using the remote controller, operate the input selector on the
remote controller to display the network menu, and select "TIDAL" from the menu.

87

Playback

Connecting the Sonos System for Playback

Connecting this unit and Sonos Connect allows you to send the music or music sources on the Sonos App to this unit. Through Sonos Connect, you can play this unit with the same group of another Sonos device on the network or can play only on this unit. Also, if you start to play music from Sonos App, this unit is automatically turned on and the link function to switch input works. � When "5. Hardware" - "Power Management" - "Network Standby" is set to
"Off" in the Setup menu, turn this unit on manually, and press the NET button on the remote controller. In the factory default setting, the Network Standby function ( p134) is set to On. � You can register a maximum of 3 Sonos Connect.
Necessary Equipment
� Sonos Connect � RCA audio cable (supplied with Sonos Connect)

How to Connect This Unit and Sonos
Connect
1. Connect the Sonos Connect to the AUDIO IN jack of this unit with the RCA audio cable supplied with the Sonos Connect. Any input jacks other than the PHONO jack can be used. � A digital cable can also be connected. For details, refer to the instruction manual of Sonos. � You can change the name of the input selector displayed on this unit to easier-to-understand name. For example, the input connected to Sonos Connect can be changed from "CD" (or another input selector name) to "SONOS". Press the button on the remote controller, select "4. Source" - "Name Edit" and then change the name.
Setting Up
A setup is required to play Sonos on this unit. Make the setting according to the following procedure. 1. Press the button on the remote controller, select "5. Hardware" - "Works
with SONOS", and press the ENTER button. 2. Select the following items with the cursors / and set each item.
Input Selector: Enable the interlocking function with the Sonos Connect. With the cursors /
, select the input selector to which the Sonos Connect is connected. Connected Device: Press the ENTER button to display Sonos devices connected to the same network as the network of this unit. Select the Sonos Connect connected to the unit and press the ENTER button. � Products (e.g. Play:3 unequipped with an output terminal) other than the
Sonos Connect are also displayed in the device list and selectable. In that case, when playback on the Sonos side starts, the input is switched, however, audio is not output. Select the room name of the connected Sonos Connect. � Up to 32 devices can be displayed on the Sonos product list screen. If you

88

cannot find the Sonos Connect to be interlocked, return to the previous screen, turn off the product you do not want to interlock, and try again. Output Zone: With the cursors / , select the ZONE where you want to listen to the music. "Main": Outputs audio only to the main room (where this unit is located). "Zone 2": Outputs audio only to the separate room (ZONE 2). "Main/Zone 2": Outputs audio to both the main room and separate room (ZONE 2). "Zone 3": Outputs audio only to the separate room (ZONE 3). "Main/Zone 3": Outputs audio to both the main room and separate room (ZONE 3). "Zone 2/Zone 3": Outputs audio to both the separate rooms (ZONE 2 and ZONE 3). "Main/Zone 2/Zone 3": Outputs audio to the main room and both separate rooms (ZONE 2 and ZONE 3). Preset Volume: You can set the volume that Sonos Connect will be played at beforehand. Select a value from "Last" (Volume level before entering standby mode), "Min", "0.5" to "99.5" and "Max".
� When making the setting for the second and third unit, press the cursor several times to move to the next page, and change the menu from
"SONOS-1" to "SONOS-2" or "SONOS-3".
Playing Sonos on This Unit
1. Select desired tracks using Sonos App and send the tracks to the room where this unit is located (or to the group). It is recommended to give an easyto-remember name to the combination of this unit and Sonos Connect, such as TV Room or Living Room where this unit is located.
� If the input selector of this unit is not automatically switched even after the start of music playback, stop the playback once and start again.
� When the "Volume Pass Through" mode has been selected with the Sonos App settings, you can use the Sonos App to control the volume of this unit. * You cannot use the "Preset Volume" function when the "Volume Pass Through" mode has been selected.

Playback
89

Playback

Internet Radio

By connecting this unit to an Internet-connected network, you can enjoy Internet radio services such as TuneIn Radio. � To play Internet radio services, the network needs to be connected to the Internet. � Depending on the Internet radio service, a user registration may be required on your PC beforehand. For details of each service, visit the website of each service.
Playing Back

TV's REMOTE

INPUT

Inputs
TV HDMI 1 HDMI 2 HDMI 3

Perform the following procedure when this unit is on. 1. Switch the input on the TV to the input connected to the unit. 2. Pressing NET will display the Network services list screen on the TV. 3. Select your preferred Internet radio service using cursor, and press ENTER to
confirm the selection. 4. Following the on-screen instructions, select a radio station and program using
cursor, and then press ENTER to play. � To return to the previous screen, press .

TV

NET

/ // ENTER

The illustration shows an image.

90

Internet Radio Service Menu
You can bookmark specific stations, or delete stations that have been bookmarked. The displayed menu varies according to the service being selected. The menu icon is displayed while a station is being played. When only this icon is displayed, pressing ENTER will display the menu on the screen. When multiple icons are displayed, select the icon with the cursor, and press ENTER.
Regarding the TuneIn Radio Account
If you create an account on the TuneIn Radio website (tunein.com), and log in it from this unit, your favorite radio stations or programs you have followed on the website are automatically added to your "My Presets" on this unit. "My Presets" is displayed on the next level in the hierarchical structure of TuneIn Radio. To display a radio station added to "My Presets", you need log into TuneIn Radio from the unit. To log in, select "Login" - "I have a TuneIn account" in the "TuneIn Radio" top list on the unit, and then enter your user name and password. � If you select "Login" on this unit, a registration code is displayed. By using
this code, you can associate the device on the My Page section of the TuneIn Radio website so that you can log in from "Login" - "Login with a registration code" without entering the user name and password.

Playback
91

Playback Multi-zone
You can enjoy 2 ch audio in the separate room (ZONE 2/ZONE 3) while performing playback in the main room (where this unit is located). The same source can be played back in the main room and ZONE 2/ZONE 3 simultaneously. Also, different sources can be played back in both rooms. For the "NET" or "BLUETOOTH" input selector, you can select only the same source for the main room and separate room. If you select "NET" in the main room and then select "BLUETOOTH" in the separate room, the main room setting switches to "BLUETOOTH". You cannot select different stations of DAB (European models)/AM (North American, Australian and Asian models)/FM broadcasts for the main room and separate room. Using Onkyo Controller ( p147) is convenient for operations of multi-zone playback. You can use it on mobile devices, such as a smartphone and tablet to which Onkyo Controller (available on iOS or AndroidTM) has been downloaded.
 Playing Back (ZONE 2) ( p93) 92

Playing Back (ZONE 2)
2
1

Playback
In remote controller operation, while pressing and holding the ZONE 2 SHIFT button, press other buttons for operation. 1. While pressing and holding the ZONE 2 SHIFT button on the remote
controller, point the remote controller at this unit and press . � "Z2" on the display of the main unit lights up.
2. While pressing and holding the ZONE 2 SHIFT button on the remote controller, press the input selector of the input source you want to play in the separate room. To control on the main unit, press the ZONE 2 button, and then within 8 seconds, press the input selector button of the input to be played in the separate room. To play the same source in the main room and separate room, press the ZONE 2 button of the main unit twice.
3. When using the ZONE 2 LINE OUT connection, adjust the sound volume on the integrated amplifier in the separate room. For the ZONE speaker output, while pressing and holding the ZONE 2 SHIFT button on the remote controller, adjust the volume with the volume button. To do this on the main unit, press the ZONE 2 button, and then within 8 seconds, adjust the volume using the MASTER VOLUME dial. � Information of a connected device can be displayed on the TV in the separate room. Press the button while pressing and holding the ZONE 2 SHIFT button on the remote controller.
� If you turn the unit to standby during multi-zone playback, the Z2 indicator is dimmed, and the playback mode is switched to playback in a separate room only. Setting ZONE 2 to on while the unit is in standby also switches the playback mode to playback in the separate room only.
� The audio from externally connected AV components can be output to ZONE 2 only when the audio is analog or 2 ch PCM signal. When the AV component is connected to this unit with an HDMI cable, digital coaxial cable or digital optical cable, change the audio output of the AV component to the PCM output.
� When video and audio via HDMI input are output to ZONE 2, set "1. Input/ Output Assign" - "TV Out / OSD" - "Zone 2 HDMI" ( p111) to "Use" on the Setup menu.
93

� DSD audio signals cannot be output to ZONE 2 with the "NET" input selector. � If ZONE 2 is on, power consumption during standby will increase. � If ZONE 2 is turned on when the Pure Audio listening mode is selected in the
main room, the mode will automatically switch to the Direct listening mode. � This function turns off if you use the Bluetooth Transmitter ( p66).
To disable the function: While pressing and holding the ZONE 2 SHIFT button on the remote controller, press .

Playback

 Playing Back (ZONE 3) ( p95) 94

Playing Back (ZONE 3)
2
1

Playback
In remote controller operation, while pressing and holding the ZONE 3 SHIFT button, press other buttons for operation. Settings are required to playback a source in ZONE 3. Set "2. Speaker" - "Configuration" - "Zone Speaker" ( p116) in the Setup menu to "Zone 2/Zone 3". 1. While pressing and holding the ZONE 3 SHIFT button on the remote
controller, point the remote controller at this unit and press . � "Z3" on the display of the main unit lights up.
2. While pressing and holding the ZONE 3 SHIFT button on the remote controller, press the input selector of the input source you want to play in the separate room. To control on the main unit, press the ZONE 3 button, and then within 8 seconds, press the input selector button of the input to be played in the separate room. To play the same source in the main room and separate room, press the ZONE 3 button of the main unit twice.
3. While pressing and holding the ZONE 3 SHIFT button on the remote controller, adjust the volume with the volume button. To do this on the main unit, press the ZONE 3 button, and then within 8 seconds, adjust the volume using the MASTER VOLUME dial.
� If you turn the unit to standby during multi-zone playback, the Z3 indicator is dimmed, and the playback mode is switched to playback in a separate room only. Setting ZONE 3 to on while the unit is in standby also switches the playback mode to playback in the separate room only.
� For ZONE 3 output, audio from externally connected AV components can be output only when it is an analog audio signal.
� DSD audio signals cannot be output to ZONE 3 with the "NET" input selector. � If ZONE 3 is on, power consumption during standby will increase. � If ZONE 3 is turned on when the Pure Audio listening mode is selected in the
main room, the mode will automatically switch to the Direct listening mode. � This function turns off if you use the Bluetooth Transmitter ( p66). To disable the function: While pressing and holding the ZONE 3 SHIFT button on the remote controller, press .
95

Playback

Playing different audio and video

Displaying Your Favorite Video on TV While Playing Music

The illustration shows an image.

While listening to the music from a CD or BLUETOOTH enabled device, you can display video on TV from an AV component such as a Blu-ray Disc player. � For audio playback, you can select an input selector to which video input is
not assigned, such as "CD", "PHONO", "TUNER", "NET" and "BLUETOOTH". � (European, Australian and Asian models): When "OSD Language" ( p111)
is set to Chinese, the audio from "NET" and "BLUETOOTH" cannot be played.
Perform the following procedure when this unit is on. 1. Switch the input on the TV to the input connected to the unit. 2. Press an input selector such as BD/DVD button connected to the AV
component of which the video is to be displayed on TV. � This operation is not necessary if the same input selector has been
selected in the previous operation. 3. Press an input selector of the audio you want to play, such as the CD or
BLUETOOTH button and perform playback operation. 4. Perform the playback operation of the AV component such as a Blu-ray Disc
player. To play the audio of NET or BLUETOOTH, the following step 5 operation is required. 5. To play the audio of NET or BLUETOOTH, press the MODE button to switch the TV display from the NET or BLOOTOOTH playback screen to the video of the AV component. Pressing the MODE button again will return to the NET or BLOOTOOTH playback screen. � When the TV display is switched to the video of the AV component, the
playback screen of NET or BLUETOOTH is displayed on the corner of the screen as Mini Player. The setting for Mini Player can be changed on the Setup Menu so that it automatically turns off in 30 seconds after displayed. ("Mini Player OSD" ( p112))

96

Setting the video source to be displayed on TV beforehand: When playing the audio of "TUNER", "NET" and "BLUETOOTH", you can set the input selector to be displayed on TV beforehand using "Video Select" ( p126) on the Setup Menu. If a value other than "Last" is set, step 2 in the operation procedure is not required.

Playback

97

Playback

Playing music files saved on a USB storage device

You can play music files stored on a USB storage device.

Perform the following procedure when this unit is on.
1. Switch the input on the TV to the input connected to the unit. 2. Plug your USB storage device with the music files into the USB port on the
rear panel of this unit.
3. Press NET to display the network service list screen.
4. Select "USB" with the cursors, and then press ENTER. � If the "USB" indicator blinks on the display, check whether the USB storage device is plugged in properly. � Do not unplug the USB storage device while "Connecting..." is being displayed on the display. This may cause data corruption or malfunction.
5. Press ENTER on the next screen again. The list of folders and music files on the USB storage device is displayed. Select the folder with the cursors, and press ENTER to confirm your selection.
6. Select the music file with the cursors, and then press ENTER to start playback.

NET

/ // ENTER

� To return to the previous screen, press . � Characters that cannot be displayed on this unit appear with "". � The USB port of this unit complies with the USB 2.0 standard. The transfer
98

speed may be insufficient for some content you play, and sound interruptions, etc. may occur.
� When playing files recorded with VBR (Variable bit-rate), the playback time may not be displayed correctly.
� This unit supports the gapless playback of the USB storage device in the following conditions.
When continuously playing WAV, FLAC and Apple Lossless files with the same format, sampling frequency, the number of channels and quantization
bit rate.
� To display an album title, artist name and album art of a file in WAV format, make the folder structure and file names as shown below when saving music files. The album art can be displayed by saving a .jpg file to display on the screen in the folder of bottom level. Note that a large volume of .jpg file may take time to be displayed, or may not be displayed.

Folder 1 Artist name

Folder 1-1 Album name

file 1-1 file 2-1 file 3-1

.jpg file

Folder 1-2 Album name

file 1-2 file 2-2 file 3-2 .jpg file

Playback
USB Storage Device Requirements
� This unit can use USB storage devices that comply with the USB mass storage class standard. Also the format of USB storage devices supports FAT16 or FAT32 file system format.
� If the USB storage device has been partitioned, each section will be treated as an independent device.
� Up to 20,000 tracks per folder are supported, and folders can be nested up to 16 levels deep.
� USB hubs and USB storage devices with hub functions are not supported. Do not connect these devices to the unit.
� If an AC adapter is supplied with the USB storage device, connect the AC adapter, and use it with a household outlet.
� USB storage devices with security functions are not supported on this unit. � Media inserted to the USB card reader may not be available in this function.
Furthermore, depending on the USB storage device, proper reading of the contents may not be possible. � In use of a USB storage device, our company accepts no responsibility whatsoever for the loss or modification of data stored on a USB storage device, or malfunction of the USB storage device. We recommend that you back up the data stored on a USB storage device before using it with this unit. � Note that operation is not always guaranteed for all USB storage devices.

99

Playback

Music Server

Streaming play of music files stored on PCs or NAS devices connected to the same network as this unit is supported. � The network servers this unit is compatible with are those PCs with players installed that have the server functionality of Windows Media� Player 12, or NAS that
are compatible with home network functionality. When using Windows Media� Player 12, you need to make the settings beforehand. Note that with PCs, only music
files registered in the library of Windows Media� Player can be played.

Supported Audio Formats

Windows Media� Player 12 settings

MP3 (.mp3) � MPEG-1/MPEG-2 Audio Layer 3/44.1 kHz, 48 kHz/Between 8 kbps and 320 kbps,
and VBR
WMA (.wma) � 44.1 kHz, 48 kHz/Between 5 kbps and 320 kbps, and VBR � WMA Pro/Voice/WMA Lossless formats are not supported.
WAV (.wav) WAV files contain uncompressed PCM digital audio. � 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/ 8 bit, 16 bit, 24 bit
AIFF (.aiff/.aif) AIFF files contain uncompressed PCM digital audio. � 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit
AAC (.aac/.m4a/.mp4/.3gp/.3g2) � MPEG-2/MPEG-4 Audio/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/Between 8 kbps
and 320 kbps, and VBR
FLAC (.flac) � 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/ 8 bit, 16 bit, 24 bit
LPCM (Linear PCM) � 44.1 kHz, 48 kHz/16 bit
Apple Lossless (.m4a/.mp4) � 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/16 bit, 24 bit
DSD (.dsf/.dff) � DSF/DSDIFF/2.8 MHz, 5.6 MHz, 11.2 MHz

1. Turn on your PC, and start Windows Media� Player 12. 2. In the "Stream" menu, select "Turn on media streaming" to display a dialog
box. � If the media streaming is already turned on, select "More streaming
options..." in the "Stream" menu to display the list of playback devices in the network, and then go to step 4. 3. Click "Turn on media streaming" to display the list of playback devices in the network. 4. Select this unit in "Media streaming options" and check that it is set to "Allow". 5. Click "OK" to close the dialog. 6. Open the "Stream" menu and confirm that "Allow remote control of my Player..." is checked.

 Playing Back ( p101)

100

Playing Back
TV's REMOTE

INPUT

TV

Inputs
TV HDMI 1 HDMI 2 HDMI 3

Playback
Perform the following procedure when this unit is on. 1. Switch the input on the TV to the input connected to the unit. 2. Start the server (Windows Media� Player 12 or NAS device) containing the
music files to play. 3. Make sure that the PC or NAS is properly connected to the same network as
this unit. 4. Press NET to display the network service list screen.
� If the "NET" indicator on the display blinks, the unit is not properly connected to the network. Check the connection.
BNB[POBMFYB

5. With the cursors, select "Music Server", and then press ENTER.

The illustration shows an image.

NET

/ // ENTER

101

6. Select the target server with the cursors, and press ENTER to display the items list screen. � This unit cannot access pictures and videos stored on servers. � Depending on the server sharing settings, contents stored on the server may not be displayed.
7. With the cursors, select the music file to play, and then press ENTER to start playback. � If "No Item." is displayed on the screen, check whether the network is properly connected.
� To return to the previous screen, press . � When playing files recorded with VBR (Variable bit-rate), the playback time
may not be displayed correctly. � For music files on a server, up to 20,000 tracks per folder are supported, and
folders can be nested up to 16 levels deep. � Depending on the type of media server, the unit may not recognize it, or may
not be able to play its music files.
Searching music files to select
If the server you use supports search functions, the following search function can be used. Perform the following procedure with available servers displayed using Music Server. 1. With / , select the server containing music files you want to play, and
select ENTER. 2. With / , select the Search folder, and press ENTER. The Search folder
contains the following three folders. � "Search by Artist": Select this when searching by artist name. � "Search by Album": Select this when searching by album title. � "Search by Track": Select this when searching by track title. 3. With / , select the folder, and press ENTER. 4. Input a character string to search for, and press ENTER. Then, the search result is displayed. 5. With / , select the music files to play, and select ENTER.

Playback
Controlling Remote Playback from a PC
You can use this unit to play music files stored on your PC by operating the PC in your home network. The unit supports remote playback via Windows Media� Player 12. To use the remote playback function of this unit with Windows Media� Player 12, it must be configured beforehand. ( p100)
Remote playback 1. Turn on the power of the unit. 2. Turn on your PC, and start Windows Media� Player 12. 3. Select and right-click the music file to play with Windows Media� Player 12.
� To remotely play a music file on another server, open the target server from "Other Libraries", and select the music file to play.
4. Select this unit in "Play to" to open the "Play to" window of Windows Media� Player 12, and start playback on this unit. � If your PC is running on Windows� 8.1, click "Play to", and select this unit. If your PC is running on Windows� 10, click "Cast to Device", and select this unit. Operations during remote playback are possible from the "Play to" window on the PC. The playback screen is displayed on the HDMIconnected TV.
5. Adjust the volume using the volume bar on the "Play to" window. � Sometimes, the volume displayed on the remote playback window may differ from the volume displayed on the display of this unit. � When the volume is changed on this unit, the value is not reflected in the "Play to" window. � This unit cannot play music files remotely in the following conditions. � It is using a network service. � It is playing a music file on a USB storage device.
� Remote play of FLAC and DSD is not supported. � Remote playback does not support the gapless playback.

102

Play Queue

Playback
2. Tapping the "+" icon of the track you want to add will open the pop-up to add the Play Queue information.

When downloading Onkyo Controller (available on iOS or AndroidTM) to mobile devices, such as a smartphone and tablet, you can save your favorite playlist (Play Queue information) among music files stored in the USB storage device connected to this unit and music files stored in PC or NAS connected to the same network as this unit, and you can play the music on the playlist. The Play Queue information is effective until the power cord of this unit is removed from the outlet. Refer to "Onkyo Controller" ( p147) for information about the app.
Adding Play Queue Information
1. Select the "INPUT" input on the application screen, and tap the "USB" icon. Or, select the "NET" input, and tap the "USB" icon or "Music Server" icon. (Depending on the model, the icon names may be different.)

3. Touch the "Play Now ", "Play Next " or "Play Last " icon to add the track to Play Queue. � If there are no tracks on the Play Queue list, only "Play Now " is displayed.
Sort and Delete
1. Select the "NET" input, tap the "Play Queue" icon, and enter the Play Queue service screen.

103

2. Tap the " " icon of the track to sort, and drag the icon to the destination.
3. To delete a track, slide the track to the left until the trash icon changes to " ". If the device is on iOS, slide the " " icon to the left. Releasing your finger will delete the track from Play Queue.
Playing Back
Playback starts when you select "Play Now " for Play Queue addition, or select the track in the Play Queue service screen.

Playback
104

Playback

Connecting a transmitter for playback

When you connect wireless headphones or a wireless speaker transmitter to the ZONE B LINE OUT terminal of this unit, you can play back the same source through the wireless headphones or wireless speakers as in the main room.

Connections

Setting Up

1. Use an analog audio cable to connect the ZONE B LINE OUT terminal on this unit to the input terminal on the transmitter.

1. Press on the remote controller, and set "2. Speaker" - "Configuration" "Zone 2 Lineout" to "Zone B". ( p116)
Playing Back

a

Transmitter

1. Press the Q button on the remote controller and select "Audio" - "Zone B". � In the following cases, "Zone B" cannot be selected. � When ZONE 2 is On � When "2. Speaker" - "Configuration" - "Zone 2 Lineout" on the Setup menu is set to "Zone 2". ( p116)
2. Select the audio output destination. Off: Outputs audio only from ZONE A. "A" on the display of the main unit lights up. On (A+B): Outputs audio from both ZONE A and ZONE B. "A" and "B" on the display of the main unit light up. On (B): Outputs audio only from ZONE B. "B" on the display of the main unit lights up.

a Analog audio cable

3. Start play on the AV component. 4. Adjust the volume on the transmitter, etc., in ZONE B. � When "Zone 2 Lineout" is set to "Zone B", and "Audio" - "Zone B" on the
Quick Menu is set to "On (A+B)", the ZONE A output is set as below. � Sound quality cannot be adjusted. � There will be no effect for the surround back speakers from "2.Speaker" -
"Distance" ( p118) in the Setup menu.
105

� If "On (A+B)" is selected as an audio output destination, you can select only the "Stereo" listening mode for ZONE A when using the 2.1 ch speaker layout. When using a speaker layout of 3.1 ch or more, you can select only the "AllCh Stereo" listening mode.

Playback

106

Setup

Setup Menu Web Setup Initial Setup with Auto Start-up Wizard Onkyo Controller Dirac Live

Setup
108 140 141 147 148

107

Setup Menu
Use the on-screen displays (OSD) that appear on the TV to make the settings. Press on the remote controller to display the Setup menu. Select the item with the cursors / of the remote controller, and press the ENTER button to confirm your selection. Use the cursors / to change the default values. � To return to the previous screen, press . � To exit the settings, press the button.
Menu list

Setup

Setup

1. Input/Output Assign 2. Speaker 3. Audio Adjust 4. Source 5. Hardware 6. Multi Zone 7. Miscellaneous

1. TV Out / OSD 2. HDMI Input 3. Video Input 4. Digital Audio Input 5. Analog Audio Input

1. Input/Output Assign 1. TV Out / OSD 2. HDMI Input 3. Video Input
4. Digital Audio Input 5. Analog Audio Input

Make settings for TV output and On-Screen Displays (OSD) that appear on the TV. You can change input assignment between the input selectors and HDMI IN jacks. Change input assignment between the input selectors and COMPONENT VIDEO IN jacks and the VIDEO IN jacks. Change input assignment between the input selectors and DIGITAL IN COAXIAL/OPTICAL jacks. Change input assignment between the input selectors and AUDIO IN jacks.

2. Speaker

1. Configuration 2. Crossover 3. Distance 4. Level Calibration 5. Dolby Enabled Speaker 6. Equalizer Settings 7. THX Audio 8. Speaker Virtualizer

Change the settings of connection environment of the speakers. Change the settings of crossover frequencies. Set the distance from each speaker to the listening position. Adjust the volume level of each speaker. Change the settings of Dolby Enabled Speakers. You can adjust the output volume of the range for each connected speaker. Change the THX Audio settings. The Speaker Virtualizer function can be switched between On and Off.

3. Audio Adjust

1. Multiplex/Mono 2. Dolby 3. DTS/IMAX 4. LFE Level
5. Volume

Change the settings of multiplex audio playback. Change the setting of when Dolby signals are input. Change the setting of when DTS signals are input. Set the low-frequency effect (LFE) level for Dolby Digital series, DTS series, Multichannel PCM, and DSD signals. Change the Volume settings.

p110 p112 p113
p113 p114
p115 p117 p118 p118 p119 p119 p120 p121
p122 p122 p123 p124
p124

108

4. Source 5. Hardware 6. Multi Zone 7. Miscellaneous

1. My Input Volume 2. Name Edit Audio Select
Video Select
1. HDMI 2. Network 3. Bluetooth 4. Power Management 5. 12V Trigger 6. Works with SONOS
1. Zone 2 2. Zone 3 3. Remote Play Zone
1. Tuner 2. Remote ID 3. Firmware Update 4. Initial Setup 5. Lock 6. Factory Reset

Set a volume value for each input selector. Set an easy name for each input. Select the prioritized input terminal when multiple audio sources are connected to one input selector. When "TUNER", "NET", or "BLUETOOTH" input is selected, you can set the input from which video is displayed on the TV.
Change the settings for the HDMI functions. Change the settings for the Network functions. Change the settings for the BLUETOOTH function. Change the settings for the power-save function. Change the settings for 12V TRIGGER OUT jack. Change the settings to connect with the Sonos Connect.
Change the settings for Zone 2. Change the settings for Zone 3. Change the settings for remote play.
Change the settings for Tuner. Change the remote controller ID. Change the settings for Firmware Update. Make the initial setup from the setup menu. Lock the Setup menu so that the settings cannot be changed. All the settings are restored to factory defaults.

Setup
p125 p125 p125
p126
p127 p129 p132 p134 p135 p136
p137 p137 p137
p138 p138 p139 p139 p139 p139

109

1. Input/Output Assign

 1. TV Out / OSD
Make settings for TV output and On-Screen Displays (OSD) that appear on the TV.  HDMI Out (Default Value: MAIN) Select the HDMI jack to be connected with the TV. � If devices with different resolutions are connected to HDMI OUT MAIN jack
and SUB jack, images are output with the lower resolution.

MAIN SUB MAIN+SUB

When connecting the TV to the HDMI OUT MAIN jack When connecting the TV to the HDMI OUT SUB jack When connecting to both the MAIN and SUB jacks

 Dolby Vision (Default Value: MAIN)
To output Dolby Vision video from the player to a TV that supports Dolby Vision, select either the HDMI OUT MAIN jack or HDMI OUT SUB jack to which the Dolby Vision-supported TV is connected. This setting is only necessary if you have set "HDMI Out" to "MAIN+SUB" and you have connected a TV to both the MAIN and SUB jacks.

MAIN SUB Off

To output Dolby Vision video to a Dolby Vision-supported TV connected to the HDMI OUT MAIN jack
To output Dolby Vision video to a Dolby Vision-supported TV connected to the HDMI OUT SUB jack
After selecting "MAIN" or "SUB", if the video on the TV does not appear correctly

Setup

 Upscaling (Default Value: Off)
When a TV supporting 4K/8K is used, video signals input with 1080p can be automatically output with 4K/8K. Video signals that are input at 4K can also automatically be output as 8K. Note that to output as 8K, set "HDMI 4K/8K Signal Format" ( p111) to "8K Standard" or "8K Enhanced", and you need to connect to a TV that is compatible with the 8K signal format with an HDMI cable. � If the TV does not support the 4K/8K resolution with the same frequency
as the frequency of HDMI input video signals, upscaling to 4K or 8K is not correctly performed. Check the frequency of 4K/8K resolution supported by the TV, and change the resolution of the video signals input from the AV
component.

Off Auto

When this function is not used � If your TV does not support 4K/8K, set it to "Off".
When this function is used

 Super Resolution (Default Value: 2)

When "Upscaling" is set to "Auto", select the correction level of the input video signals from "Off" and "1" (weak) to "3" (strong).

110

1. Input/Output Assign

 HDMI 4K/8K Signal Format
Set the 4K/8K signal format input and output by this unit. Set to suit the TV or player connected. � The corresponding resolution is different depending on the HDMI jack
connected. See "Corresponding input resolutions" ( p186) for details.

BD/DVD (Default Value: 4K Enhanced)

GAME

(Default Value: 4K Enhanced)

CBL/SAT (Default Value: 4K Enhanced)

STRM BOX (Default Value: 4K Enhanced)

PC

(Default Value: 4K Enhanced)

CD

(Default Value: 4K Enhanced)

TV

(Default Value: 4K Enhanced)

PHONO (Default Value: 4K Enhanced)

4K Standard 4K Enhanced
8K Standard 8K Enhanced

When using a High Speed HDMI Cable that supports 10.2 Gbps to connect a TV or player compatible with standard 4K signal formats (4K 30Hz, etc.)
When using a Premium High Speed HDMI Cable that supports 18 Gbps to connect a TV or player compatible with highdefinition 4K signal formats (4K 60Hz, 4K HDR, etc.) � There may be some image disruption depending on the
connected component and the HDMI cable. If this occurs, switch to "4K Standard".
When using a PREMIUM High Speed HDMI Cable that supports 18Gbps to connect a TV or player compatible with 4K 120Hz, 5K 30Hz, or 8K 30Hz signal formats
When using an ULTRA High Speed HDMI Cable that supports 48Gbps High Speed HDMI Cable to connect a TV or player compatible with 5K 60Hz or 8K 60Hz signal formats

Setup

 Zone 2 HDMI (Default Value: Not Use) Make the setting when you output to the Zone 2 TV connected to the HDMI OUT SUB/ZONE 2 jack.

Use Not Use

Enable this function
Disable this function � When video and audio via HDMI input are output to ZONE 2,
set it to "Use".

 OSD Language (Default Value: English)

Select the on-screen display language from the following. (North American models) English, German, French, Spanish, Italian, Dutch, Swedish (European, Australian and Asian models) English, German, French, Spanish, Italian, Dutch, Swedish, Russian, Chinese
 Impose OSD (Default Value: On) Set whether or not to display information such as volume adjustment or switching of input on the TV screen.

On

OSD is displayed on the TV

� OSD may not be displayed depending on the input signal

even if "On" is selected. In this case, change the resolution

of the connected device.

Off

OSD is not displayed on the TV

111

1. Input/Output Assign

 Mini Player OSD (Default Value: Always On)
You can display on the TV the images from another input selected last while playing the audio from NET or BLUETOOTH input. After switching the input to NET or BLUETOOTH, play the images and audio. And then when you press MODE on the remote controller, the image is displayed in full-screen mode, and the audio information (Mini Player) for NET or BLUETOOTH is displayed in the corner of the screen. You can set whether to always display this Mini Player on the screen. � Each time the MODE button is pressed, the image display/non-display can be
switched. � This setting cannot be selected if "Impose OSD" is set to "Off". � This function cannot be used when "OSD Language" is set to Chinese.
(European, Australian and Asian models)

Always On Auto Off

The Mini Player is always displayed.
The Mini Player turns off automatically in 30 seconds after displayed. If operation such as changing the volume is performed, it is displayed again for 30 seconds.

 Screen Saver (Default Value: 3 minutes)

Set the time to start the screen saver. Select a value from "3 minutes", "5 minutes", "10 minutes" and "Off".

Setup

 2. HDMI Input

You can change input assignment between the input selectors and HDMI IN

jacks.

 BD/DVD (Default Value: HDMI 1 (HDCP 2.3))

GAME

(Default Value: HDMI 2 (HDCP 2.3))

CBL/SAT (Default Value: HDMI 3 (HDCP 2.3))

STRM BOX (Default Value: HDMI 4 (HDCP 2.3))

PC

(Default Value: HDMI 5 (HDCP 2.3))

CD

(Default Value: ---)

TV

(Default Value: ---)

PHONO (Default Value: ---)

"HDMI 1 (HDCP 2.3)" to "HDMI 6 (HDCP 2.3)": Assign any HDMI IN jack to each of the input selectors. If you do not assign a jack, select "---". To select an HDMI IN jack already assigned to another input selector, change its setting to "---" first.

112

1. Input/Output Assign

 3. Video Input

Change input assignment between the input selectors and COMPONENT

VIDEO IN jacks and the VIDEO IN jacks. If you do not assign a jack, select "---".

 BD/DVD (Default Value: COMPONENT)

GAME

(Default Value: ---)

CBL/SAT (Default Value: VIDEO 1)

STRM BOX (Default Value: VIDEO 2)

PC

(Default Value: ---)

CD

(Default Value: ---)

TV

(Default Value: ---)

PHONO (Default Value: ---)

COMPONENT Assign the COMPONENT VIDEO IN jacks to any input selector.

VIDEO 1, VIDEO 2

Assign the VIDEO IN jacks to any input selector.

Setup

 4. Digital Audio Input

Change input assignment between the input selectors and DIGITAL IN

COAXIAL/OPTICAL jacks. If you do not assign a jack, select "---".

 BD/DVD (Default Value: COAXIAL)

GAME

(Default Value: ---)

CBL/SAT (Default Value: ---)

STRM BOX (Default Value: ---)

PC

(Default Value: ---)

CD

(Default Value: ---)

TV

(Default Value: OPTICAL)

PHONO (Default Value: ---)

COAXIAL, OPTICAL

Assign the COAXIAL terminal or OPTICAL terminal to any input selector.

113

1. Input/Output Assign

 5. Analog Audio Input

Change input assignment between the input selectors and AUDIO IN jacks. If

you do not assign a jack, select "---".

 BD/DVD (Default Value: AUDIO 1)

GAME

(Default Value: AUDIO 2)

CBL/SAT (Default Value: AUDIO 3)

STRM BOX (Default Value: AUDIO 4)

PC

(Default Value: ---)

CD

(Default Value: AUDIO 5)

TV

(Default Value: AUDIO 6)

PHONO (Default Value: PHONO)

� The setting cannot be changed.

AUDIO 1, AUDIO 2, AUDIO 3, AUDIO 4, AUDIO 5, AUDIO 6

Assign the AUDIO IN terminal to any input selector.

Setup
114

2. Speaker

 1. Configuration
Change the settings of connection environment of the speakers. � If the settings for "Speaker Channels", "Subwoofer", "Height 1 Speaker", or
"Height 2 Speaker" have been changed, the Dirac Live ( p144, p148) measurement results are deleted.
 Speaker Channels (Default Value: 7.1.2 ch)

Select "2.1 ch", "3.1 ch", "4.1 ch", "5.1 ch", "6.1 ch", "7.1 ch", "2.1.2 ch", "3.1.2 ch", "4.1.2 ch", "5.1.2 ch", "6.1.2 ch", "7.1.2 ch", "4.1.4 ch" or "5.1.4 ch" to suit the number of speaker channels connected.
 Subwoofer (Default Value: Yes) Set whether a subwoofer is connected or not.

Yes

When a subwoofer is connected

No

When a subwoofer is not connected

Setup
 Height 1 Speaker (Default Value: Top Middle)
Set the speaker type if height speakers are connected to the HEIGHT 1 terminals. Select "Top Middle", "Top Rear", "Rear High", "Dolby Speaker (Front)", "Dolby Speaker (Surr)", "Dolby Speaker (Back)", "Front High" or "Top Front" according to the type and layout of the connected speakers. � This setting cannot be selected under any of following conditions. Set the
height speakers type to "Height 2 Speaker". � "Bi-Amp" is set to "Yes" � When "Speaker Channels" is set to "2.1.2 ch", "3.1.2 ch", "4.1.2 ch" or
"5.1.2 ch", and "Zone Speaker" is set to "Zone 2" � When two sets of height speakers are being used, "Top Rear", "Rear High",
"Dolby Speaker (Surr)", and "Dolby Speaker (Back)" cannot be selected. � "Dolby Speaker (Surr)" and "Dolby Speaker (Back)" can only be selected
when surround speakers or surround back speakers are being used, respectively. You can check speakers that you are using on the figure displayed in "Speaker Channels". � If an item cannot be selected even though connection is correct, check that the settings in "Speaker Channels" matches the number of connected channels.

115

2. Speaker

 Height 2 Speaker (Default Value: Rear High)

Set the speaker type if height speakers are connected to the HEIGHT 2 terminals. Select "Front High", "Top Front", "Top Middle", "Top Rear", "Rear High", "Dolby Speaker (Front)" or "Dolby Speaker (Surr)" according to the type and layout of the connected speakers. However, the options selectable for the "Height 1 Speaker" are as follows. If "Height 1 Speaker" is set to "Front High": Select from "Top Middle", "Top Rear", "Rear High" or "Dolby Speaker (Surr)". If "Height 1 Speaker" is set to "Top Front" or "Dolby Speaker (Front)": Select from "Top Rear", "Rear High" or "Dolby Speaker (Surr)". If "Height 1 Speaker" is set to "Top Middle": Fixed to "Rear High". � "Dolby Speaker (Surr)" can only be selected when surround speakers
are being used. You can check speakers that you are using on the figure displayed in "Speaker Channels". � If an item cannot be selected even though connection is correct, check that the settings in "Speaker Channels" matches the number of connected channels.

 Zone Speaker (Default Value: No) Set the connection of speakers to Zone 2 or Zone 3 speaker terminals. � This setting cannot be selected when "Zone 2 Lineout" is set to "Zone B".

Zone 2

When speakers are connected to Zone 2 speaker terminals

Zone 2/Zone 3 When connecting speakers to both ZONE 2 speaker terminals and ZONE 3 speaker terminals. � This setting cannot be selected under any of following conditions. � When the surround back speakers are used � When height speakers are being used

No

When speakers are not connected to neither ZONE 2 nor

ZONE 3 speaker terminals

Setup

 Zone 2 Lineout (Default Value: Zone 2)
Set an output destination of the audio output from ZONE 2 LINE OUT/ZONE B LINE OUT jack. � This setting is fixed to "Zone 2" when "Zone Speaker" is set to "Zone 2" or
"Zone 2/Zone 3".

Zone 2 Zone B

When connecting an integrated amplifier in a separate room (ZONE 2)
When connecting an integrated amplifier, transmitter of wireless headphones, etc. to ZONE B

 Bi-Amp (Default Value: No) Set whether the front speakers are bi-amp connected.

No

When front speakers are not bi-amp connected

Yes

When front speakers are bi-amp connected

� This setting will be set to "No" in either of following cases.

� When 2 sets of height speakers are used

� When surround back speakers and height speakers are

being used at the same time.

� When "Zone Speaker" is set to "Zone 2" or "Zone 2/Zone

3"

 Speaker Impedance (Default Value: 6 ohms or above)
Set the impedance () of the connected speakers. � For impedance, check the indications on the back of the speakers or their
instruction manual.

4ohms

When any of the connected speakers have 4  or more to less than 6  impedance

6 ohms or above When all the connected speakers have an impedance of 6  or more

116

2. Speaker

 2. Crossover

Change the settings of crossover frequencies.

 Front

(Default Value: 80 Hz (THX))

Center

(Default Value: 80 Hz (THX))

Height 1

(Default Value: 80 Hz (THX))

Height 2

(Default Value: 80 Hz (THX))

Surround

(Default Value: 80 Hz (THX))

Surround Back (Default Value: 80 Hz (THX))

LPF of LFE

(Default Value: 120 Hz)

Double Bass (Default Value: On)

� As for the THX-certified speakers, the following settings are recommended.

� Crossover frequency  "80 Hz(THX)"

� "LPF of LFE"  "80 Hz"

� "Double Bass"  "Off"

� This setting is disabled when the IMAX sound mode has been applied.

However, when the "IMAX User Setting" ( p123) is "Manual" (default value

is Auto), it is enabled.

Front: Select the crossover frequency from "40 Hz" to "200 Hz" to start outputting frequencies for each channel. "Full Band": Full band will be output. � If "Configuration" - "Subwoofer" is set to "No", "Front" is fixed to "Full Band",
and the low pitched range of the other channels is output from the front speakers. Refer to the instruction manual of your speakers to make the setting.
Center, Height 1, Height 2, Surround: Select the crossover frequency from "40 Hz" to "200 Hz" to start outputting frequencies for each channel. "Full Band": Full band will be output. � "Full Band" can be selected only when "Front" is set to "Full Band". � If the item cannot be selected even though connection is correct, check if
the setting in "Configuration" - "Speaker Channels" matches the number of connected channels.

Setup
Surround Back: Select the crossover frequency from "40 Hz" to "200 Hz" to start outputting frequencies for each channel. "Full Band": Full band will be output. � "Full Band" can be selected only when "Surround" is set to "Full Band". � If the item cannot be selected even though connection is correct, check if
the setting in "Configuration" - "Speaker Channels" matches the number of connected channels.
LPF of LFE: Set the low-pass filter for LFE (low-frequency effect) signals in order to pass only the lower frequency signals than the set value, and thus cancel unwanted noises. The low-pass filter is effective only on sources with LFE channel. The value from "80 Hz" to "120 Hz" can be set. "Off": When this function is not used
Double Bass: This can be selected only when "Configuration" - "Subwoofer" is set to "Yes" and "Front" is set to "Full Band". Boost bass output by feeding bass sounds from the front left and right speakers and the center speaker to the subwoofer. "On": Bass output is boosted. "Off": Bass output is not boosted. � This function is not automatically set even if AccuEQ Room Calibration or
Dirac Live is performed.

117

2. Speaker

 3. Distance

Set the distance from each speaker to the listening position.

 Front Left

(Default Value: 12.0 ft/3.60 m)

Center

(Default Value: 12.0 ft/3.60 m)

Front Right

(Default Value: 12.0 ft/3.60 m)

Height 1 Left (Default Value: 9.0 ft/2.70 m)

Height 1 Right (Default Value: 9.0 ft/2.70 m)

Height 2 Left (Default Value: 9.0 ft/2.70 m)

Height 2 Right (Default Value: 9.0 ft/2.70 m)

Surround Right (Default Value: 7.0 ft/2.10 m)

Surr Back Right (Default Value: 7.0 ft/2.10 m)

Surr Back Left (Default Value: 7.0 ft/2.10 m)

Surround Left (Default Value: 7.0 ft/2.10 m)

Subwoofer

(Default Value: 12.0 ft/3.60 m)

� Default values vary depending on the regions. � The unit of distance can be changed by pressing the MODE button on the
remote controller. When using the unit "feet", the setting is available in
increments of 0.1 ft from 0.1 ft to 30.0 ft. When using the unit "meter", the
setting is available in increments of 0.03 m from 0.03 m to 9.00 m.
� When measurements are made using Dirac Live ( p144, p148), units are displayed as "msec" and the value cannot be changed.

(Height 1 Left, Height 1 Right, Height 2 Left, Height 2 Right, Surr Back Right, Surr Back Left): � Depending on the use of the ZONE speakers, it may not be possible to select
this setting.

Setup

 4. Level Calibration

Adjust the volume level of each speaker.

 Front Left

(Default Value: 0.0 dB)

Center

(Default Value: 0.0 dB)

Front Right

(Default Value: 0.0 dB)

Height 1 Left (Default Value: 0.0 dB)

Height 1 Right (Default Value: 0.0 dB)

Height 2 Left (Default Value: 0.0 dB)

Height 2 Right (Default Value: 0.0 dB)

Surround Right (Default Value: 0.0 dB)

Surr Back Right (Default Value: 0.0 dB)

Surr Back Left (Default Value: 0.0 dB)

Surround Left (Default Value: 0.0 dB)

Subwoofer

(Default Value: 0.0 dB)

Select a value between "-12.0 dB" and "+12.0 dB" ("-15.0 dB" and "+12.0 dB" for Subwoofer) (in 0.5 dB increments). A test tone will be output each time you change the value. Select the desired level.
(Height 1 Left, Height 1 Right, Height 2 Left, Height 2 Right, Surr Back Right, Surr Back Left): � Depending on the use of the ZONE speakers, it may not be possible to select
this setting.

118

2. Speaker

 5. Dolby Enabled Speaker
Change the settings of Dolby Enabled Speakers. � This setting can be selected when "Configuration" - "Height 1 Speaker" /
"Height 2 Speaker" is set to "Dolby Speaker".
 Distance from the ceiling (Default Value: 6.0 ft/1.80 m)

Set the distance between the Dolby Enabled Speaker and the ceiling. Select between "0.1 ft"/"0.03 m" and "15.0 ft"/"4.50 m" ("0.1 ft"/"0.03 m" units). � The unit of distance (ft/m) is displayed using the unit selected for the
"Distance" setting.

 AccuReflex (Default Value: Off) You can enhance the reflection effect of Dolby Enabled Speakers from the ceiling.
� The function is not effective if the listening mode is Pure Audio or Direct. � The function is not effective if "Dirac Live" ( p78) has been enabled.

Off

When this function is not used

On

When this function is used

Setup

 6. Equalizer Settings

You can adjust the output volume of the range for each connected speaker.

Adjust the volume of different sound ranges for each speaker. You can set three

different equalizers in Preset 1 to 3. The number of frequencies that can be

selected for each speaker is up to five bands for the Subwoofer and nine bands

for the other speakers.

 Front

(Default Value: 0.0dB)

Center

(Default Value: 0.0dB)

Height 1

(Default Value: 0.0dB)

Height 2

(Default Value: 0.0dB)

Surround

(Default Value: 0.0dB)

Surround Back (Default Value: 0.0dB)

Subwoofer

(Default Value: 0.0dB)

After selecting the speaker frequency from between "25 Hz" and "16 kHz" ("25 Hz" and "160 Hz" for Subwoofer) with the cursors / , adjust the volume of that frequency between "-6.0 dB" and "+6.0 dB" with / .
� Depending on the input source or listening mode setting, the desired effect may not be achieved.
(Height 1 Left, Height 1 Right, Height 2 Left, Height 2 Right, Surround Back): � Depending on the use of the ZONE speakers, it may not be possible to select
this setting. (Subwoofer): � This cannot be selected if "Configuration" - "Subwoofer" is set to "No".

119

2. Speaker

 7. THX Audio
Change the THX Audio settings.  Back Speaker Spacing (Default Value: >4.0 ft/>1.2 m)

Select the distance between the surround back speakers from "<1.0 ft/<0.3 m",
"1.0 - 4.0 ft/0.3 - 1.2 m", and ">4.0 ft/>1.2 m". � The unit of distance (ft/m) is displayed using the unit selected for the
"Distance" setting. � The setting cannot be changed if "Configuration" - "Zone Speaker" is set to a
selection item other than "No" and Zone 2 is on. � If the item cannot be selected even though connection is correct, check if
the setting in "Configuration" - "Speaker Channels" matches the number of connected channels.

 THX Ultra / Select Subwoofer (Default Value: No)
Set whether a THX-certified subwoofer is connected or not. � The setting cannot be changed if "Configuration" - "Subwoofer" is set to "No".

Yes

When a THX-certified subwoofer is connected

No

When a THX-certified subwoofer is not connected

Setup

 BGC (Default Value: Off)
Correct an emphasized bass sound when listening to music near the wall or boundary of the room due to layout limitation of the listening room. The THX Select receivers can adjust the balance of bass sound. � In the following cases, the setting cannot be changed:
� "Configuration" - "Subwoofer" is set to "No". � "THX Ultra / Select Subwoofer" is set to "No". � One of the slots has been selected with "Dirac Live" ( p78).

On

When this function is used

Off

When this function is not used

 Loudness Plus (Default Value: On)
� This cannot be selected when either of the slots is selected with "Dirac Live" ( p78).

When this is set to "On", you can enjoy even subtle nuances of audio expression at low volume. This is only available when the THX listening mode is selected. THX Loudness Plus THX Loudness Plus is a new volume control technology mounted on THX Ultra and THX Select-certified receivers. With THX Loudness Plus, home theater audience can experience the rich details of surround sound at any volume level. If the volume is turned down below the reference level, elements of sound in a certain range are lost or the sound is perceived differently by the listener. THX Loudness Plus compensates for the tonal and spatial shifts that occur when the volume level is reduced, by intelligently adjusting the levels of the surround channels and their frequency response in the environment. This enables users to experience the true impact of soundtracks regardless of the volume setting. THX Loudness Plus is automatically applied when listening in any THX listening mode. In the newly developed THX Cinema, THX Music and THX Games modes, the optimum THX Loudness Plus setting is applied according to the type of content.

120

2. Speaker

 8. Speaker Virtualizer
The Speaker Virtualizer function can be switched between On and Off.  Speaker Virtualizer (Default Value: On)

On

Listening modes such as T-D that have virtual speaker effects

can be selected.

Off

Listening modes such as T-D that have virtual speaker effects

cannot be selected.

Setup

121

3. Audio Adjust

 1. Multiplex/Mono
Change the settings of multiplex audio playback.  Multiplex Input Channel (Default Value: Main) Set the audio channel or language to be output when playing multiplex audio or multilingual broadcasts, etc. � For multiplex audio broadcasts, pressing the button on the remote
controller will display "1+1" on the main unit's display.

Main Sub Main / Sub

Main channel only Sub channel only Main and sub channels will be output at the same time.

 Mono Input Channel (Default Value: Left + Right) Set the input channel when playing back analog or 2 ch PCM signals in the Mono listening mode.

Left Right Left + Right

Left channel only Right channel only Left and right channels

 Mono Output Speaker (Default Value: Center)
Set the speaker to output monaural audio in the Mono listening mode. � If an item cannot be selected even though connection is correct, check that
the settings in "2. Speaker" - "Configuration" - "Speaker Channels" matches the number of connected channels.

Center Left / Right

Audio is output from the center speaker. Audio is output from the front L/R speakers.

Setup

 2. Dolby
Change the setting of when Dolby signals are input.  Loudness Management (Default Value: On) When playing Dolby TrueHD, enable the dialog normalization function which keeps the volume of dialog at a certain level. Note that when this setting is Off, the Late Night function that allows you to enjoy surround at low volumes is fixed to off when playing Dolby Digital Plus/Dolby TrueHD.

On

When this function is used

Off

When this function is not used

 Center Spread (Default Value: Off)
Adjust the width of the front sound field created when playing back with the Dolby Audio - Surr listening mode. � Depending on the speaker settings, "Off" is applied.

On

The sound field is spread to left and right.

Off

The sound field is centralized.

122

3. Audio Adjust

 3. DTS/IMAX
Change the setting of when DTS signals are input.  DTS Auto Surround (Default Value: On) When inputting DTS signals that include extended channel information, the optimum listening mode is automatically selected according to the extended information contained in the input signal and the speaker configuration of this unit when playing in the straight decoding listening mode.

On

When this function is used

Off

Audio is played using the same amount of channels in the

input signal according to the speaker configuration of this unit.

� If this function is set to "Off", the ES Matrix and ES Discrete

listening modes cannot be selected.

 Dialog Control (Default Value: 0 dB)

You can increase the volume of dialog portion of the audio up to 6 dB by 1 dB step so that you can hear the dialog easily in noisy atmosphere. � This cannot be set for content other than DTS:X. � Depending on the content, this function may not be selected.
 IMAX Mode (Default Value: Auto) Set the IMAX sound mode.

Auto On
Off

IMAX sound mode is automatically applied when IMAX content is detected.
In cases when this unit is unable to recognize IMAX content, you can apply the IMAX sound mode by turning this setting "On".
The setting is disabled.

Setup

 IMAX User Setting (Default Value: Auto)
When playing IMAX content with the IMAX sound mode, select whether to automatically apply the speaker setting recommended by IMAX or to set it manually. � This cannot be selected when the IMAX Mode is "Off".

Auto Manual

To use the speaker setup recommended by IMAX. To manually set "IMAX Bass Feeding" and "IMAX LFE Level".

 IMAX Bass Feeding (Default Value: On) Set the route for the bass component of the audio. � This cannot be selected when the "IMAX User Setting" is "Auto".

On

The bass component of each channel is output according to

the crossover settings ( p117).

Off

Only the LFE signal is output.

 IMAX LFE Level (Default Value: 0 dB) � This cannot be selected when the "IMAX User Setting" is "Auto".

You can set the volume for the LFE when IMAX signals are being input. Select "� dB" or a value between "0 dB" and "-20 dB".

123

3. Audio Adjust

 4. LFE Level
Set the low-frequency effect (LFE) level for Dolby Digital series, DTS series, Multichannel PCM, and DSD signals.  LFE Level (Default Value: 0 dB)

Select the low-frequency effect (LFE) level of each signal from "0 dB" to "- dB". If the low-frequency effect sound is too strong, select "-20 dB" or "- dB".

 5. Volume
Change the Volume settings.  Volume Display (Default Value: Absolute) Switch the volume display between the absolute value and relative value. The absolute value 82.0 is equivalent to the relative value 0.0 dB.

Absolute Relative

Absolute value such as "0.5" and "99.5" � If the absolute value is set to 82.0, "82.0 Ref" will appear on
the display.
Relative value such as "-81.0 dB" and "+18.0 dB"

 Mute Level (Default Value: - dB)

Set the volume lowered from the listening volume when muting is on. Select a value from "- dB", "-40 dB", and "-20 dB".
 Maximum Volume (Default Value: Off)

Set the maximum value to prevent the volume from becoming too loud. Select a value from "Off", and "50" to "99". (When "Volume Display" is set to "Absolute")

Setup
 Power On Volume (Default Value: Last)
Set the volume level of when the power is turned on. Select a value from "Last" (Volume level before entering standby mode), "Min", "0.5" to "99.5" and "Max". (When "Volume Display" is set to "Absolute") � You cannot set a higher value than that of "Maximum Volume".  Headphone Level (Default Value: 0.0 dB)
Adjust the output level of headphones. Select a value between "-12.0 dB" and "+12.0 dB".

124

4. Source
 1. My Input Volume
Set a volume value for each input selector.  My Input Volume (Default Value: Last)
Select a value from "Last", "Min", "0.5" to "81.5" and "Max". (When "Volume Display" is set to "Absolute") � The volume level when the power is turned on is the value set for "Power On
Volume". � To set the volume to the current volume, press the button of the input
selector you wish to set for approx. 3 seconds.
 2. Name Edit
Set an easy name for each input. The set name appears on the main unit's display. Select the input selector to make the setting.  Name Edit (Default Value: Input name)
1. Select a character or symbol with the cursors, and press ENTER. Repeat this operation to input up to 10 characters. "A/a": Switches between upper and lower cases. (Pressing MODE on the remote controller also toggles between upper and lower cases) "" "": Moves the cursor in the arrow direction. " ": Removes a character on the left of the cursor. " ": Enters a space. � Pressing CLEAR on the remote controller will remove all the input characters.
2. After inputting, select "OK" with the cursors, and press ENTER. The input name will be saved.
To restore the name to the default value, press CLEAR on the remote controller on the input screen. Then while nothing is entered, select "OK", and press ENTER.
� To name a preset radio station, press TUNER on the remote controller, select AM (North American, Australian and Asian models)/FM and select the preset number. (Preset names cannot be given to DAB stations (European models))
� This cannot be set if the "NET" or "BLUETOOTH" input is selected.

Setup

 Audio Select

Select the priority for input selection when multiple audio sources are connected

to one input selector, such as connections to both the "BD/DVD" HDMI IN jack

and the "BD/DVD" AUDIO IN jack. The setting can be separately set to each

input selector button. Select the input selector to configure. Note that there are

some default values you cannot change.

 BD/DVD (Default Value: HDMI)

GAME

(Default Value: HDMI)

CBL/SAT (Default Value: HDMI)

STRM BOX (Default Value: HDMI)

PC

(Default Value: HDMI)

AUX

(Default Value: HDMI)

CD

(Default Value: Analog)

PHONO (Default Value: Analog)

TV

(Default Value: OPTICAL)

ARC HDMI COAXIAL OPTICAL

When giving priority to input signal from ARC compatible TV. � The setting can be selected only when "5. Hardware" -
"HDMI" - "Audio Return Channel (eARC supported)" is set to "On" and also the "TV" input is selected.
When giving priority to input signal from HDMI IN jacks � This item can be selected only when the input to be set is
assigned to the HDMI jack in the "1. Input/Output Assign" "HDMI Input" setting.
When giving priority to input signal from DIGITAL IN COAXIAL jacks � This item can be selected only when the input to be set
is assigned to the COAXIAL jack in the "1. Input/Output Assign" - "Digital Audio Input" setting.
When giving priority to input signal from DIGITAL IN OPTICAL jacks � This item can be selected only when the input to be set
is assigned to the OPTICAL jack in the "1. Input/Output Assign" - "Digital Audio Input" setting.

125

4. Source

Analog

When giving priority to the input signal from AUDIO IN jacks � This item can be selected only when the input to be set
is assigned to the AUDIO IN jack in the "1. Input/Output Assign" - "Analog Audio Input" setting.

 PCM Fixed Mode (Default Value: Off)

Select whether to fix input signals to PCM (except multi-channel PCM) when you select "HDMI", "COAXIAL", or "OPTICAL" in the "Audio Select" setting. Set this item to "On" if noise is produced or truncation occurs at the beginning of a track when playing PCM sources. Select "Off" normally. � Each time the "Audio Select" setting is changed, the setting is restored to
"Off".
� The setting cannot be changed when "TUNER", "NET", or "BLUETOOTH" input is selected.

Setup

 Video Select
When "TUNER", "NET", or "BLUETOOTH" input is selected, you can set the input from which video is displayed on the TV.  Video Select (Default Value: Last)

Last
BD/DVD, GAME, CBL/SAT, STRM BOX, PC, CD, TV, PHONO

Select the video input played immediately prior.
Play the video of each input. � This setting is effective for an input selector which is
assigned in "1. Input/Output Assign" - "HDMI Input" and "Video Input".

� If the OSD language is set to Chinese, you can only select this setting when "TUNER" is selected as input. (European, Australian and Asian models)

126

5. Hardware

 1. HDMI
Change the settings of the HDMI function.  HDMI CEC (Default Value: On)
Setting this to "On" enables the input selection link and other link functions with HDMI-connected CEC-compatible device. When this setting is changed, turn off and then on again the power of all connected devices. � Depending on the TV to use, a link setting may be required on the TV. � This function is effective only when the device is connected to the HDMI OUT
MAIN terminal. � Setting this to "On" and closing the operation screen will display the name
of the connected CEC-compatible device and "CEC On" on the main unit's display. � When this function is set to "On", the power consumption in standby state increases, however, the increase in power consumption is minimized by automatically entering the HYBRID STANDBY mode where only the essential circuits operate. � If you operate the MASTER VOLUME dial on the main unit when this setting is "On" and audio is output from the TV speakers, audio will be output also from the speakers connected to this unit. To output audio from only either of them, change the setting of this unit or TV, or reduce the volume of this unit. � If abnormal behavior is observed when this is set to "On", set it to "Off". � If a connected device is not CEC-compatible, or if you are not sure whether it is compatible, set it to "Off".

On

When this function is used

Off

When this function is not used

Setup

 HDMI Standby Through (Default Value: Auto (Eco))
When this is set to anything other than "Off", you can play the video and audio of an HDMI-connected player on the TV even if the unit is in standby mode. Also, only "Auto" and "Auto (Eco)" can be selected if "HDMI CEC" is set to "On". If you select anything else, set "HDMI CEC" to "Off". � When this function is set to a value other than "Off", the power consumption
in standby state increases, however, the increase in power consumption is minimized by automatically entering the HYBRID STANDBY mode where only the essential circuits operate. � To play a non-CEC compliant player on the TV, turn the unit on and switch the input. � When using a CEC-compliant TV, you can reduce the power consumption in standby mode by selecting "Auto (Eco)".

Off BD/DVD, GAME, CBL/SAT, STRM BOX, PC, AUX, CD, TV, PHONO Last
Auto, Auto (Eco)

When this function is not used
For example, if you select "BD/DVD", you can play the equipment connected to the "BD/DVD" jack on the TV even if the unit is in standby mode. Select this setting if you have decided which player to use with this function. Inputs that have not been allocated to HDMI jacks in "1. Input/ Output Assign" - "HDMI Input" cannot be selected. � Even when an HDMI IN jack has been allocated to TV,
TV cannot be select when "Audio Return Channel (eARC supported)" ( p128) is set to "On".
You can play on the TV the video and audio of the input selected immediately before the unit is switched to standby. When "Last" is selected, you can switch the input of the unit using the remote controller or the Onkyo Controller even in the standby mode.
Select one of these settings when you have connected equipment that conforms to the CEC standard. You can play the video and audio of the input selected on the TV, irrespective of what input was selected immediately prior to the unit being switched to standby, using the CEC link function.

127

5. Hardware

 Audio TV Out (Default Value: Auto)
You can enjoy audio through the speakers of the TV while this unit is on. � This setting is fixed to "Auto" if you set "1. Input/Output Assign" - "TV Out/
OSD" - "HDMI Out" or "HDMI" - "HDMI Out" in the "Quick Menu" to "MAIN" or "MAIN+SUB" and set "HDMI CEC" to "On". If you change this setting, set "HDMI CEC" to "Off". � Listening mode cannot be changed while "Audio TV Out" is set to "On" and audio is being output from the TV. � Depending on your TV or input signal of the connected device, audio may not be output from the TV even if this is set to "On". In such a case, audio is output from the speakers of the unit. � Audio is output from this unit if you operate the MASTER VOLUME dial on this unit when audio that is input to this unit is output from your TV speakers. If you do not want to output audio, change the setting of this unit or TV, or reduce the volume of this unit.

On Off Auto

When this function is used
When this function is not used
When the "HDMI Out" setting is "MAIN" or "MAIN+SUB" and the "HDMI CEC" setting is "On", the setting is fixed to "Auto". With "Auto", when audio is output from the TV speakers, audio is not output from the speakers of this unit, and when audio is output from the speakers of this unit, audio is not output from the TV speakers. � If the HDMI CEC setting is off on the TV, there may be audio
output from both the TV speakers and the speakers of this unit.

Setup

 Audio Return Channel (eARC supported) (Default Value: On) You can enjoy the sound of an HDMI-connected ARC-compatible TV or eARCcompatible TV through the speakers connected to the unit.

On

When enjoying the TV sound through the speakers connected

to the unit

Off

When the ARC function or eARC function is not used

 Auto Lip Sync (Default Value: On) Automatically corrects desynchronization between the video and audio signals based on the information from the HDMI Lip-Sync-compatible TV.

On

When enabling the automatic correction function

Off

When not using the automatic correction function

128

5. Hardware

 2. Network
Change the settings of the Network function. � When LAN is configured with a DHCP, set "DHCP" to "Enable" to configure
the setting automatically. ("Enable" is set by default) To assign fixed IP addresses to each components, you must set "DHCP" to "Disable", assign an address to this unit in the "IP Address" setting, and set information related to your LAN, such as Subnet Mask and Gateway.  Wi-Fi (Default Value: Off(Wired))
Connect the unit to the network via a wireless LAN router. � When switching between "On" and "Off(Wired)", stop the Network service.
Also, when group playback is in process, cancel the group playback once, and then switch the setting.

On Off(Wired)

Wireless LAN connection Wired LAN connection

 Wi-Fi Setup (Default Value: -)

Configure wireless LAN settings by pressing ENTER with "Start" displayed.
 Wi-Fi Status (Default Value: -) The information of the connected access point is displayed.

SSID Signal Status

SSID of the connected access point. Signal strength of the connected access point. Status of the connected access point.

 MAC Address (Default Value: -)

Check the MAC address of this unit. This value is specific to the component and cannot be changed.

Setup

 DHCP (Default Value: Enable)

Enable Disable

Auto configuration by DHCP
Manual configuration without DHCP � If you select "Disable", set "IP Address", "Subnet Mask",
"Gateway", and "DNS Server" manually.

 IP Address (Default Value: 0.0.0.0)

Displays/Sets the IP address.  Subnet Mask (Default Value: 0.0.0.0)

Displays/Sets the subnet mask.  Gateway (Default Value: 0.0.0.0)

Displays/Sets the gateway.  DNS Server (Default Value: 0.0.0.0)

Displays/Sets the primary DNS server.  Proxy URL (Default Value: -)

Displays/Sets the proxy server URL.  Proxy Port (Default Value: 8080)

Displays/Sets the proxy server port number when you input "Proxy URL".

129

5. Hardware

 Friendly Name (Default Value: Onkyo TX-NR7100 XXXXXX)

Change the model name of this unit which is displayed on the device connected to the network to an easily recognized name. 1. Press ENTER to display the Edit screen. 2. Select a character or symbol with the cursors, and press ENTER.
Repeat this operation to input up to 31 characters. "A/a": Switches between upper and lower cases. (Pressing MODE on the remote controller also toggles between upper and lower cases) "" "": Moves the cursor in the arrow direction. " ": Removes a character on the left of the cursor. " ": Enters a space. � Pressing CLEAR on the remote controller will remove all the input
characters. 3. After inputting, select "OK" with the cursors, and press ENTER.
The input name will be saved.
 AirPlay (Default Value: On)
Select whether or not to use the AirPlay function.

On

When this function is used

Off

When this function is not used

Setup
 AirPlay Device Name (Default Value: Onkyo TX-NR7100 XXXXXX)
Change the model name of this unit which is displayed on the AirPlayconnected device to an easily recognized name. 1. Press ENTER to display the Edit screen. 2. Select a character or symbol with the cursors, and press ENTER.
Repeat this operation to input up to 31 characters. "A/a": Switches between upper and lower cases. (Pressing MODE on the remote controller also toggles between upper and lower cases) "" "": Moves the cursor in the arrow direction. " ": Removes a character on the left of the cursor. " ": Enters a space. � Pressing CLEAR on the remote controller will remove all the input
characters. 3. After inputting, select "OK" with the cursors, and press ENTER.
The input name will be saved. � This function cannot be used when registering this unit to Home App.

130

5. Hardware
 AirPlay Password (Default Value: -)
You can set a password of up to 31 characters so that only users that have input can use AirPlay. 1. Press ENTER to display the Edit screen. 2. Select a character or symbol with the cursors, and press ENTER.
Repeat this operation to input up to 31 characters. "A/a": Switches between upper and lower cases. (Pressing MODE on the remote controller also toggles between upper and lower cases) "" "": Moves the cursor in the arrow direction. " ": Removes a character on the left of the cursor. " ": Enters a space. � To select whether to mask the password with "" or display it in plain text,
press MEMORY on the remote controller. � Pressing CLEAR on the remote controller will remove all the input
characters. 3. After inputting, select "OK" with the cursors, and press ENTER.
The input password will be saved. � This function cannot be used when registering this unit to Home App.

Setup
 Privacy Statement (Default Value: Not Accepted)
When using a network service that requires a login name, email address, password, etc., you need to agree to the Privacy Statement of our company. � This setting can be made after confirming the Privacy Statement. When
you select "Privacy Statement" and press ENTER, the Privacy Statement is displayed. � When "Not Accepted" is selected, you will log out from the network service you have logged in.
 Network Check (Default Value: -)
You can check the network connection. Press ENTER when "Start" is displayed. � Wait for a while if "Network" cannot be selected. It can be selected when the
network function is activated.

131

5. Hardware

 3. Bluetooth
Change the settings for the BLUETOOTH function. � Wait for a while if "Bluetooth" cannot be selected. It can be selected when the
BLUETOOTH function is activated.
(Bluetooth Receiver)  Bluetooth Receiver (Default Value: On) Select whether or not to use the function that receives audio from BLUETOOTH wireless technology enabled devices.

On

When this function is used

Off

When this function is not used

 Auto Input Change (Default Value: On) When a BLUETOOTH enabled device is played while it is connected to the unit, the input of the unit can be automatically switched to "BLUETOOTH".

On

The input will automatically become "BLUETOOTH" when a

BLUETOOTH enabled device is connected.

Off

The function is disabled.

� If the input is not switched automatically, set this to "Off",

and change the input manually.

 Auto Reconnect (Default Value: On)
This function automatically reconnects to the BLUETOOTH enabled device connected last when you change the input to "BLUETOOTH". � This may not work with some BLUETOOTH enabled devices.

On

When this function is used

Off

When this function is not used

Setup

 Pairing Information (Default Value: -) You can initialize the pairing information stored on this unit. If you are no longer able to connect with a device you have paired, try doing this. ( p159)
Pressing ENTER when "Clear" is displayed initializes the pairing information stored on this unit. � This function does not initialize the pairing information on the BLUETOOTH
enabled device. When pairing the unit again with the device, be sure to clear the pairing information on the BLUETOOTH enabled device beforehand. For information on how to clear the pairing information, refer to the instruction manual of the BLUETOOTH enabled device.
 Device (Default Value: -)

Displays the name of the BLUETOOTH enabled device connected to the unit. � The name is not displayed when "Status" is "Ready" and "Pairing".
 Status (Default Value: -) Displays the status of the BLUETOOTH enabled device connected to the unit.

Ready Pairing Connected

Not paired Paired Successfully connected

(Bluetooth Transmitter)  Bluetooth Transmitter (Default Value: Off)
Select whether or not to use the function that transmits audio from this unit to BLUETOOTH wireless technology enabled devices.

On(Tx)
On (Main + Tx) Off

When this function is to be used (played back only on Bluetooth wireless technology enabled devices)
When this function is to be used (played back both on this unit and on Bluetooth wireless technology enabled devices)
When this function is not used

132

5. Hardware

 Search Devices (Default Value: -)

Search for a BLUETOOTH wireless technology enabled device that is able to receive the audio from this unit. Select "Start" then press ENTER. A list of the names of BLUETOOTH wireless technology enabled devices that are able to receive is displayed. Select the device to be connected with the cursors / , then pairing begins when you press ENTER.
 Output Level (Default Value: Variable) You can select whether to adjust the volume on this unit or to adjust it on the Bluetooth wireless technology enabled device.

Variable Fixed

To use the volume controls on this unit
To use the volume controls on the Bluetooth wireless technology enabled device

 aptX HD (Default Value: Off)
It is possible to use aptX HD to connect a BLUETOOTH wireless technology enabled device and this unit. � The codec of the receiving device must be compatible with aptX HD.

On

When this function is used

Off

When this function is not used

 Low Latency Mode (Default Value: Off)
If the audio from a device connected via BLUETOOTH is delayed compared to the video on the TV when watching a gaming screen, etc., you can reduce the audio delay.

On

When this function is used

Off

When this function is not used

Setup

 Pairing Information (Default Value: -) You can initialize the pairing information stored on this unit. If you are no longer able to connect with a device you have paired, try doing this. ( p160)
Pressing ENTER when "Clear" is displayed initializes the pairing information stored on this unit. � This function does not initialize the pairing information on the BLUETOOTH
enabled device. When pairing the unit again with the device, be sure to clear the pairing information on the BLUETOOTH enabled device in advance. For information on how to clear the pairing information, refer to the BLUETOOTH enabled device's instruction manual.
 Device (Default Value: -)

Displays the name of the BLUETOOTH enabled device connected to the unit. � The name is not displayed when "Status" is "Ready" and "Pairing".
 Status (Default Value: -) Displays the status of the BLUETOOTH enabled device connected to the unit.

Ready Pairing Connected Connected (aptX) Connected (aptX HD)

Not paired Paired Successfully connected Successfully connected with aptX compatible device
Successfully connected with aptX HD compatible device

133

5. Hardware

 4. Power Management
Change the settings for the power-save function.  Sleep Timer (Default Value: Off)

30 minutes, 60 minutes, 90 minutes
Off

You can allow the unit to enter standby automatically when the specified time has elapsed. Select a value from "30 minutes", "60 minutes" and "90 minutes".
Does not turn the unit to standby automatically.

 Auto Standby (Default Value: On/Off)
This setting allows the unit to enter standby mode automatically after 20 minutes of inactivity without any video or audio input. (When "USB Power Out at Standby" or "Network Standby" is enabled, the unit enters the HYBRID STANDBY mode which minimizes the increase in power consumption.) � Default values vary depending on the regions.

On

The unit will automatically enter standby mode ("AUTO STBY"

will light).

� "Auto Standby" is displayed on the main unit's display and

TV screen 30 seconds before entering standby mode.

� "Auto Standby" does not work when Zone 2/Zone 3 is active.

Off

The unit will not automatically enter standby mode.

 Auto Standby in HDMI Standby Through (Default Value: On/Off) Enable or disable "Auto Standby" while "HDMI Standby Through" is on. � Default values vary depending on the regions.

On

The setting will be enabled.

� This setting cannot be set to "On" if "Auto Standby" and

"HDMI Standby Through" are set to "Off".

Off

The setting will be disabled.

Setup
 USB Power Out at Standby (Default Value: Off)
Devices connected to the USB port (5 V/1 A) on the rear of the unit can be supplied with electricity even when this unit is in standby mode when this function is "On". � When this function is set to "On", the power consumption in standby state
increases, however, the increase in power consumption is minimized by automatically entering the HYBRID STANDBY mode where only the essential circuits operate.
 Network Standby (Default Value: On)
When this function is set to "On", the network function works even in standby state, and you can turn on the power of the unit via network using an application such as Onkyo Controller that can control this unit. � When this function is set to "On", the power consumption in standby state
increases, however, the increase in power consumption is minimized by automatically entering the HYBRID STANDBY mode where only the essential circuits operate. Note that even if this function is set to "Off", when any of the HDMI CEC ( p127), HDMI Standby Through ( p127), USB Power Out at Standby ( p134) and Bluetooth Wakeup ( p135) functions is enabled, this function will be in "On" state regardless of the setting. � When connection to the network is lost, "Network Standby" may be disabled to reduce power consumption. In such a case, turn the unit on by using the power button on the remote controller or main unit.

134

5. Hardware

 Bluetooth Wakeup (Default Value: Off) This function wakes up the unit on standby by connecting a BLUETOOTH enabled device.

On

When this function is used

� When this function is set to "On", the power consumption

in standby state increases, however, the increase in power

consumption is minimized by automatically entering the

HYBRID STANDBY mode where only the essential circuits

operate.

Off

When this function is not used

� This setting is fixed to "Off" if "Bluetooth" -"Bluetooth

Receiver" is set to "Off".

� This setting is also fixed to "Off" if "Bluetooth" - "Bluetooth

Receiver" - "Auto Input Change" is set to "Off".

� Wait for a while if "Network Standby" and "Bluetooth Wakeup" cannot be selected. It can be selected when the network function is activated.

Setup

 5. 12V Trigger
Set when outputting the control signal (maximum 12 V/100 mA) through the 12V TRIGGER OUT jack. You can enable power link operation when you connect the unit and the external devices equipped with 12V trigger input jack.  Zone (Default Value: Main)

Off

When the control signal is not output

Main

When controlling the power of external devices linked to the input selection in the main room

Zone 2

When controlling the power of external devices linked to the input selection in ZONE 2

Main/Zone 2 When controlling the power of external devices linked to the input selection in the main room or in ZONE 2

Zone 3

When controlling the power of external devices linked to the input selection in ZONE 3

Main/Zone 3 When controlling the power of external devices linked to the input selection in the main room or in ZONE 3

Zone 2/Zone 3 When controlling the power of external devices linked to the input selection in ZONE 2 or ZONE 3

Main/Zone 2/ When controlling the power of external devices linked to the

Zone 3

input selection in the main room or in ZONE 2/ZONE 3

135

5. Hardware
 6. Works with SONOS
Change the settings to connect with the Sonos Connect.
(SONOS-1/SONOS-2/SONOS-3)  Input Selector (Default Value: Off)
Select the input selector to which the Sonos Connect is connected. � Selecting "Off" disables the interlock function with Sonos.
 Connected Device (Default Value: -)
Displays the Sonos Connect connected to the same network as the network of this unit. Press the ENTER button to select the connected Sonos Connect. � Products (e.g. Play:3 unequipped with an output terminal) other than the
Sonos Connect are also displayed in the device list and selectable. In that case, when playback on the Sonos side starts, the input is switched, however, audio is not output. Select the room name of the connected Sonos Connect. � Up to 32 devices can be displayed on the Sonos product list screen. If you cannot find the Sonos Connect to be interlocked, return to the previous screen, turn off the product you do not want to interlock, and try again. � To use this function, set "Input Selector" beforehand.

Setup

 Output Zone (Default Value: Main) Select the zone where you want to listen to the music. � To use this function, set "Input Selector" beforehand.

Main

Outputs audio only to the main room (where this unit is located).

Zone 2

Outputs audio only to the separate room (ZONE 2).

Main/Zone 2 Outputs audio to both the main room and separate room (ZONE 2).

Zone 3

Outputs audio only to the separate room (ZONE 3).

Main/Zone 3 Outputs audio to both the main room and separate room (ZONE 3).

Zone 2/Zone 3 Outputs audio to both the separate rooms (ZONE 2 and ZONE 3).

Main/Zone 2/ Outputs audio to the main room and both separate rooms

Zone 3

(ZONE 2 and ZONE 3).

 Preset Volume (Default Value: Main=Last / Zone 2=Last /Zone 3=Last)

You can set the volume beforehand for playing back the Sonos Connect. You can set volumes for the main room (where this unit is located) and separate room (ZONE 2 or ZONE 3) respectively. Select a value from "Last" (Volume level before entering standby mode), "Min", "0.5" to "99.5" and "Max". � To use this function, set "Input Selector" beforehand.

136

6. Multi Zone
 1. Zone 2
Change the settings for Zone 2.  Maximum Volume (Default Value: Off)
Set the maximum value for Zone 2 to avoid too high volume. Select a value from "Off", "50" to "99". (When "3. Audio Adjust" - "Volume" - "Volume Display" is set to "Absolute")
 Power On Volume (Default Value: Last)
Set the Zone 2 volume level of when this unit is turned on. Select a value from "Last" (Volume level when the unit was turned off), "Min", "0.5" to "99.5" and "Max". (When "3. Audio Adjust" - "Volume" - "Volume Display" is set to "Absolute") � You cannot set a higher value than that of "Maximum Volume".
 Sound Check (Default Value: -)
Output test tones to ZONE 2 to enjoy audio in a separate room (ZONE 2) in addition to the main room. Press ENTER while "Start" is being displayed. Operate by following the onscreen displays.

Setup

 2. Zone 3
Change the settings for Zone 3.  Maximum Volume (Default Value: Off)

Set the maximum value for Zone 3 to avoid too high volume. Select a value from "Off", "50" to "99". (When "3. Audio Adjust" - "Volume" - "Volume Display" is set to "Absolute")
 Power On Volume (Default Value: Last)

Set the Zone 3 volume level of when this unit is turned on. Select a value from "Last" (Volume level when the unit was turned off), "Min", "0.5" to "99.5" and "Max". (When "3. Audio Adjust" - "Volume" - "Volume Display" is set to "Absolute") � You cannot set a higher value than that of "Maximum Volume".

 3. Remote Play Zone
Change the settings for remote play.  Remote Play Zone (Default Value: Auto) When playing with AirPlay or Spotify Connect, or when using the Music Server function to play remotely from your PC, you can set whether to play in the main room (where this unit is located) or in a separate room (ZONE 2/ZONE 3).

Auto
Main, Zone 2, Zone 3

When the main room input is NET, music is played in the main room. When the separate room input is NET and the main room input is other than NET, then the music is played in the separate room.
Select when limiting the play zone to a particular room. For example, when playing only in the separate room, select "Zone 2" or "Zone 3".

� This function may not work if playback is already proceeding with the same network function.

137

7. Miscellaneous
 1. Tuner
Change the settings for Tuner.  AM/FM Frequency Step (North American models) (Default Value:
10 kHz / 0.2 MHz)
Select a frequency step to suit your residential area. Select "10 kHz/0.2 MHz" or "9 kHz/0.05 MHz". � When this setting is changed, all radio presets are deleted.
 AM Frequency Step (Australian and Asian models) (Default Value: 9 kHz)
Select a frequency step to suit your residential area. Select "10 kHz" or "9 kHz". � When this setting is changed, all radio presets are deleted.
 FM Search Level (European models) (Default Value: Normal)
If automatic tuning regularly stops on FM stations with weak reception when "Normal" is selected, select "Strong" so only those FM stations with strong reception are selected.
 DAB Auto Scan (European models) (Default Value: -)
You can run the auto scan when new DAB stations are added or when you move house.

Setup

 DAB DRC (European models) (Default Value: Off)
With the DRC (Dynamic Range Control) setting, you can reduce the dynamic range of DAB digital radio so that you can still hear quiet parts even when listening at low volume levels - ideal for listening to the radio late at night when you don't want to disturb anyone.

Off Large Small

DRC off Large reduction in dynamic range Small reduction in dynamic range

 2. Remote ID
Change the remote controller ID.  Remote ID (Default Value: 1)

If multiple ONKYO products are installed in the same room, select the ID for the remote control used with this unit from "1", "2" and "3" to prevent interference between the unit and other ONKYO products. After changing the ID on the main unit, set the same ID on the remote controller as the main unit with the following procedure. While pressing and holding the MODE button, press the following buttons for approx. 3 seconds. � To change the remote controller ID to "1": MOVIE/TV � To change the remote controller ID to "2": MUSIC � To change the remote controller ID to "3": GAME

138

7. Miscellaneous

 3. Firmware Update
Change the settings for Firmware Update.  Update Notice (Default Value: Enable) Availability of a firmware update is notified via network.

Enable Disable

Notify updates Do not notify updates

 Version (Default Value: -)

The current firmware version is displayed.  Update via NET (Default Value: -)

Press ENTER to select when updating the firmware via network. � This setting cannot be selected if you do not have Internet access or there is
no updatable firmware.
 Update via USB (Default Value: -)

Press ENTER to select when updating the firmware via USB. � This setting cannot be selected if a USB storage device is not connected or
there is no updatable firmware in the USB storage device.
� Wait for a while if "Firmware Update" cannot be selected. It can be selected when the network function is activated.
 4. Initial Setup
Make the initial setup from the setup menu. � Wait for a while if "Initial Setup" cannot be selected. It can be selected when
the network function is activated.

Setup

 5. Lock
Lock the Setup menu so that the settings cannot be changed.  Setup Parameter (Default Value: Unlocked) Lock the Setup menu so that the settings cannot be changed.

Locked Unlocked

The menu is locked. The menu is unlocked.

 6. Factory Reset
All the settings are restored to factory defaults.  Factory Reset (Default Value: -)

All the settings are restored to factory defaults. Select "Start" and press ENTER. � If "Factory Reset" is performed, your settings are restored to the default
values. Be sure to note down your setting contents beforehand.

139

Setup

Web Setup
Menu operations
You can make the settings for the network function of this unit using an Internet browser on a PC, smartphone, etc.
1. Press on the remote controller to display the Setup menu. 2. Select "5. Hardware" - "Network" with the cursors, and then take a note of the
IP address displayed in "IP Address". 3. Start the Internet browser on your PC, smartphone, etc. and enter the IP
address of this unit in the URL field. 4. The screen for entering the user name and password is displayed. Enter the
following then click "OK". User name: admin (fixed) Password: admin (default value) � You can change the password after logging in. � Input is required again if you close the browser. � Take a note of the password so that you do not forget it. If you do forget it,
reset the unit ( p153) then log in again with the initial settings (admin). 5. Information for the unit (Web Setup screen) is displayed in the internet
browser.

Device Information You can change the Friendly Name or AirPlay Device Name, set an AirPlay Password, etc.
Control4: Register this unit if you are using a Control4 system.
Firmware Update: Select the firmware file you have downloaded to your PC so you can update this unit.
Network Setting Status: You can see information for the network such as the MAC address and IP address of this unit.
Network Connection: You can select a network connection method. If you select "Wireless", select an access point from "Wi-Fi Setup" to connect.
DHCP: You can change DHCP settings. If you select "Off", set "IP Address", "Subnet Mask", "Gateway" and "DNS Server" manually.
Proxy: Display and set the URL for the proxy server.

6. After changing the settings, select "Save" to save the settings.

140

Setup

Initial Setup with Auto Start-up Wizard

Operations
TV's REMOTE

INPUT

TV

Inputs TV HDMI 1 HDMI 2 HDMI 3

When you turn the unit on for the first time after purchase, the Initial Setup screen is automatically displayed on the TV to allow you to make settings required for startup using simple operations following on-screen guidance. 1. Switch the input of the TV to the input connected to the unit. 2. Put batteries into the remote controller of this unit. 3. Press on the remote controller to turn the unit on. 4. When the language selection screen is displayed on TV, select the language
with the cursors / and press ENTER. 5. To make the network connection settings, select "Yes" and press ENTER. � Select the item with the cursors of the remote controller, and press ENTER to
confirm your selection. To return to the previous screen, press . � If you have terminated the Initial Setup halfway, turn this unit to standby mode
and turn the power on again. Then you can display the Initial Setup again. Unless you do the Initial Setup to the end or select "Never Show Again" in the screen shown after setting the Network Connection, the wizard screen is shown every time the power is turned on. � To perform the Initial Setup again after the setting is completed, press , select "7. Miscellaneous" - "Initial Setup", and press ENTER.

/ // ENTER

CLEAR

MEMORY
141

Network Connection

1. A confirmation screen asking you whether to agree to the privacy statement is displayed during network setting. If you agree, select "Accept" and press ENTER.
2. Select the type of connection to the network. To use the Chromecast built-in function to connect, select "Yes" and press ENTER. The Google Home app is required to use the Chromecast built-in function. Download the Google Home app from Google Play or the App Store to your smart phone or tablet. � Google Home app can be used on the following operating systems. (As of february 2021) AndroidTM: Android 6.0 or later. iOS: iOS 12.0 or later. Compatible with iPhone�, iPad�, and iPod touch�.

1

2

8J'J

If you select "No", you can connect using either wired LAN or Wi-Fi. "Wired": Use a wired LAN to connect to a network. "Wireless": Wi-Fi connection using an access point such as a wireless LAN router. � There are two methods for Wi-Fi connection. "Scan Networks": Search for an access point from this unit. Find out the SSID of the access point beforehand. "Use iOS Device (iOS7 or later)": Share the Wi-Fi settings of your iOS device with this unit. � If you select "Scan Networks", there are another two types of connection methods. Check the following. "Enter Password": Enter the password (or key) of the access point to connect. "Push Button": If the access point is equipped with an automatic setting button, you can connect without entering the password. � If the SSID of the access point is not displayed, select "Other..." with the cursor on the SSID list screen, press ENTER, and then follow the onscreen instructions.

Setup
Keyboard Input
To switch between upper and lower cases, select "A/a" on the screen, and press ENTER on the remote controller. To select whether to mask the password with "" or display it in plain text, press MEMORY on the remote controller. Pressing CLEAR on the remote controller will delete all the input characters.
1. Speaker Setup

1. Select the connected speaker configuration and press ENTER. Note that the image on the screen changes each time you select the number
of channels in "Speaker Channels".

1 2 3 4

Speaker Setup

Speaker Channels 7.1.2 ch < >

Subwoofer

Yes

Height 1 Speaker Top Middle

Height 2 Speaker

5 6

Zone Speaker Zone 2 Lineout Bi-Amp

No Zone 2
No

7

Speaker Impedance 6ohms or above Select how many speakers you have.

Next

8

1 Select to suit the number of speaker channels connected. 2 Set whether a subwoofer is connected or not. 3 Set the speaker type if height speakers are connected to the HEIGHT 1
terminals. 4 Set the speaker type if height speakers are connected to the HEIGHT 2
terminals. 5 Set the connection of speakers to Zone 2/Zone 3 speaker terminals. 6 Set an output destination of the audio output from ZONE 2 LINE OUT/ZONE
B LINE OUT jack. 7 Set whether the front speakers are bi-amp connected. 8 Set the impedance of the connected speakers.

2. The speaker combination selected in step 1 is displayed. "Yes" is displayed for the selected speakers. If the setting is correct, press ENTER.

142

3. Select "Next" and press ENTER. Then a test tone is output from each speaker to confirm the connection. Selecting each speaker with the cursors / will output the test tone. Press ENTER after confirmation.
4. If there is no problem with the speaker connection, select "Next" and press ENTER. To return to "Speaker Setup", select "Back to Speaker Setup" and press ENTER.
2. Multi Zone Sound Check
Output test tones to ZONE 2 to enjoy audio in a separate room (ZONE 2) in addition to the main room.
3. ARC Setup
If you have connected a TV that supports ARC, select "Yes" and press ENTER.
4. Room EQ
Measurements are performed to calibrate the sound field to suit the room's environment. When "Yes" is selected, you can choose from "Dirac Live" and "AccuEQ Room Calibration" to measure. Select "No, Later" if measurement is not to be performed. Note that both measurement methods are also available after you have completed Initial Setup.
 When measuring with Dirac Live
Download the Onkyo Controller to your mobile device and use the app to operate the measurements. For details on how to measure with Dirac Live, refer to "Measuring with Dirac Live" ( p144).
 When measuring with AccuEQ Room Calibration
Use the automatic sound field calibration technology built into the unit. For details on how to measure with AccuEQ Room Calibration, refer to "Measuring with AccuEQ Room Calibration" ( p146).
� Both measurement methods use the supplied speaker setup microphone. � Each speaker outputs the test tone at high volume during measurement, so
be careful of your surroundings. Also, keep the room as quiet as possible during measurement. � If you connect a subwoofer, check the power and volume of the subwoofer. Set the subwoofer volume to more than half.

Setup
� If the power of this unit suddenly turns off, the wires in the speaker cables have touched the rear panel or other wires, and the protection circuit is working. Twist the wires again securely, and make sure they do not stick out of the speaker terminals when connecting.
� When using THX certified speakers, THX recommends that the crossover frequency is set to "80Hz(THX)". Also, THX recommends that each speaker setting is manually adjusted according to the specific characteristics of each room.
The screen indicating that Initial Setup is complete is displayed when the measurements are finished. Press ENTER while "Finished" is being displayed to exit the Initial Setup.
 Measuring with Dirac Live ( p144)  Measuring with AccuEQ Room Calibration
( p146)

143

 Measuring with Dirac Live
Use the Onkyo Controller to use Dirac Live to take measurements. Use the most recent version. Note that you cannot make settings using operations on this unit. Refer to "Onkyo Controller" ( p147) for information about the app. Also have a tripod ready to set up the speaker setup microphone. � Calibration takes about 20 minutes to be completed.
Dirac Live� is an advanced room correction technology developed by Dirac Research. As one of the most advanced room correction technology available on the market, Dirac Live helps listeners to correct for one of the weakest components in the audio chain: the listening room. Dirac Live not only corrects the frequency response, but also the impulse response of the loudspeakers in a room, yielding improved imaging and timbre, better clarity, tighter bass, and less early reflections, as well as reduced resonances and room modes.
1. Select "Start Dirac Live" in the "Dirac Live" screen, then press ENTER. 2. Connect the supplied Speaker Setup microphone to the SETUP MIC jack on
the main unit.

Setup

4. Tap "Next", confirm that the displayed speaker configuration is correct, then tap "Next".
� If the number of speaker channels set in "1.Speaker Setup" in Initial Setup is different to the number of connected speaker channels, an error is

displayed and measurement cannot be performed.

5. Select the method of measurement. There are two methods of measuring to

choose from; "Quick" which measures 3 locations; at the listening position

and to the left and right of the listening position; and "Full" which measures 9

positions including the listening position. Tap the method you prefer.

"Quick": Set up the microphone at ear height in the listening position for

measurement. Next measure by setting up the microphone between 50 and

100 cm away to the left and right of the listening position.

"Full": Set up the microphone at ear height in the listening position for measurement. Next, measure in 8 positions to the front, back, left, right, etc., centered on the listening position. Measure by setting up the microphone

in each of these positions, between 50 and 100 cm away from the listening

position.

Quick

Full

SETUP MIC
3. When you start the Onkyo Controller, a screen automatically appears to guide you through measurement, so tap "Start". � If the guidance screen does not automatically appear, after tapping this unit when it appears on the screen, tap " " at the top left of the screen and select "Dirac Live".

The illustration shows an image.

144

6. The guidance about outputting the test tone is displayed. Refer to the illustration to set up the speaker setup microphone in the listening position. Follow the on-screen instructions to measure.
� Measurement may not be possible if the test tone is to loud or too soft. Tap "Level Adjust" to adjust the volume of the test tone.
7. When measurement is complete, "Calculating results" is displayed on the screen. Tap "Transfer to your product" to transfer the measurement data to the unit.
8. Disconnect the speaker setup microphone. The speaker equalizer adjustments based on the measurement results are saved in the unit, but you can also modify and register 3 different equalizer patterns of your own design ( p149). The equalizers that you register can be selected with "Room EQ" - "Dirac Live" ( p78) in Quick Menu.
� When Dirac Live is used for measurement, the measurement results are also reflected in "2. Speaker" - "Distance" ( p118) in the Setup menu, and you will no longer be able to change the values. (The setting units are displayed as "msec".)

Setup
145

 Measuring with AccuEQ Room Calibration
Place the supplied speaker setup microphone at the listening position. The unit automatically measures the test tones output from each speaker, and sets the optimum volume level for each speaker, the crossover frequencies, and the distance from the listening position. This also reduces the effect of the standing wave in accordance with the viewing environment and automatically adjusts the equalizers for the speakers, and enables correction of sound distortion caused by the acoustic environment of the room. � It takes between 3 and 12 minutes for calibration to be completed.
1. Select "Exit Dirac Live & use AccuEQ" in the "Dirac Live" screen, then press ENTER.
2. Connect the supplied Speaker Setup microphone to the SETUP MIC jack on the main unit.

Setup
� When it cannot be resolved by performing the re-measurement, confirm if the speakers are connected correctly. If there is any problem with the speaker connection, perform the connection after disconnecting the power cord.
6. Once the measurement is completed, it is possible to perform the measurement in 8 additional listening positions. To perform the measurement, select "Next" and press ENTER, then follow the instructions. To not perform the measurement, select "Finish (Calculate)" and press ENTER. � After each listening position is detected, select "Finish (Calculate)" and press ENTER to complete the detection process.
7. Disconnect the speaker setup microphone.

SETUP MIC
When placing the speaker setup microphone on a tripod, refer to the illustration. 3. Confirm a test tone is output from the subwoofer and press ENTER. 4. Press ENTER to output test tones from each speaker, and the connected speakers and the noise in the surrounding environment are automatically measured. 5. The measurement results in step 4 are displayed. If there is no problem in the detection result of the speaker, select "Next" and press ENTER to output the test tone again to automatically set the settings such as volume level, crossover frequency, etc., to their optimum. (The test tone is automatically output when 10 seconds has elapsed without any operation.) � When an error message is displayed or when the connected speakers
cannot be detected, perform re-measurement by selecting "Retry" and pressing ENTER.

146

Onkyo Controller
Onkyo Controller (available on iOS and AndroidTM handsets) is a dedicated app available for free which allows you to use your handset as a remote controller. Along with basic operations such as switching input and adjusting the volume, you can also select a radio station or network service (internet radio or play of a music file) without looking at the TV. � To use Onkyo Controller, this unit needs to be connected to the same network
as the mobile device.
Main features
� Turning the power on/off, switching input, adjusting the volume, and other such basic remote controller operations.
� When using Multi-zone ( p92) , you can not only control with the app in the main room (where this unit is located), but also in the separate room (ZONE 2/ZONE 3).
� Playing internet radio services (TuneIn Radio, etc.) and selecting stations. Control in the palm of your hands without looking at the TV.
� Play the music files saved on the mobile device via Wi-Fi. � Play Amazon Music (compatible models only) ( p85)

Setup
Initial Setup
1. Download the Onkyo Controller from the App Store or Google PlayTM Store. 2. Connect the mobile device to the same network as the unit. 3. Start Onkyo Controller. This unit is displayed automatically when the app is
started, so tap the unit when displayed to select it.

147

Dirac Live
Measuring with Dirac Live
Use the Onkyo Controller to use Dirac Live to take measurements. Use the most recent version. Note that you cannot make settings using operations on this unit. Refer to "Onkyo Controller" ( p147) for information about the app. Also have a tripod ready to set up the speaker setup microphone. � Calibration takes about 20 minutes to be completed.
Dirac Live� is an advanced room correction technology developed by Dirac Research. As one of the most advanced room correction technology available on the market, Dirac Live helps listeners to correct for one of the weakest components in the audio chain: the listening room. Dirac Live not only corrects the frequency response, but also the impulse response of the loudspeakers in a room, yielding improved imaging and timbre, better clarity, tighter bass, and less early reflections, as well as reduced resonances and room modes.
1. Start the Onkyo Controller and tap the unit when displayed. 2. Tap " " at the top left of the screen and select "Dirac Live". 3. Connect the supplied Speaker Setup microphone to the SETUP MIC jack on
the main unit.

Setup

measurement cannot be performed.

5. Select the method of measurement. There are two methods of measuring to

choose from; "Quick" which measures 3 locations; at the listening position

and to the left and right of the listening position; and "Full" which measures 9

positions including the listening position. Tap the method you prefer.

"Quick": Set up the microphone at ear height in the listening position for

measurement. Next measure by setting up the microphone between 50 and

100 cm away to the left and right of the listening position.

"Full": Set up the microphone at ear height in the listening position for

measurement. Next, measure in 8 positions to the front, back, left, right, etc., centered on the listening position. Measure by setting up the microphone

in each of these positions, between 50 and 100 cm away from the listening

position.

Quick

Full

SETUP MIC
4. Tap "Next", confirm that the displayed speaker configuration is correct, then tap "Next". � If the number of speaker channels set in "2. Speaker" - "Configuration" - "Speaker Channels" ( p115) in the Setup menu is different to the number of connected speaker channels, an error is displayed and

The illustration shows an image.
148

6. The guidance about outputting the test tone is displayed. Refer to the illustration to set up the speaker setup microphone in the listening position. Follow the on-screen instructions to measure.
� Measurement may not be possible if the test tone is to loud or too soft. Tap "Level Adjust" to adjust the volume of the test tone.
7. When measurement is complete, "Calculating results" is displayed on the screen. Tap "Transfer to your product" to transfer the measurement data to the unit.
8. Disconnect the speaker setup microphone. � When Dirac Live is used for measurement, the measurement results are also
reflected in "2. Speaker" - "Distance" ( p118) in the Setup menu, and you will no longer be able to change the values. (The setting units are displayed as "msec".)

Using Dirac Live

Setup

You can use the equalizer function based on the measurements results of Dirac Live. From "Room EQ" - "Dirac Live" ( p78) in "Quick Menu", select from "Slot1" to "Slot3". Note that the same data is saved in all of the slots, but you are able to create your own original sound quality in the following "Manual Adjust" section. � In the Setup menu, when the number of speaker channels, etc., is changed
in "2. Speaker" - "Configuration" ( p115), the measurement results are deleted. � When using Dirac Live, signals with a sampling frequency of 32 kHz are not supported.
Manual Adjust

You can adjust the sound quality to your own original one by modifying the equalizer curves based on the volume level of the speakers automatically measured with Dirac Live. Modify the equalizer on the Onkyo Controller. � To adjust the sound quality with "Manual Adjust", it is first necessary to
measure the speakers of this unit with Dirac Live ( p144, p148). � This function cannot be used when speaker measurement is done with
AccuEQ Room Calibration ( p146).
Modifying the equalizer
1. Start the Onkyo Controller and tap the unit when displayed. 2. Tap " " in the top left of the Onkyo Controller screen to display a list of
menus, then tap "Manual Adjust". 3. Select the slot to modify from "Slot1" to "Slot3", then tap "Next".
� The measurement results from Dirac Live are registered in all of the slots as the default values.
4. After selecting the speaker to adjust first, modify the equalizer curve.

149

1

4

2

5

3

6

1 The speaker currently being adjusted. To adjust another speaker, tap the " " next to it and select another speaker.
2 Displays the Menu screen. From the menu, you perform actions such as reset the speaker adjustments and cancel and exit the adjustments. You can also copy data from other slots.
3 Drag the points on the equalizer curve side to side to change the frequency and up or down to change the boost. � You can add a point by tapping on the curve where there isn't a point.
4 Recalculate the characteristics from the adjusted content. 5 Transfer the adjusted content to the unit. 6 The value of the point being adjusted. Tap the " " next to the point to delete
it.
5. When adjustment is finished, tap 4 to recalculate, then tap 5 to transfer the adjusted data to the unit.
� In the Setup menu, when the number of speaker channels, etc., is changed in "2. "Speaker" - "Configuration", the adjusted content is deleted.
Using an equalizer you have registered
When you select a saved slot in "Room EQ" - "Dirac Live"( p78) in Quick Menu, you can use the registered equalizer.

Setup
150

Troubleshooting

Troubleshooting

Before starting the procedure

152

When the unit is operating erratically

153

Try restarting the unit

153

Resetting the unit (this resets the unit settings to the

default)

153

Troubleshooting

154

 Power

154

 Audio

154

 Listening Modes

156

 Video

157

 Linked operation

158

 Tuner

159

 BLUETOOTH function

159

 Network function

161

 USB storage device

162

 Wireless LAN Network

162

 ZONE B function

163

 Multi-zone function

163

 Remote Controller

163

 Display

163

 Others

164

151

Before starting the procedure
Problems may be solved by simply turning the power on/off or disconnecting/ connecting the power cord, which is easier than working on the connection, setting and operating procedure. Try the simple measures on both the unit and the connected device. If the problem is that the video or audio is not output or the HDMI linked operation does not work, disconnecting/connecting the HDMI cable may solve it. When reconnecting, be careful not to wind the HDMI cable since if wound the HDMI cable may not fit well. After reconnecting, turn off and on the unit and the connected device.
� The AV receiver contains a microPC for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least 5 seconds, and then plug it back in.
� Our company is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit's malfunction. Before you record important data, make sure that the material will be recorded correctly.

Troubleshooting
152

When the unit is operating erratically
 Try restarting the unit
Restarting this unit may solve the problem. Set the main unit to standby, then after waiting for 5 seconds or more, press and hold the ON/STANDBY button of the main unit for at least 5 seconds, and then restart the unit. (The settings on this unit are kept.) If the problem persists after restarting the unit, unplug and plug the power cords or HDMI cable of this unit and connected devices.

Troubleshooting
 Resetting the unit (this resets the unit settings to the default)
If the restart of the unit does not solve the problem, reset the unit, and restore all the settings to the factory default at the time of purchase. This may solve the problem. If the unit is reset, your settings are restored to the default values. Be sure to note down your setting contents before performing the following operations. Note that it is not possible to reset the unit during the Initial Setup process. Before doing the following procedures, press to exit Initial Setup.
1. While pressing and holding CBL/SAT of the input selector on the main unit with the unit turned on, press the ON/STANDBY button.
2. "Clear" is displayed on the display, and the unit returns to the standby state. Do not remove the power cord until "Clear" disappears from the display.
To reset the remote controller, while pressing and holding MODE, press the CLEAR button at least 3 seconds.
2

1

153

Troubleshooting

Troubleshooting

 Power
 When the power is turned on, "AMP Diag Mode" appears on the display of the main unit
� The protection circuit function may have operated. If the unit suddenly enters the standby state and "AMP Diag Mode" appears on the display of the main unit when the power is turned on again, this function is diagnosing whether or not the main unit is malfunctioning or there is an abnormality with the speaker cable connection. When the diagnosis is complete, the following messages are displayed.

CH SP WIRE NG:

If the unit returns to the normal ON state after "CH SP WIRE" appears on the display, the speaker cable may have been short-circuited. After setting the power of this unit to standby state, connect the speaker cable again. Twist the wires exposed from the tip of the speaker cable so that the wires do not stick out of the speaker terminal.
If the operation has stopped with "NG" displayed on the display, set the power of this unit to standby state immediately and remove the power plug from the outlet. The unit may be malfunctioning. Consult a dealer.

 The unit turns off unexpectedly
� If "5. Hardware" - "Power Management" - "Auto Standby" on the Setup menu is activated, the unit automatically enters the standby mode. � The protection circuit function may have operated due to an abnormal rise in temperature of the unit. In such a case, the power turns off
repeatedly even if the power is turned on each time. Secure sufficient ventilation space around the unit, wait for a while until the temperature of the unit decreases. Then, turn the power on again.
WARNING: If smoke, smell or abnormal noise is produced by the unit, unplug the power cord from the outlet immediately, and contact the dealer or our company's support.
 Audio
� Make sure that the speaker setup microphone is no longer connected. � Confirm that the connection between the output jack on the connected device and the input jack on this unit is correct. � Make sure that none of the connecting cables are bent, twisted, or damaged. � If "MUTING" is displayed on the display and is blinking, press on the remote controller to cancel muting. � While headphones are connected to the PHONES jack, no sound is output from the speakers. � When "4. Source" - "Audio Select" - "PCM Fixed Mode" on the Setup menu is set to "On", audio is not played if signals other than PCM are input.
Change the setting to Off. Check the following if the problem persists after you have confirmed the above.

( p134)

154

Troubleshooting

 No sound from the TV

� Change the input selector on this unit to the position of the terminal to which the TV is connected. � If the TV doesn't support the ARC function, along with connection by HDMI, connect the TV and this unit using a digital optical cable or analog
audio cable.
 No sound from a connected player

( p49)

� Change the input selector on this unit to the position of the jack to which the player is connected. � Check the digital audio output setting on the connected device. On some game consoles, such as those supporting DVD, the default setting may
be off. � For some DVD-Video discs, you need to select an audio output format from a menu.
 A speaker produces no sound

� Make sure that the polarity (+/-) of the speaker cables is correct, and that no bare wires are in contact with the metal part of speaker terminals. � Make sure that the speaker cables are not shorting out. � Check "Connect the Speaker Cables" ( p33) to see if the speaker connections have been made correctly. Settings for the speaker
connection environment need to be made in "Speaker Setup" in Initial Setup. Check "Initial Setup with Auto Start-up Wizard" ( p141). � Depending on the input signal and listening mode, not much sound may be output from speakers. Select another listening mode to see if sound
is output.
� If surround back speakers are installed, be sure to install surround speakers as well. � A maximum of 7.1 ch playback is possible when Bi-Amping connection is used. Be sure to remove the jumper bar on the speakers when using
Bi-Amping connection.
 The subwoofer produces no sound

( p33)

If the setting of the front speakers is "Full Band", the low range elements will be output from the front speakers instead of from the subwoofer during 2 ch audio input of TV or music. To output the sound from the subwoofer, make one of the following settings. 1. Change the setting for the front speakers to a setting of crossover frequency value other than "Full Band".
The range below the specified frequency will be output from the subwoofer instead of from the front speakers. If your front speakers have a high low-range reproduction capability, changing this setting is not recommended. 2. Change "Double Bass" to "On". The low range elements of the front speakers will be output from both the front speakers and the subwoofer. Due to this, the bass sound may be emphasized too much. In such a case, do not change the setting, or make the setting with the above option 1. � For the setting details, refer to "2. Speaker" - "Crossover" on the Setup menu. � If the input signals do not contain subwoofer audio elements (LFE), the subwoofer may produce no sound.

( p117)

155

Troubleshooting
 Noise can be heard
� Using cable ties to bundle analog audio cables, power cords, speaker cables, etc. may degrade the audio performance. Do not bundle the cords.
� An audio cable may be picking up interference. Change the position of the cables.
 The beginning of audio received by an HDMI IN cannot be heard
� Since it takes longer to identify the format of an HDMI signal than it does for other digital audio signals, audio output may not start immediately.
 Sound suddenly reduces
� When using the unit for extended periods with the temperature inside the unit exceeding a certain temperature, the volume may be reduced automatically to protect the circuits.
 Sound suddenly changes
� When "My Input Volume" is set, the volume is set for each input selector. Check "4. Source" - "My Input Volume" on the Setup menu ( p125).
 Listening Modes
� To enjoy digital surround playback in formats such as Dolby Digital, you need to make a connection for audio signals with an HDMI cable, digital coaxial cable or digital optical cable. Also, audio output need to be set to Bitstream output on the connected Blu-ray Disc player, etc.
� Press on the remote controller several times to switch the display of the main unit, and you can check the input format. Check the following if the problem persists after you have confirmed the above.
 Cannot select a desired listening mode
� Depending on the connection status of the speaker, some listening modes may not be selected. Check "Speaker Layouts and Selectable Listening Modes" ( p166) or "Input Formats and Selectable Listening Modes" ( p171).
 Cannot listen to the sound in Dolby TrueHD, Dolby Atmos or DTS-HD Master Audio format
� If the audio in Dolby TrueHD, Dolby Atmos or DTS-HD Master Audio format cannot be output correctly in the source format, set "BD video supplementary sound" (or reencode, secondary sound, video additional audio, etc.) to "Off" in the setting of a connected Blu-ray Disc player, etc. After changing the setting, switch the listening mode to that for each source, and confirm.
 Cannot select Pure Audio mode
� The Pure Audio mode cannot be selected when the Multi-zone function is on.
156

Troubleshooting
 About Dolby signals
� When surround back speakers are included in the speaker layout, and software that is recorded with the 5.1-channel Dolby audio format is played, the surround channel audio may be output from the surround back speakers.
� Some Dolby Atmos audio format that is used on games, etc., may be recognized as "Multichannel PCM". If this occurs, check the firmware updates for the game console.
 About DTS signals
� With media that switches suddenly from DTS to PCM, PCM playback may not start immediately. In such a case, stop playback on the player side for approx. 3 seconds or more. Then, resume playback. The playback will be performed normally.
� DTS playback may not be performed normally on some CD and LD players even if the player and this unit are digitally connected. If some processing (e.g., output level adjustment, sampling frequency conversion, or frequency characteristic conversion) has been executed for the DTS signal being output, this unit cannot recognize it as a genuine DTS signal, and noise may occur.
� While playing a DTS-compatible disc, if a pause or skip operation is performed on your player, noise may occur for a short period. This is not a malfunction.
 Video
� Confirm that the connection between the output jack on the connected device and the input jack on this unit is correct. � Make sure that none of the connecting cables are bent, twisted, or damaged. � When the TV image is blurry or unclear, the power cord or connection cables of the unit may have interfered. In such a case, keep distance
between TV antenna cable and cables of the unit. � Check the switching of the input screen on the monitor side such as a TV. Check the following if the problem persists after you have confirmed the above.
 No image appears
� Change the input selector on this unit to the position of the jack to which the player is connected. � While the Pure Audio listening mode is selected, only video signals input from the HDMI input jack can be output.
157

Troubleshooting

 No image from a device connected to HDMI IN jack

� To display video from the connected player on the TV while the unit is in standby, you need to enable "5. Hardware" - "HDMI" - "HDMI Standby Through" on the Setup menu. For details of the HDMI Standby Through function, check "5. Hardware" - "HDMI" on the Setup menu.
� To output video to a TV connected to the HDMI OUT SUB jack, press the Q button on the remote controller to display "Quick Menu" and select "HDMI" - "HDMI Out", or press the HDMI MAIN/SUB button on the remote controller and select the HDMI OUT jack.
� Check if "Resolution Error" is displayed on the main unit display when video input via HDMI IN jack is not displayed. In this case, the TV does not support the resolution of the video input from the player. Change the setting on the player.
� Normal operation with an HDMI-DVI adapter is not guaranteed. In addition, video signals output from a PC are not guaranteed. � Try switching off the Deep Color function. To turn off the Deep Color function, simultaneously press the STRM BOX and ON/STANDBY
buttons on the main unit. While holding down STRM BOX, press ON/STANDBY repeatedly until "Deep Color:Off" appears on the display. To reactivate the Deep Color function, repeat the above described step until "Deep Color:On" is appeared on the display.
 Images flicker

( p127)

� The output resolution of the player may not be compatible with the resolution of the TV. If the player is connected to this unit with an HDMI cable, change the output resolution on the player. Also this may be solved by changing the screen mode on the TV.
 Video and audio are out of synch

� Depending on the settings on your TV and connection environment, the video may be behind the audio. Press Q on the remote controller to display "Quick Menu", select "HDMI" - "A/V Sync", and make the adjustment.

( p77)

 Linked operation

 HDMI linked operation does not work with CEC-compliant devices, such as a TV

� In the Setup menu of the unit, set "5. Hardware" - "HDMI" - "HDMI CEC" to "On". � It is also necessary to set HDMI linking on the CEC-compliant device. Check the instruction manual. � When connecting a Sharp brand player or recorder to the HDMI IN jacks, set "5. Hardware" - "HDMI" - "HDMI Standby Through" to "Auto" on the
Setup menu.

( p127)

158

Troubleshooting

 Tuner
 Poor reception or much noise

� Recheck the antenna connection. � Move the antenna away from the speaker cord or power cord. � Move the unit away from your TV or PC. � Passing cars or airplanes in the vicinity can cause interference. � If radio waves are blocked by concrete walls, etc., radio reception may be poor. � Change the reception mode to mono ( p69). � When listening to an AM station, operating the remote controller may cause noise. (North American, Australian and Asian models) � FM reception may be clearer if you use the antenna jack on the wall used for the TV.
 BLUETOOTH function

( p58)

� Unplug and plug the power cord of the unit, or turn off and on the BLUETOOTH enabled device. Restart of the BLUETOOTH enabled device may be effective.
� BLUETOOTH enabled devices must support the A2DP profile. � Because a radio wave interference will occur, this unit may not be used near devices such as a microwave oven or cordless phone which use
the radio wave in the 2.4 GHz range. � A metallic object near the unit can affect on the radio wave, and BLUETOOTH connection may not be possible. Check the following if the problem persists after you have confirmed the above.
 Cannot transmit from a Bluetooth wireless technology enabled device (PC, smartphone, etc.) to this
unit

� Check if the BLUETOOTH function of the BLUETOOTH enabled device is enabled.
 Cannot connect a BLUETOOTH wireless technology enabled device (PC, smartphone, etc.) to this unit

� Initialize the pairing information and perform pairing again. Firstly delete all the pairing information saved on this unit. In the Setup menu, select "5. Hardware" - "Bluetooth" - "Bluetooth Receiver" - "Pairing
Information", then press ENTER while "Clear" is displayed.
Next, delete the pairing information of this unit that is saved on the BLUETOOTH wireless technology enabled device. For information on how to
clear the pairing information, refer to the BLUETOOTH enabled device's instruction manual. Finally, perform pairing again. Refer to "Playing audio from BLUETOOTH wireless technology enabled devices with this unit" ( p65) for pairing instructions.

( p132)

159

Troubleshooting

 Cannot transmit from this unit to a Bluetooth wireless technology enabled device (wireless headphones, etc.)

� Check that the "Bluetooth Transmitter" setting on this unit is set to either "On(Tx)" or "On(Main + Tx)".
 Cannot connect this unit to a BLUETOOTH wireless technology enabled device (wireless headphones, etc.)

( p132)

� Check if the BLUETOOTH function of the BLUETOOTH enabled device is enabled. � Initialize the pairing information and perform pairing again.
Firstly delete all the pairing information saved on this unit. In the Setup menu, select "5. Hardware" - "Bluetooth" - "Bluetooth Transmitter" "Pairing Information", then press ENTER while "Clear" is displayed. Next, delete the pairing information of this unit that is saved on the BLUETOOTH wireless technology enabled device. For information on how to clear the pairing information, refer to the BLUETOOTH enabled device's instruction manual. Finally, perform pairing again. Refer to "Transmitting audio from this unit to BLUETOOTH wireless technology enabled devices" ( p66) for pairing instructions.
 Music playback is unavailable on the unit even after successful BLUETOOTH connection

( p133)

� If the volume setting on this unit or the Bluetooth wireless technology enabled device is low, audio may not be played. Check the volume setting on this unit or the Bluetooth wireless technology enabled device.
� Some Bluetooth enabled devices may be equipped with a Send/Receive selector switch. Try switching the setting to suit the application the device is being used for.
� Depending on the characteristics or specifications of the BLUETOOTH enabled device, music may not be played back on this unit.
 Sound is interrupted

� There maybe a problem with the BLUETOOTH enabled device. Check the information on a web page.
 The audio quality is poor after connection with a BLUETOOTH enabled device

� The BLUETOOTH reception is poor. Move the BLUETOOTH enabled device closer to the unit, or remove any obstacle between the BLUETOOTH enabled device and this unit.

160

Troubleshooting

 Network function

� If you cannot select a network service, start up the network function to select it. It may take approx. one minute to start it up. � When the NET indicator is blinking, this unit is not properly connected to the home network. � Unplug and plug the power cords of this unit and the router, or restart the router. � If the desired router is not displayed in the access point list, it may be set to hide SSID, or the ANY connection may be off. Change the setting
and try again. Check the following if the problem persists after you have confirmed the above.
 Cannot access the Internet radio

� In the case the service provider has terminated the service, the network service or contents may not be used on this unit. � Check if your modem and router are properly connected, and they are both turned on. � Check if the LAN side port on the router is properly connected to this unit. � Check if connecting to Internet from other devices is possible. If it is not possible, turn off all devices connected to the network, wait for a while,
and then turn on the devices again.
� Depending on ISP, setting the proxy server is required. � Check if the router and modem you are using are supported by your ISP.
 Cannot access the network server

� This unit needs to be connected to the same router as the network server. � This unit supports the Windows Media� Player 12 network servers, or NASes that support the home network function. � Windows Media� Player may require some settings. Refer to "Music Server". � When using a PC, only the music files registered in the library of Windows Media� Player can be played.
 Sound is interrupted when playing music files on the network server

( p100)

� Check if the network server meets the requirements for operation. � When the PC is serving as the network server, quit application software other than the server software (Windows Media� Player 12, etc.). � If the PC is downloading or copying large files, the playback sound may be interrupted.

161

Troubleshooting

 USB storage device
 USB storage device is not displayed

� Check if the USB storage device or USB cable is securely inserted to the USB port of the unit. � Disconnect the USB storage device once from the unit, and then reconnect it. � Performance of the hard disk that receive power from the USB port of the unit is not guaranteed. � Depending on the type of content, the playback may not be performed normally. Check the types of supported file formats. � Operations of USB storage devices equipped with security functions are not guaranteed.
 Wireless LAN Network

( p98)

� Unplug and plug the power cords of this unit and the wireless LAN router, check the power-on status of the wireless LAN router, or restart the wireless LAN router.
Check the following if the problem persists after you have confirmed the above.
 Cannot access wireless LAN network

� The wireless LAN router setting may be switched to Manual. Restore the setting to Auto. � Try the manual set-up. The connection may succeed. � When the wireless LAN router is in stealth mode (mode to hide SSID) or when the ANY connection is off, the SSID is not displayed. Change the
setting and try again. � Check if the SSID and encryption settings (WEP, etc.) are correct. Match the network settings with the settings of this unit. � Connection to an SSID that includes multi-byte characters is not supported. Set the SSID of the wireless LAN router using single-byte
alphanumeric characters only, and try again.
 Connected to an SSID different from the selected SSID

� Some wireless LAN routers allow you to set multiple SSIDs for one unit. If connecting to such a router using the automatic setting button, you may end up connecting to an SSID different from the SSID you want to connect to. If this occurs, use the connection method requiring you to enter a password.
 Playback sound is interrupted, or communication is not possible

� You may not receive radio waves due to poor radio wave conditions. Shorten the distance from the wireless LAN router, or remove obstacles to improve visibility, and connect again. Install the unit away from microwave ovens or other access points. It is recommended to install the wireless
LAN router and the unit in the same room. � If there is a metallic object near the unit, wireless LAN connection may not be possible because the metal affects the radio wave. � When other wireless LAN devices are used near the unit, other symptoms may occur, such as interrupted playback and impossible
communication. You can avoid those problems by changing the channel of your wireless LAN router. For instructions on changing channels,
refer to the instruction manual supplied with your wireless LAN router. � There may not be enough bandwidth available in wireless LAN. Use a wired LAN for connection.

162

Troubleshooting

 ZONE B function
 Cannot output audio to ZONE B

� To output audio to ZONE B, set the audio output destination for "Audio" - "Zone B" on Quick menu to "On (A+B)" or "On (B)" and also set "2. Speaker" - "Configuration" - "Zone 2 Lineout" on the Setup menu to "Zone B".
 Multi-zone function
 Cannot ZONE-output the audio of externally connected AV components

( p105)

� To output audio from an externally connected AV component to ZONE 2, connect it to any of HDMI IN1 to IN3 jacks. If the AV component is not equipped with an HDMI jack, use a digital coaxial cable, digital optical cable or analog audio cable. Also, the audio from externally connected AV components can be output to ZONE 2 only when the audio is analog or 2 ch PCM signal. When the AV component is connected to this unit with an HDMI cable, digital coaxial cable or digital optical cable, change the audio output of the AV component to the PCM output.
� When video and audio via HDMI input are output to ZONE 2, set "1. Input/Output Assign" - "TV Out / OSD" - "Zone 2 HDMI" ( p111) to "Use" on the Setup menu.
� To output audio from an externally connected AV component to ZONE 3, use an analog audio cable for connection. Also, audio from externally connected AV components can be output to ZONE 3 only when it is an analog audio signal.
 Others

� If the audio signal is from the NET input selector, the zone output is not possible for DSD audio signals.
 Remote Controller

� Make sure that the batteries are inserted with the correct polarity. � Insert new batteries. Do not mix different types of batteries, or old and new batteries. � Make sure that the sensor of the main unit is not subjected to direct sunlight or inverter-type fluorescent lights. Relocate it if necessary. � If the main unit is installed in a rack or cabinet with colored-glass doors, or if the doors are closed, the remote controller may not work normally.
 Display
 The display does not light up

� When the Dimmer function is working, the display may go dim. Press the DIMMER button, and change the brightness level of the display. � The display is turned off when the Pure Audio listening mode is selected.

( p17)

163

Troubleshooting

 Others
 Strange noise can be heard from the unit

� If you have connected another device to the same outlet as this unit, strange noise may occur under the influence of the device. If the symptom is remedied by removing the power plug of the other device from the outlet, use different outlets for this unit and the device.
 The message "Noise Error" appears during AccuEQ Room Calibration

� This can be caused by a malfunction in your speaker unit. Check the speaker output, etc.
 The measurement results of AccuEQ Room Calibration show different distances to the speakers from the actual ones

� Depending on the speakers you are using, some errors may occur in the measurement results. If this is the case, make the settings in "2. Speaker" - "Distance" in the Setup menu.
 The measurement results of AccuEQ Room Calibration show that the volume level of the subwoofer has been corrected to the lower limit

( p118)

� The volume level correction of the subwoofer may not have been completed. Lower the volume of the subwoofer before AccuEQ Room Calibration measurement.
 The settings in "Crossover", "Distance", and "Channel Level" are returned to the default values

� When measurements are made with Dirac Live, if you change the settings in "Speaker Channels", "Subwoofer", "Height 1 Speaker", or "Height 2 Speaker" in "2.Speaker" - "Configuration" ( p115) in the Setup menu, then the measurement results are returned to the default values. Measure again.

164

Appendix

Appendix

Speaker Layouts and Selectable Listening Modes

166

LISTENING MODE buttons and Selectable Listening

Modes

169

Input Formats and Selectable Listening Modes

171

Listening Mode Effects

175

Speaker Combinations

182

General Specifications

183

165

Speaker Layouts and Selectable Listening Modes

Appendix

See the following table for selectable listening modes for each speaker layout.

Listening mode

Speaker layout (ch) 2.1 3.1 4.1 5.1 6.1

DD (Dolby Audio - DD)

(*1) (*1) (*1) (*2)

DD+ (Dolby Audio - DD+)
DTHD (Dolby Audio - TrueHD)
Atmos Atmos 2.0/2.1 Atmos 3.0/3.1 Atmos 4.0/4.1 Atmos 5.0/5.1 Atmos 6.0/6.1 Atmos 7.0/7.1 Atmos 2.0.2/2.1.2 Atmos 3.0.2/3.1.2 DSur (Dolby Audio - Surr) DSur 2.0/2.1 (Dolby Audio - Surr) DSur 3.0/3.1 (Dolby Audio - Surr) DSur 4.0/4.1 (Dolby Audio - Surr) DSur 5.0/5.1 (Dolby Audio - Surr) DSur 6.0/6.1 (Dolby Audio - Surr) DSur 7.0/7.1 (Dolby Audio - Surr) DSur 2.0.2/2.1.2 (Dolby Audio - Surr) DSur 3.0.2/3.1.2 (Dolby Audio - Surr)

(*1)

(*1)

(*1)

(*1) (*2)

(*1)

(*1)

(*1)

(*1) (*2)

7.1 2.1.2 3.1.2 4.1.2 5.1.2 6.1.2 7.1.2 4.1.4 5.1.4

(*2)

(*3)

(*3)

(*3)

(*2) (*3)

(*2) (*3)

(*3)

(*3)

(*1) (*2)

(*1)

(*1)

(*1)

(*1)

(*1) (*2)

(*1) (*2)

(*1)

(*1)

(*1) (*2)

(*1)

(*1)

(*1)

(*1)

(*1) (*2)

(*1) (*2)

(*1)

(*1)

166

Listening mode DTS ES Discrete (DTS-ES Discrete) ES Matrix (DTS-ES Matrix) DTS 96/24 DTS-HD HR (DTS-HD High Resolution) DTS-HD Master (DTS-HD Master Audio) DTS Express DTS:X DTS Neural:X
IMAX DTS
IMAX DTS:X IMAX Neural:X

Appendix
Speaker layout (ch) 2.1 3.1 4.1 5.1 6.1 7.1 2.1.2 3.1.2 4.1.2 5.1.2 6.1.2 7.1.2 4.1.4 5.1.4 (*3) (*3) (*3) (*3) (*3) (*3) (*3)
(*3) (*3) (*3) (*3) (*3) (*3) (*3)

(*4)

(*3)

(*3)

(*3)

(*3)

(*3)

(*3) (*4)

(*3)

(*3)

Listening mode THX Cinema THX Sel Cin THX Music THX Sel Mus THX Games THX Sel Gam

Speaker layout (ch) 2.1 3.1 4.1 5.1 6.1 7.1 2.1.2 3.1.2 4.1.2 5.1.2 6.1.2 7.1.2 4.1.4 5.1.4

167

Appendix

Listening mode Multich (Multichannel)
DSD
Pure Audio
Direct
Stereo Mono Orchestra Unplugged Studio-Mix TV Logic Game-RPG Game-Action Game-Rock Game-Sports AllCh Stereo Mono Music T-D (Theater-Dimensional)

Speaker layout (ch) 2.1 3.1 4.1 5.1 6.1 7.1 2.1.2 3.1.2 4.1.2 5.1.2 6.1.2 7.1.2 4.1.4 5.1.4

(*1) (*1) (*1) (*1) (*1)

(*3) (*3) (*3) (*3) (*3) (*3) (*3)

(*1) (*1) (*1) (*5) (*5)

(*3)

(*3)

(*3)

(*3) (*5)

(*3) (*5)

(*3)

(*3)

(*1)

(*1)

(*1)

(*1) (*2)

(*1) (*2)

(*1)

(*1)

(*1)

(*1)

(*1) (*2)

(*1) (*2)

(*1)

(*1)

(*1)

(*1)

(*1)

(*1) (*2)

(*1) (*2)

(*1)

(*1)

(*1)

(*1)

(*1) (*2)

(*1) (*2)

(*1)

(*1)

(*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6)

(*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6)

(*6) (*7) (*6) (*7) (*6) (*7) (*6) (*7) (*6) (*7) (*6) (*7)

*1: Reproduced with the sound field according to the number of channels of input signals. *2: If 4.1ch or 5.1ch Dolby signals (DD, DD+, DTHD) are input, surround channel audio is output from the surround back speakers. *3: Not output from height speakers. *4: Surround channel audio is output from the surround back speakers. *5: Not output from surround back speakers. *6: Output only from front speakers. *7: Output only from front speakers and center speaker.

168

LISTENING MODE buttons and Selectable Listening Modes

Refer to the following table for the listening modes that can be selected with each listening mode button.

Listening mode DD (Dolby Audio - DD) DD+ (Dolby Audio - DD+) DTHD (Dolby Audio - TrueHD) Atmos Atmos 2.0/2.1 Atmos 3.0/3.1 Atmos 4.0/4.1 Atmos 5.0/5.1 Atmos 6.0/6.1 Atmos 7.0/7.1 Atmos 2.0.2/2.1.2 Atmos 3.0.2/3.1.2

LISTENING MODE buttons MOVIE/TV MUSIC GAME

Listening mode DTS ES Discrete (DTS-ES Discrete) ES Matrix (DTS-ES Matrix) DTS 96/24 DTS-HD HR (DTS-HD High Resolution) DTS-HD Master (DTS-HD Master Audio) DTS Express DTS:X DTS Neural:X IMAX DTS IMAX DTS:X IMAX Neural:X

DSur (Dolby Audio - Surr)

DSur 2.0/2.1 (Dolby Audio - Surr) DSur 3.0/3.1 (Dolby Audio - Surr) DSur 4.0/4.1 (Dolby Audio - Surr) DSur 5.0/5.1 (Dolby Audio - Surr) DSur 6.0/6.1 (Dolby Audio - Surr) DSur 7.0/7.1 (Dolby Audio - Surr) DSur 2.0.2/2.1.2 (Dolby Audio - Surr) DSur 3.0.2/3.1.2 (Dolby Audio - Surr)

Listening mode Multich (Multichannel) PCM DSD Pure Audio Direct Stereo Mono

THX Cinema

THX Sel Cinema

THX Music

THX Sel Music

Appendix
LISTENING MODE buttons MOVIE/TV MUSIC GAME
LISTENING MODE buttons MOVIE/TV MUSIC GAME

169

Listening mode THX Games THX Sel Games Orchestra Unplugged Studio-Mix TV Logic Unplugged Game-RPG Game-Action Game-Rock Game-Sports AllCh Stereo Mono Music T-D (Theater-Dimensional)

LISTENING MODE buttons MOVIE/TV MUSIC GAME

Appendix
170

Input Formats and Selectable Listening Modes

Appendix

You can select a variety of listening modes according to the audio format of the signal to be input. � Selectable listening modes when headphones
are connected are Pure Audio, Mono, Direct, and Stereo only.

Input format

Listening mode

Pure Audio Direct Stereo

DD (Dolby Audio - DD) (*2)

DD+ (Dolby Audio - DD+) (*2)(*3)

DTHD (Dolby Audio TrueHD) (*2)

Atmos (*13)

DSur (Dolby Audio - Surr) (*13)

2-channel signal input Analog / PCM Music file / DSD (*1) DD / DD+ / DTHD DTS / DTS 96/24 / DTS Express / DTSHD HR / DTS-HD MSTR
Multi-channel signal input Multich PCM DSD (*1) DD DD+ DTHD ATMOS DTS DTS 96/24 DTS Express DTS-HD HR DTS-HD MSTR DTS-ES Discrete DTS-ES Matrix DTS:X IMAX DTS IMAX DTS:X

(*14)

171

Listening mode

Input format

DTS (*2)

DTS 96/24 (*2)

DTS Express (*2)

2-channel signal input Analog / PCM Music file / DSD (*1) DD / DD+ / DTHD DTS / DTS 96/24 / DTS Express / DTS-HD HR / DTS-HD MSTR
Multi-channel signal input Multich PCM DSD (*1) DD DD+ DTHD ATMOS DTS DTS 96/24 DTS Express DTS-HD HR DTS-HD MSTR DTS-ES Discrete DTS-ES Matrix DTS:X IMAX DTS IMAX DTS:X

(*4) (*4)
(*15)

DTS-HD HR DTS-HD

(DTS-HD High Master (DTS-

Resolution) HD Master

(*2)

Audio) (*2)

ES Discrete (DTS-ES Discrete) (*5)

ES Matrix (DTS-ES Matrix) (*5)

DTS:X

Appendix

DTS Neural:X (*6)

IMAX DTS (*10)

IMAX DTS:X (*10)

IMAX Neural:X (*10)

(*15)

(*15)

(*15)

172

Listening mode

PCM

(Multich

Input format

PCM) (*2)

DSD (*2)(*12)

2-channel signal input Analog / PCM Music file / DSD (*1) DD / DD+ / DTHD DTS / DTS 96/24 / DTS Express / DTS-HD HR / DTS-HD MSTR
Multi-channel signal input Multich PCM DSD (*1) DD DD+ DTHD ATMOS DTS DTS 96/24 DTS Express DTS-HD HR DTS-HD MSTR DTS-ES Discrete DTS-ES Matrix DTS:X IMAX DTS IMAX DTS:X

Mono

Orchestra/ Unplugged/ Studio-Mix/ TV Logic/ GameAction/ Game-Rock/GameRPG/ Game-Sports (*7)

AllCh Stereo / Mono Music (*8)

T-D (TheaterDimensional) (*9)

THX Cinema/ Music/ Games (*11)

THX Select Music/ Cinema/ Games (*5)

Appendix

173

Appendix
(*1) You cannot select any mode other than Pure Audio, Stereo, AllCh Stereo and Mono Music if the sampling rate is 5.6/11.2 MHz. (*2) A center speaker or surround speakers need to be installed. (*3) If the input source is Blu-ray Disc and the speaker layout is 5.1 ch or less, DD+ cannot be selected. Instead, the listening mode for DD can be selected. (*4) This can only be selected when no surround back speaker is connected. (*5) Surround back speakers need to be installed. Can be selected when the input format is 5.1 ch. (*6) If the input format is any of the following and the number of channels is monaural, this listening mode becomes unavailable.
� DTS, DTS 96/24, DTS Express, DTS-HD HR, DTS-HD MSTR, PCM, music file (*7) Surround speakers or height speakers need to be installed. (*8) A center speaker, surround speakers, or height speakers need to be installed. (*9) Cannot be selected if "Speaker Virtualizer" ( p121) is set to "Off". (*10) Cannot be selected when the "IMAX Mode" ( p123) is set to "Off" (the default value is Auto). (*11) Surround speakers need to be installed. (*12) Cannot be selected when the input format is monaural. (*13) The listening mode displayed depends on the speaker layout ( p166). Furthermore, when the setting for "Speaker Virtualizer" ( p121) is "Off" (the default
value is On), then modes other than Atmos and DSur cannot be selected. (*14) This cannot be selected when the input format is DTS Express. (*15) Can only be selected when the "IMAX Mode" ( p123) is set to "Off" (the default value is Auto).
 Speaker Layouts and Selectable Listening Modes ( p166)
174

Listening Mode Effects
In alphabetical order
 AllCh Stereo
This mode is ideal for background music. Stereo sound is played through the surround speakers as well as the front speakers, creating a stereo image.
 Atmos
Since this mode calculates the positional data of audio recorded in Dolby Atmos audio in real-time and outputs it from appropriate speakers, you can enjoy the natural and stereophonic sound field of Dolby Atmos with any speaker layout including connection of only front speakers. Also, the Dolby Atmos sound design can be reproduced more faithfully by connecting surround back speakers or height speakers. You can select this mode when inputting the Dolby Atmos audio format. Unlike existing surround systems, Dolby Atmos does not rely on channels, but rather enables the accurate placement of sound objects that have independent motion in a 3D space with even greater clarity. Dolby Atmos is an optional audio format for Blu-ray Discs and achieves a more stereophonic sound field by introducing a sound field above the listener.
According to the speaker layout, the following listening modes are displayed. � Atmos 2.0/2.1: When only front speakers are installed � Atmos 3.0/3.1: When front speakers and center speaker are installed � Atmos 4.0/4.1: When front speakers and surround speakers are installed � Atmos 5.0/5.1: When front speakers, center speaker and surround speakers are installed � Atmos 6.0/6.1: When front speakers, surround speakers and surround back speakers are installed � Atmos 7.0/7.1: When front speakers, center speaker, surround speakers and surround back speakers are installed � Atmos 2.0.2/2.1.2: When front speakers and height speakers are installed � Atmos 3.0.2/3.1.2: When front speakers, center speaker and height speakers are installed � Atmos: Selectable in the "4.1.2 ch", "5.1.2 ch", "6.1.2 ch", "7.1.2 ch",

Appendix
"4.1.4 ch" or "5.1.4 ch" setting with surround speakers and height speakers installed.
� To enable transfer of this audio format, connect via an HDMI cable and set the audio output on the player to Bitstream output.
� When "Speaker Virtualizer" ( p121) is set to "Off" (Default: On), modes other than Atmos cannot be selected.
 DD (Dolby Audio - DD)
This mode faithfully reproduces the sound design recorded in the Dolby Digital audio format. Dolby Digital is a multi-channel digital format developed by Dolby Laboratories, Inc. and is widely adopted for use in movie production. It is also a standard audio format for DVD-Video and Blu-ray Discs. It is possible to record a maximum of 5.1 channels on a DVD-Video or Blu-ray Disc; two front channels, one center channel, two surround channels, and the LFE channel dedicated to the bass region (sound elements for the subwoofer). � To enable transfer of this audio format, connect via a digital cable and set the
audio output on the player to Bitstream output.
 DD+ (Dolby Audio - DD+)
This mode faithfully reproduces the sound design recorded in the Dolby Digital Plus audio format. The Dolby Digital Plus format has been improved based on Dolby Digital, increasing the number of channels and endeavoring to improve sound quality by giving more flexibility in data bit rates. Dolby Digital Plus is an optional audio format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of 7.1 channels with additional channels such as the surround back channel. � To enable transfer of this audio format, connect via an HDMI cable and set
the audio output on the player to Bitstream output.

175

 Direct
This listening mode can be selected for all input signals. Processing that affects sound quality is shut down, and sound closer to the original is reproduced. The sound is reproduced with the sound field based on the number of channels in the input signal. For example, a 2 ch signal is output only from the front speakers. Note that the sound adjustment is not available when this mode is selected. � The speaker calibrations measured with Dirac Live are disabled.
 DSur (Dolby Audio - Surr)
This listening mode expands 2 ch or 5.1 ch input signals to 5.1 ch, 7.1 ch or 5.1.2 ch. This mode expands actual channels to more channels for playback according to the configuration of the connected speakers. Also, even if there is no speaker for expansion, for example when only front speakers are connected, audio of surround channel or height channel is virtually created for expansion playback.
According to the speaker layout, the following listening modes are displayed. � DSur 2.0/2.1: When only front speakers are installed � DSur 3.0/3.1: When front speakers and center speaker are installed � DSur 4.0/4.1: When front speakers and surround speakers are installed � DSur 5.0/5.1: When front speakers, center speaker and surround speakers are installed � DSur 6.0/6.1: When front speakers, surround speakers and surround back speakers are installed � DSur 7.0/7.1: When front speakers, center speaker, surround speakers and surround back speakers are installed � DSur 2.0.2/2.1.2: When front speakers and height speakers are installed � DSur 3.0.2/3.1.2: When front speakers, center speaker and height speakers are installed � DSur: Selectable in the "4.1.2 ch", "5.1.2 ch", "6.1.2 ch", "7.1.2 ch", "4.1.4 ch" or "5.1.4 ch" setting with surround speakers and height speakers installed.
� When "Speaker Virtualizer" ( p121) is set to "Off" (Default: On), modes other than DSur cannot be selected.

Appendix
 DTHD (Dolby Audio - TrueHD)
This mode faithfully reproduces the sound design recorded in the Dolby TrueHD audio format. The Dolby TrueHD audio format is a "lossless" format expanded based on the lossless compression technology referred to as MLP, and it faithfully reproduces the master audio recorded in the studio. Dolby TrueHD is an optional audio format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of 7.1 channels with additional channels such as the surround back channel. 7.1 ch is recorded at 96 kHz/24 bit, and 5.1 ch is recorded at 192 kHz/24 bit. � To enable transfer of this audio format, connect via an HDMI cable and set
the audio output on the player to Bitstream output.
 DSD
This mode is suitable for playing sources recorded in DSD. � This unit supports the DSD signal input from the HDMI input terminal.
However, depending on the connected player, better sound may be obtained by setting the output on the player side to the PCM output. � This listening mode cannot be selected if the output setting on your Blu-ray Disc/DVD player is not set to DSD.
 DTS
This mode faithfully reproduces the sound design recorded in the DTS audio format. The DTS audio format is a multi-channel digital format developed by DTS, Inc. This format is an optional audio format for DVD-Video and a standard format for Blu-ray Discs. It enables recording of 5.1 channels; two front channels, one center channel, two surround channels, and the LFE channel dedicated to the bass region (sound elements for the subwoofer). The content is recorded with a rich volume of data, with a maximum sampling rate of 48 kHz, at a resolution of 24 bits and a bit rate of 1.5 Mbps. � To enable transfer of this audio format, connect via a digital cable and set the
audio output on the player to Bitstream output.

176

 DTS 96/24
This mode faithfully reproduces the sound design recorded in the DTS 96/24 audio format. The DTS 96/24 format is an optional audio format for DVD-Video and Blu-ray Discs. It enables recording of 5.1 channels; two front channels, one center channel, two surround channels, and the LFE channel dedicated to the bass region (sound elements for the subwoofer). Detailed reproduction is achieved by recording the content at a sampling rate of 96 kHz and at a resolution of 24 bits. � To enable transfer of this audio format, connect via a digital cable and set the
audio output on the player to Bitstream output.
 DTS Express
This mode faithfully reproduces the sound design recorded in the DTS Express audio format. DTS Express is an optional audio format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of 7.1 channels with additional channels such as the surround back channel. It also supports low bit rates. � To enable transfer of this audio format, connect via an HDMI cable and set
the audio output on the player to Bitstream output.
 DTS-HD HR (DTS-HD High Resolution)
This mode faithfully reproduces the sound design recorded in the DTS-HD High Resolution Audio audio format. DTS-HD High Resolution Audio is an optional audio format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of 7.1 channels with additional channels such as the surround back channel at a sampling rate of 96 kHz and at a resolution of 24 bits. � To enable transfer of this audio format, connect via an HDMI cable and set
the audio output on the player to Bitstream output.
 DTS-HD MSTR (DTS-HD Master Audio)
This mode faithfully reproduces the sound design recorded in the DTS-HD Master Audio audio format. DTS-HD Master Audio is an optional audio format based on 5.1 ch for Bluray Discs. It is possible to record a maximum of 7.1 channels with additional channels such as the surround back channel using the lossless audio reproduction technology. 96 kHz/24 bit is supported for 7.1 ch, and 192 kHz/24 bit is supported for 5.1 ch.

Appendix
� To enable transfer of this audio format, connect via an HDMI cable and set the audio output on the player to Bitstream output.
 DTS Neural:X
This listening mode expands actual channels to more channels for playback to suit the configuration of the connected speakers by expanding the input signals from 2 channels or 5.1 channels to 5.1 channels or 7.1 channels respectively.
 DTS:X
This mode faithfully reproduces the sound design recorded in the DTS:X audio format. The DTS:X audio format is a combination of the mixing method based on traditional channel based formats (5.1 ch and 7.1 ch) and object based dynamic audio mixing, and it is characterized by the precise positioning of sounds and the ability to express sound movement. � To enable transfer of this audio format, connect via an HDMI cable and set
the audio output on the player to Bitstream output.

177

 ES Discrete (DTS-ES Discrete)
This mode faithfully reproduces the sound design recorded in the DTS-ES Discrete audio format. DTS-ES Discrete is an optional audio format based on 5.1 ch for DVD-Video and Blu-ray Discs. It is possible to record a maximum of 6.1 channels with a monaural surround back channel added. � To enable transfer of this audio format, connect via a digital cable and set the
audio output on the player to Bitstream output.
 ES Matrix (DTS-ES Matrix)
This mode faithfully reproduces the sound design recorded in the DTS-ES Matrix audio format. DTS-ES Matrix is an optional audio format based on 5.1 ch for DVD-Video and Blu-ray Discs. A monaural surround back channel is inserted to this format by matrix encoding. During playback, 6.1 channel-playback is achieved by the matrix decoder on this unit. � To enable transfer of this audio format, connect via a digital cable and set the
audio output on the player to Bitstream output.
 Game-Action
This mode is suitable for games with a lot of action. � The speaker calibrations measured with Dirac Live are disabled.
 Game-Rock
This mode is suitable for games with rock content. � The speaker calibrations measured with Dirac Live are disabled.
 Game-RPG
This mode is suitable for role-playing games. � The speaker calibrations measured with Dirac Live are disabled.
 Game-Sports
This mode is suitable for sports games. � The speaker calibrations measured with Dirac Live are disabled.

Appendix
 IMAX
IMAX is an innovator in entertainment technology, combining proprietary software, architecture and equipment to create experiences that take you beyond the edge of your seat to a world you've never imagined. Top filmmakers and studios utilize IMAX theatres to connect with audiences in extraordinary ways. IMAX leverages its proprietary image enhancement process, DMR, to create clearer, sharper images--just as the director intended. With its specialized, custom theatre environment designed to widen the field of view, and unique sound systems that cover the entire theatre evenly, IMAX delivers a truly immersive film experience.
IMAX Enhanced : IMAX Enhanced brings the world's most immersive entertainment experience into the home. IMAX Enhanced products include the highest-end TVs, projectors, sound bars and A/V receivers that meet stringent performance standards established by IMAX, DTS and Hollywood's leading colorists to deliver unparalleled quality and scale to in-home entertainment. IMAX Enhanced content is digitally re-mastered for the home environment to provide sharper images and more powerful sound--just as the filmmaker intended. Available on Ultra HD Blu-ray discs and 4K streaming services, it leverages DTS:X codec technology integrated in certified home entertainment devices to deliver an exclusive, fully immersive experience. IMAX Mode optimizes all settings for the playback of remastered IMAX Enhanced content, ensuring the best possible picture and sound. When "IMAX DTS" is displayed, IMAX Mode is optimized for the playback of 5.1 IMAX Enhanced content. When "IMAX DTS:X" is displayed, IMAX Mode is optimized for the playback of fully immersive IMAX Enhanced content. � To enable transfer of this audio format, connect via an HDMI cable and set
the audio output on the player to Bitstream output.
IMAX listening modes: � IMAX DTS: Displayed when there is DTS audio format input which includes
IMAX Enhanced content.
� IMAX DTS:X: Displayed when there is DTS:X audio format input which includes IMAX Enhanced content.
� IMAX Neural:X: This listening mode expands the playback signal to 5.1.4 channels or 7.1.2 channels to suit the connected speaker configuration when the input signal is 5.1 channels. Displayed when there is DTS audio format

178

input which includes IMAX Enhanced content.
� IMAX Mode is set to "Auto" at the time of purchase ( p123). The listening mode automatically switches when IMAX Enhanced content is recognized, but when playing IMAX Enhanced content received through streaming services on a TV, etc., the IMAX Enhanced content may not be recognized and the listening mode may not switch. Set the IMAX Mode to "On" in this case.
� When surround back speakers are connected and DTS audio format that includes 5.1-channel IMAX Enhanced content is played with IMAX DTS, the surround channel audio is output from the surround back speakers.
 Mono
In this mode, monaural audio is played from the center speaker at the time of inputting an analog signal or PCM signal. If there is no center speaker connected, monaural audio is played from the front speakers.
 Mono Music
In this mode, all speakers output the same sound in mono, so the sound you hear is the same regardless of where you are within the listening room.
 Multich (Multichannel)
This mode is suitable to play sources recorded in multichannel PCM.
 Orchestra
This mode is suitable for classical or operatic music. This mode emphasizes the surround channels in order to widen the sound image, and simulates the natural reverberation of a large hall. � The speaker calibrations measured with Dirac Live are disabled.

Appendix
 Pure Audio
This mode reproduces the original sound more faithfully. The display and analog video circuit are turned off to provide purer sound. Note that the sound adjustment is not available when this mode is selected. � Selecting this mode turns off the analog video circuit, so the video signals
input through jacks other than the HDMI IN jack cannot be displayed on the TV. � This cannot be selected when using the Multi-zone function. Activating the Multi-zone function while this mode is selected will automatically switch the listening mode to Direct. � The speaker calibrations measured with Dirac Live are disabled.
 Stereo
In this mode, sound is output from the right and left front speakers and subwoofer.
 Studio-Mix
This mode is suitable for rock or pop music. This mode creates a lively sound field with a powerful acoustic image as if you are at a club or rock concert. � The speaker calibrations measured with Dirac Live are disabled.
 T-D (Theater-Dimensional)
In this mode, you can enjoy a virtual playback of multichannel surround sound even with only two or three speakers. This works by controlling how sounds reach the listener's left and right ears. � This mode cannot be selected when "Speaker Virtualizer" ( p121) is set to
"Off" (Default: On). � The speaker calibrations measured with Dirac Live are disabled.

179

 THX
THX is a series of specifications for the accurate reproduction of movies propounded by the film director George Lucas. THX listening modes include the THX Cinema mode, etc. Using technology such as THX Loudness Plus and Timbre Matching, the sound of a movie theater is reproduced accurately. � The speaker calibrations measured with Dirac Live are disabled.
THX technology: A movie soundtrack is mixed in a large-scale theater specially made for mixing that is called a dubbing stage on the assumption that the soundtrack is played in such theaters with similar equipment and conditions. These soundtracks are recorded as is, even when recording to a DVD-Video, for example, without making any modifications to suit a home theater environment. THX technology is able to reproduce the movie theater sound accurately in a home theater environment by minimizing acoustic and spatial deviation.
� THX Loudness Plus THX Loudness Plus is a new volume control technology mounted on THX Ultra and THX Select-certified AV receivers. With THX Loudness Plus, home theater audience can experience the rich details of surround sound at any volume level. If the volume is turned down below the reference level, elements of sound in a certain range are lost, or the sound is perceived differently by audience. THX Loudness Plus compensates for the tonal and spatial shifts that occur when the volume is reduced, by intelligently adjusting ambient surround channel levels and frequency response.
� Re-EQ The speakers for the front channel in a movie theater are installed behind the screen. For this reason the high range is enhanced in the sound track of the front channel in view of acoustic characteristics such as the necessity to penetrate the screen. Re-EQ adjusts the soundtrack with the enhanced high range to make it suitable for a home theater.
� Timbre Matching The perception of human ears differs depending on the sound direction. Movie theaters have many surround speakers installed, so they are excellent at surrounding the viewers with natural sound, but home theaters have only two surround speakers installed. The Timbre Matching function filters the signals sent to the surround speakers, and adjusts the tonal characteristics of front speakers and surround speakers to create smooth sound movement from front

Appendix
speakers to surround speakers.
� Adaptive Decorrelation While movie theaters have many surround speakers to enable the experience where viewers are surrounded with sound, home theaters normally have only two surround speakers. Such two surround speakers give a headphone-like sound, which is not a broad and embracing surround sound. If a listener moves away from the middle position between the surround speakers, the sound from the surround speakers is absorbed into the sound from the nearby speakers, and cannot be distinguished any more. Adaptive Decorrelation changes the time axis and phase between the surround channels so that you can enjoy the same spatial sound with two surround speakers as in a movie theater.
� ASA (Advanced Speaker Array) ASA is a technology patented by THX to provide a broad surround sound experience by adjusting the sounds of two surround speakers on the sides and two surround speakers at the back. When installing the surround back speakers, be sure to select the distance between the two surround back speakers in the THX Audio settings. This setting optimizes the surround sound environment.
THX listening modes: � THX Cinema: Use this mode in a home theater environment to play the
soundtrack that was recorded on the assumption that it is played in a movie theater or similar large area. In this mode, THX Loudness Plus is set to the theater level, and Re-EQ, Timbre Matching and Adaptive Decorrelation are all enabled.
� THX Games: Use this mode for high-fidelity spatial reproduction of game sound. THX Loudness Plus is set to a level suited to the audio level of the game, and Timbre Matching is enabled.
� THX Music: This mode mainly adjusts the playback of music sources that are mastered to a much higher quality obviously than movie audio. In this mode, THX Loudness Plus is set to a level suited to the playback of music, and Timbre Matching is enabled.
� THX Sel Cin (THX Select Cinema): The THX Select Cinema mode provides a high-quality surround sound experience by expanding movie sources recorded in 5.1 ch for 7.1 ch playback. In this mode, the THX ASA processing technology gives smooth transition between side and back surround sounds, creating the best atmosphere and directional sense of surround sound.

180

� THX Sel Gam (THX Select Games): Select the THX Select Games mode to play game sound recorded in a multichannel format. In this mode, the THX ASA processing technology enables the playback of game sound in a 360-degree sound field which was recorded in PCM, DTS, Dolby Digital and other 5.1 ch formats.
� THX Sel Mus (THX Select Music): Select THX Select Music to play music sources recorded in a multichannel format. In this mode, the THX ASA processing technology creates a broad and stable back sound field when playing music sources recorded in 5.1 ch, such as DTS, Dolby Digital, and DVD-Audio.
 TV Logic
Suitable for TV shows produced in a TV studio. This mode gives clarity to voices by enhancing the entire surround sounds, and creates a realistic acoustic image. � The speaker calibrations measured with Dirac Live are disabled.
 Unplugged
Suitable for acoustic instruments, vocals and jazz. This mode emphasizes the front sound field image, giving the impression of being in front of the stage. � The speaker calibrations measured with Dirac Live are disabled.

Appendix
181

Speaker Combinations

Appendix

� Up to two powered subwoofers can be connected in either combination.

Speaker Channels

FRONT

CENTER

SURROUND

SURROUND BACK

2.1 ch 3.1 ch 4.1 ch 5.1 ch 6.1 ch 7.1 ch 2.1.2 ch 3.1.2 ch 4.1.2 ch 5.1.2 ch 6.1.2 ch 7.1.2 ch 4.1.4 ch 5.1.4 ch

HEIGHT 1
(*2) (*3) (*2) (*3) (*2) (*3) (*2) (*3)

HEIGHT 2

Bi-AMP (*1)

ZONE 2 (*1) (ZONE
SPEAKER)

ZONE 3 (*1) (ZONE
SPEAKER)

(*3)

(*2)

(*3)

(*2)

(*3)

(*2)

(*3)

(*2)

(*1) The Bi-AMP and ZONE speakers cannot be used simultaneously. (*2) When using the ZONE 2 speakers, it is necessary to connect the ZONE 2 speakers to the HEIGHT 1 terminals, and the height speakers to the SURROUND
BACK terminal. (*3) When using Bi-Amp speakers, it is necessary to connect the Bi-Amp speakers to the HEIGHT 1 terminals, and height speakers to the SURROUND BACK
terminals.
About the HEIGHT 1/HEIGHT 2 When connecting 2 sets of the height speakers, the combination of the height speakers that can be selected is as follows. � Height 1 Speaker: Top Middle, Height 2 Speaker: Rear High � Height 1 Speaker: Front High, Height 2 Speaker: One of Rear High/Top Middle/Top Rear/Dolby Enabled Speaker (Surround) � Height 1 Speaker: Top Front or Dolby Enabled Speaker (Front), Height 2 Speaker: One of Rear High/Top Rear/Dolby Enabled Speaker (Surround) When only 1 set of the height speakers is connected, 1 from the height speakers types can be selected.

182

General Specifications

Appendix

Amplifier Section
Rated Output Power
Maximum Effective Output Power THD+N (Total Harmonic Distortion + Noise) Input Sensitivity and Impedance
Rated RCA Output Level and Impedance
Phono Maximum Input Signal Voltage Frequency Response Tone Control Characteristics Signal to Noise Ratio Speaker Impedance Headphone Rated Output Supported impedance of Headphones Headphones Frequency Response

North American models

European models

Australian and Asian models

With 8 ohm loads, both channels driven, from 20-20,000 Hz; rated 100 watts per channel minimum RMS power, with no more than 0.08% total harmonic distortion from 250 milliwatts to rated output. (FTC)

9 ch � 170 W at 6 ohms, 1 kHz, 1 ch driven of 1% THD (IEC)

220 W at 6 ohms, 1 kHz, 1 ch driven 185 W at 6 ohms, 1 kHz, 1 ch driven 9 ch � 185 W at 6 ohms, 1 kHz, 1 ch

of 10% THD

of 10% THD (JEITA)

driven of 10% THD (JEITA)

0.08% (20 Hz - 20,000 Hz, Rated output power)

200 mV/47 k (LINE(RCA)), 3.5 mV/47 k (PHONO MM)

PRE OUT (SUBWOOFER) : 1 V/470

LINE OUT (ZONE 2/ZONE B) : 200 mV/2.2 k

PRE OUT (FRONT) : 1 V/470  LINE OUT (ZONE 2/ZONE B) : 200 mV/470

70 mV (MM 1 kHz 0.5%)

10 Hz - 100 kHz/+1 dB, �3 dB (Direct/Pure Audio)

�10 dB, 20 Hz (BASS), �10 dB, 20 kHz (TREBLE)

106 dB (IHF-A, LINE IN, SP OUT), 80 dB (IHF-A, PHONO IN, SP OUT)

4  - 16

80 mW + 80 mW (32 , 1 kHz, 10% THD)

8  - 600

10 Hz - 100 kHz

183

Video Section
Signal level
Maximum resolution supported by component video

North American models

Appendix

European models
1 Vp-p/75  (Composite Video) 1 Vp-p/75  (Component Video Y) 0.7 Vp-p/75  (Component Video Pb/Pr)

Australian and Asian models

480i/576i

Tuner Section FM Tuning Frequency Range 50 dB quieting sensitivity (FM MONO) AM Tuning Frequency Range DAB Tuning Frequency Range DAB Sensitivity Preset Channel

North American models 87.5 MHz - 107.9 MHz
530 kHz - 1710 kHz -

European models

Australian and Asian models

87.5 MHz - 108.0 MHz, RDS

1.0 V, 11.2 dBf (IHF, 1 kHz, 100% MOD)

-

522/530 kHz - 1611/1710 kHz

174.928 MHz - 239.200 MHz (Band III)

-

-100 dBm (Min.) (Band III)

-

40

BLUETOOTH Section Communication system Frequency band Modulation method Compatible BLUETOOTH profiles Supported Codecs Transmission range (A2DP)
Maximum communication range

North American models

European models

Australian and Asian models

BLUETOOTH Specification version 4.2

2.4 GHz band

FHSS (Frequency Hopping Spread Spectrum)

A2DP 1.2, AVRCP 1.3

Receiving: SBC, AAC Transmitting: SBC, aptX, aptX HD

20 Hz - 20 kHz (Sampling frequency 44.1 kHz)

Line of sight approx. 15 m(*)
(*)The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven,static electricity, cordless phone, reception sensitivity, antenna's performance, operating system, software application, etc.

184

Input Output

HDMI

North American models

European models 7 (Including 1� Front) 2 (MAIN, SUB/ZONE2)

Appendix
Australian and Asian models

HDMI Ver bandwidth ALLM VRR (for Game) QMS (for Movie) FVA (for Game) QFT (for Movie) DSC Uncompressed
Compressed (TV needs DSC) ARC / eARC *2 HDR10 (HDR10, BT.2020, HLG) HDR10+

HDMI 1 2.1
40Gbps
8K/60p 4:2:0
8K/60p 4:4:4

HDMI 2 2.1
40Gbps
8K/60p 4:2:0
8K/60p 4:4:4

HDMI 3 2.1
40Gbps
8K/60p 4:2:0
8K/60p 4:4:4

Input *1 HDMI 4
2.1 24Gbps
8K/24p 4:2:0
8K/60p 4:4:4

HDMI 5 2.1
24Gbps
8K/24p 4:2:0
8K/60p 4:4:4

HDMI 6 2.1
24Gbps
8K/24p 4:2:0
8K/60p 4:4:4

HDMI (Front)
2.0 9Gbps
4K/60p 4:2:0 -

MAIN
2.1 40Gbps

Output

SUB/Zone2

SUB

Zone2

2.1

2.0

40Gbps

18Gbps

8K/60p 4:2:0
8K/60p 4:4:4

8K/60p 4:2:0
8K/60p 4:4:4

4K/60p 4:4:4
-

*1 Audio Format:

2 ch linear PCM (32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 16/20/24 bit)

Multi-channel linear PCM (Maximum 7.1 channels, 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 16/20/24 bit)

Bitstream (Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-ES, DTS 96/24, DTS-HD Master Audio, DTS-

HD High Resolution Audio, DTS Express, DTS:X, IMAX DTS, IMAX DTS:X, DSD(2.8 MHz), PCM)

*2 ARC compatible audio formats: PCM, Dolby Digital, Dolby Digital Plus, DTS (DTS 96/24, DTS-ES, etc.), DTS-HD High Resolution Audio, IMAX DTS

eARC compatible audio formats: PCM, Dolby Digital, Dolby Digital Plus, DTS (DTS 96/24, DTS-ES, etc.), Dolby TrueHD, Dolby Atmos, DTS- HD Master Audio,

DTS:X, Multichannel PCM, DTS-HD High Resolution Audio, IMAX DTS, IMAX DTS:X

185

Appendix

Corresponding input resolutions

Frame rate

4K (3840x2160p)

24/25/30 Hz

4K SMPTE (4096x2160p)

48/50/60 Hz

100/120 Hz

5K (5120x2160p)

24/25/30 Hz 48/50/60 Hz

8K (7680x4320p)

24/25/30 Hz

48/50/60 Hz

Color space YCbCr4:2:2 YCbCr4:4:4/RGB
YCbCr4:2:0
YCbCr4:2:2 YCbCr4:4:4/RGB
YCbCr4:2:0 YCbCr4:2:2 YCbCr4:4:4/RGB
YCbCr4:2:2 YCbCr4:4:4/RGB
YCbCr4:2:0 YCbCr4:2:2 YCbCr4:4:4/RGB
YCbCr4:2:0 YCbCr4:2:2 YCbCr4:4:4/RGB
YCbCr4:2:0
YCbCr4:2:2 YCbCr4:4:4/RGB

Color depth
12 bit 8 bit 10/12 bit 8 bit 10/12 bit 12 bit 8 bit 10/12 bit 8/10/12 bit 12 bit 8/10 bit 12 bit 12 bit 8 bit 10/12 bit 8/10/12 bit 12 bit 8 bit 10/12 bit 8/10/12 bit 12 bit 8/10 bit 12 bit 8/10 bit 12 bit 12 bit 8/10/12 bit

HDMI IN 1 - 3
(*1) (*2)
(*1) (*1) (*1) (*1)

HDMI IN 4 - 6

AUX INPUT HDMI (Front)

(*1) (*1) (*1)
(*2)
(*1)
(*1) (*1) (*1) (*1) (*1) (*1) (*1)

(*1)Video compressed with DSC (Display Stream Compression) can be input and output. DSC is a video compression technique that enables the transmission of high-resolution video, which requires high bandwidth, via HDMI.
(*2)5K, 48Hz, YCbCr4:2:0, 8/10/12 bit is not supported.

186

Appendix
� Signals are output from the HDMI OUT jack of this unit to the TV with the same resolution as the input resolution. When a TV supporting 4K is used, HDMI video signals with 1080p can be output with 4K.
For linked functions to work properly, do not connect CEC-compliant devices exceeding the connectable number to the HDMI jack as shown below. � Blu-ray Disc/DVD players: up to 3 units, Blu-ray Disc/DVD recorders: up to 3 units, Cable TV tuner, terrestrial digital tuner, and satellite broadcasting tuner: up to 4
units Operation has been confirmed on the following devices: (As of April 2020) Toshiba brand televisions; Sharp brand televisions; Onkyo and Integra brand RIHD-compatible players; Toshiba brand players and recorders; Sharp brand players and recorders (when used with a Sharp brand television)

Network Section Ethernet LAN Wireless LAN
 Music Server ( p100) Supported Audio Formats

North American models

European models

Australian and Asian models

1 (10BASE-T/100BASE-TX)

IEEE 802.11 a/b/g/n/ac standard (Wi-Fi� standard) 5 GHz/2.4 GHz band

MP3 (.mp3)
� MPEG-1/MPEG-2 Audio Layer-3/44.1 kHz, 48 kHz/Between 8 kbps and 320 kbps, and VBR WMA (.wma)
� 44.1 kHz, 48 kHz/Between 5 kbps and 320 kbps, and VBR � WMA Pro/Voice/WMA Lossless formats are not supported. WAV (.wav)
WAV files contain uncompressed PCM digital audio. � 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit AIFF (.aiff/.aif)
AIFF files contain uncompressed PCM digital audio. � 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit AAC (.aac/.m4a/.mp4/.3gp/.3g2)
� MPEG-2/MPEG-4 Audio/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/Between 8 kbps and 320 kbps, and VBR FLAC (.flac) � 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit LPCM (Linear PCM)
� 44.1 kHz, 48 kHz/16 bit Apple Lossless (.m4a/.mp4)
� 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/16 bit, 24 bit DSD (.dsf/.dff)
� DSF/DSDIFF/2.8 MHz, 5.6 MHz, 11.2 MHz

187

USB

USB Section

 USB Storage Device ( p98) Supported Audio Formats

Appendix

North American models

European models

Australian and Asian models

1 (Rear : Ver.2.0, 5V/1 A)

MP3 (.mp3)
� MPEG-1/MPEG-2 Audio Layer-3/44.1 kHz, 48 kHz/Between 8 kbps and 320 kbps, and VBR WMA (.wma)
� 44.1 kHz, 48 kHz/Between 5 kbps and 320 kbps, and VBR � WMA Pro/Voice/WMA Lossless formats are not supported. WAV (.wav)
WAV files contain uncompressed PCM digital audio. � 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit AIFF (.aiff/.aif)
AIFF files contain uncompressed PCM digital audio. � 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit AAC (.aac/.m4a/.mp4/.3gp/.3g2)
� MPEG-2/MPEG-4 Audio/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/Between 8 kbps and 320 kbps, and VBR FLAC (.flac) � 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit LPCM (Linear PCM)
� 44.1 kHz, 48 kHz/16 bit Apple Lossless (.m4a/.mp4)
� 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/16 bit, 24 bit DSD (.dsf/.dff)
� DSF/DSDIFF/2.8 MHz, 5.6 MHz, 11.2 MHz

188

Appendix

General

North American models

European models

Australian and Asian models

Power Supply

AC 120 V, 60 Hz

AC 220 - 240 V, 50/60 Hz

Power Consumption

750 W

760 W

Full Standby mode

0.1 W

0.15 W

Network Standby (wired)

1.6 W

1.7 W

Network Standby (wireless)

1.7 W

1.7 W

Bluetooth Wakeup

1.6 W

1.7 W

HDMI CEC

0.1 W

0.15 W

Standby mode (ALL ON)

1.7 W

1.7 W

Equipment with HiNA functionality Standby mode, Network disconnect and Network Standby ON

2.7 W

2.8 W

This equipment complies with European Commission Regulation (EC) No 1275/2008 as equipment with HiNA functionality. If you do not to use the Network function, please set Network Standby setting to Off. You can reduce
power consumption under standby mode.

Dimensions (W � H � D)

435 mm � 173.5 mm � 379.5 mm 17-1/8" � 6-13/16" � 14-15/16"

Weight

10.4 kg (22.9 lbs.)

2400 MHz - 2483.5 MHz (20 dBm

(e.i.r.p))

Maximum radio-frequency power transmitted in the frequency band(s)

-

5150 MHz - 5350 MHz (23 dBm (e.i.r.p))

-

5470 MHz - 5725 MHz (23 dBm

(e.i.r.p))

Composite Component

Video Inputs

North American models

European models 2 1

Australian and Asian models

189

Analog Digital

Audio Inputs

North American models

Appendix

European models 8 (Including 1�PHONO, 1�AUX(Front))
2 (COAXIAL�1, OPTICAL�1)

Australian and Asian models

Analog

Audio Outputs

Speaker Outputs Phones

North American models

European models

Australian and Asian models

LINE OUT (ZONE 2)(*) � 1 PRE OUT (SUBWOOFER) � 2 *Can be changed to LINE OUT
(ZONE B).

LINE OUT (ZONE 2)(*) � 1 PRE OUT (FRONT) � 1 PRE OUT (SUBWOOFER) � 2 *Can be changed to LINE OUT (ZONE B).

9 (FRONT L/R, CENTER, SURROUND L/R, HEIGHT 1 L/R or ZONE 2 L/R, HEIGHT 2 L/R or SURROUND BACK L/R or ZONE 3 L/R ) � North American models are banana plug ready.

1 (� 6.3 mm, 1/4")

Others

North American models

Setup Mic

RS-232

12V TRIGGER OUT

IR

Specifications and features are subject to change without notice.

European models 1 (Front) 1 1 (100mA) 1 (IN)

Australian and Asian models

 License and Trademark 190

SN 29403981_EN �2021 Onkyo Home Entertainment Corporation. All rights reserved. �2021 Onkyo Home Entertainment Corporation, Tous droits de reproduction et de traduction r�serv�s.
https://www.onkyo.com/privacy/
F2104-0
