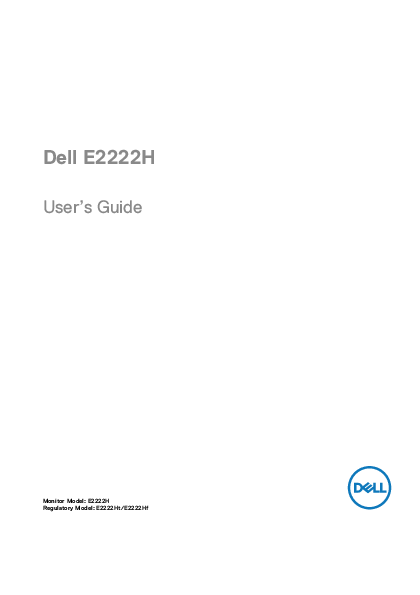

Dell E2222H
User's Guide
Monitor Model: E2222H Regulatory Model: E2222Ht/E2222Hf

Notes, Cautions and Warnings
NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Copyright � 2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners. 2021 - 11 Rev. A00

Contents
About your monitor ...........................................5
Package contents ..................................................... 5 Product features....................................................... 6 Identifying features and controls................................ 7 Pin assignments .......................................................15 Plug and play capability .............................................17 LCD monitor quality and pixel policy ...........................17 Maintenance guidelines .............................................17
Setting up the monitor ..................................... 18
Connecting the stand ................................................18 Connecting your monitor ...........................................19 Organizing cables .................................................... 20 Removing the stand ..................................................21
Operating your monitor ....................................23
Turning on the monitor ............................................. 23 Using the front panel controls................................... 23 Using the On-Screen Display (OSD) menu.................. 28 Setting up display resolution on your monitor ..............41 Using tilt................................................................. 43
Contents  3

Troubleshooting ...............................................44
Self-test ................................................................. 44 Built-in diagnostics .................................................. 45 Common problems ................................................... 46 Product-specific problems........................................ 48
Appendix .........................................................49
FCC Notices (U.S. Only) and Other Regulatory Information ............................................................. 49 Contact Dell ............................................................ 49 EU product database for energy label and product information sheet .................................................... 49
4  Contents

About your monitor

Package contents
Your monitor ships with the components indicated in the table. Ensure that you have received all the components and see Contact Dell if anything is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some features may not be available in certain countries.

NOTE: To set up Stand from any other source, refer to the documentation comes with the Stand for instruction.

Component image

Component description Display

Stand riser
Stand base VESATM Screw Cover Power cable (varies by country) VGA cable (EMEA and Japan region)
About your monitor  5

DP cable
� Quick Start Guide � Safety, Environmental, and
Regulatory Information
Product features
The Dell E2222H flat panel monitor has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD) Panel with LED backlight. The monitor features include : � 54.48 cm (21.45 in.) diagonal viewable area display (measured diagonally). 1920 x 1080 resolution, with full-screen support for lower resolutions. � Wide viewing angles of 178 degrees in vertical and horizontal directions. � Contrast ratio (3000:1). � Digital connectivity with DisplayPort. � Plug and play capable if supported by your computer. � On-Screen Display (OSD) adjustments for easy setup and screen optimization. �  0.3 W in Standby Mode. � Optimize eye comfort with a flicker-free screen. � The monitor adopts flicker-free technology, which clears the eye visible flicker, brings comfort viewing experience and preventing users suffer from eye strain and fatigue. � Possible long-term effects if blue light emission from the monitor may cause damage to the eyes, including eye fatigue or digital eye strain. ComfortView feature to reduce risk of eye strain from high blue light emission. � Security-lock slot. � Arsenic-free glass and Mercury-free for panel only. � BFR/PVC-Reduced (Its circuit boards are made from BFR/PVC-free laminates). � Meets NFPA 99 leakage current requirement. � TCO Certified. � EPEAT registered where applicable. EPEAT registration varies by country. See https://www.epeat.net for registration status by country. � RoHS Compliant. � Energy Star� Certified.
6  About your monitor

Identifying features and controls
Front view

Label

Description

1 Function buttons

2 Power On/Off button (with LED indicator)

Use
To access the OSD menu and change the settings if required. For more information, see Using the front panel controls.
To turn the monitor On or Off. Solid white light indicates that the monitor is turned on and functioning normally. Blinking white light indicates that the monitor is in Standby Mode.

About your monitor  7

Back view

5

12 3

4

Without monitor stand

With monitor stand

Label

Description

Use

1 Security-lock slot

To secure the monitor using a security lock (purchased separately).

2 Barcode, serial number, and See this label if you need to contact

service tag label

Dell for technical support. The Service

Tag is a enables Dell service technicians

to identify the hardware components

in your computer and access warranty

information.

3 Regulatory information

List the regulatory approvals.

4 Cable-management clip

To organize the cables.

5 Stand release button

Release stand from monitor.

Side view

8  About your monitor

Bottom view, without monitor stand

Label 1 2 3

Description Power port DP port VGA port

1

23

Use To connect the monitor power cable. For connection to your computer using DP cable. For connection to your computer using VGA cable.

About your monitor  9

Monitor specifications

Model Screen type Panel type Viewable area Diagonal Active area
Horizontal Vertical Area Pixel pitch Pixel per inch (PPI) Viewing angle Horizontal Vertical Brightness Contrast ratio Faceplate coating Backlight Response time Normal mode Fast mode Color depth Color gamut
Dell display manager compatibility Connectivity Bezel width (edge of monitor to active area)
Security Tilt angle

E2222H FHD TFT LCD Vertical Alignment (VA)
544.83 mm (21.45 in.)
478.66 mm ( 18.84 in.) 260.28 mm ( 10.25 in.) 1245.86 cm2 (193.11 in.2) 0.249 mm x 0.241 mm 103
178� (typical) 178� (typical) 250 cd/m� (typical) 3,000 to 1 (typical) Anti-glare with 3H hardness LED edgelight system
< 10 ms < 5 ms 16.7 million colors 72% (CIE1931) 83% (CIE1976) Yes
1 x DP1.2, 1 x VGA 12.8 mm (Top) 12.8 mm (Left/Right) 16.9 mm (Bottom) Security-lock slot for cable lock (optional purchase) -5� to 21�

10  About your monitor

Resolution specifications

Model

E2222H

Horizontal scan range

30 kHz to 83 kHz (automatic)

Vertical scan range

50 Hz to 75 Hz (automatic)

Maximum preset resolution 1920 x 1080 @ 60 Hz

Preset display modes

Display mode Horizontal Vertical

frequency frequency

VESA, 720 x 400

(kHz) 31.5

(Hz) 70.1

VESA, 640 x 480

31.5

59.9

VESA, 640 x 480

37.5

75.0

VESA, 800 x 600

37.9

60.3

VESA, 800 x 600 46.9

75.0

VESA, 1024 x 768 48.4

60.0

VESA, 1024 x 768 60.0

75.0

VESA, 1152 x 864 67.5

75.0

VESA, 1280 x1024 64.0

60.0

VESA, 1280 x1024 80.0

75.0

VESA, 1600 x 900 60.0

60.0

VESA, 1920 x1080 67.5

60.0

Pixel clock (MHz)
28.3 25.2 31.5 40.0 49.5 65.0 78.8 108.0 108.0 135.0 108.0 148.5

Sync polarity (Horizontal/Vertical)
-/+ -/-/+/+ +/+ -/+/+ +/+ +/+ +/+ +/+ +/+

About your monitor  11

Electrical specifications

Model Video input signals

E2222H � Analog RGB: 0.7 V � 5 %,
75  input impedance � DP 1.2, 600 mV for each differential line,
100  input impedance per differential pair

Synchronization input signals
AC input voltage/ frequency/current Inrush current
Power Consumption

Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG (Composite SYNC on green) 100 VAC to 240 VAC/50 Hz or 60 Hz � 3 Hz/0.7 A
30 A (120 V AC Input) 60 A (240 V AC Input) 0.3 W (Off Mode)1 0.3 W (Standby Mode)1 12.13 W (On Mode)1 19 W (Max)2 12.83 W (Pon)3 40.02 kWh (TEC)3

1 As defined in EU 2019/2021 and EU 2019/2013. 2 Max brightness and contrast setting. 3 Pon : Power consumption of On Mode as defined in Energy Star 8.0 version.
TEC: Total energy consumption in kWh as defined in Energy Star 8.0 version.

This document is informational only and reflects laboratory performance. Your product may perform differently, depending on the software, components, and peripherals you ordered, and shall have no obligation to update such information.
Accordingly, the customer should not rely upon this information in making
decisions about electrical tolerances or otherwise. No warranty as to accuracy or completeness is expressed or implied.

NOTE: This monitor is ENERGY STAR certified.

This product qualifies for ENERGY STAR in the factory default settings which can be restored by "Factory Reset" function in the OSD menu. Changing the factory default settings or enabling other features may increase power consumption that could exceed the ENERGY STAR specified limit.

12  About your monitor

Physical characteristics

Model

E2222H

Signal cable type: Analog Digital

D-Sub (VGA), 15 pins (cable is included for EMEA and JPN region only) DP, 20 pins

NOTE: Dell monitors are designed to work optimally with the video cables that are shipped with your monitor. As Dell does not have control over the different cable suppliers in the market, the type of material, connector and process used to manufacture these cables, Dell does not guarantee video performance on cables that are not shipped with your Dell monitor.

Dimensions (with stand):

Height

384.17 mm (15.12 in.)

Width

504.26 mm (19.85 in.)

Depth

171.00 mm (6.73 in.)

Dimensions (without stand):

Height

295.38 mm (11.63 in.)

Width

504.26 mm (19.85 in.)

Depth

49.64 mm (1.95 in.)

Stand dimensions:

Height

174.02 mm (6.85 in.)

Width

222.03 mm (8.74 in.)

Depth

171.00 mm (6.73 in.)

Weight:

Weight with packaging 4.14 kg (9.13 lb)

With stand assembly and cables
Without stand assembly and cables
Weight of stand assembly

3.04 kg (6.70 lb) 2.26 kg (4.98 lb) 0.33 kg (0.73 lb)

About your monitor  13

Environmental characteristics

Model
Temperature: Operating
Non-operating: Storage/Shipping
Humidity: Operating
Non-operating: Storage/Shipping
Altitude:

E2222H 0 �C to 40 �C (32 �F to 104 �F) -20 �C to 60 �C (-4 �F to 140 �F) 10% to 80% (non-condensing) 5% to 90% (non-condensing)

Operating (maximum)

5,000 m (16,400 ft)

Non-operating (maximum) 12,192 m (40,000 ft)

Thermal dissipation

64.79 BTU/hour (maximum) 41.36 BTU/hour (typical)

14  About your monitor

Pin assignments
D-Sub 15-pin connector

Pin Number 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Signal Assignment Video-Red Video-Green Video-Blue GND Self-test GND-R GND-G GND-B DDC +5 V GND-sync GND DDC data H-sync V-sync DDC clock

About your monitor  15

Pin assignments
DP 20-pin connector

Pin Number 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Signal Assignment ML_LANE3_N GND ML_LANE3_P ML_LANE2_N GND ML_LANE2_P ML_LANE1_N GND ML_LANE1_P ML_LANE0_N GND ML_LANE0_P GND GND AUX _CH_P GND AUX _CH_N HPD RETURN DP_PWR

16  About your monitor

Plug and play capability
You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer with its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so the computer can configure itself and optimize the monitor settings. Most monitor installations are automatic, you can select different settings as required. For more information about changing the monitor settings, see Operating your monitor.
LCD monitor quality and pixel policy
During the LCD Monitor manufacturing process, it is normal for one or more pixels to become fixed in an unchanging state, which are hard to see and do not affect the display quality or usability. For more information about Dell Monitor Quality and Pixel Policy, see Dell Support site at www.dell.com/pixelguidelines.
Maintenance guidelines
Cleaning your monitor
WARNING: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.
CAUTION: Read and follow the Safety instructions before cleaning the monitor.
For best practices, follow these instructions in the list below while unpacking, cleaning or handling your monitor:
� To clean your screen, lightly dampen a soft and clean cloth with water. If possible, use a special screen-cleaning, tissue or solution suitable for the anti- static coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
� Use a lightly-dampened cloth to clean the monitor. Avoid using detergent of any kind as some detergents leave a milky film on the monitor.
� If you notice white powder when you unpack your monitor, wipe it off with a cloth. � Handle your monitor with care as the black-colored monitor may get scratched. � To help maintain the best image quality on your monitor, use a dynamically changing
screen saver and turn off your monitor when not in use.
About your monitor  17

Setting up the monitor
Connecting the stand
NOTE: The stand is not attached when the monitor is shipped from the factory. NOTE: The following procedure is applicable for the stand that shipped with your monitor. To attach the monitor stand: 1. Assemble the stand riser to stand base.
a. Place the monitor stand base on a stable table top. b. Slide the monitor stand body in the correct direction down onto the stand base
until it clicks into place.
2. Attach the stand assembly to the monitor. a. Place the monitor on a soft cloth or cushion near the edge of desk. b. Align the stand assembly bracket to the monitor groove. c. Insert the bracket towards monitor until it locks in place. d. Attach VESA cover.
18  Setting up the monitor

Connecting your monitor
WARNING: Before you begin any of the procedures in this section, follow the Safety instructions. NOTE: Do not connect all cables to the computer at the same time. It is recommended to route the cables through the cable-management slot before you connect them to the monitor. NOTE: Dell monitors are designed to work optimally with Dell supplied inbox cables. Dell does not guarantee the video quality and performance when using non-Dell cables. To connect your monitor to the computer: 1. Turn off your computer and disconnect the power cable. 2. Connect VGA or DP cable from your monitor to the computer.
Connecting VGA cable
VGA
VGA
Connecting DP cable
DP
DP
Setting up the monitor  19

Organizing cables
Use the cable-management clip to route the cables connected to your monitor.
20  Setting up the monitor

Removing the stand
NOTE: To prevent scratches on the screen when removing the stand, ensure that the monitor is placed on a soft and clean surface. NOTE: The following procedure is applicable for the stand that shipped with your monitor. To remove the stand: 1. a. Place the monitor on a soft cloth along the desk. b. Tilt the stand upwards to access to the release button.
2. a. Use a long and thin screwdriver to push the release latch located in a hole just above the stand.
b. Once the latch is released, remove the base away from the monitor. c. Press down on the quick release tab latch on the bottom of the base to separate
base from stand riser.
Setting up the monitor  21

To remove the VESA cover: Press the dimple on the VESA cover to release it from the back of the display.
Wall Mounting (Optional)
(Screw dimension: M4 x 10 mm). Refer to the instructions that come with the VESA-compatible base mounting kit. 1. Place the monitor panel on a soft cloth or cushion on a stable flat table. 2. Remove the stand. 3. Use a screwdriver to remove the four screws securing the plastic cover. 4. Attach the mounting bracket from the wall mounting kit to the LCD. 5. Mount the LCD on the wall by following the instructions that came with the base
mounting kit. NOTE: For use only with UL or CSA or GS-listed wall-mount bracket with minimum weight/load bearing capacity of 9.04 kg (19.93 lb) for E2222H. 22  Setting up the monitor

Operating your monitor
Turning on the monitor
Press the button to turn on the monitor.

Using the front panel controls
Use the control buttons at the bottom edge of the monitor to adjust the image being displayed.

1 234 5
The following table describes the control buttons:

Control buttons 1

Description Use this button to choose from a list of preset modes.

Preset mode 2

For direct access to the Brightness and Contrast menu.

Brightness/Contrast

3 Menu

To launch the On-Screen Display (OSD) menu, or to access the list of items/options of a menu item. For more information, see Accessing the OSD menu.

4

To exit or return to the OSD main menu.

Exit 5
Power button (with power-status light)

To turn the monitor On or Off. Solid white light indicates that the monitor is turned on and functioning normally. Blinking white light indicates that the monitor is in Standby Mode.

Operating your monitor  23

Using the OSD lock function
You can lock the front-panel control buttons to prevent access to the OSD menu and/ or power button.
Use the Lock menu to lock the button(s). 1. Select one of the following options.

Dell 22 Monitor
Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others

Language Transparency Timer Lock Reset Menu

Menu Buttons Power Button Menu + Power Buttons Disable

2. The following message appears. Dell 22 Monitor
Are you sure you want to lock the Menu Buttons? To unlock the Buttons, refer to the User's Guide.

Yes

No

E2222H

3. Select Yes to lock the buttons. Once locked, pressing any control button will display the lock icon .

24  Operating your monitor

Use the front-panel control button to lock the button(s).

1 234 5
1. Press and hold Button 4 for four seconds, a menu appears on the screen.
Dell 22 Monitor
Select option:

2. Select one of the following options:

Options 1

Description Select this option to lock OSD menu function.

Menu Buttons lock 2

Use this option to lock power button.

Power Button lock 3

Use this option to lock OSD menu and power button.

Menu and Power Buttons lock
4

Use this option to run the built-in diagnostics, see Builtin diagnostics.

Built-in Diagnostics

Operating your monitor  25

To unlock the button(s).
Press and hold Button 4 for four seconds until a menu appears on the screen. The following table describes the options to unlock the front-panel control buttons.

Dell 22 Monitor Select option:

Dell 22 Monitor Select option:

Dell 22 Monitor Select option:

Options 1

Description Use this option to unlock OSD menu function.

Menu Buttons unlock 2

Use this option to unlock power button.

Power Button unlock 3

Use this option to unlock OSD menu and power button.

Menu and Power Buttons unlock
4

Use this option to run the built-in diagnostics, see Builtin diagnostics.

Built-in Diagnostics

26  Operating your monitor

OSD controls
Use the buttons on the bottom edge of the monitor to adjust the image settings.

1234

Control buttons 1
Up 2
Down 3
OK 4
Back

Description Use the Up button to increase values or move up in a menu.
Use the Down button to decrease values or move down in a menu.
Use the OK button to confirm your selection in a menu.
Use the Back button to go back to the previous menu.

Operating your monitor  27

Using the On-Screen Display (OSD) menu

Accessing the OSD menu
NOTE: Any changes you make are automatically saved when you move to another menu, exit the OSD menu, or wait for the OSD menu to close automatically.

1. Press the button to display the OSD main menu.

Dell 22 Monitor

Brightness / Contrast

Auto Adjust

75%

Input Source 75%
Color

Display

Menu

Personalize

Others

2. Press the and buttons to move between the setting options. As you move from one icon to another, the option name is highlighted.
3. Press the button once to activate the highlighted option.
4. Press and button to select the desired parameter.
5. Press and then use the and buttons, according to the indicators on the menu, to make your changes.
6. Select the button going back to previous menu.

28  Operating your monitor

Icon

Menu and submenus
Brightness/ Contrast

Description Use this option to control the brightness or contrast settings.
Dell 22 Monitor

Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others

75% 75%

Brightness Brightness adjusts the luminance of the backlight.
Press the button to increase the brightness and press the button to decrease the brightness (min. 0; max. 100).

Contrast

Adjust the brightness first, and then adjust the contrast only if further adjustment is necessary.

Press the button to increase the contrast and press the button to decrease the contrast (min. 0; max. 100).

The contrast function adjusts the degree of difference between darkness and lightness on the screen.
Auto Adjust Use this option to activate automatic setup and adjust menu.

Dell 22 Monitor
Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others

Press to adjust the screen automatically.

Operating your monitor  29

Icon

Menu and submenus

Description
The following dialog appears on a black screen as the monitor selfadjusts to the current input:

Auto Adjustment in Progress...

Input Source

Auto Adjust allows the monitor to self-adjust to the incoming video signal. After using Auto Adjustment, you can further tune your monitor by using the Pixel Clock (Coarse) and Phase (Fine) controls under Display.
NOTE: Auto Adjust does not occur if you press the button while there are no active video input signals or attached cables.
This option is available only when you are using the analog (VGA) connector.

Use the Input Source menu to switch between the different video signals that may be connected to your monitor.

Dell 22 Monitor

Brightness / Contrast

VGA

Auto Adjust

DP

Input Source

Auto Select

On

Color

Reset Input Source

Display

Menu

Personalize

Others

VGA

Push to select the VGA input source when using VGA connector.

DP

Push to select the DP input source when using DP connector.

Auto Select Select Auto Select to scan for available input signals.

Reset Input Select this option to restore default input source. Source

30  Operating your monitor

Icon Menu and

Description

submenus

Color

Use color to adjust the color setting mode.

Dell 22 Monitor
Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others

Preset Modes Input Color Format Reset Color

Standard RGB

Preset Modes

When you select Preset Modes, you can choose Standard, ComfortView, Warm, Cool, Custom Color from the list.
� Standard: Load the monitor's default color settings. This is the default preset mode.
� ComfortView: Decreases the level of blue light emitted from the screen to make viewing more comfortable for your eyes. NOTE: To reduce the risk of eye strain and neck/arm/back/ shoulders pain from using the monitor for long periods of time, we suggest that you:
- Set the screen about 20~28 in. (50~70 cm) from your eyes. - Blink frequently to moisten or lubricate your eyes. - Take regular 20-minute breaks every two hours. - Look away from your monitor and gaze at a distant object at 20
feet away for at least 20 seconds during the breaks. - Perform stretches to relieve tension in the neck/arm/back/
shoulders during the breaks.
� Warm: Increase the color temperature. The screen appears warmer with a red/yellow tint.
� Cool: Decrease the color temperature. The screen appears cooler with a blue tint.
� Custom Color: Allows you to manually adjust the color settings.

Operating your monitor  31

Icon Menu and submenus

Description

Press the and buttons to adjust the three colors (R, G, B) values and create your own preset color mode.

Dell 22 Monitor
Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others

Preset Modes Input Color Format Reset Color

Standard ComfortView Warm Cool Custom Color

Input Color Format

Allow you to set the video input mode to: � RGB: Select this option if your monitor is connected to a computer
or a media player that supports RGB output. � YCbCr/YPbPr*: Select this option if your media player supports
only YCbCr/YPbPr output.

Dell 22 Monitor
Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others

Preset Modes Input Color Format Reset Color

RGB YCbCr

*When VGA input is selected. Reset Color Reset your monitor color settings to the factory settings.

32  Operating your monitor

Icon Menu and

Description

submenus

Display

Use the display to adjust image.

Dell 22 Monitor

Brightness / Contrast

Aspect Ratio

16:9

Auto Adjust

Horizontal Position

Input Source

Vertical Position

Color

Sharpness

50

Display

Pixel Clock

Menu

Phase

Personalize

Reset Display

Others

Aspect Ratio

Adjust the image ratio to 16:9, 4:3, or 5:4.

Horizontal Use or Position

to move image left and right.

(VGA input only) Minimum is '0' (-). Maximum is '100' (+).

Vertical Position

Use the or to move image up and down.

(VGA input only) Minimum is '0' (-). Maximum is '100' (+).

Sharpness This feature can make the image look sharper or softer. Use

or to adjust the sharpness from 0 to 100.
Pixel Clock The Pixel Clock feature enables you to adjust image quality on your (VGA input only) monitor according to your preference.

Use or buttons to adjust for best image quality.

Phase

If satisfactory results are not obtained using the Phase adjustment,

(VGA input only) use the Pixel Clock (coarse) adjustment and then use Phase (fine),

again.

Response Allow you to select between Normal (10 ms), Fast (5 ms). Time

Reset Display

Select this option to restore default display settings.

Operating your monitor  33

Icon

Menu and submenus Menu

Description
Select this option to adjust the settings of the OSD, such as the languages of the OSD, the amount of time, the menu remains on screen, and so on.

Dell 22 Monitor
Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others

Language Transparency Timer Lock Reset Menu

English 20 20 s Disable

Language

Language options set the OSD display to one of the eight languages: English, Spanish, French, German, Brazilian Portuguese, Russian, Simplified Chinese, or Japanese.

Transparency Select this option to change the menu transparency by pressing the or buttons from 0 to 100.

Timer

OSD hold time: sets the length of time , the OSD will remain active after the last time you pressed a button.

Lock

Use or to adjust the slider in 1 second increments, from 5 to 60 seconds.
With the control buttons on the monitor locked, you can prevent people from accessing the controls. It also prevents accidental activation in multiple monitors side-by-side setup.

Dell 22 Monitor
Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others

Language Transparency Timer Lock Reset Menu

Menu Buttons Power Button Menu + Power Buttons Disable

34  Operating your monitor

Icon Menu and submenus

Description
� Menu Buttons: All Menu/function buttons (except the Power button) are locked and not accessible by the user.
� Power Button: Only the Power button is locked and not accessible by the user.
� Menu + Power Buttons: Both the Menu/function & Power buttons are locked and not accessible by the user.

The default setting is Disable.

NOTE: To unlock the button(s), press and hold the monitor for 4 seconds
Reset Menu Select this option to restore default menu settings.

key of

Personalize Selecting this option allows you to set two shortcut keys and power LED indicator function.

Dell 22 Monitor
Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others

Shortcut Key 1 Shortcut Key 2 Power Button LED Reset Personalization

Preset Modes Brightness / Contrast On in On Mode

Shortcut Key 1

Allow you to select one of the following: Preset Modes, Brightness/ Contrast, Auto Adjust, Input Source, Aspect Ratio, to set the shortcut key 1.

Shortcut Key 2

Allow you to select one of the following: Preset Modes, Brightness/ Contrast, Auto Adjust, Input Source, Aspect Ratio,to set the shortcut key 2.

Power

Allow you to set the power LED indicator On in On Mode or Off in On

Button LED Mode to save energy.

Reset

Allow you to restore shortcut key to the default setting.

Personalization

Operating your monitor  35

Icon Menu and submenus Others

Description

Dell 22 Monitor
Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others

Display Info DDC/CI LCD Conditioning Service Tag Reset Others Factory Reset

On Off ABCDEFG
ENERGY STAR�

Display Info Press to display the information about the display.

Dell 22 Monitor
Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others

Display Info DDC/CI LCD Conditioning Service Tag Reset Others Factory Reset

Model: Dell E2222H Input Source: VGA Current: 1920x1080, 60Hz

DDC/CI

DDC/CI (Display Data Channel/Command Interface) allows you to adjust the monitor settings using software on your computer. Select Off to turn off this feature. Enable this feature for best user experience and optimum performance of your monitor.

Dell 22 Monitor

Brightness / Contrast

Display Info

Auto Adjust

DDC/CI

On

Input Source

LCD Conditioning

Off

Color

Service Tag

Display

Reset Others

Menu

Factory Reset

Personalize

Others

36  Operating your monitor

Icon

Menu and

Description

submenus

LCD

Help reduce minor cases of image retention. Depending on the degree

Conditioning of image retention, the program may take some time to run. To start

LCD Conditioning, select On.

Dell 22 Monitor

Brightness / Contrast

Display Info

Auto Adjust

DDC/CI

Input Source

LCD Conditioning

On

Color

Service Tag

Off

Display

Reset Others

Menu

Factory Reset

Personalize

Others

Service Tag Display the Service Tag number of the monitor.

Dell 22 Monitor
Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others

Display Info DDC/CI LCD Conditioning Service Tag Reset Others Factory Reset

On Off ABCDEFG
ENERGY STAR�

Reset Others Reset all settings under the Others setting menu to the factory default.
Factory Reset Restore all preset values to the factory default setting. These are also the settings for ENERGY STAR� tests.

Operating your monitor  37

Dell 22 Monitor
Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others

Display Info DDC/CI LCD Conditioning Service Tag Reset Others Factory Reset

On Off ABCDEFG
ENERGY STAR�

38  Operating your monitor

OSD warning messages
The following Power Warning Message box applies to Brightness functions for the first time when you adjust the Brightness level above the default level.
Dell 22 Monitor
Adjusting to this value will increase power consumption above the default level. Do you want to continue?

Yes

No

E2222H

Before the Lock function is activated, the following message is displayed.
Dell 22 Monitor
Are you sure you want to lock the Menu Buttons? To unlock the Buttons, refer to the User's Guide.

Yes

No

E2222H

NOTE: The message may be slightly different according to the selected settings.
Before the DDC/CI function is disabled, the following message is displayed.
Dell 22 Monitor
The function of adjusting display setting using PC application will be disabled. Do you wish to disable DDC/CI function?

Yes

No

E2222H

Operating your monitor  39

When the monitor enters Standby mode, the following message appears.
Dell 22 Monitor

Going into Standby mode...

E2222H

If VGA or DP cable is not connected, a floating dialog box appears. The monitor will enter Standby mode after 4 minutes if left at this state.
Dell 22 Monitor
? No VGA Cable The display will go into Standby mode in 4 minutes.

www.dell.com/E2222H
Dell 22 Monitor
? No DP Cable The display will go into Standby mode in 4 minutes.

E2222H

www.dell.com/E2222H
See Troubleshooting for more information.

E2222H

40  Operating your monitor

Setting up display resolution on your monitor
Setting display resolution to 1920 x 1080 For best performance, set the display resolution to 1920 x 1080 pixels by performing the following steps:
In Windows 7: 1. Right-click on the desktop and click Screen Resolution. 2. Click the drop-down menu of the Screen Resolution and select 1920 x 1080. 3. Click OK.
In Windows 8 or Windows 8.1: 1. Select the Desktop tile to switch to classic desktop. 2. Right-click on the desktop and click Screen Resolution. 3. Click the drop-down menu of the Screen Resolution and select 1920 x 1080. 4. Click OK.
In Windows 10: 1. Right-click on the desktop and click Display Settings. 2. Click Advanced Display Settings. 3. Click the drop-down menu under Resolution and select 1920 x 1080. 4. Click Apply.
If you do not see the recommended resolution as an option, you may need to update your graphics driver. Use one of the following methods to update the graphics driver:
Dell computer 1. Go to https://www.dell.com/support, enter your service tag, and download the latest
driver for your graphics card. 2. After installing the drivers for your graphics adapter, attempt to set the resolution to
1920 x 1080 again.
NOTE: If you are unable to set the resolution to 1920 x 1080, please contact Dell to enquire about a graphics adapter that supports these resolutions.
Operating your monitor  41

Non-Dell computer
In Windows 7: 1. Right-click on the desktop and click Personalization. 2. Click Change Display Settings. 3. Click Advanced Settings. 4. Identify your graphics controller supplier from the description at the top of the window.
For example, NVIDIA, AMD, Intel, and so on. 5. Refer to the graphic card provider website for updated driver. For example,
https://www.AMD.com or https://www.NVIDIA.com. 6. After installing the drivers for your graphics adapter, attempt to set the resolution to
1920 x 1080 again.
In Windows 8 or Windows 8.1: 1. Select the Desktop tile to switch to classic desktop. 2. Right-click on the desktop and click Personalization. 3. Click Change Display Settings. 4. Click Advanced Settings. 5. Identify your graphics controller supplier from the description at the top of the window.
For example, NVIDIA, AMD, Intel, and so on. 6. Refer to the graphic card provider website for updated driver. For example,
https://www.AMD.com or https://www.NVIDIA.com. 7. After installing the drivers for your graphics adapter, attempt to set the resolution to
1920 x 1080 again.
In Windows 10: 1. Right-click on the desktop and click Display Settings. 2. Click Advanced display settings. 3. Click Display adapter properties. 4. Identify your graphics controller supplier from the description at the top of the window.
For example, NVIDIA, AMD, Intel, and so on. 5. Refer to the graphic card provider website for updated driver. For example,
https://www.AMD.com or https://www.NVIDIA.com. 6. After installing the drivers for your graphics adapter, attempt to set the resolution to
1920 x 1080 again.
NOTE: If you are unable to set the recommended resolution, please contact the manufacturer of your computer or consider purchasing a graphics adapter that supports the video resolution.
42  Operating your monitor

Using tilt
You can tilt the monitor for the most comfortable viewing angle. NOTE: The stand is not attached when the monitor is shipped from the factory.
Operating your monitor  43

Troubleshooting
WARNING: Before you begin any of the procedures in this section, follow the Safety instructions.
Self-test
Your monitor provides a self-test feature that allows you to check if your monitor is functioning properly. If your monitor and computer are properly connected but the monitor screen remains dark, run the monitor self-test by performing the following steps: 1. Turn off both your computer and the monitor. 2. Disconnect all video cables from the monitor. This way, the computer does not have to be
involved. 3. Turn on the monitor.
If the monitor is working correctly, it detects that there is no signal and one of the following message appears. While in self-test mode, the power LED remains white.
Dell 22 Monitor
? No DP Cable The display will go into Standby mode in 4 minutes.

www.dell.com/E2222H

E2222H

NOTE: This message also appears during normal operation, when the video cable is disconnected or damaged.
4. Turn off your monitor and reconnect the video cable; then turn on your computer and the monitor. If your monitor remains dark after you reconnect the cables, check your video controller and computer.

44  Troubleshooting

Built-in diagnostics
Your monitor has a built-in diagnostic tool that helps you determine if any screen abnormality you experience is an inherent problem with your monitor, or with your computer and video card.
1234
Label Description 1 Button 1 2 Button 2 3 Button 3 4 Button 4
To run the built-in diagnostics: 1. Ensure that the screen is clean (no dust particles on the surface of the screen). 2. Press and hold Button 4 for about 4 seconds and wait for a pop up menu. 3. Use Button 1 or 2 to select the and press to confirm.
A gray test pattern appears at the beginning of the diagnostic program. 4. Carefully inspect the screen for abnormalities. 5. Press Button 1 to change the test patterns. 6. Repeat steps 4 and 5 to inspect the display in red, green, blue, black, white and text
screens. 7. When in White color test screen, check for white color uniformity and if there white color
appears greenish/reddish, etc. 8. Press Button 1 to end the diagnostic program.
Troubleshooting  45

Common problems
The following table provides general information about common monitor problems you might encounter and the possible solutions:

Common symptoms

Possible solutions

No video/Power LED off
No video/Power LED on
Poor focus Shaky/Jittery video Missing pixels
Stuck-on pixels
Brightness problems Geometric distortion Horizontal/Vertical lines

� Ensure that the video cable connecting the monitor and the computer is properly connected and secure.
� Verify that the power outlet is functioning properly using any other electrical equipment.
� Ensure that the power button is pressed. � Ensure that the correct input source is selected via the Input Source menu.
� Increase brightness and contrast controls using the OSD. � Perform monitor self-test feature check. � Check for bent or broken pins in the video cable connector. � Run the built-in diagnostics. � Ensure that the correct input source is selected via the Input Source menu.
� Eliminate video extension cables. � Reset the monitor to Factory Settings (Factory Reset). � Change the video resolution to the correct aspect ratio.
� Reset the monitor to Factory Settings (Factory Reset). � Check environmental factors. � Relocate the monitor and test in another room.
� Cycle power On-off. � Pixel that is permanently off is a natural defect that can occur in LCD
technology. � For more information about Dell Monitor Quality and Pixel Policy, see Dell
Support site at: www.dell.com/pixelguidelines.
� Cycle power On-off. � Pixel that is permanently off is a natural defect that can occur in LCD
technology. � For more information about Dell Monitor Quality and Pixel Policy, see Dell
Support site at: www.dell.com/pixelguidelines.
� Reset the monitor to Factory Settings (Factory Reset). � Adjust brightness and contrast controls using OSD.
� Reset the monitor to Factory Settings (Factory Reset). � Adjust horizontal and vertical using OSD.
� Reset the monitor to Factory Settings (Factory Reset). � Perform monitor self-test feature check and determine if these lines are also
in self-test mode. � Check for bent or broken pins in the video cable connector. � Run the built-in diagnostics.

46  Troubleshooting

Common symptoms

Possible solutions

Synchronization problems
Safety related issues

� Reset the monitor to Factory Settings (Factory Reset). � Perform monitor self-test feature check to determine if the scrambled
screen appears in self-test mode. � Check for bent or broken pins in the video cable connector. � Restart the computer in safe mode.
� Do not perform any troubleshooting step. � Contact Dell immediately.

Intermittent problems

� Try different Preset Modes in Color settings OSD. Adjust R/G/B value in Custom Color in Color settings OSD.
� Change the Input Color Format to RGB or YPbPr in the Color settings OSD.
� Run the built-in diagnostics.

Missing color

� Perform monitor self-test feature check. � Ensure that the video cable connecting the monitor to the computer is
connected properly and is secure. � Check for bent or broken pins in the video cable connector.

Wrong color

� Try different Preset Modes in Color settings OSD. Adjust R/G/B value in Custom Color in Color settings OSD.
� Change the Input Color Format to RGB or YCbCr/YPbPr in the Color settings OSD.
� Run the built-in diagnostics.

Image retention from a static � Set the screen to turn off after a few minutes of screen idle time. These can

image left on the monitor for be adjusted in Windows Power Options or Mac Energy Saver setting.

a long period of time

� Alternatively, use a dynamically changing screensaver.

Video ghosting or overshooting

� Change the Response Time in the Display OSD to Fast or Normal depending on your application and usage.

Troubleshooting  47

Product-specific problems

Specific symptoms

Possible solutions

Screen image is too small

� Check the Aspect Ratio setting in the Display settings OSD. � Reset the monitor to Factory Settings (Factory Reset).

Cannot adjust the monitor with the buttons on the bottom of the panel
No input signal when user controls are pressed
The picture does not fill the entire screen

� Turn off the monitor, unplug the power cord, plug it back, and then turn on the monitor.
� Check if the OSD menu is locked. If yes, press and hold the Exit button (button 4) for four seconds to unlock.
� Check the signal source. Ensure that the computer is not in standby or sleep mode by moving the mouse or pressing any key on the keyboard.
� Check if the video cable is plugged in properly. Disconnect and reconnect the video cable if necessary.
� Reset the computer or video player.
� Due to different video formats (aspect ratio) of DVDs, the monitor may display in full screen.
� Run the built-in diagnostics.

48  Troubleshooting

Appendix
Safety instructions
WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards. For information on safety instructions, see the Product Information Guide.
FCC Notices (U.S. Only) and Other Regulatory Information
For FCC notices and other regulatory information, see the regulatory compliance website located at https://www.dell.com/regulatory_compliance.
Install your monitor near a power outlet that you can easily reach. Disconnect the monitor by grasping the plug firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.
Contact Dell
For customers in the United States, call 800-WWW-DELL (800-999-3355).
NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area.
To get online Monitor support content, visit https://www.dell.com/support/monitors. To contact Dell for sales, technical support, or customer service issues:
1. Visit https://www.dell.com/support. 2. Verify your country or region in the Choose A Country/Region drop-down menu
at the bottom of the page. 3. Click Contact Us on the left side of the page. 4. Select the appropriate service or support link based on your need. 5. Choose the method of contacting Dell that is convenient for you.
EU product database for energy label and product information sheet
E2222H: https://eprel.ec.europa.eu/screen/qr/605294
Appendix  49
