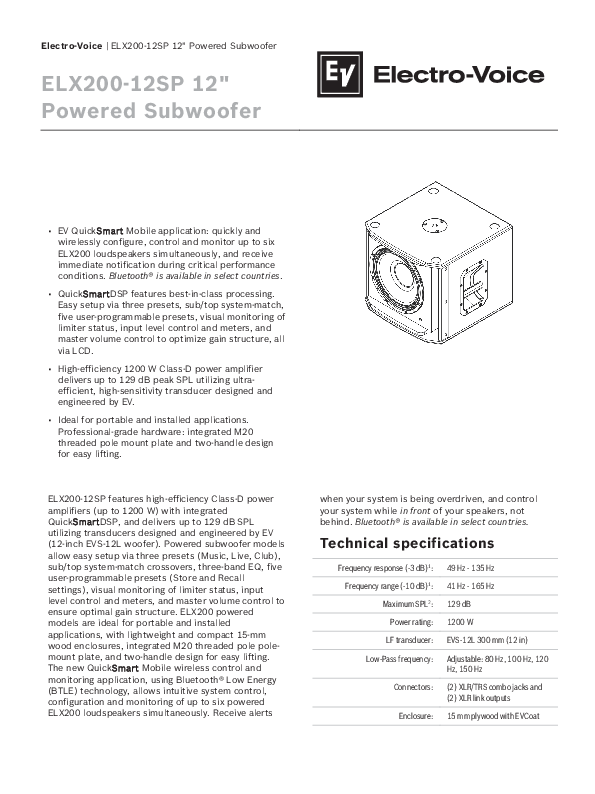

ELX200-12SP Powered Subwoofer Data Sheet
Electro-Voice ELX200-12SP 12-Inch Powered Subwoofer - Sound Productions
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text
Electro-Voice | ELX200-12SP 12" Powered Subwoofer ELX200-12SP 12" Powered Subwoofer EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth� is available in select countries. QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD. High-efficiency 1200 W Class-D power amplifier delivers up to 129 dB peak SPL utilizing ultraefficient, high-sensitivity transducer designed and engineered by EV. Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting. ELX200-12SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 129 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting. The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth� Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth� is available in select countries. Technical specifications Frequency response (-3 dB)1: Frequency range (-10 dB)1: Maximum SPL2: Power rating: LF transducer: Low-Pass frequency: Connectors: Enclosure: 49 Hz - 135 Hz 41 Hz - 165 Hz 129 dB 1200 W EVS-12L 300 mm (12 in) Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz (2) XLR/TRS combo jacks and (2) XLR link outputs 15 mm plywood with EVCoat 2 | ELX200-12SP 12" Powered Subwoofer Grille: 18 AWG steel with powdercoat Color: Black or white Dimensions (H x W x D): 397 mm x 445 mm x 457 mm (16.7 in x 17.6 in x 18.0 in) Net weight: 19.1 kg (42.2 lb) Shipping weight: 22.3 kg (49.2 lb) Power consumption3: 100 - 240 V~, 50 - 60 Hz, 1.8 A 1Full-space measurement using music DSP preset. 2Maximum SPL is measured at 1 m using broadband pink noise at maximum output. 3Current rating is 1/8 power. Dimensions: 445 mm [17.6 in] 397 mm [16.7 in] 229 mm [9.1 in] Frequency response: 223 mm [8.8 in] 225 mm [8.9 in] 160 mm [6.3 in] 222 mm [8.8 in] 229 mm [9.1 in] 457 mm [18.0 in] System overview Subwoofer amplifier panel: 1 6 OUTPUT 1 QuickSmartDSP | MONITOR PUSH FOR DSP INPUT 1 MASTER VOL ELX200 WARNING: TO REDUCE RISK OF SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN AVIS RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR 2 3 INPUT 2 OUTPUT 2 MAINS IN 5 4 1. LCD - DSP control and monitoring interface. 2. MASTER VOL - Adjusts the sound level. DSP - Scroll through the menu and select the available choices. Push the MASTER VOL knob to enter the DSP menu. 3. INPUT - Balanced input for the connection of signal sources like mixing consoles, instruments, or microphones. Connections can be established using � inch TRS or XLR connectors. 4. POWER - AC switch for switching the power ON or OFF. The LCD screen lights up when the power is turned ON, after approximately 3 seconds. 5. MAINS IN - AC connection is established via an IECconnector. 6. OUTPUT - XLR output sends the input signal to another loudspeaker or subwoofer. INPUT 1 is linked to OUTPUT 1 and INPUT 2 is linked to OUTPUT 2. The MASTER VOL or DSP control settings do not affect OUTPUT. For more information, see ELX200 Powered Loudspeakers Installation manual (F.01U.326.891). Ordering information ELX200-12SP-US 12" powered subwoofer, US cord Powered 12-inch subwoofer US cord, black Order number ELX200-12SP-US ELX200-12SP-EU 12" powered subwoofer, EU cord Powered 12-inch subwoofer EU cord, black Order number ELX200-12SP-EU ELX200-12SP-AP 12" powered subwoofer, AP Powered 12-inch subwoofer Asia-Pacific regions, black Order number ELX200-12SP-AP ELX200-12SP-GL 12" powered subwoofer, Global, No BT Powered 12-inch subwoofer two cords, No Bluetooth�, black Order number ELX200-12SP-GL ELX200-12SP-W 12" powered subwoofer, white 12" powered subwoofer, white Order number ELX200-12SP-W 3 | ELX200-12SP 12" Powered Subwoofer Accessories ELX200-12S-CVR Padded cover for ELX200-12S, 12SP Padded cover for ELX200-12S/12SP, black Order number ELX200-12S-CVR Represented by: Germany: Bosch Sicherheitssysteme GmbH Robert-Bosch-Ring 5 85630 Grasbrunn Germany www.electrovoice.com Bosch Security Systems, Inc. 12000 Portland Avenue South Burnsville MN 55337 USA � Bosch Security Systems 2019 | Data subject to change without notice Document Number F.01U.326.895 | Vs2 | 09. Apr 2019
