Tesla Powerwall 2 Datasheet - North America
File info: application/pdf · 2 pages · 312.34KB
Tesla Powerwall 2 Datasheet - North America
TESLACOM/ENERG POWER WALL Tesla Powerwall is a fully-integrated AC battery system for residential or light commercial use. Its rechargeable lithium-ion
Powerwall's electrical interface provides a simple connection to any home or building. Its revolutionary compact design achieves.
Extracted Text

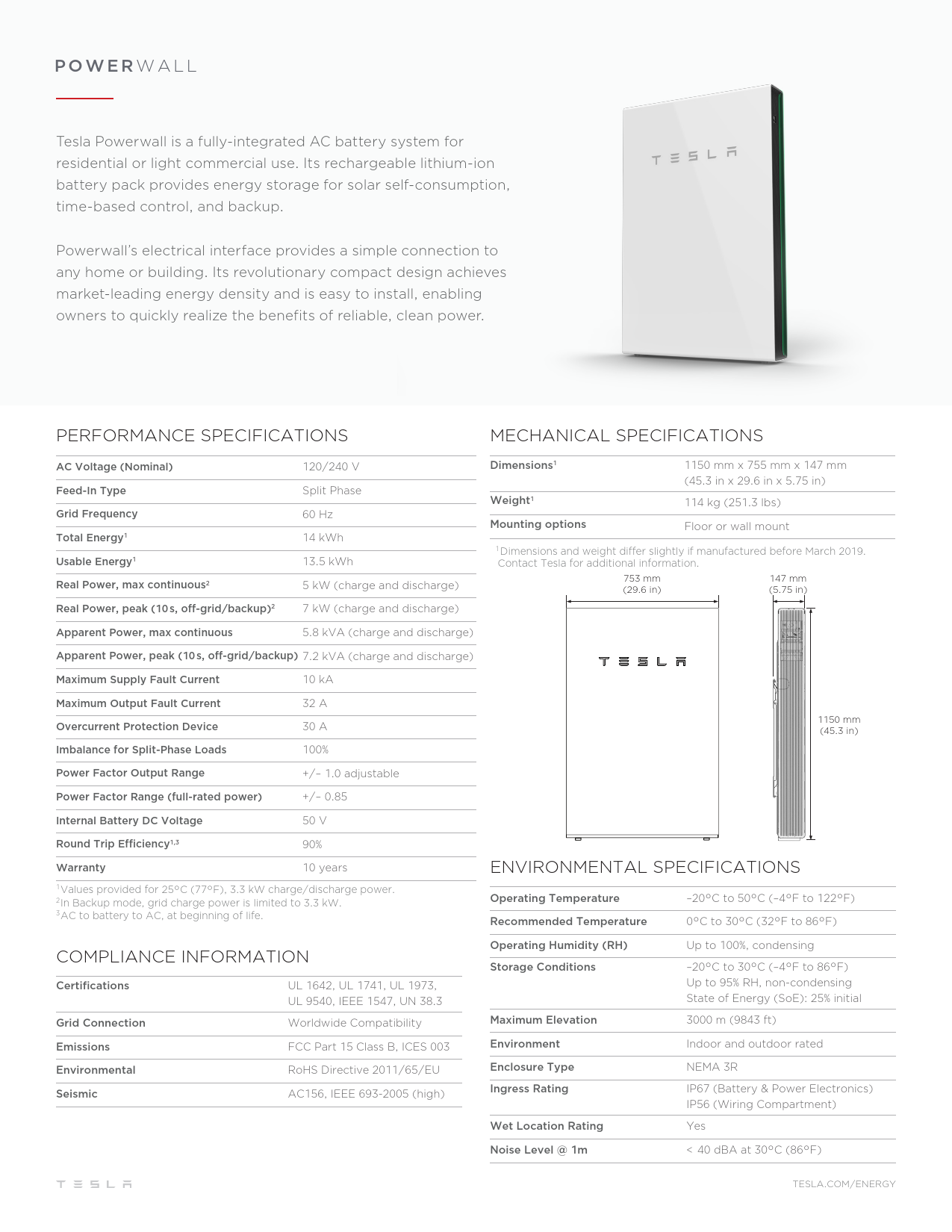

POWERWALL Tesla Powerwall is a fully-integrated AC battery system for residential or light commercial use. Its rechargeable lithium-ion battery pack provides energy storage for solar self-consumption, time-based control, and backup. Powerwall's electrical interface provides a simple connection to any home or building. Its revolutionary compact design achieves market-leading energy density and is easy to install, enabling owners to quickly realize the benefits of reliable, clean power. PERFORMANCE SPECIFICATIONS MECHANICAL SPECIFICATIONS AC Voltage (Nominal) Feed-In Type Grid Frequency Total Energy1 Usable Energy1 Real Power, max continuous2 Real Power, peak (10s, off-grid/backup)2 120/240 V Split Phase 60 Hz 14 kWh 13.5 kWh 5 kW (charge and discharge) 7 kW (charge and discharge) Dimensions1 Weight1 Mounting options 1150 mm x 755 mm x 147 mm (45.3 in x 29.6 in x 5.75 in) 114 kg (251.3 lbs) Floor or wall mount 1Dimensions and weight differ slightly if manufactured before March 2019. Contact Tesla for additional information. 753 mm (29.6 in) 147 mm (5.75 in) Apparent Power, max continuous 5.8 kVA (charge and discharge) 2 1 Apparent Power, peak (10s, off-grid/backup) 7.2 kVA (charge and discharge) 4 Maximum Supply Fault Current 10 kA 3 7 5 8 Maximum Output Fault Current 32 A Overcurrent Protection Device 30 A Imbalance for Split-Phase Loads 100% 6 Power Factor Output Range +/� 1.0 adjustable 1150 mm (45.3 in) Power Factor Range (full-rated power) +/� 0.85 Internal Battery DC Voltage 50 V Round Trip Efficiency1,3 90% Warranty 10 years 1Values provided for 25�C (77�F), 3.3 kW charge/discharge power. 2In Backup mode, grid charge power is limited to 3.3 kW. 3AC to battery to AC, at beginning of life. ENVIRONMENTAL SPECIFICATIONS Operating Temperature Recommended Temperature �20�C to 50�C (�4�F to 122�F) 0�C to 30�C (32�F to 86�F) COMPLIANCE INFORMATION Certifications Grid Connection Emissions Environmental Seismic UL 1642, UL 1741, UL 1973, UL 9540, IEEE 1547, UN 38.3 Worldwide Compatibility FCC Part 15 Class B, ICES 003 RoHS Directive 2011/65/EU AC156, IEEE 693-2005 (high) Operating Humidity (RH) Storage Conditions Maximum Elevation Environment Enclosure Type Ingress Rating Up to 100%, condensing �20�C to 30�C (�4�F to 86�F) Up to 95% RH, non-condensing State of Energy (SoE): 25% initial 3000 m (9843 ft) Indoor and outdoor rated NEMA 3R IP67 (Battery & Power Electronics) IP56 (Wiring Compartment) Wet Location Rating Yes Noise Level @ 1m < 40 dBA at 30�C (86�F) TESLA.COM/ENERGY TYPICAL SYSTEM LAYOUTS WHOLE HOME BACKUP Optional Solar Solar inverter Main panel Backup Gateway including service disconnect Utility meter Grid Powerwall Whole home backup PARTIAL HOME BACKUP Optional Solar Solar inverter Sub panel Backup Gateway Main panel Utility meter Grid Powerwall Backup loads Home loads NA - BACKUP - 2019-06-11 TESLA.COM/ENERGY
