ShenZhen Foscam Intelligent Technology FI9805W HD Wireless IP Camera User Manual D SYSTEM FI9805W
ShenZhen Foscam Intelligent Technology Co., Ltd. HD Wireless IP Camera D SYSTEM FI9805W
Users Manual
User
User Manual
Manual
Model: FI9805W
HDWirelessIPCamera
1
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 1
Table of Contents
1Overviews
................................................................................................................................................................ 3
1.1 Key Features..................................................................................................................................................................... 3
1.2 Read Before Use.............................................................................................................................................................. 4
1.3 Packing Contents.............................................................................................................................................................. 4
1.4 Physical Description......................................................................................................................................................... 5
2 Accessing the Network Camera........................................................................................................................... 7
2.1 Access the Camera in LAN............................................................................................................................................. 7
2.2 Access the Camera in WAN.......................................................................................................................................... 11

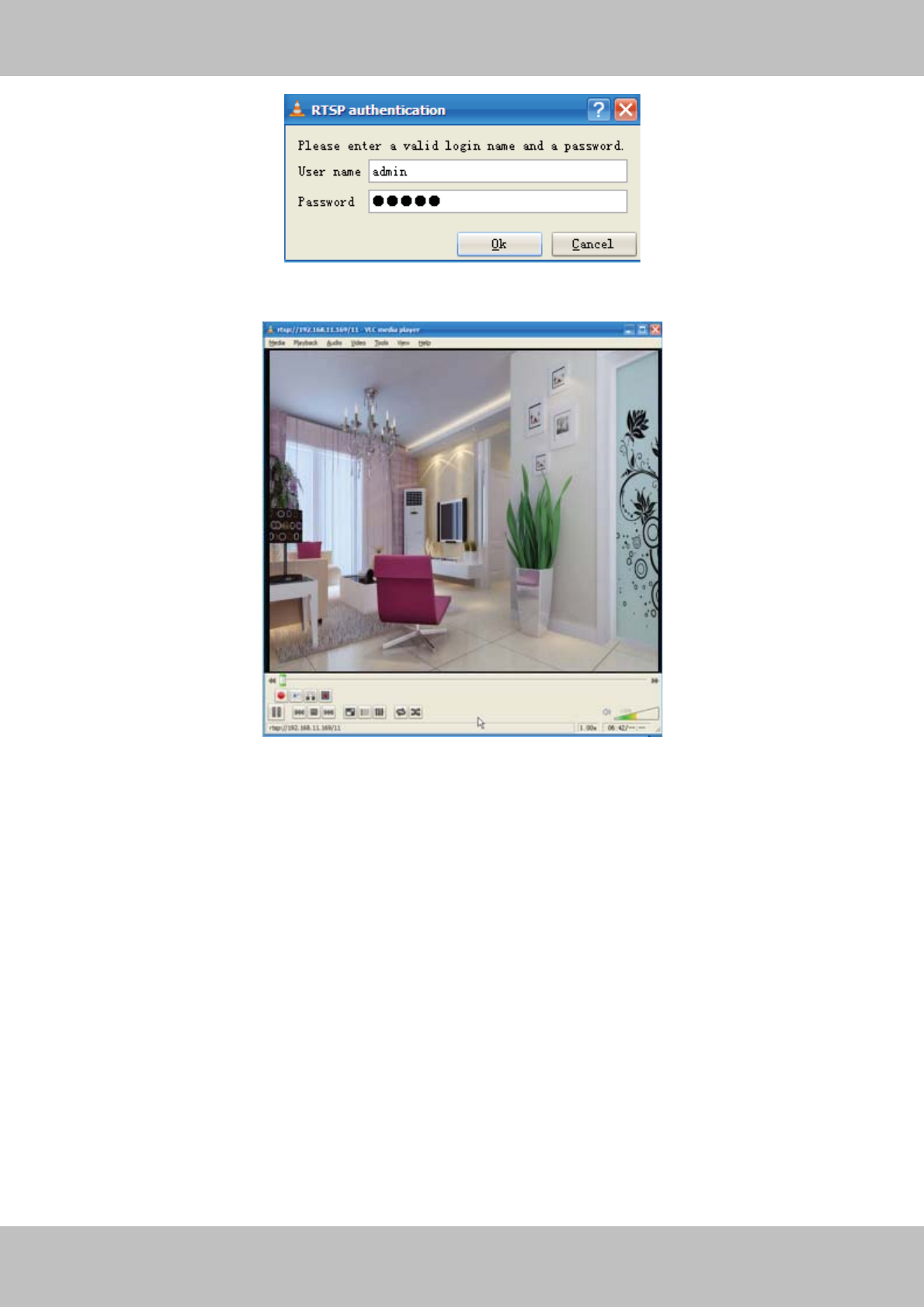

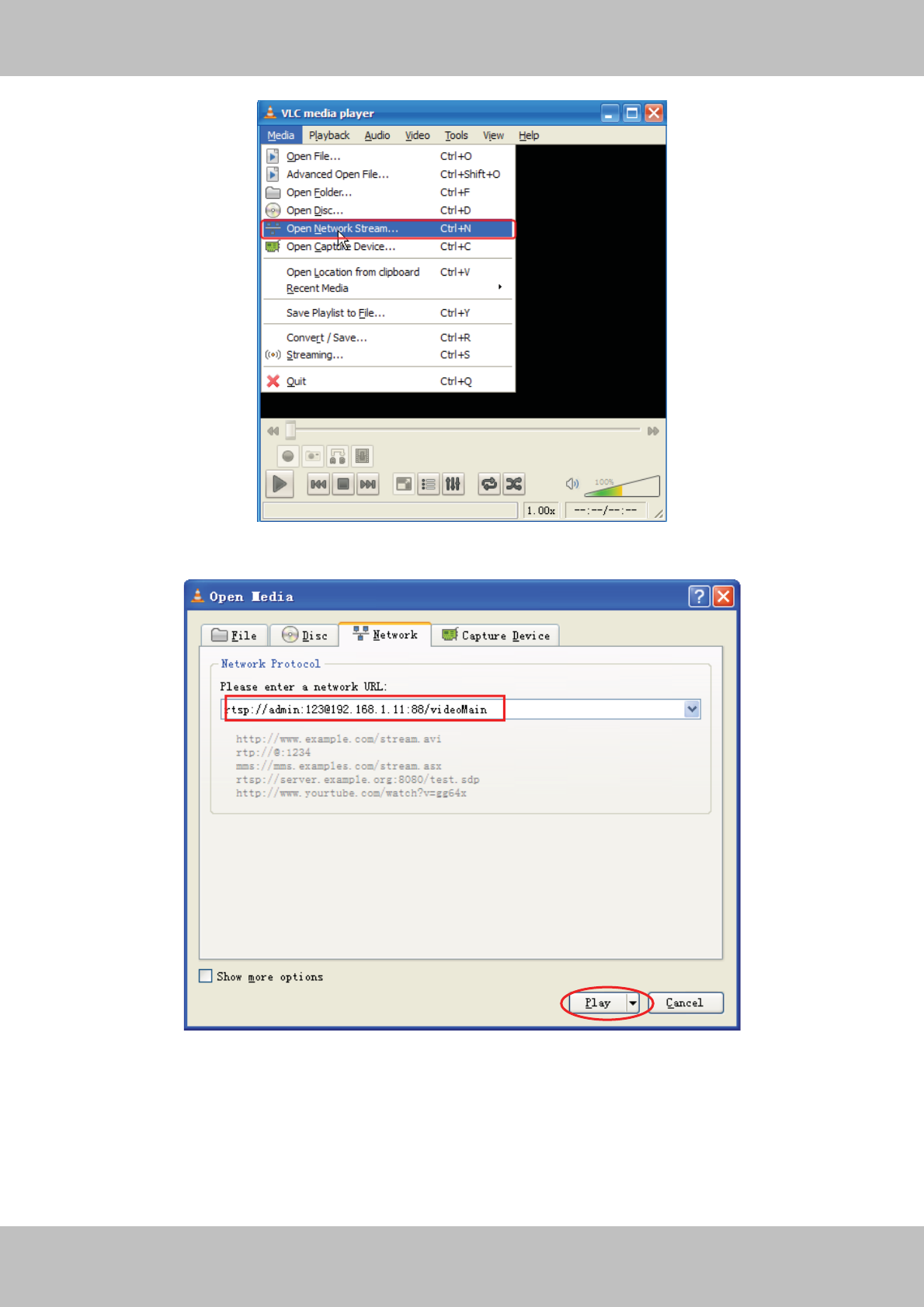

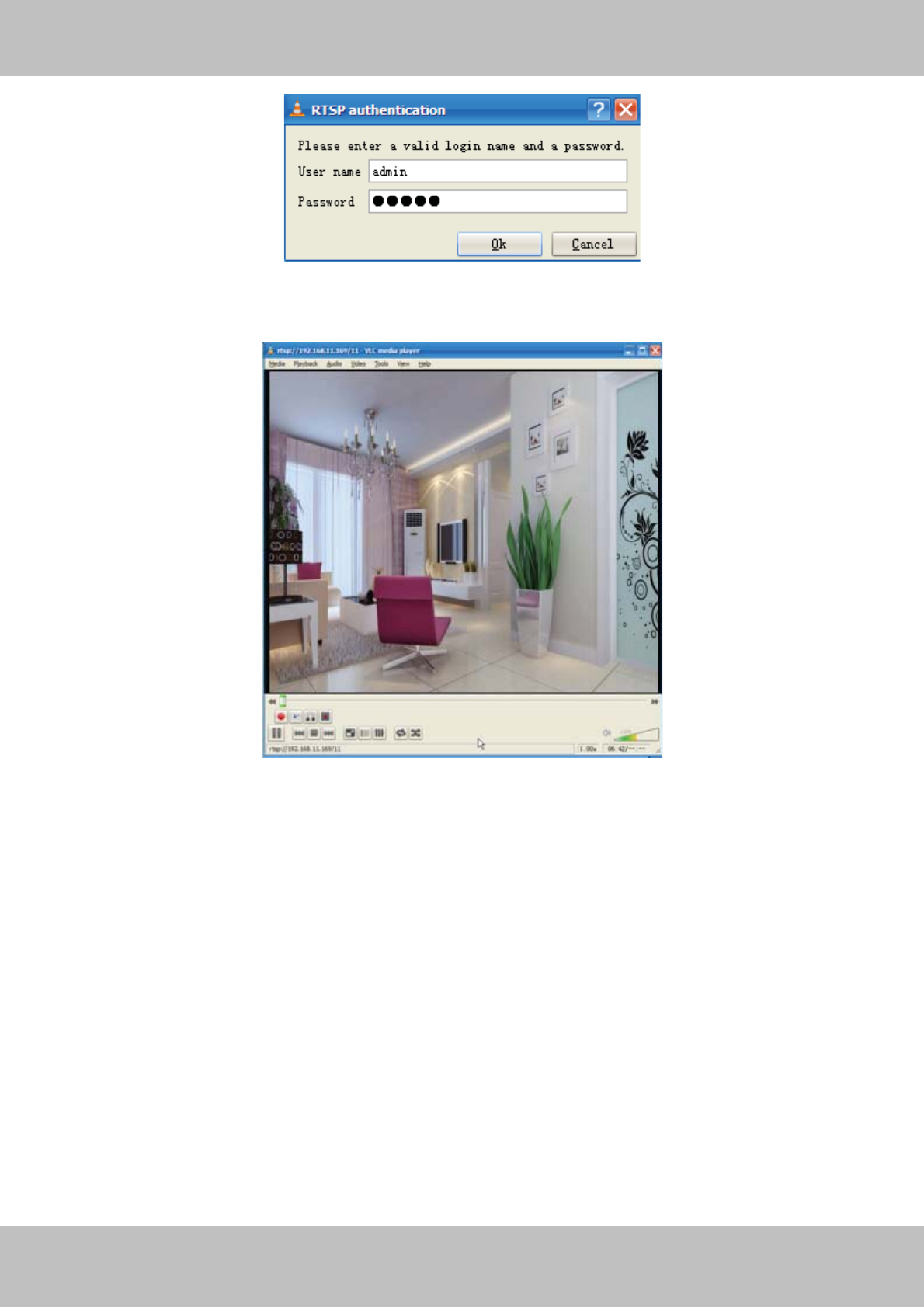

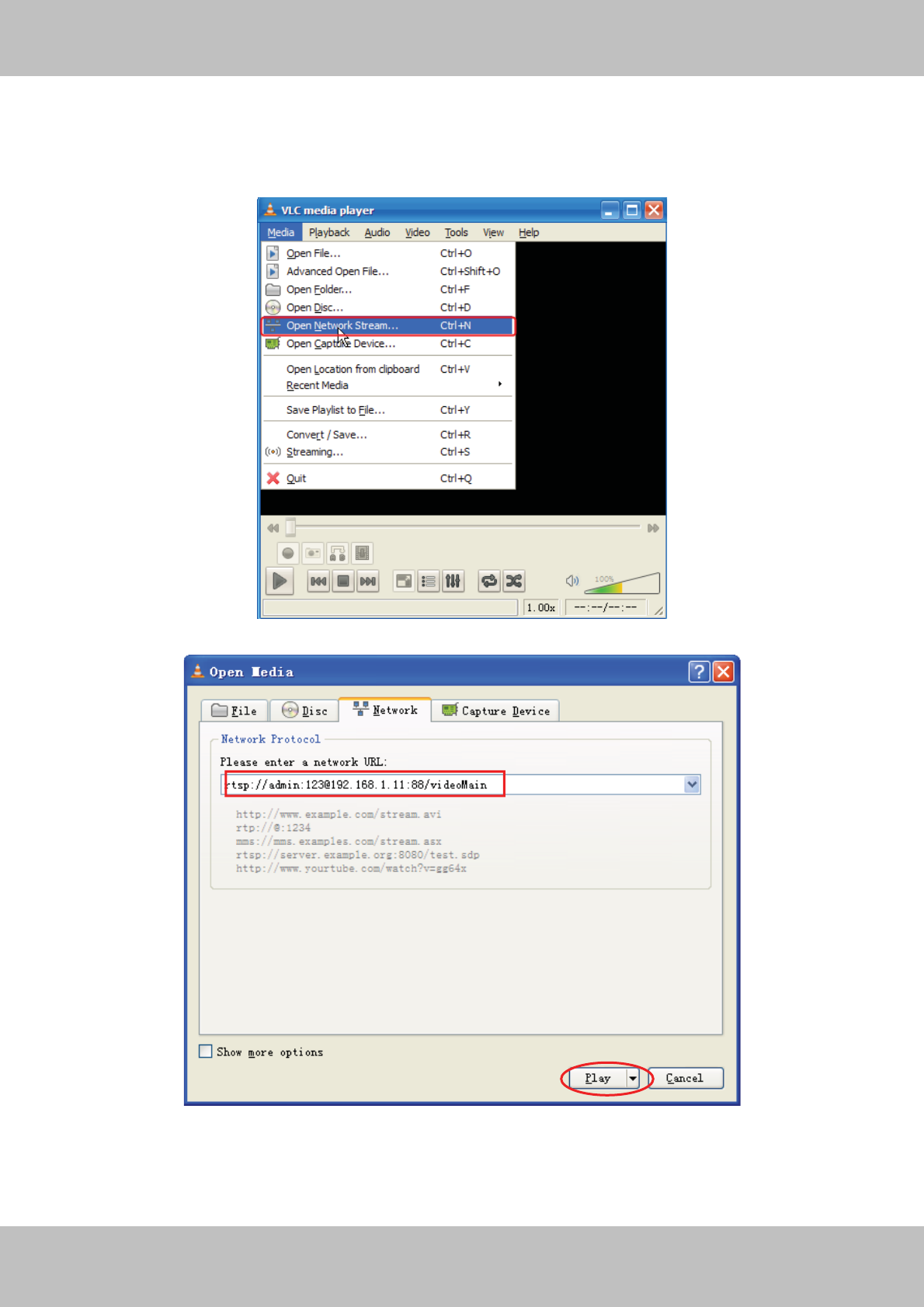

2.3 Using the VLC player..................................................................................................................................................... 17
3 Surveillance Software GUI.................................................................................................................................. 20
3.1 Login Window.................................................................................................................................................................. 20
3.2 Surveillance Window...................................................................................................................................................... 22
4 Advanced Camera Settings................................................................................................................................ 28
4.1 Device Status.................................................................................................................................................................. 28
4.1.1 Device Information.................................................................................................................................................. 28
4.1.2 Device Status........................................................................................................................................................... 29
4.1.3 Session status......................................................................................................................................................... 29
4.1.4 Log............................................................................................................................................................................ 30
4.2 Basic Settings................................................................................................................................................................. 31
4.2.1 Camera Name......................................................................................................................................................... 31
4.2.2 Camera Time........................................................................................................................................................... 31
4.2.3 Mail Settings............................................................................................................................................................ 32
4.2.4 User Accounts.......................................................................................................................................................... 34
4.2.5 Multi-Camera........................................................................................................................................................... 36
4.3 Network............................................................................................................................................................................ 41
4.3.1IP Configuration........................................................................................................................................................ 41
4.3.2 PPPoE...................................................................................................................................................................... 43
4.3.3 DDNS........................................................................................................................................................................ 43
4.3.4WiFi............................................................................................................................................................................ 48
4.3.5 UPnP......................................................................................................................................................................... 50
4.3.6 Port........................................................................................................................................................................... 50
4.4 Video................................................................................................................................................................................. 56
4.4.1 Settings..................................................................................................................................................................... 56
4.4.2 On Screen Display.................................................................................................................................................. 57
4.4.3 Snapshot Settings................................................................................................................................................... 58
4.5 Alarm................................................................................................................................................................................ 59
2
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 2
4.6 Record.............................................................................................................................................................................. 63
4.7 Path Settings................................................................................................................................................................... 63
4.8 Firewall............................................................................................................................................................................. 65
4.9 System.............................................................................................................................................................................. 66
4.9.1 Back up& Restore settings.................................................................................................................................... 66
4.9.2 System upgrade...................................................................................................................................................... 66
4.9.3Factory Reset........................................................................................................................................................... 68
4.9.4 Reboot System........................................................................................................................................................ 68
5 Phone APPs...................................................................................................................................................... 69
5.1 APP for Android cell phones......................................................................................................................................... 69
5.2 APP for iPhones.............................................................................................................................................................. 77
6 APPENDIX............................................................................................................................................................ 84
6.1 Frequently Asked Questions......................................................................................................................................... 84
6.2 Default Parameters........................................................................................................................................................ 90
6.3 Specification.................................................................................................................................................................... 90
6.4 CE & FCC........................................................................................................................................................................ 92
6.5 WARRANTY.................................................................................................................................................................... 92
7 OBTAINING TECHNICAL SUPPORT.............................................................................................................. 96
3
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 3
1
1Overviews
Overviews
FOSCAM FI9805W is an integrated wireless IP Camera with a color CMOS sensor enabling
viewing resolution 1280*720. It combines a high quality digital video camera, with a powerful web
server, to bring clear video to your desktop from anywhere on your local network or over the
Internet.
FI9805W supports the industry-standard H.264 compression technology, drastically reducing file
sizes and conserving valuable network bandwidth.
The IPCAM is based on the TCP/IP standard. There is a WEB server inside which could support
Internet Explore. Therefore the management and maintenance of your device is simplified by
using the network to achieve the remote configuration and start-up.
The camera is designed for indoor and outdoor surveillance applications such as courtyards,
supermarket,and school. Controlling the IPCAM and managing images are simplified by using
the provided web interface across the network utilizing wireless connectivity.
FOSCAM provides Phone APPs for Android and iPhone users, please search “Foscam ip cam
viewer” and install it through APP Store, then you can view your camera directly as a computer.
1.1
1.1 Key
Key Features
Features
Standard H.264 video compression algorithm to satisfy the transmission of high definition
video in narrow bandwidth network
1.0 Mega-Pixel
Supports IE/Firefox/Google/Safari browser or any other standard browsers
Supports WEP,WPA and WPA2 Encryption
Wi-Fi compliant with wireless standards IEEE 802.11b/g/n
IR night vision (Range:30m)
Supports image snapshot
Supports dual-stream
Supports IR-Cut and the filter change automatically
Embedded FOSCAM DDNS(dynamic domain name service) Service
Supports remote viewing & record from anywhere anytime
Multi-level users management with password protection
Motion detection alert via email or upload image to FTP
Supporting Third Party Domain name
4
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 4
Providing Phone APPs for Android and iPhone users
Supports multiple network protocols: HTTP /HTTPS/ RTSP/ TCP /IP /UDP /FTP /DHCP
/DDNS / UPNP
Providing Central Management Software to manage or monitor multi-cameras
1.2
1.2 Read
Read Before
Before Use
Use
Please first verify that all contents received are complete according to the Package Contents
listed below. Before the Network Camera is installed, please carefully read and follow the
instructions in the Quick Installation Guide to avoid damage due to faulty assembly and
installation. This also ensures the product is used properly as intended.
1.3
1.3 Packing
Packing Contents
Contents
IPCAM×1 CD×1
Wi-Fi Antenna×1 Quick Installation Guide ×1
DC Power Supply×1 Warranty Card×1
Mounting bracket×1(option)
Network Cable×1
5
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 5
1.4
1.4 Physical
Physical Description
Description

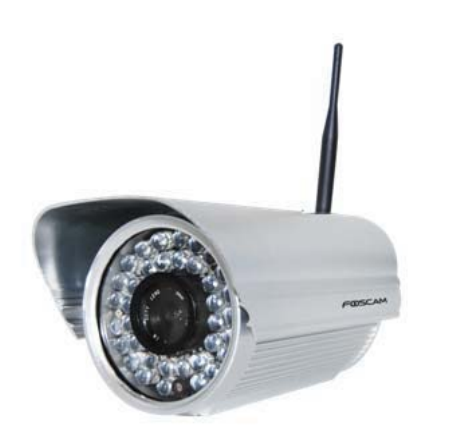

Front Panel
Figure 1.1
1 WIFI Antenna: Wireless Antenna
2 Infrared LED: 36 IR LEDs
3LENS:CMOS sensor with fixed focus lens
4Induction IC
Interface
Figure 1.2
1
˅
Reset button : Press and hold on the reset button for 5 seconds. Releasing the reset
button, the password will back to the factory default administrator password. The default
administrator user is admin with no password.
2
˅
Audio input interface:The
j
ack is used to plug external microphone.
1
2
3
4
5
1
2
3
4
6
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 6
3˅
˅
Audio output interface:The jack is used to plug external speakers.
4
˅
LAN: 10/100M adaptive Ethernet interface. Through this interface, IPCAM can be connected
with various network devices, such as hub, router, etc.
5
˅
Power Interface: Connect the external power adapter, request for 12V/2A power.
Bottom View
There are up to three labels located at the bottom of the camera; this is an important feature of
original Foscam cameras. If your camera does not have labels as shown in Figure 1.3, it may be
a clone. Cloned Foscam cameras can not use original firmware and are not eligible for warranty
or technical services.
Figure 1.3
MAC address of wireless connection
MAC address of wired connection
FOSCAM DDNS Service
S/N Sticker of FOSCAM
7
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 7
2
2Accessing
Accessing the
the Network
Network Camera
Camera
This chapter explains how to access the network camera through web browsers and RTSP
players.
2.1
2.1 Access
Access the
the Camera
Camera in
in LAN
LAN
This camera support HTTP and HTTPS protocols, so here will allow you to use HTTP and
HTTPS port no.
(1) Http:// LAN IP + Http Port no.
Double click the IP Camera Tool icon and it should find the camera’s IP address automatically
after you plug in the network cable.
Figure 2.1
Double click the IP address of the camera; your default browser will open to the camera login
page.
(2) Https:// LAN IP + Https Port no.
The default Https port no. is 443. You can use the url to access the camera: https:// LAN IP +
HTTPS port.
Go to Settings - Network - Port panel , you can see and change the https port no.
Figure 2.2
Sometimes you need to add the url to the Trusted Sites,
Open Internet Explorer if it is not already opened. Click on Tools, then click Internet Options.
8
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 8

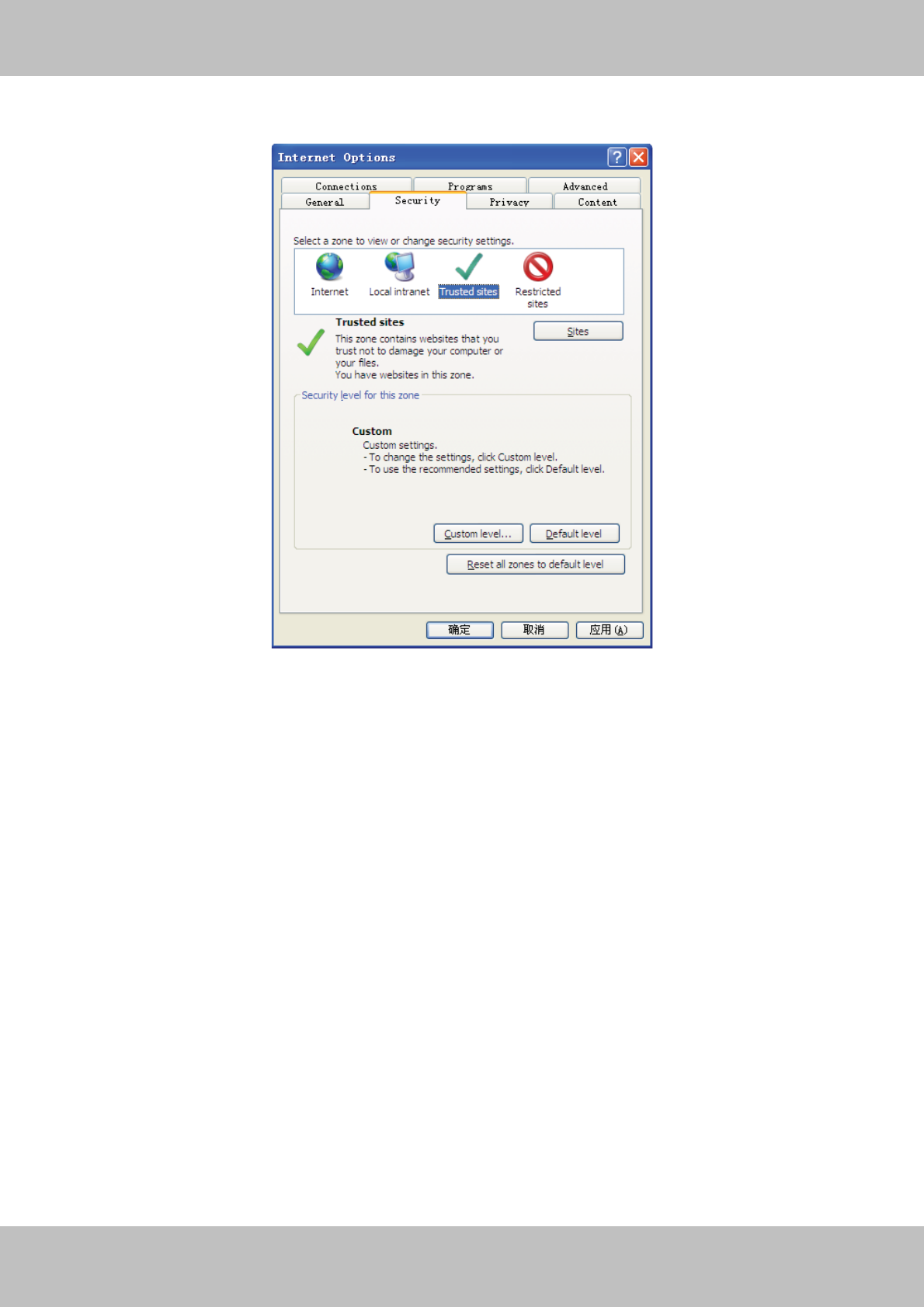

Next, click the Security tab, then click the Trusted sites button.
Figure 2.3

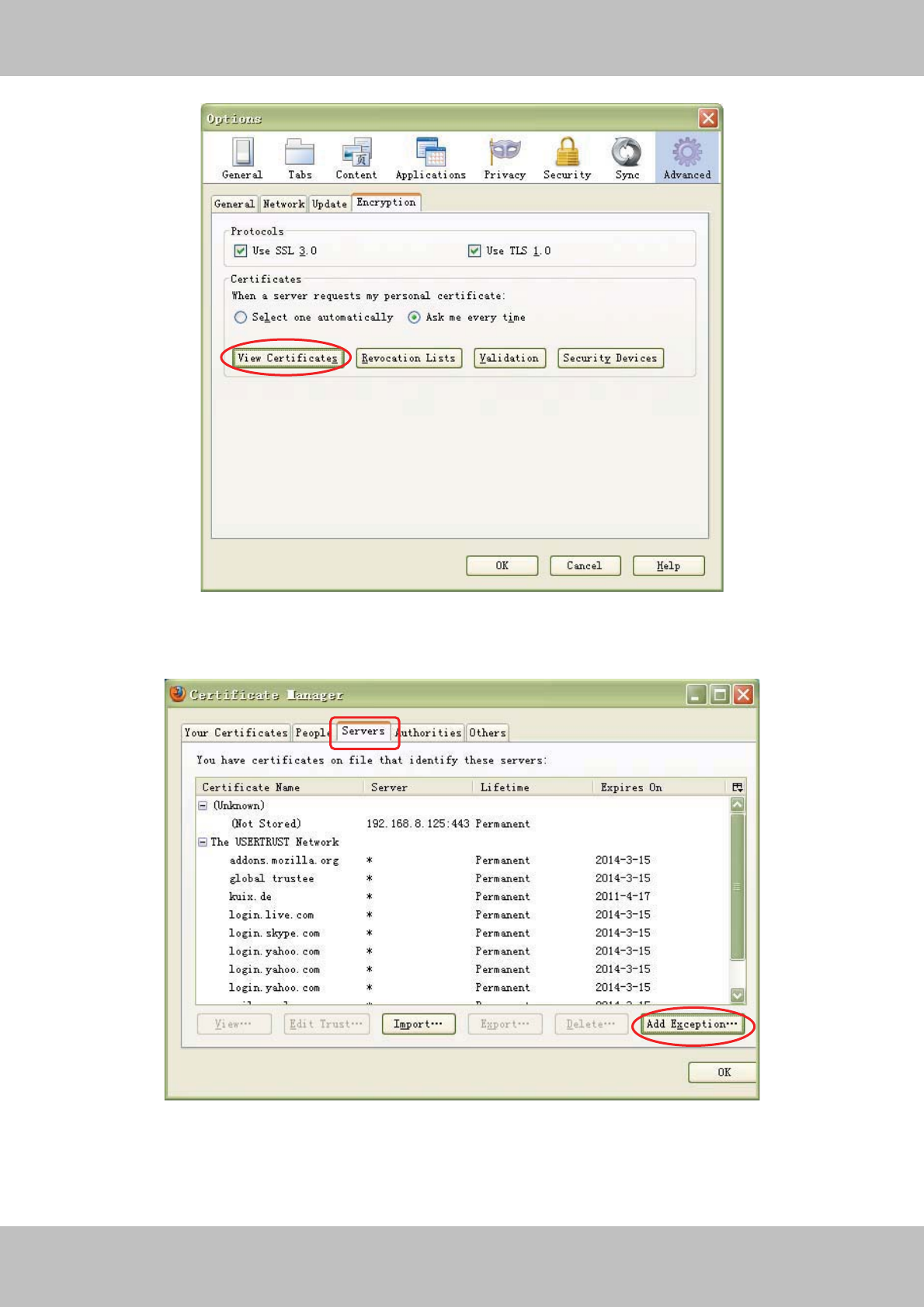

For Firefox, you can add the trusted as the following way:
Tools ---- Options ---- Advanced --- View Certificates --- Servers
9
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 9
Figure 2.4
Click View Certificates, and go to Servers option.
Figure 2.5
10
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 10
Go to Add Exception panel.
Figure 2.6
Enter the camera’s url , here
take https://192.168.8.129:443
fo
r
exam
p
le
Click this button to add it
11
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 11
2.
2.2
2Access
Access the
the Camera
Camera in
in WAN
WAN
2.2.1 Static IP Addresses
Users who have static IP addresses do not need to set DDNS service settings for remote access.
When you have finished connecting the camera using the LAN IP address and port forwarding,
you can access the camera directly from the Internet using the WAN IP address and port
number.

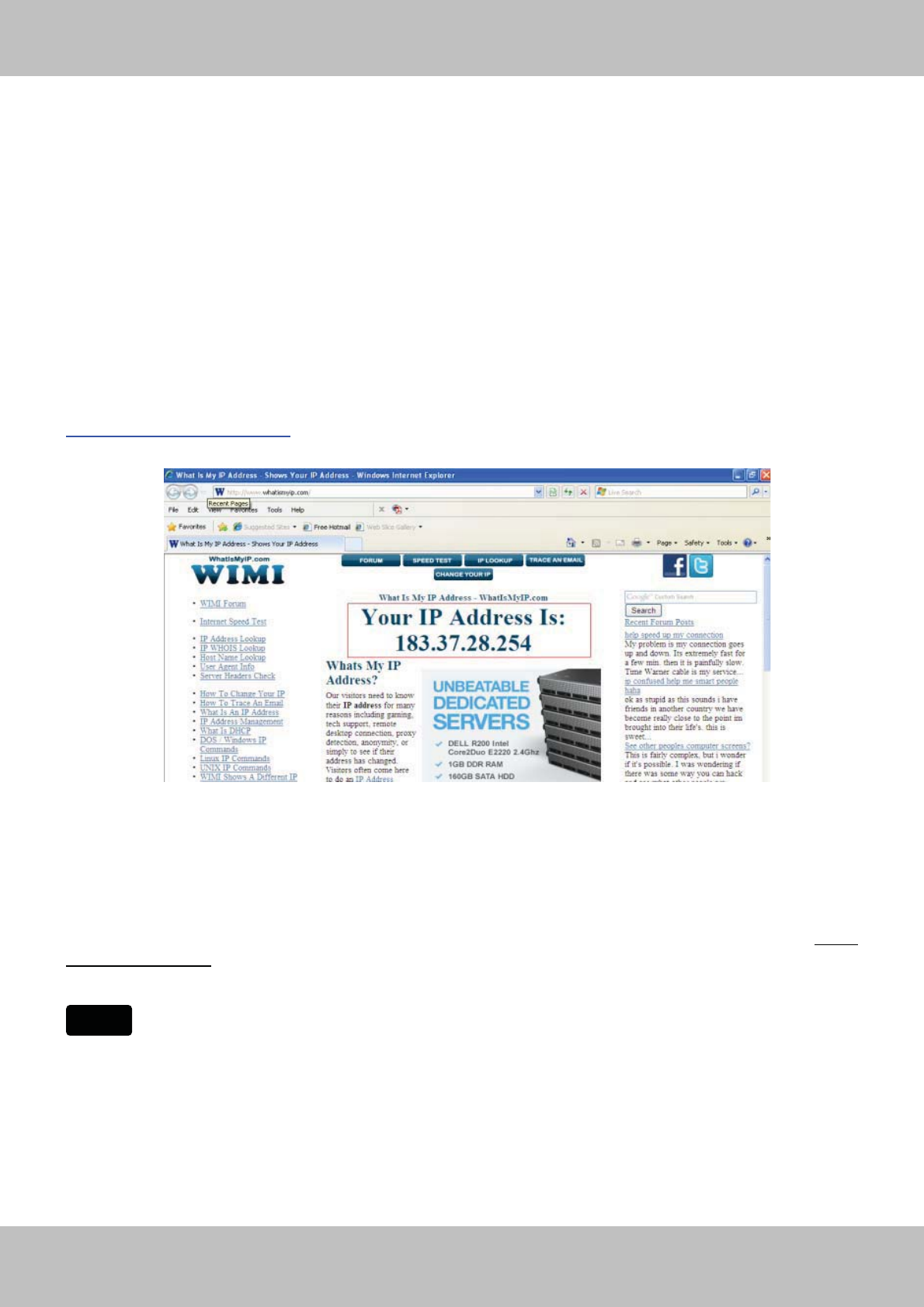

How to Obtain the WAN IP address from a public website
To obtain your WAN IP address, enter the following URL in your browser:
http://www.whatismyip.com.The webpage at this address will show you the current WAN IP.
Figure 2.7
Access your IP Camera from the Internet
You can access the IP Camera from the Internet (remote access). Enter the WAN IP address
and port number in your standard browser. For example, you would enter http://
183.37.28.254:85
Make sure port forwarding is successful. You can do port forwarding two ways.
1) Login to you
r
route
r
to enable the “UPNP” function. You can then login to the camera as
administrator, choose Network, and then choose UPnP to enable UPnP. Make sure that the
status of UPnP reads “UPnP Successful” on the Device Status page.
2) Do port (HTTP port and Media port) forwarding manually. (See Figure 2.11 for further details)
If your router has a Virtual Server, it can do port forwarding. Add the camera’s LAN IP and port
Note
12
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 12
which you had set earlier to your router’s port forwarding settings.
Note: If you plug the camera into a router, it will have a dynamic IP address and you need to set
DDNS service settings to view it remotely.
2.2.2 Dynamic IP Addresses
DDNS is a service that allows your IP Camera, especially when assigned with a dynamic IP
address, to have a fixed host and domain name. This means that even though your WAN IP
address is constantly changing, you will have a fixed hostname you can use to access your
cameras at all times. You can access the camera directly from the Internet using the hostname
and port number.
What is the HTTP Port no.?
1) Default HTTP Port is 88
All cameras have the default HTTP port of 88. For example, if the LAN IP link of the camera is
http://192.168.8.102:88, this means that the camera’s HTTP port is 88. You can change port 88
to another port if you’d like such as 2000 or 8090, which will not be conflict with other existing
ports like 25, 21,10000.Here you can set the port no. between 1 and 65535.
2) Change the default http no.88 to another one.
How to assign a different HTTP Port No. and fixed the LAN IP of the camera by the IP
Camera Tool
˛
Step 1: Open the IP Camera Tool, select the camera you would like to change the port of, right
click on the IP address, and click on ”Network Configuration”, this brings up the network
configuration box as shown in Figure 2.8 and 2.9.
Select which camera
you’d like to change the
port for, and right click
13
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 13
Figure 2.8
Figure 2.9
Step 2: Enter the username and password of the Administrator (default username is admin with
a blank password), and click “OK” to apply changes.
Step 3: Wait around 10 seconds, you’ll see that the camera’s LAN IP address has changed. In
our example it was changed to 2000, so we see http://192.168.8.102:2000 in IP Camera Tool.
Also, the LAN IP address is now fixed at a static IP address of http://192.168.8.102:2000. This IP
address will not change even if the camera is powered off and back on, the camera will remain
on this LAN IP address. This is very important that a static LAN IP address is set, or you may
have problems later with remote access and seeing the camera remotely if the camera loses
power and reconnects on a different LAN IP address. Make sure you set a static LAN IP address!

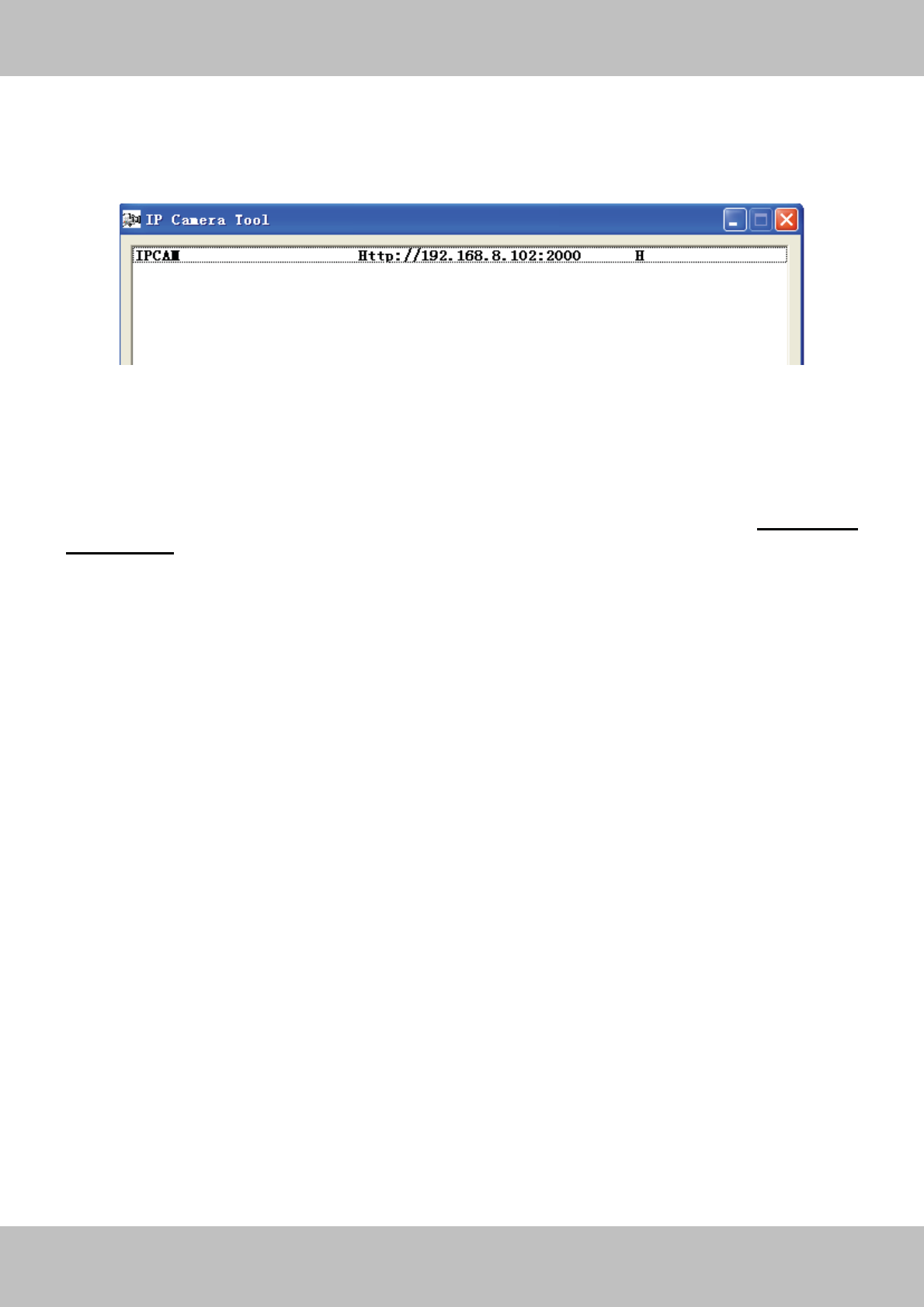

Figure 2.10
What is Port forwarding?
If you have never done port forwarding before, you can open and view the following link to
understand the basic concept. Port forwarding allows for outside connections to access a
specific device on your network from anywhere in the world. Every router automatically blocks
Modify the Http Port.
Enter the Username and
p
assword
,
click OK.
14
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 14
any incoming connections for safety purposes. Using port forwarding, you are telling your router
to allow a connection through a certain port (you can think of it as a gateway) into your router.
You set this port to a specific device, in our case an IP Camera, so it can be accessed from
anywhere in the world.
Click this link to learn more about port forwarding: http://portforward.com/help/portforwarding.htm
How do we configure Port Forwarding?
For this section, we will be using an example:
Let’s say the camera’s LAN IP address is http://192.168.8.100:2000
Step 1: Login to the router, and go to your router’s port forwarding or port triggering menu.
Sometimes this is also under the name of Virtual Server or NAT.
Using the Linksys brand router as an example, we would log into the router, and go to the
Applications & Gaming menu. We would then click on the “Single Port Forwarding”
sub-menu.
Step 2: Create a new column using the LAN IP address & HTTP Port of the camera within the
router as shown below, then push OK or Submit to save your settings:
Figure 2.11
Fill the HTTP Port of the
camera in the columns of
External Port and Internal
Port. Example: 2000
Fill in this section with the
LAN IP of the camera; we
would enter “100” for our
example.
Assign a name for the
port forward setting here
15
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 15
First method :
Use the embedded DDNS to access the camera via the Internet
Each Foscam camera has an embedded unique DDNS domain name, the format of this domain
name is xxxxxx.myfoscam.org. On the bottom of the camera, you can see the domain name
sticker with this information on it.

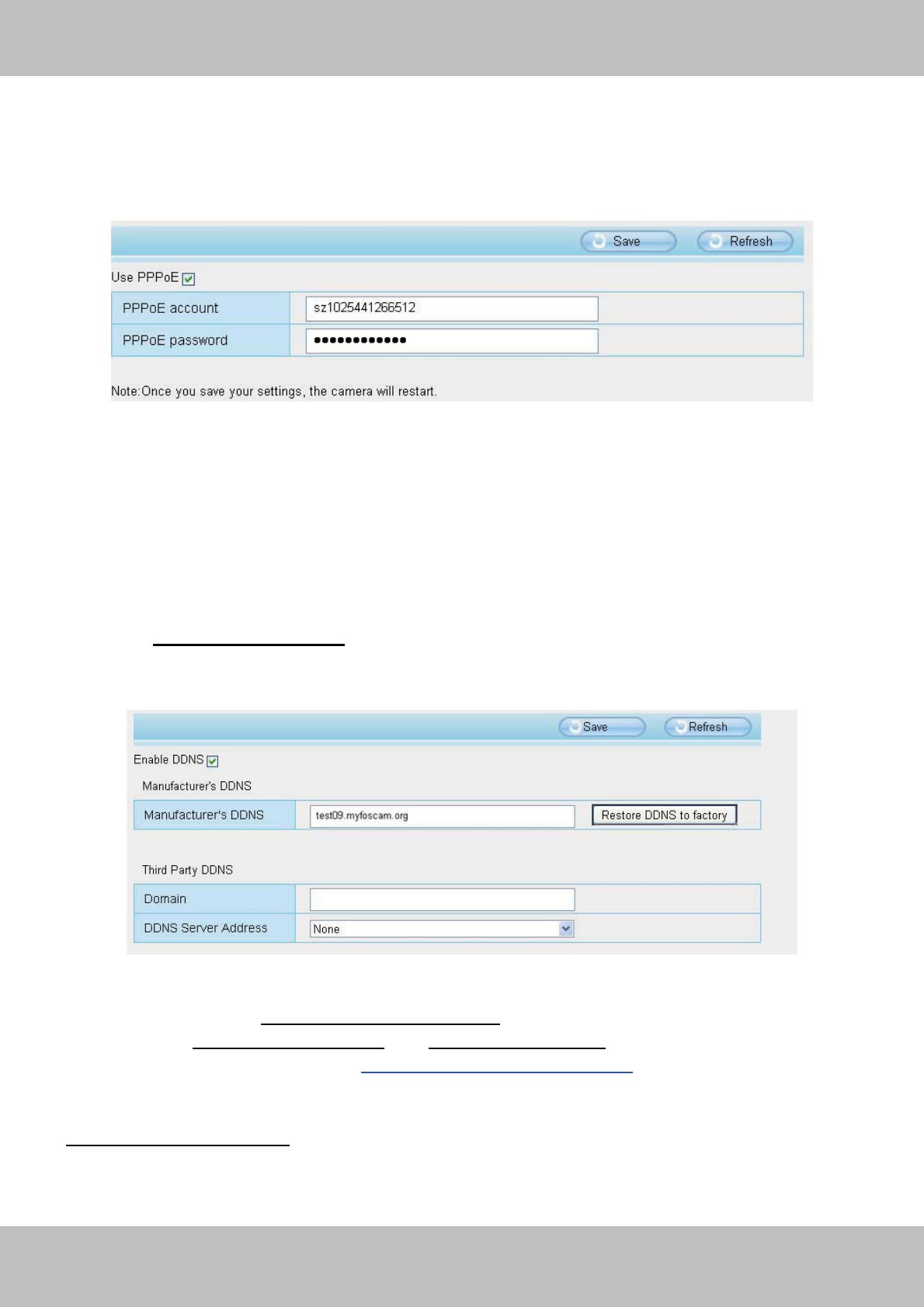

For example, we can use test09.myfoscam.org. In the camera, click Settings at the top, click
“Network” on the left, then click “DDNS” to get to the DDNS settings page. Here you can see the
unique domain name of your camera.

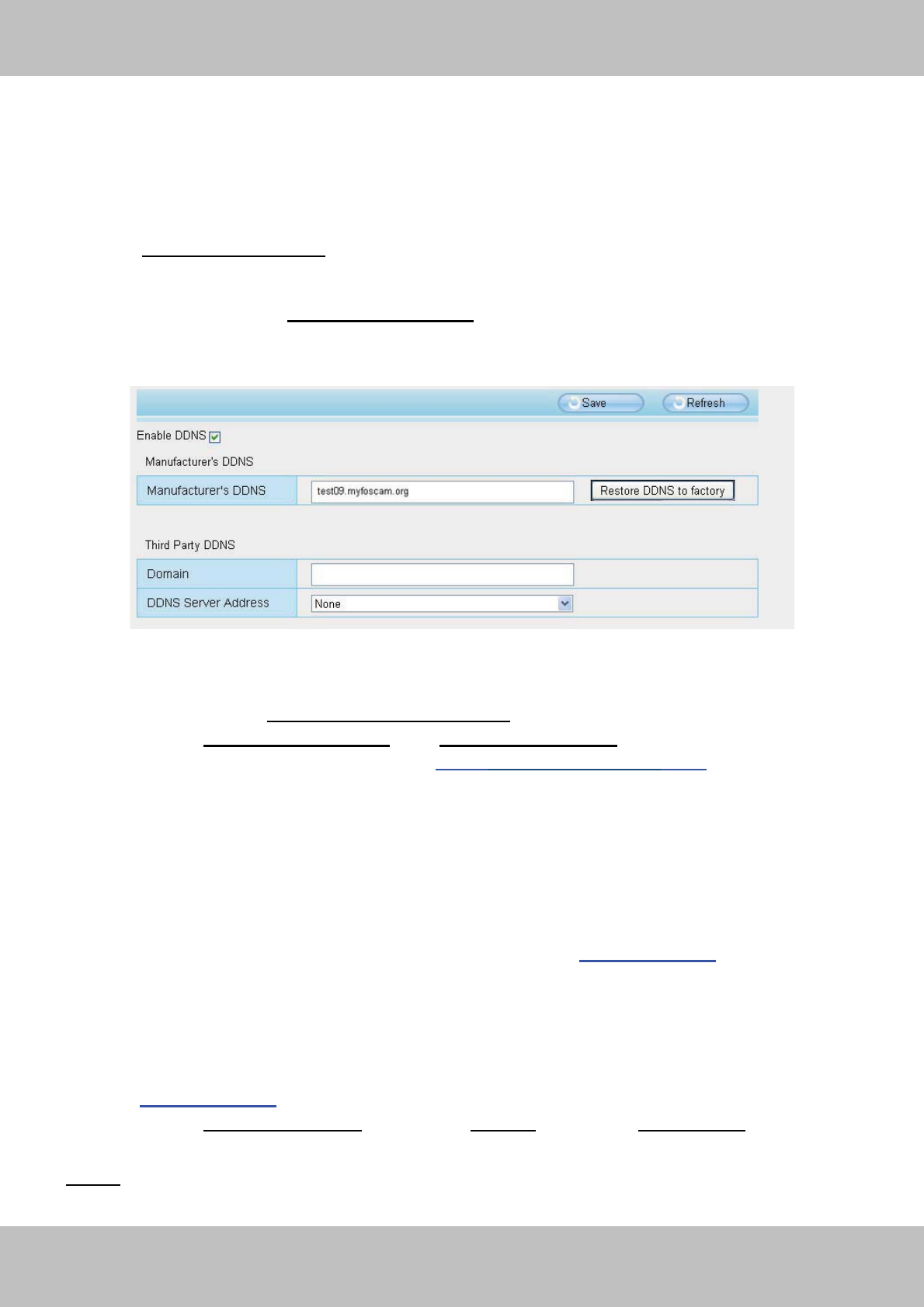

Figure 2.12
Now you can use “http://Domain name + HTTP Port” to access the camera via the Internet.
Take hostname test09.myfoscam.org and HTTP Port of 2000 for example, the URL link to
access the camera via the Internet would be http:// test09.myfoscam.org:2000.
Second method :
Use the Third party DDNS to access the camera via the Internet

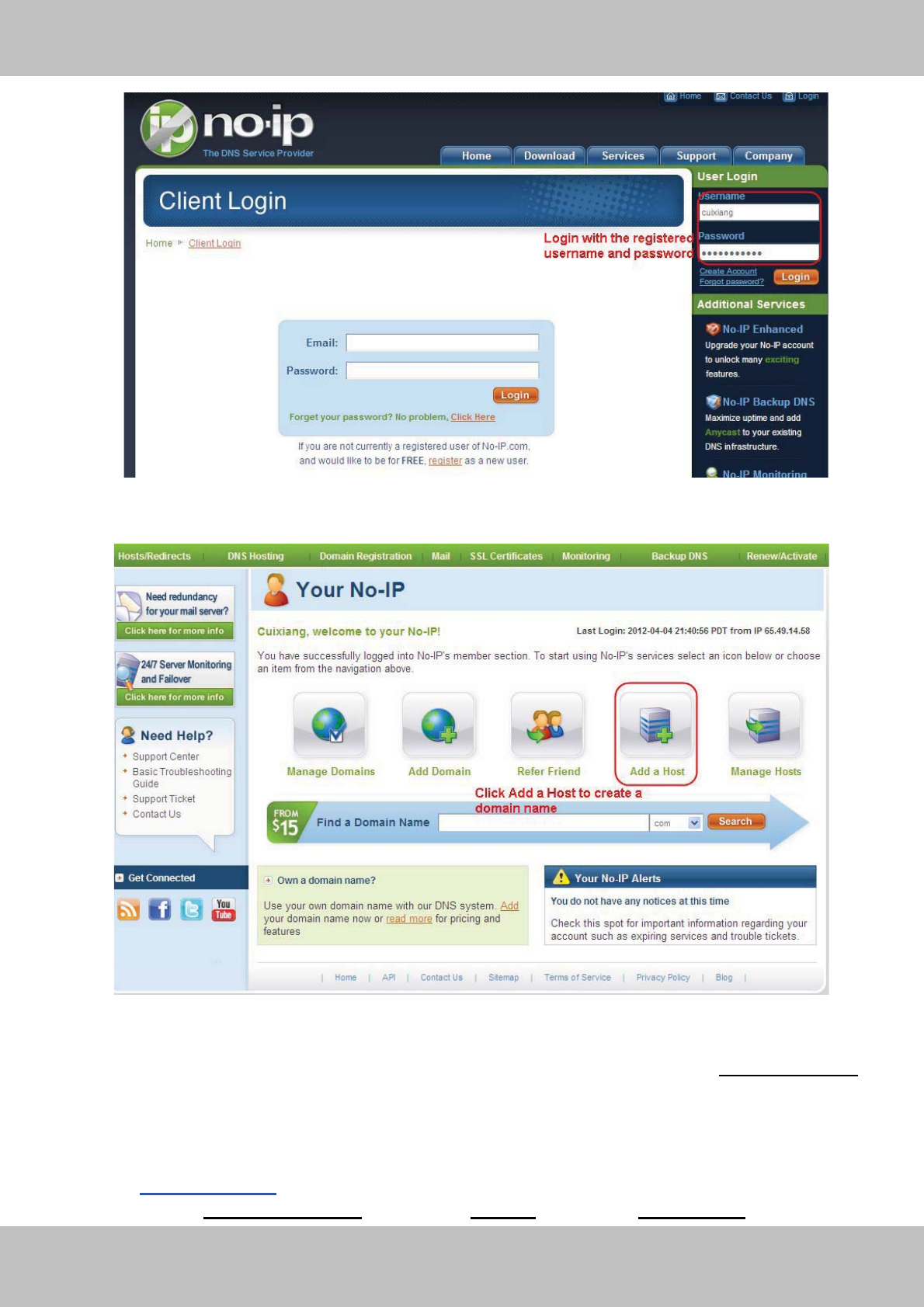

Step 1, Please go to the third party DDNS website(such as www.no-ip.com) to create a free
hostname.
Step 2, DO DDNS Service Settings within the Camera
Please set DDNS Settings within the camera by hostname,auser name and password you’ve
got from www.no-ip.com
Take hostname ycxgwp.no-ip.info,user name foscam,password foscam2012 for example.
Firstly, goes to option of DDNS Settings on the administrator panel.
16
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 16
Secondly,select No-Ip as a server.
Thirdly,fill foscam as DDNS user, fill password foscam2012 as DDNS password, fill
ycxgwp.no-ip.info as DDNS domain and server URL, Then click save to make effect. The
camera will restart and to take the DDNS settings effective.

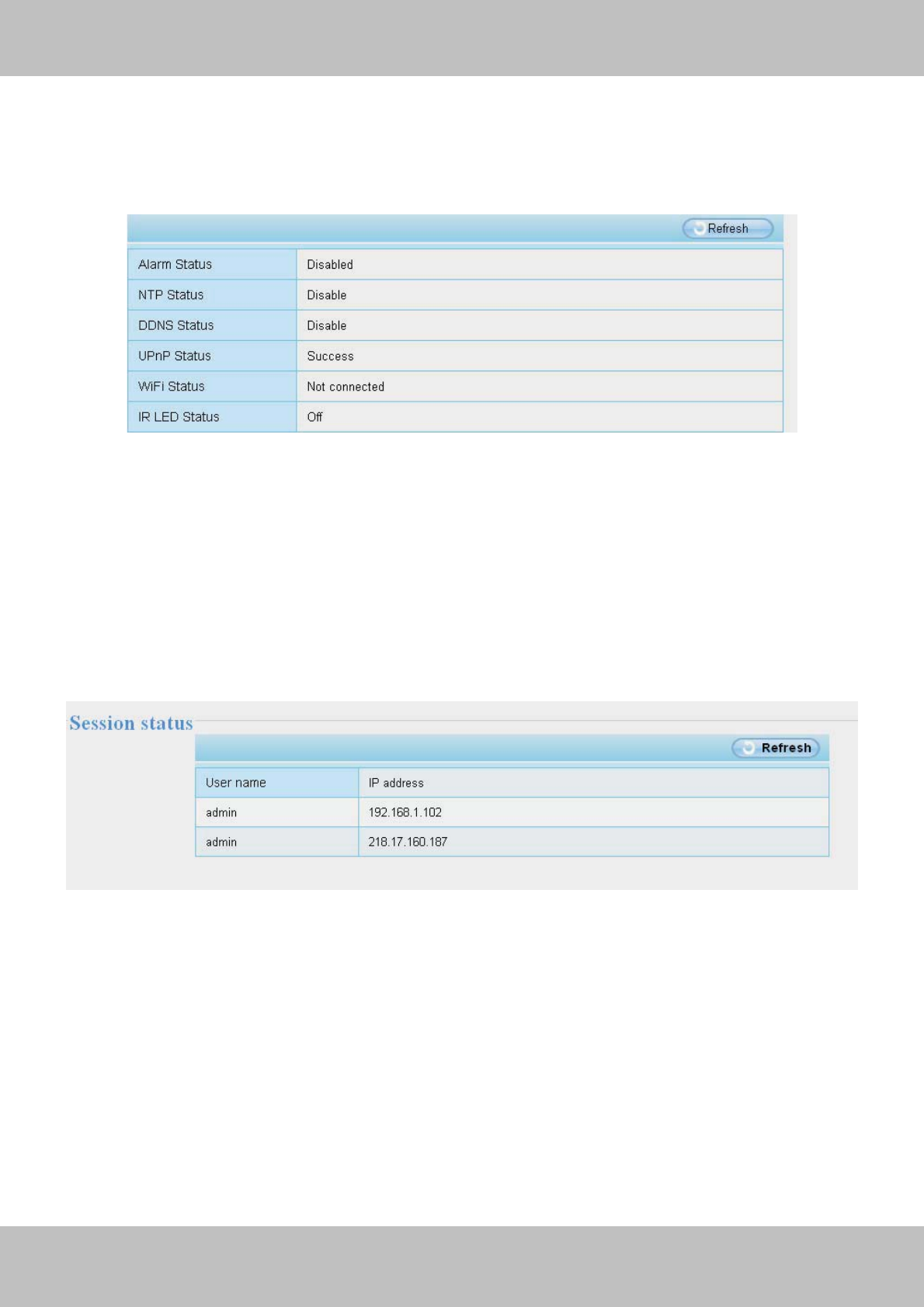

Fourthly,after the restart, login the camera, and go to option of Device Status on the
administrator panel, and check if the DDNS status is successful.
If failed, please double check if you have input the correct hostname, user name, and
password, and try to redo the settings.
If you have set Third Party DDNS successfully ,the Foscam Domain Name will be invalid. The
Third Party DDNS and the Foscam Domain Name cannot work at the same time, the last time
you configured will take effect.
Note
17
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 17
2.
2.3
3Using
Using the
the VLC
VLC player
player
This
This camera
camera supports
supports RTSP
RTSP streaming,
streaming, here
here you
you can
can view
view the
the camera
camera using
using VLC
VLC player.
player.
RTSP URL rtsp:// [user name][:password]@IP:HTTP port number/videosream
The part in the square brackets may be omitted.
user name & password:
The user name and password to access the camera. This part can be omitted.
IP:
WAN or LAN IP address.
Videostream:
Here support three mode: videoMain, videoSub and audio. When the network speed is bad, here
you had better select videoSub. If you select audio, you can only hear the sound but cannot see
the video.
For example:
IP: 192.168.1.11
HTTP Port number: 88
User name: admin
Password: 123
Here I can enter one of the following URLs in the VLC.
1) rtsp://admin:123@192.168.1.11:88/videoMain
2) rtsp:// @192.168.1.11:88/videoMain
3) rtsp://:123@192.168.1.11:88/videoMain
4) rtsp://admin@192.168.1.11:88/videoMain
Open the VLC, and go to MediaÆOpen Network Stream option, then enter the URL into VLC.
18
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 18
Figure 2.13
Figure 2.14
Sometimes you may need to enter the user name and password again. Click OK and you can
see the real-time preview.
19
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 19
Figure 2.15
Figure 2.16
If you cannot play the video in the VLC player, please check the port mapping. You can read
Quick Installation Guide about How to configure port forwarding.
NOTE:
If you modify the camera’s username or password, you had better reboot the camera, or else the
new username and password cannot take effect when you enter the authentication in the VLC.
20
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 20
3
3Surveillance
Surveillance Software
Software GUI
GUI
Please refer to the Quick Installation Guide if you install the camera at first time. After finishing
quick installation, you can take time to learn the operation of the software.
3.1
3.1 Login
Login Window
Window
Figure 3.1
Please check the login window above, it was divided to 4 sections from no. 1 to 4.
Section1 Enter the User name and password
The default administrator username is admin with no password, please reset the password at
first using and prevent unauthorized users login the camera (read chapter 3.2.4 about how to
change).
Section2 Stream
The camera supports two stream modes: Main stream and sub stream. If you want to access the
camera form LAN, here you can select Main stream. If you want to access the camera from
Internet, here we recommend sub stream.
Note: When the network bandwidth is badly you’d better select Sub Stream and the video will be
more fluency.
2
3
4
1
21
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 21
Section3 Select the language
You can select the language you need via click on the language dropdown list to switch.
Section4 Login the camera
Click Login button and you will see the surveillance windows.
Figure 3.2
22
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 22
3.2 Surveillance Window
Figure 3.3
Section1 FOSCAM Logo/ LiveVideo / Settings buttons
:FOSCAM LOGO
:Path to surveillance window. Click this button and back to the surveillance window
:Path to Administrator Control Panel, Click it, and it will lead to Administrator
Control Panel and do advanced settings.

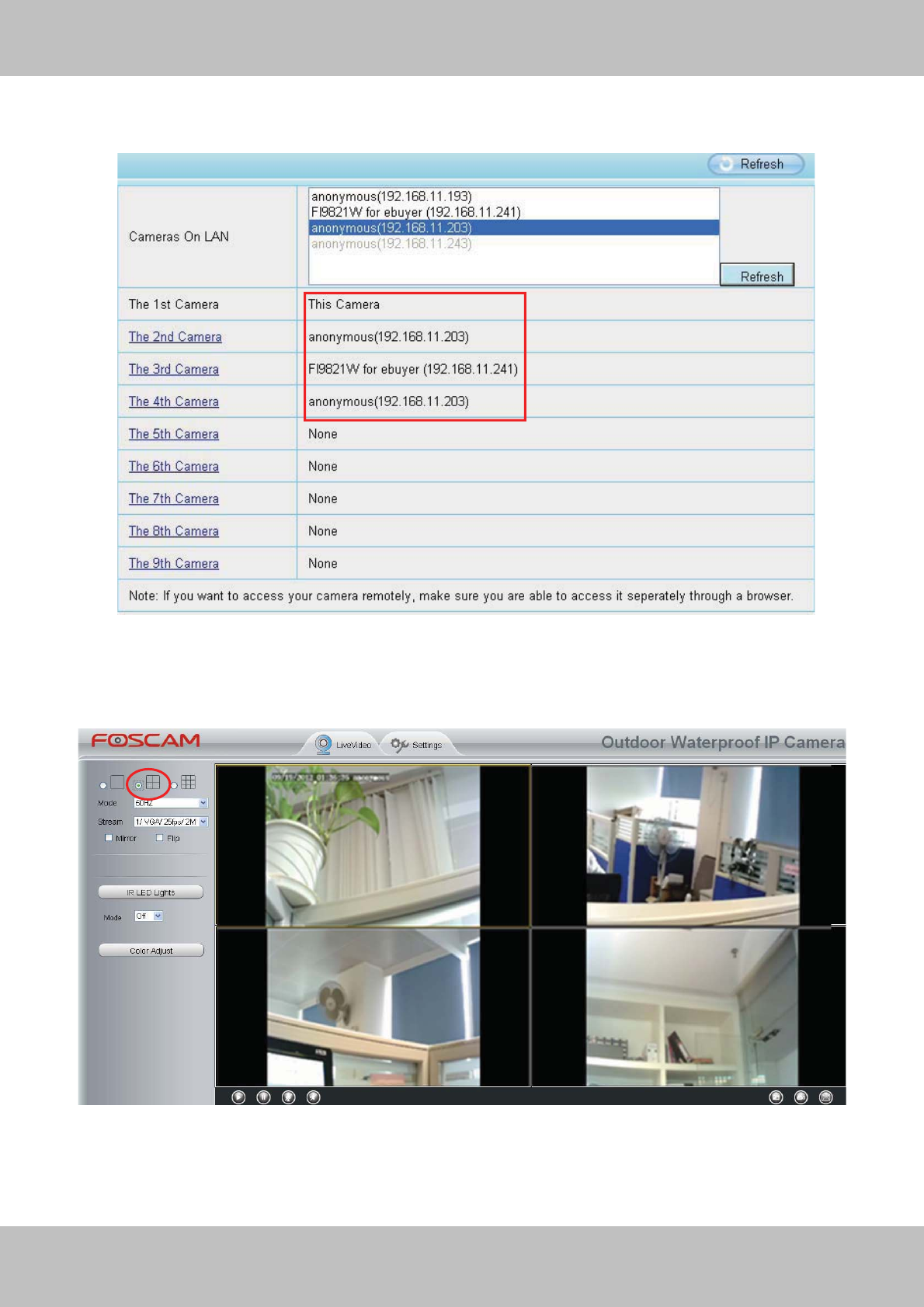

Section2 Multi-Device Window
The firmware inside the camera supports up to maximum of 9 cameras being monitoring at the
same time. You can add other cameras in multi-camera panel (read chapter 4.2.5).
1
2
4
7
3
5
6
23
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 23
Figure 3.4
Section3 Mode/ Stream / Mirror/ Flip buttons
Mode
1) 50HZ ---------Indoor surveillance (Region: Europe, China)
2) 60HZ ---------Indoor surveillance (Region: USA, Canada)
Stream
The default Stream supports four modes: 0/720P/30fps/2M, 1/VGA/25fps/4M, 2/VGA/ 15fps/ 1M
and 3/ VGA/10fps/200 The format of the stream type is Stream type no. / Resolution /
Maximum frame rate/ Bit rate
1) Stream type no. : The number is used to identify the stream type.
2) 720P/ VGA
There are two resolutions, the bigger one is 720P, and the smaller one (VGA) is 640x480 pixels.
The bigger the resolution, the better of the image quality is. If you are accessing the camera via
internet and want to get more fluent video streaming, please select resolution VGA.
3) Maximum frame rate
When the video format is 50Hz, the maximum frame rate is 25 fps. When the video format is
60Hz, the maximum frame rate is 30 fps. You should lower frame rate when the bandwidth is
limited. Normally, when the frame rate above 15, you can achieve fluently video.
4) Bit rate
Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate
configuration should combine well with the network bandwidth. When the bandwidth is very
24
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 24
narrow, and bit rate is large, that will lead to video cannot play well.

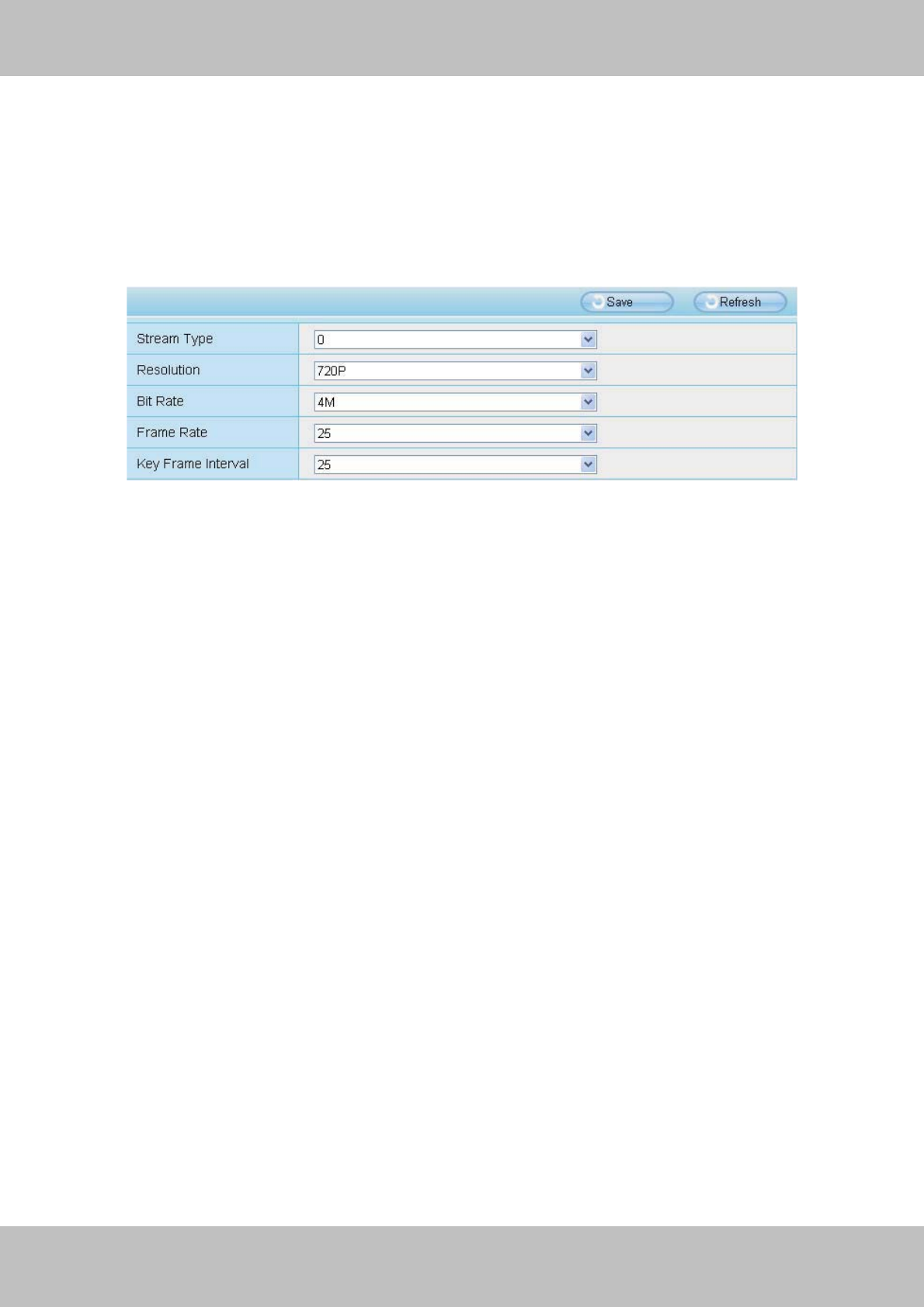

You can reset the stream type on Settings-> Video-> Settings panel( chapter 4.4.1).
After changing, please re-login the camera and you can see the modification.

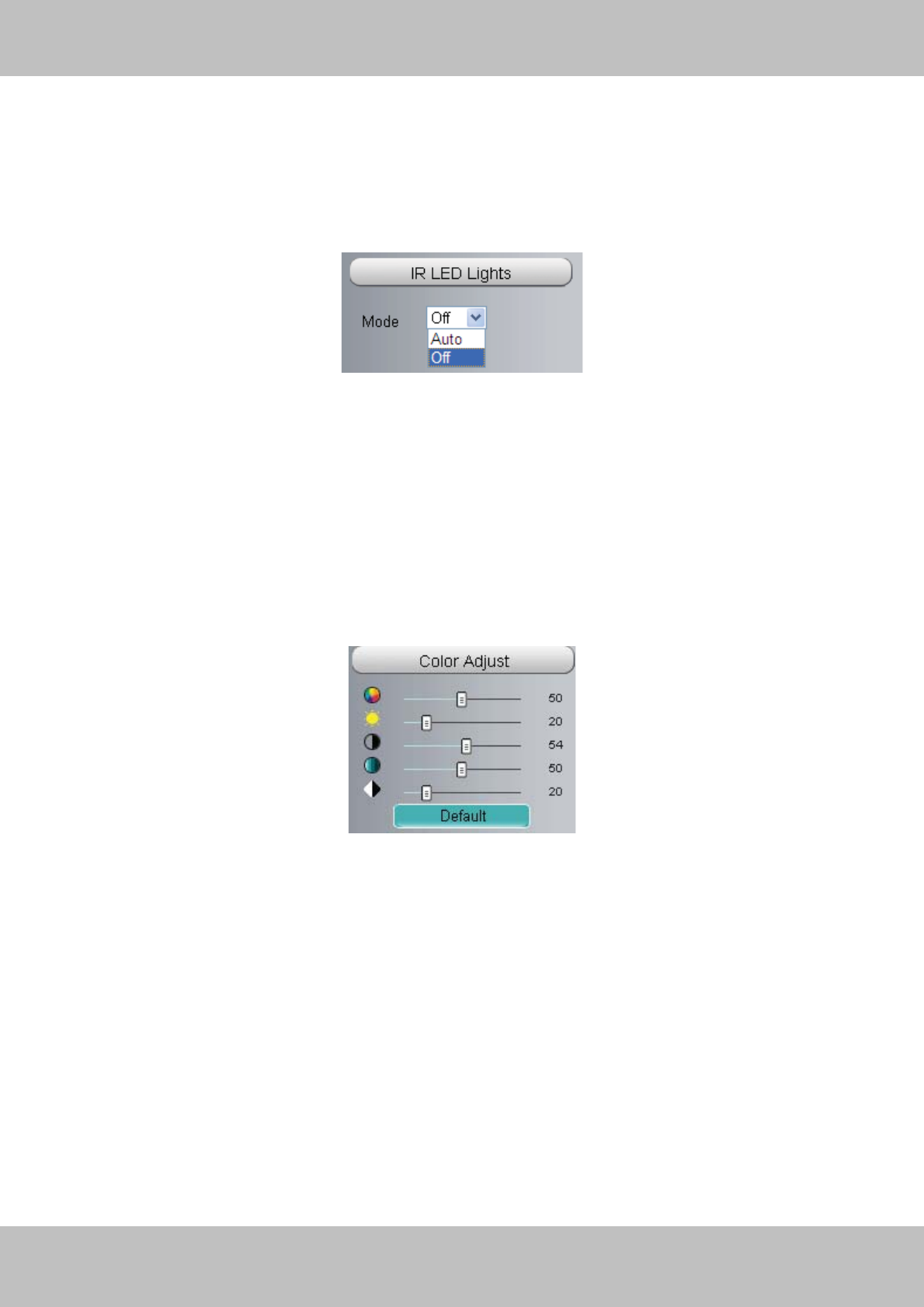

Section4 IR LED Lights
Click IR LED Lights and there are two modes to adjust the infrared led: Auto and Off . The default
mode is Auto.
Auto: Select it and the camera will adjust the infra led (on or off) automatically.
Off: Select it and turn off the infra led manually.
Section5 Image quality settings
In this page, you can tune Hue, Brightness, Contrast, Saturation, and Sharpness to get higher
quality.
Section6 OSD
If you have added time and camera name in the video, you can see it in the live window.
Go to Settings ---Basic settings---Camera name panel, and you can change another device
name. The default device name is anonymous.
Go to Settings ---Basic settings---Camera time panel and adjust the device time.
Go to Settings ---Video---On Screen Display panel, you can add or no add OSD.
25
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 25
Section7 Play/Stop/ Talk/Audio/ Snap/ Record/ Full screen button
1------Play Click it to play the video of the camera
2------Stop Click it to stop the video of the camera
3------ Talk:Click the button and the icon will become to , then talk to the microphone that
connected with PC, people around the camera can hear your voice if the camera has connected
with audio output device. Click the icon again and stop talking.
4------ Audio Click the button and the icon will become to , you can hear the sound around
the camera if the camera has connected with other audio input device through the Audio Input
port of the camera, Click the icon again and stop audio.
5----- Snap: Click it to make snapshot and it pop up a window which picture you snapshot, right
click in the window and save the picture to anywhere you want.
6----- Record:Click the icon and the camera start recording, you can see a green dot in the
live window. Click again and stop recording. The default storage path is C:\IPCamRecord. You
can change the storage path: Go to Settings- >Record-> Storage Location panel.
7------Full Screen Click it to make full-screen, or you can double click the surveillance screen
to make full-screen. Double click again and exit full-screen.
123 567
4
26
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 26

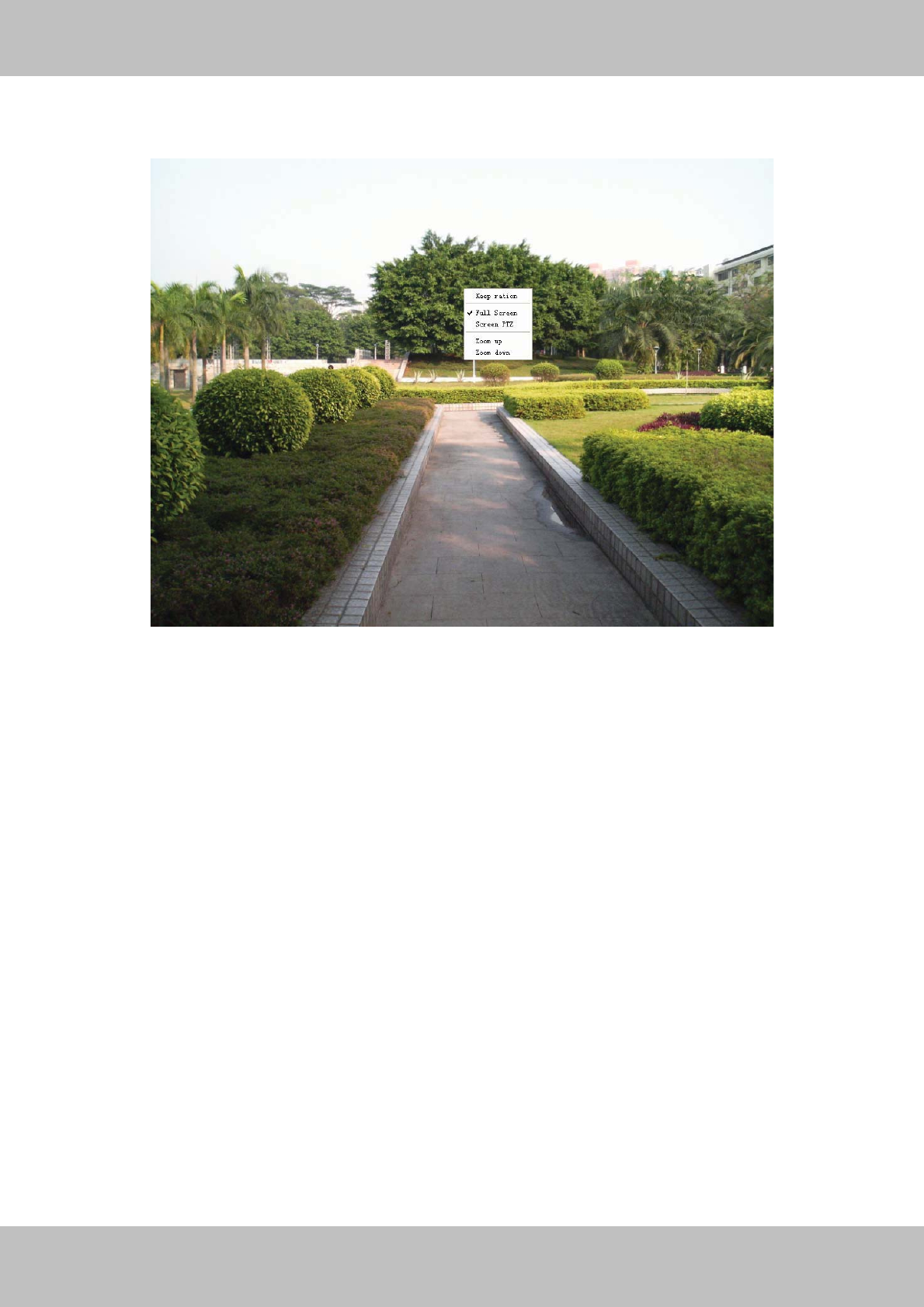

Onscreen Mouse Control
Right click the mouse and you can adjust the screen ration, full screen and Zoom up.
Figure 3.6
Keep ration: Select it and the camera will adjust the size of live window based on the computer
monitor automatically.
Sometimes there is a black border around the video (Figure 3.7), please select Keep ration to
get a better visual quality (Figure3.3).
Figure 3.7
Full Screen: Select it and Click it to make full-screen, press ESC and exit full-screen.
27
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 27
Zoom up/down: Click it and the live view will be digital zoomed up, then click Zoom Down and
the live view back to original size.
Figure 3.8
NOTE:
1This camera don’t support Pan/Tilt function, so here cannot allow to use Screen PTZ.
2For Mac OS, the plugin cannot support Onscreen Mouse function, so you cannot allow to use
it.
28
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 28
4
4Advanced
Advanced Camera
Camera Settings
Settings
Click the button “Settings”, goes to Administrator Control Panel to make advanced camera
settings.
4.1 Device Status
Device Status contains four columns: Device Information, Device Status, Session Status and
Log, it will show you various information about your camera.
4.1.1 Device Information
Figure 4.1
Camera Name: The Device Name is a unique name that you can give to your device to help you
identify it. Click Basic Settings and go to Device Name panel where you can change your camera
name. The default device name is anonymous.
Camera ID: Display the MAC address of your camera. For example Device ID is 008414350787,
the same MAC ID sticker is found at the bottom of the camera.
Camera Time: The system time of the device. Click Basic Settings and go to Camera Time
panel and adjust the time.
System Firmware version: Display the System Firmware version of your camera.
App Firmware version: Display the application firmware version of your camera.
Web version: Display the web UI version of your camera
Plug-in version: Display the plug-in version of your camera
29
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 29

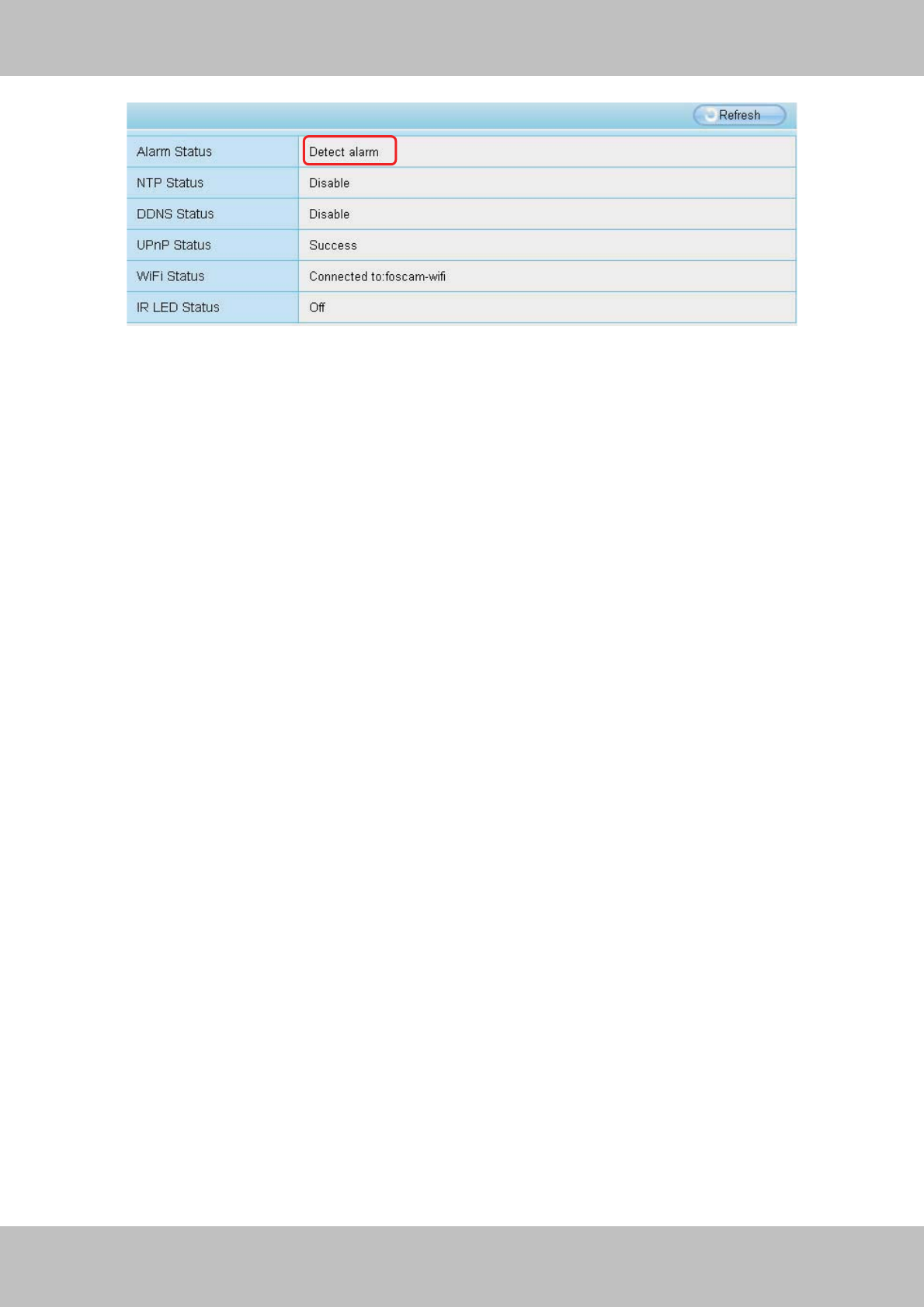

4.1.2 Device Status
On this page you can see device status such as Alarm status, NTP/DDNS status, WIFI status
and so on.
Figure 4.2
4.1.3 Session status
Session status will display who and which IP is visiting the camera now.
Figure 4.3
30
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 30
4.1.4 Log
The log record shows who and which IP address accessed or logout the camera and when.
Figure 4.4
Click the page number and go to the
corres
p
ondin
g
p
a
g
e to see more lo
g
s
Fill in one page number, click Go button
and
g
o to the corres
p
ondin
g
p
a
g
e
31
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 31
4.2 Basic Settings
This section allows you to configure your Camera Name, Camera Time, Mail, User Accounts and
Multi-Device.
4.2.1 Camera Name
Default alias is Anonymous. You can define a name for your camera here such as apple. Click
Save to save your changes. The alias name cannot contain special characters.
Figure 4.5
4.2.2 Camera Time
This section allows you to configure the settings of the internal system clocks for your camera.
Figure 4.6
Time Zone: Select the time zone for your region from the dropdown menu.
Sync with NTP server: Network Time Protocol will synchronize your camera with an Internet
time server. Choose the one that is closest to your camera.
Sync with PC: Select this option to synchronize the date and time of the Network Camera with
your computer.
Manually: The administrator can enter the date and time manually. Please select the date and
32
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 32
time format.
Click Save button to submit your settings.
4.2.3 Mail Settings
If you want the camera to send emails when motion has been detected, here Mail will need to be
configured.
Figure 4.7
1----- SMTP Server/ Port /Transport Layer Security Enter SMTP server for sender. SMTP
port is usually set as 25. Some SMTP servers have their own port, such as 587 or 465, and
Transport Layer Security usually is None. If you use Gmail, Transport Layer Security must be set
to TLS or STARTTLS and SMTP Port must be set to 465 or 25 or 587, which port you choose
should be decided by which Transport Layer Security you select.
2-----SMTP Username/ password: ID account and password of the sender email address
3----- Sender E-mail Mailbox for sender must support SMTP
4----- Receiver Mailbox for receiver need not support SMTP, you can set 4 receivers
5----Save Click Save to take effect
6----Te st Click Test to see if Mail has been successfully configured.
Click Test to see if Mail has been successfully configured.
1
2
3
4
5
6
33
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 33
Figure 4.8
If the test success, you can see the Success behind the Test, at the same time the receivers will
receive a test mail.
Figure 4.9
If the test fails with one of the following errors after clicking Test, verify that the information you
entered is correct and again select Test .
1) Cannot connect to the server
2) Network Error. Please try later
3) Server Error
Test result
34
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 34
4) Incorrect user or password
5) The sender is denied by the server. Maybe the server need to authenticate the user, please
check it and try again
6) The receiver is denied by the server. Maybe because of the anti-spam privacy of the server
7) The message is denied by the server. Maybe because of the anti-spam privacy of the server
8) The server does not support the authentication mode used by the device

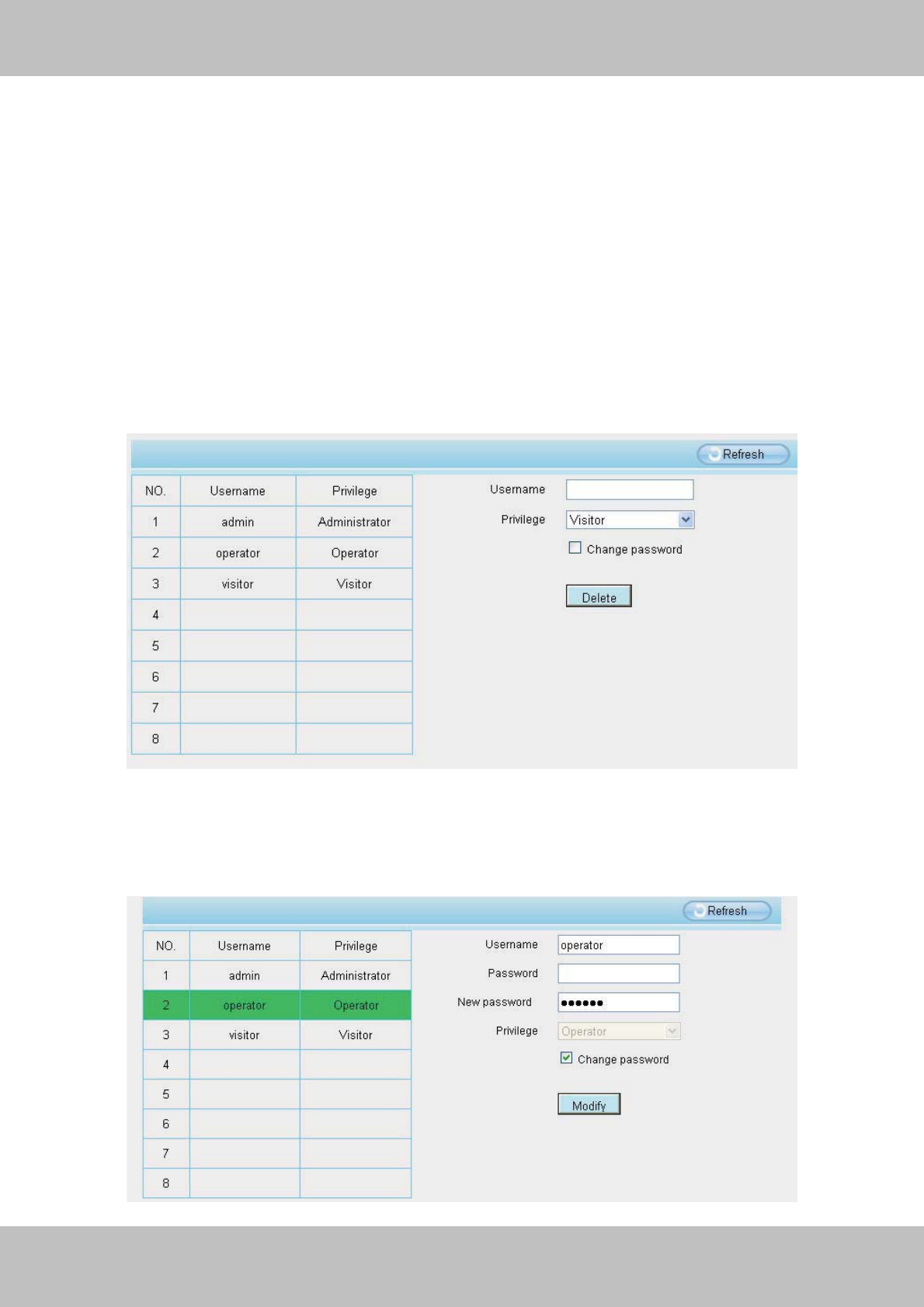

4.2.4 User Accounts
Here you can create users and set privilege, visitor,operator or administrator. The default
administrator user accounts are admin with a blank password.
Figure 4.10
How to change the password?
Firstly, select the account which you want to change the password, then select “Change
password”, enter the old password and the new password, lastly click modify to take effect.
35
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 35
Figure 4.11

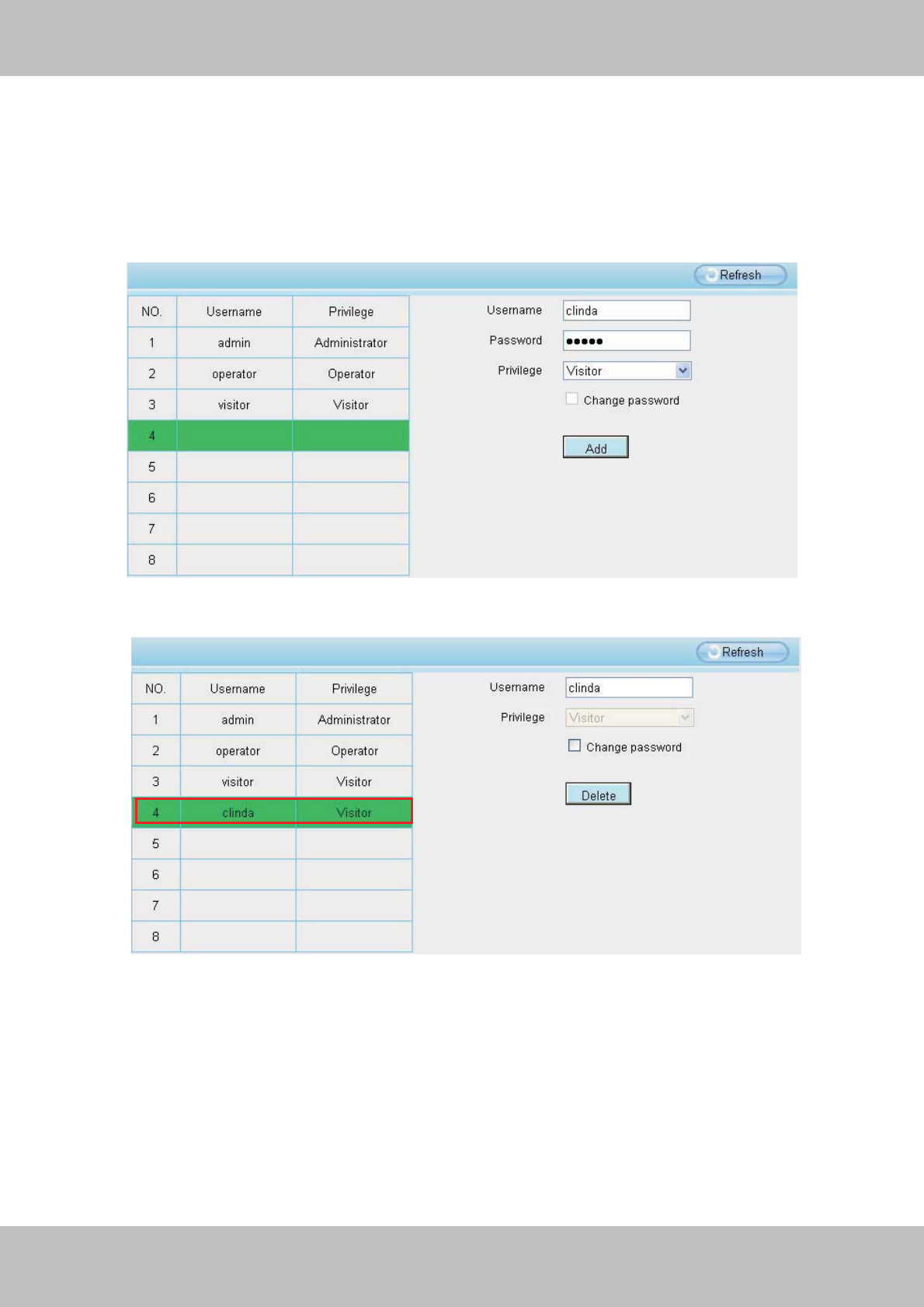

How to add account ?
Select one blank column, then enter the new user name, password and privilege, last click Add
to take effect. You can see the new added account on the Account list.
Figure 4.12
Figure 4.13
Delete Select the account which you want to delete, then click Delete button to take effect.
Note: The default administrator account cannot be deleted, but you can add other administrator
users.
36
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 36
4.2.5 Multi-Camera
If you want to view multi-surveillance screens on one window, you need to login one camera, and
set it as the main device, and do Multi-Device Settings, add other cameras to the first one
camera. Before you do multi-cams settings, you need to assign different port such as 81, 82, 83,
84, 85, 86, 87, 88 to the cameras if there is 8 cams installed.
The firmware within the camera can support a maximum of 9 devices monitoring all at the same
time. This page you can both add FOSCAM MJPEG and H.264 series cameras to the first
camera and view multi-surveillance screen on one window.
Add cameras in LAN
In Multi-Device Settings page, you can see all devices searched in LAN. The 1st Device is the
default one. You can add more cameras in the list in LAN for monitoring. The camera’s software
supports up to 9 IP Cameras online simultaneously. Click The 2nd Device and click the item in
the Device List in LAN, the Alias, Host and Http Port will be filled in the boxes below
automatically. Enter the correct username and password then click Add. Add more cameras in
the same way.
Figure 4.14
Camera Model: Our Company produces two series cameras: MJPEG and H.264. Here will show
1 Click it, camera model, alias,
host and HTTP Port will be
filled in the following boxes
automatically
2 Enter the User name and
password of the 2nd camera
3 Click Add to take effect
1 Click it, camera model, alias,
host and HTTP Port will be
filled in the following boxes
ill
2 Enter the User name and
password of the 2nd camera
3 Click Add to take effect
37
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 37
you which series the camera belongs to.
Figure 4.15
Back to Surveillance Windows, and click Four Windows option, you will see four cameras you
added.
Figure 4.16
38
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 38
Figure 4.17
Add cameras in WAN
If you want to view all cameras via the internet(remote computer), you will need to add them
using DDNS domain name. Firstly, make sure all of the cameras you added can be accessed
through the internet. (Read How to configure DDNS settings in chapter 4.3.3)
Login to the first camera using a DDNS domain name and port.
Figure 4.18
Use DDNS domain name and
p
ort to lo
g
in
Make sure each camera you need add
could login with DDNS name and port
39
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 39
Click Multi-Device Settings. Choose The 2nd Device. Fill in the 2nd camera’s name, DDNS
domain name, port number. Enter user name and password and then choose Add. (Figure 3.19)
Figure 4.19
1----- The camera model: MJ or H264.
2----- The 2nd camera’s name
3----- Fill in the 2nd camera’s DDNS host not LAN IP
NOTE: The FI89s series have the same HTTP Port no. and Media Port no.
4 ---- Enter the 2nd camera’s user name and password
5---- Click Add button and to take effect
NOTE: Here the Host must be entered as the second camera’s DDNS domain name, not its LAN
IP.
2
3
4
5
1
40
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 40
Figure 4.20
Return to video window. You will see all of the cameras accessible through the internet.
When you are away from home, you can use the first camera’s DDNS domain name and port to
view all the cameras via internet.
Figure 4.21
41
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 41
4.3
4.3 Network
Network
This section will allow you to configure your camera’s IP, PPOE, DDNS, Wireless Settings, UPnP
and Port.
4.3.1IP Configuration
If you want to set a static IP for the camera, please go to IP Configuration page. Keep the
camera in the same subnet of your router or computer.
Figure 4.22

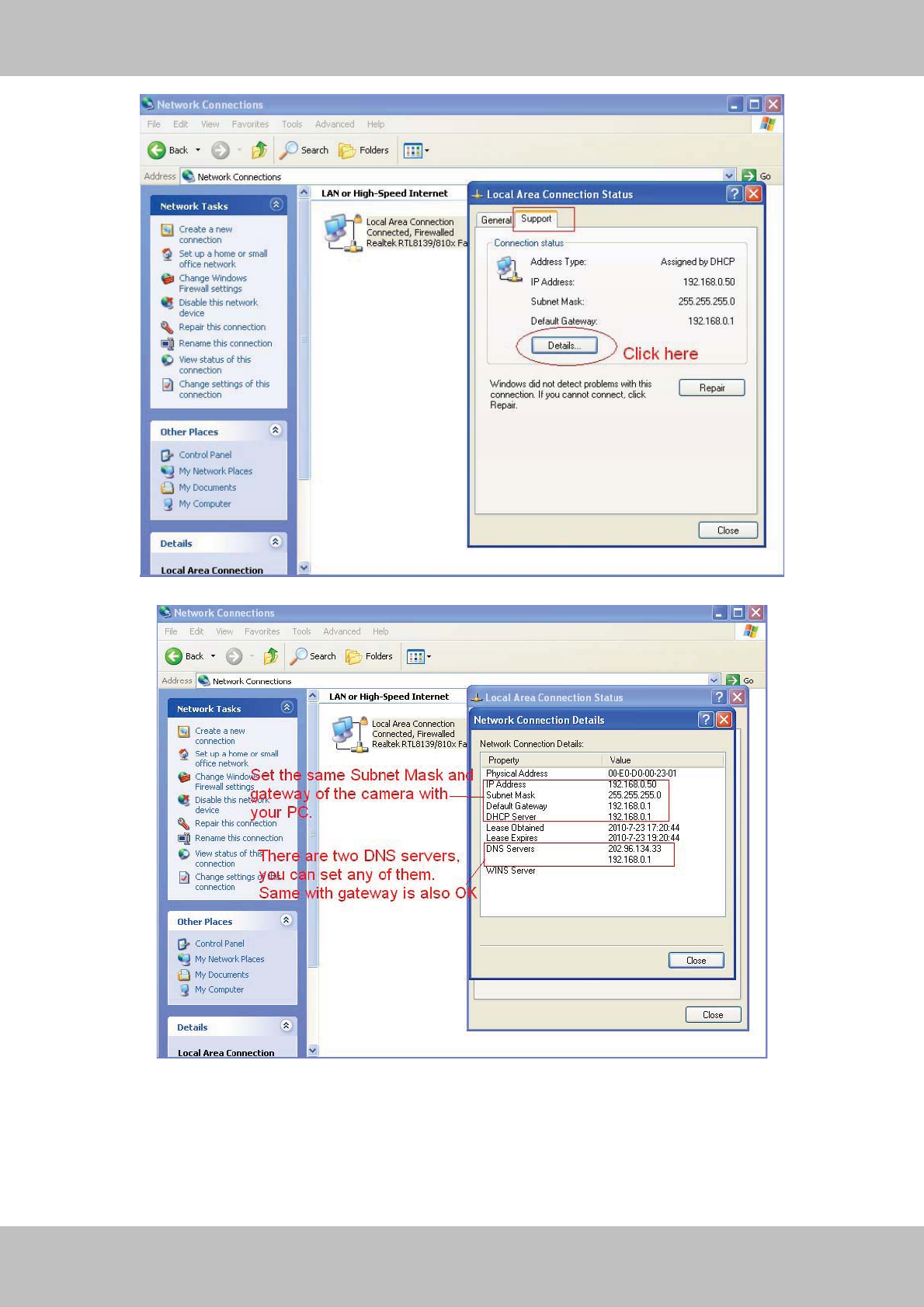

Changing settings here is the same as using the IP Camera Tool. (Figure 4.23/4.24)
It is recommended that you use the subnet mask, gateway and DNS server from your locally
attached PC. If you don’t know the subnet mask, gateway and DNS server, you can check your
computer’s local area connection as follows:
Control Panel ÆNetwork Connections ÆLocal Area Connections ÆChoose
SupportÆDetails.
42
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 42
Figure 4.23
Figure 4.24
If you don’t know the DNS server, you can use the same settings as the Default Gateway.
43
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 43
4.3.2 PPPoE
If you are using a PPPoE connection, enable it and enter the User Name and Password for your
PPPoE account.
Figure 4.25
4.3.3 DDNS
FOSCAM camera has embedded a unique DDNS domain name when producing, and you can
directly use the domain name, you can also use the third party domain name.
FOSCAM domain name
Here take test09.myfoscam.org for example. Go to option of DDNS on the Settings->Network
panel, you can see the domain name.
Figure 4.26
Now you can use http:// Domain name + HTTP Port to access the camera via internet.
Take hostname test09.myfoscam.org and HTTP Port no. 8000 for example, the accessing link
of the camera via internet would be http:// test09.myfoscam.org:8000
Restore DDNS to factory: If you have configured Third Party DDNS successfully, but you want
to use Manufacturer’s DDNS again , here click this button and start Manufacturer’s DDNS
Service.
44
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 44
Third Party Domain Name Settings
User can also use third part DDNS, such as www.no-ip.com. ,www. 3322.com
Here take www.no-ip.com for example:
ķ
Step 1, Go to the website www.no-ip.com to create a free hostname
Firstly: Login on www.no-ip.com and click No-IP Free to register.
Figure 4.27
Please register an account step by step according to instructions on www.no-ip.com
After registration, please login your email which used to register. You will receive an email from
website, please click the link to activate your ACCOUNT as indicated in email.
Secondly: Login the link with the registered username and password to create your
domain name.
Click here to register
45
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 45
Figure 4.28
Figure 4.29
Please create the domain name step by step according to instructions on www.no-ip.com
Step 2, DO DDNS Service Settings within the Camera
Please set DDNS Settings within the camera by hostname,auser name and password you’ve
got from www.no-ip.com
Take hostname ycxgwp.no-ip.info,user name foscam,password foscam2012 for example.
46
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 46
Firstly,goes to option of DDNS Settings on the administrator panel.
Secondly,select No-Ip as a server.
Thirdly,fill foscam as DDNS user, fill password foscam2012 as DDNS password, fill
ycxgwp.no-ip.info as DDNS domain and server URL, Then click save to make effect. The
camera will restart and to take the DDNS settings effective.
Fourthly,after the restart, login the camera, and go to option of Device Status on the
administrator panel, and check if the DDNS status is successful.
If failed, please double check if you have input the correct hostname, user name, and
password, and try to redo the settings.
If you have set Third Party DDNS successfully ,the Foscam Domain Name will be invalid. The
Third Party DDNS and the Foscam Domain Name cannot work at the same time, the last time
you configured will take effect.
ĸ
Do port forwarding within the router
Example: The camera’s LAN IP address is http://192.168.8.100:2000
Firstly, login the router, goes to the menu of Port Forwarding or Port Trigger (or named Virtue
Server on some brands of router). Take Linksys brand router as an example, Login the
router, and goes to Applications & Gaming->Single Port Forwarding.
Secondly, Create a new column by LAN IP address & HTTP Port No. of the camera within the
router showed as below.
Note
47
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 47
Figure 4.30
Ĺ
Use domain name to access the camera via internet
After the port forwarding is finished, you can use the domain name+ http no. to access the
camera via internet. Take hostname ycxgwp.no-ip.info and http no. 2000for example, the
accessing link of the camera via internet would be http:// ycxgwp.no-ip.info:2000
Fill the LAN IP of the camera
here, just input the last section
48
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 48
4.3.4WiFi
Step 1: Choose “Settings” on the top of the camera interface, and go to the “Network” panel on
the left side of the screen,then click “Wireless Settings.”
Click the Scan button and the camera will detect all wireless networks around the area. It should
also display your router in the list (Figure 4.31).
Figure 4.31
Step 2: Click the SSID (name of your router) in the list, the corresponding information related to
your network, such as the name and the encryption, will be filled into the relevant fields
automatically.
You will only need to fill in the password of your network. Make sure that the SSID, Encryption
and the password you filled in are exactly the same for your router.
Click the Page number to see other wireless
networks devices if there are more than 10.
Click the Scan button
to search for wireless
networks.
49
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 49
Figure 4.32
Step 3: Please click on the Save button after all settings have been entered and disconnect the
network cable. Never shut down the power of the camera until the IP camera is able to connect
to the wireless network.
The LAN IP address will disappear on the window of IP Camera Tool when the camera is
configuring a wireless connection. Wait about 1 minute, the camera should obtain a wireless
connection, and the LAN IP of the camera will show again on the window of the IP Camera Tool.
The IP address may have changed after the camera receives a wireless connection; we
recommend setting a static local IP address if this IP address changes by right clicking the
camera in IP Camera Tools, setting a static IP, and pushing OK (see Figure3.35/3.36).
Congratulations! You have set up the wireless connection of the camera successfully.
If you fail to make a wireless connection, please refer to your seller or
contact us directly for assistance.
Note
1 Click the SSID of your router
and the relevant information
will be filled in the fields
automatically.
2Enterthe
password of
your router
50
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 50
4.3.5 UPnP
The default UPnP status is closed. You can enable UPnP, then the camera’s software will be
configured for port forwarding. Back to the “Device Status” panel, you can see the UPnP status:
Figure 4.33
The camera’s software will be configured for port forwarding. There may be issues with your
routers security settings, and sometimes may error. We recommend you configure port
forwarding manually on your router (Figure 4.30).
4.3.6 Port
This camera supports HTTP Port / Media Port / HTTPS Port. The Media port is used to view the
camera’s video stream, HTTP Port is used to access the camera remotely. Here HTTP and
Media port share the same port.
HTTP port / Media port: By default, the HTTP and Media port is set to 88. Also, they can be
assigned with another port number between 1 and 65535. But make sure they canl not be
conflict with other existing ports like 25, 21.
Figure 4.34
51
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 51
Another way to change the HTTP port no.
Step 1: Open the IP Camera Tool, select the camera you would like to change the port of, right
click on the IP address, and click on ”Network Configuration”, this brings up the network
configuration box as shown in Figure 4.35 and 4.36.
Figure 4.35
Figure 4.36
Step 2: Enter the username and password of the Administrator (default username is admin with
a blank password), and click “OK” to apply changes.
Step 3: Wait around 10 seconds, you’ll see that the camera’s LAN IP address has changed. In
our example it was changed to 2000, so we see http://192.168.8.102:2000 in IP Camera Tool.
Also, the LAN IP address is now fixed at a static IP address of http://192.168.8.102:2000. This IP
address will not change even if the camera is powered off and back on, the camera will remain
on this LAN IP address. This is very important that a static LAN IP address is set, or you may
Select which camera
you’d like to change the
port for, and right click
Modify the Http Port.
Enter the Username and
p
assword
,
click O
K
.
52
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 52
have problems later with remote access and seeing the camera remotely if the camera loses
power and reconnects on a different LAN IP address. Make sure you set a static LAN IP address!
Note: 1 Http port and Media port must be different.
2 If the camera cannot be accessed, please make sure the port forwarding is succeed.
HTTPS port: The default port is 443. You can use the url to access the camera: https:// IP +
HTTPS port.
Sometimes you need to add the url to the Trusted Sites,
Open Internet Explorer if it is not already opened. Click on Tools, then click Internet Options.
Next, click the Security tab, then click the Trusted sites button.
53
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 53
RTSP function
RTSP URL rtsp:// [user name][:password]@IP:HTTP port number/videosream
The part in the square brackets may be omitted.
user name & password:
The user name and password to access the camera. This part can be omitted.
IP:
WAN or LAN IP address.
Videostream:
Here support three mode: videoMain, videoSub and audio. When the network speed is bad, here
you had better select videoSub. If you select audio, you can only hear the sound but cannot see
the video.
For example:
IP: 192.168.1.11
HTTP Port number: 88
User name: admin
Password: 123
Here I can enter one of the following URLs in the VLC.
5) rtsp://admin:123@192.168.1.11:88/videoMain
6) rtsp:// @192.168.1.11:88/videoMain
54
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 54
7) rtsp://:123@192.168.1.11:88/videoMain
8) rtsp://admin@192.168.1.11:88/videoMain
Open the VLC, and go to MediaÆOpen Network Stream option, then enter the URL into VLC.
Sometimes you may need to enter the user name and password again. Click OK and you can
see the real-time preview.
55
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 55
If you cannot play the video in the VLC player, please check the port mapping. You can read
Quick Installation Guide about How to configure port forwarding.
NOTE:
If you modify the camera’s username or password, you had better reboot the camera, or else the
new username and password cannot take effect when you enter the authentication in the VLC.
56
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 56
4.4 Video
This section allows you to configure Video stream settings, On screen display and Snapshot
settings.
4.4.1 Settings
Figure 4.37
Stream type: There are four types to identify different streams you have set.
Resolution: The camera supports two types: 720P, VGA. The higher the resolution is, the
clearer video will become. But the code flux will become larger too, and it will take up more
bandwidth.
Bit rate: Generally speaking, the larger the bit rate is, the clearer video will become. But the bit
rate configuration should combine well with the network bandwidth. When the bandwidth is very
narrow, and bit rate is large, that will lead to video can not play well.
Frame rate: Note that a larger frame size takes up more bandwidth. When the video format is
50Hz, the maximum frame rate is 25 fps. When the video format is 60Hz, the maximum frame
rate is 30 fps. You should lower frame rate when the bandwidth is limited. Normally, when the
frame rate above 15, you can achieve fluently video.
Key Frame Interval: The time between last key frame and next key frame. The shorter the
duration, the more likely you will get a better video quality, but at the cost of higher network
bandwidth consumption.
57
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 57
4.4.2 On Screen Display
This page is used to add timestamp and device name on the video.
Figure 4.38
Display timestamp: There are two options: Yes or NO. Select Yes and you can see the system
date on the video,
Display device name: There are two options: Yes or NO. Select Yes and you can see the
device name on the video,
Allow osd mask: There are two options: Yes or NO. Select yes and draw a mask area on the
video, the mask area will be black on the video.
Figure 4.39
Click Back button and return to the OSD page, click Save to take effect.
Back to the surveillance window, you can see the mask area as the following picture:
Th
e
m
as
k
a
r
ea
58
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 58
Figure 4.40
4.4.3 Snapshot Settings
On this page you can set the snapshot pictures’ image quality and the storage path.
Figure 4.41
Image Quality: Low, Middle and High. The higher the quality, the picture will be clearer.
Save Path: FTP. If you have done FTP and Alarm settings, when alarming, the camera will snap
pictures to the FTP automatically.
59
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 59
4.5 Alarm
IP Camera supports Motion Detection Alarm, when the motion has been detected, it will send
emails or upload images to FTP.
Figure 4.42
To enable motion detection, follow the steps below:
1Enable Motion detection
2 Sensitivity---- It supports three modes: Low, Middle and High. The higher the sensitivity, the
camera will be more easily alarmed. Select one motion sensitivity.
3 Trigger interval--- The interval time between two motion detections. Here supports
5s/6s/7s/8s/9s/10s/11s/12s/13s/14s/15s. Select one interval time.
5 Select the alarm indicators
When the motion has been detected, the alarm status will turn to Detect alarm.
1
2
3
4
6
5
7
60
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 60
There are three alarm indicators:
ARing
If the camera has connected with a speaker or other audio output device, if you select Ring,
when the motion has been detected, the people around the camera will hear beep alarm sound.
B Send Mail
If you want to receive alarm emails when motion is detected, you must select Send Mail and set
Mail Settings first. The alarm email cannot contain the alarm picture if you have not selected
Snap picture.
CSnappicture
If you select this checkbox, when the motion has been detected, the camera will snap the live
view window as a still picture and load it to the FTP. If you select Send Email, at the same time
the picture will be send to you as an attachment. Make sure you have set FTP and set FTP as
the storage path in Video->Snapshot Settings panel.
Capture interval: The interval time between two pictures.
5 Set detect area
Click set detect area and it pop up a window, then you can draw the detection area. Click Back
button after settings. When something moving in the detection area, the camera will alarm.
61
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 61
Figure 4.43
6 Alarm Schedule
ķAlarm anytime when motion is detected
Click the black button up the MON, you will see all time range turn red. When something moving
in the detection area at anytime, the camera will alarm.
Figure 4.44
ĸSpecify an alarm schedule
Click the week day words, the corresponding column will be selected. For example, click TUE,
the all column of TUE turns to red, that means during Tuesday whole day, when something
Click this button and select all time range
62
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 62
moving in the detection area, the camera will alarm
Figure 4.45
ĹPress the left mouse and drag it on the time boxes, you can select the serial area,
Figure 4.46
7Click Save button to take effect. When the motion is detected during the detection time in the
detection area, the camera will alarm and adopt the corresponding alarm indicators.
NOTE: You must set the detection area and detection schedule, or else there is no alarm
anywhere and anytime.
63
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 63
4.6 Record
On this page you can change the manually recording storage path, the default storage path is
C:\IPCamRecord.
Figure 4.47
4.7Path Settings
If you want to upload record images to your FTP serverˈyou can set FTP Settings.
Figure 4.48
64
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 64
Figure 4.49
FTP server: If your FTP server is located on the LAN, you can set as Figure 4.48.
If you have an FTP server which you can access on the internet, you can set as Figure 4.49.
Port: Default is port 21. If changed, external FTP client program must change the server
connection port accordingly.
FTP Mode: Here supports two modes: PORT and PASV.
Username/password: The FTP account and password.
Click Save to take effect.
Click Test to see if FTP has been successfully configured.
65
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 65
4.8 Firewall
This section explains how to control the access permission by checking the client PC’s IP
addresses. It is composed of the following columns: Block access from these IP addresses
and Only allow access from these IP addresses.
Figure 4.50
Enable firewall, If you select Only allow access from these IP addresses and fill in 8 IP addresses
at most, only those clients whose IP addresses listed in the Only allow access from these IP
addresses can access the Network Camera. If you select Block access from these IP
addresses, only those clients whose IP addresses are in the IP list cannot access the Network
Camera.
Click Save to take effect.
66
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 66
4.9System
In this panel, you can back up/restore your camera settings, upgrade the firmware to the latest
version, restore the camera to default settings and reboot the device.
4.9.1 Back up& Restore settings
Click Backup to save all the parameters you have set. These parameters will be stored in a bin
file for future use.
Click Browse and select the parameters file you have stored, then click Submit to restore the
restore the parameters.
Figure 4.51
4.9.2 System upgrade
Click Browse, choose the correct bin file( System firmware or Web UI) and then click System
upgrade.
Don’t shut down the power during upgrade. After upgrading, you can see the upgrade result.
Figure 4.52
If you want to verify the firmware version of you camera, please go to Device Status-ÆDevice
Information Page to check
67
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 67
Upgrade Firmware by IP Camera Tool
Double click the IP Camera Tool shot icon , select the Camera IP that you want to
upgrade the firmware. Then select Upgrade Firmware and enter the username and password,
choose the firmware file, and upgrade.
Figure 4.53
Figure 4.54
CAUTION: If your camera works well with the current firmware, we recommend not upgrading.
Please don’t upgrade the firmware unnecessarily. Your camera may be damaged if
misconfigured during an upgrade.
NOTE:
1) Don’t upgrade the firmware through the web UI in WAN, or else the upgrade may be falied.
2) Please ensure you have download the correct firmware package for your camera before
Enter the User name and
password
68
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 68
upgrading. Read the upgrade documentation (readme.txt file) in the upgrade package before
you upgrade.
3) Upon downloading the firmware check the sizes of the .bin files. They must match the size in
the readme.txt file. If not, please download the firmware again until the sizes are the same.
Your camera will not function correctly if a corrupt .bin file is used.
4) Normally, only Device WEB UI need to be upgrade, please do not try to upgrade the Device
Firmware.
5) Never shut down the power of the camera during upgrade until the IP camera restart and get
connected.
6) After upgrade successfully, please clear the cache of browser, uninstall the old plugin and
re-install it, then reset the camera to the default factory settings before using the camera.
4.9.3Factory Reset
Click Factory Reset button and all parameters will return to factory settings if selected.
Figure 4.55
4.9.4 Reboot System
Click Reboot System to reboot the camera. This is similar to unplugging the power to the
camera.
Figure 4.56
69
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 69
5
5Phone
Phone APPs
APPs
With Phone APPs , you can view your camera directly as a computer anywhere, anytime.
This section shows the user how to set up the iPhone, and Android mobile phones to view
Foscam cameras with Phone APPs.
5.1 APP for Android cell phones
There are two ways to install the phone App :
1) Search the APP “Foscam ip cam viewer” in the Google Play directly if your cell phone has
installed Google Play.
Figure 5.1
Download and install the phone view app, then you can see the shortcut icon in your cell
phone screen.
2) Enter http://play.google.com in the URL field of the browser, then search the APP “Foscam ip
cam viewer”. Download and install the APP.
70
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 70
Click the shortcut icon and login Phone APP.
Figure 5.2
Enter the user name and password then click Login button, you can see the following
surveillance windows:
Figure 5.3
Default user name is admin
with a blank
p
assword
1
2
3
71
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 71
The default surveillance window is black, you need to add devices to it and then connect the
device.
Please check the login window above, it was divided to 3 sections from no. 1 to 3.
Section1 Exit / Go to Device List Buttons
Click this icon and exit Phone App
Click this icon and back to Device List page to add cameras to the software
Section2 Live view window
If the camera supports PT function, here slide on the screen with your finger, the camera will
rotate follow your finger direction.
Section3 Playback/ Snapshot/Audio/Talk buttons
Playback Click this icon to play the pictures you have captured.
Snapshot Click it to make snapshot.
Audio button Click it and you will hear sound captured by the camera’s built-in
microphone. Make sure the camera supports Audio. Click the icon again and stop Audio.
Talk button Click it then talk through your cell phone’s microphone which will transmit
through the camera’s speaker.People will hear your talking through the camera’s built-in
speaker. Make sure the camera supports Talk.
Click the icon again and stop talking.
72
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 72
How to add cameras to the Phone APP
The following steps are required before adding cameras to the APP:
1˅Install the IP Camera(s) which wants to be monitored.
2˅Login the IP Camera(s) by web browser and set the IP address, port, username & password
and make sure the camera can be accessed by browsers.
3˅DDNS setting is a plus whenever you want to add the devices by WAN.
Click the button and go to Device List page, this section will show you how to add
cameras in LAN or in WAN.
Figure 5.4
Section1 Back button
:Click this icon and back to the surveillance window
Section2 Device List
Here will list all cameras that added to the software.
1
2
3
73
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 73
Section3 Add device buttons
Add device in LAN
: Click this icon and the APP will search all cameras in LAN automatically. Such as the
following screen:
Figure 5.5
Select the camera IP and click OK to add cameras in LAN, then you can see the camera in the
Device List.
Add device through scanning UID (User Identification) number
:UID Scan. Click this icon and scan the UID no. in the camera body, then the camera can
be added to the App.
74
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 74
Figure 5.6
Normally each camera has one unique UID and UID is used for PnP function. Now our camera
does not support UID number, so here you cannot allow to use UID to add device.
Add device in WAN
: Click this icon and you can add cameras in WAN manually.
Click this icon and it pops up the following screen, here you can add cameras manually.
75
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 75
Figure 5.7
Camera Type: Our Company produces two series cameras: MJ and H.264. Here select the
camera type that you want to add.
Camera name: The Camera name is a unique name that you can give to your device to help you
identify it.
IP address: Fill in the camera’s DDNS host or WAN IP not LAN IP.
Stream type: It has two types: Main stream and Sub stream. For cell phones, we recommend
you to select Sub stream to get more fluent video.
Http / Media port: For MJ cameras, here share the same port.
User name &Password: The camera’s user name and password.
UID: If your camera supports UID, here you may fill in the UID no.. Now FOSCAM camera does
not support UID.
76
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 76
Click the icon to add camera then you can see the camera in the Device List.
.
Select one IP address and click it, then you can enter the surveillance window.
Select one IP address in the Device List and press it for a moment, it pop up the following
screen:
Figure 5.8
Edit:
Re- edit the camera’s information, such as the Http / Media port, user name and password,
and so on. Click Edit and you can go to Add camera page (Figure 5.7).
Delete device:
Delete the camera from the Device List.
77
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 77
5.2 APP for iPhones
If you use iPhone, please search the APP “Foscam ip cam viewer” and install it through APP
Store, then you can see the shortcut icon in your cell phone screen.
Click the icon and you can go to “ipcam table” page directly:
Figure 5.9
The default device list is null, you need to add cameras to it.
Section1 Camera list
Here will list all cameras that added to the software.
Section2 ipcam table/ add ipcam buttons
Click this icon and back to ipcam table page, here you can see all cameras that have
added to the software.
1
2
78
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 78
: Click this icon and back to add ipcam page, here you can add cameras in LAN or in
WAN to the software.
How to add cameras to the APP
The following steps are required before adding cameras to the App:
1) Install the IP Camera(s) which wants to be monitored.
2) Login the IP Camera(s) by web browser and set the IP address, port, username & password
and make sure the camera can be accessed by browsers.
3˅DDNS setting is a plus whenever you want to add the devices by WAN.
If you want to add cameras to the App, please click this icon go to “add ipcam”
page(Figure 4.10).
Figure 5.10
Click this icon and go to “add
i
p
cam”
p
a
g
e
79
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 79
Add device in LAN
Click this button and the APP will search all cameras in LAN, then add it to APP
automatically .
Figure 5.11
There is a icon after the camera name, click it and you can enter the user name, password
and web port to login the camera.
Figure 5.12
Add device in WAN
Step 1: Click the Add Camera icon to add cameras manually.
Step 2: Select the camera type: mjpeg or h.284 (Figure 4.13), then enter the camera’s basic
information like camera name , ip , http/media port, user name, password and so on(Figure
4.14).
Figure 5.13
The cameras in LAN can
be searched and added to
APP automatically
80
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 80
Figure 5.14a Add H.264 Device Page
Figure 5.14b Add MJPEG Device Page
UID: If your camera supports UID, here you scan UID number. Now FOSCAM camera does not
support UID.
Device name: The Device name is a unique name that you can give to your device to help you
identify it.
IP address: Fill in the camera’s DDNS host or WAN IP not LAN IP.
User &Password: The camera’s user name and password.
Media / Web port: For MJPEG cameras, here only support web port.
81
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 81
Stream type: It has two types: Main stream and Sub stream. For cell phones, we recommend
you to select Sub stream to get more fluent video.
Step 3: Click Add button to add cameras, then you can see the camera name in the “ip
cam table” page.
Figure 5.15
Surveillance windows
Back to “ipcam table” page and you can see all cameras that have added. There is a icon
after one camera name, click this icon and you can alter the camera’s user name, password,
media port and http port.
Figure 5.16
82
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 82
Figure 5.17
Click one camera ip and you can see the live video.
Figure 5.18
Please check the login window above, it was divided to 4 sections from no. 1 to 4.
12
3
4
83
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 83
Section1 Back Button
: Click this icon and back to “ipcam table” page.
Section2 Photo Button
Click this icon and look the photos you have captured.
Section3 Live view window
If the camera supports PT function, here slide on the screen with your finger, the camera will
rotate follow your finger direction.
Section4 Snapshot/Audio/Talk buttons
Snapshot
Click it to make snapshot.
Audio button
Click it and you will hear sound captured by the camera’s built-in microphone. Make sure the
camera supports Audio. Click the icon again and stop Audio.
Talk button
Click it then talk through your cell phone’s microphone which will transmit through the camera’s
speaker.People will hear your talking through the camera’s built-in speaker. Make sure the
camera supports Talk.
Click the icon again and stop talking.
Talk
Snapshot
Audio
84
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 84
6
6APPENDIX
APPENDIX
6.1 Frequently Asked Questions
NOTE: Any questions you would meet, please check Network connections firstly. Check the
working status revealed by the indicators on the network server, hub, exchange and network
card. If abnormal, check the network connections.
6.1.1 How to download and installl the ActiveX for Firefox users
For the first time login the camera, it may prompt you to download plugin.
Figure 6.1
Drag the download file to Firefox web page and it will prompt you to Install it.
Click here to download
the
plugin
85
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 85
Figure 6.2
Reboot the Firefox after the plugin installation is successfully completely, then relogin the camera
again, you can see the surveillance window
NOTE: If you could not view living video after running the ActiveX, only a red cross in the
center of the video or just a black screen. Please change another port number to try.
Make sure all firewall or antivirus software on your computer does not block the active download
and installation. If you are unable to run the ActiveX control, try shutting down the firewall or
antivirus program.
6.1.2 How to download and installl the ActiveX for Google Chrome users
For the first time login the camera, it will prompt you to download the ActiveX..
Click Install Now
86
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 86
.
Figure 6.3
Download the plugin and drag it to the Extensions page of Google Chrome.
Figure6.4
Click Add button to install the Plugins.
Click Add button to install the plugin
87
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 87
Figure 6.5
Reboot the browser and re-login the camera, you will see the surveillance window.
6.1.3 I have forgotten the administrator password
To reset the administrator password, you had better unplug the network cable firstly. After that,
press and hold down the RESET BUTTON about 5 seconds. Releasing the reset button, the
password will turn to the factory default.
Default administrator username/password: admin with blank password
6.1.4 Subnet doesn’t match
Check whether your ipcamera in the same subnet of your computer. The step is Control
PanelÆNetwork ConnectionsÆDbclick Local Area Connections ÆChoose
GeneralÆProperties.(Figure 4.23/4.24) Check subnet mask, IP address and gateways. When
you set IP address please make sure they are in the same subnet. Otherwise you can't access
camera.
Click Add button to install
the plugin
88
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 88
6.1.5 Camera can not record when I click Record button or I can’t change the
manually record path
When you use Windows7 or Vista, you may be not able to do manually record or change the
record path because of the security settings of computer.
There are two ways to resolve this problem:
(1) Please add the camera as a trusted site to resolve this issue. The steps are
IE browserÆToolÆInternet PropertiesÆSecurityÆTrusted sitesÆSitesÆAdd
(2) Open IE browser, then right click, select “Run as administrator”
6.1.6 No Pictures Problems
The video streaming is transmitted by the ActiveX controller. If ActiveX controller isn’t installed
correctly you will see no video image. You can resolve this problem by this way:
Download ActiveX controller and set the safety property of IE in the PC when you view it first
time: IE browser ÆTool ÆInternet Proper ÆSecurity ÆCustom Level ÆActiveX control and
Plug-ins. Three options of front should be set to be “Enable”, The ActiveX programs read by the
computer will be stored. As follows:
Enable: Download unsigned ActiveX controls
Enable: Initialize and script ActiveX controls not marked as safe
Enable: Run ActiveX controls and plug-ins
89
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 89
Figure 6.6
If you allow the ActiveX running, but still could not see living video. Please change another port
number to try. Don’t use port 8000.
Figure6.7
NOTE: Make sure that your firewall or anti-virus software does not block the camera or ActiveX.
If you could not see video, please shut down firewall or anti-virus software to try again.
6.1.7 Can’t access IP camera in internet
There are some reasons:
1 ActiveX controller is not installed correctly
2 The port which camera used is blocked by Firewall or Anti-virus software. Please change
another port number and try again. (Figure6.7)
3 Port forwarding is not successful(Figure4.30)
Check these settings and make sure they are correct.
6.1.8 UPnP always failed
UPnP only contains port forwarding in our recent software. Sometimes, it may be failed to do port
forwarding automatically because of firewall or anti-virus software. It also has much relation with
router’s security settings. So we recommend you do port forwarding manually. You can view
your camera in internet successfully after you do port forwarding manually in your router.
5.1.9 Camera can not connect wireless
If your camera could not connect wireless after you set wireless settings and plug out the cable.
Please check whether your settings are correct or not.
Normally, camera can’t connect wireless mainly because of wrong settings.
Make sure broadcast your SSID; use the same encryption for router and camera.
90
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 90
6.2 Default Parameters
Default network Parameters
IP address: obtain dynamically
Subnet mask: obtain dynamically
Gateway: obtain dynamically
DDNS: Embedded FOSCAM DDNS Service
Username and password
Default admin username: admin with a blank password
6.3Specification
Specification FI9805W
Image Sensor
Image Sensor High Definition Color CMOS Sensor
Lens
f 4mm or 6mm or 8mm or choose ,
F=1.2
Mini. Illumination 0.5Lux
Audio Input/Output Linear Input/Output, which can realize two-way
voice the intercom
Video Image Compression H.264
Image Frame Rate 25fps(50Hz), 30fps(60Hz),Down adjustable
Video
Resolution 720p˄1280*720˅ˈVGA˄640*480˅
View H.264 dual streaming
Image adjust
The brightness, contrast, saturation, chromaticity, is
adjustable
Infrared mode Off & Manually
Night visibility 8mm 36 IR LEDs, Night visibility up to 30 meters
Network
Ethernet One 10/100Mbps RJ-45
Supported Protocol TCP/IPǃUDP/IPǃHTTPǃSMTPǃFTPǃDHCPǃ
RTSPǃHTTPS ǃDDNSǃUPNP
Wireless Standard WIFI(IEEE802.11b/g/n)њ
Support IP address static IP address, dynamic IP address
91
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 91
Alarm
Alarm detection The motion detecting
Alarm inform Support EmailǃFTP etc alarm inform way
Hardware
Interface
POWER Interface DC 12V/2.0A (EU,US,AU adapter or other types
option, Power Consumption ζ8 Watts
Audio Input/Output
Interface One audio input jack, One audio output jack.
Reset Buttons One Reset
Environment
Operate Temper 0° ~ 55°C (32°F ~ 131°F)
Operate Humidity 10% ~ 80% non-condensing
Storage Temper -10°C ~ 60° (14°F ~ 140°F)
Storage Humidity 0% ~ 90% non-condensing
Dimension 180X98x103mm
Net Weight 1300g
Gross Weight 1546g
PC CPU 2.0GHZ or above (suggested 3.0GHz)
Requirements
Memory Size 256MB or above (suggested 1.0GHz)
Display Card 64M or above
Supported OS
Microsoft Windows 2000/XP /Vista /
Windows7-32bit/Windows7- 64bit/Windows8- 32 bit/
Windows8-64bit/ mac
Browser IE6 and above version or compatible browser,
Firefox, Chrome, Safari or other standard browsers
Software Upgrade Upgrade from network
Certification CE,FCC
92
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 92
6.4 CE & FCC
Electromagnetic Compatibility (EMC)
FCC Statement
This device compiles with FCC Rules Part 15. Operation is subject to the following two
conditions.
This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the installation manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is like to
cause harmful interference, in which case the user will be required to correct the interference at
his own expense.
FCC Caution
Any changes or modification not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
This equipment should be installed and operated with minimum distance 20cm between
radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
environment .
the
93
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 93
6.5 WARRANTY
ShenZhen FOSCAM Intelligent Technology Limited.("FOSCAM") values your business and
always attempts to provide you the very best of service.
No limited hardware warranty is provided by FOSCAM unless your FOSCAM product ("product")
was purchased from an authorized distributor or authorized reseller. Distributors may sell
products to resellers who then sell products to end users. No warranty service is provided unless
the product is returned to an authorized return center in the region where the product was first
shipped by FOSCAM or to the point-of-purchase, which may have regional specific warranty
implications.
If you purchase your FOSCAM product from online store, please contact the
point-of-purchase and ask for return/replacement/repair service.
Hardware Warranty Information
x
FOSCAM provide 2-yea
r
limited warranty fo
r
naked product and 6-month limited warranty
for accessories.
Limited Hardware Warranty
xFOSCAM products are warranted to be free from manufacturing defects in materials and
workmanship starting from the shipping date of FOSCAM.
This limited hardware warranty does not cover:
xSoftware, including the software added to the products through ou
r
factory-integration
system, software that included in the CD,etc.
xUsage that is not in accordance with product instructions.
xFailure to follow the product instructions.
x
Abuse firmware upgrade without the authorized technician’s guidance.
x
Normal wear and tear.
Return Procedures
xPlease read FOSCAM warranty policy & policy of you
r
reselle
r
first before sending items
back to point-of-purchase.
xCustome
r
must first contact point-of-purchase to obtain a Return Merchandise
Authorization (RMA) number before returning the product. If the product you received is
suspected to be defective and the product warranty has not expired, The RMA number
will allow your reseller to track your return much easier and help them expedite
processing your request.
xAfte
r
receiving you
r
RM
A
case number, pack the item(s) very well with the original box
and all the original accessories included such as power adapters, brackets, cables,
manuals, and driver CD disks.
94
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 94
xWrite your RMA number and the return reason (the problem of the product) on the
warranty card along with the complete package to send them back.
Replacement Services
x
If customers ask for replacement service, please contact point-of-purchase and
follow their policy.
xOu
r
technicians will inspect all items returned fo
r
replacement requests. If the retuned
product is found in working order, we will return the same item received. However
customers shall be responsible for all shipping & handling charges incurred for getting the
units back to customers.
xIf returned products are found defective, we will replace the product and assume the
shipping cost for sending back the replacement unit to customers.
xIf fo
r
any reason, we are unable to provide a replacement of the original returned item(s).
You will have a choice for a “Substitute” item at the same equal value.
xWe do not provide exchange and replacement due to normal hardware upgrade
according the market after 14 days after the product is delivered.
xOu
r
technicians will test the product before send out the replacement, any othe
r
demand
for more than two times replacement for the same product during replacement limit will
be rejected.
x
Replaced products are warranted from the balance of the former warranty period.
Warranty Forfeiture
xWarranty is void if purchase from unauthorized distributo
r
o
r
reseller.
x
Warranty is void if trade-mark, serial tags, product stickers have been removed,
altered or tampered with.
xWarranty is void fo
r
mishandling, imprope
r
use, o
r
defacing the product.
x
Abuse firmware upgrade without the authorized technician’s guidance.
xWarranty is void fo
r
physical damage, altered, eithe
r
internally o
r
externally, imprope
r
o
r
inadequate packaging when returned for RMA purposes.
xWarranty is void if damage has resulted from accident, dismantle, abuse, o
r
service o
r
modification by someone other than the appointed vendor, souse, fission or the spare part
has been over the period of warranty.
xWarranty is void if product is damaged due to imprope
r
working environment o
r
operation.
(For example, improper temperature, humidity, unusual physical or electrical stress or
interference, failure or fluctuation of electrical power, static electricity, using wrong
power adapter, etc.)
xWarranty is void if damaged by the use of parts not manufactured o
r
sold by FOSCAM.
xDamage caused by imprope
r
installation of third-party products.
xWarranty is void if damaged fo
r
irresistible cause, such as earthquake, fire, lightning, flood,
etc.
xProduct beyond limited warranty.
95
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 95
Shipping Fee
xIf products are defective o
r
damaged unde
r
normal use o
r
operation in the replacement
limit, distributors or resellers are responsible for the shipping cost the product back to
customers, customers should assume the shipping cost send the product to the
point-of-purchase.
xDuring replacement limit, if customers ask fo
r
replacement due to the product does not fit
for customer’s personal expectation, customers should responsible for both shipping fee.
xCustomers shall be responsible fo
r
both shipping fee if thei
r
product beyond the
replacement limit but still in warranty limit.
Repair Service Out Of Warranty
xFOSCAM provide extra repai
r
service fo
r
product that out of warranty, it is chargeable.
The total fee contains device cost and service fee. Device cost (including accessories) is
the standard uniform price provide by FOSCAM.
xDifferent region may have different service fee, please contact the point-of-purchase to
confirm that before you ask for this service.
xOu
r
technicians will quote the total price afte
r
detect the product, If customers refused to
repair after the quotation, customers need pay for the test fee, $3.5/hour. If agree with the
quotation, test will be free.
xRepaired product out of warranty will obtains 3-month warranty from the date of the
product back to customers.
Limitation of Liability
xFOSCAM is not responsible fo
r
othe
r
extra warranty o
r
commitment promised by resellers,
if your reseller promised some extra commitment or warranty; please ask for written
documents to protect your rights and interests.
xFOSCAM does not offe
r
refunds unde
r
any circumstances. Please contact the
point-of-purchase and follow their refund/return policy.
xFOSCAM shall not be liable unde
r
any circumstances fo
r
any consequential, incidental,
special or exemplary damages arising out of or in any connection with this agreement or
the products, including but not limited to lost profits, or any claim based on indemnity or
contribution, or the failure of any limited or exclusive remedy to achieve its essential
purpose or otherwise. Purchaser's exclusive remedy, as against FOSCAM, shall be the
repair or replacement of defective parts. If FOSCAM lists a product on its website
specification in error or that is no longer available for any reason, FOSCAM reserves the
right to explain it without incurring any liability.
All rights reserved. FOSCAM and the FOSCAM logo are trademarks of ShenZhen
FOSCAM Intelligent Technology Limited., registered in the U.S. and other countries.
96
w
www.foscam.co
ww.foscam.com
m
Shenzhen
Shenzhen Foscam
Foscam Intelligent
Intelligent Technology
Technology Co.,
Co., Limited
Limited
Tel:
Tel: 86
86 755
755 2674
2674 5668
5668 Fax:
Fax: 86
86 755
755 2674
2674 5168
5168 96
7 OBTAINING TECHNICAL SUPPORT
While we hope your experience with the IPCAM network camera is enjoyable and easy to use,
you may experience some issues or have questions that this User’s Guide has not answered.
If you have problem with FOSCAM IP camera, please first contact FOSCAM reseller for
solving the problems. If our reseller cannot provide service, please contact our service
department: tech@foscam.com .
