ADC Telecommunications S2793-111 Spectrum AWS Path1/PCS Path 2 SRAU User Manual 77168p1
ADC Telecommunications Inc. Spectrum AWS Path1/PCS Path 2 SRAU 77168p1
Installation Guide
![](/img.php?id=1579607&img=bg1.png)
InterReach Spectrum™
Main and Secondary Remote Access Unit
Installation Guide
D-620731-0-20 Rev A
Main Remote Access Unit
Secondary Remote Access Unit
ADCP-77-168 Issue 2 07/2011
![](/img.php?id=1579607&img=bg2.png)
ADC Telecommunications, Inc.
P.O. Box 1101, Minneapolis, Minnesota 55440-1101
In U.S.A. and Canada: 1-800-366-3891
Outside U.S.A. and Canada: (952) 938-8080
Fax: (952) 917-1717
Copyright
© 2011 ADC Telecommunications, Inc. All Rights Reserved.
Information contained in this document is company private to ADC Telecommunications, Inc. and
shall not be modified, used, copied, reproduced or disclosed in whole or in part without the written
consent of ADC.
Trademark Information
ADC is a registered trademark and InterReach Spectrum is a trademark of ADC
Telecommunications, Inc. No right, license, or interest to such trademarks is granted hereunder, and
you agree that no such right, license, or interest shall be asserted by you with respect to such
trademark.
Other product names mentioned in this practice are for identification purposes only and may be
trademarks or registered trademarks of their respective companies.
Disclaimer of Liability
Contents herein are current as of the date of publication. ADC reserves the right to change the
contents without prior notice. Should the content of printed user documentation shipped with
product differ from documentation provided on a product CD (inclusive of the associated Help
modules), the printed user documentation supersedes the documentation on the product CD. In no
event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits,
and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other
similar damages. This disclaimer of liability applies to all products, publications and services during
and after the warranty period.
Specific Disclaimer for High-Risk Activities
This Product is not specifically designed, manufactured, tested or intended for use in high-risk
activities including, without restricting the generality of the foregoing, on-line control of aircraft, air
traffic, aircraft navigation or aircraft communications; or in the design, construction, operation or
maintenance of any nuclear facility. ADC (including its affiliates) and its suppliers specifically
disclaim any express or implied warranty of fitness for such purposes or any other purposes.
![](/img.php?id=1579607&img=bg3.png)
InterReach Spectrum Remote Access Unit Installation Guide Page 1
ADCP-77-168 • Issue 2 • 07/2011 ©2011 ADC Telecommunications, Inc.
TABLE OF CONTENTS
Preface.................................................................................................................... 1
InterReach Spectrum User Documentation .............................................................. 2
Document Cautions and Notes............................................................................... 2
General Safety Precautions ...................................................................................2
Standards Certification .........................................................................................3
Product Overview ..................................................................................................... 4
Main Remote Access Units..................................................................................... 5
MRAU Ports, Cable, and Connectors................................................................... 5
MRAU LEDs.................................................................................................... 6
Secondary Remote Access Units.............................................................................7
SRAU Ports, Cable, and Connectors................................................................... 7
SRAU LEDs ....................................................................................................8
Install the RAUs and Antennas.................................................................................... 8
Mount the RAUs and Antennas............................................................................... 8

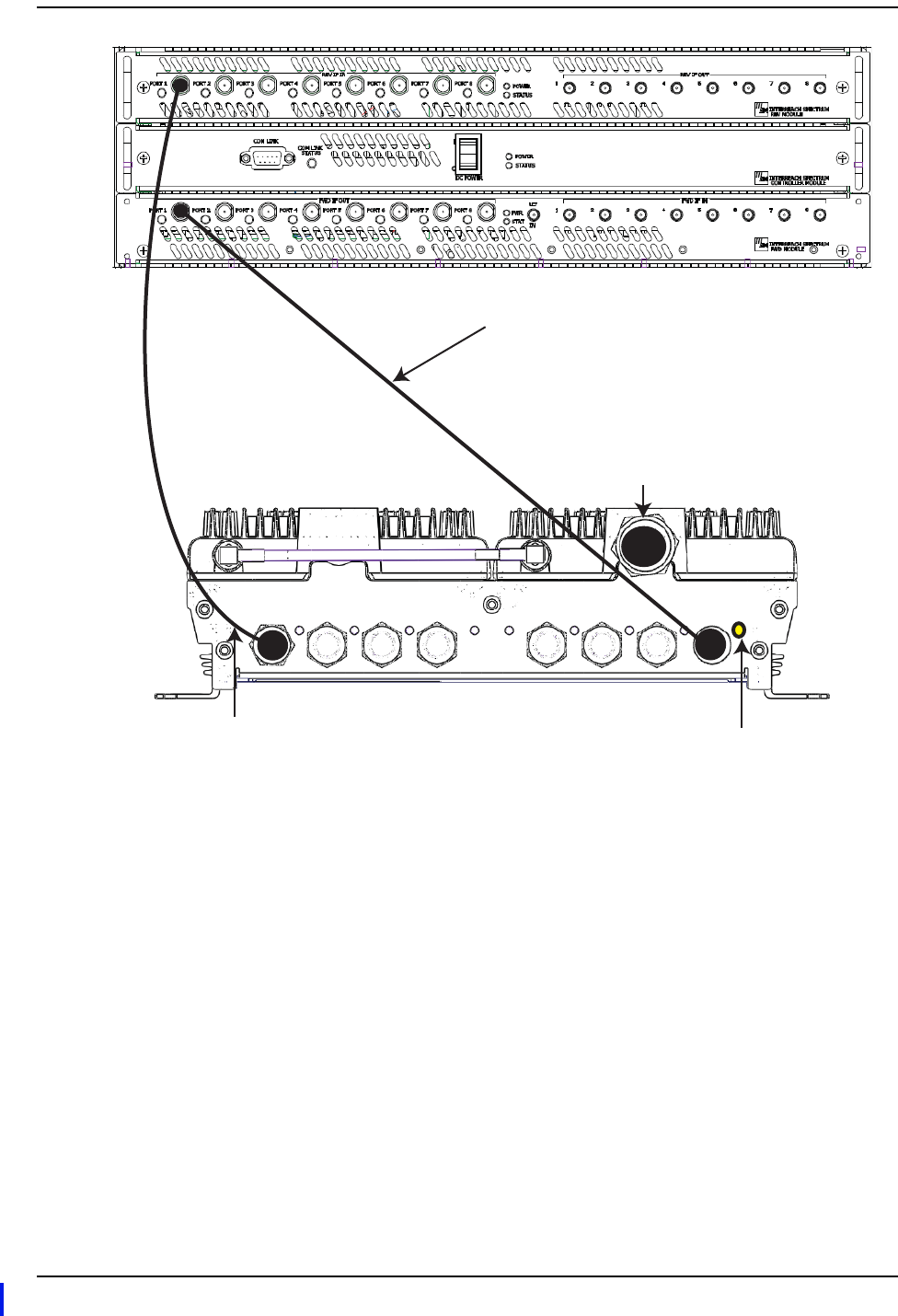

Connect the IFEU to the MRAU ............................................................................ 10

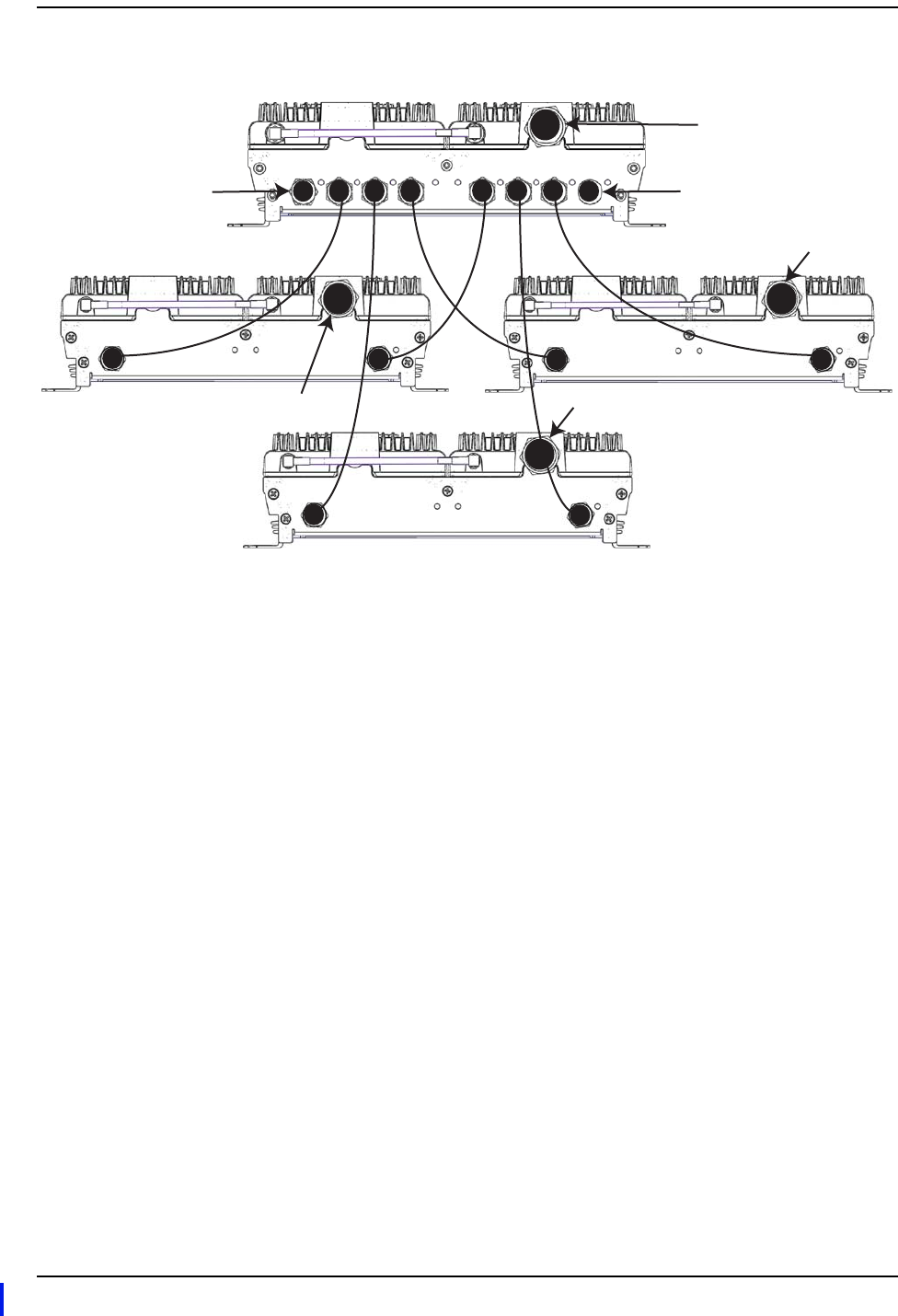

Connect the MRAU to SRAUs ............................................................................... 12
Configure the MRAUs and SRAUs ......................................................................... 13
Appendix A: Specifications....................................................................................... 14
Spectrum System Specifications .......................................................................... 14
Remote Access Unit Specifications........................................................................ 15
Composite Power Out of RAU............................................................................... 15
Appendix B: 75-Ohm CATV Cable.............................................................................. 16
CATV Cable Requirements................................................................................... 16
Belden 1695A Coax Specifications........................................................................ 17
Description .................................................................................................. 17
Overall Physical Characteristics....................................................................... 17
Overall Nominal Electrical Characteristics ......................................................... 18
Belden 7732A Coax Specifications........................................................................ 19
Description .................................................................................................. 19
Overall Physical Characteristics....................................................................... 19
Overall Nominal Electrical Characteristics ......................................................... 19
Appendix C: Omni Antenna ...................................................................................... 21
Appendix D: Contacting ADC/TE Connectivity ............................................................. 22
PREFACE
This manual provides installation instructions for ADC® InterReach Spectrum™
Remote Access Units.
![](/img.php?id=1579607&img=bg4.png)
Preface
Page 2 InterReach Spectrum Remote Access Unit Installation Guide
© 2011 ADC Telecommunications, Inc ADCP-77-168 • Issue 2 • 07/2011
InterReach Spectrum User Documentation
The InterReach Spectrum user documentation is intended for system
administrators, engineers and installers responsible for planning, administering,
configuring, and maintaining ADC InterReach Spectrum systems. Table 1 lists the
manuals that correspond to this InterReach Spectrum release.
Document Cautions and Notes
Two types of messages, identified below, appear in the text:
CAUTION! Caution text indicates operations or steps that could cause personal injury, induce a
safety problem in a managed device, destroy or corrupt information, or interrupt or stop
services.
NOTE: Note text contains information about special circumstances.
General Safety Precautions
CAUTION! Wet conditions increase the potential for receiving an electrical shock when installing or
using electrically powered equipment. To prevent electrical shock, never install or use
electrical equipment in a wet location or during a lightning storm.
CAUTION! This equipment uses a Class 1 Laser according to FDA/CDRH rules. Laser radiation can
seriously damage the retina of the eye. Do not look into the ends of any optical fiber. Do
not look directly into the optical transceiver of any digital unit or exposure to laser
radiation may result. Use an optical power meter to verify active fibers. Immediately
place a protective cap or hood over any radiating transceiver or optical fiber connector to
avoid the potential of dangerous amounts of radiation exposure. This practice also
prevents dirt particles from entering the adapter or connector.
CAUTION! This system is a RF Transmitter and continuously emits RF energy. Maintain a minimum
clearance of three feet (91.4 cm) from the antenna while the system is operating.
Wherever possible, shut down the RAN before servicing the antenna.
Table 1. InterReach Spectrum User Documentation
Title ADCP Number
InterReach Spectrum Quick Start Guide ADCP-77-165
InterReach Spectrum Host Unit Installation Guide ADCP-77-166
InterReach Spectrum Expansion Module Group Installation Guide ADCP-77-167
InterReach Spectrum Remote Access Unit Installation Guide ADCP-77-168
InterReach Spectrum™ Element Management System 7.2 User Manual ADCP-77-189
FlexWave Prism OADM Splice Box Installation Guide ADCP-77-151
![](/img.php?id=1579607&img=bg5.png)
Preface
InterReach Spectrum Remote Access Unit Installation Guide Page 3
ADCP-77-168 • Issue 2 • 07/2011 © 2011 ADC Telecommunications, Inc.
Standards Certification
FCC: This equipment complies with the applicable sections of Title 47 CFR, Part 22
(800 MHz Cellular), Part 24 (1900 MHz - PCS), Part 90 (800/900 - SMR), and Part
27 (700 MHz, 2100 MHz - AWS).
IC: This equipment complies with the applicable sections of RSS-131 (800/900 –
SMR), RSS-132 (800 - Cellular), and RSS-133 (1900 – PCS). The term “IC:” before
the radio certification number only signifies that Industry Canada Technical
Specifications were met.
The Manufacturer's rated output power of this equipment is for single carrier
operation. For situations when multiple carrier signals are present, the rating
would have to be reduced by 3.5 dB, especially where the output signal is
re-radiated and can cause interference to adjacent band users. This power
reduction is to be by means of input power or gain reduction and not by an
attenuator at the output of the device.
NOTE: The U.S. Federal Communications Commission (FCC) has developed guidelines for
evaluation of human exposure to RF emissions. The guidelines incorporate limits for
Maximum Permissible Exposure (MPE) for power density of transmitter operating at
frequencies between 300 kHz and 100 GHz. Limits have been set for portable, mobile, and
fixed equipment. ADC products fall in the category of fixed equipment; products intended
to be permanently secured and exposures are evaluated for distances greater than 20cm
(7-7/8”). Portable devices fall into exposures of less than 20cm, where SAR evaluations
are used.
Antenna gain is restricted to 1.5 W ERP (2.49 W EIRP) in order to satisfy RF exposure
compliance requirements. If higher than 1.5 W ERP, routine MPE evaluation is needed.
The antennas should be installed to provide at least 20cm from all persons to satisfy MPE
requirements of FCC Part 2, 2.1091.
UL/CUL: This will be installed in a restricted access location. This equipment
complies, per UL and CUL 50, Standard for Enclosures for Electrical Equipment.
UL/CUL: This equipment complies with UL and CUL 60950-1 Standard for Safety
for Information Technology Equipment, including Electrical Business Equipment.
UL: This equipment is UL Plenum rated under UL 2043.
CAUTION! Modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
![](/img.php?id=1579607&img=bg6.png)
Product Overview
Page 4 InterReach Spectrum Remote Access Unit Installation Guide
© 2011 ADC Telecommunications, Inc ADCP-77-168 • Issue 2 • 07/2011
PRODUCT OVERVIEW
InterReach Spectrum supports up to eight frequency bands in a single system.
Each antenna location supports those bands in modular, group pairings. Each
location includes a Main Remote Access Unit (MRAU), which can power up to three
additional Secondary Remote Access Units (SRAUs). An MRAU supports two
frequency bands, and each SRAU can support up to two frequency bands, for a
total of up to eight frequency bands. MRAUs and SRAUs are grouped logically,
based on common service provider groupings and include, as an example:
•850/1900
•700/700 MIMO
•800/900 SMR
•1900/AWS.
To add more frequency bands, you connect an SRAU to the existing MRAU.

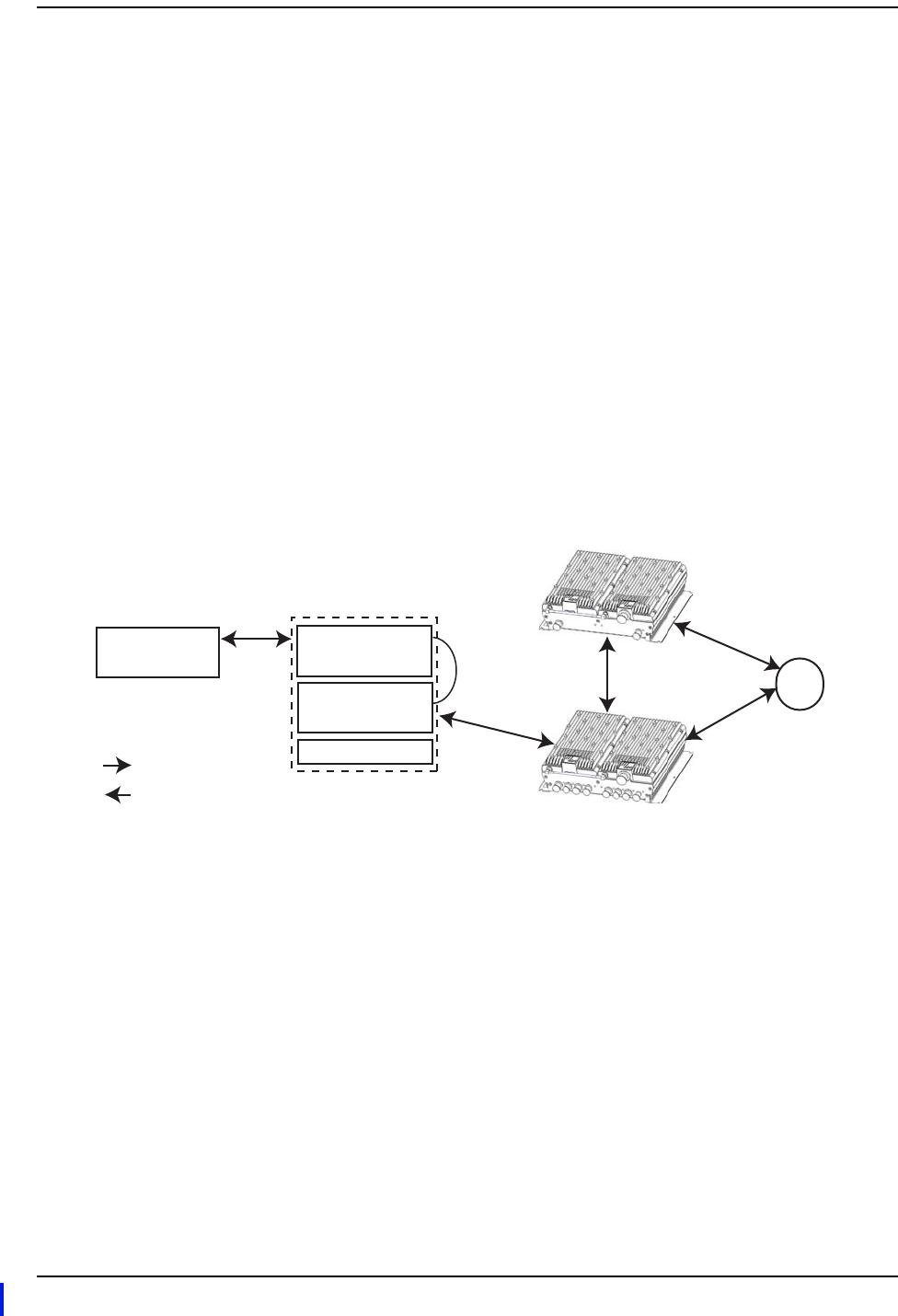

Figure 1 illustrates how RF and IF signals are sent between Spectrum units and
modules.
Figure 1. REV and FWD Signals for the RAU

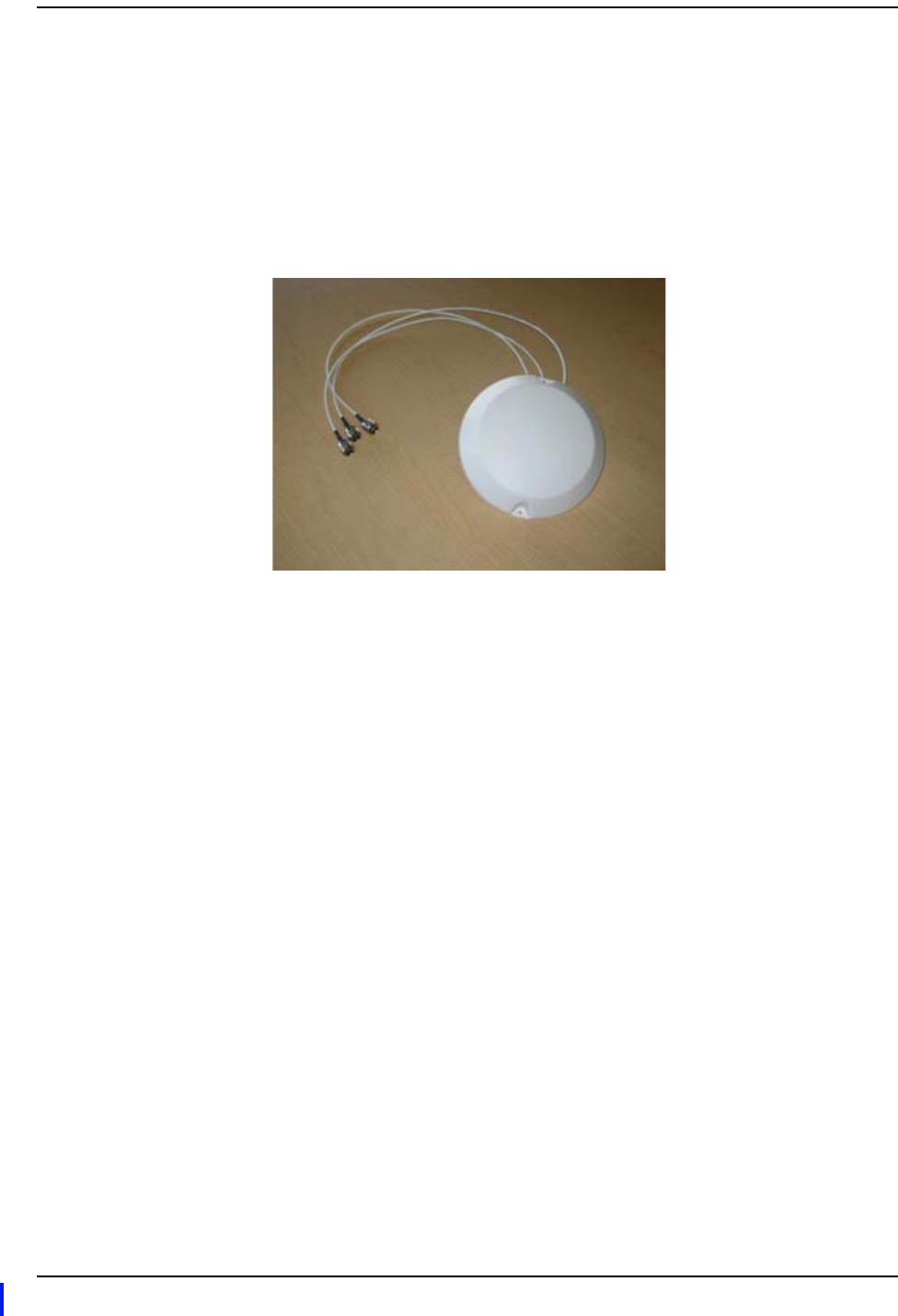

NOTE: This book refers to the Omni Antenna (4214-M727), which is the antenna that ADC
recommends. Other antennas may be used. For further information on the Omni Antenna,
see “Appendix C: Omni Antenna” on page 21.
Omni Antenna
Host
Power Supply
IF Expansion Unit
DART Remote Unit
Expansion Module Group
Secondary Remote Access Unit
Main Remote Access Unit
IF
RF
RF
IF
Reverse (REV)
Forward (FWD)
Key to Signal Path
RF
IF
![](/img.php?id=1579607&img=bg7.png)
Product Overview
InterReach Spectrum Remote Access Unit Installation Guide Page 5
ADCP-77-168 • Issue 2 • 07/2011 © 2011 ADC Telecommunications, Inc.
Main Remote Access Units
The Main Remote Access Unit (MRAU) receives FWD IF signals from an IF
Expansion Unit (IFEU), which is part of the Spectrum Expansion Module Group,
using 75 CATV cable. The MRAU converts the IF signals to RF and sends them to
a passive RF antenna using 50 coaxial cable. The MRAU also receives
configuration information and power from and sends its status information to the
IFEU.
The MRAU receives REV RF signals from a passive RF antenna using 50 coaxial
cable. It converts the signals to IF and sends them to the IFEU using 75 CATV
cable.

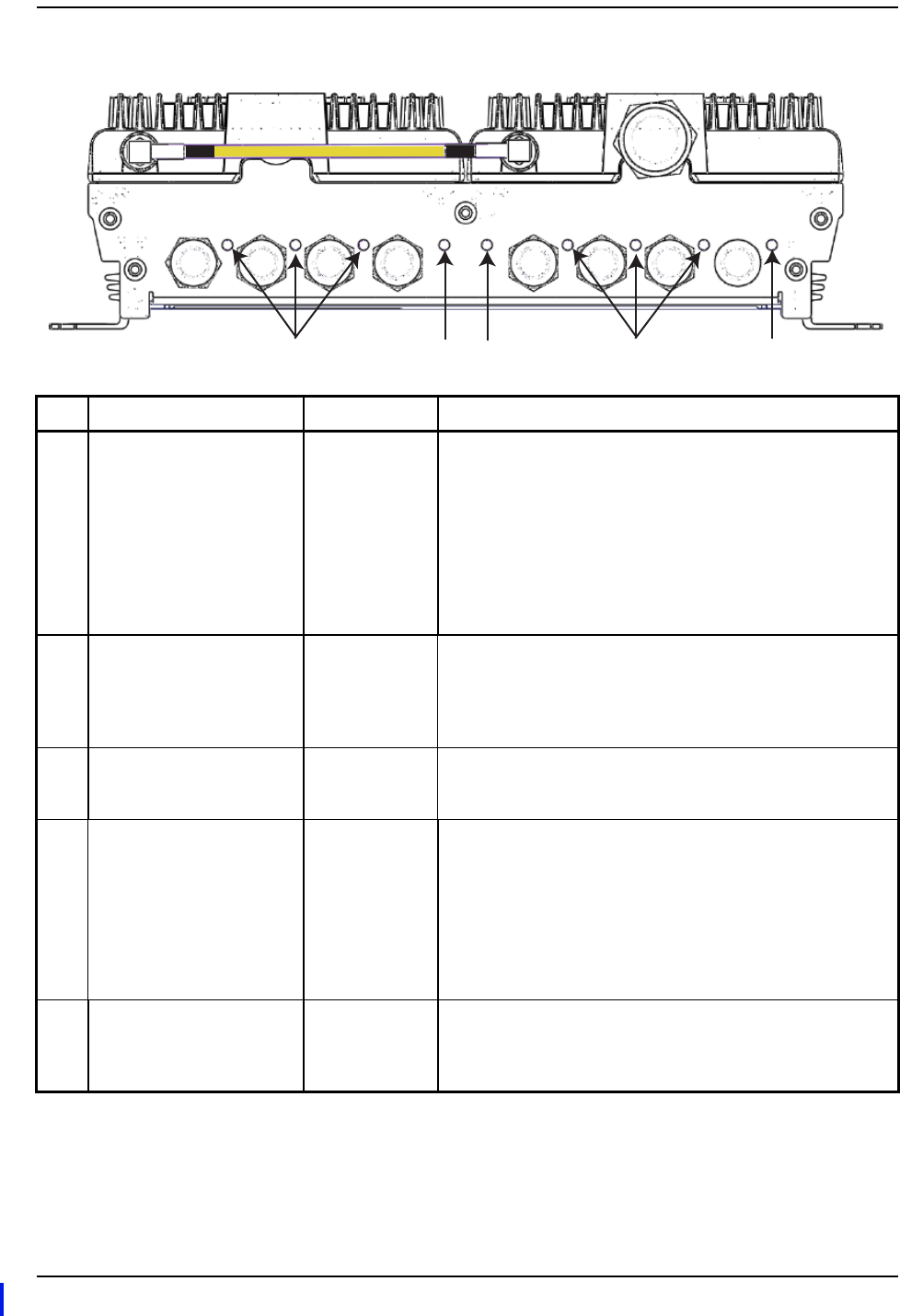

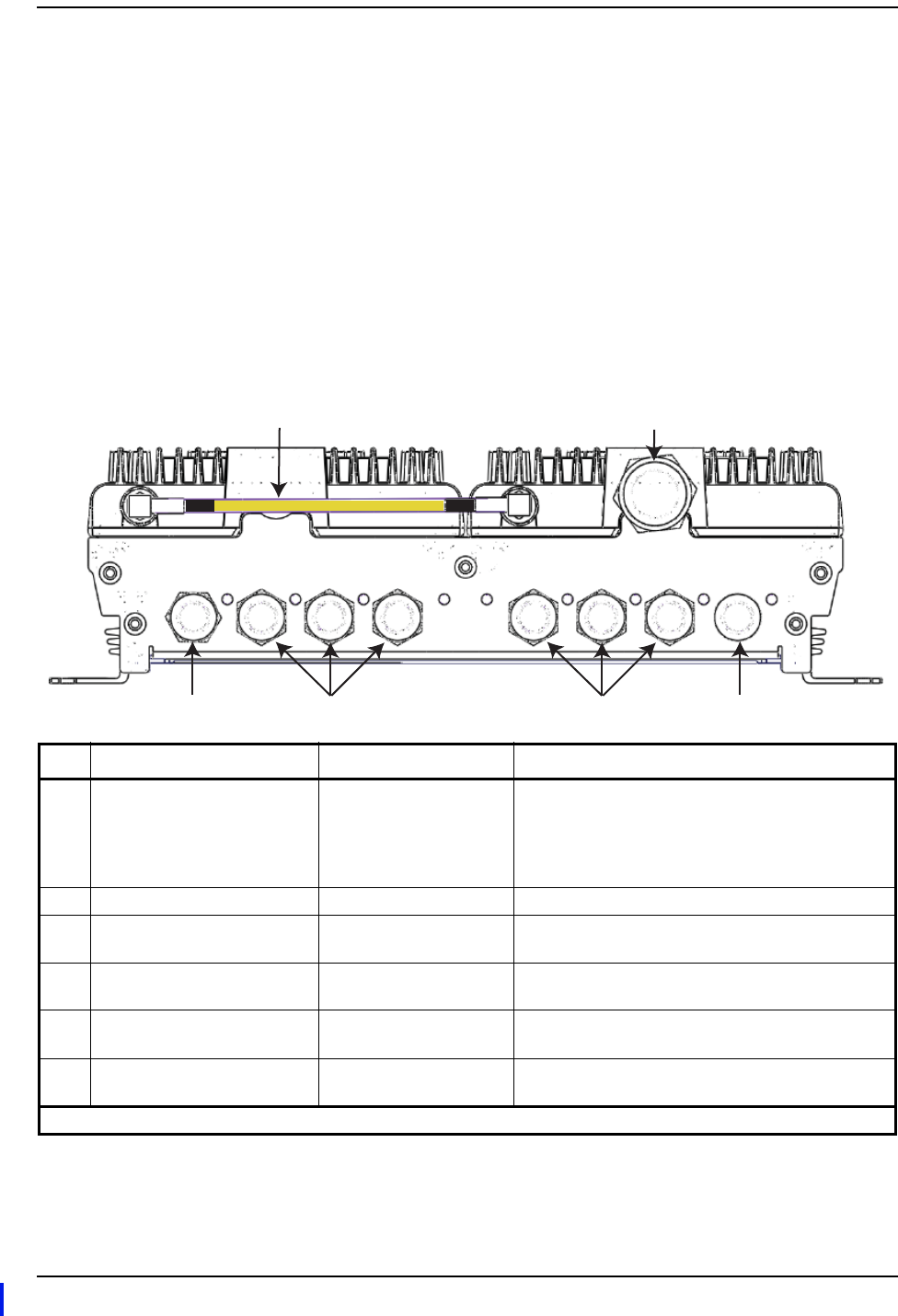

MRAU Ports, Cable, and Connectors
Ref # Component Device Function
1RF SubMiniature version A
(SMA) cable (1) 50 RF SMA-to-SMA cable
Connects two RF bands together when there is only one
N-type connector on the RAU.
For cases when there is an N-type connector for each RF
band (700MIMO or PCS/AWS), there will not be an SMA
cable.
2Antenna port 50 N-type connector Connects to an antenna.
3FWD IF IN connector F connector port Connects to the IFEU FWD Module IF OUT connector via
CATV cable.
4FWD SECONDARY PORTS (1 - 3) F connector ports Connect to a SRAU SECONDARY FWD connector via
CATV cable.
5REV SECONDARY PORTS (1 - 3) F connector ports Connect to a SRAU SECONDARY REV connector via
CATV cable.
8REV IF OUT connector F connector port Connects to the IFEU REV Module IF IN connector via
CATV cable.
(1) The AWS/PCS MRAUs does NOT have an RF SMA cable, and has two Antenna ports.
REV IF OUT REV SECONDARY PORTS
1 2 3
FWD SECONDARY PORTS
1 2 3
FWD IF IN
LINK STATUS
1 2
36 54
![](/img.php?id=1579607&img=bg8.png)
Product Overview
Page 6 InterReach Spectrum Remote Access Unit Installation Guide
© 2011 ADC Telecommunications, Inc ADCP-77-168 • Issue 2 • 07/2011
MRAU LEDs
Ref # LED LED Color Description
1FWD SECONDARY PORT
(1 - 3)
• Green • Downstream unit correctly connected; unit has no alarms or a
Minor alarm is active.
• Blinking Green • SRAU or band is set out-of-service.
• Yellow • FWD cable connected to SRAU, no REV cable connected.
• Blinking Yellow • FWD and REV cables are not connected to the same port number
(incorrectly paired).
• Red • Major alarm in downstream unit, fault lockout, or SRAU
disconnected.
• Off • No SRAU previously connected.
2LINK
• Green • MRAU receiving communications from the IFEU.
• Red • MRAU has not received communications from the IFEU for more
than 90 seconds.
• Off • During initial power up, MRAU is powering up and waiting for IFEU
communications.
3STATUS
• Green • Unit has no alarms or a Minor alarm is active.
• Blinking Green • Unit or band is set out-of-service.
• Red • Major alarm detected.
4REV SECONDARY PORT
(1 - 3)
• Green • Downstream unit correctly connected, unit has no alarms or minor
alarm
• Blinking Green • SRAU or band is set out-of-service.
• Blinking Yellow • FWD and REV cables are not connected to the same port number
(incorrectly paired).
• Red • Major alarm in downstream unit, fault lockout, or SRAU
disconnected.
• Off • No SRAU previously connected.
5FWD IF IN
• Green • MRAU is powered on correctly.
•Yellow or
Blinking Yellow
• There is an IFEU FWD connection, but there is no IFEU REV
connection or the IFEU REV connection is paired incorrectly.
• Off • Cable is not connected to the IFEU FWD port.
REV IF OUT REV SECONDARY PORTS
1 2 3
FWD SECONDARY PORTS
1 2 3
FWD IF IN
LINK STATUS
41 5
2 3
![](/img.php?id=1579607&img=bg9.png)
Product Overview
InterReach Spectrum Remote Access Unit Installation Guide Page 7
ADCP-77-168 • Issue 2 • 07/2011 © 2011 ADC Telecommunications, Inc.
Secondary Remote Access Units
A Secondary Remote Access Unit (SRAU) receives FWD IF signals from the MRAU,
using 75 CATV cable. The SRAU converts the IF signals to RF and sends them to
a passive RF antenna using 50 coaxial cable. The SRAU, through the MRAU, also
receives configuration information and power from and sends its status
information to the IFEU.
The SRAU receives REV RF signals from a passive RF antenna using 50 coaxial
cable. It converts the signals to IF and sends them to the MRAU using 75 CATV
cable.
SRAU Ports, Cable, and Connectors
Ref
#
Component Device Function
1SECONDARY REV connector F connector port Connects to one of the MRAU REV SECONDARY ports (1 - 3)
via CATV cable.
2RF SMA cable (1) 50 RF SMA-to-SMA cable
Connects two RF bands together when there is only one
N-type connector on the RAU.
For cases when there is an N-type connector for each RF band
(700MIMO or PCS/AWS), there will not be an SMA cable.
3Antenna port 50 N-type connector Connects to an antenna.
4SECONDARY FWD connector F connector port Connects to one of the MRAU FWD SECONDARY ports (1 - 3)
via CATV cable.
(1) The 700 MIMO SRAUs does NOT have an RF SMA cable, and has two Antenna ports.
14
LINK STATUS
SECONDARY
REV
SECONDARY
FWD
2
3
![](/img.php?id=1579607&img=bga.png)
Install the RAUs and Antennas
Page 8 InterReach Spectrum Remote Access Unit Installation Guide
© 2011 ADC Telecommunications, Inc ADCP-77-168 • Issue 2 • 07/2011

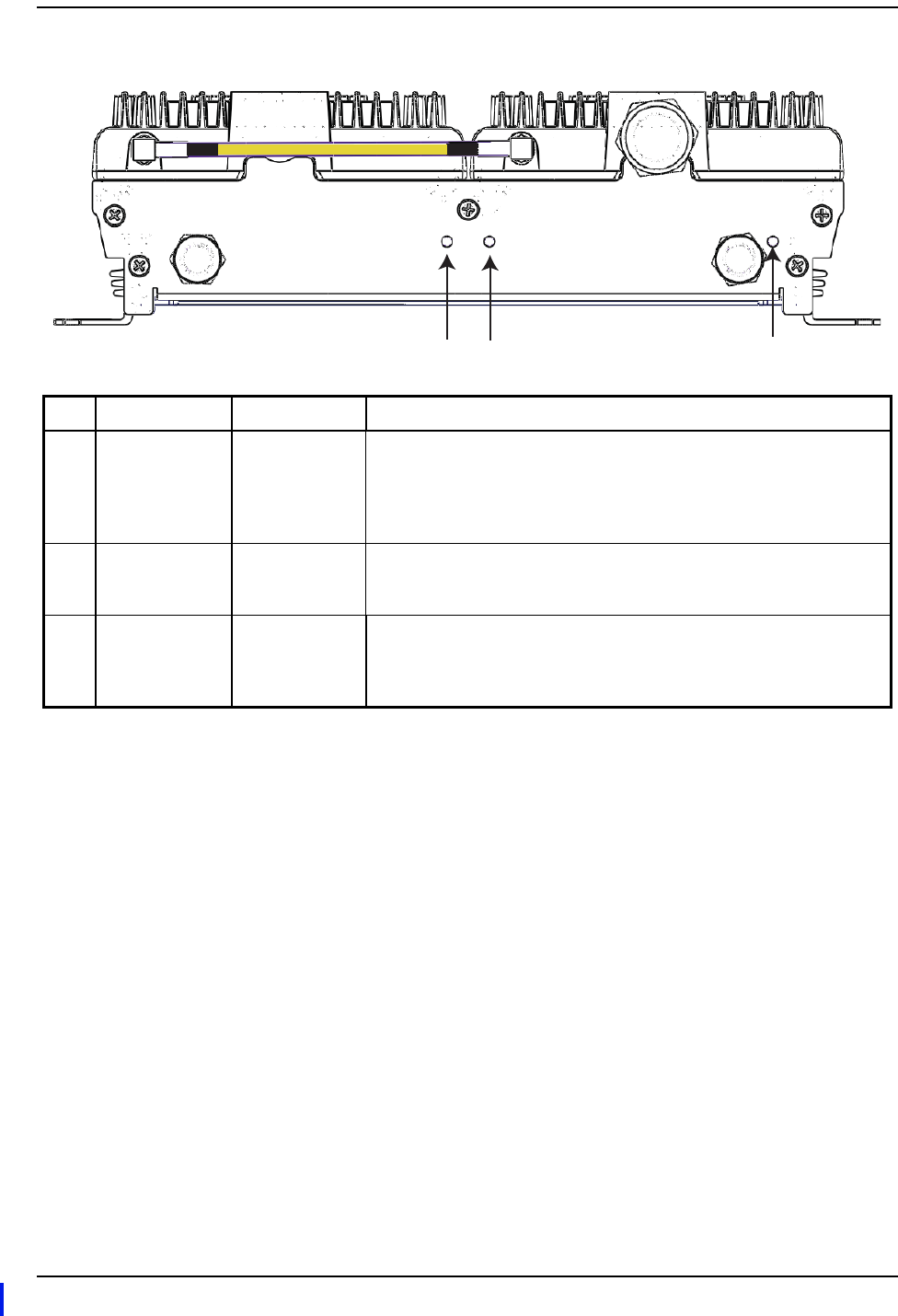

SRAU LEDs
INSTALL THE RAUS AND ANTENNAS
Follow the steps in the order provided to install the RAUs and antennas.
Mount the RAUs and Antennas
CAUTION! Install RAUs in indoor locations only. Do not connect an antenna installed in an outdoor
location to a RAU, unless it is in an approved AOC weatherproof NEMA4 housing.
CAUTION! Attach all RAUs securely to a stationary object (that is, a wall, pole, or ceiling brackets).
To mount a RAU securely to a wall, ceiling bracket, or pole, use #6 diameter fasteners in
the four slotted mounting holes.
CAUTION! Do the following to maintain proper ventilation:
• Keep at least 76 mm (3-inch) clearance around the RAU.
• Do not stack RAUs on top of each other.
• Always mount the RAU with the solid face (containing the mounting holes) against the
mounting surface.
Ref # LED LED Color Description
1LINK
•Green •SRAU receiving communications from the IFEU.
• Red • SRAU has not received communications from the IFEU for more than 90
seconds.
• Off • During initial power up, SRAU is powering up and waiting for IFEU
communications.
2STATUS
• Green • Unit has no alarms or a Minor alarm is active.
• Blinking Green • Unit or band is set out-of-service.
• Red • Major alarm detected.
3SECONDARY FWD
• Green • MRAU is powered on correctly.
•Yellow or
Blinking Yellow
• There is an MRAU FWD connection, but there is no MRAU REV connection
or the MRAU REV connection is paired incorrectly.
• Off • Cable is not connected to the MRAU FWD port.
LINK STATUS
SECONDARY
REV
SECONDARY
FWD
21 3
![](/img.php?id=1579607&img=bgb.png)
Install the RAUs and Antennas
InterReach Spectrum Remote Access Unit Installation Guide Page 9
ADCP-77-168 • Issue 2 • 07/2011 © 2011 ADC Telecommunications, Inc.
NOTE: RAUs are suitable for use in environmental air space in accordance with Section
300-22(c) of the National Electrical Code, and Sections 2-128, 12-010(3) and 12-100 of
the Canadian Electrical Code, Part 1, CSA C22.1.
NOTE: You can place the RAU, without its fastening hardware, on a flat surface, such as a shelf,
desk, cabinet, or any other horizontal surface that allows stable placement, with the
mounting base facing down to the mounting surface.
CAUTION! If installing the RAU on a flat surface, the surface must be able to hold a minimum
7-pound load securely.
1Mount all MRAU and SRAUs in the locations marked on the floor plans.
2Install the passive antennas according to the manufacturer’s installation
instructions.
NOTE: It is common practice to install passive antennas below the ceiling. If you install a
passive antenna above the ceiling, when estimating the antenna coverage area, account
for additional loss due to the ceiling material.

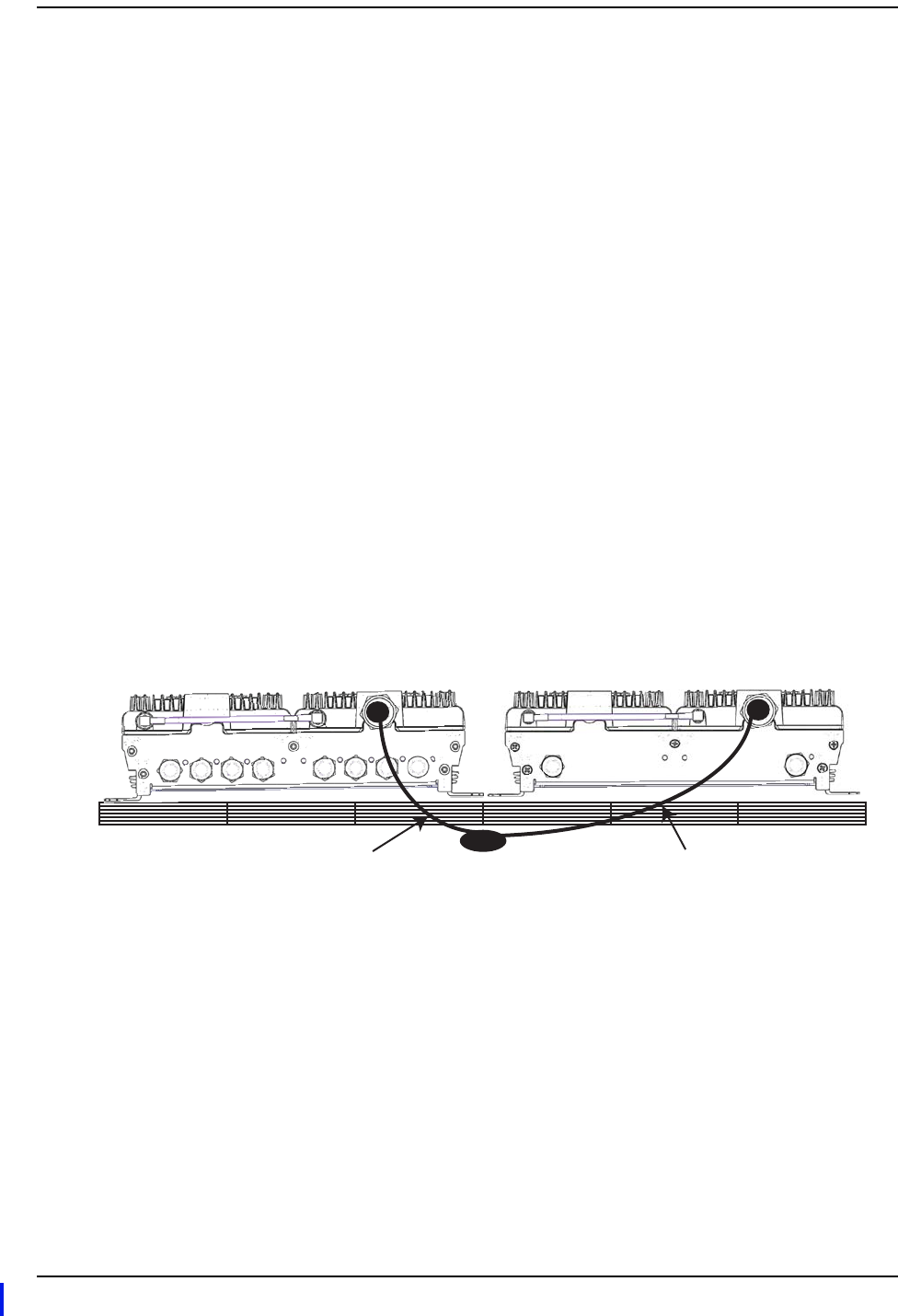

3Connect a passive multi-band antenna to the N connector on each RAU using
coaxial cable with the least amount of loss possible. (See “Appendix C: Omni
Antenna” on page 21 for information on the Omni Antenna ports.)
CAUTION! Firmly hand-tighten the N connector. DO NOT over-tighten the connector.
Omni Antenna
False Ceiling
SRAU N1
REV IF OUT REV SECONDARY PORTS
1 2 3
FWD SECONDARY PORTS
1 2 3
FWD IF IN
LINK STATUS
LINK STATUS
SECONDARY
REV
SECONDARY
FWD
MRAU N1
Coaxial cable
Coaxial cable
![](/img.php?id=1579607&img=bgc.png)
Install the RAUs and Antennas
Page 10 InterReach Spectrum Remote Access Unit Installation Guide
© 2011 ADC Telecommunications, Inc ADCP-77-168 • Issue 2 • 07/2011
Connect the IFEU to the MRAU
NOTE: The IFEU should be powered up before starting this procedure; see the InterReach
Spectrum Expansion Module Group Installation Guide (ADCP-77-167).
4Follow these rules for the CATV cables when connecting the IFEU to the MRAU:
•The FWD and REV cables should be close to the same length.
•The FWD and REV cables should be the same cable type (both RG6 or both
RG11).
•A pair of CATV cables connects each MRAU to the IFEU. The IFEU REV
Module IF IN port and the IFEU FWD Module IF OUT port must match. For
example, if IFEU REV Module IF IN Port 3 is used, use IFEU FWD Module IF
OUT Port 3.
•Refer to “Appendix B: 75-Ohm CATV Cable” on page 16 for information on
maximum RG-6 or RG-11 CATV cable lengths.
5Test the cable termination for each CATV cable before installing it.
6Connect F connector CATV cables on the IFEU and MRAU, in the order given
below.
If the LEDs do not perform as described in this procedure, refer to “MRAU LEDs”
on page 6.
aConnect a CATV cable from one of the IFEU FWD Module IF OUT connectors
(1 - 8) to the MRAU FWD IF IN connector.
bConfirm that the MRAU FWD IF IN LED is yellow, which indicates a correct
physical connection.
cConnect a CATV cable from the IFEU REV Module IF IN connector (1 - 8) to
the MRAU REV IF OUT connector, making sure that you pair the port used
to the same port number selected in Step 6a.
If the connection is correct, the MRAU powers up and the MRAU FWD IF IN
LED turns green.
![](/img.php?id=1579607&img=bgd.png)
Install the RAUs and Antennas
InterReach Spectrum Remote Access Unit Installation Guide Page 11
ADCP-77-168 • Issue 2 • 07/2011 © 2011 ADC Telecommunications, Inc.
IFEU
Step 6a
REV IF OUT REV SECONDARY PORTS
1 2 3
FWD SECONDARY PORTS
1 2 3
FWD IF IN
LINK STATUS
To an antenna
MRAU
Step 6b
Step 6c
![](/img.php?id=1579607&img=bge.png)
Install the RAUs and Antennas
Page 12 InterReach Spectrum Remote Access Unit Installation Guide
© 2011 ADC Telecommunications, Inc ADCP-77-168 • Issue 2 • 07/2011
Connect the MRAU to SRAUs
CAUTION! To prevent interference, do not install an 850/1900 MRAU antenna near an 800/900 SRAU.
The 850 MHz band must be 20 feet away from the 800/1900 SRAU’s passive antenna.
7Use one of the following 6’ and 20’ CATV RG6 jumpers, available for purchase
from ADC, to connect an MRAU to SRAUs.
8Test the cable termination for each CATV cable before installing it.
9Connect F connector CATV cables from the MRAU to an SRAU, in the order
given below. If the LEDs do not perform as described in this procedure, refer
to “SRAU LEDs” on page 8.
aConnect a CATV cable from an MRAU FWD SECONDARY PORT (1, 2, or 3) F
connector to the SRAU SECONDARY FWD F connector.
bConfirm that the SRAU SECONDARY FWD LED is yellow, which indicates a
correct physical connection.
cConnect a CATV cable from an MRAU REV SECONDARY PORT (1, 2, or 3) F
connector to the SRAU SECONDARY REV F connector, matching the same
port number selected in Step 9a. That is, if in Step 9a you connected an F
connector to the MRAU FWD SECONDARY PORT 1, the paired CATV cable
must connect to the MRAU REV SECONDARY PORT 1.
If the connection is correct, the SRAU powers up and the SRAU SECONDARY
FWD LED turns green.
ADC Part Number Description Note
300469-0 6’ RG-6 Cable; F Male to F Male CATV cable that connects the MRAU to SRAUs. Two
cables required per SRAU.
300469-1 20’ RG-6 Cable; F Male to F Male CATV cable that connects the MRAU to SRAUs. Two
cables required per SRAU.
REV IF OUT REV SECONDARY PORTS
1 2 3
FWD SECONDARY PORTS
1 2 3
FWD IF IN
LINK STATUS
LINK STATUS
SECONDARY
REV
SECONDARY
FWD
To an IFEU REV
Module IF IN
connector (1 - 8)
To an IFEU FWD
Module IF OUT
connector (1 - 8)
MRAU
SRAU To an antenna
To an antenna
![](/img.php?id=1579607&img=bgf.png)
Install the RAUs and Antennas
InterReach Spectrum Remote Access Unit Installation Guide Page 13
ADCP-77-168 • Issue 2 • 07/2011 © 2011 ADC Telecommunications, Inc.
10 Repeat Step 9 to install up to two more SRAUs, as per system design.
Configure the MRAUs and SRAUs
Refer to the ADC InterReach Spectrum™ Element Management System 7.0 User
Manual (ADCP-77-163) for information on how to configure the MRAUs and
SRAUs.
REV IF OUT REV SECONDARY PORTS
1 2 3
FWD SECONDARY PORTS
1 2 3
FWD IF IN
LINK STATUS
LINK STATUS
SECONDARY
REV
SECONDARY
FWD
LINK STATUS
SECONDARY
REV
SECONDARY
FWD
LINK STATUS
SECONDARY
REV
SECONDARY
FWD
MRAU
SRAU1
SRAU2
SRAU3
To an IFEU FWD Module
IF OUT connector (1 - 8)
To an IFEU REV Module
IF IN connector (1 - 8)
To an antenna
To an antenna
To an antenna
To an antenna
![](/img.php?id=1579607&img=bg10.png)
Appendix A: Specifications
Page 14 InterReach Spectrum Remote Access Unit Installation Guide
© 2011 ADC Telecommunications, Inc ADCP-77-168 • Issue 2 • 07/2011
APPENDIX A: SPECIFICATIONS
Spectrum System Specifications
RF Specification
Supported Frequency Blocks 2 per Remote Antenna Unit; 1-8 per Host Unit
Bandwidth 1.5 to 75 MHz non-contiguous
Frequency Band Supported 850 Cellular; 800 iDEN; 900 iDEN; 1900 PCS;
2100 AWS; 700 Upper C Lower ABC
Propagation Delay
System Delay <12 microseconds
Delay Management Digital (Manual or Automatic)
Noise Figure
Noise Figure For 1 Host, 1 DRU, 8 RAUs: < 17 dB
For 1 Host, 4 DRUs, 32 RAUs: < 23 dB
Input IP3 >-10 dBm
Optical Specifications
Optical Budget 10 dB (Standard); 26 dB (Optional)
Digital Transport Rate 3.072 Gbps
Nominal Passband Gain
Output Power
Output P1dB Power per Band 26 dBm 850MHz Cell
26 dBm 1900MHz PCS
26 dBm 700MHz Upper C Lower ABC
26 dBm 2100MHz AWS
Average gain with
190m of CATV
at 25° C (77° F) (dB)
700 - 900 MHz
Typical 1900 - 2100 MHz
Typical
TX RX TX RX
40 30 40 30
![](/img.php?id=1579607&img=bg11.png)
Appendix A: Specifications
InterReach Spectrum Remote Access Unit Installation Guide Page 15
ADCP-77-168 • Issue 2 • 07/2011 © 2011 ADC Telecommunications, Inc.
Remote Access Unit Specifications
Operating Temp -25°C to +50°C
Storage Temperature -40°C to +70°C
Humidity 10% to 90% non-condensing
Dimensions 11.50" x 9.00" x 3.50"
Weight 7.49 Pounds
Power Source 54VDC (from IFEU)
Composite Power Out of RAU
RF Frequency Number of RF Carriers
TX RX 1 2 4 8 16
850 Cell 869-894 824-849
26 23 20 18 17.5 GSM
23 20.5 18 17 17 EDGE
16 16 16 16 CDMA
15 14 12.5 WCDMA
800 SMR 851-869 806-824 17.5 17 16 15.5 iDEN
26 22.5 19.5 17.5 APCO 25 C4FM
900 SMR 935-940 896-901 17.5 17 16 15.5 iDEN
26 22.5 19.5 17.5 APCO 25 C4FM
1900 PCS 1930-1995 1850-1915
26 23 20 18 17.5 GSM
23 20.5 18 17 17 EDGE
16 16 16 16 CDMA
15 14 12.5 WCDMA
2100 AWS 2110-2155 1710-1755 15 14 12.5 WCDMA
700 Upper C 746-756 776-786 15 14 12.5 LTE
700 Lower ABC 728-746 698-716 15 14 12.5 LTE
![](/img.php?id=1579607&img=bg12.png)
Appendix B: 75-Ohm CATV Cable
Page 16 InterReach Spectrum Remote Access Unit Installation Guide
© 2011 ADC Telecommunications, Inc ADCP-77-168 • Issue 2 • 07/2011
APPENDIX B: 75-OHM CATV CABLE
The 75-Ohm CATV Cable:
•connects the IFEU to MRAU(s) and the MRAU(s) to the SRAU(s)
•transmits (FWD) multiband and receives (REV) IF signals
•delivers DC electrical power to the RAUs. The Spectrum IFEU DC voltage output
is 54VDC nominal. If the IFEU reaches its current limit, a current-limiting circuit
protects it.
•carries configuration and status information
•uses 75 type-F connectors with captive centerpins.
CATV Cable Requirements
Belden CATV cable or equivalent is required (see Figure 2).
•For the RG-6 cable, use a Belden 1695A Coax.
•For the RG-11 cable, use a Belden 7732A Coax.
NOTE: ADC requires solid copper center conductor CATV cable for proper DC voltage to the RAU
and maximum distances.
Figure 2. Belden 1695A and 7732A Coax Cables
RG-11
Belden 1695A Coax
RG-6
Belden 7732A Coax
![](/img.php?id=1579607&img=bg13.png)
Appendix B: 75-Ohm CATV Cable
InterReach Spectrum Remote Access Unit Installation Guide Page 17
ADCP-77-168 • Issue 2 • 07/2011 © 2011 ADC Telecommunications, Inc.
•Use RG-6 or RG-11 CATV cable between the IFEU and MRAU, the typical
lengths of which are listed below.
•Use only RG-6 CATV cable between the MRAU and SRAU, the lengths of which
are listed below.
Belden 1695A Coax Specifications
Description
RG-6/U type, 18 AWG solid 0.040-inch bare copper conductor, plenum, foam FEP
insulation, Duofoil® + tinned copper braid shield (95% coverage), Flamarrest®
jacket.
Overall Physical Characteristics
Conductor One Coax
18 AWG
Solid stranding
Bare Copper (BC) conductor material
0.040-inch diameter
Insulation Teflon®
Foam Fluorinated Ethylene Propylene (FFEP)
0.170-inch diameter
Outer Shield Layer 1 Duofoil®
Tape
Aluminum Foil-Polyester Tape-Aluminum Foil
100% coverage
Outer Shield Layer 2 Braid
Tinned Copper (TC)
95% coverage
Outer Jacket Flamarrest®
Low Smoke Polyvinyl Chloride (LS PVC)
Overall Cabling 0.234-inch overall nominal diameter
Cable Type
Minimum Length Maximum Length
Meters Feet Meters Feet
RG-6 0 0 140 459
RG-11 0 0 200 656
RG-6 Cable Meters Feet
Typical 26.56
800/900 iDEN to 850 CELL 619.68
800 AWS to 850 CELL 619.68
![](/img.php?id=1579607&img=bg14.png)
Appendix B: 75-Ohm CATV Cable
Page 18 InterReach Spectrum Remote Access Unit Installation Guide
© 2011 ADC Telecommunications, Inc ADCP-77-168 • Issue 2 • 07/2011
Overall Nominal Electrical Characteristics
Characteristic Impedance 75.000
Inductance 0.103 H/ft.
Capacitance Conductor to Shield 16.100 (pF/ft.)
Velocity of Propagation 82 (%)
Delay 1.240 (ns/ft.)
Conductor DC Resistance 6.400 @ 20°C (/1000 ft.)
Outer Shield DC Resistance 2.800 @ 20°C (/1000 ft.)
Attenuation
Freq. (MHz) Attenuation (dB/100 ft.)
1.000 0.240
3.580 0.450
5.000 0.550
7.000 0.650
10.000 0.750
67.500 1.740
71.500 1.780
88.500 1.940
100.000 2.100
135.000 2.400
143.000 2.500
180.000 2.800
270.000 3.400
360.000 4.000
540.000 5.200
720.000 6.100
750.000 6.200
1000.000 7.300
1500.000 9.200
2000.000 10.900
2250.000 11.600
3000.000 13.700
![](/img.php?id=1579607&img=bg15.png)
Appendix B: 75-Ohm CATV Cable
InterReach Spectrum Remote Access Unit Installation Guide Page 19
ADCP-77-168 • Issue 2 • 07/2011 © 2011 ADC Telecommunications, Inc.
Belden 7732A Coax Specifications
Description
RG-11/U type, 14 AWG solid 0.064-inch bare copper conductor, plenum, foam FEP
insulation, Duofoil® + tinned copper braid shield (95% coverage), fluorocopolymer
jacket.
Overall Physical Characteristics
Conductor One Coax
18 AWG
Solid stranding
Bare Copper (BC) conductor material
0.064-inch diameter
Insulation Teflon®
Foam Fluorinated Ethylene Propylene (FFEP)
0.274-inch diameter
Outer Shield Layer 1 Duofoil®
Tape
Aluminum Foil-Polyester Tape-Aluminum Foil
100% coverage
Outer Shield Layer 2 Braid
Tinned Copper (TC)
95% coverage
Outer Jacket Fluorocopolymer (PVDF)
Overall Cabling 0.348-inch overall nominal diameter
Overall Nominal Electrical Characteristics
Characteristic Impedance 75.000
Inductance 0.091 H/ft.
Capacitance Conductor to Shield 16.300 (pF/ft.)
Velocity of Propagation 83 (%)
Delay 1.220 (ns/ft.)
Conductor DC Resistance 2.500 @ 20°C (/1000 ft.)
Outer Shield DC Resistance 1.600 @ 20°C (/1000 ft.)
![](/img.php?id=1579607&img=bg16.png)
Appendix B: 75-Ohm CATV Cable
Page 20 InterReach Spectrum Remote Access Unit Installation Guide
© 2011 ADC Telecommunications, Inc ADCP-77-168 • Issue 2 • 07/2011
Attenuation
Freq. (MHz) Attenuation (dB/100 ft.)
1.000 0.150
3.580 0.260
5.000 0.300
7.000 0.340
10.000 0.400
67.500 1.200
71.500 1.240
88.500 1.400
100.000 1.500
135.000 1.780
143.000 1.840
180.000 2.090
270.000 2.600
360.000 3.100
540.000 3.890
720.000 4.570
750.000 4.680
1000.000 5.500
1500.000 6.910
2000.000 8.130
2250.000 9.200
3000.000 10.200
![](/img.php?id=1579607&img=bg17.png)
Appendix C: Omni Antenna
InterReach Spectrum Remote Access Unit Installation Guide Page 21
ADCP-77-168 • Issue 2 • 07/2011 © 2011 ADC Telecommunications, Inc.
APPENDIX C: OMNI ANTENNA
The Omni Antenna (4214-M727), shown in Figure 3, is a round radome with the
following specifications:
•8.5-inch diameter
•1.65-inch height
•72-inch pigtails that are plenum-rated cables with N (male) connectors
Figure 3. Omni Antenna
NOTE: Two antennas per RAU is required for MIMO performance.
The Omni Antenna supports the following:
•Port 1
– 698-806 MHz (700 Upper C Lower ABC)
– 1710-2170 MHz (AWS)
•Port 2
– 806-941 MHz (Cellular/SMR)
– 1850-1990 MHz (PCS)
•Port 3
– 2500-2700 MHz (WiMAX)
![](/img.php?id=1579607&img=bg18.png)
Appendix D: Contacting ADC/TE Connectivity
Page 22 InterReach Spectrum Remote Access Unit Installation Guide
© 2011 ADC Telecommunications, Inc ADCP-77-168 • Issue 2 • 07/2011
APPENDIX D: CONTACTING ADC/TE CONNECTIVITY
NOTE: ADC is now TE Connectivity.
PHONE
U.S.A. or CANADA
Sales: 1-800-366-3891
Extension 73000
Technical Assistance: 1-800-530-9960
Connectivity Extension: 73475
Wireless Extension: 73476
EUROPE
Sales Administration: +32-2-712-65 00
Technical Assistance: +32-2-712-65 42
EUROPEAN TOLL FREE NUMBERS
Germany: 0180 2232923
UK: 0800 960236
Spain: 900 983291
France: 0800 914032
Italy: 0800 782374
ASIA/PACIFIC
Sales Administration: +65-6294-9948
Technical Assistance: +65-6393-0739
ELSEWHERE
Sales Administration: +1-952-917-3000
Technical Assistance: +1-952-917-3475
EMAIL
ONLINE ACCESS
Connectivity Products
United States: Connectivity.Tac@te.com
Europe: Euro.Tac@te.com
Asia/Pacific: AsiaPacific.Tac@te.com
All Wireless Products
WirelessSupport@te.com
Customer Portal
http://www.adc.com/Americas/en_US/1268116693520
Online Customer Support Request
https://nssales.adc.com/ftr/ftrhome1.asp
![](/img.php?id=1579607&img=bg1a.png)
Website: www.adc.com
