Digital Instant Mobile Photo Printer
![](/img.php?id=906894&img=bg2.png)
2
Safety Instructions, FCC, etc.
CAUTION
RISK OF EXPLODING IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO BATTERY DISPOSAL INSTRUCTIONS.
FCC WARNING
Changes or modifi cations not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does not cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet or on a circuit different from that to which the receiver is
connected
- Consult the dealer or an experienced radio/TV technician for help.
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
This equipment complies with the FCC/IC radiation exposure limits sent forth for uncontrolled
equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET62
and RSS-102 for the IC radio frequency (RF) Exposure rules. This equipment has very low levels of
RF energy that is deemed to comply without maximum permissive exposure evaluation (MPE). But it
is desirable that is should be installed and operated with at least 20cm and more between the radiator
and person’s body (excluding extremities: hands, wrists, feet, and ankles).
This device complies with Part 15 of the FCC Rules and the RSS-Gen of IC Rules. Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of this
device.
![](/img.php?id=906894&img=bg3.png)
3
This product contains electrical or electronic materials. The presence of these materials
may, if not disposed of properly, have potential adverse effects on the environment and
human health. Presence of this label on the product means it should not be disposed of
as unsorted waste and must be collected separately. As a consumer, you are responsible
for ensuring that this product is disposed of properly. To fi nd out how to properly dispose
of this product, please go to www.polaroid.com and click on “Company“ or call the
customer service number for your country listed in the instruction manual.
Safety Instructions, FCC, etc.
![](/img.php?id=906894&img=bg4.png)
4
Table of Contents
Safety Instructions 2
Product Diagram 4
LED Lights 5
Installing and Charging the Battery 6
Installing the Polaroid® Digital Instant ZINK™ Paper 7
Printing: Digital Camera 8
Printing: Camera Cell Phone 9
Troubleshooting 10
About ZINK™ Technology 11
Specifi cations 12
![](/img.php?id=906894&img=bg5.png)
5

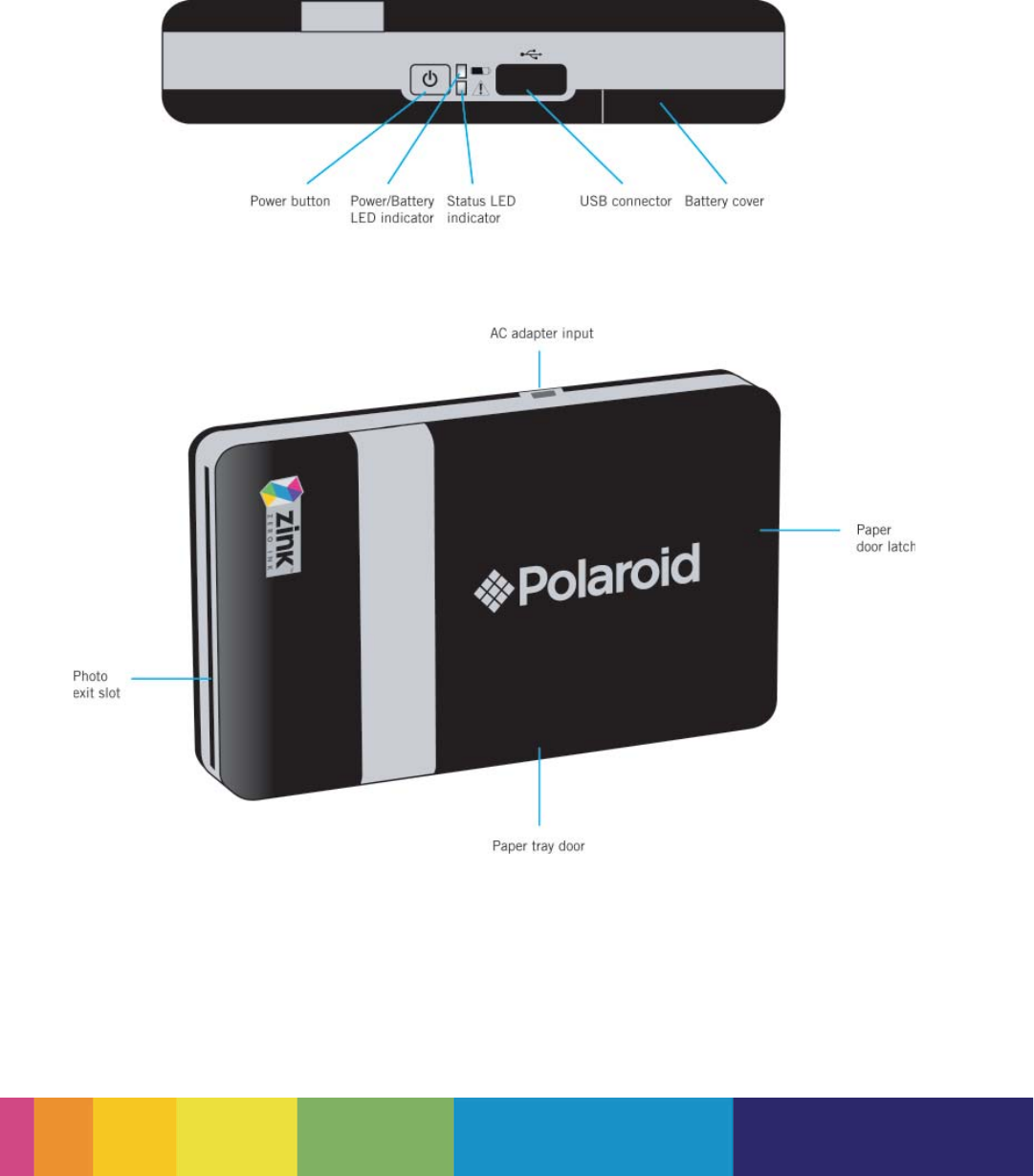

Product Diagram
![](/img.php?id=906894&img=bg6.png)
6

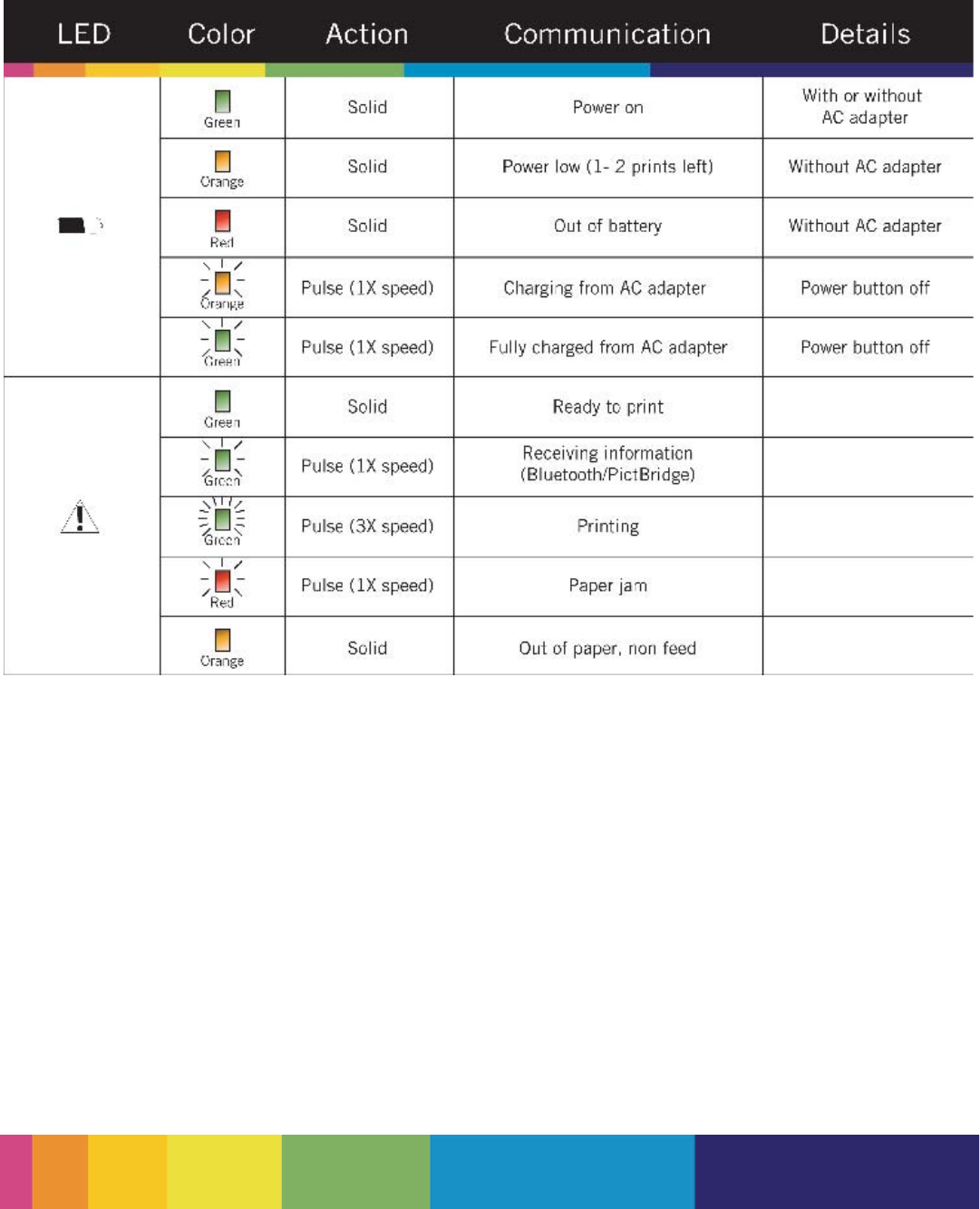

LED Lights
![](/img.php?id=906894&img=bg7.png)
7
Installing and Charging the Battery
To install the battery:
1
Remove battery door cover.
2
Install battery.
3
Replace battery door cover.
To charge the battery:
Install the battery (see above steps).
Connect the AC adapter to the printer and the power source.
Notes:
Before using the printer on battery power, fully charge the battery
for 3 hours.
The printer is usable while plugged into the power source.
1.
2.
•
•
![](/img.php?id=906894&img=bg8.png)
8
1

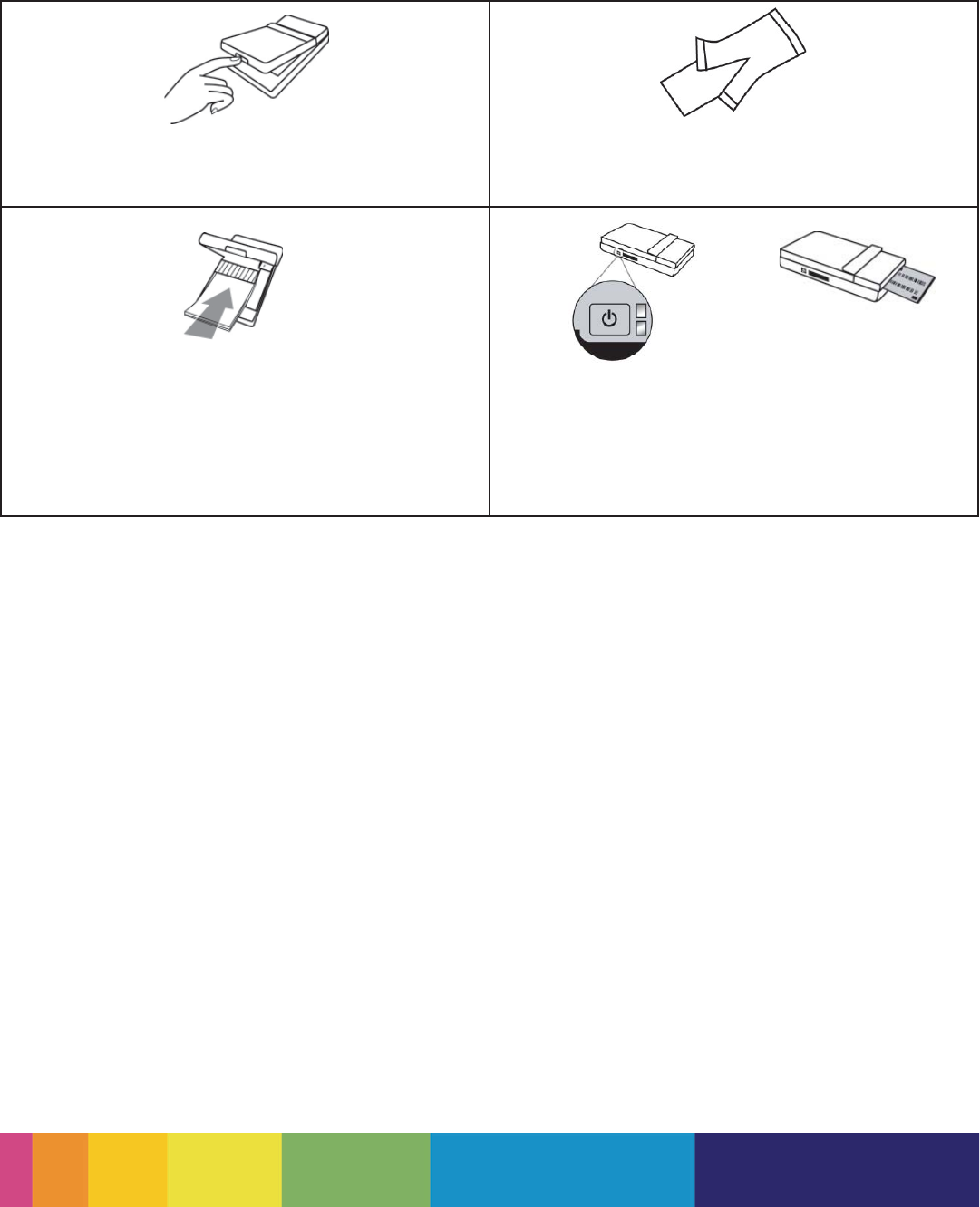

Press and release latch on the paper tray door.
2
Unwrap the 10-pack of Polaroid® Digital Instant
ZINK™ Photo Paper.
3
Slide the 10-pack of Polaroid® Digital Instant
ZINK™ Photo Paper into the printer. Make sure
the ZINK Smart Sheet™ is placed facedown.
Close the printer tray door.
4
Press the POWER button to turn on the printer.
The ZINK Smart Sheet™ will automatically eject.
Save the ZINK Smart Sheet™ until the pack of
Polaroid® Digital Instant ZINK™ Photo Paper is
completely used.
Notes:
Only use Polaroid® Digital Instant ZINK™ Photo Paper.
Printer must be empty before refi lling. Do not fi ll printer with more than one 10-pack of Polaroid®
Digital Instant ZINK™ Photo Paper.
Avoid bending the Polaroid® Digital Instant ZINK™ Photo Paper.
Avoid fi ngerprints.
•
•
•
•
Installing Polaroid® Digital Instant ZINK™ Paper
![](/img.php?id=906894&img=bg9.png)
9

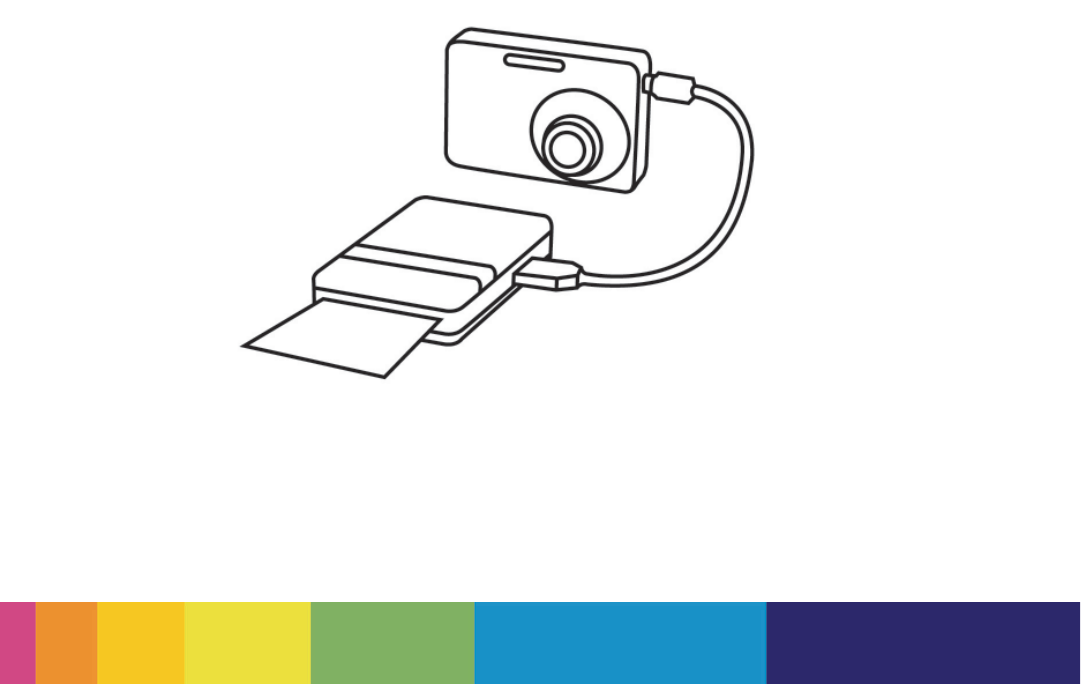

Connect your digital camera and printer to determine if a print option or printer icon is
automatically displayed on the camera screen.
If no print icon appears, while the digital camera is in “camera” mode, select “menu” and navigate
and confi rm that PictBridge is enabled under “settings” or while in “view” mode, select “menu”
and navigate to confi rm PictBridge is enabled. Note: if “USB” is displayed under “settings” then
PictBridge is NOT enabled.
Once PictBridge is enabled, select the image you want to print and follow the on-screen PictBridge
instructions to print. For specifi c print directions for your digital camera, please visit the digital
camera user’s manual or manufacturer’s website for PictBridge printing instructions.
Notes:
Do not open paper tray door while printing.
Do not turn off printer while printing.
Do not disconnect the USB cord until entire printing process is complete.
1.
2.
3.
•
•
•
Printing: Digital Camera
![](/img.php?id=906894&img=bga.png)
10
Passcode: 6000

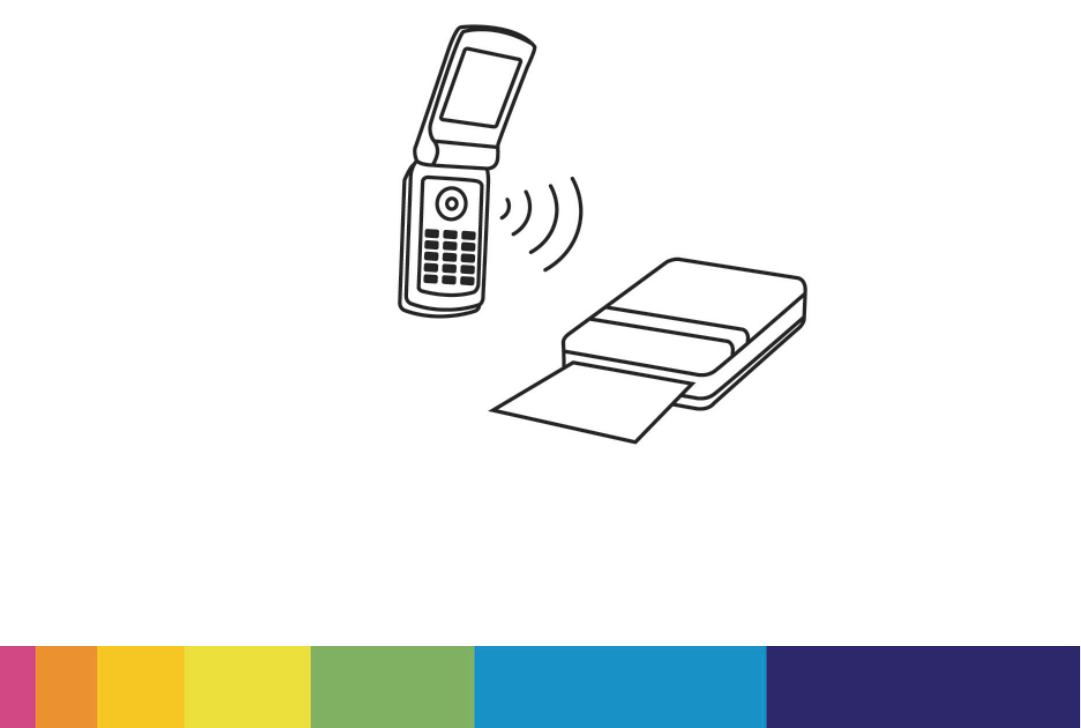

Select the image to print from the stored images on your camera cell phone. In the “options”
menu, select “send via Bluetooth.” Select the Polaroid printer and print.
If you are unable to print from “send via Bluetooth,” select “connectivity” or “Bluetooth” under
the “settings” or “tools” menu. Select the Polaroid printer. Once paired, go back to stored images
and select the image you want to print. In the “options” menu, select “beam”. Select the Polaroid
printer and print.
If your camera cell phone does not include “send via Bluetooth” under the “options” menu, select
the image you want to print. Select the “options” menu and select “print”. Select the Polaroid
printer and print.
For specifi c printing directions for your phone, visit www.polaroid.com/onthego.
1.
2.
3.
4.
Printing: Camera Cell Phone
![](/img.php?id=906894&img=bgb.png)
11
Troubleshooting
PROBLEM SOLUTION
The paper jammed while printing (part of the
image has already ejected)
DO NOT:
• Pull out paper.
DO:
• Turn power off on printer. Open the paper
tray door and remove media. Manually feed
the ZINK Smart Sheet™ through the paper
feed as far as the paper will go. Turn on
printer. The paper jam and ZINK Smart
Sheet™ will automatically eject.
The paper jammed before printing (nothing has
been ejected)
DO NOT:
• Send another image to be printed.
DO:
• Open paper tray door.
• Check to see if there is paper in the tray.
If so, ensure the paper is placed correctly.
If not, add a new pack of Polaroid® Digital
Instant ZINK™ Photo Paper.
•
•
The photo has streaks DO NOT:
• Send another image to be printed.
DO:
Turn power off on printer. Open the paper
tray door and remove media. Place ZINK
Smart Sheet™ on the bottom of the stack
of media, place in paper tray, and close
paper tray door. The ZINK Smart Sheet™
will automatically eject.
•
The printer does not turn on
The digital camera is plugged into printer, but
nothing appears on the screen
The cell phone does not recognize printer
![](/img.php?id=906894&img=bgc.png)
12
ZINK™ stands for Zero Ink - a new way to print and experience full color digital images without the
need for ink cartridges or ribbons. The ZINK™ Technology encompasses both the ZINK™ Paper and the
intelligence embedded in every ZINK™ Enabled device. Over 100 patents and patents pending were
generated in the development of this breakthrough technology.
ZINK™ Technology is a platform with an endless variety of product and market applications. Imagine
printing where never before possible. Imagine devices in your pocket, on your desktop, embedded in a
new consumer electronic device, or even hanging on the wall. Imagine creating beautiful photographs
of all sizes, posters, identifi cation cards, or labels fast without ever needing to buy an inkjet or thermal
cartridge ever again.
Imagine no more! This is real, we at ZINK Imaging have developed it, and soon you will be able to
experience the magic of ZINK™ and ZINK™ Enabled products from our go-to-market partners.
With ZINK™, the ordinary becomes the magical and the impossible becomes real. Take away the limits
- Zero Ink. Zero Boundaries™.
For more information on ZINK™ Technology, visit www.zink.com.
About ZINK™ Technology
![](/img.php?id=906894&img=bgd.png)
13
Mobile Printer:
Size 120mm (4.7”) H X 72mm (2.8”) W X 23.5mm (0.9”) D
Weight 8 oz (without paper) includes battery
Battery 7.2V rechargeable lithium-ion
15 Prints per charge at 25 C
Battery is replaceable
User Interface 2 Tri-Color LED indicators
AC Adapter 9V output Universal Input 100V to 240 VAC
Printer will print when pluged into the AC adapter
Connectivity Bluetooth (Class 2) OPP
USB 2.0, USB A connector
Print Speed 60 seconds per print, from send to share
ZINK™ Paper:
ZINK™ Paper Size 50mm (2”) X 76.2mm (3”)
Features Full-bleed, borderless image ZINK™ inkless printing embeds color into the paper
Prints dry-to-touch, waterproof, tear-proof, smudge-proof
Peel-off, sticky-backed
Automatic image quality optimization
Specifi cations
“Polaroid” and “Polaroid and Pixel” are trademarks of Polaroid Corporation.
The ZINK™ Technology and ZINK™ trademarks are owned by ZINK Imaging, LLC. Used under license.
