Alps Electric Co., Ltd. Low Power Transmitter Users Manual
Users Manual
![](/img.php?id=480651&img=bg1.png)
FORMAT NO. FIRMWARE_A(VER 0.01)
CONTENTS
1. PREFACE ....................................................................................................................................2
2. PASSIVE ACCESS ENTRY FUNCTIONALITY............................................................................3
2.1. Door Unlocking........................................................................................................................................... 3
2.2. Engine Start................................................................................................................................................ 4
2.3. Engine Stop................................................................................................................................................ 4
2.4. Door Locking (Push switch) ....................................................................................................................... 5
3. ACTIVE ACCESS ENTRY FUNCTIONALITY ..............................................................................6
3.1. Door Unlocking........................................................................................................................................... 6
3.2. Engine Start................................................................................................................................................ 6
3.3. Engine Stop................................................................................................................................................ 6
3.4. Door Locking .............................................................................................................................................. 6
4. SYSTEM CHARACTERISTICS....................................................................................................7
4.1. Antenna Areas ........................................................................................................................................... 7
4.2. Exciter Locations........................................................................................................................................ 8
4.3. Switch Input Locations (Door handle, Touch sensor) ............................................................................... 9
FCC WARNING
NOTICE
![](/img.php?id=480651&img=bg2.png)
FORMAT NO. FIRMWARE_A(VER 0.01)
1. Preface
This document describes the requirements and operation of the Passive Entry System. However, this document
is especially for the Entry system ECU (acronym for Electric Control Unit) and the FOB.
The FOB consists the following functionality for passive access and active access:
• Door unlocking / locking (however, only for request by means of switch operation)
• Trunk unlocking / locking (however, only for request by means of switch operation)
• LF decoding
• RF encoding
• Communication data encryption (cryptograph, anti-collision, rolling code and stuff)
And the entry system ECU consists of the following functionality:
• Door unlocking / locking
• Trunk unlocking / locking
• Engine start (/ stop)
• LF encoding
• RF encoding
• Communication data encryption (cryptograph, anti-collision, rolling code and stuff)
• LF antenna unit control
• Communication with the node ECUs connected to the body bus (e.g. CAN, J1850, customer dependent
bus)
As a further function, both the FOB and the entry system ECU provides the following function:
• Learning mode for programming the manufacturing data and stuff
• Data locking and password protection
• Diagnostic (based upon ISO9141 if required)
![](/img.php?id=480651&img=bg3.png)
FORMAT NO. FIRMWARE_A(VER 0.01)

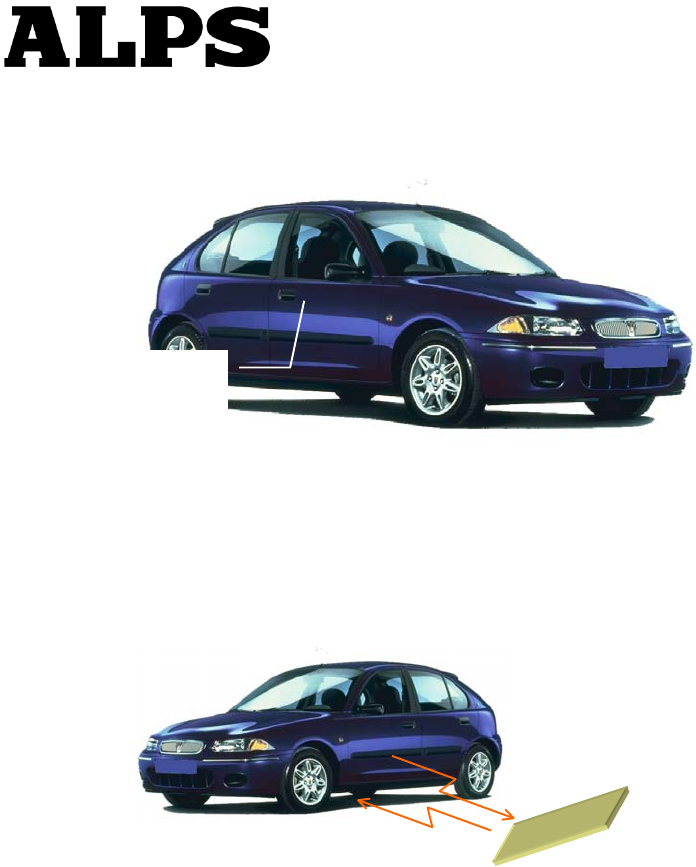

2. Passive Accsess Entry Functionality
A proximity sensor located on, for example the door handles, mirrors and trunk lid will be used for proximity check
if user is in neighborhood of the vehicle. The switch input will trigger for unlocking and open the doors and trunk.
Figure 1
2.1.Door Unlocking
• User pull / touch the door handle (sensing of door handle switch).
• ECU sends LF-challenge via exterior antenna.
• FOB sends RF-response to the ECU.
• Door unlocking status is engaged.
• Doors are opened.
Figure 2
Proximity sensor
Switch input (door handle)
LF
RF FOB
![](/img.php?id=480651&img=bg4.png)
FORMAT NO. FIRMWARE_A(VER 0.01)

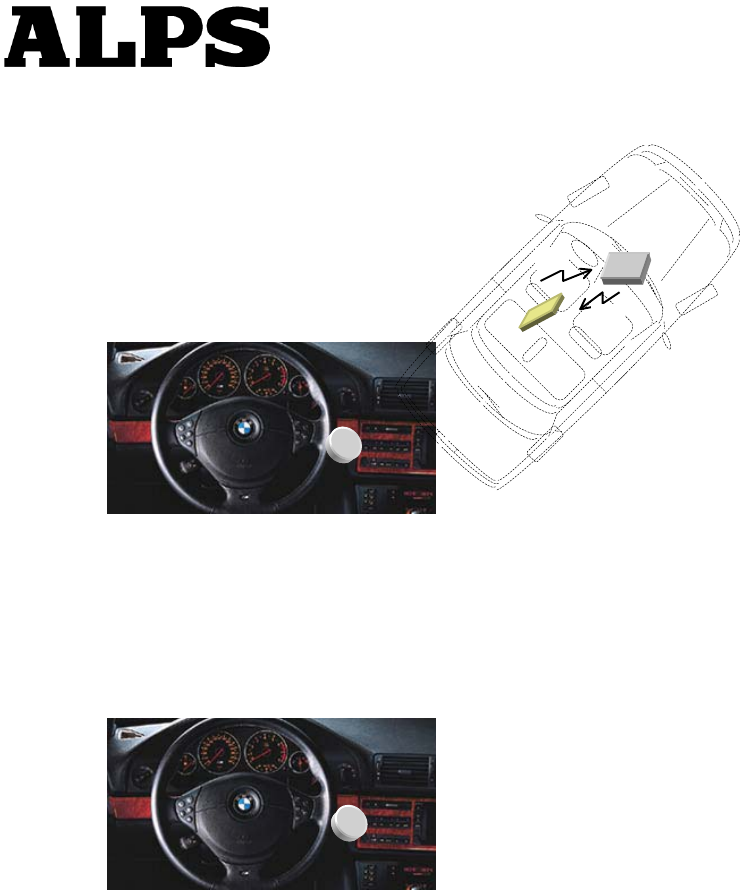

2.2.Engine Start
• User pushes / operate the engine start button / knob.
• ECU sends LF-challenge via interior antenna.
• FOB sends RF-response to the ECU.
• Immobilizer ECU receives and authorizes the response.
• Engine controller ECU receives the authorization for engine start.
• Start the engine.
Figure 3
2.3.Engine Stop
• User pushes / operate the engine stop button / knob.
• ECU communicates with the other ECU for engine start request.
• Engine controller ECU receives the request.
• Stop the engine
Figure 4
LF
RF
FOB
![](/img.php?id=480651&img=bg5.png)
FORMAT NO. FIRMWARE_A(VER 0.01)
2.4.Door Locking (Push switch)
• User closes the door and pushes the switch (sensing of door locking switch).
• ECU sends LF-challenge via exterior antenna.
• FOB sends RF-response to the ECU.
• Door locking status is engaged.
• Doors are locked.
• (Indicates the door locking status by means of Flasher / Buzzer or stuff)
Figure 5
![](/img.php?id=480651&img=bg6.png)
FORMAT NO. FIRMWARE_A(VER 0.01)
3. Active Access Entry Functionality
3.1.Door Unlocking
Same functionality as the current one.
3.2.Engine Start
This function does not effect on the active entry system.
3.3.Engine Stop
This function does not have influence on the active entry system.
3.4.Door Locking
Same functionality as the current one.
![](/img.php?id=480651&img=bg7.png)
FORMAT NO. FIRMWARE_A(VER 0.01)
4. System Characteristics

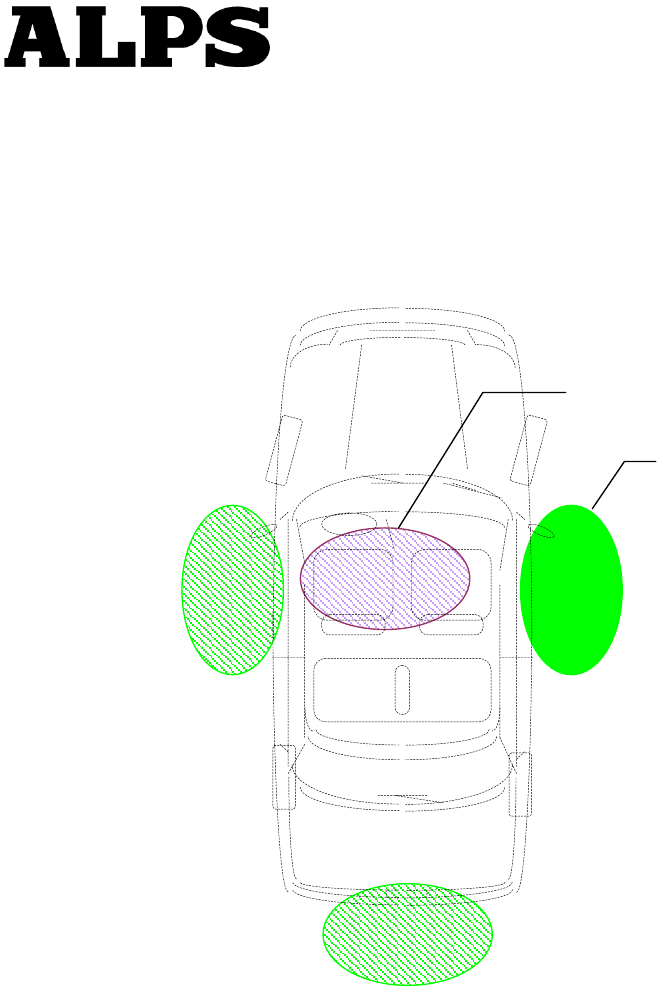

4.1.Antenna Areas
Exterior operating range: 0.8m to 1.5m
Interior operating range: Only inside the car
Number of the exterior exciters: max. 5 (min. 2), however, it is depending on the type of the vehicle.
Number of the interior exciters: 1 (1-Dimmension) or 2 (2-Dimension required)
Figure 6
Exterior antenna functionality:
• Unlock / lock doors and trunk.
• Activate / deactivate alarm system.
• Activate immobilizer
Interior antenna functionality:
• Deactivate immobilizer
• Engine start
Exterior
Interior
FT BT
![](/img.php?id=480651&img=bg8.png)
FORMAT NO. FIRMWARE_A(VER 0.01)

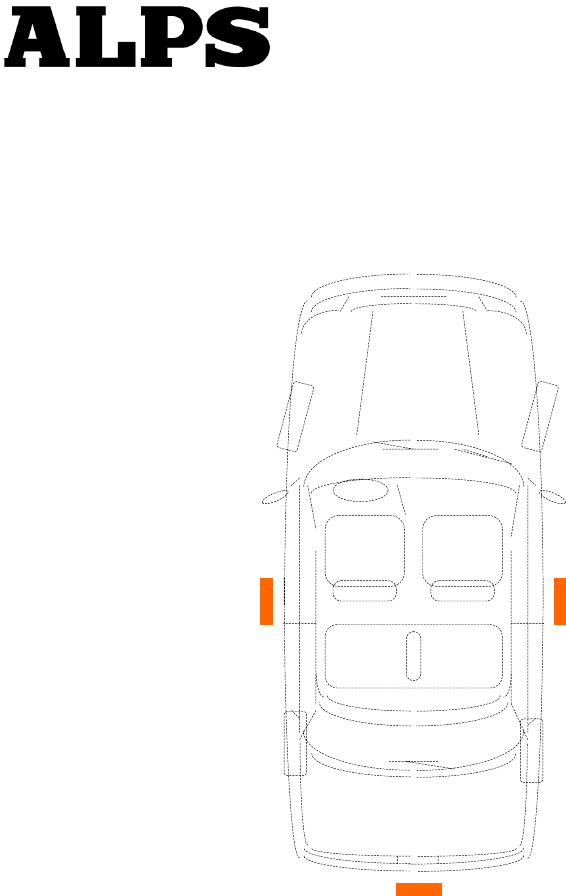

4.2.Exciter Locations
Exterior exciters: 2 doors and 1 trunk
Interior exciters: 1 driver’s seat
2 column / shift lever (X-Y 2-Dimension)
Figure 7
Antenna location can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff).
Exterior
Interior
FT BT
![](/img.php?id=480651&img=bg9.png)
FORMAT NO. FIRMWARE_A(VER 0.01)

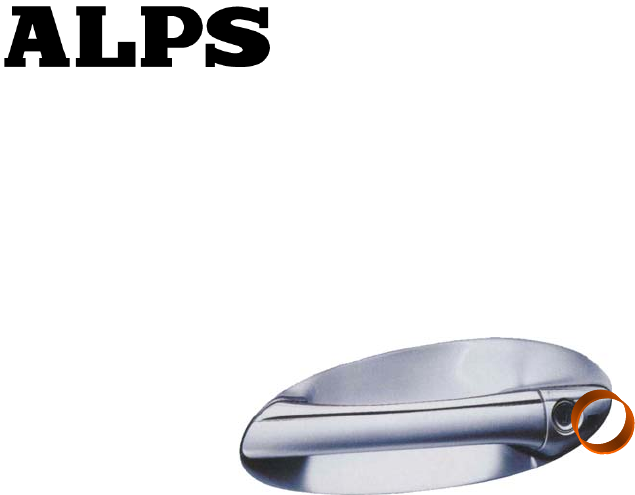

4.3.Switch Input Locations (Door handle, Touch sensor)
There are some kind of sensors, for instance the door handle contact switch and touch sensor, will be used as
a triggering for unlocking and open the door.
Switch inputs: 2 doors and 1 trunk
Figure 8
Switch inputs can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff).
FT BT
![](/img.php?id=480651&img=bga.png)
FORMAT NO. FIRMWARE_A(VER 0.01)
• FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTICE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
