Chapter 1 Getting Start
Minimum System Requirements
Pentium
®
300 MHz or higher compatible processor
At least one available USB 2.0 or 1.1 port
At least one built-in NIC interface.
The installation CD
5Mbytes free hard disk space.
Windows, XP, XP professional, Vista, or Windows 7.
Before you proceed with the installation, please notice the following descriptions.
1. Windows XP users must install SP3 or above.
2. If you have installed the WLAN USB driver & utility before, please uninstall the old version first.
3. The installation guide herein is operated under Windows system. For Linux or Mac driver
installation guide, please refer to the instruction in README at directory the driver has stored in
CD-Rom.
4. Give Me Five utility support Windows operating systems only. Linux and MAC users
Give-Me-Five wireless adapter can only act as a normal wireless adapter, without the advance
function the Give-Me-Five have.
5. Many WLAN chipset vendors have provided proprietary UI. If users already have pre-installed
WLAN adapter on system. We strongly suggest to turn off proprietary UI and switch to Windows
zero configuration instead.
Windows 7 Users
To install Give Me Five utility and execute. Windows 7 Home Edition users have to change notification
level of UAC (User Account Control) settings to “Never Notify”. For Windows Professional and Ultimate
Edition users, in addition to change UAC settings, enable and switch to Windows built-in Administrator
account get the most performance of operation.
Steps for changing notification level of UAC settings

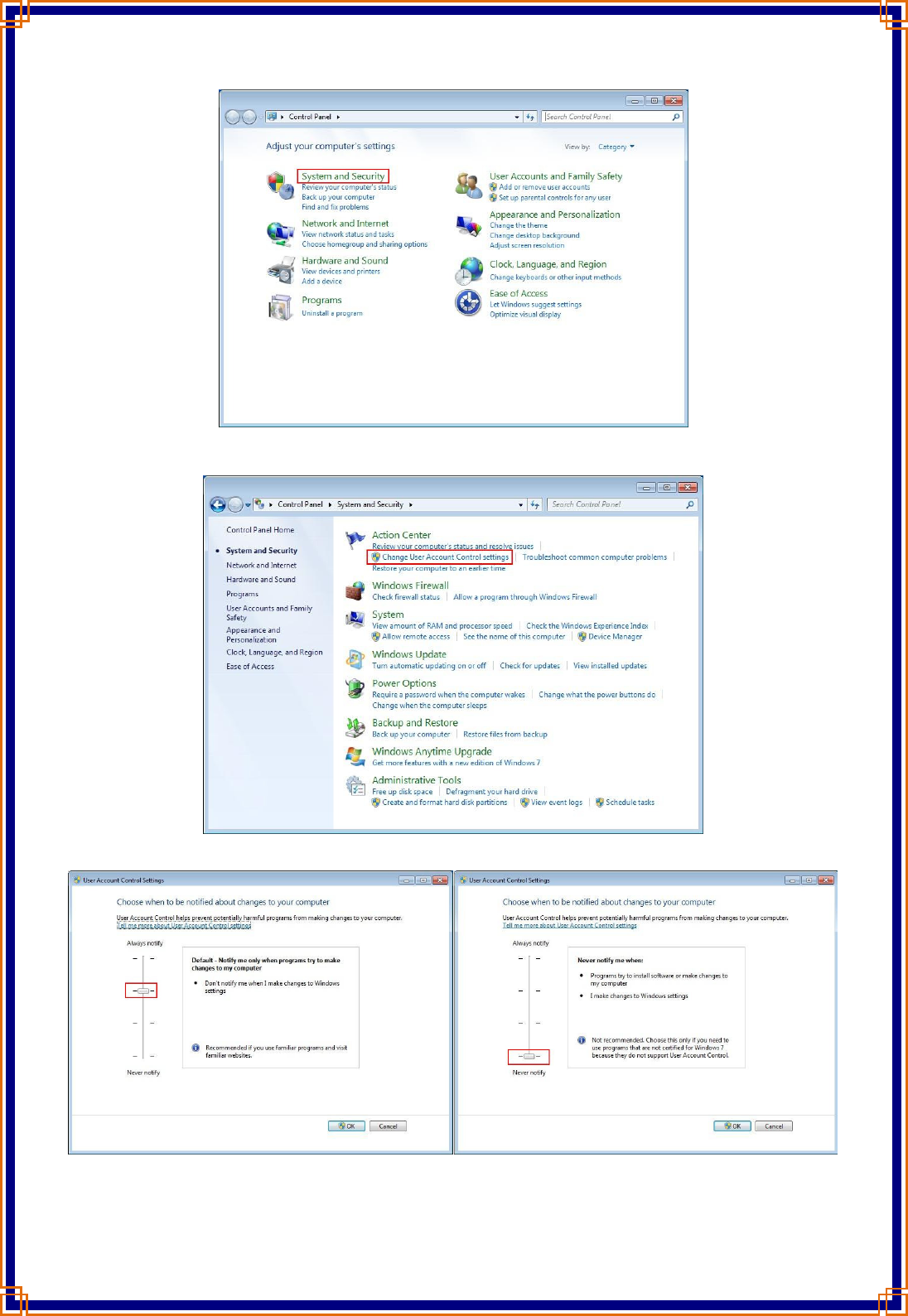

1. Open Control Panel and click System and Security
![](/img.php?id=1382816&img=bg4.png)
2. In Action Center, click Change User Account Control settings
3. Drag notification button down to Never Notify
![](/img.php?id=1382816&img=bg5.png)

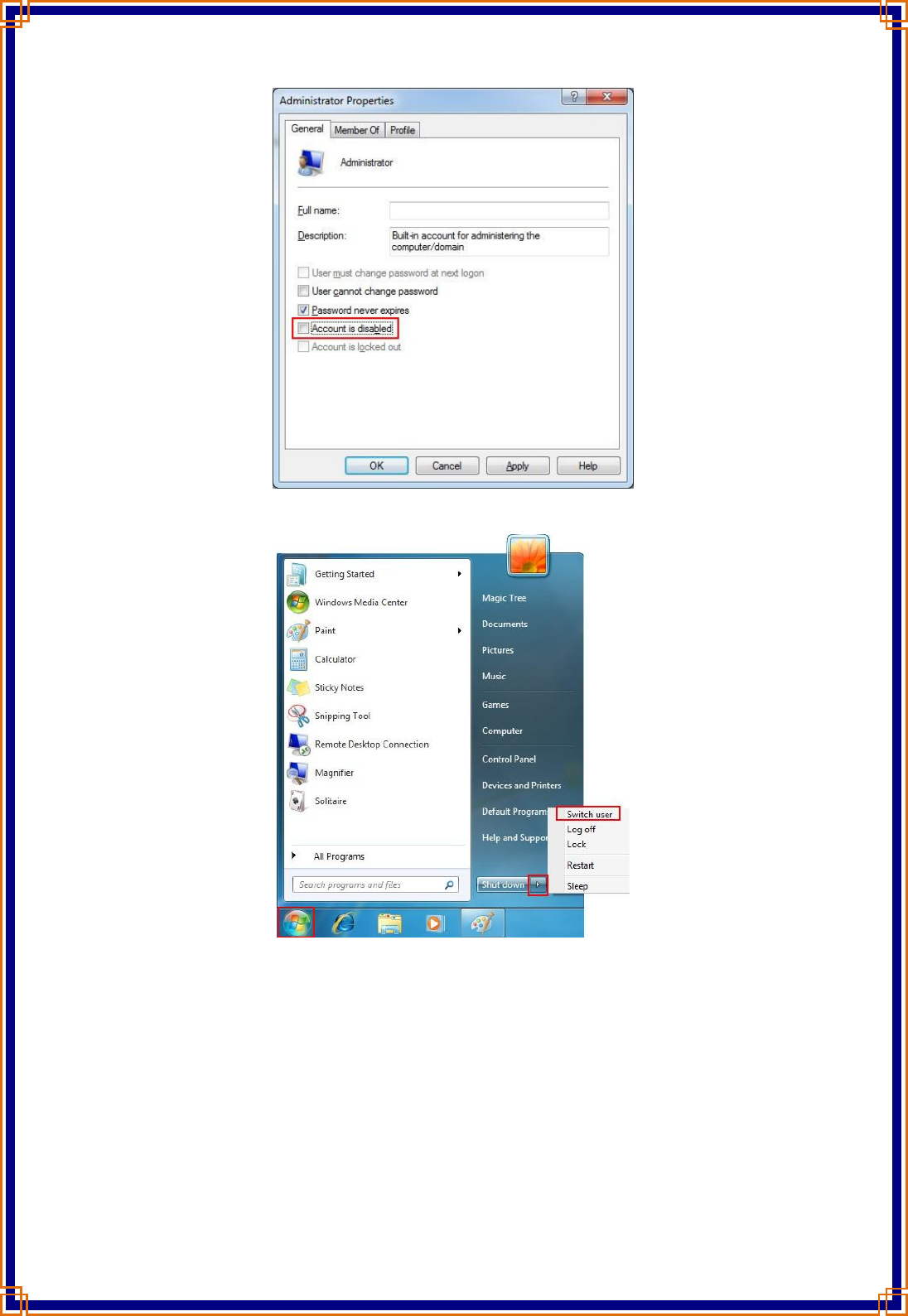

Steps for Enabling Windows built-in Administrator account

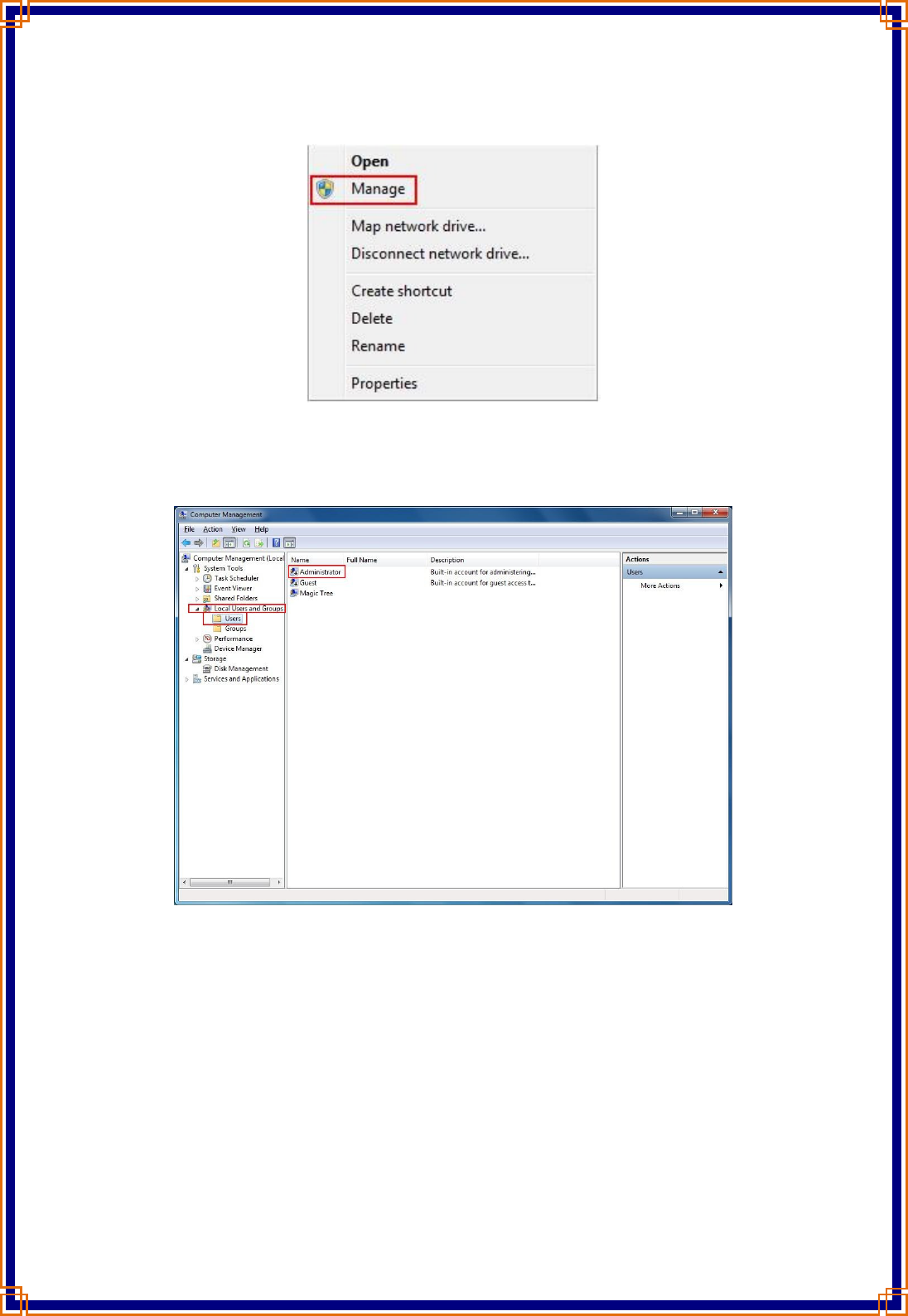

1. Right click Computer icon on desktop, from popup menu, select Manage.
2. Expend the console tree on Local Users and Groups, click Users, and right click Administrator on action
pane, and then click Properties
3. Uncheck Account is disabled and click OK
![](/img.php?id=1382816&img=bg6.png)

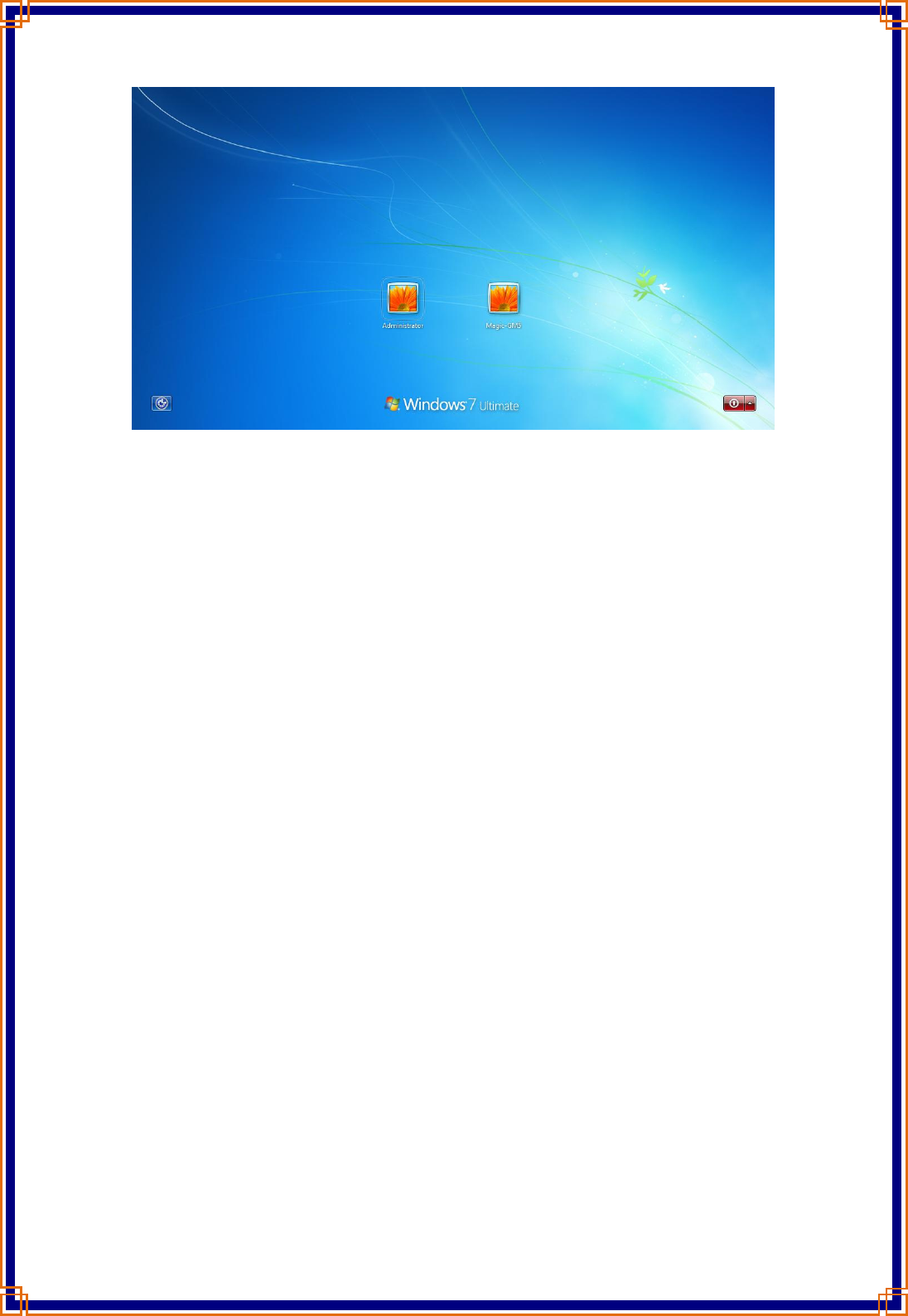

4. Click Start button and Select Switch user
5. Login Administrator account
![](/img.php?id=1382816&img=bg7.png)
![](/img.php?id=1382816&img=bg8.png)
Chapter 2 Installation and Uninstall
The installation consists of two parts. The first part is driver installation for the WLAN chipset inside Give
Me Five WLAN adapter. The second part is Give Me Five utility.
Give Me Five utility installation will detect presence of Give Me Five WLAN adapter. It won’t response
to the installation if Give Me Five WLAN adapter does not plug into computer. Even though the main chip
of your other brand adapter is just the same with Give-Me-Five wireless adapter.
PART I – Install WLAN Adapter Driver
Install WLAN adapter Driver for Windows XP

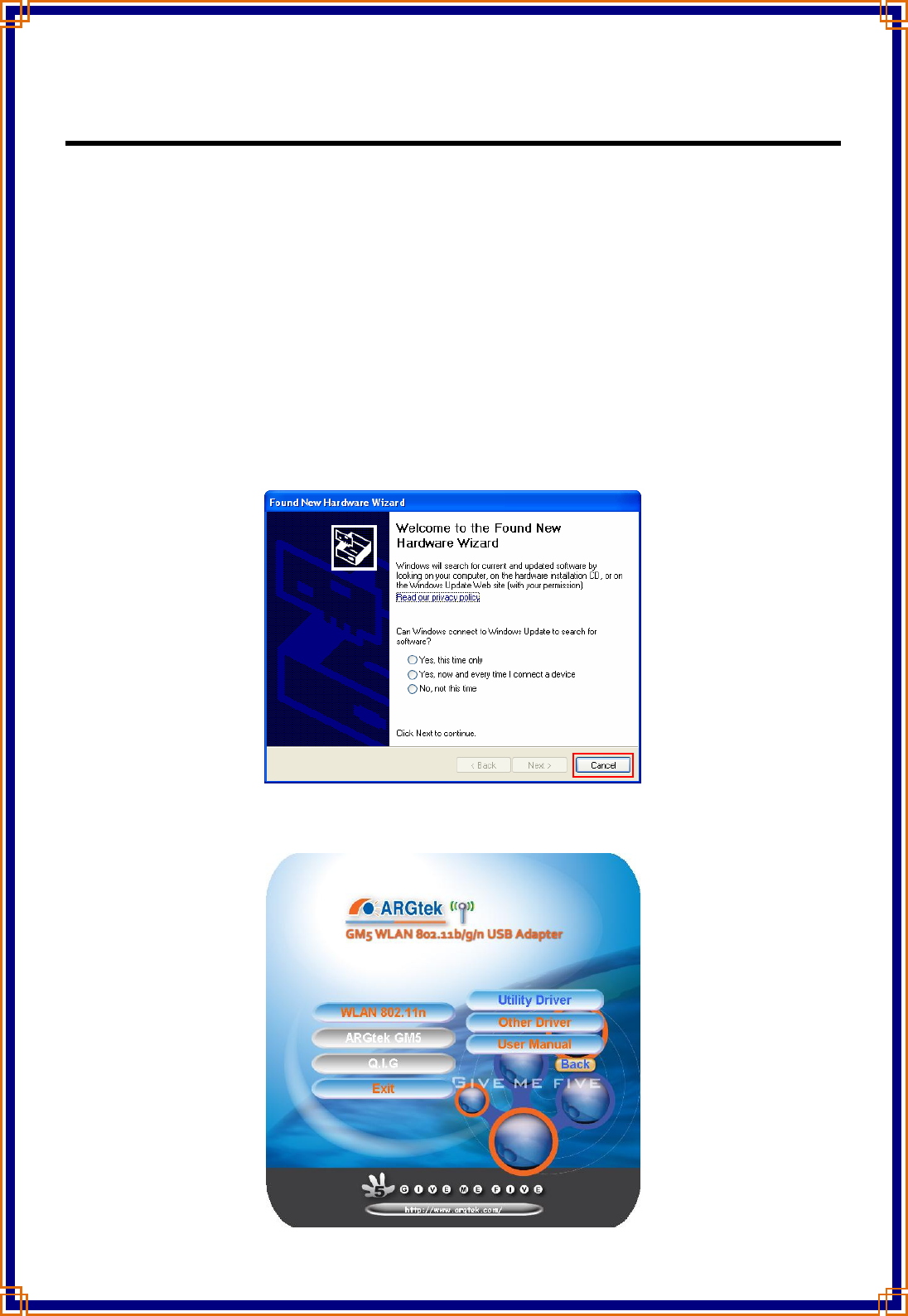

1. If you insert the Wireless LAN USB Adaptor into your computer, the following hardware setup wizard
will pop up if you have never installed driver for Ralink RT3070. Click Cancel to cancel installation from
Windows.
2. Insert your installation CD into CD-ROM drive of your computer. An installation page will pop up for
you to install. Click Utility Driver.
![](/img.php?id=1382816&img=bg9.png)
If the installation page does not appear, double click CD-ROM drive the installation CD was inserted to,
or open the CD-ROM drive then click Autorun.exe

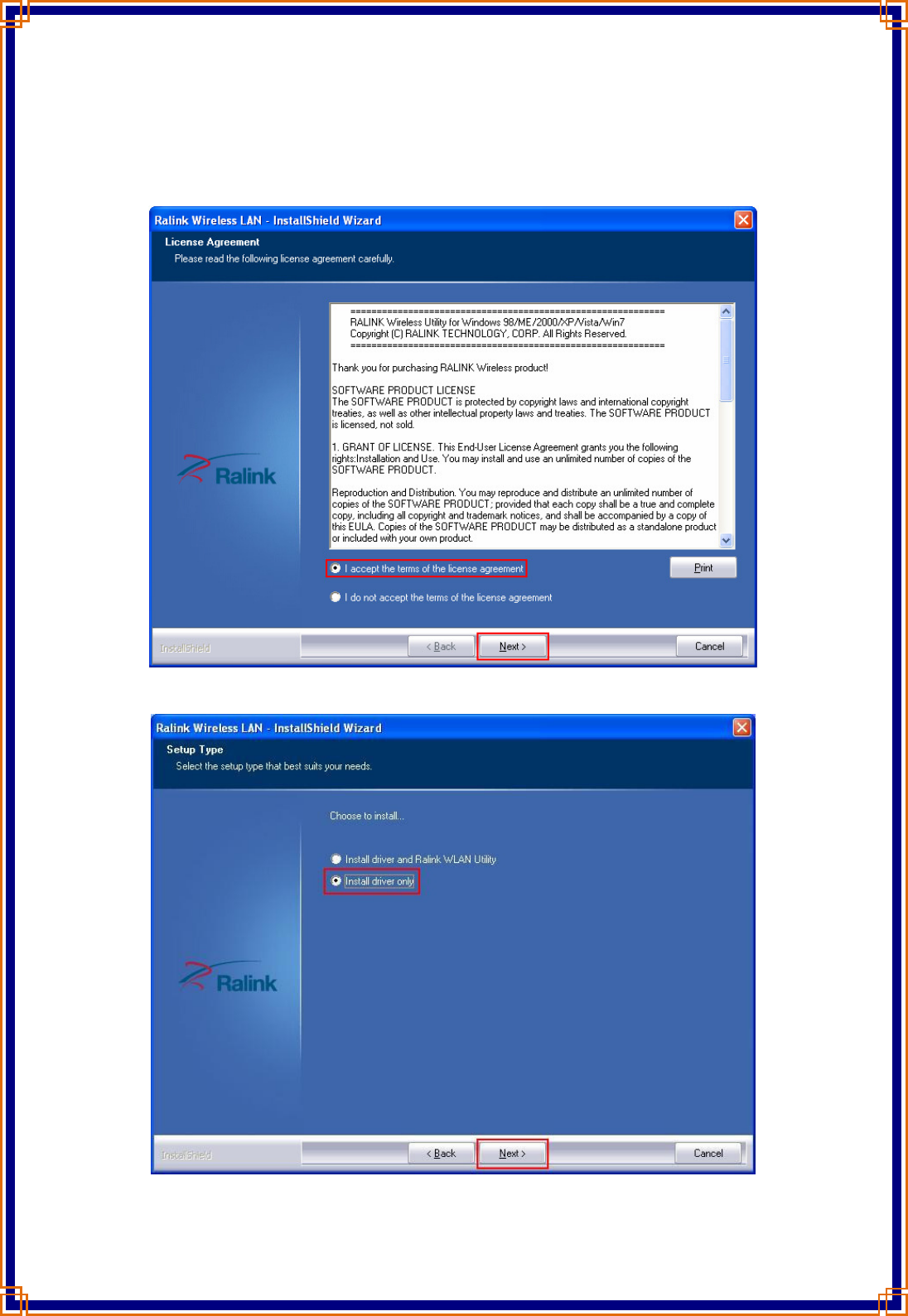

3. Click checkbox to accept the terms of license agreement, then click Next
4. Select setup type for Install driver only, then click Next

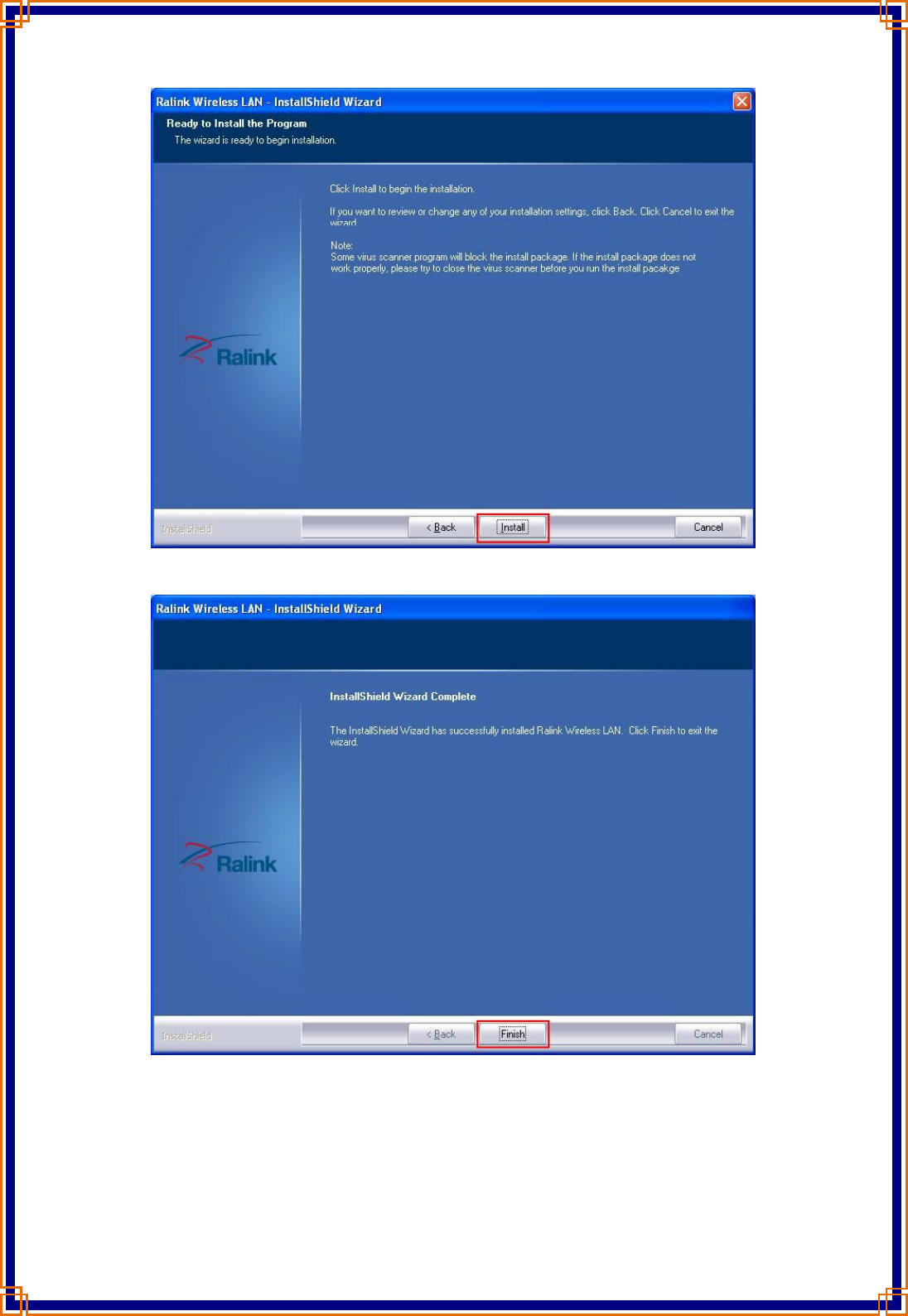

5. Click Install to continue driver installation
![](/img.php?id=1382816&img=bga.png)
6. Click Finish to complete the driver installation.
![](/img.php?id=1382816&img=bgb.png)
Install WLAN adapter Driver for Windows 7
The Give-Me-Five wireless adapter might be recognized by Windows 7 and automatically install Windows
native driver after adapter plug into USB interface. It is fine to work with Windows native driver without
problems. If your Windows 7 did not detect the presence of Give-Me-Five wireless adapter, the installation
steps are similar to the steps for installing in Windows XP, just insert the installation CD into your CD-ROM
drive and follow the steps describe in previous section.
PART II - Install
Give Me Five
utility
Install Give Me Five utility for Windows XP

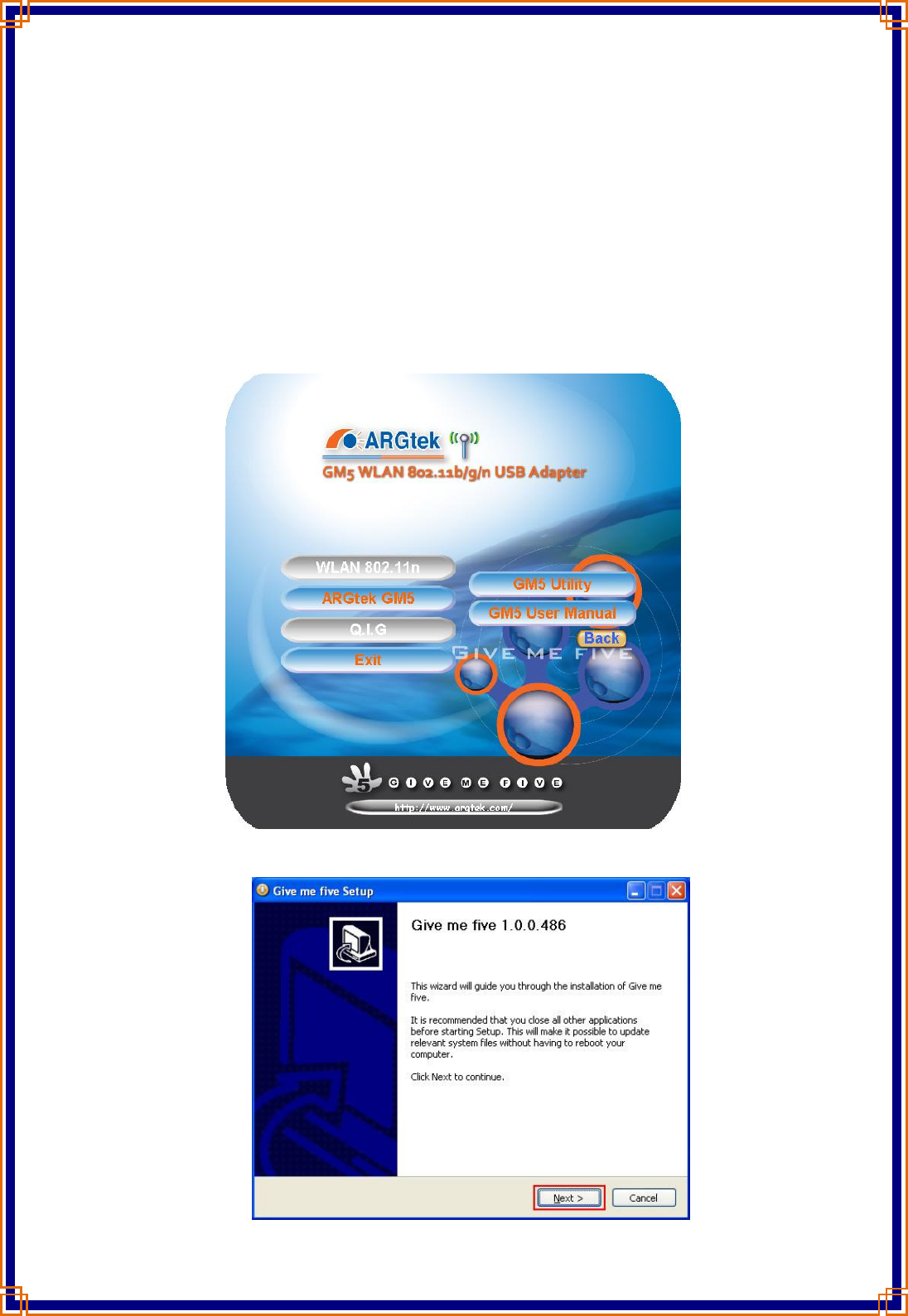

1. Click on GM5 Utility
2. Click Next to start Give Me Five installation.
![](/img.php?id=1382816&img=bgc.png)

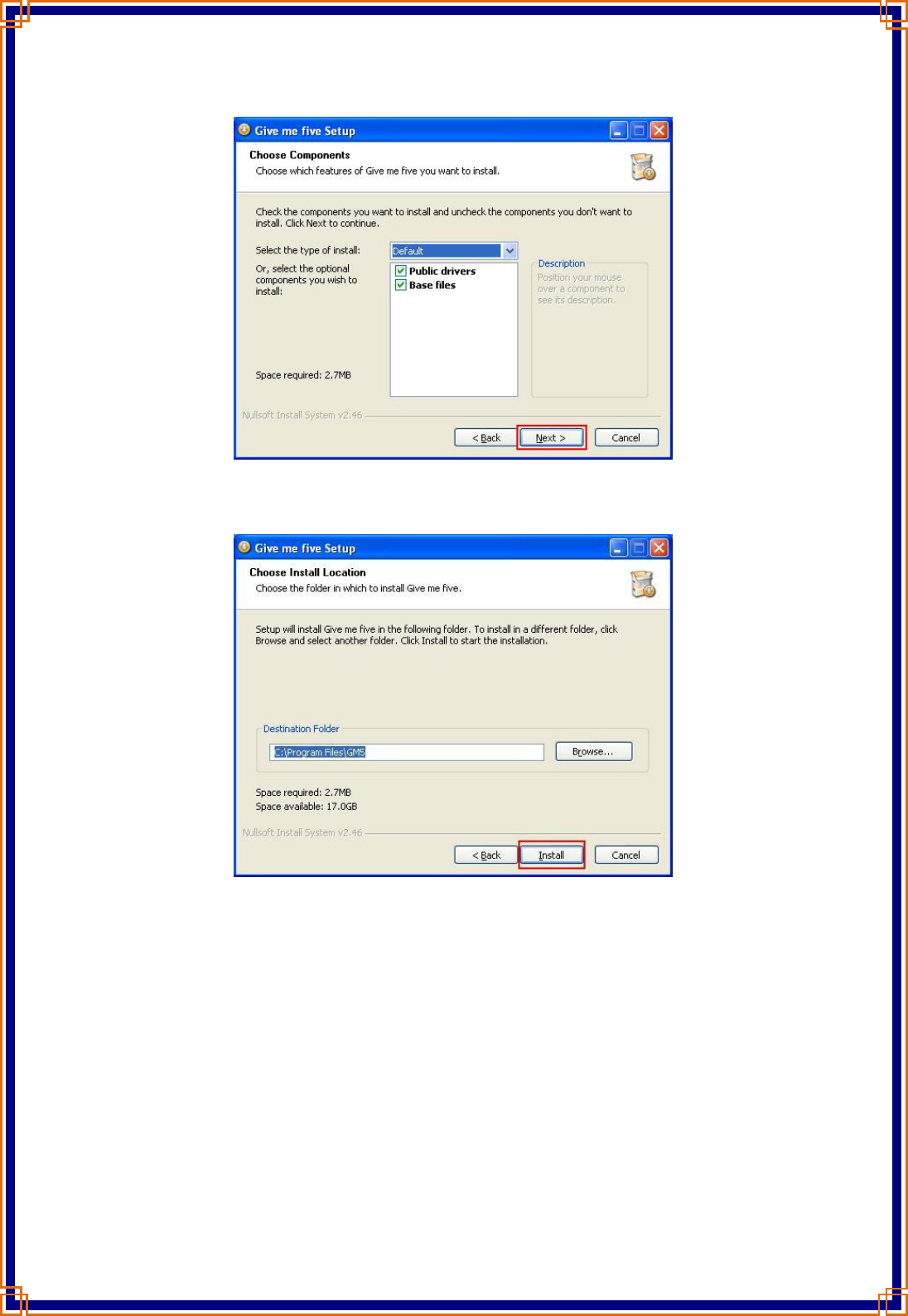

3. Choose components to be installed then click Next. Recommend installing all components by default.
4. Choose install location by click Browse button, change destination folder if needed, and then click
Install.
5. Select Reboot now then click Finish to restart your computer.
![](/img.php?id=1382816&img=bgd.png)
Install Give Me Five utility for Windows 7
Installation of Give Me Five utility for Windows 7 users is similar to steps as in Windows XP.
If you are Windows 7 professional and Ultimate users, please login the Administrator account to install
Give Me Five.
After complete the installation and restart your computer, please login the Administrator account to get
the highest permission for accessing Give Me Five.
Uninstall Give-Me-Five Utility
The uninstall procedure is a reference for users as the steps prior to update a newer version of Give Me
Five utility.

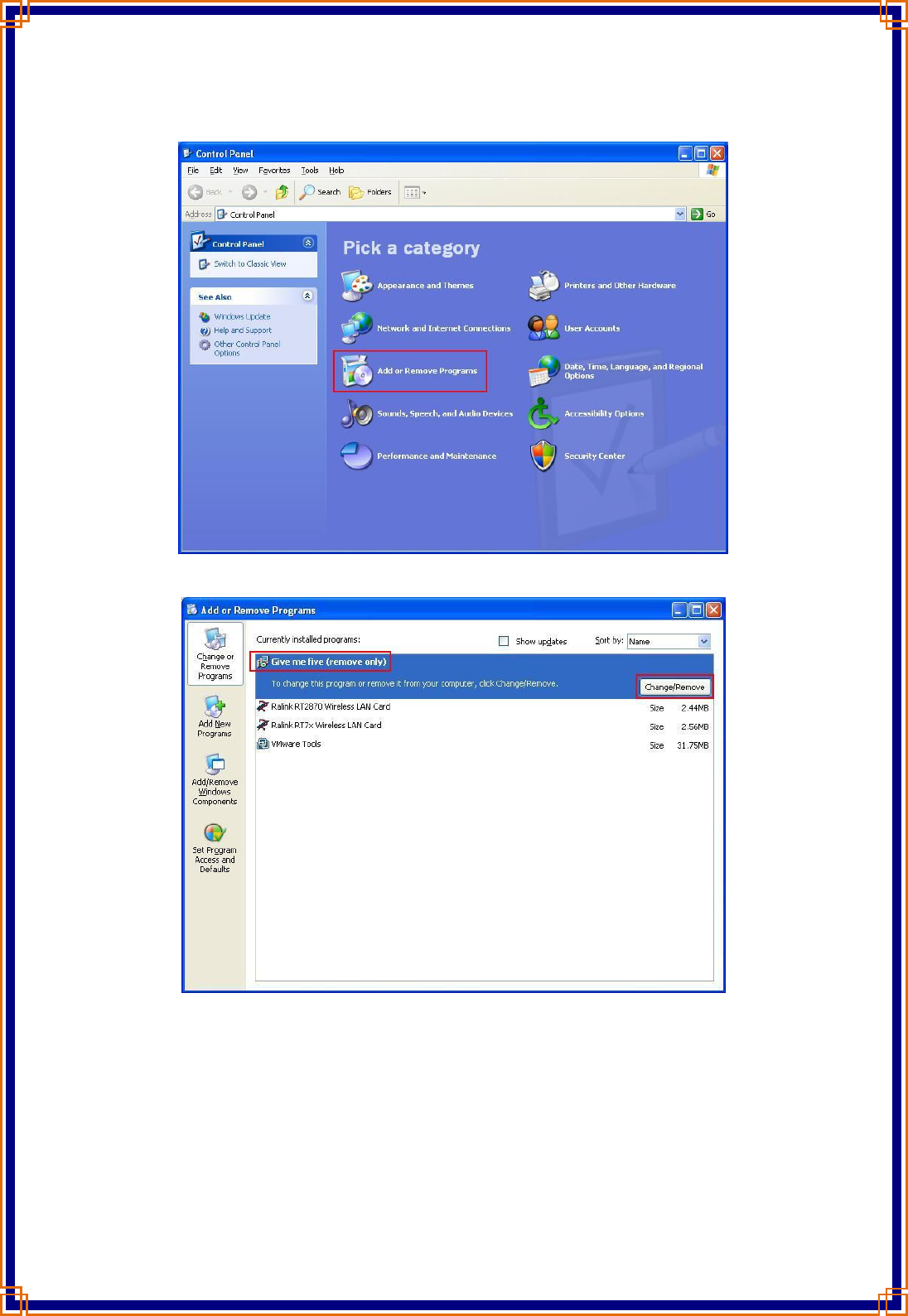

Uninstall Give Me Five utility from Start menu, and then click Control Panel.
![](/img.php?id=1382816&img=bge.png)
2. Click Add or Remove Programs from categories.

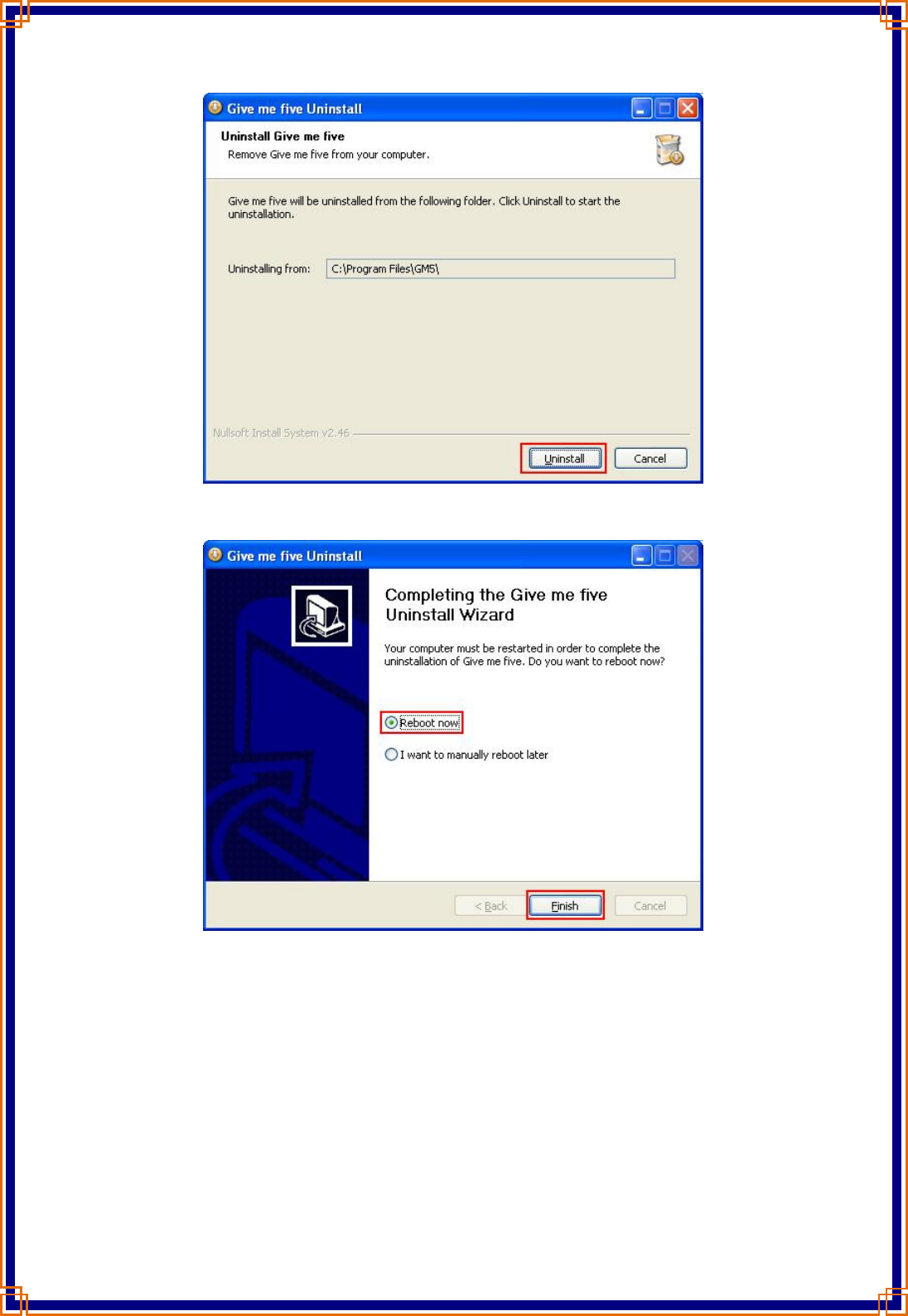

3. Select Give Me Five (remove only), and then click Change/Remove button.
4. Click Uninstall to remove Give Me Five utility from system.
![](/img.php?id=1382816&img=bgf.png)

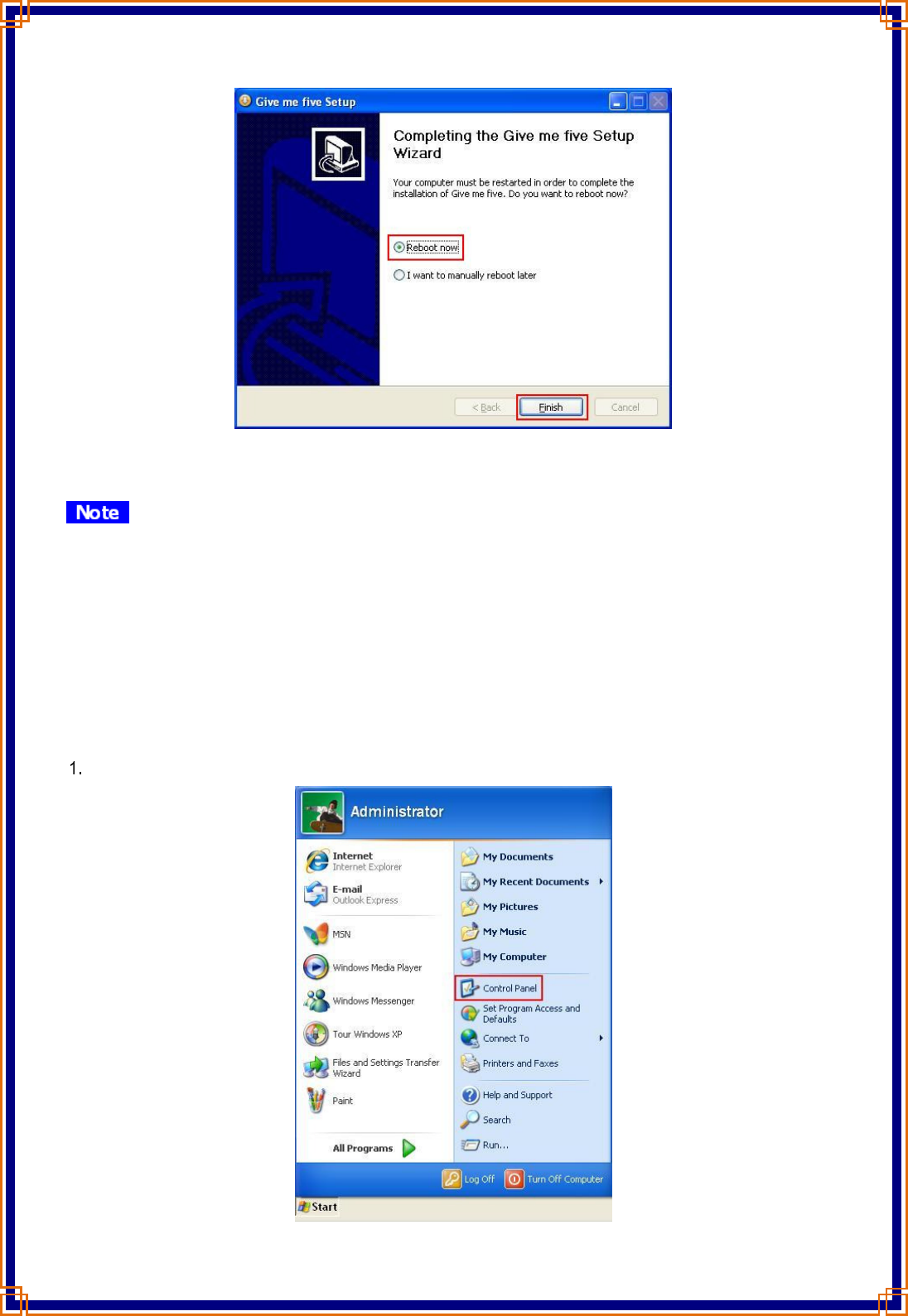

5. Select Reboot now and then click Finish to restart computer.
![](/img.php?id=1382816&img=bg10.png)
Chapter 3 Give Me Five User Guide
Quick Start
Following the steps in previous chapter, we have installed driver for network adapter and Give Me Five
utility. The following steps will guide you how to setup a connections and combine bandwidth for your
connections;
1. Connect to multiple internet connections one at a time by connect wireless adapters (including or
excluding Give Me Five) to APs

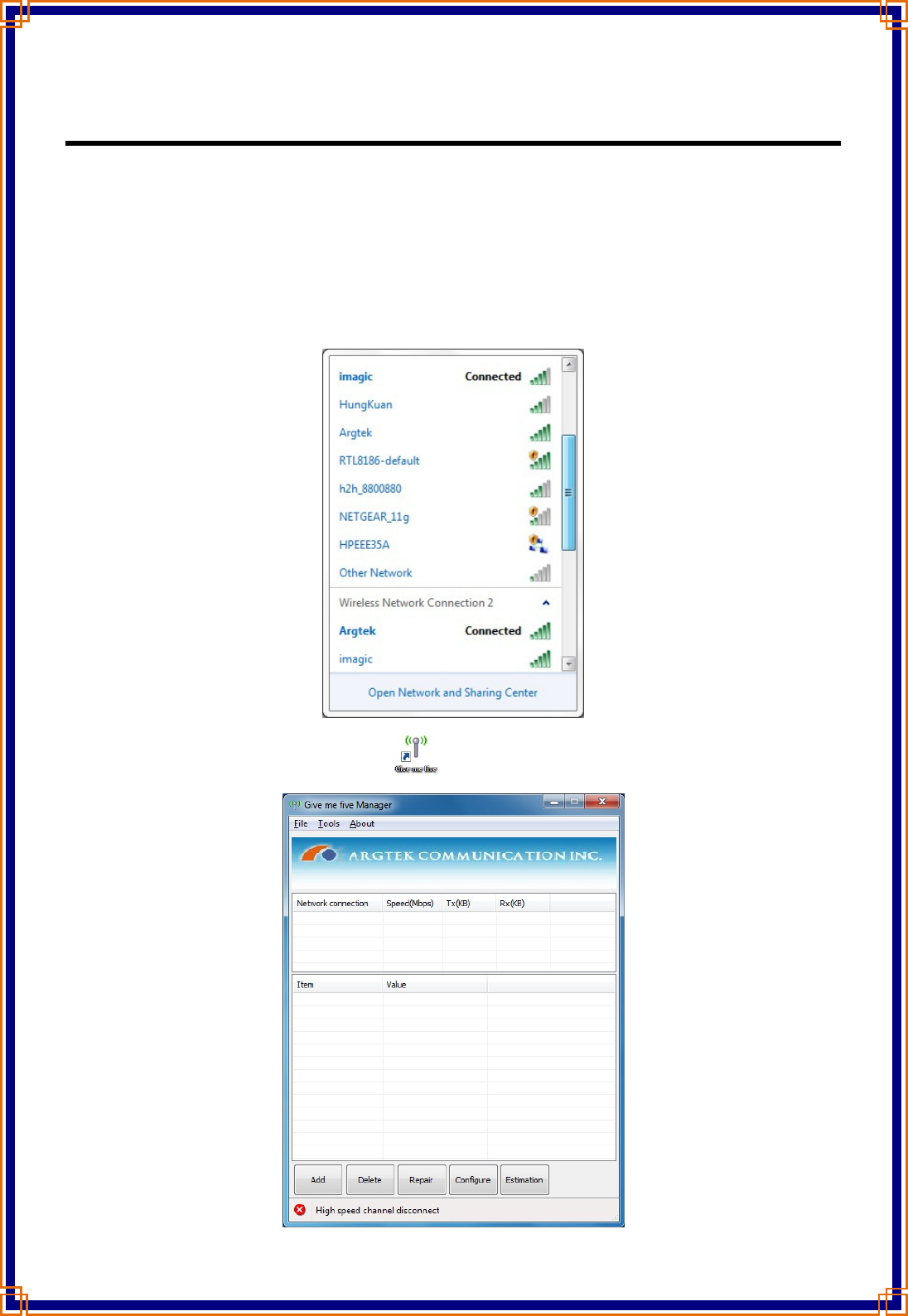

2. Open Give Me Five utility by clicking on desktop. The utility pop up.
![](/img.php?id=1382816&img=bg11.png)
Once you opened Give Me Five, the utility will take over the control of NIC. The connection status of NICs
will soon turn into Limited access. Just continue your steps. Don’t try to go back to re-connect your NICs.

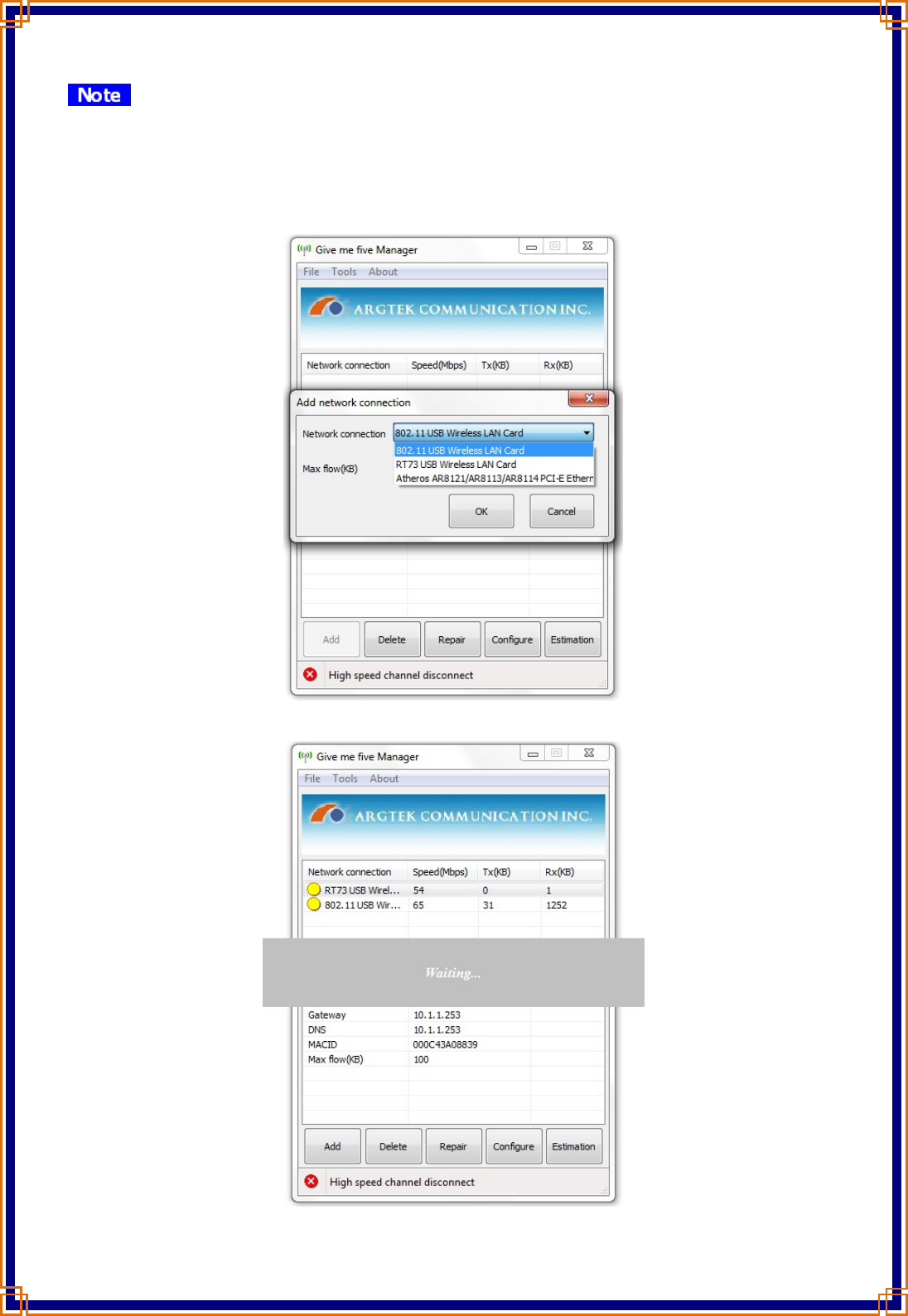

3. Click Add button one at a time to add available connections from pull down menu.
4. After adding all of the available connections, click Estimation button and waiting estimation results.
![](/img.php?id=1382816&img=bg12.png)

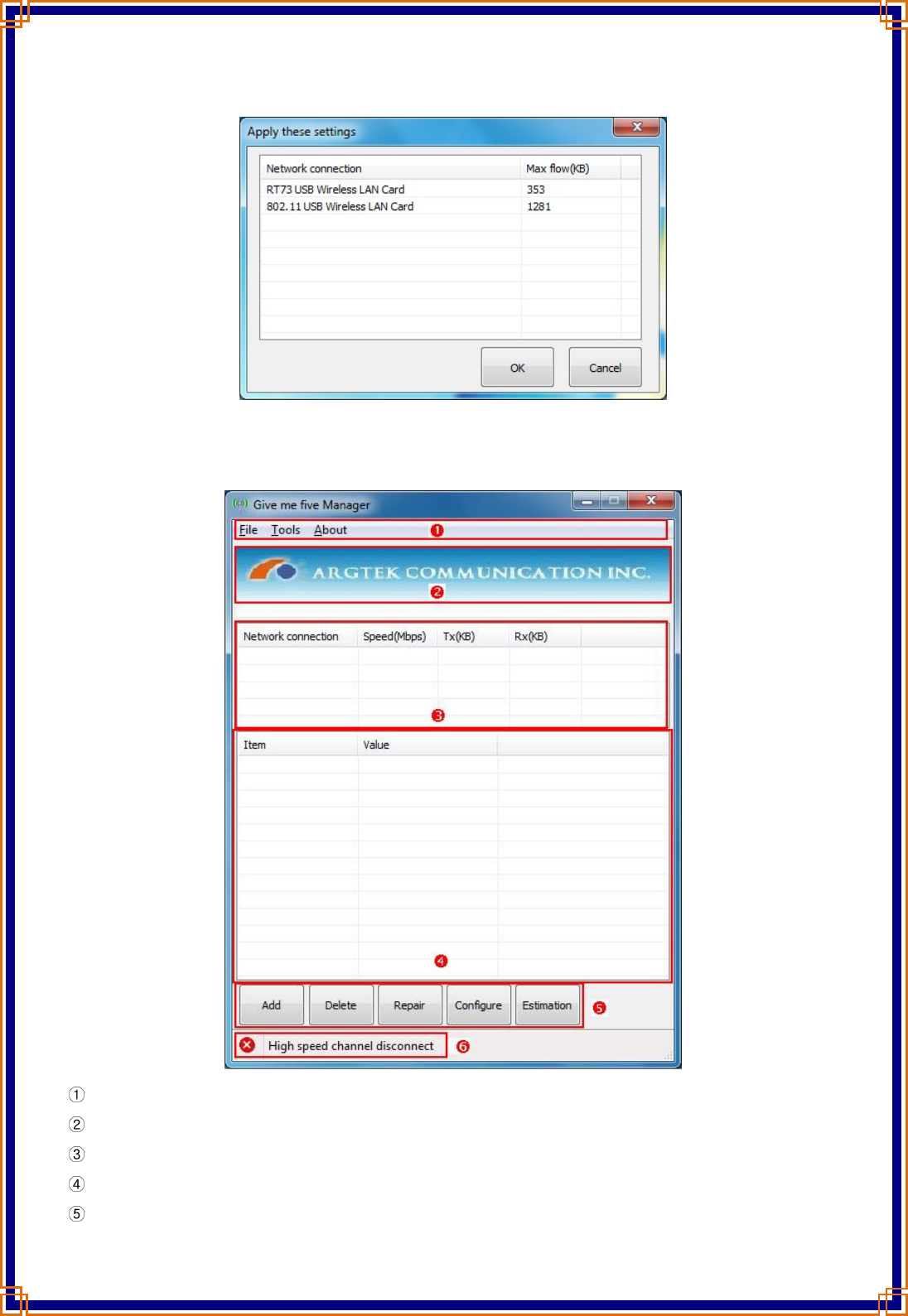

5. Click OK to apply settings from estimation results.
6. Browse internet and enjoy your incredible download speed.
Function Description
. Menu Bar Contains 3 categories of instructions, File, Tools and About
. Logo Pane ARGtek Communication INC. logo
. Connections Pane The list of connections to be combined by Give Me Five
. Properties Pane Properties of the connections which listed on Connections Pane
. Action Bar Actions/Instructions for Give Me Five
![](/img.php?id=1382816&img=bg13.png)
. Status Bar Status of the presence of high speed download manager
File Menu
Estimation The Location (URL) the file of trial downloads for bandwidth estimation.
Port mapping configure Make the configurations to mapping port and protocol to assigned
connections
Exit Quit from Give Me Five
Tools Menu
Stay on top Active Window stays on top.
About Menu
About A popup windows containing version information of Give Me Five.
Connections Pane
Network Connection The name of the wired or wireless NIC (network interface card). Each
connection has a symbol in front of the connection name. The yellow bulb
sign represents a healthy connection and a red bulb sign represent
disconnected. A magnifier sign represent the utility is inquiring the
connection status from system.
Speed (Mbps) The capability of the PHY speed of the wired or wireless NIC in Mbps.
Tx (KB) The transmitting speed of the wired or wireless NIC in Kbyte.
Rx (KB) The receiving speed of the wired or wireless NIC in Kbyte.
Properties Pane
IP The IP address which DHCP server has assigned.
IP mask Subnet mask
Gateway IP address of Default gateway
DNS IP address of Domain name server
MACID MAC address of the wired or wireless NIC.
Max flow (KB) Maximum bandwidth of the connection
Action Bar
Add Add connections to the list for Give Me Five to combine.
Delete Delete connections from the list
Repair Diagnostic and repair for the internet connections
Configure Make the configurations of port and protocol to map to assigned
connections
![](/img.php?id=1382816&img=bg14.png)
Estimation Click to make trial download to estimate the bandwidth of the internet
connections.
Status Bar
The statuses the presence of high speed download manager.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1
through 11.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
