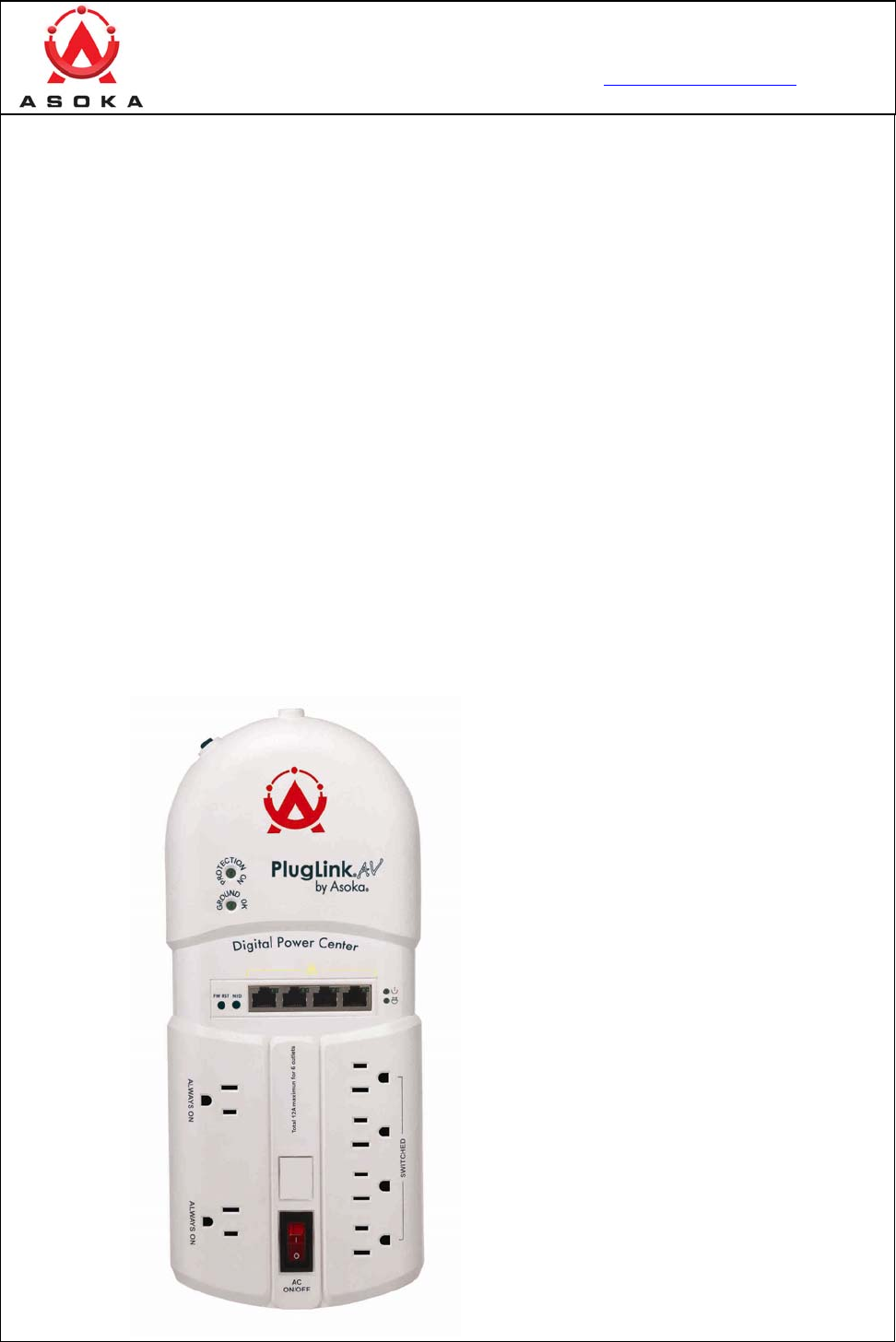

ASOKA USA PL9164-4SW PLUGLINK AV DIGITAL POWER User Manual
ASOKA USA Corporation PLUGLINK AV DIGITAL POWER Users Manual
Users Manual
Asoka USA Corporation
Add: 558 Pilgrim Drive, Unit H, Foster City, CA 94404 USA
Tel: (650) 286-1700 Fax: (650) 286-1790 Url: http://www.asokausa.com
第 1 页 共 8 页
DOCUMENT TITLE:
PL9164-4SW PRODUCT SPECIFICATION
DOCUMENT NUMBER AND REVISION:
PS-PL9164-4SW
APPROVALS: EFFECTIVE DATE:
APPROVAL NAME SIGNATURE DATE
ISSUED Henry wu December 10, 2009
CHECKED
APPROVED
DISTRIBUTION LIST:
Asoka USA Corporation
Add: 558 Pilgrim Drive, Unit H, Foster City, CA 94404 USA
Tel: (650) 286-1700 Fax: (650) 286-1790 Url: http://www.asokausa.com
第 2 页 共 8 页
Revision Record:
REVISION
FROM
TO DATE Description
CHANGED BY CHECKEDBY
001 July 14,2009 Initial Henry wu
Asoka USA Corporation
Add: 558 Pilgrim Drive, Unit H, Foster City, CA 94404 USA
Tel: (650) 286-1700 Fax: (650) 286-1790 Url: http://www.asokausa.com
第 3 页 共 8 页
Content
1、Purpose and Scope............................................................................................................................................. 4
2、Product description............................................................................................................................................ 4
3、General Specification ........................................................................................................................................ 4
3.1 Standard............................................................................................................................................... 4
3.2 Network Interface................................................................................................................................ 4
3.3 Date Rate ............................................................................................................................................. 4
3.4 Modulation .......................................................................................................................................... 4
3.5 Frequency Band................................................................................................................................... 4
3.6 Power Input and output........................................................................................................................ 5
3.7 Operating Systems Compatibility........................................................................................................ 5
3.8 PLC QoS.............................................................................................................................................. 5
3.9 Safety & EMI Compliance .................................................................................................................. 5
3.10 Encryption ........................................................................................................................................... 5
3.11 Drivers................................................................................................................................................. 5
4、Physical Specifications:..................................................................................................................................... 5
4.1 LED Indicators .................................................................................................................................... 5
4.2 Operating Voltage ................................................................................................................................ 5
4.3 Interface............................................................................................................................................... 6
4.4 Dimensions.......................................................................................................................................... 6
4.5 Weight.................................................................................................................................................. 6
4.6 Product Drawing.................................................................................................................................. 6
5、Environmental Specifications:........................................................................................................................... 7
5.1 Operation Condition ............................................................................................................................ 7
5.1.1 Operation temperature: ..........................................................................................7
5.1.2 Operation humidity:...............................................................................................7
5.2 Storage Condition................................................................................................................................ 7
5.2.1 Storage temperature: ..............................................................................................7
5.2.2 Storage humidity:...................................................................................................7
6、Function.. ................................................................................................................................7
7、FCC Statement.. ...........................................................................................................7
Asoka USA Corporation
Add: 558 Pilgrim Drive, Unit H, Foster City, CA 94404 USA
Tel: (650) 286-1700 Fax: (650) 286-1790 Url: http://www.asokausa.com
第 4 页 共 8 页
1、Purpose and Scope
This document contains specification pertinent to PL9164-4SW. It includes general
specifications, physical specifications, and environmental specifications.
2、Product description
The PL9164-4SW is a HomePlug AV 200Mbps-based Powerline Ethernet bridge adapter
for broadband sharing, online gaming, Voice over IP (VoIP), IPTV, audio and video
streaming.
3、General Specification
3.1 Standard
IEEE 802.3 10/100BASE-T Ethernet
HomePlug® AV
3.2 Network Interface
4XRJ45 Ethernet
3.3 Date Rate
Up to 200 Mbps
3.4 Modulation
OFDM, QAM 1024/256/64/16, DQPSK, DBPSK, and ROBO
3.5 Frequency Band
2-29MHz
Asoka USA Corporation
Add: 558 Pilgrim Drive, Unit H, Foster City, CA 94404 USA
Tel: (650) 286-1700 Fax: (650) 286-1790 Url: http://www.asokausa.com
第 5 页 共 8 页
3.6 Power Switch
1 - AC sockets
3.7 AC sockets
4 - switched with 1.10 inches apart
2 - un-switched with 2.25 inches apart
10A max. for each AC socket
3.8 Power cord
4 ft ,14AWG x 3C VW-1
3.9 Power rating
120VAC, 10A max
3.10 PLC QoS
Prioritized random access, contention-free access, segment bursting
3.11 Operating Systems Compatibility
Windows® 98 SE
Windows ME
Windows 2000
Windows XP
3.12 Safety & EMI Compliance
FCC, CE, UL, cUL
3.13 Encryption
128-bis AES
3.14 Drivers
Windows® 98SE, 2000, ME and XP
4、Physical Specifications:
4.1 LED Indicators
1 – Power
1 - Ground
1 – PL_Power
1 - PL_LNK/ACT
Asoka USA Corporation
Add: 558 Pilgrim Drive, Unit H, Foster City, CA 94404 USA
Tel: (650) 286-1700 Fax: (650) 286-1790 Url: http://www.asokausa.com
第 6 页 共 8 页
4.2 Operating Voltage
120VAC, 50/60Hz
4.3 Interface
4 RJ45 10/100 Base-TX, Auto-Negotiation ETH Port
4.4 Dimensions
1.85 in. (H) x 12.1 in. (L) x 5.5 in. (W)
4.5 Weight
1120g
4.6 Product Drawing
Asoka USA Corporation
Add: 558 Pilgrim Drive, Unit H, Foster City, CA 94404 USA
Tel: (650) 286-1700 Fax: (650) 286-1790 Url: http://www.asokausa.com
第 7 页 共 8 页
5、Environmental Specifications:
5.1 Operation Condition
5.1.1 Operation temperature:
32°F to 113°F (0°C to 45°C)
5.1.2 Operation humidity:
10% to 85% Non-condensing
5.2 Storage Condition
5.2.1 Storage temperature:
-4°F to 158°F (-20°C to 70°C)
5.2.2 Storage humidity:
5% to 90% Non-condensing
6. Function:
6.1 The PlugLink 9164 Power Strip is a HomePlugAV200Mbps-based Powerline integrated
4-port switch. Special filters provide higher quality of service (QoS) for bandwidth-intensive
applications such as streaming High-Definition (HD) video.
Four auto-sensing and auto-speed negotiation 10/100Base-T ports with auto MDI/MDI-X crossover
detection
Up to 200Mbps full duplex bandwidth at each port
Six fully protected EMI and RFI filtered AC receptacles
Delivers maximum protection with 1200-joule energy rating
Supplies complete, 3-line AC protection through 6 surge-protected outlets
Optimizes outlet-space usage for large, AC-block plugs
Indicates your devices are grounded and protected with lighted LEDs
Asoka USA Corporation
Add: 558 Pilgrim Drive, Unit H, Foster City, CA 94404 USA
Tel: (650) 286-1700 Fax: (650) 286-1790 Url: http://www.asokausa.com
第 8 页 共 8 页
7. FCC Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s
authority to operate the equipment.
