Aava Mobile INARI82 INARI Tablet computer User Manual
Aava Mobile Oy INARI Tablet computer Users Manual
Users Manual
![](/img.php?id=2657296&img=bg1.png)
Inari 8 Quick Start Guide
Inari features, buttons & interfaces
Front
1
Ambient Light Sensor
Recognizes the ambient light and adjusts the display brightness if enabled in the
operating system
2
Front microphone outlet
3
Front camera
2MP camera for video conferencing
4
Camera Indicator LED
Lights up if camera is activated and during device boot and shutdown
5
Charging indicator LED
OFF not connected to charger
ORANGE charging
GREEN connected and fully charged
RED charge fault
6
Windows Button
Touch it to return to the start menu
1
2
3
4
6
5
![](/img.php?id=2657296&img=bg2.png)
1
Top side
7
On / Off Button
Push it once to start the tablet; push it again to enable the sleep mode. Push and
hold it to shut down the device.
8
Volume key
Push the left side to reduce the volume, use the right side to increase the volume
Right and Bottom side
9
Docking connector
10
MicroSDXC card slot
11
MicroUSB interface
For charging only!
12
USB 2.0 port
13
Audio jack
combined microphone & speaker connector
14
Stereo speakers
7
8
9
10
11
12
13
14
![](/img.php?id=2657296&img=bg3.png)
2
Rear view
15
NFC antenna position
Can be used to read NFC & RFID tags
16
Rear microphone outlet
17
Camera flash LED
18
Rear camera
8MP camera for high resolution images & video
19
Mechanical fixing points behind covers
20
Battery lid
15
16
17
18
19
20
![](/img.php?id=2657296&img=bg4.png)
3
Replacing Battery / Adding SIM card
To replace the battery, take of the battery lid by pulling on the lid carefully.
Pull on the battery holder hook (1) to the bottom of the device. Pull the
battery up (2), and pull on the second battery holder hook (3).
Enter the SIM card into the slot in the bottom right corner. Please make sure
you have the SIM card in the correct direction (chip facing down).
When putting the battery back in place, please make sure both hooks have
clicked and are safely secured.
![](/img.php?id=2657296&img=bg5.png)
4

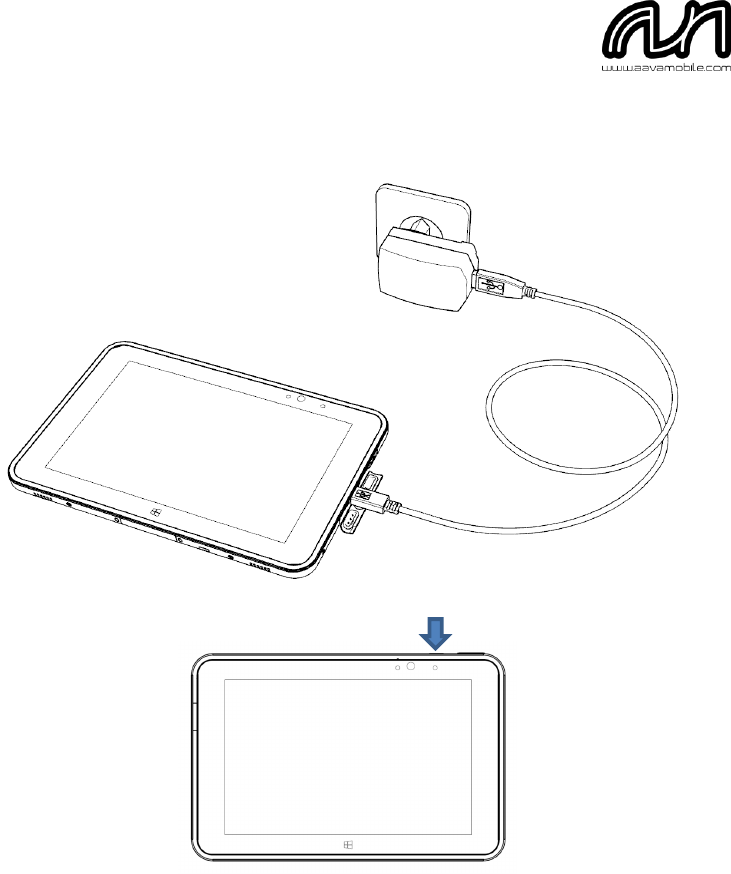

Using the Tablet for the first time
1. Connect power supply for the first time and make sure battery is fully
charged before disconnecting.
2. Press the power button
3. Follow the instructions in the operating system to complete the setup
Troubleshooting
In case devices freezes and you need to do a hard reset, press and hold the power button for approx. 14 seconds. Device
will be turned off now.
![](/img.php?id=2657296&img=bg6.png)
5
Important Product and Safety information
Do not drop, bend or twist your tablet. This can break tablet display glass, internal circuit boards or mechanics. If
the glass breaks, do not touch the glass parts of the device or attempt to remove the broken glass from the device.
Stop using the device until the glass is replaced by qualified service personnel.
Do not try to disassembly your tablet. This may damage the device.
Operate your device in a place where temperature is between -10°C and +50°C.
Charge your device with the supplied charged in a place where temperature is between 0°C and +40°C.
Store your device in a place where temperature is between -20°C and +60°C.
This product is intended to be supplied by a Listed Direct Plug-In Power Unit marked "Class 2" or LPS and rated
5 V DC, 2A
For charging the socket-outlet shall be installed near the equipment and shall be easily accessible.
Protect your device from water and moisture intake. Keep connector doors closed when not in use to prevent
water and moisture intake.
Listen to a headset at a moderate level, and do not place the device loudspeaker outlets near your ear when the
loudspeakers are in use.
Use only soft, clean and dry lint-free cloth to clean your device.
Keep the unit and accessories away from small children.
Switch off your device before boarding to an aircraft.
Switch off your device in any area with a potentially explosive atmosphere.
Your device meets guidelines for exposure to radio waves (SAR, Specific Absorption Rate) when kept in a minimum
distance of 2.5cm to your body.
Use only charger delivered with your tablet.
Power rating: 3.8V 3.0A
Do not disconnect charger by pulling the cord.
Do not use damaged power cords or plugs.
Do not use Nano-to-Micro SIM card adapters.
Save energy. You can save energy by doing following.
o Close unused applications and data connections.
o Decrease screen brightness and sound volume.
o Deactivate unnecessary sounds like touch panel sound.
o Disconnect your charger from mains outlet when charger is not needed.
o Do no keep unnecessary accessories connected in your device.
Recycle. Return your used electronic units to dedicated collection points. Please note that your tablet has a battery,
so it is not allowed to be disposed to normal household waste and battery requires separate recycling.
Replaceable battery safety
o Batteries have life cycles. If the time that the battery powers equipment becomes much shorter than
usual, the battery life might be at the end.
o Fully charge the battery at least every 6 months.
o Stop using the tablet if abnormal heat, order, discoloration, deformation, or abnormal condition is
detected during use, charge, or storage.
o Keep the device away from heat (battery temperature not to exceed 60°C).
o Do not throw battery into fire, it may be exploded.
o Do not soak the battery with liquid like water, tea, coffee etc.
o Do not hit, bend, deform or drop the battery.
o Do not pierce battery with a sharp object such as a needle, etc.
o The battery should not have liquid from electrolyte flowing, but in case the electrolyte come into
contact with eyes, don’t rub your eyes. Wash your eyes well with clean water and go to see a doctor
immediately. In case the electrolyte come into contact with your skin, wash it well with clean water.
o Do not externally short-circuit the battery. If externally short-circuited, the battery may be heated,
ignited or broken.
o There is a risk of explosion if you replace the battery with an incorrect type. Only use the correct
battery type for this device.
o Dispose of battery needs to be done according to instructions above.
![](/img.php?id=2657296&img=bg7.png)
6
Warning Statements
To prevent possible hearing damage, do not listen at high volume levels for long periods.
WLAN 802.11 a/n bands are allowed for indoor use only.

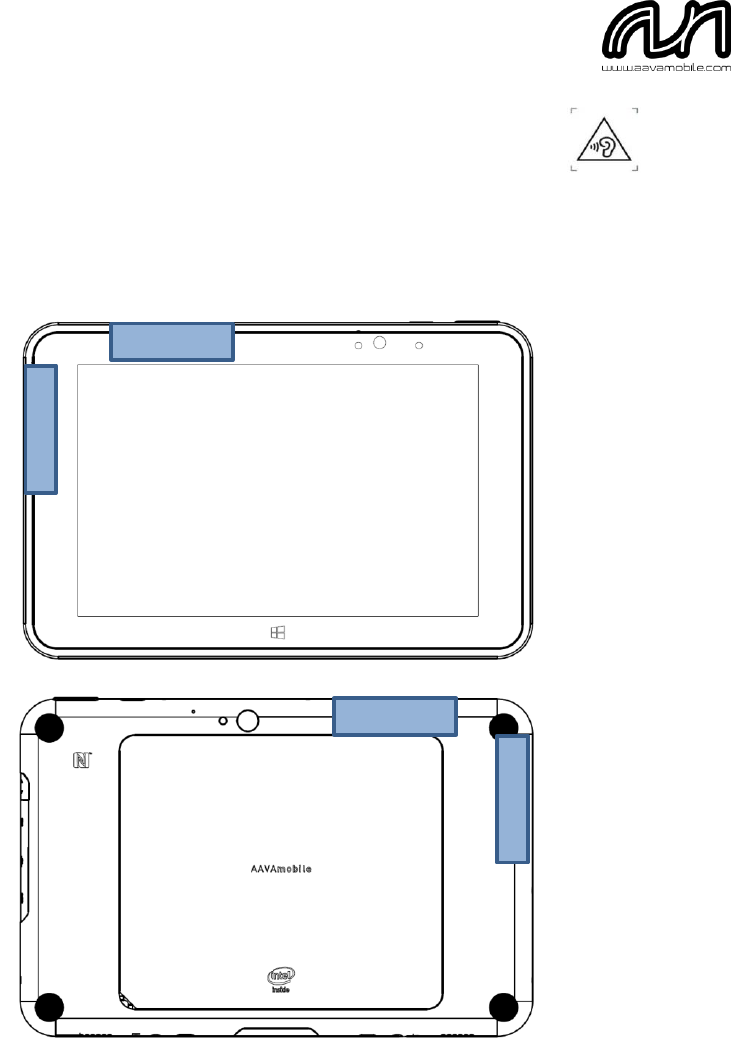

Antenna positions
Your device meets guidelines for exposure to radio waves (SAR, Specific Absorption Rate) when kept in a minimum
distance of 2.5cm to your body. It is recommended to learn the antenna positions (for 3G or LTE devices only) as
mentioned below and not to touch or bring your body closer than 2.5 cm to these antenna areas. Antenna areas are
highlighted in below pictures.
![](/img.php?id=2657296&img=bg8.png)
7
EU Declaration of Conformity
Hereby, Aava Mobile declares that this device is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
FCC Compliance Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could
void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. this device may not cause harmful interference and
2. this device must accept any interference received, including interference that may cause undesired operation
of the device.
RF Exposure Information (SAR)
This model device meets the government’s requirements for exposure to radio waves. This device is designed and
manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U. S. Government. The exposure standard for wireless devices employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are
conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified
level, the actual SAR level of the device while operating can be well below the maximum value. This is because the device
is designed to operate at multiple power levels so as to use only the poser required to reach the network. In general, the
closer you are to a wireless base station antenna, the lower the power output.
While there may be differences between the SAR levels of various devices and at various positions, the all meet the
government requirement.
The FCC has granted an Equipment Authorization for this model device with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR information on this model device is on file with the FCC and can be
found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on the below:
FCC ID: 2ABVH-INARI81, 2ABVH-INARI82
This device is compliant with SAR for general population / uncontrolled exposure limits in SNAI / IEEE C95.1-1999 and had
been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C.
Specific Absorption Rate (SAR): 1.150 W/kg
This product has been tested and found to comply with the following standards:
For the worst case positions, the INARI8 is in compliance with the IC RSS 102 Issue 4 (RSS 102) and Federal
Communications Commission (FCC) Guidelines (OET 65) for uncontrolled exposure.
SAR assessment in body worn was conducted with a distance of 0 mm between the housing of the handheld
and the flat phantom.
EM 62311:2008: Assessment of electronic and electrical equipment related to human exposure restrictions
for electromagnetic fields (0 Hz – 300 GHz).
![](/img.php?id=2657296&img=bg9.png)
8
Canadian Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de classe B est conforme à la norme NMB-003.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence(s). Son fonctionnement est soumis aux
deux conditions suivantes: (1) cet appareil ne peut pas provoquer d'interférences et (2) cet appareil doit accepter toute
interférence, y compris les interférences pouvant entraîner un mauvais fonctionnement de la appareil.
For Local Area Net operation (RSS-210 A9.4 sections (6-7)):
(1) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful
interference to co-channel mobile satellite systems;
(2) high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz
and that these radars could cause interference and/or damage to LE-LAN devices
(1) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une utilisation à l'intérieur
afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(2) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés
utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces
radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
![](/img.php?id=2657296&img=bga.png)
9
![](/img.php?id=2657296&img=bgb.png)
10
![](/img.php?id=2657296&img=bgc.png)
11
