1Installing Your Wireless LAN PC Card
and 3Com Wireless Card Manager
Installation CD
The Installation CD contains:
■Drivers for Windows XP, 2000, Millennium Edition (Windows Me), and 98 Second
Edition (SE).
■3Com Wireless Card Manager
■Warranty Information
■This Wireless LAN PC Card User Guide
■Wireless LAN PC Card Installation Guide
■Adobe Acrobat Reader
Windows XP, 2000, Me, and 98 SE
If you are accessing this guide as part of your PC Card installation, skip to step 3 below.
1With the computer on and Windows running, insert the Installation CD into the
CD-ROM drive. The auto-start feature starts the installation. If nothing happens
within five seconds, click Start > Run and type d:\setup.exe (where d: is your
CD-ROM drive).

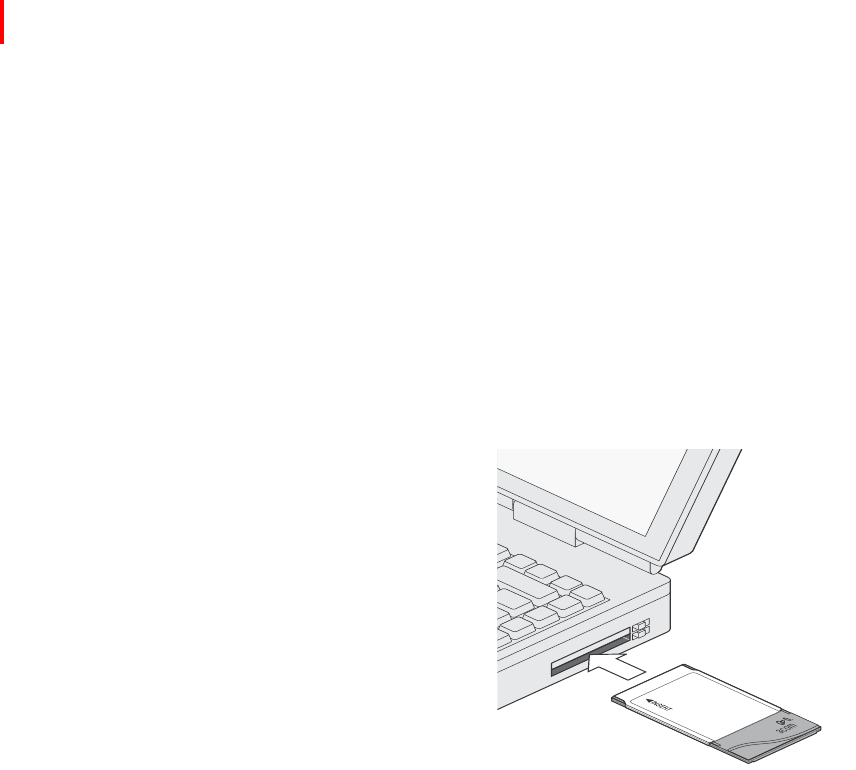

2Insert your Wireless LAN PC Card as indicated below:
3Respond to the prompts as they appear.
If you are prompted for the drivers, enter d:\ where d: is the location of the CD-ROM
drive where the Installation CD is inserted.
4During the installation process, you may receive prompts for the Windows installation
CD. Insert the CD for your Windows operating system and indicate the correct path.
Your computer goes through a brief installation process during which it displays
several windows indicating what is currently installing.
5Restart the computer whenever you are prompted.
![](/img.php?id=333954&img=bg6.png)
1Installing Your Wireless LAN PC Card and 3Com Wireless Card Manager
6
Confirming Device Installation
1With your PC Card installed in the computer, double-click the My Computer icon.
If you are running Windows XP, click Start > Control Panel and go to step 3.
2Double-click the Control Panel icon.
3Double-click the System icon. The System Properties window appears, detailing your
system setup.
4Click the Device Manager tab. A list of devices appears, arranged by type.
If you are using Windows XP or 2000, click the Hardware tab and click
Device Manager.
5Double-click Network Adapters. An entry for your 3Com Wireless PC Card appears.
6Double-click the entry to display a description of the current status.
The device status should indicate “This device is working properly.”
7Close the windows you have opened until you return to the desktop.
Installing 3Com Wireless Card Manager
1If you restarted your computer after installing the Wireless LAN PC Card and the
install program did not start automatically, click Start > Run and type d:\setup.exe
(where d: is your CD-ROM drive).
2From the Installation CD, select Install 3Com Wireless Card Manager and follow the
prompts, removing the Installation CD and restarting your computer whenever you
are prompted.
If the 3Com icon was not placed in the system tray when you installed the Wireless LAN
PC Card, start the 3Com Wireless Card Manager by selecting Start > Programs > 3Com
Mobile > 3Com Wireless Card Manager.
Using Wireless Card Manager
Refer to the 3Com Wireless Card Manager help for detailed information about how to use
Wireless Card Manager.
Wireless LAN PC Card LED Indicators
Card Type 3CRSHPW796 3CRWE154G72
Power/Activity LED Activity LED
Off The computer does not recognise the Wireless
LAN PC Card or the computer is powered off. No data transfer
On The Wireless LAN PC Card has power. n/a
Flashing Data transfer is taking place. Data transfer is taking place.
Link LED Link LED
Off The PC Card is not associated with a Wireless
network. The PC Card is not associated with a Wireless
network.
On The PC Card is associated with a Wireless
network. The PC Card is associated with a Wireless
network.
Flashing n/a The PC Card is scanning for a wireless network.
![](/img.php?id=333954&img=bg7.png)
7
2Troubleshooting
Diagnosing Problems
If you have difficulty using the Wireless LAN PC Card, try the solutions in the following
table. If you continue to experience difficulty, see the next two sections,“Uninstalling the
PC Card” and “Uninstalling Wireless Card Manager”
Uninstalling the PC Card
Previous installations or interrupted installation attempts sometimes leave problems that
affect card operation. Possible problems include:
■Wireless LAN PC Card fails to function.
■Operating system does not detect the Wireless LAN PC Card.
■System issues a warning tone at start-up.
If the installation is unsuccessful, your best course may be to completely uninstall the card
and repeat the installation procedure.
Problem Solutions
Wireless LAN PC Card Power/Activity
LED is off ■Make sure the PC Card is properly inserted in the slot.
■Check the Wireless LAN PC Card icon in the Windows control panel and make sure the PC
Card type can be recognized.
■Check “Confirming Device Installation” on page 6.
Wireless LAN PC Card installs as an
unknown device Remove the unknown device from the Device Manager and repeat the installation procedure.
Make sure you insert the 3Com CD when the installation calls for it and that you wait for it to
come up to speed in the drive.
Installation program does not finish
or the driver fails to load Use the Device Manager to resolve resource conflicts that may exist. Select System from the
Control Panel, and then click the Device Manager tab.
Network association is intermittent Try reorienting the computer. For best use of the antenna:
■Keep the area around the antenna clear from materials that could block radio transmission,
such as metal objects, electronic devices, and cordless telephones.
■If the signal is weak, change the position of the computer slightly.
■If necessary, move your computer a few inches to find a better signal.
Computer operating system does not
recognize the card ■Make sure the card is properly inserted in the slot and Cardbus support is installed.
■Windows XP, 2000, Me, and 98 SE: Check whether the computer has a Plug-and-Play BIOS.
No network association exists when
the computer becomes active again
after being in sleep mode or after the
Wireless LAN PC Card is removed and
reinserted
Log out and log in again, or restart the computer to restore the connections.
CAUTION: Exit any networking applications and remove the Wireless LAN PC Card
before uninstalling the card.
![](/img.php?id=333954&img=bg8.png)
2Troubleshooting
8
1Make sure you have exited any networking applications.
2Use the standard operating system procedure to remove the card driver.
The procedure for Windows XP, 2000, Windows Me, and Windows 98 SE, is
shown below.
aIf you are using Windows 2000, Me, or 98 SE, click Start > Settings >
Control Panel.
If you are using Windows XP, click Start > Control Panel.
bDouble-click the System icon.
If you are using Windows XP or 2000, click the Hardware tab.
The System Properties window appears, detailing your system setup.
cClick Device Manager.
A list of devices appears, arranged by type.
dDouble-click Network Adapters.
Select the entry for your Wireless PC Card.
eIf you are using Windows 98 SE and ME select Remove.
If you are using Windows XP or 2000, from the Action menu, select Uninstall.
fClick OK.
gClose the open windows until you return to the desktop.
3Remove the adapter.
4Restart the computer.
Uninstalling Wireless Card Manager
Normally, you would not uninstall the Wireless Card Manager software; however, in case a
problem arises, you may want to uninstall and reinstall it.
You can uninstall Wireless Card Manager any time following the installation. The uninstall
removes desktop icons, registry entry files, and files used by the adapter.
1If you are using Windows 2000, Me, or 98 SE, click Start > Settings > Control Panel.
If you are using Windows XP, click Start > Control Panel.
2Click Add/Remove Programs.
3Select 3Com Wireless Card Manager.
4Click Change/Remove.
5Click Remove.
6When the uninstall is complete, remove the adapter and restart your computer.
CAUTION: To avoid damaging the card, do not pull on the antenna. Refer to your
computer’s documentation for PC Card removal instructions.
![](/img.php?id=333954&img=bg9.png)
Updating the Wireless LAN PC Card Driver
9
Updating the Wireless LAN PC Card Driver
To update your Wireless LAN PC Card driver software, find your operating system below,
then follow the procedure.
Windows XP and 2000
1Insert your Wireless LAN PC Card into the PC card slot.
2If you are using Windows 2000, select Start > Settings > Control Panel, then double-
click the System icon.
If you are using Windows XP, select Start > Control Panel, then double-click the
System icon.
3Select the Hardware tab and click Device Manager.
4Double-click Network Adapters.
5In Windows 2000, double-click the appropriate entry for your Wireless PC Card,
select the Driver tab, and click Update Driver.
In Windows XP, right-click the appropriate entry for your Wireless PC Card and click
Update Driver.
6The Hardware Update Wizard window appears. Insert the 3Com Installation CD.
7In Windows 2000, click Display list of known drivers so that I can choose a specific
driver and click Next.
In Windows XP, select Install from a list or specific location (Advanced) and click Next.
8In Windows XP, select Don’t search. I will choose the driver to install and click Next.
9When you are prompted to select an adapter, click Have Disk… and enter the drive
letter for the 3Com Installation CD or enter the directory on your hard drive where the
updated driver is located. Click Continue.
10 Select Wireless LAN PC Card and click Next. Follow the prompts through the
remainder of the driver update.
11 When the installation has completed, click Finish.
Windows Me and 98 SE
1Insert your Wireless LAN PC Card into the PC card slot.
2From the Windows Start menu, select Settings, then select Control Panel.
3Double-click the System icon, then select Device Manager.
4In the Device Manager window, double-click the Network Adapters list.
5Select the your Wireless PC Card entry and click Properties.
6Select Driver and click Update Driver.
7The Hardware Update Wizard window appears. Insert the 3Com Installation CD.
8In the Update Device Driver Wizard, follow the prompts to install the upgrade.
9When you are prompted to select an adapter, click Have Disk… and enter the drive
letter for the 3Com Installation CD or enter the directory on your hard drive where the
updated driver is located. Click Continue.
10 When prompted, click Restart for the changes to take effect.
2Troubleshooting
10
![](/img.php?id=333954&img=bgb.png)
11
ATechnical Support
3Com provides easy access to technical support information through a variety of services.
This appendix describes these services.
Information contained in this appendix is correct at time of publication. For the most
recent information, 3Com recommends that you access the 3Com Corporation World
Wide Web site.
Online Technical Services
3Com offers worldwide product support 24 hours a day, 7 days a week, through the
following online systems:
■World Wide Web site
■3Com Knowledgebase Web Services
■3Com FTP site
World Wide Web Site
To access the latest networking information on the 3Com Corporation World Wide Web
site, enter this URL into your Internet browser:
http://www.3com.com/
This service provides access to online support information, such as technical
documentation and a software library, as well as support options that range from
technical education to maintenance and professional services.
3Com Knowledgebase Web Services
The 3Com Knowledgebase is a database of technical information to help you install,
upgrade, configure, or support 3Com products. The Knowledgebase is updated daily with
technical information discovered by 3Com technical support engineers. This
complimentary service, which is available 24 hours a day, 7 days a week to 3Com
customers and partners, is located on the 3Com Corporation World Wide Web site at:
http://knowledgebase.3com.com
3Com FTP Site
Download drivers, patches, software, and MIBs across the Internet from the 3Com public
FTP site. This service is available 24 hours a day, 7 days a week.
To connect to the 3Com FTP site, enter the following information into your FTP client:
■Hostname: ftp.3com.com
■Username: anonymous
■Password: <your Internet e-mail address>
With Web browser software, such as Netscape Navigator and Internet Explorer,
you do not need a user name and password.
![](/img.php?id=333954&img=bgc.png)
ATechnical Support
12
Support from Your Network Supplier
If you require additional assistance, consult your network supplier. Many suppliers are
authorized 3Com service partners who are qualified to provide a variety of services,
including network planning, installation, hardware maintenance, application training, and
support services.
When you consult your network supplier, have the following information ready:
■Product model name, part number, and serial number
■A list of system hardware and software, including revision levels
■Diagnostic error messages
■Details about recent configuration changes, if applicable
If you are unable to consult your network supplier, see the following section on how to
contact 3Com.
Support from 3Com
If you are unable to obtain assistance from the 3Com online technical resources or from
your network supplier, 3Com offers technical telephone support services. To find out more
about your support options, go to the Web site associated with your region of the world
shown below.
When you contact 3Com for assistance, have the following information ready:
■Product model name, part number, and serial number
■A list of system hardware and software, including revision levels
■Diagnostic error messages
■Details about recent configuration changes, if applicable
Returning Products for Repair
Before you send a product directly to 3Com for repair, you must first obtain an
authorization number. Products sent to 3Com without authorization numbers will be
returned to the sender unopened, at the sender’s expense. To obtain an authorization
number, go to the Web site listed below and select your region:
http://www.3com.com/support/en_US/repair
Region URL for Regional Web Site
Asia and the Pacific Rim http://ap.3com.com/support/
Africa, Europe, and the
Middle East emea.3com.com/support/supportnumbers.html
Latin America lat.3com.com/lat/support/index.html
(Also, you can telephone 800.998.2112.)
or for Portuguese speakers:
http://lat.3com.com/br/support/index.html
(Also you can telephone 0800 13 3COM)
North America 3com.com
(Also, you can telephone 1 800 876 3266)
13
Regulatory
Compliance Information
NOTE: This product contains encryption. It is unlawful to export out of the U.S. without obtaining a U.S.
Export License.
FCC Part 15 Notice (Applicable to use within the USA)
The OfficeConnect Wireless 11g PC Card has been tested to the FCC exposure requirements
(Specific Absorbtion Rate)
This product does not contain any user serviceable components. Any unauthorized product changes or
modifications will invalidate 3Com’s warranty and all applicable regulatory certifications and approvals.
Unintentional Radiator
WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device as
applicable, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
■Reorient or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1 This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
2The user may find the following booklet prepared by the Federal Communications Commission helpful:The
Interference Handbook
This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Stock No. 004-
000-00345-4.
![](/img.php?id=333954&img=bge.png)
Regulatory Compliance Information
14
Manufacturer’s Declaration of Conformity
3Com Corporation, Corporate Headquarters, 5500 Great America Parkway, Santa Clara, CA 95052-8145, USA
Declares that the Product:
Date: January 31, 2002
Brand Name: 3Com Corporation
Model Number: 3CRSHPW796 or 3CRWE154G72
Equipment Type: 802.11b Wireless PC Card
Complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
1this device may not cause harmful interference, and
2this device must accept any interference received, including interference that may cause undesired
operation.
Declares that the Product:
Date: DATE, 2003
Brand Name: 3Com Corporation
Model Number: 3CRWE154G72
Equipment Type: 802.11b Wireless PC Card
Complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
1this device may not cause harmful interference, and
2this device must accept any interference received, including interference that may cause undesired
operation.
Industry Canada Notice (Applicable for use within Canada)
This device complies with Canadian RSS-210.
To prevent radio interference to the licensed service, this device is intended to be operated indoors and away
from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is
subject to licensing.
The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not
emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable
from Health Canada’s website www.hc-sc.gc.ca/rpb.
Avis de conformité à la réglementation d’Industrie Canada
Cet appareil est conform à la norme CNR-210 du Canada.
Pour empêcher que cet appareil cause du brouillage au service faisant l’objet d’une licence, cet appareil doit être
utilisé à l’intérieur seulement et devrait êtra placé loin des fenêtres afin de fournir un écran de blindage maximal.
L’installateur du présent matériel radio doit s’assurer que l’antenne est située ou pointée de manière à ce que
cette derniére n’émette pas de champs radioélectriques supérieurs aux limites spécifiées par Santé Canada pour
le grand public; condulter le Code de sécurité 6, disponible sur le site Web de Santé Canada, à l’adresse
suivante: www.hc-sc.gc.ca/rpb.
3Com Corporation 3CRSHPW796
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
3Com Corporation 3CRWE154G72
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
![](/img.php?id=333954&img=bgf.png)
Industry Canada (IC) Emissions Compliance Statement
15
Industry Canada (IC) Emissions Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Avis de conformité à la réglementation d’Industrie Canada
Cet appareil numérique de la classe B est conform à la norme NMB-003 du Canada.
Safety Notice
This device has been tested and certified according to the following safety standards and is intended for use only
in Information Technology Equipment which has been tested to these or other equivalent standards:
UL Standard 60950 (3rd Edition)/ CSA C22.2 No. 60950
IEC 60950
EN 60950
European Community CE Notice
Marking by the symbol
indicates compliance with the essential requirements of Directive 73/23/EC and the essential requirements of
articles 3.1(b), 3.2 and 3.3 of Directive 1999/5/EC. Such marking is indicative that this equipment meets or
exceeds the following technical standards:
■EN 300 328-2 — Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission
systems; data transmission equipment operating in the 2,4GHz ISM band and using spread spectrum
modulation techniques
■ETN 301 489-17: V.1.1.1 (09-2000) — Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific
conditions for Wideband data and HIPERLAN equipment
■EN 60950 — Safety of information technology equipment, including electrical business equipment.
Due to frequency restrictions, it is necessary to select your country before using this radio device. Refer to
your 3Com Wireless LAN Manager online help for details.
3Com Wireless LAN PC Card User Guide
3CRSHPW796 and 3CRWE154G72
Published April 2003
Regulatory Compliance Information
16
