Acer Liquid Jade Z Quick Guide
Model: S57
This revision: 03/2015
Acer Liquid Jade Z Smartphone
Model number:____________________________________
Serial number: ____________________________________
Date of purchase: _________________________________
Place of purchase: ________________________________
Android is a trademark of Google Inc. Use of this trademark is
subject to Google Permissions.
![](/img.php?id=2552615&img=bg2.png)
2
English
Setting up for the first time
Inserting the SIM cards and microSD card

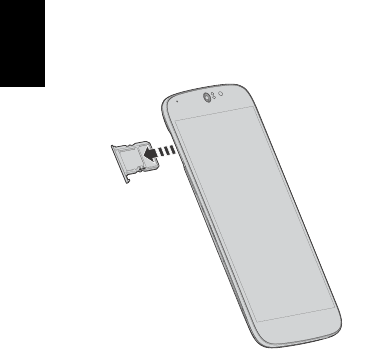

1. Remove the SIM / SD card holder from the left-hand
side of the phone.
![](/img.php?id=2552615&img=bg3.png)
3
English
2. Ensure the microSD card and/or SIMs are fully
seated in the holder and carefully insert the holder
into the slot.
Note: Ensure the cards do not slip out of the holder
when you are reinserting it.
MicroSD card
![](/img.php?id=2552615&img=bg4.png)
4
English
Charging your phone
For initial use, you need to charge your smartphone for
eight hours. After that you can recharge the battery as
needed.
Connect the AC adapter cord to the micro USB
connector on your smartphone. Plug the AC adapter
into any AC outlet and charge the device.
It is normal for the phone to heat up when charging or
during long periods of use.
All phones are factory tested before release.
Resetting and restarting the phone
Open Settings from the Applications menu, then tap
Backup & reset. Tap Factory data reset and then tap
Reset phone. Tap Erase everything to format your
phone.
If your phone is no longer responding, press and hold
the power button for 15 seconds to shut the phone
down. Press and hold the power button for more than
15 seconds to reboot it.
Note: Do not perform this operation if the phone
is charging. Unplug the charger first.
![](/img.php?id=2552615&img=bg5.png)
Setting up - 5
SETTING UP
Unpacking your smartphone
Your new smartphone comes packed in a protective box. Carefully
unpack the box and remove the contents. If any of the following items
is missing or damaged, contact your dealer immediately:
• Your new Acer smartphone
• USB cable
• AC adapter
• Headset
Getting to know your smartphone
Views
5
4
6
9
12
2
1
7
14
10
8
3
11
13
Note
In-box content varies depending on country and region.
![](/img.php?id=2552615&img=bg6.png)
- 83
Specifications
Performance
•1.5 GHz Quad-core processor
• System memory:
• 1 GB or 2 GB of RAM (depending on model)
• 8 GB or 16 GB of ROM (depending on model)
• Android operating system
Display
• 5" TFT LCD, capacitive touchscreen
• 1280 x 720 resolution
Multimedia
Formats supported:
USB connector
• Micro USB connector
• USB client
• DC power-in (5.2 V, 1.35 A)
Note
Specifications may vary depending on region and configuration.
Type Formats
Image JPEG, GIF, PNG, BMP
Audio playback MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,
MIDI, WAVE
Ringtone MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,
MIDI, WAVE
Video recording H.263, H.264, MPEG4
Video playback H.263, H.264, MPEG4, VP8
![](/img.php?id=2552615&img=bg7.png)
84 -
Connectivity
• Bluetooth 4.0
• IEEE 802.11b/g/n
• LTE Band 2, 4, 7, 17
• * GSM 850 / 900 / 1800 / 1900 MHz
• * WCDMA: 850 / 900 / 1900 / 2100 MHz
• HSPA+ / GPRS / EDGE
•GPS
* Frequencies depend on model.
Camera
• 13 MP rear camera
• Auto-focus
• LED flash
• 5 MP front camera
• Fixed focus
Expansion
• microSD memory card slot (up to 32 GB)
Battery
• 2300 mAh Lithium-ion battery (not user-replaceable)
Note
Length of battery operation will depend on power consumption which is
based on system resource use. For example, constantly using the backlight
or using power-demanding apps will shorten battery life between charges.
![](/img.php?id=2552615&img=bg8.png)
- 85
Dimensions
Height 143 mm
Width 69 mm
Thickness 7.8 mm
Weight 116 g (with battery)
![](/img.php?id=2552615&img=bg9.png)
Replacing the battery
Replace the battery with the same type as that which came bundled with
your product. Use of another battery may present a risk of fire or explosion.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Warning! Batteries may explode if not handled properly. Do not
disassemble or dispose of them in fire. Keep them away from children.
Follow local regulations when disposing of used batteries.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Disposal and recycling information
Do not throw this electronic device into the trash when discarding.
To minimize pollution and ensure utmost protection of the global
environment, please recycle. For more information on the Waste
from Electrical and Electronics Equipment (WEEE) regulations,
visit
www.acer- group.com/public/Sustainability
It is compliant with WEEE regulation
RoHS compliance
This product is in compliance with Directive 2011/65/EU of the European
Parliament and of the Council of 8 June 2011, on the restriction of the use of
certain hazardous substances (RoHS) in electrical and electronic equipment
and its amendments.
FCC regulations
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
IC regulations
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement."
CAN ICES-3(B)/NMB-3(B)
RF exposure information (SAR)
This device meets the FCC/IC requirements on the limitation of exposure of
the general public to electromagnetic fields by way of health protection.
The unit of measurement for the FCC/IC limit is the "Specific Absorption
Rate" (SAR). The SAR limit set by the FCC/IC is 1.6 W/kg, averaged over 1
g of tissue. The FCC and IC have granted an Equipment Authorization for
this device with all reported SAR levels evaluated as in compliance with the
FCC and IC RF exposure guidelines. SAR information on this device is on
file with the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on the FCC ID for your device,
which can be found on the product labeling of your device.
For body-worn operation, this device has been tested use with accessories
that contain no metal and that position the handset a minimum of 1.0 cm
from the body. Use of other accessories may not ensure compliance with
RF exposure. If you do not use a body-worn accessory and are not holding
the device at the ear, position the handset a minimum of 1.0 cm from your
body when the device is switched on.
During use, the actual SAR level is usually much lower than the maximum
value. In general, the closer you are to a base station, the lower the
transmission output of your device. To reduce exposure to RF energy, use a
hands-free accessory or other similar option to keep this device away from
your head and body.
This phone meets the FCC and IC requirements on the limitation of
exposure of the general public to electromagnetic fields by way of health
![](/img.php?id=2552615&img=bgc.png)
protection.
The highest SAR value of this device is listed below:
FCC (W/kg @1g)
IC (W/kg @1g)
Head
0.73
0.73
Body
1.19
1.19
