Acer Liquid Z520 Quick Guide
Model: Z520
This revision: 01/2015
Acer Liquid Z520 Smartphone
Model number:____________________________________
Serial number: ____________________________________
Date of purchase: _________________________________
Place of purchase: ________________________________
Android is a trademark of Google Inc. Use of this trademark is
subject to Google Permissions.
![](/img.php?id=2536091&img=bg2.png)

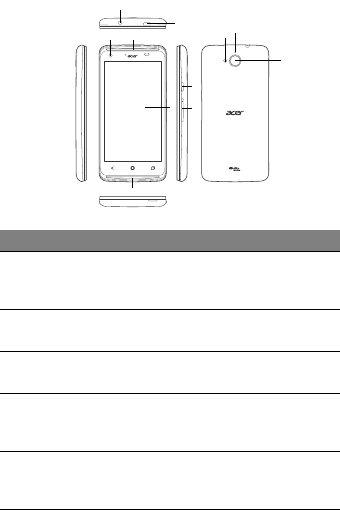

Your smartphone
1
2
34
5
7
8
910
11
6
No. Item Description
1 3.5 mm
headphone
jack
Connects to stereo
headphones.
2 Micro USB
connector
Connects to a USB cable/
charger.
3 Front camera Front-facing camera suitable for
video chats and self-portraits.
4 Phone
speaker
Emits audio from your
smartphone; suitable for holding
to your ear.
5 Touchscreen Touchscreen to display data,
phone content and enter
information.
![](/img.php?id=2536091&img=bg3.png)
English
6 Handsfree
speaker
Emits audio from your
smartphone; suitable for
handsfree use.
7 Power button Press to turn the screen on/off
or enter sleep mode; press and
hold to turn the smartphone on
or off.
8 Volume up/
down button
Increases or decreases the
phone volume.
9 Flash LED flash for taking photos in
low-light environments.
10 Microphone Internal microphone.
11 Camera A camera for taking high-
resolution images.
No. Item Description
Note:
For more on how your computer can help you to be more
productive, please refer to the User’s Manual. The User’s
Manual can be downloaded from the Acer support website
by going to: http://go.acer.com/?id=17883
![](/img.php?id=2536091&img=bg4.png)
Specifications
Performance
• 1.3 GHz quad-core processor
• System memory:
• 8 GB of ROM
• Android 4.4.4 KitKat operating system
Display
• 5.0" TFT LCD,480 x 854 resolution
Multimedia
Formats supported:
USB connector
• Micro USB connector
• USB client
• DC power-in (5 V, 1 A)
Note
Specifications may vary depending on region and configuration.
Type Formats
Image JPEG, GIF, PNG, BMP
Audio playback MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,
MIDI, WAVE
Ringtone MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,
MIDI, WAVE
Video recording H.263, H.264, MPEG4
Video playback H.263, H.264, MPEG4, VP8
![](/img.php?id=2536091&img=bg5.png)
Connectivity
• Bluetooth 4.0
• IEEE 802.11b/g/n
• GSM 850 / 900 / 1800 / 1900 MHz
• WCDMA 850 / 1900 MHz
• HSPA / GPRS / EDGE
•GPS
Frequencies depend on model.
Camera
• 8 MP rear camera
•Auto-focus
•LED flash
• 2 MP front camera
• Fixed focus
Expansion
• microSD memory card slot (up to 32 GB)
Battery
• 2000 mAh Li-Polymer battery (replaceable)
Note
Length of battery operation will depend on power consumption which is
based on system resource use. For example, constantly using the backlight
or using power-demanding apps will shorten battery life between charges.
![](/img.php?id=2536091&img=bg6.png)
Dimensions
Height 143 mm
Width 73 mm
Thickness 9.9 mm
Weight 150 g (with battery)
![](/img.php?id=2536091&img=bg7.png)
2
English
Setting up for the first time
Inserting the SIM cards and microSD card
1. Turn off the phone by pressing and holding
the power button.

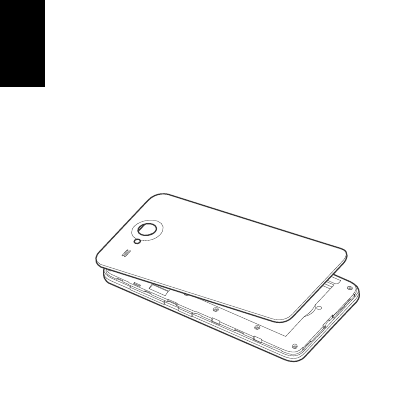

2. Insert your fingernail into the notch located at
the bottom of the phone and remove the
cover as illustrated.
![](/img.php?id=2536091&img=bg8.png)
3
English

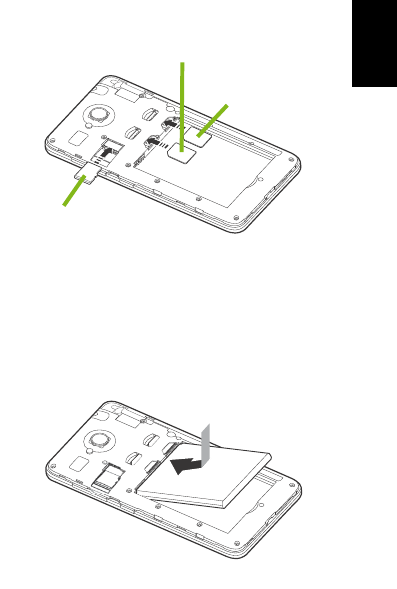

3. Insert the SIM or microSD card as shown.
4. Align the gold-colored connectors on the
battery with the connectors at the top of the
battery compartment and insert the battery.
microSD card
SIM 1
SIM 2
![](/img.php?id=2536091&img=bg9.png)
4
English
5. Replace the cover by aligning the tabs on the
cover into the slots on the phone. Gently
press the cover until it snaps in place.
![](/img.php?id=2536091&img=bga.png)
5
English
Charging your phone
For initial use, you need to charge your smartphone for
eight hours. After that you can recharge the battery as
needed.

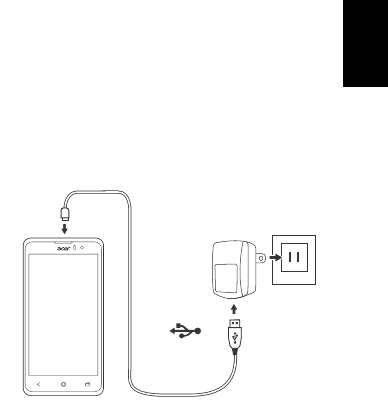

Connect the AC adapter cord to the micro USB
connector on your smartphone. Plug the AC adapter
into any AC outlet and charge the device.
It is normal for the phone to heat up when charging or
during long periods of use.
All phones are factory tested before release.
Resetting and restarting the phone
Open Settings from the Applications menu, then tap
Backup & reset. Tap Factory data reset and then tap
Reset phone. Tap Erase everything to format your
phone.
If your phone is no longer responding, press and hold
the power button for 10 seconds to restart the phone.
![](/img.php?id=2536091&img=bgb.png)
Replacing the battery
Replace the battery with the same type as that which came bundled with
your product. Use of another battery may present a risk of fire or explosion.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Warning! Batteries may explode if not handled properly. Do not
disassemble or dispose of them in fire. Keep them away from children.
Follow local regulations when disposing of used batteries.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Disposal and recycling information
Do not throw this electronic device into the trash when discarding.
To minimize pollution and ensure utmost protection of the global
environment, please recycle. For more information on the Waste
from Electrical and Electronics Equipment (WEEE) regulations,
visit
www.acer- group.com/public/Sustainability
It is compliant with WEEE regulation
RoHS compliance
This product is in compliance with Directive 2011/65/EU of the European
Parliament and of the Council of 8 June 2011, on the restriction of the use of
certain hazardous substances (RoHS) in electrical and electronic equipment
and its amendments.
FCC regulations
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
IC regulations
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement."
CAN ICES-3(B)/NMB-3(B)
RF exposure information (SAR)
This device meets the FCC/IC requirements on the limitation of exposure of
the general public to electromagnetic fields by way of health protection.
The unit of measurement for the FCC/IC limit is the "Specific Absorption
Rate" (SAR). The SAR limit set by the FCC/IC is 1.6 W/kg, averaged over 1
g of tissue. The FCC and IC have granted an Equipment Authorization for
this device with all reported SAR levels evaluated as in compliance with the
FCC and IC RF exposure guidelines. SAR information on this device is on
file with the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on the FCC ID for your device,
which can be found on the product labeling of your device.
For body-worn operation, this device has been tested use with accessories
that contain no metal and that position the handset a minimum of 1.0 cm
from the body. Use of other accessories may not ensure compliance with
RF exposure. If you do not use a body-worn accessory and are not holding
the device at the ear, position the handset a minimum of 1.0 cm from your
body when the device is switched on.
During use, the actual SAR level is usually much lower than the maximum
value. In general, the closer you are to a base station, the lower the
transmission output of your device. To reduce exposure to RF energy, use a
hands-free accessory or other similar option to keep this device away from
your head and body.
This phone meets the FCC and IC requirements on the limitation of
exposure of the general public to electromagnetic fields by way of health
![](/img.php?id=2536091&img=bge.png)
protection.
The highest SAR value of this device is listed below:
FCC (W/kg @1g)
IC (W/kg @1g)
Head
Body
0.72 0.72
1.21 1.21
