BLUETOOTH SPEAKER
BS1330E/BS1330US
Instruction Manual
![](/img.php?id=2233513&img=bg2.png)
A. INTRODUCTION
This Bluetooth wireless speaker system applies the latest Bluetooth 2.1wireless technology
platform that enables you to enjoy music, video everywhere you want.
B. FEATURES
1. Bluetooth 2.1 Platform
2. A2D Profile
3. Handsfree telephone calling
4. Stereo music
5. Battery status checking
6. Operating distance up to 10 meters / 33 feet (open area)
7. Charging external cell phones or other electronic devices
8. Operation time up to 10 hours (medium volume level)
9. 3.5mm line in
10. IPX 4 Water-proof feature
C. PACKAGING
1 X Bluetooth speaker
1 X 3.5 to 3.5mm audio cable
1 X USB charging Cable
1 X User manual
![](/img.php?id=2233513&img=bg3.png)

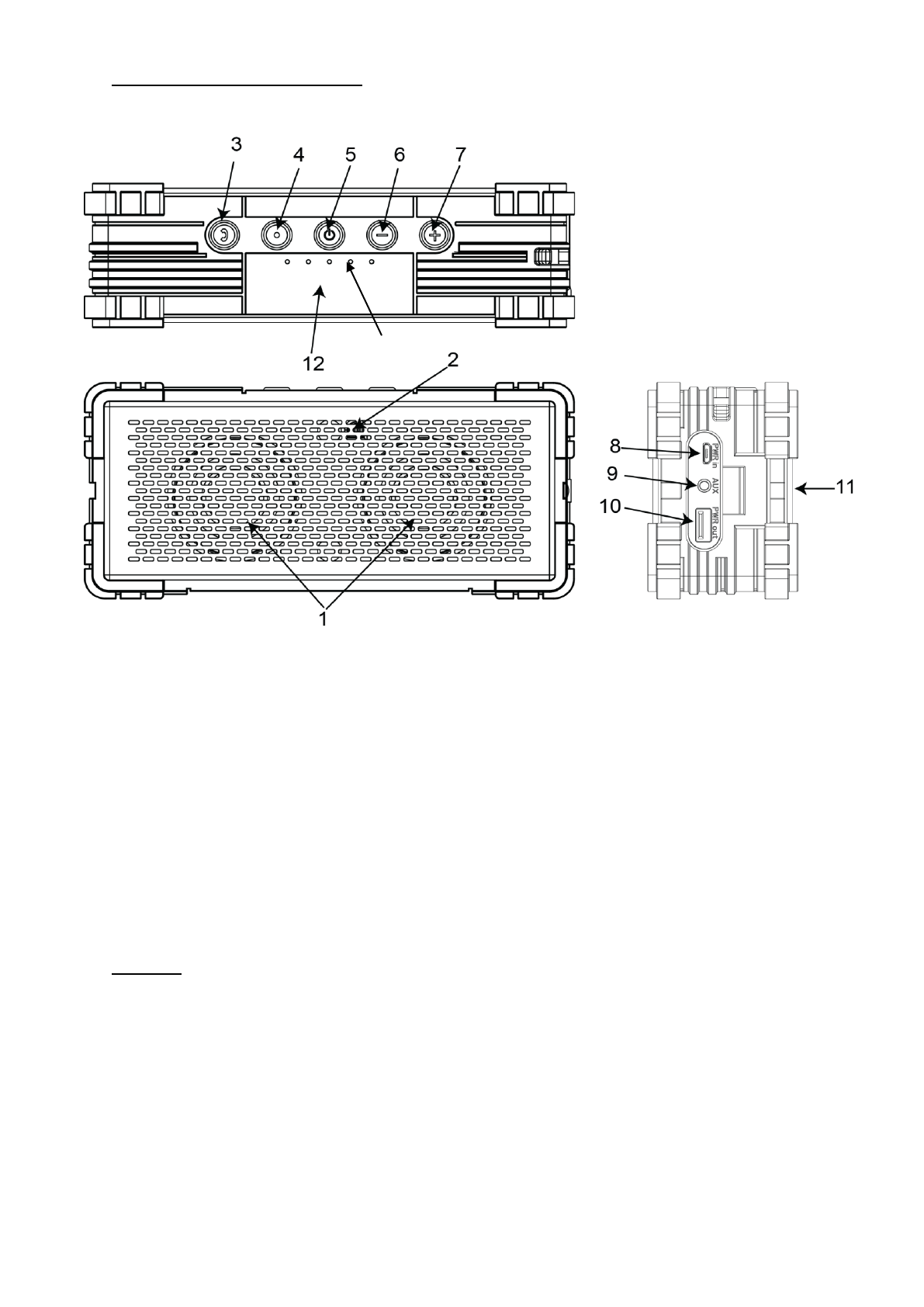

D. COMPONENT IDENTIFICATION
1.L,R ,Speaker
2. Microphone
3. Talk
4. Pair /Battery Check button
5. Power ON/OFF
6. Volume -
7. Volume+
8. USB charging jack
9. Aux in jack
10. USB charging out Jack(to external portable devices)
11. Passive Woofer (located on back panel of unit)
12. NFC
13. Power LED Indicator
E. PAIRING
1. Press the power button for 3 seconds to turn the speaker on, the speaker will enter pairing
mode immediately. The 4 LEDs will start flashing
2. Enable your Bluetooth device such as cell phones, tablets or other Bluetooth media, and
make sure it is in searching mode.
3. Select “HeadRush 8016808” from the list of discovered Bluetooth devices on your cell
phones, tablets or other Bluetooth media. Wait for the connection to be completed.
4. Enter “0000” if password is required.
13
![](/img.php?id=2233513&img=bg4.png)
5. Alternatively, you can press the Pair button and hold for 5 seconds to enter the Pairng
mode. In paring mode, the LEDs flashes quickly.
6. Select “HeadRush 8016808” from the list of discovered Bluetooth devices on your cell
phones, tablets or other Bluetooth media. Wait for the connection to be completed.
7. Enter “0000” if password is required.
8. When Bluetooth connection is made, the first LED will flash slowly
9. You can now enjoy your music.
10.Listen to yout music or make/receive your telephone call on the speaker.

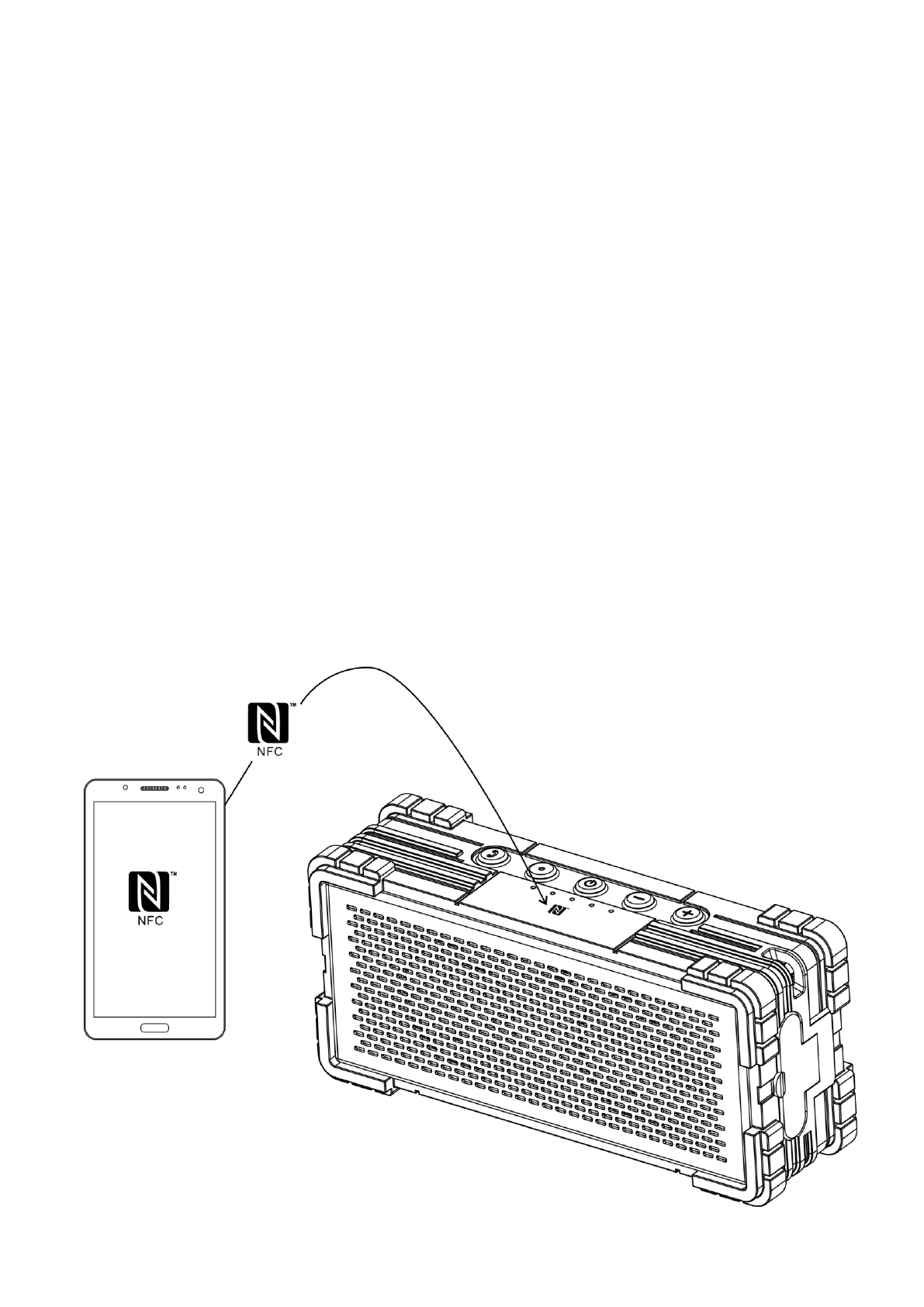

Pairing by One-touch connection with Near Field Communications (NFC)
1. Press the power button for 3 seconds to turn the speaker on, the speaker will enter pairing
mode immediately. The 4 LEDs will start flashing quickly.
2. Enable your Bluetooth device such as cell phones, tablets or other Bluetooth media.
3. Make sure the NFC is enabled in your device.
4. Use your NFC enabled device and touch the NFC logo on the speaker (as shown in the
diagram) , a “beep” sound indicates pairing is successfully done.
5. When Bluetooth connection is made, the first LED will flash slowly.
![](/img.php?id=2233513&img=bg5.png)

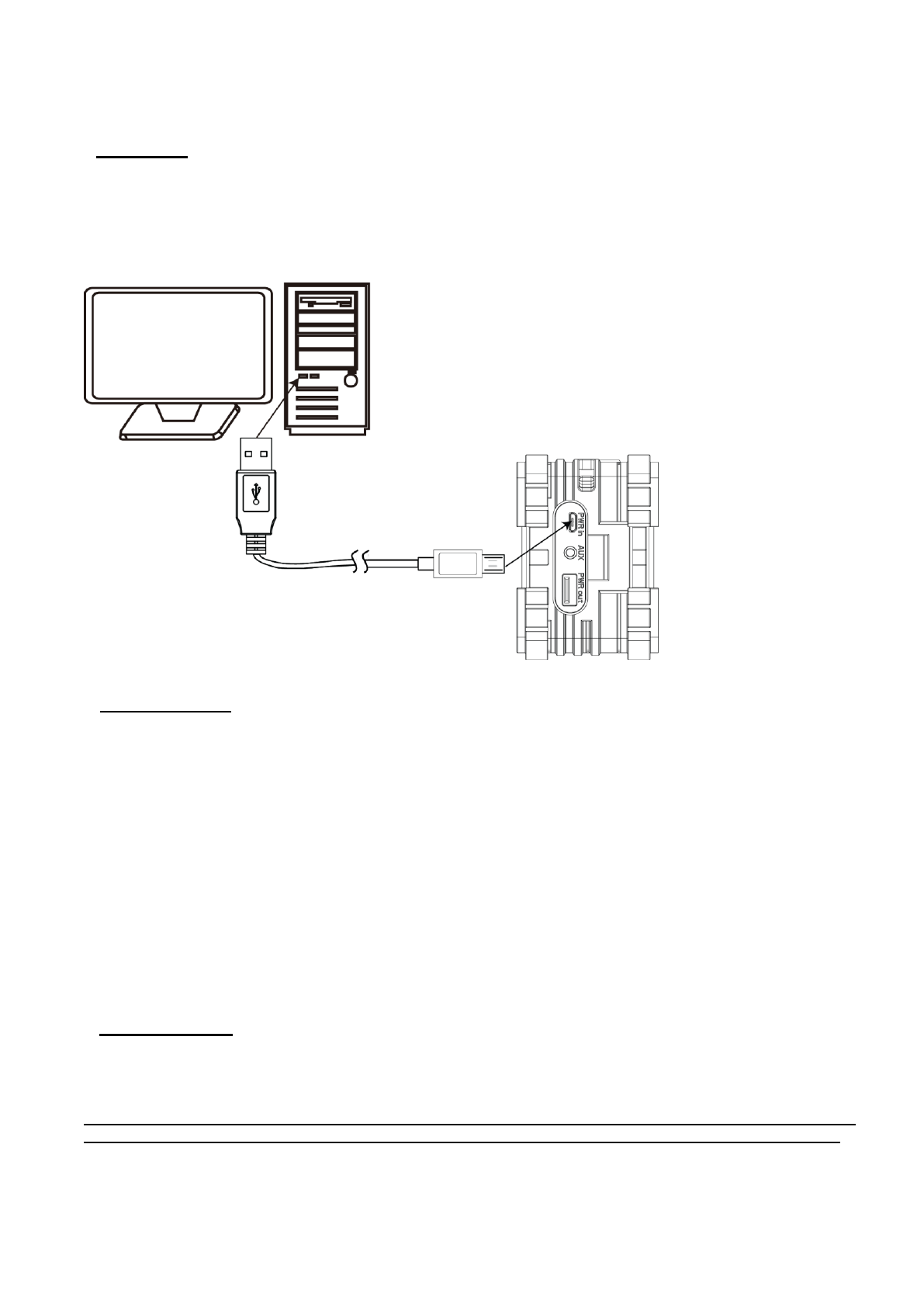

F.CHARGING
1. Make sure the speaker is fully charge before initial use.
2. Connect speaker with your PC by the supplied USB to Micro USB cable for charging.
3. Charging is workable to connect with PC by the supplied USB to Micro USB cable for charging.
4. The charging LED will illuminate in Red when charging . Charging is finished when LED turns off.
G BATTERY CHECK
1. The speaker is designed with a smart battery check feature, so that user knows clearly the battery
status of the battery.
2. Press the battery check button and note the battery status.
a/ 4x LED light up = approx. 100% full
b/ 3x LED light up = approx. 75%
c/ 2x LED light up = approx. 50%
d/ 1x LED light up = approx. 25%
(charging is needed)

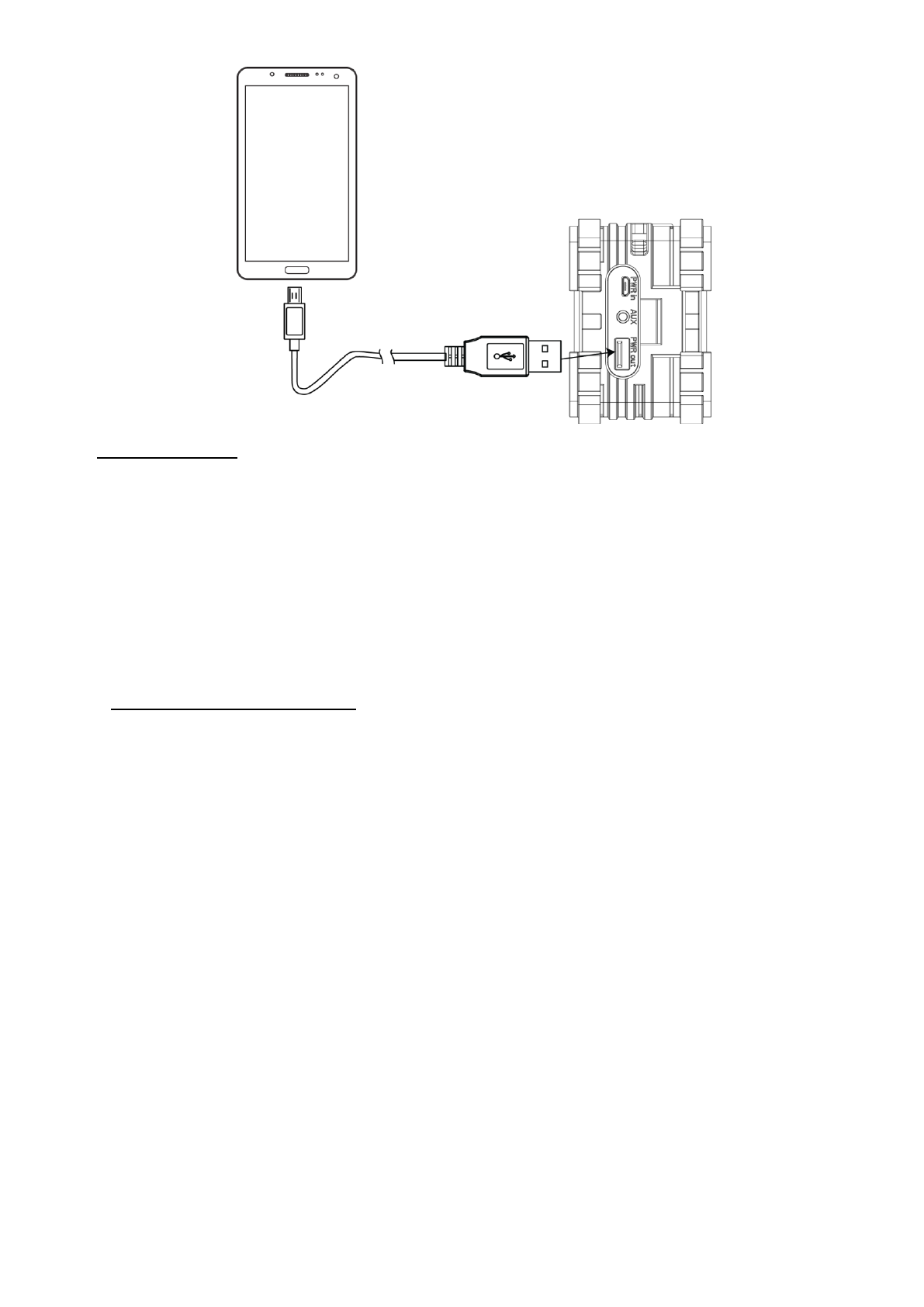

H.CHARGING OUT
1. 8016808 supplies with charging out feature to support your portable devices with back-up power supply
2. Connect your portable device by its charging cable along with the USB jack at 8016808 speaker.
*8016808 is designed for charging portable device with charging current lower than 1A. Charging tablets
or other high power portable device is not recommended as halt up of 8016808 will likely be happened.
![](/img.php?id=2233513&img=bg6.png)
I. TELEPHONE CALL
1. If there is an incoming call when streaming music on
the speaker, the music will be muted and ring tone will be heard.
2. Take your call by pressing the talk button. Press once again when ending the call. Music will resume
again automatically.
3. To make a call, simply dial your cell phone and talk to the speaker.
Note: Check the instruction manual for your cell phones, if getting any process different from the above
J. TECHNICAL SPECIFICATIONS
Carrier Frequency : 2402MHz-2480MHz
Battery Capacity : 3.7V 4000mA
Frequency Response: 20Hz -20KHz
Distortion: <0.5%
S/N Ratio: 65dB (typical)
Channel Separation: 50dB (Typical)
Operation Distance: Up to 10 meters / 33 feet (open area)
Audio Output Power: 2 x 2.5W (Max)
NOTES: This speaker is in compliance with the specified Bluetooth version. It does not guarantee
compatibility of all functions on every Bluetooth enabled device. Please check with your mobile
phone's user manual for compatibility and functionality.
![](/img.php?id=2233513&img=bg7.png)
K.TROUBLE SHOOTING
NO SOUND
- Ensure the speaker is charged and with enough power for operation
- Ensure the speaker is ON.
- Ensure BT device is ON.
- The volume of speaker is too low; adjust the volume to an appropriate level.
- Unable to connect with Bluetooth device, RESET the speaker by pressing and holding the
Pair/Battery Check button for 12 seconds.
WARNING: Changes or modifications approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
THE FCC WANTS YOU TO KNOW
Warning! This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference and
(2) this device must accept any interference received, including interference that might cause
undesired operation.
Industry Canada Notice
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
If at any time in the future you should need to dispose of this product please note that:
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice. (Waste Electrical and Electronic Equipment Directive).
FCC ID:VHC-AAI-BS1330-00
