AA001 - Bluetooth® Class I Headphones – 90-day warranty - Soares

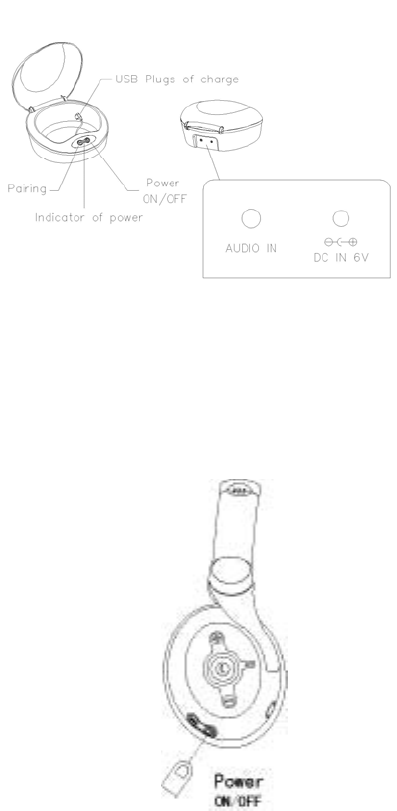

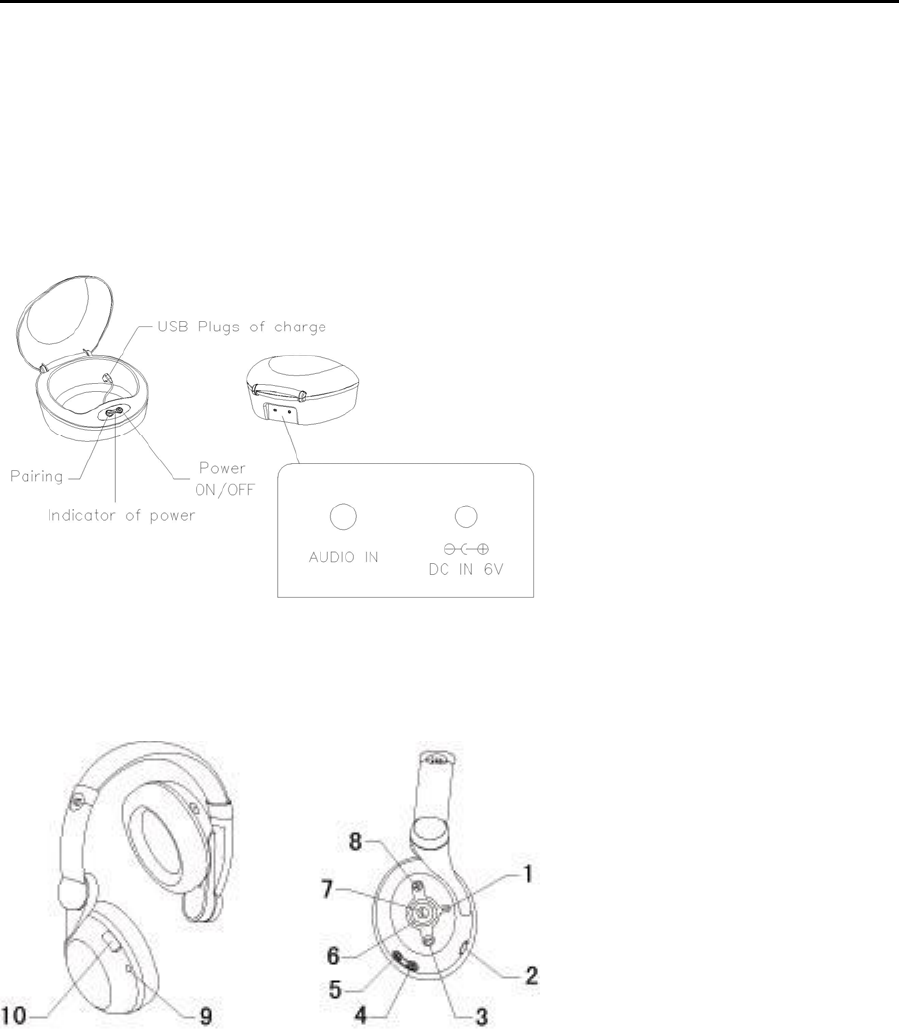

Parts Diagram
Transmitter
Headphones
1_KNOB MUTE 6_INDICATOR OF POWER
2_MIC 7_ KNOB TELEPHONE
3_KNOB VOL DOWN 8_KNOB VOL UP
4_KNOB POWER 9_INDICATOR OF CHARGE
5_KNOB PAIRING 10_MINI USB JACK
![](/img.php?id=847638&img=bg2.png)
Installation
Transmitter
1. Plug the AC power adaptor in the DC jack, located on the rear of the
transmitter.
2. Connect the included AC power adaptor to a wall outlet.
3. Connect transmitter and audio devices such as an ipod®, TV, Monitor,
VCR, CD/MP3/VCD/DVD players using a 3.5mm audio cable.
4. Press the POWER button for two seconds to turn on the transmitter.
Headphones
1. Press POWER button for two seconds to turn on the headphone.
P. 1
P. 2
Initial Setup
1. Press POWER button on the headphones for two seconds and you will
hear a wave sound when it is on. A blue LED quickly flashes and will
be in pairing mode for the transmitter (or another Bluetooth®
devices).
2. Press Power button on the transmitter for two seconds. A blue LED
quickly flashes, indicating that it is searching for the headphone.
3. Once transmitter and headphones are successfully linked, both blue
LEDs flash slowly.
4. If a link is not successful, the blue LED on transmitter and on the
headphone will become solid blue. Users can pair up the devices by
pressing the PAIRING button on both the transmitter and the
headphone.
Playing Music with Transmitter
1. Connect BT transmitter to any audio sources with the 3.5mm audio
plug, and you can hear the music streamed to the headphone.
2. Transmitter will automatically turn off if getting no audio signal
from audio source in 4 minutes
3. Headphone will automatically turn off if getting no signal from
transmitter in 4 minutes
Playing Music with Other Bluetooth Device
1. Turn transmitter off.
2. Turn on the headphones; you will hear a wave sound. A blue LED
quickly flashes and will be in pairing mode for other Bluetooth
devices.
3. Activate your Bluetooth device to search mode.
P. 3
4. If the link is not successfully established, Press the PAIRING
button on headphone and search the link with new BT devices
5. Your Bluetooth device (such as a PDA or cell phone) will display
headphones as "AA001-RX"
6. Choose "AA001-RX" and enter the identification code “0000”
7. The blue power LED on the headphones flashes slowly, once the
headphones are connected with your Bluetooth device.
Handsfree Application with cell phone
1. Establish the connections between your cell phone and headphone.
2. Play an MP3 with your cell phone and you can hear the music being
streamed to the headphones.
3. When you receive a call, you can hear a ring tone.
4. Answer the call by pressing TALK button on the headphones.
5. To end the call and return to the music, press the TALK button.
Handsfree Application with cell phone and Transmitter
1. Establish the connections between your headphones with transmitter
and with your phone. Then disconnect the link.
2. Establish the link between the headphones and transmitter.
3. Use your cell phone to reconnect handsfree with the headphones.
4. Play music from your audio source via the transmitter. You will hear
the music streamed to the headphones.
5. When you get a call on your cell phone, you can hear a ring tone.
![](/img.php?id=847638&img=bg5.png)
6. Answer the call by pressing TALK button on the headphones. The
headphones will shift the link with you cell phone.
7. To end the call and return to the music, press the TALK button.
WARNING: High volume level on your headphones may bring some
adverse impact on your ears. Tune the volume to a
comfortable level.
SRS WOW
SRS WOW is built-in in transmitter and is defaulted ON when playing
music for TruBase and Surround Sound and Focus effects.
is a trademark of SRS Labs, Inc.
WOW technology is incorporated under license from SRS Labs, Inc.
Charging Feature
1. Turn the transmitter and headphones Off.
2. Place headphones into the transmitter cradle. Pull out the USB
charging cable and plug it into the USB jack on headphones.
3.A red charging LED on headphone will illuminates.
4. The LED will become green when charging is complete.
Low-Power Indicator
1. When battery power is low, The red LED on the headphones flashes
slowly, three slow , continuous sounds are emitted.
2. When battery power is almost exhausted, three fast continuous
sounds are emitted.
P. 4
3. After that point, the headphone will turn off automatically.
P. 5
Notes:
․ To protect the transmitter and to save power, the transmitter will
shut off automatically if there is no/weak operation input signal from
the audio source for four minutes. If the signal retunes, The
transmitter will turn on again. Switch the headphones on by
Pressing POWER button on headphones. The signal link between
transmitter and headphone will be automatically re-established in
few seconds.
․To protection of the headphones and to save power , the
headphones will shut off automatically in five minutes when the
transmitter is standby mode. To tune it on, pressing the Power
button on headphones.
Troubleshooting
NO SOUND
․Ensure the AC adaptor is fully inserted into the AC outlet and the
other end of adaptor is fully inserted into the transmitter.
․Ensure the transmitter and headphones are on
․Headphones battery capacity is too low, Recharge the battery,
․Ensure the ipod or audio component is ON.
․The connected audio / video equipment is not playing. Start playing
the equipment.
․The volume of headphones is too low, Adjust the volume to a
Comfortable, appropriate level.
Distorted
․Battery capacity is too low. Recharge the battery .
P. 6
․Ensure the volume level of the headphone is adjusted properly.
․The headphones are too far from transmitter, move closer.
․The input level of the audio signal is too low. Turn up the volume of
the audio source.
Technical Specifications
Transmission Mode : Blue Tooth Class I Version 2.0 stereo
Carrier Frequency : 2.4GHz Digital
Operation Voltage : Transmitter, DC 6.0V 300mA
Headphone, Rechargeable Lithium polymer
Frequency Response : 30Hz – 20KHz
Distortion : 0.5%
S/N Ratio : 70dB
Operation Distance : ․Up to 200feet ( with transmitter case
include).
․Operation distance varies according to
specifications of your other Bluetooth
transmitter devices (such as cellular
phones, PDA, laptops, etc.)
WARNING:
Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment. This device complies with part 15 of the FCC
Rules. Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation
of the device.
WARNING:
When you wear the headphones for music or telephone application, your
ability to hear outside sounds may be affected. Do not use the
headphones where it can endanger your safety.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
The availability of some specific channels and/or operational frequency
bands are country dependent and are firmware programmed at the factory
to match the intended destination. The firmware setting is not accessible
by the end user.
![](/img.php?id=847638&img=bg9.png)
Bluetooth® and the Bluetooth logos are trademarks owned by
Bluetooth SIG, Inc, USA
is a trademark of SRS Labs, Inc.
WOW technology is incorporated under license from SRS Labs, Inc.
P. 8
