Quick Install Guide

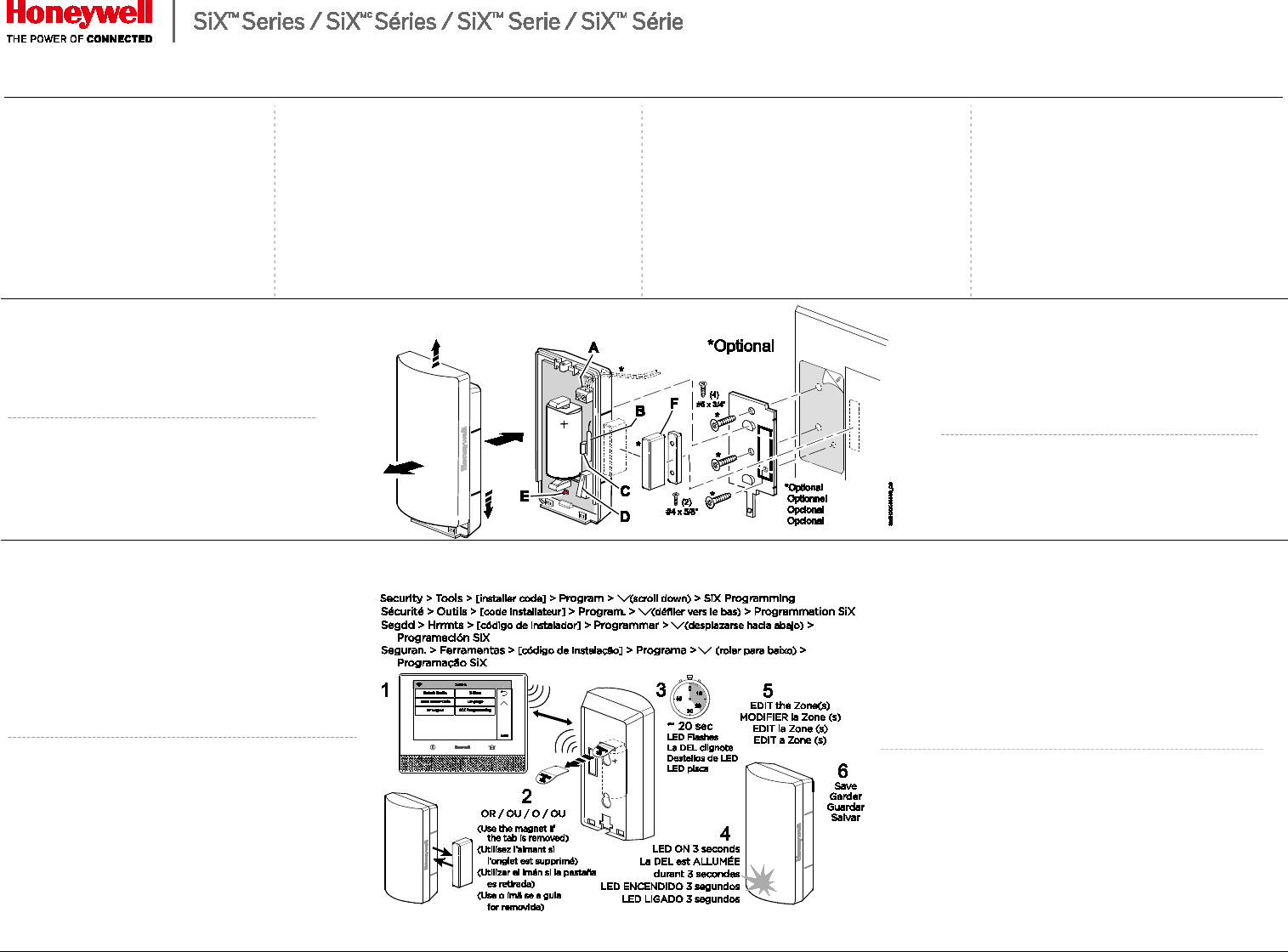

![](/img.php?id=3764535&img=bg1.png)
SiXSHOCK
Quick Installation Guide / Guide d'installation rapide
Guía Rápida de Instalación / Guia rápido de instalação
The SiXSHOCK is a 3-zone wireless
shock/door/window sensor intended for use
with Honeywell controls that support SiX™
series devices.
It provides a reed switch/magnet zone,
external wired contact zone, and built-in
shock sensor zone.
Typical shock protection area:
10 - 12 sq. ft. / 5 - 6 foot radius (3.05m –
3.66m / 1.52m – 1.83m radius)
The coverage area can vary depending on
the mounting surface.
The SiXSHOCK is a 3-zone wireless shock/door/window
sensor intended for use with Honeywell controls that
support SiX™ series devices.
It provides a reed switch/magnet zone, external wired
contact zone, and built-in shock sensor zone.
Typical shock protection area:
10 - 12 sq. ft. / 5 - 6 foot radius (3.05m – 3.66m / 1.52m –
1.83m radius)
The coverage area can vary depending on the mounting
surface.
The SiXSHOCK is a 3-zone wireless
shock/door/window sensor intended for use with
Honeywell controls that support SiX™ series
devices.
It provides a reed switch/magnet zone, external
wired contact zone, and built-in shock sensor zone.
Typical shock protection area:
10 - 12 sq. ft. / 5 - 6 foot radius (3.05m – 3.66m /
1.52m – 1.83m radius)
The coverage area can vary depending on the
mounting surface..
The SiXSHOCK is a 3-zone wireless
shock/door/window sensor intended for use with
Honeywell controls that support SiX™ series
devices.
It provides a reed switch/magnet zone, external
wired contact zone, and built-in shock sensor
zone.
Typical shock protection area:
10 - 12 sq. ft. / 5 - 6 foot radius (3.05m – 3.66m /
1.52m – 1.83m radius)
The coverage area can vary depending on the
mounting surface.
Magnet Gap: Make gap is 0.8" (2.03cm); Break gap
is 0.95" (2.4cm).
A Terminal Block
B Reed Switch
C Shock Sensor
D Tamper
E LED
F Magnet
Espacio del imán: El espacio de conexión es 2.03cm;
El espacio de desconexión es 2.4cm.
A Bloque de terminales
B Interruptor de lengüeta
C Shock Sensor
D Manipulación
E LED
F Imán
Écart de l'aimant : Écart à l'état fermé : 0,8 po
(2.03cm); Écart à l'état ouvert : 0.95 po (2.4m).
A Bornier
B Contact à lame
C Shock Sensor
D Antisabotage
E DEL
F Aimant
Distância do ímã: a distância de contato é 2.03cm; a
distância de perda de contato é 2.4cm
A Bloco terminal
B Interruptor de lâminas
C Shock Sensor
D Tamper
E LED
F Ímã
After enrolling, verify adequate signal strength by conducting
Go/No Go tests (see the controller’s instructions) with the
device in its intended mounting location. Adjust the device
location and orientation as necessary.
Signal Strength: Range of 1-4 bars (green); Should be
minimum 1 green bar for the zone being programmed.
Once enrolled, the device cannot be used with another system
until it is removed from the current controller. See the
controller’s instructions.
NOTE: After mounting you can use the Sensor Location feature
to confirm device location. In programming mode, select a zone
and the respective sensor LED lights.
Après l'enrôlement, vérifiez la puissance du signal adéquate
en effectuant des tests Go / No Go (voir les instructions du
panneau de commande) avec le dispositif dans son
emplacement de montage prévu. Au besoin, modifiez
l'emplacement ou l'orientation du dispositif.
Force du signal: devrait avoir au minimum 1 barre verte pour
la zone programmée.
Une fois enrôlé, le dispositif ne peut pas être utilisé avec un
autre système avant d'avoir été supprimé du panneau actuel.
Reportez-vous aux instructions du panneau.
NOTE : Après le montage, vous pouvez utiliser la fonction
d'emplacement du détecteur pour confirmer l'emplacement du
détecteur. En mode programmation, sélectionnez une zone et
le voyant du capteur respectif s'allume.
For Lyric™ Controller / Pour le contrôleur LyricMC /
Para el Controlador Lyric™ / Para o Controlador Lyric™
Enroll / Enrôlement / Enrolar / Registrar
Una vez registrado, verifique la intensidad de señal adecuada
realizando pruebas Go / No Go (ver las instrucciones del controlador)
con el dispositivo en la ubicación deseada. Ajuste la ubicación y
orientación del dispositivo según sea necesario.
Intensidad de la señal: Rango de 1-4 barras (verde); Debe ser
mínimo 1 barra verde para la zona que se está programando.
Una vez registrado, el dispositivo no se puede usar con otro sistema hasta
que sea removido del controlador actual. Ver las instrucciones del
controlador.
NOTA : Después de montar el sensor, puede utilizar la pantalla de
localización de sensores para confirmar la ubicación del dispositivo.
En el modo de programación, seleccione una zona y el respectivo LED
de sensor se encenderá.
Após o registro, verifique a intensidade do sinal adequado ao realizar
testes Go / No Go (consulte as instruções do controlador) com o
dispositivo na localização de montagem pretendida. Ajuste, se
necessário, o posicionamento e a orientação do dispositivo.
Força do Sinal: intervalo de 1-4 barras (verde); deve ter, no mínimo,
uma barra verde para a zona em programação.
Uma vez registrado, o dispositivo não pode ser usado com outro sistema
até que seja removido do controlador atual. Consulte as instruções do
controlador.
NOTA: Após a montagem, você pode usar o recurso Sensor Location
para confirmar a localização do dispositivo. No modo de programação,
selecione uma zona e a luz LED do respectivo sensor acenderá.
NOTE: Wiring
limit is 3ft. (91cm)
NOTE: La longueur
maximale du
câblage est de
3 pi (91cm).
NOTA: El límite de
cableado es 91cm.
NOTA: o limite de
fiação é de 0,9 metros.
![](/img.php?id=3764535&img=bg2.png)
For Lyric™ Gateway
Enroll and program using AlarmNet 360™.
Pour la Gateway Lyric MC
Enrôlez et programmez le système au moyen
d’AlarmNet 360
MC
Para Lyric™ Gateway
Registro y programación usando AlarmNet 360™
Para o Gateway Lyric™
Faça o registro e programe usando o
AlarmNet 360™.
BATTERY CAUTION: Risk of fire, explosion and burns.
Do not recharge, disassemble, heat above 212°F
(100°C) or incinerate. Dispose of used batteries properly.
Keep away from children.
NOTE: Constant exposure to high or low temperature
or high humidity may reduce battery life.
Attention de batterie: Risque d'incendie, d'explosion et de
brûlures. Ne rechargez pas, démonter, chauffer au-dessus de
212°F (100°C), ou incinérer. Débarrassez-vous des batteries
utilisées de façon appropriée. Gardez à partir des enfants.
NOTE : Une exposition constante à des températures élevées
ou basses ou à un taux d'humidité élevée peut réduire la durée
de vie de la pile.
Precauciones con respecto a las baterías: Riesgo de FUEGO,
explosión y quemaduras. No recargar, desarmar, calentar por
encima de 100°C (212°F), o incinerar. Descarte Apropiadamente las
baterías usadas. Manténgalas fuera del alcance de los niños.
NOTA: Exposición constante a altas o bajas temperaturas o alta
humedad puede reducir la vida útil de la batería.
Precauções com a bateria: Risco de incêndio, explosão e
queimaduras. Não recarregar, não desmontar, não aquecer mais de
100°C (212ºF) nem incinerar. Descarte as baterias usadas
apropriadamente. Mantenha fora do alcance de crianças.
NOTA: A exposição constante a temperatura alta ou baixa ou alta
umidade podem reduzir a vida útil da batería

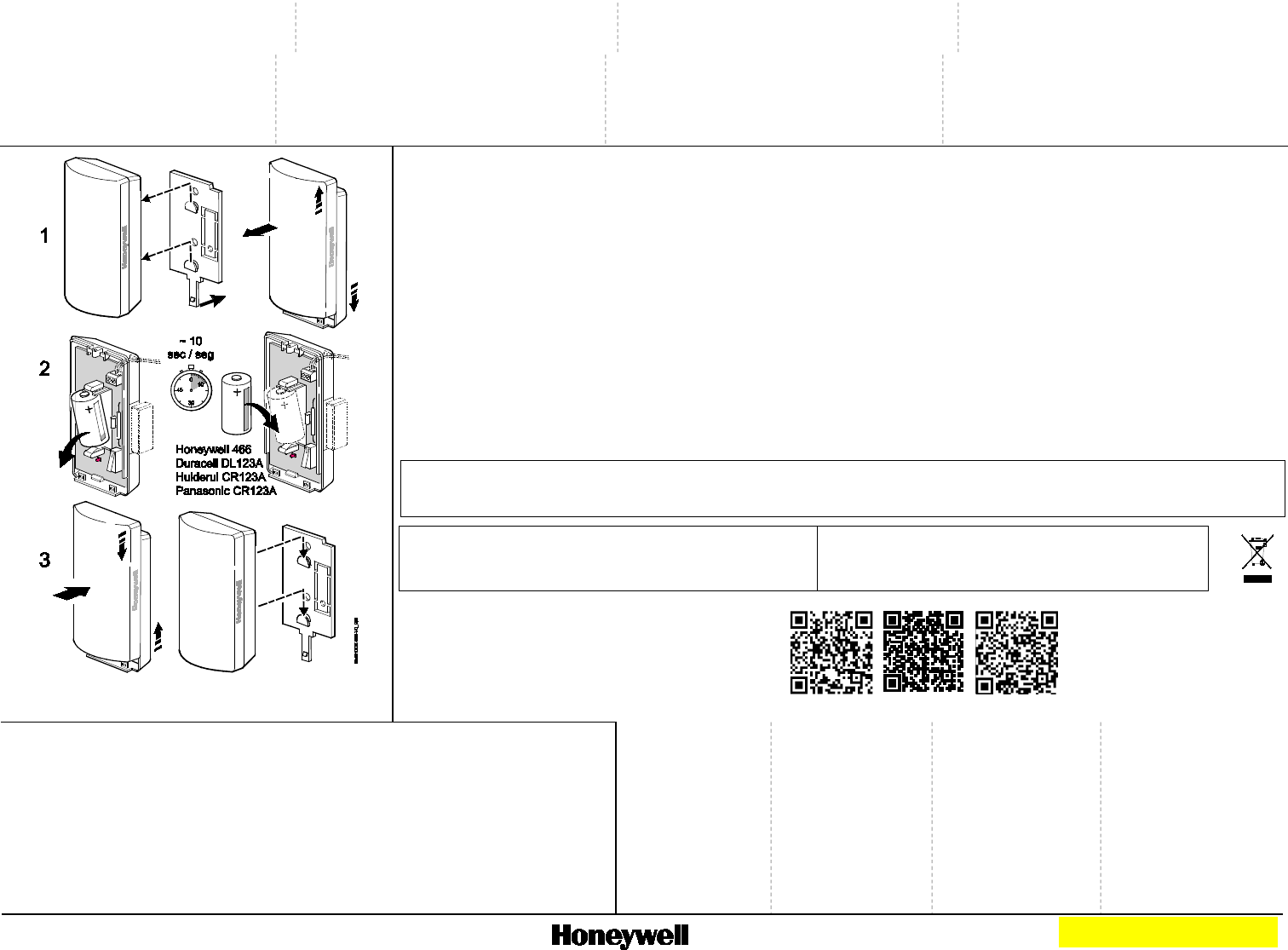

Replace Battery / Remplacement des piles /
Cambiar batería / Substituir bateria
FEDERAL COMMUNICATIONS COMMISSION & INDUSTRY CANADA STATEMENTS
The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manu
al. Unauthorized changes or modifications could void the
user's authority to operate the equipment.
CLASS B DIGITAL DEVICE STATEMENT This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following statement for your
information: This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause
interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Part 15 of FCC
Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• If using an indoor antenna, have a quality outdoor antenna installed.
• Reorient the receiving antenna until interference is reduced or eliminated.
• Move the radio or television receiver away from the receiver/control.
• Move the antenna leads away from any wire runs to the receiver/control.
• Plug the receiver/control into a different outlet so that it and the radio or television receiver are on different branch circuits.
• Consult the dealer or an experienced radio/TV technician for help.
INDUSTRY CANADA CLASS B STATEMENT
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
FCC / IC STATEMENT
This device complies with Part 15 of the FCC Rules, and Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Cet appareil est conforme à la partie 15 des règles de la FCC et exempt de licence RSS d’Industrie Canada. Son fonctionnement est soumis aux conditions suivantes: (1) Cet appareil ne doit pas
causer d’interférences nuisibles. (2) Cet appareil doit accepter toute interférence reçue y compris les interférences causant une réception indésirable.
RF EXPOSURE Warning – The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 7.8 in (20 cm) from all persons and must not be co-located or
operated in conjunction with any other transmitter except in accordance with FCC and ISED multi-transmitter product procedures.
Mise en Garde Exposition aux Fréquences Radio: La/les antenne(s) utilisée(s) pour cet émetteur doit/doivent être installée(s) à une distance de séparation d'au moins 20 cm (7,8 pouces) de
toute personne et ne pas être située(s) ni fonctionner parallèlement à tout autre transmetteur ou antenne, excepté en conformité avec les procédures de produit multi transmetteur FCC et ISED.
DECLARACIÓN IFETEL
La operación de este equipo está sujeta a las siguientes dos condiciones
1. Es posible que este equipo o dispositivo no cause interferencia perjudicial y
2. Este equipo debe aceptar cualquier interferencia, incluyendo la que pueda causar su
operación no deseada.
DECLARAÇÃO ANATEL
Este equipamento não tem direito à proteção contra interferência prejudicial e não
pode causar interferência em sistemas devidamente autorizados. Para maiores
informações, consulte o site da ANATEL www.anatel.gov.br.
Support / Soutien / Soporte / Suporte
https://mywebtech.honeywell.com/
U.S. warranty / U.S. garantie / U.S. garantie / U.S. garantia
www.honeywell.com/security/hsc/resources/wa
Patents / Brevets / Patentes / Patentes
www.honeywell.com/patents
Specifications / Spécifications / Especificaciones / Especificações:
Battery / Pile / Batería / Bateria: 1 x 3V, Lithium; Honeywell 466, Panasonic CR123A, Duracell DL123A,
Huiderui CR123A
Tamper / Interrupteurs antisabotage / Manipulación / Tamper: Cover and Wall / Couvercle et Mur /
Tapa y Pared / Tampa e Parede
RF Frequency / Fréquence RF / Frecuencia de RF / Frequência RF: 2.4GHz
Operating Temperature / Température de fonctionnement / Temperatura de funcionamiento / Temperatura
de operação: 32° – 122°F / 0° – 50°C (Agency Compliance 32° – 120°F / 0° – 49°C)
Relative Humidity / Humidité relative / Humedad relativa / Umidade relativa: 95% max. (Agency Compliance -
93% max.), non-condensing / sans condensation / sin-condensación / sem condensação
Dimensions / Dimensions / Dimensiones / Dimensões: 1” H x 3.13” L x 1.61” W / 25.5 mm H x 79.5 mm L x 41
mm W
REFER TO THE
INSTALLATION
INSTRUCTIONS FOR THE
CONTROL WITH WHICH
THIS DEVICE IS USED,
FOR DETAILS
REGARDING
LIMITATIONS OF THE
ENTIRE ALARM SYSTEM.
Product must be
tested at least once
each year
POUR LES LIMITES
DU SYSTÈME
D’ALARME AU
COMPLET,
REPORTEZ-VOUS AU
GUIDE
D’INSTALLATION DU
PANNEAU DE
COMMANDE.
Le fonctionnement du
produit doit être
vérifié au moins une
fois par année
CONSULTE LAS
INSTRUCCIONES DE
INSTALACIÓN PARA EL
CONTROLADOR CON EL
CUAL SE UTILIZA ESTE
DISPOSITIVO, PARA
OBTENER DETALLES CON
RESPECTO A LAS
LIMITACIONES DE TODO EL
SISTEMA DE ALARMA.
El producto debe ser
probado al menos una
vez al año
PARA SABER MAIS SOBRE
AS LIMITAÇÕES DE TODO O
SISTEMA DE ALARME,
CONSULTE AS INSTRUÇÕES
DE INSTALAÇÃO DO
CONTROLE COM O QUAL
ESTE DISPOSITIVO É USADO.
O produto deve ser
testado pelo menos uma
vez por ano
2017 Honeywell International Inc. Honeywell is a registered trademark of Honeywell International Inc.
All other trademarks are the properties of their respective owners. All rights reserved
2 Corporate Center Drive, Suite 100
P.O. Box 9040, Melville, NY 11747
www.honeywell.com/security
Ê800-15959)Š
SiXSHOCK 800-23809 11/17 Rev A
MyWebTech
Warranty
Patents
Approval Listings /
Approbations Homologations /
Listas de aprobaciones /
Listagens de aprovação:
FCC / IC
ETL Listed to UL 634
cETL Listed to ULC/ORD-C634
Other Standards: RoHS
