Aleis 6000 ISO 6000 SERIES RFID READER User Manual
Aleis Pty Ltd ISO 6000 SERIES RFID READER Users Manual
Aleis >
Users Manual
![](/img.php?id=1223097&img=bg1.png)
Aleis Pty Ltd
ACN 130 754 826
www.aleis.com Ph: 07 46685942
Reader
User Guide
ISO-6000 Series Race Reader
Version 1.00 11/09/2009
IMPORTANT! This User Guide must be read in conjunction with
Reader, prior to use.
©Copyright Aleis Pty Ltd 2009
N13429 A1064AUS
![](/img.php?id=1223097&img=bg2.png)
Aleis ISO-6000 Series Operational Manual
Aleis ISO-6000 Series Race System Page 2 of 13
TABLE OF CONTENTS
Regularity Notices and Conformity .....................................................................................................................................................3
1.0The Aleis ISO-6000 Series Race System..................................................................................................................................5
2.0Mounting the Aleis ISO-6000 Series Race System..................................................................................................................6
3.0Preparation for Use...................................................................................................................................................................7
4.0Warnings....................................................................................................................................................................................7
5.0Care and Maintenance..............................................................................................................................................................7
6.0Methods of connection..............................................................................................................................................................8
6.1Direct connection with your scale indicator:..........................................................................................................................8
6.2Direct connection with your computer:..................................................................................................................................8
6.3Interface Protocol...................................................................................................................................................................8
7.0Battery Charging (BATTERY MODELS)..............................................................................................................................9
7.1Battery Charging Requirements.............................................................................................................................................9
7.2Battery Charging Tips............................................................................................................................................................9
7.3Battery Charging Options ......................................................................................................................................................9
8.0Optional Power..........................................................................................................................................................................9
9.0Using External Power Supply ..................................................................................................................................................9
10.0Reader Specifiactions..............................................................................................................................................................10
11.0Aleis Conditions of Sale..........................................................................................................................................................11
![](/img.php?id=1223097&img=bg3.png)
Aleis ISO-6000 Series Operational Manual
Aleis ISO-6000 Series Race System Page 3 of 13
REGULARITY NOTICES AND CONFORMITY
USA – FCC
Information to the user (FCC Part 15.105)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encourage to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
Consult the dealer or an experienced radio/TV technician for help
Modification warning (FCC Part 15.21)
Warning: Any changes or modifications not expressively approved by Aleis could void the user's authority to
operate this equipment.
Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Europe CE
This device has been tested and meets the Electromagnetic Compatibility requirements for EN300 330
Australia and New Zealand - C-Tick
This device has been tested and meets the Electromagnetic Compatibility requirements for CISPR 11
Antenna Warning
This device has been designed to operate with the antennas listed below. The ISO-6000 Series Readers are
only approved with the detachable antennas below. In accordance with RSS-GEN Issue 2 June 2007 Section
7.1.4 and FCC Part 15.21, antennas not included in this list are strictly prohibited for use with this device.
Aleis Part Number Antenna Size Antenna Description
4028 1200mm x 600mm Loop antenna
4027 1200mm x 400mm Loop antenna
4026 900mm x450mm Loop antenna
4025 600mm x 400mm Loop antenna
4024 500mm x 400mm Loop antenna
![](/img.php?id=1223097&img=bg4.png)
Aleis ISO-6000 Series Operational Manual
Aleis ISO-6000 Series Race System Page 4 of 13
IMPORTANT
Must be read prior to using system
HANDLING INSTRUCTIONS
The following instructions must be wholly adhered to or permanent damage to the antenna/reader and/or permanent
data loss can occur. Non-conformance to the handling and operating instructions will immediately void all warranties
for the antenna/reader and software.
1. WARNING: All Aleis warranties will be immediately voided if this reader is used in any way with
Hyperterminal.
2. Cattle must be in single file to be read successfully by the reader.
3. During transportation, readers must be protected from shock in a padded case or box.
4. For maximum performance, batteries must be charged before and after use.
5. Have only one system at a time switched on.
6. Do not hose or submerge antenna/reader in water.
7. Use only a very lightly damp cloth to clean antenna/reader.
8. Do not use chemicals to clean antenna/reader.
9. Do not drop reader boxes as electronics are contained within.
10. All boxes with seals are to be kept sealed.
11. Do not remove any VOID stickers from readers.
12. Do not drill holes in antenna.
13. The ISO-6000 Series Race System must be mounted on wood when installed as per instructions set
down in Section 2.0 of this manual.
14. Aleis Conditions of Sale apply.
![](/img.php?id=1223097&img=bg5.png)
Aleis ISO-6000 Series Operational Manual
Aleis ISO-6000 Series Race System Page 5 of 13

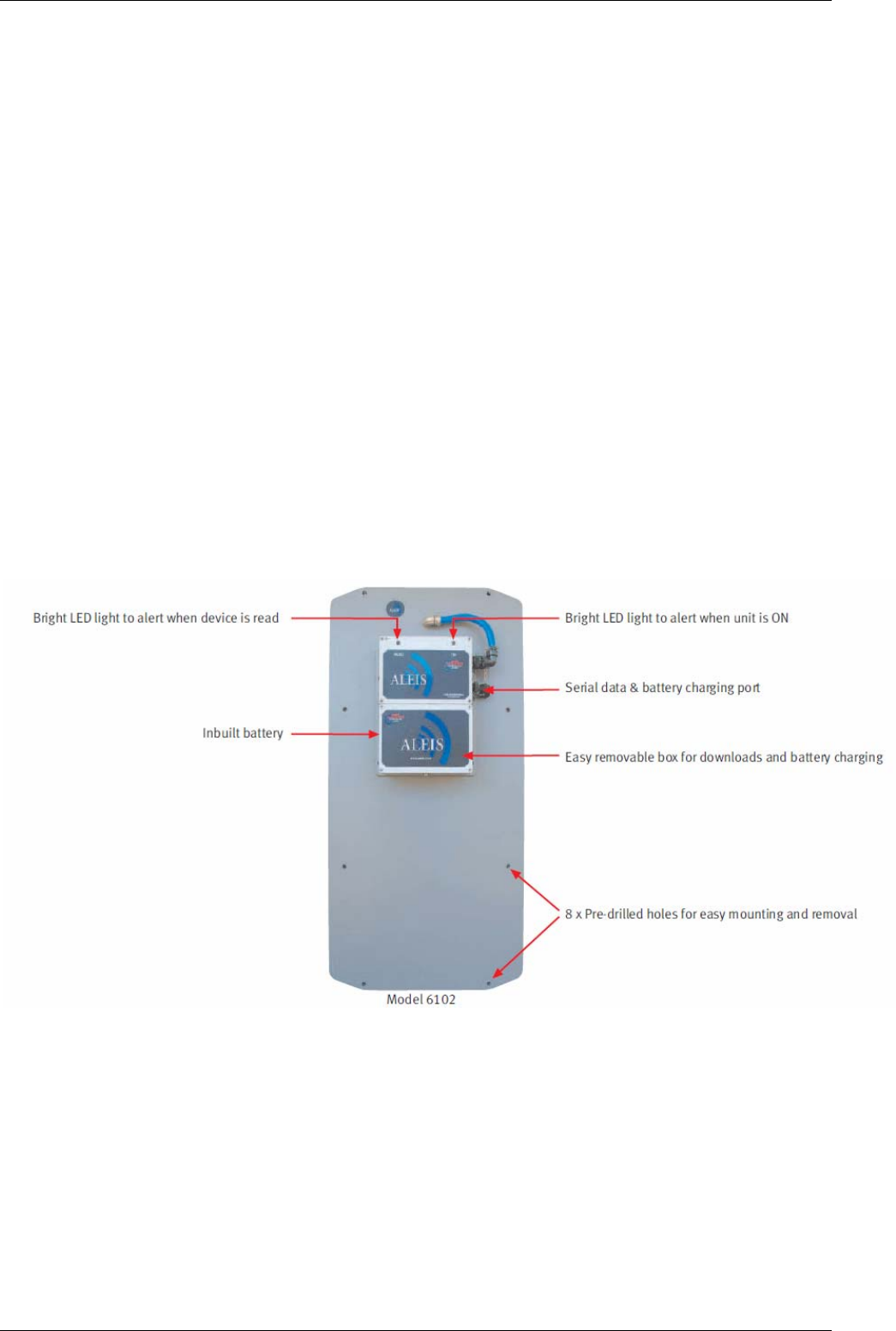

1.0 THE ALEIS ISO-6000 SERIES RACE SYSTEM
The ISO-6000 series is available in different configurations
ISO-6101 with No Batteries
ISO-6101BT with No Batteries and Bluetooth (pre-approved)
ISO-6101EXP with No Batteries and 9000 exp board fitted
ISO-6101HM-EXP with No Batteries, Hard Mounted Box and 9000 exp board fitted
ISO-6101HM-EXP-CLK with No Batteries, Hard Mounted Box and 9000 exp board and Clock fitted
IS0-6102 Unit with Batteries
ISO-6102BT Unit with Batteries and Bluetooth (pre-approved)
ISO-6102EXP Unit with Batteries and 9000 expansion board fitted.
ISO-6102EXP-CLK Unit with Batteries, 9000 expansion board and Clock fitted
ISO-610Multi-A Master with No Batteries, Hard Mounted Box, Master Clock and sockets fitted
ISO-610Multi-B Slave with No Batteries, Hard Mounted Box and sockets fitted
![](/img.php?id=1223097&img=bg6.png)
Aleis ISO-6000 Series Operational Manual
Aleis ISO-6000 Series Race System Page 6 of 13

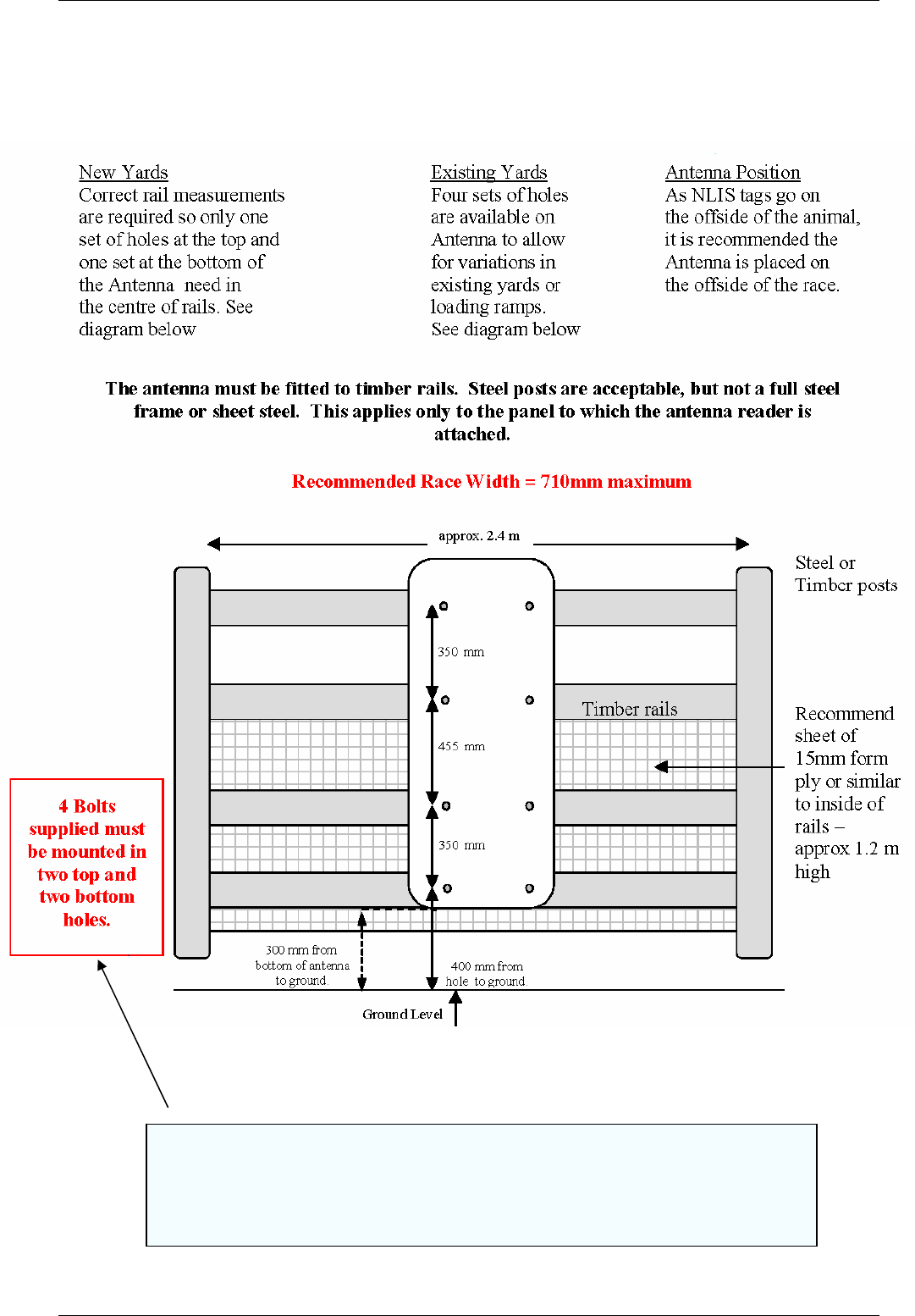

2.0 MOUNTING THE ALEIS ISO-6000 SERIES RACE SYSTEM
ANTENNA MOUNTING MEASUREMENTS
Bottom of Antenna to be mounted 300 mm from ground where animal actually stands.
Antenna bolt hole spacings are marked on diagram above. Holes are pre-drilled in
antenna.
DO NOT DRILL HOLES IN ANTENNA YOURSELF. 10.10.01
![](/img.php?id=1223097&img=bg7.png)
Aleis ISO-6000 Series Operational Manual
Aleis ISO-6000 Series Race System Page 7 of 13
3.0 PREPARATION FOR USE
When you have mounted your Aleis ISO-6000 Series Race Reader, and you are ready to use it,
please ensure the following steps are closely followed:
• When inserting or attaching a new electronic RFID device into or on an animal, keep all
other electronic RFID devices a minimum of 3 meters away from the Aleis ISO-6000 Series
Race Reader. This will ensure you only read the device you are inserting or attaching.
• Keep computers a minimum of 3 meters away from the Aleis ISO-6000 Series Race Reader.
• Securely fasten the computer lead into your scale indicator or computer – screw the
connectors into place.
• Make sure the batteries you are using are fully charged.(Battery models only)
4.0 WARNINGS
• Never open the reader box.
• Never drill the antenna.
• Some magnetic fields will affect reading, such as some computers, computer monitors,
electric motors and generators – this can be checked by watching the ON light on the reader.
This light must be blinking freely and evenly; if it is pulsating, and your read range has
diminished, then the reader is being interfered with.
5.0 CARE AND MAINTENANCE
• Charge batteries after every use. Only use fully charged batteries.
• Keep all spare electronic RFID devices away from the Aleis ISO-6000 Series Race Reader.
• Protect computer and power leads from animals (such as parrots) if the system is left in the
yards.
• Treat the system with care; Aleis has built this system for the cattle yards, but it is an
electronic unit and must be treated accordingly.
• Keep all reader connectors clean and screw covers on fittings when not in use.
• MOST IMPORTANT: Aleis’ customers are our highest priority, and if you have any
queries, please feel most welcome to contact your Aleis distributor.
![](/img.php?id=1223097&img=bg8.png)
Aleis ISO-6000 Series Operational Manual
Aleis ISO-6000 Series Race System Page 8 of 13
6.0 METHODS OF CONNECTION
There are two general methods of connecting your Aleis ISO-6000 Series Race System.
6.1 Direct connection with your scale indicator:
The Aleis ISO-6000 Series Race Reader is compatible with all scale indicators accepting the
standard RFID format from a reader. You may need to contact your scale indicator
manufacturer for exact setup instructions.
There is no setup required on the reader end – simply plug in your reader to your scale
indicator by plugging the 9-pin female plug into the 9-pin male plug on your scale indicator.
6.2 Direct connection with your computer:
The ISO-6000 Series Race Reader can also link directly with your computer. The Aleis
ISO-6000 Series Race Reader is compatible with all major herd management programs
accepting a standard real-time RFID from a reader. You may need to contact your herd
management software provider for exact setup instructions.
There is no setup required on the reader end – simply plug in your reader to your computer
by plugging the 9-pin female plug into the 9-pin male plug on the back of your computer.
6.3 Interface Protocol
When you are setting up the ISO-6000 Series Race Reader to read directly into your scale
indicator or computer, you may be asked for the ‘interface protocol’ by the scale indicator
manufacturer or software provider. These settings are as follows:
• Baud Rate: 9600
• Data Bits: 8
• Parity: None
• Stop Bits: 1
• Communication: ASCII Serial
![](/img.php?id=1223097&img=bg9.png)
Aleis ISO-6000 Series Operational Manual
Aleis ISO-6000 Series Race System Page 9 of 13
7.0 BATTERY CHARGING (BATTERY MODELS)
The batteries in the unit can be charged by using the connector on the side of the unit.
7.1 Battery Charging Requirements
• Charge unit using supplied charger only.
• Do not use Reader while it is being charged.
• Ensure when fitting charger connector that the male and female groove are aligned
and pushed in correctly.
7.2 Battery Charging Tips
• To ensure that the battery receives a full charge, charge the unit overnight (8hrs).
• To verify that the unit is charging, ensure that the light is ON, on the battery charger.
• Battery is not to be run dead flat.
• The battery does not have to be flat to be charged. It is recommended that after each
use, the unit is charged.
• Readers can be left on charge – once the reader batteries have been charged, the
charger will then automatically convert to trickle charge and no damage will be done
to the batteries. (A transient protector is recommended to help prevent spikes
through the power line damaging the charger and reader. Aleis part number 4059)
• Charge the battery prior to use and every 10-12 weeks. If the unit is not used for a
long period of time, recharge unit overnight prior to use.
7.3 Battery Charging Options
An optional Car Cigarette Lighter Battery Charger is available.
8.0 OPTIONAL POWER
• Only use high quality, regulated linear power supplies for 240/12 volt use or solar panels.
Please contact Aleis with any queries, you may have.
• Switch mode power supplies are NOT suitable and must not be used.
9.0 USING EXTERNAL POWER SUPPLY
If you purchased a ISO-6000 Race System without batteries, then you will need to use an
external supply to power the reader. An external 12 volt battery can be used, or an external
regulated linear power supply. DO NOT USE A SWITCH MODE POWER SUPPLY.
![](/img.php?id=1223097&img=bga.png)
Aleis ISO-6000 Series Operational Manual
Aleis ISO-6000 Series Race System Page 10 of 13
10.0 READER SPECIFIACTIONS
General
Frequency: 134.2Khz
RFID Compatibility: ISO 11784 &11785 HDX and FDX-B
User Interface: RS-232 Serial Port/Bluetooth Option.
RS-232 Port: 9600bps, 8 Data Bits, No Parity, 1 Stop Bit.
RFID Code output: Decimal or Hex
Antenna Tuning: Auto or Manual
User Options: EEPROM control via RS-232 Serial
Battery Power: 12 Volt DC
Agency Certifications: USA - FCC Part 15.101, 15.209 Class B,
Canadian - RSS-210, RSS-Gen, ICES-003
AS/NZS- CISPR 22
Physical
Dimensions: Max size with Antenna 4028 1200mm x600mm x 150mm
Weight: Antenna 21Kgs, With Batteries???
Material: Antenna- PVC, Box- Polycarbonate
Operating Temperature: -20c to +60c
Storage Temperature: -40c to +85c
Humidity: 0 to 100%
Hermeticity: IP67
Performance
HDX: >1600mm using Allflex HDX/HP tag in best orientation.
FDX: >1200mm using Allflex FDX-B/HP tag best orientation.
Read Rate: Wired Sync mode 10 times/second, Wireless Sync mode 9
times/second.
Read Error Rate: less than 1 in 1 million.
Radiated Field Strength: 116.4 dBuV/m at 10 meters
![](/img.php?id=1223097&img=bgb.png)
Aleis ISO-6000 Series Operational Manual
Aleis ISO-6000 Series Race System Page 11 of 13
11.0 ALEIS CONDITIONS OF SALE
1. In these conditions:
(1) `Vendor' means Aleis Pty Ltd ACN 081 411 734 of Cnr Old Rosevale & Jandowae/Kingaroy Roads, Jandowae, Queensland, 4410 which is
the seller of the goods
(2) ‘Factory’ means the Vendor’s principal place of business at Cnr Old Rosevale & Jandowae/Kingaroy Roads, Jandowae, Queensland,4410.
(3) Purchaser' means the customer(s) described overleaf which is the purchaser of the goods.
(4) `Goods' means the products and, if any, services specified overleaf
(5) Nothing in these conditions shall be read or applied so as to exclude, restrict or modify or have the effect of excluding, restricting or modifying
any condition, warranty, guarantee, right or remedy implied by law (including the Trade Practices Act 1974) and which by law cannot be
excluded, restricted or modified.
(6) Words denoting the singular number only include the plural number and vice versa; where reference to any gender includes every other
gender and words denoting individuals include corporations
2. These conditions (which shall only be waived in writing signed by the vendor) shall prevail over all conditions of the purchaser's order to the extent of any
inconsistency.
3. The goods and all other products sold by vendor are sold on these terms and conditions.
4. Unless previously withdrawn, vendor's quotation is open for acceptance within the period stated therein or, when no period is so stated, within thirty (30)
days only after its date. The vendor reserves the right to refuse any order based on this quotation within 7 days after the receipt of the order.
5. The cost of any special packing and packing materials used in relation to the goods shall be at the purchaser's expense notwithstanding that such cost
may have been omitted from any quotation.
6. The purchaser waives any claim for shortage or discrepancy of any goods delivered if a claim in respect thereof has not been lodged with vendor within
seven (7) days from the date of receipt of goods by the purchaser.
7. All specifications, drawings, and particulars of weights and dimensions submitted by vendor are approximate only and any deviation shall not be taken to
vitiate any contract with vendor or form grounds for any claim against vendor. The descriptions, illustrations and performances contained in catalogues,
price lists and other advertising matter do not form part of the contract of sale of the goods. Where specifications, drawings or other particulars are
supplied by purchaser, vendor's price is made on estimates of quantities required. Should there be any adjustments in quantities above or below the
quantities estimated by vendor and set out in a quotation, then any such increase or decrease shall be adjusted on a unit rate basis according to unit
prices set out herein.
8.1 Any performance figures given by vendor are estimates only. Vendor shall be under no liability for damages for failure to attain such figures unless
specifically guaranteed in writing and any such written guarantee shall be subject to the recognised tolerances applicable to such figures.
8.2 The Purchaser acknowledges that frequency from other products, for example computer equipment, videos, loud speakers and other metal products may
affect the goods’ performance. The Vendor gives no warranty that in the event of any frequency disruption the goods will remain fit for the purpose
intended. The Vendor will not be liable for any claims made as a result of other equipment or other things interfering with the performance of the goods
whether on account of frequency disruption or otherwise.
9. Delivery dates mentioned are an estimate only and vendor shall not be liable for late delivery or non-delivery and under no circumstances shall the
vendor be liable for any loss, damage or delay occasioned to the purchaser arising from late or non-delivery or late installation of the goods.
10. (1) Unless specifically agreed otherwise in writing, delivery shall be ex-factory. The Purchaser must make its own arrangements for the transport
of the goods from the factory and any assistance that the Vendor gives in transporting the goods shall not effect the rights of the Vendor
under this Clause. Vendor is not responsible for any loss or damage to goods in transit.
(2) Risk in the goods shall pass to the Purchaser upon dispatch of goods from Factory.
11. (1) Vendor's liability for goods manufactured by it is limited to making good any defects by repairing the same or at vendor's option by
replacement, within a period not exceeding twelve calendar months after the goods have been dispatched (or installed by Aleis) provided
that:
(a) defects have arisen solely from faulty materials or workmanship;
(b) the goods have not received maltreatment, inattention or interference;
(c) accessories of any kind used by the purchaser are manufactured by or approved by vendor;
(d) the seals of any kind on the goods remain unbroken; and
(e) the defective parts are promptly returned free of cost to vendor.
(f) all freight is paid by the purchaser.
(2) If goods are not manufactured by vendor the guarantee of the manufacturer thereof shall be accepted by the purchaser and is the only
guarantee given to purchaser in respect of the goods.
(3) Vendor shall not be liable for and purchaser releases vendor from any claims in respect of faulty or defective design of any goods supplied
unless such design has been wholly prepared by vendor and the responsibility for any claim has been specifically accepted by vendor in
![](/img.php?id=1223097&img=bgc.png)
Aleis ISO-6000 Series Operational Manual
Aleis ISO-6000 Series Race System Page 12 of 13
writing and in any event vendor's liability hereunder shall be strictly limited to the replacement of defective parts in accordance with para
11(1) of these conditions.
(4) Except as provided herein, all express and implied warranties, guarantees and conditions under statute or general law as to merchantability,
description, quality, suitability or fitness of the goods for any purpose or as to design, assembly, installation, materials or workmanship or
otherwise are hereby expressly excluded and vendor shall not be liable for physical or financial injury, loss or damage or for consequential
loss or damage of any kind arising out of the supply, layout, assembly, installation or operation of the goods or arising out of vendor's
negligence or in any way whatsoever.
12. Vendor's liability for a breach of a condition or warranty implied by Div 2 of Pt V of the Trade Practices Act 1974 (other than s 69) is hereby limited to:
(1) in the case of goods, any one or more of the following:
(a) the replacement of the goods or the supply of equivalent goods;
(b) the repair of the goods;
(c) the payment of the cost of replacing the goods or of acquiring equivalent goods;
(d) the payment of the cost of having the goods repaired; or
(2) in the case of services:
(a) the supplying of the services again; or
(b) the payment of the cost of having the services supplied again.
13. Vendor's liability under s 74H of the Trade Practices Act 1975 is expressly limited to a liability to pay to the purchaser an amount equal to:
(1) the cost of replacing the goods;
(2) the cost of obtaining equivalent goods; or
(3) the cost of having the goods repaired, whichever is the lowest amount.
14. Unless otherwise stated all prices quoted by vendor are net, exclusive of tax. Prices quoted are those ruling at the date of issue of quotation and are
based on rates of freight, insurance, customs duties, exchange, shipping expenses, sorting and stacking charges, cartage, rate of weighs, cost of
materials and other charges affecting the cost of production ruling on the date the quotation is made and any alterations thereto either before acceptance
of or during the currency of the contract shall be to the purchaser's account.
15 The purchase price in relation to goods shall be payable and payment or balance thereof shall be made immediately at time of order, or otherwise as
agreed in writing.
16. Vendor reserves the following rights in relation to the goods until all accounts owed by the purchaser to vendor are fully paid:
(1) legal ownership of the goods;
(2) to enter the purchaser's premises (or the premises of any associated company or agent where the goods are located) without liability for
trespass or any resulting damage and retake possession of the goods; and
(3) to keep or resell any goods repossessed pursuant to (2) above;
If the goods are resold, or products manufactured using the goods are sold, by the purchaser, the purchaser shall hold such part of the proceeds of any
such sale as represents the invoice price of the goods sold or used in the manufacture of the goods sold in a separate identifiable account as the
beneficial property of vendor and shall pay such amount to vendor upon request. Notwithstanding the provisions above vendor shall be entitled to
maintain an action against the purchaser for the purchase price and the risk of the goods shall pass to the purchaser upon delivery.
17. Any property of the purchaser under vendor's custody or control shall be entirely at the purchaser's risk as regards loss or damage caused to the property
or by it.
18. Vendor reserves the right to make a reasonable charge for storage if the purchaser does not take delivery of goods within fourteen days of notification
that the goods are ready for collection.
19. Vendor shall not be under any obligation to accept goods returned by the purchaser and will do so only on terms to be agreed in writing in each individual
case.
20. All goods to be supplied by vendor shall be as described on the quotation overleaf and the description on such order modified as so agreed shall prevail
over all other descriptions including any purchaser's specification or inquiry.
21. No order may be cancelled except with consent in writing and on terms which will indemnify vendors against all losses.
22. The contract for sale of the goods is made in the state of Queensland and the parties agree to submit all disputes arising between them to the courts of
such state at any court competent to hear appeals therefrom.
23. The Purchaser shall pay all and any import duties, levies or imports and/or any sales, use, excise, gross receipts, value added, goods and services tax,
property or other taxes or duties of any kind whatsoever assessed upon or relating in any way to the goods ordered by the Purchaser irrespective of the
person, nation, state or authority requiring payment thereof.
![](/img.php?id=1223097&img=bgd.png)
Aleis ISO-6000 Series Operational Manual
Aleis ISO-6000 Series Race System Page 13 of 13
24. If the Vendor has not paid for any goods on the due date specified in this Agreement, without prejudice to any other right or remedy, all outstanding
money shall bear interest on daily balances until paid at the rate of 1.5% per month and such money together with all interest shall be recoverable
forthwith from the Purchaser.
The Purchaser charges as a fixed charge with the payment of all monies now or in the future becoming owing hereunder all his property both real and personal (other
than property referred to in Section 262 (i) of the Corporations Law) and as a separate charge charges all his other property with the payment of all monies now or in
the future becoming owing hereunder, provided that this second charge will be a floating charge in respect of the Purchaser’s current assets but otherwise will be a
fixed charge. The Purchaser irrevocably makes, nominates, constitutes and appoints, and in the place and stead of the Purchaser puts and deputes the Vendor and
(if the Vendor is a corporation) the directors, general manager and secretary for the time being of the Vendor jointing and each of them severally to be the Attorney or
Attorneys of Purchaser at any time after default as aforesaid has been made (sufficient proof of which will be the Statutory Declaration of the Attorney or Attorneys or
either or any of them) to do all such things as may be required to consent to any Caveat or other like instrument under the Real Property Legislation of any other
jurisdiction in the form prepared by the Vendor’s Solicitor over any or all of the Purchaser’s property and to execute a mortgage and/or charge or other like instrument
under the Real Property Legislation of any other jurisdiction in such form and containing such terms and conditions as the Vendor may require over any or all of the
Purchaser’s property and from time to time to appoint a substitute or substitutes and such appointment or appointments at pleasure to revoke and another or other
substitute or substitutes to appoint and generally to do, execute and perform any act, deed, matter or thing for that purpose as fully and effectually as the Purchaser
could do and the Purchaser agrees to ratify and confirm all and whatever the said Attorney or Attorneys or any substitute or substitutes lawfully do or cause to be
done for that purpose. The End Ver10/05/01
