Aleis 7000 7000 SERIES ISO RFID READER User Manual Appendix G ISO 7020BT USERMAN
Aleis Pty Ltd 7000 SERIES ISO RFID READER Appendix G ISO 7020BT USERMAN
Aleis >
USERS MANUAL
![](/img.php?id=1143466&img=bg1.png)
Aleis Pty Ltd
ACN 130 754 826
www.aleis.com Ph: 07 46685942
Reader
User Guide
“The Stocky”
ISO7000, ISO7000BT
&
ISO7020, ISO7020BT
Series Portable Wand
Including
Aleis DataLink
Version Draft A – 20/05/2009
IMPORTANT!
This User Guide must be read in conjunction with Reader, prior to use.
©Copyright Aleis Pty Ltd 2009
N13429 A1064AUS
“The Stocky” User Guide
Page 2 of 29
Table of Contents
Regularity Notices and Conformity ................................................................................................................................3
1.07000 Series Reader Instructions...........................................................................................................................4
2.0“The Stocky” Series...................................................................................................................................................5
3.0Connecting “The Stocky” to scale indicators or computers...................................................................................5
3.1Connecting to scale indicators ............................................................................................................................5
3.2Connecting to computers ....................................................................................................................................6
3.3Interface protocol................................................................................................................................................6
4.0“The Stocky” Keypad explained 6
4.0“The Stocky” Keypad explained ..............................................................................................................................7
5.0Operating “The Stocky”............................................................................................................................................8
5.1Turning “The Stocky” on.......................................................................................................................................8
5.2Reading RFID devices with “The Stocky” ............................................................................................................8
5.3Storing RFID devices in “The Stocky”..................................................................................................................8
5.4Using Sessions in “The Stocky” ............................................................................................................................8
5.5Clearing Sessions in “The Stocky ..........................................................................................................................9
5.6Using the RFID Counter on “The Stocky”.............................................................................................................9
5.7Using BlueTooth in “The Stocky” .........................................................................................................................9
5.8BlueTooth PIN code ...........................................................................................................................................9
6.0Audio and Visual Alerts......................................................................................................................................10
7.0Battery Charging.................................................................................................................................................11
7.1Battery Charging Requirements........................................................................................................................11
7.2Battery Charging Tips.......................................................................................................................................11
8.0Aleis DataLink Software.....................................................................................................................................12
8.1Aleis DataLink Installation...............................................................................................................................13
8.2Aleis DataLink Operation.................................................................................................................................13

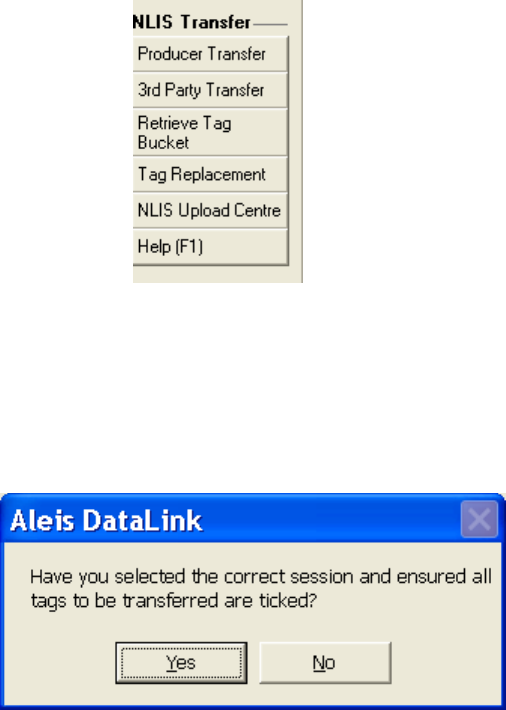

8.3Aleis DataLink Menu Screen............................................................................................................................14

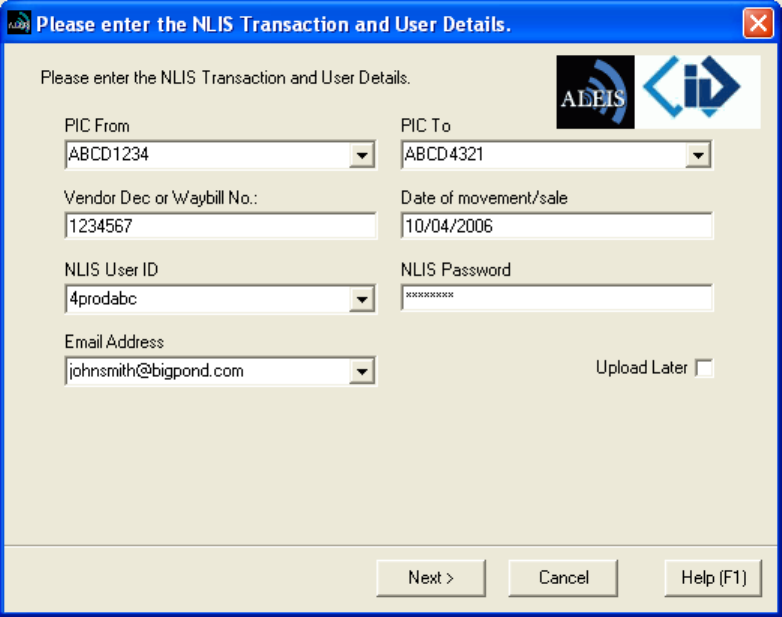

8.4Producer Transfer (Australia Only) ..................................................................................................................15
8.53rd Party Transfer (Australia Only) ...................................................................................................................18
8.6Retrieve Tag Bucket (Australia Only) ..............................................................................................................21

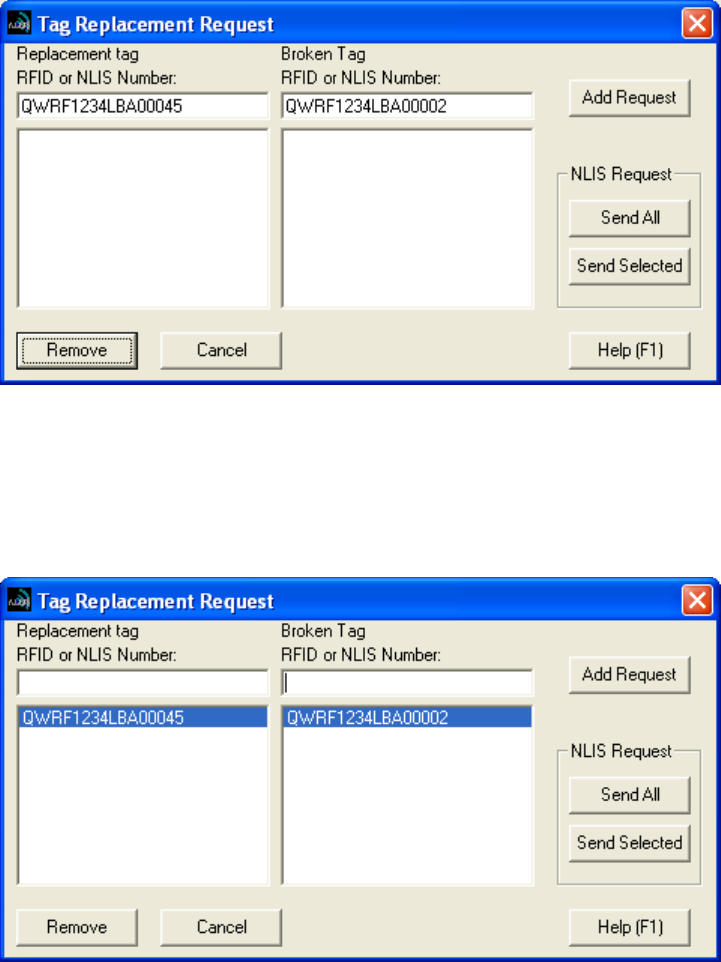

8.7Tag Replacement (Australia Only) ...................................................................................................................23

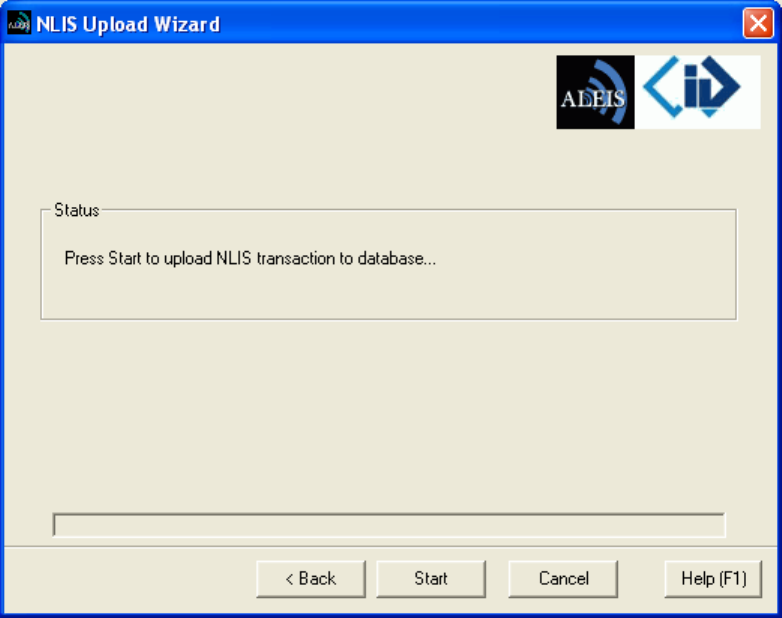

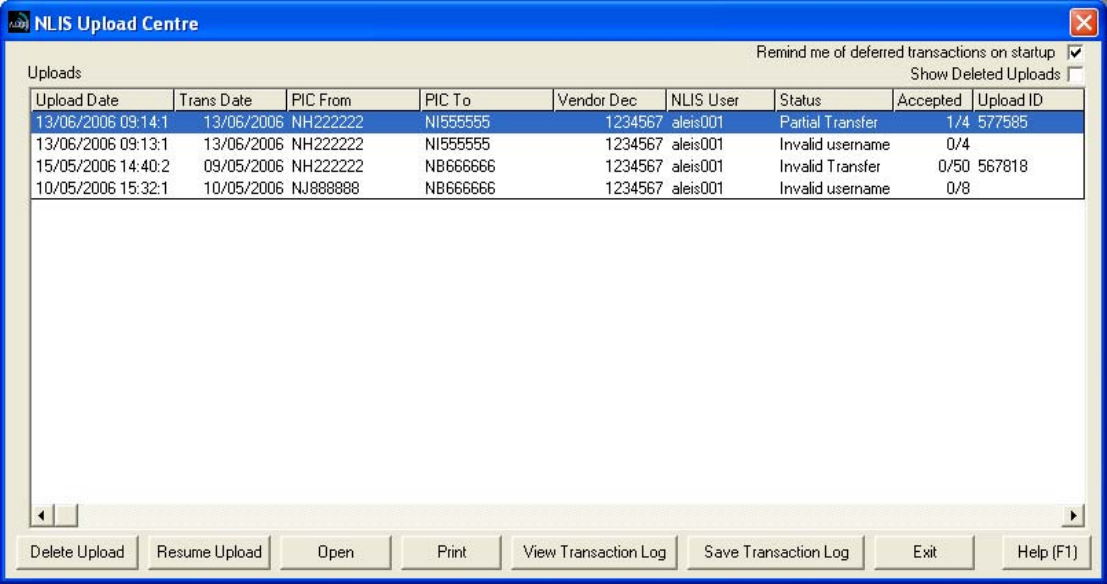

8.8NLIS Upload Centre (Australia Only)..............................................................................................................26
9.0Aleis Conditions of Sale.......................................................................................................................................27
![](/img.php?id=1143466&img=bg3.png)
“The Stocky” User Guide
Page 3 of 29
Regularity Notices and Conformity
USA – FCC
Information to the user (FCC Part 15.105)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encourage to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
Consult the dealer or an experienced radio/TV technician for help
Modification warning (FCC Part 15.21)
Warning: Any changes or modifications not expressively approved by Aleis could void the user's authority to
operate this equipment.
Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Europe CE
This device has been tested and meets the Electromagnetic Compatibility requirements for EN300 330
Australia and New Zealand - C-Tick
This device has been tested and meets the Electromagnetic Compatibility requirements for CISPR 11
![](/img.php?id=1143466&img=bg4.png)
“The Stocky” User Guide
Page 4 of 29
Important User Instructions
1.0 7000 Series Reader Instructions
IMPORTANT
Must be read prior to using system
“The Stocky” 7000 Series Model Handling Instructions
The following instructions must be wholly adhered to or permanent damage to the antenna/reader and/or permanent
data loss can occur. Non-conformance to the handling and operating instructions will immediately void all warranties
for the antenna/reader and software.
1. For maximum performance, batteries need to be charged before use.
2. Charge for 24 hours for 1st initial charge.
3. Aleis suggests a form of transient protection unit be used while charging the reader to help prevent
power surges/spikes.
4. Do not hose or submerge “The Stocky” in water.
5. Use only a very lightly dampened cloth to clean “The Stocky”.
6. Do not use chemicals to clean “The Stocky”.
7. Do not use “The Stocky” as a prodder or as any form of a cattle motivator.
8. Do not drop “The Stocky” as electronics are contained within.
9. Do not remove any VOID stickers from “The Stocky”.
10. Do not drill holes in “The Stocky”.
11. Aleis Conditions of Sale apply.
![](/img.php?id=1143466&img=bg5.png)
“The Stocky” User Guide
Page 5 of 29
2.0 “The Stocky” Series
“The Stocky” is available in different configurations (See Below)
7000 Standard Unit
7000BT Standard Unit with BlueTooth
7020 With RFID Counter
7020BT With RFID Counter and BlueTooth
3.0 Connecting “The Stocky” to scale indicators or computers
3.1 Connecting to scale indicators
“The Stocky” comes with a 5 metre computer cable. Plug the 9 pin lead into “The
Stocky” and into the scales serial port. “The Stocky” must be in serial mode if
BlueTooth is fitted. To select a serial connection press and hold down the
NEW SESSION button and then press the ON button. The BlueTooth LED
will go out.
2 beeps are heard if BlueTooth is enabled or 3 beeps if Serial is enabled.
“The Stocky” will automatically send each RFID you read to the connected scale
indicator. You may need to contact your scale indicator manufacturer for specific
setup requirements on the indicator.
You may also connect your reader to the scale indicator via BlueTooth if you have a
7000BT or a 7020BT. The scale indicator must be able to support BlueTooth
connection. Contact the scale indicators manufacturer for further details.

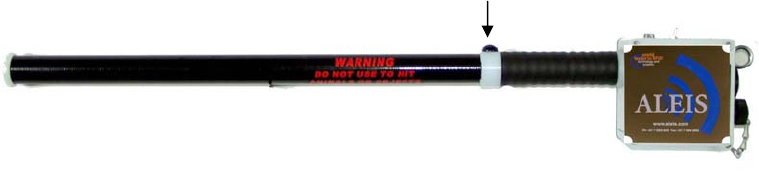

Reader
Wand
Read button
“The Stocky” User Guide
Page 6 of 29
3.2 Connecting to computers
“The Stocky” comes with a 5 metre computer cable. Plug the 9 pin lead into “The
Stocky” and into the computers serial port. “The Stocky” must be in serial mode if
BlueTooth is fitted. To select a serial connection press and hold down the NEW
SESSION button and then press the ON button. The BlueTooth LED will go out.
2 beeps are heard if BlueTooth is enabled or 3 beeps if Serial is enabled.
“The Stocky” will automatically send each RFID you read to the connected
computer. You may need to contact your herd management software provider for
specific setup requirements for your respective software package.
The 7000BT and 7020BT can be connected to a PC or other device via BlueTooth.
Refer to Using BlueTooth further on in this Manual.
If you are using the download software program (Aleis DataLink) supplied with
“The Stocky”, you will simply need to plug the reader into your computer, double
click on the DataLink icon on your desktop, and the program will automatically
connect and download “The Stocky” for you. The reader must be in serial mode.
3.3 Interface protocol
You may be asked by the scale indicator manufacturer or your herd management
software provider for the interface protocol of the “The Stocky”. This term refers to
the way the reader talks to the scale indicator or software program. The protocol for
“The Stocky” is as follows:
• Baud rate: 9600
• Data bits: 8
• Parity: None
• Stop bits: 1
• Communication: Serial
“The Stocky” will read all functioning NLIS approved HDX devices.
All ID data from the reader is in ASCII format and has a <CR><LF> attached to the
end of each string.
An actual example of the above number is: A 00000 0 0971 000000002724<CR><LF>
![](/img.php?id=1143466&img=bg7.png)
“The Stocky” User Guide
Page 7 of 29

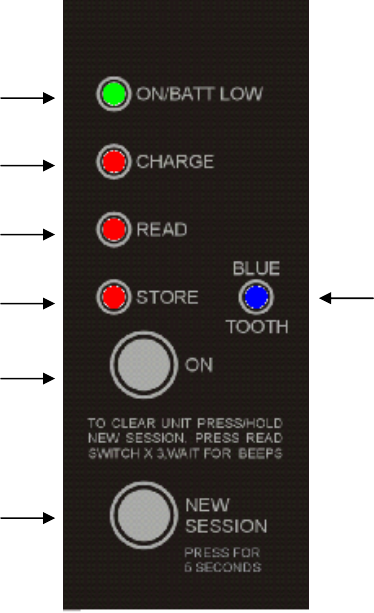

4.0 “The Stocky” Keypad explained
If you have a 7000 or 7020 the Bluetooth LED will not be fitted. It’s only fitted
on the 7000BT & 7020BT models
7000BT KEYPAD
• This LED comes on when the reader is
turned on and flashes when the battery
charge is low.
• This LED comes on when the reader is
being charged.
• This LED flashes once when an RFID
has been read.
• This LED flashes once when an RFID
has been stored in the reader’s memory.
• Press this button to turn the reader on.
• Hold this button down for five seconds
to create a new session on the reader. If
you want to clear the reader, hold this
button down and press the read button
(the button on the wand) three times.
Hold this button down while pressing the
ON button to toggle between Serial
Connection and BlueTooth
This LED
comes on
when
Bluetooth
is fitted and
turned on.
“The Stocky” User Guide
Page 8 of 29
5.0 Operating “The Stocky”
5.1 Turning “The Stocky” on
Press the ON button on the reader to turn “The Stocky” on. The system will remain
on for 1 minute and 15 minutes if BlueTooth turned on.
Note: 2 beeps are heard if BlueTooth is enabled or 3 beeps if Serial is enabled.
The unit is also turned on by pressing the Read switch on the wand (located at the
top of the handle). The Unit will power down after 6 seconds for non BlueTooth
models This feature is a battery conservation feature and assists in long term use in
the yards without charging.
5.2 Reading RFID devices with “The Stocky”
To read RFID ear tags, press the read button and wave the wand past the ear tag.
The read range of “The Stocky” is generally between 380mm and 420mm from the
end of the wand.
To read RFID rumen pellets or boluses, press the read button and wave the wand in
an ‘L’ shape behind the front leg of the animal. As mentioned in the above
paragraph, the read range of “The Stocky” is generally between 380mm and 420mm
from the end of the wand.
5.3 Storing RFID devices in “The Stocky”
“The Stocky” automatically stores each RFID device it reads. This is indicated by
the Store light flashing when an RFID is first read. “The Stocky” will not store the
same device twice in the same session nor alter the order of the RFIDs in the reader
if a device is read a second time. The RFIDs are stored in the same order they are
read. “The Stocky” will store 10,000 RFIDs in its memory.
5.4 Using Sessions in “The Stocky”
Sessions have been designed into the memory of “The Stocky” to allow for easy
separation of groups of cattle. To start a new session in “The Stocky , simply hold
the ‘New Session’ button down for five seconds, and you will hear “The Stocky”
beep three times and the Read and Store lights will flash in sync with the beeps.
You can store up to 4,000 RFIDs in one session – if you read more than 4,000
RFIDs, “The Stocky” will automatically create a new session.
You can have up to 1,000 sessions in “The Stocky”.
“The Stocky” User Guide
Page 9 of 29
5.5 Clearing Sessions in “The Stocky
You can clear “The Stocky” from the keypad. To do this hold down the New Session
button and press the read switch 3 times. When The Stocky” is cleared a long beep
will be heard.
NOTE: Once the unit is cleared the session(s) data in not recoverable.
5.6 Using the RFID Counter on “The Stocky”
(On 7020 & 7020BT models only)
On the 7020 & 7020BT models the RFID Counter is located on the side of the unit
above the computer/charger connection.
The RFID Counter counts the number of devices read in the current session. When
you create a New Session the RFID Counter resets back to 0. It also resets to 0 when
you clear the unit.
5.7 Using BlueTooth in “The Stocky”
(On 7000BT & 7020BT models only)
To turn the BlueTooth on press and hold down the NEW SESSION button and then
press the ON button. The BlueTooth LED will come on.
To return back to a serial connection repeat the above process. The BlueTooth LED
will go out. 2 beeps are heard if BlueTooth is enabled or 3 beeps if Serial is enabled.
Notes:
1. The BlueTooth Feature is only available if you have a 7000BT or 7020BT model.
If you don’t your unit can be upgraded for this feature. Contact the supplier for
further information and costing.
2. BlueTooth is a way you can communicate to a PC, PDA or other device without
using the serial cable, referred to as a Wireless connection.
3. The PC or device that the 7000BT or 7020BT is going to communicate to must
have BlueTooth fitted. The PC or device sets up the link between the two units.
5.8 BlueTooth PIN code
The Pin Code or access code, as it is sometimes referred to, is the 4 digit serial
number on the side of the 7000BT or 7020BT.
If the sticker is missing when you discover the 7000BT or 7020BT on the PC or
device, the 4 digit number which comes up in the name of the 7000BT or 7020BT
discovered is the pin number.
Refer to your PC or other devices manual to see how to discover and connect to a
BlueTooth device.
![](/img.php?id=1143466&img=bga.png)
“The Stocky” User Guide
Page 10 of 29
6.0 Audio and Visual Alerts
This is a summary of the Audio and Visual Alerts used in “The Stocky”:
Features Buzzer On/Batt Low LED Charge LED Read LED Store LED BlueTooth
LED
Reader is on 3 rapid beeps on power up On
RFID is read and stored 2 beeps On 1 flash 1 flash
RFID is read and has
already been stored 1 beep On 1 flash
RFID has not been read 1 long beep On
New session has been
created 4 beeps On 4 flashes 4 flashes
Reader has been cleared 1 long beep On 1 long flash 1 long flash
Reader is downloading
RFIDs On On
Battery charge is low* 2 rapid beeps every minute
during use Flashing
Reader memory is full On On
Charger has been plugged in
to the reader (fast charging) Slowly flashing On
BlueTooth Switched on 2 rapid beeps on power up On On
Memory Store Error
(Return Unit to Aleis) 10 rapid beeps On
* If you continue to use “The Stocky” when the battery is low, once it gets below 6.0 volts, “The Stocky” will beep three times and turn off.
![](/img.php?id=1143466&img=bgb.png)
“The Stocky” User Guide
Page 11 of 29
7.0 Battery Charging
The batteries in “The Stocky” can be charged by using the 9-pin connector at the back of the
reader.
7.1 Battery Charging Requirements
• Charge for 24 hours for 1st initial charge.
• For best results, charge prior to each use.
• To obtain maximum battery life, charge a minimum of every 10-12 weeks if reader is not
being used.
• Due to the uneven supply of mains power, Aleis suggests a form of transient protection
unit be used while charging the reader to help prevent power surges/spikes. Aleis sells
this transient protector part number 4059.
• Charge “The Stocky” using supplied charger only.
• Ensure when fitting charger connector that the male and female groove are
aligned and pushed in correctly.
• When “The Stocky” is charged, the On/Batt Low LED will be in one of two
conditions:
1. If battery has reached its Charged condition, the On/Batt Low LED will be on
constantly (no flashing).
2. If battery has reached its maximum charge time period, the On/Batt Low LED
will flash three times rapidly constantly.
*Note: once “The Stocky” has reached one of the two states, the battery charger
will trickle charge “The Stocky” for you until the charger is unplugged.
DO NOT CHARGE “The Stocky” LONGER THAN 30 HOURS.
7.2 Battery Charging Tips
• To ensure that the battery receives a full charge, charge “The Stocky” overnight
(5hrs).
• The battery does not have to be flat to be charged. It is recommended the “The
Stocky” is charged before each use.
• If the unit is not used for a long period of time, recharge “The Stocky” overnight
prior to use.
• To verify that the unit is charging, ensure the Charge LED on the reader is
illuminated.
“The Stocky” User Guide
Page 12 of 29
Aleis DataLink Software
8.0 Aleis DataLink Software
IMPORTANT
Must be read prior to using software
This software has been purposefully designed to download the RFID’s and/or respective data relating to those
RFID’s from the Aleis 7000 8030/50 and 9030/50/60 Series Readers. Aleis accepts no responsibility for any
form of improper use, negligent or otherwise, resulting in the loss of RFID’s with the use of this software. All
practical assistance will be given in the operation and understanding of this software, and this can be obtained by
contacting Aleis or an Aleis distributor. Copying of this software is strictly prohibited.
1. This software is designed for Aleis 7000 8030/50 and 9030/50/60 Series Readers ONLY.
2. Aleis Reader must be plugged into computer this software is installed on.
3. Aleis Reader must be turned ON before opening Aleis DataLink.
4. Aleis DataLink PC Requirements:
Operating Systems
• Windows ME
• Windows NT 4.0
• Windows 2000
• Windows XP (Recommended)
• Vista
Minimum Hardware
• Pentium 233 MHz (Recommended: Pentium 500MHz or greater)
• 64 MB RAM (Recommended: 128 MB RAM or greater)
• 20 MB hard drive space
This software package serves as an easy download program which automatically downloads the reader’s session
list. Once the reader is downloaded, you can then save particular downloaded sessions or all downloaded sessions
on your computer. You can then open these saved files in Excel or your desired program. The program also
allows you to transfer animals on the NLIS database.
Special features include:
• Auto-detects what com-port reader is plugged into.
• Quick and easy animal transfers to the NLIS database for Producers and 3rd party users.
• Downloading all animal data from reader to excel.
• Loading tag file buckets from database to the reader.
• Updating readers software.
• Updates clock on reader to time displayed on computer. (For models that have clocks.)
“The Stocky” User Guide
Page 13 of 29
8.1 Aleis DataLink Installation
To install DataLink:
1. Place the DataLink CD into the CD drive; the program will automatically begin
installation.
If not Go to My Computer Double click on the CD Rom Drive Browse the CD and
Double click on the icon called DataLink
2. Follow the installation prompts, and click on Finish when installation is complete.
8.2 Aleis DataLink Operation
Operating Aleis DataLink:
IMPORTANT: The Aleis Reader must be plugged securely into your computer and turned on before
opening Aleis DataLink.
1.0 Plugging the Aleis Reader into your computer.
Plug the 9 pin female serial connector into the 9 Pin male serial connection at the back of your
computer or laptop. Some laptops do not have a serial connection, and so a Serial to USB
adaptor can be used. Should such an adaptor be used, Aleis DataLink works just as effectively
provided you have installed the drivers for the adaptor correctly.
2.0 Opening Aleis DataLink.
1. Turn Aleis Reader on
2 Double click on the Aleis DataLink icon located on your desktop.
3. This will open up the software for operation. As soon as the program is opened, it
will automatically download the reader for you.
![](/img.php?id=1143466&img=bge.png)
“The Stocky” User Guide
Page 14 of 29

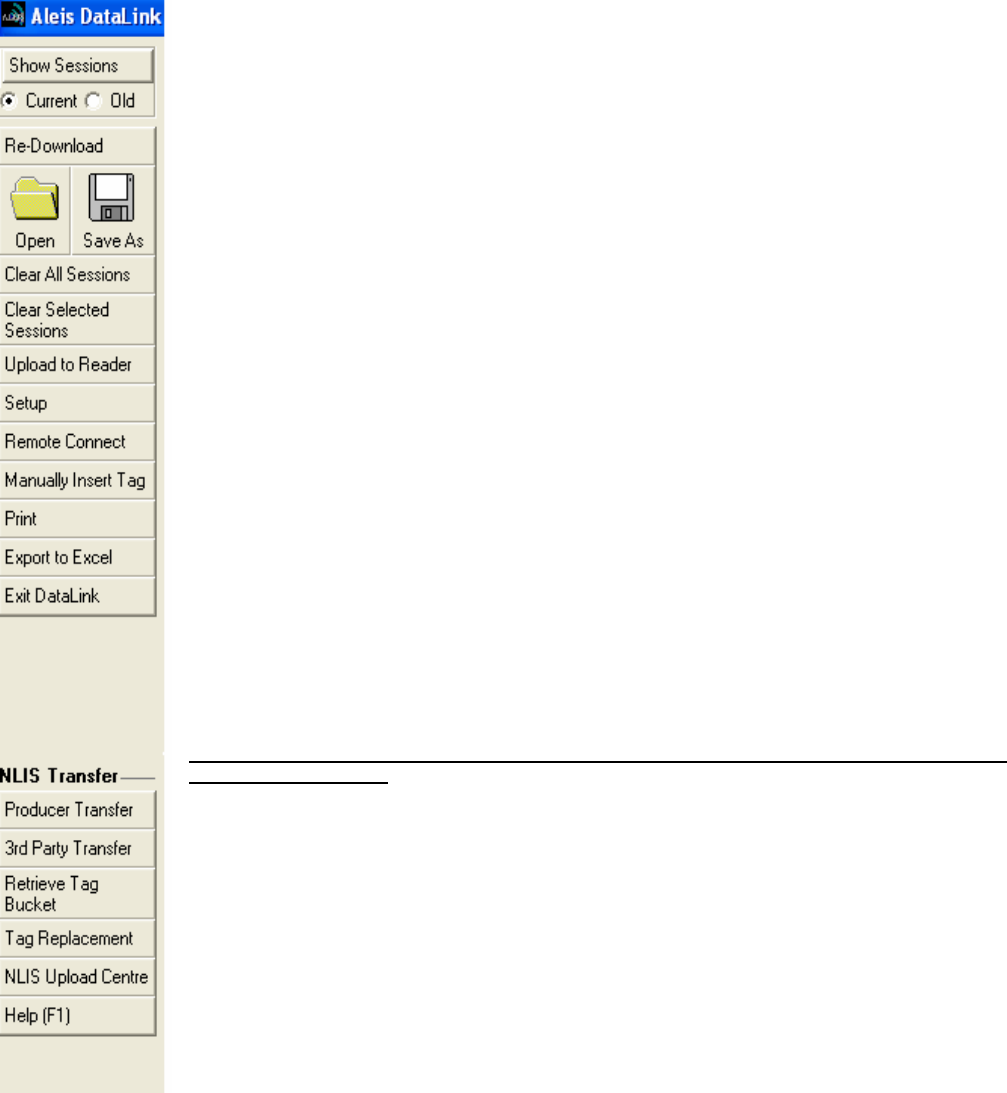

8.3 Aleis DataLink Menu Screen
Full Index for Help in software (F1)
Brief overview of Aleis DataLink Menu Screen
Show Session- Displays lists of sessions when you select old or current
Current -Displays current session
Old- Displays sessions previously cleared from reader
Re-downloads session out of reader
Open: Opens sessions previously saved on computer
Save As: Saves sessions to file of choice on computer
Clears all Sessions from reader (Sessions will not be recoverable on the Stocky)
Clears selected session from reader (Not Available on the Stocky.)
Uploads selected session to reader
Setup 1: Update reader software, 2: Format file systems, 3: Advanced features
Remote Connect only used in multiple reader situations
Gives the ability to enter RFID number or NLIS number manually in the event of tag failure.
Prints selected information
Exports session to Excel
Exits DataLink
Below are a list of options used for transferring information and retrieving information from the NLIS
database (Australia Only)
Used for producers to transfer livestock to the NLIS database
Used for third party to transfer livestock to the NLIS database
Retrieves all NLIS numbers recorded to individual PIC from NLIS database
Used for replacing non reading identification tags

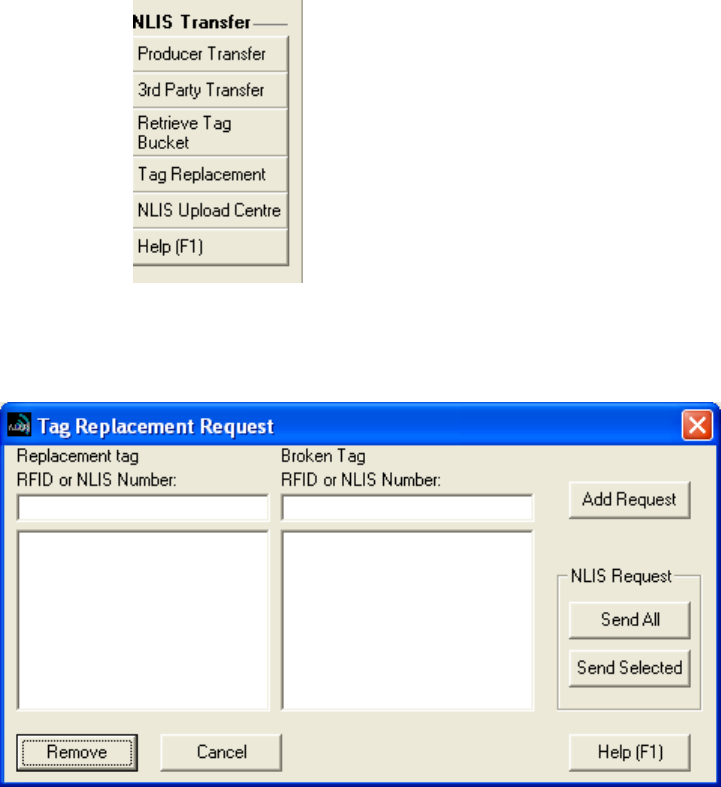

History of all transfers to NLIS Database
Gives a full index of all help functions
![](/img.php?id=1143466&img=bgf.png)
“The Stocky” User Guide
Page 15 of 29
8.4 Producer Transfer (Australia Only)
This opens the NLIS Transfer Wizard, using the selected fields in the current session(s). This button is used for
Producer to Producer transfers.
For further information please use the help feature in Aleis DataLink.
Producer Transfer Steps
Step 1 Click on the "Producer Transfer" button.
You will be presented with the following Box
Step 2 Click on "Yes" if you are sure you have selected the correct session and
unticked any tags not to be transferred.
![](/img.php?id=1143466&img=bg10.png)
“The Stocky” User Guide
Page 16 of 29
You will then be presented with the following Box
Step 3 After completing the form Click on "Next"
If you choose to tick the Upload Later box the Transfer will not be completed but you can complete the
transfer at any time by resuming the upload from the Upload Centre.
The PIC From PIC To and Vendor Dec/Waybill No. can be loaded straight into the form if the fields
PI1, PI2 and VEN were used as Data entry on Data entry readers.
You will then be presented with the following Box
![](/img.php?id=1143466&img=bg11.png)
“The Stocky” User Guide
Page 17 of 29
Step 4 Click on the "Start" box
On a successful or unsuccessful transfer you will get a message in the status box.
![](/img.php?id=1143466&img=bg12.png)
“The Stocky” User Guide
Page 18 of 29
8.5 3rd Party Transfer (Australia Only)
This opens the NLIS Transfer Wizard, using the selected fields in the current session(s). This button is used for
Third Party transfers with or without written permission.
For further information please use the help feature in Aleis DataLink
3rd Party Transfer Steps
Step 1 Click on the "3rd Party Transfer" button.
You will then be presented with the following Box
Step 2 Click on "Yes" if you are sure you have selected the correct session and
unticked any tags not to be transferred.
You will then be presented with the following Box
![](/img.php?id=1143466&img=bg13.png)
“The Stocky” User Guide
Page 19 of 29

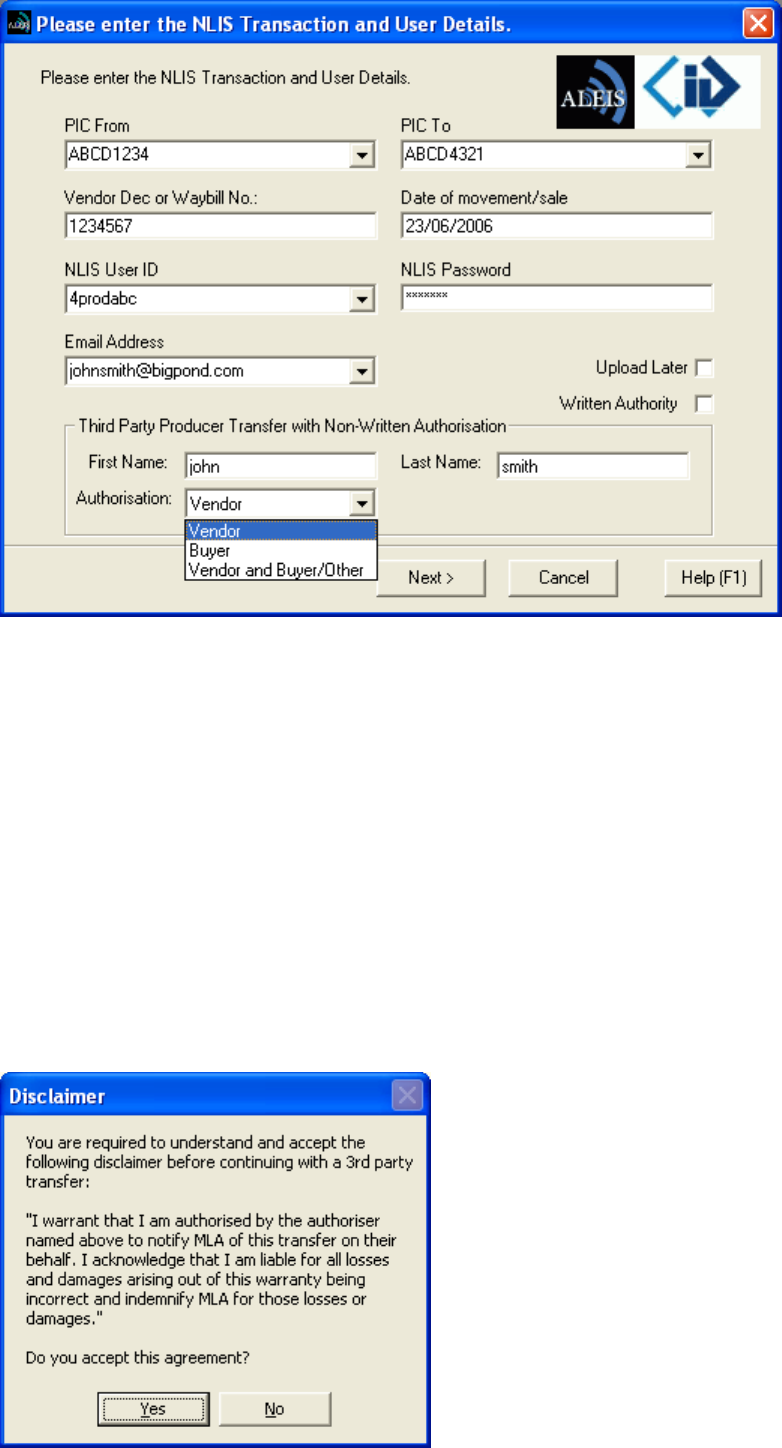

Step 3 After completing the form Click on "Next"
If you choose to tick the Upload Later box the Transfer will not be completed but you can complete the
transfer at any time by resuming the upload from the Upload Centre.
The PIC From PIC To and Vendor Dec/Waybill No. can be loaded straight into the form if the fields
PI1, PI2 and VEN were used as Data entry on Data entry readers.
You will then be presented with the following Box
![](/img.php?id=1143466&img=bg14.png)
“The Stocky” User Guide
Page 20 of 29
Step 4 Click on "Yes"
You have to accept this agreement to finish the transaction
You will then be presented with the following Box
Step 5 Click on the "Start" Box
On a successful or unsuccessful transfer you will get a message in the status box.
![](/img.php?id=1143466&img=bg15.png)
“The Stocky” User Guide
Page 21 of 29

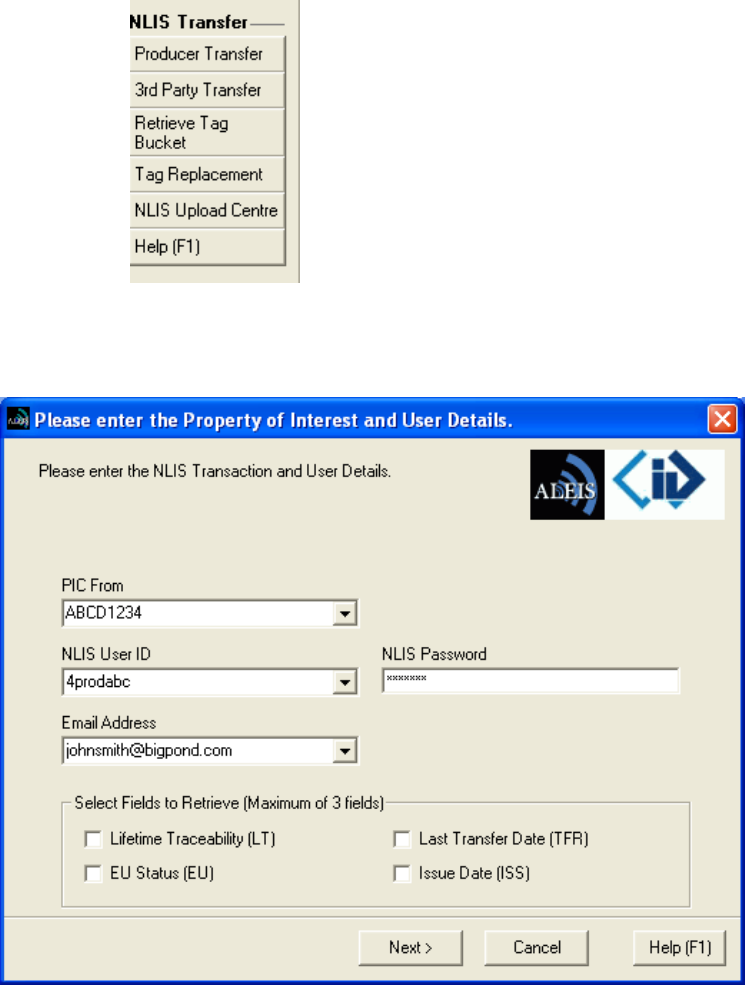

8.6 Retrieve Tag Bucket (Australia Only)
This opens the NLIS Transfer Wizard, to retrieve all RFID and NLIS ID tag numbers that match a specific PIC
from the NLIS database. You can also retrieve the Lifetime Traceability (LT), EU Status (EU), Last Transfer
Date (TFR) and the Issue Date (ISS)
For further information please use the help feature in Aleis DataLink
Retrieve Tag Bucket Steps
Step 1 Click on the "Retrieve Tag Bucket" button.
You will then be presented with the following Box
Step 2 After completing the form Click on "Next"
![](/img.php?id=1143466&img=bg16.png)
“The Stocky” User Guide
Page 22 of 29
You will then be presented with the following Box
Step 3 Click on "Start"
The Tag Bucket will be loaded into the main screen of DataLink.
![](/img.php?id=1143466&img=bg17.png)
“The Stocky” User Guide
Page 23 of 29
8.7 Tag Replacement (Australia Only)
This opens the NLIS Tag Replacement Request form using the selected tags in the current session. This button is
used for replacing defective RFID tags.
For further information please use the help feature in Aleis DataLink
Tag Replacement Steps
Step 1 Click on the "Tag Replacement" button.
You will be presented with the following Box
If there are any tags in the current session you are given the option to load them into the Replacement
tag box.
![](/img.php?id=1143466&img=bg18.png)
“The Stocky” User Guide
Page 24 of 29
Step 2 Type in the Replacement tag and the Broken tag in the boxes below
Step 3 Click on the "Add Request" Box and the tags will be inserted into the box below.
Step 4 Click on the "Send All" or "Send Selected" button (it can only send the selected tags if required)
You will be presented with the following Box
![](/img.php?id=1143466&img=bg19.png)
“The Stocky” User Guide
Page 25 of 29
Step 5 After completing the form Click on "Next"
You will be presented with the following Box
Step 6 Click on "Start"
On a successful or unsuccessful tag replacement you will get a message in the status box
![](/img.php?id=1143466&img=bg1a.png)
“The Stocky” User Guide
Page 26 of 29
8.8 NLIS Upload Centre (Australia Only)
This opens the Upload Centre screen, which displays all transactions with the NLIS database. Both successful and
unsuccessful transactions are displayed and information regarding the transaction.
For further information please use the help feature in Aleis DataLink
“The Stocky” User Guide
Page 27 of 29
9.0 Aleis Conditions of Sale
1. In these conditions:
(1) `Vendor' means Aleis Pty Ltd ACN 130 754 826 of the Cnr Old Rosevale & Jandowae/Kingaroy Rds, Jandowae, Queensland, 4410 which is
the seller of the goods
(2) ‘Factory’ means the Vendor’s principal place of business at the Cnr Old Rosevale & Jandowae/Kingaroy Rds, Jandowae, Queensland, 4410
(3) Purchaser' means the customer(s) described overleaf which is the purchaser of the goods.
(4) `Goods' means the products and, if any, services specified overleaf
(5) Nothing in these conditions shall be read or applied so as to exclude, restrict or modify or have the effect of excluding, restricting or
modifying any condition, warranty, guarantee, right or remedy implied by law (including the Trade Practices Act 1974) and which by
law cannot be excluded, restricted or modified.
(6) Words denoting the singular number only include the plural number and vice versa; where reference to any gender includes every
other gender and words denoting individuals include corporations
2. These conditions (which shall only be waived in writing signed by the vendor) shall prevail over all conditions of the purchaser's order to the
extent of any inconsistency.
3. The goods and all other products sold by vendor are sold on these terms and conditions.
4. Unless previously withdrawn, vendor's quotation is open for acceptance within the period stated therein or, when no period is so stated, within
thirty (30) days only after its date. The vendor reserves the right to refuse any order based on this quotation within 7 days after the receipt of the
order.
5. The cost of any special packing and packing materials used in relation to the goods shall be at the purchaser's expense notwithstanding that such
cost may have been omitted from any quotation.
6. The purchaser waives any claim for shortage or discrepancy of any goods delivered if a claim in respect thereof has not been lodged with vendor
within seven (7) days from the date of receipt of goods by the purchaser.
7. All specifications, drawings, and particulars of weights and dimensions submitted by vendor are approximate only and any deviation shall not be
taken to vitiate any contract with vendor or form grounds for any claim against vendor. The descriptions, illustrations and performances
contained in catalogues, price lists and other advertising matter do not form part of the contract of sale of the goods. Where specifications,
drawings or other particulars are supplied by purchaser, vendor's price is made on estimates of quantities required. Should there be any
adjustments in quantities above or below the quantities estimated by vendor and set out in a quotation, then any such increase or decrease shall be
adjusted on a unit rate basis according to unit prices set out herein.
8.1 Any performance figures given by vendor are estimates only. Vendor shall be under no liability for damages for failure to attain such figures
unless specifically guaranteed in writing and any such written guarantee shall be subject to the recognised tolerances applicable to such figures.
8.2 The Purchaser acknowledges that frequency from other products, for example computer equipment, videos, loud speakers and other metal
products may affect the goods’ performance. The Vendor gives no warranty that in the event of any frequency disruption the goods will remain
fit for the purpose intended. The Vendor will not be liable for any claims made as a result of other equipment or other things interfering with the
performance of the goods whether on account of frequency disruption or otherwise.
9. Delivery dates mentioned are an estimate only and vendor shall not be liable for late delivery or non-delivery and under no circumstances shall
the vendor be liable for any loss, damage or delay occasioned to the purchaser arising from late or non-delivery or late installation of the goods.
10. (1) Unless specifically agreed otherwise in writing, delivery shall be ex-factory. The Purchaser must make its own arrangements for the
transport of the goods from the factory and any assistance that the Vendor gives in transporting the goods shall not effect the rights of
the Vendor under this Clause. Vendor is not responsible for any loss or damage to goods in transit.
(2) Risk in the goods shall pass to the Purchaser upon dispatch of goods from Factory.
11. (1) Vendor's liability for goods manufactured by it is limited to making good any defects by repairing the same or at vendor's option by
replacement, within a period not exceeding twelve calendar months after the goods have been dispatched (or installed by Aleis)
provided that:
(a) defects have arisen solely from faulty materials or workmanship;
(b) the goods have not received maltreatment, inattention or interference;
(c) accessories of any kind used by the purchaser are manufactured by or approved by vendor;
(d) the seals of any kind on the goods remain unbroken; and
(e) the defective parts are promptly returned free of cost to vendor.
(f) all freight is paid by the purchaser.
(2) If goods are not manufactured by vendor the guarantee of the manufacturer thereof shall be accepted by the purchaser and is the only
guarantee given to purchaser in respect of the goods.
(3) Vendor shall not be liable for and purchaser releases vendor from any claims in respect of faulty or defective design of any goods
supplied unless such design has been wholly prepared by vendor and the responsibility for any claim has been specifically accepted by
vendor in writing and in any event vendor's liability hereunder shall be strictly limited to the replacement of defective parts in
accordance with para 11(1) of these conditions.
“The Stocky” User Guide
Page 28 of 29
(4) Except as provided herein, all express and implied warranties, guarantees and conditions under statute or general law as to
merchantability, description, quality, suitability or fitness of the goods for any purpose or as to design, assembly, installation,
materials or workmanship or otherwise are hereby expressly excluded and vendor shall not be liable for physical or financial injury,
loss or damage or for consequential loss or damage of any kind arising out of the supply, layout, assembly, installation or operation of
the goods or arising out of vendor's negligence or in any way whatsoever.
12. Vendor's liability for a breach of a condition or warranty implied by Div 2 of Pt V of the Trade Practices Act 1974 (other than s 69) is hereby
limited to:
(1) in the case of goods, any one or more of the following:
(a) the replacement of the goods or the supply of equivalent goods;
(b) the repair of the goods;
(c) the payment of the cost of replacing the goods or of acquiring equivalent goods;
(d) the payment of the cost of having the goods repaired; or
(2) in the case of services:
(a) the supplying of the services again; or
(b) the payment of the cost of having the services supplied again.
13. Vendor's liability under s 74H of the Trade Practices Act 1975 is expressly limited to a liability to pay to the purchaser an amount equal to:
(1) the cost of replacing the goods;
(2) the cost of obtaining equivalent goods; or
(3) the cost of having the goods repaired, whichever is the lowest amount.
14. Unless otherwise stated all prices quoted by vendor are net, exclusive of tax. Prices quoted are those ruling at the date of issue of quotation and
are based on rates of freight, insurance, customs duties, exchange, shipping expenses, sorting and stacking charges, cartage, rate of weighs, cost
of materials and other charges affecting the cost of production ruling on the date the quotation is made and any alterations thereto either before
acceptance of or during the currency of the contract shall be to the purchaser's account.
15 The purchase price in relation to goods shall be payable and payment or balance thereof shall be made immediately at time of order, or otherwise
as agreed in writing.
16. Vendor reserves the following rights in relation to the goods until all accounts owed by the purchaser to vendor are fully paid:
(1) legal ownership of the goods;
(2) to enter the purchaser's premises (or the premises of any associated company or agent where the goods are located) without liability
for trespass or any resulting damage and retake possession of the goods; and
(3) to keep or resell any goods repossessed pursuant to (2) above;
If the goods are resold, or products manufactured using the goods are sold, by the purchaser, the purchaser shall hold such part of the proceeds of
any such sale as represents the invoice price of the goods sold or used in the manufacture of the goods sold in a separate identifiable account as
the beneficial property of vendor and shall pay such amount to vendor upon request. Notwithstanding the provisions above vendor shall be
entitled to maintain an action against the purchaser for the purchase price and the risk of the goods shall pass to the purchaser upon delivery.
17. Any property of the purchaser under vendor's custody or control shall be entirely at the purchaser's risk as regards loss or damage caused to the
property or by it.
18. Vendor reserves the right to make a reasonable charge for storage if the purchaser does not take delivery of goods within fourteen days of
notification that the goods are ready for collection.
19. Vendor shall not be under any obligation to accept goods returned by the purchaser and will do so only on terms to be agreed in writing in each
individual case.
20. All goods to be supplied by vendor shall be as described on the quotation overleaf and the description on such order modified as so agreed shall
prevail over all other descriptions including any purchaser's specification or inquiry.
21. No order may be cancelled except with consent in writing and on terms which will indemnify vendors against all losses.
22. The contract for sale of the goods is made in the state of Queensland and the parties agree to submit all disputes arising between them to the
courts of such state at any court competent to hear appeals therefrom.
23. The Purchaser shall pay all and any import duties, levies or imports and/or any sales, use, excise, gross receipts, value added, goods and services
tax, property or other taxes or duties of any kind whatsoever assessed upon or relating in any way to the goods ordered by the Purchaser
irrespective of the person, nation, state or authority requiring payment thereof.
24. If the Vendor has not paid for any goods on the due date specified in this Agreement, without prejudice to any other right or remedy, all
outstanding money shall bear interest on daily balances until paid at the rate of 1.5% per month and such money together with all interest shall be
recoverable forthwith from the Purchaser.
“The Stocky” User Guide
Page 29 of 29
The Purchaser charges as a fixed charge with the payment of all monies now or in the future becoming owing hereunder all his property both real and
personal (other than property referred to in Section 262 (i) of the Corporations Law) and as a separate charge charges all his other property with the payment
of all monies now or in the future becoming owing hereunder, provided that this second charge will be a floating charge in respect of the Purchaser’s current
assets but otherwise will be a fixed charge. The Purchaser irrevocably makes, nominates, constitutes and appoints, and in the place and stead of the
Purchaser puts and deputes the Vendor and (if the Vendor is a corporation) the directors, general manager and secretary for the time being of the Vendor
jointing and each of them severally to be the Attorney or Attorneys of Purchaser at any time after default as aforesaid has been made (sufficient proof of
which will be the Statutory Declaration of the Attorney or Attorneys or either or any of them) to do all such things as may be required to consent to any
Caveat or other like instrument under the Real Property Legislation of any other jurisdiction in the form prepared by the Vendor’s Solicitor over any or all of
the Purchaser’s property and to execute a mortgage and/or charge or other like instrument under the Real Property Legislation of any other jurisdiction in
such form and containing such terms and conditions as the Vendor may require over any or all of the Purchaser’s property and from time to time to appoint a
substitute or substitutes and such appointment or appointments at pleasure to revoke and another or other substitute or substitutes to appoint and generally to
do, execute and perform any act, deed, matter or thing for that purpose as fully and effectually as the Purchaser could do and the Purchaser agrees to ratify
and confirm all and whatever the said Attorney or Attorneys or any substitute or substitutes lawfully do or cause to be done for that purpose.
The End Ver10/05/01
