Alereon AL5612 AL5612 4-Port Hub Module User Manual AL5612UGRev1
Alereon, Inc AL5612 4-Port Hub Module AL5612UGRev1
Alereon >
Users Guide
Rev. 1.0
June 25, 2008 12:57 PM
Alereon Confidential
AL5612 Hub
User Guide
Draft Version 0.1
Overview
This document provides operational guidance for the AL5612
1.0 OVERVIEW
The AL5612 allows Ultra-wideband (UWB) wireless data transfer and interoperability with other
Certified Wireless USB devices. Certified Wireless USB is the new wireless extension to USB,
combining the speed and security of wired USB technology with the connivance and ease-of-use of
wireless. Certified Wireless USB supports robust high-speed wireless connectivity by utilizing the
common WiMedia UWB radio platform developed by the WiMedia Alliance. UWB technology offers a
solution for high bandwidth, low cost, and low power consumption. Certified Wireless USB is the first
high-speed wireless personal interconnect technology to meet the needs of multimedia consumer
electronics, PC peripherals, and mobile devices. Certified Wireless USB preserves the functionality of
wired USB while eliminating the tangle of cable connections.
![](/img.php?id=961246&img=bg2.png)
AL5612 Hub User Guide June 25, 2008 12:57 PM
2 Alereon Confidential Rev. 1.0

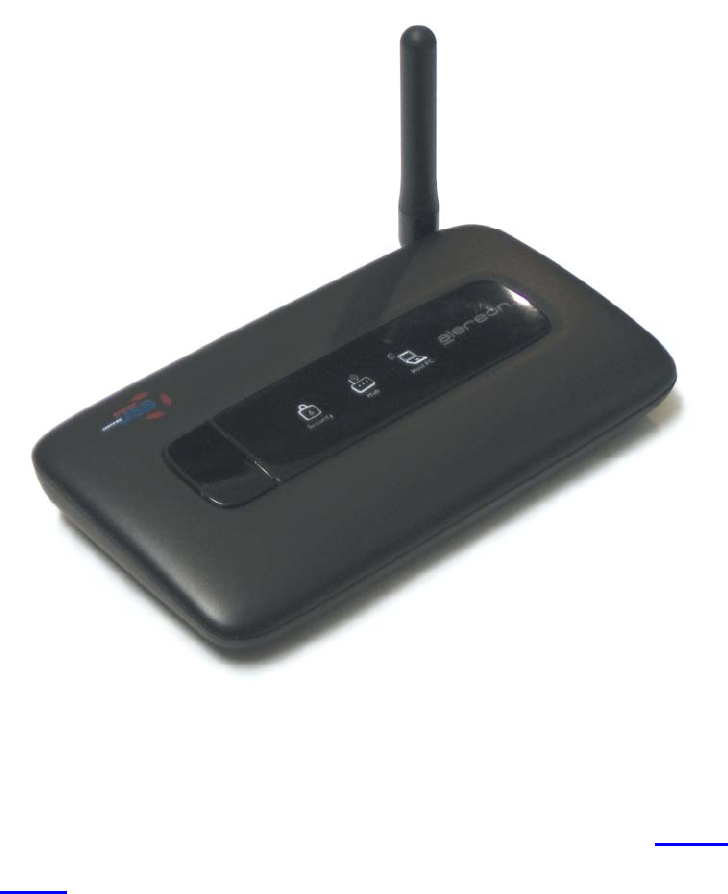

Figure 1. AL5612 enclosure
2.0 PACKAGE CONTENTS
Your AL5612 Hub Solution package should contain all the items shown in Figure 1. In addition, there
will be a CD containing all software (including drivers) and documentation for the AL5612 Hub. See
Table 1 for package contents.
![](/img.php?id=961246&img=bg3.png)
June 25, 2008 12:57 PM AL4512 Hub Programming
Rev. 1.0 Alereon Confidential 3
Table 1 AL5612 Hub Package Contents
1 AL5612 Certified Wireless USB Hub
2 Antenna
3 Power Supply
4 Power Cord
5 USB Cable
6 Documentation/Software CD (not shown)

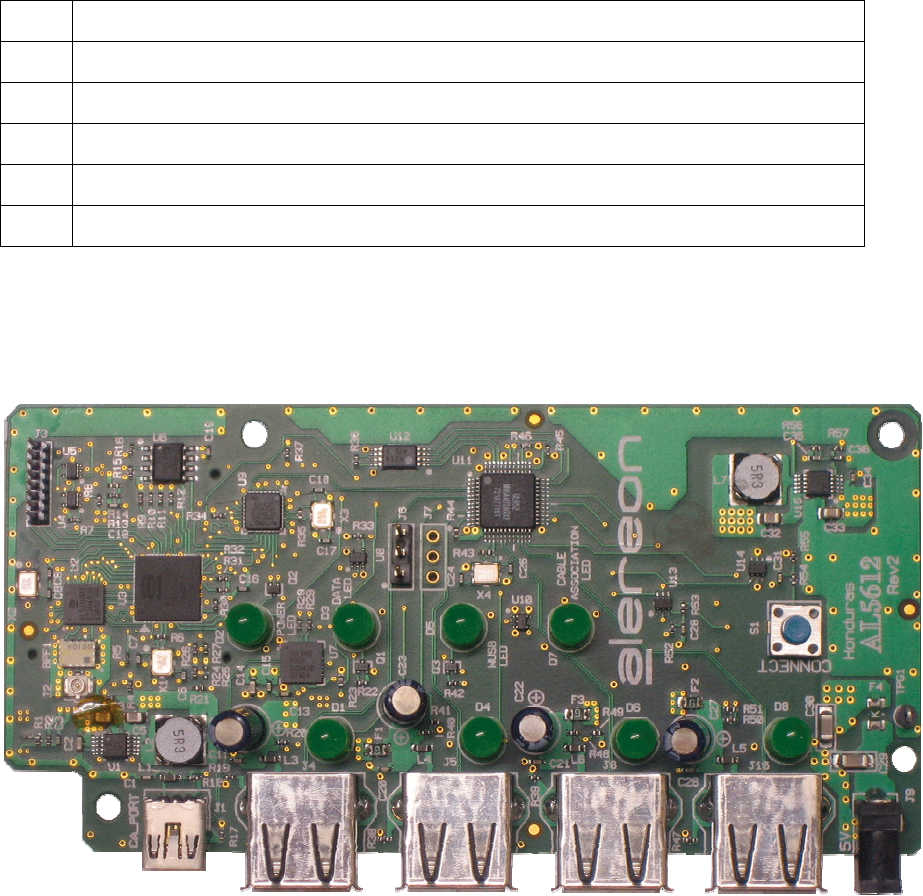

Figure 2. AL5612 populated PCB assembly
3.0 PRODUCT FEATURES
The AL5612 Hub provides numerous features:
• Certified Wireless USB offers guaranteed interoperability with other Certified Wireless USB
devices.
• Eliminates networking cable clutter.
• Windows XP and Vista compatibility via included software drivers.
• Compact designs help prevent desk clutter.
• Full one year warranty (see enclosed warranty sheet for details).
AL5612 Hub User Guide June 25, 2008 12:57 PM
4 Alereon Confidential Rev. 1.0
• 55 Mbps–480 Mbps data rates, depending on range, application, and ambient wireless
conditions.
4.0 SYSTEM REQUIREMENTS
The following specifications are necessary for each computer using the AL5612 Hub Solution:
• USB-equipped PC
• Windows XP with Service Pack 2 and the .NET Framework 2.0 installed or Windows Vista
• 1GHz (or greater) processor
• 256MB (or more) memory
• At least 50MB of free hard-drive space
• At least one other Certified Wireless USB device with which to communicate
5.0 RANGE
In normal home and business environments, Alereon recommends that the AL5612 hub be placed
within 10 meters of the Certified Wireless USB devices with which it is communicating for best
operations. Under ideal circumstances and with properly configured Certified Wireless USB devices
(such as the AL5604 USB dongle), the AL5612 Hub is capable of significantly longer ranges, but
these are not guaranteed. Likewise, in environments with heavy EMF shielding or significant radio
frequency (RF) noise, the hub and other Certified Wireless USB devices may need to be placed
closer together for optimal performance.
6.0 SETUP
Perform the following steps to get your AL5612 Hub up and running:
1. Remove all items from the packaging and inspect them for damage. If any appear to have
been damaged in shipping, please contact Alereon Technical Support via this web form:
http://www.alereon.com/contact-us/
2. Put the Documentation/Software CD into the PC to which you wish to attach the Hub. An
install program will automatically start running after insertion (if not, please double-click on
the program icon on the CD, or reset your permissions to allow the program to run).
3. Follow the on-screen instructions to install the driver and software for the hub.
4. Attach the hub to the PC by plugging it into the USB port.
Warning: Operation of this unit is authorized by the FCC only with the antenna furnished.
Substitution or alteration of the antenna or its connection may void the users authority of operate
this device.
6. Following the remaining interactive software instructions to configure the hub for operation.
7. Once you have finished these steps, your AL5612 Hub should be working.
7.0 OPERATIONS
For details on how to use the Certified Wireless USB software, please see the Alereon Software
Guide.
June 25, 2008 12:57 PM AL4512 Hub Programming
Rev. 1.0 Alereon Confidential 5
8.0 FCC COMPLIANCE
8.1 Compliance Statement
The following compliance statement applies to the AL5612 Hub:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
8.2 FCC Requirements
8.2.1 Modification Voids Compliance Warning
Warning: Changes or modifications to the AL5612 Hub not expressly approved by Alereon can void
the your warranty and place the AL5612 Hub outside FCC equipment authorization.
8.2.2 Electromagnetic Interference Control
Electromagnetic Interference (EMI) is any signal or emission, radiated in free space or conducted
along power or signal leads, which endangers the function of radio navigation or other safety service
(the telephone and cellphones are considered to be safety services) or seriously degrades, obstructs
or repeatedly interrupts a licensed radio communications service. Radio communications services
include but are not limited to: AM/FM commercial broadcast, television, cellular services, radar, air
traffic control, pager and personal communications services (PCS). These licensed services, along
with unintentional radiators such as digital devices, including computer systems, contribute to the
electromagnetic environment.
Electromagnetic Compatibility (EMC) is the ability of items of electronic equipment to function
properly together in the electromagnetic environment. While the AL5612 Hub has been designed and
determined to be compliant with regulatory agency limits for EMI, there is no guarantee that
interference will not occur in a particular installation. If it does cause interference with radio
communications services, which can be determined by turning the device on and off, you are
encouraged to try to correct the interference by one or more of the following measures:
• Reorient the receiving antenna
• Relocate the device with respect to the victim receiver
• Move the device away from the victim receiver
• Plug the device host into a different power outlet than the victim receiver so that the device
system and receiver are on separate branch circuits
If necessary, consult your system service representative or an experienced radio/television technician
for additional help in resolving interference.
AL5612 Hub User Guide June 25, 2008 12:57 PM
6 Alereon Confidential Rev. 1.0
9.0 TROUBLESHOOTING
Below are troubleshooting steps to resolve the most common problems with your AL5612 Hub.
9.1 Installation Software Does Not Start After CD Inserted
If the CD-ROM does not start the Alereon Software Installation program automatically, other
applications could be interfering with the CD drive. If the Alereon Software Installation screen does
not appear within 30 seconds, double-click on the “My Computer” icon. Next, double-click on the
CD-ROM drive in which the Installation CD has been placed to start the installation. If the installation
does not start automatically, right-click to select “Explore”, then double-click on the installation icon.
9.2 Power LED Does Not Light Up; Hub Not Working
If the LED indicators do not light up, your hub may not be powered up. Verify that the hub power
adapter is plugged firmly into a power socket (wall outlet, power strip, etc.), and that the socket has
power. Check to see that the drivers for the Card have been installed. Right-click on the “My
Computer” icon on your desktop. Choose “Properties” and navigate to the “Device Manager” and see
if your AL5612 Hub is listed without any errors. If an error is indicated, contact Alereon technical
support, as indicated in Section 6.0.
9.3 Other Software Errors
For other software errors or driver difficulties, please see the Alereon Software Guide.
